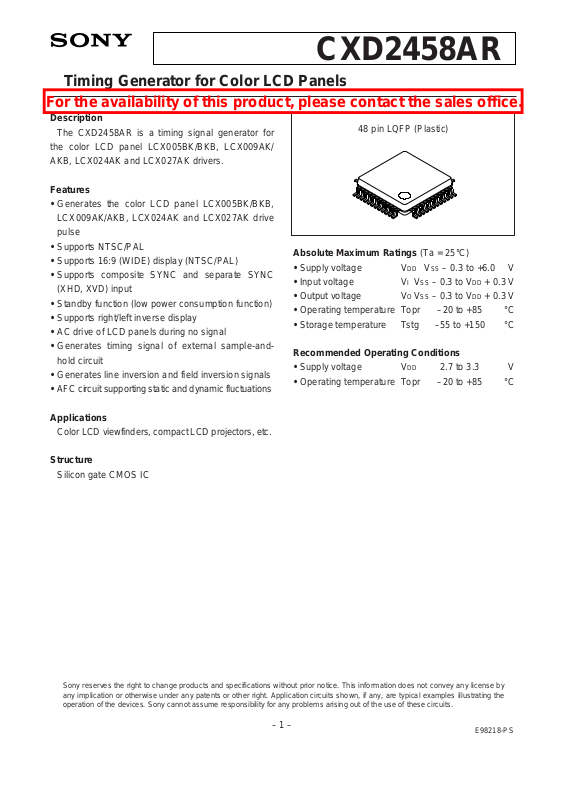

Page 1
CXD2458AR
Timing Generator for Color LCD Panels
Description
The CXD2458AR is a timing signal generator for
the color LCD panel LCX005BK/BKB, LCX009AK/
AKB, LCX024AK and LCX027AK drivers.
Features
• Generates the color LCD panel LCX005BK/BKB,
LCX009AK/AKB, LCX024AK and LCX027AK drive
pulse
• Supports NTSC/PAL
• Supports 16:9 (WIDE) display (NTSC/PAL)
• Supports composite SYNC and separate SYNC
(XHD, XVD) input
• Standby function (low power consumption function)
• Supports right/left inverse display
• AC drive of LCD panels during no signal
• Generates timing signal of external sample-and-
hold circuit
• Generates line inversion and field inversion signals
• AFC circuit supporting static and dynamic fluctuations
Applications
Color LCD viewfinders, compact LCD projectors, etc.
Structure
Silicon gate CMOS IC
Absolute Maximum Ratings (Ta = 25°C)
• Supply voltage VDD VSS – 0.3 to +6.0 V
• Input voltage VI VSS – 0.3 to VDD + 0.3 V
• Output voltage VO VSS – 0.3 to VDD + 0.3V
• Operating temperature Topr –20 to +85 °C
• Storage temperature Tstg –55 to +150 °C
Recommended Operating Conditions
• Supply voltage VDD 2.7 to 3.3 V
• Operating temperature Topr –20 to +85 °C
– 1 –
E98218-PS
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
48 pin LQFP (Plastic)
For the availability of this product, please contact the sales office.
Page 2
– 2 –
CXD2458AR
Block Diagram
PLL PHASE COMPARATOR
H-SYNC
DETECTOR
H-SKEW
DETECTOR
V-SYNC
SEPERATOR
(NOISE SHAPE)
PLL-COUNTER
HALF-H
KILLER
H-TIMING
PULSE
GENERATOR
CKO
XCLR
TST3
SLCK
XHD
CKI
PLNT
TST4
EN
VD
VST
VCK1
VCK2
FLDO
SBLK
WIDE
RPD
HD
XCLP
HP1
HST1
HP2
HP3
HP4
RGT
HST2
HCK1
HCK2
SH1
SH2
SH3
SH4
CLR
SLFR
FRP
master ck
FIELD & LINE
CONTROLLER
2
3
4
5
17
18
20
21
25
27
29
41
42
1
PAL PULSE
ELIMINATOR
10
13
14
16
22
23
24
28
30
39
38
36
35
34
32
33
46
47
48
TST0
TST1
TST2
7
8
9
45
XVD
15
STBY
37
44
12
11
26
BLK
V-TIMING
PULSE GENERATOR
SLTM
SLNP
VDD
VDD
VSS
VSS
VSS
19
43
6
31
40
Page 3
– 3 –
CXD2458AR
Pin Description
Pin
No.
Symbol I/O Description
Input pin for
open status
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
SLCK
PLNT
XCLR
WIDE
SBLK
VSS
TST0
TST1
TST2
RGT
SLTM
BLK
SLFR
HST2
STBY
CLR
EN
VST
VDD
VCK2
VCK1
HST1
HCK2
HCK1
VD
SLNP
XHD
FRP
FLDO
SH4
VSS
SH1
SH2
SH3
I
I
I
I
O
—
I
I
I
I
I
O
I
O
I
O
O
O
—
O
O
O
O
O
O
I
I
O
O
O
—
O
O
O
Switches between LCX005, LCX024 (H) and LCX009, LCX027 (L)
Switches between PAL (H) and NTSC (L)
Cleared at 0V
Switches between 16:9 display (H) and 4:3 display (L)
SBLK pulse output (during WIDE MODE) (positive polarity)
GND
Test (Leave open.)
Test (Leave open.)
Test (Leave open.)
Switches between Normal scan (H) and Reverse scan (L)
Switches between LCX027 (H) and LCX009 (L)
BLK pulse output (during WIDE MODE) (positive polarity)
Switches between field inversion (H) and line inversion (L)
H start pulse 2 (positive polarity)
Standby input (H: Operating mode, L: Standby mode)
CLR pulse output
EN pulse output
V start pulse output
Power supply
V clock pulse 2
V clock pulse 1
H start pulse 1 (positive polarity)
H clock pulse 2
H clock pulse 1
VD pulse output (positive polarity)
Switches between LCX024 (H) and LCX005 (L)
XHD (negative polarity)/Composite SYNC (positive polarity) input
AC drive timing pulse
Field identification signal
Sample-and-hold pulse (positive polarity)
GND
Sample-and-hold pulse (positive polarity)
Sample-and-hold pulse (positive polarity)
Sample-and-hold pulse (positive polarity)
L
L
H
L
—
—
L
L
L
H
L
—
L
—
H
—
—
—
—
—
—
—
—
—
—
L
—
—
—
—
—
—
—
—
Page 4
– 4 –
CXD2458AR
Pin
No.
Symbol I/O Description
Input pin for
open status
35
36
37
38
39
40
41
42
43
44
45
46
47
48
XCLP
HD
TST3
HP4
RPD
VSS
CKO
CKI
VDD
TST4
XVD
HP1
HP2
HP3
O
O
I
I
O
—
O
I
—
I
I
I
I
I
Burst position clamp pulse (negative polarity)
HD pulse (positive polarity)
Test (Leave open.)
Switches the horizontal display position
Phase comparator output
GND
Oscillation cell (output)
Oscillation cell (input)
Power supply
Test (Leave open.)
XVD (negative polarity) input
Switches the horizontal display position
Switches the horizontal display position
Switches the horizontal display position
—
—
H
H
—
—
—
—
—
H
L
L
L
L
(H: Pull up, L: Pull down)
Note) The CXD2458AR processes the composite SYNC and separate SYNC inputs with the same pins.
Therefore, care should be given to the following points when using the CXD2458AR.
1) During composite SYNC input, the XVD input pin should be set to L or left open.
2) During separate SYNC (XHD, XVD) input, the XVD width specification is from 2H to 10H.
Page 5
– 5 –
CXD2458AR
Electrical Characteristics
DC Characteristics (VDD = 3.0V ± 10%, Topr = –20 to +85°C)
Item
Symbol
Min. Typ. Max. UnitMeasurement conditions
H level input voltage
L level input voltage
H level input current
L level input current
H level input current
L level input current
H level input current
L level input current
L level output voltage
H level output voltage
L level output voltage
H level output voltage
L level output voltage
H level output voltage
Output leak current
Current consumption
VIH
VIL
IIH1
IIL1
IIH2
IIL2
IIH3
IIL3
VOL1
VOH1
VOL2
VOH2
VOL3
VOH3
IOZ
IDD
VI = VDD
VI = 0V
VI = VDD
VI = 0V
VI = VDD
VI = 0V
IOL = 1mA
IOH = –250µA
IOL = 500µA
IOH = –125µA
IOL = 500µA
IOH = –250µA
At high impedance state
VDD = 3.0V, STBY = H
VDD = 3.0V, STBY = L
0.7VDD
10
–10
2.6
2.6
2.6
–1.0
12
3
0.3VDD
1.0
–1.0
180
–3.0
3.0
–180
0.2
0.2
0.2
1.0
V
V
µA
µA
µA
µA
µA
µA
V
V
V
V
V
V
µA
mA
mA
Remarks
∗1
∗2
∗3
∗4
∗5
∗6
∗7
∗8
Item Applicable pins Min. Typ. Max. UnitConditions
Clock input cycle
Cross-point time difference
Output rise delay time
Output fall delay time
HCK1, SH1 delay time difference
HCK2, SH1 delay time difference
HCK Duty
CKI
HCK1, HCK2
VCK1, VCK2
VCKn, HCKn
Other than HCKn and VCKn
VCKn, HCKn
Other than HCKn and VCKn
HCK1, SH1
HCK2, SH1
HCK1, HCK2
CL = 30pF
CL = 30pF
CL = 30pF
CL = 30pF
CL = 30pF
CL = 30pF
CL = 30pF
CL = 30pF
CL = 30pF
60
1
3
1
1
48
15
20
84
76
71
62
5
5
53
ns
ns
ns
ns
ns
ns
ns
ns
ns
%
Symbol
tck
∆t
tpr
tpf
dt1
dt2
dtyH
∗1
All input pins.
∗2
Input pins XHD and CKI.
∗3
Input pins SLNP and XVD.
∗4
Input pins XCLR, RGT, STBY, HP4, TST3 and TST4.
∗5
Output pins HCK1 and HCK2.
∗6
All output pins other than those listed in ∗5, ∗7and ∗8.
∗7
Output pin CKO. However, set the input level of input pin CKI to 0V or VDD during measurement.
∗8
Output pin RPD.
AC Characteristics (VDD = 3.0V ± 10%, Topr = –20 to +85°C)
Page 6
– 6 –
CXD2458AR
Output
tpr
Output
tpf
100%
CKI
HCK1/VCK1
HCK2/VCK2
V
DD
0V
V
DD
0V
V
DD
0V
VDD
0V
V
DD
0V
50%
50%
50%
50%
∆t∆t
Timing Definition
AC Characteristics
tck
50% 50% 50%
50% 50%
tH tL
dt1 dt2
SH1
HCK1/HCK2
CKI
Page 7
– 7 –
CXD2458AR
LCX005BK/BKB, LCX024AK Pixel Arrangement
G B R G
B R G B
G B R
B R G
G B R
B R G
G B R
B R G
G B R
B R G
G B R
B R G
G B R
B R G
G B R G
B R G B
B R G
R G B
B R G
R G B
G
B
G
B
G
B
G
B
G
B
G
B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B
R
B
R
B
R
B
R
B
R
B
R
B
R
B
R
R
R
R
R
R
R
R
R
G
G
G
G
G
G
G
G
G B R
B R G
G B R
B R G
G B R
B R G
G B R
B R G
G B R
B R G
G B R
B R G
G B R
B R G
G B R
B R G
dummy2 to 5
Hout175Hout174Hout2Hout1 Hout3
dummy1
Drive display area
Photo-shielding area
218 222
521
133
537
2
2
dummy1
Vout1
Vout2
Vout3
Vout218
dummy3
dummy4
dummy2
Vout217
Page 8
– 8 –
CXD2458AR
LCX009AK/AKB, LCX027AK Pixel Arrangement
B R G
R G B
B R
R G
B R
R G
B R
R G
B R
R G
B R
R G
B R
R G
B R G
R G B
B R G
R G B
B R G
R G B
G
B
G
B
G
B
G
B
G
B
G
B
B R
R G
B R
R G
B R
R G
B R
R G
B R
R G
B R
R G
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B
R
B
R
G B R G B R G B R G B R G B R G B
B R G B R G B R G B R G B R G B R
G
B
G
B
G
B
G
B
G
B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B R G
R G B
B
R
B
R
B
R
B
R
B
R
R
R
R
R
R
R
R
R
G
G
G
G
G
G
G
G
G B R
B R G
G B R
B R G
G B R
B R G
G B R
B R G
G B R
B R G
G B R
B R G
G B R
B R G
G B R
B R G
dummy5 to 8
Hout268Hout267Hout2Hout1 Hout3
dummy1 to 4
dummy1
Vout1
Vout2
Vout3
Vout224
Vout225
dummy3
dummy2
Photo-shielding area
225 228
800 1314
827
1
2
Drive display area
Page 9
– 9 –
CXD2458AR
Description of Mode Selection Switch (SLCK, SLTM, SLNP, PLNT, WIDE)
SLCK
H
H
H
H
H
H
H
H
L
L
L
L
L
L
L
L
SLTM
X
X
X
X
X
X
X
X
L
L
L
L
H
H
H
H
SLNP
L
L
L
L
H
H
H
H
X
X
X
X
X
X
X
X
PLNT
L
L
H
H
L
L
H
H
L
L
H
H
L
L
H
H
WIDE
L
H
L
H
L
H
L
H
L
H
L
H
L
H
L
H
MODE
LCX005BK/BKB, NTSC, NORMAL
LCX005BK/BKB, NTSC, WIDE
LCX005BK/BKB, PAL, NORMAL
LCX005BK/BKB, PAL, WIDE
LCX024AK, NTSC, NORMAL
LCX024AK, NTSC, WIDE
LCX024AK, PAL, NORMAL
LCX024AK, PAL, WIDE
LCX009AK/AKB, NTSC, NORMAL
LCX009AK/AKB, NTSC, WIDE
LCX009AK/AKB, PAL, NORMAL
LCX009AK/AKB, PAL, WIDE
LCX027AK, NTSC, NORMAL
LCX027AK, NTSC, WIDE
LCX027AK, PAL, NORMAL
LCX027AK, PAL, WIDE
∗
NORMAL (4:3 display), WIDE (16:9 display)
∗X: Don't Care
SLFR
SLFR is the selector switch for the AC drive timing pulse (FRP). This switch selects field inversion when H and
line inversion when L. Normally, line inversion (L) is used. The transition point is one clock cycle after the
transition point of the VCK1 and VCK2 pulses.
1H
1Field
1Field
1H
1H inversion
(2H cycle)
1F inversion
(2F cycle)
∗
FRP polarity is not specified.
FRP
1H 1H
Page 10
– 10 –
CXD2458AR
AFC Circuit (PLL Method)
The CXD2458AR employs the PLL method in order to achieve phase synchronization with the input sync
signal.
The PLL circuit phase comparator and frequency division counter are built in, and a fully synchronized AFC
circuit is comprised by connecting an external VCO circuit and LPF.
PLL errors are detected at the following timing.
The phase comparison output of the entire bottom of XHD or the horizontal sync signal of composite SYNC
and the internal H counter becomes RPD. RPD output is converted to DC error with the lag-lead filter (LPF),
and then it changes the varicap capacitance to stabilize the oscillating frequency at 702fh in the
LCX005BK/BKB and LCX024AK, and 1050fh in the LCX009AK/AKB and LCX027AK.
This PLL circuit is adjusted by setting the RPD transition point so that it sets in the center of the window (XHD
or horizontal sync signal of composite SYNC) as shown in the figure below.
XHD or horizontal sync signal of
composite SYNC
4.7µs
RPD
WL WH
WL = WH
AC Driving for No Signal
HST1/2, HCK1/2, FRP, VCK1/2, XCLP, VST, HD, VD, SH1/2/3/4 and EN are made to run freely so that the
LCD panel is AC driven even when there are no input sync signals (XHD/XVD and composite SYNC).
During this time, the horizontal sync separation circuit stops and the PLL internal frequency division counter is
made to run freely. At the same time, the auxiliary V counter is used to create the reference pulse for
generating the free running VD and VST because the vertical sync separation circuit is also stopped.
The cycle of this V counter is set to 269H for NTSC and 321H for PAL. However, when there is no XVD
(VSYNC) input for 301H (NTSC) and 360H (PAL), the no signal state is assumed and the free running VD and
VST pulses are generated from the next field.
RPD is kept at high impedance when there is no signal in order to prevent the AFC circuit from causing phase
errors due to phase comparison.
System Clear (XCLR)
The entire logic is initialized by setting XCLR = L. Be sure to perform this operation during power-on and after
changing the STBY pin from L to H. When this function is activated the outputs (XCLP, HD, FRP, VST, VD,
CLR, EN, HST1/2, HCK1/2, SH1/2/3/4, VCK1/2, FLDO, SBLK and BLK) go to L.
Page 11
– 11 –
CXD2458AR
Right/Left Inverse Display
The CXD2458AR outputs a right/left inversion timing pulse that supports the right/left inverse display function
of the LCX005BK/BKB, LCX024AK, LCX009AK/AKB and LCX027AK.
The LCD panel is arranged in a delta pattern, where the same signal line is 1.5-dot offset at adjoining vertical
lines. For this reason, a 1.5-dot offset is attached to the horizontal start pulse (HST) of the LCD between odd
lines and even lines in order to correct this difference. Other H system output pulses are also 1.5-dot offset.
When the panel is driven with left scan (Reverse scan), this offset relationship becomes inverted for even and
odd lines, and the asymmetrical dot arrangement produces an offset.
Therefore, the CXD2458AR internally controls the right/left and interline offset to allow right scan or left scan
display by setting RGT = H or L for right/left inversion.
Left scan
(Reverse scan)
Right scan
(Normal scan)
Display area
H SCANNER
V SCANNER
SH Pulse and HCK Phase Relationship
The phase relationship between the SH pulse and HCK changes according to switching between right scan
(Normal scan) and left scan (Reverse scan). SH3 is the re-sampling pulse.
RGT = H (Normal scan) RGT = L (Reverse scan)
HCK1/2
SH1
SH2
SH3
SH4
Page 12
– 12 –
CXD2458AR
16:9 (WIDE) Display Mode
Setting the WIDE pin to H shifts the unit to WIDE display mode. In this mode, the aspect ratio is converted
through pulse eliminator processing, allowing 16:9 quasi-WIDE display.
Vertical pulse eliminator scanning of 1/4 (NTSC) and 2/6 (PAL) for the LCX005BK/BKB and LCX009AK/AKB,
and 1/4 (NTSC) and 10/28 (PAL) for the LCX024AK and LCX027AK is performed, and the video signal is
compressed in the display area compared to 4:3 display to achieve 16:9 (WIDE) display. In addition, in areas
outside the display area, vertical high-speed scanning is performed and black signals are written to the black
display area in the upper 28 lines and the lower 27 or 28 lines. During this period, the FRP and HST output
cycles are also changed, and EN and CLR are not output. In addition, the SBLK output, which is the black
signal generation timing pulse, and the LCX024AK/LCX027AK black display area control signal BLK are both
H.
(For example, black display in the panel is permitted by connecting the SBLK output to the external RGB input
pin of the CXA1785AR.)
See the Timing Charts for details.
4:3 display
28 LINES
(28 LINES)
218 LINES
(225 LINES)
Vertical pulse eliminator scanning
Vertical high speed scanning
16:9 display
Display area
163 LINES
(169 LINES)
27 LINES
(28 LINES)
Display area
Black display area
Black display area
∗
Numbers in parentheses are for the LCX009AK/AKB and LCX027AK.
Note) When the no signal status occurs during 16:9 (WIDE) display mode, 4:3 display mode results.
Page 13
– 13 –
CXD2458AR
HP1, 2, 3, 4
These are selector switches for the horizontal display position. The HST timing can be set at 2fh intervals in 16
different ways by using the four HP1, 2, 3 and 4 bits. The picture center is set at internal preset value:
HP1/2/3/4: LLLH. However, because there is actually a difference between the RGB signal and the drive pulse
delays, the picture center may not match the design center. In this case, adjust with these switches.
The HST timing (from SYNC termination to the rising edge of HST) for even lines is shown below.
LCX005BK/BKB, LCX024AK (NTSC/PAL)
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
72fh (6.51/6.56µs)
70fh
68fh
66fh
64fh
62fh
60fh
58fh
56fh (5.06/5.11µs)
54fh
52fh
50fh
48fh
46fh
44fh
42fh (3.80/3.83µs)
74.5fh (6.74/6.79µs)
72.5fh
70.5fh
68.5fh
66.5fh
64.5fh
62.5fh
60.5fh
58.5fh (5.29/5.33µs)
56.5fh
54.5fh
52.5fh
50.5fh
48.5fh
46.5fh
44.5fh (4.02/4.06µs)
HP4 HP3 HP2 HP1
HST1 (NTSC/PAL) HST2 (NTSC/PAL)
∗
The HST1 and 2 timing for odd lines is 1.5fh delayed and 1.5fh advanced respectively from the above timings.
(See the Timing Charts for details.)
Page 14
– 14 –
CXD2458AR
LCX009AK/AKB, LCX027AK (NTSC/PAL)
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
91fh (5.51/5.55µs)
89fh
87fh
85fh
83fh
81fh
79fh
77fh
75fh (4.54/4.57µs)
73fh
71fh
69fh
67fh
65fh
63fh
61fh (3.69/3.72µs)
93.5fh (5.66/5.70µs)
91.5fh
89.5fh
87.5fh
85.5fh
83.5fh
81.5fh
79.5fh
77.5fh (4.69/4.72µs)
75.5fh
73.5fh
71.5fh
69.5fh
67.5fh
65.5fh
63.5fh (3.84/3.87µs)
HP4 HP3 HP2 HP1
HST1 (NTSC/PAL) HST2 (NTSC/PAL)
∗
The HST1 and 2 timing for odd lines is 1.5fh delayed and 1.5fh advanced respectively from the above timings.
(See the Timing Charts for details.)
Page 15
– 15 –
CXD2458AR
ODD LINE
Note) The third row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(BLK)
HD
XCLP
HST1
HCK2
SH1
SH3
SH2
SH4
FRP
VCK1
HST2
CLR
MCK
XHD
HCK1
VCK2
EN
HP1/2/3/4: LLLH
RGT: H (Normal scan)
4.7µs (52fh)
4.7µs (52fh)
ODD FIELD
EVEN FIELD
2.1µs (23fh)
4.4µs (49fh)
1.3µs (14fh)
2.0µs (22fh)
4.5fh
0.5fh
13fh
13fh
18.5fh
3.0µs (33fh)
0.5µs (6fh)
LCX005BK/BKB, LCX024AK Horizontal Direction Timing Chart
NTSC/PAL
Page 16
– 16 –
CXD2458AR
EVEN LINE
Note) The third row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(BLK)
HD
XCLP
HST1
HCK2
SH1
SH3
SH2
SH4
FRP
VCK1
HST2
CLR
MCK
HCK1
VCK2
EN
4.7µs (52fh)
4.7µs (52fh)
ODD FIELD
EVEN FIELD
2.1µs (23fh) 4.4µs (49fh)
1.3µs (14fh)
2.0µs (22fh)
3.0fh
2.5fh
13fh
13fh
18.0fh
0.5µs (6fh)
3.0µs (33fh)
XHD
HP1/2/3/4: LLLH
RGT: H (Normal scan)
LCX005BK/BKB, LCX024AK Horizontal Direction Timing Chart
NTSC/PAL
Page 17
– 17 –
CXD2458AR
ODD LINE
Note) The third row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(BLK)
HD
XCLP
HST1
HCK2
SH1
SH3
SH2
SH4
FRP
VCK1
HST2
CLR
MCK
HCK1
VCK2
EN
HP1/2/3/4: LLLH
RGT: L (Reverse scan)
4.7µs (52fh)
4.7µs (52fh)
ODD FIELD
EVEN FIELD
2.1µs (23fh) 4.4µs (49fh)
2.0µs (22fh)
2.5fh
4.0fh
13fh
13fh
18.0fh
0.5µs (5fh)
3.0µs (34fh)
XHD
LCX005BK/BKB, LCX024AK Horizontal Direction Timing Chart
NTSC/PAL
Page 18
– 18 –
CXD2458AR
EVEN LINE
Note) The third row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(BLK)
HD
XCLP
HST1
HCK2
SH1
SH3
SH2
SH4
FRP
VCK1
HST2
CLR
MCK
HCK1
VCK2
EN
4.7µs (52fh)
4.7µs (52fh)
ODD FIELD
EVEN FIELD
2.0µs (22fh) 4.5µs (50fh)
1.4µs (15fh)
2.0µs (22fh)
13fh
13fh
5.5fh
0.5fh
18.5fh
0.5µs (5fh)
3.0µs (34fh)
XHD
HP1/2/3/4: LLLH
RGT: L (Reverse scan)
LCX005BK/BKB, LCX024AK Horizontal Direction Timing Chart
NTSC/PAL
Page 19
– 19 –
CXD2458AR
ODD LINE
Note) The third row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(BLK)
HD
XCLP
HST1
HCK2
SH1
SH3
SH2
SH4
FRP
VCK1
HST2
CLR
MCK
XHD
HCK1
VCK2
EN
4.7µs (78fh)
4.7µs (78fh)
ODD FIELD
EVEN FIELD
0.5µs (8fh)
3.0µs (50fh)
12fh
12fh
2.5fh
0.5fh
2.0µs (33fh)
1.3µs (22fh)
4.4µs (72fh)
2.0µs (34fh)
43.5fh
HP1/2/3/4: LLLH
RGT: H (Normal scan)
LCX009AK/AKB, LCX027AK Horizontal Direction Timing Chart
NTSC/PAL
Page 20
– 20 –
CXD2458AR
EVEN LINE
Note) The third row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
HD
XCLP
HST1
HCK2
SH1
SH3
SH2
SH4
FRP
VCK1
HST2
CLR
MCK
XHD
HCK1
VCK2
EN
4.7µs (78fh)
4.7µs (78fh)
ODD FIELD
EVEN FIELD
2.0µs (34fh)
4.4µs (72fh)
1.3µs (22fh)
2.0µs (33fh)
2.5fh
4.0fh
12fh
12fh
43.0fh
3.0µs (50fh)
0.5µs (8fh)
HP1/2/3/4: LLLH
RGT: H (Normal scan)
(BLK)
LCX009AK/AKB, LCX027AK Horizontal Direction Timing Chart
NTSC/PAL
Page 21
– 21 –
CXD2458AR
Note) The third row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(BLK)
HD
XCLP
HST1
HCK2
SH1
SH3
SH2
SH4
FRP
VCK1
HST2
CLR
MCK
XHD
HCK1
VCK2
EN
4.7µs (78fh)
4.7µs (78fh)
ODD FIELD
EVEN FIELD
2.0µs (34fh)
4.4µs (72fh)
1.3µs (22fh)
2.0µs (33fh)
2.5fh
3.0fh
12fh
12fh
43.0fh
3.0µs (51fh)
0.5µs (7fh)
ODD LINE
HP1/2/3/4: LLLH
RGT: L (Reverse scan)
LCX009AK/AKB, LCX027AK Horizontal Direction Timing Chart
NTSC/PAL
Page 22
– 22 –
CXD2458AR
Note) The third row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
HD
XCLP
HST1
HCK2
SH1
SH3
SH2
SH4
FRP
VCK1
HST2
CLR
MCK
XHD
HCK1
VCK2
EN
4.7µs (78fh)
4.7µs (78fh)
EVEN LINE
1.5fh
0.5fh
2.0µs (33fh)
1.3µs (22fh)
4.4µs (72fh)
2.0µs (34fh)
ODD FIELD
EVEN FIELD
0.5µs (7fh)
3.0µs (51fh)
12fh
12fh
43.5fh
HP1/2/3/4: LLLH
RGT: L (Reverse scan)
(BLK)
LCX009AK/AKB, LCX027AK Horizontal Direction Timing Chart
NTSC/PAL
Page 23
– 23 –
CXD2458AR
XHD
XVD
VST
VCK1
FRP
HST
CLR
EN
FRP
FLD
VD
VCK2
SBLK
ODD FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(1H inversion)
(1F inversion)
BLK
204 210 220 230 240 243 1 10 20 30 40 50 60
CSYNC
(BLK)
: 1st display line
LCX005BK/BKB Vertical Direction Timing Chart
NTSC
Page 24
– 24 –
CXD2458AR
XHD
XVD
CSYNC
(BLK)
VST
VCK1
FRP
HST
CLR
EN
FLD
VD
VCK2
SBLK
FRP
EVEN FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(1H inversion)
(1F inversion)
10
: 1st display line
BLK
1 20 30 40 50 60203 210 220 230 240 243
LCX005BK/BKB Vertical Direction Timing Chart
NTSC
Page 25
– 25 –
CXD2458AR
XHD
XVD
CSYNC
(BLK)
VST
VCK1
FRP
HST
CLR
EN
FLD
VD
VCK2
SBLK
FRP
ODD FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(1H inversion)
(1F inversion)
1
: 1st display line
BLK
10 20 30 40 50 55248 260 270 280 288
LCX005BK/BKB Vertical Direction Timing Chart
PAL
Page 26
– 26 –
CXD2458AR
XHD
XVD
CSYNC
(BLK)
VST
VCK1
FRP
HST
CLR
EN
FLD
VD
VCK2
SBLK
FRP
EVEN FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(1H inversion)
(1F inversion)
: 1st display line
1
BLK
10 20 30 40 50 55288280270260249
LCX005BK/BKB Vertical Direction Timing Chart
PAL
Page 27
– 27 –
CXD2458AR
XHD
XVD
CSYNC
(BLK)
VST
VCK1
FRP
HST
CLR
EN
FLD
VD
VCK2
SBLK
FRP
ODD FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(1H inversion)
(1F inversion)
10
: 1st display line163-line display area, 1/4 pulse elimination,
BLK
1 20 30 40 50 60204 210 220 230 240 243
LCX005BK/BKB Vertical Direction Timing Chart
NTSC WIDE
Page 28
– 28 –
CXD2458AR
XHD
XVD
CSYNC
(BLK)
VST
VCK1
FRP
HST
CLR
EN
FLD
VD
VCK2
SBLK
FRP
EVEN FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(1H inversion)
(1F inversion)
10
: 1st display line163-line display area, 1/4 pulse elimination,
BLK
1 20 30 40 50 60203 210 220 230 240 243
LCX005BK/BKB Vertical Direction Timing Chart
NTSC WIDE
Page 29
– 29 –
CXD2458AR
ODD FIELD
XHD
XVD
CSYNC
(BLK)
VST
VCK1
FRP
HST
CLR
EN
FLD
VD
VCK2
SBLK
FRP
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(1H inversion)
(1F inversion)
1
BLK
10 20 30 40 50 55288280270260248
: 1st display line
163-line display area, 2/6 pulse elimination,
LCX005BK/BKB Vertical Direction Timing Chart
PAL WIDE
Page 30
– 30 –
CXD2458AR
XHD
XVD
CSYNC
(BLK)
VST
VCK1
FRP
HST
CLR
EN
FLD
VD
VCK2
SBLK
FRP
EVEN FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(1H inversion)
(1F inversion)
1
BLK
10 20 30 40 50 55249 260 270 280 288
: 1st display line163-line display area, 2/6 pulse elimination,
LCX005BK/BKB Vertical Direction Timing Chart
PAL WIDE
Page 31
– 31 –
CXD2458AR
XHD
XVD
VST
VCK1
FRP
HST
CLR
EN
FRP
FLD
VD
VCK2
SBLK
ODD FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(1H inversion)
(1F inversion)
BLK
204 210 220 230 240 243 1 10 20 30 40 50 60
CSYNC
(BLK)
: 1st display line
LCX024AK Vertical Direction Timing Chart
NTSC
Page 32
– 32 –
CXD2458AR
203
XHD
XVD
VST
VCK1
FRP
HST
CLR
EN
FRP
FLD
VD
VCK2
SBLK
EVEN FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(1H inversion)
(1F inversion)
BLK
210 220 230 240 243 1 10 20 30 40 50 60
CSYNC
(BLK)
: 1st display line
LCX024AK Vertical Direction Timing Chart
NTSC
Page 33
– 33 –
CXD2458AR
XHD
XVD
CSYNC
(BLK)
VST
VCK1
FRP
HST
CLR
EN
FLD
VD
VCK2
SBLK
FRP
ODD FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(1H inversion)
(1F inversion)
1
: 1st display line
BLK
10 20 30 40 50 55248 260 270 280 288
LCX024AK Vertical Direction Timing Chart
PAL
Page 34
– 34 –
CXD2458AR
XHD
XVD
CSYNC
(BLK)
VST
VCK1
FRP
HST
CLR
EN
FLD
VD
VCK2
SBLK
FRP
EVEN FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(1H inversion)
(1F inversion)
: 1st display line
1
BLK
10 20 30 40 50288280270260249 55
LCX024AK Vertical Direction Timing Chart
PAL
Page 35
– 35 –
CXD2458AR
ODD FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
XHD
XVD
CSYNC
(BLK)
VST
VCK1
FRP
HST
CLR
EN
FRP
FLD
VD
VCK2
SBLK
(1F inversion)
(1H inversion)
101 20 30 40 50 60
: 1st display line163-line display area, 1/4 pulse elimination,
243240230220210204
BLK
LCX024AK Vertical Direction Timing Chart
NTSC WIDE
Page 36
– 36 –
CXD2458AR
EVEN FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
XHD
XVD
CSYNC
(BLK)
VST
VCK1
FRP
HST
CLR
EN
FRP
FLD
VD
VCK2
SBLK
(1F inversion)
(1H inversion)
101 20 30 40 50 60
: 1st display line163-line display area, 1/4 pulse elimination,
243240230220210203
BLK
LCX024AK Vertical Direction Timing Chart
NTSC WIDE
Page 37
– 37 –
CXD2458AR
ODD FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
XHD
XVD
CSYNC
(BLK)
VST
VCK1
FRP
HST
CLR
EN
FRP
FLD
VD
VCK2
SBLK
(1F inversion)
(1H inversion)
101 20 30 40 50 55288280270260248
BLK
: 1st display line163-line display area, 10/28 pulse elimination,
LCX024AK Vertical Direction Timing Chart
PAL WIDE
Page 38
– 38 –
CXD2458AR
EVEN FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
XHD
XVD
CSYNC
(BLK)
VST
VCK1
FRP
HST
CLR
EN
FRP
FLD
VD
VCK2
SBLK
(1F inversion)
(1H inversion)
101 20 30 40 50 55288280270260249
BLK
: 1st display line163-line display area, 10/28 pulse elimination,
LCX024AK Vertical Direction Timing Chart
PAL WIDE
Page 39
– 39 –
CXD2458AR
XHD
XVD
CSYNC
(BLK)
VST
VCK1
FRP
HST
CLR
EN
FRP
FLD
VD
VCK2
SBLK
ODD FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(1H inversion)
(1F inversion)
: 1st display line
1
BLK
10 20 30 40 50 60243240230220210204
LCX009AK/AKB Vertical Direction Timing Chart
NTSC
Page 40
– 40 –
CXD2458AR
XHD
XVD
CSYNC
(BLK)
VST
VCK1
FRP
HST
CLR
EN
FLD
VD
VCK2
SBLK
FRP
EVEN FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(1H inversion)
(1F inversion)
: 1st display line
1
BLK
10 20 30 40 50 60243240230220210203
LCX009AK/AKB Vertical Direction Timing Chart
NTSC
Page 41
– 41 –
CXD2458AR
XHD
XVD
CSYNC
(BLK)
VST
VCK1
FRP
HST
CLR
EN
FLD
VD
VCK2
SBLK
FRP
ODD FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(1H inversion)
(1F inversion)
: 1st display line
1
BLK
10 20 30 40 50288280270260248 55
LCX009AK/AKB Vertical Direction Timing Chart
PAL
Page 42
– 42 –
CXD2458AR
XHD
XVD
CSYNC
(BLK)
VST
VCK1
FRP
HST
CLR
EN
FLD
VD
VCK2
SBLK
FRP
EVEN FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(1H inversion)
(1F inversion)
: 1st display line
10
BLK
1 20 30 40 50 55288280270260249
LCX009AK/AKB Vertical Direction Timing Chart
PAL
Page 43
– 43 –
CXD2458AR
XHD
XVD
CSYNC
(BLK)
VST
VCK1
FRP
HST
CLR
EN
FRP
FLD
VD
VCK2
SBLK
ODD FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(1H inversion)
(1F inversion)
: 1st display line
1
169-line display area, 1/4 pulse elimination,
BLK
10 20 30 40 50 60243240230220210204
LCX009AK/AKB Vertical Direction Timing Chart
NTSC WIDE
Page 44
– 44 –
CXD2458AR
XHD
XVD
CSYNC
(BLK)
VST
VCK1
FRP
HST
CLR
EN
FLD
VD
VCK2
SBLK
FRP
EVEN FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(1H inversion)
(1F inversion)
: 1st display line
10
169-line display area, 1/4 pulse elimination,
BLK
1 20 30 40 50 60243240230220210203
LCX009AK/AKB Vertical Direction Timing Chart
NTSC WIDE
Page 45
– 45 –
CXD2458AR
XHD
XVD
CSYNC
(BLK)
VST
VCK1
FRP
HST
CLR
EN
FLD
VD
VCK2
SBLK
FRP
ODD FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(1H inversion)
(1F inversion)
1
BLK
10 20 30 40 50 55288280270260248
: 1st display line169-line display area, 2/6 pulse elimination,
LCX009AK/AKB Vertical Direction Timing Chart
PAL WIDE
Page 46
– 46 –
CXD2458AR
XHD
XVD
CSYNC
(BLK)
VST
VCK1
FRP
HST
CLR
EN
FLD
VD
VCK2
SBLK
FRP
EVEN FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(1H inversion)
(1F inversion)
1
BLK
10 20 30 40 50 55288280270260249
: 1st display line169-line display area, 2/6 pulse elimination,
LCX009AK/AKB Vertical Direction Timing Chart
PAL WIDE
Page 47
– 47 –
CXD2458AR
XHD
XVD
VST
VCK1
FRP
HST
CLR
EN
FRP
FLD
VD
VCK2
SBLK
ODD FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(1H inversion)
(1F inversion)
BLK
204 210 220 230 240 243 1 10 20 30 40 50 60
CSYNC
(BLK)
: 1st display line
LCX027AK Vertical Direction Timing Chart
NTSC
Page 48
– 48 –
CXD2458AR
XHD
XVD
VST
VCK1
FRP
HST
CLR
EN
FRP
FLD
VD
VCK2
SBLK
EVEN FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(1H inversion)
(1F inversion)
BLK
210 220 230 240 243 1 10 20 30 40 50 60
CSYNC
(BLK)
: 1st display line
203
LCX027AK Vertical Direction Timing Chart
NTSC
Page 49
– 49 –
CXD2458AR
XHD
XVD
CSYNC
(BLK)
VST
VCK1
FRP
HST
CLR
EN
FLD
VD
VCK2
SBLK
FRP
ODD FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(1H inversion)
(1F inversion)
1
: 1st display line
BLK
10 20 30 40 50 55248 260 270 280 288
LCX027AK Vertical Direction Timing Chart
PAL
Page 50
– 50 –
CXD2458AR
XHD
XVD
CSYNC
(BLK)
VST
VCK1
FRP
HST
CLR
EN
FLD
VD
VCK2
SBLK
FRP
EVEN FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
(1H inversion)
(1F inversion)
: 1st display line
1
BLK
10 20 30 40 50288280270260249 55
LCX027AK Vertical Direction Timing Chart
PAL
Page 51
– 51 –
CXD2458AR
ODD FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
XHD
XVD
CSYNC
(BLK)
VST
VCK1
FRP
HST
CLR
EN
FRP
FLD
VD
VCK2
SBLK
(1F inversion)
(1H inversion)
101 20 30 40 50 60
: 1st display line169-line display area, 1/4 pulse elimination,
243240230220210204
BLK
LCX027AK Vertical Direction Timing Chart
NTSC WIDE
Page 52
– 52 –
CXD2458AR
EVEN FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
XHD
XVD
CSYNC
(BLK)
VST
VCK1
FRP
HST
CLR
EN
FRP
FLD
VD
VCK2
SBLK
(1F inversion)
(1H inversion)
101 20 30 40 50 60
: 1st display line169-line display area, 1/4 pulse elimination,
243240230220210203
BLK
LCX027AK Vertical Direction Timing Chart
NTSC WIDE
Page 53
– 53 –
CXD2458AR
ODD FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
XHD
XVD
CSYNC
(BLK)
VST
VCK1
FRP
HST
CLR
EN
FRP
FLD
VD
VCK2
SBLK
(1F inversion)
(1H inversion)
101 20 30 40 50 55288280270260248
BLK
: 1st display line169-line display area, 10/28 pulse elimination,
LCX027AK Vertical Direction Timing Chart
PAL WIDE
Page 54
– 54 –
CXD2458AR
EVEN FIELD
Note) The fourth row of the timing chart "BLK" is a pulse indicated as a reference and is not a pulse output from pins.
FRP polarity is not specified for each line and field.
XHD
XVD
CSYNC
(BLK)
VST
VCK1
FRP
HST
CLR
EN
FRP
FLD
VD
VCK2
SBLK
(1F inversion)
(1H inversion)
101 20 30 40 50 55288280270260249
BLK
: 1st display line169-line display area, 10/28 pulse elimination,
LCX027AK Vertical Direction Timing Chart
PAL WIDE
Page 55
1k
+3V
10k
3300p
33k
0.01µ
10k
100k
20p
1000p
+12V
+3V
PAL
NTSC
16:9
4:3
N
R
RGB external input
(RGB driver)
+3V
LCD panel
LCD panel
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
40
39
38
37
36
35
34
31
32
33
41
42
43
44
45
46
47
48
1
RGB decoder
Backlight driver circuit
RGB driver
Sample-and-hold circuit
(RGB driver)
Sample-and-hold circuit
(RGB driver)
AC conversion circuit (RGB driver)
HCK1
3.3µ
LCX005BK/BKB,
LCK024AK
LCX009AK/AKB,
LCK027AK
L
RGB decoder
HD
XHD
SLNP
VD
XCLP
SH3
SH2
SH1
V
SS
SH4
FLDO
FRP
HCK2
HST1
VCK1
VCK2
V
DD
VST
EN
CLR
STBY
HST2
SLFR
SLCK
RGT
SLTM
BLK
PLNT
XCLR
WIDE
SBLK
V
SS
TST0
TST1
TST2
TST3
HP4
RPD
V
SS
CKO
CKI
V
DD
TST4
XVD
HP1
HP2
HP3
+3V
LCX024AK
LCX005BK/BKB
LCX027AK
LCX009AK/AKB
LCD panel
– 55 –
CXD2458AR
Application Circuit
Reference examples of L value: when using LCX009AK/AKB, LCX027AK 4.7µH
when using LCX005BK/BKB, LCX024AK 10µH
Recommended varicap: 1T369 (SONY)
The constants noted above are reference values, so care should be taken as they may
change according to the wiring capacitance on the board, etc.
Application circuits shown are typical examples illustrating the operation of the devices. Sony cannot assume responsibility for
any problems arising out of the use of these circuits or for any infringement of third party patent and other right due to same.
Page 56
– 56 –
CXD2458AR
Package Outline Unit: mm
SONY CODE
EIAJ CODE
JEDEC CODE
PACKAGE STRUCTURE
PACKAGE MATERIAL
LEAD TREATMENT
LEAD MATERIAL
PACKAGE WEIGHT
EPOXY RESIN
SOLDER PLATING
42 ALLOY
48PIN LQFP (PLASTIC)
36
25
24
13
12
1
37
48
7.0 ± 0.2
9.0 ± 0.3
0.5 0.2 ± 0.06
M
0.08
A
0.15 ± 0.05
8.0 ± 0.2
0.1 ± 0.1
0.5
0° to 10°
LQFP-48P-L111
LQFP048-P-0707-AP
0.2g
0.1
0.65 ± 0.2
1.45 ± 0.2
DETAIL A
Loading...
