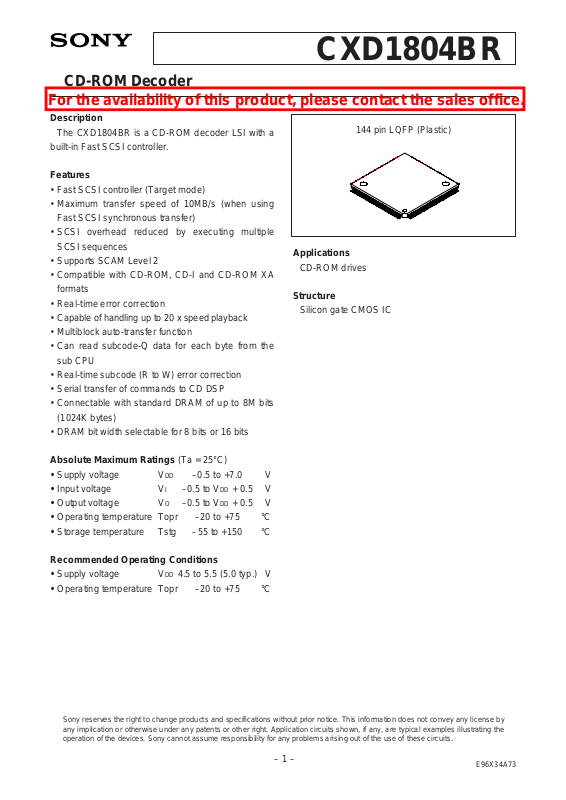

Page 1

– 1 –

CXD1804BR

E96X34A73

CD-ROM Decoder

Description

The CXD1804BR is a CD-ROM decoder LSI with a

built-in Fast SCSI controller.

Features

• Fast SCSI controller (Target mode)

• Maximum transfer speed of 10MB/s (when using Fast SCSI synchronous transfer)

• SCSI overhead reduced by executing multiple SCSI sequences

• Supports SCAM Level 2

• Compatible with CD-ROM, CD-I and CD-ROM XA formats

• Real-time error correction

• Capable of handling up to 20 x speed playback

• Multiblock auto-transfer function

• Can read subcode-Q data for each byte from the sub CPU

• Real-time subcode (R to W) error correction

• Serial transfer of commands to CD DSP

• Connectable with standard DRAM of up to 8M bits (1024K bytes)

• DRAM bit width selectable for 8 bits or 16 bits

Absolute Maximum Ratings (Ta = 25°C)

• Supply voltage VDD –0.5 to +7.0 V

• Input voltage VI –0.5 to VDD + 0.5 V

• Output voltage VO –0.5 to VDD + 0.5 V

• Operating temperature Topr –20 to +75 °C

• Storage temperature Tstg –55 to +150 °C

Recommended Operating Conditions

• Supply voltage VDD 4.5 to 5.5 (5.0 typ.) V

• Operating temperature Topr –20 to +75 °C

Applications

CD-ROM drives

Structure

Silicon gate CMOS IC

Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.

144 pin LQFP (Plastic)

For the availability of this product, please contact the sales office.

Page 2

– 2 –

CXD1804BR

Connection Example

Address Decoder

sub CPU

CPU data bus CPU address bus

8bit7bit

16bit10bit

SCSI Bus

XATN XBSY XACK XRST

XSEL

XMSG

XCD

XREQ

XIO

XDBP, XDB (7:0)

EXCK SBIN SCOR WFCK C2PO BCLK MDAT LRCK XLAT DATO DSTB

A (6:0)XCS

XWR

XWAT

XRD D (7:0)

INT

MDB

(15:0)

(9:0)

XRAS

XLCAS

XUCAS

XMWR

CXD1804AR

CD-ROM Decoder

SCSI I/F

CD DSP

Buffer RAM

Page 3

– 3 –

CXD1804BR

Block Diagram

119

120

121

141

142

143

144

122

123 to 129 131 to 138

51 to 57, 59 to 61

68 to 75, 77 to 84

• 5

• 8

•

CD-ROM Decoder Block SCSI Controller Block

sub CPU

I/F

Descrambler

Sync Control

Priority Resolver

FIFO Control

16byte FIFO

24bit Transfer Byte Counter

Clock

Gen.

Microcode

ROM

Microcode

Core

Registers

Arbitration

Selection

SCSI

Phase Ctrl

SCSI

Handshake

Buffer

Handshake

Buffer

Address Gen.

DMA

Sequencer

Subcode

Deinterleave & ECC

Main Data

Error Correction

MA (0:9) MDB (0:15)XMWRXUCAS

XLCASXCAS

EXCK

SBIN SCOR WFCK

C2PO BCLK

MDAT

LRCK

DATO

XLAT

DSTB

XDB (0:7) XDBP

XREQ XACK

XRST XBSY XATN XSEL XCD XMSG XIO

D (7:0)A (0:6) XWAT XTL2 CLK

XTL1

XRESXCS

XWRINT

XRD

90 91 92 93 94 98 99

100

CD DSP

I/F

Page 4

– 4 –

CXD1804BR

Pin Configuration

14 15

40 39 38 37

70 69

100

101

102103

104105

106

107

108

7677

111

109 110

112 113

114 115 116 117 118 119

120

121

122

123 124 125

126

127 128 129 130 131 132 133 134

135

136 137 138

139

140 141

142

143 144

MA4 MA3 MA2 MA1 MA0 XRES V

VSS

VSS XREQ V

XCD VDD VSS XSEL XMSG V

VDD

VDD VSS XMWR XLCAS XUCAS XRAS MA9 MA8 MA7 V

MA6 MA5

MDB3 MDB2 MDB1 MDB0

MDB4

XIO

TST5

TST4

TST2

TST1

TST0

DSTB

XLAT

MDB8

DATO

LRCK

MDAT

BCLK

SCOR

SBIN

EXCK

MDB15

MDB14

MDB13

MDB11

MDB10

MDB9

MDB7

MDB6

TST3

C2PO

WFCK

MDB12

MDB5

TST8

TST9 TST10 TST11 TST12

VDD XTL2 XTL1

CLK

XWAT

A0 A1 A2 A3 A4 A5 A6

D0 D1 D2 D3 D4 D5 D6 D7

VDD

INT

XCS

XWR

XRD

TST7

TST6

XDB0

XDB2

XDB3

XDB4

XDB5

XDB6

XDB7

XDBP

XATN

XBSY

XACK

XRST

XDB1

Page 5

– 5 –

CXD1804BR

Pin Description

Pin No.

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36

— —

I/O

—

I/O

— —

I/O

— I/O I/O

—

— I/O

—

— I/O

—

— I/O

—

— I/O

—

— I/O I/O

—

— —

Negative

—

Negative

— —

Negative

— Negative Negative

—

— Negative

—

— Negative

—

— Negative

—

— Negative

—

— Negative Negative

—

Power Power SCSI I/F Power SCSI I/F Power Power SCSI I/F Power SCSI I/F SCSI I/F Power Power Power SCSI I/F Power NC SCSI I/F Power SCSI I/F Power Power SCSI I/F Power NC SCSI I/F Power SCSI I/F Power Power SCSI I/F SCSI I/F Power Power NC NC

VSS VDD SCSI data bus bit 0 VSS SCSI data bus bit 1 VSS VDD SCSI data bus bit 2 VSS SCSI data bus bit 3 SCSI data bus bit 4 VSS VSS VDD SCSI data bus bit 5 VSS NC SCSI data bus bit 6 VSS SCSI data bus bit 7 VSS VDD SCSI data bus parity VSS NC SCSI control bus XATN signal VSS SCSI control bus XBSY signal VSS VDD SCSI control bus XACK signal SCSI control bus XRST signal VSS VSS NC NC

VSS VDD XDB0 VSS XDB1 VSS VDD XDB2 VSS XDB3 XDB4 VSS VSS VDD XDB5 VSS NC XDB6 VSS XDB7 VSS VDD XDBP VSS NC XATN VSS XBSY VSS VDD XACK XRST VSS VSS NC NC

Symbol I/O Logic Classification Description

Page 6

– 6 –

CXD1804BR

No.

37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73

—

— I/O I/O

—

— I/O

—

I O O O O O O O

—

O O O O O O O

—

— I/O I/O I/O I/O I/O I/O

—

— Negative Negative

—

— Negative

—

— Negative

—

Negative Negative Negative Negative

—

Power Power SCSI I/F SCSI I/F Power Power SCSI I/F Power SCSI I/F Power SCSI I/F Power Power System I/F BufMem I/F BufMem I/F BufMem I/F BufMem I/F BufMem I/F BufMem I/F BufMem I/F Power BufMem I/F BufMem I/F BufMem I/F BufMem I/F BufMem I/F BufMem I/F BufMem I/F Power BufMem I/F BufMem I/F BufMem I/F BufMem I/F BufMem I/F BufMem I/F BufMem I/F

VDD VSS SCSI control bus XMSG signal SCSI data bus XSEL signal VSS VDD SCSI control bus XCD signal VSS SCSI control bus XREQ signal VSS SCSI control bus XIO signal VSS VDD CXD1804AR reset signal Address bus output bit 0 to buffer memory Address bus output bit 1 to buffer memory Address bus output bit 2 to buffer memory Address bus output bit 3 to buffer memory Address bus output bit 4 to buffer memory Address bus output bit 5 to buffer memory Address bus output bit 6 to buffer memory VSS Address bus output bit 7 to buffer memory Address bus output bit 8 to buffer memory Address bus output bit 9 to buffer memory Buffer memory RAS (Row Address Strobe) signal Buffer memory CAS (Column Address Strobe) signal Buffer memory CAS (Column Address Strobe) signal Data write strobe signal to buffer memory VSS VDD Buffer memory data bus bit 0 Buffer memory data bus bit 1 Buffer memory data bus bit 2 Buffer memory data bus bit 3 Buffer memory data bus bit 4 Buffer memory data bus bit 5

VDD VSS XMSG XSEL VSS VDD XCD VSS XREQ VSS XIO VSS VDD XRES MA0 MA1 MA2 MA3 MA4 MA5 MA6 VSS MA7 MA8 MA9 XRAS XUCAS XLCAS XMWR VSS VDD MDB0 MDB1 MDB2 MDB3 MDB4 MDB5

Symbol I/O Logic Classification Description

Page 7

– 7 –

CXD1804BR

Pin No.

74 75 76 77 78 79 80 81 82 83 84 85 86

90 91

92 93 94 95 96 97 98

99 100 101 102 103 104 105 106 107

I/O I/O

— I/O I/O I/O I/O I/O I/O I/O I/O

—

I I

I — — —

O O

O — —

I I I I I

—

— —

— — —

— —

BufMem I/F BufMem I/F Power BufMem I/F BufMem I/F BufMem I/F BufMem I/F BufMem I/F BufMem I/F BufMem I/F BufMem I/F Power Power

CD DSP I/F

CD DSP I/F CD DSP I/F

CD DSP I/F CD DSP I/F CD DSP I/F Power NC NC CD DSP I/F CD DSP I/F CD DSP I/F Power Power Test I/F Test I/F Test I/F Test I/F Test I/F

Buffer memory data bus bit 6 Buffer memory data bus bit 7 VSS Buffer memory data bus bit 8 Buffer memory data bus bit 9 Buffer memory data bus bit 10 Buffer memory data bus bit 11 Buffer memory data bus bit 12 Buffer memory data bus bit 13 Buffer memory data bus bit 14 Buffer memory data bus bit 15 VSS VDD SBIN read clock

(connected to the EXCK pin (Pin 65) of the CXD2500) Subcode serial signal

(connected to the SBSO pin (Pin 64) of the CXD2500) Subcode sync signal

(connected to the SCOR pin (Pin 63) of the CXD2500) Write frame clock

(connected to the WFCK pin (Pin 62) of the CXD2500) Indicates that an error exists in C2 pointer signal MDAT. Bit clock. MDAT strobe signal. Serial data stream from CD DSP LR signal. Indicates MDAT L or R channel. VSS NC NC Serial data output from sub CPU to CD DSP DATO latch signal. Latches at the rising edge. DATO transfer clock VSS VDD Test pin 0 Test pin 1 Test pin 2 Test pin 3 Test pin 4

MDB6 MDB7 VSS MDB8 MDB9 MDB10 MDB11 MDB12 MDB13 MDB14 MDB15 VSS VDD

EXCK

SBIN

SCOR

WFCK C2PO

BCLK MDAT LRCK VSS NC NC DATO XLAT DSTB VSS VDD TST0 TST1 TST2 TST3 TST4

Symbol I/O Logic Classification Description

Page 8

– 8 –

CXD1804BR

No. 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144

I I I

—

I I I I

I — —

O O

I —

I/O I/O I/O I/O I/O I/O I/O I/O

— —

—

— —

Negative

—

— Selectable Negative Negative Negative

Test I/F Test I/F Test I/F Power Test I/F Test I/F Test I/F Test I/F Test I/F Power Power System I/F System I/F System I/F sub CPU I/F sub CPU I/F sub CPU I/F sub CPU I/F sub CPU I/F sub CPU I/F sub CPU I/F sub CPU I/F Power sub CPU I/F sub CPU I/F sub CPU I/F sub CPU I/F sub CPU I/F sub CPU I/F sub CPU I/F sub CPU I/F Power Power sub CPU I/F sub CPU I/F sub CPU I/F sub CPU I/F

Test pin 5 Test pin 6 Test pin 7 VSS Test pin 8 Test pin 9 Test pin 10 Test pin 11 Test pin 12 VSS VDD Crystal oscillation circuit output Crystal oscillation circuit input Clock output Wait signal for sub CPU buffer memory access CXD1804AR built-in register address bus bit 0 CXD1804AR built-in register address bus bit 1 CXD1804AR built-in register address bus bit 2 CXD1804AR built-in register address bus bit 3 CXD1804AR built-in register address bus bit 4 CXD1804AR built-in register address bus bit 5 CXD1804AR built-in register address bus bit 6 VSS Sub CPU data bus bit 0 Sub CPU data bus bit 1 Sub CPU data bus bit 2 Sub CPU data bus bit 3 Sub CPU data bus bit 4 Sub CPU data bus bit 5 Sub CPU data bus bit 6 Sub CPU data bus bit 7 VSS VDD Interrupt to sub CPU CXD1804AR chip select signal CXD1804AR built-in register write signal CXD1804AR built-in register read signal

TST5 TST6 TST7 VSS TST8 TST9 TST10 TST11 TST12 VSS VDD XTL2 XTL1 CLK XWAT A0 A1 A2 A3 A4 A5 A6 VSS D0 D1 D2 D3 D4 D5 D6 D7 VSS VDD INT XCS XWR XRD

Symbol I/O Logic Classification Description

Page 9

– 9 –

CXD1804BR

Electrical Characteristics (VDD = 5V ± 10%, VSS = 0V, Topr = –20 to +75°C)

Item

TTL input level pin High level input voltage

TTL input level pin Low level input voltage

CMOS input level pin High level input voltage

CMOS input level pin Low level input voltage

CMOS Schmitt input level pin High level input voltage

CMOS Schmitt input level pin Low level input voltage

CMOS Schmitt input level pin Input voltage hysteresis

TTL Schmitt input level pin High level input voltage

TTL Schmitt input level pin Low level input voltage

TTL Schmitt input level pin Input voltage hysteresis

SCSI Schmitt input level pin High level input voltage

SCSI Schmitt input level pin Low level input voltage

SCSI Schmitt input level pin Input voltage hysteresis

Bidirectional pin with pull-up resistor Input current

High level output voltage High level output voltage SCSI high level output voltage Low level output voltage SCSI low level output voltage Input leakage current Oscillation cell high level input voltage Oscillation cell low level input voltage Oscillation cell logic threshold value Oscillation cell feedback resistance value Oscillation cell high level output voltage Oscillation cell low level output voltage

VIH1

VIL1

VIH2

VIL2

VIH4

VIL4

VIH4 – VIL4

VIH5

VIL5

VIH5 – VIL4

VIHS

VILS

VIHTS – VILTS

IIL3 VOH1

VOH2 VOHS VOL1 VOLS II1 VIH4 VIL4 LVTH RFB VOH3 VOL3

VIN = 0V IOH = –2mA

IOH = –6mA

IOL = 4mA IOL = 48mA VIN = VSS or VDD

VIN = VSS or VDD IOH = –12mA IOL = 12mA

2.2

0.7VDD

0.8VDD

2.2V

–90

VDD – 0.8 VDD – 0.8

2.5

–10

0.7VDD

250k

0.5VDD

0.6

0.4

–200

0.5VDD 1M

0.8

0.3VDD

0.2VDD

0.8V

–440

3.7

0.4

0.5 10

0.3VDD

2.5M

0.5VDD

µA

V V V V V

µA

V V V

Ω

V V

∗1

∗2

∗3

∗4

∗11

∗5 ∗6

∗7

∗12

∗8

∗11

∗9

∗10

Symbol Conditions Min. Typ. Max. Unit

Applicable

pins

Page 10

– 10 –

CXD1804BR

∗1

D7 to 0, MDBF to 0

∗2

MDAT, LRCK, C2PO, SBIN, SCOR, TD12 to 0

∗3

BLCK, WFCK, XRES

∗4

A6 to 0, XWR, XRD, XCS

∗5

D7 to 0, MDBF to 0

∗6

All output pins except XTL2, XRAS, XUCAS, XLCAS, XMWR and CLK

∗7

XRAS, XUCAS, XLCAS, XMWR, CLK

∗8

All output pins except XTL2

∗9

All input pins except ∗5and XTL1

∗10

Input: XTL1, Output: XTL2

∗11

XRST, XBSY, XSEL, XATN, XMSG, XCD, XIO, XREQ, XACK, XDBP, XDB7 to 0

∗12

XREQ, XACK, XDBP and XDB7 to 0 when active negation is ON

I/O Capacitance (VDD = VI = 0V, f = 1MHz)

Item Input capacitance Output capacitance I/O capacitance

CIN COUT CI/O

9 11 11

pF pF pF

Symbol Min. Typ. Max. Unit

Page 11

– 11 –

CXD1804BR

AC Characteristics

1. Sub CPU Interface (Output Load = 50pF)

(1) Read

Tsar

Thar

A6 to 0

XCS

XRD

D7 to 0

Tdrd

Tfrd

Trrl

Item Address setup time (for XCS & XRD ↓) Address hold time (for XCS & XRD ↑) Data delay time (for XCS & XRD ↓) Data float time (for XCS & XRD ↑)

Tsar Thar Tdrd Tfrd

10 10

35 15

ns ns ns ns

Symbol Min. Typ. Max. Unit

Tsaw

Thwa

A6 to 0

XCS

XWR

D7 to 0

Tsdw Thdw

Twwl

Item Address setup time (for XCS & XWR ↓) Address hold time (for XCS & XWR ↑) Data setup time (for XCS & XWR ↓) Data hold time (for XCS & XWR ↑) Low level XWR pulse width

Tsaw Thaw Tsdw Thdw Twwl

20 10 20 10 30

ns ns ns ns ns

Symbol Min. Typ. Max. Unit

(2) Write

Page 12

– 12 –

CXD1804BR

2. CD DSP Interface

BCKRED = "H"

Tbck Tbck

Tsb1

Thb1

Tsb2Thb2

BCLK

DATA

LRCK

C2PO

BCKRED = "L"

Tbck Tbck

Tsb1

Thb1

Tsb2Thb2

BCLK

DATA

LRCK C2PO

Item BCLK frequency BCLK pulse width DATA setup time (for BCLK) DATA hold time (for BCLK) LRCK, C2PO setup time (for BCLK) LRCK, C2PO hold time (for BCLK)

Fbck Tbck Tsb1 Thb1 Tsb2 Thb2

19 10 10 10 10

26 MHz

ns ns ns ns ns

Symbol Min. Typ. Max. Unit

Page 13

– 13 –

CXD1804BR

3. DRAM Interface (Output Load = 30pF)

(1) Read

Tma0

iCLK

Tma1

Trasl

Trash

Trc

Tcasl

Tcash

Tmdrs

Tmdrh

"H"

MA9 to 0

XRAS

XUCAS XLCAS

XMWR

MDBF to 0

Item Random read/write cycle time Address delay time (for XTL2 ↑) Address delay time (for XTL2 ↑) XRAS ↓ delay time (for XTL2 ↑) XRAS ↑ delay time (for XTL2 ↑) XCAS ↓ delay time (for XTL2 ↑) XCAS ↑ delay time (for XTL2 ↑) Data setup time (for XTL2 ↑) Data hold time (for XCAS ↑)

Trc Tma0 Tma1 Trasl Trash Tcasl Tcash Tmdrs Tmdrh

5Tw

13 11

6 6 7 6 2 0

24 22 12 11 14 12

45 41 23 20 25 22

ns ns ns ns ns ns ns ns ns

Symbol Min. Typ. Max. Unit

Page 14

– 14 –

CXD1804BR

(2) Write

Tma0

iCLK

Tma1

Trasl

Trash

Trc

Tcash

Tcasl

Tmdws

MA9 to 0

XRAS

XUCAS XLCAS

XMWR

MDBF to 0

Tmwrh

Tmwrl

Tmdwh

Item Random read/write cycle time Address delay time (for XTL2 ↑) Address delay time (for XTL2 ↑) XRAS ↓ delay time (for XTL2 ↑) XRAS ↑ delay time (for XTL2 ↑) XCAS ↓ delay time (for XTL2 ↑) XCAS ↑ delay time (for XTL2 ↑) XMWR ↓ delay time (for XTL2 ↑) XMWR ↑ delay time (for XTL2 ↑) Data setup time (for XTL2 ↑) Data hold time (for XTL2 ↑)

Trc Tma0 Tma1 Trasl Trash Tcasl Tcash Tmwrl Tmwrh Tmdws Tmdwh

5Tw

13 11

6 6 7 6 7 6

24 22 12 11 14 12 14 11 28 14

45 41 23 20 25 22 25 21 51 26

ns ns ns ns ns ns ns ns ns ns ns

Symbol Min. Typ. Max. Unit

Page 15

– 15 –

CXD1804BR

(3) Refresh (RAS only refresh)

Tma0

iCLK

Trasl

Trash

MA9 to 0

XRAS

XUCAS XLCAS

XMWR

“H”

Item Random read/write cycle time Address delay time (for XTL2 ↑) XRAS ↓ delay time (for XTL2 ↑) XRAS ↑ delay time (for XTL2 ↑)

Trc Tma0 Trasl Trash

5Tw

6 6

24 12 11

43 23 20

ns ns ns ns

Symbol Min. Typ. Max. Unit

Page 16

– 16 –

CXD1804BR

4. SCSI Interface

(1) SCSI asynchronous transfer timing

When receiving: Initiator → Target

Taads Tardh

XREQ

XACK

XDB

Taaarnd

Taanrad

When transmitting: Target → Initiator

Tards

XREQ

XACK

XDB

Taadh

Taanrad

Taaarnd

Item XDB setup time (for XACK ↓) XDB hold time (for XREQ ↑) XDB setup time (for XREQ ↓) XDB hold time (for XREQ ↓) XREQ rise delay time (for XACK ↓) XREQ fall time (for XACK ↑)

Taads Tardh Tards Taadh Taaarnd Taanrad

0 30 60 30 30

70 85

ns ns ns ns ns ns

Symbol Min. Typ. Max. Unit

Page 17

– 17 –

CXD1804BR

(2) SCSI synchronous transfer timing

When receiving: Initiator → Target

Tnads

XACK

XDB

Tnadh

When transmitting: Target → Initiator

Tnads

XREQ

XDB

Tnadh

Tnrap Tnrnp

Item XDB setup time (for XACK ↓) XDB hold time (for XACK ↓) XDB setup time (for XREQ ↓) XDB hold time (for XREQ ↓) XREQ assert time XREQ negate time

Tnads Tnadh Tnrds Tnrdh Tnrap Tnrnp

15 10 80

105

110

ns ns ns ns ns ns

Symbol Min. Typ. Max. Unit

Page 18

– 18 –

CXD1804BR

(3) Fast SCSI synchronous transfer timing

When receiving: Initiator → Target

Tfads

XACK

XDB

Tfadh

When transmitting: Target → Initiator

Tfrds

XREQ

XDB

Tfrdh

Tfrap Tfrnp

Item XDB setup time (for XACK ↓) XDB hold time (for XACK ↓) XDB setup time (for XREQ ↓) XDB hold time (for XREQ ↓) XREQ assert time XREQ negate time

Tfads Tfadh Tfrds Tfrdh Tfrap Tfrnp

15 10 55 55

ns ns ns ns ns ns

Symbol Min. Typ. Max. Unit

Page 19

– 19 –

CXD1804BR

5. XTL1 and XTL2 Pins

(1) When using self-excited oscillation

Item

Oscillation frequency Fmax 40.0 MHz

Symbol Min. Typ. Max. Unit

Vihx

TwlxTwhx

DD/2

Vilx

(2) When inputting a pulse to the XTL1 pin

Item High level pulse width Low level pulse width Pulse cycle

Twhx Twhx Tw

10 10 25

ns ns ns

Symbol Min. Typ. Max. Unit

Page 20

– 20 –

CXD1804BR

Contents

[1] Description of Registers........................................................................................................................... 21

1-1. Description of Decoder Block Registers............................................................................................... 21

1-2. Description of SCSI2 Controller Block Registers.................................................................................. 46

1-3. Common Registers............................................................................................................................... 60

[2] Description of SCSI Controller Block Commands ................................................................................. 68

2-1. Precautions when Executing Commands............................................................................................. 69

2-2. Category 00 Commands....................................................................................................................... 69

2-3. Category 01 Commands....................................................................................................................... 74

2-4. Category 10 Commands....................................................................................................................... 76

2-5. Category 11 Commands....................................................................................................................... 79

[3] Appendix A................................................................................................................................................. 84

3-1. List of CD-ROM Decoder Block Registers............................................................................................ 84

3-2. List of SCSI Controller Block Registers................................................................................................ 90

3-3. List of Common Registers ....................................................................................................................94

3-4. Register Reset Conditions.................................................................................................................... 96

[4] Appendix B............................................................................................................................................... 102

4-1. Summary of SCSI Controller Block Commands ................................................................................. 102

Page 21

– 21 –

CXD1804BR

[1] Description of Registers

The CXD1804AR's register address area is allotted as shown in the table below.

Address

00h to 4Fh

50h to 6Fh 70h to 7Fh

0xx xxxx 100 xxxx

101 xxxx 110 xxxx

111 xxxx

CD-ROM decoder block

SCSI2 interface block CD-ROM decoder/SCSI2 interface common block

Description

1-1. Description of Decoder Block Registers

1-1-1. 00h

(1) RAWMIN (raw minute) register (read)

RAWMIN (raw minute) register

00h (R)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

REWMIN

The Header Minute byte for the sector being sent from the CD DSP while DECINT is active can be read from this register. A difference of two sectors exists between the RAWxxx and BFxxx registers during the write-only and real-time correction modes.

(2) CONFIG0 (configuration 0) register (write)

CONFIG0 (configuration 0) register

00h (W)

CINT POL

RAM SIZE1

RAM SIZE0

RAM8 BITW

RAM2 CAS

EXCK SEL

CLK SEL1

CLK SEL0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

CONFIG0

bit 7: CINTPOL (sub CPU interrupt polarity)

High: The INT pin becomes active high. When the register is inactive, it goes low. Low: The INT pin becomes active low. When the register is inactive, it goes to high impedance.

bits 6, 5: RAMSIZE1, 0 (DRAM size 1, 0)

Set these bits according to the total size of the DRAM connected to this IC.

RAMSIZE1

"L"

"L" "H" "H"

"L"

"H"

"L"

"H"

1M bits 2M bits 4M bits 8M bits

RAMSIZE0 DRAM total size

bit 4: RAM8BITW (DRAM 8-bit wide)

This bit is set according to the bit width of the DRAM data bus to be connected. High: Set this bit high when the DRAM to be connected has the 8-bit width. Low: Set this bit low when the DRAM to be connected has the 16-bit width.

(Set low when two 8-bit width DRAMs are connected in parallel.)

Page 22

– 22 –

CXD1804BR

bit 3: RAM2CAS (DRAM 2 CAS)

When the DRAM bus width is 16 bits, set this bit according to the number of CAS and WE signals. When the DRAM bus width is 8 bits, this bit has no meaning. High: Set this bit high when the IC is connected to a DRAM with 2 CAS signals and 1 WE signal. Low: Set this bit low when the IC is connected to a DRAM with 1 CAS signal and 2 WE signals.

bit 2: EXCKSEL (EXCK select)

This bit determines the frequency of the EXCK clock that is used to get the subcode from the CD DSP. This bit is set by the sub CPU on the basis of the playback speed and the clock frequency on the XTL1 pin. (The maximum frequency for EXCK is 1MHz.) High: The EXCK frequency is 1/48 the frequency of the XTL1 pin. Set this bit high when the XTL1

frequency is greater than 32MHz.

Low: The EXCK frequency is 1/32 the frequency of the XTL1 pin. Set this bit low when the XTL1

frequency is less than 32MHz.

bits 1, 0: CLKSEL1, 0 (CLK select 1, 0)

These bits determine the clock frequency output from the CLK pin.

CLKSEL1

"L"

"L" "H" "H"

"L"

"H"

"L"

"H"

Fixed to high 1/2 of XTL1 Same frequency as XTL1 RESERVED

CLKSEL0 Clock frequency

1-1-2. 01h

(1) RAWSEC (raw second) register (read)

RAWSEC (raw second) register

00h (R)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

RAWSEC

The Header Second byte for the sector being sent from the CD DSP while DECINT is active can be read from this register.

(2) CONFIG1 (configuration 1) register (write)

CONFIG1 (configuration 1) register

00h (W)

SW OPEN

SYC NGC2

SYC NGC1

SYC NGC0

HWKR QDIS

"L"

SBC ECC1

SBC ECC0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

CONFIG1

bit 7: SWOPEN (sync window open)

High: The Sync mark detection window opens. In this case, the IC's internal Sync protection circuit

is disabled.

Low: The Sync mark detection window is controlled by the IC's internal Sync protection circuit.

bits 6 to 4: SYCNGC2 to 0 (sync NG count 2 to 0)

The Sync mark detection window opens once the number of Sync marks specified by these bits is inserted. Setting a value of 1h or less for these bits is prohibited. (After a reset, these bits are set to 2h.)

Page 23

– 23 –

CXD1804BR

bit 3 HWKRQDIS (host DMA weak request disable)

High: (For the send system command passed through a buffer)

When the FIFO does not have eight empty bytes or more, the DMA does not start to the FIFO from the buffer. (For the receive system command passed through a buffer) When the data of eight bytes or more are written (or the last data is written) in the FIFO, the DMA starts to the buffer from the FIFO.

Low: (For the send system command passed through a buffer)

When the FIFO is not filled with data, the DMA starts to the FIFO from the buffer. (For the receive system command passed through a buffer) The DMA starts to the buffer from the FIFO immediately after the data are written in the

FIFO. The number of times of the DMA execution for the host is reduced by setting this bit high. (Because the page mode is always used.)

bit 2: RESERVED

Normally set low.

bits 1, 0: SBCECC1, 0 (subcode ECC 1, 0)

These two bits specify the error correction method when decoding the subcode.

SBECC1

"X" "L"

"H"

"L" "H" "H"

Error correction not performed. Single error correction performed. Double error correction performed.

SBECC0 Subcode error correction

1-1-3. 02h

(1) RAWBLK (raw block) register (read)

RAWBLK (raw block) register

02h (R)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

RAWBLK

The Header Block byte for the sector being sent from the CD DSP while DECINT is active can be read from this register.

(2) DSPIF (DSP interface) register (write)

DSPIF (DSP interface) register

02h (W)

C2PO L1st

LCH LOW

BCK RED

BCKL MD1

BCKL MD0

LSB 1st

"L"

BFSH DFSL

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

DSPIF

This register controls the connection mode with the CD DSP. After the IC is reset, the sub CPU sets this register according to the CD DSP to be connected. bit 7: C2PL1ST (C2PO lower byte first)

High: When two bytes of data are input, C2PO inputs the lower byte first followed by the upper byte. Low: When two bytes of data are input, C2PO inputs the upper byte first followed by the lower byte.

Here, "upper byte" means the upper 8 bits including MSB from the CD DSP and "lower byte"

means the lower 8 bits including LSB from the CD DSP. For example, the Header minute

byte is the lower byte and the second byte, the upper byte.

Page 24

– 24 –

CXD1804BR

bit 2: LSB1ST (LSB first)

High: Connected with the CD DSP which outputs data with LSB first. Low: Connected with the CD DSP which outputs data with MSB first.

bit 1: RESERVED

Normally set low. Any change to the bits in this register must be made in the decoder disable status. (After the IC is reset, the address is 28h.)

bit 0 BFSHDFSL (buffering subheader flag select)

High: The Sub Headers written two times are compared and, if they do not match, the result

reports an error to bits 3 to 0 of BFHDRFLG.

Low: When the C2PO of the Sub Headers written two times are both high, that reports an error to

the bits 3 to 0 of BFHDRFLG.

1-1-4. 03h

(1) RAWMD (raw mode) register (read)

RAWMD (raw mode) register

03h (R)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

RAWMD

The Header Mode byte for the sector being sent from the CD DSP while DECINT is active can be read from this register.

(2) RFINTVL (refresh interval) register (write)

RFINTVL (refresh interval) register

03h (W) b7 b6 b5 b4 b3 b2 b1 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

RFINTVL

This register determines the refresh interval. The refresh interval is RFINTVL × 4 × TW. Here, TW represents the XTL1 clock frequency. Note that this IC performs RAS only refresh.

bit 6: LCHLOW (Lch low)

High: When LRCK is low, determined to be the left channel data. Low: When LRCK is high, determined to be the right channel data.

bit 5: BCKRED (BLCK rising edge)

High: Data is strobed at the rising edge of BCLK. Low: Data is strobed at the falling edge of BCLK.

bits 4, 3: BCKMD1, 0 (BCLK mode 1, 0)

These bits are set according to the number of clocks output for BCLK during 1/2 LCLK cycle by the CD digital signal processing LSI (CD DSP).

BCKMD1

"L" "L"

"H"

"L" "H" "X"

16BCLKs/WCLK 24BCLKs/WCLK 32BCLKs/WCLK

BCKMD0

Page 25

– 25 –

CXD1804BR

bits 7, 6: DSTBSL1, 0

These bits determine the frequency of the DSTB and XLAT clocks used for passing data (DATO) to the CD DSP. The sub CPU sets these bits according to the frequency of the clock on the XTL1 pin. (The maximum frequency for DSTB is 1MHz.)

DSTBDL1

0 0 1 1

0 1 0 1

1/24 of XTL1 1/32 of XTL1 1/48 of XTL1 1/64 of XTL1

DSTBDL0 Frequency

bit 5: DISXLAT (disable XLAT output)

High: After the contents of the DSPCMD register are transferred to the DSP, a latch pulse is not

output from the XLAT pin. In this case, the sub CPU uses DSPCMDLT (bit 0 of the CHPCTL0 register) to output a latch pulse from the XLAT pin at the appropriate time.

Low: After the contents of the DSPCMD register are transferred to the DSP, a latch pulse is output

from the XLAT pin.

bits 4, 3: XFRBYT1, 0 (transfer command byte length 1,0)

These bits determine the number of bytes in the command data (DSPCMD register) to be transferred to the CD DSP. The relationship between the settings and the number of transferred bytes is shown in the following table.

XFRBYT1

"L"

"L" "H" "H"

"L"

"H"

"L"

"H"

Prohibited

1 2 3

XFRBYT0 Number of transferred bytes

1-1-5. 04h

(1) BFMIN (buffer minute) register (read)

BFMIN (buffer minute) register

04h (R)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

BFMIN

During the execution of a write-only or real-time error correction command and after execution of a repeat correction command, the Header Minute byte of the current sector can be read from this register. This register is invalid when the decoder is disabled or a monitor-only command is being executed.

(2) DSPCTL (DSP control) register (write)

DSPCTL (DSP control) register

04h (W)

DSTB SL1

DSTB SL0

DIS XLAT

XFR BYT1

XFR BYT0

FAST DSTB

SBAI TMSL

FAST EXCK

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

DSPCTL

Page 26

– 26 –

CXD1804BR

1-1-7. 06h

(1) BFHDRBLK (buffer header block) register (read)

BFHDRBLK (buffer block) register

06h (R)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

BFHDRBLK

During the execution of a write-only or real-time error correction command and after execution of a repeat correction command, the Header Block byte of the current sector can be read from this register. This register is invalid when the decoder is disabled or a monitor-only command is being executed.

bit 1 SBAITMSL (subcode buffering area increment timing select)

High: The internal subcode buffering area is incremented when the first pack of data is retrieved

and de-interleaving is performed.

Low: The internal subcode buffering are is incremented when the subcode Sync mark is detected

and inserted.

bit 0 FASTEXCK (fast EXCK)

High: The EXCK frequency is 1/8 the frequency of the XTL1 pin. Low: The EXCK frequency depends on the settings of EXCKSEL (CONFIG0 bit 2)

1-1-6. 05h

(1) BFSEC (buffer second) register (read)

BFSEC (buffer second) register

05h (R)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

BFSEC

During the execution of a write-only or real-time error correction command and after execution of a repeat correction command, the Header Second byte of the current sector can be read from this register. This register is invalid when the decoder is disabled or a monitor-only command is being executed.

(2) DSPCMD (DSP command) register (write)

DSPCMD (DSP command) register

05h (W) b7 b6 b5 b4 b3 b2 b1 b0

Adr. bit7 bit6 bit5

bit4

bit3 bit2 bit1 bit0 Reg.

DSPCMD

The data to be serially transferred to the CD DSP is written in this register. This register is a three-byte LIFO (last-in, first-out) register.

bits 2: FASTDSTB

When this bit is high, it is possible to make the frequencies faster of the DSTB, DATO and XLAT outputs to the CD DSP set in DSTBSL1 and 0 (DSPCTL bits 7 and 6).

DSTBSL1

0 0 1 1

0 1 0 1

1/48 of XTL1 1/16 of XTL1 1/8 of XTL1 1/4 of XTL1

DSTBSL0 Frequency

Page 27

– 27 –

CXD1804BR

07h (R)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

BFMD

During the execution of a write-only or real-time error correction command and after execution of a repeat correction command, the Header Mode byte of the current sector can be read from this register. This register is invalid when the decoder is disabled or a monitor-only command is being executed.

1-1-11. 0Ah

(1) BFSUBM (buffer sub mode) register (read)

BFSUBM (buffer sub mode) register

0Ah (R)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

BFSUBM

During the execution of a write-only or real-time error correction command and after execution of a repeat correction command, the Sub Header Sub Mode byte of the current sector can be read from this register. This register is invalid when the decoder is disabled or a monitor-only command is being executed.

1-1-9. 08h

(1) BFFILE (buffer file) register (read)

BFFILE (buffer file) register

08h (R)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

BFFILE

During the execution of a write-only or real-time error correction command and after execution of a repeat correction command, the Sub Header File byte of the current sector can be read from this register. This register is invalid when the decoder is disabled or a monitor-only command is being executed.

1-1-10. 09h

(1) BFCHAN (buffer channel) register (read)

BFCHAN (buffer channel) register

09h (R)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

BFCHAN

During the execution of a write-only or real-time error correction command and after execution of a repeat correction command, the Sub Header Channel byte of the current sector can be read from this register. This register is invalid when the decoder is disabled or a monitor-only command is being executed.

1-1-8. 07h

(1) BFMD (buffer mode) register (read)

BFMD (buffer mode) register

Page 28

– 28 –

CXD1804BR

1-1-13. 0Ch

(1) RAWHDRFLG (raw header flag) register (read)

RAWHDRFLG (raw header flag) register

0Ch (R) MIN SEC

BLO CK

MODE

CDR DTEN

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

RAWHDR

This register indicates the C2PO value for the RAWHDR register. bit 7 Minute bit 6 Second bit 5 Block bit 4 Mode bit 3 to 1 RESERVED bit 0 CD-R Mode Detect Enable

(2) CDRMOD (CD-R mode) register (write)

CDRMOD (CD-R mode) register

bit 0 CDRDTEN (CD-R mode detect enable)

High: The CDRINT status results when the decoder is operating in the monitor-only, write-only,

real-time correction or asynchronous correction mode if either of the conditions below is met. (1) Bits 7 to 5 of the Raw Mode byte are not "000". (2) The error flag of the Raw Mode byte is not established. (Values after processing by

setting of MDBYTCTL (DECCTL0 bit 2))

Low: The CD-R Mode byte is not detected.

1-1-14. 0Dh

(1) BFHDRFLG (buffer header flag) register (read)

BFHDRFLG (buffer header flag) register

0Dh (R) MIN SEC

BLO CK

MODE FILE CHAN

SUB MODE

DATA TYPE

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

HDRFLG

0Ch (W)

CDR DTEN

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

CDRMODE

0Bh (R)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

BFDTYP

During the execution of a write-only or real-time error correction command and after execution of a repeat correction command, the Sub Header Data Type byte of the current sector can be read from this register. This register is invalid when the decoder is disabled or a monitor-only command is being executed.

1-1-12. 0Bh

(1) BFDTYP (buffer data type) register (read)

BFDTYP (buffer data type) register

Page 29

– 29 –

CXD1804BR

This register shows the error status of each byte in the BFHDR and BFSHDR registers. High means an error. bit7 Minute bit6 Second bit5 Block bit4 Mode bit3 File bit2 Channel bit1 Submode bit0 Data Type

1-1-15. 0Eh

(1) DECSTS0 (decoder status 0) register (read)

DECSTS0 (decoder status 0) register

0Eh (R)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

DECSTS0

bit 7: SHRTSCT (short sector)

Indicates that the Sync mark interval was less than 2351 bytes since the previous DECINT. This sector does not remain in the buffer memory.

bit 6: NOSYNC

Indicates that the Sync mark was inserted because one was not detected in the prescribed position for the current sector.

bit 5: CORINH (correction inhibit)

This is high if the current sector Mode and Form could not be determined when the AUTODIST bit of the DECCTL register is set high. ECC or EDC is not executed in this sector. The CORINH bit is invalid when AUTODIST is set low. It is high in any of the conditions below when the AUTODIST bit is set high. (1) When an error was found in the Mode byte. (2) When the Mode byte is a value other than 01h or 02h. (3) When the Mode byte is 02h and the C2 pointer is high in the Submode byte.

bit 4: ERINBLK (erasure in block)

When the decoder is operating in the monitor-only, write-only or real-time mode which prohibits erasure correction, this indicates that at least a 1-byte error flag (C2PO) has been raised in the data excluding the Sync mark from the current sector CD DSP.

bit 3: CORDONE (correction done)

Indicates that there is an error corrected byte in the current sector.

bit 2: EDCNG

Indicates that an error was found in the current sector through an EDC check.

bit 1: ECCNG

Indicates that an uncorrectable error was found somewhere between the Header byte and the Parity byte in the current sector. (Bit 1 = don't care in the Mode2, Form2 sectors.)

bit 0: TGTNTMET (target not met)

Indicates that the current sector address and the target address in the TGTMNT, TGTSEC, and TGTBLK registers do not match. The error pointer is not referenced in this instance.

Page 30

– 30 –

CXD1804BR

1-1-16. 0Fh

(1) DECSTS1 (decoder status 1) register (read)

DECSTS1 (decoder status 1) register

0Fh (R)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

DECSTS1

bits 7 to 3: RESERVED bit 2: EDCALL0 (EDC all 0)

This is high when there are no error flags in all the 4 EDC parity bytes of the current sector and

their values are all 00h. bit 1: CMODE (correction mode) bit 0: CFORM (correction form)

These bits indicate the Mode and Form of the current sector the decoder has discriminated to

correct errors when the decoder is operating in the real-time correction or repeat correction mode.

CFORM

"X" "L"

"H"

"L" "H" "H"

MODE1 MODE2, FORM1 MODE2, FORM2

CMODE

1-1-17. 10h, 11h

(1) LSTARA-H, L (last area-high, low) register (read/write)

LSTARA-H, L (last area-high, low) register

10h (R/W) 11h (R/W) b7 b6 b5 b4 b3 b2 b1

b8 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

LSTARA-H LSTARA-L

This register specifies the last order area. Set bits 7 to 1 of the LSTARA-H register low when writing in this register.

1-1-18. 12h, 13h

(1) LHADR-H, L (last HADR-high, low) register (read/write)

LHADR-H, L (last HADR-high, low) register

12h (R/W) 13h (R/W) b7 b6 b5 b4 b3 b2 b1

b8 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

LHADR-H

LHADR-L

When host automatic transfer mode is disabled, this register specifies the upper limit for HADRC (the upper 9 bits); for the subcode buffering command, this register specifies the upper limit for the address (upper 9 bits). The lower 11 bits are 7FFh. Set bits 7 to 1 of the LHADR-H register low when writing in this register.

Page 31

– 31 –

CXD1804BR

1-1-19. 14h

(1) XFRFMT0 (transfer format 0) register (read/write)

XFRFMT0 (transfer format 0) register

14h (R/W)

1024 XFR

512 XFR

SYNC

HEADERSBHE

ADER

USER DATA

PARI TY

AUTO XFR

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

XFRFMT0

The transfer format for automatic data transfer is determined by this register. Before starting to transfer each sector, this IC reads the value of the SCTINF register written in the buffer memory. The buffer memory data is transferred to the host according to the read values and those in the XFRFMT1 and 0 registers. The Mode/Form of bits 3 to 1 depends on the values of bits 2 and 1 in the SCTINF register. Regarding Mode2 in the Yellow Book, don't care the Form2 (bit 2) of the SCTINF register. Set bits 3 to 1 of the XFRFMT0 register high to transfer 2336 bytes of user data. bit 7: 1024XFR

When this bit is set high, the user data (2048 bytes) is divided into 1024-byte blocks for transmission. In this case, set bits 6 to 1 in the XFRFMT0 register and bits 7 to 0 in the XFRFMT1 register low. In other words, the Sync mark, Header, Sub Header, and Parity bytes, as well as the block error flag, byte error flag, and subcode cannot be sent to the host. This transfer mode is not supported for Mode2/Form2 sectors.

bit 6: 512XFR (512 bytes transfer mode)

When this bit is set high, the user data (2048 bytes) is divided into 512-byte blocks for transmission. In this case, set bit 7 and bits 5 to 1 in the XFRFMT0 register and bits 7 to 0 in the XFRFMT1 register low. In other words, the Sync mark, Header, Sub Header, and Parity bytes, as well as the block error flag, byte error flag, and subcode cannot be sent to the host. This transfer mode is not supported for Mode2/Form2 sectors.

bit 5: SYNC

High: Sync marks are transferred to the host. Low: Sync marks are not transferred to the host.

bit 4: HEADER

High: The four Header bytes are transferred to the host. Low: The four Header bytes are not transferred to the host.

bit 3: SBHEADER

High: Mode1: This bit has no meaning.

Mode2: The eight Sub Header bytes are transferred to the host.

Low: The bytes indicated above are not transferred to the host.

bit 2: USERDATA (user data)

High: Mode1 and Mode2/Form1: User data (2048 bytes) is transferred to the host.

Mode2/Form2: User data (2324 bytes) is transferred to the host.

Low: The bytes indicated above are not transferred to the host.

bit 1: PARITY

High: Mode1: The EDC, ECC parity bytes and the eight 00h bytes, for a total of 288 bytes, are

transferred to the host. Mode2/Form1: The 280 EDC and ECC parity bytes are transferred to the host. Mode2/Form2: The four reserved bytes (at the end of the sector) are transferred to the host.

Low: The bytes indicated above are not transferred to the host.

bit 0: AUTOXFR

Set this bit high when operating in automatic transfer mode. Set this bit low when operating in manual transfer mode. For CD-DA data, set 3Fh in this register when operating in automatic transfer mode.

Page 32

– 32 –

CXD1804BR

1-1-20. 15h

(1) XFRFMT1 (transfer format 1) register (read/write)

XFRFMT1 (transfer format 1) register

15h (R/W)

ENBL KEFL

BLKE FLSL

ENBY TFBT

BYTE FLSL

ENSB CBT

ALL SBC

SBCE STS

ZA SQEF

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

XFRFMT1

bit 7: ENBLKEFL (enable block error flag)

High: The block error flag (1 byte) is transferred to the host. Low: The byte indicated above is not transferred to the host.

bit 6: BLKEFLSL (block error flag select)

This bit is valid only when ENBLKEFL is high. High: The value (one byte) written in the BLKESTS register by the sub CPU is transferred to the

host as the block error flag.

Low: The OR value of each bit in the byte error flag is transferred to the host as the block error flag.

bit 5: ENBYTFBT (enable byte error flag buffering & transfer)

If this bit is set high, the operations described below are performed. If this bit is set low, the operations described below are not performed. (1) The byte error flag is buffered during execution of a write-only, real-time error correction, and

CD-DA command.

(2) When host automatic transfer mode is enabled (the AUTOXFR bit (bit 0) of the XFRFMT0

register is high), the byte error flag is transferred to the host. The ENBYTFBT and BYTEFLSL bits are valid only when the USERDATA bit (bit 2) of the XFRFMT0 register is high.

bit 4: BYTEFLSL (byte error flag select)

This bit is valid only when ENBYTFBT is high. When this bit is set high, the value of BYTERSTS (the byte error status register, described later) is written in the byte error flag area of the buffer memory. Setting the BLKEFLSL bit low and the BYTEFLSL bit high at the same time is prohibited. If this bit is set low, the value of C2PO from the CD DSP is written in the byte error flag area.

bit 3: ENSBCBT (enable subcode buffering & transfer)

If this bit is set high, the operations described below are performed. If this bit is set low, the operations described below are not performed. (1) All subcodes or subcode-Q is buffered while the decoder executes CD-DA commands. (2) When host automatic transfer mode is enabled (the AUTOXFR bit (bit 0) of the XFRFMT0

register is high), all subcodes or subcode-Q is transferred to the host. Note that buffering the CD-ROM data and the subcodes or subcode-Q at the same time is not supported.

bit 2: ALLSBC (all subcode/subcode-Q)

This determines whether to buffer and transfer all subcodes or subcode-Q to the host when ENSBCBT is high. High: All subcodes Low: Subcode-Q

Page 33

– 33 –

CXD1804BR

bit 1: SBCESTS (subcode error status)

This bit is valid only when ENSBCBT is high. High: The value (one byte) written in the SBCESTS register by the sub CPU is transferred to the host. Low: The byte indicated above is not transferred to the host.

bit 0: ZASQEF (zero after subcode-Q error flag)

This bit is valid only when ENSBCBT and SBCESTS are both high. (This bit is valid only when subcode-Q and the subcode error flag are transferred to the host.) High: Five 00h bytes in addition to the subcode-Q error flag are transferred to the host. Low: Five 00h bytes are not added to the subcode-Q error flag.

1-1-21. 16h

(1) DECCTL0 (decoder control 0) register (read/write)

DECCTL0 (decoder control 0) register

16h (R/W)

AUTO DIST

MODE SEL

FORM SEL

ATTG TMET

ENFM 2EDC

MDBY TCTL

EN DLA

ATDL RNEW

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

DECCTL0

bit 7: AUTODIST (auto distinction)

High: Errors are corrected according to the Mode byte and the Form bit read from the drive.

Low: Errors are corrected according to the MODESEL and FORMSEL bits (bits 6 and 5). bit 6: MODESEL (mode select) bit 5: FORMSEL (form select)

When AUTODIST is low, the sector is corrected in the Mode or Form indicated in the table below.

MODESEL

"L" "H" "H"

"L" "L"

"H"

MODE1 MODE2, FORM1 MODE2, FORM2

FORMSEL

bit 4: ATTGTMET (auto target met)

When this bit is high, the processing for TGTMET and INCTGT (CHPCTL0 bits 6 and 5) can be performed inside of this IC, which was performed by the sub CPU formerly.

bit 3: ENFM2EDC (enable Form2 EDC check)

High: EDC check for Form2 is enabled.Low: EDC check for Form2 is disabled. The EDCNG bit of the DECSTS0 register goes low.

bit 2: MDBYTCTL (mode byte control)

High: Even if there are data other than "0" in the upper six bits of the Mode byte in the Header, an

error does not result. Set this bit high when playing back discs such as CD-ROM.

Low: If the upper six bits of the Mode byte in the Header are not "000000", an error results.

Page 34

– 34 –

CXD1804BR

bit 1: ENDLA (enable drive last area (address))

High: DLAR (Drive Last Area) is enabled. While the decoder is executing a write-only command,

real-time error correction command, or CD-DA command, if buffering of the buffer memory area specified by DLAR is completed, the DRVOVRN (drive overrun) status results. Bufferwrite of subsequent sectors is then interrupted. Also, while the decoder is executing a subcode buffering command, if data is written in the buffer memory address specified by SLADR, the DRVOVRN (Drive Overrun) status results. Buffer-write of subsequent sectors is then interrupted.

Low: DLAR (Drive Last Area) and SLADR are disabled when this is set low.

bit 0: ATDLRNEW (auto DLARA renewal)

High: When the data transfer to the host is completed for one sector, DLARA is renewed in the

written area of the sector.

Low: DLARA is renewed by the sub CPU.

1-1-22. 17h

(1) DECCTL1 (decoder control 1) register (read/write)

DECCTL1 (decoder control 1) register

17h (R/W)

ENSB QRD

DEC CMD2

DEC CMD1

DEC CMD0

ATW SCTI

NTCR CT1

NTCR CT0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

DECCTL1

bit 7: ENSBQRD (enable subcode-Q read)

The subcode is fetched from the DSP and the subcode-Q CRC check is performed. The sub CPU can read the subcode-Q from the SUBQ register. Subcode decoding (de-interleave, error correction) is performed.

bit 6: RESERVED

Normally set low.

bits 5 to 3: DECCMD2 to 0 (decoder commands 2 to 0)

DECCMD2

"L" "L" "L"

"L" "H" "H" "H"

"L"

"L" "H" "H"

"L"

"L" "H"

DECCMD1

"L"

"H"

"L"

"H"

"L" "H" "H"

DECCMD0

DECODER Disable Monitor-only Write-only Real-time correction Asynchronous correction Subcode buffering CD-DA

Decoder command

bit 2: ATWSCTI (auto write sector information)

When this bit is high, the SCTINF, BLKESTS and BYTESTS registers are set and writing to the buffer memory is performed automatically. The values of SCTINF, BLKESTS and BYTESTS, set automatically, are shown below. SCTINF bit 7 to 3 = ‘00000’ b

bit 2 = Current sector CMODE (DECSTS1 bit 1) bit 1 = Current sector CFORM (DECSTS1 bit 0)

bit 0 = ‘1’ (transferred to the host) BLKESTS = ‘00’ h BYTESTS = ‘00’ h

bits 1 to 0: NTCRCT2 to 0 (number of times of correction)

This determines the number of times where error correction is performed when operating in asynchronous correction mode. (1 to 4 times)

Page 35

– 35 –

CXD1804BR

1-1-23. 18h

(1) XFRSTS (data transfer status) register (read)

XFRSTS (data transfer status) register

18h (R)

REV#2REV#1REV#

CMDO BUSY

CBFW RRDY

CBFR DRDY

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

XFRSTS

bits 7 to 5: REV#2 to 0 (revision number bits 2 to 0)

"011" is read out. This can be used to recognize the version.

bit 4: CMDOBUSY (command output busy)

This bit goes high if DSPCMDXFR is set. Once the transfer of contents of the DSPCMD register to the CD DSP is completed, this bit goes low.

bit 1: CBFWRRDY (CPU buffer write ready)

The sub CPU can write in the CPUBWDT register when this bit is high.

bit 0: CBFRDRDY (sub CPU buffer read ready)

The sub CPU can read the CPUBRDT register when this bit is high.

(2) CHPCTL0 (chip control 0) register (write)

CHPCTL0 (chip control 0) register

18h (W)

CHIP RST

TGT MET

INC TGT

RPCO RTRGBFSTOP

CLDS PCMD

DSPC MDXF

DSPC MDLT

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

CHPCTL0

bit 7: CHIPRST (chip reset)

This IC is reset when this bit is set high.

bit 6: TGTMET (target met)

(1) During execution of a write-only or real-time error correction command, if the target sector is

found, the sub CPU sets TGTMET high.

(2) TGTMET is sampled for 3/4 sectors (depends on the playback speed) after the decoder

interrupt. Accordingly, if the target sector is found, the sub CPU must set TGTMET high within

this interval after DECINT. (3) Once TGTMET is set high, it remains high internally until the decoder is disabled. (4) If TGTMET is sampled and found to be low during execution of a write-only or real-time error

correction command:

• The main data and subcode buffering areas are not renewed.

• Main data error correction is not performed.

bit 5: INCTGT (increment target register)

If this bit is set high, the target registers (TGTMIN, TGTSEC, and TGTBLK) are incremented. The target registers use BCD code. TGTMIN, TGTSEC, and TGTBLK are connected in cascading fashion and are incremented as shown below. (1) The TGTBLK register is always incremented by this bit. When the TGTBLK register is

incremented after reaching "74", it returns to "0". (2) The TGTSEC register is incremented when the TGTBLK register is "74" and this bit goes high.

When the TGTSEC register is incremented after reaching "59", it returns to "0". (3) The TGTMIN register is incremented when the TGTBLK register is "74", the TGTSEC register

is "59", and this bit goes high. When the TGTMIN register is incremented after reaching "99", it

returns to "0".

Page 36

– 36 –

CXD1804BR

bit 4: RPCORTRG (repeat correction trigger)

If this bit is set high while the decoder is disabled, the CD-ROM sector error correction begins. The sector that is corrected is specified by the BFARA# register.

bit 3: BFSTOP (buffering stop)

When this bit is set high, buffering the data from the CD DSP is stopped. This bit is used when the Short sync occurs during execution of the asynchronous correction command, and the like.

bit 2: CLDSPCMD (clear DSP data register)

Setting this bit high clears the DSPCMD register.

bit 1: DSPCMDXF (DSP command transfer)

Setting this bit high starts serial transfer of the contents of the DSPCMD register to the CD DSP.

bit 0: DSPCMDLT (DSP command latch)

Setting this bit high outputs a pulse from the XLAT pin.

1-1-24. 19h

(1) CPUBRDT (CPU buffer read data) register (read)

CPUBRDT (CPU buffer read data) register

19h (R)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

CPUBRDT

The sub CPU reads the Data In the buffer memory through this register.

(2) CPUBWDT (CPU buffer write data) register (write)

CPUBWDT (CPU buffer write data) register

19h (W) b7 b6 b5 b4 b3 b2 b1 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

CPUBWDT

The sub CPU writes the data to be written in the buffer memory in this register.

1-1-25. 1Ah

(1) SCTINF (sector information) register (read/write)

SCTINF (sector information) register

1Ah (R/W)

SUBQ FMSL

MODE2 FORM2

XFR SCT

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCTINF

While DECINT is active, the current sector information is written in this register. When making transfers to the host automatically, be sure to set the information in this register each time DECINT is active. The value in this register is written in the last address in the buffer memory area. bit 7: SUBQFMSL (subcode-Q format select)

High: When ENSBCBT is high and ALLSBC is low, the decoder does not write the subcode error

flag or 00h after subcode-Q in the buffer. When transferring the subcode error flag and 00h after subcode-Q address data to the host, the sub CPU must write Data In the above address before setting the SCTINF register. Set this bit high only when ENSBCBT is high and ALLSBC is low is prohibited.

Low: When ENSBCBT is high and ALLSBC is low, the decoder writes the subcode error flag and

00h after subcode-Q in the buffer.

Page 37

– 37 –

CXD1804BR

bits 6 to 3: RESERVED

Always set low.

bit 2: Mode2

High: This sector is a Mode2 sector. Low: This sector is a Mode1 or CD-DA sector.

bit 1: Form2

This bit is valid only when the Mode2 bit is high. High: This sector is a Form2 sector. Low: This sector is a Form1 sector. This bit can either be high or low in the Mode2 for the Yellow Book.

MODE2

"L"

"L" "H" "H"

"L"

"H"

"L"

"H"

MODE1 RESERVED MODE2/FORM1 MODE2/FORM2

FORM2

bit 0: XFRSCT (transfer sector)

High: The Data In this sector is transferred to the host. Low: The Data In this sector is not transferred to the host. In this case, bits 2 and 1 have no meaning.

1-1-26. 1Bh

(1) SBCSTS (subcode status) register (read)

SBCSTS (subcode status) register

1Bh (R)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SBCSTS

During execution of a CD-DA command or a subcode buffering command, this register indicates the error status of the subcode written to the buffer. The Data In this register is valid from DECINT to DECINT. bit 7: SBCOVRN (subcode overrun)

If the ENSBCBT bit (bit 5) of the XFRFMT1 register is set high, if subcode buffering to the area specified by DLARA is completed while the decoder is executing a CD-DA command or a subcode buffering command, the SBCOVRN status results. There are no stipulations regarding the time relationship between the subcode and CD-ROM data Sync marks. Accordingly, a time difference exists between the occurrence of DRVOVRN and SBCOVRN.

bit 6: OVERFLOW

Indicates that the SBCSTS FIFO has overflowed due to multiple subcode short sync. When overflow occurs, subcode buffering is stopped. Subcodes are not buffered in subsequent sectors obtained by decoder interrupt.

bit 5: BFNTVAL (buffer not valid)

Indicates that valid data is not written in the buffer due to a short subcode sector.

bit 4: NOSYNC

Indicates that the Sync mark was inserted because a subcode Sync mark was not detected in the prescribed position.

bits 3 to 1: SBCERR3 to 1 (subcode pack error 3 to 1)

Indicates that an uncorrectable error was found in that pack as the result of subcode error correction. These bits are valid only when the ALLSBC bit (bit 4) of the XFRFMT1 register is high.

Page 38

– 38 –

CXD1804BR

bit 0: SBCERR0 (subcode pack error 0)/SUBQERR0 (subcode-Q error 0)

When ALLSBC is high, this bit is the PACK0 error status. When ALLSBC is low, an error was detected in the subcode-Q as the result of the CRC check.

(2) BLKESTS (block error status) register (write)

BLKESTS (block error status) register

1Bh (W) b7 b6 b5 b4 b3 b2 b1 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

BLKESTS

The data to be transferred to the host as the block error status byte is written in this register. Set this register before writing the SCTINF register.

1-1-27. 1Ch

(1) SBQSTS (subcode-Q status) register (read)

SBQSTS (subcode-Q status) register

1Ch (R)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SBQSTS

This register indicates the error status of the subcode-Q fetched from the CD DSP. Except for bit 7, the Data In this register is valid from SBCSYNC to SBCSYNC. bit 7: SBQERR (subcode-Q error)

This bit is the status which is normally to be written in the SBCSTS register. This bit is valid for the same period as the SBCSTS register. This bit indicates that an error was detected in the subcodeQ as a result of the CRC check. The sub CPU should read this bit before reading the SBCSTS register. When ALLSBC is high, bit 0 of SBCESTS becomes SBCERR0. Therefore, the subcode-Q error information is obtained from this bit. When ALLSBC is low, SUBQERR0 and SBQERR are the

same. Accordingly, there is no need to read this bit. bits 6 to 3: RESERVED bit 2: SHTSBCS (short subcode sector)

Indicates that the subcode Sync mark interval since the previous SBCSYNC interrupt was less than

98 WFCK. bit 1: NOSYNC (no subcode Sync)

Indicates that since a subcode Sync mark could not be detected at the prescribed position, a Sync

mark was inserted. bit 0: SUBQERR (subcode-Q error)

An error was detected in the subcode-Q as a result of the CRC check.

(2) SBCESTS (subcode error status) register (write)

SBCESTS (subcode error status) register

1Ch (W) b7 b6 b5 b4 b3 b2 b1 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SBCESTS

The data to be transferred to the host as the subcode error status byte is written in this register. Set this register before writing in the SCTINF register.

Page 39

– 39 –

CXD1804BR

1-1-28. 1Dh

(1) INCBLKS (increment blocks) register (read/write)

INCBLKS (increment blocks) register

1Dh (R/W)

INCB LKS2

INCB LKS1

INCB LKS0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

INCBLKS

bits 7 to 3: RESERVED

Always set low.

bits 2 to 0: INCBLKS2 to 0

This register specifies the increment value (+1 to 4) of the BFBLKC (buffer block count) register. Setting "0" or a value of "5" or greater is prohibited. After a reset, the increment value is set to "1".

1-1-29. 1Eh

(1) SBQDT (subcode-Q data) register (read)

SBQDT (subcode-Q data) register

1Eh (R)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SBQDT

The subcode-Q value can be read by reading this register ten times. The subcode-Q that is read is the data immediately prior to the SBCSYNC interrupt.

(2) BYTERSTS (byte error status) register (write)

BYTERSTS (byte error status) register

1Eh (W) b7 b6 b5 b4 b3 b2 b1 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

BYTERSTS

When ENBYTFBT and ENBYTEFG in the XFRFMT1 register are both high, the data to be transferred to the host as the byte error status byte is written in this register. Set this register before writing in the SCTINF register.

1-1-30. 1Fh

(1) CHPCTL1 (chip control 1) register (read/write)

CHPCTL1 (chip control 1) register

15h (R/W)

PACK MODE

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

CHPCTL1

bits 7 to 3, 1, 0: RESERVED

Always set low.

Page 40

– 40 –

CXD1804BR

bit 2: PACKMODE (pack mode)

High: The four packs of data starting from the five packs before the subcode sync signal are

written in the buffer as one group of data. In the illustration below, H to K are treated as one group.

Low: The four packs of data before the subcode sync signal are written in the buffer as one group

of data. In the illustration below, I to L are treated as one group.

SCOR PACK from DSP 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

H I J K L M N O P Q R S T

PACKMODE

H: I: J:

de-interleaved PACK

Pack using 0 to 7 Pack using 1 to 8 Pack using 2 to 9

1-1-31. 20h, 21h

(1) BFARA#-H, L (buffering area number-high, low) (read/write)

BFARA#-H, L (buffering area number-high, low)

20h (R/W) 21h (R/W) b7 b6 b5 b4 b3 b2 b1

b8 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

BFARA#-H BFARA#-L

The area is read where the data from the CD DSP is buffered. This register indicates the buffering area when executing a write-only, real-time error correction, or CD-DA command. Before executing one of these commands, the sub CPU specifies the area where buffering is to start initially. When the buffering of a sector is completed, this register is incremented. When executing a subcode buffering command, buffering starts from address 0.

1-1-32. 22h, 23h

(1) CSCTARA-H, L (current sector area-high, low) register (read)

CSCTARA-H, L (current sector area-high, low) register

22h (R) 23h (R) b7 b6 b5 b4 b3 b2 b1

b8 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

CSCTARA-H

CSCTARA-L

This register indicates the area number where the current sector is being written.

Page 41

– 41 –

CXD1804BR

1-1-33. 24h, 25h

(1) DLARA-H, L (drive last area-high, low) register (read/write)

DLARA-H, L (drive last area-high, low) register

24h (R/W) 25h (R/W) b7 b6 b5 b4 b3 b2 b1

b8 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

DLARA-H

DLARA-L

This register specifies the last buffering area while the decoder is executing a write-only, real-time error correction, or CD-DA command. If the ENDLA bit (bit 1) of the DECCTL0 register is set high and the data from the drive (CD DSP) is written in the area specified by DLARA while the decoder is executing one of the above commands, subsequent buffering is prohibited.

1-1-34. 27h

(1) TGTMIN (target minute) register (read/write)

TGTMIN (target minute) register

27h (R/W) b7 b6 b5 b4 b3 b2 b1 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

TGTMNT

0 to 99 (BCD)

1-1-35. 28h

(1) TGTSEC (target second) register (read/write)

TGTSEC (target second) register

28h (R/W) b7 b6 b5 b4 b3 b2 b1 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

TGTSEC

0 to 59 (BCD)

1-1-36. 29h

(1) TGTBLK (target block) register (read/write)

TGTBLK (target block) register

29h (R/W) b7 b6 b5 b4 b3 b2 b1 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

TGTBLK

0 to 74 (BCD) Set the target sector address in these three registers when executing a monitor-only, write-only, or real-time error correction command. This address is compared with the current sector address, and if they do not match, TGTNTMT (target not met) status (bit 0 of the DECSTS0 register) is established.

Page 42

– 42 –

CXD1804BR

1-1-37. 2B to 2Dh

(1) XFRCNT-H, M, L (transfer block counter-high, middle, low) register (read/write)

XFRCNT-H, M, L (transfer block counter-high, middle, low) register

2Bh (R/W) 2Ch (R/W) 2Dh (R/W)

b23 b15

b22 b14

b21 b13

b20 b12

b19 b11

b18 b10

b17

b9 b1

b16

b8 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

XFRCNT-H XFRCNT-M

XFRCNT-L

This is a 24-bit register that shows the number of blocks remaining to be transferred. Before the start of the transfer the sub CPU sets the total number of blocks to be transferred in this register. This register is decremented as the transfer of each block is completed.

1-1-38. 2Eh, 2Fh

(1) XFRARA-L, H (transfer area-low, high) register (read/write)

XFRARA-L, H (transfer area-low, high) register

2Eh (R/W) 2Fh (R/W)

b7 b6 b5 b4 b3 b2 b1

b8 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

XFRARA-H

XFRARA-L

During an automatic transfer, this register specifies the initial area from which the transfer is to start. This register is incremented after a block is transferred. Note that bits 7 to 1 of the XFRCNT-H register should normally be set low.

1-1-39. 31h

(1) XFRPOS (first transfer position) register (read/write)

XFRPOS (transfer position) register

31h (R/W)

XFR POS1

XFR POS0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

XFRPOS

bits 7 to 2: RESERVED

Always set low. bits 1, 0: XFRPOS1, 0

These bits specify the initial block position from which transfer is to start when in 512- or 1024-byte

transfer mode (automatic transfer mode). In 1024-byte transfer mode, XFRPOS1 is invalid. This

and automatic transfer modes other than 512- and 1024-byte mode.

The sub CPU can read the values of XFRARA, XFRPOS, BFBLKC and XFRCNT at any time.

However, because the reads by the sub CPU are not synchronized with the variation of BFBLKC,

note that there is a possibility of an error of ±1 between the value that is read and the actual value.

Page 43

– 43 –

CXD1804BR

1-1-40. 33h to 35h

(1) HXFRC-H, M, L (host transfer byte counter-high, middle, low) register (read/write)

HXFRC-H, M, L (host transfer byte counter-high, middle, low) register

33h (R/W) 34h (R/W) 35h (R/W)

b15

b14

b13

b12

b19 b11

b18 b10

b17

b9 b1

b16

b8 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

HXFRC-H

HXFRC-M

HXFRC-L

In manual transfer mode, these registers set the number of bytes to be transferred. (20 bits) The number of bytes remaining to be transferred can also be read from this register. Note that bits 7 to 4 of HXFRC-H should normally be set low. Note) Send Data (A1h), Send Status (A5h) and Send Message (A7h), which were passed via the buffer,

should not be executed if HADRC-H, M, L are odd addresses and HXFRC-H, M, L are 3 bytes for setting conditions.

1-1-41. 37h to 39h

(1) HADRC-H, M, L (host address counter-high, middle, low) register (read/write)

HADRC-H, M, L (host address counter-high, middle, low) register

37h (R/W) 38h (R/W) 39h (R/W)

b15

b14

b13

b12

b19 b11

b18 b10

b17

b9 b1

b16

b8 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

HADRC-H HADRC-M

HADRC-L

In manual transfer mode, these registers set the head address from which the transfer begins. Note that bits 7 to 4 of HADRC-H should normally be set low. Note) Send Data (A1h), Send Status (A5h) and Send Message (A7h), which were passed via the buffer,

should not be executed if HADRC-H, M, L are odd addresses and HXFRC-H, M, L are 3 bytes for setting conditions.

1-1-42. 3Bh to 3Dh

(1) SLADR-H, M, L (subcode last address-high, middle, low) register (read/write)

SLADR-H, M, L (subcode last address-high, middle, low) register

3Bh (R/W) 3Ch (R/W) 3Dh (R/W)

b15

b14

b13

b12

b19 b11

b18 b10

b17

b9 b1

b16

b8 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SLADR-H

SLADR-M

SLADR-L

These registers specify the last buffering address for subcode buffering commands. If the ENDLA bit (bit 1) of the DECCTL0 register is set high and the data is written in the buffer address specified by SLADR while the decoder is executing a subcode buffering command, subsequent buffering is prohibited. Be sure to set these registers in the order of H → M → L. Note that bits 7 to 4 of SLADR-H should normally be set low.

Page 44

– 44 –

CXD1804BR

1-1-43. 3Fh to 41h

(1) CWADRC-H, M, L (CPU write address counter-high, middle, low) register (read/write)

CWADRC-H, M, L (CPU write address counter-high, middle, low) register

3Fh (R/W) 40h (R/W) 41h (R/W)

b15

b14

b13

b12

b19 b11

b18 b10

b17

b9 b1

b16

b8 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

CWADRC-H

CWADRC-M

CWADRC-L

The sub CPU sets this address when writing Data In the buffer memory. The register is incremented when data is written in the buffer memory. The sub CPU should set these registers in the order of CWADRC-H, M, L. Note that bits 7 to 4 of CWADRC-H should normally be set low.

1-1-44. 43h to 45h

(1) CRADRC-H, M, L (CPU read address counter-high, middle, low) register (read/write)

CRADRC-H, M, L (CPU read address counter-high, middle, low) register

43h (R/W) 44h (R/W) 45h (R/W)

b15

b14

b13

b12

b19 b11

b18 b10

b17

b9 b1

b16

b8 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

CRADRC-H

CRADRC-M

CRADRC-L

The sub CPU sets this address when reading data from the buffer memory. The register is incremented when data is read from the buffer memory. The sub CPU should set these registers in the order of CRADRC-H, M, L. Note that bits 7 to 4 of CRADRC-H should normally be set low.

1-1-45. 46h, 47h

(1) BFBLKC-H, L (buffer block count-high, low) register (read/write)

BFBLKC-H, L (buffer block count-high, low) register

46h (R/W) 47h (R/W) b7 b6 b5 b4 b3

b10

b9 b1

b8 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

BFBLKC-H BFBLKC-L

This register is a 10-bit counter that indicates the number of blocks in the buffer that can be transferred. Before activating the decoder, the sub CPU sets the number of blocks that can be transferred. Once the number of transferable blocks is reached (once the buffer is written with XFRSCT (bit 0) of the SCTINF register high), the value of BFBLKC is incremented (+1 to 4). The increment value is specified by the INCBLKS register. When the transfer of one block is completed, this register is decremented (–1). Note that bits 7 to 3 of BFBLKC-H should normally be set low.

Page 45

– 45 –

CXD1804BR

1-1-46. 48h, 49h

(1) BFFLRT-H, L (buffer full ratio-high, low) register (read/write)

BFFLRT-H, L (buffer full ratio-high, low) register

48h (R/W) 49h (R/W) b7 b6 b5 b4 b3

b10

b9 b1

b8 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

BFFLRT-H

BFFLRT-L

These registers indicate the buffer full ratio. Note that bits 7 to 3 of BFFLRT-H should normally be set low.

1-1-47. 4Ah, 4Bh

(1) TIMER-H, L (timer-high, low) register (read/write)

TIMER-H, L (timer-high, low) register

4Ah (R/W) 4Bh (R/W)

b15

b14

b13

b12

b11

b10

b9 b1

b8 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

TIMER-H

TIMER-L

These are the timer settings. The sub CPU should set these registers in the order of TIMER-H, L. After a value is set in TIMER-L, a timer interrupt occurs when the time specified by (TIMER-H, L) ∗TIMRRSL passes.

1-1-48. 4Ch

(1) TMRRSL (timer resolution) register (read/write)

TMRRSL (timer resolution) register

4Ch (R/W) b7 b6 b5 b4 b3 b2 b1 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

TMRRSL

This register determines the timer resolution. Assuming the XTL1 clock cycle to be Tw, the timer resolution is TIMRRSL × 16 × Tw. [Example] Setting a resolution of 100µs

(1) XTL1 = 40MHz (Tw = 25ns)

100 × 1000 / (16 × 25) = 250 (FAh) Set FAh in this register. The resolution becomes 100µs.

(2) XTL1 = 33.8688 MHz (Tw = 29.5ns)

100 × 1000 / (16 × 29.5) = 211.68 Set D3 or D4h in this register. The resolution becomes 96.7µs or 100.2µs, respectively.

1-1-49. 4Eh, 4Fh

(1) STARTARA-H, L (start area-high, low) register (read)

STARTARA-H, L (start area-high, low) register

4Eh (R) 4Fh (R) b7 b6 b5 b4 b3 b2 b1

b8 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

STARTARA-H

STARTARA-L

These registers indicate the area from which transfer starts when executing stream processing.

Page 46

– 46 –

CXD1804BR

1-2. Description of SCSI2 Controller Block Registers

1-2-1. 50h

(1) SCSTS (SCSI module status) register (read)

SCSTS (SCSI module status) register

50h (R)

MON RST

∗

MON DBP

∗

TRAG MODE

TBC ZERO

CMDI NPRG

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCSTS

Initial value

This register monitors the various states of the CXD1804AR/SCSI2 controller block. bit 7: MONRST (monitor RST)

Monitors the SCSI bus XRST signal (positive logic). bit 6: MONDBP (monitor DBP)

Monitors the SCSI bus XDBP signal (positive logic). bit 3: TARGMODE (target mode indicator)

This bit goes high when the CXD1804AR/SCSI2 controller block is in the target status. bit 2: TBCZERO (transfer byte counter zero)

This bit goes high while the value of the transfer byte counter (set by the SCSXFRC register) used

to transfer data between the sub CPU and the SCSI is "000".

Note) Even if this value is high, FIFO is not necessarily empty. bit 0: CMDINPRG (SCSI module command in progress)

This bit goes high while the CXD1804AR/SCSI2 controller block is executing the command written

in the SCCMD register (50h).

(2) SCCMD (SCSI module command) command register (write)

SCCMD (SCSI module command) register

50h (W) CAT1 CAT0 B05 B04 B03 B02 B01 B00

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCCMD

Commands to the CXD1804AR/SCSI2 controller block are written in this register. bits 7 and 6: CAT1 and 0 (SCSI module command category code 1, 0)

CAT1

0 0 1 1

0 1 0 1

Commands valid in all states Commands valid in the Disconnect status Commands valid in the target status Stream-related commands

CAT0 Mode

bits 5 to 0: B05 to B00 (SCSI module command code B05 to B00)

See the chapter on commands for the details of each command.

Page 47

– 47 –

CXD1804BR

1-2-2. 51h

(1) Reserved (read/write)

Reserved

51h (R)

51h (W)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

Reserved

Initial value

Reserved

Currently not used.

1-2-3. 52h

(1) Reserved (read/write)

Reserved

52h (R)

52h (W)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

Reserved

Initial value

Reserved

Currently not used.

1-2-4. 53h

(1) Reserved (read/write)

Reserved

53h (R)

53h (W)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

Reserved

Initial value

Reserved

Currently not used.

1-2-5. 54h

(1) SCSCBMON (SCSI control bus monitor) register (read)

SCSCBMON (SCSI control bus monitor) register

54h (R)

MON BSY

MON SEL

MON MSG

MON CD

MON IO

MON REQ

MON ACK

MON ATN

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCSCBMON

Initial value

The SCSI control signals on the SCSI bus can be monitored with this register. All signals are positive logic.

Page 48

– 48 –

CXD1804BR

bit 7: MONBSY (monitor BSY)

Monitors the XBSY signal on the SCSI bus. bit 6: MONSEL (monitor SEL)

Monitors the XSEL signal on the SCSI bus. bit 5: MONMSG (monitor MSG)

Monitors the XMSG signal on the SCSI bus. bit 4: MONCD (monitor CD)

Monitors the XCD signal on the SCSI bus. bit 3: MONIO (monitor IO)

Monitors the XIO signal on the SCSI bus. bit 2: MONREQ (monitor REQ)

Monitors the XREQ signal on the SCSI bus. bit 1: MONACK (monitor ACK)

Monitors the XACK signal on the SCSI bus. bit 0: MONATN (monitor ATN)

Monitors the XATN signal on the SCSI bus.

(2) Reserved (write)

Reserved

54h (W)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

Reserved

Currently not used.

1-2-6. 55h

(1) SCFIFSTS (SCSI FIFO status) register (read)

SCFIFSTS (SCSI FIFO status) register

55h (R)

FIFE MPTY

FIF FULL

FIF CNT3

FIF CNT2

FIF CNT1

FIF CNT0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCFIFSTS

Initial value

The status of the built-in FIFO can be read from this register. bit 7: FIFEMPTY (FIFO empty)

When this bit is high, the FIFO is empty. bit 4: FIFFULL (FIFO full)

When this bit is high, the FIFO is full. bits 3 to 0: FIFCNT3 to 0 (FIFO count 3 to 0)

These bits indicate the used capacity of the built-in FIFO.

(2) Reserved (write)

Reserved

55h (W)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

Reserved

Currently not used.

Page 49

– 49 –

CXD1804BR

1-2-7. 56h

(1) Reserved (read/write)

Reserved

56h (R)

56h (W)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

Reserved

Initial value

Reserved

Currently not used.

1-2-8. 57h

(1) SCDATA (SCSI data) register (read/write)

SCDATA (SCSI data) register

57h (R/W) b07 b06 b05 b04 b03 b02 b01 b00

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCDATA

Initial value

This register is used to transfer data between the sub CPU bus and the SCSI bus. After the assert SCSI data command has been executed, the value written in this register is output directly to the SCSI data bus until the deassert SCSI data command is executed. In addition, the SCSI data bus can be monitored by reading this register.

1-2-9. 58h

(1) SCSXFRC (SCSI sub CPU transfer counter) register (read/write)

58h (R/W) "L" "L" "L" b4

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCSXFRC

Initial value

This register sets the number of bytes to be transferred by a phase unit of transfer command from the SCSI to the sub CPU. The maximum number of bytes which can be sent from the SCSI to the sub CPU with a single transfer is 16 bytes.

Page 50

– 50 –

CXD1804BR

1-2-10. 59h

(1) Reserved (read/write)

Reserved

59h (R)

59h (W)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

Reserved

Initial value

Reserved

Currently not used.

1-2-11. 5Ah

(1) Reserved (read/write)

Reserved

5Ah (R)

5Ah (W)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

Reserved

Initial value

Reserved

Currently not used.

1-2-12. 5Bh

(1) SCSYNCTL (SCSI synchronous transfer control) register (read/write)

SCSYNCTL (SCSI synchronous transfer control) register

5Bh (R/W)

SYXF RPD3

SYXF RPD2

SYXF RPD1

SYXF RPD0

SYXF ROF3

SYXF ROF2

SYXF ROF1

SYXF ROF0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCSYNCTL

Initial value

This register sets the transfer cycle and transfer offset value during SCSI synchronous transfer. "00h" must be written in this register when performing asynchronous transfer. The value written in this register can be read by reading this register. bits 7 to 4: SYXFRPD3 to 0 (synchronous transfer period 3 to 0)

These bits set the transfer cycle for synchronous transfer. The actual synchronous transfer cycle is

obtained from the formulas below.

When FASTSCSI = 1 (bit 7 of SCCONF1 = 1)

Transfer cycle [ns] = × 1000 × (4 + SYXFRPDn)

When FASTSCSI = 0 (bit 7 of SCCONF1 = 0)

Transfer cycle [ns] = × 1000 × (8 + SYXFRPDn)

In addition, the transfer rate at this time is obtained from the formula below.

Transfer rate [MHz] = × 1000

fCLK [MHz]

Transfer cycle [ns]

Page 51

– 51 –

CXD1804BR

bits 3 to 0: SYXFROF3 to 0 (synchronous transfer offset 3 to 0)

These bits set the REQ and ACK offset values during synchronous transfer. When SYXFROF3 to 0 = 0: Asynchronous transfer mode results. When SYXFROF3 to 0 = 1 to 15: Synchronous transfer is executed at the offset value set in SYXFROF3 to 0.

1-2-13. 5Ch

(1) Reserved (read/write)

Reserved

5Ch (R)

5Ch (W)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

Reserved

Initial value

Reserved

Currently not used.

1-2-14. 5Dh

(1) Reserved (read/write)

Reserved

5Dh (R)

5Dh (W)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

Reserved

Initial value

Reserved

Currently not used.

1-2-15. 5Eh

(1) SCSCBCTL (SCSI control bus control) register (read/write)

SCSCBCTL (SCSI control bus control) register

5Eh (R/W)

CTL BSY

CTL SEL

CTL MSG

CTL CD

CTL IO

CTL REQ

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCSCBCTL

Initial value

After the assert SCSI control command has been executed, the SCSI control signals on the SCSI data bus can be driven directly through this register until the deassert SCSI control command is executed. When each bit is set high, the corresponding SCSI control signal is also set high. When this register is read, the value written in this register is read. Note) Reading this register is not the same as reading the SCSI bus status. The SCSI bus status can be

known by reading the SCSCBMON register (54h).

Page 52

– 52 –

CXD1804BR

bit 7: CTLBSY (control BSY)

Controls XBSY signal assert/deassert. bit 6: CTLSEL (control SEL)

Controls XSEL signal assert/deassert. bit 5: CTLMSG (control MSG)

Controls XMSG signal assert/deassert. bit 4: CTLCD (control CD)

Controls XCD signal assert/deassert. bit 3: CTLIO (control IO)

Controls XIO signal assert/deassert. bit 2: CTLREQ (control REQ)

Controls XREQ signal assert/deassert.

1-2-16. 5Fh

(1) Reserved (read/write)

Reserved

5Fh (R)

5Fh (W)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

Reserved

Initial value

Reserved

Currently not used.

1-2-17. 60h

(1) SCCONF0 (SCSI module configuration 0) register (read/write)

SCCONF0 (SCSI module configuration 0) register

60h (R/W)

CDBS IZDF

ANEG DATA

ANEG RQAK

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCCONFIG

Initial value

This register sets the various parameters for the CXD1804AR/SCSI2 controller block. bit 5: CDBSIZDF (CDB size definition)

Manipulating this bit changes the definition of the SCCDBSIZ register. When CDBSIZDF is low

69h (R/W)

GP7 B1

GP7 B0

GP6 B1

GP6 B0

GP4 B1

GP4 B0

GP3 B1

GP3 B0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCCDBSIZ Initial value

69h (R/W)

GP7 B1

GP7 B0

GP6D B1

GP6D B0

GP6C B1

GP6C B0

GP43 B1

GP43 B0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCCDBSIZ Initial value

When CDBSIZDF is high

Page 53

– 53 –

CXD1804BR

bit 4: ANEGDATA (active negation on XDB (bits 7 to 0) and XDBP)

If this bit is set high, the XDB (bits 7 to 0) and XDBP pins of the SCSI bus are set to active negation.

bit 3: ANEGRQAK (active negation on XREQ and XACK)

If this bit is set high, the XREQ and XACK pins of the SCSI bus are set to active negation.

1-2-18: 61h

(1) SCCONF1 (SCSI module configuration 1) register (read/write)

SCCONF1 (SCSI module configuration 1) register

61h (R/W)

FAST SCSI

HSXF RSPE

HSXF RAT

SPAR ENB

RSLR TLM3

RSLR TLM2

RSLR TLM1

RSLR TLM0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCMODE

Initial value

This register specifies the SCSI operation mode for the CXD1804AR/SCSI2 controller block. bit 7: FASTSCSI (Fast SCSI mode)

If this bit is set, synchronous transfer is performed at Fast SCSI timing.

bit 6: HSXFRSPE (halt SCSI transfer upon SCSI parity error)

This bit determines the operation when a parity error occurs on the SCSI bus during SCSI transfer. If this bit is set high, transfer is stopped and the command is interrupted. If this bit is set low, transfer continues. SCSIPERR interrupt is generated in either case. This bit has no meaning when bit 4 (SPARENB) of the SCCONF1 register is low.

bit 5: HSXFRAT (halt SCSI transfer upon SCSI attention condition)

This bit determines the operation when the ATN condition is established on the SCSI bus during SCSI transfer. If this bit is set high, transfer is stopped and the command is interrupted. If this bit is set low, transfer continues. ATNCOND interrupt is generated in either case.

bit 4: SPARENB (SCSI parity enable)

If this bit is set high, parity detection is performed on the SCSI bus. While this bit is high, parity detection is performed during the selection and information transfer phases. If a parity error is detected while executing selection phase, the CXD1804AR/SCSI2 controller block does not respond to the selection.

bits 3 to 0: RSLRTLM (3 to 0) (Reselection retry limit)

These bits set the number of times for which Reselection is retried until the CXD1804AR/SCSI2 controller block informs the sub CPU that Reselection failed when executing Reselection. The number of retries can be set from 1 to 15 times including the number of Arbitration failures. If "0" is set, the number of retries is infinite.

1-2-19. 62h

(1) SCCONF2 (SCSI module configuration 2) register (read/write)

SCCONF2 (SCSI module configuration 2) register

62h (R/W)

IDAS SIGN

IDUN ASGN

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCCONF2

Initial value

Page 54

– 54 –

CXD1804BR

bits 1 to 0: IDASSIGN (ID assigned), IDUNASGN (ID unassigned)

The combination of these two bits is used to set the CXD1804AR to the various SCAM states.

When not using SCAM, IDASSIGN must be set to 1 and IDUNASGN to 0.

IDASSIGN

0 0 1 1

0 1 0 1

SCAM monitor status ID unassigned status ID assigned status Undefined

IDUNASGN Status

SCAM monitor status

In this status, the CXD1804AR responds to SCAM selection. If a SCAMSL interrupt is detected in this status, the CXD1804AR must be set to ID unassigned status. The CXD1804AR also responds if selection of the current ID continues for longer than the SCAM unassigned ID selection response delay (4ms) in this status. If a SLWATN or SLWOATN interrupt is detected in this status, the CXD1804AR must be set to ID assigned status.

ID unassigned status

In this status, the CXD1804AR responds only to SCAM selection. If an ID is assigned by SCAM protocol, the CXD1804AR must be set to ID assigned status.

ID assigned status

In this status, the CXD1804AR responds only to normal selection, and operates as a SCAM tolerant device.

1-2-20. 63h

(1) SCRSLTOT (SCSI Reselection time-out) register (read/write)

SCRSLTOT (SCSI Reselection time-out) register

63h (R/W)

RSLT OUT7

RSLT OUT6

RSLT OUT5

RSLT OUT4

RSLT OUT3

RSLT OUT2

RSLT OUT1

RSLT OUT0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCRSLTOT

Initial value

This register sets the Reselection time-out time. The relationship between the value of this register and the Reselection time-out is shown below.

Time-out [ms] = × 16.384 × (RSLTOUTn)

1-2-21. 64h

(1) Reserved (read/write)

Reserved

64h (R)

64h (W)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

Reserved

Initial value

Reserved

Currently not used.

fCLK [MHz]

Page 55

– 55 –

CXD1804BR

1-2-22. 65h

(1) SCID (SCSI ID) register (read)

SCID (SCSI ID) register

65h (R)

SEL ID2

SEL ID1

SEL ID0

SELI DINV

OWN ID2

OWN ID1

OWN ID0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCID

Initial value

The ID of the initiator which has selected the CXD1804AR and other information can be read from this register. bits 7 to 5: SELID2 to 0 (selected ID)

The ID of the initiator which has selected the CXD1804AR can be read from these bits.

Even after Disconnect, this value is held until the CXD1804AR responds to the next selection. bit 4: SELIDINV (selected ID invalid)

If single initiator mode is used during selection, this bit is set high. This indicates that SELID2 to 0

are invalid at this time. bits 2 to 0: OWNID2 to 0 (Own ID)

The ID of the CXD1804AR/SCSI2 controller block can be read from these bits.

(2) SCID (SCSI ID) register (write)

SCID (SCSI ID) register

65h (W)

REL ID2

REL ID1

REL ID0

OWN ID2

OWN ID1

OWN ID0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCID

This register sets the initiator ID and the CXD1804AR/SCSI2 controller block's own ID when the CXD1804AR performs Reselect. bits 7 to 5: RSLID2 to 0 (Reselect ID)

These bits set the ID of the initiator to be reselected. bits 2 to 0: OWNID2 to 0 (Own ID)

These bits set the CXD1804AR/SCSI2 controller block's own ID. Note) Own ID should be set before issuing the enable selection command.

Since the initial value for Own ID is low, if the enable selection command is issued before setting Own ID, the CXD1804AR will respond to the selection for ID = low.

1-2-23. 66h

(1) Reserved (read/write)

Reserved

66h (R)

66h (W)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

Reserved

Initial value

Reserved

Currently not used.

Page 56

– 56 –

CXD1804BR

1-2-24. 67h

(1) Reserved (read/write)

Reserved

67h (R)

67h (W)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

Reserved

Initial value

Reserved

Currently not used.

1-2-25. 68h

(1) Reserved (read/write)

Reserved

68h (R)

68h (W)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

Reserved

Initial value

Reserved

Currently not used.

1-2-26. 69h

(1) SCCDBSIZ (SCSI CDB size) register (read/write)

SCCDBSIZ (SCSI CDB size) register (when CDBSIZDF = 0)

69h (R/W)

GP7 B1

GP7 B0

GP6 B1

GP6 B0

GP4 B1

GP4 B0

GP3 B1

GP3 B0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCCDBSIZ Initial value

SCCDBSIZ (SCSI CDB size) register (when CDBSIZDF = 1)

69h (R/W)

GP7 B1

GP7 B0

GP6D B1

GP6D B0

GP6C B1

GP6C B0

GP43 B1

GP43 B0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCCDBSIZ Initial value

When the CXD1804AR is selected from the initiator during auto sequence, the number of bytes to be transferred by command phase is determined by the value of the group code field (bits 7 to 5) in the 1st byte of the SCSI CDB's operation code. The CXD1804AR/SCSI2 controller block determines how many bytes are to be transferred according to this value, but groups 7, 6, 4 and 3 are reserved or vendor specific for SCSI standards.

Page 57

– 57 –

CXD1804BR

The size of the SCSI CDB (command description block) is defined for each value of the group code field (bits 7 to 5) in the 1st byte of the operation code.

Group Group 0 Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7

000x xxxx 001x xxxx 010x xxxx 011x xxxx 100x xxxx 101x xxxx 110x xxxx 111x xxxx

6 bytes 10 bytes 10 bytes Reserved Reserved 12 bytes Vendor Specific Vendor Specific

Operation Code Byte length

Reserved and vendor specific items in the table above can be defined by this register. The command length can be set to 6, 10 or 12 bytes. This register sets the number of bytes to be received when these group commands are received. When CDBSIZDF is "0", each bit is defined as follows.

bits 7 to 6: GP7B1 to 0 (group 7)

Define the group 7 (vendor specific) command length.

bits 5 to 4: GP6B1 to 0 (group 6)

Define the group 6 (vendor specific) command length.

bits 3 to 2: GP4B1 to 0 (group 4)

Define the group 4 (reserved) command length.

bits 1 to 0: CG3B1 to 0 (group 3)

Define the group 3 (reserved) command length.

When CDBSIZDF is "1", each bit is defined as follows.

bits 7 to 6: GP7B1 to 0 (group 7)

Define the group 7 (reserved) command length.

bits 5 to 4: GP6DB1 to 0 (group 6 Dxh)

Define the group 6D (vendor specific) command length. This indicates group 6 commands with a CDB operation code of 1101xxxxb.

bits 3 to 2: GP6CB1 to 0 (group 6 Cxh)

Define the group 6C (vendor specific) command length. This indicates group 6 commands with a CDB operation code of 1100xxxxb.

bits 1 to 0: CG43B1 to 0 (group 4 and group 3)

Define the group 4 (reserved) and group 3 (reserved) command length. The command lengths of these two groups cannot be defined separately.

Two bits are allotted to each of GP7B (1:0), GP6DB (1:0), GP6CB (bits 1, 0), GP43B (bits 1, 0), GP4B (bits 1,

0) and GP3B (bits 1, 0). Command lengths should be set according to the rules listed in the table below. GPxxB1

0 0 1 1

0 1 0 1

Undefined 6 bytes 10 bytes 12 bytes

GPxxB0 Number of bytes

Page 58

– 58 –

CXD1804BR

1-2-27. 6Ah

(1) SCUSTS (SCSI module microcode status) register (read/write)

SCUSTS (SCSI module microcode status) register

6Ah (R)

USTS B7

USTS B6

USTS B5

USTS B4

USTS B3

USTS B2

USTS B1

USTS B0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCUSTS

Initial value

If this register is read when a sequence command has been completed, it indicates how far the sequence has progressed.

(2) Reserved (write)

Reserved

6Ah (W)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

Reserved

Currently not used.

1-2-28. 6Bh

(1) SCSTCONF (stream configuration) register (read/write)

SCSTCONF (stream configuration) register

6Bh (R)

STDS CPRV

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCSTCONF

Initial value

This register specifies the exception processing method when executing stream commands. bit 2: STDSCPRV (stream Disconnect privilege)

If this bit is set high, the bus is disconnected when the buffer becomes empty. If this bit is set low, the bus is not disconnected.

1-2-29. 6Ch

(1) SCSTRSLM (stream Reselection message) register (read/write)

SCSTRSLM (stream Reselection message) register

6Ch (R/W)

0 0 0 0 0 0 0 0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCSTRSLM

Initial value

The message to be transferred to the initiator during the Message In phase immediately following Reselection when executing stream commands is set in this register.

Page 59

– 59 –

CXD1804BR

1-2-30. 6Dh

(1) SCSTTIOS (stream terminate I/O status) register (read/write)

SCSTTIOS (stream terminate I/O status) register

6Dh (R/W)

0 0 0 0 0 0 0 0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCSTTIOS Initial value

The status to be transferred to the initiator after all data has been transferred when executing stream commands is set in this register.

1-2-31. 6Eh

(1) SCSTTIOM (stream terminate I/O message) register (read/write)

SCSTTIOM (stream terminate I/O message) register

6Eh (R/W)

0 0 0 0 0 0 0 0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCSTTION

Initial value

The message to be transferred to the initiator after all data has been transferred when executing stream commands is set in this register.

1-2-32. 6Fh

(1) Reserved (read/write)

Reserved

6Fh (R)

6Fh (W)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

Reserved

Initial value

Reserved

Currently not used.

Page 60

– 60 –

CXD1804BR

1-3. Common Registers

1-3-1. 70h

(1) INTSTS0 (interrupt status 0) register (read)

INTSTS0 (interrupt status 0) register

70h (R)

DEC INT

DEC TOUT

DRV OVRN

CRCT END

CDR INT

"L"

NOTA TWSI

SHT SYNC

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

INTSTS0

Initial value

bit 7: DECINT (decoder interrupt)

This interrupt is generated when the decoder is executing a command. (1) During execution of a write-only, monitor-only, or real-time error correction command:

If the Header byte is received from the CD DSP when a Sync mark is detected or inserted, the DECINT status is generated. However, while the Sync mark detection window is open, the DECINT status is not established if the Sync mark interval is less than 2352 bytes.

(2) During repeat correction execution:

The DECINT status is established each time one correction is completed. (CRCTEND interrupt?)

(3) During CD-DA command execution:

The DECINT status is established each time 2352 bytes of data are written.

(4) During subcode buffering execution:

The DECINT status is established when the subcode for one sector is written in the buffer.

bit 6: DECTOUT (decoder time-out)

The DECTOUT status is established when the Sync mark is not detected even after the time it takes to search 3 sectors (40.6ms at normal-speed playback) has elapsed after the decoder has been set to the monitor-only, write-only or real-time correction mode.

bit 5: DRVOVRN (drive overrun)

While the decoder is executing a write-only, real-time correction, or CD-DA command, if buffering in the area specified by DLARA is completed, the DRVOVRN status results.

bit 4: CRCTEND (correction end)

If error correction of the CD-ROM data is completed, the CRCTEND status results.

bit 3: CDRINT (CD-R interrupt)

When the CDRINT status is established, this bit goes high.

bit 1: NOTATWSI

When the status set in the INTCOND0 and INTCOND1 registers occurs in the current sector with ATWSCTI (DECCTL1 bit 2) high, the NOTATWSI status is established.

bit 0: SHTSYNC (short sync)

The SHTSYNC status is established when the decoder is operating in the monitor-only, write-only, real-time correction or asynchronous correction mode.

(2) CLRINT0 (clear interrupt 0) register (write)

CLRINT0 (clear interrupt 0) register

70h (W)

DEC INT

DEC TOUT

DRV OVRN

CRCT END

CDR INT

"L"

NOTA TWSI

SHT SYNC

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

CLRINT0

When each bit of this register is set to "1", the corresponding interrupt status of the INTSTS0 register (70h) is cleared. The bit concerned is automatically set to "0" after its interrupt status has been cleared. Therefore, there is no need for the sub CPU to reset "0".

Page 61

– 61 –

CXD1804BR

1-3-2. 71h

(1) INTSTS1 (interrupt status 1) register (read)

INTSTS1 (interrupt status 1) register

71h (R)

TIME R

SUBC SYNC

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

INTSTS1

Initial value

The value of each bit in this register indicates that of the corresponding interrupt status. These bits are not affected by the values of the INTEN1 register bits. bit 1: TIMER

TIMER status is established when the time set in the TIMER-H and L registers has elapsed.

bit 0: SUBCSYNC (subcode sync)

If a subcode Sync mark is detected or inserted while subcode fetching is enabled, the SUBCSYNC status results. Note that if the SUBCSYNC interrupt is not cleared within 95 WFCK cycles, the SUBCSYNC status is not established the next time a subcode Sync mark is detected or inserted. In this event, the subcode-Q read from the SBQDT register is also not renewed.

(2) CLRINT1 (clear interrupt 1) register (write)

CLRINT1 (clear interrupt 1) register

71h (W) "L" "L" "L" "L" "L" "L"

TIME R

SUBC SYNC

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

CLRINT1

When each bit of this register is set to "1", the corresponding interrupt status of the INTSTS1 register (71h) is cleared. The bit concerned is automatically set to "0" after its interrupt status has been cleared. Therefore, there is no need for the sub CPU to reset "0".

1-3-3. 72h

(1) INTSTS2 (interrupt status 2) register (read)

INTSTS2 (interrupt status 2) register

72h (R)

FUNC CMPL

CMD IGNR

SCSI RST

ATN COND

SCSI PERR

SLW ATN

SLWO ATN

RSL FAIL

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

INTSTS2

Initial value

When an interrupt is generated, the bit allotted to that interrupt is set to "1". Each bit is set regardless of the values of the INTEN2 register (76h). bit 7: FUNCCMPL (function complete)

Indicates that execution of the command issued to the CXD1804AR/SCSI2 controller block has been completed.

bit 6: CMDIGNR (command ignored)

Indicates that the command issued to the CXD1804AR/SCSI2 controller block was not executed. This interrupt is generated when the CXD1804AR is operating in a mode which does not allow the command given to the CXD1804AR to be executed.

Page 62

– 62 –

CXD1804BR

bit 5: SCSIRST (SCSI reset)

Indicates that the XRST signal was driven on the SCSI bus. Do not write commands in the SCCMD register (50h) until the sub CPU has confirmed that the XRST signal is negated on the SCSI bus by reading the MONRST bit (bit 7) of the SCSTS register (50h).

bit 4: ATNCOND (ATN condition)

When the CXD1804AR/SCSI2 controller block is in the target status, this bit indicates that the initiator drove XATN.

bit 3: SCSIPERR (SCSI parity error)

Indicates that a parity error occurred on the SCSI data bus in the SCSI transfer phase or the selection phase. This interrupt is not generated when the SPARENB bit of the SCCONF1 register is low.

bit 2: SLWATN (selection with ATN)

Indicates that the CXD1804AR/SCSI2 controller block was selected with ATN by another SCSI device, and that the CXD1804AR/SCSI2 controller block responded to this selection.

bit 1: SLWOATN (selection without ATN)

Indicates that the CXD1804AR/SCSI2 controller block was selected without ATN by another SCSI device, and that the CXD1804AR/SCSI2 controller block responded to this selection.

bit 0: RSLFAIL (Reselection fail)

Indicates that the CXD1804AR/SCSI2 controller block participated in Arbitration during execution of a Reselect command, and that the CXD1804AR/SCSI2 controller block fails or a time-out occurred during Reselection after acquiring the bus by Arbitration. This interrupt is generated only when Reselection fail is repeated for the number of times specified by the RSLRTLM (3:0) bit of the SCCONF1 register.

(2) CLRINT2 (clear interrupt 2) register (write)

CLRINT2 (clear interrupt 2) register

72h (W)

FUNC CMPL

CMD IGNR

SCSI RST

ATN CONT

SCSI PERR

SLW ATN

SLWO ATN

RSL FAIL

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

CLRINT2

When each bit of this register is set to "1", the corresponding interrupt status of the INTSTS2 register (72h) is cleared. The bit concerned is automatically set to "0" after its interrupt status has been cleared. Therefore, there is no need for the sub CPU to reset "0".

1-3-4. 73h

(1) INTSTS3 (interrupt status 3) register (read)

INTSTS3 (interrupt status 3) register

73h (R)

SCAM INIF

SCAM SL

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

INTSTS3

Initial value

When an interrupt is generated, the bit allotted to that interrupt is set to "1". Each bit is set regardless of the values of the INTEN3 register (77h). bit 1: SCAMINF (SCAM initiation fail)

Indicates that the CXD1804AR/SCSI2 controller block participated in SCAM initiation and failed at Arbitration.

bit 0: SCAMSL (SCAM selection)

Indicates that the CXD1804AR/SCSI2 controller block was selected with SCAM selection by another SCSI device, and that the CXD1804AR/SCSI2 controller block responded to this selection.

Page 63

– 63 –

CXD1804BR

(2) CLRINT3 (clear interrupt 3) register (write)

CLRINT3 (clear interrupt 3) register

73h (W)

SCAM INIF

SCAM SL

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

CLRINT2

When each bit of this register is set to "1", the corresponding interrupt status of the INTSTS3 register (73h) is cleared. The bit concerned is automatically set to "0" after its interrupt status has been cleared. Therefore, there is no need for the sub CPU to reset "0".

1-3-5. 74h

(1) INTEN0 (interrupt enable 0) register (read/write)

INTEN0 (interrupt enable 0) register

74h (R/W)

DEC INT

DEC TOUT

DRV OVRN

CRCT END

CDR INT

NOTA TWSI

SHT SYNC

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

INTEN0

Initial value

Setting each bit of this register high enables interrupt requests to the sub CPU from this IC in response to the corresponding interrupt status. (In other words, if that interrupt status results, the INT pin goes active.) The value of each bit in this register has no effect on their corresponding interrupt status. bit 7: DECINT (decoder interrupt) bit 6: DECTOUT (decoder time-out) bit 5: DRVOVRN (drive overrun) bit 4: CRCTEND (correction end) bit 3: CDRINT (CD-R interrupt) bit 1: NOTATWSI bit 0: SHTSYNC (short sync)

1-3-6. 75h

(1) INTEN1 (interrupt enable 1) register (read/write)

INTEN1 (interrupt enable 1) register

75h (R/W)

TIME R

SUBC SYNC

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

INTEN1

Initial value

Page 64

– 64 –

CXD1804BR

1-3-7. 76h

(1) INTEN2 (interrupt enable 2) register (read/write)

INTEN2 (interrupt enable 2) register

76h (R/W)

FUNC CMPL

CMD IGNR

SCSI RST

ATN COND

SCSI PERR

SLW ATN

SLWO ATN

RSL FAIL

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

INTEN2

Initial value

Setting each bit of this register high enables interrupt requests to the sub CPU from this IC in response to the corresponding interrupt status. (In other words, if that interrupt status results, the INT pin goes active.) The value of each bit in this register has no effect on their corresponding interrupt status. bit 7: FUNCCMPL (function complete) bit 6: CMDIGNR (command ignored) bit 5: SCSIRST (SCSI reset) bit 4: ATNCOND (ATN condition) bit 3: SCSIPERR (SCSI parity error) bit 2: SLWATN (selection with ATN) bit 1: SLWOATN (selection without ATN) bit 0: RSLFAIL (Reselection fail)

1-3-8. 77h

(1) INTEN3 (interrupt enable 3) register (read/write)

INTEN3 (interrupt enable 3) register

77h (R/W)

SCAM INIF

SCAM SL

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

INTEN3

Initial value

Page 65

– 65 –

CXD1804BR

1-3-9. 78h

(1) INTSRC (interrupt source) register (read)

INTSRC (interrupt source) register

78h (R)

SCSI REL

SCTM REL

DEC REL

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

INTSRC

Initial value

The internal block interrupt which drove the interrupt pin can be known by reading this register. bits 7 to 3: RESERVED bit 2: SCSIREL (SCSI related)

When this bit is high, this indicates that the interrupt pin is being driven by an INTSTS2 or INTSTS3 register interrupt which is enabled by the INTEN2 or INTEN3 register.

bit 1: SCTMREL (subcode and timer related)

When this bit is high, this indicates that the interrupt pin is being driven by an INTSTS1 register interrupt which is enabled by the INTEN1 register.

bit 0: DECREL (decoder related)

When this bit is high, this indicates that the interrupt pin is being driven by an INTSTS0 register interrupt which is enabled by the INTEN0 register.

(2) Reserved (write)

Reserved

78h (W)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

Reserved

Currently not used.

1-3-10. 79h

(1) Reserved (read/write)

Reserved

79h (R) 79h (W)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

Reserved Reserved

Currently not used.

1-3-11. 7Ah

(1) Reserved (read/write)

Reserved

7Ah (R) 7Ah (W)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

Reserved Reserved

Currently not used.

Page 66

– 66 –

CXD1804BR

1-3-12. 7Bh

(1) Reserved (read/write)

Reserved

7Bh (R) 7Bh (W)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

Reserved Reserved

Currently not used.

1-3-13. 7Ch

(1) Reserved (read/write)

Reserved

7Ch (R) 7Ch (W)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

Reserved Reserved

Currently not used.

1-3-14. 7Dh

(1) Reserved (read/write)

Reserved

7Dh (R) 7Dh (W)

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

Reserved Reserved

Currently not used.

Page 67

– 67 –

CXD1804BR

1-3-15. 7Eh

(1) INTCOND0 register (read/write)

INTCOND0 register

7Eh (R/W)

BFSH DRFLG

EDC ALLO

COR INH

ERIN BLK

COR DONE

EDC NG

ECC NG

TGTN TMET

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

INTCOND0

Initial value

Setting each bit of this register high establishes the NOTATWSI status when the status corresponding to CSCTARA is high. bit 7: BFSHDRFLG bit 6: EDCALLO bit 5: CORINH bit 4: ERINBLK bit 3: CORDONE bit 2: EDCNG bit 1: ECCNG bit 0: TGTNTMET

1-3-16. 7Fh

(1) INTCOND1 register (read/write)

INTCOND1 register

7Fh (R/W)

C MODECFORM

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

INTCOND1

Initial value

bit 2: CMFCMPEN (CMODE, CFORM compare enable)

Setting this bit high establishes the NOTATWSI status when CMODE and CFROM (DECSTS1 bits

1 and 0) of CSCTARA does not match this register bits 1 and 0. bit 1: CMODE bit 0: CFORM

Page 68

– 68 –

CXD1804BR

[2] Description of SCSI Controller Block Commands

The CXD1804AR/SCSI2 core is designed to automatically execute procedures other than data transfer to the greatest extent possible in order to reduce data transfer overloads.

CXD1804AR/SCSI2 core command set

CAT0 CMD5 CMD4 CMD3 CMD2 CMD1 CMD0 DescriptionCAT1

0 0 0 0 0 0 0 0 0

CAT1

0 0 0 0

CAT1

1 1 1 1 1 1 1 1 1 1 1 1 1

CAT1

1 1 1 1 1

0 0 0 0 0 0 0 0 0

CAT0

1 1 1 1

CAT0

0 0 0 0 0 0 0 0 0 0 0 0 0

CAT0

1 1 1 1 1

0 0 0 0 0 0 0 0 0

CMD5

0 0 0 0

BUF

∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗

0 0 0 0 0

CMD5

0 0 0 0 0

0 0 0 0 0 0 0 0 0

CMD4

0 0 0 0

SUB

∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗

0 0 0 0 0

CMD4

0 0 0 0 0

0 0 0 0 0 0 0 1 1

CMD3

0 0 0 0

CMD3

0 0 0 0 0 0 0 0 1 1 1 1 1

CMD3

0 0 0 0 0

0 0 0 1 1 1 1 0 0

CMD2

0 0 0 0

CMD2

0 0 0 0 1 1 1 1 0 0 0 0 1

CMD2

0 0 0 0 1

0 0 1 0 0 1 1 0 0

CMD1

0 0 1 1

CMD1

0 0 1 1 0 0 1 1 0 0 1 1 0

CMD1

0 0 1 1 0

0 1 1 0 1 0 1 0 1

CMD0

0 1 0 1

CMD0

0 1 0 1 0 1 0 1 0 1 0 1 0

CMD0

0 1 0 1 0

NOP CHIP Reset Flush FIFO Assert SCSI Control Deasert SCSI Control Assert SCSI Data Deasert SCSI Data Enable Selection Disable Selection

Description

Reselect and Send Message (s) Initiate SCAM Reselect, Send Message (s) and Receive Data Reselect, Send Message (s) and Send Data

Description

Receive Data Send Data Reserved Reserved Reseive Command Send Status Receive Message Send Message Disconnect Send Message (s) and Disconnect Terminate I/O and bus free Terminate I/O and link Receive Command Sequence

Description

Stream Abort Stream and Stop Stream and Bus Free Stream and Link Stream Pause

∗

Either "1" or "0" can be written. However, if the BUF bit is "1", "0" must be written for the SUB bit.

States which allow commands to be executed are limited for each category.

CAT1

0 0 1 1

0 1 0 1

Can be executed in all states Can be executed only in the Disconnect status Can be executed only in the target mode Stream commands

CAT0 Description

Page 69

– 69 –

CXD1804BR

2-1. Precautions when Executing Commands

In the CXD1804AR, an interrupt is generated for the sub CPU at the point when an interrupt event occurs. However, the sub CPU must wait until a FUNCCMPL interrupt (INTSTS2, bit 7) is generated.

2-2. Category 00 Commands

These commands can be executed regardless of the CXD1804AR/SCSI2 core status.

2-2-1. NOP (00h)

Description: When this command is issued, a FUNCCMPL interrupt is generated but no other action is taken. Preparation: None Operation: After this command is issued, the CMDINPRG bit (SCSTS register (50h), bit 0) goes high. Then,

after the FUNCCMPL interrupt is generated, the CMDINPRG bit goes low and the command is

completed. Interrupt: FUNCCMPL function complete (INTSTS2 register (72h), bit 7) Microcode status:

The microcode status has no meaning with this command.

2-2-2. CHIP reset (01h)

Description: This command initializes the registers (50h to 6Fh, 72h to 73h, and 76h to 77h) inside the SCSI

block and resets the microcode PC.

In this event, commands currently being executed are forcibly interrupted. Preparation: None Operation: Commands are normally decoded by a microprogram in the CXD1804AR/SCSI2 core. However,

when this command is issued, the CXD1804AR/SCSI2 core decodes this command with the

hardware instead of the microcode and generates a reset signal internally. Commands currently

being executed are also forcibly interrupted. Interrupt: An interrupt is not generated. After this command is issued, the sub CPU must wait for 150ns

before issuing the next command. Microcode status:

The microcode status has no meaning with this command.

2-2-3. Flush FIFO (03h)

Description: This command clears the FIFO address counter, invalidates all data within the FIFO, and sets the

FIFO to empty status. Preparation: None Operation: After this command is issued, the FIFO is set to empty status. Interrupt: An interrupt is not generated.

If the XWAT pin is not used, wait 150ns or more after this command is issued before issuing the

next command. Microcode status:

The microcode status has no meaning with this command.

Page 70

– 70 –

CXD1804BR

2-2-4. Assert SCSI control (04h)

Description: This command enables direct control of the SCSI control bus signals through the SCSCBCTL

Preparation: When this command is issued, the value of the SCSCBCTL register is output as is to the SCSI

bus. Therefore, be sure to check the contents of the SCSCBCTL register before executing this

command.

Operation: This command enables direct control of the SCSI control bus signals and is then completed.

After this command is executed, if each bit of the SCSCBCTL register (5Eh) allotted to each SCSI

control bus signal is set high, the corresponding signal is driven.

Interrupt: An interrupt is not generated.

If the XWAT pin is not used, wait 150ns or more after this command is issued before issuing the

next command.

Microcode status:

The microcode status has no meaning with this command.

2-2-5. Deassert SCSI control (05h)

Description: This command prohibits direct control of the SCSI control bus signals through the SCSCBCTL

Preparation: None Operation: This command prohibits direct control of the SCSI control bus signals and is then completed.

The SCSI control signals which were controlled directly from the SCSCBCTL register (5Eh) are

deasserted. The data written in the SCSCBCTL register is held.

Interrupt: An interrupt is not generated.

If the XWAT pin is not used, wait 150ns or more after this command is issued before issuing the

next command.

Microcode status:

The microcode status has no meaning with this command.

2-2-6. Assert SCSI data (06h)

Description: This command enables direct control of the SCSI data bus through the SCDATA register (57h).

Control is disabled immediately after resetting the hardware or issuing the chip reset command.

Preparation: None Operation: Direct control of each bit of the SCSI data bus is enabled and then the command is completed.

After this command is executed, if data is written in the SCDATA register (57h), this data is output

directly to the SCSI data bus. At this time, the FIFO does not perform FIFO functions.

Interrupt: An interrupt is not generated.

If the XWAT pin is not used, wait 150ns or more after this command is issued before issuing the

next command.

Microcode status:

The microcode status has no meaning with this command.

Page 71

– 71 –

CXD1804BR

2-2-7. Deassert SCSI data (07h)

Description: This command prohibits direct control of the SCSI data bus through the SCDATA register (57h).

Direct control of the SCSI data bus is disabled immediately after resetting the hardware or issuing

the chip reset command. Preparation: None Operation: When this command is executed, direct control of the SCSI data bus is prohibited and then the

command is completed. The FIFO operates normally after the command is executed. Interrupt: An interrupt is not generated.

If the XWAT pin is not used, wait 150ns or more after this command is issued before issuing the

next command. Microcode status:

The microcode status has no meaning with this command.

2-2-8. Enable selection (08h)

Description: This command allows the CXD1804AR/SCSI2 core to respond to the selection. The

CXD1804AR/SCSI2 core does not respond to the selection in the following cases.

a) After chip reset

b) After issuing the chip reset command

c) After the Bus-Free status is established by a Disconnect command

d) After the Bus-Free status is established by a terminate (including stream and Bus-Free)

command Operation following the execution of this command varies according to the settings of the IDASSIGN and IDUNASGN bits of the SCCONF2 register (62h). a) IDASSIGN = 0, IDUNASGN = 0: SCAM monitor status

1) The CXD1804AR/SCSI2 core responds to SCAM selection.

2) The CXD1804AR/SCSI2 core responds when selection of the current ID continues for longer than the SCAM unassigned ID selection response delay (4ms).

b) IDASSIGN = 0, IDUNASGN = 1: ID unassigned status

1) The CXD1804AR/SCSI2 core responds to SCAM selection.

c) IDASSIGN = 1, IDUNASGN = 0: ID assigned status

1) The CXD1804AR/SCSI2 core responds to normal selection.

Responding to SCAM selection

If SCAM selection is detected in the SCAM monitor or ID unassigned status, a SCAMSL interrupt and then a FUNCCMPL interrupt are generated. After this, the sub CPU must execute SCAM protocol using assert SCSI control and assert SCSI data.

Responding to selection

When normal selection is detected during the ID assigned status, or when selection of the current ID continues for longer than 4 ms in the SCAM monitor status, the following sequences are executed. a) When responding to selection with ATN

Bus-Free → Arbitration → Selection with ATN → Message Out → Command

b) When responding to selection without ATN

Bus-Free → Arbitration → Selection without ATN → Command

Page 72

– 72 –

CXD1804BR

Preparation: The following settings must be made before executing the enable selection command.

1) Set the SCCONF0 register (60h) Set the appropriate values.

2) Set the SCID register (65h) Set the characteristic SCSI ID of the CXD1804AR/SCSI2 core. The initial SCSI ID setting is "0". Therefore, be sure to set the SCSI ID before executing the enable selection command.

3) Set the SCCONF1 register (61h). Set the number of Reselection retries for the CXD1804AR/SCSI2 core.

4) Set the SCCONF2 register (62h) Set the CXD1804AR status after executing the enable selection command.

Operation: Enable selection operation

If this command is issued, the CXD1804AR/SCSI2 core is set to status which enables selection and then a FUNCCMPL interrupt is generated.

Interrupt: An interrupt is not generated.

If the XWAT pin is not used, wait 150ns or more after this command is issued before issuing the next command.

Microcode status:

The microcode status has no meaning with this command.

(1) When responding to selection with ATN

Bus-Free → Arbitration → Selection with ATN → Message Out → Command Operation: 1) When the characteristic SCSI ID of the CXD1804AR/SCSI2 core is detected by selection, the

CXD1804AR/SCSI2 core responds to this and generates a SLWATN interrupt.

2) Operation shifts to the Message Out phase and a message is received from the initiator.

3) Operation shifts to the command phase and the CDB (command description block) is received. The number of bytes received is determined inside the CXD1804AR/SCSI2 core from the group code field (bits 7 to 5) in the 1st CDB byte of the operation code. Groups for which the CDB size is undefined by SCSI standards (groups 7, 6, 4 and 3) can be defined by the SCCDBSIZ register (69h).

Interrupt: SLWATN Selection with ATN (INTSTS2 register (72h), bit 2)

FUNCCMPL Function complete (INTSTS2 register (72h), bit 7)

Microcode status:

The microcode status value when the command is completed has the following meanings.

Code

01h 02h

An error occurred in the Message Out phase. A valid identify message was received in the Message Out phase and operation shifted

to the command phase.

Description

Page 73

– 73 –

CXD1804BR

(2) When responding to selection without ATN

Bus-Free → Arbitration → Selection without ATN → Command Operation: 1) When the characteristic SCSI ID of the CXD1804AR/SCSI2 core is detected by selection, the

CXD1804AR/SCSI2 core responds to this and generates a SLWOATN interrupt.

2) Operation shifts to the command phase and the CDB (command description block) is received.

The number of bytes received is determined inside the CXD1804AR/SCSI2 core from the group code field (bits 7 to 5) in the 1st CDB byte of the operation code. Groups for which the CDB size is undefined by SCSI standards (groups 7, 6, 4 and 3) can be defined by the SCCDBSIZ register (69h).

Interrupt: SLWOATN Selection without ATN (INTSTS2 register (72h), bit 1)

FUNCCMPL Function complete (INTSTS2 register (72h), bit 7)

Microcode status:

The microcode status value when the command is completed has the following meaning.

Code

02h Operation shifted to the command phase.

Description

(3) When responding to SCAM selection

Bus-Free → Arbitration → SCAM selection Operation: 1) If SCAM selection is detected, a SCAMSL interrupt and then a FUNCCMPL interrupt are

generated, and the command is completed.

2) Following this, the sub CPU must execute SCAM protocol using assert SCSI control and assert

SCSI data.

Interrupt: SCAMSL SCAM Selection (INTSTS3 register (73h), bit 0)

FUNCCMPL Function complete (INTSTS2 register (72h), bit 7)

Microcode status:

In this case, the microcode status value has no meaning.

2-2-9. Disable selection (09h)

Description: This command sets the CXD1804AR/SCSI2 core so that it does not respond to selection from

another SCSI device.

Operation: If this command is issued, the CXD1804AR/SCSI2 core is set so that it does not respond to

selection from another SCSI device and then the command is completed.

Interrupt: An interrupt is not generated.

If the XWAT pin is not used, wait 150 ns or more after this command is issued before issuing the next command.

Microcode status:

In this case, the microcode status value has no meaning.

Page 74

– 74 –

CXD1804BR

2-3. Category 01 Commands

These commands can be executed only in the Disconnect status.

2-3-1. Reselect sequences (40h, 42h, 43h)

Description: These are auto sequence commands which are executed when attempting reconnection with the

initiator after Disconnect. The Reselect command has the following two levels. a) After Reselect, operation shifts to the Message In phase and the message is transferred.

1) Reselect and Send Message(s) (40h)

Bus-Free → Arbitration → Reselection → Message In

b) Data transfer (Data In or Data Out phase) is executed after a).

1) Reselect, Send Message(s) and Receive Data (42h)

Bus-Free → Arbitration → Reselection → Message In → Data Out

2) Reselect, Send Message(s) and Send Data (43h)

Bus-Free → Arbitration → Reselection → Message In → Data In

Preparation: A number of operations must be performed before issuing this command.

Common operations:

1) Specify the CXD1804AR operation with the SCCONF0 (60h), SCCONF1 (61h) and

SCCONF2 (62h) registers.

2) Set the SCSI ID of the initiator to be reselected and the CXD1804AR's own SCSI ID in the

SCID register (65h).

3) Set the FIFO to empty status with the Flush FIFO command and then write the message to

be transferred in the Message In phase in the FIFO.

Only when transferring data after executing the Message In phase:

4) The decoder block side must be prepared for transfer in advance using Reselect, Send

Message(s) and Receive/Send Data.

Operation: Bus-Free → Arbitration → Reselection

If the Reselect command is executed, first the CXD1804AR/SCSI2 core first waits for Bus-Free and then enter Arbitration. Upon successfully winning the Arbitration, it then shifts to Reselection. a) When the RSLRTLM (3 to 0) bit of the SCCONF1 register is "00h":

This sequence is repeated until both Arbitration and Reselection are completed successfully.

b) When the RSLRTLM (3 to 0) bit of the SCCONF1 register is greater than "00h":

This sequence is repeated for the number of times set by RSLRTLM. When the number of times reaches the set number, processing stops, a RSLFAIL interrupt and then a FUNCCMPL interrupt are generated, and then the command is completed.

When the CXD1804AR acquires the right to use the bus during the Arbitration phase, operation proceeds to the next step only if reconnection with the initiator is successful in the Reselection phase.

Message In phase

If reconnection is successful, operation shifts to the Message In phase and the message prepared beforehand in the FIFO, before issuing the command, is transferred to the initiator. If the attention condition is established during the transfer, ATNCOND and FUNCCMPL interrupts are generated and transfer stops at that point. However, the first byte of the message (normally identify) is always transferred.

Page 75

– 75 –

CXD1804BR

Data In/Data Out phase

Operation shifts to either the Data In or Data Out phase as specified by the command only when the attention condition was not generated by Reselect, Send Message (s) and Receive/Send Data during the Message In phase. Transfer is performed in the DMA mode between the buffer and the SCSI. If the attention condition is established or a parity error occurs on the SCSI bus during the transfer, the corresponding interrupts are generated. Whether or not transfer is stopped by these factors is determined by the setting of the HSXFRSPE or HSXFRAT bits of the SCCONF1 register.

Interrupt: If the transfer is completed normally without problems:

FUNCCMPL Function complete (INTSTS2 register (72h), bit 7) If the CXD1804AR/SCSI2 core is selected immediately after the command is issued or it fails at Arbitration:

SLWOATN Selected without ATN (INTSTS2 register (72h), bit 1)

SLWATN Selected with ATN (INTSTS2 register (72h), bit 2)

FUNCCMPL Function complete (INTSTS2 register (72h), bit 7) If the CXD1804AR/SCSI2 core fails at Arbitration or Reselection:

RSLFAIL Reselection fail (INTSTS2 register (72h), bit 0)

FUNCCMPL Function complete (INTSTS2 register (72h), bit 7)

Microcode status:

The microcode status value when the command is completed has the following meanings.

Code

00h 01h 02h

03h

Completed normally. Reselection failed. The attention condition was established during the Message In phase. The attention condition was established during the Data In/Out phase, or a parity error

occurred (Data Out phase only).

Description

2-3-2. Initiate SCAM (41h)

Description: If this command is executed, the CXD1804AR/SCSI2 core executes Arbitration without outputting

its own ID.

Operation: If this command is executed, the CXD1804AR/SCSI2 core executes Arbitration without outputting

its own ID. If the CXD1804AR/SCSI2 core succeeds at Arbitration, the FUNCCMPL interrupt is generated with XBSY and XSEL driven. If the CXD1804AR/SCSI2 core fails at Arbitration, the SCAMINIF and FUNCCMPL interrupts are generated and the command is completed.

Interrupt: FUNCCMPL Function complete (INTSTS2 register (72h), bit 7)

SCAMINIF SCAM initiation fail (INTSTS3 register (73h), bit 1)

Page 76

– 76 –

CXD1804BR

2-4. Category 10 Commands

This commands can be executed only in the target mode status. If these commands are executed in any other status, a CMDIGNR interrupt is generated. Commands for targets can be broadly classified into three groups. a) Phase unit of transfer commands b) Disconnect commands c) Terminate I/O commands

2-4-1. Single phase of transfer commands

Single phase transfer commands include the following commands. a) Receive data (80h) b) Send data (81h) c) Receive command (84h) d) Send status (85h) e) Receive message (86h) f) Send message (87h) g) Receive command sequence (8Ch) These commands execute the transfer phase of the corresponding name. Each transfer command has three modes. The mode is determined by the combination of the command's BUF (bit 5) and SUB (bit 4) bits.

BUF

0 0 1 1

0 1 0 1

Sub CPU – SCSI 1-byte transfer Sub CPU – SCSI n-byte transfer (n = 1 to 16) Buffer – SCSI transfer Undefined

SUB Mode

a) Sub CPU – SCSI 1-byte transfer

1) From the sub CPU to the SCSI: The sub CPU must write the data to be transferred in the FIFO beforehand.

2) From the SCSI to the sub CPU: If the command is executed, one byte of data enters the FIFO when a FUNCCMPL interrupt occurs.

b) Sub CPU – SCSI n-byte transfer (n = 1 to 16)

1) From the sub CPU to the SCSI: The sub CPU must write the data to be transferred in the FIFO beforehand.

2) From the SCSI to the sub CPU: The number of bytes to be received must be written in the SXFRC register (58h) before issuing the command. The maximum number of bytes which can be transferred with a single transfer is 16. If the command is executed, data enters the FIFO when a FUNCCMPL interrupt occurs. At this time, the number of bytes remaining to be transferred can be known by reading the SXFRC register (58h). If the transfer is not interrupted by an SCSI parity error or the ATN condition, this value is "0".

c) Buffer – SCSI transfer

The command is issued after setting the transfer at the decoder block side. Data can also be written in the FIFO beforehand.

Page 77

– 77 –

CXD1804BR

(1) Receive command sequence (8Ch)

Description: The CDB is analyzed and received in the command phase. Note) This command should be executed only when not even a single byte has been received yet in the

command phase.

Preparation: A number of operations must be performed before issuing this command.

1) Set the number of bytes when receiving a command from a command group which is undefined by SCSI standards with the SCCDBSIZ register (69h).

Operation: After shifting to the command phase, six CDB bytes are received unconditionally. After that, the

first CDB byte is analyzed, command group identification is performed and the number of deficient

bytes is received. Interrupt: FUNCCMPL Function complete (INTSTS2 register (72h), bit 7) Microcode status:

The microcode status has no meaning with this command.

2-4-2. Disconnect commands

These commands are issued in order to release the bus when the CXD1804AR/SCSI2 core has completed a series of operations as the target.

(1) Disconnect (88h)

Description: This command releases the SCSI bus in accordance with SCSI standards and sets the SCSI bus

to Bus-Free status. Interrupt: FUNCCMPL Function complete (INTSTS2 register (72h), bit 7) Microcode status:

The microcode status has no meaning with this command.

(2) Send Message(s) and Disconnect (89h)

Description: This command executes the Message In phase and then disconnects. Preparation: A number of operations must be performed before issuing this command.

1) Set the FIFO to empty status with the Flush FIFO command and then write the message to be transferred in Message In phase in the FIFO.

Operation: After shifting to the Message In phase and transferring the FIFO data, the CXD1804AR/SCSI2

core is set to the disable selection status. Then the Bus-Free status is established, a FUNCCMPL

interrupt is generated and the command is completed. Interrupt: FUNCCMPL Function complete (INTSTS2 register (72h), bit 7) Microcode status:

The microcode status has no meaning with this command.

Page 78

– 78 –

CXD1804BR

2-4-3. Terminate I/O commands

These commands are issued in order to release the bus when the CXD1804AR/SCSI2 core has completed a series of operations as the target.

(1) Terminate I/O and Bus-Free (8Ah)

Description: After transferring one byte of the status in the Status phase, operation shifts to the Message In

phase and the message is transferred to the initiator. Then, the connection is disconnected and

the SCSI bus is set to Bus-Free status.

Preparation: A number of operations must be performed before issuing this command.

1) Set the FIFO to empty status with the Flush FIFO command and then write the one byte to be transferred in the Status phase and the message to be transferred in the Message In phase in the FIFO.

Operation: After shifting to the Status phase and transferring one byte of the FIFO data, operation shifts to

the Message In phase and the FIFO data is transferred. Upon completion of the transfer, the CXD1804AR/SCSI2 core is set to the disable selection status. Then Bus-Free status is

established, a FUNCCMPL interrupt is generated and the command is completed. Interrupt: FUNCCMPL Function complete (INTSTS2 register (72h), bit 7) Microcode status:

The microcode status value when the command is completed has the following meanings.

Code

00h 01h 02h

Completed normally. The ATN condition was established while executing the Status phase. The ATN condition was established while executing the Message In phase.

Description

(2) Terminate I/O and link (8Bh)

Description: After transferring one byte of the status in the Status phase, operation shifts to the Message In

phase and the message is transferred to the initiator. Then, operation shifts to the command

phase, the SCSI CDB is received, and the command is completed. Preparation: A number of operations must be performed before issuing this command.

1) Set the FIFO to the empty status with the Flush FIFO command and then write the one byte to be transferred in the Status phase and the message to be transferred in the Message In phase in the FIFO.

Operation: After shifting to the Status phase and transferring one byte of the FIFO data, operation shifts to

the Message In phase and the FIFO data is transferred. Then, operation shifts to the command

phase, the CDB is received, a FUNCCMPL interrupt is generated and the command is completed. Interrupt: FUNCCMPL Function complete (INTSTS2 register (72h), bit 7) Microcode status:

The microcode status value when the command is completed has the following meanings.

Code

00h 01h 02h 03h

Completed normally. The ATN condition was established while executing the Status phase. The ATN condition was established while executing the Message In phase. Operation shifted to the command phase after completing terminate I/O processing.

Description

Page 79

– 79 –

CXD1804BR

2-5. Category 11 Commands

These commands are stream commands, and can be executed anytime as long as a different command is not currently being executed.

Terminology

1) Completed Completed has the following meaning with stream processing. Streams being executed cannot be reopened when they are completed. Streams are completed when processing finishes normally. Streams can also be completed when they are in interrupted state.

2) Interrupted Interrupted has the following meaning with stream processing. Streams are interrupted if the ATN condition is established, Reselection fails, or the CXD1804AR responds to a selection while executing the stream. Streams being executed can be reopened when they are in interrupted state.

2-5-1. Stream abort

Description: Stream processing is forcibly completed. Preparation: Before this command is issued, any one of the following conditions must be met.

a) The stream is interrupted by the ATN condition. b) The stream is interrupted because Reselection failed. c) The stream is interrupted because the CXD1804AR responded to a selection. d) The stream is interrupted after executing the stream pause command.

Operation: After internally resetting the stream related circuits, a FUNCCMPL interrupt is generated and the

command is completed. Interrupt: FUNCCMPL Function complete (INTSTS2 register (72h), bit 7) Microcode status:

The microcode status has no meaning with this command.

Page 80

– 80 –

CXD1804BR

Code

00h 01h 02h 03h 04h 05h 06h 07h 08h

Completed normally. The CXD1804AR was selected and an error occurred in the Message In phase. The CXD1804AR was selected and operation shifted to the command phase. Reselection failed. The ATN condition was established in the Message In phase immediately after Reselection. The ATN condition was established in the Data In phase. The ATN condition was established in the Message In phase during Disconnect. The ATN condition was established in the Status phase during terminate I/O. The ATN condition was established in the Message In phase during terminate I/O.

Description

2-5-2. Stream and stop (C1h)

Description: The stream command is executed. Preparation: A number of operations must be performed before issuing this command.

1) Specify the CXD1804AR operation with the SCCONF0 (60h), SCCONF1 (61h) and SCCONF2 (62h) registers.

2) Specify Disconnect allowed/not allowed and the operation when the ATN condition is established with the SCSTCONF register.

3) Write the message to be transferred in the Message In phase immediately after Reselection, and the data to be transferred in the status and Message In phases of the terminate I/O sequence beforehand in the SCSTRSLM, SCSTTIOS and SCSTTIOM registers, respectively.

4) Prepare for auto transfer on the decoder block side.

Operation: When Disconnect is allowed, the following sequences are executed.

a) The following sequence is executed each time the buffer data reaches the buffer full ratio

during transfer. Reselection → Message In → Data In → Message In → Disconnect

b) The following sequence is executed only during the final connection.

Reselection → Message In → Data In

When Disconnect is not allowed, the following sequence is executed.

a) Data In

Interrupt: FUNCCMPL Function complete (INTSTS2 register (72h), bit 7) Microcode status:

The microcode status value when the command is completed has the following meanings.

The meaning of each code after the stream pause command (C4h) has been issued is basically the same. However, the meaning of the following codes changes slightly.

Code Description

00h

04h

05h

Completed normally. However, the stream is interrupted. The ATN condition was established in the Message In phase immediately after Reselection.

When the ATN condition is not established, the data to be transferred has already been transferred and the stream is interrupted.

The ATN condition was established in the Data In phase. When the ATN condition is not established, the data to be transferred has already been transferred and the stream is interrupted.

Page 81

– 81 –

CXD1804BR

2-5-3. Stream and Bus-Free (C2h)

Description: The stream command is executed. Preparation: A number of operations must be performed before issuing this command.

1) Specify the CXD1804AR operation with the SCCONF0 (60h), SCCONF1 (61h) and SCCONF2

(62h) registers.

2) Specify Disconnect allowed/not allowed and the operation when the ATN condition is

established with the SCSTCONF register.

3) Write the message to be transferred in the Message In phase immediately after Reselection,

and the data to be transferred in the status and Message In phases of the terminate I/O sequence beforehand in the SCSTRSLM, SCSTTIOS and SCSTTIOM registers, respectively.

4) Prepare for auto transfer on the decoder block side.

Operation: When Disconnect is allowed, the following sequences are executed.

a) The following sequence is executed each time the buffer data reaches the buffer full ratio

during transfer. Reselection → Message In → Data In → Message In → Disconnect

b) The following sequence is executed only during the final connection.

Reselection → Message In → Data In → Status → Message In → Bus-Free

When Disconnect is not allowed, the following sequence is executed.

a) Data In → Status → Message In → Bus-Free Interrupt: FUNCCMPL Function complete (INTSTS2 register (72h), bit 7) Microcode status:

The microcode status value when the command is completed has the following meanings.

Code

00h 01h 02h 03h 04h 05h 06h 07h 08h

Description

The meaning of each code after the stream pause command (C4h) has been issued is basically the same. However, the meaning of the following codes changes slightly.

Code Description

00h

04h

05h

Completed normally. However, the stream is interrupted. The ATN condition was established in the Message In phase immediately after Reselection.

When the ATN condition is not established, the data to be transferred has already been transferred and the stream is interrupted.

The ATN condition was established in the Data In phase. When the ATN condition is not established, the data to be transferred has already been transferred and the stream is interrupted.

Page 82

– 82 –

CXD1804BR

Code

00h 01h 02h 03h 04h 05h 06h 07h 08h 09h

Description

2-5-4. Stream and link (C3h)

Description: The stream command is executed. Preparation: A number of operations must be performed before issuing this command.

1) Specify the CXD1804AR operation with the SCCONF0 (60h), SCCONF1 (61h) and SCCONF2 (62h) registers.

2) Specify Disconnect allowed/not allowed and the operation when the ATN condition is established with the SCSTCONF register.

4) Prepare for auto transfer on the decoder block side.

Operation: The following sequences are executed.

a) The following sequence is executed each time the buffer data reaches the buffer full ratio

during transfer. Reselection → Message In → Data In → Message In → Disconnect

b) The following sequence is executed only during the final connection.

Reselection → Message In → Data In → Status → Message In → Command

When Disconnect is not allowed, the following sequence is executed.

a) Data In → Status → Message In → Command

Interrupt: FUNCCMPL Function complete (INTSTS2 register (72h), bit 7) Microcode status:

The microcode status value when the command is completed has the following meanings.

The meaning of each code after the stream pause command (C4h) has been issued is basically the same. However, the meaning of the following codes changes slightly.

Code Description

04h

05h

09h

The ATN condition was established in the Message In phase immediately after Reselection. When the ATN condition is not established, the data to be transferred has already been transferred and the stream is interrupted.

ATN condition was established in the Data In phase. When the ATN condition is not established, the data to be transferred has already been transferred and the stream is interrupted.

Operation shifted to the command phase after executing terminate I/O processing. However, the stream is interrupted.

Page 83

– 83 –

CXD1804BR

2-5-5. Stream pause (C4h)

Description: The stream command is interrupted.

This command is executed when the stream is to be interrupted for any reason other than SCSI

related factor. For example, upon seek error. Preparation: This command can be issued anytime while executing the stream command. Operation: Operation switches to a mode which transfers all transferable data. An interrupt is not generated.

After all transferable data has been transferred, the stream command being executed generates a

FUNCCMPL interrupt and the command is completed.

Stream commands being executed when the stream pause command is issued perform the

following operations.

a) When the stream pause command is issued while executing the Data In phase:

After all transferable data has been transferred, a FUNCCMPL interrupt is generated and the command is completed.

b) When the stream pause command is issued in the Bus-Free condition:

Reselection and the Message In phase are executed regardless of the values of BFFLRT and BFBLKC. If there is transferable data, the Data In phase is executed, a FUNCCMPL interrupt is generated and the command is completed. The ATN condition following the issue of the stream pause command is processed normally.

Interrupt: An interrupt is not generated for this command.

After this command is issued, an interrupt is generated for stream commands which are being

executed at that point when these streams are interrupted or completed. See the description of

each command for details. Microcode status:

The microcode status conforms to the stream commands being executed when the stream pause

command is issued.

Page 84

– 84 –

CXD1804BR

[3] Appendix A

3-1. List of CD-ROM Decoder Block Registers

3-1-1. CD-ROM decoder block read registers

00h 01h 02h 03h 04h 05h 06h 07h 08h

09h 0Ah 0Bh

0Ch

0Dh

0Eh

0Fh

10h

11h

12h

13h

14h

15h

16h

17h

18h

19h

b7 b7 b7 b7 b7 b7 b7 b7 b7 b7 b7 b7 MIN

UTE MIN

UTE SHRT

SCT

b7 1024

XFR ENBL

KEFL AUTO

DIST ENSB

QRD REV#

2 b7

b6 b6 b6 b6 b6 b6 b6 b6 b6 b6 b6 b6 SEC

OND SEC

OND NO

SYNC

b6 512

XFR BLKE

FLSL MODE

SEL

REV# 1

b5 b5 b5 b5 b5 b5 b5 b5 b5 b5 b5 b5 BLO

CK BLO

CK COR

INH

b5 SYNC ENBY

TFBT FORM

SEL DEC

CMD2 REV#

0 b5

b4 b4 b4 b4 b4 b4 b4 b4 b4 b4 b4 b4

MODE

MODE ERIN

BLK

b4 HEAD

ER BYTE

FLSL ATTG

TMET DEC

CMD1

b3 b3 b3 b3 b3 b3 b3 b3 b3 b3 b3 b3

FILE COR

DONE

b3 SBHE

ADER ENSB

CBT ENFM

2EDC DEC

CMD0 CMDO

BUSY b3

b2 b2 b2 b2 b2 b2 b2 b2 b2 b2 b2 b2

CHAN NEL

EDC NG

EDC ALL0

b2 USER

DATA ALL

SBC MDBY

TCTL ATW

SCTI

b1 b1 b1 b1 b1 b1 b1 b1 b1 b1 b1 b1

SUB MODE

ECC NG

C MODE

b1 PARI

TY SBCE

STS EN

DLA NTCR

CT1 CBFW

RRDY b1

b0 b0 b0 b0 b0 b0 b0 b0 b0 b0 b0 b0 CDR

DTEN DATA

TYPE TGTN

TMET C

FORM b8 b0 b8 b0 AUTO

XFR ZA

SQEF ATDL

RNEW NTCR

CT0 CBFR

DRDY b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

RAWMIN RAWSEC RAWBLK RAWMD BFMIN BFSEC BFHDRBLK BFMD BFFILE BFCHAN BFSUBM BFDTYP RAWHDR

FLG BFHDR

FLG DECSTS

0 DECSTS

1 LSTARA-H LSTARA-L LHADR-H LHADR-L XFRFMT

0 XFRFMT

1 DECCTL

0 DECCTL

1 XFRSTS CPUBRDT

Sub CPU read registers (1)

Page 85

– 85 –

CXD1804BR

1Ah

1Bh

1Ch

1Dh

1Eh

1Fh

20h 21h 22h 23h 24h 25h 26h 27h 28h

29h 2Ah 2Bh 2Ch 2Dh 2Eh 2Fh

30h

31h

32h

33h

34h

35h

36h

37h

38h

39h 3Ah

SUBQ FMSL

SBC OVRN

SBQ ERR

b7 b7 b7

b23 b15 b7

b15 b7

OVER FLOW

b6 b6 b6

b22 b14 b6

b14 b6

BFNT VAL

b5 b5 b5

b21 b13 b5

b13 b5

NO SYNC

b4 b4 b4

b20 b12 b4

b12 b4

SBC ERR3

b3 b3 b3

b19 b11 b3

MODE 2

SBC ERR2

SHTS BCS

INCB LKS2

b2 PACK

MODE

b2 b2 b2

b18 b10 b2

FORM 2

SBC ERR1

NOSY NC

INCB LKS1

b1 b1 b1

b17 b9 b1

XFR POS1

b17 b9 b1

XFR SCT

SBC ERR0

SUBQ ERR

INCB LKS0

b8 b0 b8 b0 b8 b0

b0 b0 b0

b16 b8 b0 b8 b0

XFR POS0

b16 b8 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCTINF

SBCSTS

SBQSTS INC

BLKS SBQDT CHPCTL

1 BFARA#-H BFARA#-L CSCTARA-H CSCTARA-L DLARA-H DLARA-L

TGTMIN TGTSEC TGTBLK

XFRCNT-H XFRCNT-M XFRCNT-L XFRARA-H XFRARA-L

XFRPOS

HXFRC-H HXFRC-M HXFRC-L

HADRC-H HADRC-M HADRC-L

Sub CPU read registers (2)

Page 86

– 86 –

CXD1804BR

3Bh 3Ch 3Dh 3Eh

3Fh

40h

41h

42h

43h

44h

45h

46h

47h

48h

49h 4Ah 4Bh 4Ch 4Dh 4Eh

b15 b7

b7 b15 b7 b7

b14 b6

b6 b14 b6 b6

b13 b5

b5 b13 b5 b5

b12 b4

b4 b12 b4 b4

b19 b11 b3

b3 b11 b3 b3

b18 b10 b2

b2 b10 b2 b2

b17 b9 b1

b17 b9 b1 b9 b1 b9 b1 b9 b1 b1

b16 b8 b0

b16 b8 b0 b8 b0 b8 b0 b8 b0 b0 b8 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SLADR-H SLADR-M SLADR-L

CWADRC-H CWADRC-M CWADRC-L

CRADRC-H CRADRC-M CRADRC-L BFBLKC-H BFBLKC-L BFFLRT-H BFFLRT-L TIMER-H TIMER-L TMRRSL STARTARA-H STARTARA-L

Sub CPU read registers (3)

Page 87

– 87 –

CXD1804BR

3-1-2. CD-ROM decoder block write registers

00h

01h

02h

03h

04h

05h

06h

07h

08h

09h 0Ah 0Bh

0Ch 0Dh

0Eh 0Fh

10h

11h

12h

13h

14h

15h

16h

17h

18h

19h 1Ah 1Bh

1Ch

CINT POL

SW OPEN

C2PO L1st

b7 DSTB

SL1 b7 "L" "L" "L" "L" "L" "L"

"L" "L"

"L" "L" "L" b7 "L" b7 1024

XFR ENBL

KEFL AUTO

DIST ENSB

QRD CHIP

RST b7 SUB

FMSL b7 b7

RAM SIZE1

SYC NGC2

LCH LOW

b6 DSTB

SL0 b6 "L" "L" "L" "L" "L" "L"

"L" "L"

"L" "L" "L" b6 "L" b6 512

XFR BLKE

FLSL MODE

SEL "L" TGT

MET b6

"L" b6

RAM SIZE0

SYC NGC1

BCH RED

b5 DIS

XLAT b5 "L" "L" "L" "L" "L" "L"

"L" "L"

"L" "L" "L" b5 "L" b5

SYNC ENBY

TFBT FORM

SEL SEC

CMD2 INC

TGT b5

"L" b5

RAM8 BITW

SYC NGC0

BCKL MD1

b4 XFR

BYT1 b4 "L" "L" "L" "L" "L" "L"

"L" "L"

"L" "L" "L" b4 "L" b4 HEAD

ER BYTE

FLSL ATTG

TMET DEC

CMD1 RPCO

RTRG b4

"L" b4

RAM 2CAS

HWKR QDIS

BCKL MD0

b3 XFR

BYT0 b3 "L" "L" "L" "L" "L" "L"

"L" "L"

"L" "L" "L" b3 "L" b3 SBHE

ADER ENSB

CBT ENFM

2EDC DEC

CMD0 BF

STOP b3

"L" b3

EXCK SEL

"L" LSB

1st b2 FAST

DSTB b2 "L" "L" "L" "L" "L" "L"

"L" "L"

"L" "L" "L" b2 "L" b2 USER

DATA ALL

SBC MDBY

TCTL ATW

SCTI CLDS

PCMD b2 MODE

2 b2 b2

CLK SEL1

SBC ECC1

"L" b1

SBAI TMSL

b1 "L" "L" "L" "L" "L" "L"

"L" "L"

"L" "L" "L" b1 "L" b1 PARI

TY SBCE

STS EN

DLA NTCR

CT1 DSPC

MDXF b1 FORM

2 b1 b1

CLK SEL0

SBC ECC0

BFSH DFSL

b0 FAST

EXCK b0 "L" "L" "L" "L" "L" "L" CDR

DTEN "L" "L" "L" b8 b0 b8 b0 AUTO

XFR ZA

SQEF ATDL

RNEW NTCR

CT0 DSPC

MDLT b0 XFR

SCT b0 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

CONFIG0

CONFIG1

DSPIF RFINTVL DSPCTL DSPCMD

CDRMOD

LSTARA-H LSTARA-L LHADR-H LHADR-L XFRFMT

0 XFRFMT

1 DECCTL

0 DECCTL

1 CHPCTL

0 CPUBWDT

SCTINF BLKESTS

SBCESTS

Sub CPU write registers (1)

Page 88

– 88 –

CXD1804BR

1Dh 1Eh 1Fh

20h 21h 22h 23h 24h 25h 26h 27h 28h 29h

2Ah 2Bh 2Ch 2Dh 2Eh 2Fh

30h 31h 32h

33h 34h 35h 36h 37h 38h 39h

3Ah 3Bh 3Ch 3Dh 3Eh 3Fh

"L" b7 "L" "L"

b7 "L" "L" "L" b7 "L" b7 b7 b7 "L" b23 b15 b7 "L" b7 "L"

"L" "L"

"L" b15 b7 "L" "L" b15 b7 "L" "L" b15 b7 "L" "L"

"L" b6 "L" "L"

b6 "L" "L" "L" b6 "L" b6 b6 b6 "L" b22 b14 b6 "L" b6 "L"

"L" "L"

"L" b14 b6 "L" "L" b14 b6 "L" "L" b14 b6 "L" "L"

"L" b5 "L" "L"

b5 "L" "L" "L" b5 "L" b5 b5 b5 "L" b21 b13 b5 "L" b5 "L"

"L" "L"

"L" b13 b5 "L" "L" b13 b5 "L" "L" b13 b5 "L" "L"

"L" b4 "L" "L"

b4 "L" "L" "L" b4 "L" b4 b4 b4 "L" b20 b12 b4 "L" b4 "L"

"L" "L"

"L" b12 b4 "L" "L" b12 b4 "L" "L" b12 b4 "L" "L"

"L" b3 "L" "L"

b3 "L" "L" "L" b3 "L" b3 b3 b3 "L" b19 b11 b3 "L" b3 "L"

"L" "L"

b19 b11 b3 "L" b19 b11 b3 "L" b19 b11 b3 "L" b19

INCB LKS2

b2 PACK

MODE "L" b2 "L" "L" "L" b2 "L" b2 b2 b2 "L" b18 b10 b2 "L" b2 "L"

"L" "L"

b18 b10 b2 "L" b18 b10 b2 "L" b18 b10 b2 "L" b18

INCB LKS1

b1 "L" "L"

b1 "L" "L" "L" b1 "L" b1 b1 b1 "L" b17 b9 b1 "L" b1 "L" XFR

POS1 "L" b17 b9 b1 "L" b17 b9 b1 "L" b17 b9 b1 "L" b17

INCB LKS0

b0 "L" b8

b0 "L" "L" b8 b0 "L" b0 b0 b0 "L" b16 b8 b0 b8 b0 "L" XFR

POS0 "L" b16 b8 b0 "L" b16 b8 b0 "L" b16 b8 b0 "L" b16

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

INC BLKS

BYTERSTS CHPCTL

1 BFARA#-H BFARA#-L

DLARA-H DLARA-L

TGTMIN TGTSEC TGTBLK

XFRCNT-H XFRCNT-M XFRCNT-L XFRARA-H XFRARA-L

XFRPOS

HXFRC-H HXFRC-M HXFRC-L

HADRC-H HADRC-M HADRC-L

SLADR-H SLADR-M SLADR-L

CWADRC-H

Sub CPU write registers (2)

Page 89

– 89 –

CXD1804BR

40h

41h

42h

43h

44h

45h

46h

47h

48h

49h 4Ah 4Bh 4Ch

b15 b7 "L" "L" b15 b7 "L" b7 "L" b7 b15 b7 b7

b14 b6 "L" "L" b14 b6 "L" b6 "L" b6 b14 b6 b6

b13 b5 "L" "L" b13 b5 "L" b5 "L" b5 b13 b5 b5

b12 b4 "L" "L" b12 b4 "L" b4 "L" b4 b12 b4 b4

b11 b3 "L" b19 b11 b3 "L" b3 "L" b3 b11 b3 b3

b10 b2 "L" b18 b10 b2 "L" b2 "L" b2 b10 b2 b2

b9 b1 "L" b17 b9 b1 b9 b1 b9 b1 b9 b1 b1

b8 b0 "L" b16 b8 b0 b8 b0 b8 b0 b8 b0 b0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

CWADRC-M CWADRC-L

CRADRC-H CRADRC-M CRADRC-L BFBLKC-H BFBLKC-L BFFLRT-H BFFLRT-L TIMER-H TIMER-L TMRRSL

Sub CPU write registers (3)

Page 90

– 90 –

CXD1804BR

3-2. List of SCSI Controller Block Registers

3-2-1. SCSI controller block read registers

50h 51h

52h 53h

54h

55h 56h

57h 58h 59h

5Ah 5Bh 5Ch

5Dh 5Eh 5Fh

MON RST

MON BSY

FIFE MPTY

B07 "L"

SYXF RPD3

CTL BSY

MON DBP

MON SEL

B06 "L"

SYXF RPD2

CTL SEL

MON MSG

B05 "L"

SYXF RPD1

CTL MSG

MON CD

FIF FULL

B04 B04

SYXF RPD0

CTL CD

TAPE MODE

MON IO

FIF CNT3

B03 B03

SYXF ROF3

CTL IO

TBC ZERO

MON REQ

FIF CNT2

B02 B02

SYXF ROF2

CTL REQ

MON ACK

FIF CNT1

B01 B01

SYXF ROF1

CTL ACK

CMDI NPRG

MON ATN

FIF CNT0

B00 B00

SYXF ROF0

CTL ATN

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCSTS Reserved

Reserved Reserved

SCSCBMON SCFIF

STS Reserved SCDATA SCSXFRC Reserved Reserved

SCSYNCTL Reserved

Reserved SCSCBCTL Reserved

List of SCSI2 controller block read registers (1)

Page 91

– 91 –

CXD1804BR

60h

61h

62h

63h

64h

65h

66h

67h

68h

69h

6Ah

6Bh

6Ch

6Dh

6Eh 6Fh

FAST SCSI

RSLT OUT7

SEL ID2

GP7 B1

USTS B7

RSLM SG7

TIOS TS7

TIOM SG7

HSXF RSPE

RSLT OUT6

SEL ID1

GP7 B0

USTS B6

RSLM SG6

TIOS TS6

TIOM SG6

CDBS IZDF

HSXF RAT

RSLT OUT5

SEL ID0

GP6 B1

GP6D B1

USTS B5

RSLM SG5

TIOS TS5

TIOM SG5

ANEG DATA

HSL SPE

RSLT OUT4

SELI DINV

GP6 B0

GP6D B0

USTS B4

RSLM SG4

TIOS TS4

TIOM SG4

ANEG RQAK

RSL RTC3

RSLT OUT3

GP4 B1

GP6C B1

USTS B3

RSLM SG3

TIOS TS3

TIOM SG3

RSL RTC2

RSLT OUT2

OWN ID2

GP4 B0

GP6C B0

USTS B2

STDS CPRV

RSLM SG2

TIOS TS2

TIOM SG2

RSL RTC1

IDAS SIGN

RSLT OUT1

OWN ID1

GP3 B1

GP43 B1

USTS B1

RSLM SG1

TIOS TS1

TIOM SG1

RSL RTC0

IDUN ASGN

RSLT OUT0

OWN ID0

GP3 B0

GP43 B0

USTS B0

RSLM SG0

TIOS TS0

TIOM SG0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCCONF0

SCCONF1

SCCONF2

SCRSLTOT Reserved SCID Reserved

Reserved Reserved SCCDBSIZ

CDBSIZDF = 0 SCCDBSIZ

CDBSIZDF = 1 SC

USTS SCSTCONF

SCSTRSLM

SCSTTIOS

SCSTTIOM Reserved

List of SCSI2 controller block read registers (2)

Page 92

– 92 –

CXD1804BR

3-2-2. SCSI controller block write registers

50h 51h 52h 53h 54h 55h 56h 57h 58h 59h

5Ah 5Bh 5Ch

5Dh 5Eh 5Fh

CAT1

B07 B07

SYXF RPD3

CTL BSY

CAT0

B06 B06

SYXF RPD2

CTL SEL

B05

B05 B05

SYXF RPD1

CTL MSG

B04

B04 B04

SYXF RPD0

CTL CD

B03

B03 B03

SYXF ROF3

CTL IO

B02

B02 B02

SYXF ROF2

CTL REQ

B01

B01 B01

SYXF ROF1

CTL ACK

B00

B00 B00

SYXF ROF0

CTL ATN

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCCMD Reserved Reserved Reserved Reserved Reserved Reserved SCDATA SCSXFRC Reserved Reserved

SCSYNCTL Reserved

Reserved SCSCBCTL Reserved

List of SCSI2 controller block write registers (1)

Page 93

– 93 –

CXD1804BR

60h

61h

62h

63h 64h 65h 66h

67h 68h

69h

69h 6Ah 6Bh

6Ch

6Dh

6Eh 6Fh

FAST SCSI

RSLT OUT7

SEL ID2

GP7 B1

RSLM SG7

TIOS TS7

TIOM SG7

HSXF RSPE

RSLT OUT6

SEL ID1

GP7 B0

RSLM SG6

TIOS TS6

TIOM SG6

CDBS IZDF

HSXF RAT

RSLT OUT5

SEL ID0

GP6 B1

GP6D B1

RSLM SG5

TIOS TS5

TIOM SG5

ANEG DATA

SPAR ENB

RSLT OUT4

GP6 B0

GP6D B0

RSLM SG4

TIOS TS4

TIOM SG4

ANEG RQAK

RSL RTC3

RSLT OUT3

GP4 B1

GP6C B1

RSLM SG3

TIOS TS3

TIOM SG3

RSL RTC2

RSLT OUT2

OWN ID2

GP4 B0

GP6C B0

STDS CPRV

RSLM SG2

TIOS TS2

TIOM SG2

RSL RTC1

IDAS SIGN

RSLT OUT1

OWN ID1

GP3 B1

GP43 B1

RSLM SG1

TIOS TS1

TIOM SG1

RSL RTC0

IDUN ASGN

RSLT OUT0

OWN ID0

GP3 B0

GP43 B0

RSLM SG0

TIOS TS0

TIOM SG0

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

SCCONF0

SCCONF1

SCCONF2

SCRSLTOT Reserved SCID Reserved

Reserved Reserved SCCDBSIZ

CDBSIZDF = 0 SCCDBSIZ

CDBSIZDF = 1 Reserved

SCSTCONF

SCSTRSLM

SCSTTIOS

SCSTTIOM Reserved

List of SCSI2 controller block write registers (2)

Page 94

– 94 –

CXD1804BR

70h

71h

72h

73h

74h

75h

76h

77h

78h 79h

7Ah 7Bh 7Ch 7Dh

7Eh

7Fh

DEC INT

FUNC CMPL

DEC INT

FUNC CMPL

BFSH DRFLG

DEC TOUT

CMD IGNR

DEC TOUT

DIS CNCT

EDC ALLO

DRV OVRN

SCSI RST

DRV OVRN

SCSI RST

COR INH

CRST END

ATN COND

CRCT END

ATN COND

ERIN BLK

CDR INT

SCSI PERR

CDR INT

SCSI PERR

COR DONE

SLW ATN

SCSI REL

EDC NG

NOTA TWSI

TIME R

SLWO ATN

SCAM INIF

NOTA TWSI

TIME R

SLWO ATN

SCAN INIF

SCTM REL

ECC NG

C MODE

SHT SYNC

SUBC SYNC

RSL FAIL

SCAN SL

SHT SYNC

SUBC SYNC

RSL FAIL

SCAM SL

DEC REL

TGTN TMET

C FORM

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

INTSTS0

INTSTS1

INTSTS2

INTSTS3

INTEN0

INTEN1

INTEN2

INTEN3

INTSRC

INTCOND0

INTCOND1

3-3. List of Common Registers

3-3-1. Common read registers

Page 95

– 95 –

CXD1804BR

70h

71h

72h

73h

74h

75h

76h

77h

78h

79h 7Ah 7Bh 7Ch 7Dh

7Eh

7Fh

DEC INT

FUNC CMPL

DEC INT

FUNC CMPL

BFSH DRFLG

DEC TOUT

CMD IGNR

DEC TOUT

CMD IGNR

EDC ALLO

DRV OVRN

SCSI RST

DRV OVRN

SCSI RST

COR INH

CRST END

ATN COND

CRCT END

ATN COND

ERIN BLK

CDR INT

SCSI PERR

CDR INT

SCSI PERR

COR DONE

SLW ATN

EDC NG

NOTA TWSI

TIME R

SLWO ATN

SCAM INIF

NOTA TWSI

TIME R

SLWO ATN

SCAN INIF

ECC NG

C MODE

SHT SYNC

SUBC SYNC

RSL FAIL

SCAN SL

SHT SYNC

SUBC SYNC

RSL FAIL

SCAM SL

TGTN TMET

C FORM

Adr. bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Reg.

CLRINT0

CLRINT1

CLRINT2

CLRINT3

INTEN0

INTEN1

INTEN2

INTEN3

INTCOND0

INTCOND1

3-3-2. Common write registers

Page 96

– 96 –

CXD1804BR

3-4. Register Reset Conditions

XRST: XRST pin

CRST: bit 7 of the CHPCTL0 register (0Dh)

SXRS: SXRS pin

RCMD: Chip reset command

3-4-1. CD-ROM decoder block register reset conditions

(1) Sub CPU write registers

Reg.

CONFIG0 CONFIG1 DSPIF RFINTVL DSPCTL DSPCMD LSTARA-H LSTARA-L LHADR-H LHADR-L XFRFMT0 XFRFMT1 DECCTL0 DECCTL1 CHPCTL0 CPUBWDT SCTINF BLKESTS SBCESTS INCBLKS BYTERSTS CHPCTL1 BFARA-H BFARA-L DLARA-H DLARA-L TGTMIN TGTSEC TGTBLK XFRCNT-H XFRCNT-M

Adr. 00h

01h 02h 03h 04h 05h 10h 11h 12h 13h 14h 15h 16h 17h 18h 19h 1Ah 1Bh 1Ch 1Dh 1Eh 1Fh 20h 21h 24h 25h 27h 28h 29h 2Bh 2Ch

XRST

O O O

O O O O O O O O O O O O O O O O O O O O O O O O O O O

CRST

O O O O O O

O O O O O O O O O O O O O O O O O O O O

XRES RCMD Bit 7 6 5 4 3 2 1 0

0 0 0 0 0 0 0 0 0 0 1 0 x x 0 1 0 0 1 0 1 0 x x

x x x x x x x x 0 0 0 1 1 x x x 0 0 0 0 0 0 0 0

x x x x x x x 0 0 0 0 0 0 0 0 0

x x x x x x x 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 1 0 0 x 0 1 0 1 0 0 0 0 0 x 0 0 0 0 0 0 x 0 0 0 0 0 0 0 0 0 0 0

x x x x x 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

x x x x x 0 0 1 0 0 0 0 0 0 0 0

x x x x x 1 x x

x x x x x x x 0 0 0 0 0 0 0 0 0

x x x x x x x 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Page 97

– 97 –

CXD1804BR

Reg.

XFRCNT-L XFRARA-H XFRARA-L XFRPOS HXFRC-H HXFRC-M HXFRC-L HADRC-H HADRC-M HADRC-L SLADR-H SLADR-M SLADR-L CWADRC-H CWADRC-M CWADRC-L CRADRC-H CRADRC-M CRADRC-L BFBLKC-H BFBLKC-L BFFLRT-H BFFLRT-L TIMER-H TIMER-L TMRRSL CLRINT0 CLRINT1 INTEN0 INTEN1

Adr. 2Dh

2Eh 2Fh 31h 33h 34h 35h 37h 38h 39h

3Bh 3Ch 3Dh

3Fh

40h

41h

43h

44h

45h

46h

47h

48h

49h

4Ah

4Bh 4Ch

70h

71h

74h

75h

XRST

O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O

CRST

O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O

XRES RCMD Bit 7 6 5 4 3 2 1 0

0 0 0 0 0 0 0 0

x x x x x x x 0

0 0 0 0 0 0 0 0

x x x x x x 0 0

x x x x 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

x x x x x x 0 0 0 0 0 0 0 0 0 0

x x x x x x 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 0 1 0 0 0 0 0 x x x x

x x x x x x 0 0 0 0 0 0 x x x x

x x x x x x 0 0

Page 98

– 98 –

CXD1804BR

(2) Sub CPU read registers

Reg.

RAWMIN RAWSEC RAWBLK RAWMD BFMIN BFSEC BFBLK BFMD BFFILE BFCHAN BFSUBM BFDTYP RAWHDRFLG BFHDRFLG DECSTS0 DECSTS1 LSTARA-H LSTARA-L LHADR-H LHADR-L

XFRFMT0

XFRFMT1 DECCTL0 DECCTL1 XFRSTS CPUBRDT SCTINF SBCSTS SBQSTS INCBLKS SBQDT CHPCTL1 BFARA-H BFARA-L CSCTARA-H CSCTARA-L

Adr.

00h 01h 02h 03h 04h 05h 06h 07h 08h

09h 0AH 0Bh 0Ch 0Dh 0Eh

0Fh

10h

11h

12h

13h

14h

15h

16h

17h

18h

19h 1Ah 1Bh 1Ch 1Dh 1Eh

1Fh

20h

21h

22h

23h

XRST

O O O O O O O O O O O O O O O O O O O O O

O O O O

O O O O O

CRST

O O O O O O O O O O O O O O O O O O O O

O O O O O

O O O O

O O O O O

XRES RCMD Bit 7 6 5 4 3 2 1 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 x x x x 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 x x x 0 0 0 0 0 x x x x x x x 0 0 0 0 0 0 0 0 0 x x x x x x x 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 ? 0 0 0 0 0 0 0 x 0 0 0 0 0 0 0 0 1 0 0 x 0 1 0 1 0 0 0 0 0 x 0 0 0 0 0 x 0 x 1 0 x x x x x x x x x x x x x 0 0 0 x x x x x x x x x x x x x 0 0 0 x x x x x 0 0 1 x x x x x x x x x x x x x 1 x x x x x x x x x 0 0 0 0 0 0 0 0 0 x x x x x x x 0 0 0 0 0 0 0 0 0

Page 99

– 99 –

CXD1804BR

Reg.

DLARA-H DLARA-L TGTMIN TGTSEC TGTBLK XFRCNT-H XFRCNT-M XFRCNT-L XFRARA-H XFRARA-L XFRPOS HXFRC-H HXFRC-M HXFRC-L HADRC-H HADRC-M HADRC-L SLADR-H SLADR-M SLADR-L CWADRC-H CWADRC-M CWADRC-L CRADRC-H CRADRC-M CRADRC-L BFBLKC-H BFBLKC-L BFFLRT-H BFFLRT-L TIMER-H TIMER-L TMRRSL STARTARA-H STARTARA-L INTSTS0 INTSTS1 INTEN0

Adr.

24h

25h

27h

28h

29h

2Bh 2Ch 2Dh

2Eh

2Fh

31h

33h

34h

35h

37h

38h

39h

3Bh 3Ch 3Dh

3Fh

40h

41h

43h

44h

45h

46h

47h

48h

49h

4Ah

4Bh 4Ch

4Eh

4Fh

70h

71h

74h

XRST

O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O

CRST

O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O

XRES RCMD Bit 7 6 5 4 3 2 1 0

x x x x x x x 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

x x x x x x x 0 0 0 0 0 0 0 0 0

x x x x x x 0 0

x x x x 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

x x x x x x 0 0 0 0 0 0 0 0 0 0

x x x x x x 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 0 1 0

x x x x x x x 0 0 0 0 0 0 0 0 0 0 0 0 0 x x x x

x x x x x x 0 0 0 0 0 0 x x x x

Page 100

– 100 –

CXD1804BR

Reg.

INTEN1 INTSRC

Adr. 75h

78h

XRST

O O

CRST

O O

XRES RCMD Bit 7 6 5 4 3 2 1 0

x x x x x x 0 0 x x x x x x 0 0

3-4-2. SCSI2 control block register reset conditions

(1) Sub CPU write registers

Reg.

SCSTS SCSCBMON SCFIFSTS SCDATA SCSXFRC SCSYNCTL SCSCBCTL SCCONF0 SCCOCF1 SCCOCF2 SCRSLTOT SCID SCCDBSIZ SCUSTS SCSTCONF SCSTRSLM SCSTTIOS SCSTTIOM INTSTS2 INTSTS3 INTEN2 INTEN3

Adr.

50h 54h 55h 57h

58h 5Bh 5Eh

60h

61h

62h

63h

65h

69h 6Ah 6Bh 6Ch 6Dh 6Eh

72h

73h

76h

77h

XRST

O O O O O O O O O O O O O O O O O O O O O O

CRST XSRSORCMD

O O O O O O O

O O O O O O O O

O O

Bit 7 6 5 4 3 2 1 0

x x x x 0 1 x x x x x x x x x x 1 0 0 0 0 0 0 0 x x x x x x x x x x x 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 x x 0 0 0 x x x x x x x x x 0 0 0 0 0 0 0 0 0 0 0 0 0 0 x 0 0 0 0 0 0 0 0 0 0 0 x x x x x x x x x x x x x 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 x x x x x x 0 0 0 0 0 0 0 0 0 0 x x x x x x 0 0
