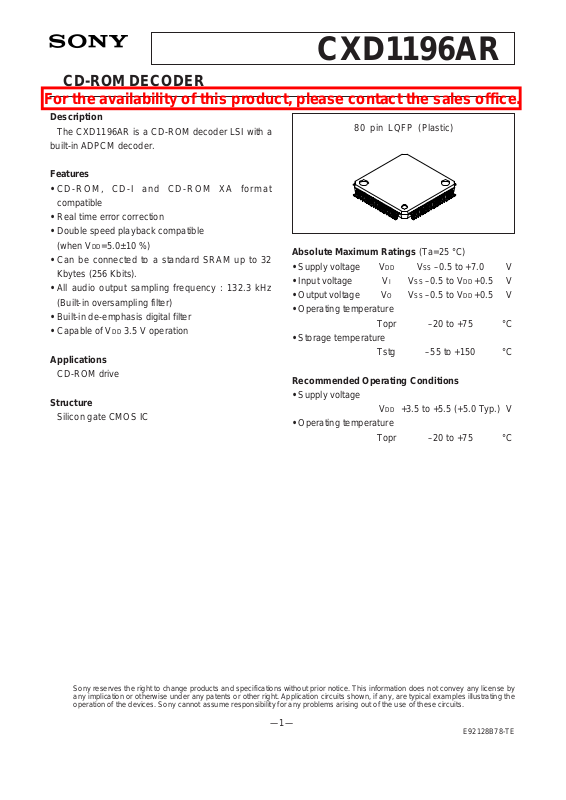

Absolute Maximum Ratings (Ta=25 °C)

• Supply voltage VDD VSS –0.5 to +7.0 V

• Input voltage VI VSS –0.5 to VDD +0.5 V

• Output voltage VO VSS –0.5 to VDD +0.5 V

• Operating temperature

Topr –20 to +75 °C

• Storage temperature
Tstg –55 to +150 °C

Recommended Operating Conditions

• Supply voltage

VDD +3.5 to +5.5 (+5.0 Typ.) V

• Operating temperature
Topr –20 to +75 °C

Description

The CXD1196AR is a CD-ROM decoder LSI with a

built-in ADPCM decoder.

Features

• CD-ROM, CD-I and CD-ROM XA format

compatible

• Real time error correction

• Double speed playback compatible

(when VDD=5.0±10 %)

• Can be connected to a standard SRAM up to 32
Kbytes (256 Kbits).

• All audio output sampling frequency : 132.3 kHz
(Built-in oversampling filter)

• Built-in de-emphasis digital filter

• Capable of VDD 3.5 V operation

Applications

CD-ROM drive

Structure

Silicon gate CMOS IC

CD-ROM DECODER

80 pin LQFP (Plastic)

CXD1196AR

For the availability of this product, please contact the sales office.

—2—

CXD1196AR

Block Diagram

5-11.13-20

MAO-MA14

3

34
36
37
38

59

55 54 57 35

50

48

47

46

45

53

51

44

67

68

66

65

64

78

4

24-31

DMA

SEQUENCER

ADDRESS GEN

COP I/F

DESCRAMBLER

SYNC CONTROL

GALOIS FIELD

SYNDROME GEN

ECC

CORRECTOR

PRIORITY
RESOLVER

CLOCK GEN

DIGITAL
FILTER

DAC
I/F

ADPCM

DECODER

CPU DMA

CPU I/F

DMA FIFO

XMOE XMWR MDBO-MDB7

C2PO
BCLK
DATA
LRCK

XRST

XTL1 XTL2 CLK

WCKO
LRCO
DATO
BCKO
MUTE

69

DO-D7

XRD
XWR
XCS
AO
INT
INTP

DRO
XDAC

2.12.23.32.42.52.63.72
GND

33.73
V

DD

EMP

—3—

CXD1196AR

Pin Description

No. Symbol I/O Description

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

TD7

GND

XMOE

XMWR

MA0
MA1
MA2
MA3
MA4
MA5
MA6

GND

MA7
MA8

MA9
MA10
MA11
MA12
MA13
MA14

TD6
TD5

GND
MDB0
MDB1
MDB2
MDB3
MDB4
MDB5
MDB6
MDB7

GND

VDD

C2PO

EMP

BCLK
DATA
LRCK

TD4
TD3

I/O

—

O
O
O
O
O
O
O
O
O

—

O
O
O
O
O
O
O

O
I/O
I/O

—
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O

—

—

I
I
I
I

I
I/O
I/O

Test pin
Ground pin
Buffer memory output enable negative logic signal
Buffer memory write enable negative logic signal
Buffer memory address (LSB)
Buffer memory address
Buffer memory address
Buffer memory address
Buffer memory address
Buffer memory address
Buffer memory address
Ground pin
Buffer memory address
Buffer memory address
Buffer memory address
Buffer memory address
Buffer memory address
Buffer memory address
Buffer memory address
Buffer memory address (MSB)
Test pin
Test pin
Ground pin
Buffer memory data bus (LSB)
Buffer memory data bus
Buffer memory data bus
Buffer memory data bus
Buffer memory data bus
Buffer memory data bus
Buffer memory data bus
Buffer memory data bus (MSB)
Ground pin
Power supply pin
C2 pointer positive logic signal from CD player
Emphasis positive logic signal from CD player
Bit clock signal from CD player
Data signal from CD player
LR clock signal from CD player
Test pin
Test pin

—4—

CXD1196AR

No. Symbol I/O Description

41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80

TD2

GND

TD1

INTP

WCKO

LRCO
DATO

BCKO

N. C

MUTE

DRQ
GND

XDAC

XTL2
XTL1

TD0

CLK

TDIO

XRST

TA3
TA2

TA1
GND
XRD

XWR

XCS

INT

A0
D7
D6
D5

GND

VDD

D4
D3
D2
D1
D0

TA0

N. C

I/O

—

I/O

I
O
O
O
O

—

O
O

—

I
O

I

I/O

O

I

I

I

I

I

—

I

I

I
O

I

I

I

I

—
—

I

I

I

I

I

I

—

Test pin
Ground pin
Test pin
INT pin polarity control signal
Word clock signal to DA converter
LR clock signal to DA converter
Data signal to DA converter
Bit clock signal to DA converter

Mute positive logic signal
DMA request positive logic signal
Ground pin
Acknowledge negative logic signal for DRQ
Crystal oscillator circuit output pin
Crystal oscillator circuit input pin
Test pin
Clock with 1/2 frequency of XTL1
Test pin
Chip reset negative logic signal
Test pin
Test pin
Test pin
Ground pin
CPU register read strobe negative logic signal
CPU register write strobe negative logic signal
Chip select negative logic signal from CPU
Interrupt request signal to CPU
CPU address signal
CPU data bus (MSB)
CPU data bus
CPU data bus
Ground pin
Power supply pin
CPU data bus
CPU data bus
CPU data bus
CPU data bus
CPU data bus (LSB)
Test pin

—5—

CXD1196AR

Electrical Characteristics

DC characteristics (VDD=5 V±10 %, VSS=0 V, Topr=–20 to 75 °C)

Item
TTL input level pin (∗1)

input voltage H level
TTL input level pin (∗1)
input voltage L level
CMOS input level pin (∗2)
input voltage H level
CMOS input level pin (∗2)
input voltage L level
TTL schmitt input level pin (∗3)
input voltage H level
TTL schmitt input level pin (∗3)
input voltage L level
TTL schmitt input level pin (∗3)
input voltage hysteresis
CMOS schmitt input level pin (∗4)
input voltage H level
CMOS schmitt input level pin (∗4)
input voltage L level
CMOS schmitt input level pin (∗4)
input voltage hysteresis
Pull-up resistor provided input pin
(∗5) input current
Pull-down resistor provided input pin
(∗6) input current
Pull-up resistor provided bidirectional
pin (∗7) input current
Output voltage H level (∗8)
Output voltage L level (∗8)
Input leak current (∗9)
Oscillation cell (∗10) input voltage
H level
Oscillation cell input voltage L level
Oscillation cell logic threshold value
Oscillation cell feedback
resistance value
Oscillation cell output voltage H level
Oscillation cell output voltage L level

Symbol

VIH1

VIL1

VIH2

VIL2

VIH3

VIL3
VIH3

–VIL3

VIH4

VIL4
VIH4

–VIL4

IIL1

IIL2

IIL3

VOH1

VOL1

IIL2
VIH4
VIL4

LVTH

RFB

VOH2

VOL2

Conditions

VIN=0 V

VIN=0 V

VIN=0 V
VOH=–2 mA

IOL=4 mA

VIN=VSS or VDD
IOH=–3 mA

IOL=3 mA

Min. Typ. Max. Unit

2.2 V

0.8 V

0.7 VDD V

0.3 VDD V

2.2 V

0.8 V

0.4 V

0.8 VDD V

0.2 VDD V

0.6 V

–40 –100 –240 µA

40 100 240 µA

–90 –200 –440 µA

VDD–0.8 V

0.4 V

–40 40 µA

0.7 VDD V

0.3 VDD V

0.5 VDD V

500 K 1 M 2 M Ω

0.5 VDD V

0.5 VDD V

—6—

CXD1196AR

DC characteristics (VDD=3.5 V, VSS=0 V, Topr=–20 to 75 °C)

Item
TTL input level pin (∗1)
input voltage H level
TTL input level pin (∗1)
input voltage L level
CMOS input level pin (∗2)
input voltage H level
CMOS input level pin (∗2)
input voltage L level
TTL schmitt input level pin (∗3)
input voltage H level
TTL schmitt input level pin (∗3)
input voltage L level
TTL schmitt input level pin (∗3)
input voltage hysteresis
CMOS schmitt input level pin (∗4)
input voltage H level
CMOS schmitt input level pin (∗4)
input voltage L level
CMOS schmitt input level pin (∗4)
input voltage hysteresis
Pull-up resistor provided input pin
(∗5) input current
Pull-down resistor provided input pin
(∗6) input current
Pull-up resistor provided bidirectional
pin (∗7) input current
Output voltage H level (∗8)
Output voltage L level (∗8)
Input leak current (∗9)
Oscillation cell (∗10) input voltage
H level
Oscillation cell input voltage L level
Oscillation cell threshold value
Oscillation cell feedback
resistance value
Oscillation cell output voltage H level
Oscillation cell output voltage L level

Symbol

VIH1

VIL1

VIH2

VIL2

VIH3

VIL3
VIH3

–VIL3

VIH4

VIL4
VIH4

–VIL4

IIL1

IIL2

IIL3

VOH1

VOL1

IIL2
VIH4
VIL4

LVTH

RFB

VOH2

VOL2

Conditions

VIN=0 V

VIN=0 V

VIN=0 V
VOH=–1.6 mA

IOL=3.2 mA

VIN=VSS or VDD
IOH=–1.3 mA

IOL=1.3 mA

Min. Typ. Max. Unit

2.2 V

0.6 V

0.7 VDD V

0.3 VDD V

2.2 V

0.6 V

0.3 V

0.8 VDD V

0.2 VDD V

0.5 V

–10 –25 –60 µA

10 25 60 µA

–20 –50 –110 µA

VDD–0.8 V

0.4 V

–40 40 µA

0.7 VDD V

0.3 VDD V

0.5 VDD V

1.2 K 2.5 M 5 M Ω

0.5 VDD V

0.5 VDD V

—7—

CXD1196AR

∗

1. D7 to 0, MDB7 to 0, TD7 to 0

∗

2. DATA, LRCK, C2PO, EMP, INTP, TDIO, TA3 to 0

∗

3. XWR, XRD, XCS, A0, XDAC

∗

4. BCLK, XRST

∗

5. XDAC, TA3 to 0

∗

6. C2PO, INTP

∗

7. D7 to 0, MDB7 to 0, TD7 to 0

∗

8. All output pins except XTL2

∗

9. All input pins except ∗7

∗

10. input : XTL1, output : XTL2

Input/Output Capacitance (VDD=VI=0 V, f=1 MHz)

Item
Input pin
Output pin
Input/Output pin

Symbol

CIN
COUT
COUT

Min. Typ. Max.

9
11
11

Unit

pF
pF
pF

—8—

CXD1196AR

AC Characteristics (VDD=5 V±10 %, VSS=0 V, Topr=–20 to 75 °C, Output load=50 pF)
The values in parentheses in the table are those obtained when VDD=3.5 V, VSS=0 V, Topr=–20 to 75 °C, and
output load=50 pF.
Values without parentheses are common to VDD=5 V±10 % and 3.5 V.

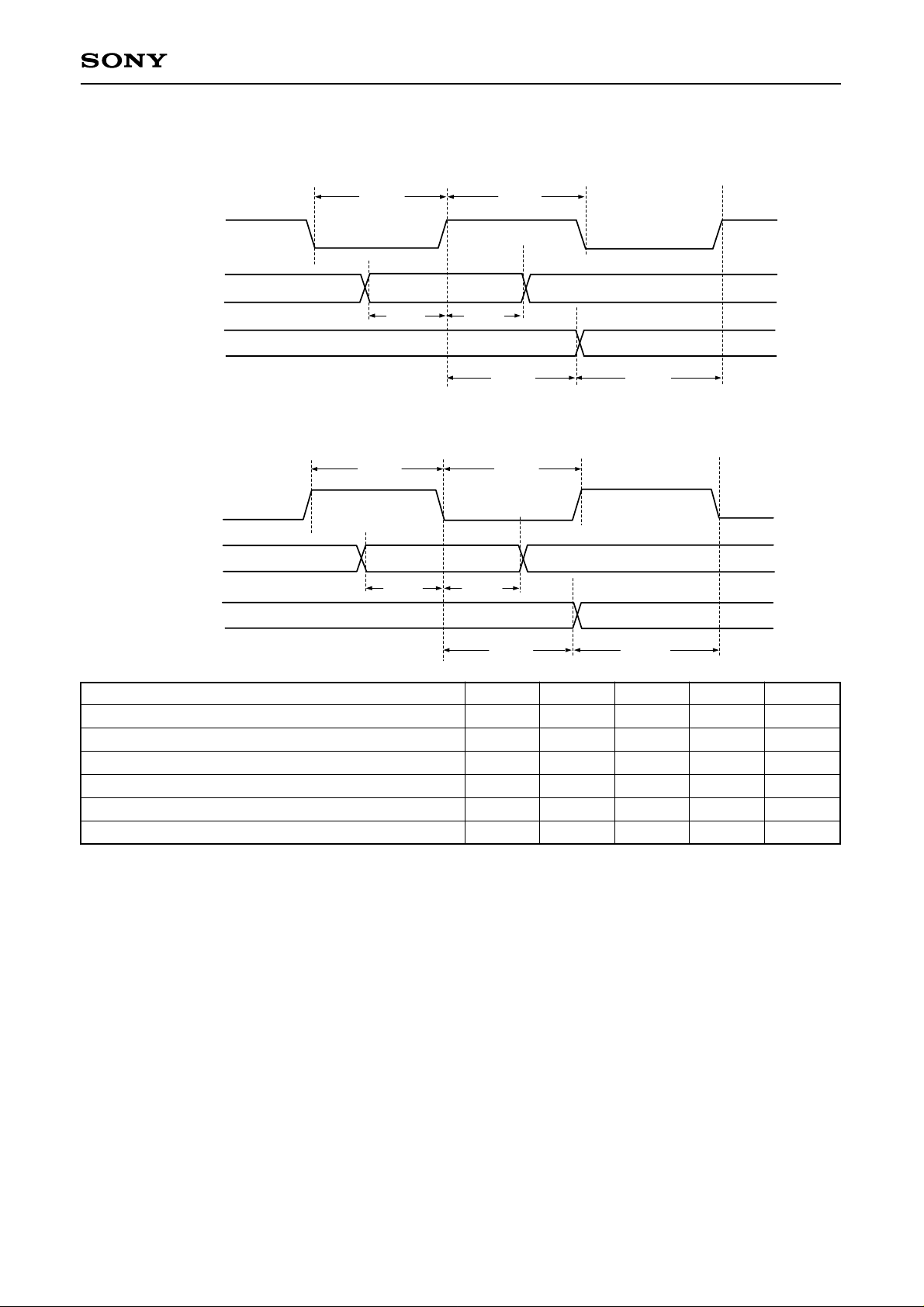

1. CPU interface

(1) Read

(2) Write

AO

XCS

XRD

D7-D0

Tsar Tdrd

Tfrd

Trrl

Thar

Item
Address setting time (with respect to XCS & XRD ↓)
Address holding time (with respect to XCS & XRD ↑)
Data delay time (with respect to XCS & XRD ↓)
Data float time (with respect to XCS & XRD ↑)
L level XRD pulse width

Symbol

Tsar
Thar
Tdrd

Tfrd
Trr1

Min.
30 (70)
20 (50)

0

150 (250)

Typ. Max.

120 (200)

20 (40)

Unit

ns
ns
ns
ns
ns

AO

XCS

XWR

D7-D0

Twwl Thaw

Tsaw

Tsdw

Thdw

Item
Address setting time (with respect to XCS & XWR ↓)
Address holding time (with respect to XCS & XWR ↑)
Data setting time (with respect to XCS & XWR ↓)
Data holding time (with respect to XCS & XWR ↑)
L level XWR pulse width

Symbol

Tsaw

Thaw

Tsdw

Thwd

Twwl

Min.
30 (70)
20 (50)
50 (70)
20 (30)

70 (100)

Typ. Max. Unit

ns
ns
ns
ns
ns

—9—

CXD1196AR

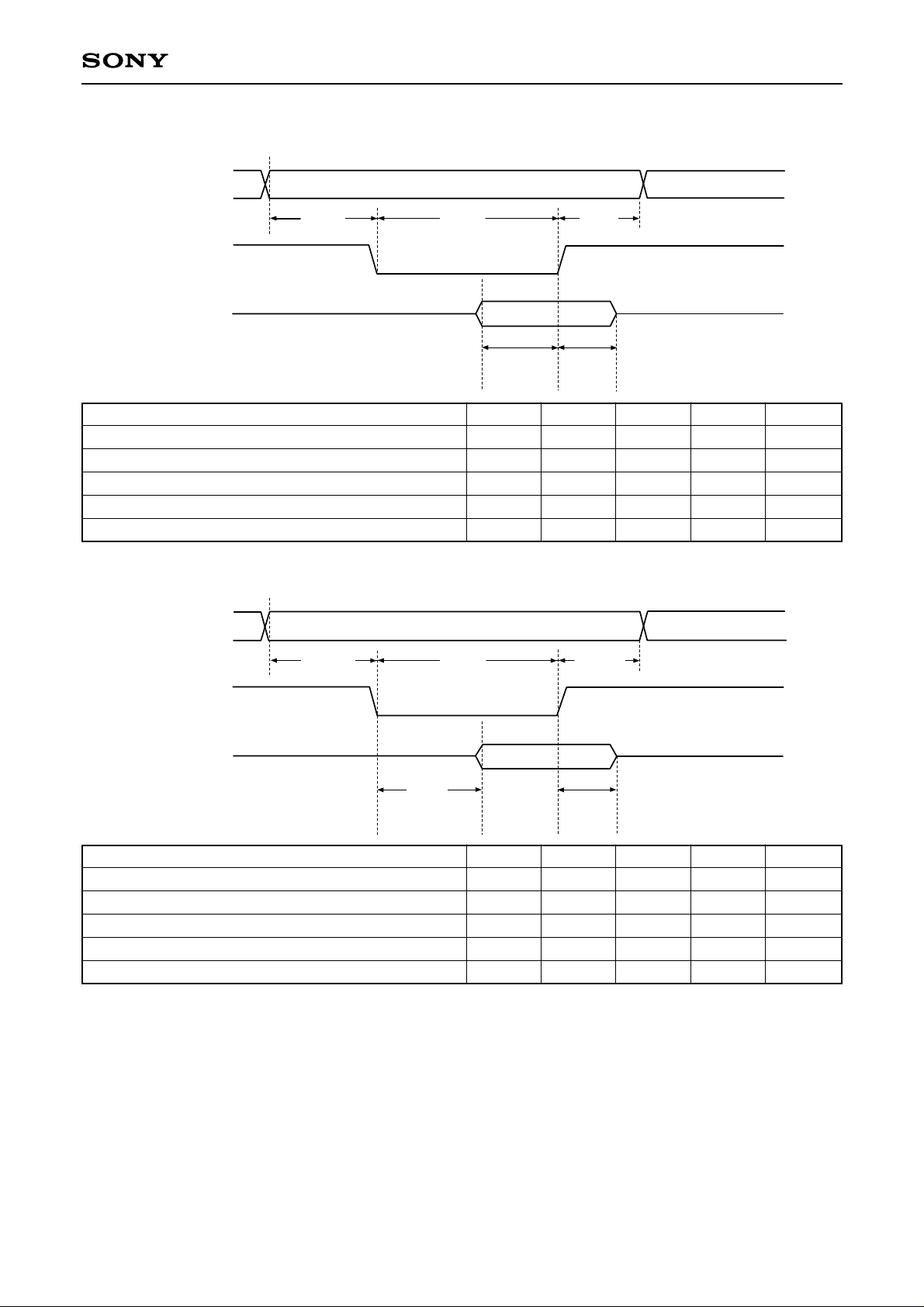

(3) DMA

Tdar1

Tsac

Tdrd

Trrl

Thac

Tdar2

Tfrd

DRQ

XDAC

XRD

D7-D0

Item
DRQ fall time (with respect to XDAC ↓)
DRQ rise time (with respect to XDAC ↑)
XDAC setting time (with respect to XRD ↓)
XDAC holding time (with respect to XRD ↑)
Data delay time (with respect to XRD ↓)
Data float time (with respect to XRD ↑)
L level XRD pulse width

Symbol

Tdar1
Tdar2

Tsac
Thac

Tdrd

Tfrd

Trrl

Min.

10 (30)
10 (30)

0

150 (250)

Typ. Max.

50 (120)
50 (120)

120 (200)

20 (40)

Unit

ns
ns
ns
ns
ns
ns
ns

—10—

CXD1196AR

2. SRAM interface

(1) Read

(2) Write

Item

Address setting time (with respect to XMOE ↓)
Address holding time (with respect to XMOE ↑)
Data setting time (with respect to XMOE ↑)
Data holding time (with respect to XMOE ↑)
L level XMOE pulse width

Symbol

Tsao

Thao

Tsdo

Thdo

Toel

Min.
T1–30
T1–10

50 (100)

10 (20)

Typ.

2 • T1

Max. Unit

ns
ns
ns
ns
ns

MA14-MA0

XMWR

MDB7-MDB0

Tsamw

Tmwl

Thamw

Tdmw

Tfmw

Item
Address setting time (with respect to XMWR ↓)
Address holding time (with respect to XMWR ↑)
Data delay time (with respect to XMWR ↓)
Data float time (with respect to XMWR ↑)
L level XMWR pulse width

Symbol
Tsamw
Thamw

Tdmw

Tfmw
Tmwl

Min.
T1–30
T1–10

10

Typ.

2 • T1

Max.

0

Unit

ns
ns
ns
ns
ns

T1=

59 ns : XSLOW = ‘H’
238 ns : XSLOW = ‘L’

Note that XSLOW is bit 7 of DRVIF register.

When XSLOW = ‘H’ , make sure that the CXD1196AR is connected to an SRAM with an access time of
less than 120 ns.
When XSLOW = ‘L’ , make sure that the CXD1196AR is connected to an SRAM with an access time of less
than 320 ns.

{

MA14-MA0

XMOE

MDB7-MDB0

Tsao Toel Thao

Tsdo Thdo

—11—

CXD1196AR

3. DSP Interface for CD

BCLK

DATA

LRCK

C2PO

Tbck Tbck

Tsb1 Thb1

Thb2 Tsb2

BCLK

DATA

LRCK

C2PO

Tsb1 Thb1

Thb2 Thb2

TbckTbck

BCKRED= “H”

BCKRED= “L”

Item
BCLK frequency
BCLK pulse width
Data setting time (with respect to BCLK)
Data holding time (with respect to BCLK)
LRCK, C2PO setting time (with respect to BCLK)
LRCK, C2PO holding time (with respect to BCLK)

Symbol

Fbck
Tbck
Tsb1
Thb1
Tsb2
Thb2

Min.

85
50
50
50
50

Typ. Max.

5.7

Unit

MHz

ns
ns
ns
ns
ns

—12—

CXD1196AR

4. DAC interface

BCKO

DATO

WCKO

LRCO

Tbco Tbco

Tsbo

Thbo

Thbc Tsbo

Item

BCKO frequency
BCKO pulse width
DATO, WCKO, LRCO setting time
(with respect to BCKO ↑)
DATO, WCKO, LRCO holding time
(with respect to BCKO ↑)

Symbol

Fbco
Tbco

Tsbo

Thbo

Min.

50
30

30

Typ.

8.4672

Max. Unit

MHz

ns
ns

ns

—13—

CXD1196AR

5. XTL1 pin, XTL2 pins

(1) Self-excited oscillation

(2) When pulses are to be input to XTL1 pin

Tr Tf

Vihx
Vihx∗0.9

V

DD/2

Vihx∗0.1
Vilx

Tw

Twhx Twlx

Item
H level pulse width
L level pulse width
Pulse interval
Input H level
Input L level
Rise time
Fall time

Symbol

Twhx

Twlx

Tw

Vihx

Vilx

Tr
Tf

Min.

20
20

VDD–1.0

Typ.

59

Max.

0.8
15
15

Unit

ns
ns
ns

V

V
ns
ns

Item

Oscillation frequency

Symbol

Fmax

Min. Typ.

16.9344

Max. Unit

MHz

Note) Synchronize XTL1 clock with DSP clock for CD.

(Use the clock generated from the same oscillator unit.)

—14—

CXD1196AR

Description of Functions

1. Description of Pins

1.1 CD player interface
The CXD1196AR can be directly connected to digital signal processing LSIs for CD of Sony and other
company. The digital signal processing LSI for CD is referred to as a DSP for CD.
(1) DATA (DATA : Input)

Serial data stream from a CIRC LSI

(2) BCLK (Bit Clock : Input)

Bit clock signal for strobing DATA signal

(3) LRCK (LR Clock : Input)

LR clock signal indicating Lch and Rch of DATA signal

(4) C2PO (C2 Pointer : Input)

C2 pointer signal indicating that DATA input contains an error

(5) EMP (Emphasis : Input)

Emphasis indicating that the data from the DSP is emphasized. (positive logic signal)

1.2 Buffer memory interface
The CXD1196AR can be connected to a standard SRAM up to 32 Kbytes (256 Kbits).
(1) XMWR (BUFFER MEMORY WRITE : OUT)

Data write signal to buffer memory (strobe negative logic output)

(2) XMOE (BUFFER MEMORY OUTPUT ENABLE : OUT)

Data read signal to buffer memory (strobe negative logic output)

(3) MA0-14 (BUFFER MEMORY ADDRESS : OUT)

Address signals to buffer memory

(4) MDB0-7 (BUFFER MEMORY DATA BUS : BUS)

Buffer memory data bus signal pulled up by a typical 25 kΩ resistor
In an ADPCM decode playback drive, make sure that the CXD1196AR is connected to a 256 Kbit (8b×

32 Kw, 32 Kbyte) SRAM

1.3 CPU interface
(1) XWR (CPU WRITE : Input)

Strobe signal for writing to register in chip (negative logic input)

(2) XRD (CPU READ : Input)

Strobe for reading out status of register chip (negative logic input signal)

(3) D0-7 (CPU DATA BUS : Input and output)

8-bit data bus

(4) A0 (CPU ADDRESS : Input)

CPU address signal for selecting internal register of the CXD1196AR

(5) INT (CPU INTERRUPT : Output)

Interrupt request output signal for CPU. The polarity of this signal can be controlled by the INTP pin.

(6) INTP (INTERRUPT POLARITY : Input)

This pin controls the polarity of the INT pin. In the IC, it is pulled up by a typical 50 kΩ register.
When INTP= ‘H’ or open, the INT pin goes low active.
When INTP= ‘L’ , the INT pin goes high active.

(7) XCS (CHIP SELECT : Input)

Chip select signal for CPU to select the CXD1196AR (negative logic input)

—15—

CXD1196AR

(8) DRQ (DATA REQUEST : Output)

DMA data request signal (positive logic output)

(9) XDAC (DATA ACKNOWLEDGE : Input)

The acknowledge signal for DRQ (negative logic input). In the IC, it is pulled up by a typical 50 kΩ
resistor.

1.4 DAC interface
(1) BCKO (BIT CLOCK OUTPUT : Output)

Bit clock output signal to DA converter

(2) WCKO (WORD CLOCK OUTPUT : Output)

Word clock output signal to DA converter

(3) LRCO (LR CLOCK OUTPUT : Output)

LR clock output signal to DA converter

(4) DATO (DATA OUTPUT : Output)

Data output signal to DA converter
Fig. 1.1 shows a timing chart for interface with the DA converter.

1.5 Miscellaneous
(1) MUTE (MUTE : Output)

Output H when DA data is muted

(2) XRST (RESET : Input)

Chip reset signal (negative logic input)
(3) XTL1 (X’TAI1 : Input)
(4) XTL2 (X’TAI2 : Output)

Connect a 16.9344 MHz crystal oscillator unit between XTL1 and XTL2. (The value of the capacitor

depends on the crystal oscillator unit.) Or input 16.9344 MHz clock to the XTL1 pin. For ADPCM or

CD-DA playback, the clocks of the DSP for CD and this IC must be synchronized.
(5) CLK (CLOCK : Output)

Output 8.4672 clock.

When this clock is not be used, the output of the CLK pin may be fixed at ‘L’.

1.6 Test pins
These pins are normally kept in the opened state.
(1) TD0-7 (Input/Output) : Data bus for IC test. Pulled up by a typical 25 kΩ resistor.
(2) TDIO (Input) : Input pin for IC test. Pulled up by a typical 50 kΩ resistor.
(3) TA0-3 (Input) : Input pins for IC test. Pulled up by a typical 50 kΩ resistor.

—16—

CXD1196AR

16

1 2 3 4 17 32 49 64

MSB L CH R CHL SB MSB

1

2 3 4 5 6 7 8 9

10

11 12 13 14 15 16

1

2 3 4 5 6 7 8 9

10

11 12 13 14 15

16

BCKO

DATO

WCKO

LCKO

Fig. 1.1 Output Format to DA Converter

—17—

CXD1196AR

2. Register Functions

2.1 Write register

2.1.1 Register address (REGADR) register
This register is used for selection of the internal registers.
(1) When A0 = XCS = ‘L’, the REGADR register is selected. When A0 = ‘H’ and XCS = ‘L’, the register

specified by the REGADR is selected.

(2) When the low order 4 bits of REGADR are not 0 (hex), and a register write or read is made by setting

A0 = ‘H’ and XCS = ‘L’, the low order 4 bits of REGADR are incremented.

(3) REGADR is cleared by rising edge of DMAEN bit (bit3) of the DMACTL register. (Cleared to 00 (hex).)

2.1.2 DRIVE Interface (DRVIF) register
Bit7 XSLOW (/SLOW SPEED)

‘H’ : A DMA cycle is performed in 4 clocks.

In this case, a standard SRAM with an access time of less than 120 nsec can be connected
to the CXD1196AR.

‘L’ : A DMA cycle is performed in 12 clocks. When the CXD1196R is connected to an SRAM

with a slower access time, set this bit at ‘L’. In this case, a standard SRAM with an access
time of less than 320 ns can be connected to the CXD1196AR. For operation at VDD = 3.5
V, set this bit to L.

Bit6 C2PL1ST (C2PO Ler-byte 1st)

‘H’ : To input two bytes of DATA input, each with a C2PO identifying the lower or upper byte, in

the order of the lower and upper bytes

‘L’ : To input two bytes of DATA input, each with a C2PO identifying the upper or lower byte, in

the order of the upper and lower bytes.
Here, the upper byte means the 8 (eight) upper bits including the MSB from the DSP for CD. And the lower
byte means the 8 (eight) lower bits including the LSB from the DSP for CD. For example, the minute byte
of the Header is a lower byte and the sec byte is a upper byte.

Bit5 LCHLOW (LCH LOW)

‘H’ : To determine that the data is Lch data when LRCK = ‘L’
‘L’ : To determine that the data is Lch data when LRCK = ‘H’

Bit4 BCKRED (BCLK Rising Edge)

‘H’ : To strobe DATA by the rising edge of BCLK
‘L’ : To strobe DATA by the falling edge of BCLK

Bit3, 2 BCKMD1, 0 (BCLK Mode 1, 0)
Set these bits, depending on the number of BCLK clocks output by the DSP for CD during a cycle of
WCLK.

Bit1 LSB 1ST (LSB First)

‘H’ : To connect to a DSP for CD which outputs DATA on an LSB first basis
‘L’ : To connect to a DSP for CD which outputs DATA on an MSB first basis

Bit0 CLKLOW (CLK LOW)

‘H’ : To fix CLK pin output at ‘L’

‘L’ : To output 8.4672 MHz clock from CLK pin output
The values of the individual bits of this register must be changed with the decoder in the disabled state.
Table 2.1.1 shows the values of bits of bit 6 through 1 to be set when the CXD1196AR is connected to

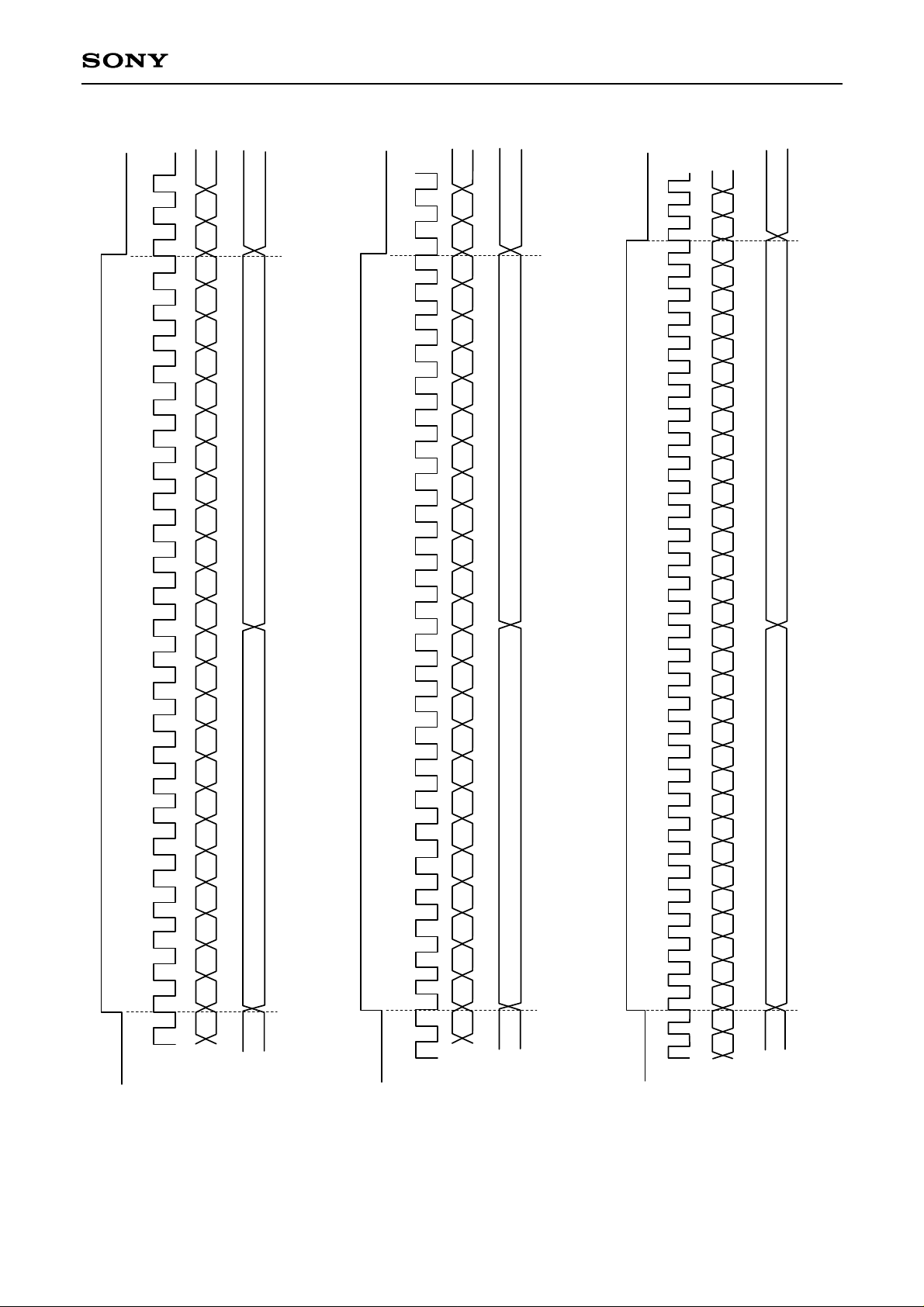

Sony DSPs for CD. Fig. 2.2.1 (1) through (3) show input timing charts.

BCKMD1

‘L’
‘L’
‘H’

BCKMD0

‘L’
‘H’
‘X’

16BCLKs/WCLK
24BCLKs/WCLK
32BCLKs/WCLK

—18—

CXD1196AR

Sony DSP for CD

CDL30 series
CDL35 series
CDL40 series

(48-bit slot mode)

CDL40 series

(64-bit slot mode)

DRVIF register

bit6 bit5 bit4 bit3 bit2 bit1

L L L L H L

L L H L H L

L H L H X H

Timing chart

Fig. 2.1.1 (1)

Fig. 2.1.1 (2)

Fig. 2.1.1 (3)

Table 2.1.1 DRVIF Register Settings

(Note 1)

CDL30 series

CDL35 series
CDL40 series

CXD1125Q/QZ, CXD1130Q/QZ, CXD1135Q/QZ,
CXD1241Q/QZ, CXD1245Q, CXD1246Q/QZ,
CXD1247Q/QZ/R, etc.
CXD1165Q, CXD1167Q/QZ/R, etc.
CXD2500Q/QZ, etc.

2.1.3 Chip Control (CHPCTL) register
Bit7-5 RESERVED
Bit4 CHPRST (Chip Reset)

When this bit is set at ‘H’, the CXD1196AR is internally initialized. The bit setting will automatically
change to ‘L’ when the internal initialization of the CXD1196AR is completed. Therefore, there is no
need for the CPU to change the setting at ‘L’. Initialization of the CXD1196AR will be completed in
500ns after the bit has been set at ‘H’ by the CPU.

Bit3 CD-DA (CD-Digital Audio)

‘H’ : When a CD-DA disc is to be played back, this bit is set at ‘H’.

The decoder must be placed in the disabled state (DECCTL register) when this bit is set at
‘H’.

‘L’ : When a CD-ROM disc is to be played back, this bit is set at ‘L’.

Bit2 SWOPN (Sync Window Open)

‘H’ : When this bit is set at ‘H’, the window for detection of SYNC mark will open. In this case,

the SYNC protection circuit in the CXD1196AR will be disabled.

‘L’ : When this bit is set at ‘L’, the window for detection of SYNC mark will be controlled by the

SYNC protection circuit in the CXD1196AR.

Bit1 RPSTART (Repeat Correction Start)

When the DECODER is placed in the repeat correction mode, and this bit set at ‘H’, the error
correction of the current sector will begin. The bit setting will automatically change to ‘L’ when
correction begins. Therefore, there is no need for the CPU to change the setting at ‘L’.

Bit0 ADPEN (ADPCM Enable)

When the current sector is an ADPCM sector, the CPU sets this bit at ‘H’ in less than 11.5 ms after a
decoder interrupt (DECINT). When the current sector is not an ADPCM sector, the CPU changes the
bit setting at ‘L’ in less than 11.5 ms after a decoder interrupt (DECINT).

—19—

CXD1196AR

2.1.4 DECODER CONTROL (DECCTL) Register
Bit7 AUTOCI (Auto Coding Information)

‘H’ : To perform ADPCM playback according to the coding information from the drive. In this

case, the CI register need not be set.

‘L’ : To perform ADPCM playback according to the value of the CI register.

Bit6 RESERVED

Should be kept at ‘L’ at all times.
Bit5 MODESEL (Mode Select)
Bit4 FORMSEL (Form Select)

When AUTODIST = ‘L’, the sector is corrected as the following MODE and FORM.

Bit3 AUTODIST (Auto Distinction)

‘H’ : Errors are corrected according to the MODE byte and FORM bit read from the drive.

‘L’ : Errors are corrected according to bit 5 MODESEL and bit4 FORMSEL.
Bit2-0 : DECMD 2-0 (Decoder Mode 2-0)

These bits are set at ‘L’ when the CDDA bit (bit3) of the CHPCTL register is ‘H’.

2.1.5 Interrupt Mask (INTMSK) Register
When the individual bits of this register are set at ‘H’, an interrupt request from the CXD1196AR to the CPU
is enabled in response to the corresponding interrupt status. (That is, when the interrupt status is created,
the INT pin is made active.) The value of the individual bits of the register does not affect the
corresponding interrupt status.

Bit7 ADPEND (ADPCM End)

When this chip has completed the ADPCM decode for a sector, if the ADPCM decode for the next
sector is not enabled, the ADPEND status is created.

Bit6 DECTOUT (Decoder Time Out)

If no SYNC mark is detected during a period of 3 sectors (40.6 ms in normal speed playback mode)
after the DECODER has been set in the monitor only, and real time correction modes, the DECTOUT
status is created.

Bit5 DMACMP (DMA Complete)

When DMA is ended by DMAXFRC, the DMACMP status is created.

MODESEL

‘L’
‘H’
‘H’

FORMSEL

‘L’
‘L’
‘L’

MODE1
MODE2, FORM1
MODE2, FORM2

DECMD2

‘L’

‘L’
‘H’
‘H’
‘H’
‘H’

DECMD1

‘L’

‘H’

‘L’

‘L’
‘H’
‘H’

DECMD0

‘X’
‘X’
‘L’
‘H’
‘L’
‘H’

Decoder disable

Monitor only mode

Write only mode

Real time correction mode

Repeat correction mode

Inhibit

—20—

CXD1196AR

Bit4 DECINT (Decoder Interrupt)

If a SYNC mark is detected or internally inserted during execution of the write only, monitor only and
real time correction modes by the DECODER, the DECINT status is created. When the SYNC mark
detected window is open, however, if the SYNC mark spacing is less than 2352 bytes, the DECINT
status is not created. During execution of the repeat correction mode by the DECODER, the
DECINT status is created each time a correction ends.

Bit3 CIERR (Coding Information Error)

When AUTOCI bit of DECCTL register is set at “H” and ADPCM decode playback is done, if there is
an error in a CI byte of an ADPCM sector, the CIERR status is created. ADPCM decode playback of
this sector will not be done.

Bit2-0 RESERVED

2.1.6 Clear Interrupt Status (INCTCLR) Register
When the individual bit of this register is set at ‘H’, the corresponding interrupt status is cleared. The
individual bit is automatically set at ‘L’ after the interrupt status has been cleared. Therefore, there is no
need for the CPU to change the setting at ‘L’.
Bit7 ADPEND (ADPCM End)
Bit6 DECTOUT (DECODER Time Out)
Bit5 DMACMP (DMA Complete)
Bit4 DECINT (DECODER Interrupt)
Bit3 CIERR (Coding Information Error)
Bit2-0 RESERVED

2.1.7 Coding Information (CI) Register
When ADPCM decoding is to be done by setting AUTOCI = ‘L’, the coding information is written to this
register. The bit configuration is the same as that of the coding information byte of the sub header.

2.1.8 DMA Address Counter-L (DMAADRC-L)

2.1.9 DMA Address Counter-H (DMAADRC-H)
This counter retains the address to be used by the CPU when reading data from the buffer. When the data
to be sent to the CPU is read from the buffer, the contents of the DMAADRC are output from MA0-14.
Each time data to be sent to the CPU is read from the buffer, the DMAADRC is incremented.
The CPU sets the head address of DMA in the DMAADRC before starting DMA. The CPU can read and
set the contents of the DMAADRC at any time. Do not change the contents of the DMAADRC during
execution of DMA.

—21—

CXD1196AR

2.1.10 DMAXFRC-L

2.1.11 DMA Control (DMACTL) register
Bit7 DMAXFRC11

Bit11 (MSB) of DMAXFRC (Transfer Counter)

Bit6 DMAXFRC10

bit10 of DMAXFRC

Bit5 DMAXFRC9

bit9 of DMAXFRC

Bit4 DMAXFRC8

bit8 of DMAXFRC

Bit3 DMAEN (CPU DMA Enable)

‘H’ : To enable DMA
‘L’ : To inhibit DMA

Bit2-0 RESERVED
The DMAXFRC (DMA Transfer Counter) is a counter which indicates the number of DMA transfers. Each

time the data to be transferred to the CPU is read from the buffer, the counter is decremented. When the
value of the DMAXFRC reaches 0, DMA ends. At this point, interrupt request may be output to the CPU.
When data transfer is not to be ended by DMAXFRC as in the case of data transfer in the I/O mode,
DMAXFRC should be set at 0 when data transfer is started (when DMAEN bit is set at ‘H’). The CPU can
read and set the contents of DMAXFRC at any time. During execution of DMA, do not change the contents
of DMAXFRC.

2.1.12 DRVADRC-L (Drive Address Counter-L)

2.1.13 DRVADRC-H
The DRVADRC is a counter which retains the address for writing the data from the drive to the buffer.
When the drive data is written to the buffer, the value of DRVADRC is output from MA01-14 pins. Each
time a byte of data from the drive is written to the buffer, the DRVADRC is incremented.
Before execution of the write only mode and real time correction mode of the DECODER, the CPU sets the
buffer write head address in the DRVADRC.
The CPU can read and set the contents of DRVADRC at any time. During execution of DMA, do not
change the contents of DRVADRC.

—22—

CXD1196AR

24 1 2 3 4 5 6 7 8 9 1 2 310 11 12 13 14 15 16 17 18 20 21 22 23 24

Ro L15 L14 L13 L12 L11 L10 L9 L8 L7 L6 L5

L4 L3 L2 L1 L0

Lch

LSB

LRCK

BCLK

DATA

C2PO

Rch LSB Lch MSB

for Upper Byte for Lower Byte

19

Fig. 2.1.1 (1) CDL30 and 35 Series Timing Chart

24 1 2 3 4 5 6 7 8 9 1 2 310 11 12

13

14 15 16 17 18 19 20 21 22 23

24

L15

L14

L13

L12 L11 L10

L9 L8 L7

L6

L5

L4

L3 L2 L1 L0

Ro

Lch

LSB

LRCK

BCLK

DATA

C2PO

Rch LSB

Lch MSB

for Upper Byte

for Lower Byte

Fig. 2.1.1 (2) CDL40 Series 48-Bit Slot Mode Timing Chart

LRCK

BCLK

DATA

C2PO

for Upper Byte

for Lower Byte

L14 L15

Lch MSB

31 32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 1 2 3

R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 R10 R11

R12

R13 R14

R15

Rch Rch MSBLSB

16

Fig. 2.1.1 (3) CDL40 Series 64-Bit Slot Mode Timing Chart

—23—

CXD1196AR

2.2 Read register
In the descriptions of the registers STS, HDRFLG, HDR, SHDR and CMADR, what is referred to as the
current sector refers to the sector where registers are valid for a decoder interrupt (DECINT). In the monitor
only and write only modes, the sector from the DSP for CD just before a decoder interrupt is called the
current sector. In the real time correction mode and repeat correction mode, the sector that has gone
through error detection and correction is referred to as the current sector.

2.2.1 Register Address (REGADR) Register

2.2.2 DMADATA Register
When data transfer (buffer read) is to be made in the I/O mode, the CPU reads data from this register.

2.2.3 Interrupt Status (INTSTS) Register
The values of the individual bits of this register indicate the respective associated values of interrupt status.
These bits are not affected by the values of the individual bits of the INTMSK register.
Bit7 ADPEND (ADPCM End)
Bit6 DECTOUT (DECODER Time Out)
Bit5 DMACMP (DMA Complete)
Bit4 DECINT (DECODER Interrupt)
Bit3 CIERR (Coding Information Error)

2.2.4 Status (STS) Register
Bit7 DRQ (Data Request)

This bit indicates the value of the DRQ pin.

Bit6 ADPBSY (ADPCM BUSY)

This bit goes ‘H’ during ADPCM playback.

Bit5 ERINBLK (Erasure in Block)

On all the bytes of the current sector except the SYNC byte, this bit goes ‘H’ if there is one or more
bytes from the DSP for CD whose C2 pointer is ON.

Bit4 CORINH (Correction Inhibit)

When the DECCTL register is set AUTODIST bit = ‘H’, this bit goes ‘H’ if the error flag is ON in the
MODE (and FORM) byte.

Bit3 EDCOK

Indicates EDC check showed there were no errors in the current sector.

Bit2 ECCOK

Indicates there are no more errors from the Header to P parity bytes in the current sector. (In the
MODE2, FORM2 sector, this bit is treated as a DON’T CARE bit.)

Bit1 SHRTSCT (Short Sector)

Indicates the Sync Mark interval was less than 2351 bytes. On this sector, neither ECC nor EDC is
executed.

Bit0 NOSYNC

Indicates that the SYNC Mark, not detected in the predetermined position, is one internally inserted.

2.2.5 Header Flag (HDRFLG) Register
Indicates the value of the error pointer of the Header and Sub Header registers.

—24—

CXD1196AR

2.2.6 Header (HDR) Register
It is a 4-byte register indicating the Header byte of the current sector. The CPU can find the value of the
Header byte of the current sector from the Minute byte as it sets the REGADR register at X4 hex and
successively reads data.

2.2.7 Sub Header (SHDR) Register
It is a 4-byte register indicating the Sub Header byte of the current sector. The CPU can find the value of
the Sub Header byte of the current sector from the File byte as it sets the REGADR register at 08 hex and
successively reads data.

2.2.8 Current Minute Address L (CMADR-L) Register

2.2.9 Current Minute Address H (CMADR-H) Register
Indicates the buffer memory address where the Minute bytes of the current sector (after correction) is in
store.

2.2.10 MODE/FORM (MDFM) Register
Bit4-2 RMODE2-0

RMODE2 : Indicates the logic sum of the value of the high-order 6 bits of the raw MODE byte and the
pointer.

RMODE1, 0 : Respectively indicate the values of the low-order 2 bits of the raw MODE byte.
Bit1 CMODE (Correction Mode)
Bit0 CFORM (Correction Form)

These bits indicate which of the MODEs and FORMs this IC determined that the current sector was

associated with when it corrected errors.

2.2.11 ADPCI (ADPCM Coding Information) Register
Bit7 MUTE

This bit goes ‘H’ when the DA data is muted on.

Bit6 EMPHASIS

This bit goes ‘H’ when the ADPCM data is emphasized.

Bit5 EOR (End of Record)

This bit goes ‘H’ when the Sub Mode byte bit0 = ‘H’ and there is no error in the Sub Mode byte.

Bit4 BITLNGTH (Bit Length)

This bit indicates the bit length of ADPCM playback coding information.
‘H’ : 8 bits
‘L’ : 4 bits

Bit2 FS (Sampling Frequency)

This bit indicates the ADPCM playback sampling frequency.
‘H’ : 18.9 kHz
‘L’ : 37.8 kHz

Bit0 M/S (MONO/STEREO)

This bit indicates “monaural” or “stereo” of ADPCM playback coding information.
‘H’ : Stereo
‘L’ : Monaural

CFORM

‘X’

‘L’

‘H’

CMODE

‘L’
‘H’
‘H’

MODE1
MODE2, FORM1
MODE2, FORM2

—25—

CXD1196AR

2.2.12 DMAXFRC-L

2.2.13 DMAXFRC-H

2.2.14 DMAADRC-H

2.2.15 DMAADRC-H

2.2.16 DRVADRC-L

2.2.17 DRVADRC-H

REG

REGADR

RESERVED

DRVIF

CHPCTL

DECCTL

INTMSK

INTCLR

CI

DMA

ADRC-L

DMA

ADRC-H

DMA

XFRC-L

DMACTL

DRV

ADRC-L

DRV

ADRC-H

TEST2
TEST1
TEST0

A0

L

H

H

H

H

H

H

H

H

H

H

H

H

H
H

H
H

RA

X

X0

X1

X2

X3

X4

X5

X6

X7

X8

X9

XA

XB

XC
1D

1E
1F

bit7

L
L

XSLOW

L
AUTO

CI
ADP
END
ADP
END

L

bit7

L

bit7

xfrc11

bit7

L
L

L
L

bit6

L
L
C2PO

L1st
L

L
DEC

TOUT
DEC
TOUT
EMPH
ASIS

bit6

bit14

bit6

xfrc10

bit6

bit14
L

L
L

bit5

L
L
LCH

LOW
CLR
ADP
MODE
SEL
DMA
CMP
DMA
CMP

L

bit5

bit13

bit5

xfrc9

bit5

bit13
L

L
L

bit4

RA4
L
BCK

RED
CHP
RST
FORM
SEL
DEC
INT
DEC
INT
BIT
L4H8

bit4

bit12

bit4

xfrc8

bit4

bit12
L

L
L

bit3

RA3
L
BCK

MD1
CD­DA
AUTO
DIST
CI
ERR
CI
ERR

L

bit3

bit11

bit3
DMA

EN
bit3

bit11
L

L
L

bit2

RA2
L
BCK

MD0
SW
OPEN
DEC
MD2

L

L
FS

L3H1
bit2

bit10

bit2

L

bit2

bit10
L

L
L

bit1

RA1
L
LSB

1st
RPS
TART
DEC
MD1

L

L

L

bit1

bit9

bit1

L

bit1

bit9
L

L
L

bit0

RA0
L

CLKL
ADP

EN
DEC
MD0

L

L
MONO

STE
bit0

bit8

bit0

L

bit0

bit8
L

L
L

Write Registers

—26—

CXD1196AR

REG

REGADR

DMA

DATA

INTSTS

STS

HDRFLG

HDR

MIN
HDR
SEC
HDR

BLOCK

HDR

MODE

SHDR

FILE

SHDR

CH

SHDR

S-MODE

SHDR

CI

CMADR

L

CMADR

H

MDFM

ADPCI

DMA

XFRC-L

DMA

XFRC-H

DMA

ADRC-L

DMA

ADRC-H

DRV

ADRC-L

DRV

ADRC-H

TEST

0 to 2

A0

L

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

RA

X

00

01

02

03

X4

X5

X6

X7

08

09

0A

0B

0C

0D

XE

XF

18

19

1A

1B

1C

1D

10

to 2

bit7

X
bit7
ADP

END
DRQ

MIN

bit7

bit7

bit7

bit7

bit7

bit7

bit7

bit7

bit7

X

X

MUTE

bit7

X

bit7

X

bit7

X

X

bit6

X
bit6
DEC

TOUT
ADP
BSY

SEC

bit6

bit6

bit6

bit6

bit6

bit6

bit6

bit6

bit6

bit14

X
EMPH

ASIS
bit6

bit14

bit6

bit14

bit6

bit14

X

bit5

X
bit5
DMA

CMP
ERIN
BLK
BLO
CK

bit5

bit5

bit5

bit5

bit5

bit5

bit5

bit5

bit5

bit13

X

EOR

bit5

bit13

bit5

bit13

bit5

bit13

X

bit4

RA4
bit4

DEC
INT
COR
INH

MODE

bit4

bit4

bit4

bit4

bit4

bit4

bit4

bit4

bit4

bit12
RAW

MD2
BIT
L4H8

bit4

bit12

bit4

bit12

bit4

bit12

X

bit3

RA3
bit3

CI
ERR
EDC
OK

FILE

bit3

bit3

bit3

bit3

bit3

bit3

bit3

bit3

bit3

bit11
RAW

MD1
X

bit3

bit11

bit3

bit11

bit3

bit11

X

bit2

RA2
bit2

X
ECC

OK
CHAN
NEL

bit2

bit2

bit2

bit2

bit2

bit2

bit2

bit2

bit2

bit10
RAW

MD0
FS
L3H1

bit2

bit10

bit2

bit10

bit2

bit10

X

bit1

RA1
bit1

X
SHRT

SCT
SUB
MODE

bit1

bit1

bit1

bit1

bit1

bit1

bit1

bit1

bit1

bit9
C

MODE
X

bit1

bit9

bit1

bit9

bit1

bit9

X

bit0

RA0
bit0

X
NO

SYNC
CI

bit0

bit0

bit0

bit0

bit0

bit0

bit0

bit0

bit0

bit8
C

FORM
MONO
STE

bit0

bit8

bit0

bit8

bit0

bit8

X

Read Registers

—27—

CXD1196AR

CXD2500

LRCK LRCK

DA16 DATA
DA15

C2PO

EMPH

32

34
35

44

61

PSSL

30

38

45
46
47
48
50

59

37
36
34
35

44

BCLK
C2PO

EMP

INTP

3

4 5-11 13-20 24-31

64 65 66 67 68 69-71 74-78

38 38
36

36

37

37

CXD2500 : 48-bit slot mode
DRVIF register : ∗ LLHLHL ∗

Note)
CXD2500 is in 64-bit slot mode;

CXD2500

DA12 LRCK

DATA
BCLK

DA14
DA13

CXD1196A

DRVIF register : ∗ LHLHXH ∗

CPU

XMOE

XMWR

MAO-MA6

MA7-MA14

MDBO-MDB7

XWR

XCS

INT

AO

D7-D5

D4-D0

CXD1196AR

WCKO

LRCO

DATO

BCKO
MUTE

XRST

D/A CONVERTER

32K Byte SRAM

XRD

VDD, GND pins excluded.

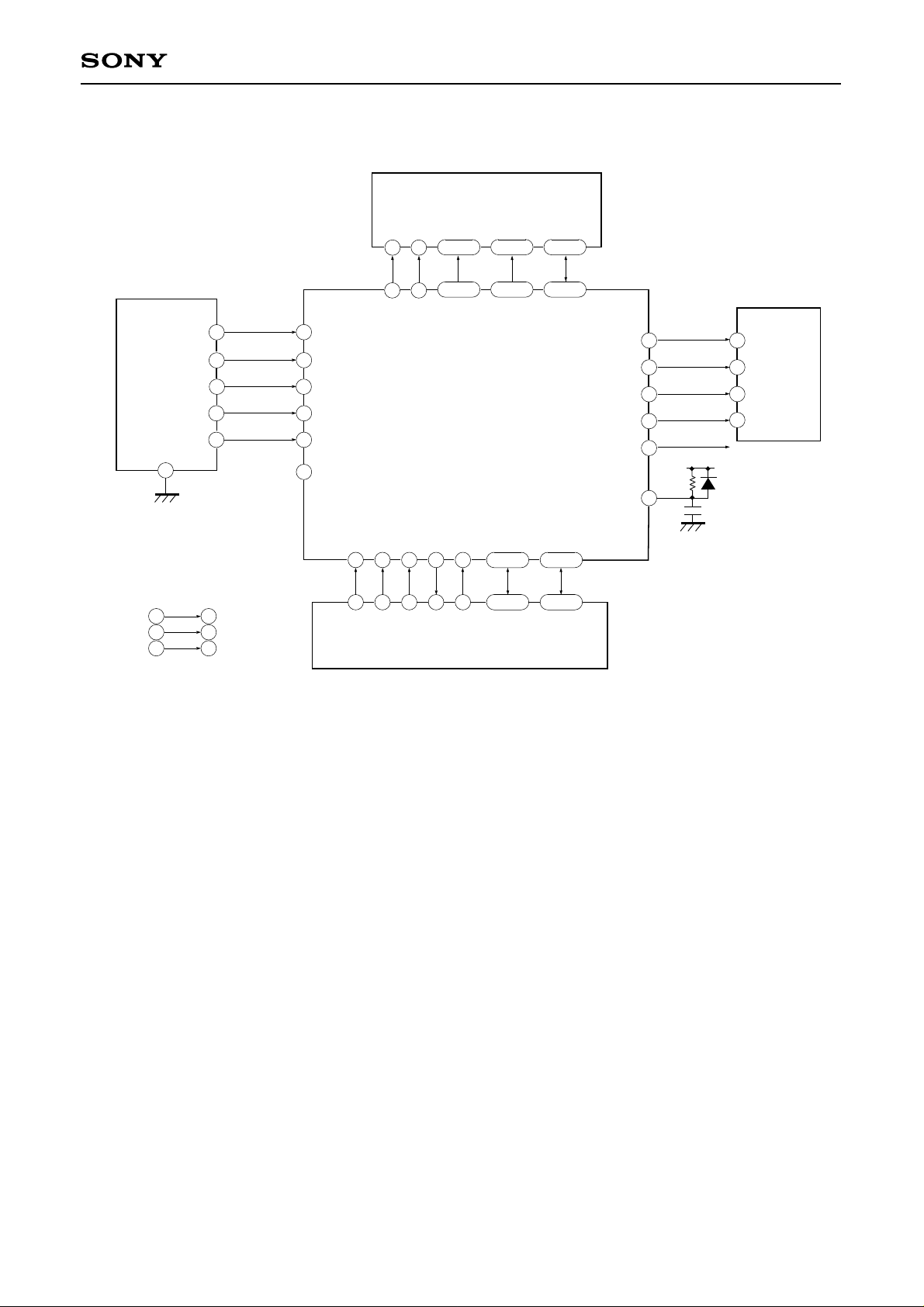

CXD1196AR Connection Diagram

Package Outline Unit : mm

CXD1196AR

80PIN LQFP (PLASTIC)

14.0 ± 0.2

∗ 12.0 ± 0.1

61

80

0.5

SONY CODE
EIAJ CODE
JEDEC CODE

60

1

0.1 ± 0.1

0° to 10°

DETAIL A

+ 0.08

0.18 – 0.03

0.5 ± 0.2

LQFP-80P-L01

LQFP080-P-1212

41

40

A

21

(0.22)

20

0.13

M

NOTE: Dimension “∗” does not include mold protrusion.

+ 0.2

1.5 – 0.1

+ 0.05

0.127 – 0.02

PACKAGE STRUCTURE

PACKAGE MATERIAL

LEAD TREATMENT
LEAD MATERIAL
PACKAGE MASS

EPOXY RESIN
SOLDER PLATING

42 ALLOY

0.5g

(13.0)

0.5 ± 0.2

0.1

—28—
