CXA2543R

Decoder/Driver/Timing Generator for Color LCD Panels

Description

The CXA2543R is an IC designed exclusively to

drive the color LCD panel DCX501BK and LCX018AK.

This IC greatly reduces the number of circuits and parts required to drive LCD panels by incorporating RGB decoder functions for video signals, driver functions, and a timing generator for driving panels onto a single chip.

This chip has a built-in serial interface circuit and electronic attenuators which allow various mode settings and adjustments to be performed through direct control from an external microcomputer, etc.

Features

• Color LCD panel DCX501BK and LCX018AK driver

• Supports NTSC and PAL signals

• Supports 16:9 wide display

• Supports composite inputs, Y/C inputs and Y/color

difference inputs

• Serial interface circuit

• Electronic attenuators (D/A converter)

• BPF, trap and delay line

• Sharpness function

• 2-point γ correction circuit

• R, G, B signal delay time adjustment circuit

• Polarity inversion circuit (line inverted mode)

• Supports external RGB input

• Supports AC drive for LCD panel during no signal

Applications

• Compact LCD monitors

• LCD viewfinders

• Compact liquid crystal projectors, etc.

Structure

Bipolar CMOS IC

Absolute Maximum Ratings (Ta = 25°C)

• Supply voltage VCC1 – GND1 6 V

VCC2 – GND2 14 V VCC3 – GND3 14 V VDD1 – VSS1 4.5 V VDD1 – VSS2 4.5 V

• Analog input pin voltage VINA –0.3 to VCC V

• Digital input pin voltage VIND –0.3 to VDD1 + 0.3V

• Operating temperature Topr –15 to +75 °C

• Storage temperature Tstg –40 to +125 °C

• Allowable power dissipation

∗1

PD (Ta ≤ 75°C) 350 mW

Operating conditions

Supply voltage VCC1 – GND1 4.25 to 5.25 V

VCC2 – GND2 11.0 to 13.5 V VCC3 – GND3 11.0 to 13.5 V VDD1 – VSS1 2.7 to 3.6 V VDD1 – VSS2 2.7 to 3.6 V

∗1

With substrate Size: 30 × 30 × 1.6mm

Material: Glass fabric base epoxy

– 1 –

E98403-PS

Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.

64 pin LQFP (Plastic)

– 2 –

CXA2543R

Block Diagram

POL SW

SUBBRIGHT

GAMMA

DEMOD

LPF

CONTRAST

EXT SW

BRIGHT

S/H

INT/EXT

VXO HUE PS

KILLER

FILT ADJ

COLOR CONT

BPF

PIC CONT

DL1

TRAP

CLAMP

ACC AMP

H. FILTER

Buf

REG.

R G B

+12V

GND1

V

SS1

+4.5V

Buf Buf

PAL SW

EXT COLOR & BALANCE

HUE

COLOR

CONTRAST

R-BRT

B-BRT

γ -1

γ -2

SERIAL BUS I/F

VSS2

VGATE

VTST

VPAL

VWIN

WIDE

PALSW

D/A

HCNT H-PULSE

HAFC PLL-COUNTER & DECODER

HGATE H-SKEW DET

PD

CLP BGP SBLK

V SEP

+3V

MATRIX

Buf

POL SW

PSIGBRIGHT

PSIG-BRT

APC

ACC DET

HD

GND3

GND2

SYNC SEP

FRP

COLOR

PAL IDCLAMP

VD

V

SS2

EN

XEN

VCK1

VCK2

VST

XVST

FLD IN

HD

PCG

XPCG

HCK1

HCK2

HST

XHST

46

40

39

38

37

36

35

34

33

41

42

43

44

45

47

48

49

50

51

52

53

54

55

56

57

58

59

60

63

64

61

62

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

2

3

4

5

6

7

8

9

10

11

12

13

14 15

16

1

V

DD

1

CKO

CKI

V

SS

1

RPD

TEST2

EXT B

EXT G

EXT R

S.SEP IN

H.FIL OUT

SYNC IN

GND1

TRAP

TEST1

VD IN

VCC1

SIG. CENTER

B-Y IN

R-Y IN

BLK LIM

APC

VXO OUT

VXO IN

V REG

C IN

TEST3

Y IN

PIC

PWRST

F0 ADJ

C OUT

SCLK

DATA

LOAD

RGT

FB PSIG

GND3

PSIG

V

CC

3

B OUT

FB B

G OUT

FB G

R OUT

FB R

V

CC

2

GND2

BRIGHT

– 3 –

CXA2543R

Pin Description

No.

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

TRAP GND1 SYNC IN H.FIL OUT S.SEP IN EXT R EXT G EXT B VD IN TEST1 TEST2 RPD VSS1 CKI CKO VDD1 XHST HST HCK2 HCK1 XPCG PCG HD FLD IN XVST VST VCK2 VCK1 XEN EN VSS2 VD

Symbol

H

I

O

I I I I I

O

I

O

O O O O O O O

I O O O O O O

O

External trap connection Analog (4.5V) GND Video input for sync separation Video output for sync input Sync separation circuit input External digital input R External digital input G External digital input B External vertical sync input Test (Leave this pin open.) Test (Leave this pin open.) Phase comparator output Digital (3V) GND for oscillation cell Oscillation cell input Oscillation cell output Digital 3V power supply XH start pulse output (HST reversed polarity) H start pulse output H clock pulse 2 output H clock pulse 1 output XPCG pulse output (PCG reversed polarity) PCG pulse output HD pulse output Field identification input XV start pulse output (VST reversed polarity) V start pulse output V clock pulse 2 output V clock pulse 1 output XEN pulse output (EN reversed polarity) EN pulse output Digital (3V) GND VD pulse output

I/O Description

Input pin for open status

(H: Pull up)

– 4 –

CXA2543R

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

H H H H

SCLK DATA LOAD RGT FB PSIG GND3 PSIG VCC3 B OUT FB B GND2 G OUT FB G R OUT FB R VCC2 VCC1 SIG.CENTER B-Y IN R-Y IN C OUT BLK LIM APC VXO OUT VXO IN V REG C IN TEST3 Y IN PIC F0 ADJ PWRST

I I I I

O

O O

O O O O

I I I

O

I

O O

I

O

I I I I

O

—

Serial interface clock input Serial interface data input Serial interface load input Switches between Normal scan (H) and Reverse scan (L) PSIG signal DC voltage feedback circuit capacitor connection Analog (12V) GND for PSIG PSIG output Analog 12V power supply for PSIG B signal output B signal DC voltage feedback circuit capacitor connection Analog (12V) GND G signal output G signal DC voltage feedback circuit capacitor connection R signal output R signal DC voltage feedback circuit capacitor connection Analog 12V power supply Analog 4.5V power supply R, G, B and PSIG output DC voltage adjustment B-Y demodulator input (or B-Y color difference signal input) R-Y demodulator input (or R-Y color difference signal input) Chroma signal output Black peak limiter level adjustment APC detective filter connection VXO output VXO input Constant voltage capacitor connection Chroma signal input Test (Connect to GND.) Y signal input Y signal frequency response adjustment Internal filter adjusting resistor connection System reset

(H: Pull up)

No.

Symbol I/O Description

Input pin for open status

– 5 –

CXA2543R

Analog Block Pin Description

No.

Symbol Pin voltage Equivalent circuit Description

1 TRAP —

2 GND1

0V

Analog (4.5V) GND.

VCC1

GND1

130µA

1k

300

70µA

1

External trap connection. Connect the trap between this pin and GND to remove the chroma component. Leave this pin open when using Y/C and Y/color difference input.

3 SYNC IN 1.5V

Sync input. Normally inputs the Y signal. The standard signal input level is 0.5Vp-p (100% white level from the sync tip).

VDD1

GND1

1k

30µA

3

2.1V

1k

4 H.FIL OUT 0.8V

Outputs the video signal for input to the sync separation circuit.

VDD1

GND1

20k

4

5 S.SEP IN

2.1V

Sync separation circuit input. Input the H.FIL OUT (4pin) signal.

VDD1

GND1

17k

1.8V10µA 2.8V

5

– 6 –

CXA2543R

6 EXT-R

7 EXT-G

8 EXT-B

42 FB B

37 FB PSIG

45 FB G

47 FB GR

41 B OUT

44 G OUT

46 R OUT

External digital signal inputs. There are two threshold values: Vth1 (= 1.0V) and Vth2 (= 2.0V). When one of the RGB signals exceeds Vth1, all of the RGB outputs go to black level; when an input exceeds Vth2, only the corresponding output goes to white level.

6

8

300

VCC1

GND1

30µA

50k

2.7V

7

Smoothing capacitor connection for the feedback circuit of R, G, B and PSIG output DC level control. Use a low-leakage capacitor because of high impedance.

1k

VCC1

GND2

42

37

45 47

—

VCC2

2

RGB signal outputs.

46

VCC2

GND2

40µA

20

44

41

2.0V

38 GND3

0V

Analog (12V) GND for the PSIG circuit.

PSIG signal outputs.

VCC3

GND3

10

39

39 PSIG

VCC2

2

40 VCC3

12V

12V power supply for the PSIG circuit.

43

GND2

0V

Analog (12V) GND.

No.

Symbol Pin voltage Equivalent circuit Description

– 7 –

CXA2543R

51

B-Y IN

52 R-Y IN

—

Color difference demodulation circuit inputs. Color difference signal is input when using Y/color difference input. At this time, the standard signal input level is

0.3Vp-p and the clamp level is approximately 2.8V. Pin 53 signal is input in other modes (except D-PAL∗). At this time, the DC level is approximately

1.6V.

500

GND1

10k

30µA

50µA

VCC1

500

52

51

50

SIG. CENTER

6.0V

RGB output DC voltage control. When used with a VCC2 and VCC3 of 12V or more, apply 6V from an external source.

VCC2

GND2

150k

300

150k

50

53 C OUT 1.6V

Color adjusted chroma signal output. The burst level is 180mVp-p (typ.). (540mVp-p during D-PAL.) Leave this pin open when using Y/color difference input.

VCC1

GND1

350µA

53

54 BLK LIM —

Sets the RGB output amplitude (black-black) clip level and the blanking black level for during wide display.

VCC1

GND1

50k5450k

∗

D-PAL is a demodulation method that uses an external delay line during demodulation; S-PAL is a demodulation method that internally processes chroma demodulation.

48 VCC2

12V

49 VCC1

4.5V

12V power supply.

4.5V power supply.

No.

Symbol Pin voltage Equivalent circuit Description

– 8 –

CXA2543R

56 VXO OUT

2.9V

VXO output. Leave this pin open when using Y/color difference input.

VCC1

GND1

400µA

56

57 VXO IN 3.2V

VXO input. Leave this pin open when using Y/color difference input.

VCC1

GND1

2.4k

500

3.2V

57

58 V REG 3.6V

Smoothing capacitor connection for the internally generated constant voltage source circuit. Connect a capacitor of 1µF or more.

VCC1

GND1

60k

30k

58

59 C IN —

Video signal input when using composite input. Chroma signal input when using Y/C signal input. Leave this pin open when using Y/color difference input.

VCC1

GND1

20k

500

30µA

59

15p

55 APC 2.7V

APC detective filter connection. Leave this pin open when using Y/color difference input.

VCC1

GND1

1k

55

No.

Symbol Pin voltage Equivalent circuit Description

– 9 –

CXA2543R

61 Y IN

Y signal input. The standard signal input level is 0.5Vp-p (100% white level from the sync tip). Input at low impedance (75Ω or less).

VCC1

GND1

70µA

1k

61

63 F0 ADJ

3.0V

Connect resistance of 15kΩ between this pin and GND1 to adjust the internal filters using the outflow current value. Connect to +4.5V power supply when using Y/C or Y/color difference input.

VCC1

GND1

15µA

1k

63

64 PWRST —

TG block system reset pin. The system is reset when this pin is connected to GND. Connect a capacitor between this pin and GND.

1k

VDD1

GND1

2µA

64

62 PIC

—

Adjusts frequency response of luminance signal. Increasing the voltage emphasizes contours.

VCC1

GND1

30k

10k

50µA

20k

50µA

62

BIAS

3.1V

Pin No.

Symbol Pin voltage Equivalent circuit Description

– 10 –

CXA2543R

Setting Conditions for Measuring Electrical Characteristics

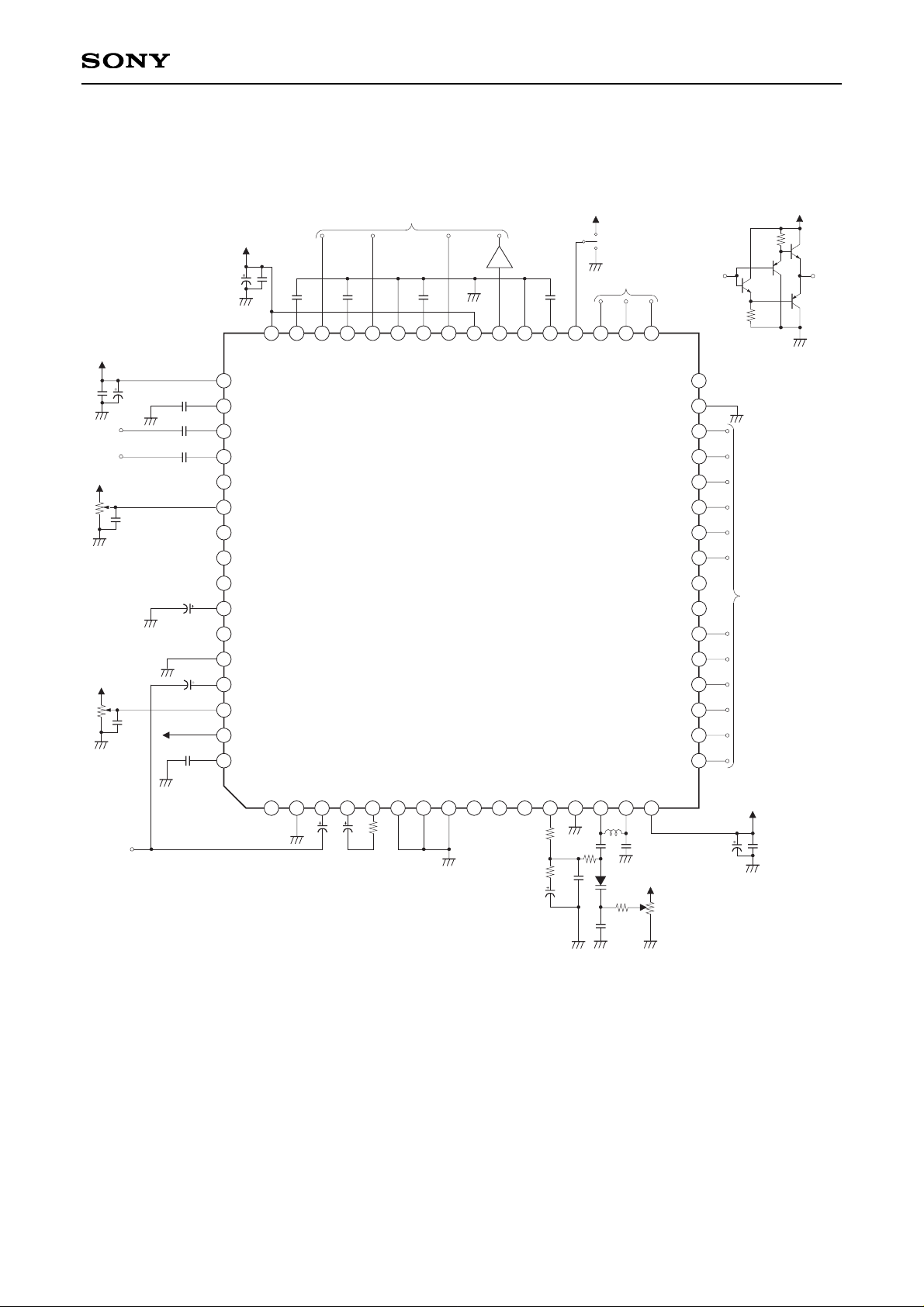

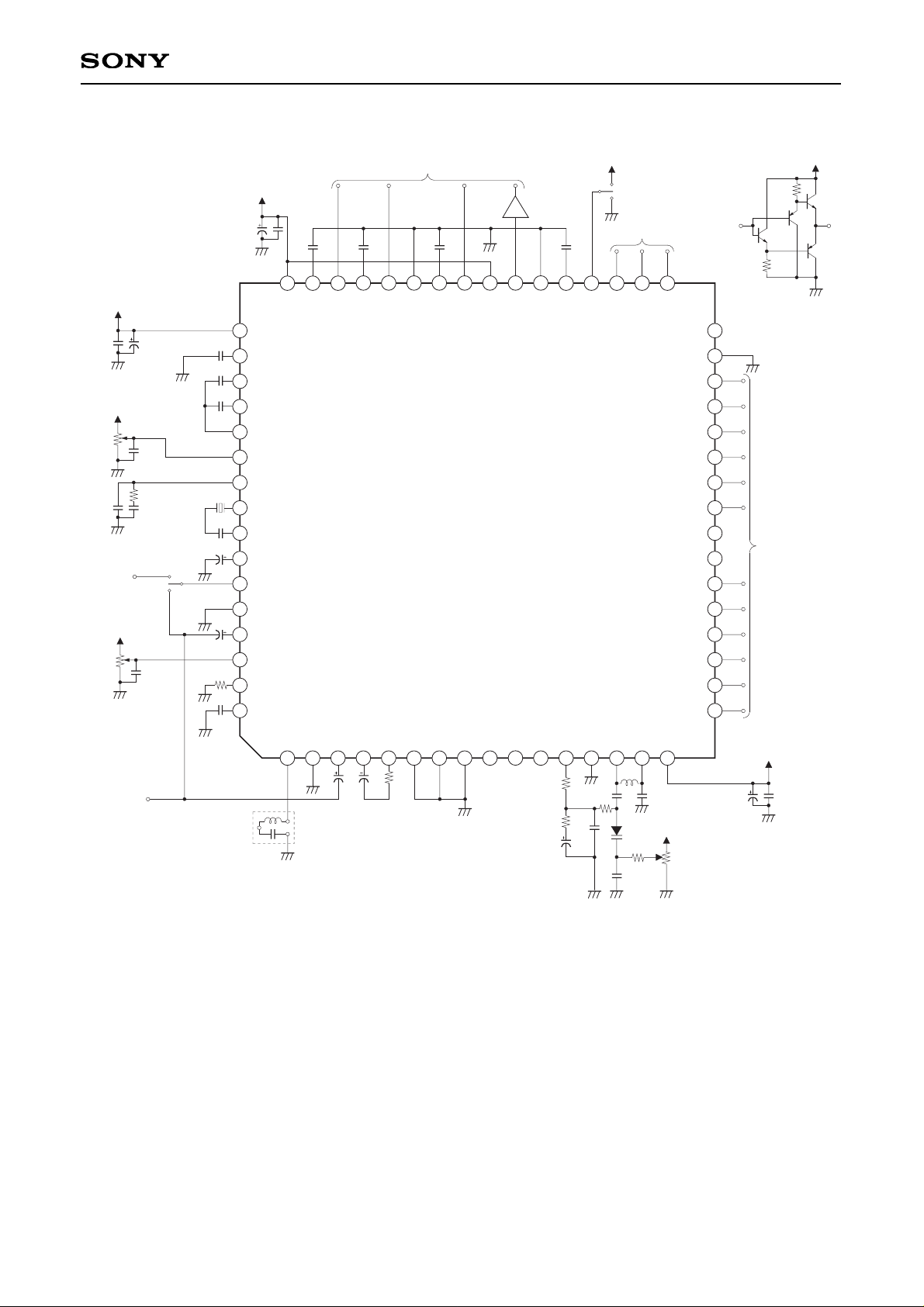

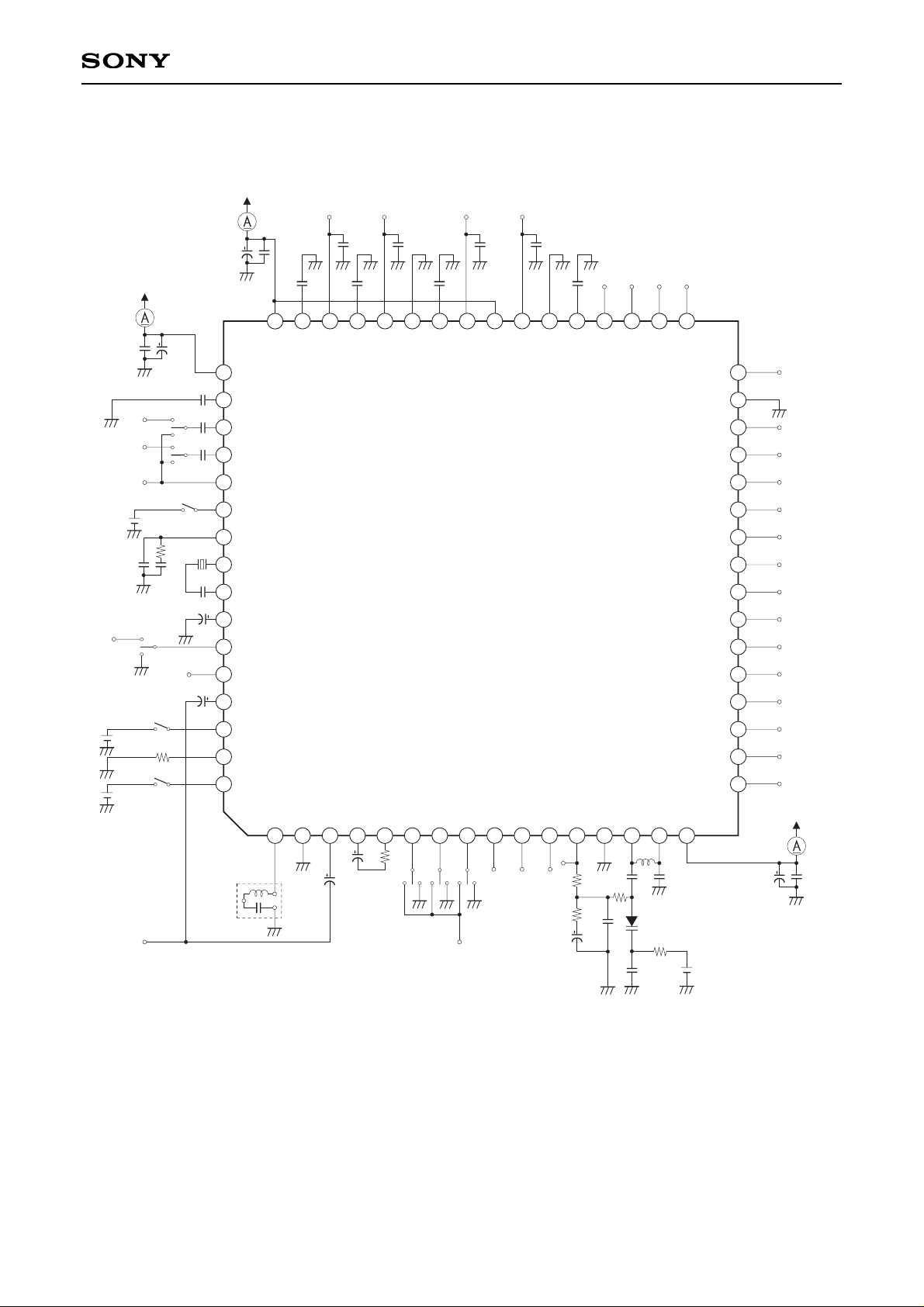

Use the electrical characteristics measurement circuit on page 30 when measuring electrical characteristics. Also, the TG (timing generator) block must be initialized by performing Settings 1 and 2 below.

Setting 1. System reset

After turning on the power, set SW64 to ON and start up V64 from GND in order to activate the TG block system reset. (See Fig. 1-1.) The serial bus will be set to default values.

Setting 2. Horizontal AFC adjustment

Input SIG5 (VL = 0mV) to (A) and adjust V14 so that WL and WH of the TP12 output waveform are the same. (See Fig. 1-2.)

Note) When measuring a band of 2MHz or more for Y signal frequency response or sharpness response

among the items being measured, the measurement must be made with sample-and-hold timing (serial bus) set to through (sample-and- hold not performed).

VDD

V64 (PWRST)

T

R > 10µs

T

R

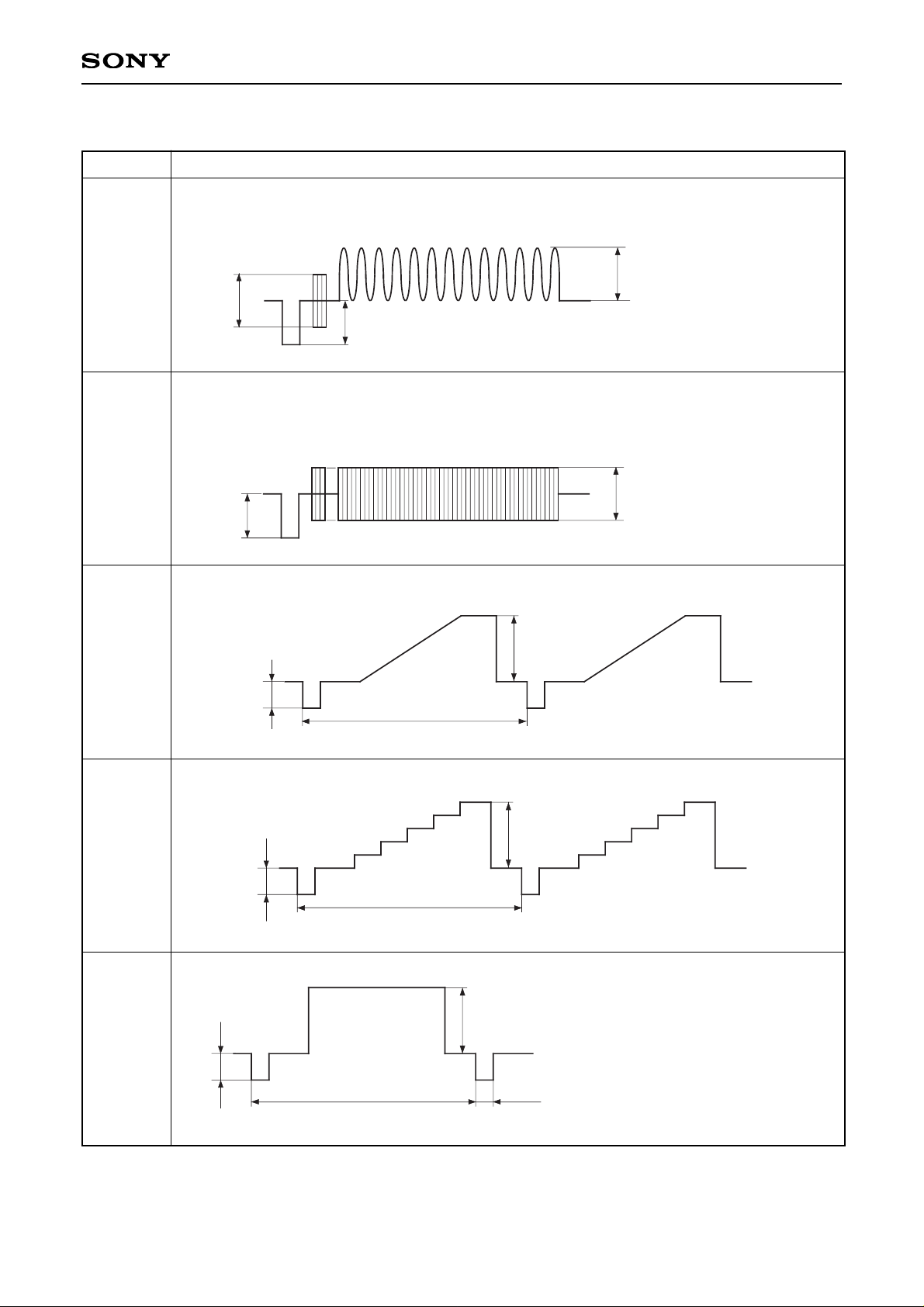

SIG5

TP12

WL = WH

WL

WH

WS

Fig. 1-1. System reset Fig. 1-2. Horizontal AFC adjustment

– 11 –

CXA2543R

Electrical Characteristics — DC Characteristics

Unless otherwise specified, Settings 1 and 2 and the following setting conditions are required. VCC1 = 4.5V, VCC2 = 12.0V, VCC3 = 12.0V, GND1 = GND2 = GND3 = 0V, VDD1 = 3.0V, VSS1 = VSS2 = 0V, Ta = 25°C SW54, SW62, SW64 = ON SW6, SW7, SW8, SW59 = A SW51, SW52 = B V54 = 0V, V62 = 2.2V Set the serial bus registers to the "Serial Bus Register Initial Settings". Unspecified the serial bus registers should be set to default settings.

Input SIG4 to (A) and SIG2 (0dB) to (B). Measure the I

CC1 current value.

COMP input mode

Input SIG4 to (A) and SIG2 (0dB) to (B). Measure the I

CC1 current value.

Y/C input mode

Input SIG4 to (A), (D) and (E). Measure the I

CC1 current value.

SW51, SW52 = A, SW59 = B

Y/color difference input mode

Input SIG4 to (A) and SIG2 (0dB) to (B). Measure the I

CC2 current value.

PSIG load capacity CLP = 0pF Input SIG4 to (A) and SIG2 (0dB) to (B).

Adjust PSIG-BRT of the serial bus and measure the I

CC2 current value when TP39 output is set to 5Vp-p.

PSIG load capacity CLP = 10000pF Input SIG4 to (A) and SIG2 (0dB) to (B).

Measure the I

DD current value.

DCX501 and LCX018 (4:3) mode

Input SIG4 to (A) and SIG2 (0dB) to (B). Measure the I

DD current value.

LCX018 (16:9) mode

23

21

17

6

7.5

30

28

23

8

8.3

8

10

37

35

29

10

10.5

10

12.5

mA

I

CC11

I

CC12

I

CC13

I

CC2A

I

CC2B

I

DD1

I

DD2

Item

Power supply characteristics

Current consumption V

CC1

Current consumption V

CC2, 3

Current consumption V

DD

Symbol Conditions Min. Typ. Max. Unit

– 12 –

CXA2543R

Digital block input pin

∗

1

0.3VDD

V

VIL

Digital block I/O characteristics

Low level input voltage High level input voltage

Input current

CKI pin low input current CKI pin high input current High level output voltage

Output pins except CKO and RPD

Low level output voltage Output pins except CKO and RPD

High level output voltage CKO pin

Low level output voltage CKO pin

High level output voltage RPD pin

Low level output voltage RPD pin

Output off leak current RPD pin

Digital block input pin

∗

1

0.7VDD

V

VIH

Input pin with pull-up resistor

∗

2

VIN = VSS2

–145

–60

–24

µA

II1

VIN = VSS

–10

µA

II2

VIN = VDD1

10

µA

II3

IOH = –1mA

∗

3

2.8

V

VOH1

IOL = 1mA

∗

3

0.3

V

VOL1

IOH = –3mA

0.5V

DD

V

VOH2

IOL = 3mA

0.5V

DD

V

VOL2

∗1

Digital block input pins: SCLK, DATA, LOAD, VDIN, RGT, FLDIN, CKI

∗2

Input pins with pull-up resistors: SCLK, DATA, LOAD, VDIN, RGT, FLDIN

∗3

Output pins except CKO and RPD: XHST, HST, HCK1, HCK2, XPCG, PCG, HD, XVST, VST, VCK1, VCK2, XEN, EN, VD

IOH = –0.5mA

V

DD – 1.2

V

VOH3

IOL = 0.7mA

1.0

V

VOL3

High impedance status VOUT = V

SS or VOUT = VDD1

–40

40

µA

IOFF

Item Symbol Conditions Min. Typ. Max. Unit

– 13 –

CXA2543R

Electrical Characteristics — AC Characteristics

Unless otherwise specified, Settings 1 and 2 and the following setting conditions are required. VCC1 = 4.5V, VCC2 = 12.0V, VCC3 = 12.0V, GND1 = GND2 = GND3 = 0V, VDD1 = 3.0V, VSS1 = VSS2 = 0V, Ta = 25°C SW54, SW62, SW64 = ON SW6, SW7, SW8 = A SW51, SW52, SW59 = B V54 = 0V, V62 = 2.2V Set the serial bus registers to the "Serial Bus Register Initial Values". Unspecified serial bus registers should be set to default settings. Unless otherwise specified, measure the non-inverted outputs for TP41, TP44 and TP46.

Input SIG2 (0dB) to (A). Using a spectrum analyzer, measure the input and the 3.58MHz or

4.43MHz component of TP44, and obtain CRLEKY = 150mV × 10

∆CLK/20

using their

difference ∆CLK.

19

13

–9

5.0

2.5

3.0

5.0

22

17

–5

25

21

–1

dB

MHz

GV

GCNTTP

GCNTMN

FCYYC

FCYCMN

FCYCMP

Y signal block

Video maximum gain

Contrast characteristics TYP

Contrast characteristics MIN

Y signal frequency response 1

Y signal frequency response 2

10 14

–2 0

6 9

–4 –2

dB

GSHP1X

FCL

GSHP1N

GSHP2X

GSHP2N

Picture quality adjustment variable amount 1 (Y/C input)

Picture quality adjustment variable amount 2 (composite input)

CRLEKY 30 mV

Carrier leak (residual carrier)

Y/C input

Composite input (NTSC)

Composite input (PAL)

TDYYC

TDYCMN

TDYCMP

250

570

350

670

450

770

ns

Y signal I/O delay time

Y/C input Composite input

(NTSC) Composite input

(PAL)

Input SIG9 (VL = 150mV) to (A). Measure the delay time from the 2T pulse peak of the input signal to the peak of the non-inverted output at TP44.

Input SIG4 to (A) and measure the ratio between the output amplitude (white-black) and input amplitude at TP44.

Assume the output amplitude at TP44 when SIG7 (0dB, no burst, 100kHz) is input to (A) as 0dB. Vary the frequency of the input signal to obtain the frequency with an output amplitude of –3dB. V62 = 1.5V

Assume the output amplitude at TP44 when SIG7 (0dB, no burst, 100kHz) is input to (A) as 0dB. Vary the frequency of the input signal to obtain the frequency with an output amplitude of –3dB. V62 = 1.5V, Load 500pF

Assume the output amplitude at TP44 when SIG7 (100kHz) is input to (A) as 0dB. Set SIG7 to 2.5MHz and measure GSHP1X and GSHP1N as the amounts by which the output amplitude at TP44 changes when V62 = 4V and 0V, respectively.

Assume the output amplitude at TP44 when SIG7 (100kHz) is input to (A) as 0dB. Set SIG7 to 2.0MHz and measure GSHP2X and GSHP2N as the amounts by which the output amplitude at TP44 changes when V62 = 4V and 0V, respectively.

Item Symbol Conditions Min. Typ. Max. Unit

– 14 –

CXA2543R

Input SIG5 (VL = 150mV) to (A) and SIG2 (level variable, 3.58MHz burst/chroma phase = 180°, or 4.43MHz burst/chroma phase = ±135°) to (B), and measure the output amplitude at TP44. Gradually reduce the SIG3 amplitude level and measure the level at which the killer operation is activated. SW59 = A

–3

0

3 dB

–3 0 3

dB

–4

–1

2

dB

–4

±500

Hz

±500 Hz

4 6 dB

–25

–15

dB

–37 –31 dB

–34

–28

dB

–1

2

dB

ACC1

ACC2

FAPCN

FAPCP

GCOLMX

GCOLMN

ACKN

ACKP

Chroma signal block

ACC amplitude characteristics 1

ACC amplitude characteristics 2

APC pull-in range

Color adjustment characteristics MAX

Color adjustment characteristics MIN

–30 –40 deg

30 60 deg

HUEMX

HUEMN

HUE adjustment range MAX

HUE adjustment range MIN

Killer operation input level

NTSC

PAL

NTSC

PAL

NTSC

PAL

NTSC

PAL

Input SIG5 (VL = 150mV) to (A) and SIG2 (0dB/+6dB/–20dB, 3.58MHz burst/chroma phase = 180°, or 4.43MHz burst/chroma phase = ±135°) to (B). Measure the output amplitude at TP53, assuming the output corresponding to 0dB, +6dB and –20dB as V0, V1 and V2, respectively. ACC1 = 20 log (V1/V0) ACC2 = 20 log (V2/V0) SW59 = A

Input SIG5 (VL = 150mV) to (A) and SIG2 (0dB, 3.58MHz burst/chroma phase = 180°, or 4.43MHz burst/chroma phase = ±135°) to (B). Changing the SIG2 burst frequency, measure the frequency f1 at which the TP44 output appears (the killer mode is canceled). NTSC: FAPCN = f1 – 3579545Hz PAL: FAPCP = f1 – 4433619Hz SW59 = A

Input SIG5 (VL = 150mV) to (A) and SIG2 (0dB,

3.58MHz burst/chroma phase = 180°) to (B). Assume the chroma output amplitude when serial bus register COLOR = 80H, 0FFH and 0H as V0, V1 and V2, respectively. GCOLMX = 20 log (V1/V0) GCOLMN = 20 log (V2/V0) SW59 = A

Input SIG5 (VL = 150mV) to (A) and SIG2 (0dB, burst/chroma phase variable) to (B). Assume the phase at which the output amplitude at TP44 reaches a minimum when serial bus register HUE = 80H, 0FFH and 0H as θ0, θ1 and θ2, respectively. HUEMX = θ1 – θ0 HUEMN = θ2 – θ0 SW59 = A

Item Symbol Conditions Min. Typ. Max. Unit

– 15 –

CXA2543R

Demodulation output amplitude ratio (NTSC)

Demodulation output amplitude ratio (PAL)

Demodulation output phase difference (PAL)

Color difference balance

θRBN

VGBN

VRBN

θGBN

VRBP

VGBP

99

0.25

0.53

230

109

0.32

0.63

242

119

0.39

0.73

254

deg

0.33

0.65

0.40

0.75

0.47

0.85

deg

θRBP

θGBP

80

232

90

244

100

256

deg

GEXCMX

4 6 dB

GEXCMN

Color difference input color adjustment characteristics MAX

Color difference input color adjustment characteristics MIN

Color difference input balance adjustment R

Color difference input balance adjustment B

–20 –15

dB

VEXCBL 0.8 1.0 1.2

GEXRMX 2 3 dB

GEXRMN

–3

–2 dB

GEXBMX

–3

–2 dB

GEXBMN

2

3

dB

Input SIG5 (VL = 150mV) to (A) and SIG2 (0dB,

3.58MHz) to (B) and change the chroma phase. Assume the maximum amplitude at TP41 as VB, the maximum amplitude at TP44 as VG, and the maximum amplitude at TP46 as VR. VRBN = VR/VB, VGBN = VG/VB SW59 = A

Input SIG5 (VL = 150mV) to (A) and SIG2 (0dB,

3.58MHz) to (B) and change the chroma phase. Assume the phase at which the amplitude at TP41, TP44 and TP46 reaches a maximum as

θB, θG and θR, respectively. θRBN = θR – θB, θGBN = θG – θB

SW59 = A Input SIG5 (VL = 150mV) to (A) and SIG2 (0dB,

4.43MHz) to (B) and change the chroma phase. Assume the maximum amplitude at TP41 as VB, the maximum amplitude at TP44 as VG, and the maximum amplitude at TP46 as VR. VRBP = VR/VB, VGBP = VG/VB SW59 = A

Input SIG5 (VL = 150mV) to (A) and SIG2 (0dB,

4.43MHz) to (B) and change the chroma phase. Assume the phase at which the amplitude at TP41, TP44 and TP46 reaches a maximum as

θB, θG and θR, respectively. θRBP = θR – θB, θGBP = θG – θB

SW59 = A

Input SIG5 (VL = 150mV) to (A) and SIG1 (0dB, 100kHz, no burst) to (D). Assume the output amplitude at TP41 (100kHz) when serial bus register COLOR = 80H as VC0, when COLOR = 0H as VC2, and when SIG1 is set to -10dB and COLOR = 0FFH as VC1. GEXCMX = 20 log (VC1/VC0) + 10 GEXCMN = 20 log (VC2/VC0) SW51, SW52 = A

Input SIG5 (VL = 150mV) to (A) and SIG1 (0dB, 100kHz, no burst) to (D) and (E). Assume the output amplitude at TP41 (100kHz) as VB and the output amplitude at TP46 (100kHz) as VR. VEXCBL = VR/VB SW51, SW52 = A

Input SIG5 (VL = 150mV) to (A) and SIG1 (–6dB, 100kHz, no burst) to (D) and (E). Assume the output amplitude at TP46 (100kHz) and TP41 (100kHz) when serial bus register HUE = 80H as VR0 and VB0, respectively, when HUE = 0FFH as VR1 and VB1, respectively, and when HUE = 0H as VR2 and VB2, respectively. GEXRMX = 20 log (VR1/VR0) GEXRMN = 20 log (VR2/VR0) GEXBMX = 20 log (VB1/VB0) GEXBMN = 20 log (VB2/VB0) SW51, SW52 = A

Item Symbol Conditions Min. Typ. Max. Unit

Demodulation output phase difference (NTSC)

– 16 –

CXA2543R

VEXGBN 0.22 0.25 0.28

0.47 0.53 0.58

VEXGRN

5.85

9.0

6.00

0

6.15

100

5.2

4.0

V

mV

Vp-p

G-Y matrix characteristics (NTSC)

Input SIG5 (VL = 150mV) to (A) and SIG1 (0dB, 100kHz, no burst) to (D). Assume the output amplitude at TP41 (100kHz) as VEXB and the output amplitude at TP44 (100kHz) as VEXBG. VEXGBN = VEXBG/VEXB SW51, SW52 = A

Input SIG5 (VL = 150mV) to (A) and SIG1 (0dB, 100kHz, no burst) to (E). Assume the output amplitude at TP46 (100kHz) as VEXR and the output amplitude at TP44 (100kHz) as VEXRG. VEXGRN = VEXRG/VEXR SW51, SW52 = A

VEXGBP 0.16 0.19 0.22

0.48 0.53 0.58

VEXGRP

G-Y matrix characteristics (PAL)

Input SIG5 (VL = 150mV) to (A) and SIG1 (0dB, 100kHz, no burst) to (D). Assume the output amplitude at TP41 (100kHz) as VEXB and the output amplitude at TP44 (100kHz) as VEXBG. VEXGBP = VEXBG/VEXB SW51, SW52 = A

Input SIG5 (VL = 150mV) to (A) and SIG1 (0dB, 100kHz, no burst) to (E). Assume the output amplitude at TP46 (100kHz) as VEXR and the output amplitude at TP44 (100kHz) as VEXRG. VEXGRP = VEXRG/VEXR SW51, SW52 = A

VOUT

∆VOUT

VLIMMX

VLIMMN

BRTMX

BRTMN

Input SIG5 (VL = 0mV) to (A). Adjust serial bus register BRIGHT so that the output (black-black) at TP44 is 9Vp-p and measure the DC voltage at TP39, TP41, TP44 and TP46.

Input SIG5 (VL = 0mV) to (A). Adjust serial bus register BRIGHT so that the output (black-black) at TP44 is 9Vp-p, measure the DC voltage at TP39, TP41, TP44 and TP46, and obtain the maximum difference between each of these values.

Input SIG3 to (A). Vary V54 and measure the maximum value VLIMMX and minimum value VLIMMN of the voltage range (black-black) over which the black limiter operates for the TP39, TP41, TP44 and TP46 outputs. Assume the value whenV54 = 0V as VLIMMX, and when V54 = 4.5V as VLIMMN.

Input SIG5 (VL = 0mV) to (A) and measure the output (black-black) at TP41, TP44 and TP46 when serial bus register BRIGHT = 0H.

Input SIG5 (VL = 0mV) to (A) and measure the output (black-black) at TP41, TP44 and TP46 when serial bus register BRIGHT = 0FFH.

RGB signal output block

RGB signal and PSIG output DC voltage

RGB signal and PSIG output DC voltage difference

RGB and PSIG output limiter operation voltage

Amount of change in brightness

Item Symbol Conditions Min. Typ. Max. Unit

– 17 –

CXA2543R

1.5

Vp-p

9.0

Vp-p

±

1.5

±2.0

V

PSIGMX

PSIGMN

Input SIG5 (VL = 0mV) to (A) and measure the output (black-black) at TP39 when serial bus register PSIG-BRT = 0H.

Input SIG5 (VL = 0mV) to (A) and measure the output (black-black) at TP39 when serial bus register PSIG-BRT = 0FFH.

Amount of change in PSIG

SBBRT

Input SIG5 (VL = 0mV) to (A) and measure the difference between the outputs (black-black) at TP41 and TP46 and the output (black-black) at TP44 when serial bus registers R-BRT = B-BRT = 0H and when R-BRT = B-BRT = 0FFH.

Amount of change in sub-brightness

–0.5

0

0.5

dB

∆GRGB

Input SIG4 to (A) and obtain the level difference between the maximum and minimum non-inverted output amplitudes (white-black) at TP41, TP44 and TP46.

Difference in gain between RGB output signals

–0.5

0

0.5

dB

∆GINV

Input SIG4 to (A) and obtain the level difference between the non-inverted output amplitudes (white-black) and the inverted output amplitudes at TP41, TP44 and TP46.

Difference in RGB output inverted/noninverted gain

300

mV

∆VBL

Input SIG4 to (A) and obtain the level difference between the maximum and minimum black levels of both the inverted and non-inverted outputs at TP41, TP44 and TP46.

Input SIG8 to (A). Adjust the non-inverted output black level at TP44 to 6.0

-

4.5V with serial bus register BRIGHT and the non-inverted output amplitude (white-black) at TP44 to 3.5V with serial bus register CONTRAST. Measure VG1, VG2 and VG3. Gγ1 = 20 log (VG1/0.0357) Gγ2 = 20 log (VG2/0.0357) Gγ3 = 20 log (VG3/0.0357) (See Fig. 5 for definitions of VG1, VG2 and VG3.)

Input SIG8 to (A) and adjust serial bus register BRIGHT so that the output at TP44 is 9Vp-p (black-black). Read the point where the gain of the non-inverted output at TP44 changes when serial bus register γ1 = 0H and 0FFH from the input signal IRE level. Vγ1MN when γ1 = 0H, and Vγ1MX when γ1 = 0FFH.

Input SIG8 to (A) and adjust serial bus register BRIGHT so that the output at TP44 is 9Vp-p (black-black). Read the point where the gain of the non-inverted output at TP44 changes when serial bus register γ2 = 0H and 0FFH from the input signal IRE level. Vγ2MN when γ2 = 0H, and Vγ2MX when γ2 = 0FFH.

Difference in black level potential between RGB output signals

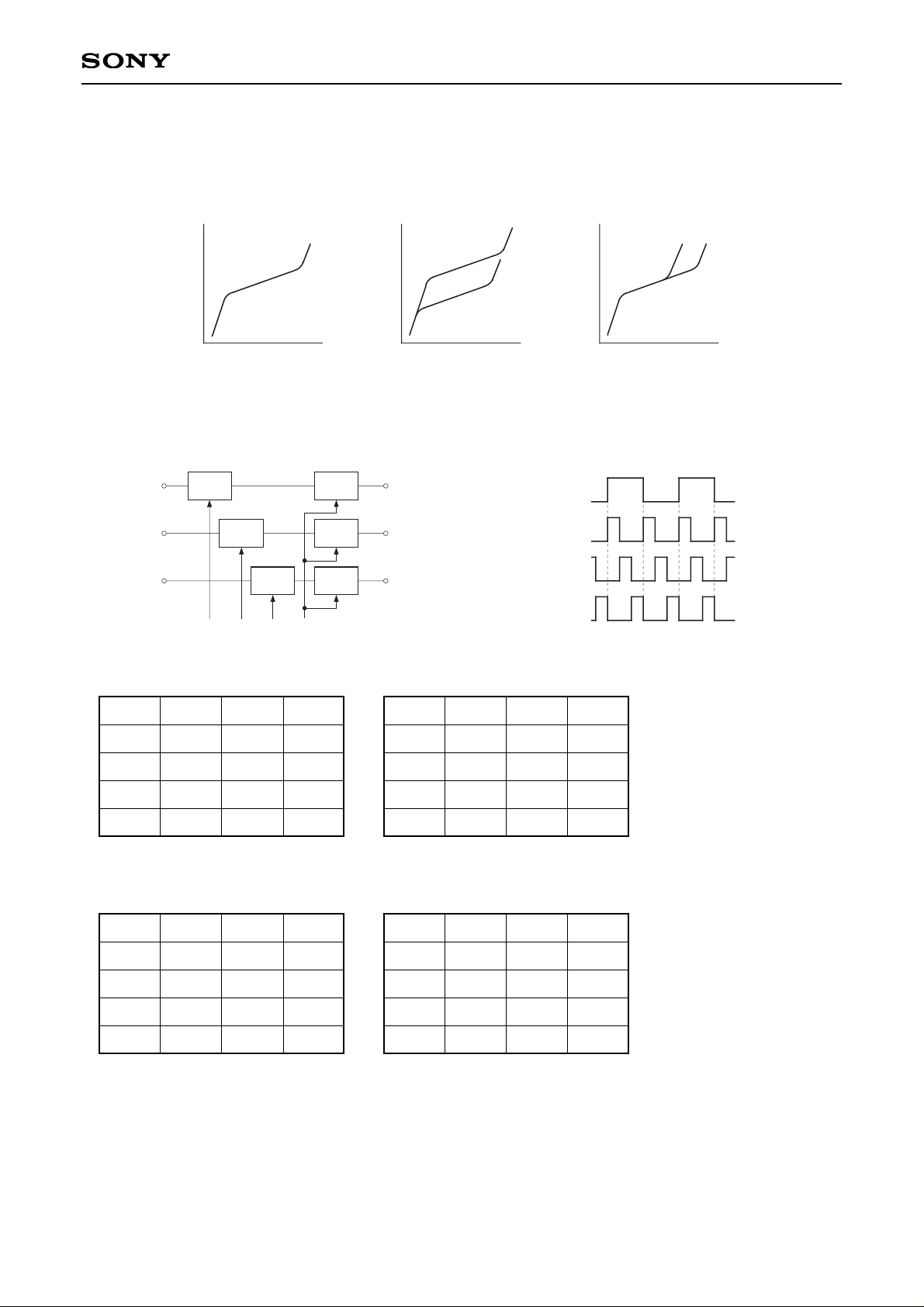

γ gain

γ1 adjustment

variable range

γ2 adjustment variable range

Gγ1

Gγ2

Gγ3

23.0

26.0 29.0

dB

12.0

15.0 18.0

dB

18.0

21.0 25.0

dB

Vγ1MN

Vγ1MX

Vγ2MN

Vγ2MX

0 IRE

100 IRE

0 IRE

Input SIG4 to (A) and adjust serial bus register PSIG-BRT so that the output at TP39 is 9Vp-p (black-black). Measure the time it takes to change to an amplitude of 9Vp-p. tPSIGH: rising edge, tPSIGL: falling edge

PSIG transition time

tPSIGH

tPSIGL

1.5 3.0 µs

1.5 3.0

µs

Input SIG5 (VL = 350mV) to (A) and measure the voltage (whitewhite) at which the white limiter activates for inverted output and non-inverted output at TP41, TP44 and TP46, respectively.

RGB output white limiter operation voltage

VWLIM

1.3 1.5 1.7

V

Input SIG5 (VL = 0mV) to (A) and adjust V54 so that the output at TP44 is 9Vp-p (black-black). Measure the DC voltage at TP41, TP44 and TP46 and obtain the difference versus the RGB output voltage VOUT.

Black limiter DC voltage difference

∆VBLIM

0 100 mV

Item Symbol Conditions Min. Typ. Max. Unit

– 18 –

CXA2543R

TDSYL

TDSYH

HPLLN

HPLLP

430

630 830 ns

4.7

5.0 5.3 µs

±500

Hz

±500

Hz

NTSC

PAL

0 100 mV

ATBPF

ATRAPN

ATRAPP

DEMLPF

WSSEP

VSSEP

–16 –10 dB

–7 –2 dB

–8 –3 dB

–40

–30 dB

–40 –30 dB

0.8

1.0

1.3 MHz

2.0 µs

40 60 mV

NTSC 1.5MHz

PAL 2.0MHz

NTSC 5.5MHz

PAL 6.8MHz

NTSC

PAL

Amount of BPF attenuation

Amount of TRAP attenuation

R-Y, B-Y and LPF characteristics

Input sync signal width sensitivity

Sync separation input sensitivity

Sync separation output delay time

Horizontal pull-in range

Sync separation, TG block

Filter characteristics

Assume the chroma amplitude at TP53 when SIG5 (VL = 0mV) is input to (A) and SIG1 (0dB at input center frequency (3.58Hz or 4.43Hz)) is input to (B) as 0dB. Obtain the amount by which the output at TP53 is attenuated when the frequencies noted on the right are input. SW59 = A

Input SIG2 (0dB, 3.58Hz and 4.43Hz) to (A) and measure the output at TP44. Assume the amplitude at TP44 during Y/C input mode as 0dB, and obtain the amount of attenuation during COMP input mode.

Assume the amplitude of the 100kHz component of the output at TP44 when SIG5 (VL = 150mV) is input to (A) and SIG1 (0dB,

3.58Hz + 100kHz) is input to (B) as 0dB. Obtain the frequency which attenuates the beat component of the output by 3dB when the SIG1 frequency is increased with respect to 3.58MHz. SW59 = A

Input SIG5 (VL = 0mV, VS = 143mV, WS variable) to (A) and confirm that it is synchronized with the HD output at TP23. Gradually narrow the WS of SIG5 from 4.7µs and obtain the WS at which synchronization with the HD output at TP23 is lost.

Input SIG5 (VL = 0mV, WS = 4.7µs, VS = variable) to (A) and confirm that it is synchronized with the HD output at TP23. Gradually reduce the VS of SIG5 from 143mV and obtain the VS at which synchronization with the HD output at TP23 is lost.

Input SIG5 (VL = 0mV, WS = 4.7µs, VS = 143mV) to (A) and measure the delay time with the RPD output at TP12. TDSYL is from the falling edge of the input HSYNC to the falling edge of the RPD output at TP12, and TDSYH is from the falling edge of the input HSYNC to the rising edge of the RPD output at TP12.

Input SIG5 (VL = 0mV, WS = 4.7µs, VS = 143mV, horizontal frequency variable) to (A) and confirm that it is synchronized with the HD output at TP23. Obtain the frequency f

H at which the input and output are

synchronized by changing the horizontal frequency of SIG5 from the non-synchronized condition. HPLLN = f

H – 15734

HPLLP = f

H – 15625

∆VWLIM

White limiter DC voltage difference

Input SIG5 (VL = 350mV) to (A). Measure the DC voltage at TP41, TP44 and TP46 and obtain the difference versus the RGB output voltage VOUT.

3.0

V

VDROFF

RGB output range when FRP polarity reverse is stopped

Input SIG8 to (A). Assume the black limiter level of the output at TP41, TP44 and TP46 when serial bus register BRIGHT = 0H as VDRB and the white limiter level when BRIGHT = OFFH as VDRW. VDROFF = VDRW – VDRB

Item Symbol Conditions Min. Typ. Max. Unit

– 19 –

CXA2543R

tTLH

tTHL

∆T

DTYHC

VTEXTB

VTEXTW

TDEXTH

TDEXTL

EXTBK

EXTWT

30

ns

30

ns

10

ns

47 50 53

%

0.8 1.0 1.2

V

1.8

2.0 2.2

V

50 100

150

ns

50 100 150

ns

0

V

3.5

V

180

ns

Output transition time (P12

∗

3

pin)

Cross-point time difference

HCK duty

Input SIG5 (VL = 0mV) to (A). Measure the transition time for each output. Load = 30pF (See Fig. 3.)

Input SIG5 (VL = 0mV) to (A). Measure HCK1/HCK2. Load = 30pF (See Fig. 4.)

Input SIG5 (VL = 0mV) to (A). Measure the HCK1/HCK2 duty. Load = 30pF

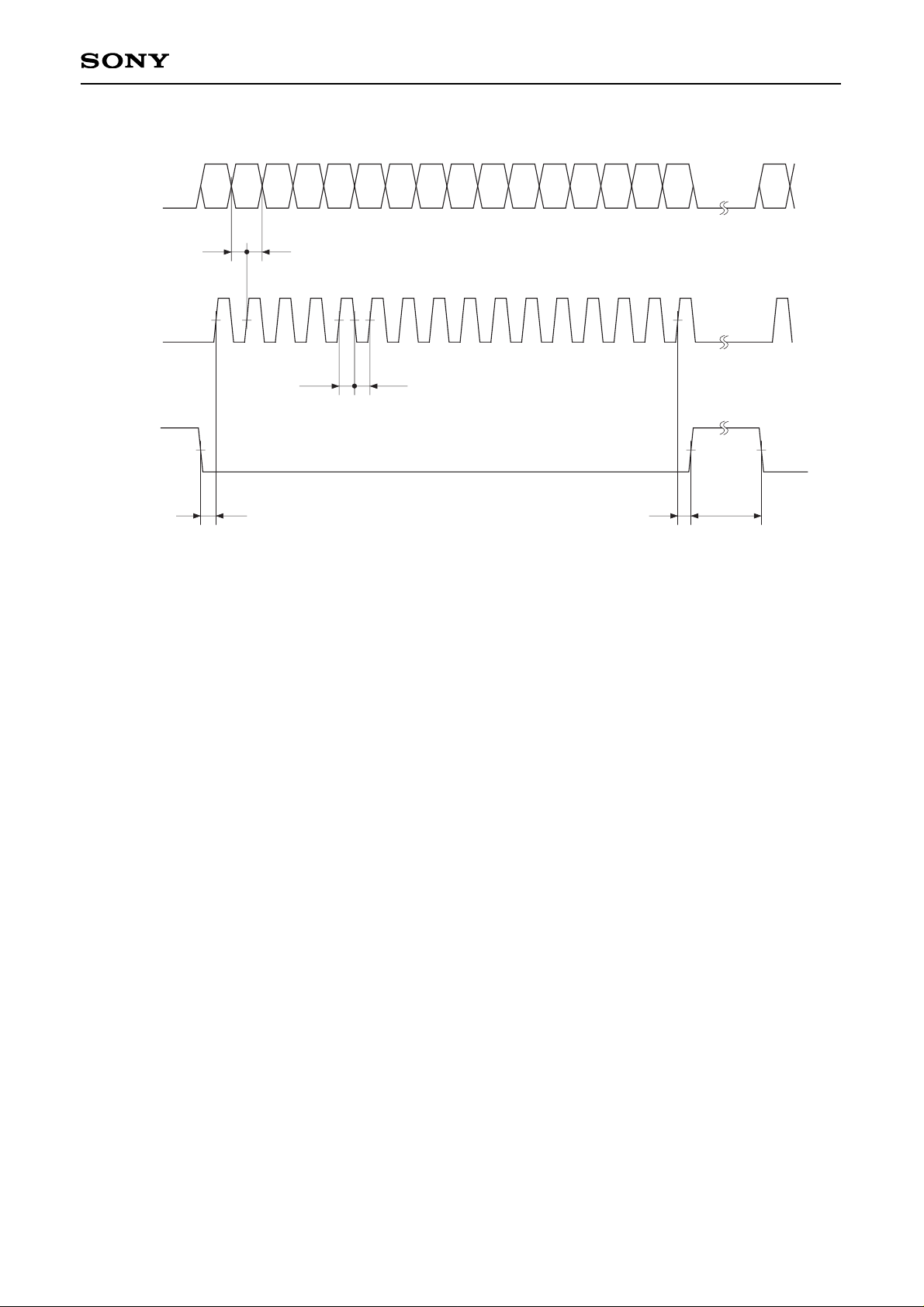

LOAD setup time, activated by the rising edge of SCLK. (See Fig. 6.)

DATA setup time, activated by the rising edge of SCLK. (See Fig. 6.)

LOAD hold time, activated by the rising edge of SCLK. (See Fig. 6.)

DATA hold time, activated by the rising edge of SCLK. (See Fig. 6.)

SCLK pulse width. (See Fig. 6.) SCLK pulse width. (See Fig. 6.) LOAD pulse width. (See Fig. 6.)

150

1

160 160

ns

ns ns µs

ts0

ts1

th0

th1

tw1L tw1H tw2

Serial transfer block

Data setup time

Data hold time

Minimum pulse width

Input SIG5 (VL = 0mV) to (A) and SIG6 (VL variable) to (C). Raise the SIG6 amplitude (VL) from 0V and assume the voltage where the outputs at TP41, TP44 and TP46 go to black level as VTEXTB. Then raise the amplitude further and assume the voltage where these outputs go to white level as VTEXTW. SW6, SW7, SW8 = B

Input SIG5 (VL = 0mV) to (A) and SIG6 (VL = 3V) to (C). Measure the rise delay time TD1EXT and the fall delay time TD2EXT of the outputs at TP41, TP44 and TP46. (See Fig. 2.) SW6, SW7, SW8 = B

Input SIG5 (VL = 0mV) to (A) and SIG6 (VL = 1.7V) to (C). Measure the difference from the black level of the outputs at TP41, TP44 and TP46. SW6, SW7, SW8 = B

Input SIG5 (VL = 0mV) to (A) and SIG6 (VL = 2.7V) to (C). Measure the difference from the black level of the outputs at TP41, TP44 and TP46. SW6, SW7, SW8 = B

TEXTMIN

Input SIG5 (VL = 0mV) to (A) and SIG6 (VL = 2.7V) to (C). Measure the minimum pulse width at which each of the outputs at TP41, TP44 and TP46 reach the white limiter. SW6, SW7, SW8 = B

External I/O characteristics

External RGB input threshold voltage

Propagation delay time between external RGB input and output

Output blanking level during external RGB input

Output white level during external RGB input

Minimum pulse width during external RGB input

Item Symbol Conditions Min. Typ. Max. Unit

– 20 –

CXA2543R

Setting 2

Power supply characteristics

Digital block I/O characteristics

Description of Electrical Characteristics Measurement Methods

Serial Bus Register Initial Values

Item Symbol

Serial bus

Mode settings

Input System Aspect S/H HUE COLOR BRIGHT

CONTRAST

R-BRT B-BRT

γ1 γ2

DAC settings

Low level input voltage

High level input voltage

Input current

CKI pin low input current

CKI pin high input current

High level output voltage

Low level output voltage

High level output voltage

Low level output voltage

High level output voltage

Low level output voltage

Output off leak current

ICC11

ICC12

ICC13

ICC2A

ICC2B

IDD1

IDD2

VIL

VIH

II1

II2

II3

VOH1

VOL1

VOH2

VOL2

VOH3

VOL3

IOFF

COMP

Y/C

Y/color

difference

COMP

NTSC

Panel

—

LCX018

—

4:3

16:9

—

SHS1

80H

0H

PSIG-BRT

80H

78H

80H

(–: don't care, ADJ: adjustment, SET: setting)

Horizontal AFC

adjustment

Current

consumption V

CC1

Current

consumption V

CC2,3

Current

consumption V

DD

– 21 –

CXA2543R

Y signal block

Item Symbol

Serial bus

Mode settings

Input System Aspect S/H HUE COLOR BRIGHT

CONTRAST

R-BRT B-BRT

γ1 γ2

DAC settings

Video maximum gain

Contrast

characteristics TYP

Contrast

characteristics MIN

Y signal frequency

response 1

Y signal frequency

response 2

Picture quality

adjustment variable

amount 1

Picture quality

adjustment variable

amount 2

Carrier leak

Y signal I/O delay

time

GV

GCNTTP

GCNTMN

FCYYC

FCYCMN

FCYCMP

FCL

GSHP1X

GSHP1N

GSHP2X

GSHP2N

CRLEKY

TDYYC

TDYCMN

TDYCMP

COMP

Y/C

COMP

Y/C

COMP

Y/C

COMP

NTSC

PAL

NTSC

—

NTSC

PAL

Panel

—

Through

80H

0A0H

60H

96H

0FFH

80H

0H

80H

0H

PSIG-BRT

80H

(–: don't care, ADJ: adjustment, SET: setting)

– 22 –

CXA2543R

Chroma signal block

Item

Symbol

Serial bus

Mode settings

Input System Aspect S/H HUE COLOR BRIGHT

CONTRAST

R-BRT B-BRT

γ1 γ2

DAC settings

ACC amplitude

characteristics 1

ACC amplitude

characteristics 2

APC pull-in range

Color adjustment

characteristics MAX

Color adjustment

characteristics MIN

HUE adjustment

range MAX

HUE adjustment

range MIN

Killer operation

input level

Demodulation output

amplitude ratio NTSC

Demodulation output

phase difference NTSC

Demodulation output

amplitude ratio PAL

Demodulation output

phase difference PAL

ACC1

ACC2

FAPCN

FAPCP

GCOLMX

GCOLMN

HUEMX

HUEMN

ACKN

ACKP

VRBN

VGBN

θRBN

θGBN

VRBP

VGBP

θRBP

θGBP

COMP

NTSC

PAL

NTSC

PAL

NTSC

PAL

NTSC

PAL

NTSC

PAL

Panel

—

Through

80H

0FFH

0H

80H

0FFH

0H

80H

96H

60H

80H

0H

PSIG-BRT

80H

(–: don't care, ADJ: adjustment, SET: setting)

– 23 –

CXA2543R

Chroma signal block

RGB signal output block

Item Symbol

Serial bus

Mode settings

Input System Aspect S/H HUE COLOR BRIGHT

CONTRAST

R-BRT B-BRT

γ1 γ2

DAC settings

Color difference input

color adjustment

characteristics MAX

Color difference input

color adjustment

characteristics MIN

Color difference balance

Color difference input

balance adjustment R

Color difference input

balance adjustment B

G-Y matrix

characteristics NTSC

G-Y matrix

characteristics PAL

RGB signal and PSIG

output DC voltage

RGB signal and PSIG output

DC voltage difference

RGB and PSIG output

limiter operation voltage

Amount of change in

brightness

Amount of change in

PSIG

GEXCMX

GEXCMN

VEXCBL

GEXRMX

GEXRMN

GEXBMX

GEXBMN

VEXGBN

VEXGRN

VEXGBP

VEXGRP

VOUT

∆VOUT

VLIMMX

VLIMMN

BRTMX

BRTMN

PSIGMX

PSIGMN

Y/color

difference

Y/color

difference

Y/color

difference

Y/color

difference

Y/color

difference

Y/color

difference

Y/color

difference

Y/color

difference

Y/color

difference

Y/color

difference

Y/color

difference

—

NTSC

PAL

—

Panel

—

Through

80H

0FFH0H0FFH

0H

80H

0FFH

0H

80H

96H

ADJ

0H

0FFH

80H

0H

PSIG-BRT

80H

64H

0FFH

0H

(–: don't care, ADJ: adjustment, SET: setting)

– 24 –

CXA2543R

RGB signal output block

Item Symbol

Serial bus

Mode settings

Input System Aspect S/H HUE COLOR BRIGHT

CONTRAST

R-BRT B-BRT

γ1 γ2

DAC settings

Amount of change in

sub-brightness

Difference in gain between

RGB output signals

Difference in RGB output

inverted/non-inverted gain

Difference in black

level potential between

RGB output signals

γ gain

γ1 adjustment

variable range

γ2 adjustment

variable range

PSIG transition time

RGB output white limiter

operation voltage

Black limiter DC

voltage difference

White limiter DC

voltage difference

RGB output range

when FRP polarity

reverse is stopped

SBBRT

∆GRGB

∆GINV

∆VBL

Gγ1

Gγ2

Gγ3

Vγ1MN

Vγ1MX

Vγ2MN

Vγ2MX

tPSIGH

tPSIGL

VWLIM

∆VBLIM

∆

VWLIM

VDROFF

—

Panel

—

Through

80H

0B4H

80H

ADJ

60H

0B4H

0H

0B4H

SET

80H

ADJ

46H

80H

0FFH

80H

0FFH

80H

SET

80H

SET

80H

0H

78H

0H

0FFH

0H

0D7H

0H

0FFH

0H

PSIG-BRT

80H

0FFH

80H

(–: don't care, ADJ: adjustment, SET: setting)

– 25 –

CXA2543R

Sync separation, TG block

Filter characteristics

External I/O characteristics

Item Symbol

Serial bus

Mode settings

Input System Panel S/H HUE COLOR BRIGHT

CONTRAST

R-BRT B-BRT

γ1 γ2

DAC settings

PSIG-BRT

(–: don't care, ADJ: adjustment, SET: setting)

Amount of BPF attenuation

Amount of TRAP attenuation

R-Y, B-Y and LPF characteristics

Input sync signal width sensitivity

Sync separation input sensitivity

Sync separation output

delay time

Horizontal pull-in range

Output transition time

Cross-point time difference

HCK duty

External RGB input

threshold voltage

Propagation delay time between

external RGB input and output

Output blanking level during

external RGB input

Output white level during

external RGB input

Minimum pulse width during

external RGB input

ATBPF

COMP

SET

Y/C

COMP

—

NTSC

PAL

NTSC

—

NTSC

PAL

—

Through

80H

60H

80H

64H

80H

80H 0H

0H

80H

Through

—

ATRAPN

ATRAPP

DEMLPF

WSSEP

VSSEP

TDSYL

TDSYH

HPLLN

HPLLP

tTLH

tTHL∆TDTYHC

VTEXTB

VTEXTW

TDEXTH

TDEXTL

EXTBK

EXTWT

TEXTMIN

Aspect

—

– 26 –

CXA2543R

SIG6

TP41, 44, 46 non-inverted output

TDEXTH TDEXTL

3V

0V

50%

Fig. 2. Conditions for measuring the delay between external RGB input and output

tTLH

90%

tTHL

10%

50%

∆T ∆T

Fig. 3. Output transition time

measurement conditions

Fig. 4. Cross-point time difference

measurement conditions

VG1

Non-inverted output

VG2

VG3

3.5V

White

Black

1.5V

Input

Fig. 5. γ characteristics measurement conditions

– 27 –

CXA2543R

D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 D15

ts1 th1

tw1H tw1L

50%

DATA

SCLK

50%

th0 tw2ts0

LOAD

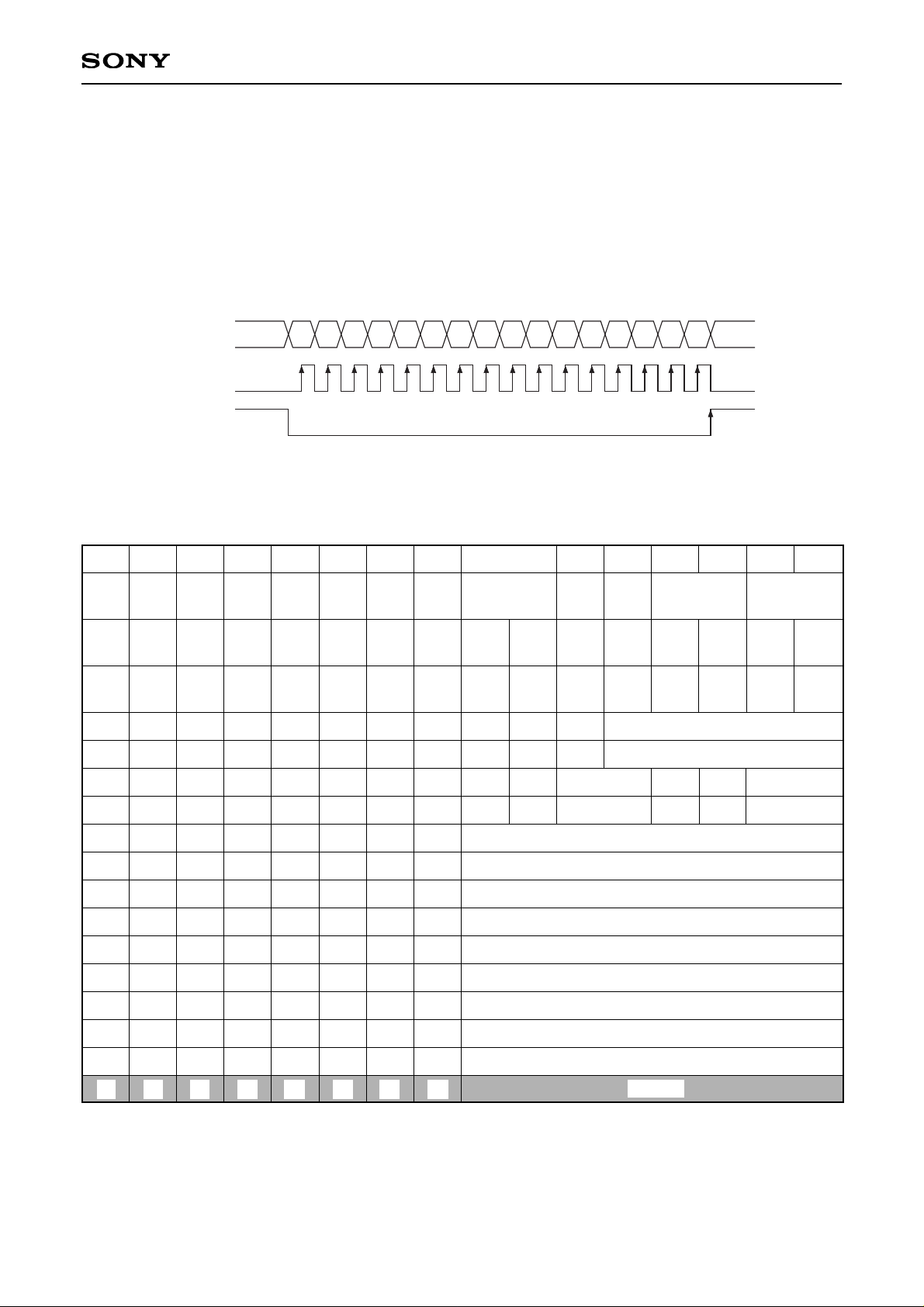

Fig. 6. Serial transfer block measurement conditions

– 28 –

CXA2543R

Input Waveforms

SG No. Waveform

SIG1

143mV

150mV

Sine wave video signal: With/without burst

Amplitude and frequency variable

← Value noted on left: 0dB

SIG2

SIG3

143mV

150mV

← Value noted on left: 0dB

Chroma signal: Burst, chroma frequency (3.579545MHz, 4.433619MHz)

Chroma phase and burst frequency variable

143mV

357mV

Ramp waveform

1H

SIG4

SIG5

143mV

150mV

5-step staircase waveform

1H

VL

VS

WS

VL amplitude variable VS variable: 143mV unless otherwise specified WS variable:4.7µs unless otherwise specified f

H variable: 15.734kHz (NTSC) or

15.625kHz (PAL) unless otherwise specified

fH

– 29 –

CXA2543R

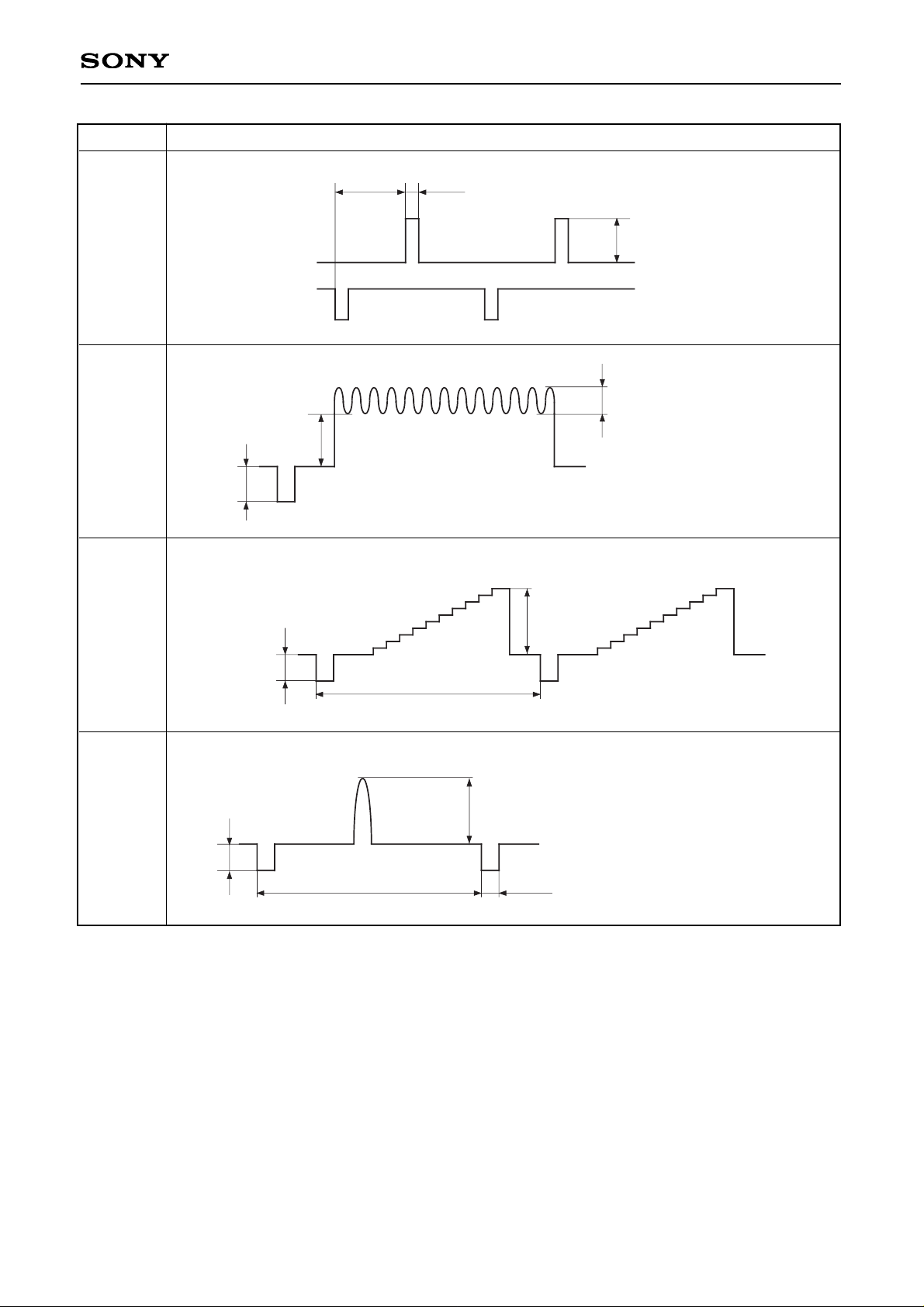

SG No. Waveform

SIG6

VL

VL amplitude variable

Horizontal sync signal

30µs 5µs

SIG7

143mV

75mV

Frequency variable

175mV

SIG8

143mV

357mV

10-step staircase waveform

1H

SIG9

VL

VS

WS

VL amplitude variable VS variable: 143mV unless otherwise specified WS variable: 4.7µs unless otherwise specified f

H variable: 15.734kHz (NTSC) or

15.625kHz (PAL) unless otherwise specified

fH

2T pulse waveform

– 30 –

CXA2543R

Electrical Characteristics Measurement Circuit

V62

TP11

TP17

0.47µ

47µ

0.1µ

ICC2

0.47µ

TP44

300p

TP46

300p

TP39

10000p

0.01µ

A B

0.01µ

A B

TP53

(E)

(D)

0.068µ

15k

0.22µ

SW54

V54

∗

1

∗

2

1µ

47µ

0.1µ

+4.5V

I

CC

1

A B

(B)

15k

∗

6

SW64

V64

∗

4

47µ

0.1µ

3V

I

CC

3

C

TP12

1k

33k

220p

0.01µ

3.3µ

10k

6800p

∗

3

0.47µ

750

0.033µ

(C)

AB AB AB

∗

5

(A)

TP18

TP19

TP20

TP21

TP22

TP23

TP24

TP25

TP26

TP27

TP28

TP29

TP30

TP32

TP33TP34TP35TP36

+12V

TP41

300p

VCC1

B-Y IN

R-Y IN

C OUT

BLK LIM

APC

VXO OUT

VXO IN

V REG

C IN

TEST3

Y IN

PIC

F0 ADJ

PWRST

VD

V

SS

2

EN

XEN

VCK1

VCK2

VST

XVST

FLD IN

HD

PCG

XPCG

HCK1

HCK2

HST

XHST

V

DD

1

CKO

CKI

V

SS

1

RPD

TEST2

EXT B

EXT G

EXT R

S.SEP IN

H.FIL OUT

SYNC IN

GND1

TRAP

SCLK

DATA

LOAD

RGT

FB PSIG

GND3

PSIG

V

CC

3

B OUT

FB B

G OUT

FB G

R OUT

FB R

V

CC

2

SIG.CENTER

2

3

4

5

6

7

8

9

10

11

12

13

14 15

16

1

46

40

39

38

37

36

35

34

33

41

42

43

44

47

48

49

50

51

52

53

54

55

56

57

58

59

60

63

64

61

62

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

1µ

SW52

SW51

SW59

VD IN

TEST1

GND2

0.47µ

10k

SW6 SW7 SW8

TP10TP9

TP60

45

0.01µ

V14

SW62

L

∗

1

Used crystal: KINSEKI CX-5F

Frequency deviation: within ±30ppm, frequency temperature characteristics: within ±30ppm, load capacity: 16pF NTSC: 3.579545MHz PAL: 4.433619MHz

∗

2

NTSC: shorted, PAL: 18pF

∗

3

Variable Capcitance Diode: 1T369 (SONY)

∗

4

DCX501 mode: L value: 4.7µH, C value: 22pF LCX018 (4:3) mode: L value: 4.7µH, C value: 22pF LCX018 (16:9) mode: L value: 2.2µH, C value: 33pF

∗

5

Trap (TDK) NTSC: NLT4532-S3R6B PAL: NLT4532-S4R4

∗

6

Resistance value tolerance: ±2%, temperature coefficient: ±200ppm or less

– 31 –

CXA2543R

Description of Operation

The CXA2543R incorporates the three functions of an RGB decoder block, an RGB driver block and a timing generator (TG) block onto a single chip using Bi-CMOS technology.

1) RGB decoder block

• Input mode switching

The input mode can be switched between composite input, Y/C input and Y/color difference input by the serial bus settings. During composite input: The composite signal is input to Pins 3, 59 and 61. During Y/C input: The Y signal is input to Pins 3 and 61, and the C signal to Pin 59. During Y/color difference input: The Y signal is input to Pins 3 and 61, the B-Y signal to Pin 51, and the R-Y

signal to Pin 52.

• System switching The input system can be switched between NTSC and PAL (DPAL using external delay lines and SPAL ) by the serial bus settings.

• Trap, BPF The center frequency of the built-in trap and BPF can be switched to 3.58Hz during NTSC and 4.43Hz during PAL. During composite input, the Y signal enters the trap circuit and the C signal enters the BPF. These signals do not pass through the trap or BPF during Y/C input and Y/color difference input.

• ACC detection, ACC amplifier The amplitude of the burst signal output from the ACC amplifier is detected and the ACC amplifier is controlled to maintain the burst signal amplitude at a constant level.

• VXO, APC detection The VXO local oscillation circuit is a crystal oscillation circuit. The phases of the input burst signal and the VXO oscillator output are compared in the APC detection block, and the detective output is used to form a PLL loop that controls the VXO oscillation frequency, which means that the need for adjustments is eliminated.

• External inputs These are digital inputs with two thresholds. When one of the RGB inputs is higher than the lower threshold Vth1 (≈ 1.0V), all RGB outputs go to black level. When the higher threshold Vth2 (≈ 2.0V) is exceeded, the output for only the signal in question goes to white level, while the other outputs remain at black level.

– 32 –

CXA2543R

• Sample-and-hold circuit As LCD panels sample RGB signals simultaneously, RGB signals output from the CXA2543R must be sampled-and-hold in sync with the LCD panel drive pulses.

S/H4

G

R

B

S/H2

SH2

S/H1

SH1

S/H3

SH3 SH4

HCK1

A

B

C

2) RGB driver block

• γ correction

In order to support the characteristics of LCD panels, the I/O characteristics are as shown in Fig. 1. The characteristics change as shown in Fig. 2 by adjusting the serial bus register γ1, and as shown in Fig. 3 by adjusting γ2.

Input

Output

Fig. 1

A

B

Input

Output

Fig. 2

A

B

Input

Output

Fig. 3

A'

B'

A

B

B'

The sample-and-hold circuit performs sample-and-hold by receiving the SH1 to SH4 pulses from the TG block. Since LCD panels perform color coding using an RGB delta arrangement, each horizontal line must be compensated by 1.5 dots. This relationship is reversed during right/left inversion. This compensation timing is also generated by the TG block. The sample-and-hold timing changes according to the phase relationship with the HCK1 pulse, so the timing should be set to SHS1, 2 or 3 in accordance with the actual board.

RGT = H (normal) RGT = L (inverted)

SHS1 SH1 SH2 SH3 SH4

A B

Through

C

C A

Through

B

B C

Through

A

SHS2 SHS3 SHS1

SH1 SH2 SH3 SH4

Through

B A C

Through

A C B

Through

C B A

SHS2 SHS3

LCX018

RGT = H (normal) RGT = L (inverted)

SHS1 SH1 SH2 SH3 SH4

B

Through

A C

A

Through

C B

C

Through

B A

SHS2 SHS3 SHS1

SH1 SH2 SH3 SH4

B A

Through

C

A C

Through

B

C B

Through

A

SHS2 SHS3

SH1: R signal SH pulse SH2: G signal SH pulse SH3: B signal SH pulse SH4: RGB signal SH pulse

DCX501

– 33 –

CXA2543R

• RGB output RGB outputs (Pins 41, 44, and 46) are inverted each horizontal line by the FRP pulse supplied from the TG block as shown in the figure below. Feedback is applied so that the center voltage (Vsig center) of the output signal matches the reference voltage (VCC2 + GND2)/2 (or the voltage input to SIG CENTER (Pin 50)). In addition, the white level output is clipped by the Vsig center ±0.7V, and the black level output is clipped by the limiter operation point that is adjusted at the BLKLIM (Pin 54).

Video IN

FRP

RGB OUT

Black level limiter

White level limiter

Black level limiter

Vsig center

3) TG block

• PLL and AFC circuits

The TG block contains a PLL circuit phase comparator and frequency division counter, and a PLL circuit can be comprised by connecting an external VCO circuit. The PLL error detection signal is generated at the following timing. The phase comparison output of the entire bottom of HSYNC and the internal frequency division counter becomes RPD. RPD output is converted to DC error with the lag-lead filter, and then it changes the capacitance of variable capacitance diode to stabilize the oscillation frequency at 1066fH in the DCX501BK and LCX018AK (4:3) mode, 1417fH in the LCX018AK (16:9) mode. The PLL of this system is adjusted by setting the the reverse bias voltage of the varicap diode (V14) so that the point at which RPD changes is at the center of the window depicted in the figure below.

WS

WHWL

H SYNC

RPD

WL = WH

• H position The horizontal display position can be set at 2fH intervals in 32 different ways by the serial bus settings. The picture center is set at the internal default value, but because there is a difference between the RGB signal and the drive pulse delays on the actual board, the picture center may not match the design center. In this case, adjust with the serial bus.

– 34 –

CXA2543R

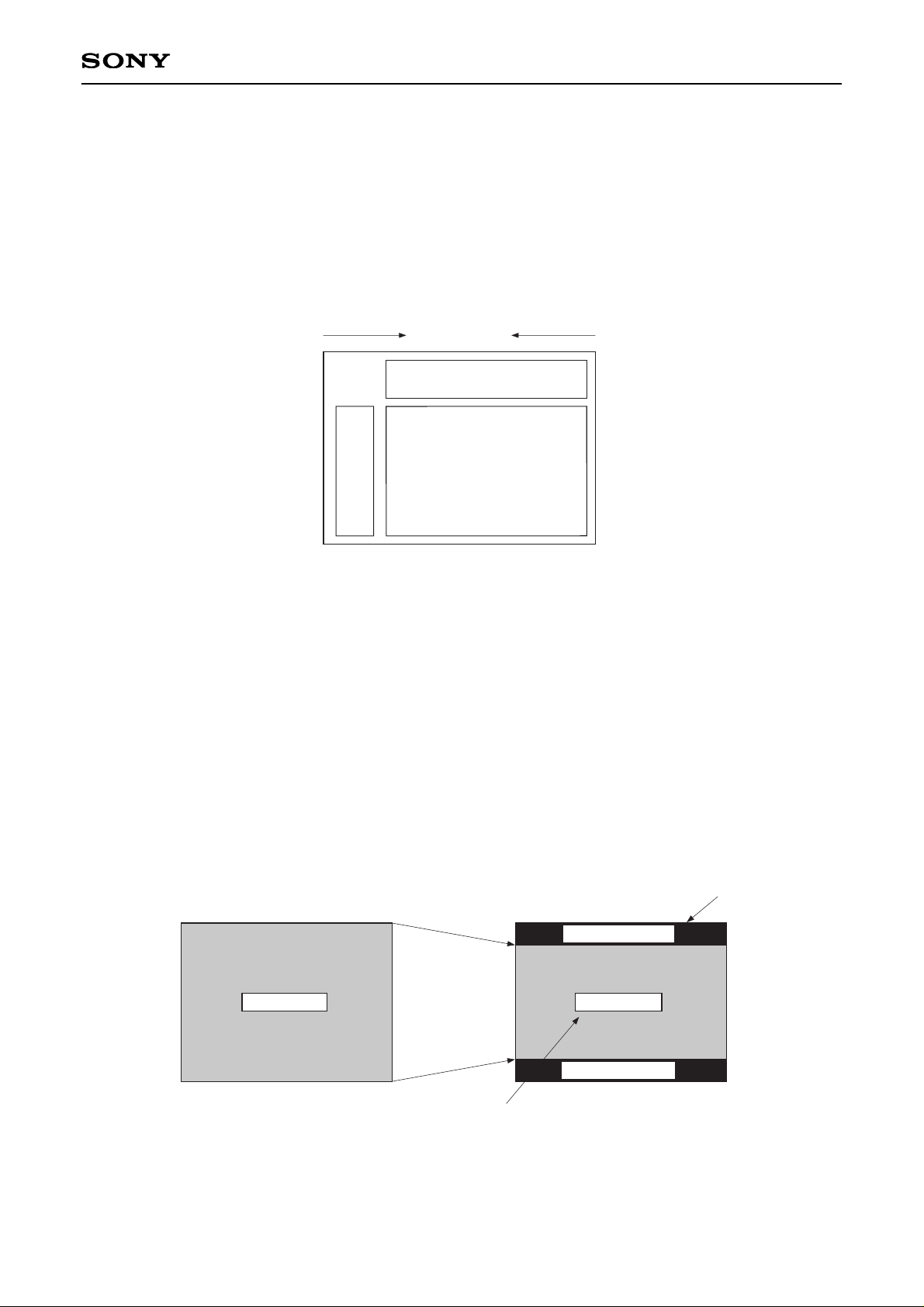

• Right/left inversion The LCD panel is arranged in a delta arrangement, where identical signal lines are offset by 1.5 dots from adjoining lines. For this reason, a 1.5-bit offset is attached to the horizontal start pulse (HST) between odd lines and even lines. HCK and S/H are also 1.5-bit offset. When the panel is driven by left scan (Reverse scan), this offset relationship is inverted for even and odd lines. Moreover, since the dot arrangement is asymmetrical, the HST position is also changed.

RGT = H: Right scan mode RGT = L: Left scan mode

H SCANNER

Left scan

(Reverse scan)

Right scan

(Normal scan)

Display area

V SCANNER

LCD panel

• WIDE mode (DCX501BK mode) Setting the WIDE mode by switching the aspect with the serial bus shifts the unit to WIDE mode. In the DCX501BK mode, the aspect ratio is converted through pulse eliminator processing, allowing 16:9 quasi-WIDE display. During WIDE mode, vertical pulse eliminator scanning of 1/4 for NTSC or 1/2 and 1/4 for PAL are performed, and the video signal is compressed to achieve a 16:9 aspect ratio. In addition, in areas outside the display area, black is displayed in the 28 lines, respectively at the top and bottom of this display area by performing high-speed scanning The method of black display is a writing method by PSIG. By setting PSIG level during high-speed scanning to black display level and writing this black display level at the PCG timing, reliable black display is realized within the limited V blanking period. During this period, HST is masked and video signal input is limited.

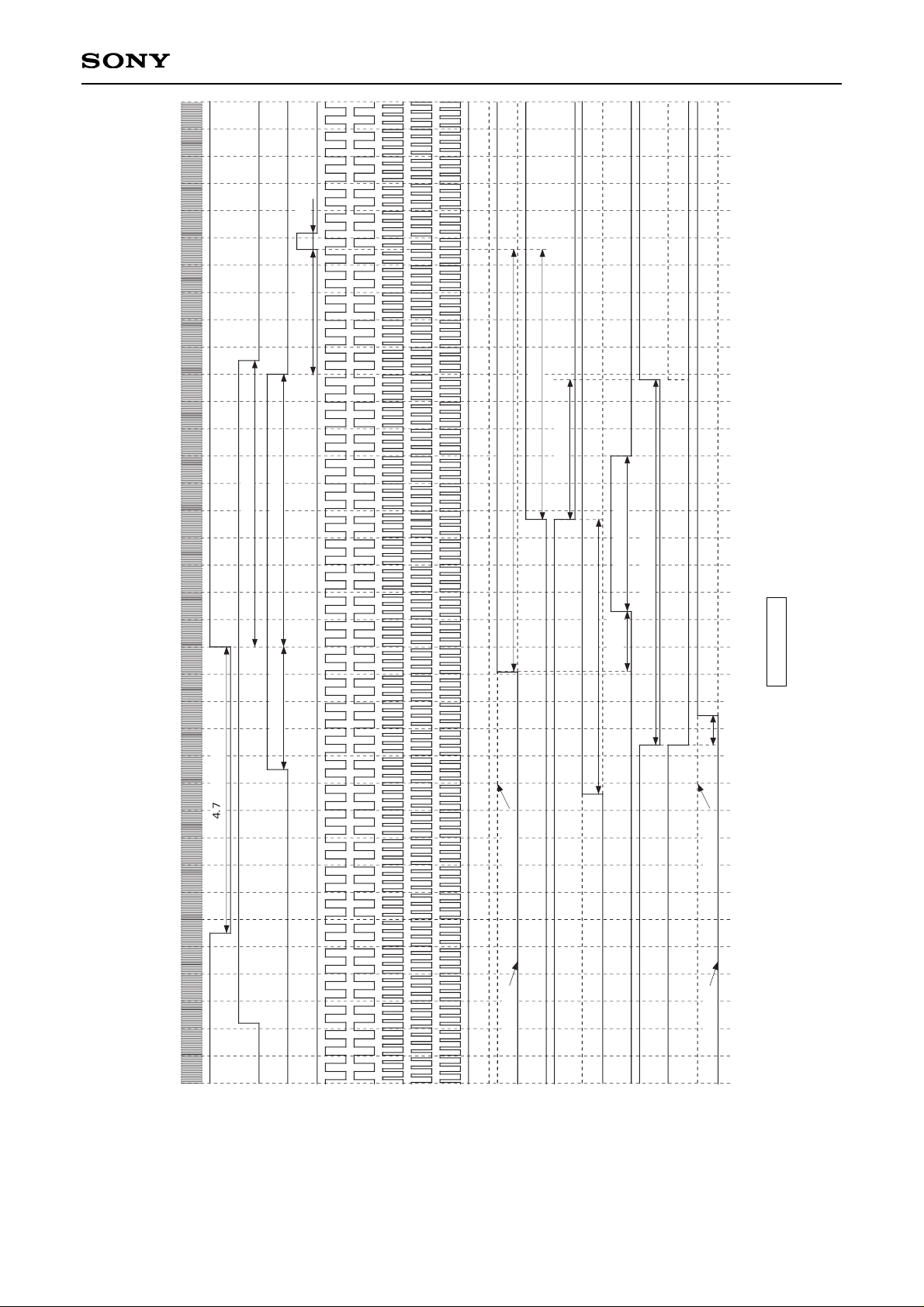

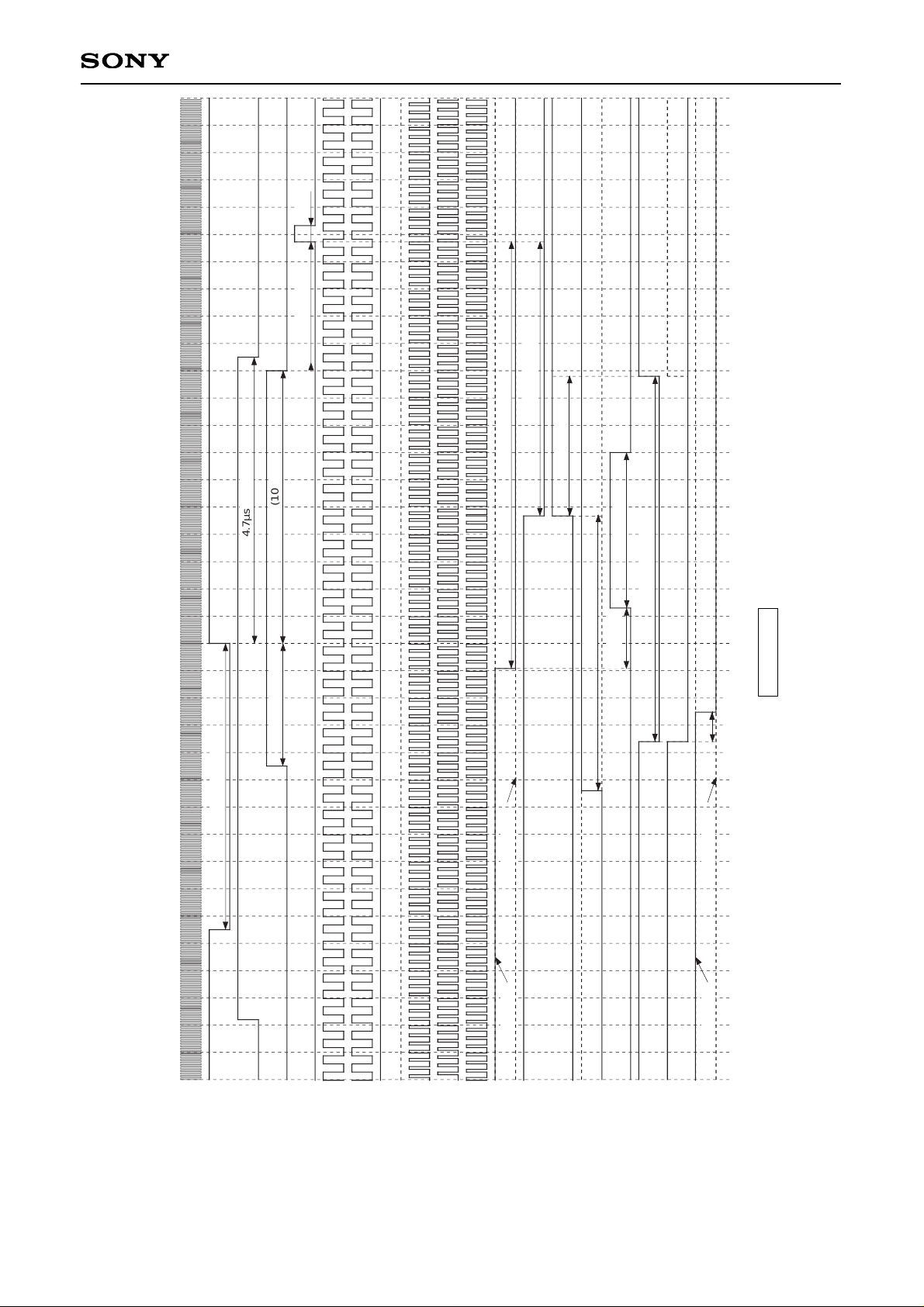

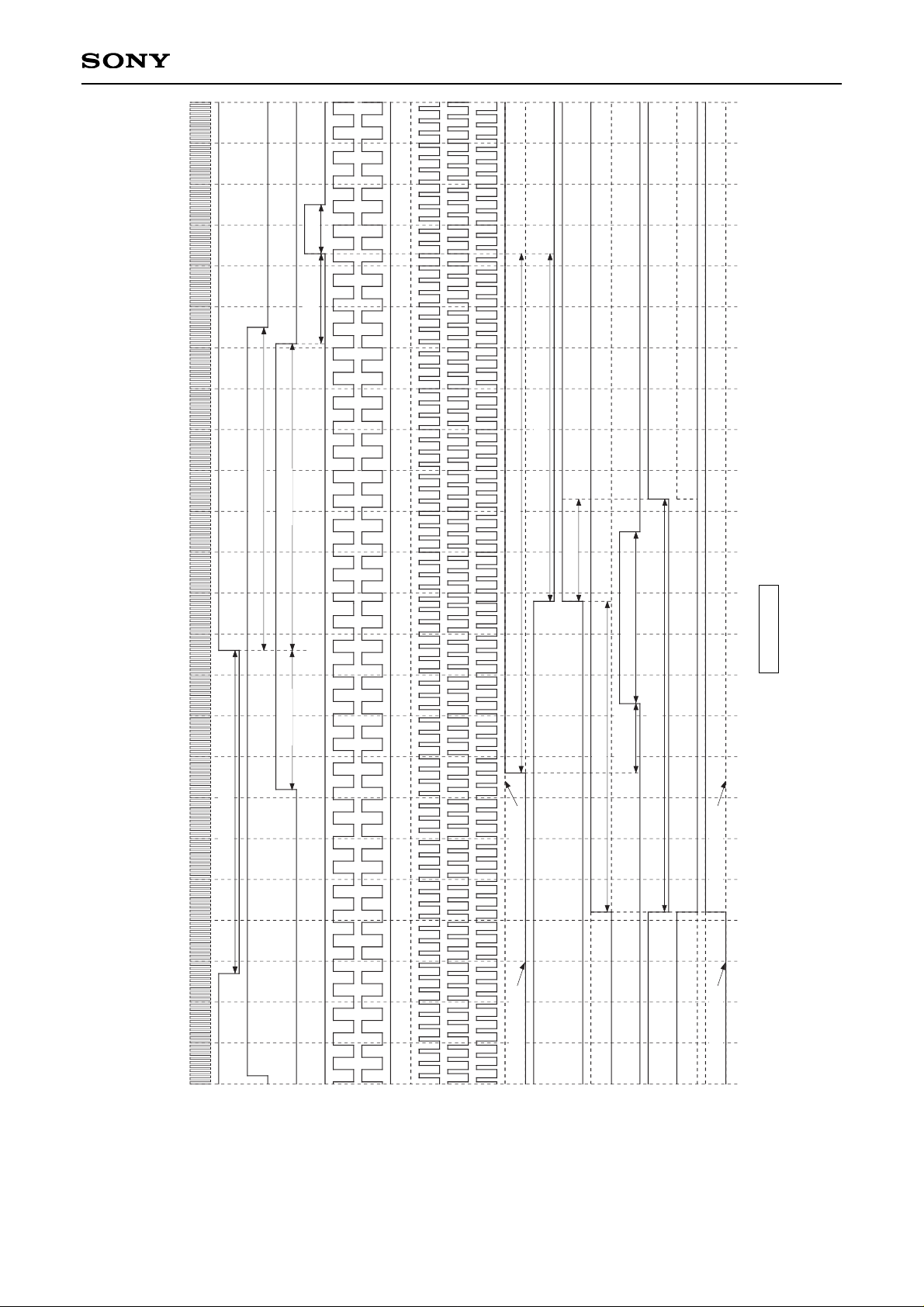

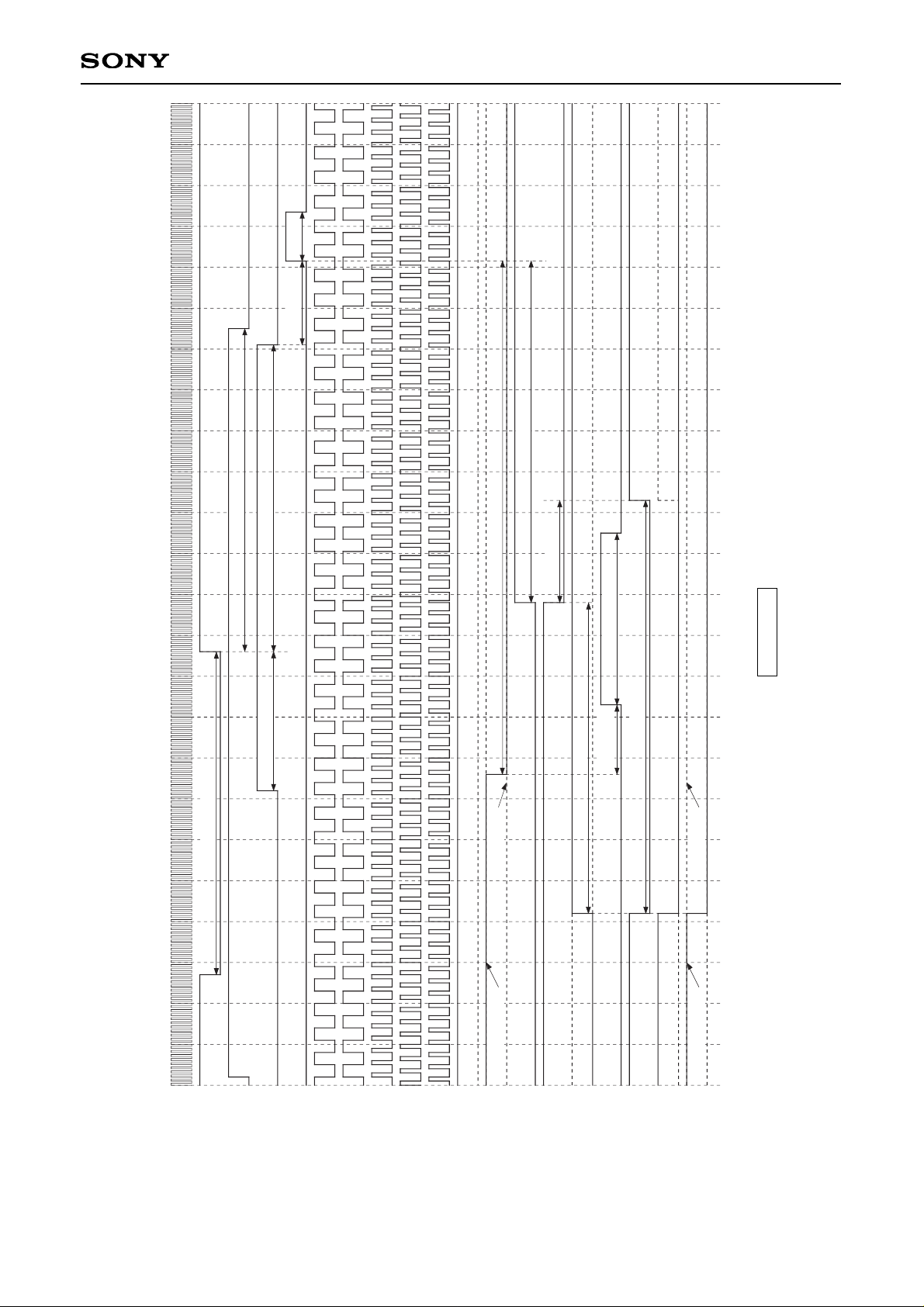

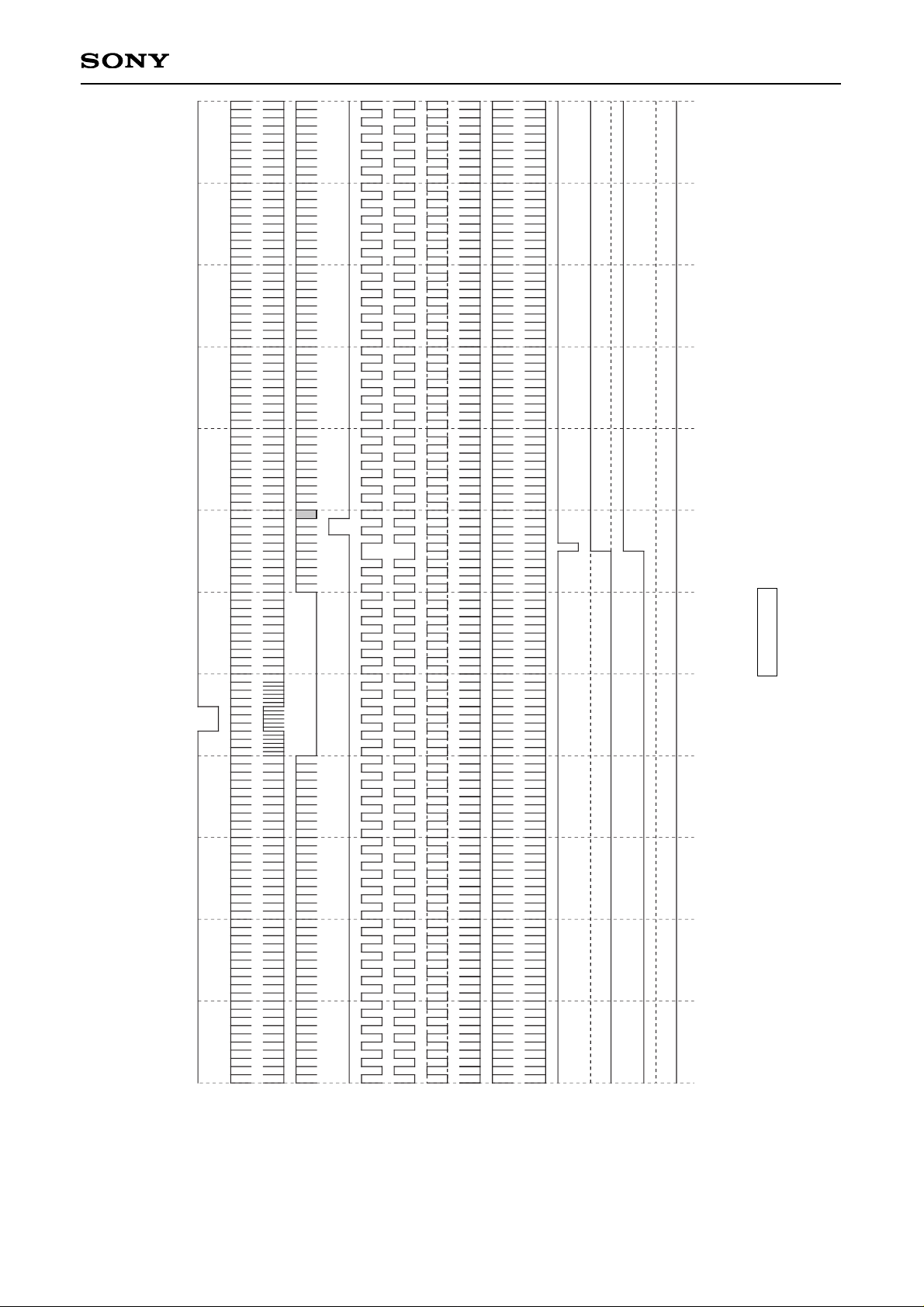

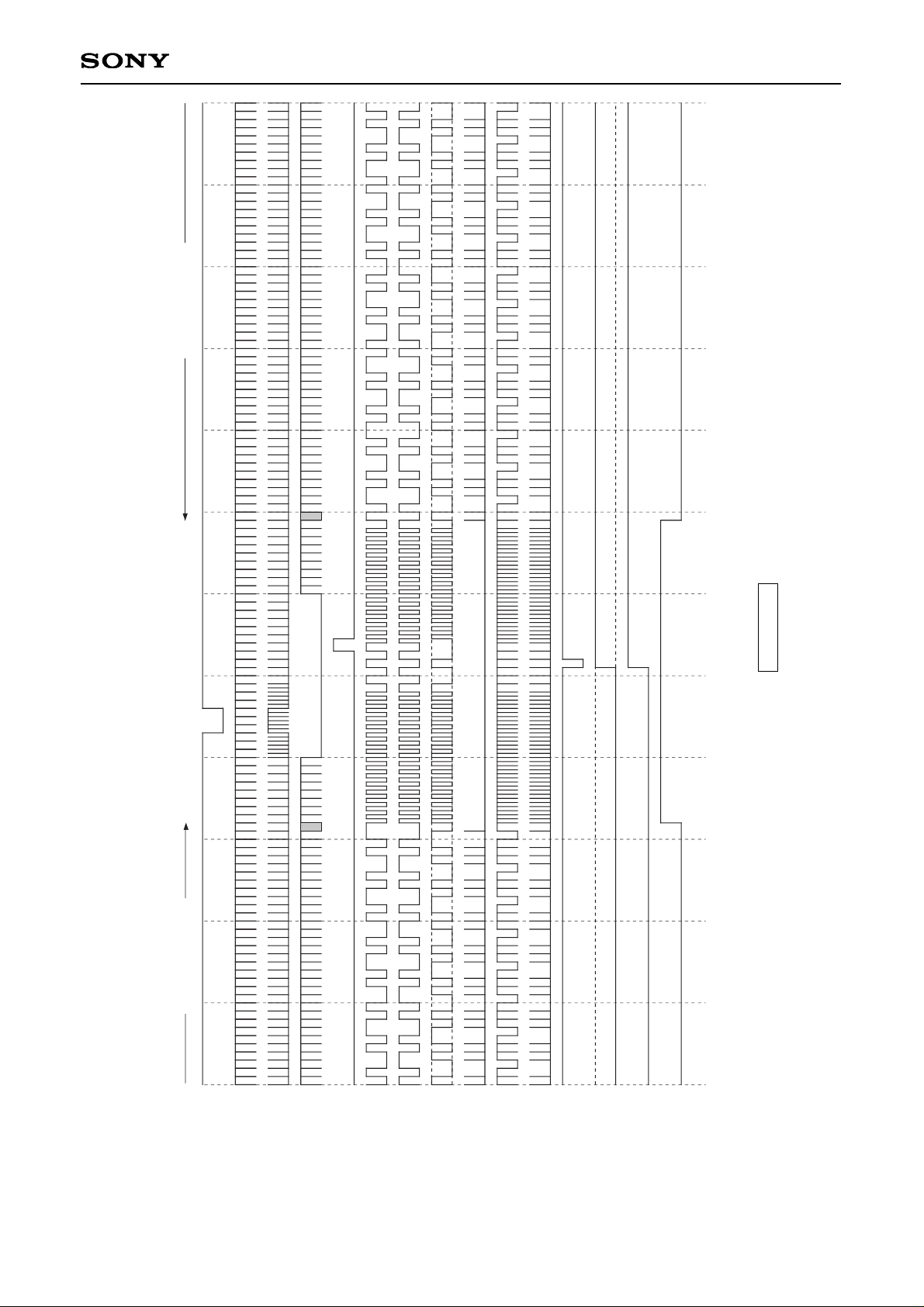

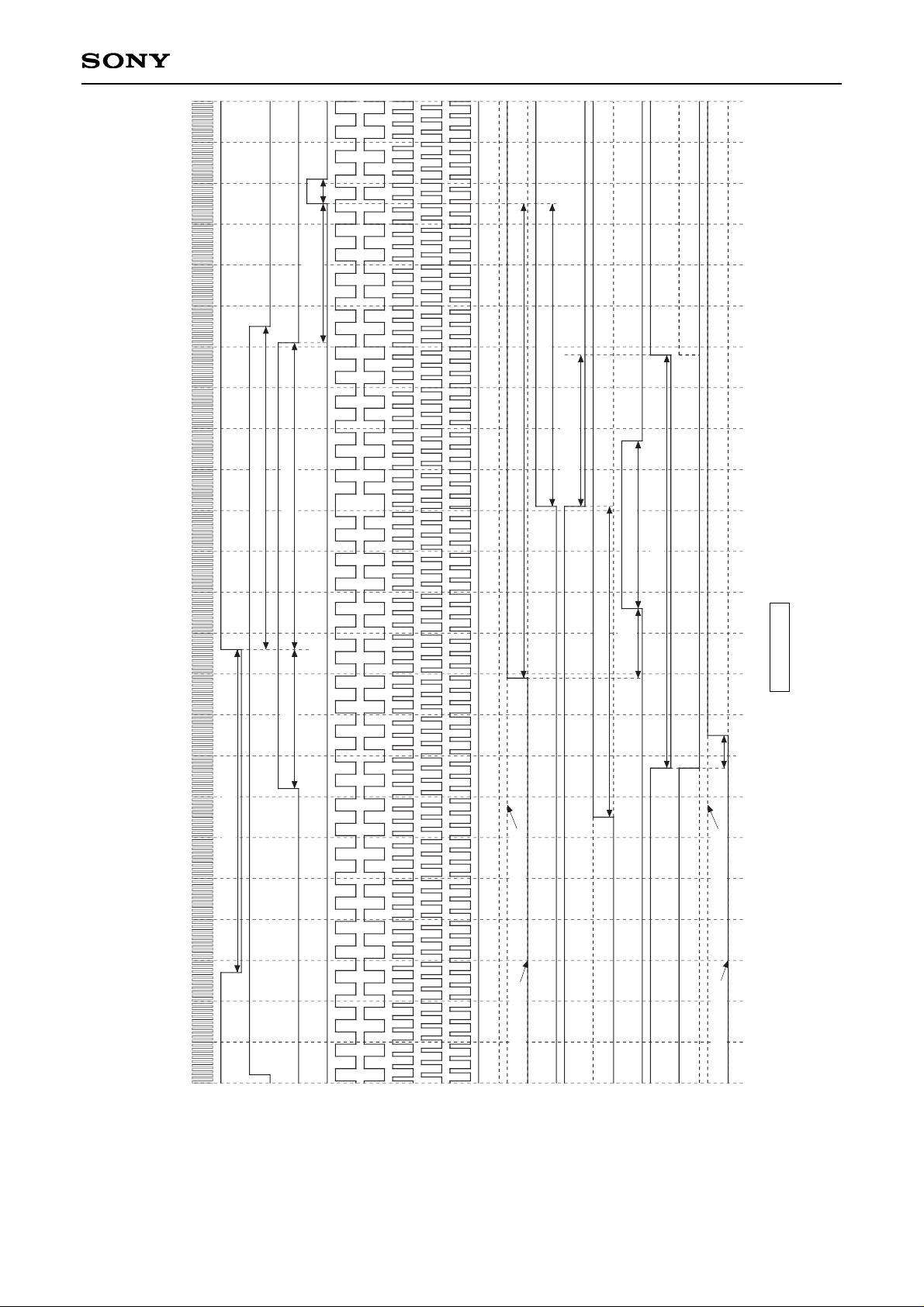

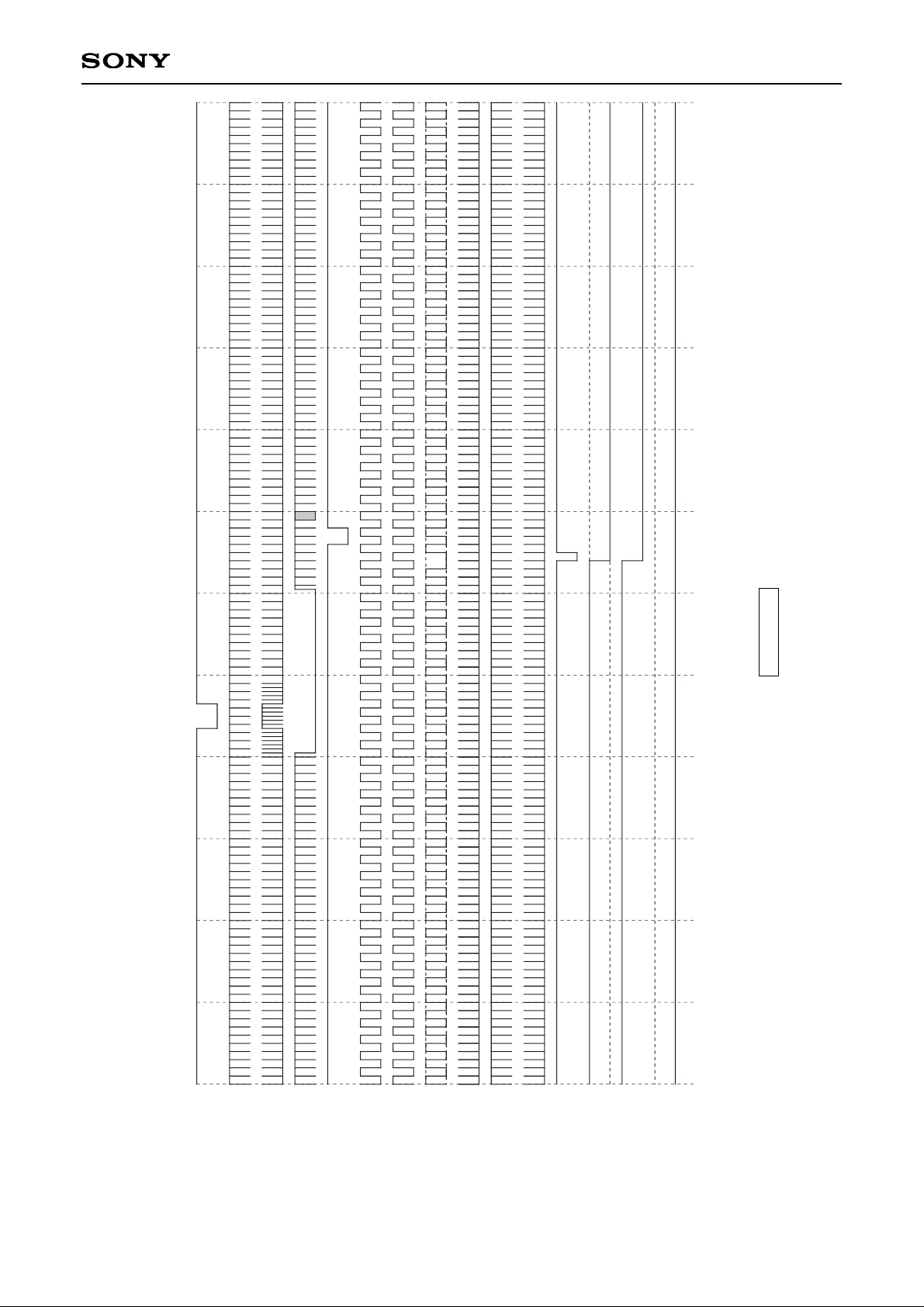

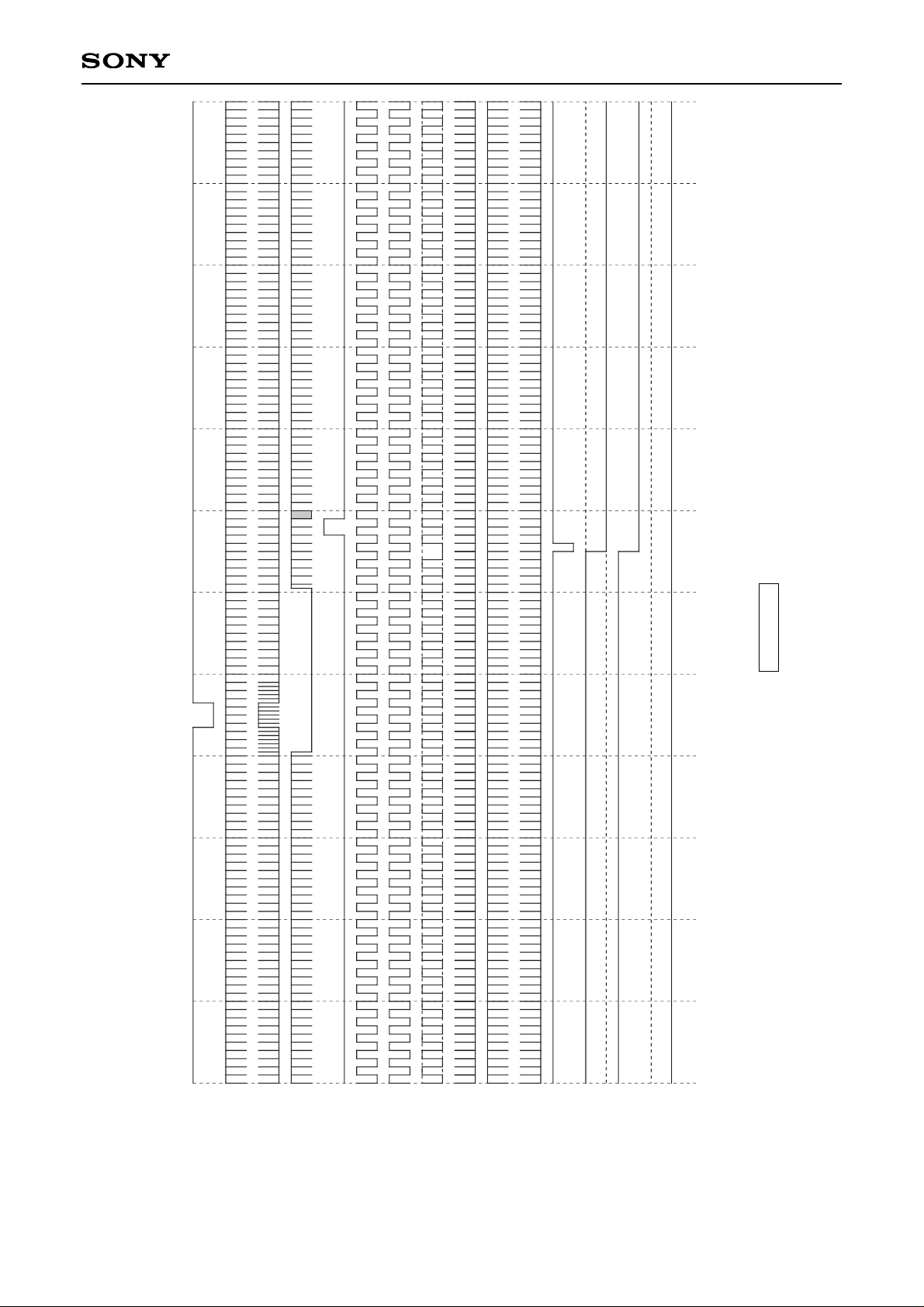

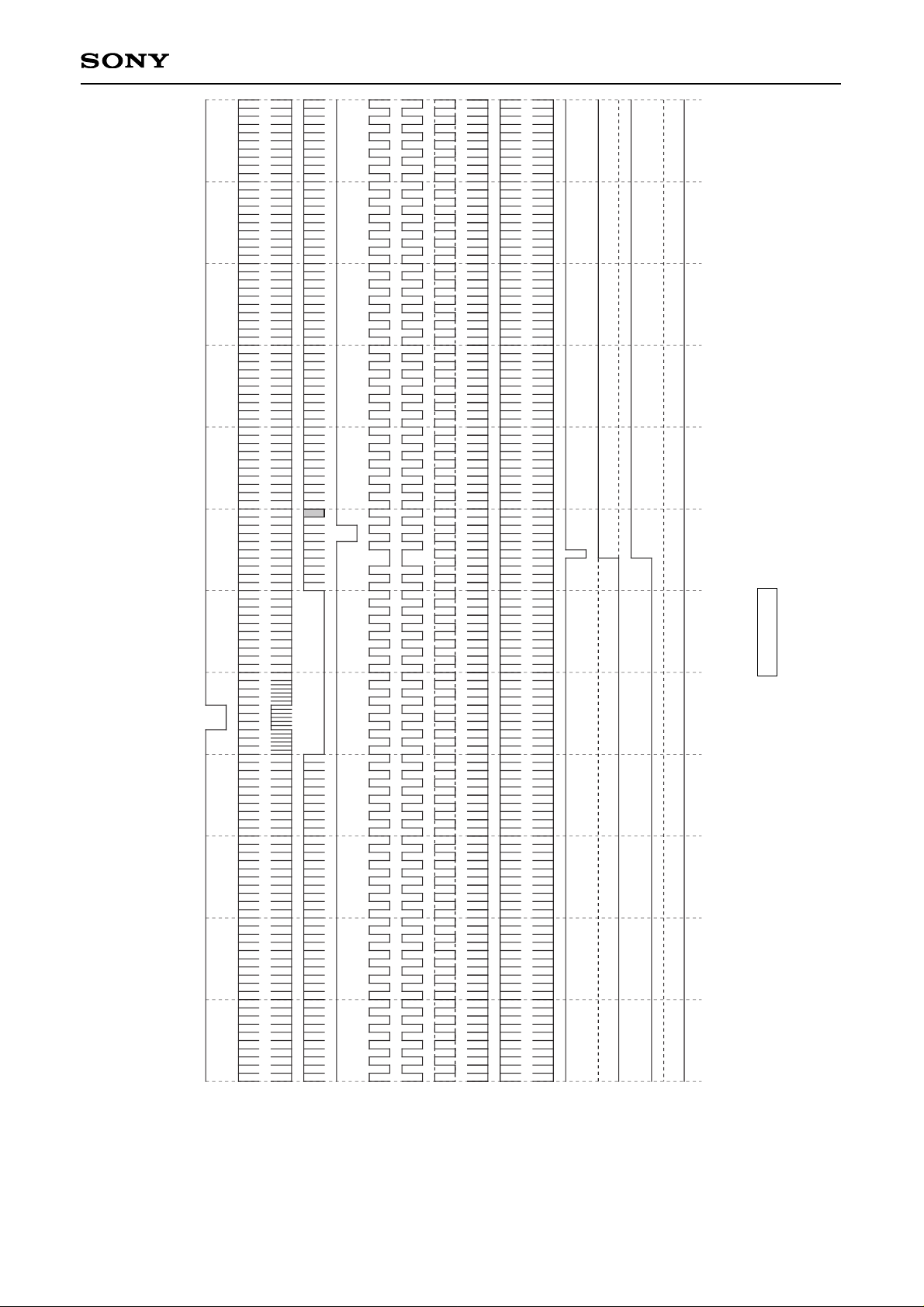

See the attached sheets for detailed timing.

Display area

Black display area

Vertical high-speed scanning

Vertical pulse eliminator scanning

16:9 display4:3 display

225 LINES

169 LINES

28 LINES

DCX501BK

– 35 –

CXA2543R

• AC driving of LCD panels during no signal HST, XHST, HCK1, HCK2, VST, XVST, VCK1, VCK2, PCG, XPCG, EN, XEN, HD, VD, and FRP are made to run freely so that the LCD panel is AC driven even when there is no composite sync from the SYNC IN pin. During this time, the HSYNC separation circuit stops and the PLL counter is made to run freely. In addition, the VSYNC separation circuit is also stopped, so the auxiliary V counter is used to create the reference pulse for generating VD, VST and XVST. The cycle of this v counter is designed to be 525/2H for NTSC and 625/2H for PAL. However, when there is no vertical sync signal for 5 fields, the no signal state is assumed and the free running VD, VST and XVST pulses are generated from the next field. In addition, RPD is kept at high impedance when there is no signal in order to prevent the AFC circuit from causing errors due to phase comparison.

During high-speed scanning During normal-speed scanning

Double-speed scanning

Stop

1H cycle

HST

VCKn

FRP (Internal pulse)

PCG

– 36 –

CXA2543R

Description of Serial Control Operation

1) Control method

Control data consists of 16 bits of data which is loaded one bit at a time at the rising edge of SCLK. This loading operation starts from the falling edge of LOAD and is completed at the next rising edge. (D13 to D15 are dummy data.)

Digital block control data is established by the vertical sync signal and the LOAD "H". If data is transferred multiple times for the same item, the data immediately before the vertical sync signal is valid. Analog (electronic attenuator) block control data becomes valid each time the LOAD signal is input.

D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0

DATA

SCLK

LOAD

Serial transfer timing

2) Serial data map

The serial data map is as follows.

D15

∗

∗ ∗

∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗

∗

∗ ∗

∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗

∗

∗ ∗

∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗

0

0 0

0 0 0 1 1 1 1 1 1 1 1 1

0

0 0

0 0 0 0 0 0 0 0 0 0 0 1

0

0 0

1 1 1 0 0 0 0 1 1 1 1 0

0

1 1

0 0 1 0 0 1 1 0 0 1 1 0

0

1

0 1

0 1 0 0 1 0 1 0 1 0 1 0

0 0

0 0 0

0 0

0 0 0

0 0

0

0 0

PCG width

EN width

PCG position

EN position

0 0

D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0

S/H phase

HD-POSITION

H-POSITION

HUE

COLOR

BRIGHT

CONTRAST

R-BRT B-BRT

γ1 γ2

PSIG-BRT

VD polarityHDpolarity

Supported panel

External V SYNC

FRP polarity

SYNC GEN

FRP256 inversion

Mode

00

PAL decima

-tion

Aspect

Up/down inversion

Y/color difference clamp

FIELD determi

-nation

System

Input switching

Note) Any data transfer performed when addresses D8, D9, D10, D11, D12 = 1, 1, 1, 1, 1 (shadowed portion)

will result in test mode regardless of other data settings. Do not transfer data with these addresses set this way.

∗ ∗ ∗

1 1 1 1 1

TEST

– 37 –

CXA2543R

3) Serial data mode settings (X: don't care)

• Input switching

D1 D0

0 X Composite input (default) 1 0 Y/C input 1 1 Y/color difference input

• System switching

D3 D2

0 X NTSC (default) 1 0 D-PAL 1 1 S-PAL

• Supported panel switching

D4

0 DCX501BK (default) 1 LCX018AK

• Aspect switching

D5

0 4:3 (default) 1 16:9

• Sample-and-hold timing switching

D7 D6

0 0 SHS1 (default) 0 1 SHS2 1 0 SHS3 1 1 Through (sample-and-hold not performed)

• HD output polarity switching

D0

0 Negative polarity (default) 1 Positive polarity

• VD output polarity switching

D1

0 Negative polarity (default) 1 Positive polarity

• Y/color difference clamp position switching This switches the position at which the R-Y and B-Y input signals are clamped during Y/color difference input mode.

D2

0 Pedestal position (default) 1 SYNC position

• Mode switching This is the test mode. Set to normal mode.

D3

0 Normal mode (default) 1 Test mode

– 38 –

CXA2543R

• Sync generator function This stops outputs other than VD and HD of the TG block.

D4

0 OFF (default) 1 ON

Note) Make sure that Vcc2, 3 (12V) and LCD panel power supply should be turned OFF during sync generator

ON.

• Up/down inversion function This switches the up/down inverted display.

D5

0 DOWN (normal display) (default) 1 UP (up/down inverted display)

• FRP256 field inversion This further inverts the polarity of the RGB output that is inverted every 1H for 256 fields.

D6

0 OFF (default) 1 ON

• FRP polarity inversion function

D7

0 ON (1H inversion) (default) 1 OFF (polarity not inverted)

• External field identification input switching Internal field identification is not performed and an externally field input source is used.

D0

0 OFF (internal identification) (default) 1 ON (external input)

• External VSYNC input switching Internal VSYNC separation is not performed and an externally input VSYNC is used.

D1

0 OFF (internal separation) (default) 1 ON (external input)

• PAL pulse elimination switching This switches on/off the PAL pulse elimination function during PAL mode.

D2

0 ON (elimination performed) (default) 1 OFF (elimination not performed)

– 39 –

CXA2543R

• H position setting D4 D3 D2 D1 D0

0 0 0 0 0

: : : : :

1 0 0 0 0 (default)

: : : : :

1 1 1 1 1

Variable in 2fH (= 1 bit) increments

1 step 1 step

CLK (internal)

HST

10001 10000 01111

• HD phase setting D4 D3 D2 D1 D0

0 0 0 0 0 (default)

: : : : :

1 1 1 1 1

Variable in 4fH (= 1 bit) increments

31 steps

HD

00000 11111

HSYNC

– 40 –

CXA2543R

• PCG pulse position This sets the PCG pulse position (A in the figure below).

D1 D0

0 0 (default) 1 1

DCX501 and LCX018 (4:3) mode: variable in 6fH (= 1 bit) increments LCX018 (16:9) mode: variable in 9fH (= 1 bit) increments

• PCG pulse width This sets the PCG pulse width (B in the figure below).

D5 D4

0 0 (default) 1 1

DCX501 and LCX018 (4:3) mode: variable in 8fH (= 1 bit) increments LCX018 (16:9) mode: variable in 12fH (= 1 bit) increments

• EN pulse position This sets the EN pulse position (C in the figure below).

D1 D0

0 0 (default) 1 1

DCX501 and LCX018 (4:3) mode: variable in 4fH (= 1 bit) increments LCX018 (16:9) mode: variable in 6fH (= 1 bit) increments

• EN pulse width This sets the EN pulse width (D in the figure below).

D5 D4

0 0 (default) 1 1

DCX501 and LCX018 (4:3) mode: variable in 8fH (= 1 bit) increments LCX018 (16:9) mode: variable in 12fH (= 1 bit) increments

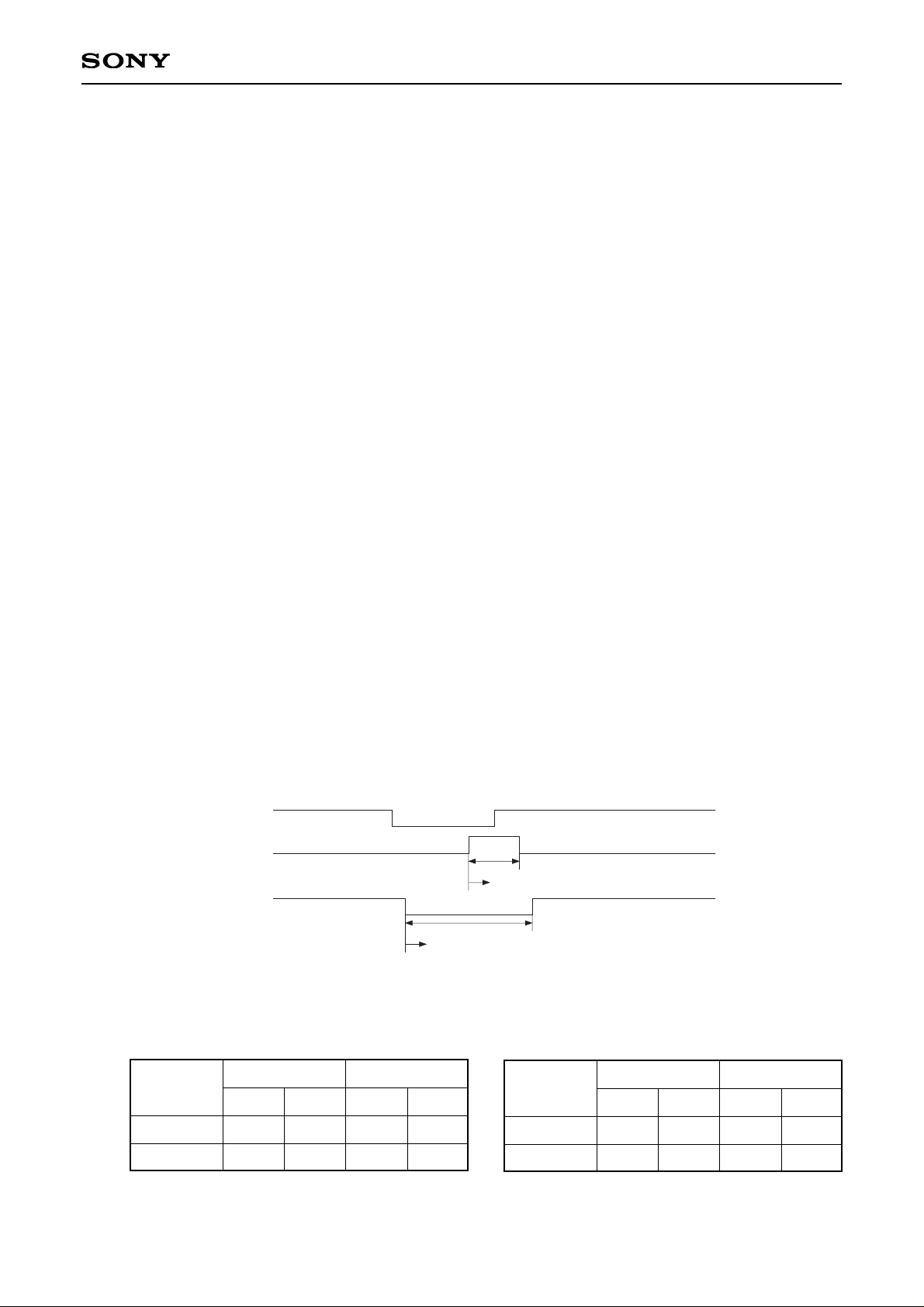

HSYNC

PCG

EN

B

A

D

C

Setting Correspondence Table

Set the positions and widths for the EN and PCG pulses as follows when driving the DCX501BK and the LCX018AK.

LCX018AK

Width

PCG pulse EN pulse

D5

1 0

D4

0 0

D1

0 1

Position

D0

0 1

DCX501BK

Width

PCG pulse EN pulse

D5

0 0

D4

0 0

D1

0 0

Position

D0

0 0

– 41 –

CXA2543R

4) Serial data electronic attenuator (D/A converter) settings

• HUE

D7 D6 D5 D4 D3 D2 D1 D0

1 0 0 0 0 0 0 0 (default)

• COLOR D7 D6 D5 D4 D3 D2 D1 D0

1 0 0 0 0 0 0 0 (default)

• BRIGHT D7 D6 D5 D4 D3 D2 D1 D0

1 0 0 0 0 0 0 0 (default)

• CONTRAST D7 D6 D5 D4 D3 D2 D1 D0

1 0 0 0 0 0 0 0 (default)

• R-BRT D7 D6 D5 D4 D3 D2 D1 D0

1 0 0 0 0 0 0 0 (default)

• B-BRT D7 D6 D5 D4 D3 D2 D1 D0

1 0 0 0 0 0 0 0 (default)

• γ1 D7 D6 D5 D4 D3 D2 D1 D0

0 0 0 0 0 0 0 0 (default)

• γ2 D7 D6 D5 D4 D3 D2 D1 D0

0 0 0 0 0 0 0 0 (default)

• PSIG-BRT D7 D6 D5 D4 D3 D2 D1 D0

0 0 0 0 0 0 0 0 (default)

5) Test mode

Test mode results if data is sent to the following addresses. For this reason, do not perform data transfer using these addresses.

D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0

1 1 1 1 1 ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗

Note) If data transfer is performed in these addresses, the chip will enter test mode regardless of the data set.

– 42 –

CXA2543R

DCX501BK Color Coding Diagram

The delta arrangement is used for the color coding in the LCD panels with which this IC is compatible. Note that the shaded region within the diagram is not displayed.

DCX501BK pixel arrangement

800 12 803

dummy2

Vline3

Vline2

Vline1

dummy1

HSW1 HSW266 HSW267

1

225 227

G B R G B R G B R G B R G B

B R G B R G B R G B R G B R

G B R G B R G B R G B R G B

B R G B R G B R G B R G B R

G B R G B R G B R G B R G B

B R G B R G B R G B R G B R

G B R G B R G B R G B R G B

Display area

HSW2

Vline225

Vline224

HSW268

B R G B R G B R G B R G B R G

Precharge SW

HSW3

R G

B

R

R G

B

R

B

R

R G

B

R

R G

B

R

R G

B

R G

B

R G

B

R G

B

R G

B

R G

R

G

R

G

R

G

R

R G

B

R G

B

R G

B

R G

B

R G

B

R G

Photo-shielding area

– 43 –

CXA2543R

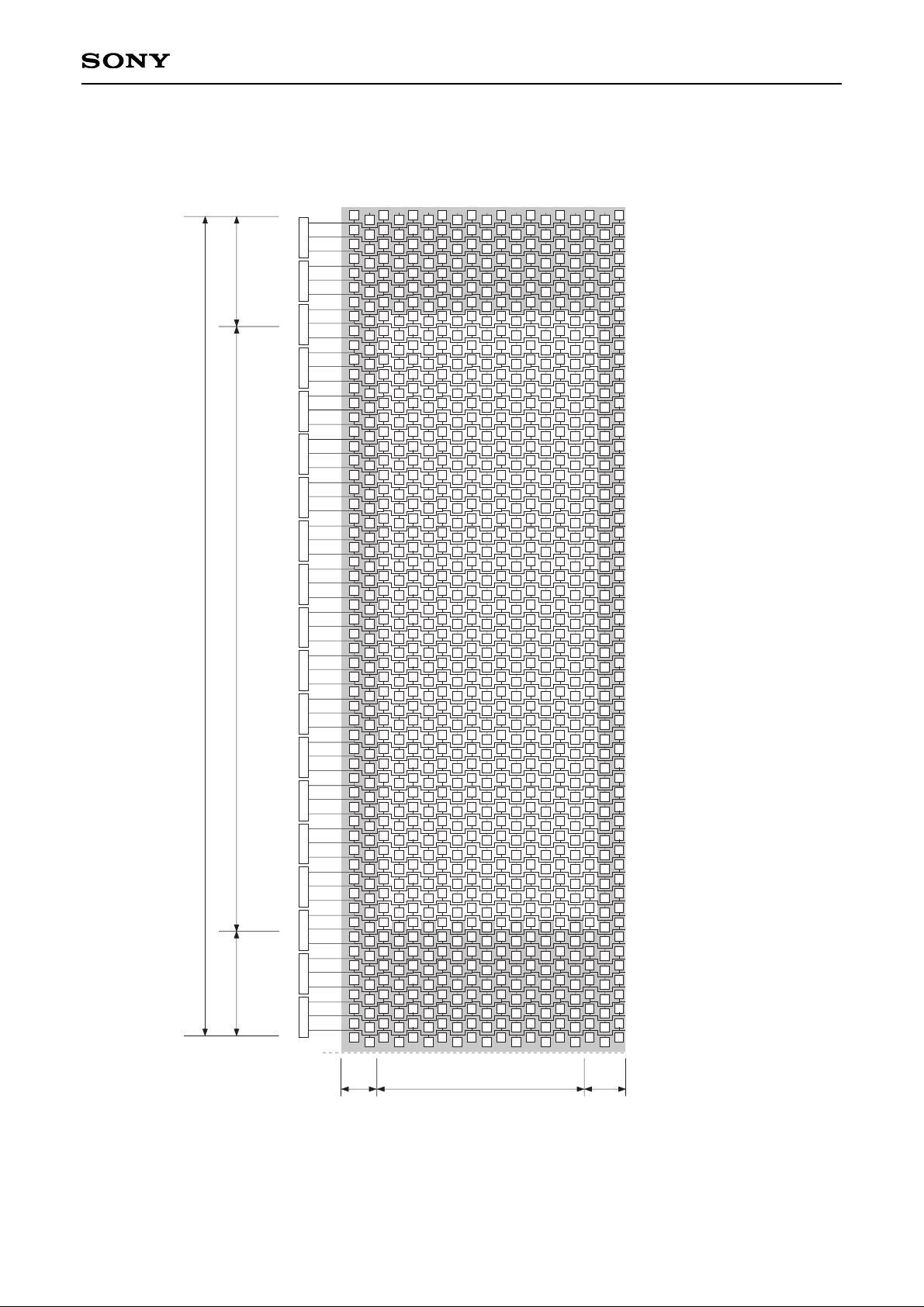

LCX018AK Pixel Arrangement (4:3)

DL1 DL2 1 2 356 357 DR1 DR2

EVEN = 7 dots

ODD = 7 dots

44 45 46 47 311 312 313 314

4:3 AreaSide Black Side Black

GATE SW GATE SW GATE SW GATE SW GATE SW GATE SW GATE SW GATE SW GATE SW GATE SW GATE SW GATE SW GATE SW GATE SW GATE SW GATE SW GATE SW GATE SW GATE SW

224

225

123

4

2 dots

225 dots

(effective 8.775mm)

2 dots

B G B G B G B G B G B G B G B G B G B G B G B G B G B G B G B G B G B G B G BR R R R R R R R R R R R R R R R R R R

B G B G B G B G B G B G B G B G B G B G B G B G B G B G B G B G B G B G BR G R R R R R R R R R R R R R R R R R R R

B G B G B G B G B G B G B G B G B G B G B G B G B G B G B G B G B G B G B G BR R R R R R R R R R R R R R R R R R
