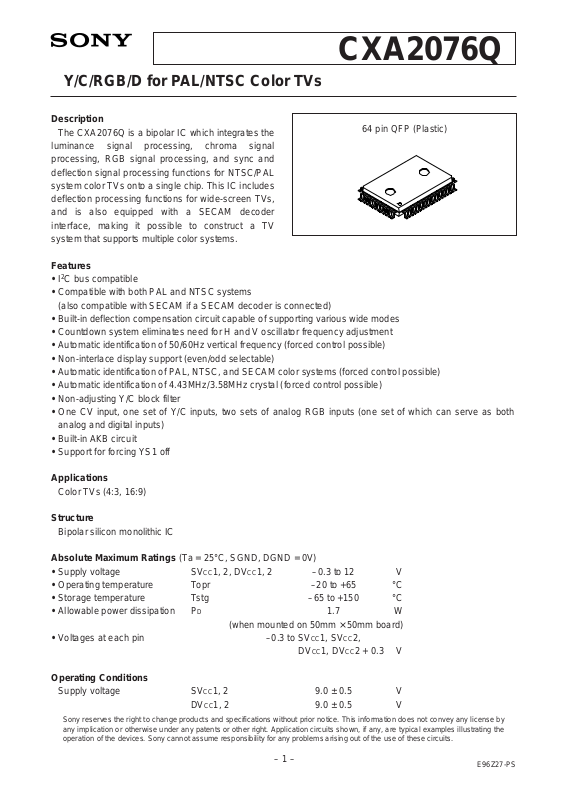

Description

The CXA2076Q is a bipolar IC which integrates the luminance signal processing, chroma signal processing, RGB signal processing, and sync and deflection signal processing functions for NTSC/PAL system color TVs onto a single chip. This IC includes deflection processing functions for wide-screen TVs, and is also equipped with a SECAM decoder interface, making it possible to construct a TV system that supports multiple color systems.

Features

• I2C bus compatible

• Compatible with both PAL and NTSC systems

(also compatible with SECAM if a SECAM decoder is connected)

• Built-in deflection compensation circuit capable of supporting various wide modes

• Countdown system eliminates need for H and V oscillator frequency adjustment

• Automatic identification of 50/60Hz vertical frequency (forced control possible)

• Non-interlace display support (even/odd selectable)

• Automatic identification of PAL, NTSC, and SECAM color systems (forced control possible)

• Automatic identification of 4.43MHz/3.58MHz crystal (forced control possible)

• Non-adjusting Y/C block filter

• One CV input, one set of Y/C inputs, two sets of analog RGB inputs (one set of which can serve as both

analog and digital inputs)

• Built-in AKB circuit

• Support for forcing YS1 off

Applications

Color TVs (4:3, 16:9)

Structure

Bipolar silicon monolithic IC

Absolute Maximum Ratings (Ta = 25°C, SGND, DGND = 0V)

• Supply voltage SVCC1, 2, DVCC1, 2 –0.3 to 12 V

• Operating temperature Topr –20 to +65 °C

• Storage temperature Tstg –65 to +150 °C

• Allowable power dissipation PD 1.7 W

(when mounted on 50mm × 50mm board)

• Voltages at each pin –0.3 to SVCC1, SVCC2,

DVCC1, DVCC2 + 0.3 V

Operating Conditions

Supply voltage SVCC1, 2 9.0 ± 0.5 V

DVCC1, 2 9.0 ±0.5 V

– 1 –

CXA2076Q

E96Z27-PS

Y/C/RGB/D for PAL/NTSC Color TVs

Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.

64 pin QFP (Plastic)

– 2 –

CXA2076Q

Block Diagram

VIDEO

SW

SHARP

NESS

SUB

CONT

TRAP

KILLER

DET

ACC

DET

DL

DC

TRAN

CLP

D PIC

WIDE

Sawtooth

Gen.

AKB

BLK

CV/YC

TRAP OFF

DL

SHARP

DC

TRAN

D PICAGING

VM OFF

SUB COLOR

TRAP F0

TOT

ACC

PRE/OVER

TOT

PAL

ID

PAL/

NTSC

DEM

APC

HUE

VCO

DEM

AXIS

IREF

fsc

ID

COLOR SW

fsc R-Y

fsc B-Y

V SYNC

SEP

H SYNC

SEP

1Vp-p

CVIN

YIN

CIN

SV

CC1SVCC2

SGND1

SGND2

XTAL

HUE

IREF

APCFIL

X358

X443

FSCOUT

SECAMREF

–(R-Y) OUT

–(B-Y) OUT

YOUT

YRET

–(R-Y) IN

–(B-Y) IN

YS1

R1IN

G1IN

B1IN

YS2

YM

R2IN

G2IN

B2IN

ABLFIL

CUT

OFF

GB

DRV

BRT

D-

COL

γ

OSD

MIX

PIC

YS/YM

SW

Y/C

MIX

COLOR

& AXIS

COL

CLP

DIG

HV

COMP

ABL

EHT H, V

AKB OFF

IKIN

BOUT

GOUT

ROUT

E-WOUT

VD–OUT

/VPROT

VD+OUT

/VPROT

SAWOSC

VAGCSH

VTIM

SCPOUT

HD OUT

DGND

DV

CC2DVCC1

ABLIN/

VCOMP

RSH

GSH

BSH

L2FIL

AFCPIN/

HOFF

CERA

AFCFIL

HSIN

VSIN

VSFIL

BLHOLD

DCTRAN

VM

SCL

SDA

SYNCOUT

EXT SYNC IN

GB CUT

GB DRV

BRT

γ

PIC

WIDE

Parabola

Gen.

VLIN, SCORR

VPOSI, VOFF,

VSIZE

Count Down

525/625

INTER

-LACE

D-COL

GATE

50/60 ID

GATE

PHASE

DET.

1/32

PHASE

SHIFT

PHASE

DET

32fH

VCO

2fH

H POSI

AFC

C MODE

INTERLACE

V FREQ

SCP BGR/BGF

40

39

38

41

45

46

47

48

49

50

51

52

54

56

2

9

20

59

53

55

57

43

60

64

61 62 1

3

4

5

6

7

8

11

12

13

14

15

16

17

18

19

21

23

25

28

29

10

22

24

26

30

37

36

35

34

31

32

33

42

44

27

2Vp-p

1Vp-p

EXT

SYNC

6dB

H.DRIVE

YS1 OFF

YS

SW

SUB CONT

Sand

Castle

– 3 –

CXA2076Q

Pin Configuration

HSIN

E-WOUT

VSFIL

L2FIL

IREF

SAWOSC

CERA

HDOUT

SDA

VAGCSH

VSIN

AFCFIL

DV

CC

2

DV

CC

1

DGND

AFCPIN/HOFF

VM

SCL

SYNCOUT

EXT SYNC IN

TEST

APCFIL

X358

BLHOLD

CIN

NC

SV

CC1

X443

DCTRAN

CVIN

YIN

ABLIN/VCOMP

BOUT

SV

CC2

GOUT

ROUT

IKIN

RSH

BSH

GSH

VTIM

VD–OUT/VPROT

ABLFIL

40

39

38

37

36

4142

43

44

45

46

47

48

49

50

51

35

34

33

26

27

28

29

30

31

32

20

21

22

23

24

25

YOUT

B2IN

–(R-Y) IN

G1IN

SGND2

R2IN

YS1

YS2

SECAMREF

G2IN

YRET

R1IN

–(B-Y) IN

YM

SCPOUT

B1IN

–(R-Y) OUT

SGND1

–(B-Y) OUT

2

3

4

5

6

7

8

9

10

11

12

13

14 15

16

17

18

19

1

52 53 54 55 56 57 58

59

60

63 64

61

62

FSCOUT

VD+OUT/VPROT

– 4 –

CXA2076Q

SECAM decoder interface. This pin serves as both a 4.43MHz output and as a SECAM identification input/output pin.

Pin Description

Pin No.

Symbol Equivalent circuit Description

1

SECAMREF

3 4

–(R-Y) OUT –(B-Y) OUT

Color difference signal outputs. Go to high impedance when the SECAM system is detected.

Standard output levels for 75% CB:

B-Y: 0.665Vp-p R-Y: 0.525Vp-p

5

YOUT

Luminance signal output. Black level is 3.5VDC.

Standard output level for 100 IRE input:

1Vp-p

6

YRET

Luminance signal input. Clamped to 4.8V at the burst timing.

Standard input level for 100 IRE input:

1Vp-p

7 8

–(R-Y) IN –(B-Y) IN

Color difference signal inputs. Clamped to 5.5V at the burst timing.

Standard input levels for 75% CB:

B-Y: 1.33Vp-p R-Y: 1.05Vp-p

2

SGND1 GND for Y/C block.

9

SGND2 GND for the RGB block.

1

250µA

6k

20p

7.2V

3

200µA

4

700µA

500

30k

5

6

1.5k

70k

7 8

1.5k

70k

—

– 5 –

CXA2076Q

YSSW control input. When YS is high, the RGB1 block signal is selected; when YS is low, the Y/C block is selected. This function can be disabled by the YS1OFF setting for the I2C bus.

VILMAX = 0.4V VIHMIN = 1.0V

10

SCPOUT

Sand castle pulse output. The 0 to 5V BGP pulse, the phase of which is controlled through the bus, is superimposed with the 0 to 2V H and VBLK pulse for output.

11

YS1

12 13 14

R1IN G1IN B1IN

Analog R, G and B signal inputs. Input a 0.7Vp-p (no sync, 100 IRE) signal via a capacitor. The signal is clamped to 5.7V at the burst timing of the signal input to the HSIN input pin (Pin 47).

15

YS2

YS/YMSW YS control input. When YS is high, the RGB2 block signal is selected; when YS is low, the YSSW output signal is selected.

VILMAX = 0.4V VIHMIN = 1.0V

10k

1k

10

100µA

40k

11

12 13 14

30k

200

100µA

40k

15

16

YM

YS/YMSW YM control input. When YM is high, the YSSW output signal is attenuated by 9.6dB.

VILMAX = 0.4V VIHMIN = 1.0V

100µA

40k

16

Pin No.

Symbol Equivalent circuit Description

– 6 –

CXA2076Q

Power supply for RGB block.

17 18 19

R2IN G2IN B2IN

Analog/digital (dual-purpose) RGB signal inputs. The input signals are input via capacitors. When using analog input, input a 0.7Vp-p signal (no sync, 100 IRE); when using digital input, input a signal of at least

1.5Vp-p (Vth = 1.2V). The display level is 67 IRE. When using digital input, digital input is selected regardless of the YS setting. In addition, the VM output is turned off. These pins are clamped to 5.7V at the burst timing of the signal input to the sync input pin (Pin 47).

30k

200

19

17 18

100µA

21 23 25

RSH GSH BSH

Sample-and-hold for R, G and B AKB. Connect to GND via a capacitor. When not using AKB (manual CUTOFF mode), R, G and B cut-off voltage can be controlled by applying a control voltage to each pin. The control voltage is 4.5 ± 1V.

200 21 23 25

22 24 26

ROUT GOUT BOUT

R, G and B signal outputs.

2.5Vp-p is output during 100% white input.

1.1mA

200

12k

22 24 26

27

IKIN

Input the signal converted from the CRT beam current (cathode current Ik) to a voltage via a capacitor. The V blanking part is clamped to 2.7V at the V retrace timing. The input for this pin is the reference pulse return, and the loop operates so that the Rch is 1Vp-p and the G and Bch are 0.81Vp-p. The G and Bch can be varied by ±0.5V by the bus CUTOFF control. When not using AKB, this pin should be open.

1k

27

50µA

20

SVCC2

Pin No.

Symbol Equivalent circuit Description

– 7 –

CXA2076Q

Connect a capacitor to form the LPF of the ABL control signal.

28

ABLIN/VCOMP

ABL control signal input and VSAW high voltage fluctuation compensation signal input. High voltage compensation has linear control characteristics for the pin voltage range of about 8V to 1V. The control characteristics can be varied through EHT-V control of the bus. ABL begins to have effect below a threshold voltage of about 1.2V. ABL functions as PIC/BRT-ABL (average value type).

29

ABLFIL

30

VTIM

V timing pulse output. Outputs the timing pulse from V sync identification to the end of V blanking. Pulses are positive polarity from 1 to 6V. During zoom mode, the V blanking pulse which has been expanded before and after the V sync is superimposed and output as the 1 to 3V pulse.

1.5V

147

28

29

1.2k

100k

10k

1k

30

31

VD–OUT/VPROT

V sawtooth wave output and V protect signal input. When a large current (3mA) is drawn from this pin, the RGB outputs are all blanked and "1" is output to the status register VNG.

31

400µA

700

24k

30k

32

VD+OUT/VPROT

Serves as both a V sawtooth wave output with the reverse polarity of VD–OUT, and a Vprotect signal input. The Vprotect function can even be applied to this pin.

400µA

700

30k

24k

32

Pin No.

Symbol Equivalent circuit Description

– 8 –

CXA2076Q

H deflection pulse input for H AFC. Input an about 5Vp-p pulse via a capacitor. Set the pulse width to 10 to 12µs. This pin is also used as the holddown signal input for the HD output, and if this pin is 1V or less for a 7V cycle or longer, the hold-down function operates and the HD output is held to 9VDC. In addition, the RGB outputs are all blanked. Outputs "1" to the status register XRAY.

38

33

E-WOUT

V parabola wave output.

34

VAGCSH

Sample-and-hold for AGC which maintains the V sawtooth wave at a constant amplitude. Connect to GND via a capacitor.

800µA

15k

78k

1.4k

33

1.2k

34

35

SAWOSC

Connect a capacitor to generate the V sawtooth wave. For the capacitor, use an MPS (metalized polyester capacitor), etc., with a small tan δ.

100

300

35

36

DVCC1 Power supply for the V deflection block.

37

HD OUT

H drive signal output. This signal is output with the open collector.

147

37

20k

AFCPIN/HOFF

10k

68k

38

10k

147

4.2V

Pin No.

Symbol Equivalent circuit Description

– 9 –

CXA2076Q

CR connection for the AFC lag-lead filter.

IREF

39

L2FIL

Filter for H AFC. Connect to GND via a capacitor. The H phase can also be controlled from this pin by leading current in and out of this capacitor. As the pin voltage rises, the picture shifts to the left; as the pin voltage drops, the picture shifts to the right.

40

AFCFIL

100

39

46k

1.2k

40

41

CERA

Connect the 32 × FH VCO ceramic oscillator.

41

400µA

10k

42

44

DGND

DVCC2 Power supply for the H deflection block.

GND for the deflection block.

43

Internal reference current setting. Connect to GND via a resistor with an error of less than 1% (such as a metal film resistor).

147

43

20k

45

VSFIL

Filter for V sync separation. Connect to GND via a capacitor.

1k

45

Pin No.

Symbol Equivalent circuit Description

– 10 –

CXA2076Q

Sync signal output for VSIN and HSIN. The output can be selected from the internal sync signals (Pin 53 or Pin 55) or the external sync signal (Pin 56) by the I2C bus.

Output signal level: 2Vp-p

(0.6Vp-p sync only)

Input/output gain: 6dB

46

VSIN

Sync signal input for V sync separation. Input a 2Vp-p Y signal (or a 0.6Vp-p sync signal).

47

HSIN

Sync signal input for H sync separation. Input a 2Vp-p Y signal (or a 0.6Vp-p sync signal).

48

SYNCOUT

147

4.1V

46

20µA

15k

147

3.2V

10µA

14k

47

240µA

1.2k

40k

48

147

49

VM

Outputs the differential waveform of the VM (Velocity Modulation) Y signal. (6.6VDC, 1.1Vp-p) The signal advanced for 200ns from YOUT is output. The delay time versus YIN is determined by the DL setting of the I2C bus. This output can be turned off through the I2C bus. This output can also be turned off by YS1, YM, and YS2.

400µA

500

30k

147

49

1.2k

50

SCL

I2C bus protocol SCL (Serial Clock) input.

VILMAX = 1.5V VIHMIN = 3.5V

4k

50

Pin No.

Symbol Equivalent circuit Description

– 11 –

CXA2076Q

Capacitor connection for black peak hold of the dynamic picture (black expansion).

51

SDA

I2C bus protocol SDA (Serial Data) I/O.

VILMAX = 1.5V VIHMIN = 3.5V VOLMAX = 0.4V

52

BLHOLD

53

CVIN

Composite video signal input. Input the 1Vp-p (100% white including sync) CV signal via a capacitor. The sync level of the input signal is clamped to 3.8V.

4k

51

1.2k

4k

52

9µA

20k

4.6V

1µA

4.6V

53

54

DCTRAN

Connect a capacitor that determines the DC transmission ratio to GND.

2k

54

2V

1.2k

4k

55

YIN

Y signal input. Input a 1Vp-p (100% white including sync) Y signal via a capacitor. The sync level of the input signal is clamped to 3.8V.

1µA

4.6V

55

Pin No.

Symbol Equivalent circuit Description

– 12 –

CXA2076Q

Chroma signal input. Input a C signal with a burst level of 300mVp-p via a capacitor. Input signal is biased to 4.5V internally.

56

EXT SYNC IN

External sync signal input. Input a 0.3Vp-p sync signal (or a 1Vp-p CV signal or Y signal) via a capacitor. The sync level of the input signal is clamped to 3.8V.

57

CIN

1µA

4.6V

56

30k

5.2V

50k

57

58

TEST

Test pin. Outputs a 0 to 3V V-SYNC SEP with positive polarity. If not used, leave this pin open.

15k

1k

58

59

SVCC1 Power supply for Y/C block.

60

APCFIL

CR connection for the chroma APC laglead filter.

1.2k

4.6V

1.2k

60

61

X443

Connect a 4.433619MHz crystal oscillator.

200µA

4k

61

500

Pin No.

Symbol Equivalent circuit Description

– 13 –

CXA2076Q

Not connected. Normally connected to GND to prevent interference with other pins.

62

X358 Connect a 3.579545MHz crystal oscillator.

200µA

4k

500

62

64

FSCOUT

Subcarrier output.

Output level: 5.2VDC, 0.4Vp-p

280µA

1.2k

147

64

63

NC

Pin No.

Symbol Equivalent circuit Description

– 14 –

CXA2076Q

Electrical Characteristics

Setting conditions • Ta = 25°C, SVCC1, 2 = DVCC1, 2 = 9V, SGND1, 2 = DGND = 0V

• Measures the following after setting the I

2

C bus register as shown in "I

2

C Bus Register Initial Settings".

1

2

3

4

5

6

7

8

9

SICC

DICC

fHFR

∆fHR

HDw

VBLKh

VBGPh

VSp-p

VSdc

90

67

15.90

400

26.5

12.6

3.3

1.1

3.1

42

30

15.55

–400

24.5

11.6

2.5

0.9

2.9

Measure the pin inflow current.

HDRIVE output frequency

Confirm that I

2

C status register

HLOCK is 1 (the pull-in range

when f

H is shifted from

15.734kHz).

Measure the pulse width for the section

where the HDRIVE output is high.

Measure the VDRIVE output Vp-p.

V

CC = 9.0V,

Bus data = center

V

CC = 9.0V,

Bus data = center

AFC MODE = 0h

SYNCIN: composite sync

SCP

Measure the pulse width for the

section where the BLK output is high.

SCP

Measure the pulse width for the section

where the BGP output is high.

SYNCIN: composite sync

Signal block current

consumption

Sync block current

consumption

Horizontal free-running

frequency

Horizontal sync pull-in

range

HD output pulse width

SCP

BLK output pulse width

SCP

BGP output pulse width

VDRIVE output

amplitude

VDRIVE output center

potential

20, 59

36, 44

37

—

37

10

31, 32

mA

kHz

Hz

µs

V

No. Item Symbol Measurement conditions

Measurement pins

Measurement contents Min. Typ. Max. Unit

Sync deflection block items

VBGPh

VBLKh

VSp-p

10.79ms

VDRIVE+

VSdc

46: VSIN in

65

48

15.734

—

25.5

12.1

2.9

1.0

3.0

– 15 –

CXA2076Q

Measure the EWDRIVE output

Vp-p.

Output amplitude when a video

signal with an amplitude of

0.7Vp-p/100 IRE is input.

Input fsc to CVIN.

Ratio of the fsc component of the

Yout amplitude when CTRAP = 1

against the Yout amplitude when

CTRAP = 0.

SYNCIN: composite sync

TRAPOFF = 0/1

TRAP-F0 = 7h

10

11

12

13

14

EWDRIVE output

amplitude

EWDRIVE output

center potential

R, G and B output

amplitude

R, G and B output

linearity

C-TRAP attenuation

(3.58MHz)

VEWp-p

VEWdc

VRout1

Lin

C-Trap3.58

33

22, 24, 26

22

0.42

3.8

2.25

96

—

0.52

3.95

2.5

100

–30

0.62

4.1

2.85

104

—

V

%

dB

No. Item Symbol Measurement conditions

Measurement pins

Measurement contents Min. Typ. Max. Unit

Signal block items

VEWp-p

10.79ms

VEW dc

46: VSIN in

V1

V2

Lin =

V2 × 2

V1

× 100

f = 3.58MHz

CVIN:

0.7Vp-p

/100 IRE

CVIN:

100 IRE

50 IRE

CVIN:

fsc, 50 IRE

– 16 –

CXA2076Q

Input fsc to CVIN.

Ratio of the fsc component of the

Yout amplitude when CTRAP = 1

against the Yout amplitude when

CTRAP = 0.

TRAPOFF = 0/1

TRAP-F0 = 7h

CVIN: 3MHz, 50 IRE

VMOFF = 0

4.43MHz PAL input

burst fsc 300mVp-p

640mVp-p fsc + 90°

SUB-COLOR = 7h

PAL input: COLOR = 1Fh

15

16

17

18

19

20

C-TRAP attenuation

(4.43MHz)

VM output

Color difference

–(R-Y) output

Color difference

–(B-Y) output

Color gain

–(R-Y)

Color gain

–(B-Y)

C-Trap4.43

Vvm

Vr-y

Vb-y

Vcolr-y

Vcolb-y

22

49

3

4

22

24

—

0.75

440

570

1.4

1.1

–30

0.95

510

640

1.6

1.3

—

1.15

570

710

1.8

1.5

dB

V

mV

V

No. Item Symbol Measurement conditions

Measurement pins

Measurement contents Min. Typ. Max. Unit

BOUT

Vcolb-y

ROUT

Vcolr-y

–(B-Y)

OUT

Vb-y

–(R-Y)

OUT

Vr-y

f = 3MHz

50 IRE

Vvm

f = 4.43MHz

CVIN:

fsc, 50 IRE

450mVp-p

fsc + 0°, fsc + 180°

CIN

–(R-Y) IN: 525mVp-p

–(B-Y) IN: 665mVp-p

– 17 –

CXA2076Q

Confirm that the burst frequency

is pulled in at 3.58MHz ±400Hz.

ROUT, BOUT

∆GdcolR =

× 100

∆GdcolB =

× 100

Output amplitude ratio when the

R, G and BOUT YM = 1 and 0

VLR1out = Vout

VLG1out = Vout

VLB1out = Vout

HUE = 1Fh, SUB – HUE = 7h

CVIN: Burst only

D-COL = 0/1

YS1: 1V

RGB1IN: 0.7Vp-p

YS1: 1V

RGB1IN: 0.7Vp-p

YS1: 1V

RGB1IN: 0.7Vp-p

21

22

23

24

25

26

27

28

29

Hue center offset

Killer point

APC pull-in range

Dynamic color

operation R output

Dynamic color

operation B output

YM gain

R output amplitude

during linear R1 input

G output amplitude

during linear G1 input

B output amplitude

during linear B1 input

φoffset

KP

∆fAPC

∆GdcolR

∆GdcolB

∆GYM

VLR1out

VLG1out

VLB1out

—

22

24

22, 24, 26

22

24

26

–8

—

–400

94

102

–10.6

1.85

0

–35

—

96

104

–9.6

2.05

8

—

400

98

106

–8.6

2.25

deg

dB

Hz

%

dB

V

No. Item Symbol Measurement conditions

Measurement pins

Measurement contents Min. Typ. Max. Unit

Vp-p (DCOL = 1)

Vp-p (DCOL = 0)

Vp-p (DCOL = 1)

Vp-p (DCOL = 0)

Vp-p

CVIN: 100 IRE

RGB1

IN

R, G, B

out

– 18 –

CXA2076Q

Unit

VLR2out = Vout

VLG2out = Vout

VLB2out = Vout

VDRout = Vout

VDGout = Vout

VDBout = Vout

YS2: 1V

RGB2IN: 0.7Vp-p

YS2: 1V

RGB2IN: 0.7Vp-p

YS2: 1V

RGB2IN: 0.7Vp-p

RGB2IN: 1.5Vp-p

SYNCIN: composite sync

GCUTOFF = 0h

BCUTOFF = 0h

30

31

32

33

34

35

36

37

38

R output amplitude

during linear R2

input

G output amplitude

during linear G2

input

B output amplitude

during linear B2

input

R output amplitude

during digital R2

input

G output amplitude

during digital G2

input

B output amplitude

during digital B2

input

IK level R

IK level G

IK level B

VLR2out

VLG2out

VLB2out

VDRout

VDGout

VDBout

VIKR

VIKG

VIKB

22

24

26

22

24

26

27

1.85

58

0.85

0.22

2.05

67

1.00

0.35

2.25

75

1.15

0.5

V

IRE

V

No. Item Symbol Measurement conditions

Measurement pins

Measurement contents Min. Typ. Max.

RGB2

IN

RGB2

IN

VIKG

VIKR VIKB

R, G, B

out

R, G, B

out

– 19 –

CXA2076Q

Electrical Characteristics Measurement Circuit

Signal sources are all GND unless otherwise specified in the Measurement conditions column of Electrical Characteristics.

YOUT

B2IN

–(R-Y) IN

G1IN

SGND2

R2IN

YS1

YS2

SECAMREF

G2IN

YRET

R1IN

–(B-Y) IN

YM

SCPOUT

B1IN

–(R-Y) OUT

SGND1

–(B-Y) OUT

120µ

SECAMREF

–(R-Y) OUT

–(B-Y) OUT

Y OUT

0.1µ

–(R-Y) IN

0.1µ

0.1µ –(B-Y) IN

SCP OUT

220

YS1

0.01µ

220

YS2

220

YM

0.01µ

RGB1IN

RGB2IN

2

3

4

5

6

7

8

9

10

11

12

13

14 15

16

17

18

19

1

3.3k

4700p

500k

SDA

220

SCL

220

VM

100p

560

4700p

100

1µ

1k

+9V

330k

+9V

0.47µ 0.01µ 47µ

10k

270

8.2k

1µ

0.01µ

E/W

100

0.1µ

(MPS)

+9V

0.01µ 47µ

+9V

2.7k

0.01µ

HP GEN.

10k

HOFF

40

39

38

37

36

4142

43

44

45

46

47

48

49

50

51

35

34

33

HSIN

E-WOUT

VSFIL

L2FIL

IREF

SAWOSC

DGND

HDOUT

SDA

VAGCSH

VSIN

AFCFIL

DV

CC

2

DV

CC

1

CERA

AFCPIN/HOFF

VM

SCL

SYNCOUT

10µ

CV IN

0.47µ

10µ

Y IN

10µ

EXT SYNC IN

10µ

C IN

TEST

EXT SYNC IN

TEST

FSC OUT

APCFIL

X358

BLHOLD

CIN

NC

SV

CC1

X443

DCTRAN

CVIN

YIN

FSC OUT

1.5k

3.58MHz 15p

470

4.43MHz 15p

470p

0.01µ 47µ

0.47µ

15k

+9V

52

53

54

55

56

57

58

59

60

63

64

61

62

+9V

0.01µ

47µ

0.1µ

100

0.1µ

100

20k

51k

20k

ABLIN/VCOMP

BOUT

SV

CC2

GOUT

ROUT

VD+OUT/VPROT

IKIN

RSH

BSH

GSH

VTIM

VD–OUT/VPROT

ABLFIL

0.001µ

1µ

+9V

IK IN

9V

100

10µ

100

100 10k

820

VPROT

26

27

28

29

30

31

32

20

21

22

23

24

25

R OUT

G OUT

B OUT

0.01µ

VTIM

VDRV–

VDRV+

– 20 –

CXA2076Q

1T1

V

SS

1T2

1B

1CD

1Q

1A

1Q

V

DD

2Q

2T1

2A

2T2

2Q

2CD

2B

TC4538BP

1k

5V

from HDOUT

10k

2

3

4

5

6

7

8

1

2000p

10k

2000p

9

10

11

12

13

1415

16

47µ

to AFCPIN

HDOUT

delay 7µs

AFCPIN

width12µs

9V

HP GEN.

– 21 –

CXA2076Q

Application Circuit

YOUT

B2IN

–(R-Y) IN

G1IN

SGND2

R2IN

YS1

YS2

SECAMREF

G2IN

YRET

R1IN

–(B-Y) IN

YM

SCPOUT

B1IN

–(R-Y) OUT

SGND1

–(B-Y) OUT

SECAM reference

input/output for

SECAM IC

0.1µ

3.3k

4700p

500k

I

2

C BUS

input/output

220 220

VM

output

100p

470

0.0047µ

100

1µ

2.2k

+9V

0.47µ 47µ 0.01µ

10k

470

5.6k

2.2µ

0.01µ

100

0.1µ

+9V

0.01µ 47µ

0.1µ

10k

HSIN

E-WOUT

VSFIL

L2FIL

IREF

SAWOSC

DGND

HDOUT

SDA

VAGCSH

VSIN

AFCFIL

DV

CC

2

DV

CC

1

CERA

AFCPIN/HOFF

VM

SCL

SYNCOUT

4.7µ

CV signal input

0.47µ

2.2µ

0.47µ

EXT SYNC IN

TEST

APCFIL

X358

BLHOLD

CIN

NC

SV

CC1

X443

DCTRAN

CVIN

YIN

FSC OUT

1.5k

3.579545MHz 15p

510

4.433619MHz 15p

470p

0.01µ

47µ

0.47µ

15k

+9V

0.01µ

47µ

0.1µ

100

0.1µ

100

ABLIN/VCOMP

BOUT

SV

CC2

GOUT

ROUT

VD+OUT/VPROT

IKIN

RSH

BSH

GSH

VTIM

VD–OUT/VPROT

ABLFIL

0.001µ

220

100

10µ

100

820

Color difference

outputs for 1H

delay line

Color difference

outputs from

1H delay line

0.1µ

Sand castle

pulse output

YS1

input

220

Analog RGB

inputs

YS2/YM

inputs

220 220

Analog/digital

RGB inputs

RGB outputs

1µ

10µ

1k

Ik input

ABL/Vertical high

voltage fluctuation

compensation signal

input

10k

V protect

signal input

V timing

pulse output

V sawtooth

wave outputs

HD output

HP outputHold-down input

330k

220

Y signal input

External sync

signal input

C signal input

2.2µ

40

39

38

37

36

4142

43

44

45

46

47

48

49

50

51

35

34

33

26

27

28

29

30

31

32

20

21

22

23

24

25

2

3

4

5

6

7

8

9

10

11

12

13

14 15

16

17

18

19

1

52

53

54

55

56

57

58

59

60

63

64

61

62

∗

1: Metal film resistor recommended

∗

2: MPS capacitor recommended

V parabola wave output

0.01µ

2.7k

100

0.1µ

∗

1

∗

2

Application circuits shown are typical examples illustrating the operation of the devices. Sony cannot assume responsibility for

any problems arising out of the use of these circuits or for any infringement of third party patent and other right due to same.

– 22 –

CXA2076Q

Electrical Characteristics Measurement Conditions "I2C Bus Register Initial Settings"

Register name

No. of bits

Initial setting

Description

PICTURE TRAPOFF VMOFF HUE DCTRAN D-PIC COLOR TOT BRIGHT D-COL SHARPNESS PRE-OVER COLOR SW SUB-CONT TRAP F0 SUB-COLOR UP-CORNER-PIN SUB-BRIGHT GAMMA G-DRIVE AGING B-DRIVE INTERLACE G-CUTOFF B-CUTOFF RON GON BON PICON VOFF FHHI CD-MODE AKBOFF V-SIZE V FREQ

6 1 1 6 1 1 6 1 6 1 4 2 2 4 4 4 4 6 2 6 1 6 2 4 4 1 1 1 1 1 1 1 1 6 2

3Fh

1h 1h

1Fh

0h 0h

1Fh

0h

1Fh

0h 7h 3h 0h 7h 7h 7h 7h

1Fh

0h

2Ah

0h

2Ah

0h 0h 0h 1h 1h 1h 1h 0h 0h 0h 0h

1Fh

0h

Maximum value TRAP off VM off Center value DCTRAN off DPIC off Center value TOT off Center value DCOL off Center value Maximum value Automatic switching Center value Center value Center value Center value Center value Minimum value Center value AGING off Center value Interlace Minimum value Minimum value R output on G output on B output on Picture mute off VD output on FH normal Automatic switching AKB on Center value Automatic switching

V-POSITION AFC-MODE S-CORR V-LIN H-SIZE REF-POSI PIN-COMP VBLKW H-POSITOPN PIN-PHASE AFC-BOW AFC-ANGLE SCP BGR SCP BGF XTAL EXT SYNC CV/YC V-ASPECT ZOOM SW HBLKSW V-SCROLL JMPSW HSIZESW UP-VLIN LO-VLIN LEFT-BLK RIGHT-BLK EHT H EHT V LO-CORNER-PIN YS1OFF DL KIL-OFF CRT-TYP

6 2 4 4 6 2 6 2 4 4 4 4 2 2 2 1 1 6 1 1 6 1 1 4 4 4 4 2 2 4 1 3 1 1

1Fh

1h 0h 7h

1Fh

3h

1Fh

0h 7h 7h 7h 7h 1h 1h 0h 0h 0h 0h 0h 0h

1Fh

0h 0h 0h 0h 7h 7h 0h 0h 7h 0h 3h 0h 0h

Center value Low gain Minimum value Center value Center value Maximum value Center value Minimum value Center value Center value Center value Center value Center value Center value Automatic switching Internal sync CV input Minimum value ZOOM SW off HBLKSW off Center value JMPSW off HSIZESW off Minimum value Minimum value Center value Center value EHT H off EHT V off Center value YS1 normal Center value Normal 16:9 CRT

Register name

No. of bits

Initial setting

Description

– 23 –

CXA2076Q

TRAP F0

UP-CORNER-PIN

B-CUTOFF

V-LIN

PIN-PHASE

AFC-ANGLE

LO-VLIN

RIGHT-BLK

LO-CORNER-PIN


HUE

COLOR

BRIGHT

SUB-BRIGHT

G-DRIVE B-DRIVE

V-SIZE

V-POSITION

H-SIZE

PIN-COMP

V-ASPECT V-SCROLL

SHARPNESS

SUB-CONT

SUB-COLOR

G-CUTOFF

S-CORR

H-POSITION

AFC-BOW

UP-VLIN

LEFT-BLK

Definition of I2C Bus Registers

Slave Addresses

88h: Slave Receiver 89h: Slave Transmitter

Register Table

"∗": Undefined

Control Register

Bit0Bit1Bit2Bit3Bit4Bit5Bit6Bit7

Sub Address

× × × 0 0 0 0 0 00 h × × × 0 0 0 0 1 01 h × × × 0 0 0 1 0 02 h × × × 0 0 0 1 1 03 h × × × 0 0 1 0 0 04 h × × × 0 0 1 0 1 05 h × × × 0 0 1 1 0 06 h × × × 0 0 1 1 1 07 h × × × 0 1 0 0 0 08 h × × × 0 1 0 0 1 09 h × × × 0 1 0 1 0 0A h × × × 0 1 0 1 1 0B h × × × 0 1 1 0 0 0C h × × × 0 1 1 0 1 0D h × × × 0 1 1 1 0 0E h × × × 0 1 1 1 1 0F h × × × 1 0 0 0 0 10 h × × × 1 0 0 0 1 11 h × × × 1 0 0 1 0 12 h × × × 1 0 0 1 1 13 h × × × 1 0 1 0 0 14 h × × × 1 0 1 0 1 15 h × × × 1 0 1 1 0 16 h × × × 1 0 1 1 1 17 h × × × 1 1 0 0 0 18 h × × × 1 1 0 0 1 19 h

TRAPOFF DC-TRAN

TOT

D-COL

VMOFF

D-PIC

∗ ∗

PRE-OVER

COLOR SW

GAMMA

AGING 0

AKBOFF

CD-MODE

FHHIVOFFPICONBONGONRON

V-FREQ

AFC-MODE

REF-POSI

VBLKW

EXT SYNC ZOOM SW

JMP SW

CV/YC

HBLKSW

HSIZESW

Status Register

Bit0

FV

Bit1Bit2Bit3

Bit4

XRAY

Bit5

VNG

Bit6

IKR

Bit7

H LOCK

INTERLACE

SCP BGR SCP BGF XTAL

EHT H EHT V

∗ ∗

CRT-TYP YS1 OFF DLKIL-OFF

COLOR SYS

– 24 –

CXA2076Q

Description of Registers

Register name (No. of bits)

1. Video switch register

CV/YC (1) : CV input/YC input selector

0 = CV input selected 1 = YC input selected

EXT SYNC (1) : EXT SYNC selector switch

0 = Internal sync (CV or Y) selected 1 = EXT SYNC selected

2. Y signal block register

SUB-CONT (4) : Contrast gain control (Y gain control)

0h = –3.5dB 7h = 0dB Fh = +2.5dB

TRAP-F0 (4) : Chroma trap f0 fine adjustment (Y block chroma trap current control)

0h = High 7h = Center Fh = Low

SHARPNESS (4) : Sharpness gain control (Sharpness F0 3MHz)

0h = –6dB 7h = +2.5dB Fh = +6.5dB

PRE-OVER (2) : Sharpness preshoot/overshoot ratio control

0h = 1:1 (PRE: OVER) 3h = 2:1

VM OFF (1) : Y signal output ON/OFF for VM

0 = ON 1 = OFF

TRAP OFF (1) : Y block chroma trap ON/OFF

0 = Trap ON 1 = Trap OFF

DL (3) : Y signal delay time control (80ns/step)

0h = Max. 7h = Min.

– 25 –

CXA2076Q

DC-TRAN (1) : Y DC transmission ratio selector switch

0 = 100% 1 = 81%

D-PIC (1) : Y black expansion ON/OFF switch

0 = OFF 1 = ON Point of inflection: 30 IRE

3. C signal block register

TOT (1) : Chroma TOT filter band selector switch

0 = TOT — TRAP OFF 1 = TOT — TRAP ON (TRAP fo 2MHz)

COLOR (6) : Color gain control (Chroma gain control)

0h = Color OFF (–40dB or less) 1Fh = 0dB B output: 1.02Vp-p (I/O gain: +11dB, 0.285Vp-p input) 3Fh = +6dB

SUB-COLOR (4) : Color gain control (ACC reference level control)

0h = –5dB 7h = 0dB Fh = +3dB

HUE (6) : Hue control (Phase control for chroma demodulation axis)

Control not possible for a PAL system.

0h = +35° Flesh color appears red. 1Fh = 0° 3Fh = –35° Flesh color appears green.

XTAL (2) : XTAL selection setting switch

0h = Automatic identification 1h = Force to XTAL1 (3.58MHz) 2h = Force to XTAL2 (4.43MHz)

COLOR SW (2) : Color system setting

0h = Automatic identification 1h = Force to PAL 2h = Force to NTSC 3h = Force to SECAM

KIL-OFF (1) : Forced color killer OFF switch

0 = Normal operation 1 = Forced color killer OFF

– 26 –

CXA2076Q

4. RGB signal block register

PICTURE (6) : Picture gain control (RGB gain control)

0h = –14dB

3Fh = 0dB RGB output: 2.5Vp-p (I/O gain: +8dB, 1Vp-p input)

BRIGHT (6) : Bright control (RGB DC bias control)

0h = –440mV 1Fh = 0mV (–300mV for REF-P level) 3Fh = +450mV

SUB-BRIGHT (6) : Bright control (RGB DC bias control)

0h = –440mV 1Fh = 0mV (–300mV for REF-P level) 3Fh = +450mV

G-DRIVE (6) : Gch drive gain adjustment (Gch gain control)

0h = G/R –4.5dB 2Ah = G/R 0dB (G/R 0dB) 3Fh = G/R +1.5dB

B-DRIVE (6) : Bch drive gain adjustment (Bch gain control)

0h = B/R –4.5dB 2Ah = B/R 0dB (B/R 0dB) 3Fh = B/R +1.5dB

G-CUTOFF (4) : Gch cut-off adjustment (Gch reference pulse value control of IKIN pin input)

0h = +34% 7h = +81% (G/R) Fh = +135%

B-CUTOFF (4): Bch cut-off adjustment (Bch reference pulse value control of IKIN pin input)

0h = +34% 7h = +81% (B/R) Fh = +135%

D-COL (1) : Dynamic color ON/OFF switch

0 = Dynamic color OFF 1 = Dynamic color ON (R, Bch level control)

GAMMA (2) : Gamma control (RGB gamma correction amount control)

0h = Gamma OFF 3h = Gamma peak 17 IRE (at input 40 IRE), +400mV (at 2.5Vp-p OUT)

– 27 –

CXA2076Q

REF-POSITION (2) : Reference pulse timing setting

0h = From rising edge of V TIM: Rch 22H, Gch 23H, Bch 24H 1h = From rising edge of V TIM: Rch 20H, Gch 21H, Bch 22H 2h = From rising edge of V TIM: Rch 18H, Gch 19H, Bch 20H 3h = From rising edge of V TIM: Rch 16H, Gch 17H, Bch 18H

PIC-ON (1) : ON/OFF switch for RGB output with a reference pulse

(Set to OFF mode at power-on.) 0 = RGB output OFF (All blanked status) 1 = RGB output ON

R ON (1) : ON/OFF switch for Rch video output without a reference pulse

(Operates when PIC ON = 1, set to OFF mode at power-on.) 0 = Rch video output OFF (Blanked status, reference pulse only output) 1 = Rch video output ON

G ON (1) : ON/OFF switch for Gch video output without a reference pulse

(Operates when PIC ON = 1, set to OFF mode at power-on.) 0 = Gch video output OFF (Blanked status, reference pulse only output) 1 = Gch video output ON

B ON (1) : ON/OFF switch for Bch video output without a reference pulse

(Operates when PIC ON = 1, set to OFF mode at power-on.) 0 = Bch video output OFF (Blanked status, reference pulse only output) 1 = Bch video output ON

AKB OFF (1) : AKB ON/OFF switch (Set to ON mode at power-on.)

0 = AKB ON 1 = AKB OFF (IK CLAMP, IK S/H and reference pulse fixed to OFF)

R, G and B cut-off adjustment at AKB OFF performed by voltage applied to RSH, GSH and BSH pins, respectively.

YS1 OFF (1) : YS1 forced OFF mode/YS1 normal mode

0 = YS1 normal mode 1 = YS1 forced OFF mode

– 28 –

CXA2076Q

5. Deflection block register

AFC-MODE (2) : AFC loop gain control (PLL between H SYNC and H VCO)

0h = H free run mode 1h = Small gain 2h = Medium gain 3h = Large gain

FH-HI (1) : H oscillator frequency fixation ON/OFF switch

(Set to ON mode at power-on.) 0 = H oscillator frequency fixation OFF AFC normal mode 1 = H oscillator frequency fixation ON Oscillator frequency fixed to maximum value

(approx. 16.2kHz).

V FREQ (1) : V frequency mode setting

0, 1h = Automatic identification 2h = Forced mode (50Hz) 3h = Forced mode (60Hz)

V OFF (1) : V sawtooth wave oscillation stop ON/OFF switch

(Set to OFF mode at power-on.) 0 = Oscillation stop OFF (V DRIVE– and V DRIVE+: normal output) 1 = Oscillation stop ON (V DRIVE– and V DRIVE+: DC output and DC value vary

according to V POSITION.)

CD-MODE (1) : V countdown system mode selector

(Set to automatic selection mode during power-on.) 0 = Non-standard signal mode, standard signal mode and no signal mode

automatically selected

1 = Fixed to non-standard signal mode

(V oscillator frequency is 55Hz during no signal mode "free run".)

VBLKW (2) : VBLK width control (Blanked pulses after reference pulse. Operates when

JMPSW = 1; blanked pulses after reference pulse fixed to 1H when JMPSW = 0.) 0h = 12H from Bch reference pulse 1h = 11H from Bch reference pulse 2h = 10H from Bch reference pulse 3h = 9H from Bch reference pulse

H-POSITION (4) : Horizontal position adjustment (HAFC phase control)

0h = 1µs delay Picture position shifts to right. (Picture delayed with respect to HD.) 7h = 0µs Fh = 1µs advance Picture position shifts to left. (Picture advanced with respect to HD.)

V-POSITION (6) : Vertical position adjustment (V SAW output DC bias control)

0h = –0.09V Picture position drops, V DRIVE+ output DC Down. 1Fh = 0V Center potential: DC 3V 3Fh = +0.09V Picture position rises, V DRIVE+ output DC Up.

– 29 –

CXA2076Q

V-SIZE (6) : Vertical amplitude adjustment (V SAW output gain control)

0h = –14% Vertical picture size decreases. 1Fh = 0% Amplitude: 1.23Vp-p, center potential: DC 3V when V-ASPECT is 2FH. 3Fh = +14% Vertical picture size increases.

V-LIN (4) : Vertical linearity adjustment (Gain control for V SAW secondary component)

0h = 115% (Bottom/top of picture) Top of picture compressed; bottom of picture

expanded. 7h = 100% (Bottom/top of picture) Fh = 85% (Bottom/top of picture) Top of picture expanded; bottom of picture

compressed.

S-CORR (4) : Vertical S correction amount adjustment (V SAW secondary component gain control)

0h = Secondary component amplitude by adding sawtooth and other signals = 0 Fh = Secondary component amplitude by adding sawtooth and other signals = Maximum

AFC-BOW (4) : Vertical line bow compensation amount adjustment (Phase control according to

HAFC parabola wave) 0h = Top and bottom of picture delayed 500ns with respect to picture center. 7h = 0 ns Fh = Top and bottom of picture advanced 500ns with respect to picture center.

AFC-ANGLE (4) : Vertical line slope compensation amount adjustment (Phase control according to

HAFC V SAW) 0h = Top of picture delayed 1000ns, bottom of picture advanced 1000ns with respect

to picture center. 7h = 0 ns Fh = Top of picture advanced 1000ns, bottom of picture delayed 1000ns with respect

to picture center.

PIN-COMP (6) : Horizontal pin distortion compensation amount adjustment (V parabola wave gain

control) 0h = 0.10Vp-p Horizontal size for top/bottom of picture increases. (Compensation

amount minimum) 1Fh = 0.58Vp-p Amplitude, center potential: DC 4V when V-ASPECT is 2Fh 3Fh = 1.06Vp-p Horizontal size for top/bottom of picture decreases. (Compensation

amount maximum)

H-SIZE (6) : Horizontal amplitude adjustment (V parabola wave DC bias control)

0h = –0.5V Horizontal picture size decreases, EW-DRIVE output DC Down. 1Fh = 0V Amplitude: 0.58Vp-p, center potential: DC 4 V when V-ASPECT is 2Fh 3Fh = +0.5V Horizontal picture size increases, EW-DRIVE output DC Up.

EHT-H (2) : Horizontal high-voltage fluctuation compensation amount setting (DC adjustment for

parabolic output) 0h = 0V (Compensation amount when 1V is applied to ABL IN versus 8V applied

to ABL IN)

3h = –0.1V (Compensation amount when 1V is applied to ABL IN versus 8V applied

to ABL IN)

EHT-V (2) : Vertical high-voltage fluctuation compensation amount setting (V SAW output gain control)

0h = 0% (Compensation amount when 1V is applied to ABL IN versus 8V applied to ABL IN) 3h = –7% (Compensation amount when 1V is applied to ABL IN versus 8V applied to ABL IN)

INTERLACE (1) : Interlace mode and non-interlace display selector switch

0,1h = Interlace mode 2h = Interlace mode; 1/2H shift applied to EVEN lines 3h = Interlace mode; 1/2H shift applied to ODD lines

– 30 –

CXA2076Q

PIN-PHASE (4) : Horizontal trapezoidal distortion compensation amount adjustment (V parabola wave

center timing control) 0h = 1.5ms advance Horizontal size for top of picture increases; horizontal size for

bottom of picture decreases. 7h = 0ms 8.9ms from 4VDC VTIM Fh = 1.5ms delay Horizontal size for top of picture decreases; horizontal size

for bottom of picture increases.

UP-CORNER-PIN

(4) : Horizontal pin distortion compensation amount adjustment for top of picture

(V parabola wave top gain control) 0h = –0.2V Horizontal size for top of picture decreases.

(compensation amount maximum) 7h = 0V (0.7Vp-p 4:3 mode) Fh = +0.2V Horizontal size for top of picture increases.

(compensation amount minimum)

LO-CORNER-PIN

(4) : Horizontal pin distortion compensation amount adjustment for bottom of picture

(V parabola wave bottom gain control) 0h = –0.2V Horizontal size for bottom of picture decreases.

(compensation amount maximum) 7h = 0V (0.7Vp-p 4:3 mode) Fh = +0.2V Horizontal size for bottom of picture increases.

(compensation amount minimum)

V-ASPECT (6) : Aspect ratio control. (Gain control for sawtooth wave)

0h = 75% 16:9 CRT full 2Fh = 100% 4:3 CRT full, amplitude: 1.23Vp-p 3Fh = 112%

ZOOM SW (1) : Zoom mode ON/OFF switch for 16:9 CRT (25% of video cut)

0 = Zoom OFF Sawtooth wave amplitude: 1.23Vp-p 1 = Zoom ON Sawtooth wave amplitude: 70%

HBLKSW (1) : HBLK width control ON/OFF switch during 4:3 software full display mode on a 16:9

CRT 0 = Control OFF HBLK pulse generated from HPIN. 1 = Control ON HBLK pulse generated as pulse generated from HPIN or as

pulse generated from HVCO and width adjusted. Width adjustment is performed by the LEFT-BLK and RIGHT-BLK registers.

V-SCROLL (6) : Vertical picture scroll control during zoom mode on a 16:9 CRT

(DC component added to sawtooth wave AGC output to control ZOOMSW cut timing.)

0h = –0.2V Scrolled toward top of screen by 32H and top of picture zoomed. 1Fh = 0V 3Fh = +0.2V Scrolled toward bottom of screen by 32H and bottom of picture zoomed.

– 31 –

CXA2076Q

JUMPSW (1) : Reference pulse jump mode ON/OFF switch (In addition to V-ASPECT control, sawtooth

wave gain control performed for 100% of VBLK interval and 67% of picture interval) 0 = Jump mode OFF 1 = Jump mode ON On a 4:3 CRT, jump mode expands the sawtooth wave amplitude to 112% with VASPECT; on a 16:9 CRT, jump mode compresses the sawtooth wave amplitude to 75% with V-ASPECT. The V blanking width is expanded at both the top and bottom of the picture. Blanking for the bottom of the picture starts 251H after VTIM, and blanking for the top of the picture can be varied as the blanking width after the reference pulse from the VBLKW register.

HSIZESW (1) : Lowers the E-W OUT DC level (during H-SIZE compression)

0 = Normal 1 = –1.35V

UP-VLIN (4) : Vertical linearity adjustment for top of picture (Secondary component gain control for

sawtooth wave added to sawtooth wave AGC output) 0h = 100% (Bottom/top of picture) Fh = 115% (Bottom/top of picture) Top of picture compressed.

LO-VLIN (4) : Vertical linearity adjustment for bottom of picture (Tertiary component gain control

for sawtooth wave added to sawtooth wave AGC output) 0h = 100% (Bottom/top of picture) Fh = 85% (Bottom/top of picture) Bottom of picture compressed.

LEFT-BLK (4) : HBLK width control for the left side of picture when HBLKSW = 1 (Phase control for

timing pulse generated from HVCO) 0h = +1.3µs HBLK width maximum 7h = 0µs Center HBLK: 13µs Fh = –1.3µs HBLK width minimum

RIGHT-BLK (4) : HBLK width control for the right side of picture when HBLKSW = 1 (Phase control for

timing pulse generated from HVCO) 0h = +1.3µs HBLK width maximum 7h = 0µs Center HBLK: 13µs Fh = –1.3µs HBLK width minimum

SCP BGR (2) : Controls the phase of the rising edge of the burst pulse in sand castle pulse output

(0.4µs/step) 0h = +0.4µs 1h = Center 3h = –0.8µs

SCP BGF (2) : Controls the phase of the falling edge of the burst pulse in sand castle pulse output

(0.4µs/step) 0h = +0.4µs 1h = Center 3h = –0.8µs

CRT-TYP (1) : Corner Pin range for 16:9 or 4:3 CRT

0 = 16:9 Mode 1 = 4:3 Mode

– 32 –

CXA2076Q

6. Other

AGING (1) : White output aging mode ON/OFF switch

(Takes priority over RGB ON and PIC ON control. Set to OFF mode at power-on.) 0 = Aging mode OFF 1 = Aging mode ON (When there is no input signal, a 60 IRE flat signal is output

from the Y block)

7. Status register

HLOCK (1) : Lock status between H SYNC and H VCO

0 = HVCO free run status 1 = Locked to H SYNC

IKR (1) : AKB operation status

0 = REF-P at Ik small and AKB loop unstable. 1 = REF-P at Ik sufficient and AKB loop stable.

VNG (1) : Signal input status to V PROT pin

0 = No V PROT input 1 = V PROT input (In this case, the RGB output is blanked.)

XRAY (1) : Signal input status to XRAY control pin (HOFF pin)

0 = No XRAY control input 1 = XRAY control input (In this case, the RGB output is blanked.)

COLOR SYS (3) : Color system status

0h = — 1h = — 2h = NO STANDARD 3h = SECAM 4h = 3.58MHz NTSC 5h = 4.43MHz NTSC 6h = 3.58MHz PAL 7h = 4.43MHz PAL

FV (1) : Vertical frequency status register

0 = 50Hz 1 = 60Hz

– 33 –

CXA2076Q

Description of Operation

1. Power-on sequence

The CXA2076Q does not have an internal power-on sequence. Therefore, power-on sequence is all controlled by the set microcomputer (I2C bus controller).

1) Power-on

The IC is reset and the RGB outputs are all blanked. Hdrive starts to oscillate, but oscillation is at the maximum frequency (16kHz or more) and is not synchronized to the input signal. Output of vertical signal VTIM starts, but Vdrive is DC output. Bus registers which are set by power-on reset are as follows.

AGING = 0: All white output aging mode OFF RON = 0: Rch video blanking ON GON = 0: Gch video blanking ON BON = 0: Bch video blanking ON PICON = 0: RGB all blanking ON VOFF = 1: VDRIVE output stopped mode VFREQ = 0: Automatic identification mode (identification starts at 50Hz) FHHI = 1: H oscillator maximum frequency mode HSIZESW = 0: Normal CD-MODE = 0: Automatic selection mode of the countdown mode AKBOFF = 0: AKB mode

2) Bus register data transfer

The register setting sequence differs according to the set sequence. Register settings for the following sequence are shown as an example.

Set sequence CXA2076Q register settings Power-on Reset status in 1) above.

↓ ↓

Degauss Reset status in 1) above.

The CRT is degaussed in the completely darkened condition.

↓ ↓

VDRIVE oscillation The IC is set to the power-on initial settings. (See the following page.)

A sawtooth wave is output to VDRIVE and the IC waits for the vertical deflection to stabilize. The HDRIVE oscillator frequency goes to the standard frequency.

↓ ↓

AKB operation start PICON is set to 1 and a reference pulse is output from Rout, Gout and Bout.

Then, the IC waits for the cathode to warm up and the beam current to start flowing.

↓ ↓

AKB loop stable Status register IKR is monitored.

IKR = 0: No cathode current IKR = 1: Cathode current Note that the time until IKR returns to 1 differs according to the initial status of the cathode.

↓ ↓

Video output RON, GON and BON are set to 1 and the video signal is output from Rout,

Gout and Bout.

– 34 –

CXA2076Q

0 1

∗ ∗

0 1 1 0 0 0 1 0 0 0 1 0 0 1 1 0 1 0 1 1 1 1

Bit0Bit1Bit2Bit3Bit4Bit5Bit6Bit7

Sub Address

× × × 0 0 0 0 0 00 h × × × 0 0 0 0 1 01 h × × × 0 0 0 1 0 02 h × × × 0 0 0 1 1 03 h × × × 0 0 1 0 0 04 h × × × 0 0 1 0 1 05 h × × × 0 0 1 1 0 06 h × × × 0 0 1 1 1 07 h × × × 0 1 0 0 0 08 h × × × 0 1 0 0 1 09 h × × × 0 1 0 1 0 0A h × × × 0 1 0 1 1 0B h × × × 0 1 1 0 0 0C h × × × 0 1 1 0 1 0D h × × × 0 1 1 1 0 0E h × × × 0 1 1 1 1 0F h × × × 1 0 0 0 0 10 h × × × 1 0 0 0 1 11 h × × × 1 0 0 1 0 12 h × × × 1 0 0 1 1 13 h × × × 1 0 1 0 0 14 h × × × 1 0 1 0 1 15 h × × × 1 0 1 1 0 16 h × × × 1 0 1 1 1 17 h × × × 1 1 0 0 0 18 h × × × 1 1 0 0 1 19 h

1 1 1 1 1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 1 0 1 1 1 0

∗

1 1 1 1 1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 0 0 1 1 1 1 0

1 1 1 1 1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 1 0 1 1 1 1 0

1 1 1 1 0 0 0 1 1 1 0 0 1 1 0 1 1 0 0 0 0 1 0 1 0 0

1 1 1 1 0 1 1 1 1 1 1 0 1 1 1 1 1 1 1 0 0 1 1 1 1 0

0 0 0 1 0 1 1 0 0 0 1 0 0 1 1 0 0 1 1 0 1 0 1 1 1 1

1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

∗

I2C bus power-on initial settings

The initial settings listed here for power-on when VDRIVE starts to oscillate are reference values; the actual settings may be determined as needed according to the conditions under which the set is to be used.

Register Table

"∗" Undefined

Control Register

– 35 –

CXA2076Q

3) Power-on initial settings

The initial settings listed here for power-on when VDRIVE starts to oscillate are reference values; the actual settings may be determined as needed according to the conditions under which the set is to be used.

PICTURE = 3Fh Max (User Control) TRAP OFF = 0 Chroma Trap ON VM OFF = 0 VM out ON HUE = 1Fh Center (User Control) DC-TRAN = 0 Y DC transmission ratio 100% D-PIC = 1 Y black expansion ON COLOR = 1Fh Center (User Control) TOT = 0 Chroma low frequency increased BRIGHT = 1Fh Center (User Control) D-COL = 1 Dynamic Color ON SHARPNESS = 7h Center (User Control) PRE-OVER = 0 Sharpness pre/over ratio 1:1 COLOR SW = 0 AUTO SUB-CONT = 7h Center (Adjust) TRAP F0 = 7h Center (Adjust) SUB-COLOR = 7h Center (Adjust) UP-CORNER-PIN = 7h Center (Adjust) SUB-BRIGHT = 1Fh Center (Adjust) GAMMA = 0 Gamma OFF G-DRIVE = 1Fh Center (Adjust) AGING = 0 Aging Mode OFF B-DRIVE = 1Fh Center (Adjust) INTERLACE = 0 INTERLACE mode G-CUTOFF = 7h Center (Adjust) B-CUTOFF = 7h Center (Adjust) RON = 0 Rch video output OFF GON = 0 Gch video output OFF BON = 0 Bch video output OFF PICON = 0 RGB all blanked VOFF = 0 Vdrive oscillation FHHI = 0 Horizontal oscillator frequency standard CD-MODE = 0 V countdown auto mode AKBOFF = 0 AKB ON V-SIZE = 1Fh Center (Adjust) V-FREQ = 0 AUTO V-POSITION = 1Fh Center (Adjust) AFC-MODE = 2 Center S-CORR = 7h Center (Adjust) V-LIN = 7h Center (Adjust) H-SIZE = 1Fh Center (Adjust) REF-POSI = 0 PIN-COMP = 1Fh Center (Adjust) VBLKW = 0

– 36 –

CXA2076Q

(Power-on initial settings cont.)

H-POSITION = 7h Center (Adjust) PIN-PHASE = 7h Center (Adjust) AFC-BOW = 7h Center (Adjust) AFC-ANGLE = 7h Center (Adjust) SCP BGR = 1 Center SCP BGF = 1 Center XTAL = 0 AUTO EXT SYNC = 0 Internal SYNC CV/YC = 0 CV input V-ASPECT = 0h 16:9 CRT Full Mode ZOOMSW = 1 16:9 CRT HBLKSW = 1 Hblk width adjust ON V-SCROLL = 1Fh Center (User Control) JMPSW = 0 16:9 CRT Full Mode HSIZE SW = 0 Normal UP-VLIN = 7h 16:9 CRT Full Mode LO-VLIN = 7h 16:9 CRT Full Mode LEFT-BLK = Fh Hblk width Min. RIGHT-BLK = Fh Hblk width Min. EHT-H = 0 Hdrive high-voltage compensation OFF EHT-V = 3 Vdrive high-voltage compensation amount maximum LO-CORNER-PIN = 7h Center (Adjust) KIL-OFF = 0 Normal CRT-TYP = 0 16:9 Mode YS1 OFF = 0 Normal DL = 3 Normal (Adjust)

2. Various mode settings

The CXA2076Q contains bus registers for deflection compensation which can be set for various wide modes. Wide mode setting registers can be used separately from registers for normal picture distortion adjustment, and once deflection adjustment has been performed in full mode, wide mode settings can be made simply by changing the corresponding register data.

• VDRIVE signal picture distortion adjustment registers V-SIZE, V-POSITION, S-CORR, V-LIN

• E/WDRIVE signal picture distortion adjustment registers H-SIZE, PIN-COMP, PIN-PHASE, UP-CORNER-PIN, LO-CORNER-PIN

• Wide mode setting registers V-ASPECT, ZOOMSW, HBLKSW, V-SCROLL, JMPSW, HSIZESW, UP-VLIN, LO-VLIN, LEFT-BLK, RIGHT-BLK

– 37 –

CXA2076Q

Examples of various modes are listed below. These modes are described using 570 (NTSC: 480) lines as the essential number of display scanning lines. Wide mode setting register data is also listed, but settings may differ slightly due to IC variation. The standard setting data differs for 16:9 CRTs and 4:3 CRTs.

Register 16:9 CRT 4:3 CRT

V-ASPECT 0h 2Fh V-SCROLL 1Fh 1Fh ZOOMSW 1 0 UP-VLIN 0h 0h LO-VLIN 0h 0h JMPSW 0 0 HSIZESW 0 0 HBLKSW 0 0 LEFT-BLK 7h 7 RIGHT-BLK 7h 7h

1) 16:9 CRT full mode

This mode reproduces the full 570 (NTSC:480) lines on a 16:9 CRT. 4:3 images are reproduced by stretching the picture to the left and right. Normal images are compressed vertically, but 16:9 images can be reproduced in their original 16:9 aspect ratio with a video source which compresses (squeezes) 16:9 images to 4:3 images. The register settings are the 16:9 CRT standard values.

2) 16:9 CRT normal mode

In this mode, 4:3 images are reproduced without modification. A black border appears at the left and right of the picture. In this mode, the H deflection size must be compressed by 25% compared to full mode. The CXA2076Q permits compression with a register (HSIZESW) that compresses the H size by 25%. Because excessive current flows to the horizontal deflection coil in this case, adequate consideration must be given to the allowable power dissipation, etc., of the horizontal deflection coil in the design of the set. In addition, this concern can also be addressed through measures taken external to the IC, such as by switching the horizontal deflection coil. Full mode should be used when using memory processing to add a black border to the video signal. H blanking of the image normally uses the flyback pulse input to AFCPIN (Pin 38). However, the blanking width can be varied according to the control register setting when blanking is insufficient for the right and left black borders. The following three settings are added to the 16:9 CRT standard values for the register settings.

HBLKSW = 1 LEFT-BLK = Adjustment value

RIGHT-BLK = Adjustment value The H angle of deflection also decreases, causing it to differ from the PIN compensation amount during H size full status. Therefore, in addition to the wide mode registers, PIN-COMP must also be readjusted only for this mode.

3) 16:9 CRT zoom mode

In this mode, 4:3 images are reproduced by enlarging the picture without other modification. The top and bottom of normal 4:3 images are lost, but almost the entire picture can be reproduced for vista size video software, etc. which already has black borders at the top and bottom. The enlargement ratio can be controlled by the V-ASPECT register, and enlarging the picture by 33% compared to full mode allows zooming to be performed for 4:3 images without distortion. In this case, the number of scanning lines is reduced to 430 lines compared to 570 lines for full mode. The zooming position can be shifted vertically by the V-SCROLL register. V blanking of the image normally begins from V sync and continues for 2H after the AKB reference pulse, and the top and bottom parts are also blanked during this mode. Adjust the following two registers with respect to the 16:9 CRT standard values for the register settings.

V-ASPECT = 2Fh

V-SCROLL = 1Fh or user control

– 38 –

CXA2076Q

4) 16:9 CRT subtitle-in mode

When CinemaScope size images which have black borders at the top and bottom of the picture are merely enlarged with the zoom mode in 3) above, subtitles present in the black borders may be lost. Therefore, this mode is used to super-compress only the subtitle part and reproduce it on the display. Add the LO-VLIN adjustment to the zoom mode settings for the register settings.

V-ASPECT = 2Fh V-SCROLL = 1Fh or user control

LO-VLIN = Adjustment value The LO-VLIN register causes only the linearity at the bottom of the picture to deteriorate. Therefore, UP-VLIN should also be adjusted if the top and bottom of the picture are to be made symmetrical. Since the picture is compressed vertically, the number of scanning lines exceeds 430 lines.

5) 16:9 CRT V compression mode

This mode is used to reproduce two 4:3 video displays such as for PandP. The V size must be compressed to 67% in order to reproduce two displays on a 16:9 CRT without distortion using 480 scanning lines, and this can be set by JMPSW. Compression is performed after the AKB reference pulse, so the reference pulse remains in the overscan position. The V blanking width after the reference pulse becomes larger than normal and can be varied by the VBLKW register. During this mode, the bottom V blanking width is also expanded to 3H wider than normal so that the bottom of the picture is not overscanned. 16:9 CRT standard values are used with only the JMPSW setting changed for the register settings.

JMPSW = 1

6) 16:9 CRT wide zoom mode

This mode reproduces 4:3 video software naturally on wide displays by enlarging 4:3 images without other modification and compressing the parts of the image which protrude from the picture into the top and bottom parts of the picture. The display enlargement ratio is controlled by V-ASPECT, and the compression ratios at the top and bottom of the picture are controlled by UP-VLIN and LO-VLIN. Adjust the following three registers with respect to the 16:9 CRT standard values for the register settings.

V-ASPECT = Adjustment value

UP-VLIN = Adjustment value

LO-VLIN = Adjustment value

7) 4:3 CRT normal mode

This is the standard mode for 4:3 CRTs. The register settings are the 4:3 CRT standard values.

8) 4:3 CRT V compression mode

This mode is used to reproduce M-N converter output consisting of 16:9 images expanded to a 4:3 aspect ratio and other squeezed signals without distortion on a 4:3 CRT. The V size must be compressed to 75% in order to reproduce a 4:3 squeezed signal at a 16:9 aspect ratio without any distortion. Compressing the V size with the JMPSW register used in mode 5) above, compresses the V size to 67%. Therefore, V-ASPECT is set to enlarge the V size by 8%. AKB reference pulse handling and V blanking are the same as for mode 5) above. 4:3 CRT standard values are used with the V-ASPECT and JMPSW settings changed for the register settings.

V-ASPECT = 3Fh

JMPSW = 1

– 39 –

CXA2076Q

Mode Settings

1)-1

1)-2

2)

3)

4)

5)

6)

7)

8)

16:9 16:9

16:9

4:3

16:9 4:3

4:3

4:3 (16:9 + subtitle area)

4:3

16:9

16:9 CRT full Wide full

16:9 CRT normal

16:9 CRT zoom

16:9 CRT with subtitle area on

16:9 CRT V compression

16:9 CRT wide zoom

4:3 CRT normal

4:3 CRT V compression

V-ASPECT = 0h: V size 75% V-ASPECT = 0h: V size 75% V-ASPECT = 0h: V size 75%

HBLKSW = 1h: HBLK width adjustment ON LEFT-BLK = Adjustable RIGHT-BLK = Adjustable PIN-COMP = Adjustable (External support: H-DY H amplitude 75%)

V-ASPECT = 2Fh: V size 100% ZOOMSW = 1h: Zoom ON

V size limited at 75%

V-SCROLL = 0h: Zoom bottom of video image

1Fh: Zoom center of video image 3Fh: Zoom top of video image Adjustable: Open to user

V-ASPECT = 2Fh: V size 100% UP-VLIN = Adjustable: Slightly compresses top of

video image

LO-VLIN = Adjustable: Significantly compresses

bottom of video image ZOOMSW 1h: V size limited at 75% (V-SCROLL = Adjustable)

V-ASPECT = 0h: V size 75% JMPSW = 1h: Reference pulse skipping ON

V size compressed 67% after the reference pulse

(compressed to 50% total) VBLKW = Adjustable: VBLK width expanded at

top and bottom of video image V-ASPECT = Adjustable: V size 90%

UP-VLIN = Adjustable: LO-VLIN = Adjustable: (S-CORR = Adjustable):

V-ASPECT = 2Fh: V size 100% V-ASPECT = 3Fh: V size 112%

JMPSW = 1h: Reference pulse skipping ON

(compressed to 75% total) VBLKW = Adjustable: VBLK width expanded at

top and bottom of video image

Setting CRT SIZE

SOFT SIZE

MODE NAME I2C BUS REGISTER

∗

The amount of picture distortion compensation in a vertical direction position of the CRT does not change in response to the above modes; as a result, the initial values of each picture distortion register can be used as is.

Compression of top and bottom of video image

– 40 –

CXA2076Q

3. Signal processing

The CXA2076Q is comprised of sync signal processing, H deflection signal processing, V deflection signal processing, and Y/C/RGB signal processing blocks, all of which are controlled by the I2C bus.

1) Sync signal processing

Pin 48 (SYNC OUT) outputs at 2Vp-p either the internal signal (CVIN/YIN) selected by the internal video switch, or the external sync signal input from Pin 56 (EXT SYNC IN). This selection is controlled by the I2C bus. The signal output from Pin 48 is buffered by a PNP Tr. and is then input to HSIN (Pin 47) or VSIN (Pin 46) through a suitable filter. The Y signals input to Pins 46 and 47 are sync separated by the horizontal and vertical sync separation circuits. The resulting horizontal sync signal and the signal (FH = 15625Hz or 15734Hz) obtained by frequency dividing the 32FH-VCO output using the ceramic oscillator (frequency 500kHz or 503.5kHz) by 32 are phasecompared, the AFC loop is constructed, and an H pulse synchronized with the H sync is generated inside the IC. Adjustment of the H oscillator frequency is unnecessary. When the AFC is locked to the H sync, 1 is output to the status register (HLOCK) and that can be used to detect the presence of the video signal. The vertical sync signal is sent to the V countdown block where the most appropriate window processing is performed to obtain V sync timing information which resets the counter. AKB and other V cycle timing are then generated from this reset timing.

2) H deflection signal processing

The H pulse obtained through sync processing is phase-compared with the H deflection pulse input from Pin 38 to control the phase of the HDRIVE output and the horizontal position of the image projected on the CRT. In addition, the compensation signal generated from the V sawtooth wave is superimposed, and the vertical picture distortion is compensated. The H deflection pulse is used for H blanking of the video signal. When the pulse input from Pin 38 has a narrow width, the pulse generated by the IC can be added to the H deflection pulse and used as the H blanking pulse (HBLKSW). Pin 38 is normally pulse input, but if the pin voltage drops to the GND level, HDRIVE output stops and 1 is output to the status register (XRAY). To release this status, turn the power off and then on again.

3) V deflection signal processing

The V sawtooth wave is generated at the cycle of the reset pulse output from the countdown system. After performing wide deflection processing for this sawtooth wave, picture distortion adjustment is performed by the VDRIVE and E/WDRIVE function circuits and the signal is output as the VDRIVE and E/WDRIVE signals.

4) Y signal processing

Either CVIN, input from Pin 53, or YIN, output from Pin 55, is selected by the video switch and then is passed to the Y signal processing circuit as the Y signal. The input level is 1Vp-p. The Y signal passes through the subcontrast control, the trap for eliminating the chroma signal, the delay line, the sharpness control, the clamp and the black expansion circuits, and is then output to Pin 5 as YOUT. The differentiated waveform of the Y signal, advanced for about 200ns from YOUT is output from Pin 49 as the VM signal. The delay time is set by the bus register (DL). When CVIN is selected, the trap is on; when YIN is selected, the trap is off. The f0 of the internal filter is automatically adjusted within the IC. Because the f0 of the filter is not specified when the color killer function is operating, turn the trap off if there are any difficulties. In addition, the f0 of the trap will be affected slightly by variations among IC, so fine adjustment through the I2C bus (TRAP-F0) may be required.

– 41 –

CXA2076Q

5) C signal processing

The CVBS signal or chroma signal (specified input level: burst level of 300mVp-p) selected by the video switch passes through the ACC, TOT, chroma amplifier and demodulation circuits, becomes the R-Y and B-Y color difference signals, and is inverted for output on Pins 3 and 4. The color difference signals are averaged together by the external 1H delay line, and are input to Pins 7 and 8. Both color difference signals are clamped together with the Y signal input to Pin 5. They are then combined with the G-Y signal in the color control and axis control circuits. After Y/C mixing, the signals become the RGB signals. If the burst level goes to –35dB or less with respect to the specified input level, the color killer operates. In addition, the color system (PAL/NTSC) and the subcarrier frequency (4.43MHz/3.58MHz) are automatically identified according to the input chroma signal, and the internal VCO, demodulation circuit, axis control circuit, etc., are adjusted automatically. Furthermore, SECAM signals can also be identified if an external SECAM decoder is connected to Pin 1. In this case, Pins 3 and 4 and the SECAM decoder color difference output are linked together directly, and automatically one side goes to high impedance, the other goes to low impedance according to the input chroma signal, and then they are input to the external 1H delay line. System identification can be set to automatic or forced mode by the I2C bus (XTAL and COLOR SW). The color system is output to the status register (COLOR SYS).

6) RGB Signal processing

The RGB signals obtained from the Y/C block pass through the half-tone switch circuit (YM SW), the two switch circuits for the external RGB signals (YS1, YS2 SW), the picture control, dynamic color, gamma compensation, clamp, brightness control, drive adjustment, cut-off adjustment and auto cut-off circuits, and are output to Pins 22, 24 and 26. The RGB signals input to Pins 12, 13, 14, 17, 18, and 19 are 100 IRE, 100% white 0.7Vp-p signals, in accordance with the standard for normal video signals. If signals of 1.5Vp-p or more are input to Pins 17, 18, and 19, 67 IRE output is obtained (digital input). The voltage applied to Pin 28 (ABLIN) is compared with the internal reference voltage, integrated by the capacitor which is connected to Pin 29, and performs picture control and brightness control. In order to adjust the white balance (black balance), this IC has a drive control function which adjusts the gain between the RGB outputs and a cut-off control function which adjusts the DC level between the RGB outputs. Both drive control and cut-off control are adjusted by the I2C bus, with the Rch fixed and the G and Bch variable. An auto cut-off function (AKB) which forms a loop between the IC and CRT and performs adjustment automatically has also been added. This function can compensate for changes in the CRT with time. Auto cutoff operation is as follows.

• R, G and B reference pulses for auto cut-off, shifted 1H each in the order mentioned, appear at the top of the picture (actually, in the overscan portion). The reference pulse uses 1H in the V blanking interval, and is output from each R, G and B output pin.

• The cathode current (Ik) of each R, G and B output is converted to a voltage and input to Pin 27.

• The voltage input to Pin 27 is compared with the reference voltage in the IC, and the current generated by

the resulting error voltage charges the capacitors connected to Pins 21, 23 and 25 for the reference pulse interval and is held during all other interval.

• The loop functions to change the DC level of the R, G and B outputs in accordance with the capacitor pin voltage so that the Pin 27 voltage matches the reference voltage in the IC.

The Rch for the reference voltage in the IC is fixed and the G and Bch are cut-off controlled by the I2C bus. During G/B-CUTOFF center status, the loop functions so that the Rch for the reference pulse input to Pin 27 is 1Vp-p and the G and Bch are 0.81Vp-p. The reference pulse timing can be varied by the I2C bus. When AKB is not used, the IC can be set to manual cut-off mode with I2C bus settings. In this case, the DC level of the R, G and B outputs can be varied by applying voltages independently to Pins 21, 23 and 25.

– 42 –

CXA2076Q

4. Notes on operation

Because the RGB signals and deflection signals output from the CXA2076Q are DC direct connected, the board pattern must be designed consideration given to minimizing interference from around the power supply and GND. Do not separate the GND patterns for each pin; a solid earth is ideal. Locate the power supply side of the bypass capacitor which is inserted between the power supply and GND as near to the pin as possible. Also, locate the XTAL oscillator, ceramic oscillator and IREF resistor as near to the pin as possible, and do not wire signal lines near this pin. Drive the Y, external Y/color difference and external RGB signals at a sufficiently low impedance, as these signals are clamped when they are input using the capacitor connected to the input pin. DC bias is applied to the chroma signal within the IC. Input the chroma signal with low impedance via an external capacitor. Use a resistor (such as a metal film resistor) with an error of less than 1% for the IREF pin. Use a capacitor, such as an MPS (metalized polyester capacitor) with a small tan δ for SAWOSC. When using a line frequency FH of 15625Hz for the main clock (PAL-B, G, etc.), Murata's Ceralock CSB500F63 is recommended. This will yield a free-run frequency in the neighborhood of 15625Hz.

– 43 –

CXA2076Q

Curve Data

I2C bus data conforms to the "I2C Bus Register Initial Settings" of the Electrical Characteristics Measurement Conditions (P. 22).

V-SIZE

Time [ms]

0 5 10 15 20

2.0

V [V]

4.0

3.5

3.0

2.5 V-SIZE = 0

V-SIZE = 1F V-SIZE = 3F

V-POSITION

Time [ms]

0 5 10 15 20

2.4

V [V]

3.6

3.4

3.2

3.0

2.8

2.6

V-POSITION = 0 V-POSITION = 1F V-POSITION = 3F

V-SCROLL

Time [ms]

0 5 10 15 20

2.4

V [V]

3.8

3.4

3.2

3.0

2.8

2.6

3.6

V-SCROLL = 0 V-SCROLL = 1F V-SCROLL = 3F

2.4

S-CORR

Time [ms]

0 5 10 15 20

2.4

V [V]

3.6

3.4

3.2

3.0

2.8

2.6

S-CORR = 0 S-CORR = 7 S-CORR = F

V-LIN

Time [ms]

0 5 10 15 20

2.4

V [V]

3.6

3.4

3.2

3.0

2.8

2.6

V-LIN = 0 V-LIN = 7 V-LIN = F

V-ASPECT

Time [ms]

0 5 10 15 20

2.2

V [V]

3.8

3.4

3.2

3.0

2.8

2.6

V-ASPECT = 0 V-ASPECT = 1F V-ASPECT = 3F

3.6

2.4

– 44 –

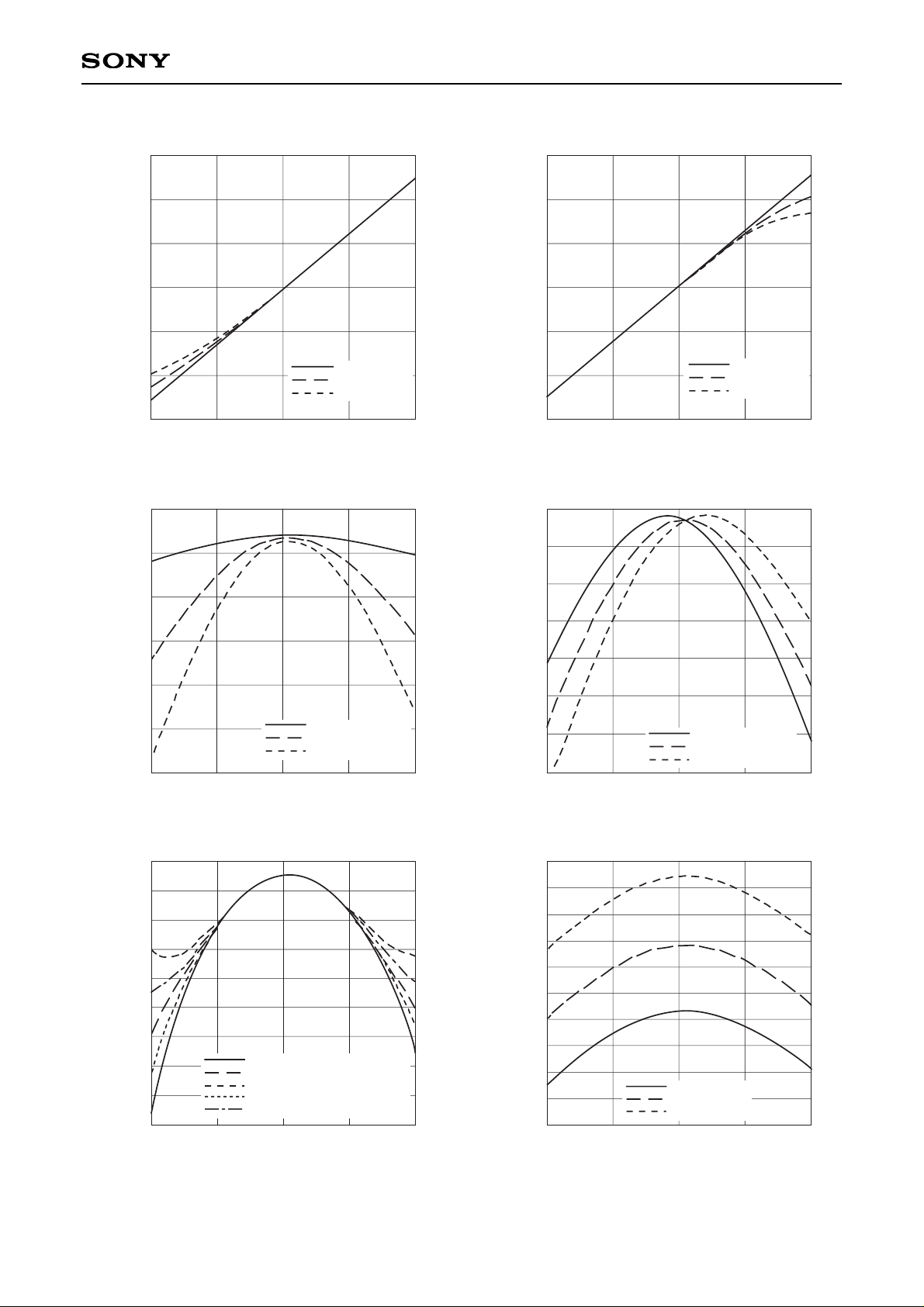

CXA2076Q

0 5 10 15 20 0 5 10 15 20

0 5 10 15 20

UP-VLIN

Time [ms]

0 5 10 15 20

2.4

V [V]

3.6

3.4

3.2

3.0

2.8

2.6

UP-VLIN = 0 UP-VLIN = 7 UP-VLIN = F

LO-VLIN

Time [ms]

0 5 10 15 20

2.4

V [V]

3.6

3.4

3.2

3.0

2.8

2.6

LO-VLIN = 0 LO-VLIN = 7 LO-VLIN = F

CORNER-PIN

Time [ms]

3.1

V [V]

4.0

3.6

3.5

3.3

3.9

PIN-COMP

Time [ms]

2.9

V [V]

4.1

3.9

3.7

3.5

3.3

3.1

PIN-COMP = 0 PIN-COMP = 1F PIN-COMP = 3F

PIN-PHASE

Time [ms]

3.3

V [V]

4.0

3.8

3.7

3.6

3.5

3.4

3.9

H-SIZE

Time [ms]

V [V]

4.6

4.4

3.6

3.2

2.8

H-SIZE = 0 H-SIZE = 1F H-SIZE = 3F

4.2

4.0

3.8

3.4

3.0

2.6

3.8

3.7

3.4

3.2

CRT-TYP = 0, CPIN = 0h CRT-TYP = 0, 1, CPIN = 7h CRT-TYP = 0, CPIN = Fh CRT-TYP = 1, CPIN = 0h CRT-TYP = 1, CPIN = Fh

PIN-PHASE = 0 PIN-PHASE = 7

PIN-PHASE = F

0 5 10 15 20

– 45 –

CXA2076Q


DATA

0 20 40 60 70

–20

Gain [dB]

0

–10

–15

–5

10 30 50

COLOR

DATA

0 20 40 60 70

–20

Gain [dB]

10

0

–5

–10

–15

10 30 50

5

∗

COLOR OFF when DATA = 0

(–40dB or less)

DL

DATA

0 2 4 6 8

200

CVIN – YOUT delay time [ns]

800

700

600

500

400

300

1 3 5 7

H-POSITION

DATA

0 4 8 12 16

0

Time [µs]

5

4

3

2

1

2 6 10 14

SYNC center

t [µs]

6µs

12µs

47

38

HSIN

AFCPIN

SHARPNESS

Frequency [MHz]

0 4 8 12

–10

Gain [dB]

10

5

0

–5

SHARPNESS = 0 SHARPNESS = 7 SHARPNESS = F

2 6 10

TRAP OFF

Frequency [MHz]

0 2 4 6

–35

Gain [dB]

5

–5

–10

–15

–20

–25

0

1 3 5

TRAP OFF = 1 TRAP OFF = 0

PAL TRAP OFF = 0 NTSC TRAP OFF = 0 SECAM

–30

– 46 –

CXA2076Q

16

SUB-CONT

DATA

0 4 8 12

–4

Gain [dB]

3

2

0

–1

–2

–3

2 6 10 14

1

–5

Gain [dB]

2

1

–1

–2

–3

–4

B-DRIVE, G-DRIVE

DATA

0 20 40 60 7010 30 50

0

DATA

–6

Gain [dB]

4

2

0

–2

–4

SUB-COLOR

0 4 8 12 162 6 10 14

BRIGHT

DATA

0 20 40 60 70

–1.5

Potential difference between Rch reference pulse level

and black level [Vp-p]

1

0

0.5

10 30 50

SUB-BRIGHT = 0 SUB-BRIGHT = 1F SUB-BRIGHT = 3F

–1.0

–0.5

SUB-BRIGHT

DATA

0 20 40 60 70

–0.8

Potential difference between Rch reference pulse level

and black level [Vp-p]

0.2

–0.4

0

10 30 50

–0.6

–0.2

GAMMA

CVIN input amplitude [IRE]

0 20 40 80 100

1.5

Rch output [V]

4.5

3.0

4.0

60

3.5

2.0

2.5

GAMMA = 0 GAMMA = 1 GAMMA = 2 GAMMA = 3

– 47 –

CXA2076Q

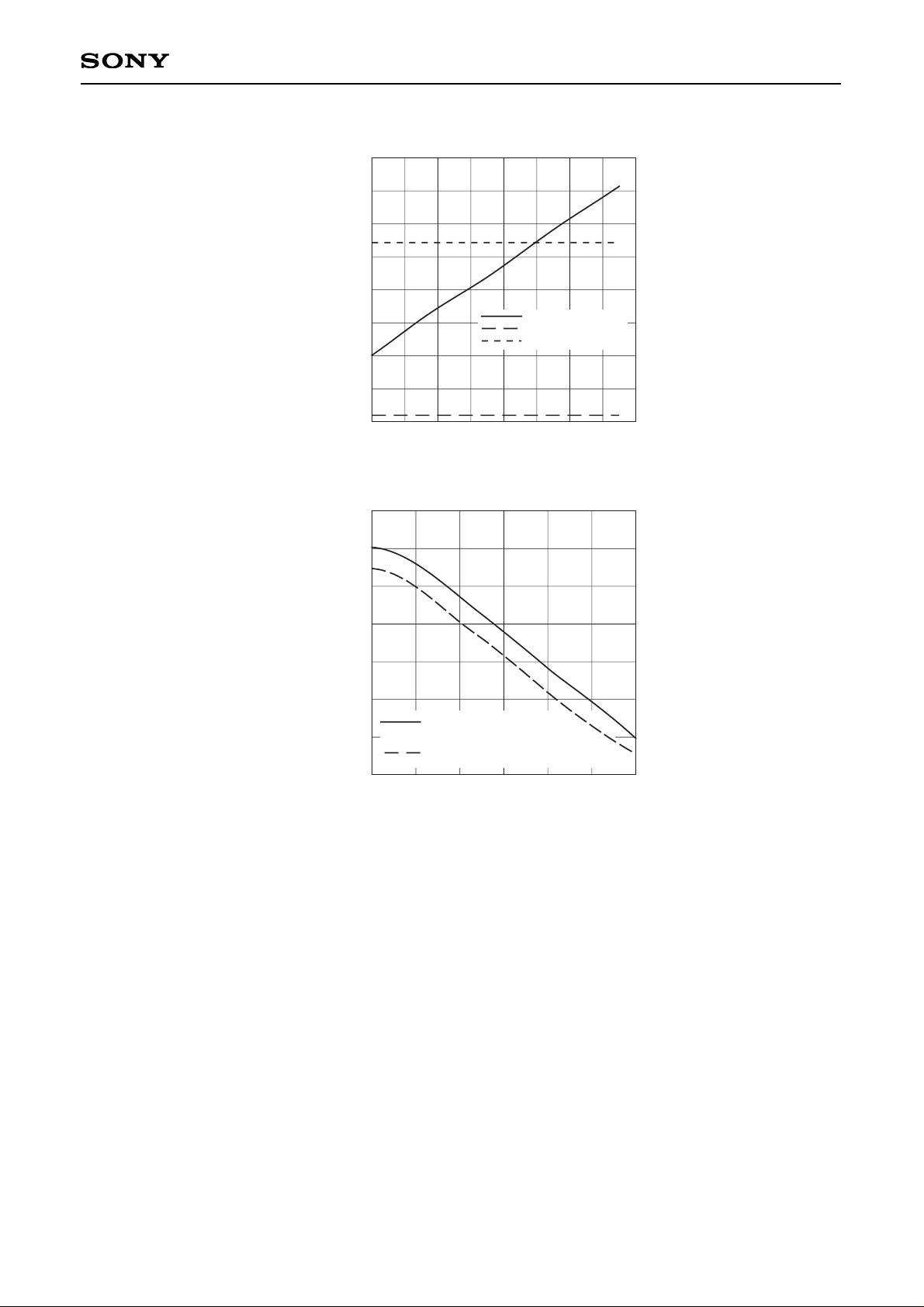

G-CUTOFF, B-CUTOFF

DATA

0 4 16

2.6

IKIN reference pulse voltage [V]

4.2

3.8

6 12

4.0

8 1410

2.8

3.0

3.2

3.4

3.6

2

Gch, Bch IK clamp level Rch

AKB open loop characteristics

Voltage applied to R, G and B sample-and-hold capacitance pins [V]

3.0 6.0

V [V]

3.5

0

1.5

3.5 4.0 5.0

0.5

2.5

5.54.5

3.0

1.0

2.0

Reference pulse voltage (AKBOFF = 0) RGBOUT black level voltage (AKBOFF = 0, 1)

– 48 –

CXA2076Q

Package Outline Unit: mm

SONY CODE

EIAJ CODE

JEDEC CODE

QFP-64P-L01 ∗QFP064-P-1420-A

PACKAGE STRUCTURE

PACKAGE MATERIAL LEAD TREATMENT

LEAD MATERIAL PACKAGE WEIGHT

42 ALLOY

SOLDER PLATING

EPOXY / PHENOL RESIN

1.5g

64PIN QFP (PLASTIC)

23.9 ± 0.4 + 0.4

51

33

52

64

1

1.0

32

20

19

0.8 ± 0.2

16.3

+ 0.1

17.9 ± 0.4

0.15 – 0.05

+ 0.2

0.1 – 0.05

+ 0.35

2.75 – 0.15

+ 0.15

0.4 – 0.1

20.0 – 0.1

0.15

M

± 0.12

+ 0.4

14.0 – 0.1

NOTE : PALLADIUM PLATING

This product uses S-PdPPF (Sony Spec.-Palladium Pre-Plated Lead Frame).
