Datasheet CXA2061S Datasheet (Sony)

Y/C/RGB/D for NTSC Color TVs

Description

The CXA2061S is a bipolar IC which integrates
the luminance signal processing, chroma signal
processing, RGB signal processing, and sync and
deflection signal processing functions for NTSC
system color TVs onto a signal chip. The IC also
includes deflection processing functions for wide
TVs.

Features

• Reduction in peripheral parts

(ceramic oscillator, AKB sample-and-hold capacitor, etc.)

• I2C bus compatible

• Built-in deflection compensation circuit which is capable of supporting variaus wide modes

• Non-adjusting V oscillator frequency with a countdown system

• Non-interlace display support (even/odd selectable)

• Non-adjusting Y/C filter

• Three sets of CV inputs, two sets of Y/C inputs (can serve as both Y/C and CV inputs), one set of Y/C inputs

supports an external combfilter, two sets of RGB inputs, one set of YUV inputs

• It can be outputted YUV on RGB1 inputs

• Built-in dynamic picture and dynamic color circuits

• Built-in AKB and gamma correction circuits

• FSC output

Applications

Color TVs (4:3, 16:9)

Structure

Bipolar silicon monolithic IC

Abusolute Maximum Ratings (Ta = 25°C, GND1, 2 = 0V)

• Supply voltage VCC1, 2 –0.3 to +12 V

• Operating temperature Topr –20 to +75 °C

• Storage temperature Tstg –65 to +150 °C

• Allowable power dissipation PD 1.5 W

(when mounted on a 50mm × 50mm board)

• Voltages at each pin –0.3 to VCC1, 2 + 0.3 V

Operating Condition

Supply voltage VCC1, 2 9 ± 0.5 V

– 1 –

E97538-PS

Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.

CXA2061S

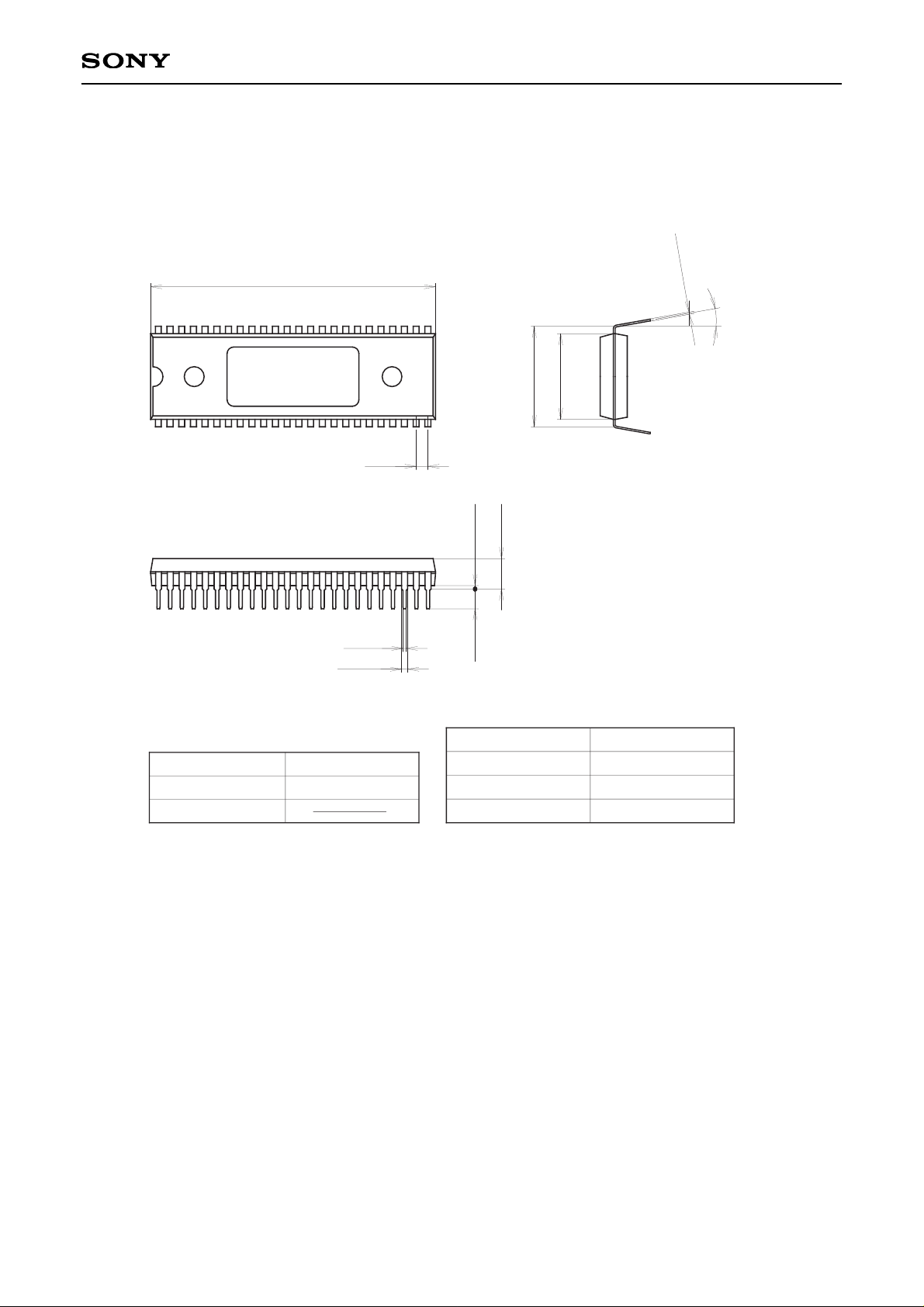

48 pin SDIP (Plastic)

– 2 –

CXA2061S

Block Diagram

5

11

13

14

15

17

18

19

22

23

24

40

35

44

45

46

1

PHASE DET.

<H POSITION>

<AFC BOW>

<AFC AMGLE>

HPROT

<<HNG>>

WIDE SAW FUNC.

<ASPECT>

<SCROLL>

<UPPER VLIN>

<LOWER VLIN>

<V ZOOM>

<V UNDER SCAN>

HD GEN.

<HD W>

VD SAW FUNC.

<VON> <S CORRECTION>

<V SIZE> <V LINEARITY>

<V POSITION> <EHT COMP>

EW PARABOLA FUNC.

<H SIZE> <TRAPEZIUM>

<PIN AMP> <EW DC>

<CORNERPIN>

IREF REG

VPROT

<<VNG>>

VM AMP

(OFF YS/YM)

DAC

SW

I

2

C BUS

DECODER

STATUS I/F

Y/C MIX

RGB CLAMP

CLAMP

DC TRAN

<DC TRAN>

VSAW GEN.

VTIM

COLOR AMP

<COLOR>

<C OFF>

AXIS

<AXIS NTSC>

<AXIS PAL>

EYUV CLAMP

YUV SW

<YSEL>

YUVOUT

<YUVOUT>

DPIC

<DPIC>

<AGING>

CLAMP

RGB 1/2

ABL/PEAK LIM

<ABL MODE>

<ABL VTH>

AKB

<<IKR>>

H TIM GEN.

<H BLK>

<LEFT HBLK>

<RIGHT HBLK>

HSAW GEN.

<HOSC>

(ZAP)

AFC

<AFC GAIN>

<FH HIGH>

<<HLOCK>>

<<HCENT>>

COUNT DOWN

<CD MODE>

<INTERLACE>

LINE COUNTER

V TIM GEN.

<V UNDER SCAN>

SHARPNESS DL

SHARPNESS AMP

<SHARPNESS>

<SHP F0>

<PRE/OVER>

V SYNC SEP

<VSS>

H SYNC SEP

<HSS>

<H MASK>

TRAP + EQ

<TRAP OFF>

ATT

CHROMA SW

Y SW

MONITOR SW

VIDEO SW

<VIDEO SEL>

<S SEL>

Y

COLOR KILLER

<<KILLER ID OFF>>

CHROMA

AMP

ACC DET.

ACC AMP

CHROMA

BPF

<C BPF>

FILTER ALIGNMENT

CAL. by fsc

APC

<HUE>

C VCO DEMOD.

FSC

<FSC SW>

YS1 SW

<RGB SEL>

YM SW

YS2 SW

DYNAMIC COLOR

<DYNAMIC C>

GAMMA AMP

<GAMMA>

CLAMP

BRIGHT CONT.

<BRIGHT>

DRIVE AMP

<R/G/B DRIVE>

CUTOFF CONT.

<R/G/B CUTOFF>

R/G/B BLK

<PON>

<R/G/B ON>

PICTURE AMP

<PICTURE>

47

8

39

38

37

36

25

26

27
28

29

30
31

32

3

21

42

34

10

12

16

33

20

2

4

6

7

9

41

43

TV/C2 IN

C1 IN

CVBS2/Y2 IN

COMB-C IN

COMB-Y IN

MON OUT

CVBS1/Y1 IN

AFC FIL

SCP

V TIM

HP/

HPROTECT

HD

GND1

I REF

REG

V

CC

1

YS2/YM

EW

VD+

VD–

SCL

SDA

R OUT

G OUT

B OUT

IK IN

ABL IN

ABL FIL

B2 IN (B-YOUT)

YS1

B1 IN

G1 IN

R1 IN

G2 IN (R-YOUT)

R2 IN (YOUT)

YUV SW

EY IN

ER-Y IN

VM OUT/

V PROT

EB-Y IN

APED
Y CLAMP

GND2

V

CC

2

FSCOUT

X'tal

APC FIL

– 3 –

CXA2061S

Pin Configuration

2
3
4
5
6
7
8

9
10
11

12
13
14
15
16
17

18

19
20

21
22
23

24

25

26

27

28

29

30

40
39
38
37
36
35
34

31

32

33

41

42

43

44

45

46

47

48

1

APED

C1 IN

ABL IN

CVBS1/Y1 IN

V TIM

MON OUT

COMB-C IN

Y CLAMP

COMB-Y IN

GND1

EW

I REF

VD+
VD–

VM OUT/V PROT

REG

SCP

HP/PROTECT

HD

AFC FIL

IK IN
R OUT
G OUT

B OUT

NC
X'tal

FSCOUT
APC FIL
V

CC2

TV/C2 IN
ABL FIL
CVBS2/Y2 IN
GND2
EB-Y IN
ER-Y IN
EY IN
YUV SW
SDA
SCL
V

CC1

R2 IN
G2 IN
B2 IN
YS2/YM
R1 IN
G1 IN
B1 IN
YS1

– 4 –

CXA2061S

Pin Description

Chroma signal input. Input a chroma
signal with a burst level of 300mVp-p via a

0.1µF capacitor. The S terminal signal is
normally input.

Pin

No.

Symbol Equivalent circuit Description

1

APED

Capacitor connection for black peak hold
of the dynamic picture (black expansion).
Connect to GND via a 4.7µF capacitor.

2

C1 IN

3

ABL IN

ABL control signal input and VD high
voltage fluctuation compensation signal
input. High voltage fluctuation
compensation has linear control
characteristics for the pin voltage range of
about 8 to 1V. Control characteristics can
be varied through EHT COMP control of
the bus. ABL function as PIC/BRT-ABL
(average value type). The threshhold
voltage at which ABL begins to have effect
can be switched between 3 to 1V by the
bus.

4

CVBS1/Y1 IN

CVBS signal/luminance signal input.
Input a 1Vp-p (100% white including sync)
CVBS signal via a 1µF capacitor.
When inputting Y/C separated signal,
input the Y signal.

1

94k

4µA

1k

50k

147

5.4V

2

147

3.7V / 1.7V

3

50k

147

5.4V

4

– 5 –

CXA2061S

Input the chroma signal from the comb
filter. Standard input level (burst level) is

0.6Vp-p.

Pin
No.

Symbol Equivalent circuit Description

6

MON OUT

The signal input from TV, CVBS1 and
CVBS2 are selected by VIDEO SEL and
S SEL of the bus and output. In the case
of S terminal input, the luminance signal
and chroma signal are mixed and output.
The output level is 2Vp-p including sync.

7

COMB-C IN

8

Y CLAMP

Capacitor connection for luminance signal
clamp.
Connect to GND via a 0.1µF capacitor.

9

COMB-Y IN

Input the luminance signal from the comb
filter. The signal is input via a 0.1µF
capacitor with a level of 2Vp-p.
(100% white including sync)

25.1k

6

200

4K

25k

147

5.4V

25k

7

10p

1.5k

8

25k

147

5.4V

25k

9

5

V TIM

V timing pulse. V timing pulse, HSS and
VSS output can be selected by VTIM SEL
control of the bus.

147

5

25k

– 6 –

CXA2061S

11

EW V parabola wave output.

1.2k

300µA

11

Pin

No.

Symbol Equivalent circuit Description

12

I REF

Internal reference current setting.
Connect to GND via a 10kΩ resistor
(metal film resistor) with an error of 1% or
less.

13

VD+

14

VD–

V sawtooth wave output. The pin 13 and
14 outputs are the reverse polarity of each
other.

147

7.2k

24k

12

2k

300µA

13

2k

300µA

14

10 GND1

GND (the deflection blocks circuit).

– 7 –

CXA2061S

15

VM OUT/
V PROT

Output the differential waveform of
luminance signal for the VM (Velosity
Modulation) system. This pin is also used
as the V protect signal input.
When a large current (4mA) is pulled from
this pin, the RGB outputs are all blanked
and "1" is output to the status register
VNG.

1k

400µA

147

15

16

REG

Connect decoupling capacitance for
internal regulator. Connect to GND via a
10µF capacitor.

2.2k

16

77k

20k500

160

1k

20pF

H deflection pulse input for H AFC. Input
a 5Vp-p pulse via a capacitor. This pin is
also used as the X-RAY protect signal
Input. If the pin voltage 1V or less for a 7
vertical cycle or longer, then the hold-down
funtion operates. At this time, the HD
output goes to high impedance, the RGB
output are blanked and "1" is output to the
status register HNG. To release this status,
turn the power off and then on again.

Pin
No.

Symbol Equivalent circuit Description

17

SCP

Sand castle pulse output.
The sand castle pulse is the waveform
obtained by superimposing the burst gate
pulse onto the composite blanking pulse.

18

HP/PROTECT

25k

50µA

17

50k

147

147

18

75k

25k

10k

– 8 –

CXA2061S

21

IK IN

CRT beam current (cathold current IK)
input. This current is converted to a voltage
inside the IC. This signal is clamped during
the V blanking interval to avoid adversely
affecting AKB operation for the CRT Ieak
current (max. 100µA). The AKB loop
operates by comparing the reference pulse
portion of this signal with the Internal
reference voltage. The RGB output cutoff
can be varied by the bus CUTOFF. The
beam current is large during the video
interval, so attach a Zener diode of around
4V to this pin to protect the IC.

147 4k

21

38.5k

3k

20

AFC FIL

AFC Iag-lead filter connection.
Connect CR to GND.

1k

20

100k

100k

2.5V

Pin

No.

Symbol Equivalent circuit Description

22
23
24

R OUT
G OUT
B OUT

R, G and B signal outputs. 2.4Vp-p is
outputted during 100% white input.

PICTURE: 1Fh
DRIVE: 1Fh
BRIGHT: 1Fh

527

22
23
24

150

1k

12k

19

HD

H drive signal output of NPN transistor.
Open collector output.

147

40k

40k

19

– 9 –

CXA2061S

YS1 switch control.
Selects the RGB1 input.

YS1 Vth: 0.7V
This pin is also used to switch the slave
address. When this pin is 7V or more, the
slave address changes from 88H to 8AH.

SLAVE ADDRESS Vth: 7V

25

YS1

26
27
28

B1 IN
G1 IN
R1 IN

R1, G1 and B1 signal input. Input a 0.7Vp-p
(no sync, 100 IRE) signal via a 0.01µF
capacitor. The input signal is clamped at
the burst timing in SCP.

29

YS2/YM

YS2/YM switch control. Select the RGB2
input. As YM function, when YM is high
(YM Vth: 0.7V), the output signal is
attenuated by 10dB.

YS2 Vth: 2V

147

25

30k

1.2k

60k

26
27
28

29

147 13k

7k

30
31
32

B2 IN
G2 IN
R2 IN

R2, G2 and B2 signal input. Input a 0.7Vp-p
(no sync, 100 IRE) signal via a 0.01µF
capacitor. Same as RGB1 IN, the input
signal is clamped at the burst timing in SCP.
When setting the bus YUV OUT = 1 and
connecting 10kΩ resistors to Vcc, Internal
YUV signals outputs

30 Pin: B-Y output

31 Pin: R-Y output

32 Pin: Y output

30

32

1.2k

60k

31

33

Vcc1

Power supply

Pin
No.

Symbol Equivalent circuit Description

– 10 –

CXA2061S

37

EY IN

1.5k

40k

37

38
39

ER-Y IN
EB-Y IN

External Y, R-Y and B-Y signal inputs.
Input the signal via a 0.01µF capacitor.

EY IN: 0.7Vp-p (no sync)

ER-Y IN: 0.735Vp-p (75% Color Bar)

EB-Y IN: 0.931Vp-p (75% Color Bar)

1.5k

65k

39

38

36

YUV SW

YUV SW control.
Selects the external YUV input.

Vth: 0.7V

This switch has a function prohibited
forcibly only the external Y input by the
register Y SEL.

36

147

20k

I2C Bus protocol SDA (Serial Data) I/O.

35

SDA

35

4k
10k

Pin

No.

Symbol Equivalent circuit Description

34

SCL I2C Bus protocol SCL (Serial Clock) input.

34

4k

10k

– 11 –

CXA2061S

40 GND2 GND (for the signal block circuit).

CVBS signal input from the TV tuner or
chroma signal input.
Input a 1Vp-p (including sync) CVBS signal
or a chroma signal with a burst level of
300mVp-p via a 1µF capacitor.

Pin
No.

Symbol Equivalent circuit Description

41

CVBS2/Y2 IN

CVBS signal/luminance signal input.
Input a 1Vp-p (including sync) signal via a
1µF capacitor. When inputting Y/C
separated signals, input the Y signal.

42

ABL FIL

Connect a capacitor (4.7µF) to GND to form
the LPF of the ABL control signal.

43

TV/C2 IN

50k

147

5.4V

41

1.2k

42

20k

50k

147

5.4V

43

45

APC FIL

Chroma APC lag-lead filter connection.
Connect CR to GND.

1k

45

4.9V

1k

44 Vcc2

Power supply
(mainly for the chroma block circuit).

– 12 –

CXA2061S

Pin

No.

Symbol Equivalent circuit Description

47

X'tal

APC crystal connection.

X'tal: NTSC crystal (3.579545MHz)

48

NC

2.5k

1.333k

47

46

FSC OUT

FSC output.
Output FSC signal by the register FSC SW.

15k

200

16k

46

– 13 –

CXA2061S

Electrical Characteristics Measurement Condition

Measure the following after setting the I

2

C bus registers as shown in "I

2

C BUS register initial settings". Ta = 25°C, VCC1, VCC2 = 9V, GND1, DND2 = 0V

1

2

3

4

5

6

7

8

9

10

11

I

CC

VREG

fHFR

HDw

VSp-p

VSdc

VEWp-p

VEWdc

VRout1

Vvm

Gmon

Measure the pin inflow current.

Measurement the pin voltage.

H DRIVE output frequency

Measurement the pulse width for the

interval where the H DRIVE output is high.

Measurement the V DRIVE output Vp-p.

Video center bias

Measurement the EW DRIVE output Vp-p.

Video center bias

Output amplitude when a video signal with

an amplitude of 0.7Vp-p/100 IRE is input.

Output amplitude of the 3.58MHz, 0.7Vp-p

input.

Gain from the VIDEO SW input to

MON OUT

V

CC1, VCC2 = 9V

Bus data: Initial setting

H OSC = 7h

ASPECT = 3Fh

V SIZE = 1Fh

SCROLL = 1Fh

V POSITION = 1Fh

ASPECT = 3Fh

V SIZE = 1Fh

PIN AMP = 1Fh

H SIZE = 1Fh

PICTURE = 3Fh

DRIVE = 3Fh

TRAP OFF

Current consumption

REG voltage

Horizontal freerunning frequency

HD output pulse width

V DRIVE output amplitude

V DRIVE output center

potential

EW DRIVE output amplitude

EW DRIVE output center

R, G and B output amplitude

VM output

MON OUT

33, 44

16

19

19

13, 14

13, 14

11

11

22, 23, 24

15

6

mA

V

kHz

µs

V

V

V

V

V

V

dB

No. Item Symbol Measurement condition Measurement point Measurement contents Min. Typ. Max. Unit

Sync deflection block items

75

7.6

15.7

25.5

1.4

3.53

0.73

4

3

2

6

110

7.9

16.0

28

1.6

3.8

0.9

4.3

3.75

2.4

6.4

Signal block items

45

7.4

15.4

23

1.1

3.3

0.4

3.7

2.4

1.6

5.6

– 14 –

CXA2061S

Electrical Characteristic Measurement Circuit

Signal souces are all GND unless otherwise specified in Measurement conditions column of Electrical Characteristics.

YS 1

100

0.01µ

0.01µ

0.01µ

RGB 1 IN

YS 2/YM

100

0.01µ

0.01µ

0.01µ

RGB 2 IN

0.1µ 47µ

100

V

CC + 9V

SCL

100

SDA

100

YUV SW

0.01µ

0.01µ

0.01µ

EXT YUV IN

CVBS2/Y2 IN

1µ

4.7µ

TV/C2 IN

1µ

0.1µ 47µ

10k

0.47µ

470p

NTSC X'tal

18p

25

26

27

28

29

30

40

39

38

37

36

35

34

31

32

33

41

42

43

44

45

46

47

48

APED

C1 IN

ABL IN

CVBS1/Y1 IN

V TIM

MON OUT

COMB-C IN

Y CLAMP

COMB-Y IN

GND1

EW

I REF

VD+

VD–

VM OUT/V PROT

REG

SCP

HP/PROTECT

HD

AFC FIL

IK IN

R OUT

G OUT

B OUT

NC

X'tal

FSCOUT

APC FIL

V

CC2

TV/C2 IN

ABL FIL

CVBS2/Y2 IN

GND2

EB-Y IN

ER-Y IN

EY IN

YUV SW

SDA

SCL

V

CC1

R2 IN

G2 IN

B2 IN

YS2/YM

R1 IN

G1 IN

B1 IN

YS1

4.7µ

0.1µ

9V

1µ

100

1µ

1µ

100

10k

100

51k

100

10µ

1µ

1µ 4.7k

0.01µ

Quasi

CRT

2.2k

51k

H PROT

HP GEN

HD

HP

7µs delay

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

1

C1 IN

ABL IN

CVBS1/Y1 IN

V TIM OUT

MON OUT

COMB-C IN

COMB-Y IN

E/W

V PROT

VM OUT

VD OUT

SCP OUT

1k

– 15 –

CXA2061S

Application circuits shown are typical examples illustrating the operation of the devices. Sony cannot assume responsibility for

any problems arising out of the use of these circuits or for any infringement of third party patent and other right due to same.

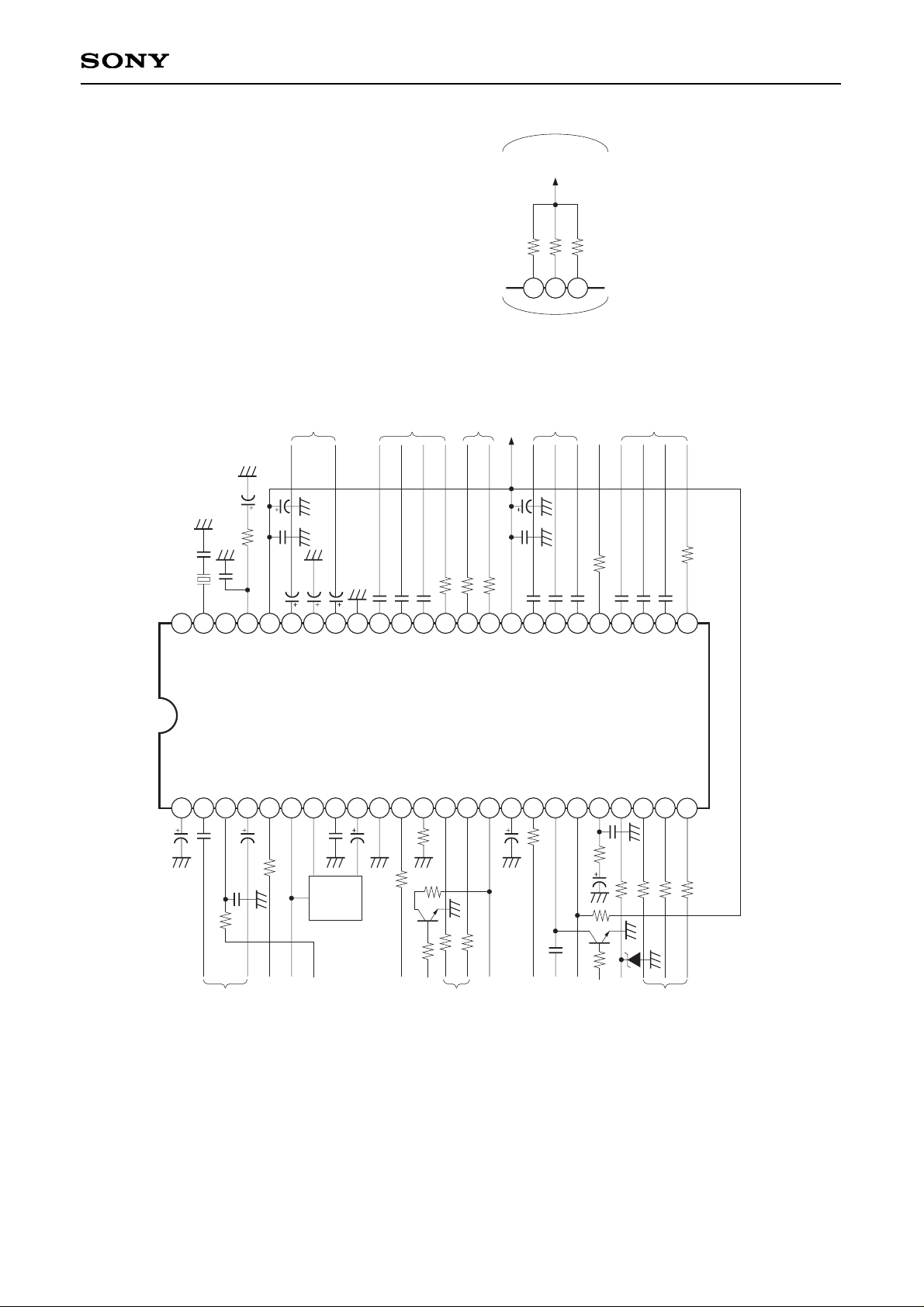

Application Circuit

100

0.01µ

0.01µ

0.01µ

100

0.01µ

0.01µ

0.01µ

0.1µ 47µ

100

100

100

0.01µ

0.01µ

0.01µ

1µ

4.7µ

1µ

0.1µ 47µ

10k

0.47µ

470p

NTSC X'tal

18p

APED

C1 IN

ABL IN

CVBS1/Y1 IN

V TIM

MON OUT

COMB-C IN

Y CLAMP

COMB-Y IN

GND1

EW

I REF

VD+

VD–

VM OUT/V PROT

REG

SCP

HP/PROTECT

HD

AFC FIL

IK IN

R OUT

G OUT

B OUT

NC

X'tal

FSCOUT

APC FIL

V

CC2

TV/C2 IN

ABL FIL

CVBS2/Y2 IN

GND2

EB-Y IN

ER-Y IN

EY IN

YUV SW

SDA

SCL

V

CC1

R2 IN

G2 IN

B2 IN

YS2/YM

R1 IN

G1 IN

B1 IN

YS1

4.7µ

0.1µ

1µ

100

1µ

1µ

100

10k

100

51k

100

10µ

1µ

1µ

4.7k

0.01µ

2.2k

51k

CVBS2/S2 input

External YUV input

I

2

C

V

CC + 9V

External RGB2

input

External RGB1 input

COMB

1k

100

CVBS/S input

V timing pulse output

MON output

ABL/high voltage function

compansation signal input

V parabora wave output

V protect signal input

V sawtooth wave output

VM output

Sand castle pulse output

H deflection pulse input

HD output

X-ray protect signal input

IK input

RGB output

25

26

27

28

29

30

40

39

38

37

36

35

34

31

32

33

41

42

43

44

45

46

47

48

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

1

During C DEC mode

30

31

32

10k

10k

10k

VCC

0.1µ

10k

100

100

100

100

– 16 –

CXA2061S

Measurement Condition of Electrical Characteristics

[I2C BUS register initial settings]

Register name

No. of bits

Initial settings

Content
RGB output ON
HD pulse width normal
Forced PAL axis mode OFF
VD ON
fH normal
RGB2 IN input mode
AGING OFF
Selection of TV input
Selection of TV/CVBS/BLK
R output ON
G output ON
B output ON
Be able to select YUV SW
BPF ON
TRAP ON
Maximum
FSC output OFF
Center
C signal ON
Center
F0 2.5MHz
NTSC JAPAN axis
Center
100%
1:1
Center
Center
Center
Center
Center
PICTURE/BRIGHT mode
VTH = 3V
Center
Dynamic color OFF

1
0
0
1
1
0
0
0
0
1
1
1
0
1
0

3Fh

0

1Fh

0

1Fh

0
0

1Fh

0

0
7h
7h
7h
7h

1Fh

1

0

1Fh

0

1
1
1
1
1
1
1
2
2
1
1
1
1
1
1
6
1
6
1
6
1
1
6
1
1
4
4
4
4
6
1
1
6
1

P ON
HD W
AXIS PAL
V ON
FH HIGH
YUVOUT
AGING
VIDEO SEL
S SEL
R ON
G ON
B ON
Y SEL
C BPF
C TRAP OFF
FSC SW
COLOR
C OFF
HUE
SHP FO
AXIS NTSC
BRIGHT
DC TRAN
PRE/OVER
SHARPNESS
R CUTOFF
G CUTOFF
B CUTOFF
R DRIVE
ABL MODE
ABL VTH
G DRIVE
DYNAMIC C

– 17 –

CXA2061S

Register name

No. of bits

Initial settings

Content
Be able to select YS1 SW
Center
GAMMA OFF
Center
Standard
INTERLACE mode
Slice level 1/3 (from sync tip)
Slice level 1/3 (from sync tip)
Center
Masking of macrovision OFF
Center
Low gain
No compensation
100%
Center
DC Ievel normal mode
Center
Center
Center
Center
Compensation amount max
Center
Center
Center
Center
MAX
H BLK width control OFF
OFF
Center
ZOOM OFF
Linearity 100%
Linearity 100%
V timing pulse output

0

1Fh

0

7h

0
0
0
0

1Fh

0

1Fh

1
0

7h

1Fh

0
1Fh
1Fh
1Fh

7h
Fh
7h
7h
7h
7h

3Fh

0

0
1Fh

0

0

0

0

1
6
2
4
2
2
1
1
6
1
6
2
4
4
6
1
6
6
6
4
4
4
4
4
4
6
1
1
6
1
4
4
2

RGB SEL
B DRIVE
GAMMA
H OSC
CD MODE
INTERLACE
H SS
V SS
V SIZE
H MASK
V POSITION
AFC GAIN
SCORRECTION
V LINEARITY
H SIZE
EW DC
H POSITION
PIN AMP
CORNER PIN
TRAPEZIUM
EHT COMP
AFC BOW
AFC ANGLE
LEFT HBLK
RIGHT HBLK
ASPECT
H BLK
V UNDERSCAN
SCROLL
V ZOOM
UPPER VLIN
LOWER VLIN
V TIM SEL

– 18 –

CXA2061S

S SEL


COLOR

HUE

BRIGHT

R DRIVE
G DRIVE

B DRIVE

V SIZE

V POSITION

H SIZE

H POSITION

PIN AMP

CORNER PIN

ASPECT
SCROLL

Definition of I2C BUS Registers
Slave Addresses

88H: Slave Receiver 89H: Slave Transmitter (25pin normal use)
8AH: Slave Receiver 8BH: Slave Transmitter (25pin pull up 7.5V or more)

∗

: Don't care

Control Register (Sub Address "0000" is set by power-on reset)

Bit0

Bit1

Bit2Bit3Bit4Bit5Bit6Bit7

Sub Address
x x x 0 0 0 0 0
x x x 0 0 0 0 1
x x x 0 0 0 1 0
x x x 0 0 0 1 1
x x x 0 0 1 0 0
x x x 0 0 1 0 1
x x x 0 0 1 1 0
x x x 0 0 1 1 1
x x x 0 1 0 0 0
x x x 0 1 0 0 1
x x x 0 1 0 1 0
x x x 0 1 0 1 1
x x x 0 1 1 0 0
x x x 0 1 1 0 1
x x x 0 1 1 1 0
x x x 0 1 1 1 1
x x x 1 0 0 0 0
x x x 1 0 0 0 1
x x x 1 0 0 1 0
x x x 1 0 0 1 1
x x x 1 0 1 0 0
x x x 1 0 1 0 1
x x x 1 0 1 1 0
x x x 1 0 1 1 1
x x x 1 1 0 0 0
x x x 1 1 0 0 1
x x x 1 1 0 1 0
x x x 1 1 0 1 1

AGING

B ON

C BPF

∗

C OFF

SHP F0

DC TRAN

0

Y SEL

C TRAP OFF

FSC SW

∗

AXIS NTSC
PRE/OVER

VIDEO SEL

YUVOUT

G ON

FH HIGH

R ON

V ONAXIS PALHD WP ON

Status Register

0
1

0
0

0
0

KILLER ID OFF

1

HNG

0

VNG

IKRHLOCK

HCENT

0

0

∗ ∗∗ ∗ ∗∗

SHARPNESS

G CUTOFF

R CUTOFF
B CUTOFF

ABL MODE

DYNAMIC C

ABL VTH

RGB SEL

GAMMA

H OSC

∗ ∗ ∗∗

∗ ∗

CD MODE

INTERLACE

H SS

∗

V SS

H MASK

AFC GAIN

S CORRECTION

V LINEARITY

∗
∗
∗
∗

EW DC

∗
∗
∗

TRAPEZIUM

AFC BOW

LEFT HBLK

EHT COMP

AFC ANGLE

RIGHT HBLK

HBLK

V ZOOM

V UNDER SCAN

∗

UPPER VLIN

LOWER VLIN

0

0

VTIM SEL

∗ ∗∗

∗

1st BYTE

2nd BYTE

– 19 –

CXA2061S

Description of Registers

Register name (No. of bits)

1. Y signal block registers

VIDEO SEL (2): VIDEO switch selector and input signal selector

Valid when S SEL is either 0 or 3.

0 = TV input signal selected
1 = CVBS1 input signal selected
2 = CVBS2 input signal selected
3 = Mute

S SEL (2): Y/C input signal selector

When S SEL is set to 1 or 2, set VIDEO SEL to 3 (Mute).

0 = TV/CVBS1/CVBS2 input or mute selected
1 = Y1/C1 input selected
2 = Y2/C2 input selected
3 = Y/C input from comb filter selected

(In this case, MON OUT selects TV/CVBS1/CVBS2 input or mute.)

C TRAP OFF (1): Y block chroma trap filter ON/OFF switch

When the status register "KILLER ID OFF" is set up "0", the chroma trap filter is set to OFF (= 1) by
microcomputer control.

0 = Trap filter ON
1 = Trap filter OFF

SHP F0 (1): Sharpness f0 selector

0 = 2.5MHz
1 = 3.0MHz

SHARPNESS (4): Sharpness gain control

0h = –12dB
7h = +3.5dB
Fh = +9dB

DC TRAN (1): DC transmission ratio selector

0 = 100%
1 = 85%

PRE/OVER (1): Sharpness preshoot/overshoot ratio control

0 = 1:1
1 = 2:1

– 20 –

CXA2061S

Y SEL (1): Internal Y signal fixed mode ON/OFF switch

0 = YUV SW (Pin 36) standard operation

(EY IN, ER-Y IN and EB-Y IN inputs are selected when Pin 36 = high.)

1 = EY IN (Pin 37) input only invalid

(Internal Y, ER-Y IN and EB-Y IN inputs are selected when Pin 36 = high.)

AGING (1): White output aging mode ON/OFF switch (Set to 0 at power-on.)

0 = Aging mode OFF
1 = Aging mode ON

(When there is no input signal, a 60 IRE flat signal is outputted from the Y block.)

2. Chroma signal block registers

HUE (6): Hue control (chroma demodulation axis phase control)

0h = –35deg
3Fh = +35deg

COLOR (6): Color gain control

0h = –30dB or less
1Fh = 0dB
3Fh = +6dB

C OFF (1): Color signal ON/OFF switch

0 = Color signal ON
1 = Color signal OFF

C BPF (1): Chroma band-pass filter ON/OFF switch

0 = Band-pass filter OFF
1 = Band-pass filter ON

AXIS NTSC (1): Color detective axis (JAPAN axis/US axis) selector switch during NTSC mode

But valid only during the register AXIS PAL = 0
0 = Set to JAPAN axis
1 = Set to US axis

AXIS PAL (1): Forced PAL detective axis mode selector switch

0 = Forced axis off mode
1 = Forced PAL axis mode

YUV OUT (1): Switches the R2 IN/G2 IN/B2 IN input pins (Pins 32, 31 and 30) to Y, R-Y and B-Y signal output pins.

0 = R2 IN/G2 IN/B2 IN signal input mode
1 = Pin 30: B-Y output

Pin 31: R-Y output
Pin 32: Y output

(In this case, connect each pin to Vcc via a 10kΩ resistor.)

– 21 –

CXA2061S

FSC SW (1): FSC signal output ON/OFF switch

0 = FSC output OFF
1 = FSC output ON, output a 700mVp-p signal

3. RGB signal block registers

PICTURE (6): Picture gain control

0h = –15dB
3Fh = 0dB (at 0.7Vp-p input: RGB output 2.4Vp-p, gamma OFF)

BRIGHT (6): Brightness control (RGB DC bias control)

0h = –30 IRE
1Fh = –12 IRE with respect to the reference pulse
3Fh = +30 IRE

(100 IRE = 2.4Vp-p)

R DRIVE (6): R output drive control

0h = 1.5Vp-p
3Fh = 3.0Vp-p

(PICTURE: Max.)

G DRIVE (6): G output drive control

0h = 1.5Vp-p
3Fh = 3.0Vp-p

(PICTURE: Max.)

B DRIVE (6): B output drive control

0h = 1.5Vp-p
3Fh = 3.0Vp-p

(PICTURE: Max.)

R CUTOFF (4): R output cut-off control

(Input current excluding leak amount at the reference pulse)
0h = 6.5µA
7h = 13µA
Fh = 19µA

G CUTOFF (4): G output cut-off control

(lnput current excluding Ieak amount at the reference pulse)
0h = 6.5µA
7h = 13µA
Fh = 19µA

B CUTOFF (4): B output cut-off control

(lnput current excluding Ieak amount at the reference pulse)
0h = 6.5µA
7h = 13µA
Fh = 19µA

– 22 –

CXA2061S

GAMMA (2): RGB output gamma correction control

0 = Gamma correction OFF
3 = +12 IRE correction at 40 IRE input (PICTURE: Max.)

ABL MODE (1): ABL mode selector

0 = Picture ABL only operation mode
1 = Picture ABL/bright ABL combined mode

ABL VTH (1): ABL control signal detective level (VTH) selector switch

0 = Vth: 3V
1 = Vth: 1V

DYNAMIC C (1): Dynamic color function ON/OFF switch

0 = Dynamic color OFF
1 = Dynamic color ON

RGB SEL (1): Disables YS1 switch selection and prohibits external signal input from RGB1.

0 = YS1 normal mode
1 = YS1 forced OFF mode

P ON (1): All blanking switch for RGB output signals with an AKB reference pulse (Set to 0 at power-on.)

0 = RGB outputs blanked (AKB reference pulse also not output)
1 = RGB outputs ON

R ON (1): Blanking switch for R output signal without an AKB reference pulse

0 = R output blanked
1 = R output ON

G ON (1): Blanking switch for G output signal without an AKB reference pulse

0 = G output blanked
1 = G output ON

B ON (1): Blanking switch for B output signal without an AKB reference pulse

0 = B output blanked
1 = B output ON

– 23 –

CXA2061S

4. Deflection block registers

H OSC (4): H VCO oscillator frequency adjustment (40Hz/step)

0h = Low frequency
Fh = High frequency

V SS (1): Slice level selector for vertical sync signal separation

0 = 1/3 (from sync tip)
1 = 1/4 (from sync tip)

H MASK (1): Masking of macrovision signal ON/OFF switch

0 = Masking off
1 = Masking on

H SS (1): Slice level selector for horizontal sync signal separation

0 = 1/3 (from sync tip)
1 = 1/4 (from sync tip)

VTIM SEL (2): Selector for signal output to VTIM pin (Pin 5)

0 = V retrace timing pulse
1 = Horizontal sync signal
2 = Vertical sync separation signal
3 = Not used

CD MODE (2): V countdown system mode selector

0 = Standard mode

(For RF signal input)

1 = Mode changing timing is faster than standard mode

(For VCR signal input)

2 = Fixed to window width wide mode

Recommended when shortening the lock time.

3 = Not used

INTERLACE (2): Interlace/non-interlace mode selector

0, 1 = Interlace mode
2 = Non-interlace mode (Even fields shifted by +1/2H)
3 = Non-interlace mode (Odd fields shifted by +1/2H)

AFCGAIN (2): AFC loop gain control (H Sync and H VCOPLL)

0 = High
1 = Medium
2 = Not used
3 = Low

– 24 –

CXA2061S

H POSITION (6): Horizontal picture position adjustment (HAFC phase control)

0h = 2µs delay (Picture position shifts to right: image delayed with respect to HD.)
3Fh = 2µs advance (Picture position shifts to left: image advanced with respect to HD.)

AFC BOW (4): Vertical line bow compensation amount adjustment

(Phase control according to HAFC parabola wave)
0h = Top and bottom of picture delayed 500ns with respect to picture center.
7h = No compensation
Fh = Top and boottom of picture advanced 500ns with respect to picture center.

AFC ANGLE (4): Vertical line slope compensation amount adjustment (Phase control according to HAFC VSAW)

0h = Top of picture delayed 500ns, bottom of picture advanced 500ns with respect to picture center.
7h = No compensation
Fh = Top of picture advanced 500ns, bottom of picture delayed 500ns with respect to picture center.

LEFT HBLK (4): HBLK width control for left side of picture when H BLK = 1

0h = +1.2µs HBLK width maximum
7h = Center
Fh = –1.2µs HBLK width minimum

RIGHT HBLK (4): HBLK width control for right side of picture when H BLK = 1

0h = +1.2µs HBLK width maximum
7h = Center
Fh = –1.2µs HBLK width minimum

H BLK (1): HBLK width control switch during 4:3 software normal mode on a 16:9 CRT

0 = Control OFF
1 = Control ON

FH HI (1): Increases the H oscillator frequency free-running frequency by 1kHz.

(Set to ON modeat power-on.)
0 = Maximum frequency mode ON
1 = Maximum frequency mode OFF (Standard free-running frequency)

HD W (1): HD pulse width varying switch (Set to 0 at power-on.)

0 = Normal mode (Pulse width: 25µs)
1 = Pulse width narrow mode (Use when the FBP rise time from the HD rise is short.)

V SIZE (6): Vertical picture size adjustment (VD output gain control)

0h = –15% (Minimum size)
1Fh = 0%
3Fh = +15% (Maximum size)

– 25 –

CXA2061S

V POSITION (6): Vertical picture position adjustment (VD output DC bias control)

0h = –0.1V (Picture position drops)
1Fh = 0V (Center potential: DC 3V)
3Fh = +0.1V (Picture position rises)

S CORRECTION (4): Vertical S distortion correction amount adjustment (VD secondary component gain control)

0h = Secondary component amplitude by adding sawtooth and other signals = 0mVp-p
Fh = Secondary component amplitude by adding sawtooth and other signals = 100mVp-p

V LINEARITY (4): Vertical linearity adjustment (VD secondary component gain control)

0h = 85% (Bottom/top of picture) Top of picture expanded.
1h = 100% (Bottom/top of picture)
3Fh = 115% (Bottom/top of picture) Top of picture compressed.

EHT COMP (4): Vertical picture size high voltage fluctuation compensation amount setting (VD output gain control)

0h = 0%
Fh = –5% (Compensation amount maximum)

V ON(1 ): VD output ON/OFF switch (Set to 0 at power-on.)

0 = DC voltage output
1 = Sawtooth wave output

H SIZE (6): Horizontal picture size adjustment (EW output DC bias control)

0h = –0.5V (Horizontal picture size decreases.)
1Fh = 0V (Center potential: DC 4V)
3Fh = +0.5V (Horizontal picture size increases.)

PIN AMP (6): Horizontal pin distortion compensation amount adjustment (V parabola wave gain control)

0h = 0.15Vp-p

(Horizontal size for top/bottom of picture increases: Compensation amount minimum.)
1Fh = 0.7Vp-p
3Fh = 1.3Vp-p

(Horizontal size for top/bottom of picture decreases: Compensation amount maximum.)

CORNER PIN (6): Horizontal pin distortion compensation amount adjustment for top/bottom of picture

(V parabola wave top/bottom gain control)

0h = –0.4V

(Horizontal size for top/bottom of picture decreases: Compensation amount maximum.)

3Fh = +0.4V

(Horizontal size for top/bottom of picture increases: Compensation amount minimum.)

TRAPEZIUM (4): Horizontal trapezoidal distortion compensation amount adjustment (Parabola wave phase control)

0h = 1.5ms advance

(Horizontal size for top of picture increases; horizontal size for bottom of picture decreases.)

Fh = –1.5ms delay

(Horizontal size for top of picture decreases; horizontal size for bottom of picture increases.)

– 26 –

CXA2061S

ASPECT (6): Aspect ratio control (Sawtooth wave gain control)

0h = 75% (For 16:9 CRT full scanning mode)
2Fh = 100% (For 4:3 CRT full scanning mode)
3Fh = 110% (For V UNDERSCAN mode on)

SCROLL (6): Vertical picture scroll control during zoom mode on a 16:9 CRT

0h = Scrolled toward top of screen by 32H and top of picture zoomed.
3Fh = Scrolled toward bottom of screen by 32H and bottom of picture zoomed.

UPPER VLIN (4): Vertical linearity adjustment for top of picture

0h = 100% (Top/bottom of picture)
Fh = 85% (Top/bottom of picture; top of picture compressed)

LOWER VLIN (4): Vertical linearity adjustment for bottom of picture

0h = 100% (Bottom/top of picture)
Fh = 75% (Bottom/top of picture; bottom of picture compressed)

V UNDER SCAN (1): V sawtooth wave compression mode

0 = OFF
1 = ON

Compressed to 67% when ASPECT = 0h.
Compressed to 75% when ASPECT = 2Fh.
In this case, the RGB V blanking increases by around 10H at both the top and bottom of the picture.

V ZOOM (1): Zoom mode ON/OFF switch for a 16:9 CRT

0 = Zoom OFF
1 = Zoom ON

(The top and bottom of the picture are cut by a total of 25% when ASPECT = 2Fh. RGB is also
blanked during this interval.)

EW DC (1): V parabola wave DC Ievel down mode during 4:3 deflection on a 16:9 CRT

0 = OFF
1 = ON

(DC Ievel down) In this case, the pin distortion must be readjusted by picture distortion
compensation when EW DC = 0.

– 27 –

CXA2061S

5. Status registers

H LOCK (1): Lock status between H Sync and H VCO

0 = Free run status
1 = H Sync and H VCO locked status

IKR (1): AKB operation status

0 = AKB Ioop unstable
1 = AKB Ioop stable

V NG (1): V protect status

0 = V protect OFF (lC normal operation status)
1 = V protect ON (In this case, the RGB outputs are all blanked.)

H NG (1): X-RAY protect status

0 = H drive output ON
1 = H drive output OFF

(In this case, HD output goes to high impedance and the RGB outputs are all blanked. To release
this status, turn the power off and then on again.)

KILLER ID OFF (1): Color killer identification status

0 = Color killer ON
1 = Color killer OFF

H CENT (1): H VCO status

0 = H VCO oscillator frequency is higher than the horizontal frequency of the input signal selected by

the VIDEO switch.

1 = H VCO oscillator frequency is lower than the horizontal frequency of the input signal selected by

the VIDEO switch.

– 28 –

CXA2061S

Description of Operation

1. Power-on sequence

The CXA2061S does not have an Internal power-on sequence. Therefore, all power-on sequence are controlled
by set microcomputer (I2C bus controller).

1) Power-on

The IC is reset and the RGB outputs are all blanked. H drive starts to oscillate, but oscillation is at the
maximum frequency (16kHz or more) and is not synchronized with the input signal in order to prevent FBT
(flyback transformer for generating high voltage) H squealing. Output of vertical signal V TIM start, but V dirve
is DC output. Bus registers whitch are set by power-on reset are as follows.

P ON = 0: RGB all blanked On
HD W = 0: Normal mode
V ON = 0: V output stopped mode
FH HIGH = 0: H oscillator maximum frequency mode
AGING = 0: All white output aging mode OFF
YUV OUT = 0

2) Bus register data transfer

The register setting sequence differ according to the set sequence. Register setting for the following sequence
are shown as an example.

Set sequence CXA2061S register setting
Power-on Reset status in 1) above.

Degauss Reset status in 1) above

The CRT is degussed in the completely darkened condition.

V DRIVE oscillation The IC is set to the power-on initial setting. (See the following page.)

A sawtooth wave is output to V DRIVE and the IC waits for the vertical deflection to
stabilize. The H DRIVE oscillator frequency goes to the standard frequency.

AKB operation start R ON, G ON, B ON are set to "0", P ON is set to "1" and a reference pulse is output

from ROUT, GOUT and BOUT. Then, the IC waits for the cathode to warm up and the
beam current to start flowing.

AKB Ioop stable Status register IKR is monitored.

IKR = 0: Unstable
IKR = 1: Stable
Note that the time until IKR = 1 is returned differ according to the intial status of the
cathode

Video output R ON, G ON, B ON are set "1" and the video signal is output from ROUT, GOUT and

BOUT.

– 29 –

CXA2061S

3) Power-on initial setting

The initial setting listed here for power-on when V DRIVE starts to osicillate are reference values; the actual
setting m

ey be determind as needed according to the conditions under whitch the set is to be use.
P ON = 0 RGB all blanking
HD W = 0 Normal
AXIS PAL = 0 Forced PAL AXIS OFF
V ON = 1 V drive oscillation
FH HIGH = 1 H oscillator frequency standerd
YUV OUT = 0 R2 IN/G2 IN/B2 IN signal input mode
AGING = 0 Aging Mode OFF
VIDEO SEL = 0 TV signal input (User)
S SEL = 0 TV/CVBS1/CVBS2 input or Mute selection (User)
R ON = 0 Rch video output blanked
G ON = 0 Gch video output blanked
B ON = 0 Bch video output blanked
Y SEL = 0 YUV SW standerd operation
C BPF = 1 C BPF ON
C TRAP OFF = 0 C TRAP ON
PICTURE = 3Fh MAX (User Control)
FSC SW = 0 FSC output OFF
COLOR = 1Fh Center (User Control)
C OFF = 0 Choma signal ON
HUE = 1Fh Center (User Control)
SHP F0 = 0 2.5MHz
AXIS NTSC = 0 Japan axis
BRIGHT = 1Fh Center (User Control)
DC TRAN = 0 100%
PRE/OVER = 0 Sharpness Pre/Over ratio 1:1
SHARPNESS = 7h Center (User Control)
R CUTOFF = 7h Center (Adjust)
G CUTOFF = 7h Center (Adjust)
B CUTOFF = 7h Center (Adjust)
R DRIVE = 1Fh Center (Adjust)
ABL MODE = 1 PictureABL/BrightABL combined mode
ABL VTH = 0 Vth = 3V
G DRIVE = 1Fh Center (Adjust)
DYNAMIC C = 0 Dynamic Color OFF
RGB SEL = 0 YS1 SW normal mode
B DRIVE = 1Fh Center (Adjust)
GAMMA = 0 Gamma OFF
H OSC = 7h Center (Adjust)
CD MODE = 0 Normal
INTERLACE = 0 Interlace Mode
H SS = 0 Slice level 1/3 (from Sync Tip)
V SS = 0 Slice level 1/3 (from Sync Tip)

– 30 –

CXA2061S

(Power-on initial setting)

V SIZE = 1Fh Center (Adjust)
H MASK = 0 Protection against macrovision OFF
V POSITION = 1Fh Center (Adjust)
AFC GAIN = 1 Low gain
S CORRECTION = 7h Center (Adjust)
V LINEARITY = 7h Center (Adjust)
H SIZE = 1Fh Center (Adjust)
EW DC = 0 OFF
H POSITION = 1Fh Center (Adjust)
PIN AMP = 1Fh Center (Adjust)
CORNER PIN = 1Fh Center (Adjust)
TRAPEZIUM = 7h Center (Adjust)
EHT COMP = 7h Center (Adjust)
AFC BOW = 7h Center (Adjust)
AFC ANGLE = 7h Center (Adjust)
LEFT HBLK = 7h Hblk width Min
RIGHT HBLK = 7h Hblk width Min
ASPECT = 2Fh 100%
H BLK = 0 Control OFF
V UNDER SCAN = 0 OFF
SCROLL = 1Fh Center (User Control)
V ZOOM = 0 Zoom OFF
UPPER VLIN = 0h 100% (No compression)
LOWER VLIN = 0h 100% (No compression)
VTIM SEL = 0 V retrace pulse timing pulse

2. Various mode setting

The CXA2061S contains bus registers for deflection compensation whitch can be set for various wide mode.
Wide mode setting registers can be used separately from registers for normal picture distortion adjustment,
and once picture distortion adjustment has been performed in fill mode, wide mode setting can be made simply
by changing the corresponding register data.

• Vertical picture distortion adjustment registers
V SIZE, V POSITION, S CORRECTION, V LINEARITY

• Horizontal picture distortion adjustment registers
H SIZE, EW DC, PIN AMP, CORNER PIN, TRAPEZlUM, AFC BOW, AFC ANGLE, H POSITION

• Wide mode setting registers
LEFT HBLK, RIGHT HBLK, ASPECT, HBLK, V UNDER SCAN, SCROLL, V ZOOM, UPPER VLIN,
LOWER VLIN

– 31 –

CXA2061S

Example of various modes are listed below. These modes are described for NTSC using 480 Iines as the
essential number of display scanning lines. Wide mode setting register data is also listed, but adjustment values
may differ slightly due to IC variation.
The standard setting data differs for 16:9 CRTs and 4:3 CRTs.

(Standard values)

Register 16:9 CRT 4:3 CRT

ASPECT 0h 2Fh
SCROLL 1Fh 1Fh
V ZOOM 1 0
UPPER VLIN 0h 0h
LOWER VLIN 0h 0h
V UNDER SCAN 0 0
H BLK 0 0
LEFT HBLK 7h 7h
RIGHT HBLK 7h 7h

(1) Full mode

This mode reproduces the full 480 Iines on a 16:9 CRT. Normal 4:3 images are compressed vertically, but in the
case of a squeezed video source which compresses 16:9 images to 4:3 images, 16:9 images are reproduced in
their original 16:9 aspect ratio. The register settings are the 16:9 CRT standard values.

(2) Normal mode

In this mode, 4:3 images are reproduced without modification on a 16:9 CRT. A black border appears at the left
and right of the picture.
In this mode, the H deflection size must be compressed by 25% compared to full mode.
The CXA2061S performs compression with a register (EW DC) that compresses the H size.
Because excessive current flows to the horizontal deflection circuit in this case, adequate consideration must be
given to the allowable power dissipation, etc., of the horizontal deflection coil in the design of the set. In addition,
this concern can also be addressed through measures taken external to the IC, such as switching the horizontal
deflection coil.
Full mode should be used when using memory processing to add a black border to the video signal.
H blanking of the image normally uses the flyback pulse input from HP/PROTECT (Pin 18). However, the
blanking width can be varied according to the control register setting when blanking is insufficient for the right and
left black borders. Change the following three settings with respect to the 16:9 CRT standard values for the
register settings.

HBLK = 1
LEFT HBLK = Adjustment value

RIGHT HBLK = Adjustment value
The H angle of deflection also decreases, causing it to differ from the PIN compensation amount during H size full
status. Therefore, in addition to the wide mode registers, PIN AMP must also be readjusted only for this mode.

– 32 –

CXA2061S

(3) Zoom mode

In this mode, 4:3 images are reproduced on a 16:9 CRT by enlarging the picture without other modification. The
top and bottom of normal 4:3 images are lost, but almost the entire pieture can be reproduced for vista size video
software, etc. which already has black borders at the top and bottom. Setting the ASPECT register to 2Fh (100%)
allows zooming to be performed for 4:3 images without distortion. In this case, the number of scanning lines is
reduced to 360 Iines compared to 480 Iines for full mode. The zooming position can be shifted vertically by the
SCROLL register.
V blanking of the image normally begins from V sync and continues for 2H after the AKB reference pulse, and the
top and bottom parts are also blanked during this mode.
Adjust the following two registers with respect to the 16:9 CRT standard values for the register settings.

ASPECT = 2Fh
SCROLL = 1Fh or user control

(4) Subtitle-in mode

When CinemaScope size images which have black borders at the top and bottom of the picture are merely
enlarged with the zoom mode in (3) above, the subtitles present in the black borders may be lost. Therefore, this
mode is used to super-compress only the subtitle part and reproduce it on the display.
Add the LOWER VLIN adjustment to the zoom mode settings for the register settings.

ASPECT = 2Fh
SCROLL = 1Fh or user Control

LOWER VLIN = Adjustment value
LOWER VLIN causes the linearity at the bottom of the picture to deteriorate. Therefore, UPPER VLIN should also
be adjusted if the top and bottom of the picture are to be made symmetrical. Since the picture is compressed
vertically, the number of scanning lines exceeds 360 lines.

(5) Two-picture mode

This mode is used to reproduce two 4:3 video displays on a 16:9 CRT such as for P and P.
To achieve this, the V size must be further compressed from the condition where ASPECT = 0 (V size 75%: full
mode). This IC performs this compression with V UNDER SCAN.
16:9 CRT standard values are used with only V UNDER SCAN changed to "1" for the register settings.

V UNDER SCAN = 1

(6) Wide zoom mode

This mode reproduces 4:3 video software naturally on wide displays by enlarging 4:3 images without other
modification and compressing the parts of the image which protrude from the picture into the top and bottom parts
of the picture. The display enlargement ratio is controlled by ASPECT, and the compression ratios at the top and
bottom of the picture are controlled by UPPER VLIN and LOWER VLIN.
Adjust the following three registers with respect to the 16:9 CRT standard values for the register settings.

ASPECT = Adjustment value

UPPER VLIN = Adjustment value

LOWER VLIN = Adjustment value

(7) 4:3 CRT normal mode

This is the standard mode for 4:3 CRTs.
The register settings are the 4:3 CRT standard values.

– 33 –

CXA2061S

(8) V compression mode

This mode is used to repreduce M-N converter output consisting of 16:9 images expanded to 4:3 aspect ratio and
other squeezed signals without distortion on a 4:3 CRT. In this case, the V size must be compressed to 75%. This
is done using V UNDER SCAN in (5) above.
Setting V UNDER SCAN to ON compresses the V size to 75%. Fine adjustment of the V size is possible by
adding the ASPECT adjustment.
4:3 CRT standard values are used with the ASPECT and V UNDER SCAN settings changed for the regieter
settings.

ASPECT = Adjustment
V UNDER SCAN = 1

Mode settings

1) -1

1) -2

2)

3)

4)

5)

6)

7)

8)

16:9
16:9

16:9

16:9

16:9

16:9

16:9

4:3

4:3

16:9

4:3

4:3

16:9

4:3

4:3
(16:9 +
Subtitle
area)

4:3

4:3

4:3

16:9

Full

Wide Full

Normal

Zoom

Subtitle-in

Two Display

Wide Zoom

4:3 Normal

V compression

16:9 CRT Standard value
16:9 CRT Standard value
ASPECT = 0h: V size 75%

H BLK = 1: HBLK width adjustment ON
LEFT HBLK = Adjustment
RIGHT HBLK = Adjustment
PIN AMP = Adjustment
EW DC = 1

ASPECT = 2Fh: V size 100%
V ZOOM = 1: Zoom ON

(V size limited at 75%)

SCROLL = 0h: Zoom top of video image

= 1Fh: Zoom center of video image
= 3Fh: Zoom bottom of video image

ASPECT = 2Fh: V size 100%
UP VLIN = Adjustable: Slightly compresses

top of video image

LO VLIN = Adjustable: Signifficantly

compress bottom of

video image
V ZOOM = 1: V size limited at 75%
SCROLL = Adjustment

V UNDER SCAN = 1: Compressed
ASPECT = Adjustment: V size 90%

UP VLIN = Adjustable
LO VLIN = Adjustable
(S CORR = Adjustable)

4:3 CRT standard value
ASPECT = Adjustable

V UNDER SCAN = 1: V size 80%

(compressed to 75% total)

SETTING CRT SIZE

SOFT SIZE

MODE NAME I2C BUS REGISTER

The amount of picture distortion compensation in the vertical direction position of the CRT does not change in
respnse to the above modes; as a result, the initial values of each picture distortion register can be used as is.

compression of
top and bottom of
video image

– 34 –

CXA2061S

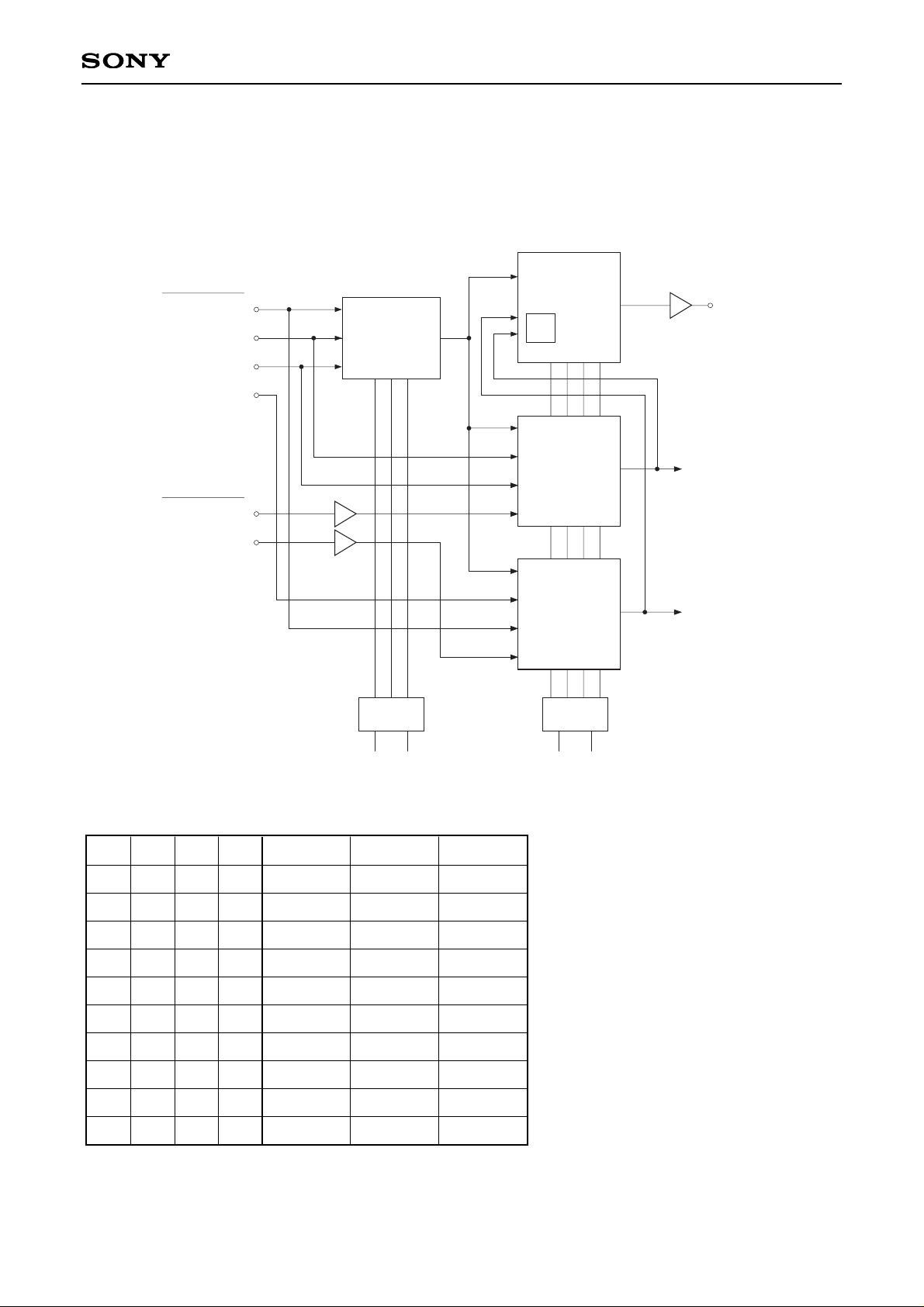

3. VIDEO switch

The block diagram from the CXA2061S input to the VIDEO switch is as shown in the diagram below.
The input is selected and switched by the VIDEO SEL and S SEL settings as shown in the table below.

VIDEO SW

MON-OUT
2Vp-p

SELECTOR

MIX

+6dB

SELECTOR

SELECTOR

TO-Y

TO-CHROMA

2 to 4

C D

I

2

C : S SEL

2 to 3

A B

I2C : VIDEO SEL

–6dB

–6dB

VIDEO

SELECTOR

TV/C2-IN

CVBS1/Y1 IN

CVBS2/Y2 IN

C1-IN

INPUT: 1.0Vp-p

COMB-Y IN

COMB-C IN

INPUT: 2.0Vp-p

0
0
1
1
1
1
0
0
1
1

0
1
0
1
1
1
0
1
0
1

0
0
0
0
0
1
1
1
1
1

0
0
0
0
1
0
1
1
1
1

TV
CVBS1
CVBS2
NOSIG

Y1

Y2

COMBY
COMBY
COMBY

NOSIG

TV
CVBS1
CVBS2

NOSIG

C1

C2

COMBC
COMBC
COMBC

NOSIG

TV
CVBS1
CVBS2
NOSIG

Y1 + C1
Y2 + C2

TV
CVBS1
CVBS2
NOSIG

A B C D TO-Y TO-C MON-OUT

VIDEO SEL

Note) When Y1/C1 or Y2/C2 is selected, set VIDEO SEL to A = 1, B = 1.

S SEL

– 35 –

CXA2061S

4. Signal processing

The CXA2061S is comprised of sync signal processing, H deflection signal processing, V deflection signal
processing, and Y/C/RGB signal processing blocks, all of which are controlled by the I2C bus.

1) Sync signal processing

The Y signal selected by the video switch is sync separated by the horizontal and vertical sync separation
circurts.
The resulting horizontal sync separation signal and the H VCO output signal are phase compared, the AFC
loop is constructed, and an H pulse synchronized with the H sync is generated inside the IC. When the AFC is
locked to the H sync, 1 is output to the status register (H LOCK) and that can be used to detect the presence
of the video signal.
The vertical sync separation signal is sent to the V countdown block where the most appropriate window
processing is performed to obtain the V deflecticn timing. The AKB reference pulse and other V cycle timing
are generated from this V timing pulse.
The V retrace timing pulse and the sync separation signals are outputted from VTlM (Pin 5) according to the
VTIM SEL register setting.

2) H deflection signal processing

The H pulse obtained through sync processing is phase-compared with the H deflection pulse input from Pin 18
(HP/PROTECT) to control the phase of the H DRIVE output and the horizontal position of the picture on the
CRT. In addition, the compensation signal generated from the V sawtooth wave is superimposed, and the
vertical picture distortion is compensated.
The H deflection pulse is used to H blank the video signal. When the H deflection pulse has a narrow width,
the pulse generated by the IC can be added to the H deflection pulse and used as the H blanking pulse
(HBLK).
Pin 18 is normally pulse input, but if the pin voltage drops to near the GND Ievel. H DRIVE output stops and 1
is outputted to the status register (H NG). To release this status, turn the power off and then on again.

3) V deflection signal processing

The V sawtooth wave is generated at the cycle of the V timing pulse output from the countdown system. After
performing wide deflection processing for this sawtooth wave, picture distortion adjustment is performed by the
V DRIVE and EW DRIVE function circuits and the signal is output as the V DRIVE and EW DRIVE signals.

4) Y signal processing

The Y/CVBS signal selected by the video switch is sent to the Y signal processing circuit.
The Y signal passes through the trap filter for eliminating the chroma signal, the delay line, the sharpness
control, the clamp and the black expansion circuits, and then is sent to the RGB signal processing circuit. The Y
signal processing circuit output can also be monitored at Pin 32 (R2 IN) by setting C DECOD register to 1. (In
this case, connect Pin 32 to Vcc via a 10kΩ Ioad resistor.)
The differential waveform of the Y signal, delay for ubout 270ns from Y input is output from Pin 15 as VM OUT.
Set register C TRAP OFF to 0 (trap filter ON) when the CVBS signal is selected, or to 1 (trap filter OFF) when
the Y/C separated Y signal is selected.
The f0 of the internal filter is automatically adjusted within the IC.

– 36 –

CXA2061S

5) C signal processing

The TV, CVBS or chroma signal (specified input level: burst level of 300mVp-p) selected by the video switch
passes through the ACC, chroma band-pass filter, chroma amplifier and demodulation circuits, becomes the R-Y
and B-Y signals, and input to the RGB signal processing circuit.
Like the Y output, the signals (R-Y, B-Y signals) output from this C signal processing circuit can be monitored
at Pins 30 (B2 IN) and 31 (G2 IN) by setting C DECOD register to 1. B-Y is outputted from Pin 30 (B2 IN) and
R-Y is output from Pin 31 (G2 IN). (In this case, connect Pins 30 and 31 to Vcc via a 10kΩ Ioad resister.)
If the burst level goes to –36dB or less with respect to the specified input level, the color killer operates.

6) RGB signal processing

The Y and color difference signals obtained from the Y and C signal processing circuits are first inputted to
YUV SW, and then selected and switched with the external Y and color difference signals. The selected Y and
color difference signals become the RGB signals after synthesizing the G-Y signal at the next axis circuit
(including color control). After that, the RGB signals pass through the YS1 SW switch circuit for the external
RGB signals, YM SW (half-tone switch), YS2 SW switch circuit for the external RGB signals, dynamic color,
picture control, gamma compensation, clamp, brightness control, drive control and cut-off control circuits, and
are outputted from Pins 22, 23 and 24 (R, G, B OUT).
The external RGB signals (100 IRE, 100% white 0.7Vp-p) are input to Pins 26, 27 and 28, and Pins 30, 31 and
32 in accordance with the standard for normal video signals.
The voltage applied to Pin 3 (ABL IN) is compared with the internal reference voltage, integrated by the
capacitor which is connected to Pin 42 (ABL FIL), and becomes the control signal which performs picture
control and brightness control. This ABL mode can be switched to a mode where only picture control is
performed and a mode where both picture control and brightness control are performed by ABL MODE
register. Picture control only mode also has a function to guarantee that brightness control operates when an
excessive beam current flows.

In order to adjust the white and black balance, this IC has a drive control function which adjusts the gain
between the RGB outputs and a cut-off control function which adjusts the DC Ievel between the RGB outputs.
These functions can be adjusted with three independent channels by the I2C bus. An auto cut-off function
(AKB) which forms a loop between the IC and CRT and performs adjustment automatically has also been
added. This function can compensate for changes in the CRT with time.

Auto cut-off operation is as follows.

1. R, G and B reference pulses for auto cut-off, shifted 1H each in the order mentioned, appear at the top of
the picture (actually, in the overscan portion). The reference pulse uses 1H in the V blanking interval, and
is output from each R, G and B output pin.

2. The RGB cathode current (lK) is input to Pin 21 (lK IN).

3. The cathode current input to Pin 21 (lK IN) is converted to a voltage within the IC. The reference pulse
interval of this voltage is compared with the reference voltage in the IC, and the current generated by the
resulting error voltage charges the capacitors in the IC. The charge is held during all intervals other than
the reference pulse interval.

4. The loop functions to change the DC Ievel of the R, G and B outputs in accordance with the capacitor
genenated voltage so that the voltage obtained by converting the current input to Pin 21 (IK IN) matches
the reference voltage in the IC.

The reference voltage in the IC can be adjusted independently for R, G and B through cut-off control by the I2C
bus. The cathode signal current flowing during the reference pulse interval is about 13µA when the cathode
current signal is set to cut-off control center. In addition, the cathode leak current flowing during blanking can
be supported up to 100µA. Large currents flowing during the video interval may damage the areas around IK
IN, so be sure to connect a Zener diode of about 4V to the IK IN pin.

– 37 –

CXA2061S

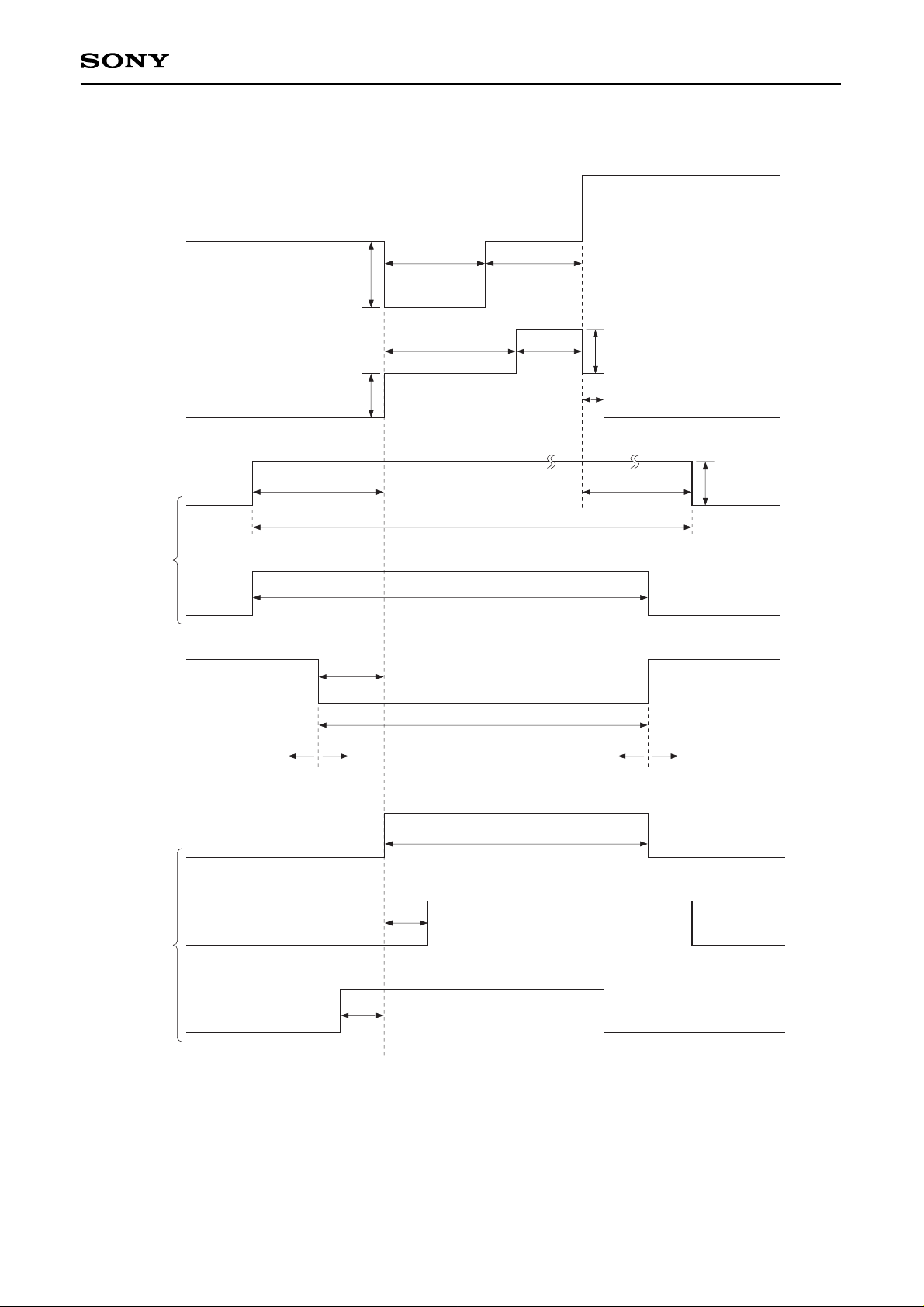

5. Timing chart

H SYNC

SCP

VIDEO

0.275V

4.6µs 4.3µs

2V

6µs 3µs

2.9V

1µs

6µs 10µs

7.7V

25µs

(HDW = 0)

(HDW = 1)

HD

3µs

15.5µs

19µs

1.2µs1.2µs

(by LEFT HBLK)

1.2µs1.2µs

(by RIGHT HBLK)

12µs

(H POSI = 1Fh)

HP

(H POSI = 3Fh)

(H POSI = 0h)

2µs

2µs

RGB BLK

– 38 –

CXA2061S

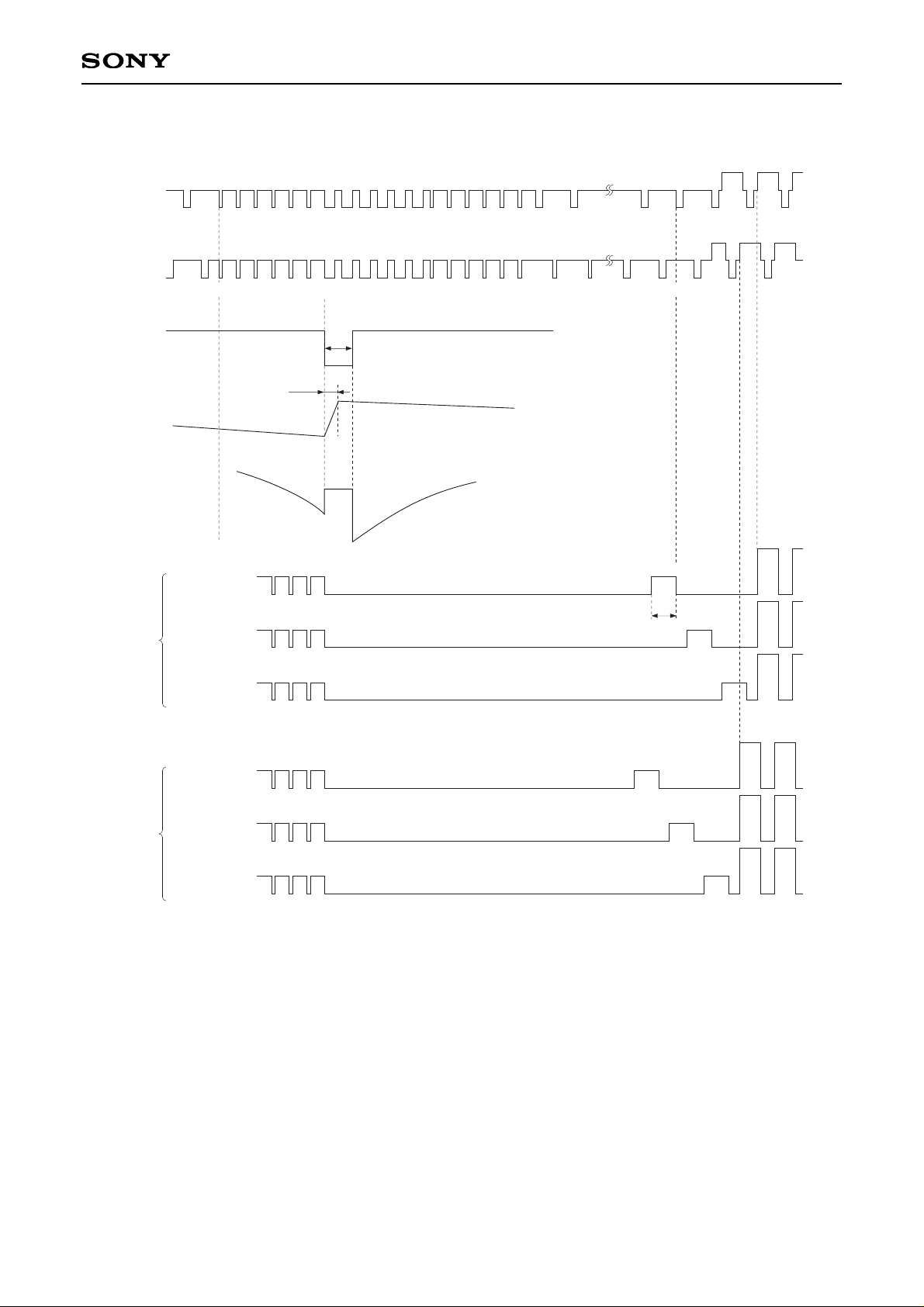

ODD
input

VIDEO

525

50µs

EVEN
output

1 2 3 4 5 6 87 9 1110 2120

262

263 264 265 266 267 268 270269 271 273272 282

EVEN
input

VTIM

VD

EW

20µs

R OUT

G OUT

B OUT

R OUT

G OUT

B OUT

ODD
output

VIDEO

VIDEO

REF. PULSE

50µs

283

REF. PULSE

– 39 –

CXA2061S

6. Notes on operation

Because the RGB signals and deflection signals output from the CXA2061S are DC direct connected, the
board pattern must be designed with consideration given to minimizing interference from around the power
supply and GND.
Do not separate the GND patterns around each pin; a solid earth is ideal. Locate the power supply side of the
by-pass capacitor which is inserted between the power supply and GND as near to the pin as possible. Also,
locate the crystal oscillator and IREF resistor as near this pin as possible, and do not wire signal lines near this
pin. Drive the Y, external Y/color difference and external RGB signals at sufficiently low impedance, as these
signals are clamped via the input capacitor.
Use a resistor (such as a metal film resistor) with an error of 1% or less for the IREF pin.
Read type (HC-49/U type) is used for X'tal oscillator.
Make sure that capture range, color response and others have no problems shown in Application Circuit.

– 40 –

CXA2061S

Example of Representative Characteristics

V-SIZE

Time [ms]

0 4 8 12 16

V [V]

2.5

3

3.5

4

4.5

V SIZE = 0
V SIZE = 1F
V SIZE = 3F

V POSITION

Time [ms]

0 4 8 12 16

V [V]

2.5

3

3.5

4

4.5

V POSITION = 0
V POSITION = 1F
V POSITION = 3F

S-CORRECTION

Time [ms]

0 4 8 12 16

V [V]

2.5

3

3.5

4

4.5

S-CORR = 0
S-CORR = 7
S-CORR = F

V-LINEARITY

Time [ms]

0 4 8 12 16

V [V]

2.6

3

3.4

3.8

4.2

V-LIN = 0
V-LIN = 7
V-LIN = F

2.8

3.2

3.6

4

ASPECT

Time [ms]

0 4 8 12 16

V [V]

2.6

3

3.4

3.8

4.2

ASPECT = 0
ASPECT = 1F
ASPECT = 3F

2.8

3.2

3.6

4

SCROLL

Time [ms]

0 4 8 12 16

V [V]

2.5

3

3.5

4

4.5

SCROLL = 0
SCROLL = 1F
SCROLL = 3F

– 41 –

CXA2061S

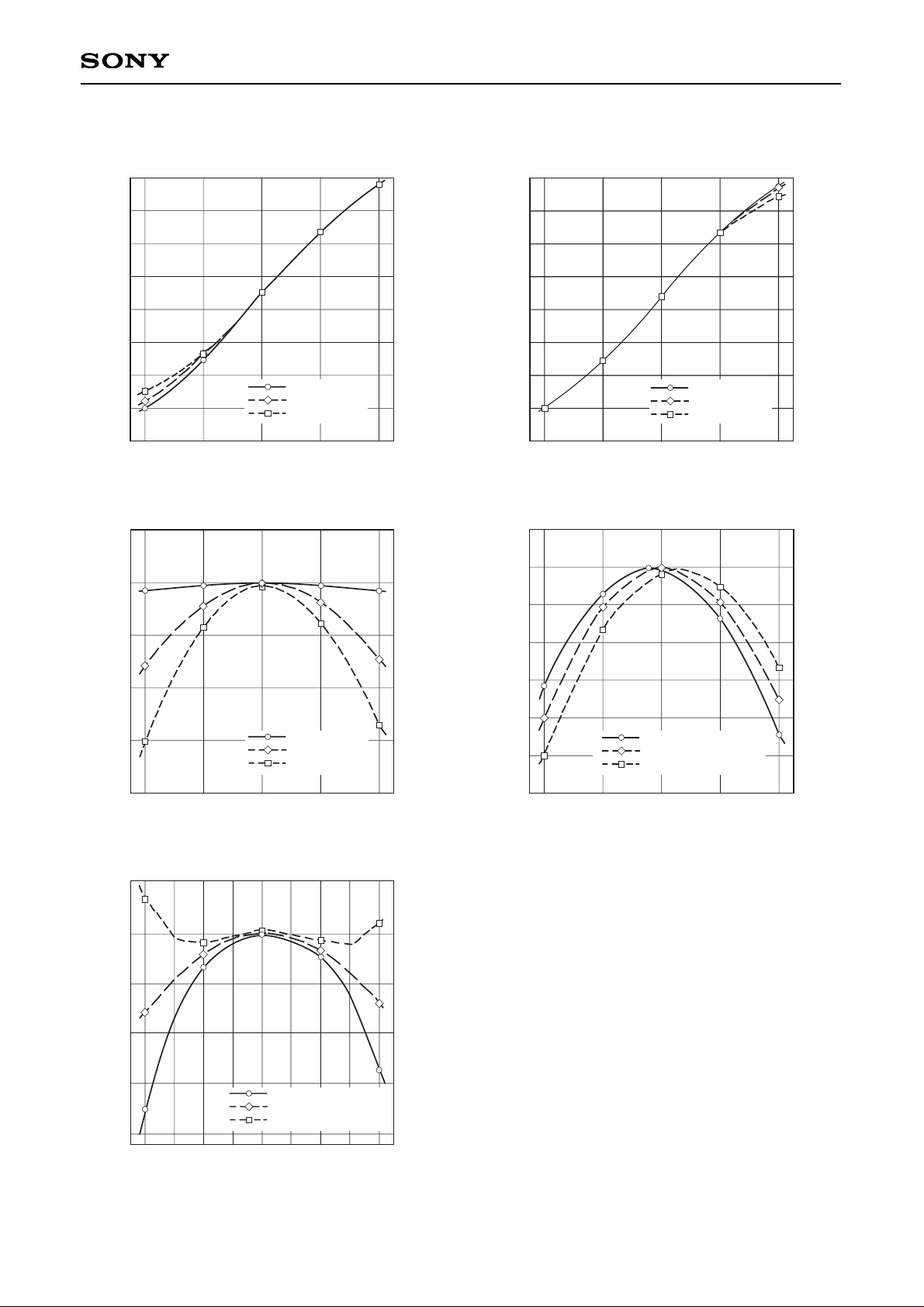

UP-VLIN

Time [ms]

0 4 8 12 16

V [V]

2.6

3

3.4

3.8

4.2

UP-VLIN = 0
UP-VLIN = 7
UP-VLIN = F

2.8

3.2

3.6

4

LO-VLIN

Time [ms]

0 4 8 12 16

V [V]

2.6

3

3.4

3.8

4.2

2.8

3.2

3.6

4

LO-VLIN = 0
LO-VLIN = 7
LO-VLIN = F

PIN TRAPEZIUM

Time [ms]

0 4 8 12 16

V [V]

2.8

3

3.4

3.8

4.2

PIN TRAPEZIUM = 0
PIN TRAPEZIUM = 7
PIN TRAPEZIUM = F

3.2

3.6

4

PIN AMP

Time [ms]

0 4 8 12 16

V [V]

2.5

3

3.5

4

4.5

PIN AMP = 0
PIN AMP = 1F
PIN AMP = 3F

2

CORNER PIN

Time [ms]

0 4 8 12 16

V [V]

2.5

3

3.5

4

4.5

CORNER PIN = 0
CORNER PIN = 1F
CORNER PIN = 3F

2

2 6 10 14

– 42 –

CXA2061S

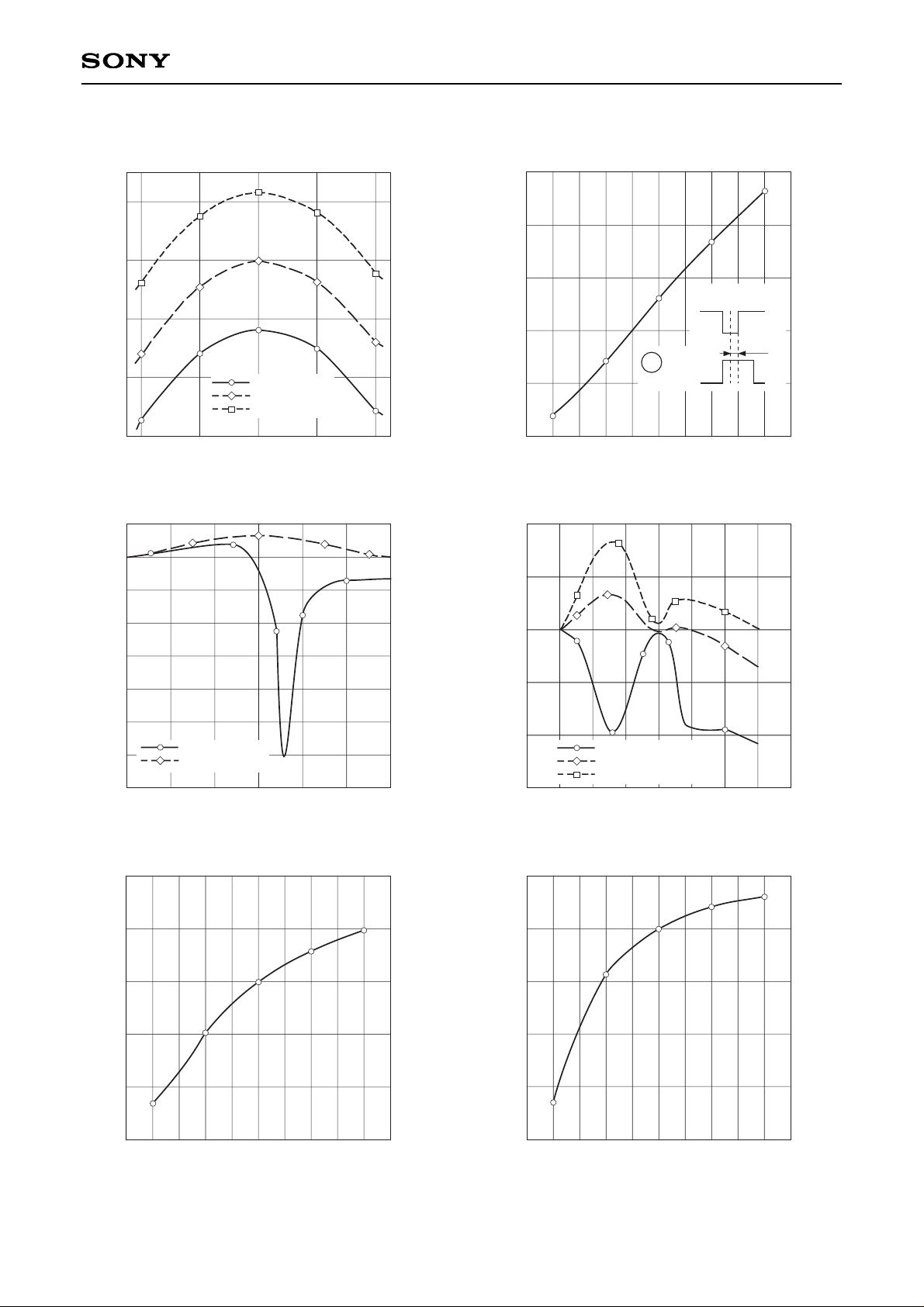

COLOR

Gain [dB]

–40

–30

–20

–10

10

0

DATA

0

7 F 17 1F 27 2F 37 3F


Gain [dB]

–15

–10

–5

0

10

5

DATA

0

7 F 17 1F 27 2F 37 3F

H POSITION

DATA

0

Time [µs]

1

2

3

4

6

5

7 F 17 1F 27 2F 37 3F

SYNC center

t [µs]

PIN : HP

18

TRAP OFF

Furequency [MHz]

0

Gain [dB]

–35

–25

–15

–5

5

–30

–20

–10

0

1 2 3 4 5 6

TRAP OFF = 0
TRAP OFF = 1

SHARPNESS

Furequency [MHz]

Gain [dB]

–15

–10

–5

0

10

–2 0 2 4 6 8 14

5

10 12

SHARPNESS = 0
SHARPNESS = 7
SHARPNESS = F

H-SIZE

Time [ms]

0 4 8 12 16

V [V]

2.5

3

3.5

4

4.5

H-SIZE = 0
H-SIZE = 1F
H-SIZE = 3F

– 43 –

CXA2061S

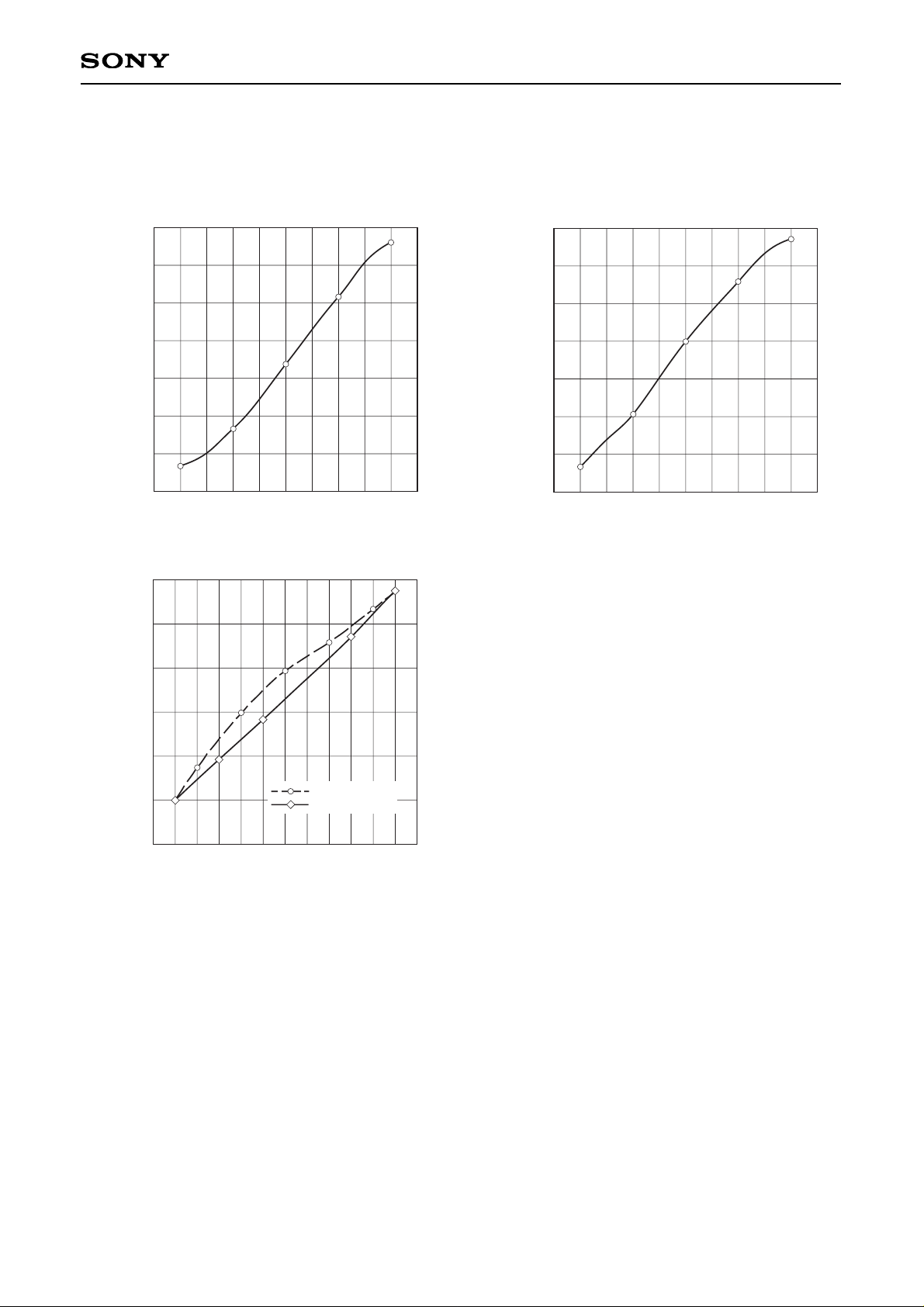

BRIGHT

DATA

0 7 F 17 1F 27 2F 37 3F

Potential difference between Rch reference pulse level and black level

[Vp-p]

–1.2

–1

–0.8

–0.4

0.2

0

–0.6

–0.2

DRIVE

Gain [dB]

DATA

0 7 F 17 1F 27 2F 37 3F

–4

–3

–2

0

3

2

–1

1

GAMMA

YIN input amplitude [IRE]

0 100

Rch output [V]

–0.5

2.5

GAMMA = 3
GAMMA = 0

2

1.5

1

0.5

0

10 20 30 40 50 60 70 80 90

– 44 –

CXA2061S

48PIN SDIP (PLASTIC)

13.0

+ 0.3

– 0.1

4.6

+ 0.4

– 0.1

0.25

+ 0.1

– 0.05

48 25

1 24

1.778

15.24

0° to 15°

0.5 ± 0.1

0.9 ± 0.15

3.0 MIN 0.5 MIN

SONY CODE
EIAJ CODE

JEDEC CODE

PACKAGE STRUCTURE

PACKAGE MATERIAL
LEAD TREATMENT
LEAD MATERIAL

PACKAGE WEIGHT

EPOXY RESIN

PLATING

COPPER / 42 ALLOY

5.1g

SDIP-48P-02

SDIP048-P-0600

43.2

+ 0.4
– 0.1

SOLDER/PALLADIUM

NOTE : PALLADIUM PLATING

This product uses S-PdPPF (Sony Spec.-Palladium Pre-Plated Lead Frame).

Package Outline Unit: mm
