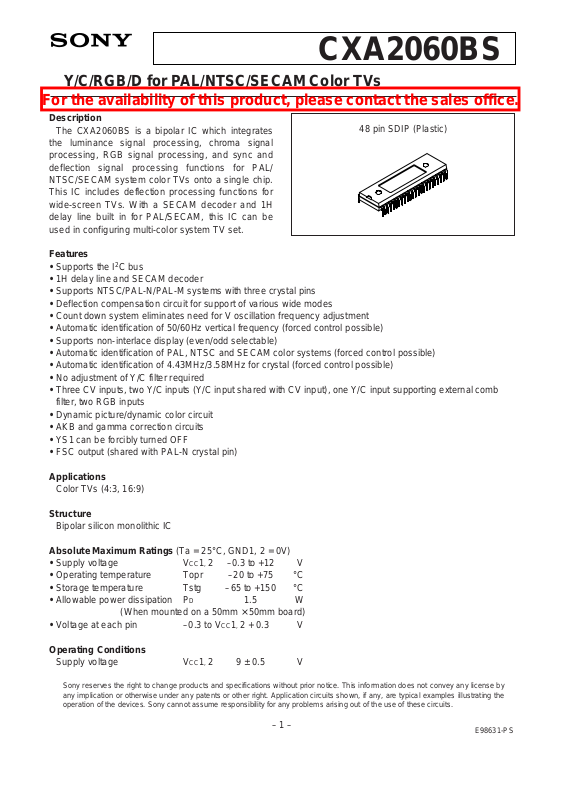

Y/C/RGB/D for PAL/NTSC/SECAM Color TVs
Description
The CXA2060BS is a bipolar IC which integrates
the luminance signal processing, chroma signal
processing, RGB signal processing, and sync and
deflection signal processing functions for PAL/
NTSC/SECAM system color TVs onto a single chip.
This IC includes deflection processing functions for
wide-screen TVs. With a SECAM decoder and 1H
delay line built in for PAL/SECAM, this IC can be
used in configuring multi-color system TV set.
Features
• Supports the I2C bus
• 1H delay line and SECAM decoder
• Supports NTSC/PAL-N/PAL-M systems with three crystal pins
• Deflection compensation circuit for support of various wide modes
• Count down system eliminates need for V oscillation frequency adjustment
• Automatic identification of 50/60Hz vertical frequency (forced control possible)
• Supports non-interlace display (even/odd selectable)
• Automatic identification of PAL, NTSC and SECAM color systems (forced control possible)
• Automatic identification of 4.43MHz/3.58MHz for crystal (forced control possible)
• No adjustment of Y/C filter required
• Three CV inputs, two Y/C inputs (Y/C input shared with CV input), one Y/C input supporting external comb
filter, two RGB inputs
• Dynamic picture/dynamic color circuit
• AKB and gamma correction circuits
• YS1 can be forcibly turned OFF
• FSC output (shared with PAL-N crystal pin)
Applications
Color TVs (4:3, 16:9)
Structure
Bipolar silicon monolithic IC
Absolute Maximum Ratings (Ta = 25°C, GND1, 2 = 0V)
• Supply voltage VCC1, 2 –0.3 to +12 V
• Operating temperature Topr –20 to +75 °C
• Storage temperature Tstg –65 to +150 °C
• Allowable power dissipation PD 1.5 W
(When mounted on a 50mm × 50mm board)
• Voltage at each pin –0.3 to VCC1, 2 + 0.3 V
Operating Conditions
Supply voltage VCC1, 2 9 ± 0.5 V
– 1 –
E98631-PS
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
CXA2060BS

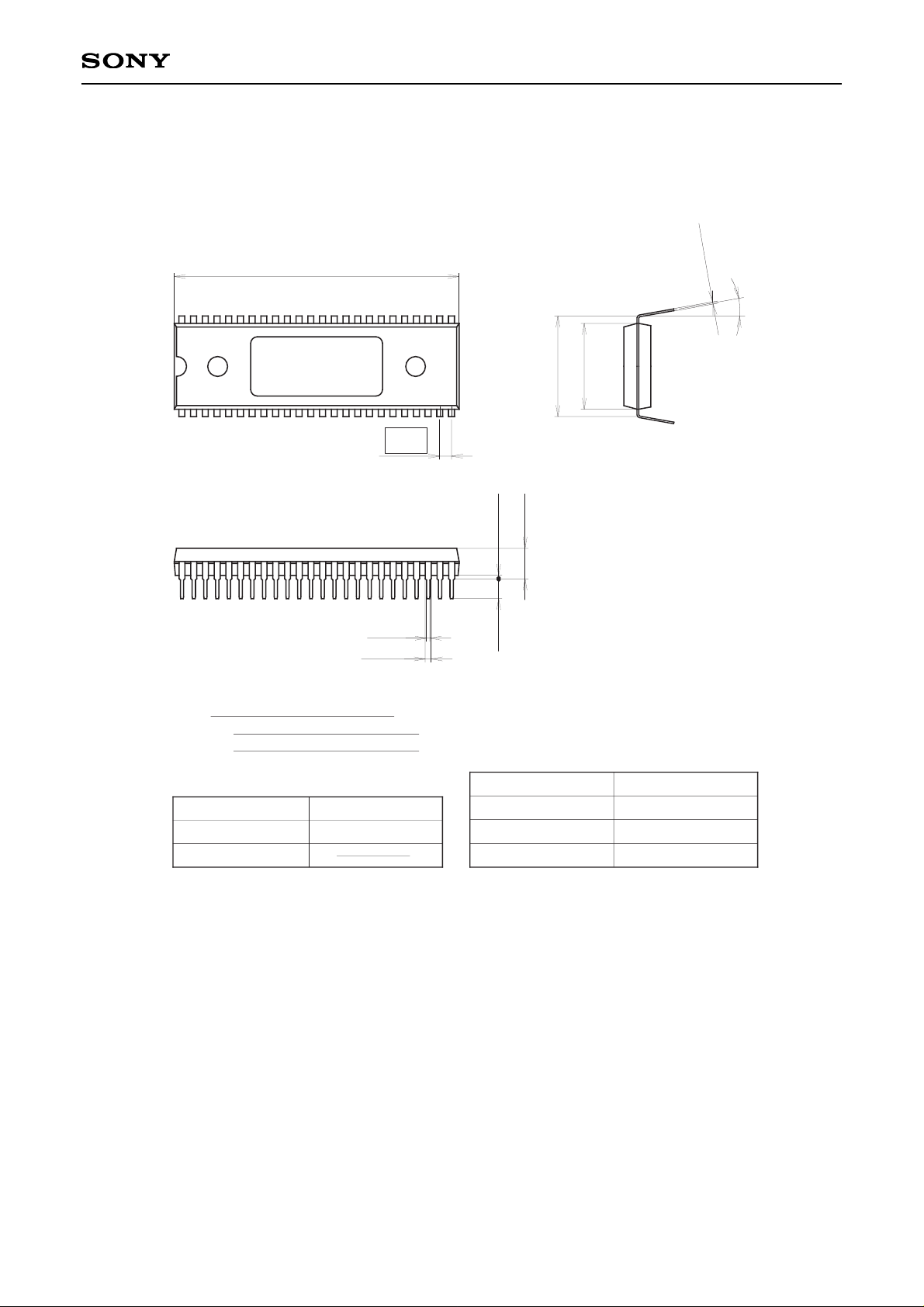

48 pin SDIP (Plastic)
Page 2
– 2 –
CXA2060BS
Block Diagram
COLOR AMP
<COLOR>
<C OFF>
AXIS
<AXIS PAL>
<AXIS NTSC>
5
10
11
12
13
14
15
16
17
18
19
21
22
23
24
30
35
34
31
33
1
IK IN
B OUT
G OUT
R OUT
SDA
SCL
VD–
VD+
EW
TV/C2 IN
C1 IN
CVBS2/Y2 IN
CVBS1/Y1 IN
COMB C IN
COMB Y IN
MON OUT
APED
VM OUT/V PROT
EB-Y IN
ER-Y IN
EY IN
YUV SW
R1 IN
G1 IN
B1 IN
YS1
R2 IN (YOUT)
G2 IN (R-YOUT)
B2 IN (B-YOUT)
YS2/YM
SCP
V TIM
HP/PROTECT
V
CC
1
GND1
I REF
REG
HD
<XTAL>
<COL SYSTEM>
<COL LOOP>
<NO COLOR>
<ID STOP>
<ID START>
APC
<HUE>
C VCO
4.433619MHz
3.579545MHz
3.575611MHz
3.582056MHz
PAL/NTSC
DEMOD.
ACC DET.
CHROMA
AMP
ACC DET.ACC AMP
BPF
PAL: 4.43MHz
NTSC: 3.58MHz
<C BPF>
BELL
FILTER
<BELL F0>
LIM
AMP
PLL
SECAM
FM DEMOD.
DE-
EMPHASIS
LINE BLK
SECAM
VCO
CAL. by
4.43MHz
8
40
44
45
APC FIL
V
CC
2
GND2
Y CLAMP
46
47
48
X'TAL 1
X'TAL 2
X'TAL 3
SW
NTSC/
PAL, SECAM
KILLER
<KILLER OFF>
SECAM
PAL/NTSC
FILTER ALIGNMENT
CAL. by fsc
ACC AMP
CHROMA
ATT
TRAP
PAL: 4.43MHz
NTSC: 3.58MHz
SECAM: 4.2 + 4.43MHz
<TRAP OFF>
DL
PAL/NTSC SECAM
<Y DELAY>
SHARPNESS DL
SHARPNESS AMP
<SHARPNESS>
<SHP F0>
<PRE/OVER>
1H
DELAYLINE
(PAL/SECAM)
DPIC
<DPIC>
<AGING>
CLAMP
DC TRAN
<DC TRAN>
CHROMA SW
Y SW
MONITOR SW
VIDEO SW
2
4
6
7
9
41
43
<VIDEO SEL>
<S SEL>
COUNT DOWN
<FIELD FREQ>
<CD MODE>
<INTERLACE>
V SYNC SEP
<VSS>
H SYNC SEP
<HSS>
<HMASK>
<<RFLEVEL>>
LINE COUNTER
V TIM GEN.
<V UNDER SCAN>
<<FIELD ID>>
VSAW GEN.
(50/60)
VTIM
AFC
<AFC GAIN>
<FH HIGH>
<<HLOCK>>
<<HCENT>>
Y
HSAW GEN.
<HOSC>
H TIM GEN.
<H BLK>
<LEFT HBLK>
<RIGHT HBLK>
20
AFC FIL
PHASE DET.
<H POSITION>
<AFC BOW>
<AFC ANGLE>
HPROT
<<HNG>>
HD GEN.
<HD W>
EYUV CLAMP
YUV SW
<Y SEL>
YUV OUT
<YUV OUT>
39
38
37
36
Y/C MIX
RGB CLAMP
VPROT
<<VNG>>
VM AMP
(OFF YS/YM)
DYNAMIC COLOR
<DYNAMIC C>
YS1 SW
<RGB SEL>
YM SW
YS2 SW
PICTURE AMP
<PICTURE>
GAMMA AMP
<GAMMA>
BRIGHT CONT.
<BRIGHT>
DRIVE AMP
<R/G/B DRIVE>
CLAMP
CUTOFF CONT.
<R/G/B CUTOFF>
R/G/B BLK
<PON>
<R/G/B ON>
CLAMP
RGB 1/2
ABL/PEAK LIM
<ABL MODE>
<ABL VTH>
AKB
<<IKR>>
3
42
ABL FIL
ABL IN
26
29
32
I
2
C BUS
DECODER
STATUS I/F
DAC
SW
VD SAW FUNC.
<VON>
<V SIZE>
<V POSITION>
<S CORRECTION>
<V LINEARITY>
<EHT COMP>
EW PARABOLA FUNC.
<H SIZE>
<PIN AMP>
<CORNERPIN>
<TRAPEZIUM>
<EW DC>
WIDE SAW FUNC.
<ASPECT>
<SCROLL>
<UPPER VLIN>
<LOWER VLIN>
<V ZOOM>
<V UNDER SCAN>
IREF REG
27
COLOR SYSTEM DISCRIMINATOR
<ID LEVEL>
<<APC LOCK>>
<<PAL>>
<<SECAM>>
<<XTAL ID>>
25
28
Page 3
– 3 –
CXA2060BS
Pin Configuration
C1 IN
ABL IN
CVBS1/Y1 IN
V TIM
MON OUT
COMB C IN
COMB Y IN
APED
Y CLAMP
GND1
EW
I REF
VD–
VD+
VM OUT/V PROT
REG
SCP
HD
HP/PROTECT
AFC FIL
IK IN
G OUT
R OUT
B OUT
X'TAL 2
X'TAL 3
X'TAL 1
Vcc2
TV/C2 IN
APC FIL
CVBS2/Y2 IN
GND2
ABL FIL
EB-Y IN
EY IN
YUV SW
ER-Y IN
SCL
Vcc1
SDA
R2 IN
B2 IN
YS2/YM
G2 IN
R1 IN
B1 IN
G1 IN
YS1
1
4
5
6
7
8
9
10
2
3
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
Page 4
– 4 –
CXA2060BS
Pin Description
Chroma signal input.
Input a chroma signal having a burst level
of 300mVp-p via a 0.01µF capacitor.
Normally the S pin signal is input.
Pin
No.
Symbol Equivalent circuit Description
1
APED
Connects a capacitor for black peak hold
of the dynamic picture feature (black
extension).
The 4.7µF capacitor is connected to GND.
2
C1 IN
3
ABL IN
This pin is for both ABL control signal
input and VD high-voltage correction
signal input.
High-voltage correction has linear control
characteristics when this pin's voltage is in
the approximate range of 1V and 8V.
Control characteristics can be varied
using the EHT_COMP control of the bus.
ABL functions as a PIC/BRT-ABL
(average value type).
The threshold voltage at which ABL
activates can be switched to either 3V or
1V depending on the bus.
4
CVBS1/Y1 IN
CVBS signal/luminance signal input.
Input a 1Vp-p (100% white including sync)
CVBS signal via a 1µF capacitor.
Input the Y signal when a separated Y/C
signal is input.
1
94k
1k
1.93k
7.8k
8k
50k
147
5.4V
2
147
130k
3
86k
50k
147
5.4V
4
Page 5
– 5 –
CXA2060BS
Chroma signal input from a comb filter.
The input chroma signal is a 0.6Vp-p burst
signal.
Pin
No.
Symbol Equivalent circuit Description
6
MON OUT
Output of the signal input from TV, CVBS1
or CVBS2 as selected by VIDEO SEL and
S SEL of the bus.
In the case of S pin input, a luminance
signal and chroma signal are mixed and
output.
Output level is 2Vp-p including sync.
7
COMB C IN
8
Y CLAMP
Connects a capacitor for luminance signal
clamp.
The 0.1µF capacitor is connected to GND.
9
COMB Y IN
Luminance signal input from a comb filter.
The signal is input via a 1µF capacitor
and has a level of 2Vp-p. (100% white
including sync)
147
100µA
100µA
6
25k
147
5.4V
25k
7
10p
1.5k
8
4k
4k
25k
147
5.4V
25k
9
5
V TIM
V timing pulse output.
This is a 0/5V negative polarity pulse.
HSS/VSS can be monitored using the
V TIM SEL register.
147
5
25k
100µA
Page 6
– 6 –
CXA2060BS
Pin
No.
Symbol Equivalent circuit Description
12
I REF
This pin is used to set the reference
current within the IC.
A 10kΩ resistor (metallic film resistor)
having an error less than 1% is connected
to GND.
13
VD+
14
VD–
V sawtooth wave output.
The polarity of Pin 13 output and Pin 14
output are reversed.
147
7.2k
12
2k
13
2k
14
11
EW V parabola wave output.
1.2k
11
10 GND1
GND for 1HDL and deflection system
circuit.
Page 7
– 7 –
CXA2060BS
15
VM OUT/
V PROT
Output of luminance signal differential
waveform for VM (Velocity Modulation).
The phase of VM output is synchronized
to the phase of RGB output.
It is approximately 250ns ahead of RGB
output.
This pin is also used for V protect signal
input. When the large current (4mA) is
forcibly drawn through this pin, all RGB
output is blanked, and 1 is output to the
status register VNG.
1k
147
15
1k
16
REG
Decoupling capacitance for the regulator
within the IC.
The 47µF capacitor is connected to GND.
4.4k
500
16
H deflection pulse input for H AFC.
The 5Vp-p pulse is input via a capacitor.
Since this pin is also used to input an XRAY protect signal, a hold down function
activates if this pin's voltage goes above a
"7V cycle" and below 1V. If this occurs,
HD output goes high impedance, RGB
output is blanked, and 1 is output to the
status register HNG. It is necessary to
turn the IC's power OFF then ON again to
cancel this status.
Pin
No.
Symbol Equivalent circuit Description
17
SCP
Sand castle pulse output.
The sand castle pulse is a waveform
superimposed with the burst gate pulse on
the composite blanking pulse.
18
HP/PROTECT
25k
50µA
17
147
147
18
96k
10k 60k
50µA 100µA
Page 8
– 8 –
CXA2060BS
Pin
No.
Symbol Equivalent circuit Description
22
23
24
R OUT
G OUT
B OUT
RGB signal output.
Outputs 3.0Vp-p during 100% white input.
PICTURE: 3Fh
DRIVE: 3Fh
BRIGHT: 1Fh
2mA
12k
200
22
23
24
21
IK IN
CRT beam current input (cathode current
IK).
This current is converted into voltage
within the IC.
In order to eliminate any adverse effects
exercised by CRT leak current (max.
100µA) for AKB operation, it is clamped at
the V blanking interval. The AKB loop is
activated by comparing the reference
pulse component of this signal to the
reference voltage within the IC.
The RGB output cutoff can be varied using
CUTOFF of the bus. The IK reference
signal current can be controlled ±50%
around a 13µA center. Since the beam
current of the video section is large, be
sure to attach a zener diode of about 4V to
the pin to protect the IC.
147
21
3k
4k
19
HD
H drive signal output.
This is open collector output for the NPN
transistor.
20
AFC FIL
Connects an AFC lag lead filter.
CR is connected to GND.
147
20k
20k
19
147
100k
20
30k
1k
100k
Page 9
– 9 –
CXA2060BS
YS1 switch control pin.
Selects RGB1 input.
YS1 Vth: 0.7V
This pin is also used as the slave address
modification switch.
If the voltage at this pin goes over 7V, the
slave address is changed from 88h to
8Ah.
SLAVE ADDRESS Vth: 7V
25
YS1
26
27
28
B1 IN
G1 IN
R1 IN
RGB1 signal input.
A 0.7Vp-p (no-sync 100 IRE) signal is
input via a 0.01µF capacitor.
The input signal is clamped at the SCP
burst timing.
29
YS2/YM
YS2/YM switch control pin.
Selects RGB2 input.
When operating at High level (YM Vth:
0.7V) as a YM switch the output signal
undergoes 10dB attenuation.
YS2 Vth: 2V
25
147
30k
1.2k
60k
26
27
28
29
147
7k
13k
30
31
32
B2 IN
G2 IN
R2 IN
RGB2 signal input.
A 0.7Vp-p (no-sync 100 IRE) signal is
input via a 0.01µF capacitor. The input
signal is clamped at the SCP burst timing
just as RGB1 IN.
This pin becomes the YUV output pin
based on the YUV OUT register.
Be sure to pull up this pin by 10kΩ when
used for YUV output.
30
32
1.2k
60k
31
100
33 Vcc1
Power pin for the signal block and
deflection block.
Pin
No.
Symbol Equivalent circuit Description
Page 10
– 10 –
CXA2060BS
I2C bus standard SDA (Serial Data)
input/output.
Pin
No.
Symbol Equivalent circuit Description
34
SCL
I2C bus standard SCL (Serial Clock) input.
35
SDA
36
YUV SW
YUV SW control pin.
Selects external YUV input.
Vth: 0.7V
This switch includes a function for forcibly
turning OFF external Y input only using
Y SEL of the bus.
37
EY IN
34
4k
10k
35
4k
7.5k
7.5k
36
147
20k
1.5k
40k
37
38
39
ER-Y IN
EB-Y IN
External Y/R-Y/B-Y signal input.
Input is via a 0.01µF capacitor.
EY IN: 0.7Vp-p (no sync)
ER-Y IN: 0.735Vp-p (75% color bar)
EB-Y IN: 0.931Vp-p (75% color bar)
1.5k
65k
39
38
40
GND2
GND pin for signal block circuits.
Page 11
– 11 –
CXA2060BS
Input of CVBS signal from a TV tuner or
chroma signal.
A 1Vp-p (including sync) CVBS signal or
300mVp-p burst chroma signal is input
via a 1µF capacitor.
Pin
No.
Symbol Equivalent circuit Description
41
CVBS2/Y2 IN
CVBS signal/luminance signal input.
A 1Vp-p signal (including sync) is input
via a 1µF capacitor.
Input the Y signal when a separated Y/C
signal is input.
42
ABL FIL
Connects the capacitor (4.7µF) forming
the ABL control signal LPF to GND.
43
TV/C2 IN
50k
147
5.4V
41
1.2k
42
20k
200k
50k
147
5.4V
43
45
APC FIL
Connects a chroma APC lag lead filter.
CR is connected to GND.
1k
45
4.6V
1k
44
Vcc2
Power pin for the signal block.
Page 12
– 12 –
CXA2060BS
46
X'tal 3
Connects an APC crystal.
The crystals should be connected as
follows.
X'tal 3: PAL-N crystal (3.58205625MHz)
X'tal 2: NTSC crystal (3.579545MHz)
X'tal 1: PAL/SECAM crystal
(4.43361875MHz) or
PAL-M crystal
(3.57561149MHz)
Pin 46 can be switched for use as FSC
output using the FSCSW register.
2V DC, 0.7Vp-p signal is output.
2k
1.33k
46
Pin
No.
Symbol Equivalent circuit Description
47
X'tal 2
48
X'tal 1
2k
1.33k
47
48
2k
1.33k
1k
Page 13
– 13 –
CXA2060BS
Electrical Characteristics Measurement Conditions
Set I
2
C bus registers to I
2
C Bus Register Initial Setting Values and measure them. Ta = 25°C, VCC1, VCC2 = 9V, GND1, GND2 = 0V
1
No.
Item
Current consumption
Symbol
I
CC
Measurement conditions
V
CC1, VCC2 = 9V
Bus data: initial setting values
Measure-
ment pin
33, 44
Measurement contents
Measure the current flowing into the pin.
Min.
Typ.
Max.
Unit
80 125 170
mA
2
Horizontal free-running
frequency
fHFR
HOSC = 7 (no input signal)
FH HIGH = 1
19
18
17
H drive output frequency
15.5
15.7 15.9
kHz
3
Horizontal free-running
frequency 2
fHHIFR
FH HIGH = 0
4 HD pulse width HDw HDW = 0
5 HD pulse width 2 HDw
HDW = 1
tstr (HP) = 7.5µs, tHP = 12µs
6
HP phase HPph HPph = HP (cent) – Hsync (cent)
8
H BLK pulse width
HBLKw
7
H BLK phase
HBLKph
HBLKph = SCP (HBLKrise) –
Hsync (cent)
10
BGP pulse width
BGPw
9
BGP phase
BGPph
BGPph = SCP (BGPrise) –
Hsync (cent)
16.2
16.7
17.2
kHz
22.5 24
25.5
µs
19 20
21
µs
3.0 3.7 4.4
µs
9
10
11
µs
–2.5
–1.75
–1
µs
2.8
3.0
3.2
µs
3.4
3.9
4.4
µs
Sync deflection block items
HDW
HD
HDW
12µs
HPph
Hsync
7.5µs
HD
HP
Hsync
SCP
BGPph
HBLKph
HBLKw
BGPw
Page 14
– 14 –
CXA2060BS
5
13
11
11
VTIM phase VTIMph
C/D non-standard mode
VTIMph = VTIM (fall) – Vsync (fall)
12
VTIM pulse width VTIMw
15
V drive output
center voltage
(60Hz)
∆VSdc
60Hz – 50Hz
∆VSdc = VSdc2 – VSdc1
16
V drive output
amplitude
(60Hz)
∆VSp-p
60Hz/50Hz
∆VSp-p = VSp-p2/VSp-p1 × 100
17
EW drive output
center voltage
(50Hz)
VEWdc1
50Hz
18
EW drive output
amplitude
(50Hz)
VEWp-p
50Hz
VEWp-p = VEWdc1 – VEWdc0
10
20
30
µs
45
60
75
µs
–10
0
10
mV
99
100
101
%
3.9
4.1
4.3
V
450 560
670
mV
VTIMph
VTIMw
Vsync
VTIM
8.78ms
VSdc2
VSp-p2
Vsync
VD+
13
13
V drive output
center voltage
(50Hz)
VSdc1
50Hz
14
V drive output
amplitude
(50Hz)
VSp-p1
50Hz
3.4
3.6
3.8
V
1.2
1.35
1.5
V
10.6ms
VSdc1
VSp-p1
Vsync
VD+
Vsync
EW
10.6ms
1.5ms
VEWdc0 VEWdc1
No.
Item
Symbol
Measurement conditions
Measure-
ment pin
Measurement contents Min.
Typ.
Max.
Unit
Page 15
– 15 –
CXA2060BS
21
21
24
IK current (Max.)
IIK
R CUTOFF = Fh
G CUTOFF = Fh
B CUTOFF = Fh
IIK = (Vrrf – V0)/4k
25
IK current (Min.)
∆IIK
R CUTOFF = 0h
G CUTOFF = 0h
B CUTOFF = 0h
IIKmin/IIKmax
15
22
29
µA
27 32
37
%
11
22
23
24
19
EW DRIVE output
center voltage
(60Hz)
∆VEWdc
60Hz – 50Hz
∆VEWdc = VEWdc2 – VEWdc1
20
EW DRIVE output
amplitude
(60Hz)
∆VEWp-p
60Hz/50Hz
∆VEWp-p = (VEWdc2 – VEWdc20)/
VEWp-p × 100
21
22
23
R BLK voltage
G BLK voltage
B BLK voltage
VRBLK
VGBLK
VBBLK
P ON = 0
–10
0
10
mV
97
100
103
%
0
0.15 0.3 V00.15 0.3 V00.15 0.3 V
Vsync
EW
8.78ms
1.5ms
VEWdc20 VEWdc2
TV/C2IN
IKIN (Max.)
22H 23H 24H 25H 26H 27H
IKIN (Min.)
V0 Vrrf Vgrf Vbrf
V0
Vgrf Vbrf
Vrrf Vgrf Vbrf
32
26
Luminance (Y) output
Vy
YUV OUT = 1
Vy = V1 – V0
610
670
730
mV
0.7V
TV/C2IN
R2IN (YOUT)
V1V0
Measure the pin voltage.
Signal block items
No.
Item
Symbol
Measurement conditions
Measure-
ment pin
Measurement contents Min.
Typ.
Max.
Unit
Page 16
– 16 –
CXA2060BS
22, 23, 24
28
RGB BRIGHT voltage
Vbrt
Black level – Ref. P. level
Rch: Vbrtr = Vrb – Vrrf
Gch: Vbrtg = Vgb – Vgrf
Bch: Vbrtb = Vbb – Vbrf
–450
–400 –350
mV
22, 23, 24
27
RGB amplitude ratio
∆G
∆G
R = 20 × log ((VR1 – VR0)/Vy)
∆G
G = 20 × log ((VG1 – VG0)/Vy)
∆G
B = 20 × log ((VB1 – VB0)/Vy)
12
13.5
15
dB
0.7V
VR1VR0
TV/C2IN
ROUT
VR1VR0
GOUT
VG1VG0
BOUT
VB1VB0
TV/C2IN
ROUT
22H 23H 24H 25H 26H 27H
GOUT
Vrrf Vrb
Vgrf Vgb
VbbVbrf
BOUT
31
30
29
SECAM color difference
(R-Y) output
Vr-y
SECAM signal (75%)
Vr-y = Vr1 – Vr0
30
SECAM color difference
(B-Y) output
Vb-y
SECAM signal (75%)
Vb-y = Vb1 – Vb0
690
800
910
mV
880
1040
1200
mV
TV/C2IN
G2IN (R-YOUT)
B2IN (B-YOUT)
B-Y
R-Y
BLUE RED
YELLOW CYAN
B-YID R-YID
Vr1 Vr0
Vb1 Vb0
No.
Item
Symbol
Measurement conditions
Measure-
ment pin
Measurement contents Min.
Typ.
Max.
Unit
Page 17
– 17 –
CXA2060BS
31
30
31
PAL color difference
(R-Y) output
Vr-y
PAL signal
Vr-y = Vr1 – Vr0
32
PAL color difference
(B-Y) output
Vb-y
PAL signal
Vb-y = Vb1 – Vb0
900
1000
1100
mV
430
500
570
mV
Vr1Vr0
700mVp-p
±90deg
400mVp-p
0deg
G2IN (R-YOUT)
B2IN (B-YOUT)
Vb1Vb0
TV/C2IN
30, 31
33
HUE center offset
φoffset
YUV OUT = 1, NTSC signal
φoffset = tan
–1
(4/7 × ((Vb1 – Vb0)/
(Vb2 – Vb0)))
–6
0
6
Deg
Vb0 Vb1Vb2
B2IN (B-YOUT)
700mVp-p
90deg
400mVp-p
0deg
TV/C2IN
15
34
VM output
Vvm
3.58MHz 700mVp-p
1.8 2.3
2.8
V
700mVp-p
3.58MHz
Vvm
VMOUT/VPROT
TV/C2IN
46
35
FSC output
Vfsc
FSC SW = 1
500 900
1300
mV
Vfsc
FSCOUT
No.
Item
Symbol
Measurement conditions
Measure-
ment pin
Measurement contents Min.
Typ.
Max.
Unit
Page 18
– 18 –
CXA2060BS

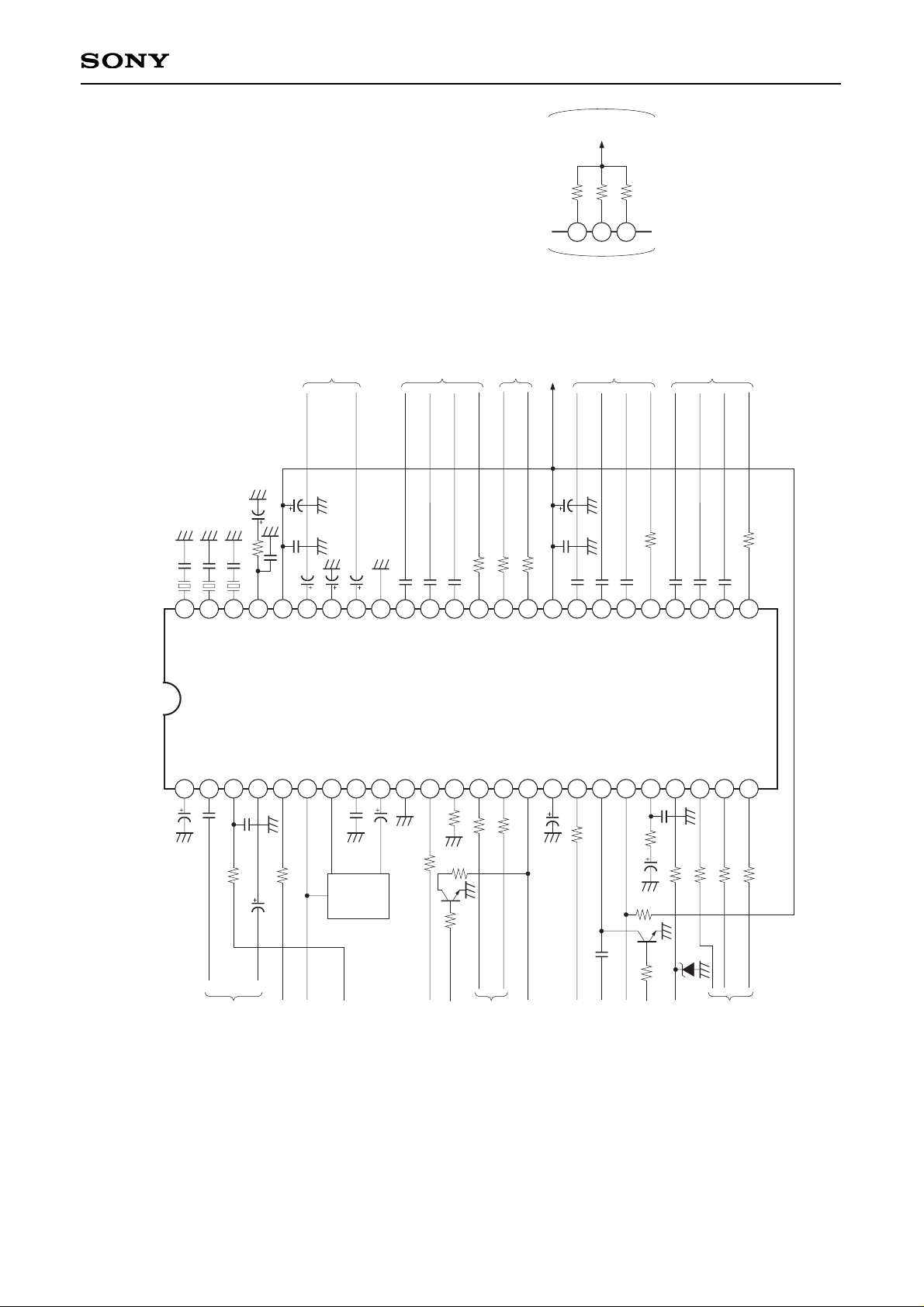

Electrical Characteristics Measurement Circuit
Signal sources are all GND unless otherwise specified in the measurement column for Electrical Characteristics.
18p
18p
18p
PAL/SECAM or PAL-M X'TAL
NTSC X'TAL
PAL-N X'TAL
0.22µ
10k
220p
0.1µ 47µ
0.01µ
0.01µ
0.01µ
100
100
100
0.1µ 47µ
0.01µ
0.01µ
0.01µ
0.01µ
0.01µ
0.01µ
1µ
4.7µ
1µ
100
100
TV/C2 IN
CVBS2/Y2 IN
EXT YUV IN
YUV SW
SDA
SCL
Vcc + 9V
RGB 2 IN
YS2/YM
RGB 1 IN
YS 1
4.7µ
100
100
10k
100
100
47µ
51k
1k
0.1µ
0.01µ
1µ
1µ
1µ
12k
4700p
1µ
Pseudo
CRT
2.2k
HP GEN
51k
HD
HP
7µs delay
C1 IN
ABL IN
CVBS1/Y1 IN
V TIM OUT
MON OUT
COMB C IN
COMB Y IN
E/W
V PROT
VD OUT
VM OUT
SCP OUT
H PROT
C1 IN
ABL IN
CVBS1/Y1 IN
V TIM
MON OUT
COMB C IN
COMB Y IN
APED
Y CLAMP
GND1
EW
I REF
VD–
VD+
VM OUT/V PROT
REG
SCP
HD
HP/PROTECT
AFC FIL
IK IN
G OUT
R OUT
B OUT
X'TAL 2
X'TAL 3
X'TAL 1
Vcc2
TV/C2 IN
APC FIL
CVBS2/Y2 IN
GND2
ABL FIL
EB-Y IN
EY IN
YUV SW
ER-Y IN
SCL
Vcc1
SDA
R2 IN
B2 IN
YS2/YM
G2 IN
R1 IN
B1 IN
G1 IN
YS1
9V
1
4
5
6
7
8
9
10
2
3
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
Page 19
– 19 –
CXA2060BS

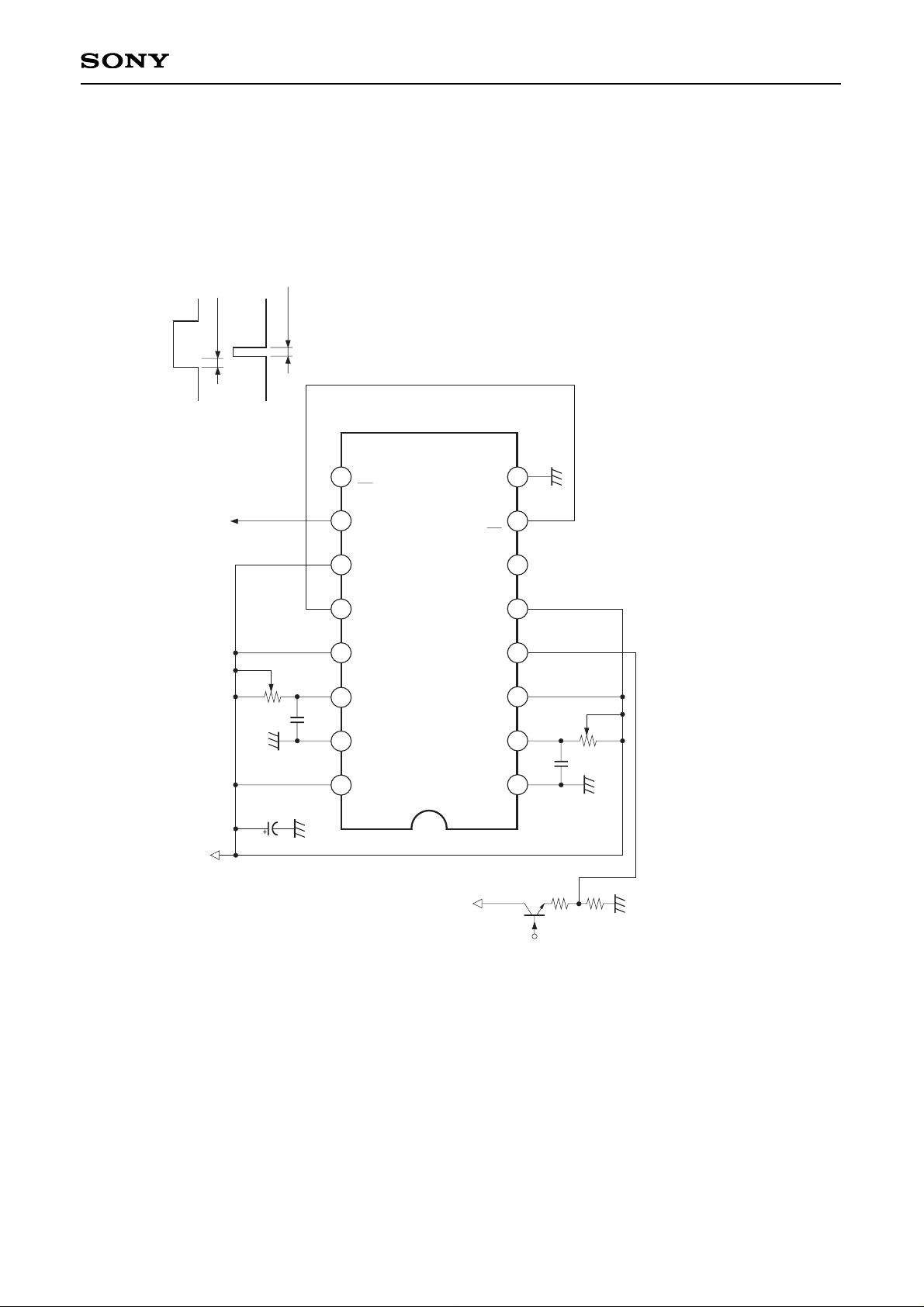

HP GEN Circuit
V
DD
2T1
2T2
2CD
2A
2B
2Q
2Q
1T1
1T2
1CD
1A
1B
1Q
1Q
V
SS
2000p
10k
9V
1k
1k
from HDOUT
2000p
5V
47µ
HP/PROTECT
HD OUT
HP/PROTECT
delay 7µs
width 12µs
TC4538BP
2
3
4
5
6
7
8
1
9
10
11
12
1415
16
10k
13
Page 20
– 20 –
CXA2060BS
Register name
Number of
bits
Initial setting
value
Description
P ON
HD W
AXIS PAL
V ON
FH HIGH
YUV OUT
AGING
VIDEO SEL
S SEL
R ON
G ON
B ON
Y SEL
X'TAL
COL SYSTEM
COL LOOP
C BPF
C TRAP OFF
NO COLOR
FSC SW
COLOR
C OFF
KILLER OFF
HUE
SHP F0
AXIS NTSC
BRIGHT
DC TRAN
PRE/OVER
SHARPNESS
R CUTOFF
G CUTOFF
B CUTOFF
1
1
1
1
1
1
1
2
2
1
1
1
1
2
2
2
1
1
6
1
1
6
1
1
6
1
1
6
1
1
4
4
4
4
1
0
0
1
1
0
0
0
0
1
1
1
0
3
3
1
1
0
3Fh
0
0
1Fh
0
0
1Fh
0
0
1Fh
0
0
7h
7h
7h
7h
RGB output ON
HD pulse width normal
PAL axis forced OFF
VD ON
fH normal
RGB2 IN input mode
AGING OFF
Selects TV input
Selects TV/CVBS/BLK
R output ON
G output ON
B output ON
Enables YUVSW switching
Automatically identified
Automatically identified
Automatically identified at 4STD
BPF ON
TRAP ON
Max. value
No signal = NTSC
FSC OFF
Center value
C signal ON
Cancels KILLER OFF forced OFF mode
Center value
F0 2.5MHz
NTSC JAPAN axis
Center value
100%
1:1
Center value
Center value
Center value
Center value
Electrical Characteristics Measurement Conditions (I2C Bus Register Initial Settings)
Page 21
– 21 –
CXA2060BS
Register name
Number of
bits
Initial setting
value
Description
R DRIVE
ABL MODE
ABL VTH
G DRIVE
DY COL
RGB SEL
B DRIVE
GAMMA
H OSC
Y DELAY
FIELD FREQ
CD MODE
INTERLACE
H SS
V SS
V SIZE
H MASK
V POSITION
AFC GAIN
SCORRECTION
V LINEARITY
H SIZE
EW DC
H POSITION
PIN AMP
CORNER PIN
TRAPEZIUM
EHT COMP
AFC BOW
AFC ANGLE
LEFT HBLK
RIGHT HBLK
ASPECT
H BLK
VUNDERSCAN
6
1
1
6
1
1
6
2
4
4
2
2
2
1
1
6
1
6
2
4
4
6
1
6
6
6
4
4
4
4
4
4
6
1
1
3Fh
1
0
3Fh
0
0
3Fh
0
7h
7h
0
0
0
0
0
1Fh
0
1Fh
1
0
7h
1Fh
0
1Fh
1Fh
1Fh
7h
Fh
7h
7h
7h
7h
2Fh
0
0
Max. value
PICTURE/BRIGHT shared mode
VTH = 3V
Max. value
Dynamic color OFF
Enables YS1 SW switching
Max. value
Gamma correction OFF
Center value
Center value
Automatically identified (free-running 50Hz)
Standard mode
Interlace mode
1/3 from sync tip
1/3 from sync tip
Center value
Macrovision countermeasure OFF
Center value
Gain medium
No correction
100%
Center value
DC level standard mode
Center value
Center value
Center value
Center value
Max. correction level
Center value
Center value
Center value
Center value
Center value
H BLK width variability OFF
OFF
Page 22
– 22 –
CXA2060BS
Register name
Number of
bits
Initial setting
value
Description
SCROLL
V ZOOM
UPPER VLIN
LOWER VLIN
V TIM SEL
ID STOP
ID START
BELL F0
ID LEVEL
6
1
4
4
2
2
2
6
2
1Fh
0
0
0
0
1
2
1Fh
1
Center value
Zoom OFF
Linearity 100%
Linearity 100%
V timing pulse output
Center value
Center value
Center value
Center value
Page 23
– 23 –
CXA2060BS
Application Circuit
18p
18p
18p
PAL/SECAM or PAL-M X'TAL
NTSC X'TAL
PAL-N X'TAL
0.22µ
10k
220p
0.1µ 47µ
0.01µ
0.01µ
0.01µ
100
100
100
0.1µ 47µ
0.01µ
0.01µ
0.01µ
0.01µ
0.01µ
0.01µ
1µ
4.7µ
1µ
100
100
Vcc + 9V
4.7µ
100
100
10k
100
100
47µ
51k
1k
0.1µ
0.01µ
1µ
1µ
1µ
12k
4700p
1µ
COMB
2.2k
51k
External YUV input
CVBS/S input 2
I
2
C
External RGB input 2
External RGB input 1
100
0.1µ
10k
100
100
100
RGB output
IK input
X-ray protection signal input
H drive output
H deflection pulse input
Sand castle pulse output
VM output
V sawtooth wave output
V protect signal input
V parabola wave output
ABL/high voltage
correction signal input
MON output
V timing pulse output
CVBS/S input
C1 IN
ABL IN
CVBS1/Y1 IN
V TIM
MON OUT
COMB C IN
COMB Y IN
APED
Y CLAMP
GND1
EW
I REF
VD–
VD+
VM OUT/V PROT
REG
SCP
HD
HP/PROTECT
AFC FIL
IK IN
G OUT
R OUT
B OUT
X'TAL 2
X'TAL 3
X'TAL 1
Vcc2
TV/C2 IN
APC FIL
CVBS2/Y2 IN
GND2
ABL FIL
EB-Y IN
EY IN
YUV SW
ER-Y IN
SCL
Vcc1
SDA
R2 IN
B2 IN
YS2/YM
G2 IN
R1 IN
B1 IN
G1 IN
YS1
10k
10k
10k
30
31
32
Vcc
During C DEC mode
100
1
4
5
6
7
8
9
10
2
3
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
Application circuits shown are typical examples illustrating the operation of the devices. Sony cannot assume responsibility for
any problems arising out of the use of these circuits or for any infringement of third party patent and other right due to same.
Page 24
– 24 –
CXA2060BS
S SEL
COL SYSTEM
COLOR
HUE
BRIGHT
R DRIVE
G DRIVE
B DRIVE
V SIZE
V POSITION
H SIZE
H POSITION
PIN AMP
CORNER PIN
ASPECT
SCROLL
Register Table
Sleve Address
Slave ADD pin = GND 88H: Slave Receiver 89H: Slave Transmitter
Slave ADD pin = VCC 8AH: Slave Receiver 8BH: Slave Transmitter
Control Register (Sub Address 00000 results in Power-On-Reset)
Bit0
Bit1
Bit2Bit3Bit4Bit5Bit6Bit7
Sub Address
x x x 0 0 0 0 0
x x x 0 0 0 0 1
x x x 0 0 0 1 0
x x x 0 0 0 1 1
x x x 0 0 1 0 0
x x x 0 0 1 0 1
x x x 0 0 1 1 0
x x x 0 0 1 1 1
x x x 0 1 0 0 0
x x x 0 1 0 0 1
x x x 0 1 0 1 0
x x x 0 1 0 1 1
x x x 0 1 1 0 0
x x x 0 1 1 0 1
x x x 0 1 1 1 0
x x x 0 1 1 1 1
x x x 1 0 0 0 0
x x x 1 0 0 0 1
x x x 1 0 0 1 0
x x x 1 0 0 1 1
x x x 1 0 1 0 0
x x x 1 0 1 0 1
x x x 1 0 1 1 0
x x x 1 0 1 1 1
x x x 1 1 0 0 0
x x x 1 1 0 0 1
x x x 1 1 0 1 0
x x x 1 1 0 1 1
x x x 1 1 1 0 0
AGING
B ON
C BPF
NO COLOR
C OFF
SHP F0
DC TRAN
0
Y SEL
C TRAP OFF
FSCSW
KILLER OFF
AXIS NTSC
PRE/OVER
VIDEO SEL
X'TAL
YUV OUT
G ON
FH HIGH
R ON
V ONAXIS PALHD WP ON
Status Register
FIELD ID
1
SECAM
0
PAL
APC LOCK
RF LEVEL
H NG
NO VSYNC
V NG
IKR
H LOCK
H CENT
X'TAL ID
COL LOOP
SHARPNESS
G CUTOFF
R CUTOFF
B CUTOFF
ABL MODE
DY COL
ABL VTH
RGB SEL
GAMMA
H OSC
Y DELAY
FIELD FREQ
CD MODE
INTERLACE
H SS
∗
V SS
H MASK
AFC GAIN
S CORRECTION
V LINEARITY
∗
∗
∗
∗
EW DC
∗
∗
∗
TRAPEZIUM
AFC BOW
LEFT HBLK
EHT COMP
AFC ANGLE
RIGHT HBLK
H BLK
V ZOOM
V UNDER SCAN
∗
UPPER VLIN
LOWER VLIN
0
0
VTIM SEL ID STOP
BELL F0
ID START
ID LEVEL
1st BYTE
2nd BYTE
Page 25
– 25 –
CXA2060BS
Description of Registers
Register Name (Number of Bits) Description
1. Y Signal Block Registers
VIDEOSEL (2) Switches the VIDEO switch to select various input signals.
Enabled when S SEL = 0 or 3.
0 = Selects TV input signal
1 = Selects CVBS1 input signal
2 = Selects CVBS2 input signal
3 = Mute
S SEL (2) Selects Y/C input signals.
Set VIDEO SEL to 3 (Mute) when S SEL is set to 1 or 2.
0 = Selects one of TV, CVBS1 or CVBS2 input, or Mute
1 = Selects Y1/C1 input
2 = Selects Y2/C2 input
3 = Selects Y/C input from comb filter
(In this case, select one of TV, CVBS1 or CVBS2 input, or Mute for MON OUT.)
C TRAP OFF (1) ON/OFF switch for Y block chroma trap filter
Set the chroma trap filter to OFF (= 1) using microcomputer control as necessary when
APC LOCK and SECAM status are 0.
0 = Trap filter ON
1 = Trap filter OFF
SHP F0 (1) Switches sharpness f0
0 = 2.5MHz
1 = 3.0MHz
SHARPNESS (4) Sharpness gain control
0h = –12dB
7h = +3.5dB
Fh = +9dB
DC TRAN (1) Switches the DC transmission rate
0 = 100%
1 = 85%
PRE/OVER (1) Sharpness preshoot/overshoot control
0 = 1:1
1 = 2:1
Page 26
– 26 –
CXA2060BS
Y DELAY (4) Y signal delay control
0h = MIN
Fh = MAX
Y SEL (1) Internal Y signal fixed mode ON/OFF switch
0 = YUV SW (Pin 36) standard operation (When Pin 36 = high, selects EY IN,
ER-Y IN, EB-Y IN input)
1 = EY IN (Pin 37) input only disabled (When Pin 36 = high, selects internal Y,
ER-Y IN, EB-Y IN input)
AGING (1) White output aging mode ON/OFF switch (set to 0 at power ON)
0 = Aging mode OFF
1 = Aging mode ON
(The Y block outputs a 60 IRE flat signal when there is no input signal.)
2. Chroma Signal Block Registers
COLOR SYSTEM (2) Color system setting
0 = Forced PAL
1 = Forced SECAM
2 = Forced NTSC
3 = Automatic identification mode
X'TAL (2) Crystal setting
0 = Forced X'TAL1 (PAL/SECAM or PAL-M crystal)
1 = Forced X'TAL2 (NTSC crystal)
2 = Forced X'TAL3 (PAL-N crystal)
3 = Automatic identification mode
COLOR LOOP (2) Identification loop setting in color system automatic identification mode
0 = Automatically identifies the three systems PAL, SECAM and NTSC 4.43
(one crystal: 4.43 MHz)
1 = Automatically identifies the four systems PAL, SECAM, NTSC and NTSC 4.43
(two crystals: 4.43 and 3.58 MHz)
2 = Automatically identifies the three systems PAL-M, PAL-N, and NTSC
(three crystals)
3 = Do not use
HUE (6) Hue control (Phase control for the chroma demodulation axis. Enabled for NTSC only.)
0h = –35°
3Fh = +35°
Page 27
– 27 –
CXA2060BS
COLOR (6) Color gain control
0h = –30dB or less
1Fh = 0dB
3Fh = +6dB
C OFF (1) Chroma signal ON/OFF switch
0 = Chroma signal ON
1 = Chroma signal OFF
FSC SW (1) FSC signal ON/OFF switch
0 = FSC OFF: used as crystal pin
1 = FSC ON: outputs 700mVp-p FSC
C BPF (1) Chroma band pass filter ON/OFF switch
0 = Band pass filter OFF
1 = Band pass filter ON
AXIS NTSC (1) In NTSC mode, this switch selects Japan axis or US axis color detection axis.
This is valid when AXIS PAL = 0.
(This is automatically switched to PAL/SECAM detection axis in PAL/SECAM mode.)
0 = Set to Japan axis
B-Y: 0°/1, R-Y: 95°/0.78, G-Y: 236°/0.33
1 = Set to US axis
B-Y: 0°/1, R-Y: 102°/0.78, G-Y: 236°/0.3
AXIS PAL (1) Switch for forcing the color detection axis to an orthogonal axis (PAL axis)
0 = Forced OFF
1 = Orthogonal axis forced ON
B-Y: 0°/1, R-Y: 90°/0.57, G-Y: 227°/0.34
NO COLOR (1) This switch switches the no signal definition for the chroma signal in the PAL (/NTSC)
status register.
0 = PAL status register is 1 when there is no signal
1 = PAL status register is 0 when there is no signal
YUV OUT (1) This switch switches the R2 IN, G2 IN and B2 IN input pins (Pins 32, 31 and 30) to the
Y and color difference signal output pins.
0 = R2 IN, G2 IN and B2 IN signal input mode
1 = Pin 30: B-Y output
Pin 31: R-Y output
Pin 32: Y output (At this time, connect each pin to Vcc via a 10kΩ resistor.)
KILLER OFF (1) Color killer ON/OFF switch
0 = Color killer standard mode
1 = Color killer forced OFF mode
Page 28
– 28 –
CXA2060BS
ID START (2) The position at which the SECAM identification pulse starts can be changed.
(0.2µs/STEP)
0 = Delayed 0.4µs to center position.
2 = Center
3 = Advanced 0.2µs to center position.
ID STOP (2) The position at which the SECAM identification pulse stops can be changed.
(0.2µs/STEP)
0 = Delayed 0.2µs to center position.
1 = Center
3 = Advanced 0.4µs to center position.
SECAM identification performance can be optimized by adjusting these together with
the ID LEVEL register.
Color is more easily applied when the identification pulse width is wide and less easily
applied when it is narrow.
BELL F0 (6) BELL Filter f0 adjustment (0.7%/STEP)
0h = f0 – 16%
1Fh = f0 center
3Fh = f0 + 16%
ID LEVEL (2) SECAM identification level setting
SECAM identification performance can be optimized by adjusting this together with ID
START/STOP registers.
0 = Color is less easily applied
3 = Color is easily applied
3. RGB Signal Block Registers
PICTURE (6) Picture gain control
0h = –15dB
3Fh = 0dB (During 0.7Vp-p input: RGB output 3.0Vp-p, gamma OFF, DRIVE MAX)
BRIGHT (6) Brightness control (RGB DC bias control)
0h = –30 IRE to center
1Fh = –12 IRE to reference pulse
3Fh = +30 IRE to center (100 IRE = 2.4Vp-p)
R DRIVE (6) R output drive control
0h = 1.5Vp-p
3Fh = 3.0Vp-p (PICTURE: MAX)
G DRIVE (6) G output drive control
0h = 1.5Vp-p
3Fh = 3.0Vp-p (PICTURE: MAX)
Page 29
– 29 –
CXA2060BS
B DRIVE (6) B output drive control
0h = 1.5Vp-p
3Fh = 3.0Vp-p (PICTURE: MAX)
R CUTOFF (4) RGB output cutoff control
G CUTOFF (4) (Input current of reference pulse excluding leak component)
B CUTOFF (4) 0h = 6.5µA
7h = 13µA
Fh = 19µA
GAMMA (2) RGB output gamma correction control
0 = Gamma correction OFF
3 = +12 IRE correction to 40 IRE input (PICTURE: MAX)
ABL MODE (1) Switches ABL mode
0 = Mode in which only picture ABL functions
1 = Mode for both picture ABL and bright ABL
ABL VTH (1) Switch for switching ABL control signal detection level (VTH)
0 = VTH: 3V
1 = VTH: 1V
DYNAMIC C (1) Dynamic color function ON/OFF switch
0 = Dynamic color OFF
1 = Dynamic color ON
RGB SEL (1) Disables switching of the YS1 switch and disallows input of external signals from RGB1.
0 = YS1 standard mode
1 = YS1 forced OFF mode
P ON (1) Switch for blanking all RGB output signals including the AKB reference pulse
(set to 0 at power ON)
0 = RGB output blanking (AKB reference pulse is also not output)
1 = RGB output ON
R ON (1) Switch for blanking the R output signal not including the AKB reference pulse
0 = R output blanking
1 = R output ON
G ON (1) Switch for blanking the G output signal not including the AKB reference pulse
0 = G output blanking
1 = G output ON
Page 30
– 30 –
CXA2060BS
B ON (1) Switch for blanking the B output signal not including the AKB reference pulse
0 = B output blanking
1 = B output ON
4. Deflection Block Registers
H OSC (4) H VCO oscillation frequency adjustment (40Hz/STEP)
0h = Low
Fh = High
V SS (1) Switches the slice level for vertical sync signal separation
0 = 1/3 (from sync tip)
1 = 1/4 (from sync tip)
H MASK (1) Macrovision countermeasure ON/OFF
0 = OFF
1 = ON
H SS (1) Switches the slice level for horizontal sync signal separation
0 = 1/3 (from sync tip)
1 = 1/4 (from sync tip)
VTIM SEL (2) Selects the signal output on the VTIM pin (Pin 5).
0 = V retrace timing pulse
1 = Horizontal sync signal
2 = Vertical sync separation signal
3 = Do not use
CD MODE (2) V countdown system mode switching
0 = Standard mode (used during RF signal input)
1 = Mode where time constant used during countdown mode switching has been
lowered from standard mode (used during VCR signal input)
2 = Fixed wide window mode
This setting is recommended when shortening the lock time.
3 = Do not use
FIELD FREQ (2) Sets the V frequency mode
0 = Automatic identification mode (selects 50Hz when there is no signal)
1 = Automatic identification mode (selects 60Hz when there is no signal)
2 = Forced 50Hz
3 = Forced 60Hz
Page 31
– 31 –
CXA2060BS
INTERLACE (2) Switches interlace/non-interlace mode
0, 1 = Interlace mode
2 = Non-interlace mode (even fields are shifted +1/2H)
3 = Non-interlace mode (odd fields are shifted +1/2H)
AFC GAIN (2) AFC loop gain control (PLL for H sync and H VCO)
0 = Gain high
1 = Gain medium
2 = Gain low
3 = Gain minimum
H POSITION (6) Horizontal picture position adjustment (HAFC phase control)
0h = 2µs delay (right picture position: picture delayed to HD)
3Fh = 2µs advance (left picture position: picture advanced to HD)
AFC BOW (4) Vertical line bow compensation amount adjustment
(phase control using HAFC parabola wave)
0h = Top and bottom of picture delayed 380ns to picture center
7h = Center
Fh = Top and bottom of picture advanced 380ns to picture center
AFC ANGLE (4) Vertical line slope compensation amount adjustment
(phase control using HAFC VSAW)
0h = Top of picture delayed 320ns and bottom of picture advanced 320ns to picture
center
7h = Center
Fh = Top of picture advanced 320ns and bottom of picture delayed 320ns to picture
center
LEFT HBLK (4) Controls the BLK width on the left side of the picture when HBLK = 1
0h = +1.2µs: HBLK max. width
7h = Center
Fh = –1.2µs: HBLK min. width
RIGHT HBLK (4) Controls the BLK width on the right side of the picture when HBLK = 1
0h = +1.2µs: HBLK max. width
7h = Center
Fh = –1.2µs: HBLK min. width
HBLK (1) HBLK width control switch when a 16:9 CRT is in 4:3 soft normal mode
0 = Control OFF
1 = Control ON
Page 32
– 32 –
CXA2060BS
FH HI (1) Increases the free-running frequency of the H oscillation frequency 1kHz.
(ON mode set at power ON)
0 = Max. frequency mode ON
1 = Max. frequency mode OFF (standard free-running frequency)
HD W (1) HD pulse width switch (set to 0 at power ON)
0 = Standard mode (25µs pulse width)
1 = Narrow pulse width mode (use this mode when the time between the HD rising
edge and FBP rising edge is short)
V SIZE (6) Vertical picture size adjustment (VD output gain control)
0h = –15% (min. size)
1Fh = 0%
3Fh = +15% (max. size)
V POSITION (6) Vertical picture position adjustment (DC bias control for VD output)
0h = –0.1V (lowers picture position)
1Fh = 0V (center 3V DC)
3Fh = +0.1V (raises picture position)
S CORRECTION (4) Vertical S distortion correction amount adjustment
(gain control for secondary component of VD)
0h = Secondary component amplitude added to the VD signal is 0mVp-p
Fh = Secondary component amplitude added to the VD signal is 100mVp-p
V LINEALITY (4) Vertical linearity adjustment (gain control for secondary component of VD)
0h = 85% (picture bottom/picture top) picture top enlarged
1Fh = 100% (picture bottom/picture top)
3Fh = 115% (picture bottom/picture top) picture top compressed
EHT COMP (4) High-voltage fluctuation compensation setting for vertical picture size
(gain control for VD output)
0h = 0%
Fh = –5% (max. compensation)
V ON (1) VD output ON/OFF switch (set to 0 at power ON)
0 = DC voltage
1 = Sawtooth wave
H SIZE (6) Horizontal picture size adjustment (DC bias control for EW output)
0Fh = –0.5V (small horizontal picture size)
1Fh = 0V (center 4V DC)
3Fh = +0.5V (large horizontal picture size)
Page 33
– 33 –
CXA2060BS
PIN AMP (6) Horizontal pin distortion compensation amount adjustment
(gain control for V parabola wave)
0h = 0.15Vp-p (large horizontal size at picture top and bottom: min. compensation)
1Fh = 0.7Vp-p
3Fh = 1.3Vp-p (small horizontal size at picture top and bottom: max. compensation)
CORNER PIN (6) Picture top and bottom pin distortion compensation amount adjustment
(top/bottom gain control for V parabola wave)
0h = –0.4V (small horizontal size at picture top and bottom: max. compensation)
3Fh = +0.4V (large horizontal size at picture top and bottom: min. compensation)
TRAPEZIUM (4) Horizontal trapezium distortion amount compensation
(phase control for parabola wave)
0h = 1.5ms advance (large horizontal size at picture top: small horizontal size at bottom)
Fh = 1.5ms delay (small horizontal size at picture top: large horizontal size at bottom)
ASPECT (6) Aspect ratio control (gain control for sawtooth wave)
0h = 75% 16:9 CRT Full
2Fh = 100% 4:3 CRT Full
3Fh = 110%
SCROLL (6) Vertical picture scroll control when a 16:9 CRT is in zoom mode
0h = Scrolls 32H toward picture bottom and zooms picture bottom
1Fh = Center
3Fh = Scrolls 32H toward picture top and zooms picture top
UPPER VLIN (4) Adjusts vertical linearity of picture top.
0h = 100% (picture top/picture bottom)
1Fh = 85% (picture top/picture bottom, picture top size is compressed)
LOWER VLIN (4) Adjusts vertical linearity of picture bottom.
0h = 100% (picture bottom/picture top)
1Fh = 75% (picture bottom/picture top, picture bottom size is compressed)
V UNDER SCAN (1) This mode is for compressing the vertical sawtooth wave.
0 = OFF
1 = ON
Compressed to 50% when ASPECT = 0h
Compressed to 75% when ASPECT = 3Fh
RGB vertical blanking is increased by 10H at both top and bottom at this time.
V ZOOM (1) Zoom mode ON/OFF switch for 16:9 CRTs
0 = Zoom OFF
1 = Zoom ON (Top and bottom of picture are together cut 25% when ASPECT = 2Fh.
RGB output also undergoes blanking during this interval.)
Page 34
– 34 –
CXA2060BS
EW DC (1) This mode lowers the DC level of the V parabola wave when 4:3 deflection is used for
a 16:9 CRT.
0 = OFF
1 = ON (DC level lowered) It is necessary at this time to readjust for pin distortion
when EWDC = 0 is used for the picture distortion compensation.
5. Status Registers
H LOCK (1) Lock status for H Sync and H VCO
0 = Free-running status
1 = H Sync and H VCO are locked
IKR (1) AKB operation status
0 = AKB loop not stable
1 = AKB loop stable
V NG (1) V protect status
0 = V protect OFF (IC normal operation status)
1 = V protect ON (RGB output undergoes complete blanking at this time)
H NG (1) X-ray protect status
0 = H drive output ON
1 = H drive output OFF (HD output is high impedance at this time and RGB output
undergoes blanking. It is necessary to turn the IC's power OFF then ON again to
cancel this status.)
APC LOCK (1) Lock status for input chroma signal and APC for PAL/NTSC
0 = APC not locked
(Color killer when APC LOCK = 0 and SECAM = 0)
1 = APC locked
PAL (1) PAL identification status
When NO COLOR = 0
0 = NTSC
1 = PAL or NO SIG (KILLER ID ON)
When NO COLOR = 1
0 = NTSC or NO SIG (KILLER ID ON)
1 = PAL
SECAM (1) SECAM identification status
0 = Identified as not SECAM
(Color killer when APC LOCK = 0 and SECAM = 0)
1 = Identified as SECAM
Page 35
– 35 –
CXA2060BS
FIELD ID (1) V drive oscillation frequency
0 = 60Hz mode
1 = 50Hz mode
H CENT (1) H VCO status
0 = The H VCO oscillation frequency is higher than the horizontal frequency of the
input signal selected by the VIDEO SW
1 = The H VCO oscillation frequency is lower than the horizontal frequency of the
input signal selected by the VIDEO SW
X'TAL ID (2) Crystal selection status
0 = Identified as X'TAL1 (Pin 48 crystal)
1 = Identified as X'TAL2 (Pin 47 crystal)
2 = Identified as X'TAL3 (Pin 46 crystal)
NO VSYNC (1) VSS presence status
Weak electromagnetic field detection can be performed according to RF LEVEL status.
0 = VSS present
1 = VSS not present
RF LEVEL (2) RF weak electromagnetic field level
0 = Strong electromagnetic field
1 = Medium electromagnetic field
2 = Weak electromagnetic field
3 = Very weak electromagnetic field
Page 36
– 36 –
CXA2060BS
0
0
0
0
0
0
0
1
1
0
0
0
1
0
0
1
1
0
∗
∗
∗
1
1
1
0
∗
0
0
1
Bit0Bit1Bit2Bit3Bit4Bit5Bit6Bit7
Sub Address
x x x 0 0 0 0 0 00 h
x x x 0 0 0 0 1 01 h
x x x 0 0 0 1 0 02 h
x x x 0 0 0 1 1 03 h
x x x 0 0 1 0 0 04 h
x x x 0 0 1 0 1 05 h
x x x 0 0 1 1 0 06 h
x x x 0 0 1 1 1 07 h
x x x 0 1 0 0 0 08 h
x x x 0 1 0 0 1 09 h
x x x 0 1 0 1 0 0A h
x x x 0 1 0 1 1 0B h
x x x 0 1 1 0 0 0C h
x x x 0 1 1 0 1 0D h
x x x 0 1 1 1 0 0E h
x x x 0 1 1 1 1 0F h
x x x 1 0 0 0 0 10 h
x x x 1 0 0 0 1 11 h
x x x 1 0 0 1 0 12 h
x x x 1 0 0 1 1 13 h
x x x 1 0 1 0 0 14 h
x x x 1 0 1 0 1 15 h
x x x 1 0 1 1 0 16 h
x x x 1 0 1 1 1 17 h
x x x 1 1 0 0 0 18 h
x x x 1 1 0 0 1 19 h
x x x 1 1 0 1 0 1A h
x x x 1 1 0 1 1 1B h
x x x 1 1 1 0 0 1C h
0
0
1
1
1
1
1
1
1
1
1
1
1
0
1
1
1
1
1
1
1
1
1
1
0
1
0
0
1
0
0
1
1
1
1
1
1
1
1
1
1
1
0
1
1
1
1
1
1
1
1
1
1
1
1
0
0
1
1
0
1
1
1
1
1
1
1
1
1
1
1
0
1
1
1
1
1
1
1
1
1
1
1
1
0
0
1
1
0
0
1
1
1
1
0
0
1
1
1
0
0
1
1
0
1
1
1
1
0
0
0
1
1
0
0
1
0
0
1
1
1
1
1
1
1
1
1
1
1
0
1
1
1
1
1
1
1
1
1
1
1
1
0
1
1
0
0
1
0
0
0
0
1
1
1
0
0
1
0
∗
0
1
∗
∗
∗
∗
1
1
1
0
0
0
1
0
0
0
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
I2C Bus Power-On Initial Settings
The initial settings listed here for power-on when V drive starts to oscillate are reference values; the actual
settings may be determined as needed according to the conditions under which the set is to be used.
Register Table
"∗": Undefined
Control Registers
Page 37
– 37 –
CXA2060BS
Description of Operation
1. Power-On Sequence
The CXA2060BS does not have an internal power-on sequence. Therefore, all power-on sequences are
controlled by the set microcomputer (I2C bus controller).
(1) Power-on
The IC is reset and the RGB outputs are all blanked. H drive starts to oscillate, but oscillation is at the
maximum frequency (16kHz or more) and is not synchronized with the input signal in order to prevent FBT
(flyback transformer for generating high voltage) H squealing. Output of vertical signal V TIM starts, but V drive
is DC output. Bus registers which are set by power-on reset are as follows.
P ON = 0: RGB all blanked ON
HD W = 0: Normal mode
V ON = 0: V output stopped mode
FH HIGH = 0: H oscillator maximum frequency mode
AGING = 0: All white output aging mode OFF
YUV OUT= 0
(2) Bus register data transfer
The register setting sequence differs according to the set sequence. Register settings for the following
sequence are shown as an example.
Set sequence CXA2060BS register settings
Power-on Reset status in (1) above.
↓ ↓
Degauss Reset status in (1) above.
The CRT is degaussed in a completely darkened condition.
↓ ↓
V drive oscillation The IC is set to the power-on initial settings. (See the following page.)
A sawtooth wave is output to V drive and the IC waits for the vertical deflection to
stabilize. The H drive oscillator frequency goes to the standard frequency.
↓ ↓
AKB operation start R ON, G ON and B ON are set to 0. P ON is set to 1 and a reference pulse is
output from RGBOUT.
Then, the IC waits for the cathode to warm up and the beam current to start flowing.
↓ ↓
AKB loop stable Status register IKR is monitored.
IKR = 0: Unstable
IKR = 1: Stable
Note that the time until IKR = 1 is returned differs according to the initial status of
the cathode.
Also note that the time until IKR = 1 results may differ from the actual time until the
cathode current stabilizes. It is recommended that video output start after IKR = 1
has been established for 1 or 2 seconds.
↓ ↓
Video output R ON, G ON and B ON are set to 1 and the video signal is output from RGBOUT.
Page 38
– 38 –
CXA2060BS
(3) Power-on initial settings
The initial settings listed here for power-on when V drive starts to oscillate are reference values; the actual
settings may be determined as needed according to the conditions under which the set is to be used.
P ON = 0 RGB all blanked
HD W = 0 Normal
AXIS PAL = 0 PAL axis forced OFF
V ON = 1 V drive oscillation
FH HIGH = 1 H oscillation frequency standard
YUV OUT = 0 R2 IN/G2 IN/B2 IN signal input mode
AGING = 0 Aging Mode OFF
VIDEO SEL = 0 TV signal input (User)
S SEL = 0 TV/CVBS1/CVBS2 input or Mute selection (User)
R ON = 0 Rch video output blanked
G ON = 0 Gch video output blanked
B ON = 0 Bch video output blanked
Y SEL = 0 YUV SW standard operation
X'TAL = 3 AUTO
COL SYSTEM = 3 AUTO
COL LOOP = 1 Automatic identification for PAL/SECAM/NTSC/NTSC4.43
C BPF = 1 C BPF ON
C TRAP OFF = 0 C TRAP ON
PICTURE = 3Fh MAX (User Control)
NO COLOR = 0 PAL identification output to status (when there is no signal)
FSC SW = 0 FSC OFF
COLOR = 1Fh Center (User Control)
C OFF = 0 Chroma signal ON
KILLER OFF = 0 Color killer normal mode
HUE = 1Fh Center (User Control)
SHP F0 = 0 2.5MHz
AXIS NTSC = 0 Japan axis
BRIGHT = 1Fh Center (User Control)
DC TRAN = 0 100%
PRE/OVER = 0 Sharpness Pre/Over ratio 1:1
SHARPNESS = 7h Center (User Control)
R CUTOFF = 7h Center (Adjust)
G CUTOFF = 7h Center (Adjust)
B CUTOFF = 7h Center (Adjust)
R DRIVE = 1Fh Center (Adjust)
ABL MODE = 1 Picture ABL/Bright ABL combination mode
ABL VTH = 0 Vth = 3V
G DRIVE = 1Fh Center (Adjust)
DY COL = 0 Dynamic Color OFF
RGB SEL = 0 YS1 SW normal mode
B DRIVE = 1Fh Center (Adjust)
GAMMA = 0 Gamma OFF
H OSC = 7h Center (Adjust)
Y DELAY = 7h Center (Adjust)
FIELD FREQ = 0 AUTO
CD MODE = 0 Normal
Page 39
– 39 –
CXA2060BS
(Power-on initial settings continued)
INTERLACE = 0 Interlace Mode
H SS = 0 Slice level 1/3 (from sync tip)
V SS = 0 Slice level 1/3 (from sync tip)
V SIZE = 1Fh Center (Adjust)
H MASK = 0 Macrovision countermeasure OFF
V POSITION = 1Fh Center (Adjust)
AFC GAIN = 1 Gain medium
S CORRECTION = 7h Center (Adjust)
V LINEALITY = 7h Center (Adjust)
H SIZE = 1Fh Center (Adjust)
EW DC = 0 OFF
H POSITION = 1Fh Center (Adjust)
PIN AMP = 1Fh Center (Adjust)
CORNER PIN = 1Fh Center (Adjust)
TRAPEZIUM = 7h Center (Adjust)
EHT COMP = 7h Center (Adjust)
AFC BOW = 7h Center (Adjust)
AFC ANGLE = 7h Center (Adjust)
LEFT HBLK = 7h HBLK width min.
RIGHT HBLK = 7h HBLK width min.
ASPECT = 2Fh 100%
HBLK = 0 Control OFF
V UNDER SCAN = 0 OFF
SCROLL = 1Fh Center (User Control)
V ZOOM = 0 Zoom OFF
UPPER VLIN = 0h 100% (No compression)
LOWER VLIN = 0h 100% (No compression)
VTIM SEL = 0 V retrace pulse timing pulse
ID STOP = 1 Center
ID START = 2 Center
BELL F0 = 1Fh Center
ID LEVEL = 1 Center
2. Various Mode Settings
The CXA2060BS contains bus registers for deflection compensation which can be set for various wide modes.
Wide mode setting registers can be used separately from registers for normal picture distortion adjustment,
and once picture distortion adjustment has been performed in full mode, wide mode settings can be made
simply by changing the corresponding register.
• Vertical picture distortion adjustment registers
V SIZE, V POSITION, S CORRECTION, V LINEARITY
• Horizontal picture distortion adjustment registers
H SIZE, EW DC, PIN AMP, CORNER PIN, TRAPEZIUM, AFC BOW, AFC ANGLE, H POSITION
• Wide mode setting registers
LEFT HBLK, RIGHT HBLK, ASPECT, HBLK, V UNDER SCAN, SCROLL, V ZOOM,
UPPER VLIN, LOWER VLIN
Page 40
– 40 –
CXA2060BS
Various mode settings
1)-1
1)-2
2)
3)
4)
5)
6)
7)
8)
16:9
16:9
16:9
16:9
16:9
16:9
16:9
4:3
4:3
16:9
4:3
4:3
16:9
4:3
4:3
(16:9 +
subtitles)
4:3
4:3
4:3
16:9
Full
Wide full
Normal
Zoom
Subtitle-in
Split screen mode
Wide zoom
4:3 normal
V compression
Standard value for 16:9 CRTs
Standard value for 16:9 CRTs
ASPECT = 0h: V size 75%
HBLK = 1: HBLK width adjustment ON
LEFT HBLK = Adjustment
RIGHT HBLK = Adjustment
PIN AMP = Adjustment
EW DC = 1
ASPECT = 2Fh: V size 100%
V ZOOM = 1: Zoom ON (V size limited to 75%)
SCROLL = 0h: Zoom bottom of picture
1Fh: Zoom center of picture
3Fh: Zoom top of picture
ASPECT = 2Fh: V size 100%
UP VLIN = Adjustment: Top of picture slightly
compressed
LO VLIN = Adjustment: Bottom of picture greatly
compressed
V ZOOM = 1: V size limited to 75%
SCROLL = Adjustment
V UNDER SCAN = 1: Compressed
ASPECT = Adjustment: V size 90%
UP VLIN = Adjustment
LO VLIN = Adjustment
(S CORR = Adjustment)
Standard value for 4:3 CRTs
ASPECT = Adjustment
V UNDER SCAN = 1: V size 80%
(Compressed to a total of 75%)
Setting CRT size
Soft size
Mode name I2C bus register
∗
Since the amount of compensation for distortion in the vertical position of a CRT does not change due to the
above modes, it is possible to use initial values for all screen distortion registers.
Top and bottom of
picture compressed
Page 41
– 41 –
CXA2060BS
Mode examples are given below. The 570 actual number of scanning lines displayed under PAL (480 lines for
NTSC) will be used in the description. Data stored in the wide mode setting registers is also given.
Note that actual adjustment values may differ slightly due to variations among different ICs.
Standard setting data differs for 16:9 CRTs and 4:3 CRTs.
(Standard value)
Register 16:9 CRT 4:3 CRT
ASPECT 0h 2Fh
SCROLL 1Fh 1Fh
V ZOOM 1 0
UPPER VLIN 0h 0h
LOWER VLIN 0h 0h
V UNDER SCAN 0 0
HBLK 0 0
LEFT HBLK 7h 7h
RIGHT HBLK 7h 7h
1) Full mode
This mode reproduces the full 570 (NTSC: 480) lines on a 16:9 CRT. Normal 4:3 images are compressed
vertically, but in the case of a squeezed video source which compresses 16:9 images to 4:3 images, 16:9
images are reproduced in their original 16:9 aspect ratio. The register settings are the 16:9 CRT standard
values.
2) Normal mode
In this mode, 4:3 images are reproduced without modification on a 16:9 CRT. A black border appears at the
left and right of the picture.
In this mode, the H deflection size must be compressed by 25% compared to full mode.
The CXA2060BS performs compression with a register (EW DC) that compresses the H size.
Because excessive current flows to the horizontal deflection circuit in this case, adequate consideration must
be given to the allowable power dissipation, etc., of the horizontal deflection coil in the design of the set. In
addition, this concern can also be addressed through measures taken external to the IC, such as switching the
horizontal deflection coil.
Full mode should be used when performing memory processing to add a black border to the video signal.
H blanking of the image normally uses the flyback pulse input from HP/PROTECT (Pin 18). However, the
blanking width can be varied according to the control register setting when blanking is insufficient for the right
and left black borders.
Change the following three settings with respect to the 16:9 CRT standard values for the register settings.
HBLK = 1
LEFT HBLK = Adjustment value
RIGHT HBLK = Adjustment value
The H angle of deflection decreases, causing it to differ from the PIN compensation amount during H size full
status. Therefore, in addition to the wide mode registers, PIN AMP must also be readjusted only for this mode.
Page 42
– 42 –
CXA2060BS
3) Zoom mode
In this mode, 4:3 images are reproduced on a 16:9 CRT by enlarging the picture without other modification.
The top and bottom of normal 4:3 images are lost, but almost the entire picture can be reproduced for vista
size video software, etc. which already has black borders at the top and bottom. Setting the ASPECT register
to 2Fh (100%) allows zooming to be performed for 4:3 images without distortion. In this case, the number of
scanning lines is reduced to 430 lines compared to 570 lines for full mode. The zooming position can be shifted
vertically by the SCROLL register.
V blanking of the image normally begins from V sync and continues for 2H after the AKB reference pulse, but
the top and bottom parts which are lost are also blanked during this mode.
Adjust the following two registers with respect to the 16:9 CRT standard values for the register settings.
ASPECT = 2Fh
SCROLL = 1Fh or user control
4) Subtitle-in mode
When Cinema Scope images which have black borders at the top and bottom of the picture are merely
enlarged with the zoom mode in 3) above, the subtitles present in the black borders may be lost. Therefore,
this mode is used to super-compress only the subtitle part and reproduce it on the display.
Add the LOWER VLIN adjustment to the zoom mode settings for the register settings.
ASPECT = 2Fh
SCROLL = 1Fh or user control
LOWER VLIN = Adjustment value
LOWER VLIN causes the linearity at the bottom of the picture to deteriorate. Therefore, UPPER VLIN should
also be adjusted if the top and bottom of the picture are to be made symmetrical. Since the picture is
compressed vertically, the number of scanning lines exceeds 430 lines.
5) Two-picture mode
This mode is used to reproduce two 4:3 video displays on a 16:9 CRT such as for P and P.
To achieve this, the V size must be further compressed from the condition where ASPECT = 0 (V size 75%: full
mode). This IC performs this compression with V UNDER SCAN.
16:9 CRT standard values are used with only V UNDER SCAN changed to 1 for the register settings.
V UNDER SCAN = 1
6) Wide zoom mode
This mode reproduces 4:3 video software naturally on wide displays by enlarging 4:3 images without other
modification and compressing the parts of the image which protrude from the picture into the top and bottom
parts of the picture. The display enlargement ratio is controlled by ASPECT, and the compression ratios at the
top and bottom of the picture are controlled by UPPER VLIN and LOWER VLIN.
Adjust the following three registers with respect to the 16:9 CRT standard values for the register settings.
ASPECT = Adjustment value
UPPER VLIN = Adjustment value
LOWER VLIN = Adjustment value
7) 4:3 CRT normal mode
This is the standard mode for 4:3 CRTs.
The register settings are the 4:3 CRT standard values.
Page 43
– 43 –
CXA2060BS
8) V compression mode
This mode is used to reproduce M-N converter output consisting of 16:9 images expanded to 4:3 aspect ratio
and other squeezed signals without distortion on a 4:3 CRT. In this case, the V size must be compressed to
75%. This is done using V UNDER SCAN in 5) above.
Setting V UNDER SCAN to ON compresses the V size to 75%. Fine adjustment of the V size is possible by
adding the ASPECT adjustment.
4:3 CRT standard values are used with the ASPECT and V UNDER SCAN settings changed for the register
settings.
ASPECT = Adjustment
V UNDER SCAN = 1
Page 44
– 44 –
CXA2060BS

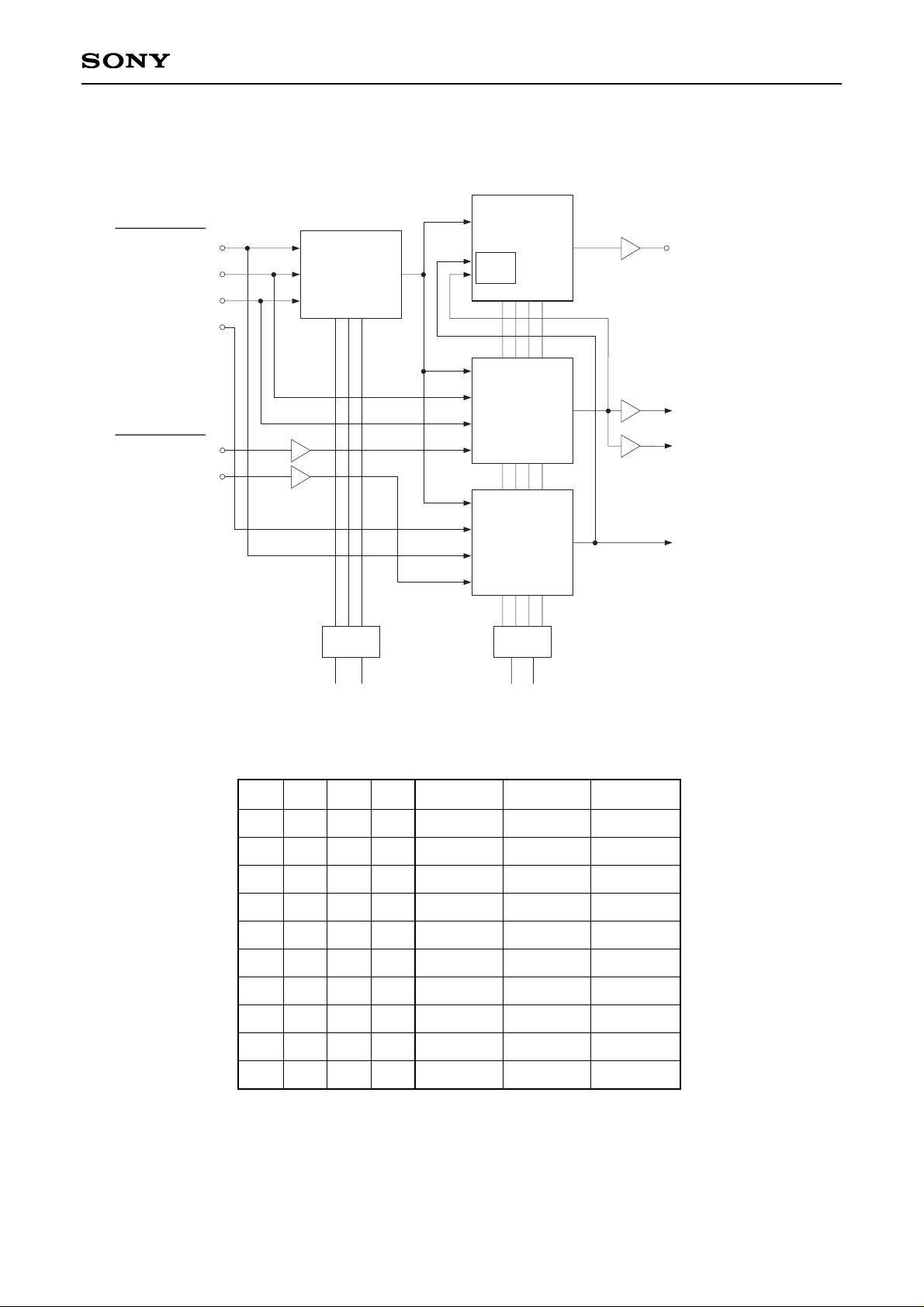

VIDEO SW
SELECTOR
TV/C2-IN
Y1/CVBS1-IN
INPUT: 1.0Vp-p
Y2/CVBS2-IN
C1-IN
COMBY-IN
INPUT: 2.0Vp-p
COMBC-IN
2 to 3
A B
I
2
C: VIDEO SEL
2 to 4
C D
I2C: S SEL
VIDEO
SELECTOR
MIX
–6dB
–6dB
+6dB
MON-OUT 2Vp-p
TO-C Burst: 250mVp-p
SELECTOR
SELECTOR
–11dB
+12dB
TO-SSEP Sig 4Vp-p
(with sync)
TO-Y Sig 200mVp-p
(without sync)
0
0
1
1
1
1
0
0
1
1
0
1
0
1
1
1
0
1
0
1
0
0
0
0
0
1
1
1
1
1
0
0
0
0
1
0
1
1
1
1
TV
CVBS1
CVBS2
NOSIG
Y1
Y2
COMBY
COMBY
COMBY
NOSIG
TV
CVBS1
CVBS2
NOSIG
C1
C2
COMBC
COMBC
COMBC
NOSIG
TV
CVBS1
CVBS2
NOSIG
Y1 + C1
Y2 + C2
TV
CVBS1
CVBS2
NOSIG
A B C D TO-Y TO-C MON-OUT
Page 45
– 45 –
CXA2060BS
[Color Status]
Input
APC LOCK PAL SECAM X'TAL ID
3.58
NTSC
4.43
NTSC
PAL
PAL60
SECAM
PAL-M
PAL-N
No color signal
1
1
1
1
0
1
1
0
0
0
1
1
0
1
1
0
0
0
0
0
1
0
0
0
01
00
00
00
00
00
10
∗∗
FIELD ID
0
0
1
0
1
0
1
∗
Page 46
– 46 –
CXA2060BS
3. Signal Processing
The CXA2060BS consists of separate blocks for sync signal processing, H deflection signal processing, V
deflection signal processing and Y/C and RGB signal processing, all controlled by an I2C bus.
1) Sync signal processing
The Y signal selected by the video switch is sync separated by a horizontal/vertical sync separation circuit.
A phase comparison between the horizontal sync split signal obtained and the H VCO output signal is
conducted and an AFC loop is configured, and an H pulse synchronized to H sync is created within the IC.
When AFC is locked to H sync, 1 is output to the status register (H LOCK). This can be used to detect the
presence of a video signal.
The vertical sync split signal is sent to the V countdown block and V deflection timing is obtained by the
appropriate window processing. V cycle timing such as the AKB reference pulse is generated using this V
timing pulse.
The V retrace timing pulse and sync split signal are output on V TIM (Pin 5) according to the V TIMSEL
register setting.
2) H deflection signal processing
A phase comparison is conducted between the H pulse obtained from sync processing and the H deflection
pulse input on Pin 18 (HP/PROTECT) and the horizontal position of the picture displayed on the CRT is
controlled by controlling the phase of H drive output. The compensation signal created using the vertical
sawtooth wave is superimposed and vertical picture distortion compensation is also performed.
The H deflection pulse is used for H blanking of the video signal. If the width of the H deflection pulse is
narrow, a pulse created by the IC can be added and the result used as the H blanking pulse (HBLK).
Although Pin 18 is for normal pulse input, the pin is kept lowered to near GND level, H drive output is stopped
and 1 is output to the status register (H NG). It is necessary to turn the IC's power OFF and ON again in order
to cancel this status.
3) V deflection signal processing
The vertical sawtooth wave oscillates in sync with the V timing pulse cycle output by the countdown. After wide
deflection processing is added to this sawtooth wave, it undergoes picture distortion adjustment by the
function circuits V drive and EW drive, respectively, and the result is output as the V drive and EW drive
signals.
4) Y signal processing
The Y/CVBS signal selected by the video switch is sent to the Y signal processing circuit.
The Y signal is sent to the RGB signal processing circuit via a trap filter for eliminating the chroma signal, a
delay line, sharpness control, clamp, and black expansion circuits. In addition, the output of the Y signal
processing circuit can be monitored using Pin 32 (R2 IN) by setting register YUV OUT to 1. (At this time, be
sure to connect a 10kΩ resistor to Vcc as a load for Pin 32.)
Also, a differential waveform of the Y signal synchronized with YOUT (RGB OUT) is output from Pin 15 as VM
OUT.
When the CVBS signal is selected, set the C TRAP OFF register to 0 (trap filter ON), and when the Y signal
split from Y/C separation is selected, set this register to 1 (trap filter OFF).
The internal filter f0 is adjusted automatically within the IC. Since the filter f0 does not settle down while the
color killer is operating, be sure to set the trap filter to OFF if it is an obstacle.
Page 47
– 47 –
CXA2060BS
5) C signal processing
The TV, CVBS or chroma (PAL, NTSC) signals (specified input: burst level 300mVp-p) selected by the Video
SW pass through an ACC, chroma band-pass filter, chroma amplifier, and demodulation circuit to form the
color difference signals R-Y and B-Y. After being processed by 1HDL the signals are input to the RGB signal
processing circuit.
The output signals (color difference signals) of this C signal processing circuit can be monitored, just like Y
output, using Pin 30 (B2 IN) and Pin 31 (G2 IN) by setting the register YUV OUT to 1. B-Y is output from Pin
30 (B2 IN) and R-Y is output from Pin 31 (G2 IN). (At this time, be sure to connect a 10kΩ resistor to Vcc as a
load for Pins 30 and 31.)
The color killer is activated when the burst level falls –36dB or more below the specified input.
The SECAM signal (specified input: R-YID: 215mVp-p, B-YID: 167mVp-p) passes through an ACC, bell filter,
limiter amplifier, demodulation circuit, line blanking circuit, and de-emphasis circuit to form the color difference
signals R-Y and B-Y. After being processed by 1HDL the signals are input to the RGB signal processing
circuit.
In addition, the color system (PAL, NTSC or SECAM) and sub-carrier frequency (4.43MHz or 3.58MHz) are
automatically identified according to the input chroma signal. Circuits such as the internal VCO, demodulation
circuit and color axis circuit of the RGB signal processing block (described below) are automatically adjusted.
The system is selected either automatically by the I2C bus (COL SYSTEM and X'TAL) or by forcible modes.
The color system status selected using the status registers NTSC/PAL, SECAM and X'TAL ID is output (refer
to the color status table).
6) RGB signal processing
The Y and color difference signals obtained by the Y/C signal processing circuit are first input to the YUV SW,
then selected and switched with the external Y and color difference signals. After the selected Y and color
difference signals are used to form the G-Y signal in the next axis circuit (including color control), they are used
for the RGB signals.
Next, these signals pass through the external RGB signal SW circuits YS1 SW and YM SW (half-tone SW),
external RGB signal SW circuit YS2 SW, dynamic color, picture control, gamma correction, clamp, brightness
control, drive control, and cutoff control circuits, and are then output on Pin 22 (ROUT), Pin 23 (GOUT), and
Pin 24 (BOUT).
An external RGB signal (100 IRE 100% white: 0.7Vp-p) conforming to normal video signal specifications is
input to Pins 26, 27 and 28 and Pins 30, 31 and 32.
The voltage added to Pin 3 (ABL IN) is compared to the reference voltage within the IC and then integrated by
the capacitor connected to Pin 42 (ABL FIL) to form a control signal used for picture control and brightness
control. The ABL mode can be selected using the register ABL MODE for switching such that only picture
control is performed or so that both picture control and brightness control are performed. There is a protective
function such that brightness control is activated even when only picture control is being performed if beam
current flows excessively.
This IC includes two functions for performing white balance and black balance adjustments: drive control for
performing gain adjustment between RGB outputs and cutoff control for performing DC level adjustments
between RGB outputs. These can be independently controlled for three channels by the I2C bus. In addition to
this, the cutoff control function also includes an auto-cutoff function (AKB) which performs automatic
adjustment by forming a loop between the IC and CRT. This can compensate for temporal variations of the
CRT.
Page 48
– 48 –
CXA2060BS
Auto-cutoff functions are as follows.
• R, G, and B reference pulses for auto cutoff, shifted 1H each in the order mentioned, appear at the top
of the picture (actually, in the overscan portion). The reference pulse uses 1H in the V blanking interval,
and is output from each R, G and B output pin.
• The RGB cathode current (IK) is input to Pin 21 (IK IN).
• The cathode current input to Pin 21 (IK IN) is converted to a voltage within the IC. The reference pulse
interval of this voltage is compared with the reference voltage within the IC, and a current generated by
this voltage difference is used to charge a capacitor within the IC. This charge is held at times other than
the reference pulse interval.
• The DC level of the RGB output changes according to the voltage generated by the capacitor. A loop
functions to make the voltage converted from the current input to Pin 21 (IK IN) match the reference
voltage within the IC.
The IC internal reference voltages for R, G and B undergo cutoff control by the I2C bus and can be
independently adjusted. The cathode signal current flowing during the reference pulse interval should be about
13µA at the cutoff control center. The IC can also handle up to 100µA cathode leak current flowing during
blanking. Large current flows during the video interval, and this leads to destruction around IK IN, be absolutely
sure to connect a zener diode of about 4V to the IK IN pin.
Page 49
– 49 –
CXA2060BS
4. Notes on Operation
Because the R, G and B signals and deflection signals output from the CXA2060BS are DC direct connected,
the pattern (set board) must be designed with consideration given to minimizing interference from around the
power supply and GND. Do not separate the GND patterns for each pin; a solid earth is ideal. Locate the
power supply side of the by-pass capacitor which is inserted between the power supply and GND as near to
the pin as possible. Also, locate the crystal oscillator and IREF resistor as near to the pin as possible, and be
sure that signal lines do not pass close to these pins. Drive the Y, external Y/color difference and external RGB
signals at a sufficiently low impedance, as these signals are clamped when they are input using the capacitor
connected to the input pin.
Use a resistor (such as a meal film resistor) with an error of less than 1% for the IREF pin.
Be sure that Vcc1 and Vcc2 have the same electric potential.
Use crystals manufactured by Daishinku Corp. Properties of this IC are not guaranteed if used with crystals
from another manufacturer.
Page 50
– 50 –
CXA2060BS

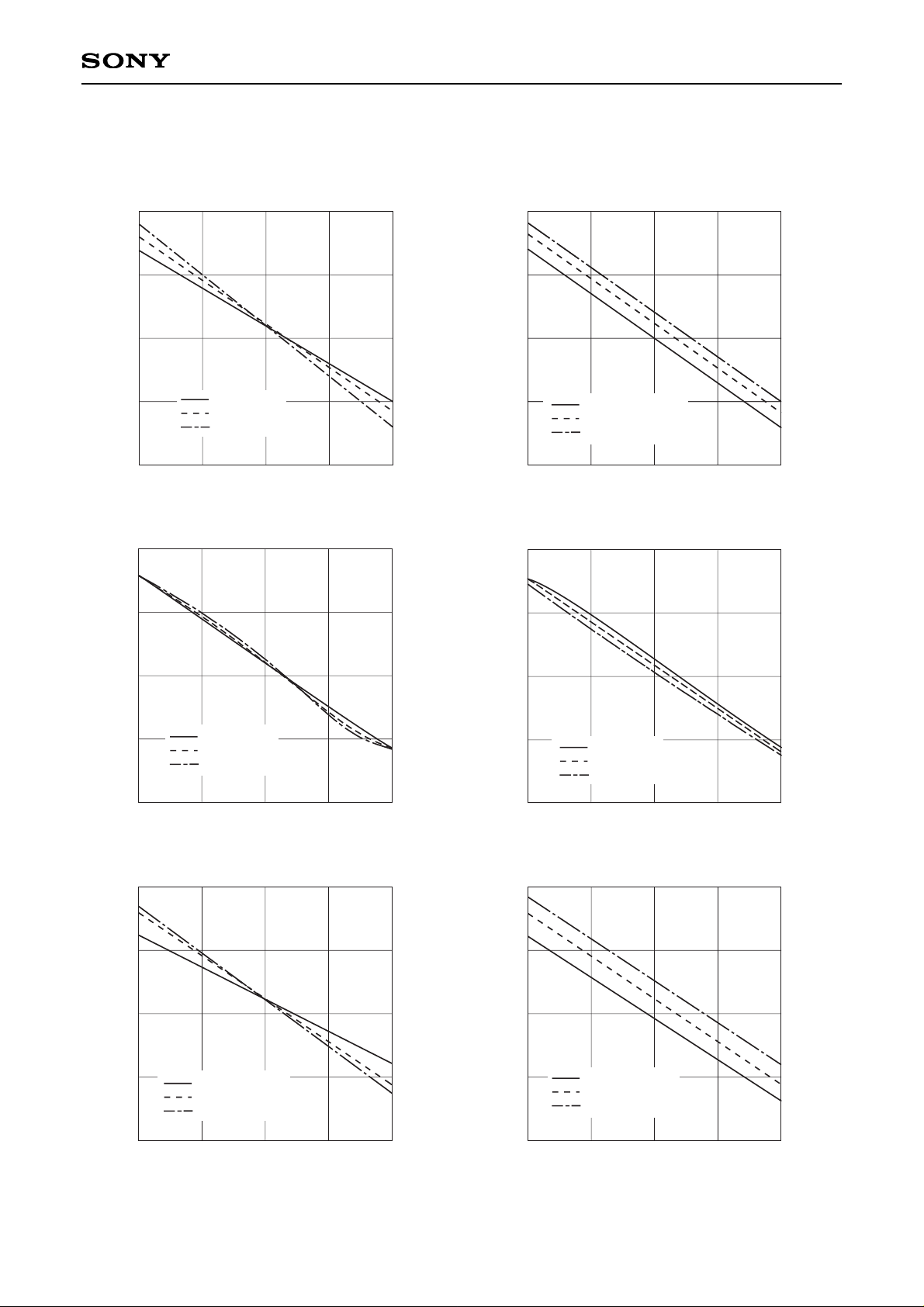

Curve Data
I2C bus data conforms to the "I2C Bus Register Initial Settings" of the Electrical Characteristics Measurement
Conditions.
3
100
Time [ms]
V_LINE
V [V]
3.5
4
4.5
2.5
20155
V_LINE = 0
V_LINE = 7
V_LINE = F
V [V]
3
100
Time [ms]
S_CORR
3.5
4
4.5
2.5
20155
S_CORR = 0
S_CORR = 7
S_CORR = F
0 10
Time [ms]
V_POSITION
V [V]
3.5
4
4.5
2.5
20155
3
10
3.5
4
4.5
2.5
20155
3
V_POSITION = 0
V_POSITION = 1F
V_POSITION = 3F
3
100
Time [ms]
V_SIZE
V [V]
3.5
4
4.5
2.5
20155
V_SIZE = 0
V_SIZE = 1F
V_SIZE = 3F
3
100
V_ASPECT
V [V]
3.5
4
4.5
2.5
20155
V_ASPECT = 0
V_ASPECT = 2F
V_ASPECT = 3F
Time [ms]
3
100
Time [ms]
V_SCROLL
V [V]
3.5
4
4.5
2.5
20155
V_SCROLL = 0
V_SCROLL = 1F
V_SCROLL = 3F
Page 51
– 51 –
CXA2060BS

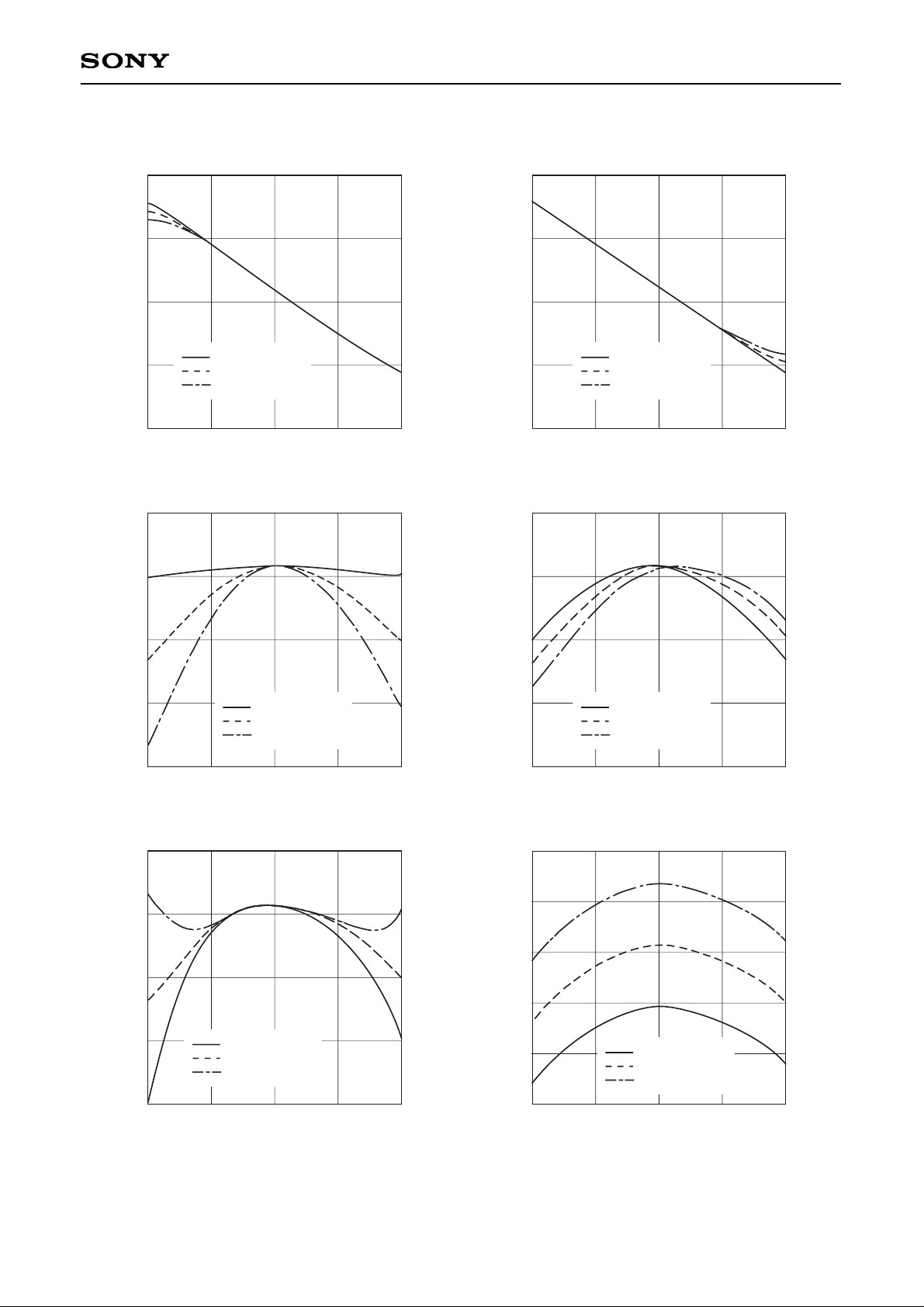

100
Time [ms]
V [V]
CO_PIN
3
3.5
4
4.5
2.5
20
5 15
CO_PIN = 0
CO_PIN = 1F
CO_PIN = 3F
100
Time [ms]
TRAPEZIUM
V [V]
3
3.5
4
4.5
2.5
20
5 15
TRAPEZIUM = 0
TRAPEZIUM = 7
TRAPEZIUM = F
PIN_AMP
V [V]
3
3.5
4
4.5
100
Time [ms]
2.5
20
5 15
PIN_AMP = 0
PIN_AMP = 1F
PIN_AMP = 3F
100
Time [ms]
LO_VLIN
V [V]
3
3.5
4
4.5
2.5
20
5 15
LO_VLIN = 0
LO_VLIN = 7
LO_VLIN = F
100
Time [ms]
UP_VLIN
V [V]
3
3.5
4
4.5
2.5
20
5 15
UP_VLIN = 0
UP_VLIN = 7
UP_VLIN = F
100
Time [ms]
H_SIZE
V [V]
3
3.5
4
5
2.5
20
5 15
H_SIZE = 0
H_SIZE = 1F
H_SIZE = 3F
4.5
Page 52
– 52 –
CXA2060BS

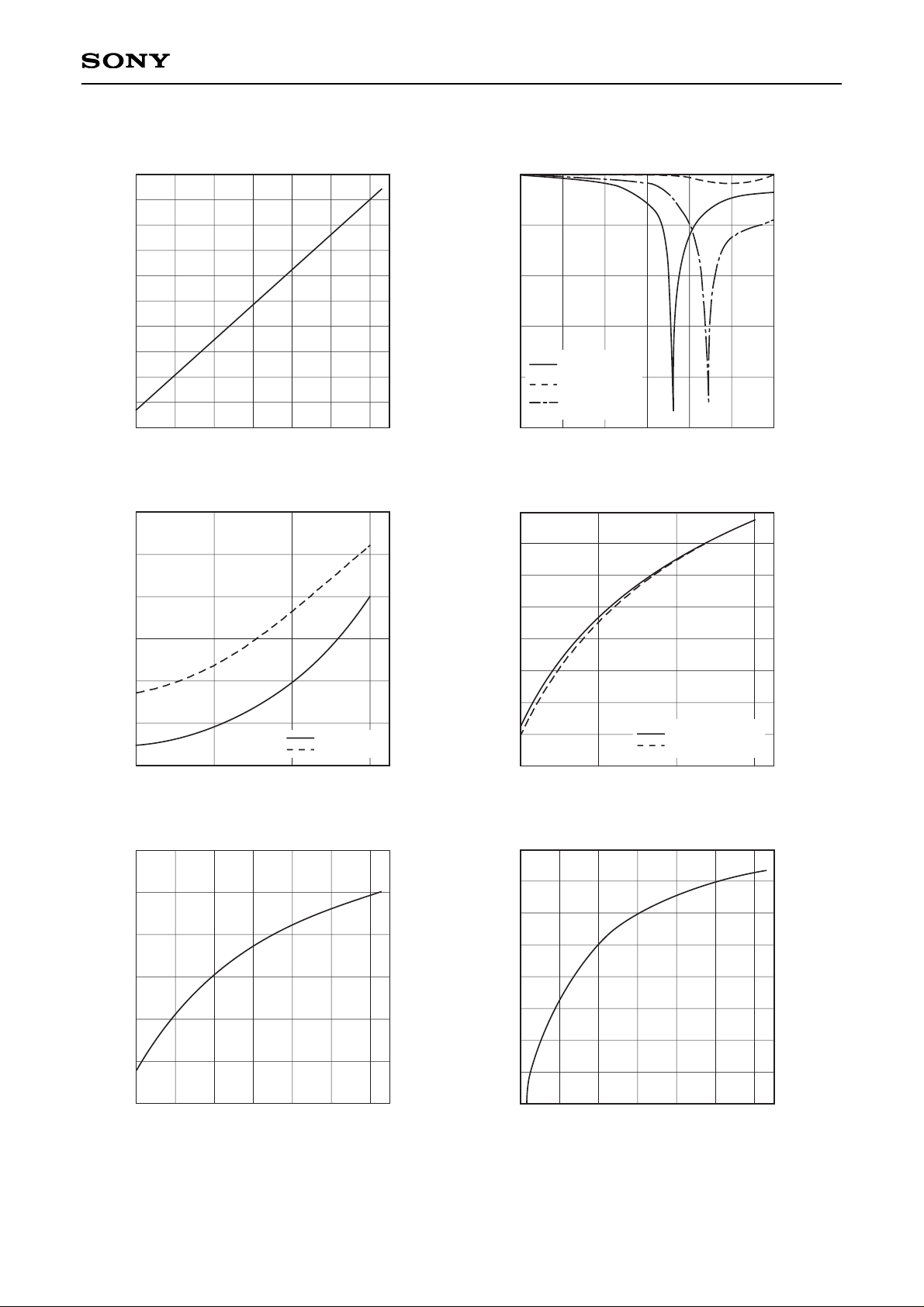

300
DATA
H_POSITION
Time [µs]
–1.5
–0.5
0.5
2.5
–2.5
604010 5020
2
–2
–1
0
1.5
1
300
DATA
Gain [dB]
–16
–12
–4
4
–20
60
–8
0
4010 5020
30
DATA
TRAP OFF
Gain [dB]
–40
–30
–20
0
–50
6
–10
41 52
3.5MHz
TRAPOFF = 0
TRAPOFF = 1
4.43MHz
TRAPOFF = 0
100
DATA
SHARPNESS
Gain [dB]
–2
2
6
10
–6
15
5
–4
0
4
8
SHP-f0 = 3.0MHz
SHP-f0 = 2.5MHz
50
DATA
Y_DELAY
Time [ns]
700
900
1100
1200
600
15
800
1000
10
NTSC/PAL
SECAM
300
DATA
COLOR
Gain [dB]
–20
–10
0
10
–30
60
–25
–15
–5
5
4010 5020
Page 53
– 53 –
CXA2060BS

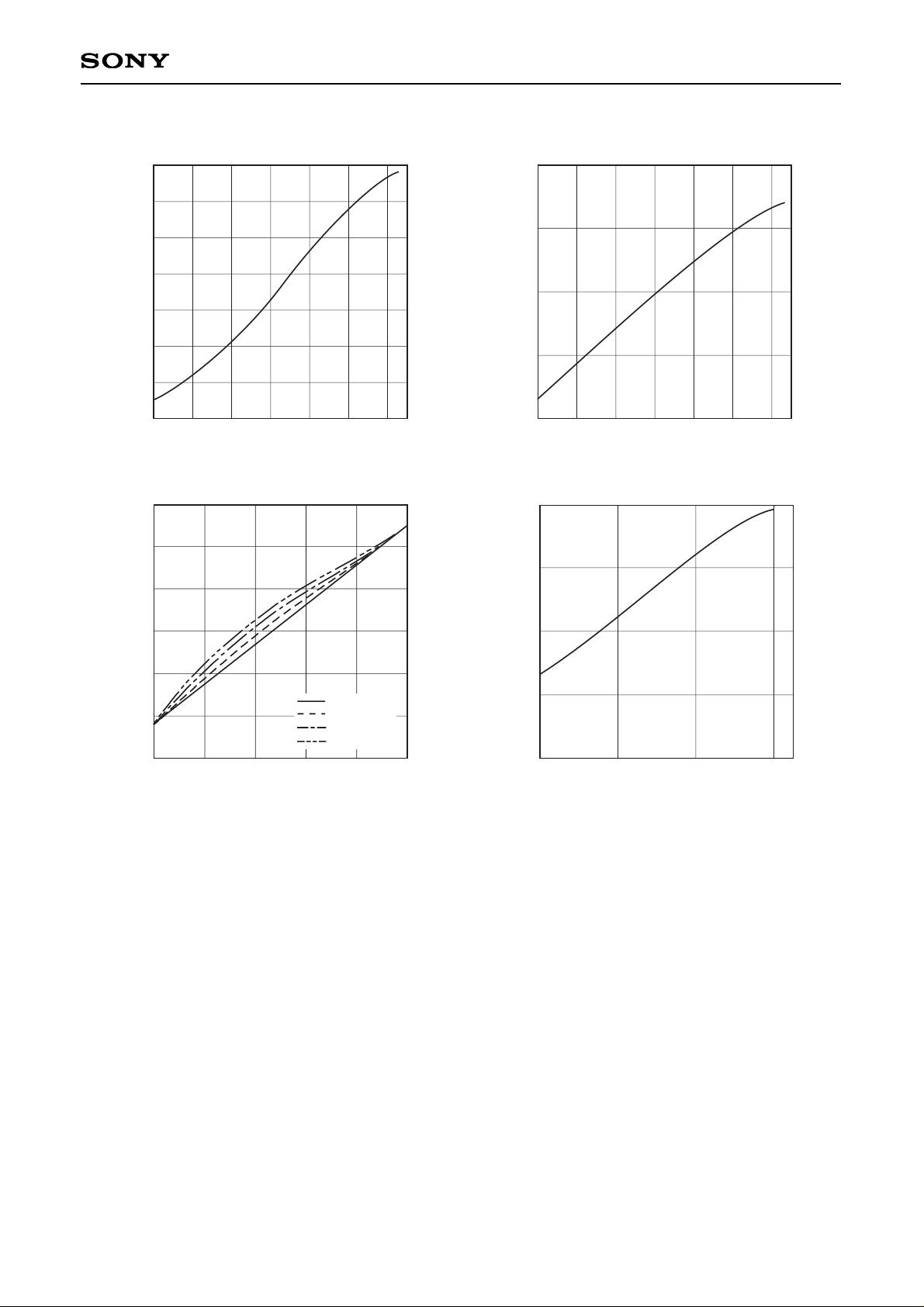

300
DATA
BRIGHT
Potential Difference Between Gch Reference Pulse Level
and Black Level [Vp-p]
–0.8
–0.4
0
0.4
–1
60
–0.6
–0.2
0.2
4010 5020
300
DATA
R-DRIVE, G-DRIVE, B-DRIVE
Gain [dB]
–2
0
2
4
–4
604010 5020
50
DATA
CUT_OFF (R, G, B)
Input Current of Reference Pulse [mA]
5
10
15
20
0
1510
400
CVIN Input Amplitude [IRE]
GAMMA
Gch Output [V]
2
2.5
3.5
4.5
1.5
100
3
4
6020 80
GAMMA = 0
GAMMA = 1
GAMMA = 2
GAMMA = 3
Page 54
– 54 –
CXA2060BS
Package Outline Unit: mm
48PIN SDIP (PLASTIC)
13.0
+ 0.3
– 0.1
4.6
+ 0.4
– 0.1
0.25
+ 0.1
– 0.05
48 25
1 24
1.778
15.24
0° to 15°
0.5 ± 0.1
0.9 ± 0.15
3.0 MIN 0.5 MIN
SONY CODE
EIAJ CODE
JEDEC CODE
PACKAGE STRUCTURE
PACKAGE MATERIAL
LEAD TREATMENT
LEAD MATERIAL
PACKAGE MASS
EPOXY RESIN
PLATING
42/COPPER ALLOY
5.1g
SDIP-48P-02
SDIP048-P-0600
43.2
+ 0.4
– 0.1
SOLDER/PALLADIUM
1.All mat surface type.
Two kinds of package surface:
2.Center part is mirror surface.
NOTE : PALLADIUM PLATING
This product uses S-PdPPF (Sony Spec.-Palladium Pre-Plated Lead Frame).
Loading...
