Page 1
—1—
E95Y03A77-TE
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
Absolute Maximum Ratings (Ta=25 °C)
• Supply voltage VCC 7V
•Operating temperature Topr –20 to +75 °C
• Storage temperature Tstg –65 to +150 °C
• Allowable power dissipation
PD 1120 mW
(When mounted on board)
Operating Conditions
• Recommended supply voltage
VCC 3.15 V
VCCH 4.75 V
• Supply voltage range VCC 3 to 5.25 V
VCCH 4.5 to 5.25 V
However, VCCH ≥ VCC
Description
The CXA2038R is a bipolar IC designed as an
AFM monaural signal processor for 8 mm VCRs. All
functions necessary for AFM monaural are
concentrated onto a single 64-pin LQFP.
Features
• Low supply voltage (3.15 V) design
• Low power consumption (VCC=3.15 V)
Recording: 65 mW
Playback: 103 mW
• Built-in BPF (1.5 MHz)
• FM modulator center frequency made non-
adjusting.
• Supports NTSC and PAL
• Enables both parallel and 3-line serial mode
control
• Supports electronic volume (EVR) control
Applications
8 mm VCRs
Structure
Bipolar silicon monolithic IC
AFM Monaural Signal Processor for 8 mm VCR
64 pin LQFP (Plastic)
CXA2038R
Page 2
—2—
CXA2038R
Block Diagram
MIC/LINE (CS)
REC/PB (CK)
(S I)
PMUTETC
MIXOUT
MICIN
VCC1
REC ON
SP
LP
MUTE
PB
REC
VCT5
VCC2
VCCH
AFLIM
PB
REC
PB
REC
PBREC
BPF
ON
OFF
PLLLPF
DEVADJ
S / HTC
MUTE
LPEMPTC
MONITOR
BPMONICT
GND2
VCTH
NC
NC
NC
NC
NC
NC
NC
FADE
GND1
RFDC
IFDC
WEIGHT
TCH
TC
NRDC
ALCDET
VCTTC
IREF
NC
NC
NC
NC
NC
LINEIN
MUTEOUT
LINE
MIC
PLL
ENC IN
ENC OUT
DEC IN
DEC OUT
NR
POWER
MUTE
MUTE
CONTROL
BUS
DECODER
ALC
DET
FADE
LPF
D.C.
BUF
MUTE
D.C.
MUTE
LPEMP
1.5MHz
VCO
LIM
LPF
LIM
LPF
PHASE
COMP
1.5M
BPF
RF
AGC
DOC
DET
FWR
MUTE
DET
MUTE OFF
DELAY
OR
PG
DOUB
S / H
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33343536373839404142434445464748
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
101 2 3 4 5 6 7 8 9 1514131211 16
LINEOUT
EPOUT
GNDH
NC
PBRFIN
MUTETC
RECFMOUT
RFSWP
FSCIN
BPFMONI
AGC TC
NC
NC
NC
NC
NC
VCT
BPF fo ADJ
NTSC/PAL
SP/LP (SI/PA)
Page 3
—3—
CXA2038R
Pin Description (VCC1, VCC2=3.15 V, VCCH=4.75 V, Ta=27 °C)
Pin
No.
1
2
3
4
5
Symbol
ALCDET
NC
FADE
NC
NC
Pin voltage
DC AC
— —
— —
See
attached —
sheet.
— —
— —
Equivalent circuit Description
ALC time constant pin.
ALC is OFF when this pin is
connected to GND.
EVR control pin for fader. 0 to
0.5 V with fixed gain.
Increasing the applied voltage
lowers the gain and causes the
fader to operate.
500
VCC1
GND
250
1k
2µ
1
50k
VCC1
GND
20µ
50k
1.24V
3
Page 4
—4—
CXA2038R
Pin
No.
6
7
8
9
10
Symbol
IREF
IFDC
RFDC
VCT TC
GND1
Pin voltage
DC AC
1.17 V —
1.90 V —
1.88 V —
1.83 V —
0 V —
Equivalent circuit Description
Pin for generating the
reference current.
Connect a 47 kΩ external
resistor.
Be careful not to cause cross
talk.
Signal path DC monitor pin.
Signal path DC monitor pin.
IC internal bias pin.
Connect a decoupling
capacitor.
Audio system GND pin.
192
VCC1
GND
192
6
40k
VCCH
GND
1k
40µ
7
26.8k
VCC1
GND
1k
60µ
8
VCC1
GND
50µ
1k
60k
60k
9
∗1
∗1
Externally applied voltage
Page 5
—5—
CXA2038R
Pin
No.
11
12
13
14
15
Symbol
WEIGHT
NRDC
TCH
TC
NC
Pin voltage
DC AC
1.18 V —
1.68 V —
0.47 V —
1.1 V —
— —
Equivalent circuit Description
NR WEIGHT time constant pin.
NR block DC monitor pin.
NR attack/recovery time
constant pins.
VCC1
GND
4.7k
5µ
11
VCC1
GND
5µ
147 1k
12
VCC1
147
150
2µ
200
10µ
GND
13
14
Page 6
—6—
CXA2038R
Pin
No.
16
17
18
19
20
Symbol
NC
SI/PA
(SP/LP)
VCT
NC
NC
Pin voltage
DC AC
— —
— —
1.23 V —
— —
— —
Equivalent circuit Description
Serial/parallel (SP/LP) mode
switching pin. When this pin is
4.3 V or more, the IC operates
in serial control mode and
mode control for the IC is
performed by Pins 58 (CS), 59
(CK) and 60 (SI). When this
pin is 3.5 V or less, the IC
operates in parallel control
mode as follows.
IC internal bias pin.
Connect a decoupling
capacitor.
VCCH
GND
147
4V
50k
1.5V
10µ
20µ
SP/LP
SI/PA
17
VCC1
GND
1k
40µ
5µ
18
L (0 to 1 V) LP
H (2 to 3.5 V) or OPEN SP
Page 7
—7—
CXA2038R
Pin
No.
21
22
23
24
25
Symbol
RFAGC TC
PBRFIN
BPFMONI
RECFMOUT
NC
Pin voltage
DC AC
2.3 V —
—
1.0 V
0.9 V
— —
Equivalent circuit Description
Pin for deciding RFAGC time
constant.
Input pin for PB RF signal.
The reference input level is
approximately 200 mVp-p
(Y + C + AFM).
Note that the reference input
level for the AFM component is
15 mVp-p.
Pin for monitoring the BPF
output.
Connect a 4.7 kΩ external
resistor.
Recording FM modulated
audio output pin.
VCC2
GND
1k
40µ
VCC-1.1V
21
VCC2
GND
147
VCC-1.15V
17k
17k
50µ
22
VCC2
GND
1.5M BPF OUT
20µ
100
23
VCC2
GND
220µ
100
24
Reference
input AFM
15 mVp-p
Reference
output
110 mVp-p
1.5 MHz
Reference
output
210 mVp-p
Page 8
—8—
CXA2038R
Pin
No.
26
27
28
29
30
Symbol
BPF f0 ADJ
MUTETC
NTSC/PAL
FSC IN
NC
Pin voltage
DC AC
See
attached —
sheet.
2.3 V —
— —
1.53 V
— —
Equivalent circuit Description
Pin for varying the BPF fo.
Non-adjusting mode when 0 to
0.8 V (VCC = 3.15 V).
Time constant pin for
determining the MUTE OFF
delay time.
NTSC/PAL switching pin
during parallel mode.
fsc input pin.
The input level is 200 to 500
mVp-p.
During NTSC: 3.579545 MHz
During PAL: 4.433619 MHz
VCC2
GND
20µ
47k
23k
1k
73k
20µ
V
CC2/3
ADJ ON/OFF
26
VCC2
GND
10k
10µ
1k
DOC 0.6µ
DOC 2.5µ
27
VCC1
GND
50k
40µ
28
VCC2
GND
147
40µ
40k
V
CC-1.4V
29
Reference
input
300 mVp-p
L (0 to 1 V) PAL
H (2 V to VCC1) NTSC
Page 9
—9—
CXA2038R
Pin
No.
31
32
33
34
35
Symbol
RFSWP
NC
BPFMONI
CTL
PLLLPF
LPEMP TC
Pin voltage
DC AC
—
— —
— —
— —
1.87 V —
Equivalent circuit Description
RFSWP input pin.
BPF ON/OFF switch control
pin.
PLL time constant pin.
Since this pin has a small
attraction and discharge
current, signals should be
received with high impedance
when monitoring this pin. Also,
be careful not to cause cross
talk.
LPEMP time constant pin.
Be careful not to cause cross
talk.
VCC2
GND
50k147
110k
1.2V
31
GND
10µ
147
4V
VCC1
33
VCC2
GND
1k
0.08µ
25k
0.08µ
34
VCC2
GND
173k
410k
35
30Hz
Input
30Hz
H (2 to V
CC1)
L (0 to 1V)
L (0 to 3.5 V) or OPEN BPF ON
H2 (4.3 V to VCCH) BPF OFF
Page 10
—10—
CXA2038R
Pin
No.
36
37
38
39
40
Symbol
DEVADJ
MONI
NC
NC
GND2
Pin voltage
DC AC
See
attached —
sheet.
1.84 V
— —
— —
0 V —
Equivalent circuit Description
Deviation adjusting pin.
The variable width is from 0 to
VCC1.
Pin for monitoring the signal
before modulation during
recording and after
demodulation during playback.
RF system GND pin.
VCC1
GND
60k
50k
50k
20µ
36
VCC1
GND
1k
20µ
37
∗2
Reference
output
–15 dBm
∗1
∗1
Externally applied voltage
∗2
0dBm=2.19 Vp-p
Page 11
—11—
CXA2038R
Pin
No.
41
42
43
44
45
Symbol
NC
NC
VCTH
SHTC
NC
Pin voltage
DC AC
— —
— —
1.89 V —
1.7 V —
— —
Equivalent circuit Description
RF system reference bias pin.
Connect a decoupling
capacitor.
S/H time constant pin.
VCC1
GND
1k
43
VCC1
GND
1k
5µ
500
44
Page 12
—12—
CXA2038R
Pin
No.
46
47
48
49
50
Symbol
NC
NC
MUTE
ON/OFF
LINE OUT
EPOUT
Pin voltage
DC AC
— —
— —
— —
2.01 V
2.01 V
Equivalent circuit
VCC1
GND
50k
20µ
48
VCCH
GND
36k
147
49
VCCH
GND
36k
50
Reference
output
–7 dBm
∗1
Reference
output
–7 dBm
∗1
∗2
0dBm=2.19 Vp-p
Description
Mute control pin.
Mute control is possible during
both serial and parallel modes.
LINEOUT pin.
Set the load to 47 kΩ or more.
EPOUT pin.
This pin can drive a load of
120 Ω.
L (0 to 1 V) MUTE OFF
H (2 V to VCC1) or OPENMUTE ON
Page 13
—13—
CXA2038R
Pin
No.
51
52
53
54
55
Symbol
GNDH
NC
MUTEOUT
VCCH
MIXOUT
Pin voltage
DC AC
0 V —
— —
0 V —
4.75 V —
2.01 V
Equivalent circuit Description
Output buffer system GND pin.
MUTEOUT pin.
This pin outputs current during
muting and power ON/OFF to
operate the external SW Tr.
Output buffer system power
supply pin.
MIXOUT pin.
Set the load to 47 kΩ or more.
VCCH
GND
53
VCCH
GND
36k
147
55
Reference
output
–7 dBm
∗2
∗1
∗1
∗1
Externally applied voltage
∗2
0dBm=2.19 Vp-p
Page 14
—14—
CXA2038R
Pin
No.
56
57
58
59
60
Symbol
VCC2
PMUTETC
MIC/LINE
(CS)
REC/PB
(CK)
SI
Pin voltage
DC AC
3.15 V —
4.75 V —
— —
— —
— —
Equivalent circuit Description
RF system power supply pin.
Time constant pin for deciding
the power ON/OFF mute time.
During parallel operation:
MIC/LINE switching pin.
During serial operation:
CS input pin.
During parallel operation:
REC/PB switching pin.
During serial operation:
CK input pin.
During serial operation:
SI input pin.
VCCH
GND
10k
5k
57
VCC1
GND
50k
40µ
1.5V
58
VCC1
GND
50k
40µ
1.5V
59
VCC1
GND
50k
40µ
1.5V
60
∗1
∗1
Externally applied voltage
L (0 to 1 V) or OPEN REC
H (2 V to VCC1) PB
L (0 to 1 V) or OPEN LINE
H (2 V to VCC1) MIC
Page 15
—15—
CXA2038R
Pin
No.
61
62
63
64
Symbol
VCT5
MICIN
VCC1
LINE IN
Pin voltage
DC AC
2.02 V —
1.16 V
3.15 V —
1.16 V

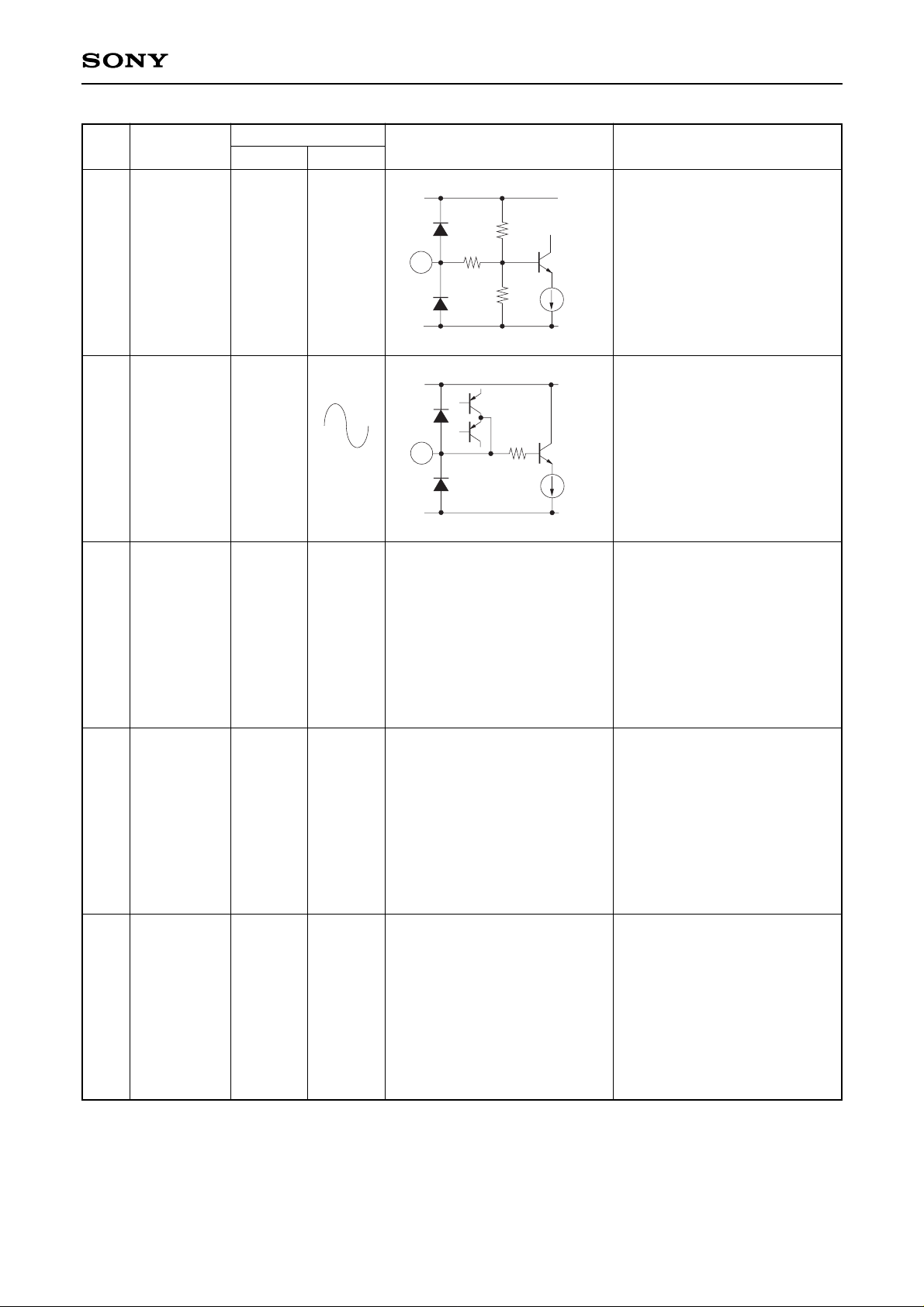

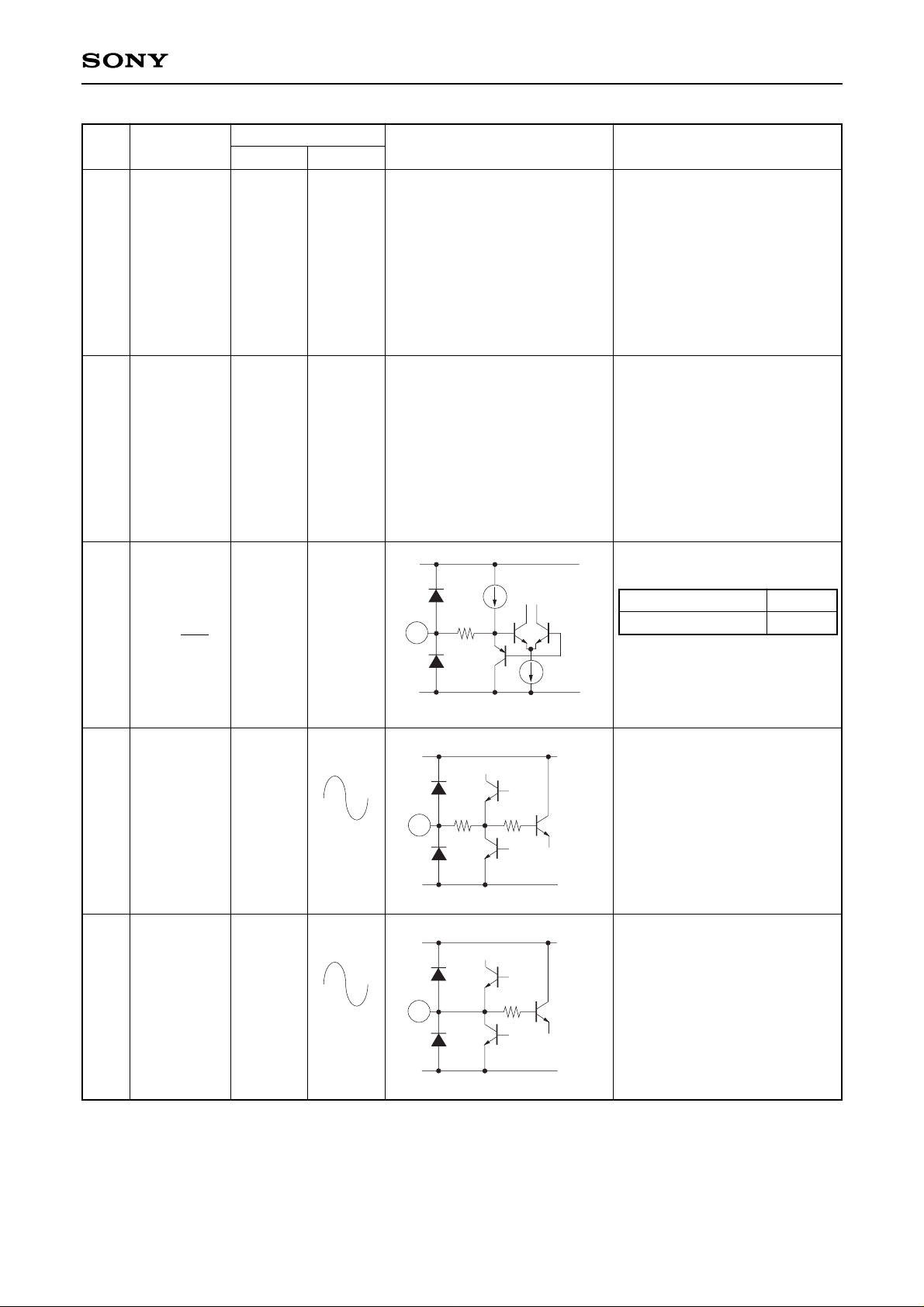

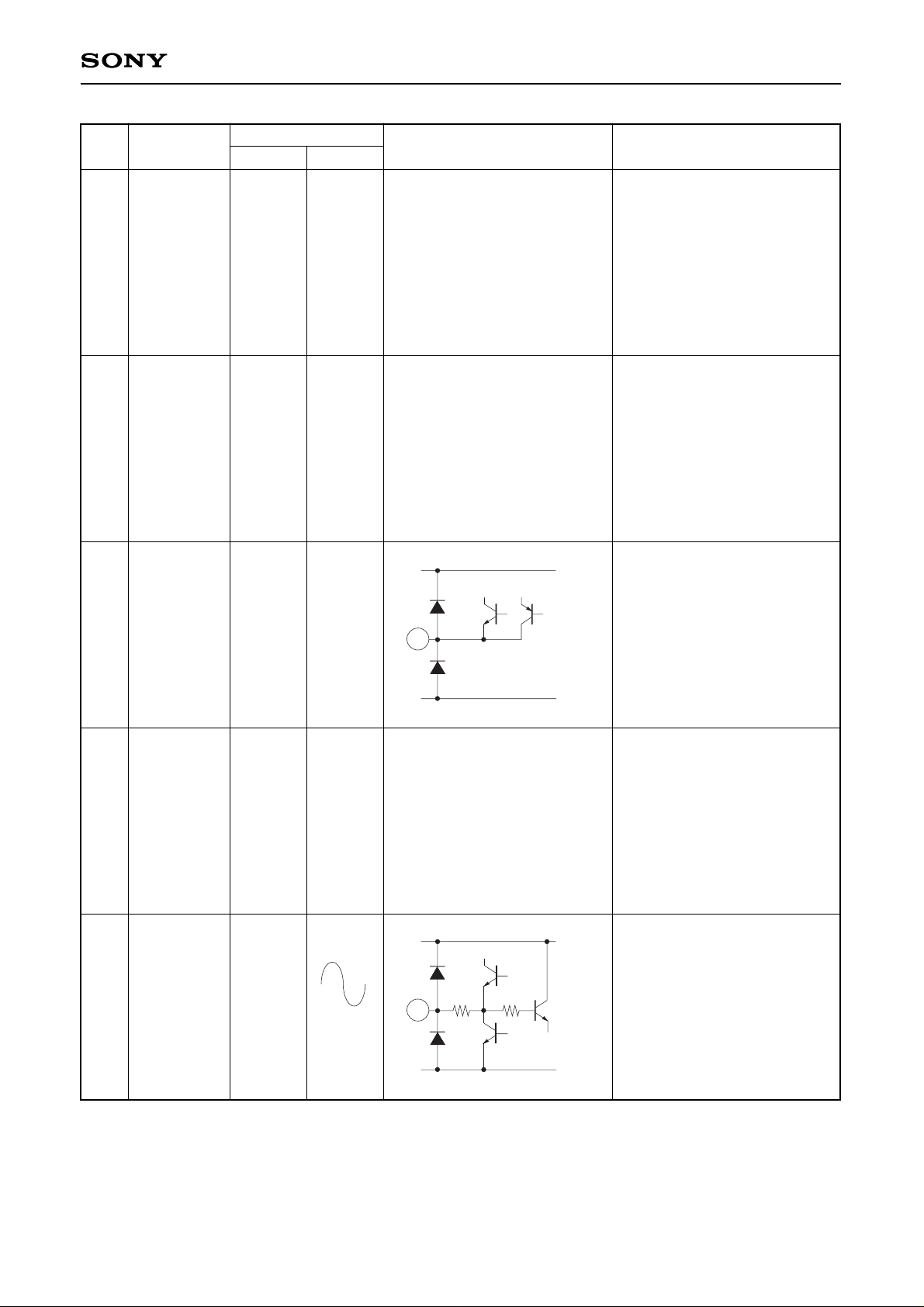

Equivalent circuit Description
IC internal bias pin.
Connect a decoupling
capacitor.
Microphone input pin.
Standard input level: –38 dBm.
This pin has a small input
signal level and high input
impedance. Therefore, be
careful not to cause cross talk
with other signals.
Audio system power supply
pin.
Line input pin.
Standard input level: –38 dBm.
This pin has a small input
signal level and high input
impedance. Therefore, be
careful not to cause cross talk
with other signals.
VCCH
GND
60k
60k
1k
147
61
VCC1
GND
50k
5µ
147
VCT
62
VCC1
GND
50k
5µ
147
VCT
64
Reference
input
–38 dBm
∗2
∗2
Reference
input
–38 dBm
∗1
∗1
Externally applied voltage
∗2
0dBm=2.19 Vp-p
Page 16
—16—
CXA2038R
Electrical Characteristics VCC1, VCC2=3.15 V, VCCH=4.75 V, Ta=27 °C
Measurement input
signal conditions
Input pin
Level Frequency
SG62 –38 dBm 1 kHz
SG62 –38 dBm 1 kHz
SG62 –18 dBm 1 kHz
SG62 –2 dBm 1 kHz
+36 dB
SG62
/+20 dB
1 kHz
SG62 –2 dBm 1 kHz
SG62 –38 dBm 1 kHz
SG62 –38 dBm 1 kHz
Measurement method
During serial no signal
During serial no signal
During serial no signal
During serial no signal
Measure the THD to the
10 th.
Obtain with the ratio of
+36 dB/+20 dB.
VALC36/VALC20
Measure the THD to the
10 th.
A weight
Obtain with
VFALO/VLNOL.
Ratings
Min. Typ. Max.
12 16 20
2 3 4
21 28 35
2 3 4
–8 –7 –6
0.2
–5 –2 1
–3 0 3
0 0.6 2.5
1
–69
–0.5 0 0.5
Switch condition, normally
set to “b”
1 3 22 29 31 33 44 62 64
a
a
a
a
a
a
a a
a a
No.
1
2
3
4
5
6
7
8
9
10
11
12
Item
Current consumption
during recording 1
V
CC1 + VCC2 systems
Current consumption
during recording 2
V
CC
H system
Current consumption
during playback 1
V
CC1 + VCC2 systems
Current consumption
during playback 2
V
CCH system
MIC in LINE OUT
reference output level
MIC in LINE OUT
reference output
distortion
ALC level 1
(REF + 20 dB)
ALC level 2
(REF + 36 dB)
ALC effects
(+36 dB/+20 dB)
ALC maximum input
distortion
(REF + 36 dB)
FADER maximum
attenuation
FADER dead voltage
level
Symbol
IREC1
IREC2
IPB1
IPB2
VLNOL
HLNO
VALC20
VALC36
VALC
HALCH
VFAL
VFALO
Control voltage
V3 V26 V33 V36 V44
VCC1
0.5 V
Mode
condi
tion
b
b
c
c
b
b
b
b
b
b
b
b
Measu
rement
point
l1
l2
l1
l2
P49
P49
P49
P49
P49
P49
P49
P49
Unit
mA
mA
mA
mA
dBm
%
dBm
dBm
dB
%
dBm
dB
Reference signal source
Input pin
Level Frequency
Page 17
—17—
CXA2038R
Measurement input
signal conditions
Input pin
Level Frequency
SG62 –38 dBm 20 kHz
SG62 –38 dBm 60 kHz
SG64 –38 dBm 1 kHz
SG64 –38 dBm 1 kHz
SG64 –28 dBm 1 kHz
SG62 1 kHz
SG62 –38 dBm 1 kHz
SG62 –38 dBm 1 kHz
SG62 –73 dBm 1 kHz
Measurement method
Obtain with the ratio of
20 kHz/1 kHz.
FLN20/VLNOL
Obtain with the ratio of
60 kHz/1 kHz.
FLN60/VLNOL
A weight
Measure the THD to the
10 th.
A weight
A weight
Measure the EE system
output DC level difference
during MUTE ON/OFF.
Measure the output level
when THD = 1 %.
A weight
Obtain with
–73 dBm/–33 dBm.
VNRL73/VNRL33
Ratings
Min. Typ. Max.
–3 0 1
–10
–69
–8 –7 –6
0.2
–69
–67
–100 0 +100
0.5
–75
–16.6 –14.6 –12.6
–22.5 –21.5 –20.5
Switch condition, normally
set to “b”
1 3 22 29 31 33 44 62 64
a
a
a
a
a
a
a a
a
a
a
No.
13
14
15
16
17
18
19
20
21
22
23
24
Item
EE system frequency
response
(20 kHz/1 kHz)
EE system frequency
response
(60 kHz/1 kHz)
MIC IN output noise
LINE in LINE OUT
reference output level
LINE in LINE OUT
reference output
distortion
LINE IN output noise
Cross talk between
input switches
EE system MUTE
switching level
difference
LINE maximum
output
LINE MUTE
attenuation
NR encode
reference output
NR encode linearity
Symbol
FLN20
FLN60
NLN
VLNOLL
HLNOL
NLNL
VCTL
VMDC
VLNMX
VLNML
VNRL38VNRL
78
Control voltage
V3 V26 V33 V36 V44
Mode
condi
tion
b
b
b
a
a
a
a
b
b
f
b
b
Measu
rement
point
P49
P49
P49
P49
P49
P49
P49
P49
P49
P49
P37
P37
Unit
dB
dB
dBm
dBm
%
dBm
dBm
mVp-p
dBm
dBm
dBm
dB
Reference signal source
Input pin
Level Frequency
Page 18
—18—
CXA2038R
Measurement input
signal conditions
Input pin
Level Frequency
SG62 –38 dBm 10 kHz
SG62 –38 dBm 2 kHz
SG62 –38 dBm 10 kHz
SG29
200 mVp-p 3.579545 MHz
SG29
200 mVp-p 4.433619 MHz
SG62 –18 dBm 10 kHz
SG62 –38 dBm 1 kHz
SG62 –38 dBm 1 kHz
SG22
150 mVp-p
7 MHz
Measurement method
Measure the ratio of
f = 10 kHz/1 kHz.
VNRF14/NRL38
f = 2 kHz
Obtain with the ratio of
LP/SP.
f = 10 kHz
Obtain with the ratio of
LP/SP.
Adjustment method noted
separately.
Measurement method
noted separately.
Ratings
Min. Typ. Max.
3.9 4.9 5.9
1.6 2.1 2.5
2.5 3.0 3.5
1.4995 1.5 1.5005
1.4995 1.5 1.5005
187 208 229
–45 –25
–50 –30
91 110 130
0.1 2.9
0.4
110
Switch condition, normally
set to “b”
1 3 22 29 31 33 44 62 64
a
a
a
a
a
a
a
a
a a
a a
a a
a a a
No.
25
26
27
28
29
30
31
32
33
34
35
36
Item
NR encode
frequency response
REC LP
frequency response 1
REC LP
frequency response 2
Oscillator frequency
1.5 MHz
(NTSC)
Oscillator frequency
1.5 MHz
(PAL)
REC FM output level
REC FM output
secondary distortion
REC FM output
tertiary distortion
AF LIM
characteristics
DEV variable
width 1.5 M
Reference FM
modulation distortion
RFAGC level 1
Symbol
FNR14
FLP2
FLP10
FVCO1
FVCO2
VFML
VFMH1
VFNH2
VAFLM
VDEV
VRECH
VAGCL1
Control voltage
V3 V26 V33 V36 V44
Adju
sting
VDEV
value
VCCH
Mode
condi
tion
b
d/b
d/b
b
e
b
b
b
b
b
b
c
Measu
rement
point
P37
P37
P37
P24
P24
P24
P24
P24
P24
P36
P24
P23
Unit
dB
dB
dB
MHz
MHz
mVp-p
dB
dB
kHz
V
%
mVp-p
Reference signal source
Input pin
Level Frequency
SG29
200 mVp-p 3.579545 MHz
SG29
200 mVp-p 3.579545 MHz
SG29
200 mVp-p 3.579545MHz
SG29
200 mVp-p 3.579545 MHz
SG29
200 mVp-p 3.579545 MHz
SG29
200 mVp-p 3.579545 MHz
SG29
200 mVp-p 3.579545 MHz
Page 19
—19—
CXA2038R
Measurement input
signal conditions
Input pin
Level Frequency
SG22
300 mVp-p
7 MHz
SG22
600 mVp-p
7 MHz
SG22
15 mVp-p
1.4 MHz,
1.6 MHz
SG22
15 mVp-p
1.5 MHz
SG22
15 mVp-p
0.8 MHz
SG22
15 mVp-p
1.3 MHz
SG22
15 mVp-p
1.4 MHz
SG22
15 mVp-p
1.6 MHz
SG22
15 mVp-p
1.7 MHz
SG22
15 mVp-p
2.5 MHz
1.5 MHz
SG22
15 mVp-p DEV±60 kHz
fs=1 kHz
1.5 MHz
SG22
15 mVp-p DEV±60 kHz
fs=1 kHz
Measurement method
Adjustment method noted
separately.
Obtain the ratio of
0.8 MHz/1.5 MHz.
FBP0.8/VBPML
Obtain the ratio of
1.3 MHz/1.5 MHz.
FBP1.3/VBPML
Obtain the ratio of
1.4 MHz/1.5 MHz.
FBP1.4/VBPML
Obtain the ratio of
1.6 MHz/1.5 MHz.
FBP1.6/VBPML
Obtain the ratio of
1.7 MHz/1.5 MHz.
FBP1.7/VBPML
Obtain the ratio of
2.5 MHz/1.5 MHz.
FBP2.5/VBPML
Ratings
Min. Typ. Max.
166
167
1.2 3
110
–31 –28
–15 –8
–6 –2
–6 –2
–15 –8
–31 –28
–9.8 –7.8 –5.8
0.25 0.5
Switch condition, normally
set to “b”
1 3 22 29 31 33 44 62 64
a a a
a a a
a a
a a
a a
a a
a a
a a
a a
a a
a a a
a a a
No.
37
38
39
40
41
42
43
44
45
46
47
48
Item
RFAGC level 2
RFAGC level 3
BPF ADJ voltage
BPF MONI level
1.5 MHz
Frequency response
0.8 M/1.5 M
Frequency response
1.3 M/1.5 M
PBRFIN → BPFMONI
Frequency response
1.4 M/1.5 M
PBRFIN → BPFMONI
Frequency response
1.6 M/1.5 M
PBRFIN → BPFMONI
Frequency response
1.7 M/1.5 M
PBRFIN → BPFMONI
Frequency response
2.5 M/1.5 M
PBRFIN → BPFMONI
Demodulation level
Demodulation
distortion factor
Symbol
VAGCL2
VAGCL3
VBPAJ
VBPML
FBP0.8
FBP1.3
FBP1.4
FBP1.6
FBP1.7
FBP2.5
VPBL
HPB
Control voltage
V3 V26 V33 V36 V44
VCCH
VCCH
Adju
sting
VBPAJ
value
VBPAJ
value
VBPAJ
value
VBPAJ
value
VBPAJ
value
VBPAJ
value
VBPAJ
value
VBPAJ
VDEV
value value
VBPAJ
VDEV
value value
Mode
condi
tion
c
c
c
c
c
c
c
c
c
c
c
c
Measu
rement
point
P23
P23
P26
P23
P23
P23
P23
P23
P23
P23
P49
P49
Unit
mVp-p
mVp-p
V
mVp-p
dB
dB
dB
dB
dB
dB
dBm
%
Reference signal source
Input pin
Level Frequency
SG29
200 mVp-p 3.579545 MHz
SG29
200 mVp-p 3.579545 MHz
SG29
200 mVp-p 3.579545MHz
SG29
200 mVp-p 3.579545 MHz
SG29
200 mVp-p 3.579545 MHz
SG29
200 mVp-p 3.579545 MHz
SG29
200 mVp-p 3.579545 MHz
SG29
200 mVp-p 3.579545 MHz
SG29
200 mVp-p 3.579545 MHz
SG29
200 mVp-p 3.579545 MHz
SG31 3 Vp-p 30 Hz
SG29
200 mVp-p 3.579545 MHz
SG31 3 Vp-p 30 Hz
SG29
200 mVp-p 3.579545 MHz
Page 20
—20—
CXA2038R
Measurement input
signal conditions
Input pin
Level Frequency
SG22
15 mVp-p
1.5 MHz
See
SG22
Fig. 1
1.5 MHz
See 1.5 MHz
SG22
Fig. 1 30 %AM
See 1.5 MHz
SG22
Fig. 1 30 %AM
See
1.5 MHz
SG22
Fig. 2
Tone
Burst
See
1.5 MHz
SG22
Fig. 2
Tone
Burst
SG22
15 mVp-p
1.5 MHz
SG22
15 mVp-p
1.5 MHz
58
59 DC6058
59 DC
60
48 DC
Measurement method
A weight
Obtain the value for a
where 15 mVp-p = 0 dB.
See Fig. 1.
Obtain the ratio of b/a.
VDOC2/VDOC1
See Fig. 1.
Obtain the value for a
where 15 mVp-p = 0 dB.
See Fig. 1.
Measure the EE system
output DC level difference
during power ON/OFF.
Ratings
Min. Typ. Max.
–75
–17.5 –12.5 –7.5
1 2 4.5
–20.5 15.5 10.5
420 530 640
120 150 180
5.5 7.5 9.5
1 2 3
–100 0 +100
0 1
2 VCC
0 1
Switch condition, normally
set to “b”
1 3 22 29 31 33 44 62 64
a a a
a a a
a a a
a a a
a a
a a
a a a a
a a a a
No.
49
50
51
52
53
54
55
56
57
58
59
60
Item
Demodulation noise
DOC detection
sensitivity a
(during SP)
Hysteresis b
(during SP)
DOC detection
sensitivity a
(during LP)
MUTE OFF DELAYT1MUTE hold time T2
PG doubler width
(See Fig. 3.)
PG doubler delay
(See Fig. 3.)
POWER ON/OFF
NOISE
CS, CK, SIN input
Low level
CS, CK, SIN input
High level
MUTE ON/OFF
Low level
Symbol
NPB
VDOC1
VDOC2
VDOC3
TMUON
TMUOF
TPGH
TPGD
NPMU
VSIL
VSIH
V48L
Control voltage
V3 V26 V33 V36 V44
VBPAJ
VDEV
value value
VBPAJ
2.4 V
value
VBPAJ
2.4 V
value
VBPAJ
2.4 V
value
VBPAJ
value
VBPAJ
value
VBPAJ
2.4 V
value
VBPAJ
2.4 V
value
Mode
condi
tion
c
c
c
c
c
c
c
c
b
b
b
b
Measu
rement
point
P49
P37
P37
P37
P49
P49
TP49
P58
P59
P60
P58
P59
P60
P48
Unit
dBm
dB
dB
dB
µs
ms
µs
µs
mVp-p
V
V
V
Reference signal source
Input pin
Level Frequency
SG31 3 Vp-p 30 Hz
SG29
200 mVp-p 3.579545 MHz
SG29
200 mVp-p 3.579545 MHz
SG29
200 mVp-p 3.579545 MHz
SG29
200 mVp-p 3.579545 MHz
SG31 3 Vp-p 30 HZ
SG29
200 mVp-p 3.579545 MHz
SG31 3 Vp-p 30 HZ
SG29
200 mVp-p 3.579545 MHz
SG31 3 Vp-p 30 Hz
SG29
200 mVp-p 3.579545 MHz
SG31 3 Vp-p 30 Hz
SG29
200 mVp-p 3.579545 MHz
Page 21
—21—
CXA2038R
Measurement input
signal conditions
Input pin
Level Frequency
48 DC
17 DC
17 DC
17 DC
17 DC
28 DC
28 DC
48 DC
48 DC
58 DC
58 DC
59 DC
59 DC
Measurement method
Ratings
Min. Typ. Max.
2 V
CC
0 3.5
4.3 V
CC
0 1
2 3.5
0 1
2 V
CC
0 1
2 V
CC
0 1
2 V
CC
0 1
2 V
CC
Switch condition, normally
set to “b”
1 3 22 29 31 33 44 62 64
No.
61
62
63
64
65
66
67
68
69
70
71
72
73
Item
MUTE ON/OFF
High level
Serial/parallel
Low level
Serial/parallel
High level
SP/LP Low level
SP/LP High level
NTSC/PAL Low level
NTSC/PAL High level
MUTE ON/OFF
Low level
MUTE ON/OFF
High level
MIC/LINE Low level
MIC/LINE High level
PB/REC Low level
PB/REC High level
Symbol
V48H
V17SL
V17SH
V17L
V17H
V28L
V28H
V48L
V48H
V58L
V58H
V59L
V59H
Control voltage
V3 V26 V33 V36 V44
Mode
condi
tion
b
b
b
b
b
b
b
b
b
b
b
b
b
Measu
rement
point
P48
P17
P17
P17
P17
P28
P28
P48
P48
P58
P58
P59
P59
Unit
V
V
V
V
V
V
V
V
V
V
V
V
V
Reference signal source
Input pin
Level Frequency
Page 22
—22—
CXA2038R
Mode Condition Table
Electrical characteristics measurement circuit mode table
Note)
• bit 6 should be “0”.
• During serial control, set switches 58, 59 and 60 to “a”, and V17 to 4.3 to VCCH.
During parallel control, set switches 58, 59 and 60 to “b”, and V17 to L (0 to 1 V) during LP and H (2 V to 3.5 V) during SP.
Condition table during parallel
Value V58 V17 V28 V48 V59
L LINE LP PAL REC
H MIC SP NTSC MUTE PB
0 0 1 1 0 0
0 1 1 1 0 0
0 1 1 1 0 1
0 1 0 1 0 0
0 1 1 0 0 0
0 1 1 1 1 0
0 1 1 1 1 1
Mode
condition
a
b
c
d
e
f
g
Bus decoder condition table during serial
Value bit 0-5 bit 6 bit 7-10 bit 11 bit 12 bit 13 bit 14 bit 15
0 — — — LINE LP PAL REC
1 — — — MIC SP NTSC MUTE PB
L H H L L
H H H L L
H H H L H
H L H L L
H H L L L
H H H H L
H H H H H
Mode
contents
REC (LINE)
REC (MIC)PBLP MODE
PAL MODE
REC MUTE
PB MUTE
Page 23
—23—
CXA2038R

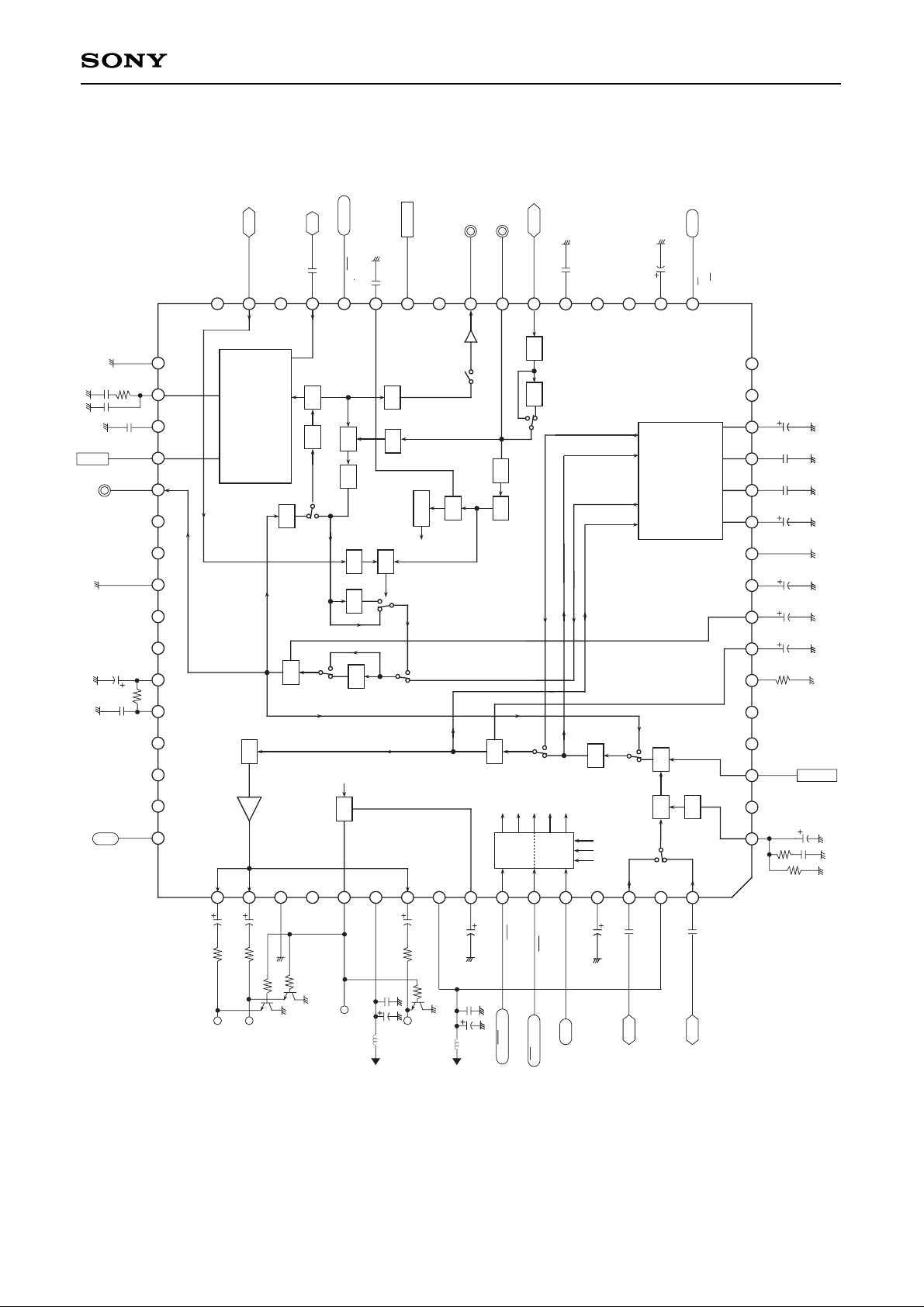

Electrical Characteristics Measurement Circuit
FADE
PB RF IN
GND1
PLLLPF
MIC/LINE (CS)
REC/PB (CK)
DEVADJ
PMUTETC
MIXOUT
MIC IN
VCC1
RECFMOUT
MUTE
MONITOR
VCT5
VCC2
EPOUT
MUTEOUT
VCCH
SP/LP
BPF fo ADJ
RFSWP
Fsc IN
BPMONICT
GND2
BPFMONI
4.7µ
10µ
4.7µ
0.22µ
1µ
22µ
0.22µ
0.01µ
47µ
47µ
10µ
0.01µ
10µ
3300p
220p
NTSC/PAL
LPEMPTC
220p
47K
VCTH
47µ
S / HTC
4.7µ
VCC=3.15V
1M
1M
22µ
1000p
NC
NC
NCNC
NC
NC
NC
NC
NC
NCNC NC NCNCNCNC
NC
0.01µ
100µ
100µ
ALCDET
RFDC
IFDC
WEIGHT
TCH
TC
NRDC
VCTTC
IREF
AGC TC
MUTETC
(S I)
470K
100µ
22K
ALC
DET
LPF
FADE
LPEMP
S / H
D.C.
PG
DOUB
CCA
1.5MHz
VCO
LIM
LIM
LPF
MUTE
MUTE
DET
MUTE OFF
DELAY
RF
AGC
LPF
POWER
MUTE
DECODER
BUS
REC ON
SP
LP
MUTE
D.C.
PB
REC
MUTE
BUF
MUTE
CONTROL
AFLIM
OR
PB
REC
FWR
DOC
DET
PB
REC
PBREC
PHASE
COMP
1.5M
BPF
BPF
ON
OFF
NR
DEC OUT
ENC IN
ENC OUT
DEC IN
PLL
24
22
21
20
19
18
17
23
32
31
30
29
28
27
26
25
57
59
60
61
62
63
64
58
49
50
51
52
53
54
55
56
48
46
45 44
43 42 41
47
39 38
37
36
35 34 33
40
7
1
3
4
5 6 82
10 11 12
13
14 15 16
9
7
LINEOUT
GNDH
MUTEOUT
1K
2.2
µ
1K
2.2µ
120
22µ
10K
10K
10K
VCCH = 4.75V
SW1
SW3
V3
V17
SW22
4.7K
SG22
V28
SW29
SG29
SW31
SG31
V36
SW44
V44
V48
47K
8
A
I2
47K
µCOM
A
I1
SG62
(SI / PA)
S I
CK
CS
SW58
SW59
SW60
V58
V59
SW62
a
b
a
b
b
a
a
b
a
b
a
b
a
b
a
b
a
b
a
b
NC
0.47
µ
0.22
µ
b
a
V33
LINE
MIC
0.22µ
SG64
SW64
a
b
V26
47µ
TP49
VCT
Page 24
—24—
CXA2038R
PGD delay
PGD width
Pin 31 input waveform
Pin 37 output waveform
A
A
Input/Output Waveform
Fig. 1
Fig. 2
Fig. 3
Adjustment and measurement methods
• DEV adjustment method
Input the reference input (–38 dBm, 1 kHz) to the MIC input and adjust the voltage applied to Pin 36 so
that the Pin 24 output reference frequency deflection is 1.5 MHz ±62.8 kHz.
When adjusting DEV, connect a 10 kΩ load resistor between Pin 24 and GND.
• Reference modulation distortion factor
Demodulate the Pin 24 output into the audio signal with the reference demodulator under the same
conditions as for DEV adjustment above, then measure the distortion factor.
• BPF f0 adjustment method
Input 15 mVp-p, 1.4 MHz and 1.6 MHz signals to Pin 22 and adjust the voltage applied to Pin 26 so that
the 1.4 MHz and 1.6 MHz levels output to Pin 23 are equal.
Note that since adjustment OFF mode results when the Pin 26 voltage is between 0 to 0.8 V, the BPF f0
should be adjusted with the Pin 26 voltage between 1.2 to 3 V (when VCC1 = 3.15 V). When adjusting the
BPF f0, connect a 4.7 kΩ load resistor between Pin 23 and GND.
Pin 22 input waveform
Pin 37 output waveform
Pin 22 input waveform
Pin 37 output waveform
b a
15m Vp-p
A
Level when the 1.5 MHz signal is AM modulated
(2 mVp-p to 20 mVp-p) at 1 kHz and the 1.5 MHz,
15 mVp-p input is set to 0 dB.
1ms 200ms
AA
T1
T2
1.5MHz DEV±60kHz
S=1kHz
f
Page 25
—25—
CXA2038R

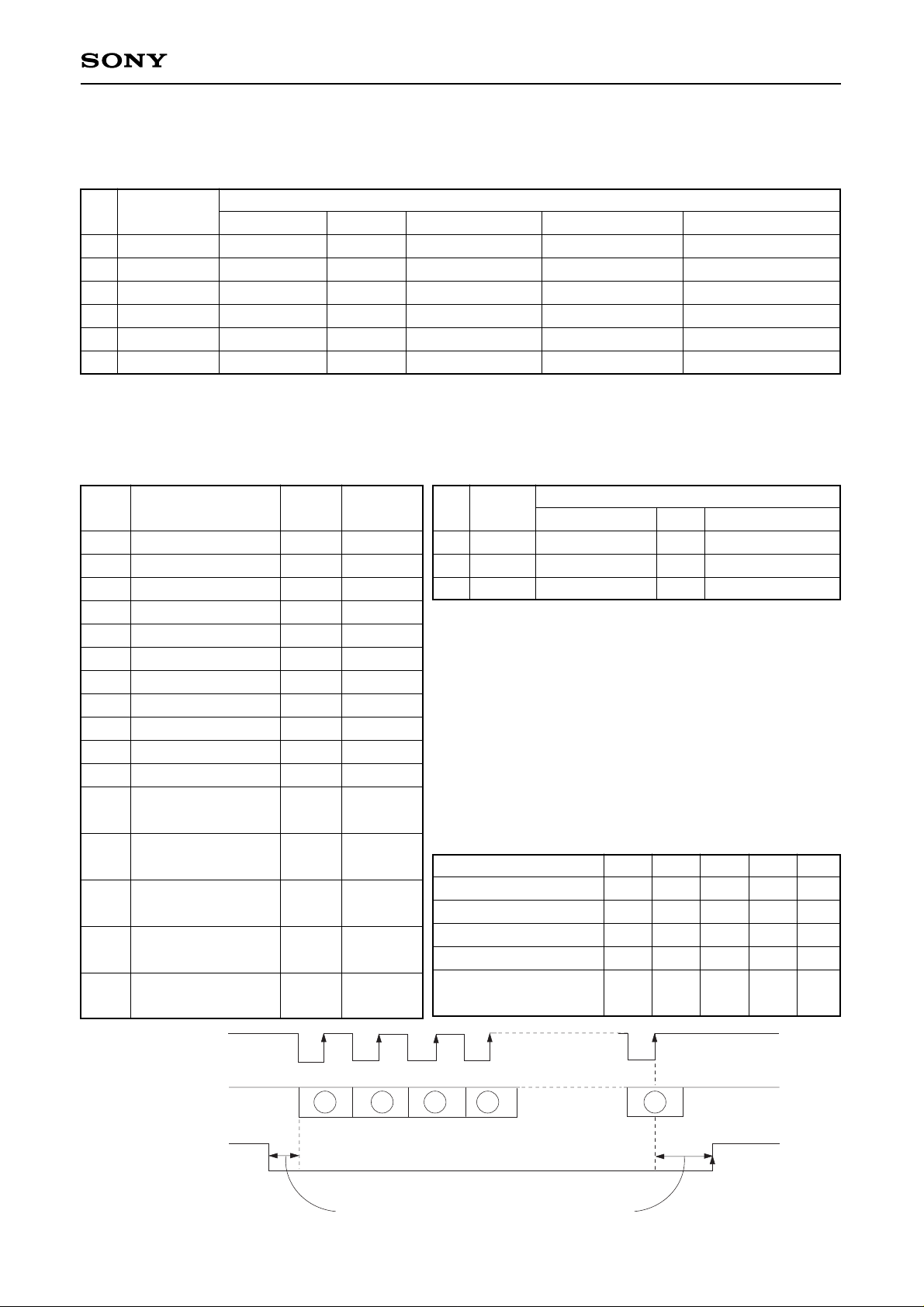

Mode Control Tables
Parallel CTL mode table
Serial CTL mode table
When Pin 17 is 4.3 V or more, the IC operates in serial control mode.
Input conditions
VCC1
V
CC1
VCC1
0
0
0
CK
SI
CS
1 2 3 150
2 µs or more 2 µs or more
Data latch
Pin
No.
17
28
33
48
58
59
Symbol
SP/LP
NTSC/PAL
BPF ON/OFF
MUTE
MIC/LINE
REC/PB
CTL voltage
LOW (0 to 1 V) OPEN HIGH1 (2 V to VCC1) HIGH2 (2 V to 3.5V) HIGH3 (4.3 V to VCCH)
LP SP — SP SERIAL
∗1
PAL — NTSC — —
BPF ON BPF ON — BPF ON 1.5 MBPFOFF
MUTE OFF MUTE ON MUTE ON — —
LINE LINE MIC — —
REC REC PB — —
∗1
When Pin 17 is 4.3 V or more, the IC
operates in serial control mode.
bit No.
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Control name
—
—
—
—
—
—
—
—
—
—
—
MIC/LINE switching
SP/LP switching
NTSC/PAL switching
MUTE
PB/REC
CTL
value
—
—
—
—
—
—
L
—
—
—
—
L
H
L
H
L
H
L
H
L
H
Mode
—
—
—
LINEIN
MICIN
LP
SP
PAL
NTSC
OFF
MUTEON
REC
PB
Pin
No.
58
59
60
Symbol
CS
CK
SI
CTL voltage
LOW (0 to 1 V) OPEN HIGH (2 V to VCC)
L L H
L L H
L L H
Note) bit 6 should normally be set to
Item
Symbol
Min. Typ. Max. Unit
Clock frequency
Setup time
Hold time
CS fall time to SI start time
Final CK rise time to
CS rise time
fck
tsu
tHLD
t1
t2
400
400
2
2
800 kHz
ns
ns
µs
µs
Page 26
—26—
CXA2038R

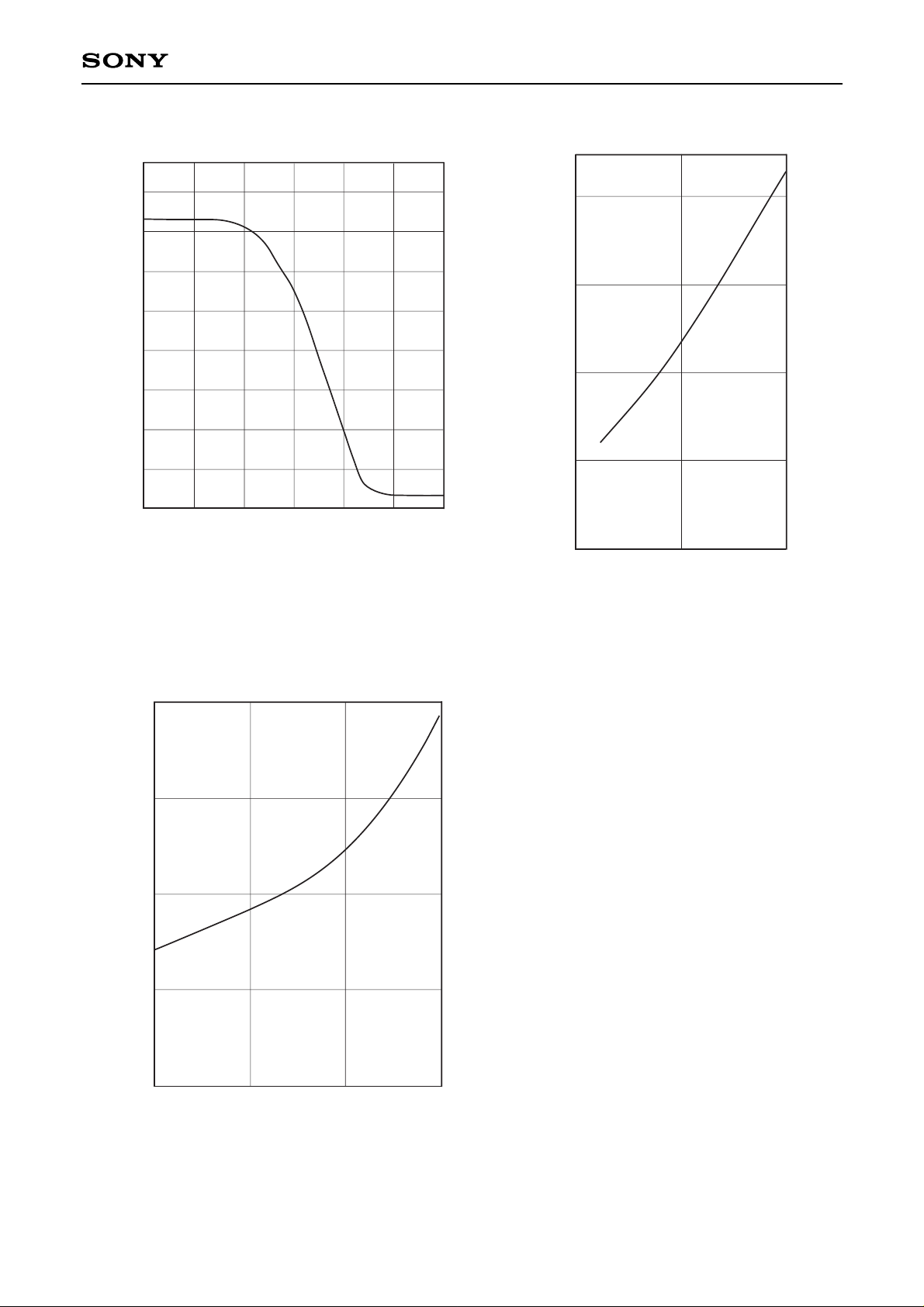

FADER characteristics A-Weight
Pin 49 EPOUT output level (dBm)
Pin 3 FADER control voltage (V)
0
-10
-20
-30
-40
-50
-60
-70
-80
0 1.0
2.0
3.0
Pin 24 REC FMOUT output DEV width (kHz)
DEV width characteristics
200
150
100
50
0
0 1 2 3
Pin 36 DEV control voltage (V)
Pin 26 BPF fo control voltage (V)
Pin 23 BPF MONITOR output frequency (MHz)
1.
6
1.
5
1.
4
1.3
1.
2
1 2 3
BPF fo characteristics
Page 27
—27—
CXA2038R
Application Circuit
3300p
ALC
DET
LPF
FADE
LPEMP
S / H
D.C.
PG
DOUB
1.5MHz
VCO
LIM
LIM
LPF
MUTE
MUTE
DET
MUTE OFF
DELAY
RF
AGC
LPF
POWER
MUTE
DECODER
BUS
REC ON
SP
LP
MUTE
D.C.
PB
REC
MUTE
BUF
MUTE
CONTROL
AFLIM
OR
PB
REC
FWR
DOC
DET
PB
REC
PBREC
PHASE
COMP
1.5M
BPF
BPF
ON
OFF
NR
DEC OUT
ENC IN
ENC OUT
DEC IN
PLL
24
22
21
20
19
18
17
23
32
31
30
29
28
27
26
25
57
59
60
61
62
63
64
58
49
50
51
52
53
54
55
56
48
46
45 44
43 42 41
47
39 38
37
36 35 34 33
40
7
1
3
4
5 6 82 10 11 12
13
14 15 16
9
7
FADE
PB RF IN
GND1
PLLLPF
MIC/LINE (CS)
REC/PB (CK)
DEVADJ
PMUTETC
MIXOUT
MIC IN
VCC1
RECFMOUT
MUTE
MONITO
R
VCT5
VCC2
EPOUT
MUTEOUT
VCCH
SP/LP
BPF fo ADJ
RFSWP
Fsc IN
BPMONICT
GND2
BPFMONI
4.7µ
10µ
4.7µ
0.22µ
1µ
22µ
0.22µ
0.01µ
47µ
10µ
0.01µ
10µ
220p
NTSC/PAL
LPEMPTC
220p
47k
VCTH
47µ
S / HTC
1M
4.7µ
VCC=3.15V
1M
22µ
1000p
NC
NC
NCNC
NC
NC
NC
NC
NC
NCNC NC NCNCNCNC
NC
0.01µ
47µ
100µ
100µ
ALCDET
RFDC
IFDC
WEIGHT
TCH
TC
NRDC
VCTTC
IREF
AGC TC
MUTETC
(S I)
RF SWP
Fsc IN
NTST / PAL
BPF f0 ADJ
PB RF IN
SP/ LP
DEV ADJ
MUTE
MIC/LINE (CS)
REC / PB(CK)
SI
MIC IN
FADER CTL
100µ
22k
LINEOUT
GNDH
MUTEOUT
1k
2.2µ
1k
2.2µ
120
22µ
10k
10k
10k
VCCH = 4.75V
(SI/ PA)
NC
0.47µ
0.22µ
470k
LINE
MIC
0.22µ
LINEIN
VCT
47µ
Page 28
0.5 ± 0.2
(11.0)
Package Outline Unit : mm
CXA2038R
64PIN LQFP (PLASTIC)
12.0 ± 0.2
∗ 10.0 ± 0.1
49
64
0.5
SONY CODE
EIAJ CODE
JEDEC CODE
48
1
0.18 – 0.03
0.1 ± 0.1
0° to 10°
DETAIL A
LQFP-64P-L01
LQFP064-P-1010
+ 0.08
33
32
A
17
(0.22)
16
0.13
M
0.5 ± 0.2
NOTE: Dimension “∗” does not include mold protrusion.
+ 0.2
1.5 – 0.1
+ 0.05
0.127 – 0.02
0.1
PACKAGE STRUCTURE
PACKAGE MATERIAL
LEAD TREATMENT
LEAD MATERIAL
PACKAGE MASS
EPOXY RESIN
SOLDER/PALLADIUM
42/COPPER ALLOY
0.3g
PLATING
—28—
Loading...
