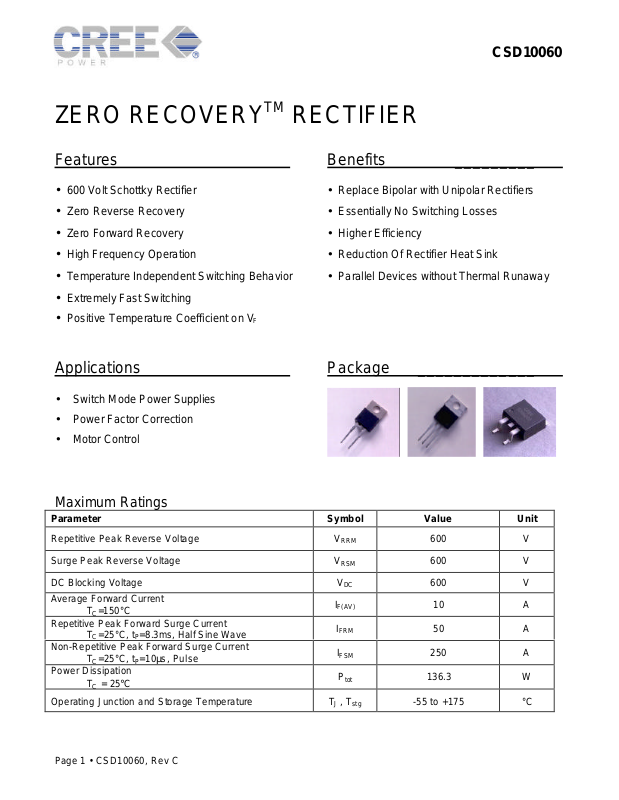

CSD10060
TM
ZERO RECOVERY
RECTIFIER
Features Benefits _________
• 600 Volt Schottky Rectifier • Replace Bipolar with Unipolar Rectifiers
• Zero Reverse Recovery • Essentially No Switching Losses
• Zero Forward Recovery • Higher Efficiency
• High Frequency Operation • Reduction Of Rectifier Heat Sink
• Temperature Independent Switching Behavior • Parallel Devices without Thermal Runaway
• Extremely Fast Switching
• Positive Temperature Coefficient on V
F
Applications Package _____________
• Switch Mode Power Supplies
• Power Factor Correction
• Motor Control
Maximum Ratings
Parameter Symbol Value Unit
Repetitive Peak Reverse Voltage V
Surge Peak Reverse Voltage V
DC Blocking Voltage V
Average Forward Current
TC=150°C
Repetitive Peak Forward Surge Current
TC=25°C, tP=8.3ms, Half Sine Wave
Non-Repetitive Peak Forward Surge Current
TC=25°C, tP=10µs, Pulse
Power Dissipation
TC = 25°C
I
RRM
RSM
DC
F(AV)
I
FRM
I
FSM
P
tot
600 V
600 V
600 V
10 A
50 A
250 A
136.3 W
Operating Junction and Storage Temperature TJ , T
Page 1 • CSD10060, Rev C
stg
-55 to +175 °C
Page 2
CSD10060
ELECTRICAL CHARACTERISTICS
Parameter
Forward Voltage
IF = 10A TJ=25°C
IF = 10A TJ=175°C
Reverse Current
VR = 600V TJ=25°C
VR = 600V TJ=175°C
Symbol Min Typ Max Units
V
F
2.0
50
I
1.6
R
100
1.8
2.4
200
1000
V
µA
Total Capacitive Charge
VR = 600V,IF = 10A, di/dt = 500 A/µs, TJ = 25°C
Q
C
28 nC
Total Capacitance
VR = 0V, TJ = 25°C, f =1MHz
VR = 200V, TJ = 25°C, f =1MHz
VR = 400V, TJ = 25°C, f =1MHz
C
550
65
50
pF
NOTE:
1. This is a majority carrier diode, so there is no reverse recovery charge.
THERMAL CHARACTERISTICS
Characteristic Symbol Min Typ Max Units
Thermal Resistance from Junction to Case R
θJC
1.1 °C/W
Typical Performance
Figure 1. Forward Characteristics Figure 2. Reverse Characteristics
20
18
16
14
12
10
8
Forward Current (A)
F
I
6
4
2
0
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5
TJ = 25°C
TJ = 75°C
TJ = 125°C
TJ = 175°C
VF Forward Voltage (V)
200
180
160
140
120
100
80
Reverse Current ( µA)
R
I
60
40
20
0
0 100 200 300 400 500 600 700
VR Reverse Voltage (V)
TJ = 25°C
TJ = 75°C
TJ = 125°C
TJ = 175°C
Page 2 • CSD10060, Rev C
Page 3
CSD10060
C Capacitance (pF)
Figure 3. Current Derating Figure 4. Capacitance vs. Reverse Voltage
35
30
25
20
15
Forward Current (A)
F(AV)
I
10
5
0
25 50 75 100 125 150 175 200
TC Case Temperature (°C)
Figure 5. Transient Thermal Impedance
400
350
300
250
200
150
100
50
0
1 10 100 1000
VR Reverse Voltage (V)
1.00E+01
1.00E+00
1.00E-01
Zth [°C/W]
1.00E-02
1.00E-03
1.00E-07 1.00E-06 1.00E-05 1.00E-04 1.00E-03 1.00E-02 1.00E-01 1.00E+00
time [s]
Page 3 • CSD10060, Rev C
Page 4
CSD10060
W
P
ABC
F
MNNOTE:
PIN 1
PIN 2
CASE
Min
Max
Min
MaxA.160
.190
4.06
4.83B.025
.040
0.63
1.02C.015
.022
0.38
0.56
D
.560
.590
14.22
14.99
E
.385
.415
9.78
10.54F.090
.110
2.29
2.79
G
.190
.210
4.83
5.33
H
.045
.055
1.14
1.40J.045
.055
1.14
1.40K.234
.258
5.94
6.55L.090
.115
2.29
2.92
M
.146
.156
3.71
3.96
N
.103
.113
2.62
2.87P.540
.560
13.72
14.22
Q3°7°3°7°
R
.045
.060
1.14
1.52
S
Inches
Millimeters
.243 REF
6.17 REF
NOTE:
PIN 2
PIN 3
CASE
PIN
1 NC
Package Dimensions
Package TO-220-2
Inches Millimeters
POS
Q
D
E
K
H
J
L
S
T
G
R
X (2X)
U
V
Y
¡
¡
¡
Min Max Min Max
A .402 .408 10.211 10.364
B .120 .124 3.048 3.150
C .106 .110 2.692 2.794
D .245 .251 6.223 6.375
E .335 .345 8.509 8.763
F .149 .153 3.784 3.886
G .220 .240 5.588 6.096
H .540 .550 13.716 13.970
J
.100 REF 2.540 REF
K .080 2.032
L .050 .056 1.270 1.922
M .032 .038 .813 .956
N .197 .203 5.004 5.156
P .170 .180 4.318 4.572
Q .048 .052 1.219 1.321
R .583 .593 14.808 15.062
S 6.5° 8.5° 6.5° 8.5°
T 6.5° 8.5° 6.5° 8.5°
U 6.5° 8.5° 6.5° 8.5°
V .103 .107 2.616 2.718
W .015 .021 .381 .533
X 2.0° 4.0° 2.0° 4.0°
Y .396 .406 10.058 10.312
1. Dimension L, M, W apply for Solder Dip Finish.
Package TO-220-3
N
K
P
E
R
H
F
S
B
G
¡
¡
¡
POS
M
Q(5X)
D
C
L
A
J
1. Dimension C apply for Solder Plate Finish.
¡
Page 4 • CSD10060, Rev C
Page 5
CSD10060
B
EFGHJLMNPQRSTUV
W
K
PIN 1
PIN 2
CASE
Package Dimensions (Cont.)
Package TO-263-2
A
C
D
¡
¡
¡
Part Number Package Marking
CSD10060A TO-220-2 CSD10060
CSD10060B TO-220-3 CSD10060
CSD10060G TO-263-2 CSD10060
POS
A .396 .406 10.058 10.312
B .297 .303 7.544 7.696
C .057 .063 1.448 1.600
D .237 .243 6.015 6.167
E .050 .070 1.270 1.778
F .048 .052 1.219 1.321
G
H .335 .345 8.509 8.763
J .028 .032 .711 .813
K 2.0° 4.0° 2.0° 4.0°
L .170 .180 4.318 4.572
M .048 .052 1.219 1.321
N .595 .615 15.113 15.621
P 0.00 .010 0.00 .254
Q R0.018TYP R0.022TYP R0.457TYP R0.559TYP
R .090 .110 2.286 2.794
S .013 .017 .330 .432
T 6.5° 8.5° 6.5° 8.5°
U .103 .107 2.616 2.718
V R0.028TYP R0.032TYP R0.711TYP R0.813TYP
W -- 5.0° -- 5.0°
Inches Millimeters
Min Max Min Max
.100TYP 2.540TYP
This product has not been designed or tested for
use in, and is not intended for use in, applications
implanted into the human body nor in applications
in which failure of the product could lead to death,
personal injury or property damage, including but
not limited to equipment used in the operation of
nuclear facilities, life-support machines, cardiac
defibrillators or similar emergency medical
equipment, aircraft navigation or communication or
control systems, air traffic control systems, or
weapons systems.
Power Products
4600 Silicon Drive • Durham, NC 27703 • USA
Tel: 919-313-5300 • Fax: 919-313-5451
www.cree.com
Page 5 • CSD10060, Rev C
Copyright © 2001 Cree, Inc. All rights reserved.
Permission is given to reproduce this document
provided the entire document (including this
copyright notice) is duplicated.
The information in this document is subject to
change without notice.
Cree and the Cree logo are trademarks of Cree,
Inc.
Cree, Inc.
