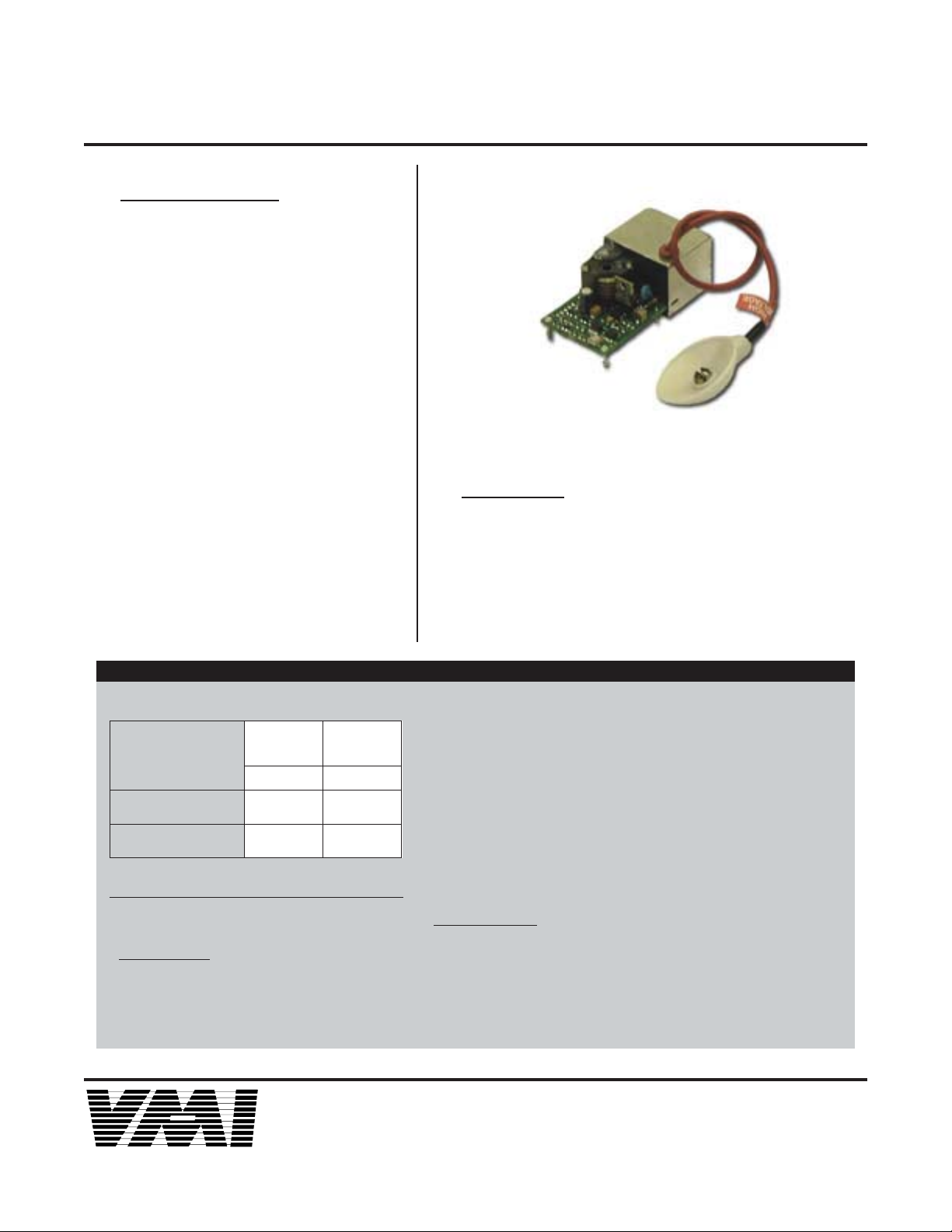

CRT Power Supply
CRS Series
The CRS series of CRT
power supplies provide 8kV
and 12kV anode voltages
as well as G2 voltage
adjustable to 400V.
These lightweight, pcb
mountable supplies feature
excellent regulation, low
ripple and anode voltage
monitoring.
CRS080G40
CRS120G40
Features:
• Anode voltage monitoring
• Low ripple
• Excellent regulation
• Arc and short circuit protection
• Light weight
V
traP
rebmuN
04G080SRC0.8004
04G021SRC0.21004
Environmental:
• Storage Temperature -30°C to +80°C
• Operating Temperature 0°C to +70°C
0
VkV
VOLTAGE MULTIPLIERS INC.
8711 W. Roosevelt Ave.
Visalia, CA 93291
2G
Data subject to change without notice.
SPECIFICATIONSELECTRICAL RATINGS
Input Voltage: +15VDC ± 10%
Anode Output Voltage: 8kVDC (CRS080G40)
)XAM(
Anode Voltage Accuracy: ± 1%
Anode Output Current: 0 to 225µA (CRS080G40)
Anode Ripple Voltage: < 1% peak to peak
Anode Load Regulation: < 1% for NL to FL change
G2 Regulation: < 1% for NL to FL change
Interface Signals:
• Anode Voltage Monitor Anode/5000 ± 2%
• G2 Voltage 140V to 400V (potentiometer adjust)
• Shutdown 0V = Inhibit
12kVDC (CRS120G40)
0 to 130µA (CRS120G40)
Open Circuit = Enable
TEL 559-651-1402
FAX 559-651-0740
www.voltagemultipliers.com
Page 2

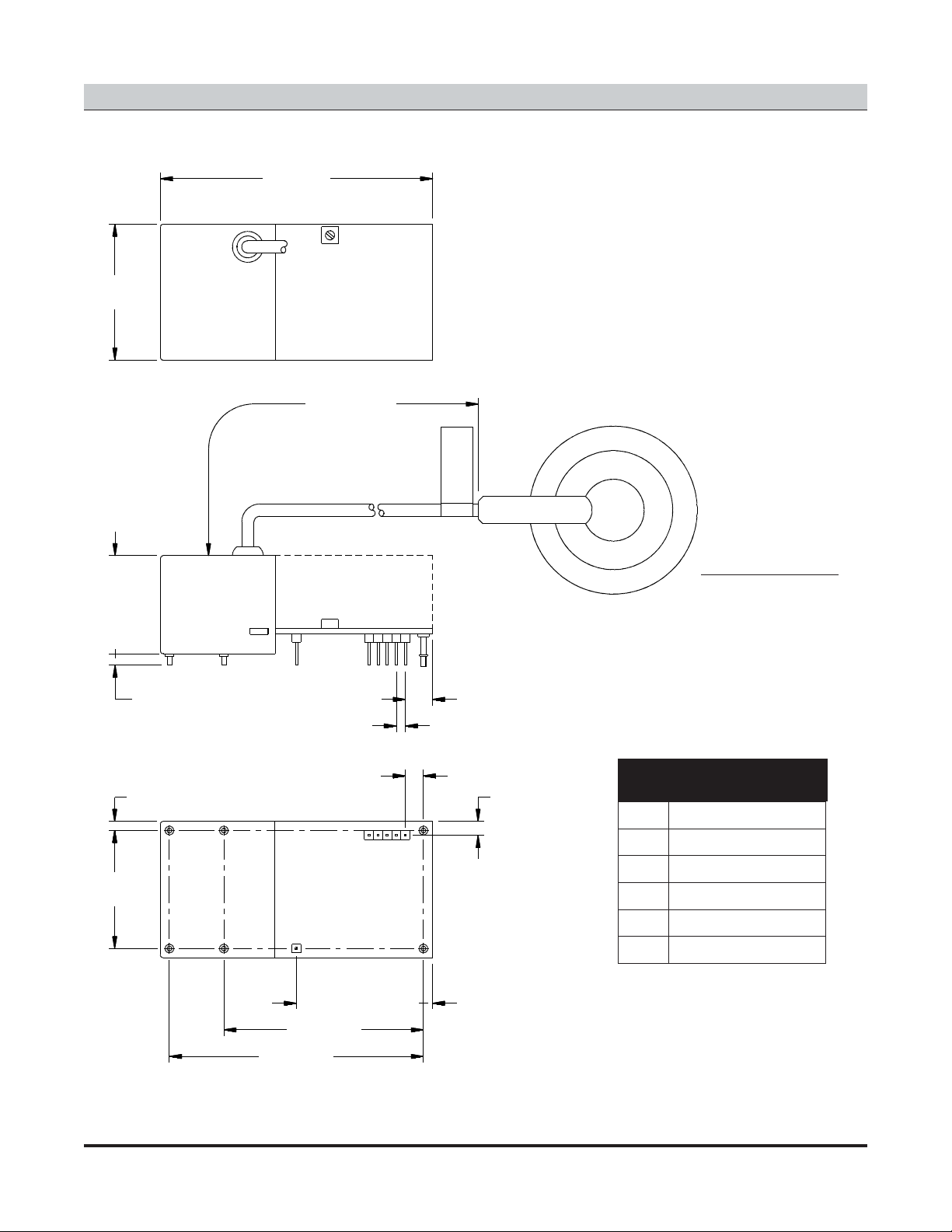

1.50
(38.1)
CRS080G40 CRS120G40
3.00(76.2)
G2 VOLTAGE
ADJUSTMENT POT
9.00 ±.50
(228.60 ±12.7)
VOLTAGE
HIGH
1.18
(29.972)
1.30
(33.02)
.10(2.54) (4 PL)
.20(5.08)
6
1.40(35.56)
2.20(55.88)
54321
.30(7.62).145(3.68) MAX.
.15(3.81).10(2.54)
.10(2.54)
ANODE CONNNECTOR
(ALDEN J200DQ12)
INTERFACE PIN
ASSIGNMENT
1V51+
2dnuorG
30005/edonA
4.C.N
5nwodtuhS
62G
2.80(71.12)
Dimensions: In. (mm) • Data subject to change without notice.
