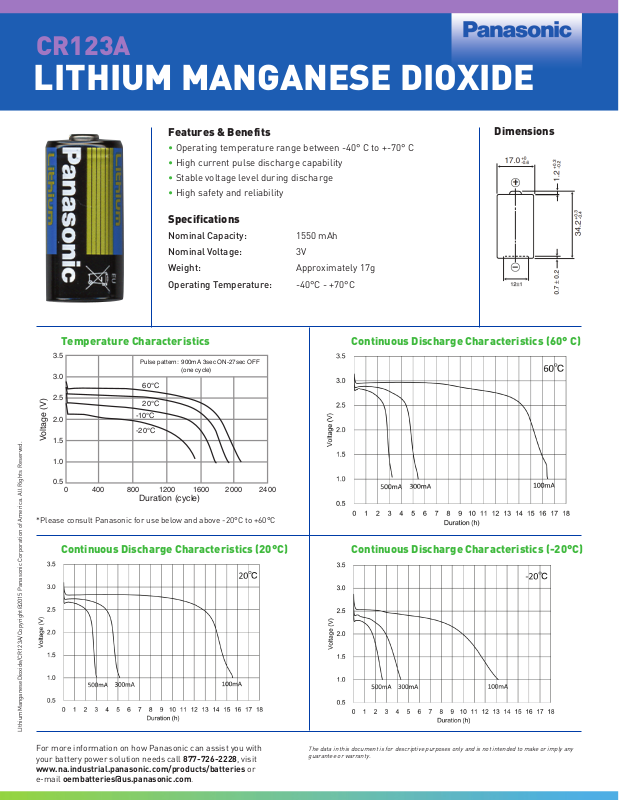

CR123A
Duration (cycle)
3.5
Voltage (V)
LITHIUM MANGANESE DIOXIDE
Features & Benefits
• Operating temperature range between -40° C to +-70° C
• High current pulse discharge capability
• Stable voltage level during discharge
• High safety and reliability
Specifications
Nominal Capacity: 1550 mAh
Nominal Voltage: 3V
Weight: Approximately 17g
Operating Temperature: -40°C - +70°C
Temperature Characteristics
Pulse pattern: 900mA 3sec ON-27sec OFF
3.0
2.5
2.0
1.5
(one cycle)
60°C
20°C
-10°C
-20°C
Dimensions
Continuous Discharge Characteristics (60° C)
1.0
0.5
0 400 800 1200 1600 2000 2400
*Please consult Panasonic for use below and above -20°C to +60°C
Continuous Discharge Characteristics (20°C)
LIthiumManganeseDioxide/CR123A/Copyright@2015 Panasonic Corporation of America. All Rights Reserved.
For more information on how Panasonic can assist you with
your battery power solution needs call 877-726-2228, visit
www.na.industrial.panasonic.com/products/batteries or
e-mail oembatteries@us.panasonic.com.
Continuous Discharge Characteristics (-20°C)
The data in this document is for descriptive purposes only and is not intended to make or imply any
guarantee or warranty.
