Page 1
PD - 5.037
Next Data SheetIndex
Previous Datasheet
To Order

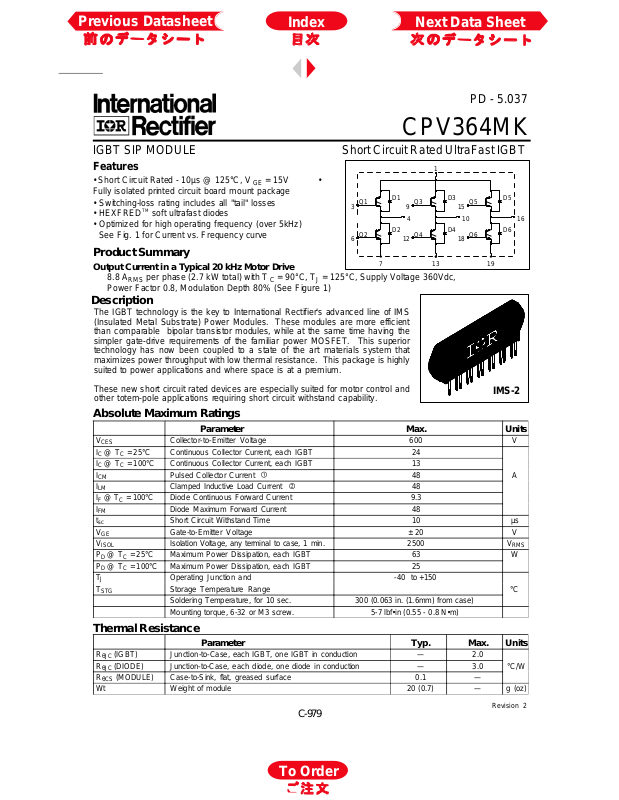

CPV364MK
IGBT SIP MODULE
Features
Short Circuit Rated UltraFast IGBT
1
• Short Circuit Rated - 10µs @ 125°C, VGE = 15V •
Fully isolated printed circuit board mount package
• Switching-loss rating includes all "tail" losses
• HEXFREDTM soft ultrafast diodes
• Optimized for high operating frequency (over 5kHz)
See Fig. 1 for Current vs. Frequency curve
Q1
3
Q2
6
D1 D3 D5
Q3
9
D2 D4 D6
Q4
12
Q5
15
10 164
Q6
18
Product Summary
Output Current in a Typical 20 kHz Motor Drive
8.8 A
per phase (2.7 kW total) with TC = 90°C, TJ = 125°C, Supply Voltage 360Vdc,
RMS
Power Factor 0.8, Modulation Depth 80% (See Figure 1)
7 13 19
Description
The IGBT technology is the key to International Rectifier's advanced line of IMS
(Insulated Metal Substrate) Power Modules. These modules are more efficient
than comparable bipolar transistor modules, while at the same time having the
simpler gate-drive requirements of the familiar power MOSFET. This superior
technology has now been coupled to a state of the art materials system that
maximizes power throughput with low thermal resistance. This package is highly
suited to power applications and where space is at a premium.
These new short circuit rated devices are especially suited for motor control and
other totem-pole applications requiring short circuit withstand capability.
IMS-2
Absolute Maximum Ratings
Parameter Max. Units
V
CES
IC @ TC = 25°C Continuous Collector Current, each IGBT 24
IC @ TC = 100°C Continuous Collector Current, each IGBT 13
I
CM
I
LM
IF @ TC = 100°C Diode Continuous Forward Current 9.3
I
FM
t
sc
V
GE
V
ISOL
PD @ TC = 25°C Maximum Power Dissipation, each IGBT 63 W
PD @ TC = 100°C Maximum Power Dissipation, each IGBT 25
T
J
T
STG
Collector-to-Emitter Voltage 600 V
Pulsed Collector Current 48 A
Clamped Inductive Load Current 48
Diode Maximum Forward Current 48
Short Circuit Withstand Time 10 µs
Gate-to-Emitter Voltage ± 20 V
Isolation Voltage, any terminal to case, 1 min. 2500 V
Operating Junction and -40 to +150
Storage Temperature Range °C
Soldering Temperature, for 10 sec. 300 (0.063 in. (1.6mm) from case)
Mounting torque, 6-32 or M3 screw. 5-7 lbf•in (0.55 - 0.8 N•m)
Thermal Resistance
Parameter Typ. Max. Units
R
(IGBT) Junction-to-Case, each IGBT, one IGBT in conduction — 2.0
θJC
R
(DIODE) Junction-to-Case, each diode, one diode in conduction — 3.0 °C/W
θJC
R
(MODULE) Case-to-Sink, flat, greased surface 0.1 —
θCS
Wt Weight of module 20 (0.7) — g (oz)
C-979
Revision 2
RMS
Page 2
CPV364MK
Next Data SheetIndex
Previous Datasheet
To Order
Electrical Characteristics @ TJ = 25°C (unless otherwise specified)
Parameter Min. Typ. Max. Units Conditions
V
(BR)CES
∆V
(BR)CES
V
CE(on)
V
GE(th)
∆V
GE(th)
g
fe
I
CES
V
FM
I
GES
Switching Characteristics @ TJ = 25°C (unless otherwise specified)
Parameter Min. Typ. Max. Units Conditions
Q
g
Q
ge
Q
gc
t
d(on)
t
r
t
d(off)
t
f
E
on
E
off
E
ts
t
sc
t
d(on)
t
r
t
d(off)
t
f
E
ts
C
ies
C
oes
C
res
t
rr
I
rr
Q
rr
di
(rec)M
Collector-to-Emitter Breakdown Voltage 600 — — V VGE = 0V, IC = 250µA
/∆T
Temp. Coeff. of Breakdown Voltage — 0.63 — V/°C VGE = 0V, IC = 1.0mA
J
Collector-to-Emitter Saturation Voltage — 2.1 3.1 IC = 13A VGE = 15V
— 2.6 — V IC = 24A See Fig. 2, 5
— 2.2 — IC = 13A, TJ = 150°C
Gate Threshold Voltage 3.0 — 5.5 VCE = VGE, IC = 250µA
/∆TJTemp. Coeff. of Threshold Voltage — -13 — mV/°C VCE = VGE, IC = 250µA
Forward Transconductance 11 18 — S VCE = 100V, IC = 20A
Zero Gate Voltage Collector Current — — 250 µA VGE = 0V, VCE = 600V
— — 3500 VGE = 0V, VCE = 600V, TJ = 150°C
Diode Forward Voltage Drop — 1.3 1.7 V IC = 15A See Fig. 13
— 1.2 1.6 IC = 15A, TJ = 150°C
Gate-to-Emitter Leakage Current — — ±500 nA VGE = ±20V
Total Gate Charge (turn-on) — 61 90 IC = 20A
Gate - Emitter Charge (turn-on) — 13 20 nC VCC = 400V
Gate - Collector Charge (turn-on) — 22 35 See Fig. 8
Turn-On Delay Time — 70 — TJ = 25°C
Rise Time — 55 — ns IC = 13A, VCC = 480V
Turn-Off Delay Time — 130 200 VGE = 15V, RG = 10Ω
Fall Time — 47 71 Energy losses include "tail" and
Turn-On Switching Loss — 0.65 — diode reverse recovery.
Turn-Off Switching Loss — 0.37 — mJ See Fig. 9, 10, 11, 18
Total Switching Loss — 1.0 1.5
Short Circuit Withstand Time 10 — — µs VCC = 360V, TJ = 125°C
VGE = 15V, RG = 10Ω, V
Turn-On Delay Time — 66 — TJ = 150°C, See Fig. 9, 10, 11, 18
Rise Time — 48 — ns IC = 13A, VCC = 480V
Turn-Off Delay Time — 250 — VGE = 15V, RG = 10Ω
Fall Time — 140 — Energy losses include "tail" and
Total Switching Loss — 1.6 — mJ diode reverse recovery.
Input Capacitance — 1500 — VGE = 0V
Output Capacitance — 190 — pF VCC = 30V See Fig. 7
Reverse Transfer Capacitance — 17 — ƒ = 1.0MHz
Diode Reverse Recovery Time — 42 60 ns TJ = 25°C See Fig.
— 74 120 TJ = 125°C 14 IF = 15A
Diode Peak Reverse Recovery Current — 4.0 6.0 A TJ = 25°C See Fig.
— 6.5 10 TJ = 125°C 15 VR = 200V
Diode Reverse Recovery Charge — 80 180 nC TJ = 25°C See Fig.
— 220 600 TJ = 125°C 16 di/dt = 200A/µs
/dt Diode Peak Rate of Fall of Recovery — 188 — A/µs TJ = 25°C See Fig.
During t
b
— 160 — TJ = 125°C 17
CPK
< 500V
Notes:
Repetitive rating; VGE=20V, pulse width limited
by max. junction temperature. ( See fig. 20)
VCC=80%(V
), VGE=20V, L=10µH,
CES
RG= 10Ω, ( See fig. 19 )
Pulse width ≤ 80µs; duty factor ≤ 0.1%.
C-980
Pulse width 5.0µs,
single shot.
Page 3
CPV364MK
A
A
To Order
Next Data SheetIndex
Previous Datasheet
15
12
9
6
Load Current (A)
T = 90°C
C
T = 125°C
3
J
Power Factor = 0.8
Modulation Depth = 0 .8
V = 60% of Rated Voltage
CC
0
0.1 1 10 100
f, Frequency (kHz)
Fig. 1 - RMS Current and Output Power, Synthesized Sine Wave
100
1000
4.7
3.7
2.8
1.9
0.9
Total Output Power (kW)
0
10
1
C
I , Collector-to-Emitter Current (A)
0.1
0.1 1 10
V , Collector-to-Emitter Voltage (V)
CE
Fig. 2 - Typical Output Characteristics
T = 150°C
J
T = 25°C
J
V = 15V
GE
20µs PULSE WIDTH
C-981
100
T = 150°C
J
10
C
I , Collector-to-Emitter Current (A)
1
5 10 15 20
T = 25°C
J
V = 100V
CC
5µs PULSE WIDTH
V , Gate-to-Emitter Voltage (V)
GE
Fig. 3 - Typical Transfer Characteristics
Page 4
CPV364MK
A
A
t , Rectangular Pulse D u ration (sec)
1
thJC
Th erm al Resp on se (Z )
To Order
Next Data SheetIndex
Previous Datasheet
25
20
15
10
5
V = 15V
GE
Maximum DC Collector Current (A)
0
25 50 75 100 125 150
T , Case Temperature (°C)
C
Fig. 4 - Maximum Collector Current vs.
Case Temperature
10
3.5
V = 15V
GE
80µs PULSE WIDTH
I = 26A
3.0
2.5
2.0
1.5
CE
V , Collector-to-Emitter Voltage (V)
1.0
-60 -40 -20 0 20 40 60 80 100 120 140 160
T , Case Temperature (°C)
C
C
I = 13A
C
I = 6.5A
C
Fig. 5 - Collector-to-Emitter Voltage vs.
Case Temperature
D = 0 .50
1
0.1
0.0 1
0.00001 0.0001 0.001 0 .01 0.1 1 1 0
Fig. 6 - Maximum IGBT Effective Transient Thermal Impedance, Junction-to-Case
0.20
0.10
0.05
0.02
0.01
S ING L E PULSE
(T H ER MA L RE S P O NS E)
C-982
P
D M
t
1
t
Note s:
1. Duty facto r D = t / t
2. Peak T = P x Z + T
J
DM
1 2
thJC
2
C
Page 5
CPV364MK
A
A
A
To Order
Next Data SheetIndex
Previous Datasheet
2500
2000
1500
1000
V = 0V, f = 1MHz
GE
C = C + C , C SHORTED
ies ge gc ce
C = C
res gc
C = C + C
oes ce gc
C
ies
C
oes
C, Capacitance (pF)
500
C
res
0
1 10 100
V , Collector-to-Emitter Voltage (V)
CE
Fig. 7 - Typical Capacitance vs.
Collector-to-Emitter Voltage
1.20
V = 480V
CC
V = 15V
GE
T = 25°C
C
1.16
I = 13A
C
20
V = 400V
CE
I = 25A
C
16
12
8
4
GE
V , Gate-to-Emitter Voltage (V)
0
0 20 40 60 80
Q , Total Gate Charge (nC)
g
Fig. 8 - Typical Gate Charge vs.
Gate-to-Emitter Voltage
10
R = 10
V = 15V
V = 480V
G
GE
CC
Ω
I = 26A
C
1.12
1.08
1.04
Total Switching Losses (mJ)
1.00
0.96
0 10 20 30 40 50 60
Fig. 9 - Typical Switching Losses vs. Gate
R , Gate Resistance (Ω)
G
Resistance
A
C-983
I = 13A
C
1
I = 6.5A
C
Total Switching Losses (mJ)
0.1
-60 -40 -20 0 20 40 60 80 100 120 140 160
T , Case Temperature (°C)
C
Fig. 10 - Typical Switching Losses vs.
Case Temperature
Page 6
CPV364MK
A
1000
A
To Order
Next Data SheetIndex
Previous Datasheet
4.0
R = 10Ω
G
T = 150°C
C
V = 480V
CC
V = 15V
GE
3.0
2.0
1.0
Total Switching Losses (mJ)
0.0
0 10 20 30
I , Collector-to-Emitter Current (A)
C
Fig. 11 - Typical Switching Losses vs.
Collector-to-Emitter Current
100
1000
V = 20V
GE
T = 125°C
J
100
SAFE OPERATING AREA
10
C
I , Collector-to-Emitter Current (A)
1
1 10 100
V , Collector-to-Emitter Voltage (V)
CE
Fig. 12 - Turn-Off SOA
F
10
T = 150°C
J
T = 125°C
J
T = 25°C
J
Instantaneous Forward Current - I (A)
1
0.8 1.2 1.6 2.0 2.4
Forward Voltage Drop - V (V)
FM
Fig. 13 - Maximum Forward Voltage Drop vs. Instantaneous Forward Current
C-984
Page 7
CPV364MK
To Order
Next Data SheetIndex
Previous Datasheet
100
V = 200V
R
T = 125°C
J
T = 25°C
J
80
I = 30A
F
60
rr
t - (ns)
40
20
100 1000
di /dt - (A/µs)
I = 15A
F
I = 5.0A
F
f
Fig. 14 - Typical Reverse Recovery vs. dif/dt
800
V = 200V
R
T = 125°C
J
T = 25°C
J
100
V = 200V
R
T = 125°C
J
T = 25°C
J
I = 30A
F
I = 15A
F
10
IRRM
I - (A)
I = 5.0A
F
1
100 1000
di /dt - (A/µs)
f
Fig. 15 - Typical Recovery Current vs. dif/dt
1000
V = 200V
R
T = 125°C
J
T = 25°C
J
600
400
RR
Q - (nC)
I = 5.0A
F
200
0
100 1000
Fig. 16 - Typical Stored Charge vs. dif/dt Fig. 17 - Typical di
I = 15A
F
I = 30A
F
di /dt - (A/µs)
f
C-985
I = 5.0A
F
I = 15A
F
I = 30A
di(rec)M/dt - (A/µs)
F
100
100 1000
di /dt - (A/µs)
f
/dt vs. dif/dt
(rec)M
Page 8
CPV364MK
t
2
To Order
Next Data SheetIndex
Previous Datasheet
Same typ e
device as
D.U.T .
90% Vge
+Vge
Vce
80%
of Vce
430µF
D.U.T.
Fig. 18a - Test Circuit for Measurement of
ILM, Eon, E
10% +Vg
10% Ic
Vcc
td(on)
off(diode)
Vce
t1
, trr, Qrr, Irr, t
90% Ic
5% Vce
tr
, tr, t
d(on)
GATE VOLTAGE D.U.T.
+Vg
d(off)
DUT VOLTAGE
AND CURRENT
Ipk
Ic
t2
Vce ie dt
Eon =
∫
t1
t2
, t
f
Fig. 18c - Test Waveforms for Circuit of Fig. 18a,
Defining Eon, t
d(on)
, t
r
Ic
td(off)
10% Vce
t1
90% Ic
Ic
5% Ic
tf
t1+5µS
Vce ic dt
Eoff =
∫
t1
Fig. 18b - Test Waveforms for Circuit of Fig. 18a, Defining
E
, t
, t
off
d(off)
f
Ic
tx
10% Vcc
Vpk
DIODE REVERSE
RECOVERY ENERGY
Irr
trr
10% Irr
DIODE RECOVERY
WAVEFORMS
Erec =
t3
t4
Qrr =
∫
∫
t4
Vd id dt
t3
trr
id dt
tx
Vcc
Fig. 18d - Test Waveforms for Circuit of Fig. 18a,
Defining E
, trr, Qrr, I
rec
rr
Refer to Section D for the following:
Appendix D: Section D - page D-6
Package Outline 5 - IMS-2 Package (13 pins) Section D - page D-14
Fig. 18e - Macro Waveforms for Test Circuit of Fig. 18a
Fig. 19 - Clamped Inductive Load Test Circuit
Fig. 20 - Pulsed Collector Current Test Circuit
C-986
Loading...
