Page 1
Product Specification
CPF107V
Data sheet subject to change without notice RDPS-POTS393(R0)06/17/2002
SHEET 1 OF 11
File No RDPS-POTS393
Revision R0
System Application Very high speed Digital Subscriber Line
Product Type Smartphone Splitter
Product Name CPF107V
Date Jun 17th, 2002
Jean Yen- Design Engineer, R&D_1Issued By
Roger Wu – Manager, R&D_1Approved By
Issued Date
YCL Electronics Co., Ltd.
No.95, Feng Jen Road. Feng Shan City, Kaohsiung, Taiwan, R.O.C.
This controlled document is the property of YCL Electronics Co., Ltd. Any duplication
reproduction or transmission by unauthorized parties without the prior written
permission of YCL Electronics Co., Ltd. is prohibite
Page 2
Product Specification
CPF107V
Data sheet subject to change without notice RDPS-POTS393(R0)06/17/2002
SHEET 2 OF 11
Table of contents
Item Description Page
1 Introduction
-----------------------------------------------
3
2 Reference
-----------------------------------------------
3
3 Abbreviations
-----------------------------------------------
3
4
Technical requirements
-----------------------------------------------
3
4.1. Block diagram
-----------------------------------------------
3
4.2. Electrical specification
-----------------------------------------------
4
4.2.1. General requirement
-----------------------------------------------
4
4.2.2. POTS Functionlity of splitter
-----------------------------------------------
4
4.2.3. Smartphone functionlity of splitter
-----------------------------------------------
5
4.2.4. DC characteristic
-----------------------------------------------
5
4.3. Test Methodology
-----------------------------------------------
6
4.3.1. Insertion loss for POTS
-----------------------------------------------
6
4.3.2. Return loss for POTS
-----------------------------------------------
7
4.3.3. Attenuation and Isertion Loss for
Smartphone
-----------------------------------------------
8
4.3.4. Return Loss for Smartphone
-----------------------------------------------
9
5 Environmental condition
-----------------------------------------------
10
5.1. Resistibility to overvoltage and
overcurrents
-----------------------------------------------
10
5.2. Climatic condition
-----------------------------------------------
10
5.2.1. Operating temperature
-----------------------------------------------
10
5.2.2. Storage and transport
-----------------------------------------------
10
5.2.3. Operating humidity
-----------------------------------------------
10
6 Reliability conditions
-----------------------------------------------
10
6.1.Thermal shock
-----------------------------------------------
10
6.2. Temperature humidity exposure
-----------------------------------------------
10
6.3. Vibration test
-----------------------------------------------
10
7 Mechanical condition ----------------------------------------------- 11
Page 3
Product Specification
CPF107V
Data sheet subject to change without notice RDPS-POTS393(R0)06/17/2002
SHEET 3 OF 11
1. Introduction:
This product specification (PS) document specifies the electrical requirements, connectors
and mechanical issues for VDSL over smartphone splitter.The main purpose of the splitter
filters is to separate the tele-band signals (originated from POTS or ISDN – BRA). A second
purpose is to isolate poorly balanced tele-band equipment from the line at VDSL band
frequency in order to prevent unwanted egress( and ingress) from VDSL signals.
The filter for phones or telephone equipments shareing a two – line phone Jack.
2. Reference:
Ref. 1 : ETSI TS101 270-1 Very high speed Digital Subscriber Line(VDSL)
Ref. 2 : 1TR9 German Telecom EMC Requirement
3. Abbreviations:
DSLAM Digital Subscriber Line Access multiplexer
VDSL Very high speed Digital Subscriber Line
POTS Plain old telephone service
4. Technical Requirements :
4.1. Block diagram :
A block diagram of this product is graphically illustrated as below. It contain many of
filters, accessible connectors.
Page 4
Product Specification
CPF107V
Data sheet subject to change without notice RDPS-POTS393(R0)06/17/2002
SHEET 4 OF 11
4.2.Electrical specification :
4.2.1. General requirement :
All of electrical specifications stated herein must be met and satisfied separately for
single individual splitter.
4.2.2. POTS Functionlity of splitter :
Electrical requirements
Splitter parameter
Range values
Frequency range
Splitter bandwidth DC to 16KHz
Nominal voice band 0.3KHz to 3.4KHz
Billing tone 16KHz±80Hz
Ringing frequency 22Hz to 28Hz
Line Impedance ZL
Zcomplex(1),(2),(3),600ohms
CO impedance ZTc
Zcomplex(1),(2),(3),600ohms
RT impedance ZTr
Zcomplex(1),(2),(3),600ohms
Operation voltage voice band
Nominal signal 21mVpp to 5.4 Vpp
Billing tone 10Vpp to 30.2Vpp
Ringing signal
40Vrms to 80Vrms(113Vpp to
227 Vpp)
DC voltage 0V to –72V
Max. AC voltage
70Vrms with –72VDC offset
voltage
Max. differential 190V
Current voice band
Loop current <100mA
Transient current(on/off hook) <400mA
DC Resistance
DC Resistance <=25 ohm
Isolation resistance tip/ring >5 Mohm
Voice –band characteristic
Insertion loss 100Hz< f< 4KHz <1 dB
Insertion loss billing tone
(Impedanc : 200ohm)
16KHz+/-1KHz <1 dB
Delay distortion 100Hz<f<4KHz <7 usec
Return loss
200Hz< f< 500Hz >14 dB
600Hz< f< 2000Hz >18 dB
2100Hz< f< 3400Hz >14 dB
Page 5
Product Specification
CPF107V
Data sheet subject to change without notice RDPS-POTS393(R0)06/17/2002
SHEET 5 OF 11
4.2.3. Smartphone functionlity of splitter :
Electrical requirements
Splitter parameter
Range values
Nominal impedance
Line impedance ZL 150 ohm / 135 ohm
CO impedance ZTc 150 ohm / 135 ohm
RT impedance ZTr 150 ohm / 135 ohm
Current voice band
Loop current 200mA
DC resistance
DC resistance <=25 ohm
Isolation resistance tip/ring >5 M ohm
Smartphone band characteristic
Insertion loss 10KHz <f<630KHz <1.5 dB
Delay distortion 20KHz <f<650KHz <10 usec
Return loss 10KHz<f<600KHz >12 dB
600KHz<f<630KHz >10 dB
Stop band attenuation
900KHz ~1MHz
>20 dB
1MHz~1.2MHz >40 dB
1.2MHz~10MHz >60 dB
4.2.4. DC characteristic :
All requirement of this specification can be met in the presence of all POTS loop currents
from 0mA to 100mA. This POTS splitter can pass POTS tip-to-ring dc voltages of 0V to
72V and ringing signals of 40V to 80Vrms at any frequency from22Hz to 28Hz with a dc
component in the range from 0V to 72V. The dc resistance from tip-to-ring at the line port
interface with the phone interface shorted, shall be less than or equal to 25 ohms.
The DCresistance from tip-to-ground and from ring-to-ground at the POTS interface with
the U-R interface open shall be greater than or equal to 5 Megohms. The ground point
shall be local building or green wire ground. As an objective , the dc resistance should
exceed 10MΩ.
Page 6
Product Specification
CPF107V
Data sheet subject to change without notice RDPS-POTS393(R0)06/17/2002
SHEET 6 OF 11
4.3. Test method :
4.3.1. Insertion loss for POTS :
4.3.1.1. Description :
Insertion loss /Attenuation mentioned herein is defined as below :
IL = 20 log 10 Vo/Vi dB
Vo = the voltage value measured across the Line side shown in fig .2
Vi = the voltage value measured across the Phone side fig .1
4.3.1.2. Apparatus :
a . Function generator or equivalent
b . Readout oscilloscope or equivalent.
c . Complex load ZL = Zcomplex(1) or Zcomplex(2) or Zcomplex(3) or 600ohms
d . ZHP-c = 2350pf+26.5µH + 2200pf
4.3.1.3. Test procedure :
a . Set the measurement Frequency of interest
b . Connecting the source to the Phone side of splitter with the complex load ZL
across the Line side.
c . Measure the voltage value and calculate the Insertion loss expressed in decibel
from the equation Insertion loss = 20 log10 Vo / Vi dB
d . Change another frequency of interested the repeat step a~d.
4.3.1.4. Insertion loss test set up measurement :
Fig. 1 Fig. 2
VDSL
Page 7
Product Specification
CPF107V
Data sheet subject to change without notice RDPS-POTS393(R0)06/17/2002
SHEET 7 OF 11
4.3.2. Return loss for POTS :
4.3.2.1. Description :
Return loss is essentially defined as the ratio of the power incident upon a given
transmission system to the power reflected caused by an impedance mismatch with
respect to reference impedance at the interface between source and device.Return
loss is generally expressed in decibels. General Return Loss equation as below:
Return loss = 20 log ZR + Z M / ZR - Z M dB
ZR = the reference impedance
ZM = the measured impedance
4.3.2.2. Apparatus :
a . HP 4192A Analyzer or equivalent
b . Complex load ZL = Zcomplex(1) or Zcomplex(2) or Zcomplex(3) or 600ohms
c . Test fixture : HP16047A test fixture
d. ZHP-C=2350pf+26.5µH+2200pf
4.3.2.3. Test procedure :
a . Set the measurement Frequency of interest
b . Calibrating the HP4192A L.C.Z. impedance Analyzer via the short . open, load
c . Connecting the Analyzer to the POTS side of splitter with the complex load
across the Line side.
d . Measure the impedance value R + jX and calculate the Return loss expressed in
decibel from the equation Return loss = 20 log ZR + Z M / ZR – Z M dB
e . Change another frequency of interest, then repeat step a~e.
4.3.2.4. Return loss test for one splitter :
Page 8
Product Specification
CPF107V
Data sheet subject to change without notice RDPS-POTS393(R0)06/17/2002
SHEET 8 OF 11
4.3.3. Attenuation and Isertion Loss for Smartphone port:
4.3.3.1. Test Equipment :
a . HP4395A Network / Spectrum / Impedance Analyzer
b . HP87512A Transmission / Reflection test set
c . Balun North Hills : 0415LB(50Ω : 150Ω) ; 0303LB(50Ω : 135Ω)

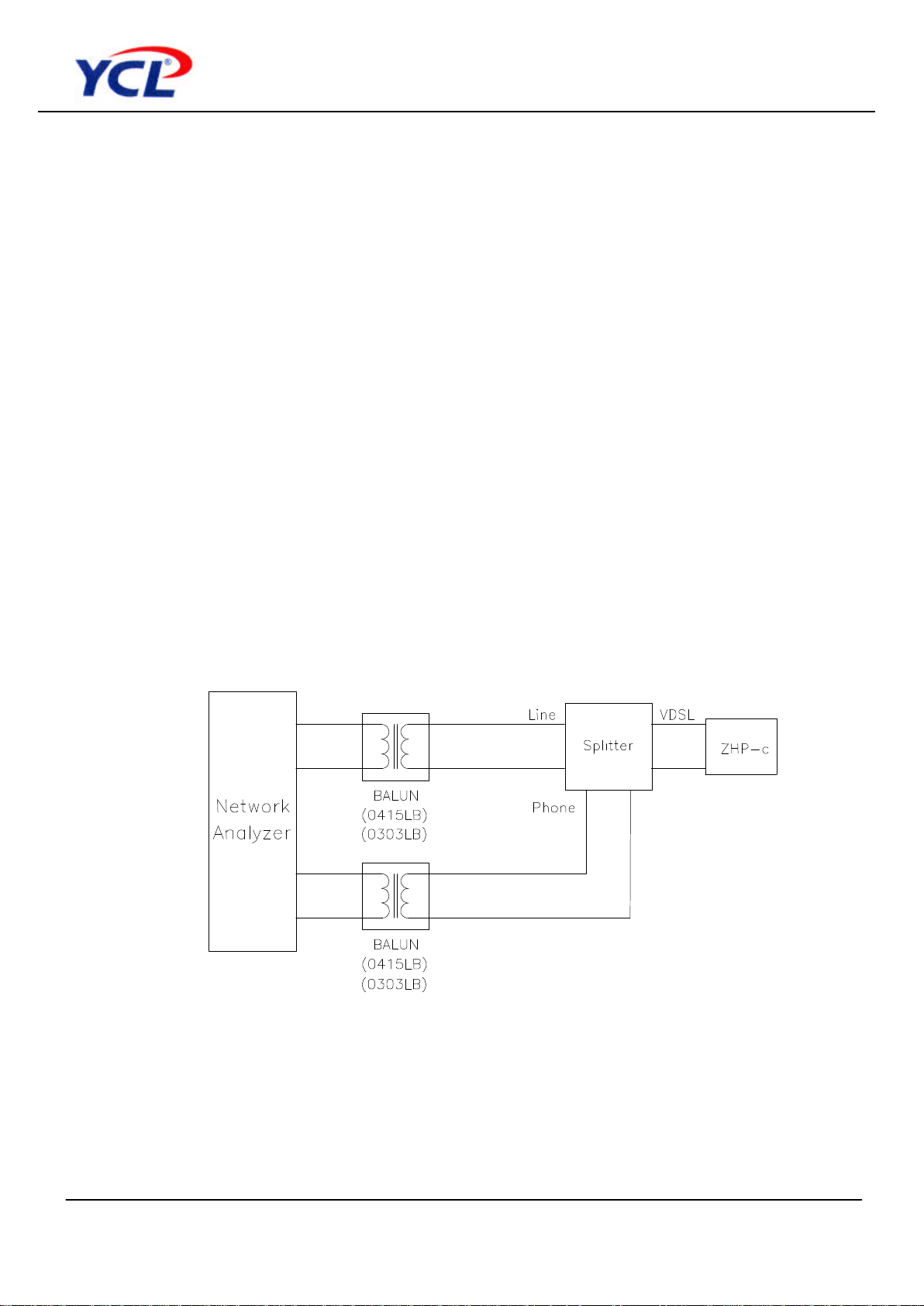

4.3.3.2. Test Setup is shown in Fig. 3.
4.3.3.3. Test Procedure :
a . Set HP4395A in B/R mode for attenuation test and Insertion Loss test.
b . Set frequency of interest given in specification.
c . Calibrating the HP4395A network Analyzer via the thru for attenuation test while
open short , load calibration being performed for attenuation.
d . Measurement attenuation :
Fig. 3. Test Setup
Page 9
Product Specification
CPF107V
Data sheet subject to change without notice RDPS-POTS393(R0)06/17/2002
SHEET 9 OF 11
4.3.4. Return Loss for Smartphone :
4.3.4.1.Test Equipment :
a : HP4395A Network / Spectrum / Impedance Analyzer
b : HP87512A Transmission / Reflection test set
c : Balun North Hills : 0415LB( 50Ω : 150Ω ) ; 0303LB(50Ω : 135Ω)
4.3.4.2. Test Setup: is shown in Fig.4 .
4.3.4.3. Test Procedure :
a : Set A/R mode for Return loss test.
b : Set frequency of interest given in specification.
c : Calibrating the HP4395A network Analyzer via the thru for attenuation test while
open, short, load calibration being performed for Return loss.
d : Measurement and Return loss.
Fig. 4. Test Setup
Page 10
Product Specification
CPF107V
Data sheet subject to change without notice RDPS-POTS393(R0)06/17/2002
SHEET 10 OF 11
5. Environmental condition:
5.1. Resistibility to overvoltages and overcurrents:
The splitter has to comply with requirements as per ITU-T K.21.
5.2. Climatic conditions:
5.2.1. Operating temperature:
Application indoor
Long time operation guarantee temperature ( 5 to 40 0C )
Short time operation guarantee temperature ( 0 to 50 0C )
( According to ETS 300 019, class 3.2 )
5.2.2. Storage and transport:
Low ambient temperature - 20 0C
High ambient temperature +85 0C
( According to MIL-STD-202 method 107 )
5.2.3. Operation humidity:
Long time operation guarantee humidity ( 5 to 85 % )
Short time operation guarantee humidity ( 5 to 90 % )
Short time : within 72 continuous hours and 15 days in a year
6. Reliability conditions:
6.1. Thermal shock :
Temperature from -20 °C to +85 °C for 5 cycles
(According to MIL-STD-202 , method 107)
6.2. Temperature humidity exposure :
+50 °C /95RH , 96hrs
(According to MIL-STD-202 , method 103)
6.3. Vibration test :
Random vibration , frequency 5-500Hz , sweep time :1 hr / axis /
Force : 2.4grams (According to MIL-STD-202 , method 204)
Page 11
Product Specification
CPF107V
Data sheet subject to change without notice RDPS-POTS393(R0)06/17/2002
SHEET 11 OF 11
7. Mechanical condition :
Note :
1: Unit mm.
