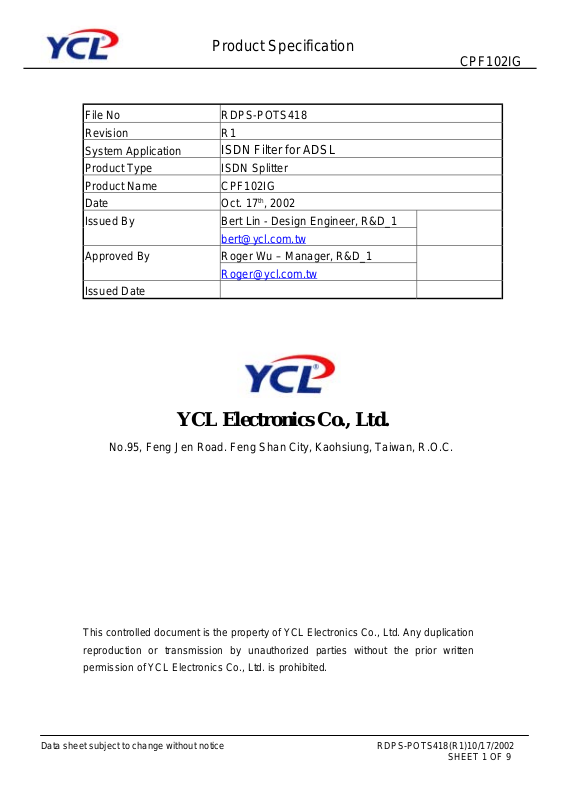

Product Specification
CPF102IG
Data sheet subject to change without notice RDPS-POTS418(R1)10/17/2002
SHEET 1 OF 9
File No RDPS-POTS418
Revision R1
System Application
ISDN Filter for ADSL
Product Type ISDN Splitter
Product Name CPF102IG
Date Oct. 17th, 2002
Bert Lin - Design Engineer, R&D_1Issued By
Roger Wu – Manager, R&D_1Approved By
Issued Date
YCL Electronics Co., Ltd.
No.95, Feng Jen Road. Feng Shan City, Kaohsiung, Taiwan, R.O.C.
This controlled document is the property of YCL Electronics Co., Ltd. Any duplication
reproduction or transmission by unauthorized parties without the prior written
permission of YCL Electronics Co., Ltd. is prohibited.
Page 2
Product Specification
CPF102IG
Data sheet subject to change without notice RDPS-POTS418(R1)10/17/2002
SHEET 2 OF 8
Table of contents
Item Description Page
1 Introduction
-----------------------------------------------
3
2 Reference
-----------------------------------------------
3
3 Abbreviations
-----------------------------------------------
3
4
Technical requirements
-----------------------------------------------
4
4.1. Block diagram
-----------------------------------------------
4
4.2. Electrical specification
-----------------------------------------------
5
4.2.1. General requirement
-----------------------------------------------
5
4.3. Test methodology
-----------------------------------------------
6
4.3.1. Filter insertion loss and attenuation
and return loss test
-----------------------------------------------
6
5 Environmental condition
-----------------------------------------------
7
5.1. Resistibility to overvoltage and
overcurrents
-----------------------------------------------
7
5.2. Climatic condition
-----------------------------------------------
7
5.2.1. Operating temperature
-----------------------------------------------
7
5.2.2. Storage and transport
-----------------------------------------------
7
5.2.3. Operating humidity
-----------------------------------------------
7
6 Reliabilty conditions
-----------------------------------------------
7
6.1.Thermal shock
-----------------------------------------------
7
6.2. Temperature humidity exposure
-----------------------------------------------
7
6.3. Vibration test
-----------------------------------------------
7
7 Mechanical design
----------------------------------------------- 8
7.1. PCB dimension
----------------------------------------------- 8
Page 3
Product Specification
CPF102IG
Data sheet subject to change without notice RDPS-POTS418(R1)10/17/2002
SHEET 3 OF 8
1. Introduction:
The CPF102IG is a splitter module that has been specifically designed to implement the
functionality of low pass filter in ISDN with 2B1Q/4B3T over ADSL application. The
CPF102IG integrate low pass filter that block the high frequency energy from reaching the
ISDN device and provide isolation from impedance effects of the ISDN device on ADSL.
Because the ISDN splitter connects directly to the subscriber loop media , it must also
provide some protection for externally induced line hits or faults which could damage any
attached equipment or endanger humans interacting with the installed equipment. The circuit
protection will be provided mostly by standard central office line protection means and
additional protection measures built into splitter to protect against line overstress which could
damage the splitter itself.
2. Reference:
Ref. 1 : ETSI TS 101 388 Asymmetric Digital Subscriber Line European specific
Requirements
Ref. 2 : ETSI TS 101 952-1-3 ADSL Splitters for European deployment
Ref. 3 : ANSI T1.413 Network and customer installation interface.
Ref. 4 : ITU G.992.1 Annex B
Ref. 5 : ITU-T K.21 Resistibility of telecommunication switching equipment
to Overvoltages and overcurrents .
3. Abbreviations:
ADSL Asymmetric Digital Subscriber Line
ISDN Integrated Service Digital Network
CO Central Office
CPE
Customer Premise Equipment.
POTS Plain Old Telephone Service
RT
Remote Terminal
Z
ADSL
Network termination of ADSL
1
Page 4
Product Specification
CPF102IG
Data sheet subject to change without notice RDPS-POTS418(R1)10/17/2002
SHEET 4 OF 8
4. Technical requirements :

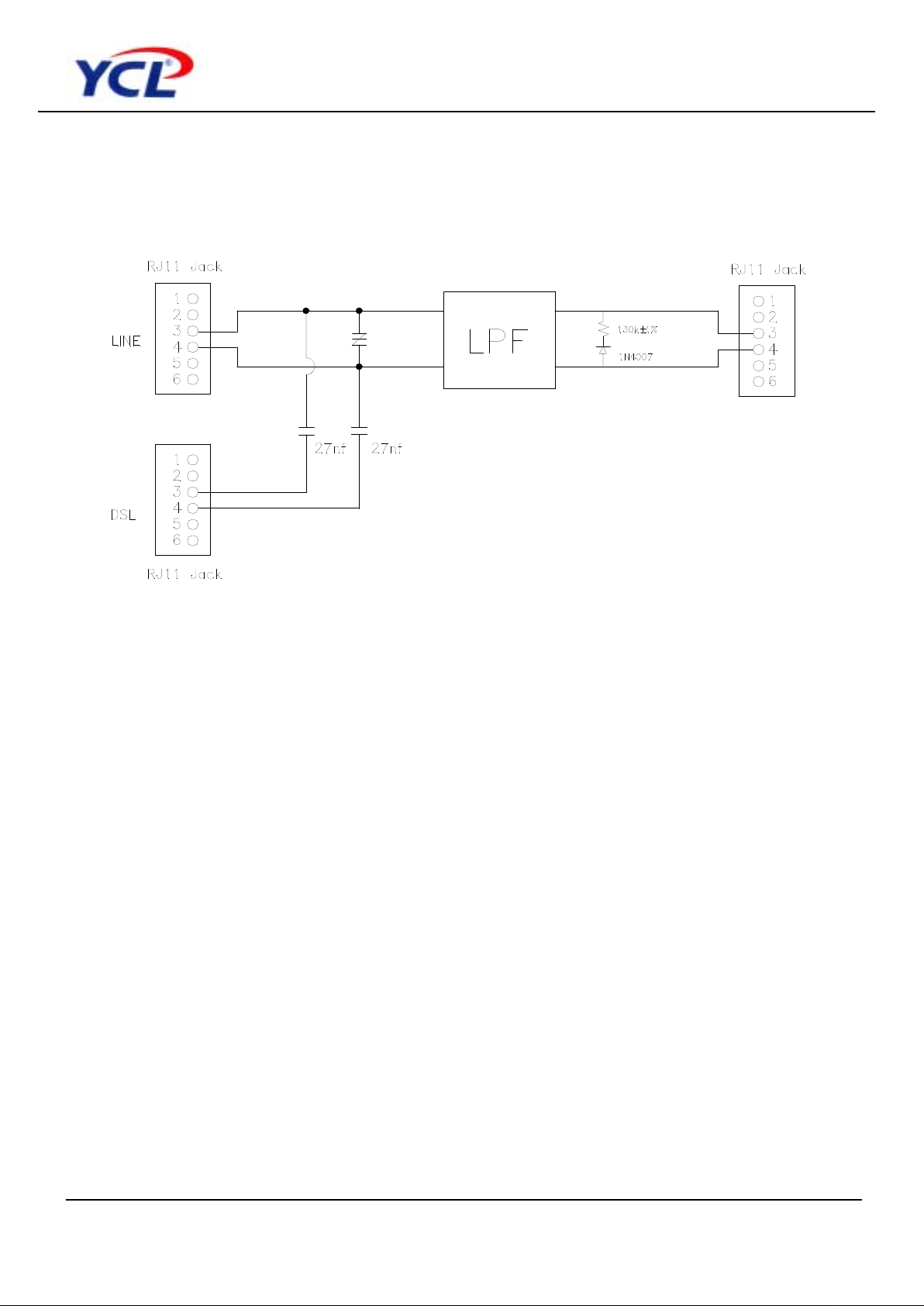

4.1. Schematic :
The following drawing illustrates the schematic of this product.
ISDN
Page 5
Product Specification
CPF102IG
Data sheet subject to change without notice RDPS-POTS418(R1)10/17/2002
SHEET 5 OF 8
4.2. Electrical Specification :
4.2.1. General requirement :
All of electrical specifications for ISDN path stated herein must be met and satisfied
separately for single individual splitter and also for the complete splitter combination.
Electrical requirements
Splitter parameter
Range values
ISDN band(3dB bandwidth) DC to 94KHz
Nominal impedance
Line impedance ZL 135/150 ohm
CO impedance ZTc 135/150 ohm
RT impedance ZTr 135/150 ohm
Modem impedance 100 ohm
Operation voltage ISDN For 2B1Q/ 4B3T Band
Current voice band
Loop current 0-60mA
DC resistance
DC resistance(single splitter) <=12.5 ohm
Isolation resistance tip/ring >5 M ohm
resistance to earth >20 M ohm
ISDN band characteristic
1KHz to 40KHz <0.8 dB
Insertion loss(for 2B1Q)
40KHz to 80KHz <2 dB
1KHz to 60KHz <1.2 dB
Insertion loss(for 4B3T)
60KHz to 80KHz <2 dB
Delay distortion 0.1KHz <f<80KHz <20 usec
1KHz to 40KHz >16 dB
Return loss (for 2B1Q)
40KHz to 80KHz >14 dB
1KHz to 60KHz >16 dB
Return loss (for 4B3T)
60KHz to 80KHz >14 dB
300Hz to 30kHz >40 dB
30kHz to 1104kHz >46 dBUnbalance about earth
1104kHz to 5MHz >40 dB
Line interface
Attenuation 150KHz to 1104KHz >65 dB
1
Page 6
Product Specification
CPF102IG
Data sheet subject to change without notice RDPS-POTS418(R1)10/17/2002
SHEET 6 OF 8
4.3. Test methodology
4.3.1. Filter insertion loss and attenuation and return loss test :
4.3.1.1. Test equipment :
a : HP4395A Network / Spectrum / Impedance Analyzer
b : HP87512A Transmission / Reflection test set
c : Balun North Hills : 0303LB( 50Ω : 135Ω ) / 0415LB( 50Ω : 150Ω )

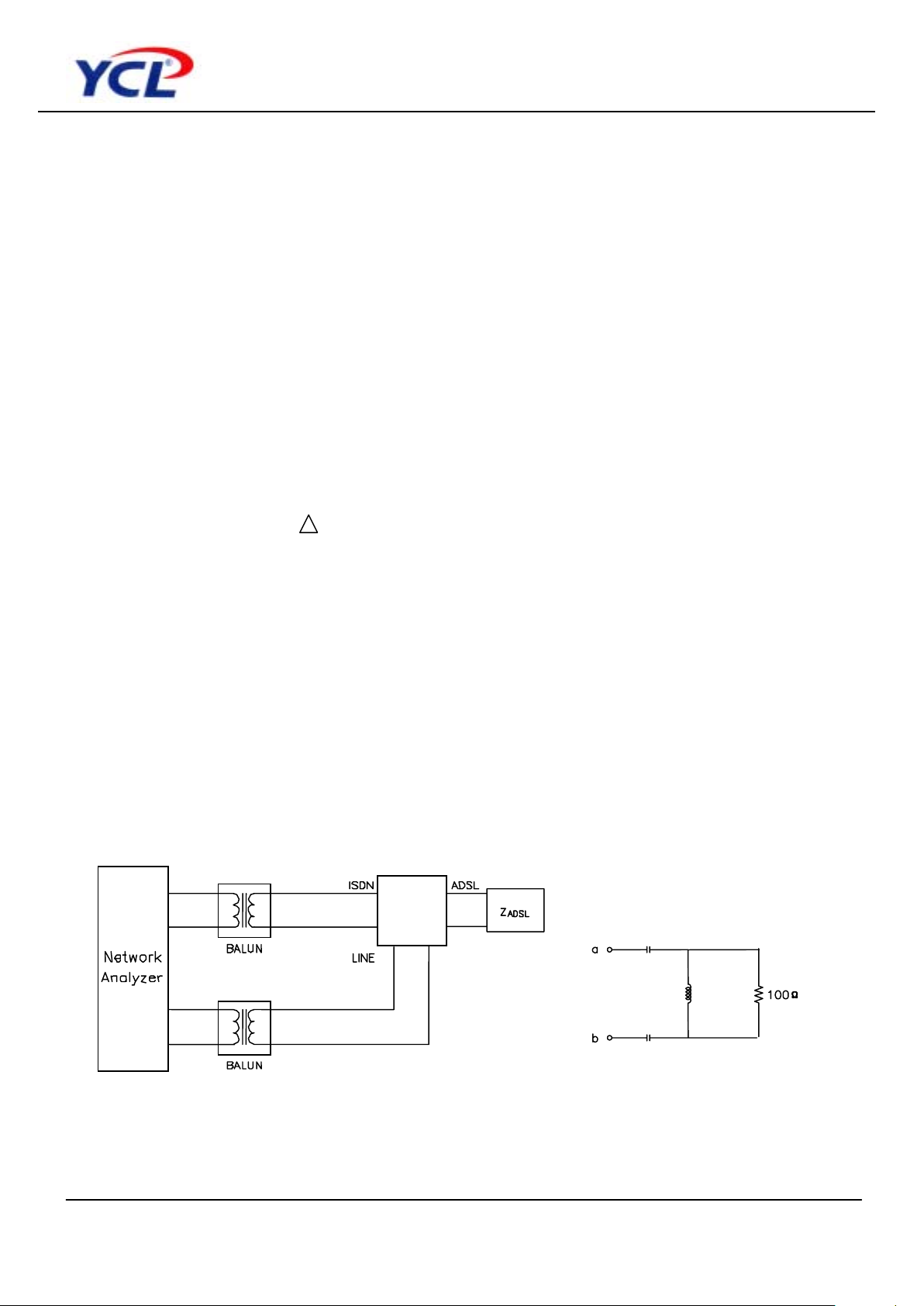

4.3.1.2. Test Setup: is shown in Fig.1 .
4.3.1.3. Test procedure :
a : Set HP4395A in B/R mode for insertion loss and attenuation test while in A/R
mode for Return loss test.
b : Connecting the Analyzer to the ISDN and LINE sides of splitters through the North
Hills Balun 0303LB/ 0415LB
c : Set frequency of interest given in specification.
d : Calibrating the HP4395A network Analyzer via the thru for attenuation test while
open, short, load calibration being performed for Return loss.
e : Measurement insertion loss and attenuation and Return loss.
Fig.1. Test Setup
Fig.1-a Z
ADSL
Load
82uH
41.8nF
41.8nF
Filter
1
Page 7
Product Specification
CPF102IG
Data sheet subject to change without notice
RDPS-POTS418(R1)10/17/2002
SHEET 7 OF 8
5. Environmental condition:
5.1. Resistibility to overvoltages and overcurrents:
The splitter has to comply with requirements as per ITU-T K.21.
5.2. Climatic conditions:
5.2.1. Operating temperature:
Application indoor
Long time operation guarantee temperature ( 5 to 40 0C )
Short time operation guarantee temperature ( 0 to 50 0C )
( According to ETS 300 019, class 3.2 )
5.2.2. Storage and transport:
Low ambient temperature - 20 0C
High ambient temperature +85 0C
( According to MIL-STD-202 method 107 )
5.2.3. Operation humidity:
Long time operation guarantee humidity ( 5 to 85 % )
Short time operation guarantee humidity ( 5 to 90 % )
Short time : within 72 continuous hours and 15 days in a year
6. Reliability conditions:
6.1. Thermal shock :
Temperature from -20 °C to +85 °C for 5 cycles
(According to MIL-STD-202 , method 107)
6.2. Temperature humidity exposure :
+50 °C /95RH , 96hrs
(According to MIL-STD-202 , method 103)
6.3. Vibration test :
Random vibration , frequency 5-500Hz , sweep time :1 hr / axis /
Force : 2.4grams (According to MIL-STD-202 , method 204)
Note : Z
ADSL
load can be terminated with load, or open
Page 8
Product Specification
CPF102IG
Data sheet subject to change without notice
RDPS-POTS418(R1)10/17/2002
SHEET 8 OF 8
7. Mechanical condition:

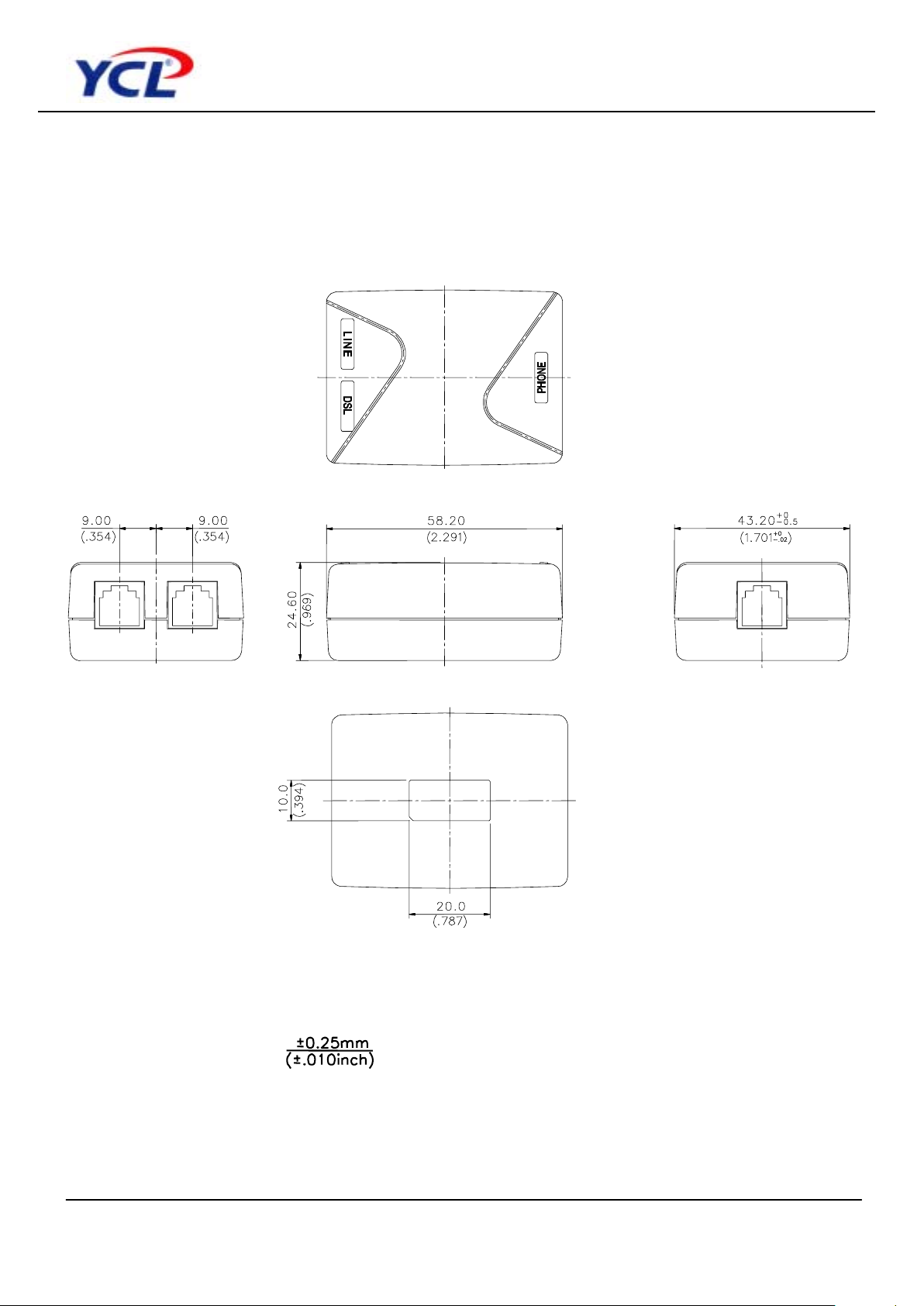

7.1 : PCB dimension :
Notes :
1. Unit : mm
2. Tolerance :
Loading...
