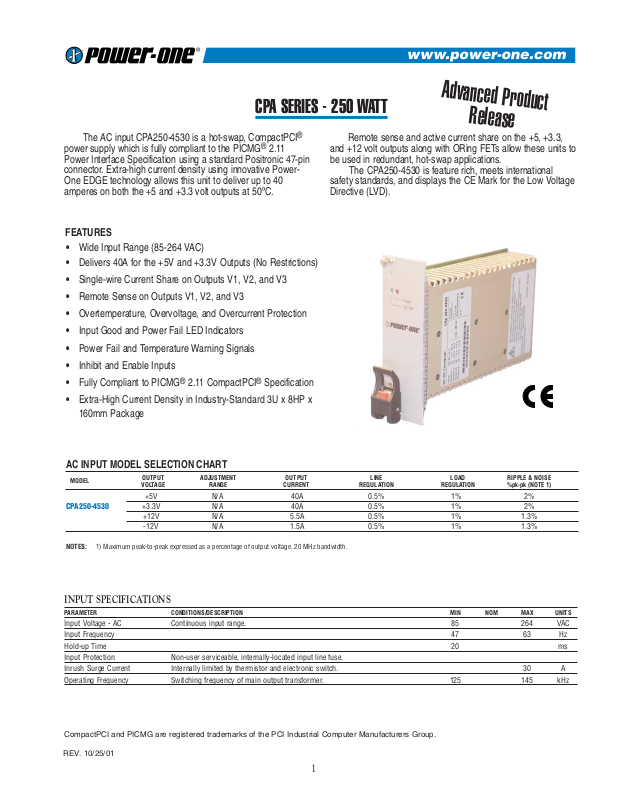

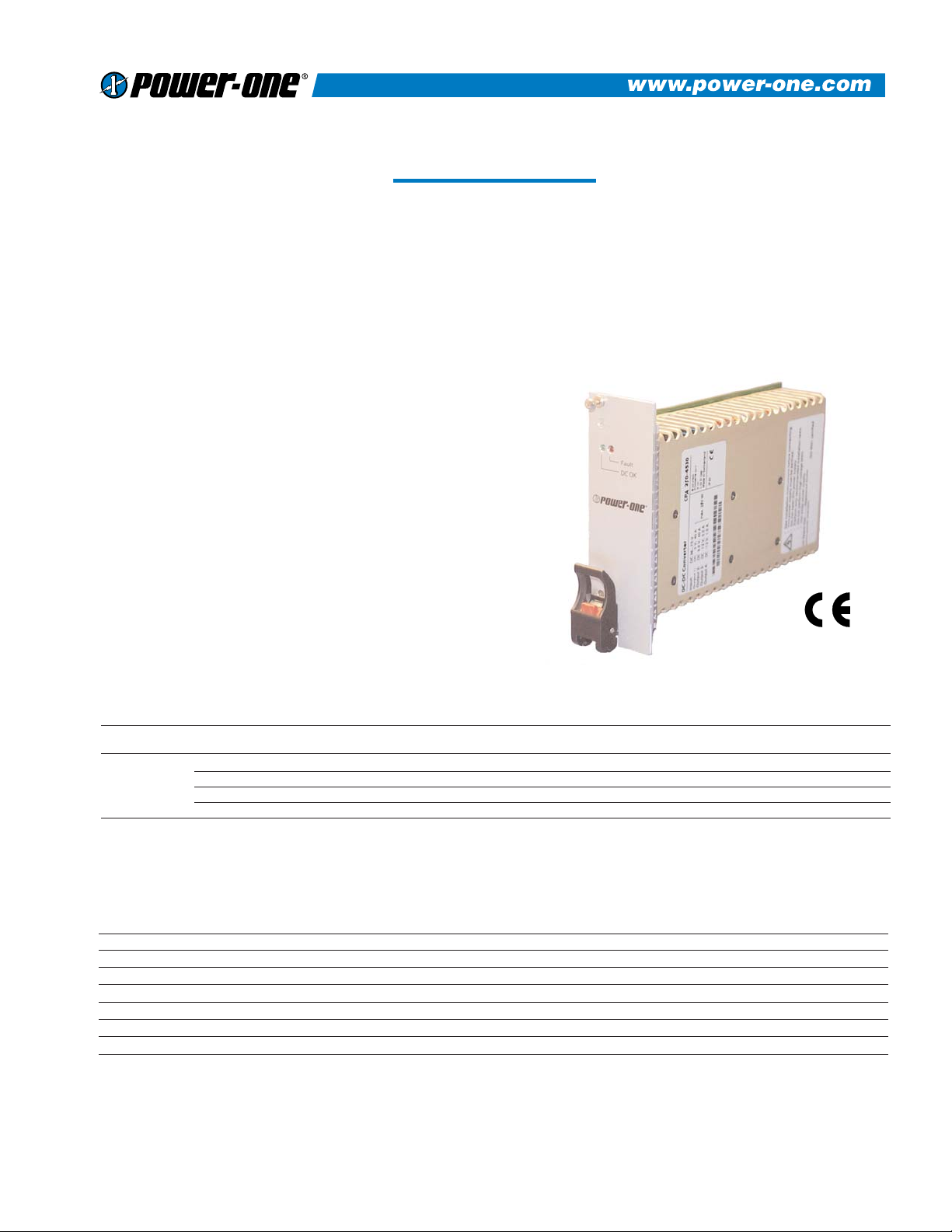

CPA SERIES - 250 WATT
The AC input CPA250-4530 is a hot-swap, CompactPCI
®
power supply which is fully compliant to the PICMG
®
2.11 Power Interface Specification using a standard Positronic 47-pin connector. Extra-high current density using innovative Power­One EDGE technology allows this unit to deliver up to 40 amperes on both the +5 and +3.3 volt outputs at 50ºC.
Remote sense and active current share on the +5, +3.3, and +12 volt outputs along with ORing FETs allow these units to be used in redundant, hot-swap applications.
The CPA250-4530 is feature rich, meets international safety standards, and displays the CE Mark for the Low Voltage Directive (LVD).
FEATURES
• Wide Input Range (85-264 VAC)
• Delivers 40A for the +5V and +3.3V Outputs (No Restrictions)
• Single-wire Current Share on Outputs V1, V2, and V3
• Remote Sense on Outputs V1, V2, and V3
• Overtemperature, Overvoltage, and Overcurrent Protection
• Input Good and Power Fail LED Indicators
• Power Fail and Temperature Warning Signals
• Inhibit and Enable Inputs
• Fully Compliant to PICMG
®
2.11 CompactPCI®Specification
• Extra-High Current Density in Industry-Standard 3U x 8HP x
160mm Package
AC INPUT MODEL SELECTION CHART
MODEL
OUTPUT ADJUSTMENT OUTPUT LINE LOAD RIPPLE & NOISE
VOLTAGE RANGE CURRENT REGULATION REGULATION %pk-pk (NOTE 1)
+5V N/A 40A 0.5% 1% 2%
CPA250-4530 +3.3V N/A 40A 0.5% 1% 2%
+12V N/A 5.5A 0.5% 1% 1.3%
-12V N/A 1.5A 0.5% 1% 1.3%
NOTES: 1) Maximum peak-to-peak expressed as a percentage of output voltage, 20 MHz bandwidth.
INPUT SPECIFICATIONS
PARAMETER CONDITIONS/DESCRIPTION MIN NOM MAX UNITS
Input Voltage - AC Continuous input range. 85 264 VAC Input Frequency 47 63 Hz Hold-up Time 20 ms Input Protection Non-user serviceable, internally-located input line fuse. Inrush Surge Current Internally limited by thermistor and electronic switch. 30 A Operating Frequency Switching frequency of main output transformer. 125 145 kHz
CompactPCI and PICMG are registered trademarks of the PCI Industrial Computer Manufacturers Group.
REV. 10/25/01
Advanced Product
Release
Page 2
2
OUTPUT SPECIFICATIONS
PARAMETER CONDITIONS/DESCRIPTION MIN NOM MAX UNITS
Efficiency Full rated load, 115 VAC. 80 % Minimum Load; V1, V2, V3 Minimum load required to maintain regulation with no load on V4. None A Minimum Load, V3 Minimum load on V3 required to maintain regulation on V4. 50% OF V4 Load A Ripple and Noise Full load, 20 MHz bandwidth. See Model Selection Chart Output Power 250 LFM forced-air cooling. 200 W Output Power 400 LFM forced-air cooling. 250 W Overshoot /Undershoot Output voltage overshoot/undershoot at turn-on. 0 % Regulation Varies by output. Total regulation includes: line changes over the specified
See Model Selection Chart
input range, changes in load starting at 50% load and changing to 100% load. Turn-on Delay Time required for initial output voltage stabilization. 150 ms Initial Setting Accuracy
±
1%
INTERFACE SIGNALS AND INTERNAL PROTECTION
PARAMETER CONDITIONS/DESCRIPTION MIN NOM MAX UNITS
Overvoltage Protection Latch style overvoltage protection. 120 130 %Vnom Overload Protection Fully protected against output overload and short circuit. Automatic recovery upon removal of overload condition. Overtemperature Protection System shutdown due to excessive internal temperature, automatic reset. Power Fail (FAL#) TTL compatible signal, open collector active low signal. Indicates any output below
90% and/or a low input <85VAC. Current Share Accuracy of shared current with up to 6 parallel units. Single wire current share on V1, V2, and V3. 10 % Remote Sense Available on V1, V2, and V3. Total voltage compensation for cable losses with 150 mV
respect to the main output. Inhibit (INH#) TTL-compatible signal inhibited with GND or TTL "0". Enable (EN#) Contact closure to external ground to start unit. On shortest pin (last make, first break). Overtemperature Warning (DEG#) Provides warning when power supply temperature exceeds rating. TTL-compatible open. Front Panel LED Status Indicators Input OK (Green), Output Failure (Red).
SAFETY, REGULATORY, AND EMI SPECIFICATIONS
PARAMETER CONDITIONS/DESCRIPTION MIN NOM MAX UNITS
Agency Approvals UL1950.
cUL1950. Approved
EN60950 (TÜV). Dielectric Withstand Voltage Input to Output per EN60950. 4243 VDC Electromagnetic Interference EN55022 / CISPR 22 - Conducted. A
Radiated. A
Class
ESD Susceptibility Per EN61000-4-2, level 4. 8 kV Radiated Susceptibility Per EN61000-4-3, level 3. 10 V/M EFT/Burst Per EN61000-4-4, level 3. ±2 kV Input Surge Per EN61000-4-5, level 3. Line to Line 1
kV
Line to Ground 2 Conducted Disturbance Per EN61000-4-6, level 2. 3V Insulation Resistance Input to Output. 10 M⍀
ENVIRONMENTAL SPECIFICATIONS
PARAMETER CONDITIONS/DESCRIPTION MIN NOM MAX UNITS
Altitude Operating. 10k ASL Ft.
Non-Operating. 40k ASL Ft.
Operating Temperature With 400 LFM forced-air cooling At 100% load: 0 50 °C
Derate linearly above 50°C by 2.5% per °C. At 50% load: 70 °C Storage Temperature -40 85 °C Relative Humidity Non-Condensing. 5 95 %RH Shock Peak acceleration. 20 GPK Vibration Random vibration, 10 Hz to 2 kHz, 3 axis. 6 G
RMS
CPA SERIES - 250 WATT
Page 3
3

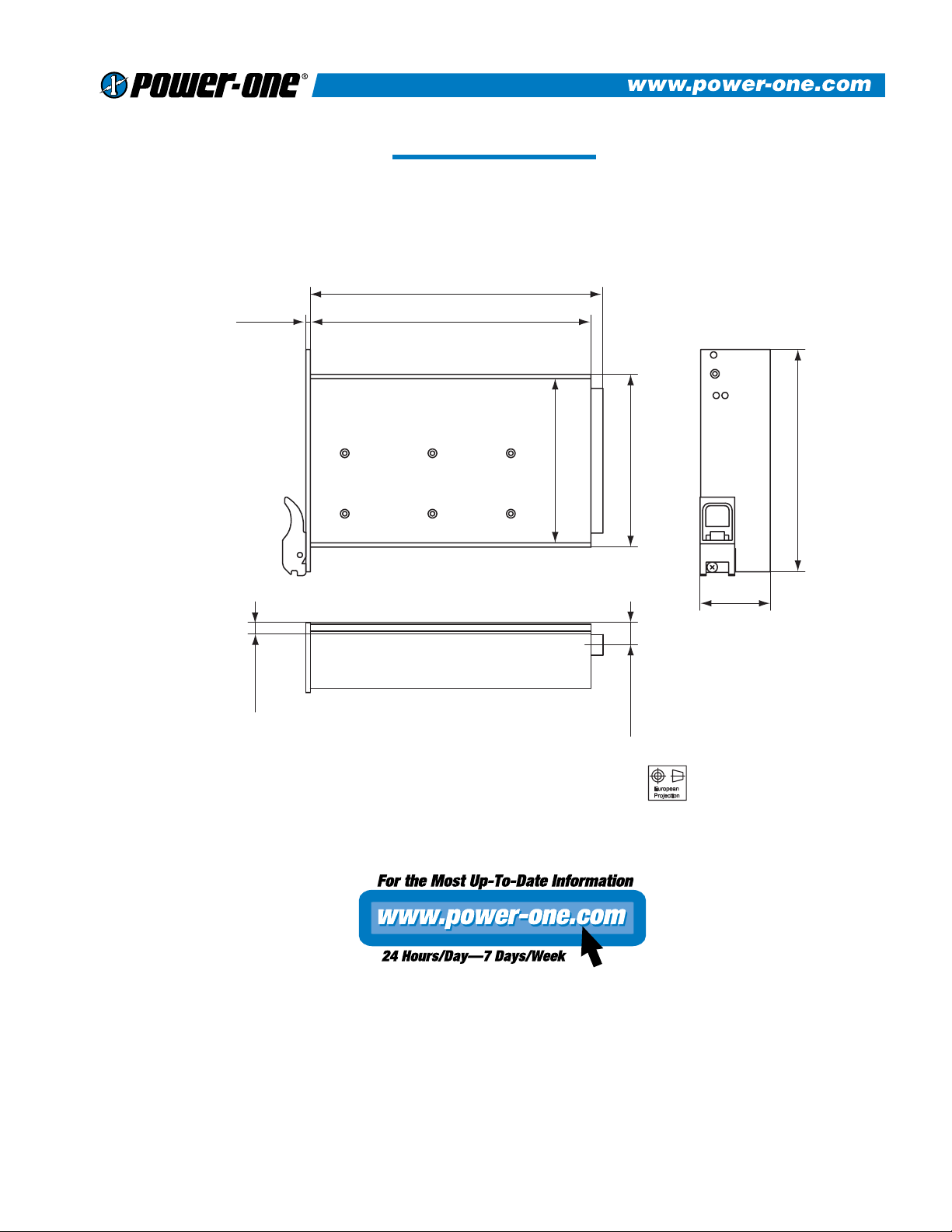

OVERALL SIZE: 5.07"H x 1.60"W x 6.40"D (128.7mm x 40.6mm x 162.5mm)
WEIGHT: 1.75 lb (0.8 kg)
CPA SERIES - 250 WATT
6.671" (169.4mm)
0.1" (2.54mm)
0.26" (6.61mm)
6.399" (162.5mm)
3.74" (95.0mm)
3U x 8HP
3.937" (100.0mm)
1.6" (40.6mm)
0.507" (12.88mm)
5.067" (128.7mm)
Tolerances ± 0.012" (0.3mm) unless otherwise indicated.
Page 4
4
PIN ALLOCATION CHART
PIN
PIN-LENGTH SIGNAL
DESCRIPTION PIN
PIN-LENGTH SIGNAL
DESCRIPTION
TYPE (NOTE 1) NAME TYPE (NOTE 1) NAME
1-4 M V1 V1 OUTPUT 32 M NC NOT CONNECTED
5-12 M RTN V1 and V2 RETURN 33 M V2 SENSE V2 REMOTE SENSE
13-18 M V2 V2 OUTPUT 34 M S RTN SENSE RETURN
19 M RTN V3 RETURN 35 M V1SHARE V1 CURRENT SHARE 20 M V3 V3 OUTPUT 36 M V3SENSE V3 REMOTE SENSE 21 M V4 V4 OUTPUT 37 M NC NOT CONNECTED 22 M RTN SIGNAL RETURN 38 M DEG# DEGRADE SIGNAL 23 M RESERVED RESERVED 39 M INH# INHIBIT 24 M RTN V4 RETURN 40 M NC NOT CONNECTED 25 M NC NOT CONNECTED 41 M V2SHARE V2 CURRENT SHARE 26 M RESERVED RESERVED 42 M FAL# FAIL SIGNAL 27 S EN# ENABLE 43 M NC NOT CONNECTED 28 M NC NOT CONNECTED 44 M V3SHARE V3 CURRENT SHARE 29 M NC NOT CONNECTED 45 L CGND CHASSIS GROUND 30 M V1SENSE V1 REMOTE SENSE 46 M ACN AC INPUT NEUTRAL 31 M NC NOT CONNECTED 47 M ACL AC INPUT LINE
NOTE 1) L = Long-Length Pins, M = Medium-Length Pins, S= Short-Length Pins
CPA SERIES - 250 WATT
NUCLEAR AND MEDICAL APPLICATIONS Power-One products are not authorized for use as critical components in life support systems, equipment used in hazardous environments, or nuclear control systems without the express written consent of the President of Power-One, Inc.
TECHNICAL REVISIONS The appearance of products, including safety agency certifications pictured on labels, may change depending on the date manufactured. Specifications are subject to change without notice.
