Page 1
Component with
Digital
Audio to HDMI
Format Converter
Operation Manual
CP-280H
Page 2
The component with digital audio to HDMI format converter converts analog
YCbCr/YPbPr and audio to digital HDMI format.
It allows you to connect the YCbCr/YPbPr output from DVD or Set-Top-Box
equipment to the digital HDMI input of the latest HD ready plasma, LCD or DLP TV.
Its high bandwidth capability supports HDTV resolution up to 1080p.
Package Contents:
- One CP-280H unit.
- One switching power supply adaptor.
- One 3 RCA to 3 RCA cable.
- User manual.
Features:
* It enables you to connect Set-Top-Boxes or DVDs with YPbPr/YCbCr
and Toslink output to HDMI input of HD ready plasma, LCD or DLP TV.
* The input format is YCbCr/YPbPr and digital Toslink audio
* HDMI 1.2 compliant.
* Supports up to 1920 x 1080p @ 60 Hz.

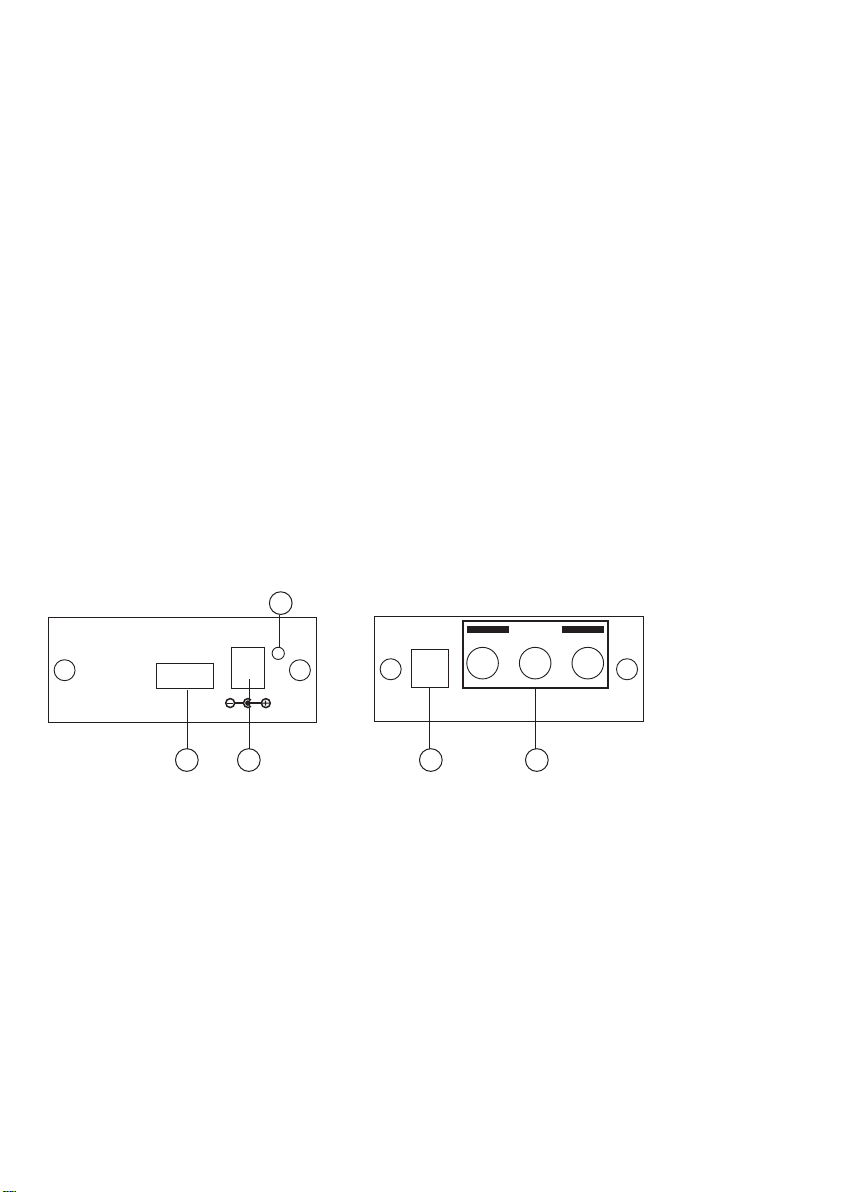

Operation Controls and Functions
Front Panel
HDMI OUT DC 5V
3
1 2
Rear Panel
TOSLINK
IN
Pr/Cr Pb/Cb
4
HDTV IN
5
Y
1. HDMI output connector:
Connect to the HDMI input of your display TV using HDMI cable.
2. DC power supply 5V 1A.
3. Power LED light.
4. Toslink digital audio input:
Connects to the Toslink output of your DVD or Set-Top-Box.
5. Analog YPbPr/YCbCr input connector :
Connects to the YPbPr or YCbCr output of your DVD or Set-Top-Box.
Page 3
Specifications
* HD Input: Analog YCbCr/YPbPr through 3 RCA connectors
* Input Signal:Y :1 Vp-p 75 ohm,
Cb/Cr or Pb/Pr:0.7 Vp-p, 75 ohm
* Audio Input: Digital Toslink Audio
* HDMI is compliant with HDMI 1.2
* Operation Frequency: up to 165MHz
* Input/Output Resolution:
HD：480i@60、576i@50、480p@60、576p@50、720p@60、
720p@50、1080i@60、1080i@50、1080p@60、
1080p@50、1080p@30、1080p@25、1080p@24
* Dimensions(mm): 76(W)x30(H)x105(D)
* Power：5V 1A Center-positive

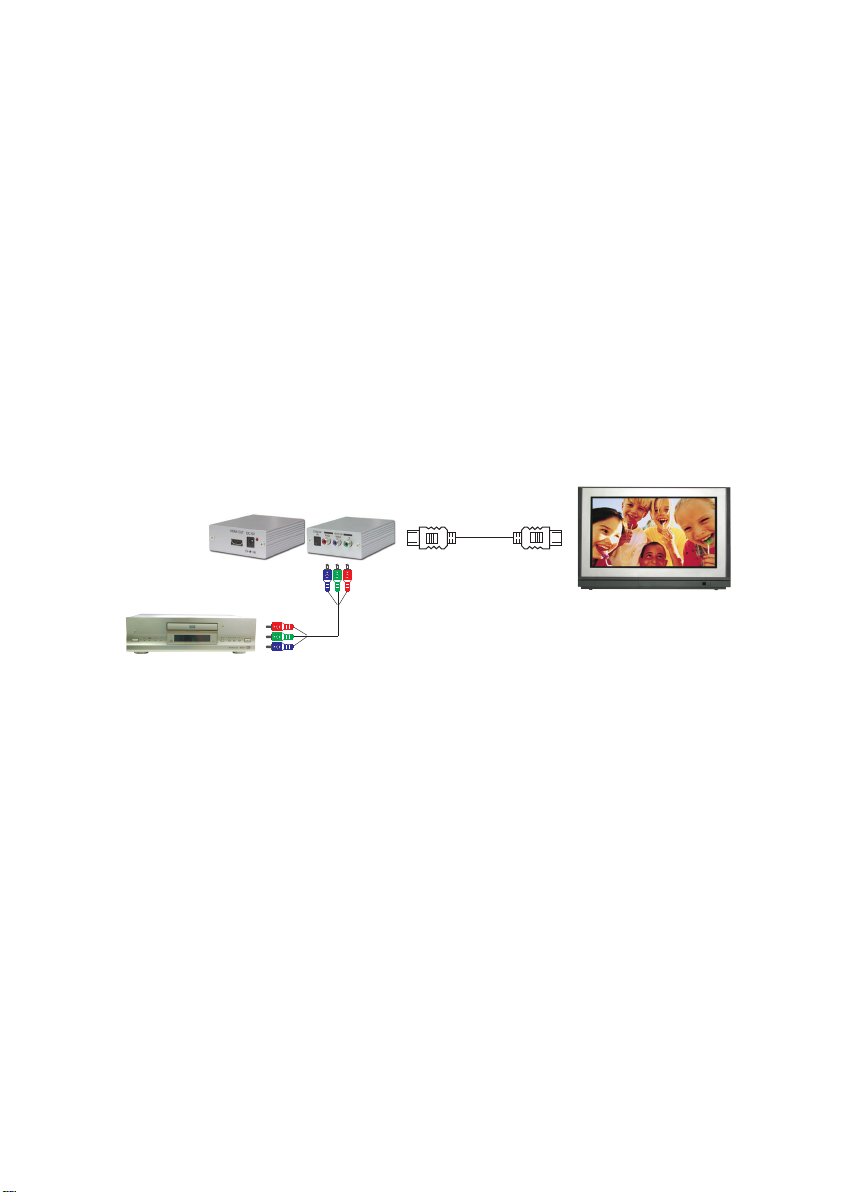

Connection and Installation
DVD
PC/YPbPr to HDMI
Format Converter
CP-280H
YPbPr
Component out
3 RCA to 3 RCA
cable
HDMI Plasma, LCD or DLP TVs
HDMI cable
