PRODUCT-DETAILS
Minimum Order Quantity
CP1-10R-02
PUSHBUTTON CP1-10R-02
Informações gerais
Extended Product Type
Product ID
EAN
Catalog Description
Long Description

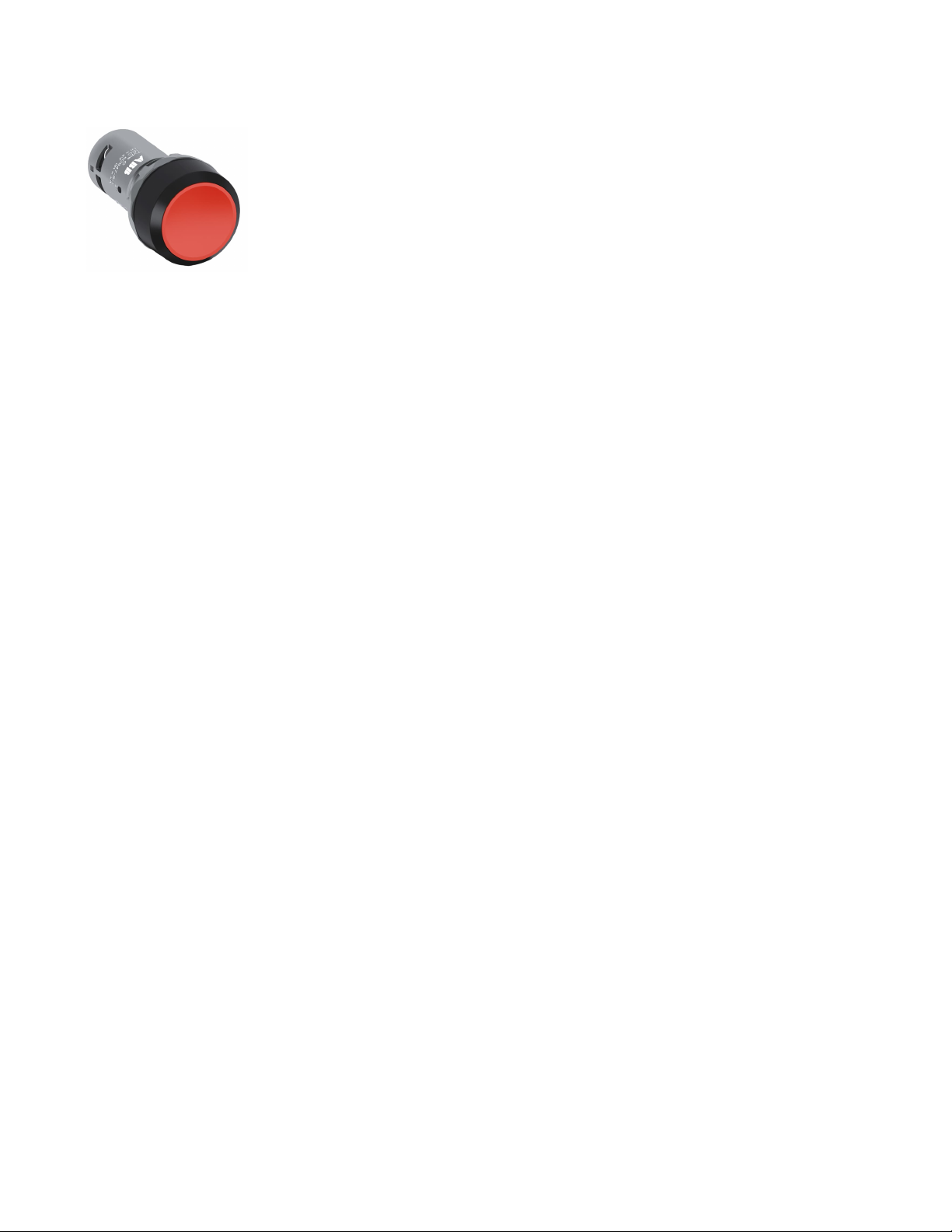

Compact Pushbutton - Momentary - Flush - Red - Non-illuminated - Black plastic - 2NC
PUSHBUTTON CP1-10R-02
CP1-10R-02
1SFA619100R1051
7320500550571
Ordering
10 piece
8536501999 Customs Tariff Number
Popular Downloads
Information
Manuals
1SFC151007C02__ Data Sheet, Technical
1SFC151011M0201 Instructions and
Dimensions
0.03 m Product Net Width
0.03 m Product Net Height
0.055 m Product Net Depth /
Page 2
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
CP1-10R-02
Length
0.022 kg Product Net Weight
2
Technical
Ambient Air
Temperature
Contacts NC
Contacts NO
Degree of Protection
Enclosure Type NEMA
(Ui)
Withstand Voltage (U
)
Voltage
Rated Operational
Current DC-13 (I
Current AC-15 (I
Connecting Capacity
imp
)
e
)
e
Flexible with Ferrule 1 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 1 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 2 x 0.5...1.5 mm²
Flexible with Ferrule 2 x 0.5...1.5 mm²
Operation -25 ... +70 °C
Storage -40 ... +85 °C
Red Color
Flush Actuator Type
Black Plastic Bezel Material
Non-illuminated Illumination
Momentary Function
2 Number of Auxiliary
0 Number of Auxiliary
Front IP66
Front IP67
Front IP69K
Terminals IP20
Type1
Type12
Type13
Type3R
Type4
Type4X
3 Pollution Degree
300 V Rated Insulation Voltage
6 kV Rated Impulse
50 / 60 Hz Rated Frequency (f)
Maximum 300 V AC/DC Rated Operational
(24 V) 0.3 A
(125 V) 0.2 A
(240 V) 1 A Rated Operational
Maximum 5 W Power Loss
0.5 million Mechanical Durability
Flexible 1 x 0.5 ...1.5 mm²
Flexible 2 x 0.5 ...1.5 mm²
Solid 1 x 0.5...1.5 mm²
Solid 2 x 0.5...1.5 mm²
Screw Clamp Connection Type
Screw Terminals Terminal Type
0.8 N·m Tightening Torque
6 mm Wire Stripping Length
Technical UL/CSA
Connecting Capacity
UL/CSA
1x 22...14 AWG
2x 22...14 AWG
Environmental
RoHS Status
Page 3
CP1-10R-02
0626 5 RoHS Date
2CMT2015-005451 RoHS Information
5. Small Equipment (No External Dimension More Than 50 cm) WEEE Category
Business To Business WEEE B2C / B2B
3
Certificates and Declarations (Document Number)
CQC_CN_CN50749 CB Certificate
2003010305054693_ CCC Certificate
CQC2003010305054693 CQC Certificate
UL_E496500-20171020 cURus Certificate
Conformity - CCC
Conformity - CE
Information
Manuals
2020980305001187 Declaration of
2CMT2015-005451 Declaration of
9AKK107046A3749 DNV GL Certificate
RU C-CN.ME77.B.00587/20 EAC Certificate
1SAC200027H0002 Environmental
1SFC151011M0201 Instructions and
2CMT2015-005451 RoHS Information
Container Information
bag 10 piece Package Level 1 Units
0.125 m Package Level 1 Width
Length
Weight
0.235 m Package Level 1 Depth /
0.05 m Package Level 1 Height
0.224 kg Package Level 1 Gross
7320500240922 Package Level 1 EAN
Classifications
Code
EC002024 - Accessories for control circuit devices ETIM 4
EC001028 - Push button, complete ETIM 5
EC001028 - Push button, complete ETIM 6
EC001028 - Push button, complete ETIM 7
V11.0 : 27371228 eClass
S Object Classification
39121500 UNSPSC
2312723 E-Number (Finland)
4373432 E-Number (Norway)
3705402 E-Number (Sweden)
Categorias
Produtos e Sistemas de Baixa Tensão → Produtos para controle → Botões → Compact Range
Page 4
CP1-10R-02
4
