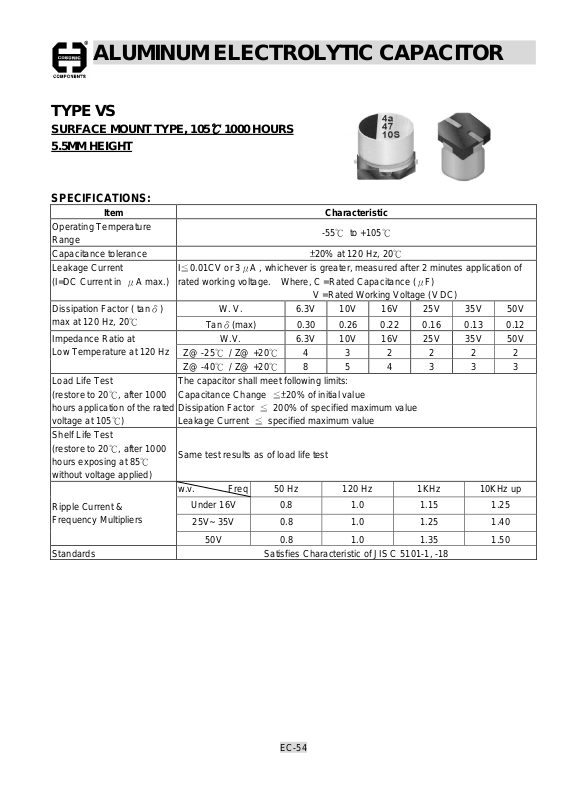

Datasheet Cosonic [SMD] VS Series Datasheet

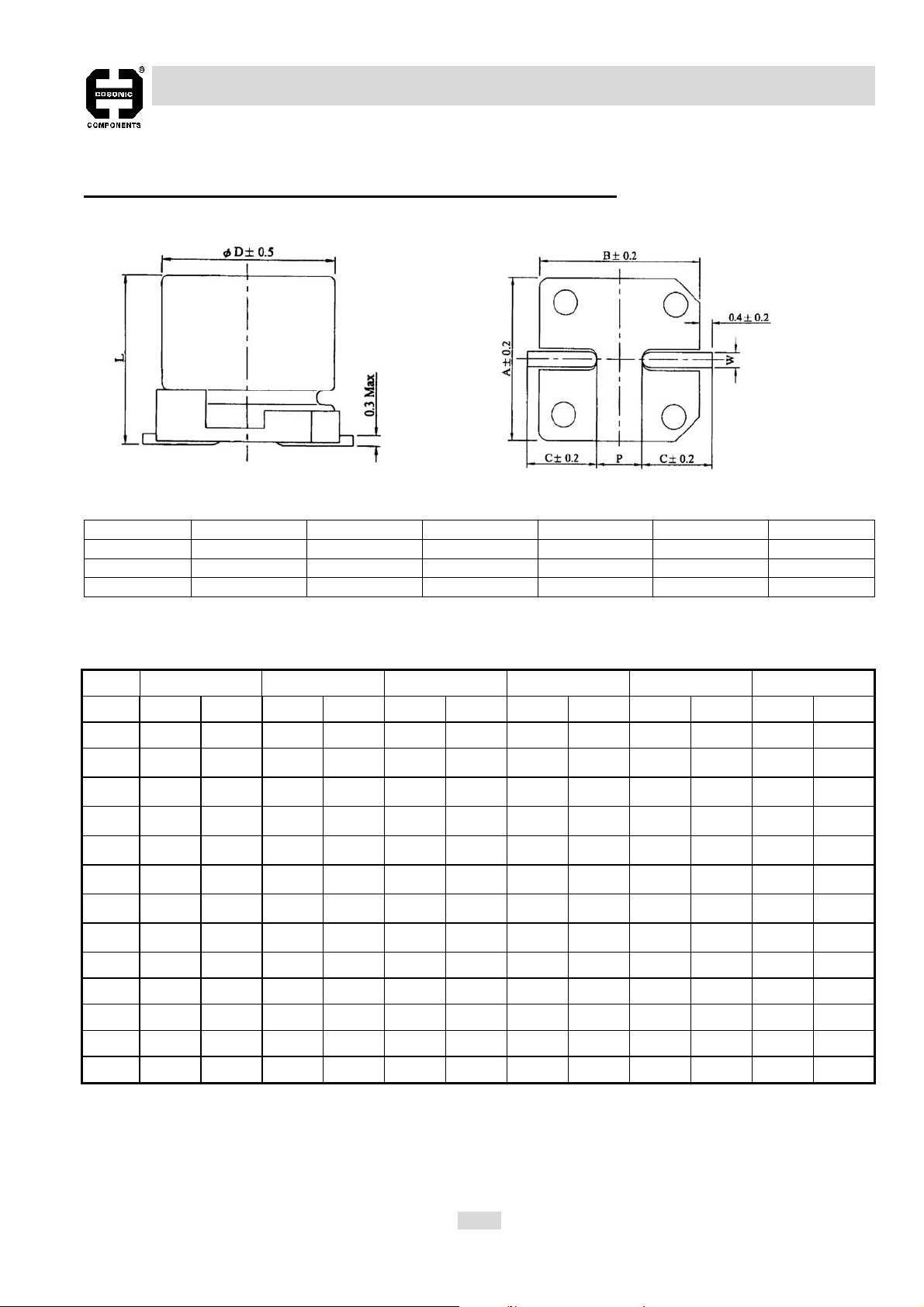

ALUMINUM ELECTROLYTIC CAPACITOR

TYPE VS

SURFACE MOUNT TYPE, 105℃ 1000 HOURS

5.5MM HEIGHT

SPECIFICATIONS:

Item Characteristic

Operating Temperature
Range
Capacitance tolerance ±20% at 120 Hz, 20℃
Leakage Current
(I=DC Current in μA max.)

max at 120 Hz, 20℃
Impedance Ratio at

Low Temperature at 120 Hz

Load Life Test
(restore to 20℃, after 1000
hours application of the rated
voltage at 105℃)
Shelf Life Test
(restore to 20℃, after 1000
hours exposing at 85℃
without voltage applied)

Ripple Current &
Frequency Multipliers

I≦0.01CV or 3μA , whichever is greater, measured after 2 minutes application of
rated working voltage. Where, C =Rated Capacitance (μF)

W. V. 6.3V 10V 16V 25V 35V 50V Dissipation Factor ( tanδ)

Tanδ(max) 0.30 0.26 0.22 0.16 0.13 0.12

W.V. 6.3V 10V 16V 25V 35V 50V
Z@ -25℃ / Z@ +20℃ 4 3 2 2 2 2
Z@ -40℃ / Z@ +20℃ 8 5 4 3 3 3

The capacitor shall meet following limits:
Capacitance Change ≦±20% of initial value
Dissipation Factor ≦ 200% of specified maximum value
Leakage Current ≦ specified maximum value

Same test results as of load life test

w.v. Freq 50 Hz 120 Hz 1KHz 10KHz up

Under 16V 0.8 1.0 1.15 1.25

25V~ 35V 0.8 1.0 1.25 1.40

-55℃ to +105℃

V =Rated Working Voltage (V DC)

50V 0.8 1.0 1.35 1.50

Standards Satisfies Characteristic of JIS C 5101-1, -18

EC-54

ALUMINUM ELECTROLYTIC CAPACITOR

TYPE VS

SURFACE MOUNT TYPE, 105℃ 1000 HOURS 5.5MM HEIGHT

Unit: mm

Dψ L A B C W P±0.2

4.0 5.3±0.2 4.3 4.3 2.0 0.5 to 0.8 1.0

5.0 5.3±0.2 5.3 5.3 2.3 0.5 to 0.8 1.5

6.3 5.3±0.2 6.6 6.6 2.7 0.5 to 0.8 2.0

CASE SIZE (DxL mm) AND PERMISSIBLE RIPPLE CURRENT (mA rms, at 105℃ 120 Hz):

W.V.

μF DxL R.C. DxL R.C. DxL R.C. DxL R.C. DxL R.C. DxL R.C.

0.1 4x5.32

0.22

0.33

0.47
1

2.2

3.3

4.7 4x5.3 12 4x5.7 14
10 4x5.3 15 4x5.3 16 5x5.3 21 5x5.7 23 6.3x5.7 26

22 4x5.3 21 5x5.3 25 5x5.3 28 6.3x5.3 36 6.3x5.7 50 6.3x5.7 51
33 5x5.3 30 6.3x5.3 31 6.3x5.3 40 6.3x5.3 44
47 6.3x5.3 36 6.3x5.3 43 6.3x5.3 47 6.3x5.3 60

100 6.3x5.3 61 6.3x5.3 65 6.3x5.3 70

6.3V 10V 16V 25V 35V 50V

4x5.3
4x5.3
4x5.3
4x5.3
4x5.3
4x5.3
5x5.3

3
4
5

7
10
12
17

EC-55
