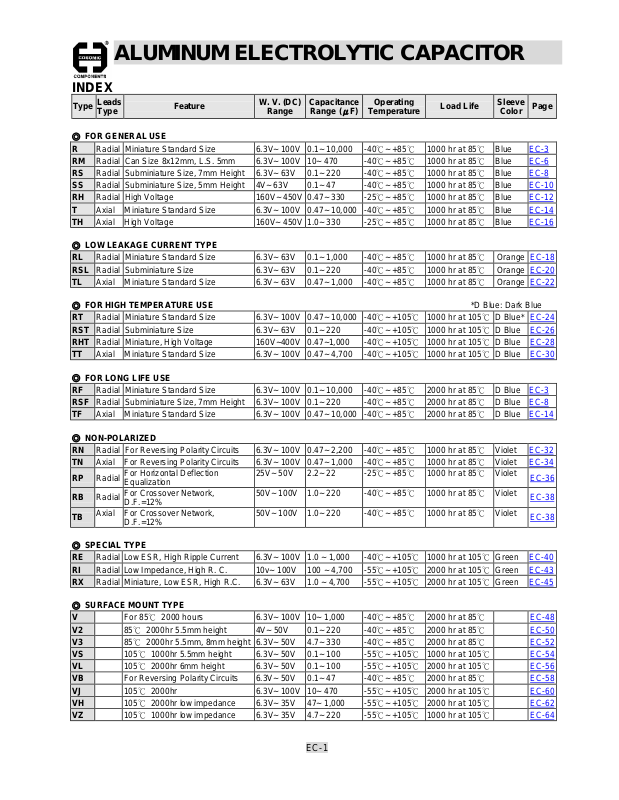

ALUMINUM ELECTROLYTIC CAPACITOR
INDEX
Leads
Type
Type
◎ FOR GENERAL USE
R Radial Miniature Standard Size 6.3V~ 100V 0.1~ 10,000 -40℃~ +85℃ 1000 hr at 85℃ Blue EC-3
RM Radial Can Size 8x12mm, L.S. 5mm 6.3V~ 100V 10~ 470 -40℃~ +85℃ 1000 hr at 85℃ Blue EC-6
RS Radial Subminiature Size, 7mm Height 6.3V~ 63V 0.1~ 220 -40℃~ +85℃ 1000 hr at 85℃ Blue EC-8
SS Radial Subminiature Size, 5mm Height 4V~ 63V 0.1~ 47 -40℃~ +85℃ 1000 hr at 85℃ Blue EC-10
RH Radial High Voltage 160V~ 450V 0.47~ 330 -25℃~ +85℃ 1000 hr at 85℃ Blue EC-12
T Axial Miniature Standard Size 6.3V~ 100V 0.47~ 10,000 -40℃~ +85℃ 1000 hr at 85℃ Blue EC-14
TH Axial High Voltage 160V~ 450V 1.0~ 330 -25℃~ +85℃ 1000 hr at 85℃ Blue EC-16
◎ LOW LEAKAGE CURRENT TYPE
RL Radial Miniature Standard Size 6.3V~ 63V 0.1~ 1,000 -40℃~ +85℃ 1000 hr at 85℃ Orange EC-18
RSL Radial Subminiature Size 6.3V~ 63V 0.1~ 220 -40℃~ +85℃ 1000 hr at 85℃ Orange EC-20
TL Axial Miniature Standard Size 6.3V~ 63V 0.47~ 1,000 -40℃~ +85℃ 1000 hr at 85℃ Orange EC-22
◎ FOR HIGH TEMPERATURE USE *D Blue: Dark Blue
RT Radial Miniature Standard Size 6.3V~ 100V 0.47~ 10,000 -40℃~ +105℃ 1000 hr at 105℃ D Blue* EC-24
RST Radial Subminiature Size 6.3V~ 63V 0.1~ 220 -40℃~ +105℃ 1000 hr at 105℃ D Blue EC-26
RHT Radial Miniature, High Voltage 160V~400V 0.47~1,000 -40℃~ +105℃ 1000 hr at 105℃ D Blue EC-28
TT Axial Miniature Standard Size 6.3V~ 100V 0.47~ 4,700 -40℃~ +105℃ 1000 hr at 105℃ D Blue EC-30
◎ FOR LONG LIFE USE
RF Radial Miniature Standard Size 6.3V~ 100V 0.1~ 10,000 -40℃~ +85℃ 2000 hr at 85℃ D Blue EC-3
RSF Radial Subminiature Size, 7mm Height 6.3V~ 100V 0.1~ 220 -40℃~ +85℃ 2000 hr at 85℃ D Blue EC-8
TF Axial Miniature Standard Size 6.3V~ 100V 0.47~ 10,000 -40℃~ +85℃ 2000 hr at 85℃ D Blue EC-14
◎ NON-POLARIZED
RN Radial For Reversing Polarity Circuits 6.3V~ 100V 0.47~ 2,200 -40℃~ +85℃ 1000 hr at 85℃ Violet EC-32
TN Axial For Reversing Polarity Circuits 6.3V~ 100V 0.47~ 1,000 -40℃~ +85℃ 1000 hr at 85℃ Violet EC-34
RP Radial
RB Radial
TB
◎ SPECIAL TYPE
RE Radial Low ESR, High Ripple Current 6.3V~ 100V 1.0 ~ 1,000 -40℃~ +105℃ 1000 hr at 105℃ Green EC-40
RI Radial Low Impedance, High R. C. 10v~ 100V 100 ~ 4,700 -55℃~ +105℃ 2000 hr at 105℃ Green EC-43
RX Radial Miniature, Low ESR, High R.C. 6.3V~ 63V 1.0 ~ 4,700 -55℃~ +105℃ 2000 hr at 105℃ Green EC-45
◎ SURFACE MOUNT TYPE
V For 85℃ 2000 hours 6.3V~ 100V 10~ 1,000 -40℃~ +85℃ 2000 hr at 85℃ EC-48
V2 85℃ 2000hr 5.5mm height 4V~ 50V 0.1~ 220 -40℃~ +85℃ 2000 hr at 85℃ EC-50
V3 85℃ 2000hr 5.5mm, 8mm height 6.3V~ 50V 4.7~ 330 -40℃~ +85℃ 2000 hr at 85℃ EC-52
VS 105℃ 1000hr 5.5mm height 6.3V~ 50V 0.1~ 100 -55℃~ +105℃ 1000 hr at 105℃ EC-54
VL 105℃ 2000hr 6mm height 6.3V~ 50V 0.1~ 100 -55℃~ +105℃ 2000 hr at 105℃ EC-56
VB For Reversing Polarity Circuits 6.3V~ 50V 0.1~ 47 -40℃~ +85℃ 2000 hr at 85℃ EC-58
VJ 105℃ 2000hr 6.3V~ 100V 10~ 470 -55℃~ +105℃ 2000 hr at 105℃ EC-60
VH 105℃ 2000hr low impedance 6.3V~ 35V 47~ 1,000 -55℃~ +105℃ 2000 hr at 105℃ EC-62
VZ 105℃ 1000hr low impedance 6.3V~ 35V 4.7~ 220 -55℃~ +105℃ 1000 hr at 105℃ EC-64
For Horizontal Deflection
Equalization
For Crossover Network,
D.F.=12%
Axial For Crossover Network,
D.F.=12%
Feature
W. V. (DC)
Range
25V~ 50V 2.2~ 22 -25℃~ +85℃ 1000 hr at 85℃ Violet
50V~ 100V 1.0~ 220 -40℃~ +85℃ 1000 hr at 85℃ Violet
50V~ 100V 1.0~ 220 -40℃~ +85℃ 1000 hr at 85℃ Violet
Capacitance
Range (μF)
Operating
Temperature
Load Life
Sleeve
Color
Page
EC-36
EC-38
EC-38
EC-1
Page 2
ALUMINUM ELECTROLYTIC CAPACITOR
INDEX
Leads
Type
Type
◎ LARGE CAN TYPE
LP
LS
LST
LN
◎ DATA OF LEADS CUT, FORMING, TAPING, FLOW CHART
V
Large Capacitance, with Radial
Radial
Auxiliary Lead
Large Capacitance, with Snap-in
Radial
Terminal
Large Capacitance, Snap-in
Radial
Terminal
Large Capacitance, with Screw
Radial
Terminal
Taping Specification for Surface Mount Type EC-66
Radial Cut and Forming EC-85
Radial Formed Leads for taping EC-86
Radial Tape and Reel EC-87
Axial Tape and Reel EC-88
Production & QC Inspection Flow Chart EC-89
Feature
W. V. (DC)
Range
10V~ 250V 220~ 22,000
10v~ 450V 47~ 22,000
16V~ 400V 47 ~ 15,000
6.3V~ 450V 270~ 18,000
Capacitance
Range (μF)
Operating
Temperature
-40℃~ +85℃ 1000 hr at 85℃
-40℃~ +85℃ 1000 hr at 85℃
-40℃~ +105℃ 500 hr at 105℃
-40℃~ +85℃ 2000 hr at 85℃
Load Life
Sleeve
Color
Black EC-68
Black EC-70
Black EC-75
Black EC-79
Page
PART NUMBER DESCRIPTION (for order booking)
Type Rated Cap. Cap. Tol. Rated Voltage D x L Lead Form & Package
(1) (2) (3) (4) (5) (6)
Example: RL 4.7 M 50V 5 X 11 TR
Tape & Reel
Case Size 5x11mm
50V DC
±20%
4.7μF
Type RL
(1) Type: Please refer to “INDEX” shown in page EC-1
(2) Rated Capacitance: in (μF)
(3) Capacitance Tolerance: K=±10%, M=±20%
(4) Rated Voltage: in volts (V), DC
(5) Case Size: indicating diameter (D) and length (L) in mm.
(6) Lead Form & Package: Please refer to page EC-79 ~ EC-83 for the details.
It is omitted when the capacitor is with standard long leads and in bulk package.
CT = Cut Lead SF = Snap-in cut and Formed Lead
CF = Cut and Formed Lead TR = Tape and Reel Package
ST = Snap-in Cut Lead TB = Tape and Box (Ammo) package
EC-2
