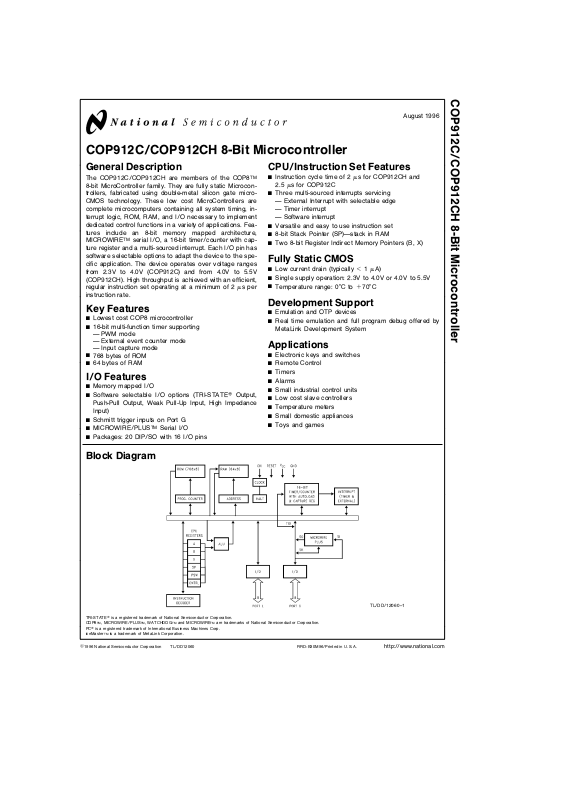

COP912C/COP912CH 8-Bit Microcontroller

August 1996

COP912C/COP912CH 8-Bit Microcontroller

General Description

The COP912C/COP912CH are members of the COP8

TM

8-bit MicroController family. They are fully static Microcon­trollers, fabricated using double-metal silicon gate micro­CMOS technology. These low cost MicroControllers are
complete microcomputers containing all system timing, in­terrupt logic, ROM, RAM, and I/O necessary to implement
dedicated control functions in a variety of applications. Fea­tures include an 8-bit memory mapped architecture,
MICROWlRE

TM

serial I/O, a 16-bit timer/counter with cap­ture register and a multi-sourced interrupt. Each I/O pin has
software selectable options to adapt the device to the spe­cific application. The device operates over voltage ranges
from 2.3V to 4.0V (COP912C) and from 4.0V to 5.5V
(COP912CH). High throughput is achieved with an efficient,
regular instruction set operating at a minimum of 2 ms per
instruction rate.

Key Features

Y

Lowest cost COP8 microcontroller

Y

16-bit multi-function timer supporting
Ð PWM mode
Ð External event counter mode
Ð Input capture mode

Y

768 bytes of ROM

Y

64 bytes of RAM

I/O Features

Y

Memory mapped I/O

Y

Software selectable I/O options (TRI-STATEÉOutput,
Push-Pull Output, Weak Pull-Up Input, High Impedance
Input)

Y

Schmitt trigger inputs on Port G

Y

MICROWIRE/PLUSTMSerial I/O

Y

Packages: 20 DIP/SO with 16 I/O pins

CPU/Instruction Set Features

Y

Instruction cycle time of 2 ms for COP912CH and

2.5 ms for COP912C

Y

Three multi-sourced interrupts servicing
Ð External Interrupt with selectable edge
Ð Timer interrupt
Ð Software interrupt

Y

Versatile and easy to use instruction set

Y

8-bit Stack Pointer (SP)Ðstack in RAM

Y

Two 8-bit Register Indirect Memory Pointers (B, X)

Fully Static CMOS

Y

Low current drain (typicallyk1 mA)

Y

Single supply operation: 2.3V to 4.0V or 4.0V to 5.5V

Y

Temperature range: 0§Ctoa70§C

Development Support

Y

Emulation and OTP devices

Y

Real time emulation and full program debug offered by
MetaLink Development System

Applications

Y

Electronic keys and switches

Y

Remote Control

Y

Timers

Y

Alarms

Y

Small industrial control units

Y

Low cost slave controllers

Y

Temperature meters

Y

Small domestic appliances

Y

Toys and games

Block Diagram

TL/DD/12060– 1

TRI-STATEÉis a registered trademark of National Semiconductor Corporation.
COP8

TM

, MICROWIRE/PLUSTM, WATCHDOGTMand MICROWIRETMare trademarks of National Semiconductor Corporation.

PC

É

is a registered trademark of International Business Machines Corp.

iceMaster

TM

is a trademark of MetaLink Corporation.

C

1996 National Semiconductor Corporation RRD-B30M96/Printed in U. S. A.

http://www.national.com

Absolute Maximum Ratings

If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales
Office/Distributors for availability and specifications.

Supply Voltage (V

CC

) 6.0V

Voltage at Any Pin

b

0.3V to V

CC

a

0.3V

Total Current into V

CC

Pin (Source) 80 mA

Total Current out of GND Pin (Sink) 80 mA

Storage Temperature Range

b

65§Ctoa150§C

Note:

Absolute maximum ratings indicate limits beyond which damage
to the device may occur. DC and AC electrical specifications are not
ensured when operating the device at absolute maximum ratings.

DC Electrical Characteristics COP912C/COP912CH; 0

§

CsT

A

s

a

70§C unless other specified

Parameter Conditions Min Typ Max Units

Operating Voltage
912C 2.3 4.0 V
912CH 4.0 5.5 V
Power Supply Ripple 1 (Note 1) Peak to Peak 0.1 V

CC

V

Supply Current (Note 2)
CKIe4 MHz V

CC

e

5.5V, tce2.5 ms 6.0 mA

CKI

e

4 MHz V

CC

e

4.0V, tce2.5 ms 2.5 mA

HALT Current V

CC

e

5.5V, CKIe0 MHz

k

18mA

INPUT LEVELS (VIH,VIL)
Reset, CKI:

Logic High 0.9 V

CC

V

Logic Low 0.1 V

CC

V

All Other Inputs

Logic High 0.7 V

CC

V

Logic Low 0.2 V

CC

V

Hi-Z Input Leakage/TRI-STATE Leakage V

CC

e

5.5V

b

2

a

2 mA

Input Pullup Current V

CC

e

5.5V 250 mA

G-Port Hysteresis 0.05 V

CC

0.35 V

CC

V

Output Current Levels
Source (Push-Pull Mode) V

CC

e

4.0V, V

OH

e

3.8V 0.4 mA

V

CC

e

2.3V, V

OH

e

1.8V 0.2 mA

Sink (Push-Pull Mode) V

CC

e

4.0V, V

OL

e

1.0V 4.0 mA

V

CC

e

2.3V, V

OL

e

0.4V 0.7 mA

Allowable Sink/Source Current Per Pin 3mA

Input Capacitance (Note 3) 7pF

Load Capacitance on D2 (Note 3) 1000 pF

Note 1: Rate of voltage change must be less then 0.5 V/ms.

Note 2: Supply current is measured after running 2000 cycles with a square wave CKI input, CKO open, inputs at rails and outputs open.

Note 3: Characterized, not tested.

TL/DD/12060– 2

FIGURE 1. MICROWIRE/PLUS Timing

http://www.national.com 2

Typical Performance Characteristics

HaltÐI

DD

TL/DD/12060– 16

DynamicÐIDD(Crystal Clock Option)

TL/DD/12060– 17

Port L/G Weak Pull-Up

Source Current

TL/DD/12060– 18

Port L/G Push-Pull Source Current

TL/DD/12060– 19

Port L/G Push-Pull Sink Current

TL/DD/12060– 20

Port D Source Current

TL/DD/12060– 21

Port D Sink Current

TL/DD/12060– 22

http://www.national.com3

AC Electrical Characteristics COP912C/COP912CH; 0

§

CsT

A

s

a

70§C unless otherwise specified

Parameter Conditions Min Typ Max Units

INSTRUCTION CYCLE TIME (tc)
Crystal/Resonator 4.0V

s

V

CC

s

5.5V 2 DC ms

2.3V

s

V

CC

k

4.0V 2.5 DC ms

R/C Oscillator 4.0V

s

V

CC

s

5.5V 3 DC ms

2.3V

s

V

CC

k

4.0V 7.5 DC ms

Inputs
t

Setup

4.0VsV

CC

s

5.5V 200 ns

2.3V

s

V

CC

k

4.0V 500 ns

t

Hold

4.0VsV

CC

s

5.5V 60 ns

2.3V

s

V

CC

k

4.0V 150 ns

Output Propagation Delay R

L

e

2.2 kX,C

L

e

100 pF

t

PD1,tPD0

SO, SK 4.0VsV

CC

s

5.5V 0.7 ms

2.3V

s

V

CC

k

4.0V 1.75 ms

All Others 4.0V

s

V

CC

s

5.5V 1 ms

2.3V

s

V

CC

k

4.0V 5 ms

Input Pulse Width
Interrupt Input High Time 1 tc
Interrupt Input Low Time 1 tc
Timer Input High Time 1 tc
Timer Input Low Time 1 tc

MICROWIRE Setup Time (t

mWS

)20ns

MICROWIRE Hold Time (t

mWH

)56ns
MICROWIRE Output 220 ns
Propagation Delay (t

mPD

)

Reset Pulse Width 1.0 ms

COP912C/COP912CH Pinout

Top View

20 DIP

TL/DD/12060– 3

Order Number COP912C-XXX/N, COP912CH-XXX/N

20 SO Wide

TL/DD/12060– 4

Order Number COP912C-XXX/WM,

COP912CH-XXX/WM

FIGURE 2. COP912C/COP912CH Pinout

http://www.national.com 4

Pin Description

VCCand GND are the power supply pins.

CKI is the clock input. This can come from an external

source, a R/C generated oscillator or a crystal (in conjunc­tion with CKO). See Oscillator description.

RESET

is the master reset input. See Reset description.

PORT L is an 8-bit I/O port.

There are two registers associated to configure the L port: a
data register and a configuration register Therefore, each L
I/O bit can be individually configured under software control
as shown below:

Port L Config. Port L Data

PORT L

Setup

0 0 Hi-Z Input (TRI-STATE)

0 1 Input with Weak Pull-Up

1 0 Push-Pull Zero Output

1 1 Push-Pull One Output

Three data memory address locations are allocated for this
port, one each for data register[00D0], configuration regis­ter[00D1]and the input pins[00D2].

PORT G is an 8-bit port with 6 I/O pins (G0–G5) and 2 input
pins (G6, G7).

All eight G-pins have Schmitt Triggers on the inputs.

There are two registers associated to configure the G port:
a data register and a configuration register. Therefore each
G port bit can be individually configured under software con­trol as shown below:

Port G Port G PORT G

Config. Data Setup

0 0 Hi-Z Input (TRI-STATE)

0 1 Input with Weak Pull-Up

1 0 Push-Pull Zero Output

1 1 Push-Pull One Output

Three data memory address locations are allocated for this
port, one for data register[00D4], one for configuration reg­ister[00D5]and one for the input pins[00D6]. Since G6
and G7 are Hi-Z input only pins, any attempt by the user to
configure them as outputs by writing a one to the configura­tion register will be disregarded. Reading the G6 and G7
configuration bits will return zeroes. Note that the chip will
be placed in the Halt mode by writing a ‘‘1’’ to the G7 data
bit.

Six pins of Port G have alternate features:

G0 INTR (an external interrupt)

G3 TIO (timer/counter input/output)

G4 SO (MICROWIRE serial data output)

G5 SK (MICROWIRE clock I/O)

G6 SI (MICROWIRE serial data input)

G7 CKO crystal oscillator output (selected by mask option)

or HALT restart input/general purpose input (if clock op­tion is R/C- or external clock)

Pins G1 and G2 currently do not have any alternate func­tions.

The selection of alternate Port G functions are done through
registers PSW[00EF]to enable external interrupt and
CNTRL[00EE]to select TIO and MICROWIRE operations.

Functional Description

The internal architecture is shown in the block diagram.
Data paths are illustrated in simplified form to depict how
the various logic elements communicate with each other in
implementing the instruction set of the device.

ALU AND CPU REGISTERS

The ALU can do an 8-bit addition, subtraction, logical or
shift operations in one cycle time. There are five CPU regis­ters:

A is the 8-bit Accumulator register

PC is the 15-bit Program Counter register

PU is the upper 7 bits of the program counter (PC)

PL is the lower 8 bits of the program counter (PC)

B is the 8-bit address register and can be auto incre-

mented or decremented

X is the 8-bit alternate address register and can be auto

incremented or decremented.

SP is the 8-bit stack pointer which points to the subroutine

stack (in RAM).

B, X and SP registers are mapped into the on chip RAM.
The B and X registers are used to address the on chip RAM.
The SP register is used to address the stack in RAM during
subroutine calls and returns. The SP must be preset by soft­ware upon initialization.

MEMORY

The memory is separated into two memory spaces: program
and data.

PROGRAM MEMORY

Program memory consists of 768 x 8 ROM. These bytes of
ROM may be instructions or constant data. The memory is
addressed by the 15-bit program counter (PC). There are no
‘‘pages’’ of ROM, the PC counts all 15 bits. ROM can be
indirectly read by the LAlD instruction for table lookup.

DATA MEMORY

The data memory address space includes on chip RAM, I/O
and registers. Data memory is addressed directly by the in­struction or indirectly through B, X and SP registers. The
device has 64 bytes of RAM. Sixteen bytes of RAM are
mapped as ‘‘registers’’, these can be loaded immediately,
decremented and tested. Three specific registers: X, B, and
SP are mapped into this space, the other registers are avail­able for general usage.

Any bit of data memory can be directly set, reset or tested.
I/O and registers (except A and PC) are memory mapped;
therefore, I/O bits and register bits can be directly and indi­vidually set, reset and tested.

RESET

The RESET input pin when pulled low initializes the micro­controller. Upon initialization, the ports L and G are placed
in the TRl-STATE mode. The PC, PSW and CNTRL regis­ters are cleared. The data and configuration registers for
ports L and G are cleared. The external RC network shown
in

Figure 3

should be used to ensure that the RESET pin is

held low until the power supply to the chip stabilizes.

http://www.national.com5

Functional Description (Continued)

TL/DD/12060– 5

RCl5 x POWER SUPPLY RISE TIME

FIGURE 3. Recommended Reset Circuit

OSCILLATOR CIRCUITS

The device can be driven by a clock input which can be
between DC and 5 MHz.

CRYSTAL OSCILLATOR

By selecting CKO as a clock output, CKI and CKO can be
connected to create a crystal controlled oscillator. Table I
shows the component values required for various standard
crystal values.

R/C OSCILLATOR

By selecting CKI as a single pin oscillator, CKI can make an
R/C oscillator. CKO is available as a general purpose input
and/or HALT control. Table II shows variation in the oscilla­tor frequencies as functions of the component (R and C)
value.

TL/DD/12060– 6

FIGURE 4. Clock Oscillator Configurations

TABLE I. Crystal Oscillator Configuration

R1 R2 C1 C2

CKI

(kX)(mX) (pF) (pF)

Freq.

(MHz)

0 1 30 30–36 5

0 1 30 30–36 4

5.6 1 200 100–150 0.455

TABLE II. RC Oscillator Configuration

(Part-to-Part Variation, T

A

e

25§C)

R C CKI Freq.

Intr.

(kX) (pF) (MHz)

Cycle

(ms)

3.3 82 2.2 to 2.7 3.7 to 4.6

5.6 100 1.1 to 1.3 7.4 to 9

6.8 100 0.9 to 1.1 8.8 to 10.8

Note: 3ksRs200 kX,50pFsCs200 pF.

HALT MODE

The device is a fully static device. The device enters the
HALT mode by writing a one to the G7 bit of the G data
register. Once in the HALT mode, the internal circuitry does
not receive any clock signal and is therefore frozen in the
exact state it was in when halted. In this mode the chip will
only draw leakage current.

The device supports two different ways of exiting the HALT
mode. The first method is with a low to high transition on the
CKO (G7) pin. This method precludes the use of the crystal
clock configuration (since CKO is a dedicated output), and
so may be used either with an RC clock configuration (or an
external clock configuration). The second method of exiting
the HALT mode is to pull the RESET low.

Note: To allow clock resynchronization, it is necessary to program two

NOP’s immediately after the device comes out of the HALT mode.
The user must program two NOP’s following the ‘‘enter HALT mode’’
(set G7 data bit) instruction.

http://www.national.com 6

Functional Description (Continued)

MICROWIRE/PLUS

MICROWIRE/PLUS is a serial synchronous communica­tions interface. The MICROWIRE/PLUS capability enables
the device to interface with any of National Semiconductor’s
MICROWIRE peripherals (i.e., A/D converters, display driv­ers, EEPROMS etc.) and with other microcontrollers which
support the MICROWIRE interface. It consists of an 8-bit
serial shift register (SIO) with serial data input (SI), serial
data output (SO) and serial shift clock (SK).

Figure 5

shows

a block diagram of the MICROWIRE logic.

The shift clock can be derived from either the internal
source or from an external source. Operating the
MICROWIRE arrangement with the internal clock source is
called the Master mode of operation. Similarly, operating
the MICROWIRE arrangement with an external shift clock is
called the Slave mode of operation.

The CNTRL register is used to configure and control the
MICROWIRE mode. To use the MICROWIRE, the MSEL bit
in the CNTRL register is set to one. The SK clock rate is
selected by the two bits, SL0 and SL1, in the CNTRL regis­ter.

The following table details the different clock rates that may
be selected.

SK Divide Clock Rates

SL1 SL0 SK

0 0 2xtc

0 1 4xtc

1 x 8xtc

Where tc is the instruction cycle clock.

MICROWIRE/PLUS OPERATION

Setting the BUSY bit in the PSW register causes the MI­CROWIRE/PLUS to start shifting the data. It gets reset
when eight data bits have been shifted. The user may reset
the BUSY bit by software to allow less than 8 bits to shift.
The device may enter the MICROWIRE/PLUS mode either
as a Master or as a Slave.

Figure 5

shows how two micro­controllers and several peripherals may be interconnected
using the MICROWIRE/PLUS arrangement.

TL/DD/12060– 7

FIGURE 5. MICROWIRE/PLUS Application

http://www.national.com7

Functional Description (Continued)

WARNING: The SIO register should only be loaded when

the SK clock is low. Loading the SIO register while the SK
clock is high will result in undefined data in the SIO register.

Setting the BUSY flag when the input SK clock is high in the
MICROWIRE/PLUS slave mode may cause the current SK
clock for the SIO shift register to be narrow. For safety, the
BUSY flag should only be set when the input SK clock is
low.

Table III summarizes the settings required to enter the Mas­ter/Slave modes of operations.

The table assumes that the control flag MSEL is set.

TABLE III. MICROWIRE/PLUS G Port Configuration

G4 G5

(SO) (SK) G4 G5 G6

Operation

Config. Config. Pin Pin Pin

Bit Bit

1 1 SO Int. SK SI MICROWIRE

Master

0 1 TRI-STATE Int. SK SI MICROWIRE

Master

1 0 SO Ext. SK SI MICROWIRE

Slave

0 0 TRI-STATE Ext. SK SI MICROWIRE

Slave

MICROWIRE/PLUS MASTER MODE OPERATION

In MICROWIRE/PLUS Master mode operation, the SK shift
clock is generated internally. The MSEL bit in the CNTRL
register must be set to allow the SK and SO functions onto
the G5 and G4 pins. The G5 and G4 pins must also be
selected as outputs by setting the appropriate bits in the
Port G configuration register. The MICROWIRE Master
mode always initiates all data exchanges. The MSEL bit in
the CNTRL register is set to enable MICROWIRE/PLUS. G4
and G5 are selected as output.

TL/DD/12060– 8

FIGURE 6. MICROWIRE/PLUS Block Diagram

MICROWIRE/PLUS SLAVE MODE

In MICROWIRE/PLUS Slave mode operation, the SK shift
clock is generated by an external source. Setting the MSEL
bit in the CNTRL register enables the SO and SK functions
onto the G port. The SK pin must be selected as an input
and the SO pin as an output by resetting and setting their
respective bits in the G port configuration register.

The user must set the BUSY flag immediately upon entering
the slave mode. This will ensure that all data bits sent by the
master will be shifted in properly. After eight clock pulses,
the BUSY flag will be cleared and the sequence may be
repeated.

Note: In the Slave mode the SIO register does not stop shifting even after

the busy flag goes low. Since SK is an external output, the SIO regis­ter stops shifting only when SK is turned off by the master.

Note: Setting the BUSY flag when the input SK clock is high in the MICRO-

WIRE/PLUS slave mode may cause the current SK clock for the SIO
register to be narrow. When the BUSY flag is set, the MICROWIRE
logic becomes active with the internal SIO shift clock enabled. If SK is
high in slave mode, this will cause the internal shift clock to go from
low in standby mode to high in active mode. This generates a rising
edge, and causes one bit to be shifted into the SIO register from the
SI input. For safety, the BUSY flag should only be set when the input
SK clock is low.

Note: The SIO register must be loaded only when the SK shift clock is low.

Loading the SIO register while the SK clock is high will result in unde­fined data in the SIO register.

Timer/Counter

The device has an on board 16-bit timer/counter (organized
as two 8-bit registers) with an associated 16-bit autoreload/
capture register (also organized as two 8-bit registers). Both
are read/write registers.

The timer has three modes of operation:

PWM (PULSE WIDTH MODULATION) MODE

The timer counts down at the instruction cycle rate (2 ms
max). When the timer count underflows, the value in the
autoreload register is copied into the timer. Consequently,
the timer is programmable to divide by any value from 1 to

65536. Bit 5 of the timer CNTRL register selects the timer
underflow to toggle the G3 output. This allows the user to
generate a square wave output or a pulse-width-modulated
output. The timer underflow can also be enabled to interrupt
the processor. The timer PWM mode is shown in

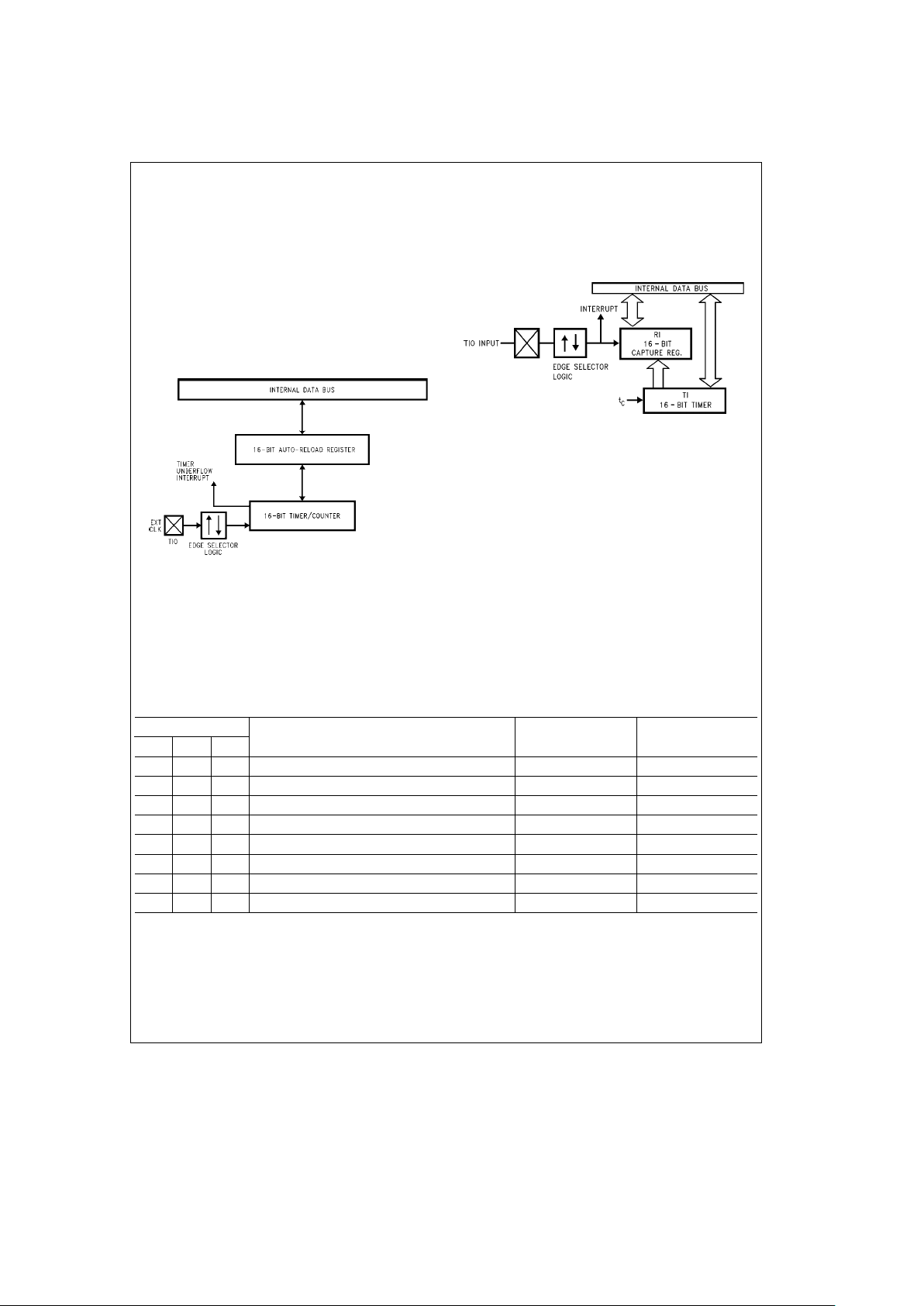

Figure 7

.

TL/DD/12060– 10

FIGURE 7. Timer in PWM Mode

http://www.national.com 8

Functional Description (Continued)

EXTERNAL EVENT COUNTER MODE

In this mode, the timer becomes a 16-bit external event
counter, clocked from an input signal applied to the G3 in­put. The maximum frequency for this G3 input clock is
250 kHz (half of the 0.5 MHz instruction cycle clock). When
the external event counter underflows, the value in the au­toreload register is copied into the timer. This timer under­flow may also be used to generate an interrupt. Bit 5 of the
CNTRL register is used to select whether the external event
counter clocks on positive or negative edges from the G3
input. Consequently, half cycles of an external input signal
could be counted. The External Event counter mode is
shown in

Figure 8

.

TL/DD/12060– 11

FIGURE 8. Timer in External Event Mode

INPUT CAPTURE MODE

In this mode, the timer counts down at the instruction clock
rate. When an external edge occurs on pin G3, the value in
the timer is copied into the capture register. Consequently,
the time of an external edge on the G3 pin is ‘‘captured’’. Bit
5 of the CNTRL register is used to select the polarity of the
external edge. This external edge capture can also be pro-

grammed to generate an interrupt. The duration of an input
signal can be computed by capturing the time of the leading
edge, saving this captured value, changing the capture
edge, capturing the time of the trailing edge, and then sub­tracting this trailing edge time from the earlier leading edge
time. The Input Capture mode is shown in

Figure 9

.

TL/DD/12060– 12

FIGURE 9. Timer in Input Capture Mode

Table IV below details the TIMER modes of operation and
their associated interrupts. Bit 4 of CNTRL is used to start
and stop the timer/counter. Bits 5, 6 and 7 of the CNTRL
register select the timer modes. The ENTI (Enable Timer
Interrupt) and TPND (Timer Interrupt Pending) bits in the
PSW register are used to control the timer interrupts.

Care must be taken when reading from and writing to the
timer and its associated autoreload/capture register. The
timer and autoreload/capture register are both 16-bit, but
they are read from and written to one byte at a time. It is
recommended that the timer be stopped before writing a
new value into it. The timer may be read ‘‘on the fly’’ without
stopping it if suitable precautions are taken. One method of
reading the timer ‘‘on the fly’’ is to read the upper byte of the
timer first, and then read the lower byte. If the most signifi­cant bit of the lower byte is then tested and found to be
high, then the upper byte of the timer should be read again
and this new value used.

TABLE IV. Timer Modes and Control Bits

CNTRL Bits

Operation Mode

Interrupt

Timer

Counts On

Timer

765

0 0 0 External Event Counter with Autoreload Register Timer Underflow TIO Positive Edge

0 0 1 External Event Counter with Autoreload Register Timer Underflow TIO Negative Edge

0 1 0 Not Allowed Not Allowed Not Allowed

0 1 1 Not Allowed Not Allowed Not Allowed

1 0 0 Timer with Autoreload Register Timer Underflow tc

1 0 1 Timer with Autoreload Regiter and Toggle TIO Out Timer Underflow tc

1 1 0 Timer with Capture Register TIO Positive Edge tc

1 1 1 Timer with Capture Register TIO Negative Edge tc

http://www.national.com9

Functional Description (Continued)

TIMER APPLICATION EXAMPLE

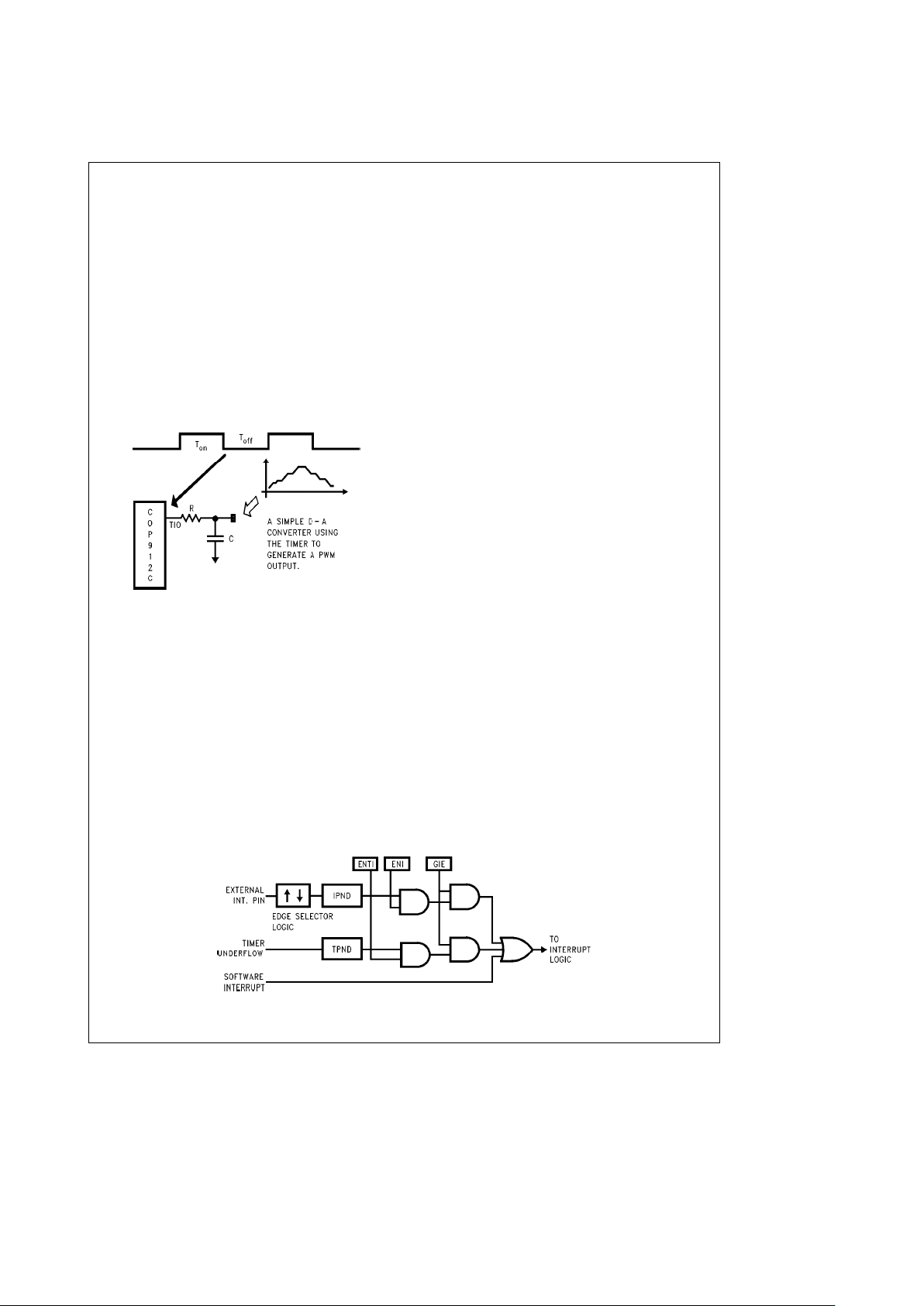

The timer has an autoreload register that allows any fre­quency to be programmed in the timer PWM mode. The
timer underflow can be programmed to toggle output bit G3,
and may also be programmed to generate a timer interrupt.
Consequently, a fully programmable PWM output may be
easily generated.

The timer counts down and when it underflows, the value
from the autoreload register is copied into the timer. The
CNTRL register is programmed to both toggle the G3 output
and generate a timer interrupt when the timer underflows.
Following each timer interrupt, the user’s program alternate­ly loads the values of the ‘‘on’’ time and the ‘‘off’’ time into
the timer autoreload register. Consequently, a pulse-width­modulated (PWM) output waveform is generated to a reso­lution of one instruction cycle time. This PWM application
example is shown in

Figure 10

.

TL/DD/12060– 13

FIGURE 10. Timer Based PWM Application

Interrupts

There are three interrupt sources:

1. A maskable interrupt on external G0 input positive or neg­ative edge sensitive under software control

2. A maskable interrupt on timer underflow or timer capture

3. A non-maskable software/error interrupt on opcode zero.
The GIE (global interrupt enable) bit enables the interrupt
function. This is used in conjunction with ENI and ENTI to
select one or both of the interrupt sources. This bit is
reset when interrupt is acknowledged.

ENI and ENTI bits select external and timer interrupt re­spectively. Thus the user can select either or both sources
to interrupt the microcontroller when GIE is enabled. IEDG
selects the external interrupt edge (1

e

rising edge, 0

e

falling edge). The user can get an interrupt on both rising

and falling edges by toggling the state of IEDG bit after each
interrupt.

IPND and TPND bits signal which interrupt is pending. After
interrupt is acknowledged, the user can check these two
bits to determine which interrupt is pending. The user can
prioritize the interrupt and clear the pending bit that corre­sponds to the interrupt being serviced. The user can also
enable GIE at this point for nesting interrupts. Two things
have to be kept in mind when using the software interrupt.
The first is that executing a simple RET instruction will take
the program control back to the software interrupt instruc­tion itself. In other words, the program will be stuck in an
infinite loop. To avoid the infinite loop, the software interrupt
service routine should end with a RETSK instruction or with
a JMP instruction. The second thing to keep in mind is that
unlike the other interrupt sources, the software interrupt
does not reset the GIE bit. This means that the device can
be interrupted by other interrupt sources while servicing the
software interrupt.

Interrupts push the PC to the stack, reset the GIE bit to
disable further interrupts and branch to address 00FF. The
RETI instruction will pop the stack to PC and set the GIE bit
to enable further interrupts. The user should use the RETI or
the RET instruction when returning from a hardware (mask­able) interrupt subroutine. The user should use the RETSK
instruction when returning from a software interrupt subrou­tine to avoid an infinite loop situation.

The software interrupt is a special kind of non-maskable
interrupt which occurs when the INTR instruction (opcode
00 used to acknowledge interrupts) is fetched from ROM
and placed inside the instruction register. This may happen
when the PC is pointing beyond the available ROM address
space or when the stack is over-popped. When the software
interrupt occurs, the user can re-initialize the stack pointer
and do a recovery procedure (similar to reset, but not nec­essarily containing all of the same initialization procedures)
before restarting.

Hardware and Software interrupts are treated differently.
The software interrupt is not gated by the GIE bit. However,
it has the lowest arbitration ranking. Also the fact that all
interrupts vector to the same address 00FF Hex means that
a software interrupt happening at the same time as a hard­ware interrupt will be missed.

Note: There is always the possibility of an interrupt occurring during an in-

struction which is attempting to reset the GIE bit or any other interrupt
enable bit. If this occurs when a single cycle instruction is being used
to reset the interrupt enable bit, the interrupt enable bit will be reset
but an interrupt may still occur. This is because interrupt processing is
started at the same time as the interrupt bit is being reset. To avoid
this scenario, the user should always use a two, three, or four cycle
instruction to reset interrupt enable bits.

TL/DD/12060– 14

FIGURE 11. Interrupt Block Diagram

http://www.national.com 10

Interrupts (Continued)

DETECTION OF ILLEGAL CONDITIONS

Reading of undefined ROM gets zeroes. The opcode for
software interrupt is zero. If the program fetches instructions
from undefined ROM, this will force a software interrupt,
thus signalling that an illegal condition has occurred.

Note: A software interrupt is acted upon only when a timer or external inter-

rupt is not pending as hardware interrupts have priority over software
interrupt. In addition, the Global Interrupt bit is not set when a soft­ware interrupt is being serviced thereby opening the door for the hard­ware interrupts to occur. The subroutine stack grows down for each
call and grows up for each return. If the stack pointer is initialized to
2F Hex, then if there are more returns than calls, the stack pointer will
point to addresses 30 and 31 (which are undefined RAM). Undefined
RAM is read as all 1’s, thus, the program will return to address FFFF.
This is a undefined ROM location and the instruction fetched will gen­erate a software interrupt signalling an illegal condition. The device
can detect the following illegal conditions:

1. Executing from undefined ROM

2. Over ‘‘POP’’ing the stack by having more returns than calls.

Illegal conditions may occur from coding errors, ‘‘brown
out’’ voltage drops, static, supply noise, etc. When the soft­ware interrupt occurs, the user can re-initialize the stack
pointer and do a recovery procedure before restarting (this
recovery program is probably similar to RESET but might
not clear the RAM). Examination of the stack can help in
identifying the source of the error. For example, upon a soft­ware interrupt, if the SP

e

30, 31 it implies that the stack

was over ‘‘POP’’ed (with the SP

e

2F hex initially). If the SP
contains a legal value (less than or equal to the initialized
SP value), then the value in the PC gives a clue as to where
in the user program an attempt to access an illegal (an ad­dress over 300 Hex) was made. The opcode returned in this
case is 00 which is a software interrupt.

The detection of illegal conditions is illustrated with an ex­ample:

0043 CLRA
0044 RC
0045 JMP 04FF
0046 NOP

When the device is executing this program, it seemingly
‘‘locks-up’’ having executed a software interrupt. To debug
this condition, the user takes a look at the SP and the con­tents of the stack. The SP has a legal value and the con­tents of the stack are 04FF. The perceptive user immediate­ly realizes that an illegal ROM location (04FF) was ac­cessed and the opcode returned (00) was a software inter­rupt. Another way to decode this is to run a trace and follow
the sequence of steps that ended in a software interrupt.
The damaging jump statement is changed.

Control Registers

CNTRL REGISTER (ADDRESS X’00EE)

The Timer and MICROWIRE control register contains the
following bits:

SL1 and SL0 Select the MICROWIRE clock divide-by

(00

e

2, 01e4, 1xe8)

IEDG External interrupt edge polarity select

MSEL Selects G5 and G4 as MICROWIRE signals

SK and SO respectively

TRUN Used to start and stop the timer/counter

(1

e

run, 0estop)

TC1 Timer Mode Control Bit

TC2 Timer Mode Control Bit

TC3 Timer Mode Control Bit

70

TC1 TC2 TC3 TRUN MSEL IEDG SL1 SL0

PSW REGISTER (ADDRESS X’00EF)

The PSW register contains the following select bits:

GIE Global interrupt enable (enables interrupts)

ENI External interrupt enable

BUSY MICROWIRE busy shifting flag

IPND External interrupt pending

ENTI Timer interrupt enable

TPND Timer interrupt pending

(timer underflow or capture edge)

C Carry Flip/flop

HC Half carry Flip/flop

70

HC C TPND ENTI IPND BUSY ENI GIE

The Half-Carry bit is also effected by all the instructions that
effect the Carry flag. The flag values depend upon the in­struction. For example, after executing the ADC instruction
the values of the Carry and the Half-Carry flag depend upon
the operands involved. However, instructions like SET C
and RESET C will set and clear both the carry flags. Table V
lists out the instructions that effect the HC and the C flags.

TABLE V. Instructions Effecting HC and C Flags

Instr. HC Flag C Flag

ADC Depends on Operands Depends on Operands

SUBC Depends on Operands Depends on Operands

SETC Set Set

RESET C Set Set

RRC Depends on Operands Depends on Operands

MEMORY MAP

All RAM, ports and registers (except A and PC) are mapped
into data memory address space.

http://www.national.com11

Control Registers (Continued)

TABLE VI. Memory Map

Address Contents

00 to 2F On-chip RAM Bytes (48 Bytes)

30 to 7F Unused RAM Address Space (Reads as

all ones)

80 to BF Expansion Space for On-Chip EERAM

(Reads Undefined Data)

C0 to CF Expansion Space for I/O and Registers

D0 Port L Data Register

D1 Port L Configuration Register

D2 Port L Input Pins (read only)

D3 Reserved for Port L

D4 Port G Data Register

D5 Port G Configuration Register

D6 Port G Input Pins (read only)

D7 Reserved

D8 to DB Reserved

DC to DF Reserved

E0 to EF On-Chip Functions and Registers

E0 to E7 Reserved for Future Parts

E8 Reserved

E9 MICROWIRE Shift Register

EA Timer Lower Byte

EB Timer Upper Byte

EC Timer Autoreload Register Lower Byte

ED Timer Auto reload Register Upper Byte

EE CNTRL Control Register

EF PSW Register

F0 to FF On-Chip RAM Mapped as Registers

(16 Bytes)

FC X Register

FD SP Register

FE B Register

Reading other unused memory locations will return unde­fined data.

Addressing Modes

The device has ten addressing modes, six for operand ad­dressing and four for transfer of control.

OPERAND ADDRESSING MODES

Register Indirect

This is the ‘‘normal’’ addressing mode for the chip. The op­erand is the data memory addressed by the B or X pointer.

Register Indirect With Auto Post Increment Or
Decrement

This addressing mode is used with the LD and X instruc­tions. The operand is the data memory addressed by the B
or X pointer. This is a register indirect mode that automati­cally post increments or post decrements the B or X pointer
after executing the instruction.

Direct

The instruction contains an 8-bit address field that directly
points to the data memory for the operand.

Immediate

The instruction contains an 8-bit immediate field as the op­erand.

Short Immediate

This addressing mode issued with the LD B,

Ý

instruction,

where the immediate

Ý

is less than 16. The instruction con-

tains a 4-bit immediate field as the operand.

Indirect

This addressing mode is used with the LAID instruction. The
contents of the accumulator are used as a partial address
(lower 8 bits of PC) for accessing a data operand from the
program memory.

TRANSFER OF CONTROL ADDRESSING MODES

Relative

This mode is used for the JP instruction with the instruction
field being added to the program counter to produce the
next instruction address. JP has a range from

b

31 toa32

to allow a one byte relative jump (JP

a

1 is implemented by
a NOP instruction). There are no ‘‘blocks’’ or ‘‘pages’’ when
using JP since all 15 bits of the PC are used.

Absolute

This mode is used with the JMP and JSR instructions with
the instruction field of 12 bits replacing the lower 12 bits of
the program counter (PC). This allows jumping to any loca­tion in the current 4k program memory segment.

Absolute Long

This mode is used with the JMPL and JSRL instructions with
the instruction field of 15 bits replacing the entire 15 bits of
the program counter (PC). This allows jumping to any loca­tion in the entire 32k program memory space.

Indirect

This mode is used with the JID instruction. The contents of
the accumulator are used as a partial address (lower 8 bits
of PC) for accessing a location in the program memory. The
contents of this program memory location serves as a par­tial address (lower 8 bits of PC) for the jump to the next
instruction.

http://www.national.com 12

Instruction Set

REGISTER AND SYMBOL DEFINITIONS

Registers

A 8-Bit Accumulator Register
B 8-Bit Address Register
X 8-Bit Address Register
SP 8-Bit Stack Pointer Register
S 8-Bit Data Segment Address Register
PC 15-Bit Program Counter Register
PU Upper 7 Bits of PC
PL Lower 8 Bits of PC
C 1-Bit of PSW Register for Carry
HC 1-Bit of PSW Register for Half Carry
GIE 1-Bit of PSW Register for Global Interrupt Enable

Symbols

[B]

Memory Indirectly Addressed by B Register

[X]

Memory Indirectly Addressed by X Register
MD Direct Addressed Memory
Mem Direct Addressed Memory, or B
MemI Direct Addressed Memory, B, or Immediate Data
Imm 8-Bit Immediate Data
Reg Register Memory: Addresses F0 to FF

(Includes B, X, and SP)
Bit Bit Number (0 to 7)

w

Loaded with

Ý

Exchanged with

http://www.national.com13

Instruction Set (Continued)

TABLE VII. Instruction Set

Instr Function Register Operation

ADD A, MemI Add AwAaMemI
ADC A, MemI Add with Carry A

w

AaMemIaC, CwCarry

SUBC A, MemI Subtract with Carry A

w

AbMemIaC, CwCarry

AND A, MemI Logical AND A

w

A and MemI

OR A, MemI Logical OR A

w

A or MemI

XOR A, MemI Logical Exclusive-OR A

w

A xor MemI
IFEQ A, MemI IF Equal Compare A and MemI, Do Next if AeMemI
IFGT A, MemI IF Greater than Compare A and MemI, Do Next if AlMemI
IFBNE

Ý

IF B not Equal Do Next If Lower 4 Bits of B noteImm

DRSZ Reg Decrement Reg, Skip if Zero Reg

w

Reg - 1, Skip if Reg Goes to Zero

SBIT

Ý

, Mem Set Bit 1 to Mem.Bit (Bite0 to 7 Immediate)

RBIT

Ý

, Mem Reset Bit 0 to Mem.Bit (Bite0 to 7 Immediate)

IFBIT

Ý

, Mem If Bit If Mem.Bit is True, Do Next Instruction

X A, Mem Exchange A with Memory AÝMem
LD A, MemI Load A with Memory AwMemI
LD Mem, Imm Load Direct Memory Immed. Mem

w

Imm

LD Reg, Imm Load Register Memory Immed. Reg

w

Imm

XA,

[

B

g

]

Exchange A with Memory[B

]

A

Ý

[B]

(B

w

Bg1)

XA,

[

X

g

]

Exchange A with Memory[X

]

A

Ý

[X]

(X

w

Xg1)

LD A,[B

g

]

Load A with Memory[B

]

A

w

[B]

(B

w

Bg1)

LD A,[X

g

]

Load A with Memory[X

]

A

w

[X]

(X

w

Xg1)

LD

[

B

g

]

, Imm Load Memory Immediate

[B]

w

Imm (BwB

g

1)

CLRA Clear A Aw0
INC Increment A A

w

Aa1
DEC Decrement A A

w

Ab1
LAID A Load A Indirect from ROM A

w

ROM(PU, A)
DCOR A Decimal Correct A A

w

BCD Correction (follows ADC, SUBC)
RRC Rotate Right Through Carry CxA7x...xA0xC
SWAP A Swap Nibbles of A A7...A4ÝA3...A0
SC A Set C C

w

1
RC A Reset C C

w

0
IFC If C If C is True, do Next Instruction
IFNC If Not C If C is not True, do Next Instruction

JMPL Jump Absolute Long PCwii (iie15 Bits, 0k to 32k)
JMP Jump Absolute PC11...PC0wi(ie12 Bits)

PC15...PC12 Remain Unchanged
JP Jump Relative Short PCwPCar(risb31 toa32, not 1)
JSRL Addr. Jump Subroutine Long

[SP]

w

PL,[SPb1

]

w

PU, SPb2, PCwii

JSR Addr. Jump Subroutine

[SP]

w

PL,[SPb1

]

w

PU, SPb2, PC11..PC0wii

JID Disp. Jump Indirect PL

w

ROM(PU, A)

RET Addr. Return from Subroutine SP

a

2, PL

w

[SP]

,PU

w

[

SP

b

1

]

RETSK Addr. Return and Skip SP

a

2, PL

w

[SP]

,PU

w

[

SP

b

1],

Skip next Instr.
RETI Return from Interrupt SPa2, PL

w

[SP]

,PU

w

[

SP

b

1], GIEw1

INTR Generate an Interrupt

[SP]

w

PL,[SPb1

]

w

PU, SPb2, PCw0FF

NOP No Operation PC

w

PCa1

http://www.national.com 14

Instruction Set (Continued)

#

Most instructions are single byte (with immediate ad­dressing mode instructions requiring two bytes).

#

Most single byte instructions take one cycle time to exe­cute.

#

Skipped instructions require x number of cycles to be
skipped, where x equals the number of bytes in the
skipped instruction opcode.

The following tables show the number of bytes and cycles
for each instruction in the format byte/cycle.

Arithmetic and Logic

Instructions (Bytes/Cycles)

Instr

[B]

Direct Immediate

ADD 1/1 3/4
ADC 1/1 3/4 2/2
SUBC 1/1 3/4 2/2
AND 1/1 3/4 2/2
OR 1/1 3/4 2/2
XOR 1/1 3/4 2/2
IFEQ 1/1 3/4 2/2
IFNE 1/1 3/4 2/2
IFGT 1/1 3/4 2/2
IFBNE 1/1 2/2
DRSZ 1/1 1/3

SBIT 1/1 3/4
RBIT 1/1 3/4
IFBIT 1/1 3/4

Instructions Using A and C (Bytes/Cycles)

Instr Bytes/Cycles

CLRA 1/1
INCA 1/1
DECA 1/1
LAID 1/3
DCOR 1/1
RRCA 1/1
SWAPA 1/1
SC 1/1
RC 1/1
IFC 1/1
IFNC 1/1

Transfer of Control Instructions

(Bytes/Cycles)

Instr Bytes/Cycles

JMPL 3/4
JMP 2/3
JP 1/3
JSRL 3/5
JSR 2/5
JID 1/3
RET 1/5
RETSK 1/5
RETI 1/5
INTR 1/7
NOP 1/1

Memory Transfer Instructions (Bytes/Cycles)

Instr

Register Indirect

Direct Immed.

Register Indirect

Auto Incr and Decr

[B][

X

][

B

a

,B

b

][

X

a

,X

b

]

XA,

a

1/1

2/3

1/2

LD A,*

1/1

2/3

1/2

LD B,Imm 1/3 2/2 1/3
LD B,Imm 1/3 1/1

b

1/3

LD Mem,Imm

2/2

3/3 2/3

c

2/2

LD Reg,Imm 2/3

a. Memory location addressed by B or X directly

b. IF B

k

16

c. IF B

l

15

http://www.national.com15

LOWER NIBBLE BITS 3–0

UPPER NIBBLE BITS 7–4

FE D C B A 9 8 7 6 5 4 3 2 1 0

JP-15 JP-31 LD 0F0,

Ý

i DRSZ 0F0 RRCA RC ADCA, ADCA, IFBIT * LD B, 0F IFBNE JSR JMP JP

a

17 INTR

3 I (B) 0, (B) 0 0000 – 00FF 0000– 00FF 0

JP-14 JP-30 LD 0F1,

Ý

1 DRSZ,0F1 * SC SUBCA, SUBC IFBIT * LD B, 0E IFBNE JSR JMP JP

a

18 JP

a

2

1

Ý

i A,(B) 1,(B) 1 0100-01FF 0100 – 01FF

JP-13 JP-29 LD 0F2,

Ý

i DRSZ 0F2 XA (X

a

) XA, IFEQA, IFEQ, IFBIT * LD B, 0D IFBNE JSR JMP JP

a

19 UJP

a

3

2

(X

a

)

Ý

i

Ý

i A,(B) 2 0200– 02FF 0200 –02FF

JP-12 JP-28 LD 0F3

Ý

i DRSZ 0F3 XA, (X

b

) XA, IFGT A, IFGT IFBIT * LDB, 0C IFBNE JSR JMP JP

a

20 JP

a

4

3

(B

b

)

Ý

i A, (B) 3, (B) 3 0300 – 03FF 0300– 03FF

JP-11 JP-27 LD 0F4,

Ý

i DRSZ 0F4 * LAID ADD A,

Ý

i ADD A, IFBIT CLRA LD B, 0B IFBNE JSR JMP JP

a

21 JP

a

5

4

(B) 4, (B) 4 0400– 04FF 0400 –04FF

JP-10 JP-26 LD 0F5,

Ý

i DRSZ 0F5 * JID AND A,

Ý

i AND A, IFBIT SWAPA LD B, 0A IFBNE JSR JMP JP

a

22 JP

a

6

5

(B) 5, (B) 5 0500– 05FF 0500 –05FF

JP-9 JP-25 LD 0F6,

Ý

i DRSZ 0F6 XA, (X) XA, XOR A, XOR IFBIT DCORA LD B, 9 IFBNE JSR JMP JP

a

23 JP

a

7

6

(B)

Ý

i A, (B) 6, (B) 6 0600 – 06FF 0600– 06FF

JP-8 JP-24 LD 0F7,

Ý

i DRSZ 0F7 **OR A,

Ý

i OR A, IFBIT * LD B, 8 IFBNE JSR JMP JP

a

24 JP

a

8

7

(B) 7, (B) 7 0700– 07FF 0700 –07FF

JP-7 JP-23 LD 0F8,

Ý

i DRSZ 0F8 NOP * LD A,

Ý

i IFC SBIT RBIT 0, LD B, 7 IFBNE JSR JMP JP

a

25 JP

a

9

8

0,(B) (B) 8 0800–08FF 0800 –08FF

JP-6 JP-22 LD 0F9,

Ý

i DRSZ 0F9 ** * IFNC SBIT RBIT LD B, 6 IFBNE JSR JMP JP

a

26 JP

a

10

9

1,(B) 1(B) 9 0900 –09FF 0900– 09FF

JP-5 JP-21 LD 0FA,

Ý

i DRSZ 0FA LDA, LD A, LD (B

a

),

Ý

i INCA SBIT RBIT LD B, 5 IFBNE JSR JMP JP

a

27 JP

a

11

A

X(

a

)(B

a

) 2, (B) 2, (B) 0A 0A00 –0AFF 0A00 –0AFF

JP-4 JP-20 LD 0FB,

Ý

i DRSZ 0FB LDA, LD A, LD (B

b

),

Ý

i DECA SBIT RBIT LD B, 4 IFBNE JSR JMP JP

a

28 JP

a

12

B

X(

b

)(B

b

) 3, (B) 3, (B) 0B 0B00 –0BFF 0B00 – 0BFF

JP-3 JP-19 LD 0FC,

Ý

i DRSZ 0FC LD Md, JMPL X A,Md * SBIT RBIT LD B, 3 IFBNE JSR JMP JP

a

29 JP

a

13

C

Ý

i 4, (B) 4, (B) 0C 0C00 – 0CFF 0C00 – 0CFF

JP-2 JP-18 LD 0D,

Ý

i DRSZ 0D DIR JSRL LD A, Md RETSK SBIT RBIT LD B, 2 IFBNE JSR JMP JP

a

30 JP

a

14

D

5, (B) 5, (B) 0D 0D00 – 0DFF 0D00–0DFF

JP-1 JP-17 LD 0FE,

Ý

i DRSZ 0FE LD A, (X) LD A, LD B,

Ý

i RET SBIT RBIT LD B, 1 IFBNE JSR JMP JP

a

31 JP

a

15

E

(B) 6, (B) 6, (B) 0E 0E00 –0EFF 0E00– 0EFF

JP-0 JP-16 LD 0FF,

Ý

i DRSZ 0FF ** * RETI SBIT RBIT LD B, 0 IFBNE JSR JMP JP

a

32 JP

a

16

F

7, (B) 7, (B) 0F 0F00 – 0FFF 0F00 – 0FFF

http://www.national.com 16

Option List

The mask programmable options are listed out below. The
options are programmed at the same time as the ROM pat­tern to provide the user with hardware flexibility to use a
variety of oscillator configuration.

OPTION 1: CKI INPUT

e

1 Crystal (CKI/10) CKO for crystal configuration

e

2NA

e

3 R/C (CKI/10) CKO available as G7 input

OPTION 2: BONDING

e

1NA

e

2NA

e

3 20 pin DIP package

e

4 20 pin SO package

e

5NA

The following option information is to be sent to National
along with the EPROM.

Option Data

Option 1 ValueÐis: CKI Input

Option 2 ValueÐis: COP Bonding

Development Support

SUMMARY

#

iceMASTERTM: IM-COP8/400ÐFull feature in-circuit em­ulation for all COP8 products. A full set of COP8 Basic
and Feature Family device and package specific probes
are available.

#

COP8 Debug Module: Moderate cost in-circuit emulation
and development programming unit.

#

COP8 Evaluation and Programming Unit: EPU­COP8780Ðlow cost in-circuit simulation and develop­ment programming unit.

#

Assembler: COP8-DEV-IBMA. A DOS installable cross
development Assembler, Linker, Librarian and Utility
Software Development Tool Kit.

#

C Compiler: COP8C. A DOS installable cross develop­ment Software Tool Kit.

#

OTP/EPROM Programmer Support: Covering needs
from engineering prototype, pilot production to full pro­duction environments.

http://www.national.com17

Development Support (Continued)

IceMASTER (IM) IN-CIRCUIT EMULATION

The iceMASTER IM-COP8/400 is a full feature, PC based,
in-circuit emulation tool developed and marketed by Meta­Link Corporation to support the whole COP8 family of prod­ucts. National is a resale vendor for these products.

See

Figure 12

for configuration.

The iceMASTER IM-COP8/400 with its device specific
COP8 Probe provides a rich feature set for developing, test­ing and maintaining product:

#

Real-time in-circuit emulation; full 2.4V –5.5V operation
range, full DC-10 MHz clock. Chip options are program­mable or jumper selectable.

#

Direct connection to application board by package com­patible socket or surface assembly.

#

Full 32 kbyte of loadable programming space that over­lays (replaces) the on-chip ROM or EPROM. On-chip
RAM and I/O blocks are used directly or recreated on
the probe as necessary.

#

Full 4k frame synchronous trace memory. Address, in­struction, and 8 unspecified, circuit connectable trace
lines. Display can be HLL source (e.g., C source), assem­bly or mixed.

#

A full 64k hardware configurable break, trace on, trace
off control, and pass count increment events.

#

Tool set integrated interactive symbolic debuggerÐsup­ports both assembler (COFF) and C Compiler (.COD)
linked object formats.

#

Real time performance profiling analysis; selectable
bucket definition.

#

Watch windows, content updated automatically at each
execution break.

#

Instruction by instruction memory/register changes dis­played on source window when in single step operation.

#

Single base unit and debugger software reconfigurable to
support the entire COP8 family; only the probe personali­ty needs to change. Debugger software is processor cus­tomized, and reconfigured from a master model file.

#

Processor specific symbolic display of registers and bit
level assignments, configured from master model file.

#

Halt/Idle mode notification.

#

On-Line HELP customized to specific processor using
master model file.

#

Includes a copy of COP8-DEV-IBMA assembler and link­er SDK.

IM Order Information

Base Unit

IM-COP8/400-1 iceMASTER Base Unit,

110V Power Supply

IM-COP8/400-2 iceMASTER Base Unit,

220V Power Supply

iceMASTER Probe

MHW-880C-20DWPC 20 DIP

Adapter for SO Package

MHW-SOIC20 20 SO

TL/DD/12060– 15

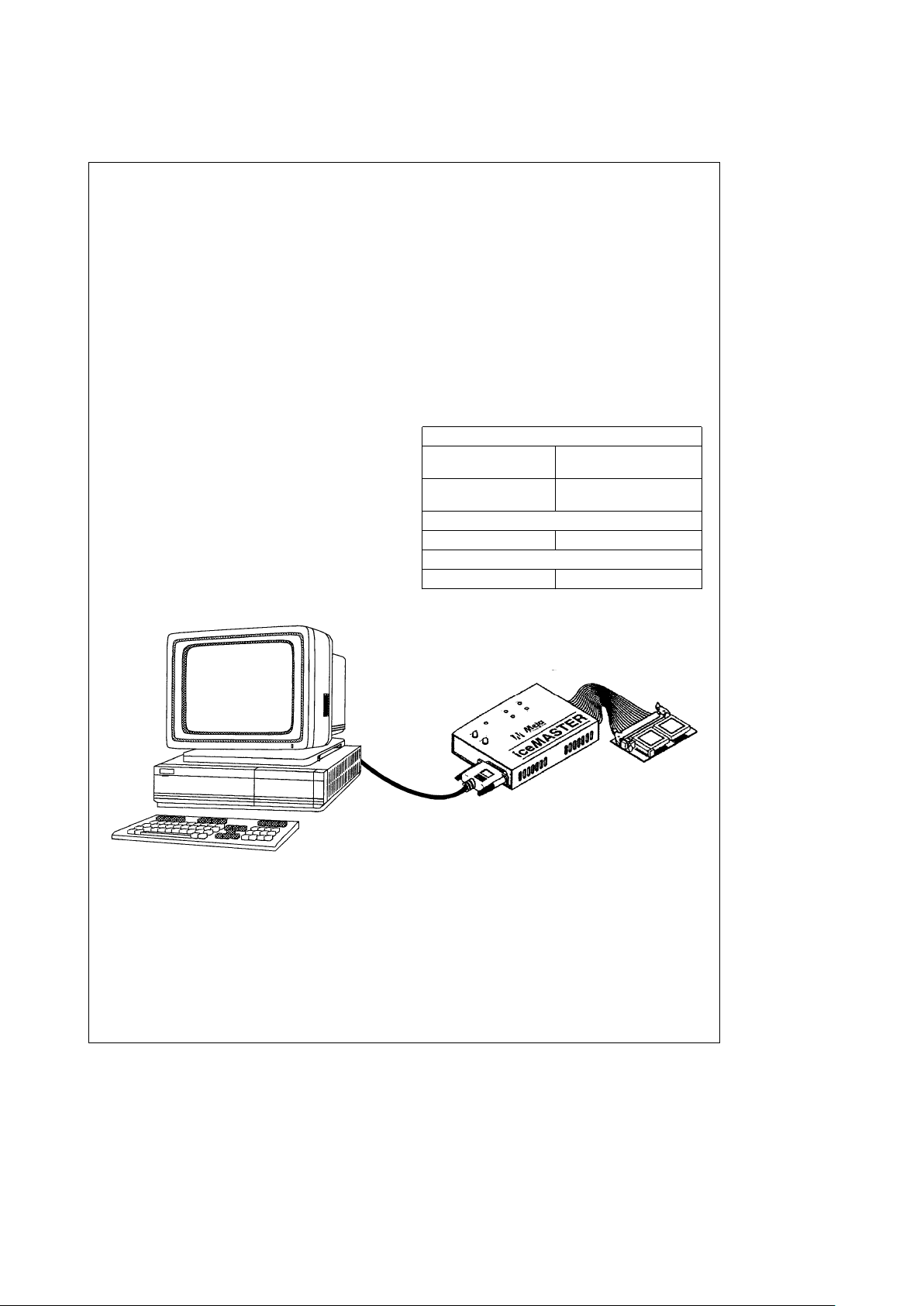

FIGURE 12. COP8 iceMASTER Environment

http://www.national.com 18

Development Support (Continued)

iceMASTER DEBUG MODULE (DM)

The iceMASTER Debug Module is a PC based, combination
in-circuit emulation tool and COP8 based OTP/EPROM pro­gramming tool developed and marketed by MetaLink Corpo­ration to support the whole COP8 family of products. Nation­al is a resale vendor for these products.

See

Figure 13

for configuration.

The iceMASTER Debug Module is a moderate cost devel­opment tool. It has the capability of in-circuit emulation for a
specific COP8 microcontroller and in addition serves as a
programming tool for COP8 OTP and EPROM product fami­lies. Summary of features is as follows:

#

Real-time in-circuit emulation; full operating voltage
range operation, full DC-10 MHz clock.

#

All processor I/O pins can be cabled to an application
development board with package compatible cable to
socket and surface mount assembly.

#

Full 32 kbyte of loadable programming space that over­lays (replaces) the on-chip ROM or EPROM. On-chip
RAM and I/O blocks are used directly or recreated as
necessary.

#

100 frames of synchronous trace memory. The display
can be HLL source (C source), assembly or mixed. The
most recent history prior to a break is available in the
trace memory.

#

Configured break points; uses INTR instruction which is
modestly intrusive.

#

SoftwareÐonly supported features are selectable.

#

Tool set integrated interactive symbolic debuggerÐsup­ports both assembler (COFF) and C Compiler (.COD)
SDK linked object formats.

#

Instruction by instruction memory/register changes dis­played when in single step operation.

#

Debugger software is processor customized, and recon­figured from a master model file.

#

Processor specific symbolic display of registers and bit
level assignments, configured from master model file.

#

Halt/Idle mode notification.

#

Programming menu supports full product line of program­mable OTP and EPROM COP8 products. Program data
is taken directly from the overlay RAM.

#

Programming of 44 PLCC and 68 PLCC parts requires
external programming adapters.

#

Includes wallmount power supply.

#

On-board VPPgenerator from 5V input or connection to
external supply supported. Requires V

PP

level adjust­ment per the family programming specification (correct
level is provided on an on-screen pop-down display).

#

On-line HELP customized to specific processor using
master model file.

#

Includes a copy of COP8-DEV-IBMA assembler and link­er SDK.

DM Order Information

Debug Module Unit

COP8/DM/880C

Cable Adapters

DM-COP8/20D 20 DIP

Adapter for SO Package

MHW-SOIC20 20 SO

TL/DD/12060– 23

FIGURE 13. COP8-DM Environment

http://www.national.com19

Development Support (Continued)

COP8 ASSEMBLER/LINKER SOFTWARE
DEVELOPMENT TOOL KIT

National Semiconductor offers a relocatable COP8 macro
cross assembler, linker, librarian and utility software devel­opment tool kit. Features are summarized as follows:

#

Basic and Feature Family instruction set by ‘‘device’’
type.

#

Nested macro capability.

#

Extensive set of assembler directives.

#

Supported on PC/DOS platform.

#

Generates National standard COFF output files.

#

Integrated Linker and Librarian.

#

Integrated utilities to generate ROM code file outputs.

#

DUMPCOFF utility.

This product is integrated as a part of MetaLink tools as a
development kit, fully supported by the MetaLink debugger.
It may be ordered separately or it is bundled with the Meta­Link products at no additional cost.

Order Information

Assembler SDK:

COP8-DEV-IBMA Assembler SDK on installable

3.5

×PCÉ

/DOS Floppy Disk Drive
format. Periodic upgrades and
most recent version is available
on National’s BBS and Internet.

COP8 C COMPILER

A C Compiler is developed and marketed by Byte Craft Lim­ited. The COP8C compiler is a fully integrated development
tool specifically designed to support the compact embed­ded configuration of the COP8 family of products.

Features are summarized as follows:

#

ANSI C with some restrictions and extensions that opti­mize development for the COP8 embedded application.

#

BITS data type extension. Register declarationÝpragma
with direct bit level definitions.

#

C language support for interrupt routines.

#

Expert system, rule based code generation and optimiza­tion.

#

Performs consistency checks against the architectural
definitions of the target COP8 device.

#

Generates program memory code.

#

Supports linking of compiled object or COP8 assembled
object formats.

#

Global optimization of linked code.

#

Symbolic debug load format fully source level supported
by the MetaLink debugger.

SINGLE CHIP OTP/EMULATOR SUPPORT

The COP8 family is supported by single chip OTP emula­tors. For detailed information refer to the emulator specific
datasheet and the emulator selection table below:

Approved List

Manufacturer

North

Europe Asia

America

BP [phone]

a

49-8152-4183

a

852-234-16611

Microsystems [phone]

a

49-8856-932616

a

852-2710-8121

Fax: [phone]

Data I/O [phone]

a

44-0734-440011 Call
[phone] North America
Fax: [phone]

HI–LO [phone] Call Asia

a

886-2-764-0215

Fax:

a

886-2-756-6403

ICE [phone]

a

44-1226-767404

Technology [phone] Fax: [phone]

MetaLink [phone]

a

49-80 9156 96-0

a

852-737-1800
[phone] Fax:a49-80 9123 86
Fax: [phone]

Systems [phone]

a

41-1-9450300

a

886-2-917-3005

General Fax:

a

886-2-911-1283

Needhams [phone]

Fax: [phone]

http://www.national.com 20

Development Support (Continued)

OTP Emulator Ordering Information

Device Clock

Package Emulates

Number Option

COP8782CN Programmable 20 N COP912C,

COP912CH

COP8782CWM Programmable 20 SO COP912C,

COP912CH

INDUSTRY WIDE OTP/EPROM PROGRAMMING
SUPPORT

Programming support, in addition to the MetaLink develop­ment tools, is provided by a full range of independent ap­proved vendors to meet the needs from the engineering
laboratory to full production.

AVAILABLE LITERATURE

For more information, please see the COP8 Basic Family
User’s Manual, Literature Number 620895, COP8 Feature
Family User’s Manual, Literature Number 620897 and Na­tional’s Family of 8-bit Microcontrollers COP8 Selection
Guide, Literature Number 630009.

DIAL-A-HELPER SERVICE

Dial-A-Helper is a service provided by the Microcontroller
Applications group. The Dial-A-Helper is an Electronic Infor­mation System that may be accessed as a Bulletin Board
System (BBS) via data modem, as an FTP site on the Inter­net via standard FTP client application or as an FTP site on
the Internet using a standard Internet browser such as Net­scape or Mosaic.

The Dial-A-Helper system provides access to an automated
information storage and retrieval system. The system capa­bilities include a MESSAGE SECTION (electronic mail,
when accessed as a BBS) for communications to and from
the Microcontroller Applications Group and a FILE SEC­TION which consists of several file areas where valuable
application software and utilities could be found.

DIAL-A-HELPER BBS via a Standard Modem

Modem: CANADA/U.S.: (800) NSC-MICRO

[phone]

EUROPE: (

a

49) 0-8141-351332

Baud: 14.4k

Set-up: Length: 8-Bit

Parity: None

Stop Bit: 1

Operation: 24 Hours, 7 Days

DIAL-A-HELPER via FTP

ftp nscmicro.nsc.com

user: anonymous

password: username

@

yourhost.site.domain

DIAL-A-HELPER via a WorldWide Web Browser

ftp://nscmicro.nsc.com

National Semiconductor on the WorldWide Web

See us on the WorldWide Web at: http://www.national.com

CUSTOMER RESPONSE CENTER

Complete product information and technical support is avail­able from National’s customer response centers.

CANADA/U.S.: Tel: [phone]

email: [e-mail]

EUROPE: email: [e-mail]

Deutsch Tel:a49 (0) 180-530 85 85

English Tel:

a

49 (0) 180-532 78 32

Fran3ais Tel:a49 (0) 180-532 93 58

Italiano Tel:

a

49 (0) 180-534 16 80

JAPAN: Tel:

a

81-043-299-2309

S.E. ASIA: Beijing Tel: (a86) 10-6856-8601

Shanghai Tel: (a86) 21-6415-4092

Hong Kong Tel: (a852) 2737-1600

Korea Tel: (a82) 2-3771-6909

Malaysia Tel: (a60-4) 644-9061

Singapore Tel: (a65) 255-2226

Taiwan Tel:

a

886-2-521-3288

AUSTRALIA: Tel: (a61) 3-9558-9999

INDIA: Tel: (a91) 80-559-9467

http://www.national.com21

http://www.national.com 22

Physical Dimensions inches (millimeters) unless otherwise noted

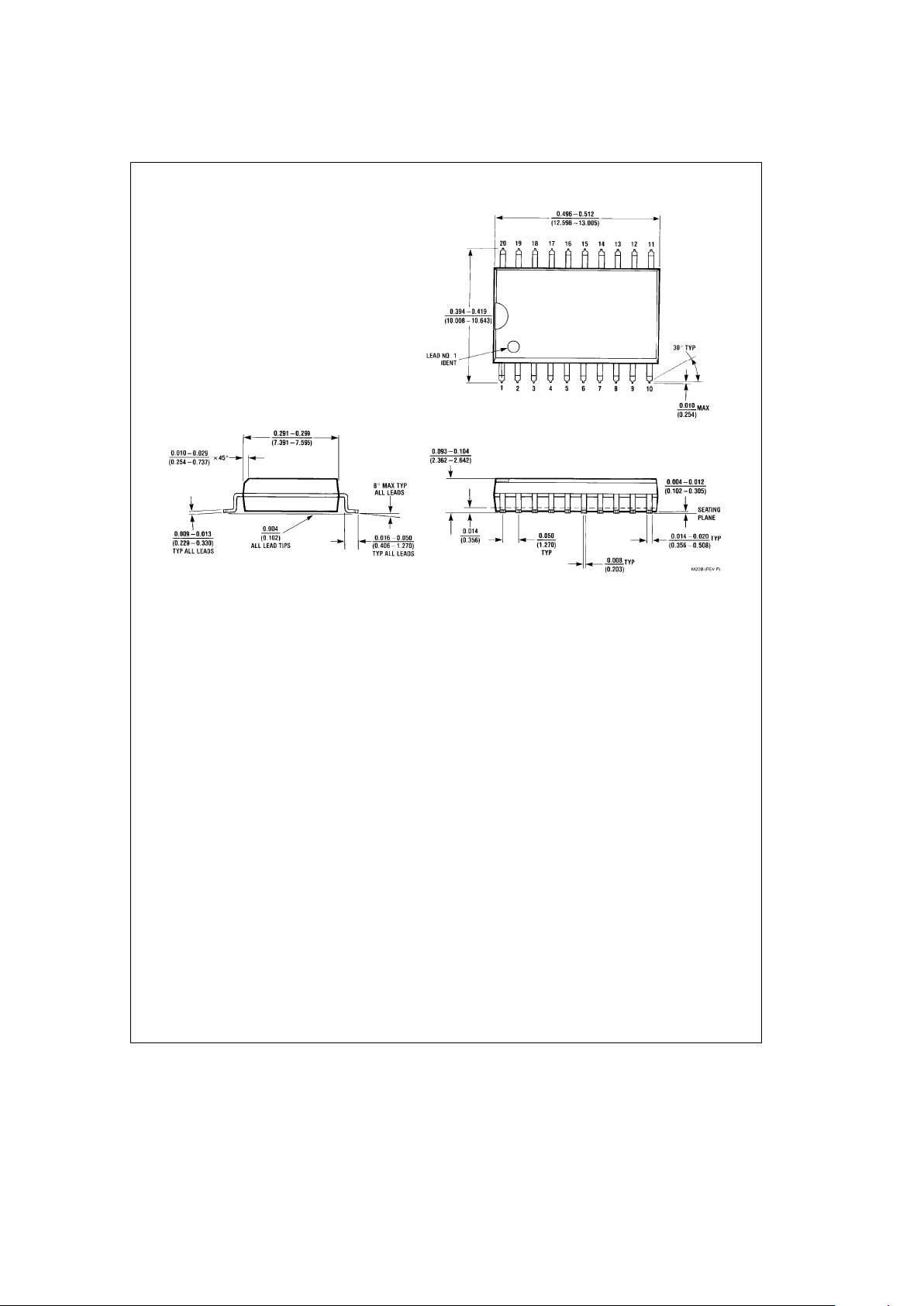

20-Lead Molded Small Outline Package (M)

Order Number COP912C-XXX/WM, COP912CH-XXX/WM

NS Package Number M20B

http://www.national.com23

COP912C/COP912CH 8-Bit Microcontroller

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

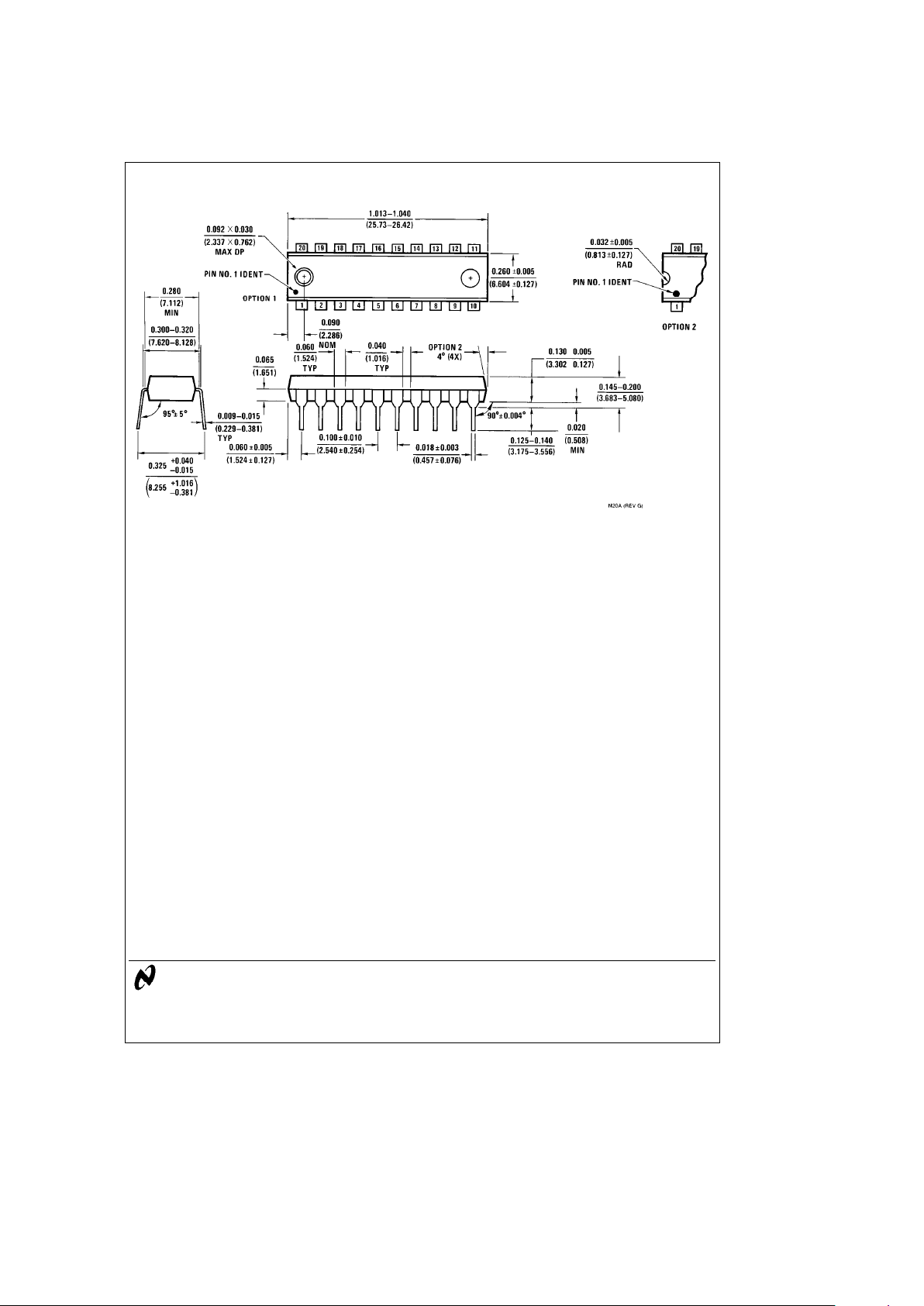

20-Lead Molded Dual-In-Line Package (N)

Order Number COP912C-XXX/N, COP912CH-XXX/N

NS Package Number N20A

LIFE SUPPORT POLICY

NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF NATIONAL
SEMICONDUCTOR CORPORATION. As used herein:

1. Life support devices or systems are devices or 2. A critical component is any component of a life
systems which, (a) are intended for surgical implant support device or system whose failure to perform can
into the body, or (b) support or sustain life, and whose be reasonably expected to cause the failure of the life
failure to perform, when properly used in accordance support device or system, or to affect its safety or
with instructions for use provided in the labeling, can effectiveness.
be reasonably expected to result in a significant injury
to the user.

National Semiconductor National Semiconductor National Semiconductor National Semiconductor
Corporation Europe Hong Kong Ltd. Japan Ltd.

1111 West Bardin Road Fax:

a

49 (0) 180-530 85 86 13th Floor, Straight Block, Tel: [phone]
Arlington, TX 76017 Email: [e-mail] Ocean Centre, 5 Canton Rd. Fax: [phone]
Tel: [phone] Deutsch Tel:

a

49 (0) 180-530 85 85 Tsimshatsui, Kowloon
Fax: [phone] English Tel:

a

49 (0) 180-532 78 32 Hong Kong

Fran3ais Tel:

a

49 (0) 180-532 93 58 Tel: [phone]

http://www.national.com

Italiano Tel:a49 (0) 180-534 16 80 Fax: [phone]

National does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and National reserves the right at any time without notice to change said circuitry and specifications.
