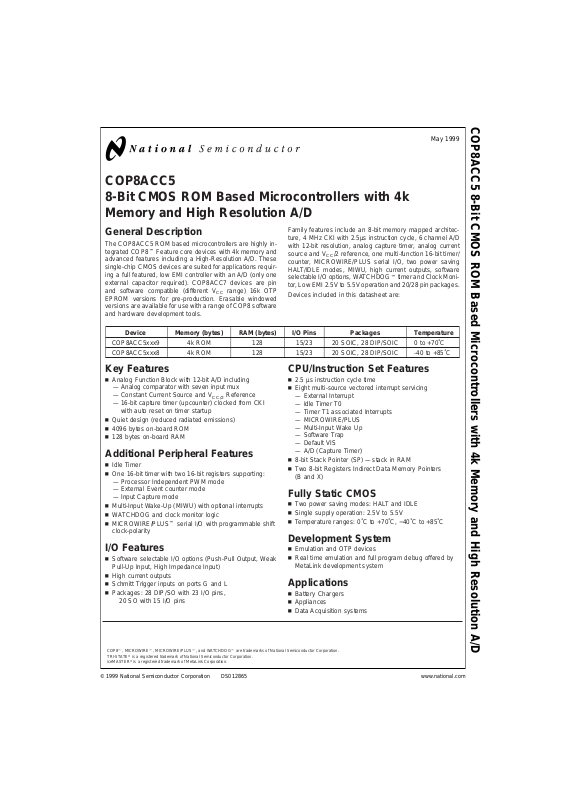

COP8ACC5 8-Bit CMOS ROM Based Microcontrollers with 4k Memory and High Resolution A/D
General Description
The COP8ACC5 ROM based microcontrollers are highly in­tegrated COP8
™
Feature core devices with 4k memory and advanced features including a High-Resolution A/D. These single-chip CMOS devices aresuited for applications requir­ing a full featured, low EMI controller with an A/D (only one external capacitor required). COP8ACC7 devices are pin and software compatible (different V
CC
range) 16k OTP EPROM versions for pre-production. Erasable windowed versions are available for use with a range of COP8 software and hardware development tools.
Family features include an 8-bit memory mapped architec­ture, 4 MHz CKI with 2.5µs instruction cycle, 6 channel A/D with 12-bit resolution, analog capture timer, analog current source and V
CC
/2 reference, one multi-function 16-bit timer/ counter, MICROWIRE/PLUS serial I/O, two power saving HALT/IDLE modes, MIWU, high current outputs, software selectable I/O options, WATCHDOG
™
timer and Clock Moni-
tor,Low EMI 2.5V to 5.5V operation and 20/28 pin packages. Devices included in this datasheet are:
Device Memory (bytes) RAM (bytes) I/O Pins Packages Temperature
COP8ACC5xxx9 4k ROM 128 15/23 20 SOIC, 28 DIP/SOIC 0 to +70˚C COP8ACC5xxx8 4k ROM 128 15/23 20 SOIC, 28 DIP/SOIC -40 to +85˚C
Key Features
n Analog Function Block with 12-bit A/D including
— Analog comparator with seven input mux — Constant Current Source and V
CC/2
Reference
— 16-bit capture timer (upcounter) clocked from CKI
with auto reset on timer startup
n Quiet design (reduced radiated emissions) n 4096 bytes on-board ROM n 128 bytes on-board RAM
Additional Peripheral Features
n Idle Timer n One 16-bit timer with two 16-bit registers supporting:
— Processor Independent PWM mode — External Event counter mode — Input Capture mode
n Multi-Input Wake-Up (MIWU) with optional interrupts n WATCHDOG and clock monitor logic n MICROWIRE/PLUS
™
serial I/O with programmable shift
clock-polarity
I/O Features
n Software selectable I/O options (Push-Pull Output, Weak
Pull-Up Input, High Impedance Input)
n High current outputs n Schmitt Trigger inputs on ports G and L n Packages: 28 DIP/SO with 23 I/O pins,
20 SO with 15 I/O pins
CPU/Instruction Set Features
n 2.5 µs instruction cycle time n Eight multi-source vectored interrupt servicing
— External Interrupt — Idle Timer T0 — Timer T1 associated Interrupts — MICROWIRE/PLUS — Multi-Input Wake Up — Software Trap — Default VIS — A/D (Capture Timer)
n 8-bit Stack Pointer (SP) — stack in RAM n Two 8-bit Registers Indirect Data Memory Pointers
(B and X)
Fully Static CMOS
n Two power saving modes: HALT and IDLE n Single supply operation: 2.5V to 5.5V n Temperature ranges: 0˚C to +70˚C, −40˚C to +85˚C
Development System
n Emulation and OTP devices n Real time emulation and full program debug offered by
MetaLink development system
Applications
n Battery Chargers n Appliances n Data Acquisition systems
COP8™, MICROWIRE™, MICROWIRE/PLUS™, and WATCHDOG™are trademarks of National Semiconductor Corporation. TRI-STATE
®
is a registered trademark of National Semiconductor Corporation.
iceMASTER
®
is a registered trademark of MetaLink Corporation.
May 1999
COP8ACC5 8-Bit CMOS ROM Based Microcontrollers with 4k Memory and High Resolution A/D
© 1999 National Semiconductor Corporation DS012865 www.national.com
Page 2
Block Diagram
Connection Diagrams
DS012865-1
FIGURE 1. Block Diagram
DS012865-2
Top View
Order Number COP8ACC528N9 or COP8ACC528N8
See NS Molded Package Number N28A
Order Number COP8ACC528M9 or COP8ACC528M8
See NS Molded Package Number M28B
DS012865-3
Top View
Order Number COP8ACC520M9 or COP8ACC520N8
See NS Molded Package Number M20B
FIGURE 2. Connection Diagrams
www.national.com 2
Page 3
Connection Diagrams (Continued)
Pinouts for 28-Pin, 20-Pin Packages
Port Type Alt. Fun Alt. Fun
28-Pin 20-Pin
DIP/SO SO
L4 I/O MIWU Ext. Int. 4 L5 I/O MIWU Ext. Int. 5 L6 I/O MIWU Ext. Int. 6
L7 I/O MIWU Ext. Int. 7 G0 I/O INT 23 15 G1 WDOUT 24 16 G2 I/O T1B 25 17 G3 I/O T1A 26 18 G4 I/O SO 27 19 G5 I/O SK 28 20 G6 I SI 1 1 G7 I/CKO HALT Restart 2 2 D0 O 11 7 D1 O 12 8 D2 O 13 9 D3 O 14
I0 I Analog CH1 15 10
I1 I I
SRC
16 11 I2 I Analog CH2 17 12 I3 I Analog CH3 18 13 I4 I Analog CH4 19 14 I5 I Analog CH5 20 I6 I Analog CH6 21 I7 I C
OUT
22
V
CC
95
GND 8 4
CKI 3 3
RESET
10 6
Ordering Inforamtion
DS012865-38
FIGURE 3. Part Numbering Scheme
www.national.com3
Page 4
Absolute Maximum Ratings (Note 1)
Supply Voltage (V
CC
)7V
Voltage at Any Pin −0.3V to V
CC
+0.3V
Total Current into V
CC
Pin (Source) 100 mA Total Current out of GND Pin (Sink) 110 mA Storage Temperature Range −65˚C to +140˚C
Note 1: Absolute maximum ratings indicate limits beyond which damage to the device may occur. DC and AC electrical specifications are not ensured when operating the device at absolute maximum ratings.
DC Electrical Characteristics
0˚C ≤ TA≤ +70˚C unless otherwise specified
Parameter Conditions Min Typ Max Units
Operating Voltage Peak-to-Peak 2.5 5.5 V Power Supply Ripple (Note 2) 0.1 V
CC
V
Supply Current (Note 3)
CKI = 4 MHz V
CC
= 5.5V, tC= 2.5 µs 5.5 mA
CKI = 4 MHz V
CC
= 4V, tC= 2.5 µs 2.5 mA
CKI = 1 MHz V
CC
= 4V, tC= 10 µs 1.4 mA
HALT Current (Note 4) V
CC
= 5.5V, CKI=0MHz
<
58 µA
V
CC
= 4V, CKI = 0 MHz
<
34 µA
IDLE Current
CKI = 4 MHz V
CC
= 5.5V, tC= 2.5 µs 1.5 mA
CKI = 1 MHz V
CC
= 4V, tC= 10 µs 0.5 mA
Input Levels (V
IH,VIL
)
RESET
Logic High 0.8 V
CC
V
Logic Low 0.2 V
CC
V
CKI, All Other Inputs
Logic High 0.7 V
CC
V
Logic Low 0.2 V
CC
V
Hi-Z Input Leakage V
CC
= 5.5V 1 1 µA
Input Pullup Current V
CC
= 5.5V, VIN= 0V −40 −250 µA
G and L Port Input Hysteresis (Note 6) 0.35 V
CC
V Output Current Levels D Outputs
Source V
CC
= 4V, VOH= 3.3V −0.4 mA
V
CC
= 2.5V, VOH= 1.8V −0.2 mA
Sink V
CC
= 4V, VOL=1V 10 mA
V
CC
= 2.5V, VOL= 0.4V 2.0 mA All Others Source (Weak Pull-Up Mode) V
CC
= 4V, VOH= 2.7V −10 −110 µA
V
CC
= 2.5V, VOH= 1.8V −2.5 −33 µA Source (Push-Pull Mode) V
CC
= 4V, VOH= 3.3V −0.4 mA
V
CC
= 2.5V, VOH= 1.8V −0.2 mA Sink (Push-Pull Mode) V
CC
= 4V, VOL= 0.4V 1.6 mA
V
CC
= 2.5V, VOL= 0.4V 0.7 mA
TRI-STATE
®
Leakage VCC= 5.5V 1 1 µA Allowable Sink/Source Current per Pin
D Outputs (Sink) 15 mA All others 3mA
Maximum Input Current Room Temp
±
200 mA without Latchup (Note 5) RAM Retention Voltage, V
r
500 ns Rise and Fall Time (min) 2 V
www.national.com 4
Page 5
DC Electrical Characteristics (Continued)
0˚C ≤ TA≤ +70˚C unless otherwise specified
Parameter Conditions Min Typ Max Units
Input Capacitance (Note 6) 7 pF Load Capacitance on D2 (Note 6) 1000 pF
AC Electrical Characteristics
0˚C ≤ TA≤ +70˚C unless otherwise specified
Parameter Conditions Min Typ Max Units
Instruction Cycle Time (t
C
)
Crystal, Resonator 2.5V ≤ V
CC
≤ 4V 2.5 DC µs
4V ≤ V
CC
≤ 5.5V 1.0 DC µs
R/C Oscillator 2.5V ≤ V
CC
≤ 4V 7.5 DC µs
4V ≤ V
CC
≤ 5.5V 3.0 DC µs
Inputs
t
SETUP
4V ≤ VCC≤ 5.5V 200 ns
2.5V ≤ V
CC
≤ 4V 500 ns
t
HOLD
4V ≤ VCC≤ 5.5V 60 ns
2.5V ≤ V
CC
≤ 4V 150 ns
Output Propagation Delay (Note 6) R
L
= 2.2k, CL= 100 pF
t
PD1,tPD0
SO, SK 4V ≤ VCC≤ 5.5V 0.7 µs
2.5V ≤ V
CC
≤ 4V 1.75 µs
All Others 4V ≤ V
CC
≤ 5.5V 1 µs
2.5V ≤ V
CC
≤ 4V 2.5 µs
MICROWIRE
™
Setup Time (t
UWS
) (Note
6)
VCC≥ 4V 20 ns
MICROWIRE Hold Time (t
UWH
) (Note 6) VCC≥ 4V 56 ns
MICROWIRE Output Propagation Delay (t
UPD
)
V
CC
≥ 4V 220 ns
Input Pulse Width (Note 7)
Interrupt Input High Time 1 t
C
Interrupt Input Low Time 1 t
C
Timer 1, 2, 3 Input High Time 1 t
C
Timer 1, 2, 3 Input Low Time 1 t
C
Reset Pulse Width 1 µs
Note 2: Maximum rate of voltage change must be<0.5V/ms. Note 3: Supply current is measured after running 2000 cycles with a square wave CKI input, CKO open, inputs at rails and outputs open. Note 4: The HALTmode will stop CKI from oscillating in the RC and the Crystal configurations. Measurement of I
DD
HALT is done with device neither sourcing or
sinking current; with L, C, and G0–G5programmed as low outputs and not driving a load; all outputs programmed low and not driving a load; all inputs tied to V
CC
; clock monitor and comparator disabled. Parameter refers to HALTmodeenteredviasetting bit 7 of the G Port data register.Partwill pull up CKI during HALTincrystal clock mode.
Note 5: Pins G6 and RESET are designed with a high voltage input network. These pins allow input voltages V
CC
and the pins will have sink current to VCCwhen biased at voltages VCC(the pins do not have source current when biased at a voltage below VCC). The effective resistance to VCCis 750Ω (typical). These two pins will not latch up. The voltage at the pins must be limited to less than 14V. WARNING: Voltages in excess of 14V will cause damage to the pins. This warning
excludes ESD transients. Note 6: The output propagation delay is referenced to the end of the instruction cycle where the output change occurs. Note 7: Parameter characterized but not tested. Note 8: t
C
= Instruction Cycle Time.
www.national.com5
Page 6
Absolute Maximum Ratings (Note 9)
Supply Voltage (V
CC
)7V
Voltage at Any Pin −0.3V to V
CC
+0.3V
Total Current into V
CC
Pin (Source) 100 mA Total Current out of GND Pin (Sink) 110 mA Storage Temperature Range −65˚C to +140˚C
Note 9: Absolute maximum ratings indicate limits beyond which damage to the device may occur. DC and AC electrical specifications are not ensured when operating the device at absolute maximum ratings.
DC Electrical Characteristics
−40˚C ≤ TA≤ +85˚C unless otherwise specified
Parameter Conditions Min Typ Max Units
Operating Voltage 2.5 5.5 V Power Supply Ripple (Note 10) Peak-to-Peak 0.1 V
CC
V
Supply Current (Note 11)
CKI = 4 MHz V
CC
= 5.5V, tC= 2.5 µs 5.5 mA
CKI = 4 MHz V
CC
= 4V, tC= 2.5 µs 2.5 mA
CKI = 1 MHz V
CC
= 4V, tC= 10 µs 1.4 mA
HALT Current (Note 12) V
CC
= 5.5V, CKI=0MHz
<
510 µA
V
CC
= 4V, CKI = 0 MHz
<
36 µA
IDLE Current
CKI = 4 MHz V
CC
= 5.5V, tC= 2.5 µs 1.5 mA
CKI = 1 MHz V
CC
= 4V, tC= 10 µs 0.5 mA
Input Levels (V
IH,VIL
)
RESET
Logic High 0.8 V
CC
V
Logic Low 0.2 V
CC
V
CKI, All Other Inputs
Logic High 0.7 V
CC
V
Logic Low 0.2 V
CC
V
Hi-Z Input Leakage V
CC
= 5.5V −2 +2 µA
Input Pullup Current V
CC
= 5.5V, VIN= 0V −40 −250 µA
G and L Port Input Hysteresis (Note 14) 0.35 V
CC
V Output Current Levels D Outputs
Source V
CC
= 4V, VOH= 3.3V −0.4 mA
V
CC
= 2.5V, VOH= 1.8V −0.2 mA
Sink V
CC
= 4V, VOL=1V 10 mA
V
CC
= 2.5V, VOL= 0.4V 2.0 mA All Others Source (Weak Pull-Up Mode) V
CC
= 4V, VOH= 2.7V −10 −110 µA
V
CC
= 2.5V, VOH= 1.8V −2.5 −33 µA Source (Push-Pull Mode) V
CC
= 4V, VOH= 3.3V −0.4 mA
V
CC
= 2.5V, VOH= 1.8V −0.2 mA Sink (Push-Pull Mode) V
CC
= 4V, VOL= 0.4V 1.6 mA
V
CC
= 2.5V, VOL= 0.4V 0.7 mA
TRI-STATE Leakage V
CC
= 5.5V −2 +2 µA
Allowable Sink/Source Current per Pin
D Outputs (Sink) 15 mA All others 3mA
Maximum Input Current Room Temp
±
200 mA without Latchup (Note 13) RAM Retention Voltage, V
r
500 ns Rise and Fall Time (min) 2 V
www.national.com 6
Page 7
DC Electrical Characteristics (Continued)
−40˚C ≤ TA≤ +85˚C unless otherwise specified
Parameter Conditions Min Typ Max Units
Input Capacitance (Note 14) 7 pF Load Capacitance on D2 (Note 14) 1000 pF
AC Electrical Characteristics
−40˚C ≤ TA≤ +85˚C unless otherwise specified
Parameter Conditions Min Typ Max Units
Instruction Cycle Time (t
C
)
Crystal, Resonator 2.5V ≤ V
CC
<
4V 2.5 DC µs
4V ≤ V
CC
≤ 5.5V 1.0 DC µs
R/C Oscillator 2.5V ≤ V
CC
<
4V 7.5 DC µs
4V ≤ V
CC
<
5.5V 3.0 DC µs
Inputs
t
SETUP
4V ≤ VCC≤ 5.5V 200 ns
2.5V ≤ V
CC
<
4V 500 ns
t
HOLD
4V ≤ VCC≤ 5.5V 60 ns
2.5V ≤ V
CC
<
4V 150 ns
Output Propagation Delay (Note 14) R
L
= 2.2k, CL= 100 pF
t
PD1,tPD0
SO, SK 4V ≤ VCC≤ 5.5V 0.7 µs
2.5V ≤ V
CC
<
4V 1.75 µs
All Others 4V ≤ V
CC
≤ 5.5V 1 µs
2.5V ≤ V
CC
<
4V 2.5 µs
MICROWIRE Setup Time (t
UWS
) (Note 14) VCC≥ 4V 20 ns
MICROWIRE Hold Time (t
UWH
) (Note 14) VCC≥ 4V 56 ns
MICROWIRE Output Propagation Delay (t
UPD
)VCC≥ 4V 220 ns
Input Pulse Width (Note 15)
Interrupt Input High Time 1 t
C
Interrupt Input Low Time 1 t
C
Timer 1, 2, 3 Input High Time 1 t
C
Timer 1, 2, 3 Input Low Time 1 t
C
Reset Pulse Width 1 µs
Note 10: Maximum rate of voltage change must be<0.5 V/ms. Note 11: Supply current is measured after running 2000 cycles with a square wave CKI input, CKO open, inputs at rails and outputs open. Note 12: The HALT mode will stop CKI from oscillating in the RC and the Crystal configurations. Measurement of I
DD
HALTis done with device neither sourcing or
sinking current; with L, C, and G0–G5programmed as low outputs and not driving a load; all outputs programmed low and not driving a load; all inputs tied to V
CC
; clock monitor and comparator disabled. Parameter refers to HALTmodeenteredviasetting bit 7 of the G Port data register.Partwill pull up CKI during HALTincrystal clock mode.
Note 13: Pins G6 and RESET are designed with a high voltage input network. These pins allow input voltages V
CC
and the pins will have sink current to VCCwhen biased at voltages greater than VCC(the pins do not have source current when biased at a voltage below VCC). The effective resistance to VCCis 750Ω (typical). These two pins will not latch up. The voltage at the pins must be limited to less than 14V. WARNING: Voltages in excess of 14V will cause damage to the pins.
This warning excludes ESD transients. Note 14: The output propagation delay is referenced to the end of the instruction cycle where the output change occurs. Note 15: Parameter characterized but not tested. Note 16: t
C
= Instruction Cycle Time.
www.national.com7
Page 8
Comparator AC and DC Characteristics
VCC= 5V, −40˚C ≤ TA≤ +85˚C
Parameter Conditions Min Typ Max Units
Input Offset Voltage 0.4V
<
V
IN
<
V
CC
−1.5V
10 25 mV
Input Common Mode Voltage Range (Note
17)
0.4 V
CC
−1.5 V
Voltage Gain 300k V/V V
CC
/2 Reference 4.0V<V
CC
<
5.5V 0.5 V
CC
−0.04
0.5V
CC
0.5V
CC
+0.04
V
DC Supply Current V
CC
= 5.5V 250 µA For Comparator (when enabled) DC Supply Current V
CC
= 5.5V 50 80 µA For V
CC
/2 reference (when enabled)
DC Supply Current V
CC
= 5.5V 200 µA For Constant Current Source (when enabled) Constant Current Source 4.0V
<
V
CC
<
5.5V 7 20 32 µA
Current Source Variation 4.0V
<
V
CC
<
5.5V 2 µA
Temp = Constant Current Source Enable Time 1.5 2 µs Comparator Response Time 10 mV overdrive, 1 µs
100 pF load
Note 17: The device is capable of operating over a common mode voltage range of 0 to VCC− 1.5V, however increased offset voltage will be observed between 0V and 0.4V.
DS012865-4
FIGURE 4. MICROWIRE/PLUS Timing
www.national.com 8
Page 9
Typical Performance Characteristics (−55˚C ≤ T
A
=
+125˚C)
DS012865-40 DS012865-41
DS012865-42 DS012865-43
DS012865-44 DS012865-44
www.national.com9
Page 10
Typical Performance Characteristics (−55˚C ≤ T
A
=
+125˚C) (Continued)
DS012865-46 DS012865-47
DS012865-48 DS012865-49
DS012865-50
DS012865-51
www.national.com 10
Page 11
Pin Descriptions
VCCand GND are the power supply pins. All VCCand GND pins must be connected.
CKI is the clock input. This can come from an R/C generated oscillator, or a crystal oscillator (in conjunction with CKO). See Oscillator Description section.
RESET is the master reset input. See Reset description sec­tion.
The device contains two bidirectional (one 8-bit, one 4-bit) I/O ports (G and L), where each individual bit may be inde­pendently configured as a weak pullup input, TRI-STATE
®
Figure 5
shows the I/O port configurations. The DATAand CONFIGU­RATION registers allow for each port bit to be individually configured under software control as shown below:
PORT L is a 4-bit I/O port. All L-pins have Schmitt triggers on the inputs.
The Port L supports Multi-Input Wake Up on all four pins. The Port L has the following alternate features:
L7 MIWU or external interrupt L6 MIWU or external interrupt L5 MIWU or external interrupt L4 MIWU or external interrupt
Configuration Data
Port Set-Up
Register Register
0 0 Hi-Z Input (TRI-STATE Output) 0 1 Input with Weak Pull-Up 1 0 Push-Pull Zero Output 1 1 Push-Pull One Output
Please note:
The lower 4 L-bits read all ones (L0:L3). This is independant from the states of the associated bits in the L-port Data- and Configuration register. The lower 4 bits in the L-port Data­and Configuration register can be used as general purpose status indicators (flags).
Port G is an 8-bit port with 5 I/O pins (G0, G2–G5), an input pin (G6), and a dedicated output pin (G7). Pins G0 and
G2–G6 all have Schmitt Triggers on their inputs. Pin G1 serves as the dedicated WDOUT WATCHDOG output, while pin G7 is either input or output depending on the oscillator mask option selected. With the crystal oscillator option se­lected, G7 serves as the dedicated output pin for the CKO clock output. With the single-pin R/C oscillator mask option selected, G7 serves as a general purpose input pin but is also used to bring the device out of HALT mode with a low to high transition on G7. There are two registers associated with the G Port, a data register and a configuration register. Therefore, each of the 5 I/O bits (G0, G2–G5) can be indi­vidually configured under software control.
Note that the chip will be placed in the HALTmode by writing a “1” to bit 7 of the Port G Data Register. Similarly the chip will be placed in the IDLE mode by writing a “1” to bit 6 of the Port G Data Register.
Writing a “1” to bit 6 of the Port G Configuration Register en­ables the MICROWIRE/PLUS to operate with the alternate phase of the SK clock. The G7 configuration bit, if set high, enables the clock start up delay after HALT when the R/C clock configuration is used.
Config Reg. Data Reg.
G7 CLKDLY HALT
G6 Alternate SK IDLE Port G has the following alternate features: G6 SI (MICROWIRE Serial Data Input) G5 SK (MICROWIRE Serial Clock) G4 SO (MICROWIRE Serial Data Output) G3 T1A (Timer T1 I/O) G2 T1B (Timer T1 Capture Input) G0 INTR (External Interrupt Input) Port G has the following dedicated functions: G7 CKO Oscillator dedicated output or general purpose
input
G1 WDOUT WATCHDOGand/or Clock Monitor dedicated
output. Port I is an eight-bit Hi-Z input port. Port I0–I7 are used for the analog function block. The Port I has the following alternate features: I7 C
OUT
(Comparator Output) I6 Analog CH6 (Comparator Positive Input 6) I5 Analog CH5 (Comparator Positive Input 5) I4 Analog CH4 (Comparator Positive Input 4) I3 Analog CH3 (Comparator Positive Input 3/Comparator
Output) I2 Analog CH2 (Comparator Positive Input 2) I1 I
SRC
(Comparator Negative Input/Current Source Out) I0 Analog CH1 (Comparator Positive Input 1) Port D is a 4-bit output port that is preset high when RESET
goes low. The user can tie two or more D port outputs (ex­cept D2) together in order to get a higher drive.
DS012865-5
FIGURE 5. I/P Port Configurations
www.national.com11
Page 12
Functional Description
The architecture of the device is a modified Harvard archi­tecture. With the Harvard architecture, the control store pro­gram memory (ROM) is separated from the data store memory (RAM). Both ROM and RAM have their own sepa­rate addressing space with separate address buses. The ar­chitecture, though based on the Harvard architecture, per­mits transfer of data from ROM to RAM.
CPU REGISTERS
The CPU can do an 8-bit addition, subtraction, logical or shift operation in one instruction (t
C
) cycle time. There are six CPU registers: A is the 8-bit Accumulator Register PC
®
is the 15-bit Program Counter Register PU is the upper 7 bits of the program counter (PC) PL is the lower 8 bits of the program counter (PC)
B is an 8-bit RAM address pointer, which can be optionally post auto incremented or decremented.
X is an 8-bit alternate RAM address pointer, which can be optionally post auto incremented or decremented.
All the CPU registers are memory mapped with the excep­tion of the Accumulator (A) and the Program Counter (PC).
PROGRAM MEMORY
DATA MEMORY
The data memory address space includes the on-chip RAM and data registers, the I/O registers (Configuration, Data and Pin), the control registers, the MICROWIRE/PLUS SIO shift register, and the various registers, and counters associated with the timers (with the exception of the IDLE timer). Data memory is addressed directly by the instruction or indirectly by the B, X, and SP pointers.
The data memory consists of 128 bytes of RAM. Sixteen bytes of RAM are mapped as “registers” at addresses 0F0 to 0FF Hex. These registers can be loaded immediately, and also decremented and tested with the DRSZ (decrement register and skip if zero) instruction. The memory pointer registers X, B and SP are memory mapped into this space at address locations 0FC to 0FF Hex respectively, with the other registers being available for general usage.
The instruction set permits any bit in memory to be set, reset or tested. All I/O and registers (except A and PC) are memory mapped; therefore, I/O bits and register bits can be directly and individually set, reset and tested. The accumula­tor (A) bits can also be directly and individually tested.
Note: RAM contents are undefined upon power-up.
Reset
The RESET input when pulled low initializes the microcon­troller. Initialization will occur whenever the RESET input is pulled low. Upon initialization, the data and configuration registers for ports L and G are cleared, resulting in these Ports being initialized to the TRI-STATE mode. Pin G1 of the G Port is an exception (as noted below) since pin G1 is dedi­cated as the WATCHDOG and/or Clock Monitor error output pin. Port D is set high. The PC, PSW, ICNTRL and CNTRL-control registers are cleared. The Comparator Se­lect Register is cleared. The S register is initialized to zero. The Multi-Input Wakeup registers WKEN and WKEDG are cleared. Wakeup register WKPND is unknown. The stack pointer, SP, is initialized to 6F Hex.
The device comes out of reset with both the WATCHDOG logic and the Clock Monitor detector armed, with the WATCHDOG service window bits set and the Clock Monitor bit set. The WATCHDOG and Clock Monitor circuits are in­hibited during reset. The WATCHDOG service window bits being initialized high default to the maximum WATCHDOG service window of 64k t
C
clock cycles. The Clock Monitor bit being initialized high will cause a Clock Monitor error follow­ing reset if the clock has not reached the minimum specified frequency at the termination of reset. A Clock Monitor error will cause an active low error output on pin G1. This error output will continue until 16 t
C
-32 tCclock cycles following the clock frequency reaching the minimum specified value, at which time the G1 output will enter the TRI-STATE mode.
The external RC network shown in
Figure 6
should be used to ensure that the RESET pin is held low until the power sup­ply to the chip stabilizes.
WARNING:
When the device is held in reset for a long time it will con­sume high current (typically about 7 mA). This is not true for the equivalent ROM device (COP8ACC5).
Oscillator Circuits
The chip can be driven by a clock input on the CKI input pin which can be between DC and 10 MHz. The CKO output clock is on pin G7 (crystal configuration). The CKI input fre­quency is divided down by 10 to produce the instruction cycle clock (t
C
).
Figure 7
shows the Crystal and R/C Oscillator diagrams.
DS012865-6
RC>5 x POWER SUPPLYRISE TIME
FIGURE 6. Recommended Reset Circuit
www.national.com 12
Page 13
Oscillator Circuits (Continued)
CRYSTAL OSCILLATOR
CKI and CKO can be connected to make a closed loop crys­tal (or resonator) controlled oscillator.
Table 1
shows the component values required for various
standard crystal values.
TABLE 1. Crystal Oscillator Configuration, T
A
=
25˚C
R1 R2 C1 C2 CKI Freq
Conditions
(kΩ)(MΩ) (pF) (pF) (MHz)
0 1 30 30–36 10 V
CC
=
5V
0 1 30 30–36 4 V
CC
=
5V
0 1 200 100–150 0.455 V
CC
=
5V
R/C OSCILLATOR
By selecting CKI as a single pin oscillator input, a single pin R/C oscillator circuit can be connected to it. CKO is available as a general purpose input, and/or HALT restart input.
Note: Use of the R/C oscillator option will result in higher electromagnetic
emissions.
Table 2
shows the variation in the oscillator frequencies as
functions of the component (R and C) values.
TABLE 2. RC Oscillator Configuration, T
A
=
25˚C
R C CKI Freq Instr. Cycle
Conditions
(kΩ) (pF) (MHz) (µs)
3.3 82 2.2 to 2.7 3.7 to 4.6 V
CC
=
5V
5.6 100 1.1 to 1.3 7.4 to 9.0 V
CC
=
5V
6.8 100 0.9 to 1.1 8.8 to 10.8 V
CC
=
5V
Note 18: 3k ≤ R ≤ 200k Note 19: 50 pF ≤ C ≤ 200 pF
Control Registers
CNTRL Register (Address X'00EE)
T1C3 T1C2 T1C1 T1C0 MSEL IEDG SL1 SL0
Bit 7 Bit 0
T1C3 Timer T1 mode control bit T1C2 Timer T1 mode control bit T1C1 Timer T1 mode control bit T1C0 Timer T1 Start/Stop control in timer
modes 1 and 2, T1 Underflow Interrupt Pending Flag in timer mode 3
MSEL Selects G5 and G4 as MICROWIRE/PLUS
signals SK and SO respectively
IEDG External interrupt edge polarity select
(0 = Rising edge, 1 = Falling edge)
SL1 & SL0 Select the MICROWIRE/PLUS clock divide
by (00 = 2, 01 = 4, 1x = 8)
PSW Register (Address X'00EF)
HC C T1PNDA T1ENA EXPND BUSY EXEN GIE
Bit 7 Bit 0
The PSW register contains the following select bits:
HC Half Carry Flag C Carry Flag T1PNDA Timer T1 Interrupt Pending Flag (Autoreload
RA in mode 1, T1 Underflow in Mode 2, T1A capture edge in mode 3)
T1ENA Timer T1 Interrupt Enable for Timer Underflow
or T1A Input capture edge EXPND External interrupt pending BUSY MICROWIRE/PLUS busy shifting flag EXEN Enable external interrupt GIE Global interrupt enable (enables interrupts)
The Half-Carry flag is also affected by all the instructions that affect the Carry flag. The SC (Set Carry) and R/C (Reset Carry) instructions will respectively set or clear both the carry flags. In addition to the SC and R/C instructions, ADC, SUBC, RRC and RLC instructions affect the Carry and Half Carry flags.
ICNTRL Register (Address X'00E8)
Reserved LPEN T0PND T0EN µWPND µWEN T1PNDB T1ENB Bit 7 Bit 0
The ICNTRL register contains the following bits:
Reserved This bit is reserved and should be zero. LPEN L Port Interrupt Enable (Multi-Input Wakeup/
Interrupt) T0PND Timer T0 Interrupt pending T0EN Timer T0 Interrupt Enable (Bit 12 toggle) µWPND MICROWIRE/PLUS interrupt pending µWEN Enable MICROWIRE/PLUS interrupt T1PNDB Timer T1 Interrupt Pending Flag for T1B cap-
ture edge T1ENB Timer T1 Interrupt Enable for T1B Input cap-
ture edge
DS012865-7
DS012865-8
FIGURE 7. Crystal and R/C Oscillator Diagrams
www.national.com13
Page 14
Timers
The device contains a very versatile set of timers (T0 and T1). All timers and associated autoreload/capture registers power up containing random data.
TIMER T0 (IDLE TIMER)
The device supports applications that require maintaining real time and low power with the IDLE mode. This IDLE mode support is furnished by the IDLE timer T0, which is a 16-bit timer. The Timer T0 runs continuously at the fixed rate of the instruction cycle clock, t
C
. The user cannot read or
write to the IDLE Timer T0, which is a count down timer. The Timer T0 supports the following functions:
•
Exit out of the Idle Mode (See Idle Mode description)
•
WATCHDOG logic (See WATCHDOG description)
•
Start up delay out of the HALT mode
Figure 8
is a functional block diagram showing the structure
of the IDLE Timer and its associated interrupt logic. Bits 11 through 15 of the ITMR register can be selected for
In order for an interrupt to be generated, the IDLE Timer in­terrupt enable bit T0EN must be set, and the GIE (Global In­terrupt Enable) bit must also be set. The T0PND flag and T0EN bit are bits 5 and 4 of the ICNTRL register, respec­tively.The interrupt can be used for any purpose. Typically, it
is used to perform a task upon exit from the IDLE mode. For more information on the IDLE mode, refer to the Power Save Modes section.
The Idle Timer period is selected by bits 0–2 of the ITMR register Bits 3–7 of the ITMR Register are reserved and should not be used as software flags.
ITMR Register (Address X’0xCF)
Reserved ITSEL2 ITSEL1 ITSEL0
Bit 7 Bit 3 Bit 0
TABLE 3. Idle Timer Window Length
ITSEL2 ITSEL1 ITSEL0
Idle Timer Period
(Instruction Cycles)
0 0 0 4,096 0 0 1 8,192 0 1 0 16,384 0 1 1 32,768 1 X X 65,536
The ITMR register is cleared on Reset and the Idle Timerpe­riod is reset to 4,096 instruction cycles.
Any time the IDLE Timer period is changed there is the pos­sibility of generating a spurious IDLE Timer interrupt by set­ting the T0PND bit. The user is advised to disable IDLE Timer interrupts prior to changing the value of the ITSEL bits of the ITMR Register and then clear the T0PND bit before at­tempting to synchronize operation to the IDLE Timer.
TIMER T1
with minimal software overhead. The timer block has three operating modes: Processor Independent PWM mode, Ex­ternal Event Counter mode, and Input Capture mode.
The control bitsT1C3, T1C2, and T1C1 allow selection of the different modes of operation.
Mode 1. Processor Independent PWM Mode
As the name suggests, this mode allows the device to gen­erate a PWM signal with very minimal user intervention. The user only has to define the parameters of the PWM signal
DS012865-9
FIGURE 8. Functional Block Diagram for Idle Timer T0
www.national.com 14
Page 15
Timers (Continued)
In this mode the timer T1 counts down at a fixed rate of t
C
. Upon every underflow the timer is alternately reloaded with the contents of supporting registers, R1A and R1B. The very first underflow of the timer causes the timer to reload from the register R1A. Subsequent underflows cause the timer to be reloaded from the registers alternately beginning with the register R1B.
The T1 Timer control bits, T1C3, T1C2 and T1C1 set up the timer for PWM mode operation.
Figure 9
shows a block diagram of the timer in PWM mode.
Underflows from the timer are alternately latched into two pending flags, T1PNDA and T1PNDB. The user must reset these pending flags under software control. Two control en­able flags, T1ENA and T1ENB, allow the interrupts from the timer underflow to be enabled or disabled. Setting the timer enable flag T1ENA will cause an interrupt when a timer un­derflow causes the R1A register to be reloaded into the timer. Setting the timer enable flag T1ENB will cause an in­terrupt when a timer underflow causes the R1B register to be reloaded into the timer. Resetting the timer enable flags will disable the associated interrupts.
Mode 2. External Event Counter Mode
Figure 10
shows a block diagram of the timer in External
Event Counter mode.
Note: The PWM output is not available in this mode since the T1A pin is be-
ing used as the counter input clock.
Mode 3. Input Capture Mode
The device can precisely measure external frequencies or time external events by placing the timer block, T1, in the in­put capture mode.
In this mode, the timerT1 is constantly running at the fixed t
C
rate. The two registers, R1A and R1B, act as capture regis­ters. Each register acts in conjunction with a pin. The register R1A acts in conjunction with the T1A pin and the register R1B acts in conjunction with the T1B pin.
The timer value gets copied over into the register when a trigger event occurs on its corresponding pin. Control bits, T1C3, T1C2 and T1C1, allow the trigger events to be speci­fied either as a positive or a negative edge. The trigger con­dition for each input pin can be specified independently.
The trigger conditions can also be programmed to generate interrupts. The occurrence of the specified trigger condition on the T1A and T1B pins will be respectively latched into the pending flags, T1PNDA and T1PNDB. The control flag T1ENA allows the interrupt on T1A to be either enabled or disabled. Setting the T1ENA flag enables interrupts to be generated when the selected trigger condition occurs on the T1A pin. Similarly, the flag T1ENB controls the interrupts from the T1B pin.
Underflows from the timer can also be programmed to gen­erate interrupts. Underflows are latched into the timer T1C0 pending flag (the T1C0 control bit serves as the timer under­flow interrupt pending flag in the Input Capture mode). Con­sequently, the T1C0 control bit should be reset when enter­ing the Input Capture mode. The timer underflow interrupt is enabled with the T1ENA control flag. When a T1A interrupt occurs in the Input Capture mode, the user must check both the T1PNDA and T1C0 pending flags in order to determine whether a T1A input capture or a timer underflow (or both) caused the interrupt.
DS012865-10
FIGURE 9. Timer in PWM Mode
DS012865-11
FIGURE 10. Timer in External Event Counter Mode
www.national.com15
Page 16
Timers (Continued)
Figure 11
shows a block diagram of the timer in Input Cap-
ture mode.
TIMER CONTROL FLAGS
The control bits and their functions are summarized below.
T1C3 Timer mode control T1C2 Timer mode control T1C1 Timer mode control T1C0 Timer Start/Stop control in Modes 1 and 2 (Pro-
cessor Independent PWM and External Event Counter), where 1 = Start, 0 = Stop
Timer Underflow Interrupt Pending Flag in
Mode 3 (Input Capture) T1PNDA Timer Interrupt Pending Flag T1ENA Timer Interrupt Enable Flag
1 = Timer Interrupt Enabled
0 = Timer Interrupt Disabled T1PNDB Timer Interrupt Pending Flag T1ENB Timer Interrupt Enable Flag
1 = Timer Interrupt Enabled
0 = Timer Interrupt Disabled
The timer mode control bits (T1C3, T1C2 and T1C1) are detailed below:
Mode T1C3 T1C2 T1C1 Description
Interrupt A
Source
Interrupt B
Source
Timer
Counts On
1
1 0 1 PWM: T1A Toggle Autoreload RA Autoreload RB t
C
1 0 0 PWM: No T1A
Toggle
Autoreload RA Autoreload RB
t
C
2
0 0 0 External Event
Counter
Timer Underflow
Pos. T1B Edge Pos. T1A
Edge
0 0 1 External Event
Counter
Timer Underflow
Pos. T1B Edge Pos. T1A
Edge
3
0 1 0 Captures: Pos. T1A Edge Pos. T1B Edge t
C
T1A Pos. Edge or Timer T1B Pos. Edge Underflow
1 1 0 Captures: Pos. T1A Neg. T1B t
C
T1A Pos. Edge Edge or Timer Edge T1B Neg. Edge Underflow
0 1 1 Captures: Neg. T1A Neg. T1B t
C
T1A Neg. Edge Edge or Timer Edge T1B Neg. Edge Underflow
1 1 1 Captures: Neg. T1A Neg. T1B t
C
T1A Neg. Edge Edge or Timer Edge T1B Neg. Edge Underflow
HIGH SPEED CAPTURE TIMER
The device provides a 16-bit high-speed capture timer. The timer consists of a 16-bit up-counter that is clocked with the device clock input frequency (CKI) and an 8-bit control regis­ter.The 16-bit counter is mapped as two read/write 8-bit reg­isters. This timer is specifically designed to be used in con­junction with the Analog Function Block (comparator, analog multiplexer, constant current source) to implement a low-cost, high-resolution, single-slope A/D.
The timer is automatically stopped in the event of a capture to allow the software to read the timer value. Coming out of reset the counter is disabled (stopped) and reads all “0”.
Setting the Capture Timer Run bit CAPRUN bit in the Cap­ture Control Register (CAPCNTL) will start the counter. The counter will count up until a capture event (negative edge) is received. Upon a capture the counter will be stopped, the Capture Pending bit (CAPPND) is set, and the CAPRUN bit is automatically reset. If capture interrupts are enabled (CAPIEN=1), the capture event will generate an interrupt. Setting the CAPRUN bit again by software will start a new counting cycle. If the Capture Mode bit is reset (CAP­MOD=0) the capture timer will be automatically initialized to all “0” with each setting of the CAPRUN bit. If CAPMOD=1 the timer will not be cleared when setting the CAPRUN bit, thus allowing the user’s software to pre-load the timer regis-
DS012865-12
FIGURE 11. Timer in Input Capture Mode
www.national.com 16
Page 17
Timers (Continued)
ters with any desired value. This mode can be used in con­junction with the timer’s overflow to implement for example a programmable delay counter.
“CAPTURE MODE” is only active when the CAPRUN bit is set, i.e. any capture events received while the timer is stopped (CAPRUN=0) will be ignored and will not cause the CAPPND bit to be set. The capture counter can also be stopped (frozen) by the user’s software resetting the CA­PRUN bit.
If the user program tries to set the CAPRUN bit at the same time that the hardware gets a capture event and tries to reset the CAPRUN bit, the hardware will have precedence.
Capture Overflow interrupt and Capture Pending interrupt share the same interrupt vector.
CAPCNTL Register (Address (X’CE)
Reserved CAPMOD CAPRUN CAPOVL CAPPND CAPIEN
Bit 7-5 Bit 4 Bit 0
The CAPCNTL register contains the following bits: Reserved These bits are reserved and should must be
zero.
CAPMOD Reset Time.
0: reset timer to “0” when CAPRUN bit gets set 1: DO NOT reset timer to “0” when CAPRUN bit
gets set.
CAPRUN Capture Timer Run. Setting this bit to one will
start the capture timer.This bit gets automatically reset to “0” when a capture events occurs. Writ­ing a “0” by software will also reset the bit and stop the timer.
CAPOVL Capture Timer Overflow. Gets set to “1” upon
timer overflow. Has to be reset by user’s soft­ware. If CAPIEN=1 an interrupt is generated.
CAPPND Capture pending.
Gets automatically set when a capture event oc­curs. If CAPIEN=1 an interrupt is generated. Has to be reset by the user’s software.
CAPIEN Capture Interrupt enable,
1=enable interrupts, 0=disable interrupts
Power Save Modes
The device offers the user two power save modes of opera­tion: HALT and IDLE. In the HALT mode, all microcontroller activities are stopped. In the IDLE mode, the on-board oscil­lator circuitry and timer T0 are active but all other microcon­troller activities are stopped. In either mode, all on-board RAM, registers, I/O states, and timers (with the exception of T0) are unaltered.
HALT MODE
The device can be placed in the HALT mode by writing a “1” to the HALT flag (G7 data bit). All microcontroller activities, including the clock and timers, are stopped. The WATCH-
DOG logic on the device is disabled during the HALT mode. However, the clock monitor circuitry, if enabled, remains ac­tive and will cause the WATCHDOG output pin (WDOUT) to go low. If the HALT mode is used and the user does not want to activate the WDOUT pin, the Clock Monitor should be dis­abled after the device comes out of reset (resetting the Clock Monitor control bit with the first write to the WDSVR register). In the HALTmode, the power requirements of the device are minimal and the applied voltage (V
CC
) may be decreased to
V
r(Vr
=
2.0V) without altering the state of the machine.
The device supports three different ways of exiting the HALT mode. The first method of exiting the HALT mode is with the Multi-Input Wakeup feature on the Port L.
The second method is with a low to high transition on the CKO (G7) pin. This method precludes the use of the crystal clock configuration (since CKO becomes a dedicated out­put), and so may only be used with an RC clock configura­tion. The third method of exiting the HALT mode is by pulling the RESET pin low.
Since a crystal or ceramic resonator may be selected as the oscillator, the Wakeup signal is not allowed to start the chip running immediately since crystal oscillators and ceramic resonators have a delayed start up time to reach full ampli­tude and frequency stability. The IDLE timer is used to gen­erate a fixed delay to ensure that the oscillator has indeed stabilized before allowing instruction execution. In this case, upon detecting a valid Wakeup signal, only the oscillator cir­cuitry is enabled. The IDLE timer is loaded with a value of 256 and is clocked with the t
C
instruction cycle clock. The t
C
clock is derived by dividing the oscillator clock down by a fac­tor of 10. The Schmitt trigger following the CKI inverter on the chip ensures that the IDLE timer is clocked only when the oscillator has a sufficiently large amplitude to meet the Schmitt trigger specifications. This Schmitt trigger is not part of the oscillator closed loop. The startup timeout from the IDLE timer enables the clock signals to be routed to the rest of the chip.
If an RC clock option is being used, the fixed delay is intro­duced optionally.Acontrol bit, CLKDLY, mapped as configu­ration bit G7, controls whether the delay is to be introduced or not. The delay is included if CLKDLY is set, and excluded if CLKDLY is reset. The CLKDLY bit is cleared on reset.
The device has two mask options associated with the HALT mode. The first mask option enables the HALT mode feature, while the second mask option disables the HALT mode. With the HALT mode enable mask option, the device will enter and exit the HALTmode as described above. With the HALT disable mask option, the device cannot be placed in the HALTmode (writing a “1” to the HALT flag will have no effect, the HALT flag will remain “0”).
IDLE MODE
In the IDLE mode, program execution stops and power con­sumption is reduced to a very low level as with the HALT mode. However, the on-board oscillator, IDLE Timer (Timer T0), and Clock Monitor continue to operate, allowing real time to be maintained. The device remains idle for a selected amount of timeup to 65,536 instruction cycles, or 65.536 mil­liseconds with a 1 MHz instruction clock frequency, and then automatically exits the IDLE mode and returns to normal pro­gram execution.
The device is placed in the IDLE mode under software con­trol by setting the IDLE bit (bit 6 of the Port G data register).
www.national.com17
Page 18
Power Save Modes (Continued)
The IDLE mode uses the on-chip IDLE Timer (Timer T0) to keep track of elapsed time in the IDLE state. The IDLE timer runs continuously at the instruction clock rate, whether or not the device is in the IDLE mode. Each time the bit of the timer associated with the selected window toggles, the T0PND bit is set, an interrupt is generated (if enabled), and the device exits the IDLE mode if in that mode. If the IDLE timer inter­rupt is enabled, the interrupt is serviced before execution of the main program resumes. (However, the instruction which was started as the part entered the IDLE mode is completed before the interrupt is serviced. This instruction should be a NOP which should follow the enter IDLE instruction.) The user must reset the IDLE timer pending flag (T0PND) before entering the IDLE mode.
As with the HALT mode, this device can also be returned to normal operation with a reset, or with a Multi-Input Wakeup input. Upon reset the ITMR register is cleared and the ITMR register selects the 4,096 instruction cycle tap of the Idle Timer.
The IDLE timer cannot be started or stopped under software control, and it is not memory mapped, so it cannot be read or written by the software. Its state upon Reset is unknown. Therefore, if the device is put into the IDLE mode at an arbi­trary time, it will stay in the IDLE mode for somewhere be­tween 1 and the selected number of instruction cycles.
In order to precisely time the duration of the IDLE state, entry into the IDLE mode must be synchronized to the state of the IDLE Timer. The best way to do this is to use the IDLE Timer interrupt, which occurs on every underflow of the bit of the IDLE Timer which is associated with the selected window. Another method is to poll the state of the IDLE Timer pending bit T0PND, which is set on the same occurrence. The Idle Timer interrupt is enabled by setting bit T0EN in the ICNTRL register.
by setting the T0PND bit. The user is advised to disable IDLE Timer interrupts prior to changing the value of the IT­SEL bits of the ITMR Register and then clear the TOPND bit before attempting to synchronize operation to the IDLE Timer.
Note: As with the HALTmode,it is necessary to program two NOP’s to allow
clock resynchronization upon return from the IDLE mode. The NOP’s are placed either at the beginning of the IDLE timer interrupt routine or immediately following the “enter IDLE mode” instruction.
For more information on the IDLE Timer and its associated interrupt, see the description in the Timers section.
Multi-Input Wakeup
The Multi-Input Wakeup feature is used to return (wakeup) the device from either the HALT or IDLE modes. Alternately Multi-Input Wakeup/Interrupt feature may also be used to generate up to 4 edge selectable external interrupts.
Figure 12
shows the Multi-Input Wakeup logic.
The Multi-Input Wakeup feature utilizes the L Port. The user selects which particular L port bit (or combination of L Port bits) will cause the device to exit the HALT or IDLE modes. The selection is done through the register WKEN. The regis­ter WKEN is an 8-bit read/write register, which contains a control bit for every L port bit. Setting a particular WKEN bit enables a Wakeup from the associated L port pin.
The user can select whether the trigger condition on the se­lected L Port pin is going to be either a positive edge (low to high transition) or a negative edge (high to low transition). This selection is made via the register WKEDG, which is an 8-bit control register with a bit assigned to each L Port pin. Setting the control bit will select the trigger condition to be a negative edge on that particular L Port pin. Resetting the bit selects the trigger condition to be a positive edge. Changing an edge select entails several steps in order to avoid a Wakeup condition as a result of the edge change. First, the associated WKEN bit should be reset, followed by the edge select change in WKEDG. Next, the associated WKPND bit should be cleared, followed by the associated WKEN bit be­ing re-enabled.
www.national.com 18
Page 19
Multi-Input Wakeup (Continued)
An example may serve to clarify this procedure. Suppose we wish to changethe edge select from positive (low going high) to negative (high going low) for L Port bit 5, where bit 5 has previously been enabled for an input interrupt. The program would be as follows:
RBIT 5, WKEN ; Disable MIWU SBIT 5, WKEDG ; Change edge polarity RBIT 5, WKPND ; Reset pending flag SBIT 5, WKEN ; Enable MIWU
If the L port bits have been used as outputs and then changed to inputs with Multi-Input Wakeup/Interrupt,a safety procedure should also be followed to avoid wakeup condi­tions. After the selected L port bits have been changed from output to input but before the associated WKEN bits are en­abled, the associated edge select bits in WKEDG should be set or reset for the desired edge selects, followed by the as­sociated WKPND bits being cleared.
This same procedure should be used following reset, since the L port inputs are left floating as a result of reset.
The occurrence of the selected trigger condition for Multi-Input Wakeup is latched into a pending register called WKPND. The respective bits of the WKPND register will be set on the occurrence of the selected trigger edge on the cor­responding Port L pin. The user has the responsibility of clearing these pending flags. Since WKPND is a pending register for the occurrence of selected wakeup conditions, the device will not enter the HALT mode if any Wakeup bit is both enabled and pending. Consequently, the user must clear the pending flags before attempting to enter the HALT mode.
WKEN, WKPND and WKEDG are all read/write registers, and are cleared at reset.
PORT L INTERRUPTS
Port L provides the user with an additional eight fully select­able, edge sensitive interrupts which are all vectored into the same service subroutine.
The interrupt from Port L shares logic with the wake up cir­cuitry.The register WKEN allows interrupts from Port L to be individually enabled or disabled. The register WKEDG speci­fies the trigger condition to be either a positive or a negative edge. Finally, the register WKPND latches in the pending trigger conditions.
The GIE (Global Interrupt Enable) bit enables the interrupt function.
A control flag, LPEN, functions as a global interrupt enable for Port L interrupts. Setting the LPEN flag will enable inter­rupts and vice versa. A separate global pending flag is not needed since the register WKPND is adequate.
Since Port L is also used for waking the device out of the HALTor IDLE modes, the user can elect to exit the HALT or IDLE modes either with or without the interrupt enabled. If he elects to disable the interrupt, then the device will restart ex­ecution from the instruction immediately following the in­struction that placed the microcontroller in the HALTor IDLE modes. In the other case, the device will first execute the in­terrupt service routine and then revert to normal operation. (See HALT MODE for clock option wakeup information.)
DS012865-13
FIGURE 12. Multi-Input Wake Up Logic
www.national.com19
Page 20
Analog Function Block
This device contains an analog function block with the intent to provide a function which allows for single slope, low cost, A/D conversion of up to 6 channels.
CMPSL REGISTER (ADDRESS X’00B7)
CMPT2B CMPISEL2 CMPISEL1 CMPISEL0 CMPOE CSEN CMPEN CMPNEG
Bit 7 Bit 0
The CMPSL register contains the following bits: CMPT2B Selects the “High Speed 16-bit Capture
Timer” input to be driven directly by the comparator output. If the comparator is dis­abled (CMPEN=0), this function is dis­abled, i.e. the Capture Timer input is con­nected to GND.
CMPISEL0/1/2 Will select one of seven possible sources
(I0/I2/I3/I4/I5/I6/internal reference) as a positive input to the comparator (see
Table
4
for more information)
I3 or pin I7 (“1”=enable) depending on the value of CMPISEL0/1/2.
CSEN Enables the internal constant current
source. This current source provides a
nominal 20 µA constant current at the I1 pin. This current can be used to ensure a linear charging rate on an external capaci­tor. This bit has no affect and the current source is disabled if the comparator is not
enabled (CMPEN=0). CMPEN Enable the comparator (“1”=enable) CMPNEG Will drive I1 to a low level. This bit can be
used to discharge an external capacitor.
This bit is disabled if the comparator is not
enabled (CMPEN=0). The Comparator Select Register is cleared on RESET (the
comparator is disabled). To save power the program should also disable the comparator before the µC enters the HALT/ IDLE modes. Disabling the comparator will turn off the con­stant current source and the V
CC
/2 reference, disconnect the comparator output from the CaptureTimer input and pin I3/I7 and remove the low on I1 caused by CMPNEG.
It is often useful for the user’s program to read the result of a comparator operation. Since I1 is always selected to be COMPIN—when the comparator is enabled (CMPEN=1), the comparator output can be read internally by reading bit 1 (CMPRD) of register PORTI (RAM address 0xD7).
The following table lists the comparator inputs and outputs versus the value of the CMPISEL0/1/2 bits. The output will only be driven if the CMPOE bit is set to 1.
DS012865-14
FIGURE 13. Analog Function Block
www.national.com 20
Page 21
Analog Function Block (Continued)
TABLE 4. Comparator Input Selection
Control Bit
Comparator
Comparator
Output
Input Source
CMPISEL2 CMPISEL1 CMPISEL0
Neg. Pos.
Input Input
0 0 0 I1 I2 CH2 I3 0 0 1 I1 I2 CH2 I7 0 1 0 I1 I3 CH3 I7 0 1 1 I1 I0 CH1 I7 1 0 0 I1 I4 CH4 I7 1 0 1 I1 I5 CH5 I7 1 1 0 I1 I6 CH6 I7 111I1V
CC
/2 I7
Ref.
Reset
The state of the Analog Block immediately after RESET is as follows:
1. The CMPSL Register is set to all zeros
2. The Comparator is disabled
3. The Constant Current Source is disabled
4. CMPNEG is turned off
5. The Port I inputs are electrically isolated from the com­parator
6. The Capture Timer input is connected to GND
7. CMPISEL0–CMPISEL2 are set to zero
8. All Port I inputs are selected to the default digital input mode
The comparator outputs have the same specification as Ports L and G except that the rise and fall times are sym­metrical.
Interrupts
INTRODUCTION
Each device supports eight vectored interrupts. Interrupt sources include Timer 0, Timer 1, Timer 2, Timer 3, Port L Wakeup, Software Trap, MICROWIRE/PLUS, and External Input.
All interrupts force a branch to location 00FF Hex in program memory. The VIS instruction may be used to vector to the appropriate service routine from location 00FF Hex.
Each of the 8 maskable inputs has a fixed arbitration ranking and vector.
Figure 14
shows the Interrupt Block Diagram.
www.national.com21
Page 22
Interrupts (Continued)
MASKABLE INTERRUPTS
All interrupts other than the Software Trap are maskable. Each maskable interrupt has an associated enable bit and pending flag bit.The pending bit is set to 1 when the interrupt condition occurs. The state of the interrupt enable bit, com­bined with the GIE bit determines whether an active pending flag actually triggers an interrupt. All of the maskable inter­rupt pending and enable bits are contained in mapped con­trol registers, and thus can be controlled by the software.
Amaskable interrupt condition triggers an interrupt under the following conditions:
1. The enable bit associated with that interrupt is set.
2. The GIE bit is set.
3. The device is not processing a non-maskable interrupt. (If a non-maskable interrupt is being serviced, a maskable interrupt must wait until that service routine is completed.)
An interrupt is triggered only when all of these conditions are met at the beginning of an instruction. If different maskable interrupts meet these conditions simultaneously, the highest priority interrupt will be serviced first, and the other pending interrupts must wait.
Upon Reset, all pending bits, individual enable bits, and the GIE bit are reset to zero. Thus, a maskable interrupt condi­tion cannot triggeran interrupt until the program enables it by setting both the GIE bit and the individual enable bit. When enabling an interrupt, the user should consider whether or not a previously activated (set) pending bit should be ac­knowledged. If, at the time an interrupt is enabled, any pre­vious occurrences of the interrupt should be ignored, the as­sociated pending bit must be reset to zero prior to enabling the interrupt. Otherwise, the interrupt may be simply en-
abled; if the pending bit is already set, it will immediately trig­ger an interrupt. A maskable interrupt is active if its associ­ated enable and pending bits are set.
An interrupt is an asychronous event which may occur be­fore, during, or after an instruction cycle. Any interrupt which occurs during the execution of an instruction is not acknowl­edged until the start of the next normally executed instruction is to be skipped, the skip is performed before the pending in­terrupt is acknowledged.
At the start of interrupt acknowledgment, the following ac­tions occur:
1. The GIE bit is automatically reset to zero, preventing any subsequent maskable interrupt from interrupting the cur­rent service routine. This feature prevents one maskable interrupt from interrupting another one being serviced.
2. The address of the instruction about to be executed is pushed onto the stack.
3. The program counter (PC) is loaded with 00FF Hex, causing a jump to that program memory location.
The device requires seven instruction cycles to perform the actions listed above.
If the user wishes to allow nested interrupts, the interrupts service routine may set the GIE bit to 1 by writing to the PSW register,and thus allow other maskable interrupts to interrupt the current service routine. If nested interrupts are allowed, caution must be exercised. The user must write the program in such a way as to prevent stack overflow, loss of saved context information, and other unwanted conditions.
The interrupt service routine stored at location 00FF Hex should use the VIS instruction to determine the cause of the interrupt, and jump to the interrupt handling routine corre­sponding to the highest priority enabled and active interrupt. Alternately, the user may choose to poll all interrupt pending
DS012865-15
FIGURE 14. Interrupt Block Diagram
www.national.com 22
Page 23
Interrupts (Continued)
and enable bits to determine the source(s) of the interrupt. If more than one interrupt is active, the user’s program must decide which interrupt to service.
Within a specific interrupt service routine, the associated pending bit should be cleared. This is typically done as early as possible in the service routine in order to avoid missing the next occurrence of the same type of interrupt event. Thus, if the same event occurs a second time, even while the first occurrence is still being serviced, the second occur­rence will be serviced immediately upon return from the cur­rent interrupt routine.
An interrupt service routine typically ends with an RETI in­struction. This instruction sets the GIE bit back to 1, pops the address stored on the stack, and restores that address to the program counter. Program execution then proceeds with the next instruction that would have been executed had there been no interrupt. If there are any valid interrupts pending, the highest-priority interrupt is serviced immediately upon re­turn from the previous interrupt.
VIS INSTRUCTION
The general interrupt service routine, which starts at address 00FF Hex, must be capable of handling all types of inter­rupts. The VIS instruction, together with an interrupt vector table, directs the device to the specific interrupt handling rou­tine based on the cause of the interrupt.
The vector table may be as long as 32 bytes (maximum of 16 vectors) and resides at the top of the 256-byte block contain­ing the VIS instruction. However, if the VIS instruction is at the very top of a 256-byte block (such as at 00FF Hex), the vector table resides at the top of the next 256-byte block. Thus, if the VIS instruction is located somewhere between 00FF and 01DF Hex (the usual case), the vector table is lo­cated between addresses 01E0 and 01FF Hex. If the VIS in­struction is located between 01FF and 02DF Hex, then the vector table is located between addresses 02E0 and 02FF Hex, and so on.
Each vector is 15 bits long and points to the beginning of a specific interrupt service routine somewhere in the 32 kbyte memory space. Each vector occupies two bytes of the vector table, with the higher-order byte at the lower address. The vectors are arranged in order of interrupt priority. The vector of the maskable interrupt with the lowest rank is located to 0yE0 (higher-order byte) and 0yE1 (lower-order byte). The next priority interrupt is located at 0yE2 and 0yE3, and so forth in increasing rank. The Software Trap has the highest rank and its vector is always located at 0yFE and 0yFF. The number of interrupts which can become active defines the size of the table.
Table5
shows the types of interrupts, the interrupt arbitration ranking, and the locations of the corresponding vectors in the vector table.
The interrupt sources in the vector table are listed in order of rank, from highest to lowest priority. If two or more enabled and pending interrupts are detected at the same time, the one with the highest priority is serviced first. Upon return from the interrupt service routine, the next highest-level pending interrupt is serviced.
If the VIS instruction is executed, but no interrupts are en­abled and pending, the lowest-priority interrupt vector is used, and a jump is made to the corresponding address in the vector table. This is an unusual occurrence, and may be the result of an error.It can legitimately result from a change in the enable bits or pending flags prior to the execution of the VIS instruction, such as executing a single cycle instruc­tion which clears an enable flag at the same time that the pending flag is set. It can also result, however,from inadvert­ent execution of the VIS command outside of the context of an interrupt.
The default VIS interrupt vector can be useful for applica­tions in which time critical interrupts can occur during the servicing of another interrupt. Rather than restoring the pro­gram context (A, B, X, etc.) and executing the RETI instruc­tion, an interrupt service routine can be terminated by return­ing to the VIS instruction. In this case, interrupts will be serviced in turn until no further interrupts are pending and the default VIS routine is started. After testing the GIE bit to ensure that execution is not erroneous, the routine should restore the program context and execute the RETI to return to the interrupted program.
This technique can save up to fifty instruction cycles (t
c
), or more, (50µs at 10 MHz oscillator) of latency for pending in­terrupts with a penalty of fewer than ten instruction cycles if no further interrupts are pending.
To ensure reliable operation, the user should always use the VIS instruction to determine the source of an interrupt. Al­though it is possible to poll the pending bits to detect the source of an interrupt, this practice is not recommended. The use of polling allows the standard arbitration ranking to be al­tered, but the reliability of the interrupt system is compro­mised. The polling routine must individually test the enable and pending bits of each maskable interrupt. If a Software Trap interrupt should occur, it will be serviced last, even though it should have the highest priority.Under certain con­ditions, a Software Trap could be triggered but not serviced, resulting in an inadvertent “locking out” of all maskable inter­rupts by the Software Trap pending flag. Problems such as this can be avoided by using VIS instruction.
www.national.com23
Page 24
Interrupts (Continued)
TABLE 5. Interrupt Vector Table
ARBITRATION SOURCE VECTOR
*
RANKING DESCRIPTION ADDRESS
(Hi-Low Byte)
(1) Highest Software INTR Instruction 0yFE–0yFF (2) Reserved 0yFC–0yFD (3) External G0 0yFA–0yFB (4) Timer T0 Idle Timer 0yF8–0yF9 (5) Timer T1 T1A/Underflow 0yF6–0yF7 (6) Timer T1 T1B 0yF4–0yF5 (7) MICROWIRE/PLUS Busy Low 0yF2–0yF3 (8) Reserved 0yF0–0yF1 (9) Reserved 0yEE–0yEF (10) Reserved 0yEC–0yED (11) High Speed Capture Timer Capture Overflow/ 0yEA–0yEB
Capture Pending (12) Reserved 0yE8–0yE9 (13) Reserved 0yE6–0yE7 (14) Reserved 0yE4–0yE5 (15) Port L/Wakeup Port L Edge 0yE2–0yE3 (16) Lowest Default VIS Reserved 0yE0–0yE1
Note 20:*y is a variable which represents the VIS block. VIS and the vector table must be located in the same 256-byte block except if VIS islocated at the last ad-
dress of a block. In this case, the table must be in the next block.
VIS Execution
vector of the active interrupt with the highest arbitration rank­ing. This vector is read from program memory and placed into the PC which is now pointed to the 1st instruction of the service routine of the active interrupt with the highest arbitra­tion ranking.
Figure 15
illustrates the different steps performed by the VIS
instruction.
Figure 16
shows a flowchart for the VIS instruc-
tion. The non-maskable interrupt pending flag is cleared by the
RPND (Reset Non-Maskable Pending Bit) instruction (under certain conditions) and upon RESET.
www.national.com 24
Page 25
Interrupts (Continued)
DS012865-29
FIGURE 15. VIS Operation
DS012865-30
FIGURE 16. VIS Flowchart
www.national.com25
Page 26
Interrupts (Continued)
Programming Example: External Interrupt
PSW =00EF CNTRL =00EE RBIT 0,PORTGC RBIT 0,PORTGD ; G0 pin configured Hi-Z SBIT IEDG, CNTRL ; Ext interrupt polarity; falling edge SBIT EXEN, PSW ; Enable the external interrupt SBIT GIE, PSW ; Set the GIE bit
WAIT: JP WAIT ; Wait for external interrupt
. . . .=0FF ; The interrupt causes a VIS ; branch to address 0FF
; The VIS causes a branch to
;interrupt vector table . . . .=01FA ; Vector table (within 256 byte .ADDRW SERVICE ; of VIS inst.) containing the ext
; interrupt service routine . .
INT_EXIT:
RETI . .
SERVICE: RBIT EXPND, PSW ; Interrupt Service Routine
; Reset ext interrupt pend. bit . . . JP INT_EXIT ; Return, set the GIE bit
www.national.com 26
Page 27
Interrupts (Continued)
NON-MASKABLE INTERRUPT
Pending Flag
There is a pending flag bit associated with the non-maskable interrupt, called STPND. This pending flag is not memory­mapped and cannot be accessed directly by the software.
The pending flag is reset to zero when a device Reset oc­curs. When the non-maskable interrupt occurs, the associ­ated pending bit is set to 1. The interrupt service routine should contain an RPND instruction to reset the pending flag to zero. The RPND instruction always resets the STPND flag.
Software Trap
The Software Trap is a special kind of non-maskable inter­rupt which occurs when the INTR instruction (used to ac­knowledge interrupts) is fetched from program memory and placed in the instruction register. This can happen in a vari­ety of ways, usually because of an error condition. Some ex­amples of causes are listed below.
If the stack is popped beyond the allowed limit (address 06F Hex), a 7FFF will be loaded into the PC, if this last location in program memory is unprogrammed or unavailable, a Soft­ware Trap will be triggered.
A Software Trap can be triggered by a temporary hardware condition such as a brownout or power supply glitch.
The Software Trap has the highest priority of all interrupts. When a SoftwareTrap occurs, the STPND bit is set. The GIE bit is not affected and the pending bit (not accessible by the user) is used to inhibit other interrupts and to direct the pro­gram to the ST service routine with the VIS instruction. Noth­ing can interrupt a Software Trap service routine except for another Software Trap. The STPND can be reset only by the RPND instruction or a chip Reset.
The Software Trap indicates an unusual or unknown error condition. Generally, returning to normal execution at the point where the Software Trap occurred cannot be done re­liably. Therefore, the Software Trap service routine should reinitialize the stack pointer and perform a recovery proce­dure that restarts the software at some known point, similar to a device Reset, but not necessarily performing all the same functions as a device Reset. The routine must also ex­ecute the RPND instruction to reset the STPND flag. Other­wise, all other interrupts will be locked out. To the extent pos­sible, the interrupt routine should record or indicate the context of the device so that the cause of the Software Trap can be determined.
If the user wishes to return to normal execution from the point at which the Software Trap was triggered, the user must first execute RPND, followed by RETSK rather than RETI or RET. This is because the return address stored on the stack is the address of the INTR instruction that triggered the interrupt. The program must skip that instruction in order to proceed with the next one. Otherwise, an infinite loop of Software Traps and returns will occur.
Programming a return to normal execution requires careful consideration. If the Software Trap routine is interrupted by another Software Trap, the RPND instruction in the service routine for the second Software Trap will reset the STPND
flag; upon return to the first Software Trap routine, the STPND flag will have the wrong state. This will allow maskable interrupts to be acknowledged during the servicing of the firstSoftware Trap. Toavoid problems such as this, the user program should contain the Software Trap routine to perform a recovery procedure rather than a return to normal execution.
Under normal conditions, the STPND flag is reset by a RPND instruction in the Software Trap service routine. If a programming error or hardware condition (brownout, power supply glitch, etc.) sets the STPND flag without providing a way for it to be cleared, all other interrupts will be locked out. To alleviate this condition, the user can use extra RPND in­structions in the main program and in the WATCHDOG ser­vice routine (if present). There is no harm in executing extra RPND instructions in these parts of the program.
PORT L INTERRUPTS
Port L provides the user with an additional eight fully select­able, edge sensitive interrupts which are all vectored into the same service subroutine.
The interrupt from Port L shares logic with the wake up cir­cuitry.The register WKEN allows interrupts from Port L to be individually enabled or disabled. The register WKEDG speci­fies the trigger condition to be either a positive or a negative edge. Finally, the register WKPND latches in the pending trigger conditions.
The GIE (Global Interrupt Enable) bit enables the interrupt function.
A control flag, LPEN, functions as a global interrupt enable for Port L interrupts. Setting the LPEN flag will enable inter­rupts and vice versa. A separate global pending flag is not needed since the register WKPND is adequate.
Since Port L is also used for waking the device out of the HALTor IDLE modes, the user can elect to exit the HALT or IDLE modes either with or without the interrupt enabled. If he elects to disable the interrupt, then the device will restart ex­ecution from the instruction immediately following the in­struction that placed the microcontroller in the HALTor IDLE modes. In the other case, the device will first execute the in­terrupt service routine and then revert to normal operation. (See HALT MODE for clock option wakeup information.)
INTERRUPT SUMMARY
The device uses the following types of interrupts, listed be­low in order of priority:
1. The Software Trap non-maskable interrupt, triggered by the INTR (00 opcode) instruction. The Software Trap is acknowledged immediately. This interrupt service rou­tine can be interrupted only by another Software Trap. The Software Trap should end with two RPND instruc­tions followed by a restart procedure.
2. Maskable interrupts, triggered by an on-chip peripheral block or an external device connected to the device. Un­der ordinary conditions, a maskable interrupt will not in­terrupt any other interrupt routine in progress. A maskable interrupt routine in progress can be inter­rupted by the non-maskable interrupt request. A maskable interrupt routine should end with an RETI in­struction or, prior to restoring context, should return to execute the VIS instruction. This is particularly useful when exiting long interrupt service routiness if the time between interrupts is short. In this case the RETI instruc­tion would only be executed when the default VIS rou­tine is reached.
www.national.com27
Page 28
WATCHDOG
Servicing the WATCHDOG consists of writing a specific value to a WATCHDOG Service Register named WDSVR which is memory mapped in the RAM. This value is com­posed of three fields, consisting of a 2-bit Window Select, a 5-bit Key Data field, and the 1-bit Clock Monitor Select field.
Table 6
shows the WDSVR register.
TABLE 6. WATCHDOG Service Register (WDSVR)
Window Key Data Clock
Select Monitor
X X 01100 Y 7 6 54321 0
The lower limit of the service window is fixed at 2048 instruc­tion cycles. Bits 7 and 6 of the WDSVR register allow the user to pick an upper limit of the service window.
Table 7
shows the four possible combinations of lower and upper limits for the WATCHDOG service window. This flex­ibility in choosing the WATCHDOGservice window prevents any undue burden on the user software.
Bits 5, 4, 3, 2 and 1 of the WDSVR register represent the 5-bit Key Data field. The key data is fixed at 01100. Bit 0 of the WDSVR Register is the Clock Monitor Select bit.
TABLE 7. WATCHDOG Service Window Select
WDSVR WDSVR Clock Service Window
Bit 7 Bit 6 Monitor (Lower-Upper Limits)
0 0 x 2048–8k t
C
Cycles
0 1 x 2048–16k t
C
Cycles
1 0 x 2048–32k t
C
Cycles
1 1 x 2048–64k t
C
Cycles x x 0 Clock Monitor Disabled x x 1 Clock Monitor Enabled
Clock Monitor
C
) is greater or equal to 10 kHz. This equates to a clock
input rate on CKI of greater or equal to 100 kHz.
WATCHDOG Operation
The WATCHDOG and Clock Monitor are disabled during re­set. The device comes out of reset with the WATCHDOG armed, the WATCHDOG Window Select bits (bits 6, 7 of the WDSVR Register) set, and the Clock Monitor bit (bit 0 of the WDSVR Register) enabled. Thus, a Clock Monitor error will
occur after coming out of reset, if the instruction cycle clock frequency has not reached a minimum specified value, in­cluding the case where the oscillator fails to start.
The WDSVR register can be written to only once after reset and the key data (bits 5 through 1 of the WDSVR Register) must match to be a valid write. This write to the WDSVR reg­ister involves two irrevocable choices: (i) the selection of the WATCHDOG service window (ii) enabling or disabling of the Clock Monitor. Hence, the first write to WDSVR Register in­volves selecting or deselecting the Clock Monitor, select the WATCHDOG service window and match the WATCHDOG key data. Subsequent writes to the WDSVR register will compare the value being written by the user to the WATCH­DOG service window value and the key data (bits 7 through
1) in the WDSVR Register. Table IX shows the sequence of events that can occur.
The WATCHDOG has an output pin associated with it. This is the WDOUT pin, on pin 1 of the port G. WDOUT is active low.The WDOUT pin is in the high impedance state in the in­active state. Upon triggering the WATCHDOG, the logic will pull the WDOUT (G1) pin low for an additional 16 t
C
–32 t
C
CC
through a resistor in order to pull WDOUT high.
AWATCHDOG service while the WDOUT signal is active will be ignored. The state of the WDOUT pin is not guaranteed on reset, but if it powers up low then the WATCHDOG will time out and WDOUT will enter high impedance state.
The Clock Monitor forces the G1 pin low upon detecting a clock frequency error. The Clock Monitor error will continue until the clock frequency has reached the minimum specified value, after which the G1 output will enter the high imped­ance TRI-STATE mode following 16 t
C
–32 tCclock cycles. The Clock Monitor generates a continual Clock Monitor error if the oscillator fails to start, or fails to reach the minimum specified frequency. The specification for the Clock Monitor is as follows:
1/t
C
>
10 kHz—No clock rejection.
1/t
C
<
10 Hz—Guaranteed clock rejection.
WATCHDOG AND CLOCK MONITOR SUMMARY
•
Both the WATCHDOG and CLOCK MONITOR detector circuits are inhibited during RESET.
•
Following RESET, the WATCHDOG and CLOCK MONI­TOR are both enabled, with the WATCHDOG having the maximum service window selected.
•
The WATCHDOG service window and CLOCK MONI­TOR enable/disable option can only be changed once, during the initial WATCHDOG service following RESET.
www.national.com 28
Page 29
WATCHDOG Operation (Continued)
•
The initial WATCHDOG service must match the key data value in the WATCHDOG Service register WDSVR in or­der to avoid a WATCHDOG error.
•
Subsequent WATCHDOG services must match all three data fields in WDSVR in order to avoid WATCHDOG er­rors.
•
The correct key data value cannot be read from the WATCHDOG Service register WDSVR. Any attempt to read this key data value of 01100 from WDSVR will read as key data value of all 0’s.
•
The WATCHDOG detector circuit is inhibited during both the HALT and IDLE modes.
•
The CLOCK MONITOR detector circuit is active during both the HALT and IDLE modes. Consequently, the de­vice inadvertently entering the HALT mode will be de­tected as a CLOCK MONITOR error (provided that the CLOCK MONITOR enable option has been selected by the program).
•
With the single-pin R/C oscillator mask option selected and the CLKDLY bit reset, the WATCHDOG service win­dow will resume following HALT mode from where it left off before entering the HALT mode.
•
With the crystal oscillator mask option selected, or with the single-pin R/Coscillator mask option selected andthe
CLKDLYbit set, the WATCHDOG service window will be set to its selected value from WDSVR following HALT. Consequently, the WATCHDOG should not be serviced for at least 2048 instruction cycles following HALT, but must be serviced within the selected window to avoid a WATCHDOG error.
•
The IDLE timer T0 is not initialized with RESET.
•
The user can sync in to the IDLE counter cycle with an IDLE counter (T0) interrupt or by monitoring the T0PND flag. The T0PND flag is set whenever the thirteenth bit of the IDLE counter toggles (every 4096 instruction cycles). The user is responsible for resetting the T0PND flag.
•
A hardware WATCHDOG service occurs just as the de­vice exits the IDLE mode. Consequently, the WATCH­DOG should not be serviced for at least 2048 instruction cycles following IDLE, but must be serviced within the se­lected window to avoid a WATCHDOG error.
•
Following RESET, the initial WATCHDOG service (where the service window and the CLOCK MONITOR enable/ disable must be selected) may be programmed any­where within the maximum service window (65,536 in­struction cycles) initialized by RESET. Note that this initial WATCHDOG service may be programmed within the ini­tial 2048 instruction cycles without causing a WATCH­DOG error.
TABLE 8. WATCHDOG Service Actions
Key Data Window Data Clock Monitor Action
Match Match Match Valid Service: Restart Service Window Don’t Care Mismatch Don’t Care Error: Generate WATCHDOG Output Mismatch Don’t Care Don’t Care Error: Generate WATCHDOG Output Don’t Care Don’t Care Mismatch Error: Generate WATCHDOG Output
Detection of Illegal Conditions
The device can detect various illegal conditions resulting from coding errors, transient noise, power supply voltage drops, runaway programs, etc.
Reading of undefined ROM gets zeros. The opcode for soft­ware interrupt is 00. If the program fetches instructions from undefined ROM, this will force a software interrupt, thus sig­naling that an illegal condition has occurred.
The subroutine stack grows down for each call (jump to sub­routine), interrupt, or PUSH, and grows up for each return or POP.The stack pointer is initialized to RAM location 06F Hex during reset. Consequently, if there are more returns than calls, the stack pointer will point to addresses 070 and 071 Hex (which are undefined RAM). Undefined RAM from ad­dresses 070 to 07F (Segment 0), and all other segments (i.e., Segments 4... etc.) is read as all 1’s, which in turn will cause the program to return to address 7FFF Hex. This is an undefined ROM location and the instruction fetched (all 0’s) from this location will generate a software interrupt signaling an illegal condition.
Thus, the chip can detect the following illegal conditions:
1. Executing from undefined ROM
2. Over “POP”ing the stack by having more returns than calls.
When the software interrupt occurs, the user can re-initialize the stack pointer and do a recovery procedure before restart­ing (this recovery program is probably similar to that follow-
ing reset, but might not contain the same program initializa­tion procedures). The recovery program should reset the software interrupt pending bit using the RPND instruction.
MICROWIRE/PLUS
MICROWIRE/PLUS is a serial synchronous communications interface. The MICROWIRE/PLUS capability enables the de­vice to interface with any of National Semiconductor’s MICROWIRE peripherals (i.e. A/D converters, display driv­ers, E2PROMs etc.) and with other microcontrollers which support the MICROWIRE interface. It consists of an 8-bit se­rial shift register (SIO) with serial data input (SI), serial data output (SO) and serial shift clock (SK).
Figure 17
shows a
block diagram of the MICROWIRE/PLUS logic. The shift clock can be selected from either an internal source
or an external source. Operating the MICROWIRE/PLUS ar­rangement with the internal clock source is called the Master mode of operation. Similarly, operating the MICROWIRE/ PLUS arrangement with an external shift clock is called the Slave mode of operation.
The CNTRL register is used to configure and control the MICROWIRE/PLUS mode. To use the MICROWIRE/PLUS, the MSEL bit in the CNTRL register is set to one. In the mas­ter mode, the SK clock rate is selected by the two bits, SL0 and SL1, in the CNTRL register.
Table9
details the different
clock rates that may be selected.
www.national.com29
Page 30
MICROWIRE/PLUS (Continued)
TABLE 9. MICROWIRE/PLUS Master Mode Clock Select
SL1 SL0 SK period
0 0 2Xt
C
0 1 4Xt
C
1 x 8Xt
C
Where tCis the instruction cycle clock
MICROWIRE/PLUS OPERATION
Setting the BUSY bit in the PSW register causes the MICROWIRE/PLUS to start shifting the data. It gets reset when eight data bits have been shifted. The user may reset the BUSY bit by software to allow less than 8 bits to shift. If enabled, an interrupt is generated when eight data bits have been shifted. The device may enter the MICROWIRE/PLUS mode either as a Master or as a Slave.
Figure 18
shows how two devices, microcontrollers and several peripherals may be interconnected using the MICROWIRE/PLUS arrangements.
WARNING
Setting the BUSY flag when the input SK clock is high in the MICROWIRE/PLUS slave mode may cause the current SK clock for the SIO shift register to be narrow. For safety, the BUSY flag should only be set when the input SK clock is low.
MICROWIRE/PLUS Master Mode Operation
In the MICROWIRE/PLUS Master mode of operation the shift clock (SK) is generated internally. The MICROWIRE Master always initiates all data exchanges. The MSEL bit in the CNTRL register must be set to enable the SO and SK functions onto the G Port. The SO and SK pins must also be selected as outputs by setting appropriate bits in the Port G configuration register.
Table 10
summarizes the bit settings
required for Master mode of operation.
MICROWIRE/PLUS Slave Mode Operation
In the MICROWIRE/PLUS Slave mode of operation the SK clock is generated by an external source. Setting the MSEL bit in the CNTRL register enables the SO and SK functions onto the G Port. The SK pin must be selected as an input and the SO pin is selected as an output pin by setting and re­setting the appropriate bits in the Port G configuration regis­ter. Table XI summarizes the settings required to enter the Slave mode of operation.
The user must set the BUSY flag immediately upon entering the Slave mode. This will ensure that all data bits sent by the Master will be shifted properly. After eight clock pulses the BUSY flag will be cleared and the sequence may be re­peated.
TABLE 10. MICROWIRE/PLUS Mode Settings
This table assumes that the control flag MSEL is set.
G4 (SO) G5 (SK) G4 G5
Operation
Config. Bit Config. Bit Fun. Fun.
1 1 SO Int. MICROWIRE/PLUS
SK Master
0 1 TRI- Int. MICROWIRE/PLUS
STATE SK Master
1 0 SO Ext. MICROWIRE/PLUS
SK Slave
0 0 TRI- Ext. MICROWIRE/PLUS
STATE SK Slave
Alternate SK Phase Operation
DS012865-16
FIGURE 17. MICROWIRE/PLUS Block Diagram
www.national.com 30
Page 31
MICROWIRE/PLUS (Continued)
DS012865-17
FIGURE 18. MICROWIRE/PLUS Application
www.national.com31
Page 32
Memory Map
Address
Contents
S/ADD REG
0000 to 006F On-Chip RAM bytes (112
bytes)
0070 to 007F Unused RAM Address Space
(Reads As All Ones)
xx80 to xxAF Unused RAM Address Space
(Reads Undefined Data)
xxB0 Reserved
XXB1 Reserved
xxB2 Reserved xxB3 Reserved xxB4 Reserved xxB5 Reserved xxB6 Reserved xxB7 Comparator Select Register
(CMPSL)
xxB8 to xxBF Reserved
xxC0 Reserved xxC1 Reserved xxC2 Reserved xxC3 Reserved xxC4 Reserved xxC5 Reserved xxC6 Reserved xxC7 WATCHDOG Service Register
(Reg:WDSVR)
xxC8 MIWU Edge Select Register
(Reg:WKEDG)
xxC9 MIWU Enable Register
(Reg:WKEN)
xxCA MIWU Pending Register
(Reg:WKPND) xxCB Reserved xxCC CAPTLO (Capture Timer
Low-Byte) xxCD CAPTHI (Capture Timer
High-Byte) xxCE CAPCNTL (Capture Timer
Control Register) xxCF Idle Timer Control Register
xxD0 Port L Data Register xxD1 Port L Configuration Register xxD2 Port L Input Pins (Read Only) xxD3 Reserved xxD4 Port G Data Register xxD5 Port G Configuration Register xxD6 Port G Input Pins (Read Only) xxD7 Port I Input Pins (Read Only) xxD8 Reserved
Address
Contents
S/ADD REG
xxD9 Reserved xxDA Reserved xxDB Reserved xxDC Port D
xxDD to DF Reserved
xxE0 to xxE5 Reserved
xxE6 Timer T1 Autoload Register
T1RB Lower Byte
xxE7 Timer T1 Autoload Register
T1RB Upper Byte xxE8 ICNTRL Register xxE9 MICROWIRE/PLUS Shift
Register xxEA Timer T1 Lower Byte xxEB Timer T1 Upper Byte xxEC Timer T1 Autoload Register
T1RA Lower Byte xxED Timer T1 Autoload Register
T1RA Upper Byte xxEE CNTRL Control Register xxEF PSW Register
xxF0 to xxFB On-Chip RAM Mapped as
Registers xxFC X Register xxFD SP Register xxFE B Register xxFF Reserved
0100-017F Reserved
Reading memory locations 0070H-007FH (Segment 0) will return all ones. Reading unused memory locations 0080H-00AFH (Segment 0) will return undefined data. Read­ing memory locations from other Segments (i.e., Segment 2, Segment 3,…etc.) will return undefined data.
Addressing Modes
There are ten addressing modes, six for operand addressing and four for transfer of control.
OPERAND ADDRESSING MODES
Register Indirect
This is the “normal” addressing mode. The operand is the data memory addressed by the B pointer or X pointer.
Register Indirect (with auto post increment or decre­ment of pointer)
This addressing mode is used with the LD and X instruc­tions. The operand is the data memory addressed by the B pointer or X pointer. This is a register indirect mode that au­tomatically post increments or decrements the B or X regis­ter after executing the instruction.
Direct
The instruction contains an 8-bit address field that directly points to the data memory for the operand.
www.national.com 32
Page 33
Addressing Modes (Continued)
Immediate
Short Immediate
This addressing mode is used with the Load B Immediate in­struction. The instruction contains a 4-bit immediate field as the operand.
Indirect
This addressing mode is used with the LAID instruction. The contents of the accumulator are used as a partial address (lower 8 bits of PC) for accessing a data operand from the program memory.
TRANSFER OF CONTROL ADDRESSING MODES
Relative
This mode is used for the JP instruction, with the instruction field being added to the program counter to get the new pro­gram location. JP has a range from −31 to +32 to allow a 1-byte relative jump (JP + 1 is implemented by a NOP in­struction). There are no “pages” when using JP, since all 15 bits of PC are used.
Absolute
This mode is used with the JMP and JSR instructions, with the instruction field of 12 bits replacing the lower 12 bits of the program counter (PC). This allows jumping to any loca­tion in the current 4k program memory segment.
Absolute Long
This mode is used with the JMPL and JSRL instructions, with the instruction field of 15 bits replacing the entire 15 bits of the program counter (PC). This allows jumping to any loca­tion up to 32k in the program memory space.
Indirect
Note: The VIS is a special case of the Indirect Transfer of Control addressing
mode, where the double byte vector associated with the interrupt is transferred from adjacent addresses in the program memory into the program counter (PC) in order to jump to the associated interrupt ser­vice routine.
Instruction Set
Register and Symbol Definition
Registers
A 8-Bit Accumulator Register B 8-Bit Address Register X 8-Bit Address Register SP 8-Bit Stack Pointer Register PC 15-Bit Program Counter Register PU Upper 7 Bits of PC PL Lower 8 Bits of PC C 1-Bit of PSW Register for Carry HC 1-Bit of PSW Register for Half Carry GIE 1-Bit of PSW Register for Global Interrupt
Enable VU Interrupt Vector Upper Byte VL Interrupt Vector Lower Byte
Symbols
[B] Memory Indirectly Addressed by B Register [X] Memory Indirectly Addressed by X Register MD Direct Addressed Memory Mem Direct Addressed Memory or [B] Meml Direct Addressed Memory or [B] or Immediate
Data Imm 8-Bit Immediate Data Reg Register Memory: Addresses F0 to FF
(Includes B, X and SP) Bit Bit Number (0 to 7)
←
Loaded with
↔
Exchanged with
INSTRUCTION SET
ADD A,Meml ADD A←A + Meml ADC A,Meml ADD with Carry A←A+Meml+C,C←Carry, HC←Half Carry SUBC A,Meml Subtract with Carry A←A−MemI+C,C←Carry, HC←Half Carry AND A,Meml Logical AND A←A and Meml ANDSZ A,Imm Logical AND Immed., Skip if Zero Skip next if (A and Imm)=0 OR A,Meml Logical OR A←A or Meml XOR A,Meml Logical EXclusive OR A←A xor Meml IFEQ MD,Imm IF EQual Compare MD and Imm, Do next if MD=Imm IFEQ A,Meml IF EQual Compare A and Meml, Do next if A=Meml IFNE A,Meml IF Not Equal Compare A and Meml, Do next if A
≠
Meml
IFGT A,Meml IF Greater Than Compare A and Meml, Do next if A
>
Meml
IFBNE
#
If B Not Equal Do next if lower 4 bits of B≠Imm
DRSZ Reg Decrement Reg., Skip if Zero Reg←Reg − 1, Skip if Reg=0
www.national.com33
Page 34
Instruction Set (Continued)
SBIT
#
,Mem Set BIT 1 to bit, Mem (bit=0 to 7 immediate)
RBIT
#
,Mem Reset BIT 0 to bit, Mem
IFBIT
#
,Mem IF BIT If bit#,A or Mem is true do next instruction RPND Reset PeNDing Flag Reset Software Interrupt Pending Flag X A,Mem EXchange A with Memory A
↔
Mem
X A,[X] EXchange A with Memory [X] A
↔
[X] LD A,Meml LoaD A with Memory A←Meml LD A,[X] LoaD A with Memory [X] A←[X] LD B,Imm LoaD B with Immed. B←Imm LD Mem,Imm LoaD Memory Immed Mem←Imm LD Reg,Imm LoaD Register Memory Immed. Reg←Imm XA,[B
±
] EXchange A with Memory [B] A↔[B], (B←B±1)
XA,[X
±
] EXchange A with Memory [X] A↔[X], (X←X±1)
LD A, [B
±
] LoaD A with Memory [B] A←[B], (B←B±1)
LD A, [X
±
] LoaD A with Memory [X] A←[X], (X←X±1)
LD [B
±
],Imm LoaD Memory [B] Immed. [B]←Imm, (B←B±1) CLR A CLeaR A A←0 INC A INCrement A A←A+1 DEC A DECrement A A←A−1 LAID Load A InDirect from ROM A←ROM (PU,A) DCOR A Decimal CORrect A A←BCD correction of A (follows ADC, SUBC) RRC A Rotate A Right thru C C→A7→...→A0→C RLC A Rotate A Left thru C C←A7←...←A0←C SWAP A SWAP nibbles of A A7...A4
↔
A3...A0 SC Set C C←1, HC←1 RC Reset C C←0, HC←0 IFC IF C IF C is true, do next instruction IFNC IF Not C If C is not true, do next instruction POP A POP the stack into A SP←SP+1,A←[SP] PUSH A PUSH A onto the stack [SP]←A, SP←SP−1 VIS Vector to Interrupt Service Routine PU←[VU], PL←[VL] JMPL Addr. Jump absolute Long PC←ii (ii=15 bits, 0 to 32k) JMP Addr. Jump absolute PC9...0←i(i=12 bits) JP Disp. Jump relative short PC←PC+r(ris−31to+32, except 1) JSRL Addr. Jump SubRoutine Long [SP]←PL, [SP-1]←PU,SP-2, PC←ii JSR Addr Jump SubRoutine [SP]←PL, [SP-1]←PU,SP-2, PC9...0←i JID Jump InDirect PL←ROM (PU,A) RET RETurn from subroutine SP + 2, PL←[SP], PU←[SP-1] RETSK RETurn and SKip SP + 2, PL←[SP],PU←[SP-1], skip next instruction RETI RETurn from Interrupt SP + 2, PL←[SP],PU←[SP-1],GIE←1 INTR Generate an Interrupt [SP]←PL, [SP-1]←PU, SP-2, PC←0FF NOP No OPeration PC←PC+1
www.national.com 34
Page 35
Instruction Set (Continued)
Instruction Execution Time
Most instructions are single byte (with immediate addressing mode instructions taking two bytes).
Most single byte instructions take one cycle time to execute. Skipped instructions require x number of cycles to be
skipped, where x equals the number of bytes in the skipped instruction opcode.
See the BYTES and CYCLES per INSTRUCTION table for details.
Bytes and Cycles per Instruction
Arithmetic and Logic Instructions
[B] Direct Immed
ADD 1/1 3/4 2/2 ADC 1/1 3/4 2/2 SUBC 1/1 3/4 2/2 AND 1/1 3/4 2/2 OR 1/1 3/4 2/2 XOR 1/1 3/4 2/2 IFEQ 1/1 3/4 2/2 IFGT 1/1 3/4 2/2 IFBNE 1/1 DRSZ 1/1 1/3 SBIT 1/1 3/4 RBIT 1/1 3/4 IFBIT 1/1 3/4
RPND 1/1
Instructions Using A and C
CLRA 1/1 INCA 1/1 DECA 1/1 LAID 1/3 DCORA 1/1 RRCA 1/1 RLCA 1/1 SWAPA 1/1 SC 1/1 RC 1/1 IFC 1/1 IFNC 1/1 PUSHA 1/3 POPA 1/3 ANDSZ 2/2
Transfer of Control Instructions
JMPL 3/4 JMP 2/3 JP 1/3 JSRL 3/5 JSR 2/5 JID 1/3 VIS 1/5 RET 1/5 RETSK 1/5 RETI 1/5 INTR 1/7 NOP 1/1
Memory Transfer Instructions
Register
Direct Immed.
Register Indirect
Indirect Auto Incr and Decr
[B] [X] [B+, B−] [X+, X−]
X A, (Note 21) 1/1 1/3 2/3 1/2 1/3 LD A, (Note 21) 1/1 1/3 2/3 2/2 1/2 1/3 LD B,Imm 1/1 (If B
<
16)
LD B,Imm 2/2 (If B
>
15) LD Mem,Imm 2/2 3/3 2/2 LD Reg,Imm 2/3 IFEQ MD,Imm 3/3
Note 21: Memory location addressed by B or X or directly.
www.national.com35
Page 36
Instruction Set (Continued)
Opcode Table
UPPER NIBBLE
F E D C BA9 876 5 4 3 2 10
LOWER NIBBLE
JP−15 JP−31 LD 0F0,
#
i DRSZ
0F0
RRCA RC ADC
A,
#
i
ADC
A,[B]
IFBIT
0,[B]
ANDSZ
A,
#
i
LD
B,
#
0F
IFBNE 0 JSR
x000–x0FF
JMP
x000–x0FF
JP+17 INTR 0
JP−14 JP−30 LD 0F1,
#
i DRSZ
0F1
*
SC SUBC
A,
#
i
SUBC
A,[B]
IFBIT
1,[B]
*
LD
B,
#
0E
IFBNE 1 JSR
x100–x1FF
JMP
x100–x1FF
JP+18 JP+2 1
JP−13 JP−29 LD 0F2,
#
i DRSZ
0F2
X
A,[X+]
X
A,[B+]
IFEQ
A,
#
i
IFEQ
A,[B]
IFBIT
2,[B]
*
LD
B,
#
0D
IFBNE 2 JSR
x200–x2FF
JMP
x200–x2FF
JP+19 JP+3 2
JP−12 JP−28 LD 0F3,
#
i DRSZ
0F3
X
A,[X−]
X
A,[B−]
IFGT
A,
#
i
IFGT
A,[B]
IFBIT
3,[B]
*
LD
B,
#
0C
IFBNE 3 JSR
x300–x3FF
JMP
x300–x3FF
JP+20 JP+4 3
JP−11 JP−27 LD 0F4,
#
i DRSZ
0F4
VIS LAID ADD
A,
#
i
ADD
A,[B]
IFBIT
4,[B]
CLRA LD
B,
#
0B
IFBNE 4 JSR
x400–x4FF
JMP
x400–x4FF
JP+21 JP+5 4
JP−10 JP−26 LD 0F5,
#
i DRSZ
0F5
RPND JID AND
A,
#
i
AND
A,[B]
IFBIT
5,[B]
SWAPA LD
B,
#
0A
IFBNE 5 JSR
x500–x5FF
JMP
x500–x5FF
JP+22 JP+6 5
JP−9 JP−25 LD 0F6,
#
i DRSZ
0F6
X A,[X] X
A,[B]
XOR
A,
#
i
XOR
A,[B]
IFBIT
6,[B]
DCORA LD
B,
#
09
IFBNE 6 JSR
x600–x6FF
JMP
x600–x6FF
JP+23 JP+7 6
JP−8 JP−24 LD 0F7,
#
i DRSZ
0F7
**
OR
A,
#
i
OR
A,[B]
IFBIT
7,[B]
PUSHA LD
B,
#
08
IFBNE 7 JSR
x700–x7FF
JMP
x700–x7FF
JP+24 JP+8 7
JP−7 JP−23 LD 0F8,
#
i DRSZ
0F8
NOP RLCA LD A,
#
i IFC SBIT
0,[B]
RBIT
0,[B]
LD
B,
#
07
IFBNE 8 JSR
x800–x8FF
JMP
x800–x8FF
JP+25 JP+9 8
JP−6 JP−22 LD 0F9,
#
i DRSZ
0F9
IFNE
A,[B]
IFEQ
Md,
#
i
IFNE
A,
#
i
IFNC SBIT
1,[B]
RBIT
1,[B]
LD
B,
#
06
IFBNE 9 JSR
x900–x9FF
JMP
x900–x9FF
JP+26 JP+10 9
JP−5 JP−21 LD 0FA,
#
i DRSZ
0FA
LD
A,[X+]
LD
A,[B+]
LD
[B+],
#
i
INCA SBIT
2,[B]
RBIT
2,[B]
LD
B,
#
05
IFBNE 0A JSR
xA00–xAFF
JMP
xA00–xAFF
JP+27 JP+11 A
JP−4 JP−20 LD 0FB,
#
i DRSZ
0FB
LD
A,[X−]
LD
A,[B−]
LD
[B−],
#
i
DECA SBIT
3,[B]
RBIT
3,[B]
LD
B,
#
04
IFBNE 0B JSR
xB00–xBFF
JMP
xB00–xBFF
JP+28 JP+12 B
JP−3 JP−19 LD 0FC,
#
i DRSZ
0FC
LD
Md,
#
i
JMPL X A,Md POPA SBIT
4,[B]
RBIT
4,[B]
LD
B,
#
03
IFBNE 0C JSR
xC00–xCFF
JMP
xC00–xCFF
JP+29 JP+13 C
JP−2 JP−18 LD 0FD,
#
i DRSZ
0FD
DIR JSRL LD
A,Md
RETSK SBIT
5,[B]
RBIT
5,[B]
LD
B,
#
02
IFBNE 0D JSR
xD00–xDFF
JMP
xD00–xDFF
JP+30 JP+14 D
JP−1 JP−17 LD 0FE,
#
i DRSZ
0FE
LD
A,[X]
LD
A,[B]
LD
[B],
#
i
RET SBIT
6,[B]
RBIT
6,[B]
LD
B,
#
01
IFBNE 0E JSR
xE00–xEFF
JMP
xE00–xEFF
JP+31 JP+15 E
JP−0 JP−16 LD 0FF,
#
i DRSZ
0FF
**
LD B,
#
i RETI SBIT
7,[B]
RBIT
7,[B]
LD
B,
#
00
IFBNE 0F JSR
xF00–xFFF
JMP
xF00–xFFF
JP+32 JP+16 F
where,
i is the immediate data
Md is a directly addressed memory location
*
is an unused opcode
The opcode 60 Hex is also the opcode for IFBIT
#
i,A
www.national.com 36
Page 37
Mask Options
OPTION 1: CLOCK CONFIGURATION
= 1 Crystal Oscillator (CKI/10)
G7 (CKO) is clock generator output to crystal/resonator CKI is the clock input
= 2 Single-pin RC controlled oscillator
(CKI/10) G7 is available as a HALT restart and/or general purpose input
OPTION 2: HALT
= 1 Enable HALT mode = 2 Disable HALT mode
OPTION 3: BONDING OPTIONS
= 1 28-Pin DIP = 2 28-Pin SO = 3 N/A = 4 20-Pin SO
Development Tools Support
OVERVIEW
National is engaged with an international community of inde­pendent 3rd party vendors who provide hardware and soft­ware development tool support. Through National’s interac­tion and guidance, these tools cooperate to form a choice of solutions that fits each developer’s needs.
This section provides a summary of the tool and develop­ment kits currently available. Up-to-date information, selec­tion guides, free tools, demos, updates, and purchase infor­mation can be obtained at our web site at: www.national.com/cop8.
SUMMARY OF TOOLS COP8 Evaluation Tools
•
COP8–NSEVAL: Free Software Evaluation package for Windows. A fully integrated evaluation environment for COP8, including versions of WCOP8 IDE (Integrated De­velopment Environment), COP8-NSASM, COP8-MLSIM, COP8C, DriveWay
™
COP8, Manuals, and other COP8
information.
•
COP8–MLSIM: Free Instruction Level Simulator tool for Windows. For testing and debugging software instruc­tions only (No I/O or interrupt support).
•
COP8–EPU: Very Low cost COP8 Evaluation & Pro­gramming Unit. Windows based evaluation and hardware-simulation tool, with COP8 device programmer and erasable samples. Includes COP8-NSDEV, Drive­way COP8 Demo, MetaLink Debugger, I/O cables and power supply.
•
COP8–EVAL-ICUxx: Very Low cost evaluation and de­sign test board for COP8ACC and COP8SGx Families, from ICU. Real-time environment with add-on A/D, D/A, and EEPROM. Includes software routines and reference designs.
•
Manuals,Applications Notes, Literature:Availablefree from our web site at: www.national.com/cop8.
COP8 Integrated Software/Hardware Design Develop­ment Kits
•
COP8-EPU: Very Low cost Evaluation & Programming Unit. Windows based development and hardware­simulation tool for COPSx/xG families, with COP8 device programmer and samples. Includes COP8-NSDEV, Driveway COP8 Demo, MetaLink Debugger, cables and power supply.
•
COP8-DM: Moderate cost Debug Module from MetaLink. A Windows based, real-time in-circuit emulation tool with COP8 device programmer. Includes COP8-NSDEV, DriveWay COP8 Demo, MetaLink Debugger, power sup­ply, emulation cables and adapters.
COP8 Development Languages and Environments
•
COP8-NSASM: Free COP8 Assembler v5 for Win32. Macro assembler,linker, and librarian for COP8 software development. Supports all COP8 devices. (DOS/Win16 v4.10.2 available with limited support). (Compatible with WCOP8 IDE, COP8C, and DriveWay COP8).
•
COP8-NSDEV: Very low cost Software Development Package for Windows. An integrated development envi­ronment for COP8, including WCOP8 IDE, COP8­NSASM, COP8-MLSIM.
•
COP8C: Moderately priced C Cross-Compiler and Code Development System from Byte Craft (no code limit). In­cludes BCLIDE (Byte Craft Limited Integrated Develop­ment Environment) for Win32, editor, optimizing C Cross­Compiler, macro cross assembler, BC-Linker, and MetaLink tools support. (DOS/SUN versions available; Compiler is installable under WCOP8 IDE; Compatible with DriveWay COP8).
•
EWCOP8-KS: Very Low cost ANSI C-Compiler and Em­bedded Workbench from IAR (Kickstart version: COP8Sx/Fx only with 2k code limit; No FP). A fully inte­grated Win32 IDE, ANSI C-Compiler, macro assembler, editor, linker, Liberian, C-Spy simulator/debugger, PLUS MetaLink EPU/DM emulator support.
•
EWCOP8-AS: Moderately priced COP8 Assembler and Embedded Workbench from IAR (no code limit). Afully in­tegrated Win32 IDE, macro assembler, editor, linker, li­brarian, and C-Spy high-level simulator/debugger with I/O and interrupts support. (Upgradeable with optional C-Compiler and/or MetaLink Debugger/Emulator sup­port).
•
EWCOP8-BL: Moderately priced ANSI C-Compiler and Embedded Workbench from IAR (Baseline version: All COP8 devices; 4k code limit; no FP). A fully integrated Win32 IDE, ANSI C-Compiler, macro assembler, editor, linker,librarian, and C-Spy high-level simulator/debugger. (Upgradeable; CWCOP8-M MetaLink tools interface sup­port optional).
•
EWCOP8: Full featured ANSI C-Compiler and Embed­ded Workbench for Windows from IAR (no code limit). A fully integrated Win32 IDE, ANSI C-Compiler, macro as­sembler, editor, linker, librarian, and C-Spy high-level simulator/debugger. (CWCOP8-M MetaLink tools inter­face support optional).
•
EWCOP8-M: Full featuredANSI C-Compiler and Embed­ded Workbench for Windows from IAR (no code limit). A fully integrated Win32 IDE, ANSI C-Compiler, macro as­sembler, editor, linker, librarian, C-Spy high-level simulator/debugger, PLUS MetaLink debugger/hardware interface (CWCOP8-M).
www.national.com37
Page 38
Development Tools Support
(Continued)
COP8 Productivity Enhancement Tools
•
WCOP8 IDE: Very Low cost IDE (Integrated Develop­ment Environment) from KKD. Supports COP8C, COP8­NSASM, COP8-MLSIM, DriveWay COP8, and MetaLink debugger under a common Windows Project Manage­ment environment. Code development, debug, and emu­lation tools can be launched from the project window framework.
•
DriveWay-COP8: Low cost COP8 Peripherals Code Generation tool from Aisys Corporation. Automatically generates tested and documented C or Assembly source code modules containing I/O drivers and interrupt han­dlers for each on-chip peripheral. Application specific code can be inserted for customization using the inte­grated editor. (Compatible with COP8-NSASM, COP8C, and WCOP8 IDE.)
•
COP8-UTILS: Free set of COP8 assembly code ex­amples, device drivers, and utilities to speed up code de­velopment.
•
COP8-MLSIM: Free Instruction Level Simulator tool for Windows. For testing and debugging software instruc­tions only (No I/O or interrupt support).
COP8 Real-Time Emulation Tools
•
COP8-DM: MetaLink Debug Module. A moderately priced real-time in-circuit emulation tool, with COP8 de­vice programmer. Includes COP8-NSDEV, DriveWay COP8 Demo, MetaLink Debugger, power supply, emula­tion cables and adapters.
•
IM-COP8: MetaLink iceMASTER®. A full featured, real- time in-circuit emulator for COP8 devices. Includes Met­aLink Windows Debugger, and power supply. Package­specific probes and surface mount adaptors are ordered separately.
COP8 Device Programmer Support
•
MetaLink’s EPU and Debug Module include development device programming capability for COP8 devices.
•
Third-party programmers and automatic handling equip­ment cover needs from engineering prototype and pilot production, to full production environments.
•
Factory programming available for high-volume require­ments.
TOOLS ORDERING NUMBERS FOR THE COP8ACC5 FAMILY DEVICES
Vendor Tools Order Number Cost Notes
National COP8-NSEVAL COP8-NSEVAL Free Web site download
COP8-NSASM COP8-NSASM Free Included in EPU and DM. Web site download COP8-MLSIM COP8-MLSIM Free Included in EPU and DM. Web site download COP8-NSDEV COP8-NSDEV VL Included in EPU and DM. Order CD from website COP8-EPU Not available for this device COP8-DM Contact MetaLink Development
Devices
COP8ACC7 VL 16k OTP devices; 20/28 pin.
OTP Programming Adapters
PN# EDI 28D (SO)/40D-Z-COP8LXC
L For programming 20/28 SOIC and DIP on any
programmer.
IM-COP8 Contact MetaLink COP8-EPU Not available for this device COP8-DM DM4-COP8-ACx (10
MHz), plus PS-10, plus DM-COP8/xxx (ie. 28D)
M Included p/s (PS-10), target cable of choice (DIP or
PLCC; i.e. DM-COP8/28D), EDI programming sockets. Add target adapter (if needed)
DM Target Adapters
MHW-CNV38 or 39 L DM target converters for 20SO or 28SO; (i.e.
MHW-CNV38 for 20 pin DIP to SO package converter)
OTP Programming Adapters
PN# EDI 28D (SO)/40D-Z-COP8LXC
L For programming 20/28 SOIC and DIP on any
programmer.
IM-COP8 IM-COP8-AD-464 (-220)
(10 MHz maximum)
H Base unit 10 MHz; -220 = 220V; add probe card
(required) and target adapter (if needed); included software and manuals
PC-8AC28DW-AD-10 M 10 MHz 20/28 DIP probe card; 2.5V to 5.5V
IM Probe Target Adapter
MHW-SOIC28 L 28 pin SOIC adapter for probe card
ICU COP8-EVAL COP8-EVAL_ICUAC L No poweer supply
KKD WCOP8-IDE WCOP8-IDE VL Included in EPU and DM
IAR EWCOP8-xx See summary above L - H Included all software and manuals
www.national.com 38
Page 39
Development Tools Support (Continued)
Byte Craft
COP8C COP8C M Included all software and manuals
Aisys DriveWay COP8 DriveWay COP8 L Included all software and manuals
OTP Programmers Contact vendors L - H For approved programmer listings and vendor
information, go to our OTP support page at: www.national.com/cop8
Cost: Free; VL =
<
$100; L = $100 - $300; M = $300 - $1k; H = $1k - $3k; VH = $3k - $5k
WHERE TO GET TOOLS
Tools are ordered directly from the following vendors. Please go to the vendor’s web site for current listings of distributors.
Vendor Home Office Electronic Sites Other Main Offices
Aisys U.S.A.: Santa Clara, CA www.aisysinc.com Distributors
1-408-327-8820 info
@
aisysinc.com
fax: 1-408-327-8830
Byte Craft U.S.A. www.bytecraft.com Distributors
1-519-888-6911 info
@
bytecraft.com
fax: 1-519-746-6751
IAR Sweden: Uppsala www.iar.se U.S.A.: San Francisco
+46 18 16 78 00 info
@
iar.se 1-415-765-5500
fax: +46 18 16 78 38 info
@
iar.com fax: 1-415-765-5503
info
@
iarsys.co.uk U.K.: London
info
@
iar.de +44 171 924 33 34
fax: +44 171 924 53 41 Germany: Munich +49 89 470 6022 fax: +49 89 470 956
ICU Sweden: Polygonvaegen www.icu.se Switzeland: Hoehe
+46 8 630 11 20 support
@
icu.se +41 34 497 28 20
fax: +46 8 630 11 70 support
@
icu.ch fax: +41 34 497 28 21 KKD Denmark: www.kkd.dk MetaLink U.S.A.: Chandler, AZ www.metaice.com Germany: Kirchseeon
1-800-638-2423 sales
@
metaice.com 80-91-5696-0
fax: 1-602-926-1198 support
@
metaice.com fax: 80-91-2386
bbs: 1-602-962-0013 islanger
@
metalink.de
www.metalink.de Distributors Worldwide
National U.S.A.: Santa Clara, CA www.national.com/cop8 Europe: +49 (0) 180 530 8585
1-800-272-9959 support
@
nsc.com fax: +49 (0) 180 530 8586
fax: 1-800-737-7018 europe.support
@
nsc.com Distributors Worldwide
Advantech; Advin; BP Microsystems; Data I/O; Hi-Lo Sys­tems; ICE Technology; Lloyd Research; Logical Devices; MQP; Needhams; Phyton; SMS; Stag Programmers; Sys­tem General; Tribal Microsystems; Xeltek.
Customer Support
Complete product information and technical support is avail­able from National’s customer response centers, and from our on-line COP8 customer support sites.
www.national.com39
Page 40
Physical Dimensions inches (millimeters) unless otherwise noted
Order Number COP8ACC528N9 or COP8ACC528N8
NS Molded Package Number N28B
Order Number COP8ACC528M9 or COP8ACC528M8
NS Molded Package Number M28B
www.national.com 40
Page 41
Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
LIFE SUPPORT POLICY
NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT AND GENERAL COUNSEL OF NATIONAL SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into the body, or (b) support or sustain life, and whose failure to perform when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in a significant injury to the user.
2. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.
National Semiconductor Corporation
Americas Tel: 1-800-272-9959 Fax: 1-800-737-7018 Email: support@nsc.com
National Semiconductor Europe
Fax: +49 (0) 1 80-530 85 86
Email: europe.support@nsc.com Deutsch Tel: +49 (0) 1 80-530 85 85 English Tel: +49 (0) 1 80-532 78 32 Français Tel: +49 (0) 1 80-532 93 58 Italiano Tel: +49 (0) 1 80-534 16 80
National Semiconductor Asia Pacific Customer Response Group
Tel: 65-2544466 Fax: 65-2504466 Email: sea.support@nsc.com
National Semiconductor Japan Ltd.
Tel: 81-3-5639-7560 Fax: 81-3-5639-7507
www.national.com
Order Number COP8ACC520M9 or COP8ACC520M8
NS Molded Package Number M20B
COP8ACC5 8-Bit CMOS ROM Based Microcontrollers with 4k Memory and High Resolution A/D
National does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and National reserves the right at any time without notice to change said circuitry and specifications.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
