DATA BULLETIN

CMX605

1999 MX-COM, Inc. www.mxcom.com tel: [phone] 744 5050 fax: [phone] Doc. # 20480195.003

4800 Bethania Station Road, Winston-Salem, NC 27105-1201 USA All trademarks and service marks are held by their respective companies.

Digital Line to

POTS Interface

PRELIMINARY INFORMATION

Features Applications

•

Pre-Programmed Tone Generators

•

Fully Integrated DTMF Decoder/Encoder

•

SPM Generator

•

Simple Serial Control Interface

•

3.58MHz Xtal/Clock

•

V.23/Bell 202 FSK Generator

•

Digital Ringing Voltage Generator

•

Digital Line to POTS Interface

•

Subscriber Terminal Adapters

•

Wireless Local Loop

•

Computer Telephony Integration

•

Telephone/Radio Patch Systems

•

Pair Gain Systems

•

Billing/SPM Systems

Codec

DC-to-DC

µC

CALLER ID

RING

DIAL

SLIC

AnalogTelephone Port

Digital Line Circu it

CMX605

The CMX605 is an integrated telecom tone generator and DTMF encoder/decoder designed for ISDN
interfaces, Wireless Local Loop and Analog to Digital Telephone Conversion systems. The tone generator
covers an extensive range of pre-programmed tones used in analog telephone systems (POTS). Three
outputs are provided: ‘Ringing signals’, ‘In-band tones or FSK data’, and ‘12kHz/16kHz Metering pulses’.
Simple software control facilitates the interface to a wide range of commonly used µCs and SLICs, enabling a
comprehensive analog telephone line presentation.

The DTMF encoder/decoder presents the digital line interface with DTMF dialing information received from
the telephone user and generates the appropriate DTMF tones for the POTS interface. DTMF tone pairs can
be encoded along with each tone singly or with other dual tone signals, such as those used in CIDCW
systems and ‘On Hook’ signaling systems.

Other tone standards supported are: Fax and Modem ‘answer’ and ‘originate’, ITU (CCITT) ‘R1’ and ‘R2’
signals, and sufficient tones for simple melody generation. Communication to and from the host µC is
performed by a ‘C-BUS’ interface which is compatible with common serial interfaces such as: SCI, SPI, and
Microwire.

The CMX605 operates using a 2.7V to 5.5V supply and is available in the following packages: 16-pin SOIC
(CMX605D4) and 16-pin PDIP (CMX605P3).

Digital Line to POTS Interface 2 CMX605 Preliminary Information

1999 MX-COM, Inc. www.mxcom.com tel: [phone] 744 5050 fax: [phone] Doc. # 20480195.003

4800 Bethania Station Road, Winston-Salem, NC 27105-1201 USA All trademarks and service marks are held by their respective companies.

CONTENTS

Section Page

1 Block Diagram................................................................................................................3

2 Signal List.......................................................................................................................4

3 External Components....................................................................................................5

4 General Description.......................................................................................................5

4.1 Xtal Osc and Clock Dividers................................................................................................ 5

4.2 Uncommitted Amplifier ........................................................................................................5

4.3 Tone/FSK Encoder and Tone Encoder ............................................................................... 6

4.4 SPM Generator.................................................................................................................... 8

4.5 Tx Signal Control................................................................................................................. 8

4.6 Tx UART.............................................................................................................................. 9

4.7 DTMF Tone Decoder........................................................................................................... 9

4.8 ‘C-BUS’ Interface............................................................................................................... 11

4.9 ‘C-BUS’ Registers.............................................................................................................. 11

5 Application ...................................................................................................................12

5.1 Telecom Tones.................................................................................................................. 13

6 Performance Specification..........................................................................................17

6.1 Electrical Performance ...................................................................................................... 17

6.1.1 Absolute Maximum Ratings.................................................................................................. 17

6.1.2 Operating Limits...................................................................................................................17

6.1.3 Operating Characteristics.....................................................................................................18

6.1.4 Timing...................................................................................................................................21

6.2 Packaging.......................................................................................................................... 22

MX-COM, Inc reserves the right to change specifications at any time and without

notice.

Digital Line to POTS Interface 3 CMX605 Preliminary Information

1999 MX-COM, Inc. www.mxcom.com tel: [phone] 744 5050 fax: [phone] Doc. # 20480195.003

4800 Bethania Station Road, Winston-Salem, NC 27105-1201 USA All trademarks and service marks are held by their respective companies.

1 Block Diagram

V

DD

V

BIAS

V

BIAS

V

SS

RXIN

IN-

Tx UAR T

STATUS
and IRQ

STATUS
and IRQ

DTMF

Tone

Decoder

BUS

3.58MHz

Oscillator

PSU

SPM Generator

XTAL

XTAL/CLOCK

SERIAL
CLOCK

COMMAND

DA T A

REPLY

DA T A

CS IRQ

C-BUS Computer Serial Portm

FSK/TONES
Tx Registers

SETUP and

MODE Registers

STATUS
Register

Interrupt

Generator

ROM

Tone Encoder

Tone/FSK

Encoder

Tx Signal

Control

SPM

RING

TONEFSK

AMPOUT

Figure 1: Block Diagram

Digital Line to POTS Interface 4 CMX605 Preliminary Information

1999 MX-COM, Inc. www.mxcom.com tel: [phone] 744 5050 fax: [phone] Doc. # 20480195.003

4800 Bethania Station Road, Winston-Salem, NC 27105-1201 USA All trademarks and service marks are held by their respective companies.

2 Signal List

CMX605

D4/P3

Signal Description

Pin No. Name Type

1

XTAL

output The output of the on-chip Xtal oscillator inverter.

2 XTAL/CLOCK input The input to the oscillator inverter from the Xtal circuit or

external clock source.

3 SERIAL

CLOCK

input

The ‘C-BUS’ serial clock input from the host µC.
See Section 4.8

4 COMMAND

DATA

input

The ‘C-BUS’ serial data input from the host µC.

5 REPLY DATA tri-state

A 3-state ‘C-BUS’ serial data output to the host µC. This
output is high impedance when not sending data to the host

µ

C.

6

CS

input Chip Select. The ‘C-BUS’ transfer control input provided by

the host µC.

7

IRQ

output

A ‘wire-ORable’ output for connection to a host µC Interrupt
Request input. This output is pulled down to V

SS

when active
and is high impedance when inactive. An external pull-up
resistor is required.

8VSSpower The negative supply rail (ground).
9 TONEFSK output The sinewave output of the Tones and FSK signal

generators.

10 SPM The sinewave output of the SPM signal generator.
11 V

BIAS

output An internally generated bias voltage of VDD/2, except when

the device has been reset, V

BIAS

will discharge to VSS. It

should be bypassed to V

SS

by a capacitor mounted close to

the device pins.

12 RXIN input The input to the DTMF decoder, internally biased at VDD/2. It

should be AC coupled.

13 IN- input The inverting input to the uncommitted amplifier.
14 AMPOUT output The output of the uncommitted amplifier.
15 RING output The squarewave output of the Ringing Signal generator.
16 V

DD

power The positive supply rail. Levels and thresholds within the

device are proportional to this voltage. It should be bypassed
to V

SS

by a capacitor mounted close to the device pins.

This device is capable of detecting and decoding small amplitude signals. To achieve this, VDD and V

BIAS

decoupling and protection of the receive path from extraneous in-band signals are very important. It is
recommended that the printed circuit board is laid out with a ground plane in the CMX605 area to provide a
low impedance connection between the V

SS

pin and the VDD and V

BIAS

bypass capacitors.

Table 1: Signal List

Digital Line to POTS Interface 5 CMX605 Preliminary Information

1999 MX-COM, Inc. www.mxcom.com tel: [phone] 744 5050 fax: [phone] Doc. # 20480195.003

4800 Bethania Station Road, Winston-Salem, NC 27105-1201 USA All trademarks and service marks are held by their respective companies.

3 External Components

16
15
14
13
12

11

10

9

1
2
3
4
5
6
7
8

XTAL/CLOCK

XTAL

IRQ

SERIAL CLOCK

REPLY DATA

COMMAND DATA

CS

RING
AMPOUT
IN-

SPM

V

BIAS

RXIN

TONEFSK

X1

R1

C1

C2

C5

C3

C4

V

SS

V

DD

V

DD

V

DD

CMX605

Figure 2: Recommended External Components

R1 100k

: C1, C2 18pF

C3 0.1µF

X1 3.579545 MHz C4, C5 1.0µF

Table 2: Recommended External Components

Recommended External Component Notes:

1. Resistors ±5%, capacitors ±10% unless otherwise stated.

2. For best results, a crystal oscillator design should drive the clock inverter input with signal levels of at
least 40% of V

DD

, peak to peak. Tuning fork crystals generally cannot meet this requirement. To obtain

crystal oscillator design assistance, please consult your crystal manufacturer.

4 General Description

The CMX605 is a telecom tone generator and DTMF tone encoder/decoder. It has separate output ports for
the three different classes of signals encoded. These include Ringing signal, In-band tones or FSK data at
1200bps and High frequency metering pulses (SPM tones). It has a transmit level attenuator for In-band
tones or FSK data and an envelope control for SPM tones. It also has an uncommitted amplifier and uses the
industry standard 3.58MHz Xtal for its oscillator. These functions are controlled over a ‘C-BUS‘ serial µC
interface, which also carries the transmit FSK data and the DTMF decoded data.

The CMX605 should initially be reset by issuing a ‘C-BUS’ RESET command. Individual functions may be
disabled or enabled by the use of bits 5, 6 and 7 in the SETUP Register. See Section 4.9. Approximately

50ms should be allowed for the Tx dc level to settle at V

BIAS

before enabling the Tx functions (set bit 6 of the

MODE Register to ‘1’) after the CMX605 has been reset.

4.1 Xtal Osc and Clock Dividers

Frequency and timing accuracy of the CMX605 is determined by a 3.579545MHz clock present at the
XTAL/CLOCK pin. This may be generated by the on-chip oscillator inverter using the external components
C1, C2 and X1 of Figure 2, or may be supplied from an external source to the XTAL/CLOCK input. If the clock
is supplied from an external source, C1, C2 and X1 should not be fitted.

If the clock is provided by an external source which is not always running, then the CMX605 should be reset
when the clock is not available. Resetting the CMX605 will also turn off the on-chip oscillator. Failure to reset
the device may cause a rise in the supply current drawn by the CMX605.

4.2 Uncommitted Amplifier

This amplifier, with suitable external components, can be used either for adjusting the received signal to the
correct amplitude for the DTMF decoder or for adjusting the transmit signal level (for the line hybrid).

Digital Line to POTS Interface 6 CMX605 Preliminary Information

1999 MX-COM, Inc. www.mxcom.com tel: [phone] 744 5050 fax: [phone] Doc. # 20480195.003

4800 Bethania Station Road, Winston-Salem, NC 27105-1201 USA All trademarks and service marks are held by their respective companies.

4.3 Tone/FSK Encoder and Tone Encoder

When bit 5 of the MODE Register is set to ‘1’ then these blocks generate FSK signals as determined by bit 0
of the SETUP Register and the Tx data bits from the UART block, as shown in Table 3.

SETUP Register

Bit 0

Tone/FSK Generator FSK Signal Frequency

‘0’ (Space)

FSK Signal Frequency

‘1’ (Mark)

0 V23 1200bps FSK 2100Hz 1300Hz
1 Bell 202 1200bps FSK 2200Hz 1200Hz

Table 3: Tone/FSK Encoder and Tone Decoder

When bit 5 of the MODE Register is set to ‘0’, these blocks generate single or dual tones from the range
shown in Table 4, Table 5, Table 6, and Table 7. Bit 6 of the MODE Register is then used to enable or
disable the block’s output to the Tx Signal Control, RING, and ToneFSK outputs. There are four tone fields
addressed by bits 0 and 1 of the MODE Register.

TX TONES Register Bits 4-7 TX TONES Register Bits 0-3

D7 D6 D5 D4

Frequency

(Hz)

D3 D2 D1 D0

Frequency

(Hz)

0 0 0 0 0 = OFF 0 0 0 0 0 = OFF
0 0 0 1 252.4 0 0 0 1 * 17.1
0 0 1 0 268.7 0 0 1 0 * 20.5
0 0 1 1 285.3 0 0 1 1 * 24.9
0 1 0 0 315.5 0 1 0 0 * 34.1
0 1 0 1 330.5 0 1 0 1 * 41.0
0 1 1 0 375.2 0 1 1 0 * 51.2
0 1 1 1 404.3 0 1 1 1 ­1 0 0 0 468.0 1 0 0 0 262.9
1 0 0 1 495.8 1 0 0 1 293.6
1 0 1 0 520.6 1 0 1 0 348.2
1 0 1 1 548.0 1 0 1 1 392.6
1 1 0 0 562.8 1 1 0 0 1600
1 1 0 1 578.4 1 1 0 1 1633
1 1 1 0 595.0 1 1 1 0 1827
1 1 1 1 612.5 1 1 1 1 587.2

Table 4: Tone Field 0, MODE Register bit 1 and bit 0 = ‘0’ and ‘0’ respectively.

NOTE: * These outputs are routed to the RING digital output instead of the TONEFSK output. Any single

tone output level at TONEFSK output is 0dBm.

Digital Line to POTS Interface 7 CMX605 Preliminary Information

1999 MX-COM, Inc. www.mxcom.com tel: [phone] 744 5050 fax: [phone] Doc. # 20480195.003

4800 Bethania Station Road, Winston-Salem, NC 27105-1201 USA All trademarks and service marks are held by their respective companies.

TX TONES Register Bits 4-7 TX TONES Register Bits 0-3

D7 D6 D5 D4

Frequency

(Hz)

D3 D2 D1 D0

Frequency

(Hz)

0 0 0 0 0 = OFF 0 0 0 0 0 = OFF
0 0 0 1 120 0 0 0 1 330
0 0 1 0 150 0 0 1 0 416
0 0 1 1 154 0 0 1 1 420
0 1 0 0 250 0 1 0 0 425
0 1 0 1 300 0 1 0 1 433
0 1 1 0 350 0 1 1 0 440
0 1 1 1 360 0 1 1 1 450
1 0 0 0 367 1 0 0 0 460
1 0 0 1 375 1 0 0 1 480
1 0 1 0 380 1 0 1 0 500
1 0 1 1 383 1 0 1 1 600
1 1 0 0 400 1 1 0 0 620
1 1 0 1 450 1 1 0 1 720
1 1 1 0 475 1 1 1 0 930
1 1 1 1 480 1 1 1 1 -

Table 5: Tone Field 1, MODE Register bit 1 and bit 0 = ‘0’ and ‘1’ respectively

TX TONES Register Bits 4-7 TX TONES Register Bits 0-3

D7 D6 D5 D4

Frequency

(Hz)

D3 D2 D1 D0

Frequency

(Hz)

0 0 0 0 0 = OFF 0 0 0 0 0 = OFF
0 0 0 1 700 0 0 0 1 700
0 0 1 0 900 0 0 1 0 900
0 0 1 1 1100 0 0 1 1 1100
0 1 0 0 1300 0 1 0 0 1300
0 1 0 1 1500 0 1 0 1 1500
0 1 1 0 1700 0 1 1 0 1700
0111 - 0111 ­1 0 0 0 950 1 0 0 0 2100
1 0 0 1 1400 1 0 0 1 2225
1 0 1 0 1800 1 0 1 0 ­1 0 1 1 2130 1 0 1 1 2750
1 1 0 0 697 1 1 0 0 1209
1 1 0 1 770 1 1 0 1 1336
1 1 1 0 852 1 1 1 0 1477
1 1 1 1 941 1 1 1 1 1633

Table 6: Tone Field 2, MODE Register bit 1 and bit 0 = ‘1’ and ‘0’ respectively

Digital Line to POTS Interface 8 CMX605 Preliminary Information

1999 MX-COM, Inc. www.mxcom.com tel: [phone] 744 5050 fax: [phone] Doc. # 20480195.003

4800 Bethania Station Road, Winston-Salem, NC 27105-1201 USA All trademarks and service marks are held by their respective companies.

TX TONES Register Bits 4-7 TX TONES Register Bits 0-3

D7 D6 D5 D4

Frequency

(Hz)

D3 D2 D1 D0

Frequency

(Hz)

0 0 0 0 0 = OFF 0 0 0 0 0 = OFF
0 0 0 1 540 0 0 0 1 540
0 0 1 0 660 0 0 1 0 660
0 0 1 1 780 0 0 1 1 780
0 1 0 0 900 0 1 0 0 900
0 1 0 1 1020 0 1 0 1 1020
0 1 1 0 1140 0 1 1 0 1140
0111 - 0111 ­1 0 0 0 1380 1 0 0 0 1380
1 0 0 1 1500 1 0 0 1 1500
1 0 1 0 1620 1 0 1 0 1620
1 0 1 1 1740 1 0 1 1 1740
1 1 0 0 1860 1 1 0 0 1860
1 1 0 1 1980 1 1 0 1 1980
1110 - 1110 ­1111 - 1111 -

Table 7: Tone Field 3, MODE Register bit 1 and bit 0 = ‘1’ and ‘1’ respectively

4.4 SPM Generator

This block operates independently and has its own output pin. It can transmit 12kHz or 16kHz and is
controlled by bit 4 of the SETUP Register. Bit 7 of the MODE Register is used to enable or disable this block.
The signal has a rise and fall time each of about 4.5ms. The SPM signal rises from the bias level to 0dBm in
16 steps of

|2dB magnitude, and falls from 0dBm to bias level in 16 steps of |2dB magnitude.

4.5 Tx Signal Control

This block adjusts the amplitude of the FSK transmit signal output level, the level skew between DTMF tones,
and the signal routing to the output ports.

Output signal levels are proportional to VDD. The nominal output signal levels (at 0dB attenuation and
V

DD

= 5.0V) are:

Single Tone 0dBm
Dual Tone (per tone) -3dBm
DTMF High Frequency Tone -3dBm
DTMF Low Frequency Tone -5dBm
FSK Signal 0dBm

The RING signal is digital: a square wave with amplitude of ≈ VDD peak to peak. When the RING signal is not
selected, the RING output pin is connected to V

SS

.

The level attenuator provides for level adjustment from 0dB to -14dB in -2dB steps. The typical level is
determined by bits 2 to 4 of the MODE Register as shown in Table 8.

Digital Line to POTS Interface 9 CMX605 Preliminary Information

1999 MX-COM, Inc. www.mxcom.com tel: [phone] 744 5050 fax: [phone] Doc. # 20480195.003

4800 Bethania Station Road, Winston-Salem, NC 27105-1201 USA All trademarks and service marks are held by their respective companies.

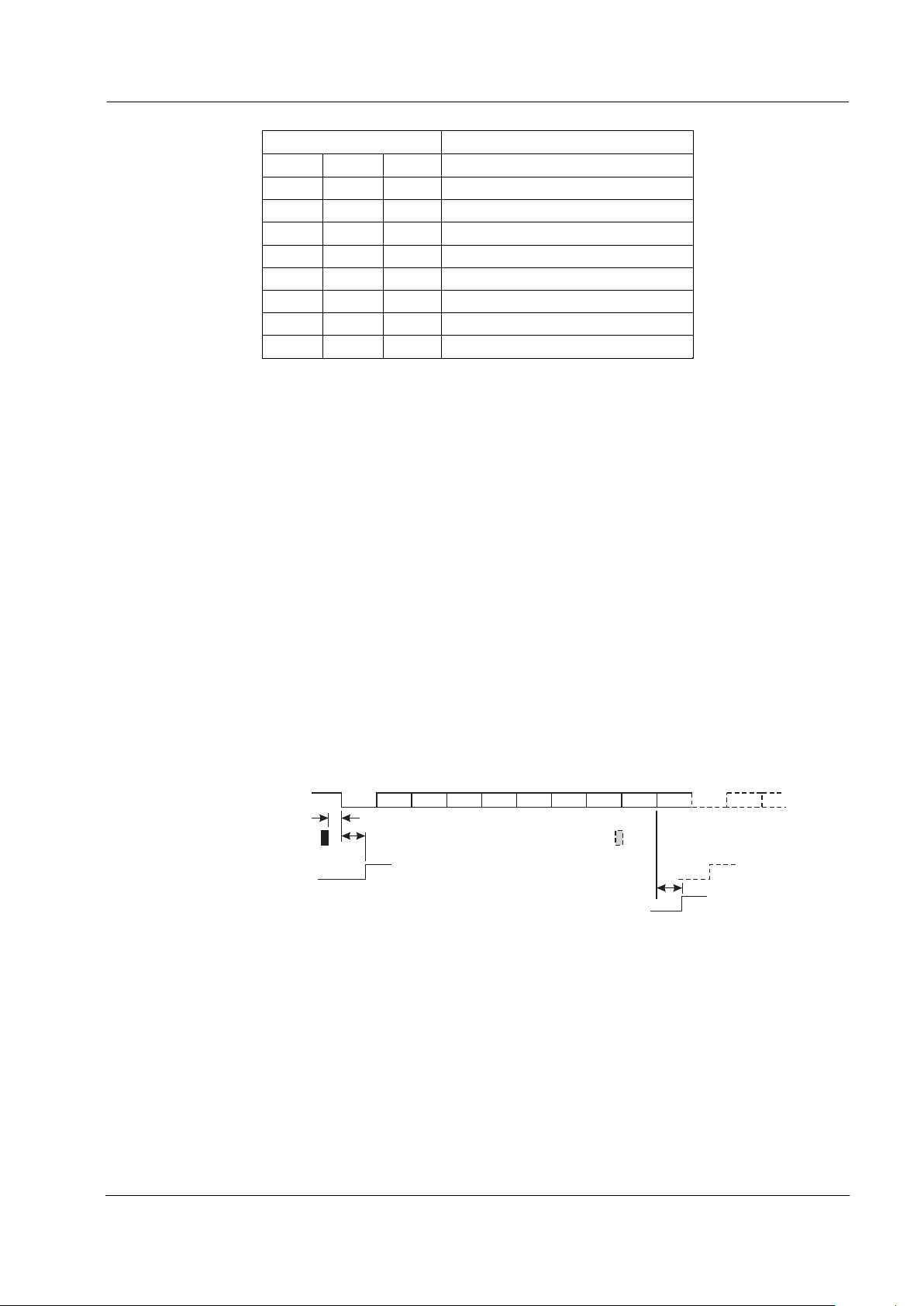

MODE Register Signal Level Adjustment

Bit 4 Bit 3 Bit 2 (dB)

000 0
001 -2
010 -4
011 -6
100 -8
101 -10
110 -12
111 -14

Table 8: Typical Level settings as determined by Bits 2, 3, and 4 of the Mode Register

4.6 Tx UART

This block connects the µC, via the ‘C-BUS’ interface, to the FSK Encoder.
The block can be programmed to convert transmit data from 8-bit bytes to asynchronous data characters by

adding Start and Stop bits. The transmit data is then passed to the FSK Encoder.
Data to be transmitted should be loaded by the µC into the TX DATA Register when the Tx Data Ready bit (bit

6) of the STATUS Register goes high. The data will then be treated by the Tx UART block in one of two ways,

depending on the setting of bit 1 of the SETUP Register:

If bit 1 of the SETUP Register is ‘0’ (Tx Sync mode) then the 8 bits from the TX DATA Register will be
transmitted sequentially at 1200bps, LSB (D0) first.

If bit 1 of the SETUP Register is ‘1’ (Tx Async mode) then bits will be transmitted as asynchronous data
characters at 1200bps according to the following format:

One Start bit (Space)
Eight Data bits (D0-D7) from the TX DATA Register, with the LSB (D0) transmitted first
One Stop bit (Mark)

Failure to load the TX DATA Register with a new value when required will result in bit 7 (Tx Data Underflow)
of the STATUS Register being set to ‘1’. If the ‘Tx Async’ mode of operation is selected then a continuous
Mark (‘1’) signal will be transmitted until a new value is loaded into TX DATA. If the ‘Tx Sync’ mode is selected
then the byte already in the TX DATA Register will be re-transmitted.

TX DATA Register loaded:

Tx FSK signal:

T

TBD

T

TBD

T

TBD

Tx Data Ready flag bit:

Tx Data Underflow flag bit:

D0 D0

Start Start

Stop

D1 D2

D3

D4

D5 D6

D7

Figure 3: Transmit UART Function (Async)

4.7 DTMF Tone Decoder

This block is enabled or disabled by bit 5 of the SETUP register. If disabled, bit 0 to bit 5 of the STATUS
Register are set to ‘0’ and no interrupts are generated. When enabled (set to ‘1’), a status change of the
decoder will generate an interrupt and bit 5 of the STATUS Register will be set to ‘1’. The validity of the data
is indicated by bit 4 of the STATUS Register. The decode truth table is shown in

Table 9.

Digital Line to POTS Interface 10 CMX605 Preliminary Information

1999 MX-COM, Inc. www.mxcom.com tel: [phone] 744 5050 fax: [phone] Doc. # 20480195.003

4800 Bethania Station Road, Winston-Salem, NC 27105-1201 USA All trademarks and service marks are held by their respective companies.

STATUS Register Bits 0 - 3 DTMF Tone Pairs

Bit 3

(D3)

Bit 2

(D2)

Bit 1

(D1)

Bit 0

(D0)

Lower Frequency

(Hz)

Upper Frequency

(Hz)

Keypad Legend

0 0 0 0 941 1633 D
0 0 0 1 697 1209 1
0 0 1 0 697 1336 2
0 0 1 1 697 1477 3
0 1 0 0 770 1209 4
0 1 0 1 770 1336 5
0 1 1 0 770 1477 6
0 1 1 1 852 1209 7
1 0 0 0 852 1336 8
1 0 0 1 852 1477 9
1 0 1 0 941 1336 0
1 0 1 1 941 1209 *
1 1 0 0 941 1477 #
1 1 0 1 697 1633 A
1 1 1 0 770 1633 B
1 1 1 1 852 1633 C

Table 9: DTMF Decode Truth Table

A status change of the decoder and the generation of an interrupt will occur both when a tone is first decoded
and also when a tone, which was previously present, is no longer decoded. In the latter case, Bit 4 of the
STATUS Register will be set to “0” to indicate that no tone was detected.

Digital Line to POTS Interface 11 CMX605 Preliminary Information

1999 MX-COM, Inc. www.mxcom.com tel: [phone] 744 5050 fax: [phone] Doc. # 20480195.003

4800 Bethania Station Road, Winston-Salem, NC 27105-1201 USA All trademarks and service marks are held by their respective companies.

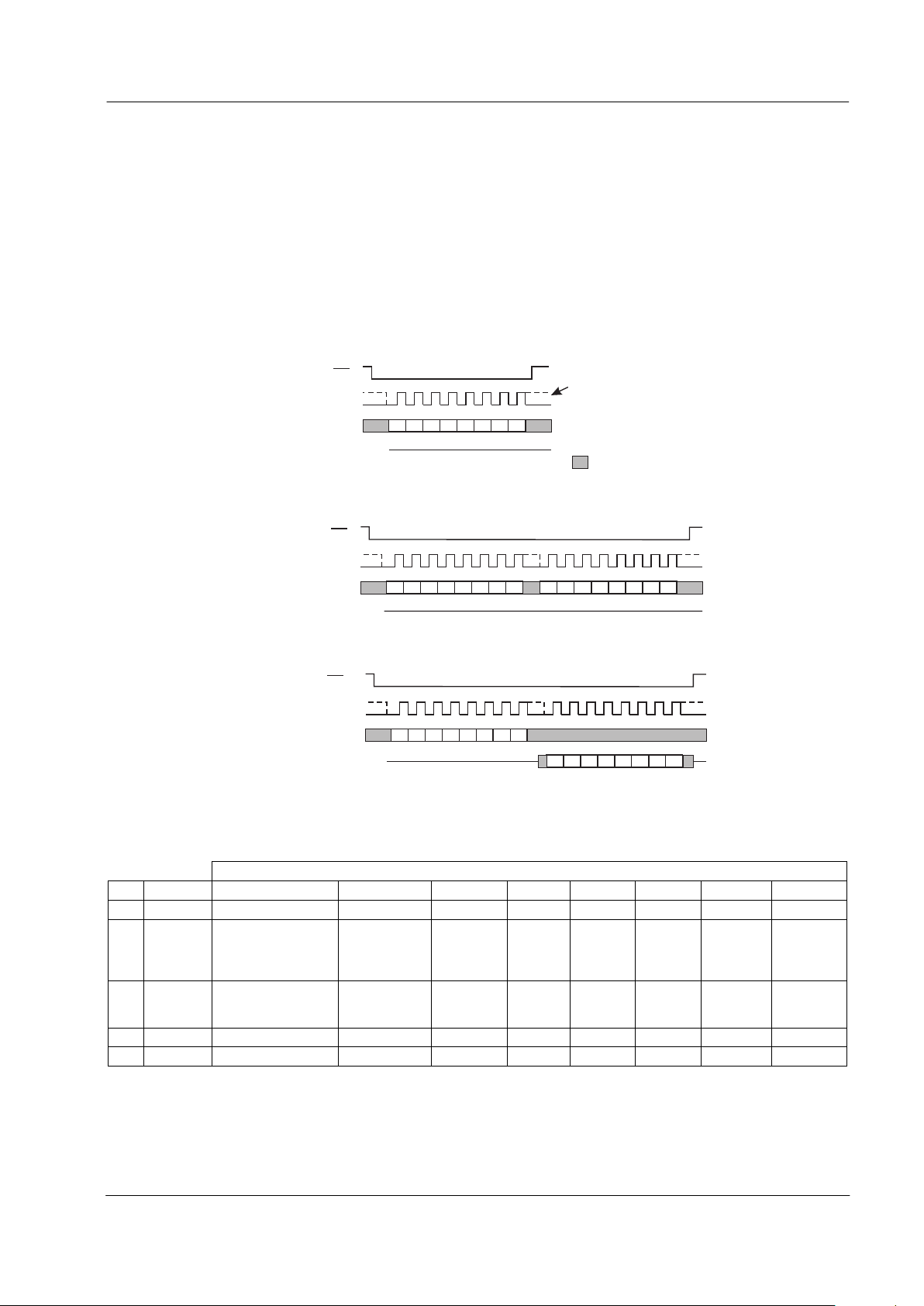

4.8 ‘C-BUS’ Interface

This block provides for the transfer of data and control or status information between the CMX605’s internal
registers and the µC over the ‘C-BUS’ serial bus. Each 'C-BUS' transaction consists of a single Register
Address byte sent from the µC, as illustrated in Figure 4, which may then be followed by either of:

A single data byte sent from the µC to be written into one of the CMX605’s Write Only Registers, as
illustrated in Figure 5.
A single byte of data read out from one of the CMX605’s Read Only Registers, as illustrated in Figure 6.

Data sent from the µC on the Command Data (COMMAND DATA) line is clocked into the CMX605 on the
rising edge of the Serial Clock (SERIAL CLOCK) input. Reply Data (REPLY DATA) sent from the CMX605 to
the µC is valid when the Serial Clock is high. The interface is compatible with the most common µC serial
interfaces such as SCI, SPI and Microwire, and may also be easily implemented with general purpose µC I/O
pins controlled by a simple software routine. See Figure 9 for detailed ‘C-BUS’ timing requirements.

CS

SERIAL CLOCK

COMMAND DATA

Address (01 Hex = Reset)

= Level not important

Note:

The SERIAL CLOCK
line may be high or low at
the start and end of each
transaction.

Hi-Z

REPLY DATA

7

654

321

0

Figure 4: ‘C-BUS’ Transactions (Single byte from µC)

CS

SERIAL CLOCK

COMMAND DATA

Address

Hi-Z

Data to CMX6 05

REPLY DATA

7

654

321

0

7

654

321

0

Figure 5: ‘C-BUS’ Transactions (One Address and one Data Byte from µC)

CS

SERIAL CLOCK

Hi-Z

Address

Data from CMX605

COMMAND DATA

REPLY DATA

7

654

321

0

7

654

321

0

Figure 6: ‘C-BUS’ Transactions (One Address Byte from µC and one Reply Byte from CMX605)

4.9 ‘C-BUS’ Registers

Command Data Byte (Bits 7 – 0)

Addr Register 7 6 5 4 3 2 1 0

$01 RESET N/A N/A N/A N/A N/A N/A N/A N/A

$D0 SETUP Uncommitted

Amplifier
0 = Disable
1 = Enable

Tx Enable:

0 = Disable

1 = Enable

DTMF Rx:

0 = Disable

1 = Enable

SPM:
0 = 12kHz
1 = 16kHz

Reserved

set to 0

Reserved

set to 0

FSK mode:

0 = Sync

1 = Async

FSK mode:

0 = V23

1 = Bell 202

$D1 MODE SPM Output:

0 = Disable
1 = Enable

Tone/FSK:

0 = Disable

1 = Enable

Tone/FSK:

0 = Tone

1 = FSK

Tx Level:

(MSB)

Tx Level: Tx Level:

(LSB)

Tone Fields:

(MSB)

Tone Fields:

(LSB)

$D3 TX DATA D7 D6 D5 D4 D3 D2 D1 D0
$D4 TX TONES D7 D6 D5 D4 D3 D2 D1 D0

Table 10: Write Only Registers

Digital Line to POTS Interface 12 CMX605 Preliminary Information

1999 MX-COM, Inc. www.mxcom.com tel: [phone] 744 5050 fax: [phone] Doc. # 20480195.003

4800 Bethania Station Road, Winston-Salem, NC 27105-1201 USA All trademarks and service marks are held by their respective companies.

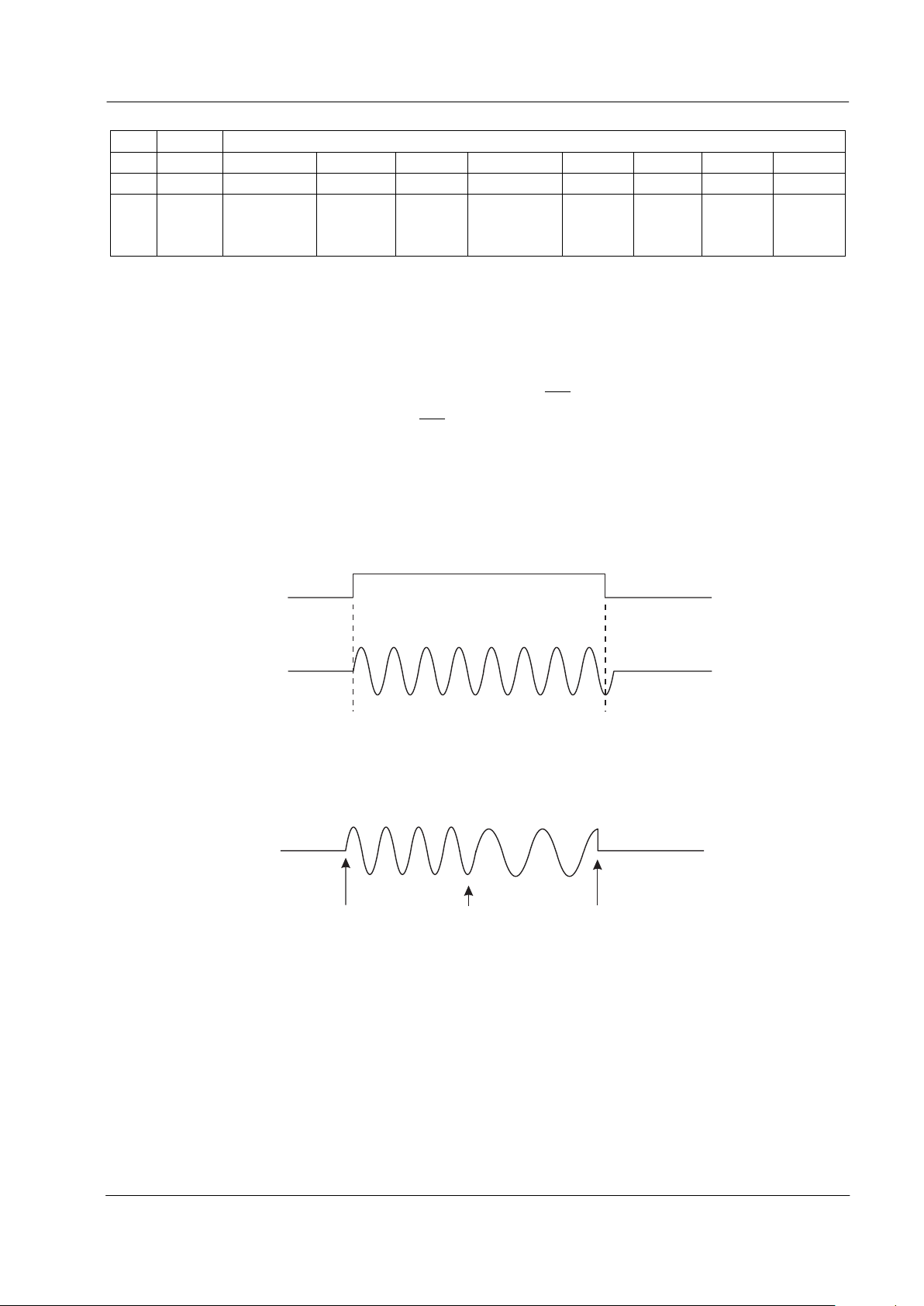

Reply Data Byte (Bits 7 – 0)

Addr. Register 7 6 5 4 3 2 1 0

$DF STATUS FSK Mode: FSK Mode: DTMF Rx: DTMF Rx: DTMF: DTMF: DTMF: DTMF:

FSK Tx Data

Underflow

FSK Tx

Data Ready

Status

Change

1 = Detected

0 = NoTone
Timer timed

out

Rx Data

(D3)

(MSB)

Rx Data

(D2)

Rx Data

(D1)

Rx Data

(D0)

(LSB)

Table 11: Read Only Registers

Notes:

1. Accessing the RESET Register over the ‘C-BUS’ clears all of the bits in the SETUP, MODE, TX DATA,
TX TONES and STATUS registers. This will initialize the device.
Note that this is a single-byte ‘C-BUS’ transaction consisting solely of the address byte value $01.

2. If any of bits 5, 6 or 7 of the STATUS Register is ‘1’ then the

IRQ

output will be pulled low.

3. Reading the STATUS Register clears the

IRQ output and also clears bit 5 of the STATUS Register, if set.

Bits 6 and 7 of the STATUS Register are cleared on writing to the TX DATA Register.

5 Application

When using the Tone/FSK bit (bit 6) of the MODE Register, each tone starts from V

BIAS

and returns to V

BIAS

before ending:

TONEFSK

ENABLE

Tone / FSK:

DISABLE

V

BIAS

Figure 7: Tone Starting and Stopping

When switching between tones in the same column (bits 4 - 7 or bits 0 - 3) of the TX TONES Register, the
transition will be phase continuous. However, switching to the “OFF” state will immediately take the output of
that tone generator to V

BIAS

.

TONEFSK

TONE 1

TONE 2

TONE = OFF

V

BIAS

Figure 8: Tone Changing

TX TONES Register codes which do not have a frequency allocated are indicated by “-“ in the Tone Field
tables. These code values should not be used.

Digital Line to POTS Interface 13 CMX605 Preliminary Information

1999 MX-COM, Inc. www.mxcom.com tel: [phone] 744 5050 fax: [phone] Doc. # 20480195.003

4800 Bethania Station Road, Winston-Salem, NC 27105-1201 USA All trademarks and service marks are held by their respective companies.

5.1 Telecom Tones

The following table provides the hex codes to be programmed into the particular tone field location for various
telecommunications systems applications. The tables are not exhaustive, but list the more commonly used
tones.

(f +-2.5%) (Hz) Field 0 (Hex)

Off $00

16.7 $01
20 $02
25 $03
35 $04
40 $05
50 $06

Table 12: Ringing Signals

Single Tone (Hz) Field 0 (Hex) Dual Tone (Hz) Field 0 (Hex)

375.2 $60 375.2+1827 $6E

404.3 $70 404.3+1827 $7E
468 $80 468+1827 $8E

495.8 $90 495.8+1827 $9E

520.6 $A0 520.6+1827 $AE
548 $B0 548+1827 $BE

562.8 $C0 562.8+1827 $CE

578.4 $D0 578.4+1827 $DE

1633 $0D

Table 13: On Hook 'CPE' Alert Tones

Group A (Hz) Field 0 (Hex) Group B (Hz) Field 0 (Hex)

252.4 $10 468 $80

268.7 $20 495.8 $90

285.3 $30 520.6 $A0

315.5 $40 562.8 $C0

330.5 $50 595 $E0

375.2 $60 612.5 $F0

Table 14: NYNEX (MRAA) - AMR Alert Tones (Single Tone)

Digital Line to POTS Interface 14 CMX605 Preliminary Information

1999 MX-COM, Inc. www.mxcom.com tel: [phone] 744 5050 fax: [phone] Doc. # 20480195.003

4800 Bethania Station Road, Winston-Salem, NC 27105-1201 USA All trademarks and service marks are held by their respective companies.

(Hz) Field 1 (Hex)

Off $00
120 $10
150 $20
154 $30
250 $40
300 $50
350 $60
400 $C0
425 $04
440 $06
450 $07
480 $09
500 $0A
600 $0B
620 $0C

Table 15: Single Frequency Call Progress Tones

Additive Mixing (Hz) Field 1 (Hex)

M

ultiplicative Mixing (Hz) Field 1 (Hex)

Off $00
350+440 $66 400*16.2 $B2
440+480 $F6 400*20 $A3
480+620 $FC 400*25 $94
400+425 $C4 400*33 $85
400+450 $C7 400*40 $76
425+450 $D4 400*50 $67
425+480 $F4 450*25 $E4
120+620 $1C 600*120 $FD
150+450 $27

Table 16: Dual Frequency Call Progress Tones

Digital Line to POTS Interface 15 CMX605 Preliminary Information

1999 MX-COM, Inc. www.mxcom.com tel: [phone] 744 5050 fax: [phone] Doc. # 20480195.003

4800 Bethania Station Road, Winston-Salem, NC 27105-1201 USA All trademarks and service marks are held by their respective companies.

(Hz) Field 2 (Hex)

Off $00
941+1633 $FF
697+1209 $CC
697+1336 $CD
697+1477 $CE
770+1209 $DC
770+1336 $DD
770+1477 $DE
852+1209 $EC
852+1336 $ED
852+1477 $EE
941+1336 $FD
941+1209 $FC
941+1477 $FE
697+1633 $CF
770+1633 $DF
852+1633 $EF

Table 17: Dual Tone Multi Frequency Generation

(Hz) Field 2 (Hex)

Off $00

950 $80
1100 $30
1300 $40
1400 $90
1800 $A0
2100 $08
2225 $09

2130+2750 $BB

Table 18: Special Information Tones, Fax and Modem Tones and Customer Premises Alert Tones

Digital Line to POTS Interface 16 CMX605 Preliminary Information

1999 MX-COM, Inc. www.mxcom.com tel: [phone] 744 5050 fax: [phone] Doc. # 20480195.003

4800 Bethania Station Road, Winston-Salem, NC 27105-1201 USA All trademarks and service marks are held by their respective companies.

(Hz) Field 2 (Hex)

700+900 $12
700+1100 $13
900+1100 $23
700+1300 $14
900+1300 $24

1100+1300 $34

700+1500 $15
900+1500 $25

1100+1500 $35
1300+1500 $45

700+1700 $16
900+1700 $26

1100+1700 $36
1300+1700 $46
1500+1700 $56

Table 19: CCITT ‘R1’ Signaling Tones

Forward mode (Hz) Field 3 (Hex) Backward mode (Hz) Field 3 (Hex)

Off $00 Off $00
1380+1500 $89 1140+1020 $65
1380+1620 $8A 1140+900 $64
1500+1620 $9A 1020+900 $54
1380+1740 $8B 1140+780 $63
1500+1740 $9B 1020+780 $53
1620+1740 $AB 900+780 $43
1380+1860 $8C 1140+660 $62
1500+1860 $9C 1020+660 $52
1620+1860 $AC 900+660 $42
1740+1860 $BC 780+660 $32
1380+1980 $8D 1140+540 $61
1500+1980 $9D 1020+540 $51
1620+1980 $AD 900+540 $41
1740+1980 $BD 780+540 $31
1860+1980 $CD 660+540 $21

Table 20: CCITT ‘R2’ Signaling Tones

Digital Line to POTS Interface 17 CMX605 Preliminary Information

1999 MX-COM, Inc. www.mxcom.com tel: [phone] 744 5050 fax: [phone] Doc. # 20480195.003

4800 Bethania Station Road, Winston-Salem, NC 27105-1201 USA All trademarks and service marks are held by their respective companies.

6 Performance Specification

6.1 Electrical Performance

6.1.1 Absolute Maximum Ratings

Exceeding these maximum ratings can result in damage to the device.

Min. Max. Unit

Supply (VDD - VSS) -0.3 7.0 V
Voltage on any pin to V

SS

-0.3 V

DD

+ 0.3 V

Current into or out of

V

DD

-50 50 mA

V

SS

-50 50 mA

Any other pin -20 20 mA

D4/P3 Package

Total Allowable Power Dissipation at T

AMB

= 25°C 800 mW

Derating above 25°C 13 mW/°C above 25°C
Storage Temperature -55 125 °C
Operating Temperature -40 85 °C

6.1.2 Operating Limits

Correct operation of the device outside these limits is not implied.

Notes Min. Max. Unit

Supply (VDD - VSS)2.75.5V
Operating Temperature -40 85 °C
Xtal Frequency 1 3.575965 3.583125 MHz

Notes:

1. A Xtal frequency of 3.579545MHz ±0.1% is required for correct operation.

Digital Line to POTS Interface 18 CMX605 Preliminary Information

1999 MX-COM, Inc. www.mxcom.com tel: [phone] 744 5050 fax: [phone] Doc. # 20480195.003

4800 Bethania Station Road, Winston-Salem, NC 27105-1201 USA All trademarks and service marks are held by their respective companies.

6.1.3 Operating Characteristics

For the following conditions unless otherwise specified:
V

DD

= 2.7V at T

AMB

= 25°C and V

DD

= 3.0V to 5.5V at T

AMB

= -40 to 85°C,

Xtal Frequency = 3.579545MHz ± 0.1%, 0dBm corresponds to 775mV

RMS

Notes Min. Typ. Max. Unit

DC Parameters

I

DD

Op-Amp only Enabled (V

DD

= 5.0V) 1 2.0 mA

DTMF Rx only, V

DD

= 5.0V 1 2.8 4.5 mA

Tx (tones, SPM) only, V

DD

= 5.0V 1 4.6 7.0 mA

All Enabled, V

DD

= 5.0V 1 7.2 11.0 mA

Op-Amp only Enabled (V

DD

= 3.3V) 1 0.75 mA

DTMF Rx only, V

DD

= 3.3V 1 1.2 2.5 mA

Tx (tones, SPM) only, V

DD

= 3.3V 1 2.0 3.0 mA

All Enabled, V

DD

= 3.3V 1 3.2 5.0 mA

Logic ‘1’ Input Level 3 70% V

DD

Logic ‘0’ Input Level 3 30% V

DD

Logic Input Leakage Current (VIN = 0 to VDD), (excluding
XTAL/CLOCK input)

3-1.0 1.0µA

Output Logic ‘1’ Level (IOH = 360µA) VDD-0.4 V
Output Logic ‘0’ Level (IOL = 360µA) 0.4 V

IRQ output ‘Off' State Current (V

OUT

= VDD)

1.0 µA

FSK Encoder and Tx UART

Level at TONEFSK pin 4 -1.0 0.0 1.0 dBm
Twist (Mark level with regards to Space level) -2.0 0 2.0 dB
Tx 1200bits/sec (V23 mode)

Baud Rate (set by UART and Xtal frequency) 1194 1200 1206 Baud
Mark (Logical 1) Frequency 1297 1300 1303 Hz
Space (Logical 0) Frequency 2097 2100 2103 Hz

Tx 1200bits/sec (Bell 202 mode)

Baud Rate (set by UART and Xtal frequency) 1194 1200 1206 Baud
Mark (Logical 1) Frequency 1197 1200 1203 Hz
Space (Logical 0) Frequency 2197 2200 2203 Hz

TONEFSK Signal Level

Level at TONEFSK pin for:

Single tone 4 -1.0 0 1.0 dBm
Dual tone (per tone) 4 -4.0 -3.0 -2.0 dBm
DTMF High Frequency Group 4 -4.0 -3.0 -2.0 dBm
DTMF Low Frequency Group 4 -6.0 -5.0 -4.0 dBm

Output Impedance 10.0 -

k

Ω

Tone frequency resolution -2.0 2.0 Hz
Tone output distortion 5 0.8 %

Digital Line to POTS Interface 19 CMX605 Preliminary Information

1999 MX-COM, Inc. www.mxcom.com tel: [phone] 744 5050 fax: [phone] Doc. # 20480195.003

4800 Bethania Station Road, Winston-Salem, NC 27105-1201 USA All trademarks and service marks are held by their respective companies.

Notes Min. Typ. Max. Unit

DTMF Decoder

Valid input signal levels (each tone of composite signal) 4 -32.0 -2.0 dBm
Not decode level (either tone of composite signal) 4 -40.0 dBm
Twist = High Tone/Low Tone -9.0 10.0 dB
Frequency Detect Bandwidth ±1.8 ±4.5 %
Input Impedance for RXIN (at 100Hz) 0.5

M

Ω

Dial Tone Tolerance 7 0 dB
Noise Tolerance 7,8 14 dB
Tone Response time 2 40.0 ms
Tone De-response time 2 45.0 ms
Tone burst detected 2 40.0 - ms
Tone burst ignored 2 20.0 ms
Pause length detected 2 40.0 ms
Pause length ignored 2 20.0 ms

SPM Signal Level

4, 6 -1.5 0 1.0 dBm

Level at SPM pin

4, 6,

10

-1.0 0 0.5 dB

Tone frequency accuracy -14.0 14.0 Hz
Tone output distortion 5 1.2 TBD %
Output Impedance 10.0

k

Ω

Uncommitted Amplifier

Open Loop Gain (Input = 1mV

RMS

at 100Hz) 60.0 dB
Unity Gain Bandwidth 5.0 MHz
Input Impedance (at 100Hz) 10.0

M

Ω

Output Impedance (Open Loop) 10.0

k

Ω

Power-Up Timing

Device reset to reliable signal at AMPOUT, RING, SPM,
TONEFSK output pins

50 ms

XTAL/CLOCK Input

'High' Pulse Width 9 100 ns
'Low' Pulse Width 9 100 ns
Input Impedance (at 100Hz) 1.0

M

Ω

Gain (input = 1mV

RMS

at 100Hz) 20.0 dB

Digital Line to POTS Interface 20 CMX605 Preliminary Information

1999 MX-COM, Inc. www.mxcom.com tel: [phone] 744 5050 fax: [phone] Doc. # 20480195.003

4800 Bethania Station Road, Winston-Salem, NC 27105-1201 USA All trademarks and service marks are held by their respective companies.

Notes:

1. At 25°C, not including any current drawn from the CMX605 pins by external circuitry other than X1, C1
and C2.

2. At nominal signal frequencies and without skew..

3. Excluding XTAL/CLOCK pin.

4. At V

DD

= 5.0V, load resistance greater than 40kΩ, signal levels are proportional to VDD.

5. Frequency above 300Hz.

6. SPM has a soft rise and fall time of about 4.5ms. The level changes between V

BIAS

and 0dBm in 2dB
steps, 16 steps per rise and fall. When SPM is disabled, an extra 4.5ms falling tail end of signal should
be taken into consideration.

7. Referenced to DTMF tone of lower amplitude.

8. Bandwidth limited: 0 to 3.4kHz Gaussian Noise.

9. Timing for an external input to the XTAL/CLOCK pin.

10. Over the range V

DD

= 3.3V to 5.5V at T

AMB

= 25°C

Digital Line to POTS Interface 21 CMX605 Preliminary Information

1999 MX-COM, Inc. www.mxcom.com tel: [phone] 744 5050 fax: [phone] Doc. # 20480195.003

4800 Bethania Station Road, Winston-Salem, NC 27105-1201 USA All trademarks and service marks are held by their respective companies.

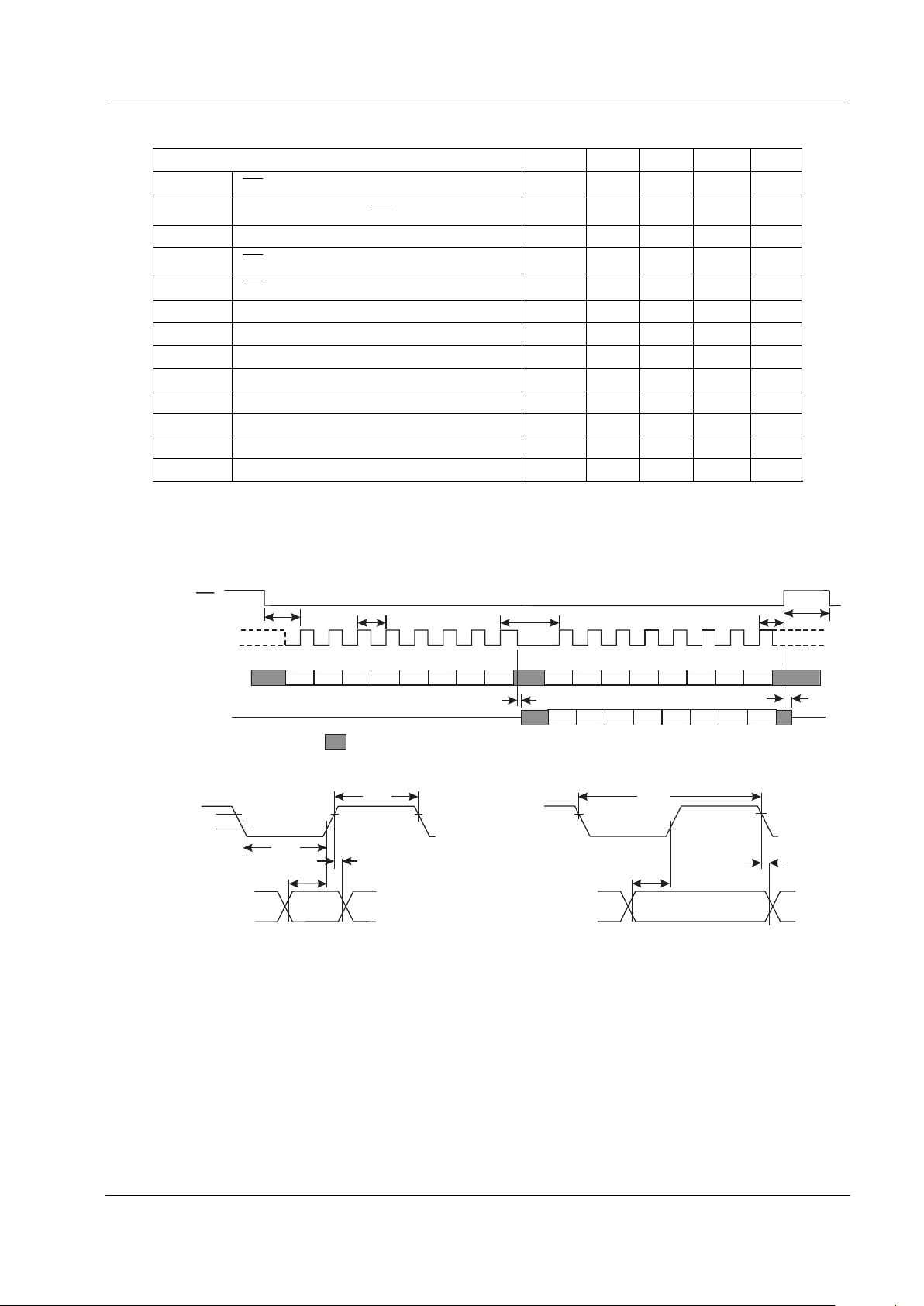

6.1.4 Timing
‘C-BUS’ Timings (See Figure 9) Notes Min. Typ. Max. Unit

t

CSE

CS-Enable to Clock-High time

100 - - ns

t

CSH

Last Clock-High to CS-High time

100 - - ns

t

LOZ

Clock-Low to Reply Output enable time 0.0 - - ns

t

HIZ

CS-High to Reply Output 3-state time

--1.0µs

t

CSOFF

CS-High Time between transactions

1.0 - - µs

t

NXT

Inter-Byte Time 500 - - ns

t

CK

Clock-Cycle time 500 - - ns

t

CH

Serial Clock-High time 200 - - ns

t

CL

Serial Clock-Low time 200 - - ns

t

CDS

Command Data Set-Up time 75 - - ns

t

CDH

Command Data Hold time 25 - - ns

t

RDS

Reply Data Set-Up time 75 - - ns

t

RDH

Reply Data Hold time 0 - - ns

Table 21: C-BUS Timing

Note: These timings are for the latest version of the ‘C-BUS’ as embodied in the CMX605, and allow faster
transfers than the original ‘C-BUS’ timings provided in MX-COM’s Publication Doc. # 20480060.001.

CS

HI-Z

= Level not important or undefined

SERIAL CLOCK

t

CSE

t

NXT

t

CK

t

CL

t

CDS

t

RDS

t

CDH

t

RDH

70%V

DD

30%V

DD

t

CH

t

CK

t

CSOFF

t

CSH

t

HIZ

t

LOZ

COMMAND DATA

COMMAND
DATA

SERIAL
CLOCK

REPLY
DATA

REPLY DATA

76543

21

0 76543

21

0

76543

21

0

Figure 9: ‘C-BUS’ Timing

Digital Line to POTS Interface 22 CMX605 Preliminary Information

1999 MX-COM, Inc. www.mxcom.com tel: [phone] 744 5050 fax: [phone] Doc. # 20480195.003

4800 Bethania Station Road, Winston-Salem, NC 27105-1201 USA All trademarks and service marks are held by their respective companies.

6.2 Packaging

PIN 1

A

B

ALTERNATIVE

PIN
LOCATION
MARKING

X

P

J

Y

C

K

H

E

L

T

W

Z

NOTE: All dimensions in inches(mm.)

Angles are in degrees

PackageTolerances

A
B
C
E
H

TYP.

MAX.MIN.

DIM.

J

P

X

W

T

Y

K
L

0.105 (2.67)0.093 (2.36)

0.419 (10.64)

45°

7°

0° 10°

0.050 (1.27)

0.041 (1.04)

0.413 (10.49)

0.299 (7.59)

0.050 (1.27)

0.016 (0.41)

0.390 (9.90)

0.020 (0.51)0.003 (0.08)

0.009 (0.23) 0.0125 (0.32)

0.013 (0.33) 0.020 (0.51)

0.395 (10.03)

0.286 (7.26)

Z

5°

5°

Figure 10: 16-pin SOIC (D4) Mechanical Outline:

Order as part no. CMX605D4

PackageTolerances

NOTE: All dimensions in inches(mm.)

Angles are in degrees

TYP. MAX.MIN.
A
B
C
E

E1

H

DIM.

J

J1

P
Y

T

K

L

0.200 (5.06)

0.262 (6.63)

0.390 (9.91).

7°

0.150 (3.81)

0.810 (20.57)

0.135 (3.43)

0.100 (2.54)

0.121 (3.07)

0.300 (7.62)

0.290 (7.37) 0.325 (8.26)

0.015 (0.38) 0.070 (1.77)

0.008 (0.20) 0.015 (0.38)

0.014 (0.35) 0.023 (0.58)

0.040 (1.02) 0.065 (1.65)

0.056 (1.42) 0.064 (1.63)

0.740 (18.80)

0.240 (6.10)

B

A

PIN 1

E

Y

E1

T

K

H

J1

J

C

P

L

Figure 11: 16-pin PDIP (P3) Mechanical Outline:

Order as part no. CMX605P3
