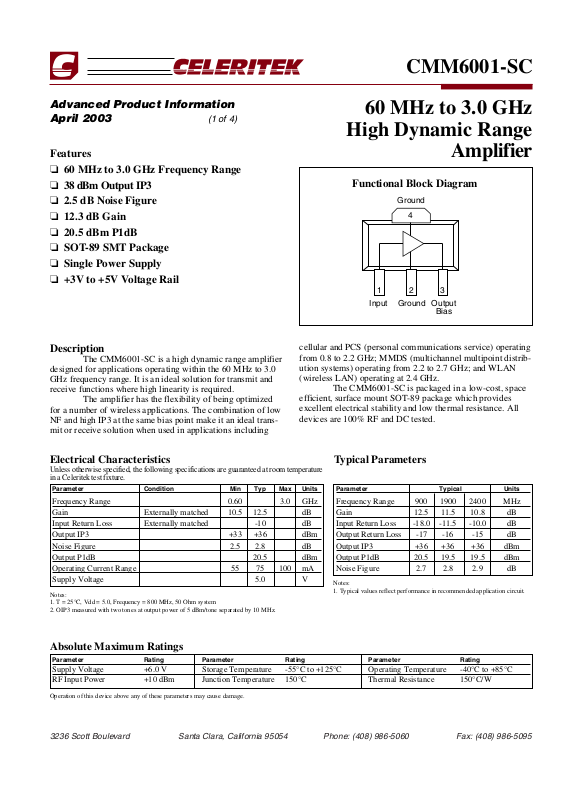

Page 1

3236 Scott Boulevard Santa Clara, California 95054 Phone: (408) 986-5060 Fax: (408) 986-5095

CMM6001-SC

Features

❏ 60 MHz to 3.0 GHz Frequency Range

❏ 38 dBm Output IP3

❏ 2.5 dB Noise Figure

❏ 12.3 dB Gain

❏ 20.5 dBm P1dB

❏ SOT-89 SMT Package

❏ Single Power Supply

❏ +3V to +5V Voltage Rail

Description

The CMM6001-SC is a high dynamic range amplifier designed for applications operating within the 60 MHz to 3.0 GHz frequency range. It is an ideal solution for transmit and receive functions where high linearity is required.

The amplifier has the flexibility of being optimized for a number of wireless applications. The combination of low NF and high IP3 at the same bias point make it an ideal transmit or receive solution when used in applications including

cellular and PCS (personal communications service) operating from 0.8 to 2.2 GHz; MMDS (multichannel multipoint distribution systems) operating from 2.2 to 2.7 GHz; and WLAN (wireless LAN) operating at 2.4 GHz.

The CMM6001-SC is packaged in a low-cost, space efficient, surface mount SOT-89 package which provides excellent electrical stability and low thermal resistance. All devices are 100% RF and DC tested.

60 MHz to 3.0 GHz

High Dynamic Range

Amplifier

Advanced Product Information April 2003

(1 of 4)

Functional Block Diagram

Absolute Maximum Ratings

Parameter Rating Parameter Rating Parameter Rating

Supply Voltage +6.0 V Storage Temperature -55°C to +125°C Operating Temperature -40°C to +85°C RF Input Power +10 dBm Junction Temperature 150°C Thermal Resistance 150°C/W

Parameter Condition Min Typ Max Units

Frequency Range 0.60 3.0 GHz Gain Externally matched 10.5 12.5 dB Input Return Loss Externally matched -10 dB Output IP3 +33 +36 dBm Noise Figure 2.5 2.8 dB Output P1dB 20.5 dBm Operating Current Range 55 75 100 mA Supply Voltage 5.0 V

Electrical Characteristics

Unless otherwise specified, the following specifications are guaranteed at room temperature in a Celeritek test fixture.

Notes:

1. T = 25°C, Vdd = 5.0, Frequency = 800 MHz, 50 Ohm system

2. OIP3 measured with two tones at output power of 5 dBm/tone separated by 10 MHz.

Operation of this device above any of these parameters may cause damage.

Parameter Typical Units

Frequency Range 900 1900 2400 MHz Gain 12.5 11.5 10.8 dB Input Return Loss -18.0 -11.5 -10.0 dB Output Return Loss -17 -16 -15 dB Output IP3 +36 +36 +36 dBm Output P1dB 20.5 19.5 19.5 dBm Noise Figure 2.7 2.8 2.9 dB

Typical Parameters

Notes:

1. Typical values reflect performance in recommended application circuit.

Input

Ground Output

Bias

Ground

Page 2

3236 Scott Boulevard, Santa Clara, California 95054 Phone: (408) 986-5060 Fax: (408) 986-5095

CMM6001-SC

Advanced Product Information - April 2003

(2 of 4)

Application Circuit

OUT

uuuu

56 pF

L2 12 nH

Vcc 5V

56 pF

10 nH

RF IN

CMM6001-SC

SOT-89

T = 100 mil

INPUT MATCHING NETWORK

56 pF

T = 70 mil

-10

-20

-30

-40

0.5 1.0 1.5 2.0 2.5 3.0 Frequency, GHz

Magnitude, dB

S21

S11

S22

S-Parameters vs Frequency

Ref Designator Value Description Size

C1, C4 56 pF MCH185A560JK 0603 C2 0.1 µF VITR 0.1µF 25V CER 0603

CAP 0603 X7R 10% L1 10 nH TOKO LL1608-F10NJ 0603 L2 12 nH TOKO LL1608-F12NK 0603

T = 375 mil T = 485 mil

Parameter Typical Units

Notes:

1. Typical values reflect performance in recommended application circuit.

Page 3

3236 Scott Boulevard Santa Clara, California 95054 Phone: (408) 986-5060 Fax: (408) 986-5095

CMM6001-SC

Advanced Product Information - April 2003 (3 of 4)

Typical Scattering Parameters (Vds = +5V, Ids = 75 mA, T = 22°C, unmatched device in a 50 ohm system)

Frequency S

(MHz) (Mag) (Ang) (Mag) (Ang) (Mag) (Ang) (Mag) (Ang)

300 0.313 -38.56 4.435 159.70 0.118 -2.96 0.090 -50.49 400 0.307 -43.12 4.382 155.90 0.118 -7.56 0.078 -44.05 500 0.305 -48.70 4.344 151.60 0.118 -11.62 0.072 -38.92 600 0.304 -54.84 4.309 147.20 0.117 -15.23 0.070 -35.16 700 0.305 -61.22 4.270 142.70 0.117 -18.70 0.070 -32.63 800 0.307 -67.68 4.234 138.20 0.117 -22.02 0.071 -31.18 900 0.310 -74.20 4.197 133.60 0.116 -25.29 0.073 -30.88 1000 0.313 -80.57 4.158 129.00 0.116 -28.50 0.076 -31.21 1100 0.316 -86.85 4.122 124.40 0.115 -31.71 0.078 -31.76 1200 0.318 -93.11 4.085 119.90 0.115 -34.88 0.082 -32.50 1300 0.322 -99.29 4.043 115.30 0.114 -37.94 0.086 -33.84 1400 0.324 -105.40 4.004 110.70 0.114 -40.98 0.090 -35.26 1500 0.327 -111.40 3.960 106.20 0.113 -44.08 0.094 -36.85 1600 0.329 -117.40 3.919 101.70 0.112 -47.07 0.097 -38.64 1700 0.332 -123.40 3.879 97.22 0.112 -50.08 0.101 -40.76 1800 0.335 -129.20 3.838 92.77 0.111 -53.15 0.104 -42.85 1900 0.337 -135.00 3.799 88.32 0.110 -56.07 0.108 -45.06 2000 0.339 -140.80 3.760 83.87 0.109 -59.11 0.111 -47.37 2100 0.340 -146.50 3.720 79.47 0.109 -62.08 0.114 -49.53 2200 0.341 -152.30 3.679 75.03 0.108 -65.06 0.118 -51.72 2300 0.342 -158.20 3.639 70.64 0.107 -67.98 0.121 -53.76 2400 0.343 -164.10 3.600 66.25 0.106 -71.02 0.124 -55.82 2500 0.343 -169.80 3.561 61.89 0.105 -73.95 0.127 -57.84 2600 0.344 -175.80 3.524 57.51 0.105 -76.90 0.130 -59.75 2700 0.344 178.20 3.486 53.16 0.104 -79.96 0.133 -61.67 2800 0.344 172.20 3.448 48.81 0.103 -82.91 0.135 -63.35 2900 0.344 166.10 3.410 44.46 0.102 -85.93 0.137 -65.11 3000 0.344 160.00 3.373 40.13 0.101 -88.99 0.139 -66.85

Notes

Page 4

3236 Scott Boulevard, Santa Clara, California 95054 Phone: (408) 986-5060 Fax: (408) 986-5095

CMM6001-SC

Advanced Product Information - April 2003

(4 of 4)

Celeritek reserves the right to make changes without further notice to any products herein. Celeritek makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does Celeritek assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation consequential or incidental damages. “Typical” parameters can and do vary in different applications. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. Celeritek does not convey any license under its patent rights nor the rights of others. Celeritek products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the Celeritek product could create a situation where personal injury or death may occur. Should Buyer purchase or use Celeritek products for any such unintended or unauthorized application, Buyer shall indemnify and hold Celeritek and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that Celeritek was negligent regarding the design or manufacture of the part. Celeritek is a registered trademark of Celeritek, Inc. Celeritek, Inc. is an Equal Opportunity/Affirmative Action Employer.

123

6XXX XXXXXX ZYYWW

DIMENSIONS IN INCHES

[MILLIMETERS]

4.50

[0.177]

1.73

[0.068]

0.46

[0.18]

1.50

[0.059]

3.00

[0.118]

0.76

[0.030]

0.38

[0.015]

0.38

[0.015]

4.41

[0.163]

1.55

[0.061]

2.50

[0.096]

0.71

[0.028]

MARKINGS: 6XXX = CELERITEK MODEL NO. XXXXXX = WAFER LOT NO. ZYYWW = DATE CODE (YR/WEEK) FIRST LETTER COUNTRY OF ORIGIN IF OTHER THAT USA

0.99

[0.039]

0.58

[0.023]

0.64

[0.025]

0.86

[0.034]

1.27

[0.050]

3.48

[0.137]

5.33

[0.210]

3.86

[0.152]

1.70

[0.067]

2.06

[0.081]

0.41

[0.016]

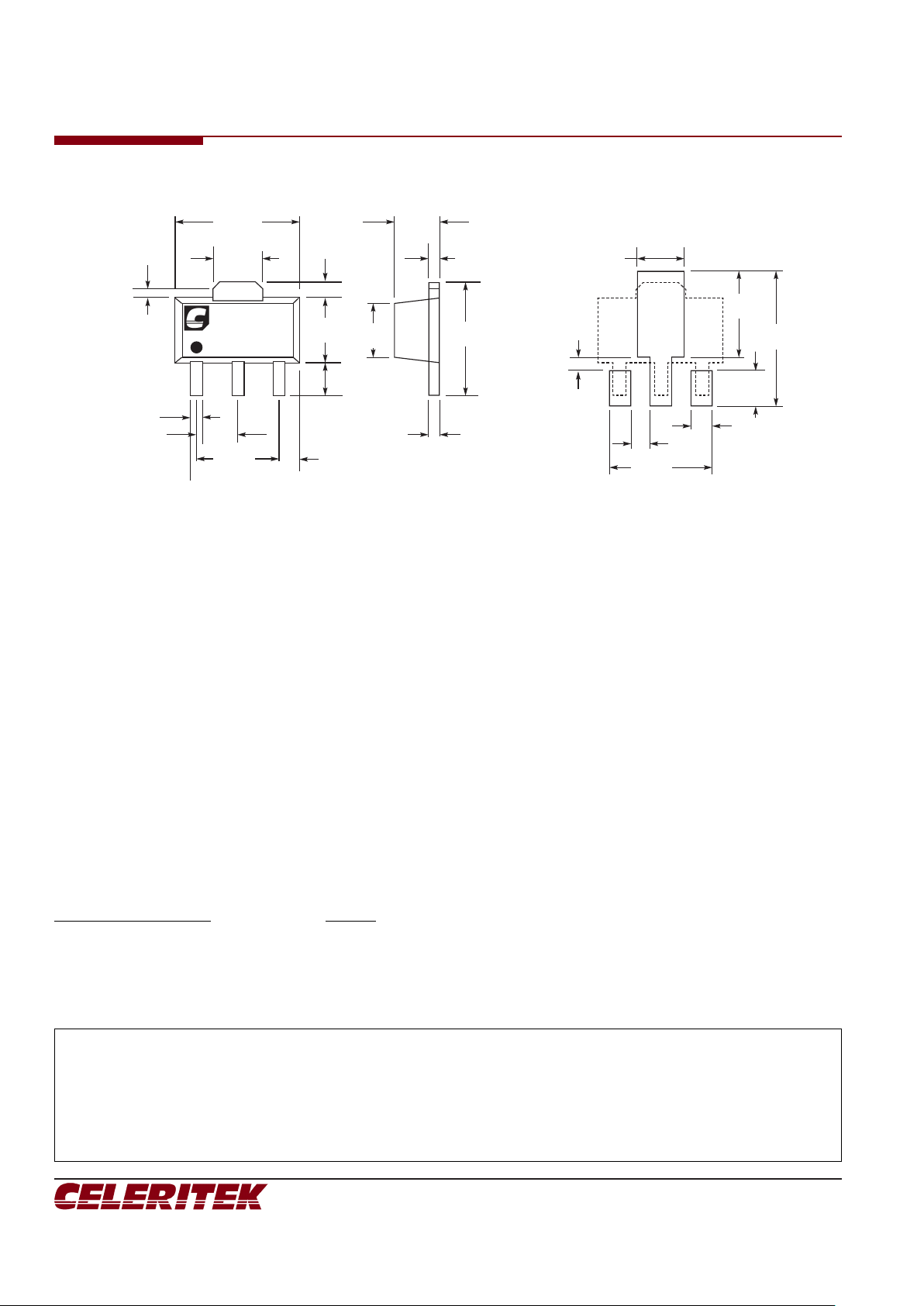

Physical Dimensions

Ordering Information

The CMM6001-SC is available in a surface-mount SOT-89 package and devices are available in tape and reel.

Part Number for Ordering

Package

CMM6001-SC SOT-89 surface-mount power package in tape and reel PB-CMM6001-SC Evaluation Board with SMA connectors for CMM6001-SC
