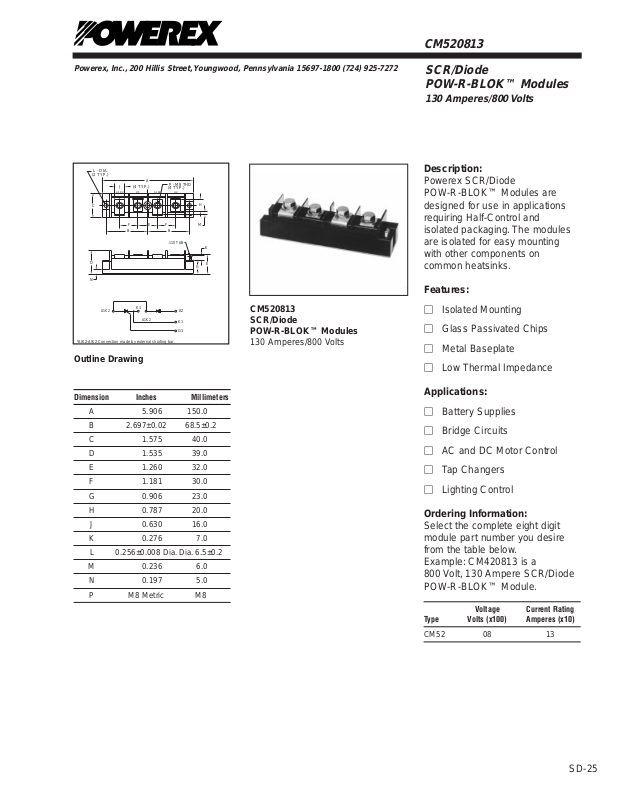

Page 1
D
N
E
K
G
C
H
M
BB
E FF
A
J
G1
K1
.110 TAB
A1K2
K1
A1K2
A2
G1
K1
K1
A2
A1K2 A1K2
(4 TYP.)
P - M8 THD
(2 TYP.)
L - DIA.
(4 TYP.)
Dimension Inches Millimeters
A 5.906 150.0
B 2.697±0.02 68.5±0.2
C 1.575 40.0
D 1.535 39.0
E 1.260 32.0
F 1.181 30.0
G 0.906 23.0
H 0.787 20.0
J 0.630 16.0
K 0.276 7.0
L 0.256±0.008 Dia. Dia. 6.5±0.2
M 0.236 6.0
N 0.197 5.0
P M8 Metric M8
*AIK2-AIK2 Connection made by external shorting bar.
Description:
Powerex SCR/Diode
POW-R-BLOK™ Modules are
designed for use in applications
requiring Half-Control and
isolated packaging.The modules
are isolated for easy mounting
with other components on
common heatsinks.
Features:
M Isolated Mounting
M Glass Passivated Chips
M Metal Baseplate
M Low Thermal Impedance
Applications:
M Battery Supplies
M Bridge Circuits
M AC and DC Motor Control
M Tap Changers
M Lighting Control
Ordering Information:
Select the complete eight digit
module part number you desire
from the table below.
Example: CM420813 is a
800 Volt, 130 Ampere SCR/Diode
POW-R-BLOK™ Module.
Voltage Current Rating
Type Volts (x100) Amperes (x10)
CM52 08 13
SD-25
Powerex,Inc., 200 Hillis Street,Youngwood,Pennsylvania 15697-1800 (724) 925-7272
SCR/Diode
POW-R-BLOK™ Modules
130 Amperes/800 Volts
CM520813
Outline Drawing
CM520813
SCR/Diode
POW-R-BLOK™ Modules
130 Amperes/800 Volts
Page 2
SD-26
Powerex,Inc., 200 Hillis Street,Youngwood,Pennsylvania 15697-1800 (724) 925-7272
CM520813
SCR/Diode POW-R-BLOK™ Modules
130 Amperes/800 Volts
Absolute Maximum Ratings
Characteristics Symbol CM520813 Units
Peak Forward Blocking Voltage V
DRM
800 Volts
Transient Peak Forward Blocking Voltage (Non-Repetitive), t < 5ms V
DSM
960 Volts
DC Forward Blocking Voltage V
D(DC)
640 Volts
Peak Reverse Blocking Voltage V
RRM
800 Volts
Transient Peak Reverse Blocking Voltage (Non-Repetitive), t < 5ms V
RSM
960 Volts
DC Reverse Blocking Voltage V
R(DC)
640 Volts
RMS On-State Current I
T(RMS), IF(RMS)
205 Amperes
Average On-State Current, TC= 85°C I
T(AV), IF(AV)
130 Amperes
Peak One-Cycle Surge (Non-Repetitive) On-State Current (60Hz) I
TSM, IFSM
2600 Amperes
Peak One-Cycle Surge (Non-Repetitive) On-State Current (50Hz) I
TSM, IFSM
2365 Amperes
I2t (for Fusing), 8.3 milliseconds I2t 28000 A2sec
Critical Rate-of-Rise of On-State Current* di/dt 100
Amperes/ms
Peak Gate Power Dissipation P
GM
10.0 Watts
Average Gate Power Dissipation P
G(AV)
3.0 Watts
Peak Forward Gate Voltage V
GFM
10 Volts
Peak Reverse Gate Voltage V
GRM
5.0 Volts
Peak Forward Gate Current I
GFM
4.0 Amperes
Storage Temperature T
STG
-40 to 125 °C
Operating Temperature T
j
-40 to 125 °C
Maximum Mounting Torque M6 Mounting Screw — 26 in.-lb.
Maximum Mounting Torque M5 Terminal Screw — 72 in.-lb.
Module Weight (Typical) — 300 Grams
V Isolation V
RMS
2000 Volts
*Tj= 125°C, IG= 0.5A, VD= 1/2 V
DRM
Electrical and Thermal Characteristics, Tj= 25°C unless otherwise specified
Characteristics Symbol Test Conditions CM520813 Units
Blocking State Maximums
Forward Leakage Current, Peak I
DRM
Tj= 125°C, V
DRM
= Rated 30 mA
Reverse Leakage Current, Peak I
RRM
Tj= 125°C, V
RRM
= Rated 30 mA
Conducting State Maximums
Peak On-State Voltage V
FM, VTMIFM
= 390A, ITM= 390A 1.3 Volts
Switching Minimums
Critical Rate-of-Rise of Off-State Voltage dv/dt Tj= 125°C, VD= 2/3 V
DRM
500 Volts/ms
Thermal Maximums
Thermal Resistance, Junction-to-Case R
u(J-C)
Per Module 0.22 °C/Watt
Thermal Resistance, Case-to-Sink (Lubricated) R
u(C-S)
Per Module 0.05 °C/Watt
Gate Parameters Maximums
Gate Current-to-Trigger I
GT
VD= 6V, RL= 2Ω 100 mA
Gate Voltage-to-Trigger V
GT
VD= 6V, RL= 2Ω 3.0 Volts
Page 3
SD-27
Powerex,Inc., 200 Hillis Street,Youngwood, Pennsylvania 15697-1800 (724) 925-7272
CM520813
SCR/Diode POW-R-BLOK™ Modules
130 Amperes/800 Volts
INSTANTANEOUS ON-STATE CURRENT, ITM,
(AMPERES)
MAXIMUM
ON-STATE CHARACTERISTICS
10
1
10
2
10
3
10
4
Tj = 125oC
INSTANTANEOUS ON-STATE VOLTAGE, V
TM
, (VOLTS)
0.4
0.8
1.2
1.6
2.0
2.4
CYCLES AT 60 HZ
MAXIMUM PEAK SURGE (NON-REPETITIVE)
CURRENT, I
TSM
, (AMPERES)
MAXIMUM ALLOWABLE PEAK SURGE
(NON-REPETITIVE) CURRENT
0
400
800
1200
1600
2000
2400
2800
3200
10
0
10
1
10
2
MAXIMUM ALLOWABLE CASE TEMPERATURE
(SINUSOIDAL WAVEFORM)
AVERAGE ON-STATE CURRENT, I
T(AV)
,
(AMPERES)
MAXIMUM ALLOWABLE CASE TEMPERATURE, T
C
, (
o
C)
0 20 160100 120 14040 60 80
50
80
70
60
90
100
110
120
130
u = 30
o
120
o
60o90
o
360
o
u
RESISTIVE, INDUCTIVE
LOAD PER SINGLE
ELEMENT
180
o
MAXIMUM ON-STATE POWER DISSIPATION
(SINUSOIDAL WAVEFORM)
AVERAGE ON-STATE CURRENT, I
T(AV)
,
(AMPERES)
MAXIMUM POWER DISSIPATION, P
AV(MAX)
, (WATTS)
0 20 100 120 140 16040 60 80
0
160
360
o
u
RESISTIVE,
INDUCTIVE
LOAD PER
SINGLE
ELEMENT
20
40
60
80
100
120
140
u = 30
o
120
o
180
o
90
o
60
o
50
MAXIMUM ALLOWABLE CASE TEMPERATURE
(RECTANGULAR WAVEFORM)
AVERAGE ON-STATE CURRENT, I
T(AV)
,
(AMPERES)
MAXIMUM ALLOWABLE CASE TEMPERATURE, T
C
, (
o
C)
0 40 80 120 160 200
60
70
80
90
100
110
120
130
360
o
u
RESISTIVE, INDUCTIVE
LOAD PER SINGLE
ELEMENT
u = 30
o
60
o
90
o
120
o
180
o
270oDC
0
MAXIMUM AVERAGE ON-STATE POWER
DISSIPATION (RECTANGULAR WAVEFORM)
AVERAGE ON-STATE CURRENT, I
T(AV)
,
(AMPERES)
MAXIMUM POWER DISSIPATION, P
AV(MAX)
, (WATTS)
04080120 160 200
360
o
u
RESISTIVE, INDUCTIVE LOAD
PER SINGLE ELEMENT
20
40
60
120
140
80
100
160
180
200
120
o
180
o
270
o
u = 30
o
60
o
90
o
DC
TIME, t, (SECONDS)
TRANSIENT THERMAL IMPEDANCE
CHARACTERISTICS (JUNCTION-TO-CASE)
0
0.050
0.100
0.175
0.250
TRANSIENT THERMAL IMPEDANCE, Z
u(J-C)
(t), (
o
C/WATT)
10
0
10
1
0.200
0.225
0.150
0.125
0.075
0.025
10
-3
10
-2
10
-1
10
0
INSTANTANEOUS GATE CURRENT, IG, (mA)
TRIGGERING
CHARACTERISTICS
INSTANTANEOUS GATE VOLTAGE, V
G
, (VOLTS)
10
-1
10
0
10
1
10
2
V
GFM
= 10V
VGT = 3.0V
PGM =
10W
P
G(AV)
=
3.0W
I
GFM
=
4.0A
IGT = 100mA
Tj = 25oC
V
GDM
= 0.25V
10
1
10
2
10
3
10
4
MAXIMUM ALLOWABLE CASE TEMPERATURE
(REVERSE PARALLEL CONNECTION)
MAXIMUM ALLOWABLE CASE TEMPERATURE, T
C
, (
o
C)
04080120 160 200 240 280 320
360
o
u
u
RESISTIVE,
INDUCTIVE LOAD
RMS ON-STATE CURRENT, I
(RMS)
, (AMPERES)
60
70
80
90
130
100
110
120
50
NOTE: THE CURVES INDICATE THE
RELATIONSHIP BETWEEN THE CASE
TEMPERATURE AND THE RMS
ON-STATE CURRENT FOR
EACH MODULE.
60
o
90
o
120
o
u = 30
o
180
o
Page 4
SD-28
Powerex,Inc., 200 Hillis Street,Youngwood, Pennsylvania 15697-1800 (724) 925-7272
CM520813
SCR/Diode POW-R-BLOK™ Modules
130 Amperes/800 Volts
MAXIMUM ON-STATE POWER DISSIPATION
(REVERSE PARALLEL CONNECTION)
RMS ON-STATE CURRENT, I
(RMS)
, (AMPERES)
MAXIMUM POWER DISSIPATION, P
AV(MAX)
, (WATTS)
04080120 200 240 280 320160
360
o
u
u
RESISTIVE,
INDUCTIVE LOAD
NOTE: THE CURVES INDICATE THE RELATIONSHIP BETWEEN
THE AVERAGE ON-STATE POWER DISSIPATION PER MODULE
AND THE RMS ON-STATE CURRENT.
0
50
100
150
400
200
250
300
350
90
o
60
o
u = 30
o
180
o
120
o
MAXIMUM ALLOWABLE CASE TEMPERATURE
(SINGLE PHASE BRIDGE CONNECTION)
DC OUTPUT CURRENT, IC, (AMPERES)
MAXIMUM ALLOWABLE CASE TEMPERATURE, T
C
, (
o
C)
0 40 320200 240 28080 120 160
50
80
70
60
90
100
110
120
130
u = 30o60o90
o
360
o
u
RESISTIVE,
INDUCTIVE
LOAD
u
180
o
NOTE: THE CURVES INDICATE THE RELATIONSHIP BETWEEN
THE CASE TEMPERATURE AND THE DC OUTPUT CURRENT
(FOR TWO ELEMENTS) WHEN USED IN THE SINGLE PHASE
BRIDGE CONFIGURATION.
120
o
MAXIMUM ON-STATE POWER DISSIPATION
(SINGLE PHASE BRIDGE CONNECTION)
DC OUTPUT CURRENT, IO, (AMPERES)
MAXIMUM POWER DISSIPATION, P
AV(MAX)
, (WATTS)
0
360
o
u u
RESISTIVE,
INDUCTIVE LOAD
NOTE: THE CURVES INDICATE THE RELATIONSHIP BETWEEN
THE AVERAGE ON-STATE POWER DISSIPATION AND THE DC
OUTPUT CURRENT FOR THE SINGLE PHASE BRIDGE
CONFIGURATION (POWER DISSIPATION EXPRESSED FOR EACH
MODULE AND DC OUTPUT CURRENT EXPRESSED FOR THE PAIR)
40 80 120 160 320200 240 280
u = 30
o
120
o
90
o
60
o
180
o
0
40
80
120
160
200
240
280
400
320
360
80
70
60
50
MAXIMUM ALLOWABLE CASE TEMPERATURE
(THREE PHASE BRIDGE CONNECTION)
DC OUTPUT CURRENT, IO, (AMPERES)
MAXIMUM ALLOWABLE CASE TEMPERATURE, T
C
, (
o
C)
0 80 160 240 400320
110
120
130
360
o
u
NOTE: THE CURVES INDICATE THE RELATIONSHIP BETWEEN
THE CASE TEMPERATURE AND THE DC OUTPUT CURRENT
(FOR THREE MODULES) IN THE THREE PHASE CONFIGURATION.
RESISTIVE,
INDUCTIVE LOAD
u = 30o60o90o120
o
100
90
MAXIMUM ON-STATE POWER DISSIPATION
(THREE PHASE BRIDGE CONNECTION)
DC OUTPUT CURRENT, IO, (AMPERES)
MAXIMUM POWER DISSIPATION, P
AV(MAX)
, (WATTS)
0 80 160 240 400320
NOTE: THE CURVES INDICATE THE RELATIONSHIP BETWEEN
THE ON-STATE POWER DISSIPATION (PER MODULE) AND THE
DC OUTPUT CURRENT (FOR THREE MODULES) IN THE THREE
PHASE BRIDGE CONFIGURATION.
360
o
u
RESISTIVE, INDUCTIVE LOAD
PER SINGLE ELEMENT
u = 30
o
120
o
90
o
60
o
0
40
80
120
320
200
240
280
160
360
400
Loading...
