CLC012
Adaptive Cable Equalizer for ITU-T G.703 Data Recovery

General Description

National’s CLC012 adaptive cable equalizer is a low-cost
monolithic solution for equalizing data transmitted over cable
(or any media with similar dispersive loss characteristics).
The CLC012 simplifies the task of high-speed data recovery
with a one-chip solution and a minimal number of external
components. The equalizer automatically adapts to equalize
any cable length from zero meters to lengths that attenuate
the signal by 40 dB at 200 MHz. This corresponds to 300
meters of Belden 8281 or 120 meters of Category 5 UTP
(unshielded twisted pair).

The CLC012 provides superior jitter performance: 180ps

pp

for 270 Mbps data that has passed through 200 meters of
Belden 8281 cable. This exceptional performance provides
wide error marginindigitaldatalinks.The equalizer operates
on a single supply with a power consumption of only 290
mW.The small 14-pin SOIC package allows for high-density
placement of components for multi-channel applications
such as routers.The equalizer operates over a wide range of
data rates from less than 50 Mbps to rates in excess of 650
Mbps.

The equalizer is flexible in allowing either single-ended or
differential input drive. Its high common mode rejection pro­vides excellent immunity to interference from noise sources.
On-chip quantized feedback eliminates baseline wander.

Additional features include a Loss of Signal output and an
output mute pin which, when tied together, mute the output
when no signal is present. A buffered eye monitor output is
provided, for viewing the equalized signal prior to the com-

parator. Differential AEC pins allow the user to set the inter­nal adaptive loop time constant with one external capacitor.

Features

n Automatic equalization of coaxial and twisted pair cables
n Loss of Signal detect and output mute
n Output eye monitor
n Single supply operation: +5V or −5.2V
n Single-ended or differential input
n Low cost

Applications

n ITU-T G.703 serial data recovery
n Serial digital data routing and distribution
n Serial digital data equalization and reception
n Data recovery equalization: ATM, CAD networks,

medical, set top terminals, industrial video networks

Key Specifications

n Low jitter: 180ps

pp

@

270 Mbps through 200 meters of

Belden 8281 coaxial cable

n High data rates:

<

50 Mbps to>650 Mbps

n Excellent input return loss: 19 dB

@

270 MHz

n Low supply current: 68 mA
n Equalizes up to 300+ meters of Belden 8281 or 120

meters of Cat 5 UTP cable

Typical Application

DS100145-4

August 1998

CLC012 Adaptive Cable Equalizer for ITU-T G.703 Data Recovery

© 1998 National Semiconductor Corporation DS100145 www.national.com

Typical Application (Continued)

Connection Diagram

DS100145-2

DS100145-3

Pinout SOIC

DS100145-1

14-Pin SOIC

Order Number CLC012AJE

See NS Package Number M14A

www.national.com 2

Absolute Maximum Ratings (Note 1)

If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.

Supply Voltage (V

CC–VEE

) −0.3V, +6.5V
Maximum Junction Temperature +150˚C
Storage Temperature Range −65˚C to +150˚C
Lead Temperature

(Soldering 4 sec.) +260˚C

ESD Rating (Note 14) ≥500V

θ

JA

14-Pin SOIC (AJE) 95˚C/W

MTTF (based on limited life test
data)

4.8x10

7

hours

Recommended Operating
Conditions

Supply Voltage (VCC–VEE) 4.5V to 5.5V
Operating Temperature Range −40˚C to +85˚C
Series Input Resistance

(In Series w/DI & DI)

100Ω
Input Coupling Capacitance 0.1 µF
AEC Capacitor (Connected

between AEC+ & AEC−) 50 pF to 1 µF

Cable Input Voltage Swing

(Note 4) 720 to 880 mV

pp

DO/DO Minimum Voltage

(Note 15) VCC–1.6V

Electrical Characteristics

(VCC= +5V, VEE= 0V, signal source swing = 0.8 Vpp(Note 4), C

AEC

= 100 pF)

Parameter Conditions

Typ

+25˚C

Min/Max

+25˚C

Min/Max

−40˚C to
+85˚C

Units

DYNAMIC PERFORMANCE
Residual Jitter

10 meters Belden 8281 311 Mbps PRN (Note 5) 150 250 400 ps

pp

300 meters Belden 8281 311 Mbps PRN (Notes 3, 5) 350 500 750 ps

pp

Equalization Time Constant

100 meters Belden 8281 C

AEC

= 100 pF (Note 6) 1.5 _ _ µs

200 meters Belden 8281 C

AEC

= 100 pF (Note 6) 2.0 _ _ µs

300 meters Belden 8281 C

AEC

= 100 pF (Note 6) 3.2 _ _ µs

output rise and fall time (20%–80%)R

collector

=75Ω 750 _ _ ps
output duty cycle distortion 30 _ _ ps
minimum average transition density 1/50 _ _ trans/ns
maximum average data rate 150m Belden 8281 (Note 7) 650 _ _ Mbps

V

CC

Jitter Sensitivity

27 MHz 0.85 _ _ ns/V
270 MHz 1.90 _ _ ns/V

V

EE

Jitter Sensitivity

27 MHz 0.55 _ _ ns/V
270 MHz 1.45 _ _ ns/V

STATIC PERFORMANCE
Supply Current (Includes Output Current)

V

AEC

= 0V (Note 3) 68 48/75 40/80 mA

V

AEC

= 0.4V (Note 3) 53 43/64 37/70 mA

Input and Output Parameters

DO/DO output current

10 8.7/11.3 8.0/12 mA

DO/DO output voltage swing

R

collector

=75Ω(Note 3) 750 650/850 600/900 mV
DI/DI common mode voltage

3.4 _ _ V
AEC differential voltage Belden 8281 1.5 _ _ mV/meter
AEC+/AEC− common mode 3.6 _ _ V
output eye monitor (OEM) bias potential 3.2 _ _ V
Loss of Signal (LOS) current output-HIGH LOS V

OH

= 4.5V −400 _ _ µA

Loss of Signal (LOS) current output-LOW LOS V

OL

= 0.5V 600 _ _ µA

MUTE voltage input-HIGH

(Note 3) 1.8 2.0 2.0 V

MUTE voltage input-LOW

(Note 3) 1.2 0.8 0.8 V

3 www.national.com

Electrical Characteristics (Continued)

(VCC= +5V, VEE= 0V, signal source swing = 0.8 Vpp(Note 4), C

AEC

= 100 pF)

Parameter Conditions

Typ

+25˚C

Min/Max

+25˚C

Min/Max

−40˚C to
+85˚C

Units

Input and Output Parameters

MUTE current input-HIGH

VIH= 5V (Note 3) 5.0

±

100

±

500 nA

MUTE current input-LOW

VIL= 0V (Note 3) 0.2

±

100

±

500 nA

TIMING PERFORMANCE
LOS Response Time

carrier applied (Note 8) 150 1000 1000 ns
carrier removed (Note 9) 150 1000 1000 ns

MUTE response time

(Note 10) 2.0 _ _ ns

MISCELLANEOUS PERFORMANCE

input resistance single-ended 7.3 _ _ kΩ
input capacitance single-ended (Note 11) 1.0 _ _ pF
input return loss

@

270 MHz Zo=75Ω(Note 12) 19 _ _ dB

maximum cable attenuation 200 MHz (Note 13) 40 _ _ dB

Note 1: “Absolute Maximum Ratings” are those values beyond which the safety of the device cannot be guaranteed. They are not meant to imply that the devices
should be operated at these limits. The table of “Electrical Characteristics” specifies conditions of device operation.

Note 2: Min/max ratings are based on product characterization and simulation. Individual parameters are tested as noted. Outgoing quality levels are determined
from tested parameters.

Note 3: J-level: spec. is 100%tested at +25˚C.
Note 4: These specifications assume an 800 mV

pp

signal at the cable input. Levels above and below 800 mV are allowable, but performance may vary. The cable

will attenuate the signal prior to entering the equalizer.

Note 5: Peak-to-peak jitter is defined as 6 times the rms jitter.
Note 6: For more information, see “CLC012 Operation” and “Design Guidelines”.
Note 7: 50%eye opening.
Note 8: Time from application of a valid signal to when the LOS output asserts high.
Note 9: Time from the removal of a valid signal to when the LOS output asserts low.
Note 10: Time from assertion of MUTE to when the output responds.
Note 11: Device only. Does not include typical pc board parasitics.
Note 12: Includes typical pc board parasitics.
Note 13: This sets the maximum cable length for the equalizer.
Note 14: Human body model, 1.5 kΩ in series with 100 pF; based on limited test data.
Note 15: To maintain specified performance, do not reduce DO/DO below this level.

www.national.com 4

Typical Performance Characteristics

DS100145-5

DS100145-9

DS100145-6

DS100145-10

DS100145-7

DS100145-11

5 www.national.com

Typical Performance Characteristics (Continued)

DS100145-8

DS100145-12

DS100145-13

DS100145-16

DS100145-14

DS100145-39

www.national.com 6

Typical Performance Characteristics (Continued)

DS100145-15

DS100145-40

DS100145-17

DS100145-18

DS100145-19

DS100145-38

7 www.national.com

Pin Definitions

Name Pin

#

Description

DI, DI

8, 9 Differential data inputs.

DO, DO

13,14Differential collector data

outputs (ECL compatible).

AEC+,
AEC−

6, 7 AEC loop filter pins.

A capacitor connected
between these pins governs
the loop response for the
adaptive equalization loop.

OEM 3 Eye monitor output. The

output of the equalization
filter.

LOS 5 Loss of Signal. (Low when

no signal is present).

MUTE

12 Output MUTE. (Active low.)

Loss of Signal (LOS) may be
tied to this pin to inhibit the
output when no signal is
present.

V

CC

1, 2,4Positive supply pins (ground

or +5V).

V

EE

10,11Negative supply pins (−5.2V

or ground).

Operation

The CLC012 Adaptive Cable Equalizer provides a complete
solution for equalizing high-bit-rate digital data transmitted
over long transmission lines. The following sections furnish
design and application information to assist in completing a
successful design:

•

Block diagram explanation of the CLC012

•

Recommended standard input and output interface con­nections

•

Common applications for the CLC012

•

Measurement, PC layout, and cable emulation boxes

For applications assistance in the U.S., call 800-272-9959 to
contact a technical staff member.

BLOCK DESCRIPTION

The CLC012 is an adaptive equalizer that reconstructs serial
digital data received from transmission lines such as coaxial
cable or twisted pair. Its transfer function approximates the
reciprocal of the cable loss characteristic. The block diagram
in

Figure 2

depicts the main signal conditioning blocks for
equalizing digital data at the receiving end of a cable. The
CLC012 receives baseband differential or single-ended digi­tal signals at its inputs DI and DI.

The

Equalizer

block is a two-stage adaptive filter. This filter
is capable of equalizing cable lengths from zero meters to
lengths that require 40 dB of boost at 200 MHz.

The

Quantized Feedback Comparator

block receives the
differential signals from the equalizer filter block. This block
includes two comparators. The first comparator incorporates
a self-biasing DC restore circuit.This is followed by a second
high-speed comparator with output mute capability. The sec­ond comparator receives and slices the DC-restored data.
Its outputs DO and DO are taken from the collectors of the
output transistors. MUTE latches DO and DO when a TTL
logic low level is applied.

The

Adaptive Servo Control

block produces the signal for
controlling the filter block, and outputs a voltage proportional
to cable length. It receives differentialsignals from the output
of the filter block and from the quantized-feedback compara­tor (QFBC) to develop the control signal. The servo loop re­sponse is controlled by an external capacitor placed across
the AEC+ and AEC− pins. Its output voltage, as measured
differentially across AEC+ and AEC−, is roughly proportional
to the length of the transmission line. For Belden 8281 co­axial cable this differential voltage is about 1.5 mV/meter.
Once this voltage exceeds 500 mV, no additional equaliza­tion is provided.

The

Loss of Signal (LOS)

block monitors the signal power
out of the equalizing filter and compares it to an internal ref­erence to determine if a valid signal is present.A CMOS high
output indicates that data is present. The output of LOS can
be connected to the MUTE input to automatically latch the
outputs (DO and DO), preventing random transitions when
no data is present.

The

Output Eye Monitor (OEM)

provides a single-ended
buffered output for observing the equalized eye pattern. The
OEM output is a low impedance high-speed voltage driver
capable of driving an AC-coupled 100Ω load.

DS100145-20

FIGURE 1. CLC012 Equalizer Application Circuit

DS100145-21

FIGURE 2. CLC012 Block Diagram

www.national.com 8

Input Interfacing

The CLC012 accepts either differential or single-ended input
voltage specified in

Static Performance

. The following sec­tions show several suggestions for interfaces for the inputs
and outputs of the CLC012.

SINGLE-ENDED INPUT INTERFACE: 75Ω Coaxial Cable

The input is connected single-ended to either DI or DI as
shown in

Figure 3

. Balancing unused inputs helps to lessen
the effects of noise. Use the equivalent termination of 37.4Ω
to balance the input impedance seen by each pin. It also
helps to terminate grounds at a common point. Resistors R

x

and Ryare recommended for optimum performance. The
equalizer inputs are self-biasing. Signals should be AC
coupled to the inputs as shown in

Figure 3

.

DIFFERENTIAL INPUT INTERFACE: Twisted Pair

A recommended differential input interface is shown in

Fig-

ure 4

. Proper voltage levels must be furnished to the input
pins and the proper cable terminating impedance must be
provided. For Category 5 UTP this is approximately 100Ω.

Figure 4

shows a generalized network which may be used to

receive data over a twisted pair.Resistors R

1

and R2provide
the proper terminating impedance and signal level adjust­ment. The blocking capacitors provide AC coupling of the at­tenuated signal levels. The plots in the

Typical Perfor-

mance Characteristics

section demonstrate various
equalized data rates using Category 5 UTP at 100 meter
lengths. A full schematic of a recommended driver and re­ceiver circuit for 100Ω Category 5 UTP is provided in the

Typical Applications

section with further explanation.

Output Interfacing

The outputs DO and DO produce ECL logic levels when the
recommended output termination networks are used. The
DO and DO pins are

not complementary emitter coupled

logic

outputs. Instead, theoutputs are taken off of the collec-

tors of the transistors. Therefore, care must be taken to meet

the interface threshold levels required by ECL families. Rec­ommended interfaces for standard ECL families are shown
in the following circuits.

DIFFERENTIAL LOAD-TERMINATED OUTPUT
INTERFACE

Figure 5

shows a recommended circuit for implementing a
differential output that is terminated at the load. A diode or
75Ω resistor provides a voltage drop from the positive supply
(+5V for PECL or Ground for ECL operation) to establish
proper ECL levels. The resistors terminate the cable to the
characteristic impedance. The output voltage swing is deter­mined by the CLC012 output current (10 mA) times the ter­mination resistor. For the circuit in

Figure 5

, the nominal out-

put voltage swing is 750 mV.

DIFFERENTIAL SOURCE-TERMINATED OUTPUT
INTERFACE

Figure 6

is similar to

Figure 5

except that the termination is
provided at the source. This configuration may also be used
for single-ended applications. However, the unused output
must still be terminated as shown.

DS100145-22

FIGURE 3. Single-Ended 75Ω Cable Input Interface

DS100145-24

FIGURE 4. Twisted Pair Input Interface

DS100145-25

FIGURE 5. Differential Load Terminated

Output Interface

DS100145-26

FIGURE 6. Differential Source Terminated

Output Interface

9 www.national.com

Output Interfacing (Continued)

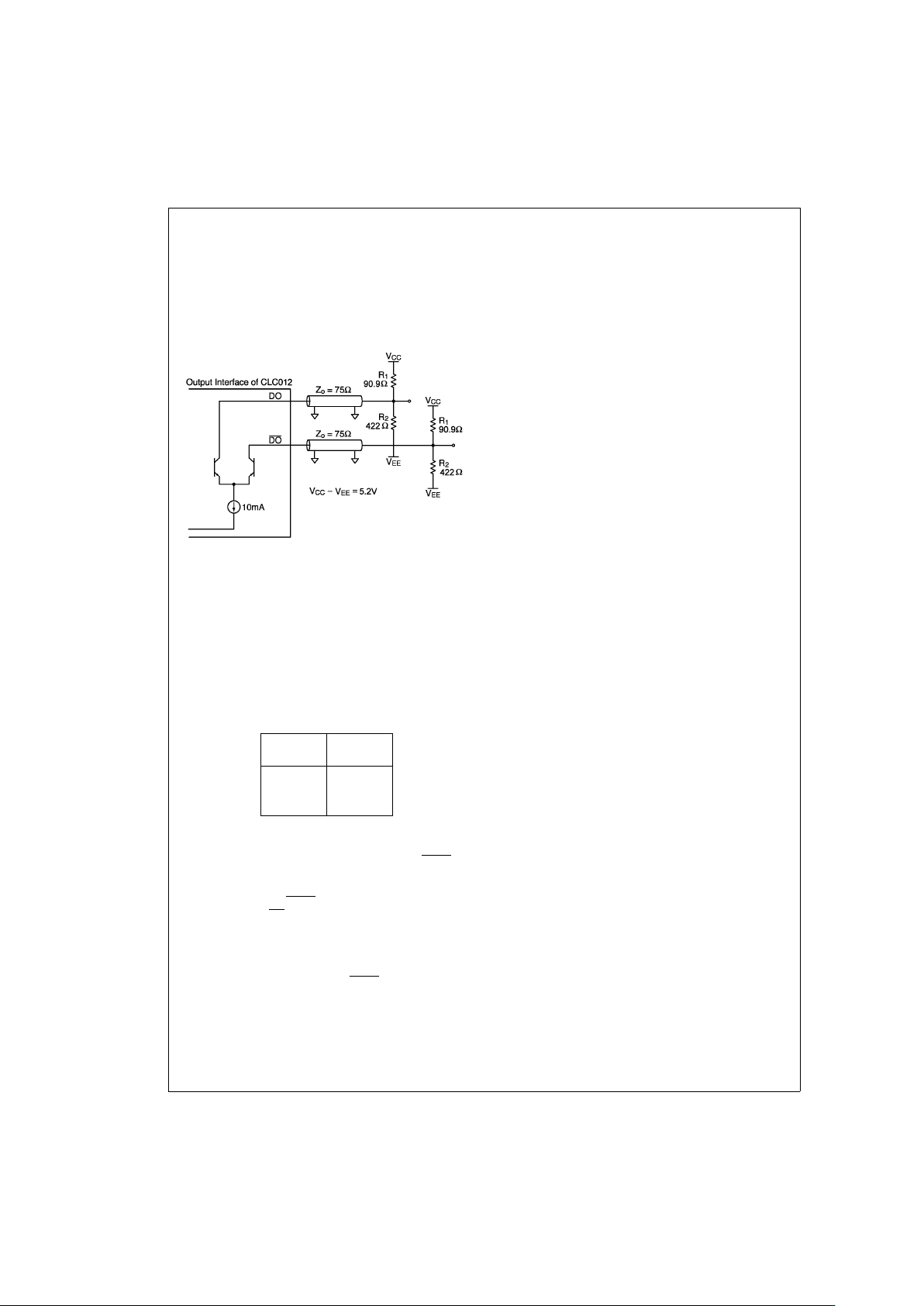

TERMINATING PHYSICALLY SEPARATED OUTPUTS

When the two outputs must be routed to physically separate
locations, the circuit in

Figure 6

may be applied. Alterna-

tively, if load termination is desired, the circuit in

Figure 7

may be used.The resistive divider network provides 75Ω ter­mination and establishes proper ECL levels. This circuit con­sumes slightly more power than the previous circuits.

Design Guidelines

SELECTING THE AUTOMATIC EQUALIZER CAPACITOR

The AEC capacitor sets the loop time constant τ for the
equalizer’s adaptive loop response time. The following for­mula is used to set the loop time constant:

τ =R

•

C

AEC

•

10

−6

R is a conversion factor that is set by internal equalizer pa­rameters and cable length. For Belden 8281 coaxial cable,
the R values are (τ = µs, C

AEC

in pF):

Cable

Length

R Value
(Ohms)

100 meters 15000
200 meters 20000
300 meters 32000

For example, a C

AEC

value of 100 pF results in an adaptive

loop time constant of 2 µs at 200 meters of cable.

CONNECTION AND OPERATION OF LOS AND MUTE

Loss of Signal (LOS)

is a CMOS output that indicates the
presence of equalized data from the filter. This LOS output
can be connected to MUTE to suspend changes in the data
outputs DO and DO, if no valid signal exists. This simple
configuration prevents random output transitions due to
noise. For sparse transition patterns it is recommended that
a capacitor be connected to LOS as shown in

Figure 1

.

Add a capacitor to pin 5 to slow the response time of Loss of
Signal when LOS is connected to MUTE. The capacitor re­duces sensitivity to pathological patterns. Pathological pat­terns are defined as sparse data sequences with few transi­tions.

OUTPUT EYE MONITOR OEM CONNECTIONS

The OEM is a high-speed, buffered output for monitoring the
equalized eye pattern prior to the output comparator. Its out­put is designed to drive an AC-coupled 50Ω coaxial cable
with a series 50Ω backmatch resistor. The cable should be
terminated with 50Ω at the oscilloscope.

Figure 1

shows a

schematic with a typical connection.

MINIMUM DATA TRANSITIONS

The CLC012 specifies a minimum transition rate. For the
CLC012 this sets the minimum data rate for transmitting data
through any cable medium. The CLC012 minimum average
transition density is found in the Electrical Characteristics
section of the datasheet.

POWER SUPPLY OPERATION AND THERMAL
CONSIDERATIONS

The CLC012 operates from either +5V or −5.2V single sup­plies. Refer to

Figure 1

when operating the part from +5V.

When operating with a −5.2V supply,the V

EE

pins should be
bypassed to ground. The evaluation board and associated
literature provide for operation from either supply.

Maximum power dissipation occurs at minimum cable
length. Under that condition, I

CC

=58mA.

Total power dissipated:

P

T

= (58 mA)(5V) = 290 mW

Power in the load:

P

L

= (0.7V)(11 mA) + (37.5)(11 mA)2=12mW

Maximum power dissipated on the die:

P

DMAX=PT–PL

= 278 mW

Junction Temperature =

(θ

JA

)(278 mW) + TA=TA+ 26˚C

Layout and Measurement

The printed circuit board layout for the CLC012 requires
proper high-speed layout to achieve the performance speci­fications found in the datasheet. The following list contains a
few rules to follow:

1. Use a ground plane.

2. Decouple power pins with 0.1 µF capacitors placed

≤ 0.1” (3mm) from the power pins.

3. Design transmission strip lines from the CLC012’s input

and output pins to the board connectors.

4. Route outputs away from inputs.

5. Keepground plane ≥ 0.025” (0.06mm) away from the in-

put and output pads.

Figure 8

shows a block level measurement diagram, while

Figure 15

on depicts a detailed schematic.A pseudo-random
pattern generator with low output jitter was used to provide a
NRZI pattern to create the eye diagrams shown in the

Typi-

cal Performance Characteristics

section.

Since most pattern generators have a 50Ω output imped­ance, a translation can be accomplished using a CLC005
Cable Driver as an impedance transformer. A wide band­width oscilloscope is needed to observe the high data rate
eye pattern. When monitoring a single output that is termi­nated at both the equalizer output and the oscilloscope, the
effective output load is 37.4Ω. Consequently, the signal
swing is half that observed for a single-ended 75Ω
termination.

DS100145-27

FIGURE 7. Alternative Load Terminated

Output Interface

www.national.com 10

Layout and Measurement (Continued)

Troubleshooting with scope probes can affect the equaliza­tion. For high data rates, use a

low capacitance probe

with
less than 2 pF probe capacitance. Evaluation boards and lit­erature are available for quick prototyping and evaluation of
the CLC012 Adaptive Cable Equalizer. The CLC012 con­tains CMOS devices and operators should

use grounding

straps when handling

the parts.

Figure 9

shows the CLC012’s internal power supply routing.

Bypass V

CC

(pin 4) by:

•

Monolithic capacitor of about 0.1 µF placed less than 0.1”
(3mm) from the pin

•

Tantalum capacitor of about 6.8 µF for large current sig­nal swings placed as close as convenient to the CLC012

To minimize ringing at the CLC012’s inputs, place a 100Ω re­sistor in series with the input. This resistor reduces induc­tance effects.

Several layout techniques can improve high speed perfor­mance:

•

Keep input, output and AEC traces well separated

•

Use balanced input termination’s

•

Avoid routing traces close to the CLC012’s input trace

•

Maintain common return points for components

•

Use guard traces

The input lines of the CLC012 use a 100Ω series resistors at
the input pins. This decreases the inductive effects internal
to the part to reduce ringing on fast rise and fall times. Refer
to the evaluation board layout for further suggestions on lay­out for the CLC012 Adaptive Equalizer.

EQUALIZATION CURVE

The CLC012 Adaptive Cable Equalizer has a maximum
equalization response as shown in

Figure 10

. This response

may be obtained by forcing

>

0.5V differentially at the AEC

pins.

CABLE EMULATION BOXES

Some cable emulation boxes will not mimic cables correctly.
When evaluating the CLC012, it is strongly recommended
that actual cable be used to determine the various perfor­mance parameters.

Typical Applications

COAXIAL CABLE RECEIVER (Page 1)

The CLC012 equalizer application shown on page 1 will
equalize a variety of coaxial cables up to lengths that attenu­ate the signal by 40 dB at 200 MHz. The application shows
the proper connection for a single cable driven with a

DS100145-28

FIGURE 8. Typical Measurement Block

DS100145-29

FIGURE 9. Power Package Routing Fixture

DS100145-30

FIGURE 10. Maximum Equalization Response

11 www.national.com

Typical Applications (Continued)

CLC005 driver. Loss of Signal (LOS) is connected to MUTE
to latch outputs DO and DO in the absence of an input signal
to the equalizer.

Refer to the CLC012’s evaluation board layout for additional
suggestions.

National can supply most of the major components required
to design a transmission line repeater.

Figure 11

shows a
typical repeater design using the CLC005, CLC012, and the
CLC016. The design functions supported by each chip are:

CLC005: Cable connection chip

Boosts drive for transmission to next repeater or
final destinations

CLC012: Receive serialized digital data from incoming

transmission lines

Equalizes the incoming data
CLC016: Retimes the equalized data (improving jitter)
The CLC016 is a multi-rate data retiming PLL. The circuit

(

Figure 11

) will work atup to 4 different data rates with no ad-

ditional components or manual tuning.

DIGITAL VIDEO (SDV) ROUTERS

The CLC012 provides performance that complies with the
ITU-T G.703 standard for serial digital data transmission
over coaxial cable. One common application is in routers,
which provide a switching matrix for connecting source
equipment to destination equipment.

Figure 12

shows a typical configuration for a router, including
equalizers, a crosspoint switch, data retimers, and cable
drivers. The CLC012 is used in its standard configuration in
this application, and automatically equalizes cable lengths
from zero meters to greater than 300 meters at 360 MHz
(see plots in

Typical Performance Characteristics

sec­tion). The equalized outputs are connected to the differential
inputs of the crosspoint switch. The CLC016 Data Retimer
receives the data from the crosspoint and performs the clock
and data recovery functions, further reducing jitter. Finally,
the retimed data is driven into the coaxial cable by a CLC005
ITU-T G.703 Cable Driver (with two amplitude-adjustable
outputs).

TWISTED PAIR DRIVER

A low-cost medium for transmitting data is twisted pair. Cat­egory 5 UTP has an attenuation characteristic similar to
Belden 8281 coaxial cable but scaled in length: 120 meters
of Category 5 UTP is roughly equivalent to 300 meters of
Belden 8281 cable. When properly implemented, the
CLC012 will equalize data rates up to 625 Mbps over Cat­egory 5 UTP. The maximum data rate depends upon the
cable length. A plot of Maximum Data Rate vs Cable Length

DS100145-31

FIGURE 11. Typical Repeater Design

DS100145-32

FIGURE 12. Data Routing Block Diagram

www.national.com 12

Typical Applications (Continued)

is found in the

Typical Performance Characteristics

sec­tion for Belden 8281, and can be scaled as stated above to
estimate maximum cable lengths and data rates for UTP.

Category 5 UTP has a characteristic impedance of approxi­mately 100Ω. The CLC005 in

Figure 13

is used to drive the
twisted pair AC-coupled with a series 0.1 µF capacitor and a
50Ω resistor in each differential output. The CLC012 Adap­tive Equalizer requires 800 mV

pp

from the transmit side of
the cable. A voltage divider is necessary to scale the voltage
to the required level at the input of the CLC012. This resistor
network also provides the correct impedance match for
twisted pair.

For Category 5 UTP, the approximate AEC voltage per
length is 3.75 mV/m (see

Block Description

). The CLC005

provides a trim adjust for fine tuning the output signal with
the resistor R. Refer to the CLC005 datasheet for tuning
directions.

DS100145-33

FIGURE 13. Twisted Pair Equalization

DS100145-34

FIGURE 14. Before and After Equalization at 622 Mbps Through 50 Meters of Category 5 UTP

DS100145-35

FIGURE 15. Typical Measurement Setup

13 www.national.com

Evaluation Board

An evaluation board layout and schematic are shown on the
following pages. The artwork shows the board solder masks,
trace layers, and ground plane. Toorder an evaluation board
contact your local sales representative or National support
center and request part number CLC730063.

The evaluation board provides an LED and switches to oper­ate the CLC012 in various modes of operation. The power

supplies, which must be correctly connected and jumpered
for positive or negative voltage operation, are identified on
the printed board silk screen. Insert all tantalum capacitors
as shown in the schematic or silk screen. A complete bill of
materials is given in the accompanying table.

DS100145-36

FIGURE 16. Evaluation Board Schematic

www.national.com 14

Evaluation Board (Continued)
CLC012 Equalizer Evaluation Board

Item

Reference

Designator

Description Quantity

1 Q1 2N3904 transistor 1
2 CR1 1N4148 switching diode 1
3 J1, J2, J3, J4, J5 receptacle vertical BNC PC Amphenol #31-5329-52RFX 5
4 J6 banana jack, black, EF Johnson #108-0903-001 1
5 J7 banana jack, red, EF Johnson #108-0902-001 1
6 R6, R7 10 kΩ, 1/8W, 1206, 1%chip resistors 2
7 R8, R9, R10, R11 75Ω, 1/8W, 1206, 1%chip resistors 4
8 R13 1.33 kΩ, 1/8W, 1206, 1%chip resistors 1

9 R3, R4 10Ω, 1/8W, 1206, 1%chip resistors 2
10 R1, R2 100Ω, 1/8W, 1206, 1%chip resistors 2
11 R14 20 kΩ, 1/8W, 1206, 1%chip resistors 1
12 R12 2 kΩ, 1/8W, 1206, 1%chip resistors 1
13 R5 49.9Ω, 1/8W, 1206, 1%chip resistors 1
14 C2, C3, C9, C12 0.01 µFd, 10%X7R surface mount cap 3
15 C4, C7, C8, C10, C11 0.1 µFd, 10%X7R surface mount cap 5
16 C1 100 pFd, 5%NPO surface mount cap 1
17 C5, C6 10 µFd, 16V tantalum capacitor 2
18 CLC730063 printed circuit board 1
19 U1 CLC012AJE 1
20 D1 LED, GENERAL PURPOSE 1

LAYOUT

The CLC012 requires proper high-speed layout techniques
to obtain bestresults. Afew recommended layout rules to fol­low for best results when using the CLC012 Adaptive Cable
Equalizer are:

1. Use a ground plane.

2. Decouple power pins with 0.01 µF capacitors placed
≤ 0.1” (3mm) from the power pins.

3. Design transmission lines to the inputs and outputs.

4. Route outputs away from inputs.

5. Removeground plane ≥ 0.025” (0.06mm) from the input
and output pads.

The solder masks with component locations, trace layer, and
ground plane board layer are given below.

Note that the CLC012 uses the same Evaluation Board as
the CLC014. LOS is labeled CD on the Evaluation Board.

15 www.national.com

Evaluation Board (Continued)

DS100145-37

www.national.com 16

17

Physical Dimensions inches (millimeters) unless otherwise noted

LIFE SUPPORT POLICY

NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DE­VICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF NATIONAL SEMI­CONDUCTOR CORPORATION. As used herein:

1. Life support devices or systems are devices or sys­tems which, (a) are intended for surgical implant into
the body, or (b) support or sustain life, and whose fail­ure to perform when properly used in accordance
with instructions for use provided in the labeling, can
be reasonably expected to result in a significant injury
to the user.

2. A critical component in any component of a life support
device or system whose failure to perform can be rea­sonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.

National Semiconductor
Corporation

Americas
Tel: [phone]
Fax: [phone]
Email: [e-mail]

www.national.com

National Semiconductor
Europe

Fax: [phone]

Email: [e-mail]
Deutsch Tel: [phone]
English Tel: [phone]
Français Tel: [phone]
Italiano Tel: [phone]

National Semiconductor
Asia Pacific Customer
Response Group

Tel: [phone]
Fax: [phone]
Email: [e-mail]

National Semiconductor
Japan Ltd.

Tel: [phone]
Fax: [phone]

14-Pin SOIC
Order Number CLC012AJE
NS Package Number M14A

CLC012 Adaptive Cable Equalizer for ITU-T G.703 Data Recovery

National does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and National reserves the right at any time without notice to change said circuitry and specifications.
