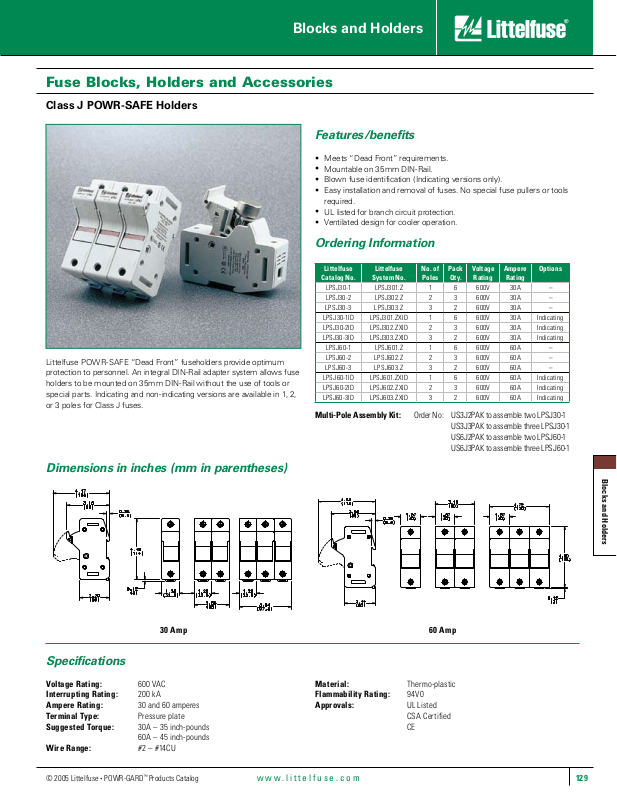

Blocks and Holders
Fuse Blocks, Holders and Accessories
Class J POWR-SAFE Holders
Features/benefits
•
Meets “Dead Front” requirements.
•
Mountable on 35mm DIN-Rail.
•
Blown fuse identification (Indicating versions only).
•
Easy installation and removal of fuses. No special fuse pullers or tools
required.
•
UL listed for branch circuit protection.
•
Ventilated design for cooler operation.
Ordering Information
Littelfuse POWR-SAFE “Dead Front” fuseholders provide optimum
protection to personnel. An integral DIN -Rail adapter system allows fuse
holders to be mounted on 35mm DIN-Rail without the use of tools or
special parts. Indicating and non-indicating versions are available in 1, 2,
or 3 poles for Class J fuses.
Dimensions in inches (mm in parentheses)
Littelfuse
Catalog No.
LP SJ 30-1 LPSJ301.Z 1 6 600V 30A –
LPSJ30-2 LPSJ302.Z
LPSJ30-3 LPSJ303.Z 3 2 600V 30A –
LP SJ 30-1I D LPSJ301.ZXID 1 6 600V 30A Indicating
LPSJ30-2ID LPSJ302.ZXID
LPSJ30-3ID LPSJ303.ZXID 3 2 600V 30A Indicating
LPSJ60-1 LPSJ601.Z 1 6 600V 60A –
LPSJ60-2 LPSJ602.Z 2 3 600V 60A –
LPSJ60-3 LPSJ603.Z 3 2 600V 60A –
LPSJ60-1ID LPSJ601.ZXID 1 6 600V 60A Indicating
LPSJ60-2ID LPSJ602.ZXID 2 3 600V 60A Indicating
LPSJ60-3ID LPSJ603.ZXID 3 2 600V 60A Indicating
Littelfuse
System No.
No. of
Poles
2
2 3
Pack
Qty.
3 600V
Voltage
Rating
600V
Ampere
Rating
Options
30A –
30A Indicating
Multi-Pole Assembly Kit: Order No: US3J2PAK to assemble two LPSJ30-1
US3J3PAK to assemble three LPSJ30-1
US6J2PAK to assemble two LPSJ60-1
US6J3PAK to assemble three LPSJ60-1
Blocks and Holders
30 Amp
Specifications
Voltage Rating: 600 VAC
Interrupting Rating : 200 kA
Ampere Rating: 30 and 60 amperes
Terminal Type: Pressure plate
Suggested Torque: 30A – 35 inch-pounds
60A – 45 inch-pounds
Wire Range : #2 – #14CU
© 2005 Littelfuse • POWR-GARD™ Products Catalog
Material: Thermo-plastic
Flammability Rating: 94V0
Approvals: UL Listed
CSA Certified
CE
www.littelfuse.com
60 Amp
