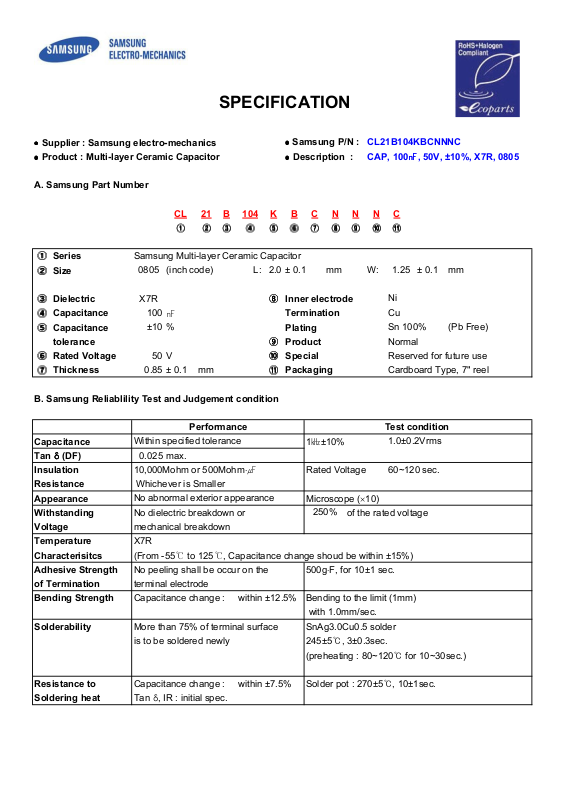

Datasheet CL21B104KBCNNNC Specification

SPECIFICATION

••••

Supplier : Samsung electro-mechanics

•••• Product : Multi-layer Ceramic Capacitor •••• Description :

A. Samsung Part Number

CL 21 B 104 K B C N N N C

①①①① ②②②② ③③③③ ④④④④ ⑤⑤⑤⑤ ⑥⑥⑥⑥ ⑦⑦⑦⑦ ⑧⑧⑧⑧ ⑨⑨⑨⑨ ⑩⑩⑩⑩ ⑪⑪⑪⑪

①①①① Series
②②②② Size

③③③③ Dielectric
④④④④ Capacitance
⑤⑤⑤⑤ Capacitance

tolerance ⑨⑨⑨⑨ Product
⑥⑥⑥⑥ Rated Voltage
⑦⑦⑦⑦ Thickness

B. Samsung Reliablility Test and Judgement condition

Samsung Multi-layer Ceramic Capacitor

0805 (inch code) L: 2.0 ± 0.1 mm W: ± 0.1 mm

X7R

100

㎋

±10 %

50 V

0.85 ± 0.1 mm

•••• Samsung P/N :

⑧⑧⑧⑧ Inner electrode

Termination

Plating

⑩⑩⑩⑩ Special
⑪⑪⑪⑪ Packaging

CL21B104KBCNNNC
CAP, 100㎋㎋㎋㎋, 50V, ±10%, X7R, 0805

1.25

Ni

Cu

Sn 100%

Normal

Reserved for future use

Cardboard Type, 7" reel

(Pb Free)

Capacitance
Tan δδδδ (DF)

Insulation

Resistance

Appearance

Withstanding

Voltage

Temperature

Characterisitcs

Adhesive Strength

of Termination

Bending Strength

Solderability

Resistance to

Soldering heat

Performance Test condition

Within specified tolerance

0.025 max.

10,000Mohm or 500Mohm⋅㎌

Whichever is Smaller

No abnormal exterior appearance

No dielectric breakdown or of the rated voltage

mechanical breakdown

X7R
(From -55℃ to 125℃, Capacitance change shoud be within ±15%)

No peeling shall be occur on the

terminal electrode

Capacitance change : within ±12.5% Bending to the limit (1mm)

More than 75% of terminal surface SnAg3.0Cu0.5 solder

is to be soldered newly

Capacitance change : within ±7.5%
Tan δ, IR : initial spec.

1㎑±10%

Rated Voltage 60~120 sec.

Microscope (×10)

250%

500g⋅F, for 10±1 sec.

with 1.0mm/sec.

245±5℃, 3±0.3sec.
(preheating : 80~120℃ for 10~30sec.)

Solder pot : 270±5℃, 10±1sec.

1.0±0.2Vrms

Tan δ :

With

Tan δ :

Min. operating temperature

Performance Test condition

Vibration Test

Moisture

Resistance

High Temperature

Resistance

Temperature

Cycling

C. Recommended Soldering method :

Reflow ( Reflow Peak Temperature : 260+0/-5℃, 10sec. Max )

Capacitance change : within ±5% Amplitude : 1.5mm

Tan δ, IR : initial spec.

Capacitance change : within ±12.5% With rated voltage

0.05 max

IR :

Capacitance change : within ±12.5%

IR :

Capacitance change : within ±7.5% 1 cycle condition

Tan δ, IR : initial spec.

500Mohm or 25Mohm ⋅ ㎌

Whichever is Smaller

0.05 max Max. operating temperature

1000Mohm or 50Mohm ⋅ ㎌

Whichever is Smaller 1000+48/-0hrs

From 10㎐ to 55㎐ (return : 1min.)

2hours × 3 direction (x, y, z)

40±2℃, 90~95%RH, 500+12/-0hrs

200%

Max. operating temperature

→

5 cycle test

of the rated voltage

→

25℃
→

25℃

* For the more detail Specification, Please refer to the Samsung MLCC catalogue.
