Aluminum Electrolytic Capacitors
1
Part Number System :
GR
(1)
SERIES
Series
CAPACITANCE
0R1 = 0.1UF
0R47 = 0.47UF
1 = 1UF
22 = 2UF
100=100UF
100
(2)
M
(3)
TOLERANCE
K=±10%
M=±20%
16
(4)
RATED VOLTAGE
6.3=6.3V
10=10V
16=16V
25=25V
50=50V
F=Form & Cut
B
(5)
PACKING
B=Bulk
A=Tape/box
C=Cut
R=Tape/Reel
(1) Series
For examples, GR series guarantees 2000 hrs at 85℃.
(2) Capacitance (μF).
Code 0R1 0R47 1 4U7 10 100 1000 10000
μF 0.1 0.47 1 4.7 10 100 1000 10000
(3) Tolerance
Code K M
Tolerance %
(4) Voltage (WV)
Code 4 6.3 10 16 25 35 50 63 80 100 160 200 250 350 400 450
Voltage (WV) 4 6.3 10 16 25 35 50 63 80 100 160 200 250 350 400 450
(5) Packing
Code B
±10 ±20
A C F R
Packing Bulk Tape/box
Cut lead Formed & Cut Tape/reel
www.cinetech.com.tw
Page 2
Aluminum Electrolytic Capacitors
2
Symbol
Radial lead type Tapping Dimensions :
Item
Pitch of body P 12.7 ±1.0
Feed hole pitch Po 12.7 ±0.2
Hole center to lead distance P1 5.1 3.85 ±0.7
Feed hole center to body
P2 6.35 ±1.0
center
Lead to lead distance F 2.5 5.0 +/-0.8
Base tape width W 18.0 ±0.5
Adhesive tape width Wo 12.5 min
Hole position W1 9.0 +/-0.75
Hole down tape position W2 3.0 max
Height of body from tape
H 18.5 ±0.75
center
Lead wire clinch height Ho 16.0 ±0.5
Case size 3 , 4, 5, 6.3 ψ Case size 3, 4, 5, 6.3, 8, 10ψ
Tol(mm)
Feed hole diameter Do 4.0 ±0.3
Lead wire protrusion l 1.0 max
Length of snipped lead L 11.0 max
Total tape thickness t 0.7 ±0.3
www.cinetech.com.tw
Page 3
Aluminum Electrolytic Capacitors
3

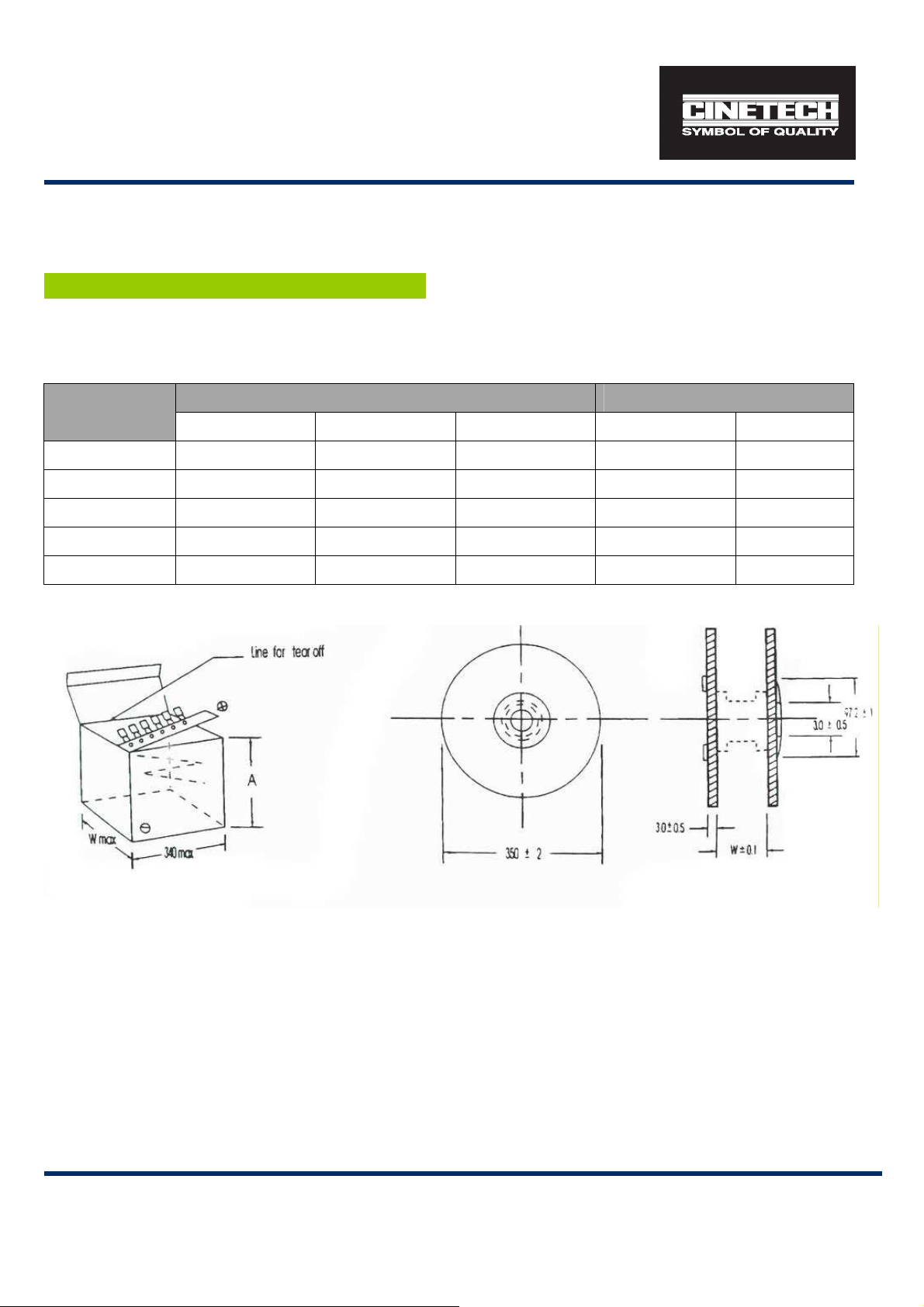

Radial lead type Tapping Dimensions :
Diameter ψ
A W Q’TY PCS W Q’TY PCS
4 305 mm max. 55 mm max. 2500 44 1700
5 305 mm max. 55 mm max. 2000 44 1300
6 305 mm max. 55 mm max. 1500 44 1000
TAPE/BOX TAPE/REEL
8 305 mm max. 55 mm max. 1000 44 750
10 305 mm max. 65 mm max. 600 44 500
www.cinetech.com.tw
Page 4
Aluminum Electrolytic Capacitors
4

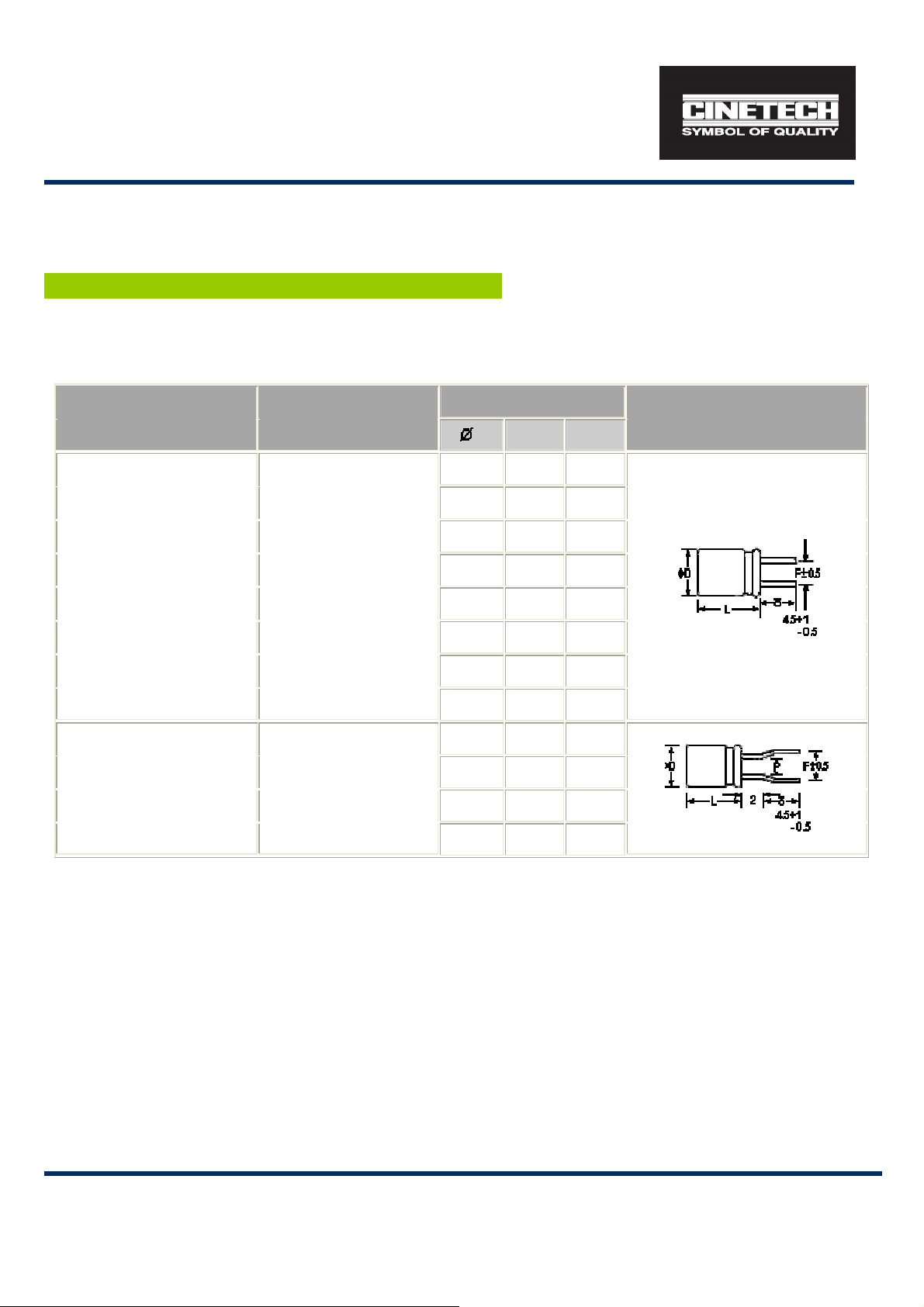

Radial lead type Formed and Cut Dimensions :
Dimension (mm) Code Method
D F P
4 1.5 15
5 2 2
Shape
6 2.5 2.5
C Cut Only
F Formed and Cut
8 3.5 3.5
10 5 5
13 5 5
16 7.5 7.5
18 7.7 7.5
4 5 1.5
5 5 2
6 5 2.5
8 5 3.5
www.cinetech.com.tw
Page 5
Aluminum Electrolytic Capacitors
5

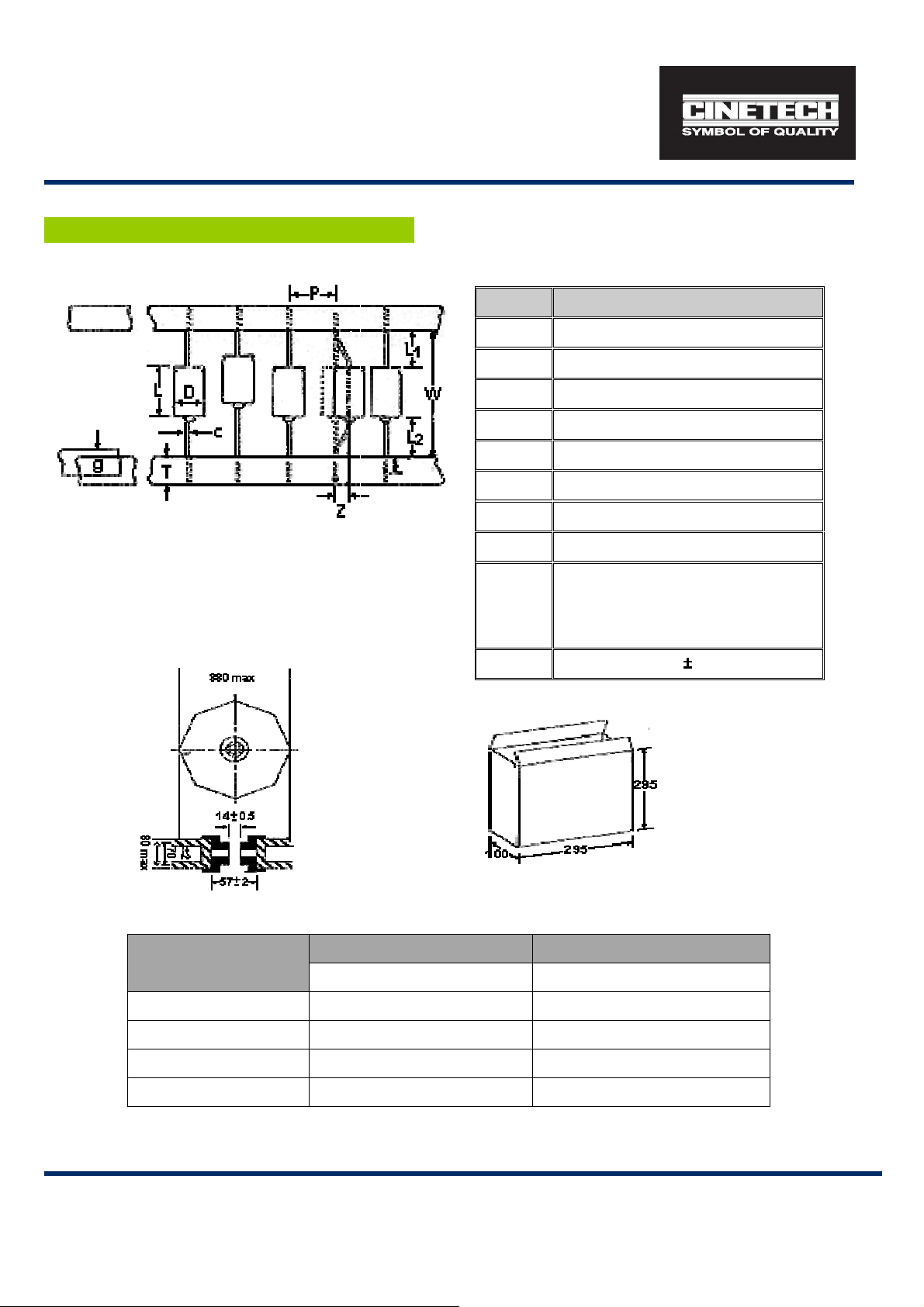

Axial lead type Tapping Dimensions :
Symbol
D 6, 8, 10, 13
L 13~16
d 0,5,0.
p 10
w 63
g 0.6 max.
L1-L2 1.0 max.
Dimension (mm)
Diameterψ
Z 1.2 max.
t
T 6.0 1.0
BULK TAPE/REEL
Q’TY PCS Q’TY PCS
(Lead ends shall not extend
beyond the tape.)
3.2 min
6 1000 1500
8 500 1000
10 300 600
13 200 400
www.cinetech.com.tw
Page 6
Aluminum Electrolytic Capacitors
6

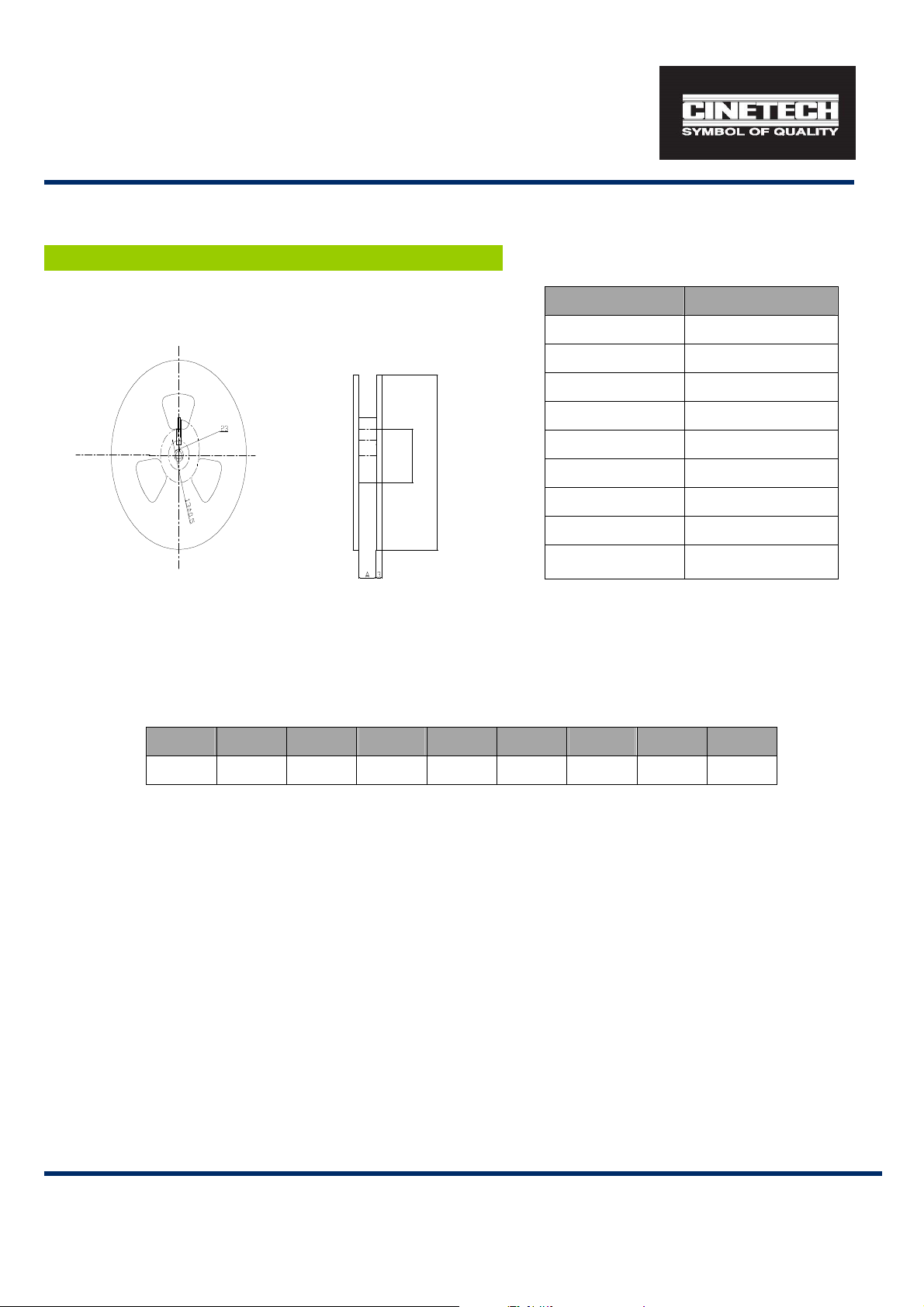

Tapping spec. for SMD electrolytic capacitors :
X
A
X
M
A
0
M
8
0
8
φ
3
φ
ψD
Q’ty / Reel
3-4x4.5-5.3 2,000pcs
5-6 x4.5-5.3 1,000pcs
6.3x7.7 1,000pcs
8x6.5 1,000pcs
8x10 500pcs
10x10 500pcs
12.5x13.5 200pcs
12.5x16 150pcs
16x16.5
125pcs
ψD
3-4 5 6.3 8x6.5 8x10 10 12.5 16
A 14 14 18 18 26 26 34 46
www.cinetech.com.tw

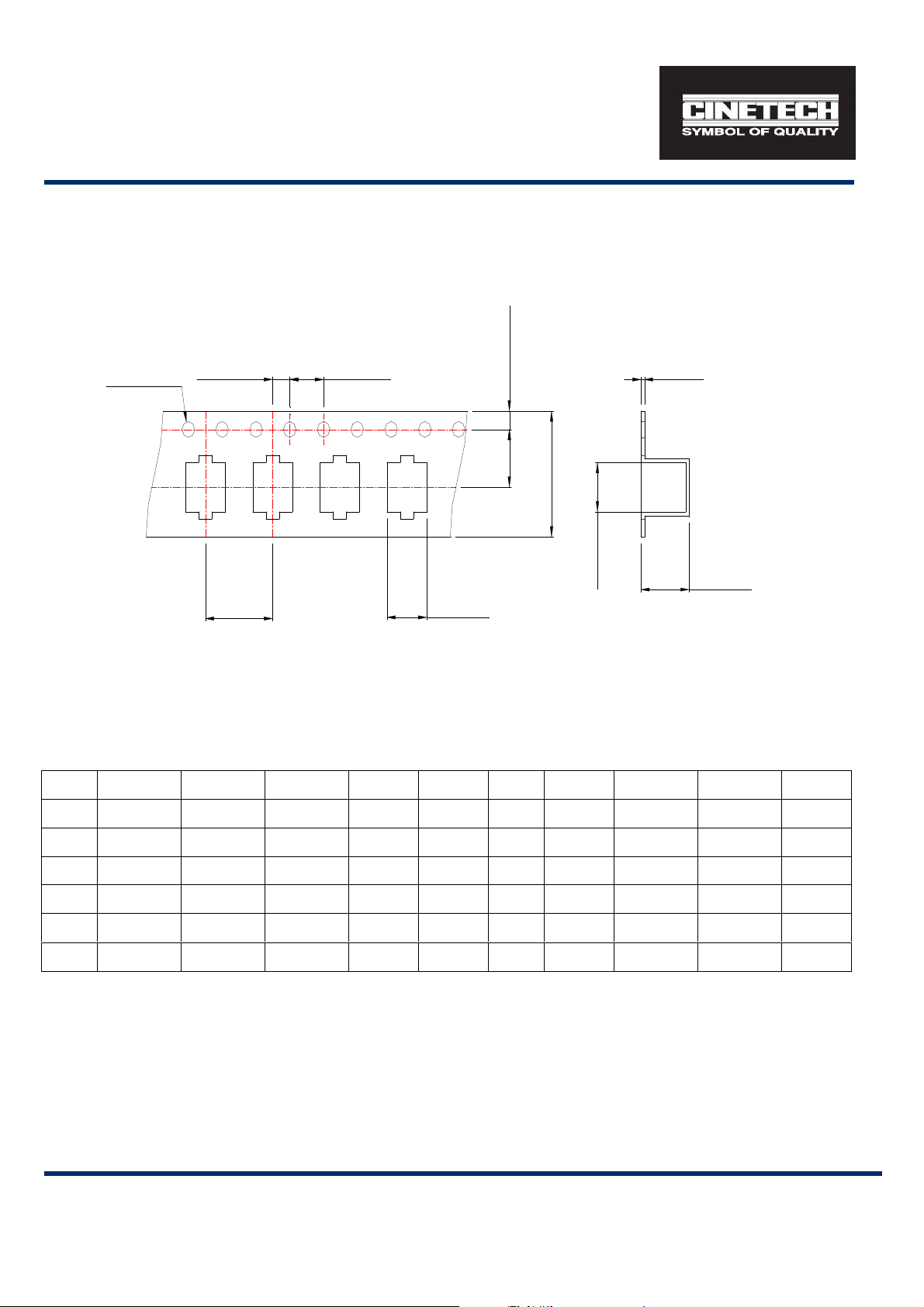

Page 7
Aluminum Electrolytic Capacitors
7
1
.
0
±
5
φ1.5± 0.1
2.0± 0.1
4.0± 0.1
7
.
1
1
.
0
3
.
±
0
F
±
W
2
.
0
±
1
B
0.4
T2± 0.2
P± 0.1
A1± 0.2
ψD
3-4x4.5-5.3 5x4.5-5.3 6.3x4.5-5.3 6.3x7.7 8x6.5 8x10 10x10 12.5x13.5 12.5x16 16x16.5
W 12.0 12.0 16.0 16.0 16.0 24.0
P 8.0 12.0 12.0 12.0 12.0 16 16 24 24 28
F 5.5 5.5 7.5 7.5 7.5 11.5
A1 5.0 6.0 7.0 7.0 8.7 8.7 10.7 13.4 13.4 17.5
B1 5.0 6.0 7.0 7.0 8.7 8.7 10.7 13.4 13.4 17.5
T2 5.8 5.8 5.8 8.3 6.8 11.0
24.0 32.0 32 44
11.5 14.2 14.2 20.2
11.0 14.0 17.5 17.5
www.cinetech.com.tw
