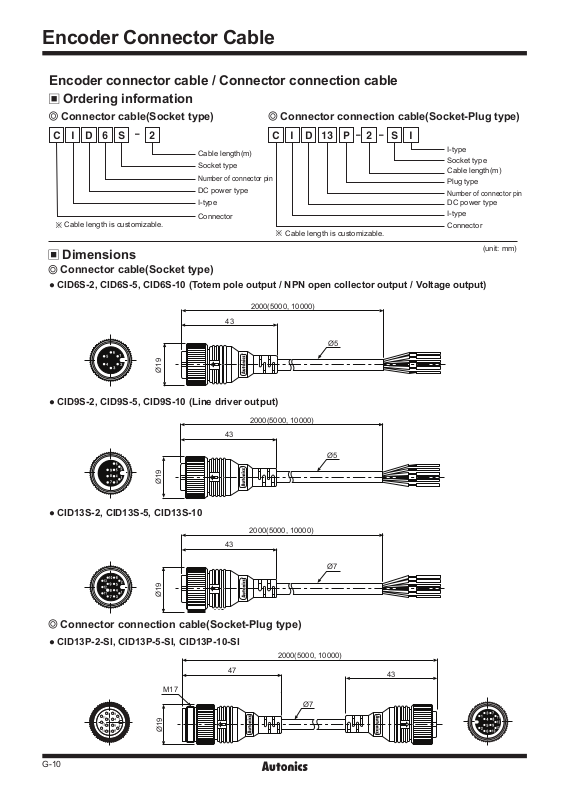

Encoder Connector Cable
Encoder connector cable / Connector connection cable
Ordering information
Connector cable(Socket type) Connector connection cable(Socket-Plug type)
-
C I D 6 - -C I D
※
Cable length is customizable.
Dimensions
Connector cable(Socket type)
● CID6S-2, CID6S-5, CID6S-10 (Totem pole output / NPN open collector output / Voltage output)
2S
Cable length(m)
Socket type
Number of connector pin
DC power type
I-type
Connector
※
Cable length is customizable.
2000(5000, 10000)
43
P 2 S I
13
Ø5
I-type
Socket type
Cable length(m)
Plug type
Number of connector pin
DC power type
I-type
Connector
(unit: mm)
Ø19
● CID9S-2, CID9S-5, CID9S-10 (Line driver output)
2000(5000, 10000)
43
Ø19
● CID13S-2, CID13S-5, CID13S-10
2000(5000, 10000)
43
Ø19
Connector connection cable(Socket-Plug type)
● CID13P-2-SI, CID13P-5-SI, CID13P-10-SI
47
M17
Ø5
Ø7
2000(5000, 10000)
43
Ø7
G-10
Ø19
