Datasheet Chocon Datasheet

Item

Characteristics

Temperature Range

-40℃ ～ +105℃

Rated Voltage Range

6.3 ～ 100V.DC

Capacitance Tolerance

±20%（25℃,120Hz）

Leakage Current(Max)

I�0.01CV or 3μA Whichever is greater（after 3minutes） I= Leakage Current（μA）C=Nominal Capacitance（μF） V=Rated Voltage（V）

Dissipation

Rated

Voltage

（V）

6.3

10

16

25

35

50

1

tan δ

0.22

0.19

0.16

0.14

0.12

0.10

When nominal capacitance is over 1000μF, tan δ shall be added 0.02 to the listed Value with increase of every 1000μF.

Load Life

Application of WV at +105℃ the capacitor shall meet the following limits

Capacitance Change

�± 25% of initial value

Dissipation Factor

�200% of initial specified value

Leakage Current

�initial specified value

Life Time

ØD�6.3=500hrs, ØD8=1500hrs, ØD�10=2000hrs,

Surage Voltage（25℃）

W.V.

6.3

10

16

25

35

50 1 S.V.

8

13

20

32

44

63

Shelf Life

At +105℃ no voltage applied after 500hours the capacitor shall meet the following limits

Capacitance Change

�± 25% of initial value

Dissipation Factor

�200% of initial specified value

Leakage Current

�200% of initial specified value

Low Temperature Stability Impedance Ratio（Max）

（120Hz）

Rated

Voltage

（V）

6.3

10

16

25

35

50

1

-25℃/25

℃

3 3 2 2 2

2

-40℃/20

℃

6 6 4 4 3

3

Frequency（Hz）

120

1K

10K

100K

W.V.

Multiplier

6.3～10

0.70

0.85

0.96

1.00

16～25

0.60

0.80

0.93

1.00

35

0.50

0.70

0.90

1.00

Temperature（℃）

65

85

105

Multiplier

1.75

1.4

1

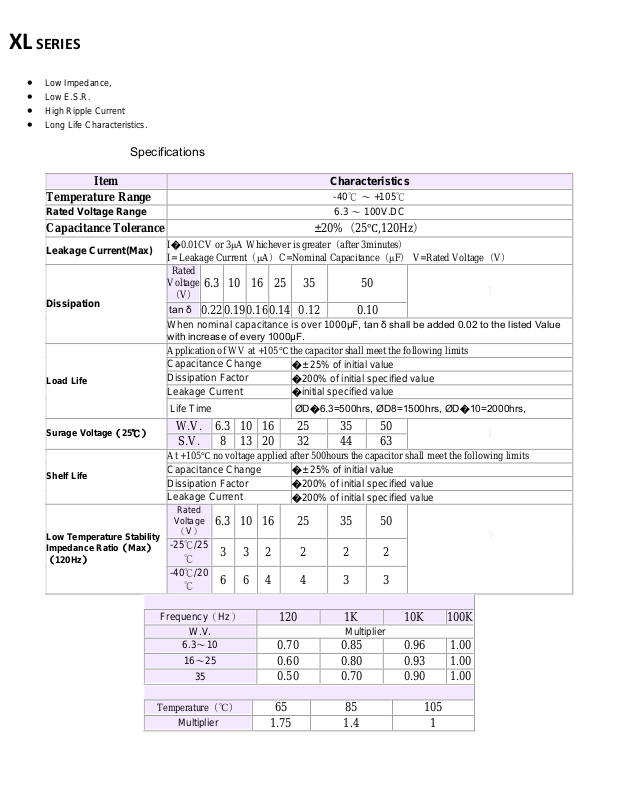

XL SERIES

 Low Impedance,  Low E.S.R.  High Ripple Current  Long Life Characteristics.

Specifications

Item

Characteristics

Temperature Range

-40℃ ～ +105℃

Rated Voltage Range

6.3 ～ 100V.DC

Capacitance Tolerance

±20%（25℃,120Hz）

Leakage Current(Max)

I�0.01CV or 3µA Whichever is greater（after 3minutes） I= Leakage Current（µA） C=Nominal Capacitance（µF） V=Rated Voltage（V）

Dissipation

Rated Voltage(V)

6.3

10

16

25

35

50

63

100

1

tan δ

0.22

0.19

0.16

0.14

0.12

0.10

0.08

1

When nominal capacitance is over 1000µF, tan δ shall be added 0.02 to the listed Value with increase of every 1000µF.

Load Life

Application of WV at +105℃ the capacitor shall meet the following limits.

Capacitance Change

�± 25% of initial value

Dissipation Factor

�200% of initial specified value

Leakage Current

�initial specified value

Life Time

ØD�6.3=500hrs, ØD8=1000hrs, ØD�10=1500hrs,

Surage Voltage（25℃）

W.V.

6.3

10

16

25

35

50

63

100

S.V.

8

13

20

32

44

63

79

125

Shelf Life

At +105℃ no voltage applied after 500hours the capacitor shall meet the following limits.

Capacitance Change

�± 25% of initial value

Dissipation Factor

�200% of initial specified value

Leakage Current

�200% of initial specified value

Low Temperature Stability Impedance Ratio（Max）

（120Hz）

Rated Voltage（V）

6.3

10

16

25

35

50

63

100

-25℃/25℃

3 3 2 2 2 2 2

2

-40℃/20℃

6 6 4 4 3 3 3

3

Frequency（Hz）

120

1K

10K

100K

W.V.

Multiplier

6.3～10

0.70

0.85

0.96

1.00

16～25

0.60

0.80

0.93

1.00

35

0.50

0.70

0.90

1.00

Temperature（℃）

65

85

105

Multiplier

1.75

1.4

1

XR SERIES

 Low Impedance  High Ripple Current  Standard characteristics

Specifications

Features Main application

 Super Low impedance   For personal computer motherboards  Life time:1000~3000 Hours AT 105℃  For CPU drive power supply circuits

Item

Characteristics

Temperature Range

-40℃ ～ +105℃

Rated Voltage Range

6.3 ～16V.DC

Capacitance Tolerance

±20%（25℃,120Hz）

Leakage Current(Max)

I�0.01CV or 3µA Whichever is greater（after 2minutes）

I= Leakage Current（µA） C=Nominal Capacitance（µF） V=Rated Voltage（V）

Dissipation

Rated Voltage(V)

6.3

10

16

1

tan δ

0.15

0.14

0.12

1

When nominal capacitance is over 1000µF, tan δ shall be added 0.02 to the listed Value

with increase of every 1000µF.

Load Life

Application of WV at +105℃ the capacitor shall meet the following limits

Capacitance Change

�± 25% of initial value

Dissipation Factor

�200% of initial specified value

Leakage Current

�initial specified value

Life Time

ØD8 � 2000hrs,ØD10 �3000hrs,

Surage Voltage（25℃）

W.V.

6.3

10

16

1

S.V.

8

13

20

1

Shelf Life

At +105℃ no voltage applied after 500hours the capacitor shall meet the following limits.

Capacitance Change

�± 25% of initial value

Dissipation Factor

�200% of initial specified value

Leakage Current

�200% of initial specified value

Low Temperature Stability Impedance Ratio（Max）

（120Hz）

Rated Voltage（V）

6.3

10

16

1

-25℃/25℃

3 3 2

1

-40℃/20℃

6 6 4

1

Frequency（Hz）

120

1K

10K

100K

W.V.

Multiplier

330 TO 1000

0.50

0.85

0.96

1.00

120 TO 2700

0.55

0.90

0.98

1.00

Temperature（℃）

65

85

105

Multiplier

1.75

1.4

1

XS SERIES

Super Low Impedance,High Ripple Current Standard

Specifications

Ripple Current Coefficients：
