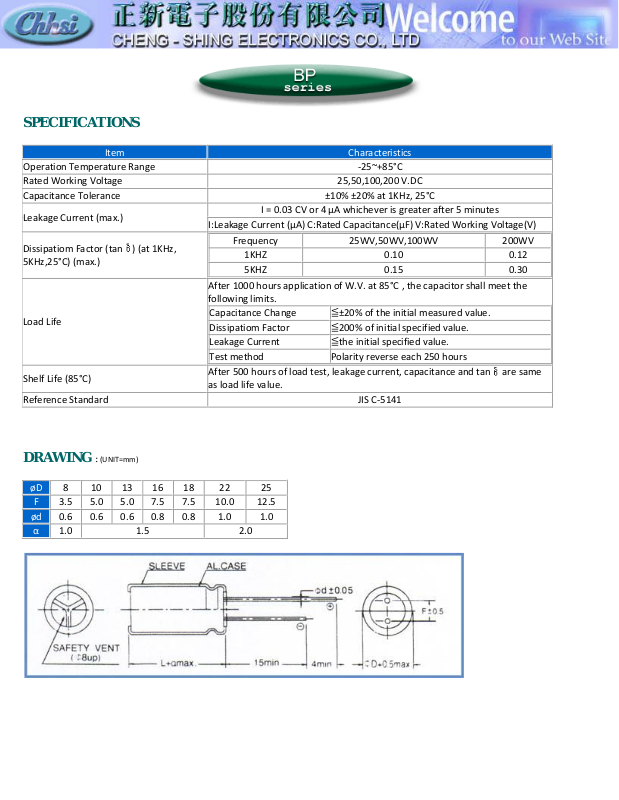

Page 1
Item
Characteristics
Operation Temperature Range
-25~+85°C
Rated Working Voltage
25,50,100,200 V.DC
Capacitance Tolerance
±10% ±20% at 1KHz, 25°C
Leakage Current (max.)
I = 0.03 CV or 4 µA whichever is greater after 5 minutes
I:Leakage Current (µA) C:Rated Capacitance(µF) V:Rated Working Voltage(V)
Dissipatiom Factor (tan ) (at 1KHz,
5KHz,25°C) (max.)
Frequency
25WV,50WV,100WV
200WV
1KHZ
0.10
0.12
5KHZ
0.15
0.30
Load Life
After 1000 hours application of W.V. at 85°C , the capacitor shall meet the
following limits.
Capacitance Change
≦±20% of the initial measured value.
Dissipatiom Factor
≦200% of initial specified value.
Leakage Current
≦the initial specified value.
Test method
Polarity reverse each 250 hours
Shelf Life (85°C)
After 500 hours of load test, leakage current, capacitance and tan are same
as load life value.
Reference Standard
JIS C-5141
øD 8 10
13
16
18
22
25
F
3.5
5.0
5.0
7.5
7.5
10.0
12.5
ød
0.6
0.6
0.6
0.8
0.8
1.0
1.0
α
1.0
1.5
2.0
SPECIFICATIONS
DRAWING : (UNIT=mm)
Page 2
25
50
100
200
SIZE
R.C.
SIZE
R.C.
SIZE
R.C.
SIZE
R.C.
1.0
8X12
67
8X12
67
10X17
100
1.5
8X12
82
8X12
82
10X17
125
2.2
10X12
114
10X12
114
10X17
150
3.3
10X12
139
10X12
139
10X17
185
4.7
10X12
166
10X12
166
10X17
225
6.8
10X17
222
10X17
222
10X20
275
10
10X20
297
10X20
297
13X21
340
16X26
403
15
10X20
364
10X20
364
13X21
420
16X31
540
22
10X20
440
10X20
440
13X25
543
16X36
687
33
13X21
678
13X21
678
16X26
737
16X40
884
47
13X25
890
13X25
890
16X31
790
18X40
920
68
16X31
950
16X36
983
22X40
1218
100
16X36
1170
16X40
1253
25X40
1614
DIMENSIONS & MAXIMUM PERMISSIBLE RIPPLE CURRENT
©2004 CHENG-SHING ELECTRONICS CO., LTD
