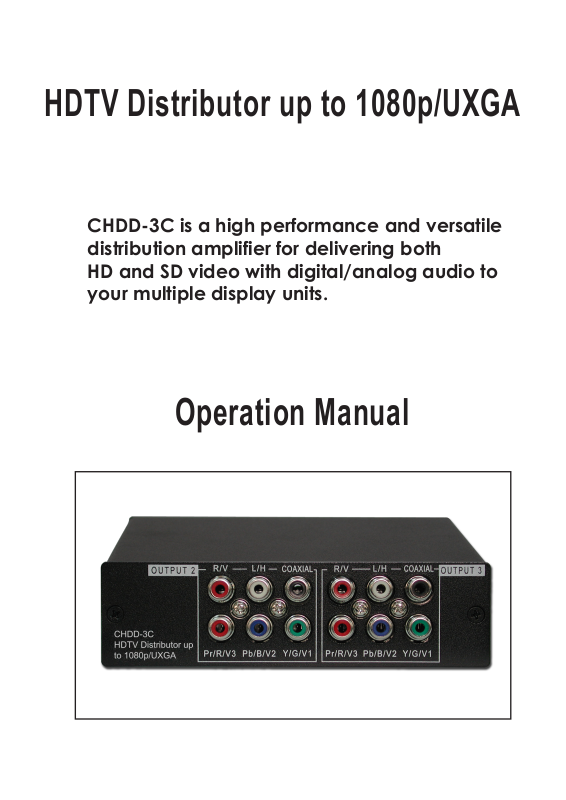

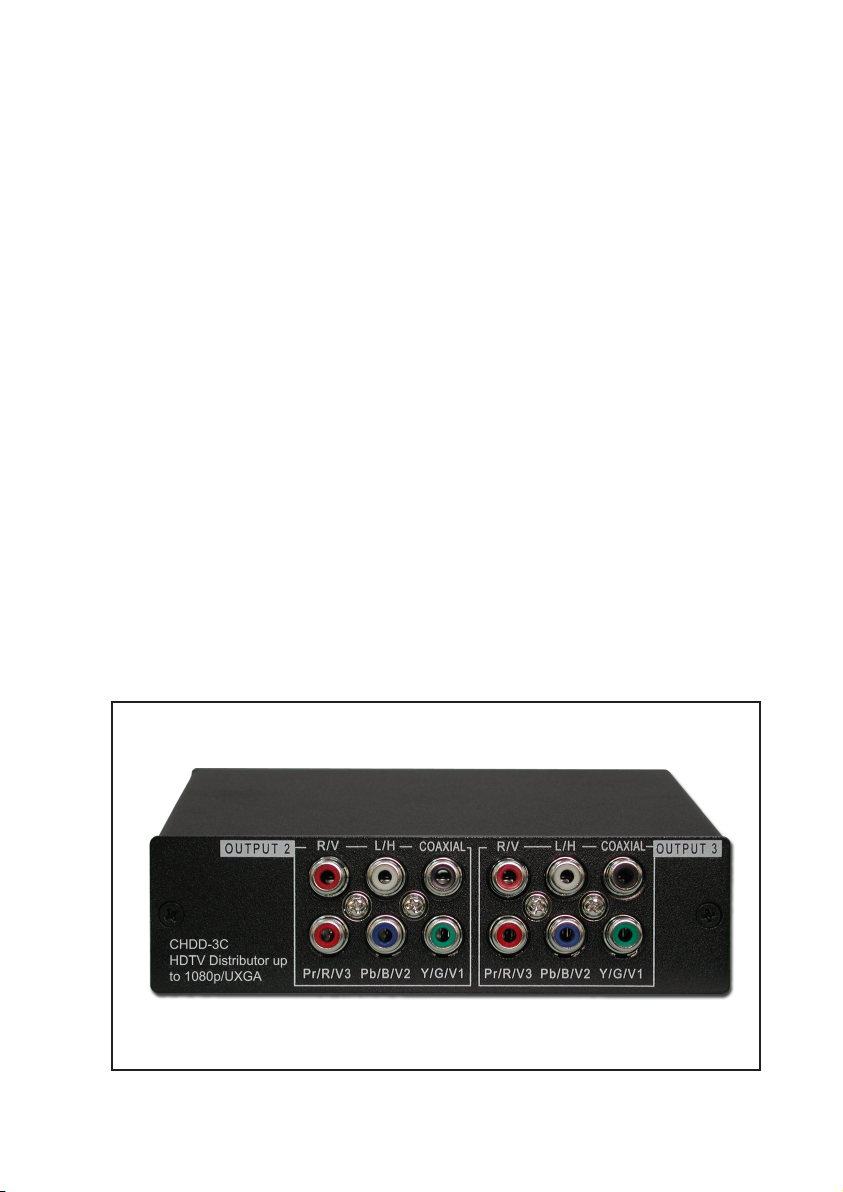

HDTV Distributor up to 1080p/UXGA
CHDD-3C is a high performance and versatile
distribution amplifier for delivering both
HD and SD video with digital/analog audio to
your multiple display units.
Operation Manual
Page 2
Applications
The CHDD-3C is capable of distributing video in 3 different formats and is ideal
for use in any analog video entertainment distribution system.
Features
- Component / composite or RGB distribution amplifier.
- Supports SD (composite, YCbCr) and HDTV (YPbPr, RGsB) input signal.
- Accepts one component input and split the input to 3 identical and buffered
outputs via 3x3 RCA connectors.
- When input is composite video, it can connect up to 3 different video sources
and output three identical and buffered signal for each video input.
- It can be used for presentation and home theater application.
- High bandwidth performance - 480MHZ bandwidth at - 3dB
- Worldwide power supply
Package Contents
- One CHDD-3C unit.
- One set of power supply
- One user manual
- One set of 2R to 2R male audio cable
- One set of 1R to 1R male video cable
- One set of 3RCA male to 3RCA male cable
Specifications
* Input: YPbPr x 1 or RGsB x 1 (or RGBHV),
or composite x 3 1 Vp-p@ 75 ohm
* Output: YPbPr x 3, or RGsB(or RGBHV) x 3, or composite 3 x 3
* Audio Input: Coaxial (S/PDIF) x 1 + R/L x 1
* Audio Output: Coaxial (S/PDIF) x 3 + R/L x 3
* Analog Audio Input / Output: Audio 2 Vrms max 47k ohm.
* Horizontal / Vertical sync 5Vp-p max and H frequency 10KHz~100KHz, V
frequency 20Hz~200Hz.
* Bandwidth: 480MHz (-3dB)
* Differential Gain: 0.05%
* Differential Phase: 0.05 degree
* Power: 5V 2A~1A
* Dimension(mm):141(W) x 38(D) x 105(H)
* Weight(g): 550
Page 3

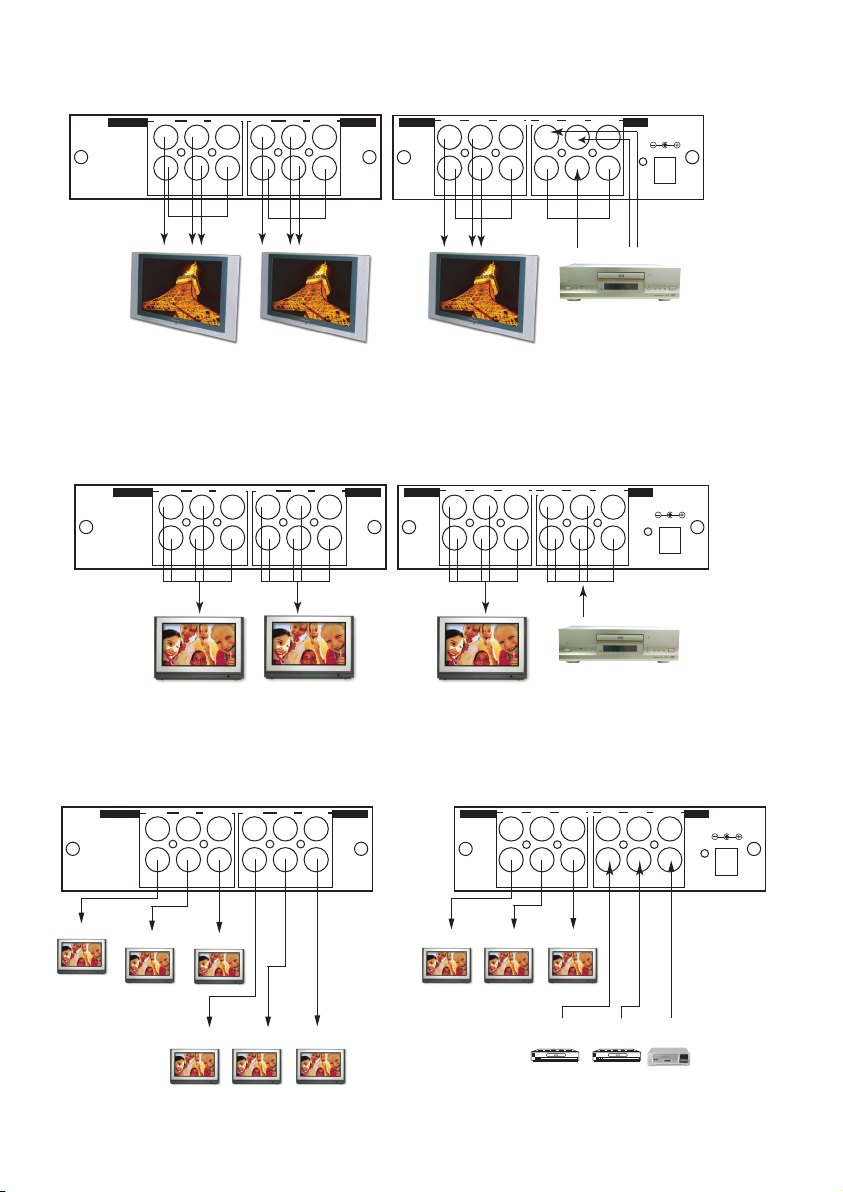

Connection and Installation
1. Works as a 1-in 3-out distribution amplifier for HD component source(YPbPr).
OUTPUT 2
CHDD-3C
HDTV Distributor up
to 1080p/UXGA
COAXIAL
L/H
R/V
COAXIAL
Y/G/V1
Pb/B/V2Pr/R/V3
L/H
COAXIAL
R/V
Pb/B/V2Pr/R/V3
OUTPUT 3
Y/G/V1
R/V L/H R/V L/H
OUTPUT 1 INPUT
COAXIAL
Y/G/V1Pb/B/V2Pr/R/V3Y/G/V1Pb/B/V2Pr/R/V3
DVDDVD
DC 5V 1A
component
component
out
out
Plasma Monitor 2 Plasma Monitor 3
Plasma Monitor 1
2. Works as a 1-in 3-out distribution amplifier for HD RGBHV video source.
OUTPUT 2
CHDD-3C
HDTV Distributor up
to 1080p/UXGA
COAXIAL
L/H
R/V
COAXIAL
Y/G/V1
Pb/B/V2Pr/R/V3
L/H
COAXIAL
R/V
Pb/B/V2Pr/R/V3
OUTPUT 3
Y/G/V1
R/V L/H R/V L/H
OUTPUT 1 INPUT
COAXIAL
DC 5V 1A
Y/G/V1Pb/B/V2Pr/R/V3Y/G/V1Pb/B/V2Pr/R/V3
RGBHV
out
DVD
3. Works as a three 1-in 3-out distribution amplifier for composite
video source.
COAXIAL
DC 5V 1A
Y/G/V1Pb/B/V2Pr/R/V3Y/G/V1Pb/B/V2Pr/R/V3
CHDD-3C
HDTV Distributor up
to 1080p/UXGA
CV3 out
OUTPUT 2
CV2 out
COAXIAL
L/H
R/V
COAXIAL
Y/G/V1
Pb/B/V2Pr/R/V3
CV1 out
L/H
COAXIAL
R/V
Pb/B/V2Pr/R/V3
OUTPUT 3
Y/G/V1
CV3 out CV2 out CV1 out
R/V L/H R/V L/H
OUTPUT 1 INPUT
CV3 out CV2 out CV1 out
CV3 in CV2 in CV1 in
Page 4
CYPRESS TECHNOLOGY CO., LTD.
Home page: http://www.cypress.com.tw
2008.1.15 MPM-CHDD3C
