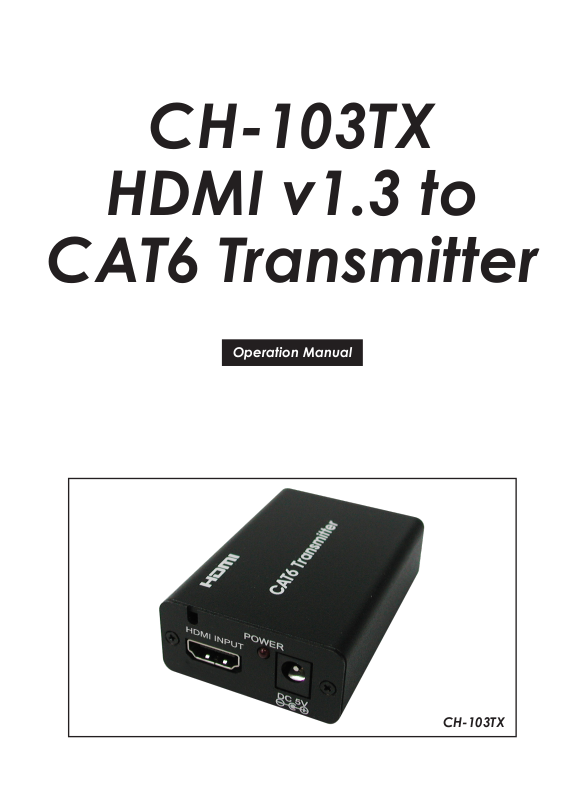

Page 1
CH-103TX
HDMI v1.3 to
CAT6 Transmitter
Operation Manual
CH-103TX
Page 2
TABLE OF CONTENTS
1. Introduction................................................................................. 1
2. Features....................................................................................... 1
3. Package Contents..................................................................... 1
4. Operation Controls and Functions............................................ 1
4.1 Front Panel............................................................................. 1
4.2 Rear Panel..............................................................................2
5. Connection and Installation...................................................... 2
6. Specifications............................................................................. 2
Page 3
1. Introduction
This is the transmitter (Tx) unit of HDMI to CAT6 Solution that can extend
HDMI digital signal through CAT6 cables. This is compatible with HDMI v1.3
specifications, a cutting-edge technology which defines the supports to
transfer Deep Color (12 bits/color) video and new lossless compressed
(Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio,
with a bandwidth up to 225MHz. The installation of HDMI to CAT6 is easy
and quick, simply place transmitter side next to your HDTV source such as
a DVD player, then place the receiver side next to your CAT6 to CAT6
repeater unit and get all necessary cables connected and enjoy.
2. Features
●
HDMI 1.3, HDCP 1.1 and DVI1.1 Compliant.
●
Supports digital video formats in Deep Color Mode at up to 36 bits
(12bits/color) and new lossless compressed (Dolby TrueHD, Dolby Digital
Plus and DTS-HD Master Audio) Digital audio .
●
Supports CAT6 cables for data/DDC transmission.
●
Supports equalize and recover incoming TMDS data before re-transmitting
them with optimal quality regardless of the incoming signal quality.
●
Supports high definition resolution, the cable distance test with 1080p/8bits
resolution the Input/Output source can run up to 30/45 meters. If
1080p/12bits resolution the Input/Output source can run up to 15/15
meters.
●
Supports CEC bypass.
●
Supports xvYCC.
3. Package Contents
●
HDMI to CAT6 Transmitter.
●
5V DC power supply adaptor.
●
Operation Manual.
4. Operation Controls and Functions

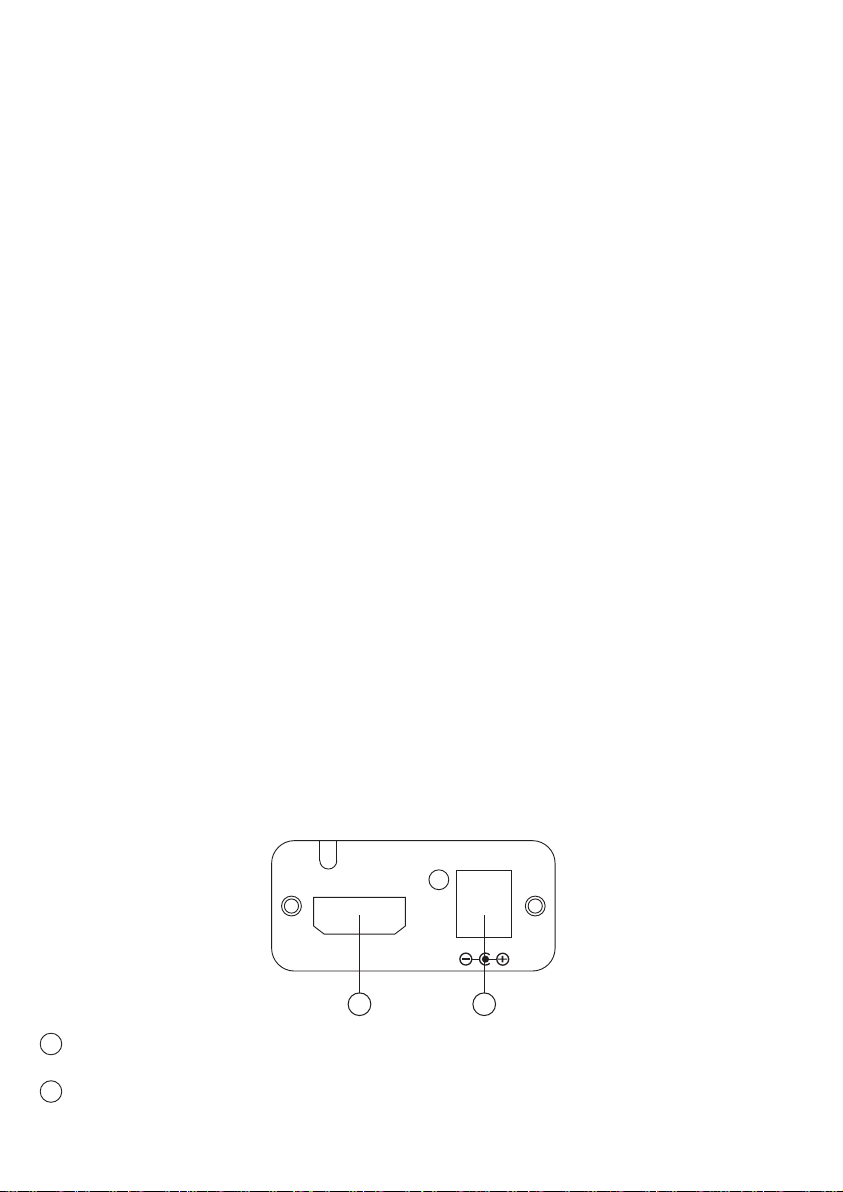

4.1. Front Panel
POWER
HDMI INPUT
DC 5V
1 2
1 HDMI input: Connect the HDMI input port to the HDMI or DVI output of your
source equipment such as DVD player or set-top-box.
2 Power: Plug the 5VDC power supply into the unit and connect the
adaptor to AC wall outlet.
1
Page 4
4.2. Rear Panel
CAT6 OUTPUT
VIDEODDC
1 2
1 DDC output: Connect the DDC output to the DDC input of the receiver
unit using CAT6 cable.
2 Video output: Connect the video output to the video input of the receiver
unit using CAT6 cable.
Note: A. Cable tested with CAT6 / 23AWG / Solid and therefore, cable with
different specification may result in different distance.
B. Cable distance tested with equipment PS3 20G, 37" Philips 8 bit LCD
TV and 37" SamSung 12 bit LCD TV.
C. Figures provided in this manual are reference figures only, actual
figures may depend on source and display use with cable
specification.
5. Connection and Installation
HDMI
HDMI
Cable
HDMI
HDMI LCD TV
DVD PLAYER
HDMI
HDMI
Cable
VIDEO
HDMI
DDC
CH-103TX CH-103RX
6. Specifications
Input Port 1 x HDMI
Output Ports 1 x CAT6 output for Video,
1 x CAT6 output for DDC
Power Supply 5V/2.6A DC (US/EU standards,
CE/FCC/UL certified)
Dimensions (mm) 50(W) x 62(D) x 23(H)
Weight(g) 90
Chassis Material Aluminum
Silkscreen Color Black
Operating Temperature 0°C ~ 40°C
2
2008.1.14 MPM-CH103TX
