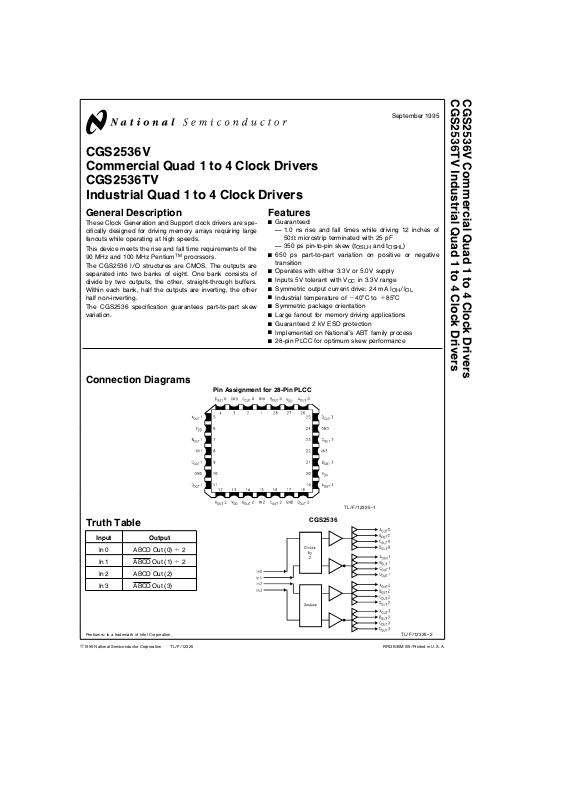

TL/F/12325
CGS2536V Commercial Quad 1 to 4 Clock Drivers
CGS2536TV Industrial Quad 1 to 4 Clock Drivers
September 1995
CGS2536V
Commercial Quad 1 to 4 Clock Drivers
CGS2536TV
Industrial Quad 1 to 4 Clock Drivers
General Description
These Clock Generation and Support clock drivers are specifically designed for driving memory arrays requiring large
fanouts while operating at high speeds.
This device meets the rise and fall time requirements of the
90 MHz and 100 MHz Pentium
TM
procrssors.
The CGS2536 I/O structures are CMOS. The outputs are
separated into two banks of eight. One bank consists of
divide by two outputs, the other, straight-through buffers.
Within each bank, half the outputs are inverting, the other
half non-inverting.
The CGS2536 specification guarantees part-to-part skew
variation.
Features
Y
Guaranteed:
Ð 1.0 ns rise and fall times while driving 12 inches of
50X microstrip terminated with 25 pF
Ð 350 ps pin-to-pin skew (t
OSLH
and t
OSHL
)
Y
650 ps part-to-part variation on positive or negative
transition
Y
Operates with either 3.3V or 5.0V supply
Y
Inputs 5V tolerant with VCCin 3.3V range
Y
Symmetric output current drive: 24 mA IOH/I
OL
Y
Industrial temperature ofb40§Ctoa85§C
Y
Symmetric package orientation
Y
Large fanout for memory driving applications
Y
Guaranteed 2 kV ESD protection
Y
Implemented on National’s ABT family process
Y
28-pin PLCC for optimum skew performance
Connection Diagrams
Pin Assignment for 28-Pin PLCC
TL/F/12325– 1
Truth Table
Input Output
In 0 ABCD Out (0)d2
In 1 ABCD Out (1)d2
In 2 ABCD Out (2)
In 3 ABCD Out (3)
CGS2536
TL/F/12325– 2Pentium
TM
is a trademark of Intel Corporation.
C
1995 National Semiconductor Corporation RRD-B30M105/Printed in U. S. A.
Page 2
Absolute Maximum Ratings (Note)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales
Office/Distributors for availability and specifications.
Supply Voltage (V
CC
) 7.0V
Input Voltage (VI) 7.0V
Input Current
b
30 mA
Current Applied to Output
(High/Low) Twice the Rated IOH/IOL
Operating Temperature
Industrial Grade
b
40§Ctoa85§C
Commercial grade 0
§
Ctoa70§C
Storage Temperature Range
b
65§Ctoa150§C
Airflow Typical i
JA
0 LFM 62§C/W
225 LFM 43
§
C/W
500 LFM 34
§
C/W
900 LFM 27
§
C/W
Recommended Operating
Conditions
Supply Voltage VCC4.5V to 5.5V
V
CC
3.0V to 3.6V
Maximum Input Rise/Fall Time (0.8V to 2.0V) 5 ns
Free Air Operating Temperature
Commercial 0
§
Ctoa70§C
Industrial
b
40§Ctoa85§C
Note: The Absolute Maximum Ratings are those values beyond which the
safety of the device cannot be guaranteed. The device should not be operated at these limits. The parametric values defined in the DC and AC Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The Recommended Operating Conditions will define the conditions for actual device operation.
DC Electrical Characteristics
Over recommended operating free air temperature range. All typical values are measured at V
CC
e
5V, T
A
e
25§C.
Symbol Parameter Conditions
V
CC
Min Typ Max Units
(V)
V
IH
Input High Level Voltage 3.0 2.1
V
4.5 3.15
5.5 3.85
V
IL
Input Low Level Voltage 3.0 0.9
V
4.5 1.35
5.5 1.65
V
IK
Input Clamp Voltage I
I
eb
18 mA 4.5
b
1.2 V
V
OH
High Level Output Voltage I
OH
eb
50 mA 3.0 2.9
V
4.5 4.4
5.5 5.4
I
OH
eb
24 mA 3.0 2.46
V
4.5 3.76
5.5 4.76
V
OL
Low Level Output Voltage I
OL
e
50 mA 3.0 0.1
V
4.5 0.1
5.5 0.1
I
OL
e
24 mA 3.0 0.44
V
4.5 0.44
5.5 0.44
I
I
Input Current@Max Input Voltage V
IH
e
7V 5.5 7
mA
V
IH
e
V
CC
3.6 1
I
IH
High Level Input Current V
IH
e
V
CC
5.5 5 mA
I
IL
Low Level Input Current V
IL
e
0V 5.5
b
5 mA
I
OLD
Minimum Dynamic Output Current* V
OLD
e
1.65V (max) 5.5 75
mA
V
OLD
e
0.9V (max) 3.0** 36
I
OHD
Minimum Dynamic Output Current* V
OHD
e
3.85V (min) 5.5
b
75
mA
V
OHD
e
2.1V (min) 3.0**
b
25
I
CC
Supply Current 3.6 75
mA
5.5 235
C
IN
Input Capacitance 5.0 5 pF
*Maximum test duration 2.0 ms, one output loaded at a time.
**At V
CC
e
3.3V, I
OLD
e
55 mA min;@V
CC
e
3.6V, I
OLD
e
64 mA min
At V
CC
e
3.3V, I
OHD
eb
58 mA min;@V
CC
e
3.6V, I
OHD
eb
66 mA min
2
Page 3
AC Electrical Characteristics (Notes 1, 2, and 3)
Over recommended operating free air temperature range. All typical values are measured at V
CC
e
5V, T
A
e
25§C.
Symbol Parameter
CGS2536
Units
V
CC
T
A
ea
25§C
T
A
eb
40§Ctoa85§C
(V)
C
L
e
50 pF, R
L
e
500X
(Note 4)
(Note 8) C
L
e
50 pF, R
L
e
500X
Min Typ Max Min Typ Max
f
max
Frequency Maximum 3.0 100
MHz
5.0 125
t
PLH
Low-to-High Propagation Delay 3.3 7.25 7.25
ns
CK to O
n
5.0 5.0 5.0
t
PHL
High-to-Low Propagation Delay 3.3 5.5 5.5
ns
CK to O
n
5.0 4.5 4.5
t
OSLH
Maximum Skew Common Edge 3.3 150 350 300 350
ps
Output-to-Output Variation (Notes 1, 3) 5.0 150 350 300 350
t
OSHL
Maximum Skew Common Edge 3.3 150 350 300 350
ps
Output-to-Output Variation (Notes 1, 3) 5.0 150 350 300 350
t
rise
, Rise/Fall Time 3.3 4.5 4.5
ns
t
fall
(from 0.8V/2.0V to 2.0V/0.8V) (Note 5) 5.0 3.5 3.5
t
rise
, Rise/Fall Time 3.3 0.8 1.0
ns
t
fall
(from 0.8V/2.0V to 2.0V/0.8V) (Note 6) 5.0 0.4 0.6
t
rise
, Rise/Fall Time 3.3 1.0 1.0
ns
t
fall
(from 0.8V/2.0V to 2.0V/0.8V) (Note 7) 5.0 0.7 0.9
t
High
Pulse Width Duration High (Notes 2, 3) 3.3 4.0 4.0
ns
5.0 4.0 4.0
t
Low
Pulse Width Duration Low (Notes 2, 3) 3.3 4.0 4.0
5.0 4.0 4.0
t
PVLH
Part-to-Part Variation of 3.3 650 650
ps
Low-to-High Transitions 5.0 650 650
t
PVHL
Part-to-Part Variation of 3.3 650 650
High-to-Low Transitions 5.0 650 650
Note 1: Output-to-Output Skew is defined as the absolute value of the difference between the actual propagation delay for any outputs within the same packaged
device. The specifications apply to any outputs switching in the same direction either LOW to HIGH (t
OSLH
) or HIGH to LOW (t
OSHL
).
Note 2: Time high is measured with outputs at 2.0V or above. Time low is measured with outputs at 0.8V or below. Input waveform characteristics for t
High,tLow
measurement: fe66.67 MHz, duty cyclee50%.
Note 3: The input waveform has a rise and fall time transition time of 2.5 ns (10% to 90%).
Note 4: Industrial range (
b
40§Ctoa85§C) limits apply to the commercial temperature range (0§Ctoa70§C).
Note 5: These Rise and Fall times are measured with C
L
e
50 pF, R
L
e
500X (see
Figure 3
).
Note 6: These Rise and Fall times are measured with C
L
e
25 pF, R
L
e
500X (see
Figure 3
), and are guaranteed by design.
Note 7: These Rise and Fall times are measured driving 12 inches of 50X microstrip terminated with equivalent C
L
e
25 pF (see
Figure 4
), and are guaranteed by
design.
Note 8: Voltage Range 5.0 is 5.0V
g
0.5V, 3.3 is 3.3Vg0.3V.
Note 9: For increased output drive, output pins may be connected together when the corresponding input pins are connected together.
3
Page 4
Timing Information
TL/F/12325– 3
FIGURE 1. Buffer Waveforms
TL/F/12325– 6
FIGURE 2. Divide by 2 Waveforms
TL/F/12325– 8
FIGURE 3. A.C. Load (Reference Notes 5, 6)
C
L
e
Total Load Including Probes
TL/F/12325– 9
FIGURE 4. A.C. Load (Reference Note 7)
C
L
e
Total Load Including Probes
4
Page 5
Power On Requirements
DETAILED DESCRIPTION
The divide by two block of the CGS2536 is accomplished
using two negative-edge-triggered flip-flops. During poweron, the inverting flip-flop causes outputs Aout1 through
Dout1 to be High. The non-inverting flip-flop causes outputs
Aout0 through Dout0 to be Low. Two flip-flops are used to
achieve minimum skew between the non-inverting and inverting outputs.
To guarantee that the flip-flops power-up out of phase, the
IN0 and IN1 pins must be held low while power is applied to
V
CC
. IN0 and IN1 must remain low until V
CC
t
3V.
Application Hints
In a typical user environment IN0 and IN1 inputs may be
connected common. Power is applied simultaneously to the
crystal oscillator and the CGS2536. If the oscillator output
does not deliver a clean first negative-going-edge to the IN0
and IN1 inputs, only one flip-flop may toggle.
Even if the user delays application of V
CC
to the CGS2536,
a false trigger may occur. Simply gating the oscillator to the
IN0 and IN1 inputs will not guarantee correct operation,
since a ‘‘runt’’ pulse may propagate through the gate and
toggle only one of the flip-flops.
Figure 1
shows a circuit that delivers ‘‘runt-free’’ negativegoing-edges to the IN0 and IN1 inputs. This circuit ensures
that the first clocking pulse seen by the IN0 and IN1 inputs
consists of a full positive half-cycle of the crystal oscillator.
Figure 2
shows the waveforms from the synchronizing circuit.
The propagation delay of the 74AC00 gates and the toggle
frequency of the 74VHC164 limit the maximum frequency of
operation. Equivalent logic elements that have faster propagation delays can be substituted for the NAND gates and
shift register. For example, a generic GAL22V10-5 could be
programmed as the NAND gates that drive the CGS2536.
Figure 1
CIRCUIT DESCRIPTION
Assumptions:
1. VCCis applied simultaneously to the crystal oscillator,
CGS2536, 74AC00, and 74VHC164.
2. A system power-on reset is ‘‘Low’’ long enough for V
CC
and the crystal oscillator to stabilize.
At power-on, assertion (low) of the system power-on reset
clears the outputs of the 74VHC164 serial to parallel converter.
As a result, nodes C and E are low ensuring power-on requirements for the CGS2536 are met. When the system
power-on reset is de-asserted, the eighth positive-goingedge received by the 74VHC164 causes node C to go high.
Node C remains high as long as power is applied. However,
node D still remains high due to the oscillator output (A)
being low. Node E stays low until the next positive-goingedge of the oscillator. Thus, a full positive half-cycle of the
oscillator is seen by the IN1 and IN0 inputs, which ensures
that both flip-flops of the divide by two toggle.
TL/F/12325– 4
TL/F/12325– 5
5
Page 6
CGS2534/35/36/37
Memory Array Driving
In order to minimize the total load on the address bus, quite
often memory arrays are driven by buffers while having the
inputs of the buffers tied together. Although this practice
was feasible in the conventional memory designs, in today’s
high speed, large buswidth designs which require address
fetching at higher speeds, this technique produces many
undesired results such as cross-talk and over/undershoot.
CGS2534/35/36/37 Quad 1 to 4 clock drivers were designed specifically to address these application issues on
high speed, large memory arrays systems.
These drivers are optimized to drive large loads, with 3.5 ns
propagation delays. These drivers produce less noise while
reducing the total capacitive loading on the address bus by
having only four inputs tied together (see the diagram below, point A). This helps to minimize the overshoot and undershoot by having only four outputs being switched simultaneously.
Also this larger fan-out helps to save board space since for
every one of these drivers, two conventional buffers were
typically being used.
Another feature associated with these clock drivers is a
350 ps pin-to-pin skew specification. The minimum skew
specification allows high speed memory system designers
to optimize the performance of their memory sub-system by
operating at higher frequencies without having concerns
about output-to-output (bank-to-bank) synchronization problem which are associated with driving high capacitive loads
(Point B).
The diagram below depicts a ‘‘2534/35/36/37’’ a memory
subsystem operating at high speed with large memory capacity. The address bus is common to both the memory and
the CPU and I/Os.
These drivers can operate beyond 125 MHz, and are also
available in 3V –5V TTL/CMOS versions with large current
drive .
Device V
CC
I/O Output Configuration
2534 5 TTL Inverting quad 1– 4
2535 3 or 5 CMOS Non-inverting quad 1 –4
2536 3 or 5 CMOS Inverting, Non-inverting,
d
2
2537
5 TTL Inverting quad 1– 4 with series 8X output resistors
TL/F/12325– 7
6
Page 7
Ordering Information (Contact NSC Marketing for specific date of availability)
CGS 253x T V
Family Packaging
Clock Generation and Support V
e
PCC
Device Type Grade
2534 Blank
e
Commercial
2535 T
e
Industrial
2536
2537
7
Page 8
CGS2536V Commercial Quad 1 to 4 Clock Drivers
CGS2536TV Industrial Quad 1 to 4 Clock Drivers
Physical Dimensions inches (millimeters)
28-Lead Molded Plastic Leaded Chip Carrier
Order Number CGS2536V or CGS2536TV
NS Package Number V28A
LIFE SUPPORT POLICY
NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF NATIONAL
SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or 2. A critical component is any component of a life
systems which, (a) are intended for surgical implant support device or system whose failure to perform can
into the body, or (b) support or sustain life, and whose be reasonably expected to cause the failure of the life
failure to perform, when properly used in accordance support device or system, or to affect its safety or
with instructions for use provided in the labeling, can effectiveness.
be reasonably expected to result in a significant injury
to the user.
National Semiconductor National Semiconductor National Semiconductor National Semiconductor
Corporation Europe Hong Kong Ltd. Japan Ltd.
1111 West Bardin Road Fax: (
a
49) 0-180-530 85 86 13th Floor, Straight Block, Tel: 81-043-299-2309
Arlington, TX 76017 Email: cnjwge@tevm2.nsc.com Ocean Centre, 5 Canton Rd. Fax: 81-043-299-2408
Tel: 1(800) 272-9959 Deutsch Tel: (
a
49) 0-180-530 85 85 Tsimshatsui, Kowloon
Fax: 1(800) 737-7018 English Tel: (
a
49) 0-180-532 78 32 Hong Kong
Fran3ais Tel: (
a
49) 0-180-532 93 58 Tel: (852) 2737-1600
Italiano Tel: (
a
49) 0-180-534 16 80 Fax: (852) 2736-9960
National does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and National reserves the right at any time without notice to change said circuitry and specifications.
Loading...
