INDEX

Multilayer Ceramic Capacitors/Axial & Radial Page

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Conformally Coated/Axial & Radial

Performance Characteristics

General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

“Aximax” Conformally Coated Axial

Outline Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Part Number Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-8

“Golden Max” Conformally Coated Radial

Outline Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Optional Lead Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Part Number Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-14

“High Voltage Golden Max” Conformally Coated Radial

Outline Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Part Number Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-19

Molded/Axial & Radial

Performance Characteristics

General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Ceramic Molded Standard/Axial & Radial

Outline Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Part Number Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-26

MIL-PRF-20

Outline Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Part Number Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29-32

MIL-C-11015 (CK) & MIL-PRF-39014 (CKR)

Outline Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Part Number Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35-38

Axial Tape & Reel Packaging Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Radial Tape & Reel Packaging Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Leaded Packaging Quantities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Application Notes for Multilayer Ceramic Capacitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42-46

NOTICE

Although the information in this catalog has been carefully checked for accuracy, and is believed to be correct and current, no warranty, either express or implied, is made as to either its applicability to, or its compatibility with, specific requirements; nor does KEMET Electronics Corporation assume any responsibility for correctness of this information, nor for damages consequent to its use. All design characteristics, specifications, tolerances, and the like are subject to change without notice.

Page 3

MULTILAYER CERAMIC CAPACITORS/AXIAL & RADIAL LEADED

Multilayer ceramic capacitors are available in a variety of physical sizes and configurations, including leaded devices and surface mounted chips. Leaded styles include molded and conformally coated parts with axial and radial leads. However, the basic capacitor element is similar for all styles. It is called a chip and consists of formulated dielectric materials which have been cast into thin layers, interspersed with metal electrodes alternately exposed on opposite

edges of the laminated structure.

The entire structure is fired at high temperature to produce a monolithic block

which provides high capacitance values in a small physical volume. After firing, conductive terminations are applied to opposite ends of the chip to make contact with the exposed electrodes. Termination materials and methods vary depending on the intended use.

TEMPERATURE CHARACTERISTICS

Ceramic dielectric materials can be formulated with a wide range of characteristics. The EIA standard for ceramic dielectric capacitors (RS-198) divides ceramic dielectrics into the following classes:

Class I: Temperature compensating capacitors, suitable for resonant circuit application or other applications where high Q and stability of capacitance characteristics are required. Class I capacitors have predictable temperature coefficients and are not effected by voltage, frequency or time. They are made from materials which are not ferro-electric, yielding superior stability but low volumetric efficiency. Class I capacitors are the most stable type available, but have the lowest volumetric efficiency.

Class II: Stable capacitors, suitable for bypass or coupling applications or frequency discriminating circuits where Q and stability of capacitance characteristics are not of major importance. Class II capacitors have temperature characteristics of ± 15% or less. They are made from materials which are ferro-electric, yielding higher volumetric efficiency but less stability. Class II capacitors are affected by temperature, voltage, frequency and time.

Class III: General purpose capacitors, suitable for by-pass coupling or other applications in which dielectric losses, high insulation resistance and stability of capacitance characteristics are of little or no importance. Class III capacitors are similar to Class II capacitors except for temperature characteristics, which are greater than ± 15%. Class III capacitors have the highest vol

umetric efficiency and poorest

stability of any type.

KEMET leaded ceramic capacitors are offered in the three most popular temperature characteristics:

C0G: Class I, with a temperature coefficient of 0 ±

30 ppm per degree C over an operating

temperature range of - 55°C to + 125°C (Also

known as “NP0”).

X7R: Class II, with a maximum capacitance

change of ± 15% over an operating temperature

range of - 55°C to + 125°C.

Z5U: Class III, with a maximum capacitance

change of + 22% - 56% over an operating tem-

perature range of + 10°C to + 85°C.

Specified electrical limits for these three temperature characteristics are shown in Table 1.

SPECIFIED ELECTRICAL LIMITS

TEMPERATURE CHARACTERISTICS

PARAMETER C0G X7R Z5U

Dissipation Factor: Measured at following conditions:

C0G — 1 kHz and 1 vrms if capacitance > 1000 pF

1 MHz and 1 vrms if capacitance ≤ 1000 pF 0.15% 2.5% 4.0%

X7R — 1 kHz and 1 vrms* or if extended cap range 0.5 vrms Z5U — 1 kHz and 0.5 vrms

Dielectric Strength: 2.5 times rated DC voltage. Pass Subsequent IR Test

Insulation Resistance (IR): At rated DC voltage, 1,000 MΩ-µF 1,000 MΩ-µF 1,000 MΩ-µF

whichever of the two is smaller or 100 GΩ or 100 GΩ or 10 GΩ

Temperature Characteristics: Range, °C -55 to +125 -55 to +125 +10 to +85

Capacitance Change without 0 ± 30 ppm/°C ±15% +22%, -56% DC voltage

* 1 MHz and 1 vrms if capacitance ≤ 100 pF on military product.

Table I

Multlayer Ceramic

Capacitors

Page 4

CERAMIC CONFORMALLY COATED/AXIAL & RADIAL

PERFORMANCE CHARACTERISTICS FOR STANDARD AND HIGH VOLTAGE

GENERAL SPECIFICATIONS

Working Voltage:

Axial (WVDC) Radial (WVDC)

C0G – 50 & 100 X7R – 50 & 100 Z5U – 50 & 100 50 & 100

Temperature Characteristics:

C0G – 0 ± 30 PPM / °C from - 55°C to + 125°C (1) X7R – ± 15% from - 55°C to + 125°C Z5U – + 22% / -56% from + 10°C to + 85°C

Capacitance Tolerance:

C0G – ±0.5pF, ±1%, ±2%, ±5%, ±10% X7R – ±10%, ±20%, +80% / -20%, +100% / -0% Z5U – ±20%, +80% / -20%

Construction: Epoxy encapsulated - meets flame test requirements of UL

Standard 94V-0.

High-temperature solder - meets EIA RS-198, Method 302, Condition B (260°C for 10 seconds)

Lead Material:

100% matte tin (Sn) with nickel (Ni) underplate and steel core.

Solderability:

EIA RS-198, Method 301, Solder Temperature: 230°C ±5°C.

Dwell time in solder = 7 ± ½ seconds.

Terminal Strength:

EIA RS-198, Method 303, Condition A (2.2kg)

50, 100, 200, 500, 1k, 1.5k, 2k, 2.5k, 3k

ENVIRONMENTAL

Vibration:

EIA RS-198, Method 304, Condition D (10-2000Hz; 20g)

Shock:

EIA RS-198, Method 305, Condition I (100g)

Life Test:

EIA RS-198, Method 201, Condition D.

££

200V

C0G – 200% of rated voltage @ +125°C X7R – 200% of rated voltage @ +125°C Z5U – 200% of rated voltage @ +85°C

³³

500V

C0G – rated voltage @ +125°C X7R – rated voltage @ +125°C

Post Test Limits @ 25°C are:

Capacitance Change:

C0G (£ 200V) – +3% or 0.25pF, whichever is greater. C0G (³ 500V) – +3% or 0.50pF, whichever is greater. X7R – + 20% of initial value (2) Z5U – + 30% of initial value (2)

Dissipation Factor:

C0G – 0.15% maximum X7R – 2.5% maximum Z5U – 4.0% maximum

Insulation Resistance:

C0G – 10k Megohm or 100 Megohm x µF, whichever is less.

³1kV tested @ 500V.

X7R – 10k Megohm or 100 Megohm x µF, whichever is less.

³1kV tested @ 500V.

Z5U – 1k Megohm or 100 Megohm x µF, whichever is less.

ELECTRICAL

Capacitance @ 25°C:

Within specified tolerance and following test conditions.

C0G – > 1000pF with 1.0 vrms @ 1 kHz

£ 1000pF with 1.0 vrms @ 1 MHz X7R – with 1.0 vrms @ 1 kHz Z5U – with 1.0 vrms @ 1 kHz

Dissipation Factor @ 25°C:

Same test conditions as capacitance.

C0G – 0.15% maximum X7R – 2.5% maximum Z5U – 4.0% maximum

Insulation Resistance @ 25°C:

EIA RS-198, Method 104, Condition A <1kV

C0G – 100k Megohm or 1000 Megohm x µF, whichever is less.

£500V test @ rated voltage, ³1kV test @ 500V

X7R – 100k Megohm or 1000 Megohm x µF, whichever is less.

£500V test @ rated voltage, ³1kV test @ 500V

Z5U – 10k Megohm or 1000 Megohm x µF, whichever is less.

Dielectric Withstanding Voltage:

EIA RS-198, Method 103

£200V test @ 250% of rated voltage for 5 seconds with current

limited to 50mA.

500V test @ 150% of rated voltage for 5 seconds with current

limited to 50mA.

³1000V test @ 120% of rated voltage for 5 seconds with current

limited to 50mA.

Moisture Resistance:

EIA RS-198, Method 204, Condition A (10 cycles without applied voltage.)

Post Test Limits @ 25°C are:

Capacitance Change:

C0G (£ 200V) – +3% or 0.25pF, whichever is greater. C0G (³ 500V) – +3% or 0.50pF, whichever is greater. X7R – + 20% of initial value (2) Z5U – + 30% of initial value (2)

Dissipation Factor:

C0G – 0.25% maximum X7R – 3.0% maximum Z5U – 4.0% maximum

Insulation Resistance:

C0G – 10k Megohm or 100 Megohm x µF, whichever is less.

£500V test @ rated voltage, ³1kV test @ 500V.

X7R – 10k Megohm or 100 Megohm x µF, whichever is less.

³500V test @ rated voltage, >1kV test @ 500V.

Z5U – 1k Megohm or 100 Megohm x µF, whichever is less.

Thermal Shock:

EIA RS-198, Method 202, Condition B (C0G & X7R: -55°C to +125°C); Condition A (Z5U: -55°C to 85°C)

(1) +53 PPM -30 PPM/ °C from +25°C to -55°C, + 60 PPM below

10pF.

(2) X7R and Z5U dielectrics exhibit aging characteristics; there-

fore, it is highly recommended that capacitors be deaged for 2 hours at 150°C and stabilized at room temperature for 48 hours before capacitance measurements are made.

Page 5

CAPACITOR OUTLINE DRAWING

MAXIMUM DIMENSIONS—INCHES & (MILLIMETERS)

ORDERING INFORMATION

MARKING INFORMATION

STYLE L D LL

MAX MAX MIN

C410 .170 (4.32) .100 (2.54) .020 (.51) 1.0 (25.4)

C412 .170 (4.32) .120 (3.05) .020 (.51) 1.0 (25.4)

C420 .260 (6.60) .100 (2.54) .020 (.51) 1.0 (25.4)

C430 .290 (7.37) .150 (3.81) .020 (.51) 1.0 (25.4)

C440 .400 (10.16) .150 (3.81) .020 (.51) 1.0 (25.4)

+.001, -.003

(+.025, -.076)

CERAMIC CONFORMALLY COATED/AXIAL

“AXIMAX”

Aximax

LL L

410

104

CERAMIC

CASE SIZE

(See Table of Dimensions above)

SPECIFICATION

C — Standard

CAPACITANCE

Expressed in Picofarad Code (pF) First Two Digits — Significant Figures Third Digit — Number of Zeros

CAP ACIT ANCE T OLERANCE

J— ±5% K— ±10%

M— ±20%

Z — –20 +80%

*Part Number Example: C410C104M5U5CA (14 digits – no spaces)

Manufacturer

(KEMET)

Rated Voltage

5 - 50 volts

1 - 100 volts

Dielectric G – C0G/NP0 R – X7R U – Z5U

F AILURE RATE

A — Not Applicable

TERM MATERIAL

T — 100% tin H — SnPb C — 100% Sn (

Not recommended for new design)

INTERNAL CONSTRUCTION

5 — Standard

DIELECTRIC

EIA Designation G — C0G (NPO) — Ultra-Stable R — X7R — Stable U — Z5U — General Purpose

RA TED VOLTA GE

1 — 100 Volts 5 — 50 Volts 2 — 200 Volts

K5R 104K AB 0537

Capacitance

Code

Lot

Code

Date

Code

Capacitance

Tolerance

Page 6

CERAMIC CONFORMALLY COATED/AXIAL

“AXIMAX”

ULTRA-STABLE TEMPERATURE CHARACTERISTIC – COG/NPO

RATINGS & PART NUMBER REFERENCE

For packaging information, see pages 39 and 41.

Style

Cap

Code

1.0pF 109 J,K,M

1.5 159 J,K,M

1.8 189 J,K,M

2.2 229 J,K,M

2.7 279 J,K,M

3.3 339 J,K,M

3.9 399 J,K,M

4.7 479 J,K,M

5.6 569 J,K,M

6.8 689 J,K,M

8.2 829 J,K,M

10 100 J,K,M

12 120 J,K,M

15 150 J,K,M

18 180 J,K,M

22 220 J,K,M

27 270 J,K,M

33 330 J,K,M

39 390 J,K,M

47 470 J,K,M

56 560 J,K,M

68 680 J,K,M

82 820 J,K,M

100 101 J,K,M

120 121 J,K,M

150 151 J,K,M

180 181 J,K,M

220 221 J,K,M

270 271 J,K,M

330 331 J,K,M

390 391 J,K,M

470 471 J,K,M

560 561 J,K,M

680 681 J,K,M

820 821 J,K,M

1000 102 J,K,M

1200 122 J,K,M

1500 152 J,K,M

1800 182 J,K,M

2200 222 J,K,M

2700 272 J,K,M

3300 332 J,K,M

3900 392 J,K,M

4700 472 J,K,M

5600 562 J,K,M

6800 682 J,K,M

8200 822 J,K,M

.010uF 103 J,K,M

.012 123 J,K,M

.015 153 J,K,M

Cap

Tol

C440C412C410 C430C420

WVDCWVDC WVDC WVDC WVDC

50 100 200 50 100 200 50 100 200 50 100 200 50 100 200

Page 7

STABLE TEMPERATURE CHARACTERISTIC – X7R

CERAMIC CONFORMALLY COATED/AXIAL

“AXIMAX”

Aximax

For packaging information, see pages 39 and 41.

RATINGS & PART NUMBER REFERENCE

Style

Cap

Code

Cap

Tol

Cap

10pF 100 K,M

12 120 K,M

15 150 K,M

18 180 K,M

22 220 K,M

27 270 K,M

33 330 K,M

39 390 K,M

47 470 K,M

56 560 K,M

68 680 K,M

82 820 K,M

100 101 K,M

120 121 K,M

150 151 K,M

180 181 K,M

220 221 K,M

270 271 K,M

330 331 K,M

390 391 K,M

470 471 K,M

560 561 K,M

680 681 K,M

820 821 K,M

1000 102 K,M

1200 122 K,M

1500 152 K,M

1800 182 K,M

2200 222 K,M

2700 272 K,M

3300 332 K,M

3900 392 K,M

4700 472 K,M

5600 562 K,M

6800 682 K,M

8200 822 K,M

.010uF 103 K,M

.012 123 K,M

.015 153 K,M

.018 183 K,M

.022 223 K,M

.027 273 K,M

.033 333 K,M

.039 393 K,M

.047 473 K,M

.056 563 K,M

.068 683 K,M

.082 823 K,M

.10 104 K,M

.12 124 K,M

.15 154 K,M

.18 184 K,M

.22 224 K,M

.27 274 K,M

.33 334 K,M

.39 394 K,M

.47 474 K,M

.56 564 K,M

.68 684 K,M

C410 C412 C420 C430

WVDC WVDC WVDC WVDC WVDC

50 100 200 50 100 200 50 100 200 50 100 200 50 100 200

C440

Page 8

CERAMIC CONFORMALLY COATED/AXIAL

“AXIMAX”

RATINGS & PART NUMBER REFERENCE

GENERAL PURPOSE TEMPERATURE CHARACTERISTIC – Z5U

For packaging information, see pages 39 and 41.

Style

Cap

Code

1000pF 102 M,Z

1200 122 M,Z

1500 152 M,Z

1800 182 M,Z

2200 222 M,Z

2700 272 M,Z

3300 332 M,Z

3900 392 M,Z

4700 472 M,Z

5600 562 M,Z

6800 682 M,Z

8200 822 M,Z

.010uF 103 M,Z

.012 123 M,Z

.015 153 M,Z

.018 183 M,Z

.022 223 M,Z

.027 273 M,Z

.033 333 M,Z

.039 393 M,Z

.047 473 M,Z

.056 563 M,Z

.068 683 M,Z

.082 823 M,Z

.10 104 M,Z

.12 124 M,Z

.15 154 M,Z

.18 184 M,Z

.22 224 M,Z

.27 274 M,Z

.33 334 M,Z

.39 394 M,Z

.47 474 M,Z

.56 564 M,Z

.68 684 M,Z

.82 824 M,Z

1.0 105 M,Z

1.2 125 M,Z

1.5 155 M,Z

1.8 185 M,Z

2.2 225 M.Z

Cap

Tol

C410 C412 C420 C430

WVDC WVDC WVDC WVDC WVDC

50 100 200 50 100 200 50 100 200 50 100 200 50 100 200

C440

Page 9

CERAMIC CONFORMALLY COATED/RADIAL

“STANDARD & HIGH VOLTAGE GOLDEN MAX”

Golden Max

STANDARD LEAD CONFIGURATION — OUTLINE DRAWINGS

*.276 (7.00) MIN.

C317 C322 C330

Drawings are not to scale. See table below for dimensions. See page 10 for optional lead configurations.

C323

C333

.060

(1.52)

MAX.

C315 C320 C330 C340 C350

DIMENSIONS — INCHES & MILLIMETERS

CASE L H T S(1) D

Case

SIZE MAX. MAX. MAX. ±.030 (.78)

Size

C315 .150 (3.81) .210 (5.33) .130 (3.30) .100 (2.54) .020 (.51)

C315 0.150 (3.81) 0.210 (5.33) 0.100 0.150 0.100 (2.54) 0.020 (.51)

C317 .150 (3.81) .230 (5.84) .130 (3.30) .200 (5.08) .020 (.51)

C317 0.150 (3.81) 0.230 (5.84) 0.100 0.150 0.200 (5.08) 0.020 (.51)

C320 .200 (5.08) .260 (6.60) .150 (3.81) .100 (2.54) .020 (.51)

C320 0.200 (5.08) 0.260 (6.60) 0.125 0.200 0.100 (2.54) 0.020 (.51)

C322 .200 (5.08) .260 (6.60) .150 (3.81) .200 (5.08) .020 (.51)

C322 0.200 (5.08) 0.260 (6.60) 0.125 0.200 0.200 (5.08) 0.020 (.51)

C323 .200 (5.08) .320 (8.13) .150 (3.81) .200 (5.08) .020 (.51)

C323 0.200 (5.08) 0.320 (8.13) 0.125 0.200 0.200 (5.08) 0.020 (.51) C330 0.300 (7.62) 0.360 (9.14) 0.150 0.250 0.200 (5.08) 0.020 (.51)

C330 .300 (7.62) .360 (9.14) .200 (5.08) .200 (5.08) .020 (.51)

C333 0.300 (7.62) 0.390 (9.91) 0.150 0.250 0.200 (5.08) 0.020 (.51)

C333 .300 (7.62) .390 (9.91) .200 (5.08) .200 (5.08) .020 (.51)

C340 0.400 (10.16) 0.460 (11.68) 0.150 0.270 0.200 (5.08) 0.020 (.51)

C340 .400 (10.16) .460 (11.68) .200 (5.08) .200 (5.08) .020 (.51)

C350 0.500 (12.70) 0.560 (14.22) 0.200 0.270 0.400 (10.16) 0.025 (.64)

C350 .500 (12.70) .560 (14.22) .250 (6.35) .400 (10.16) .025 (.64)

NOTE: 1 inch = 25.4 mm. NOTE: (1) Measured at seating plane.

Max.

Max

Standard

Max.

High

Voltage

T Max.

S(1)

±.030 (.78)

+.004(.10)

+.004 (.10)- .001 (.025)

-.001(.025)

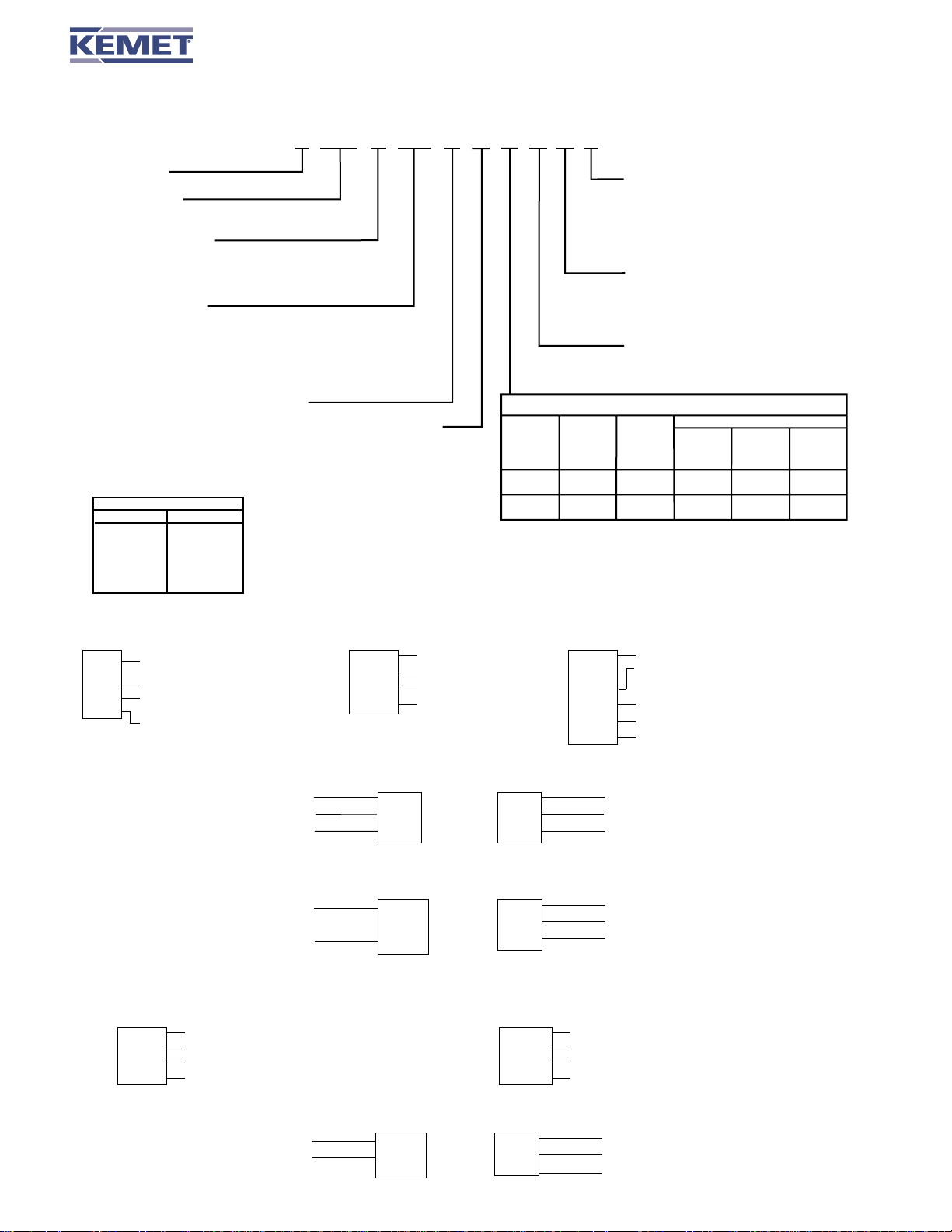

ORDERING INFORMATION

320

102

CERAMIC

CASE SIZE

(See Table Above)

SPECIFICATION

C — Standard

CAPACITANCE, CODE

Expressed in Picofarads (pF) First Two Digits — Significant Figures Third Digit — Number of Zeros (Use 9 for 1.0 thru 9.9 pF. Example: 2.2pF — 229)

CAP ACIT ANCE T OLERANCE

D — ±0.5 pF F — ±1% G — ±2% J — ±5%

K — ±10% M — ±20%

P — 0%, +100% Z — -20, +80%

*Part Number Example: C320C102M1R5CA (14 digits – no spaces)

For packaging information, see pages 40, and 41.

FAILURE RATE

A — Not Applicable

TERMINATION MATERIAL

T — 100% Tin H — SnPb

100% Sn

C — (

Not recommended for new design)

INTERNAL CONSTRUCTION

5 — Standard

DIELECTRIC

EIA Designation G — C0G (NP0) — Ultra-Stable R — X7R — Stable

U — Z5U — General Purpose

RA TED VOLTA GE

1000

F — 1500 G — 2000 Z — 2500 H — 3000

2 — 200 1 — 100 5 —

C — 500 D —

Page 10

CERAMIC CONFORMALLY COATED/RADIAL

“STANDARD & HIGH VOLTAGE GOLDEN MAX”

Note: Non-standard lead lengths are available in bulk only.

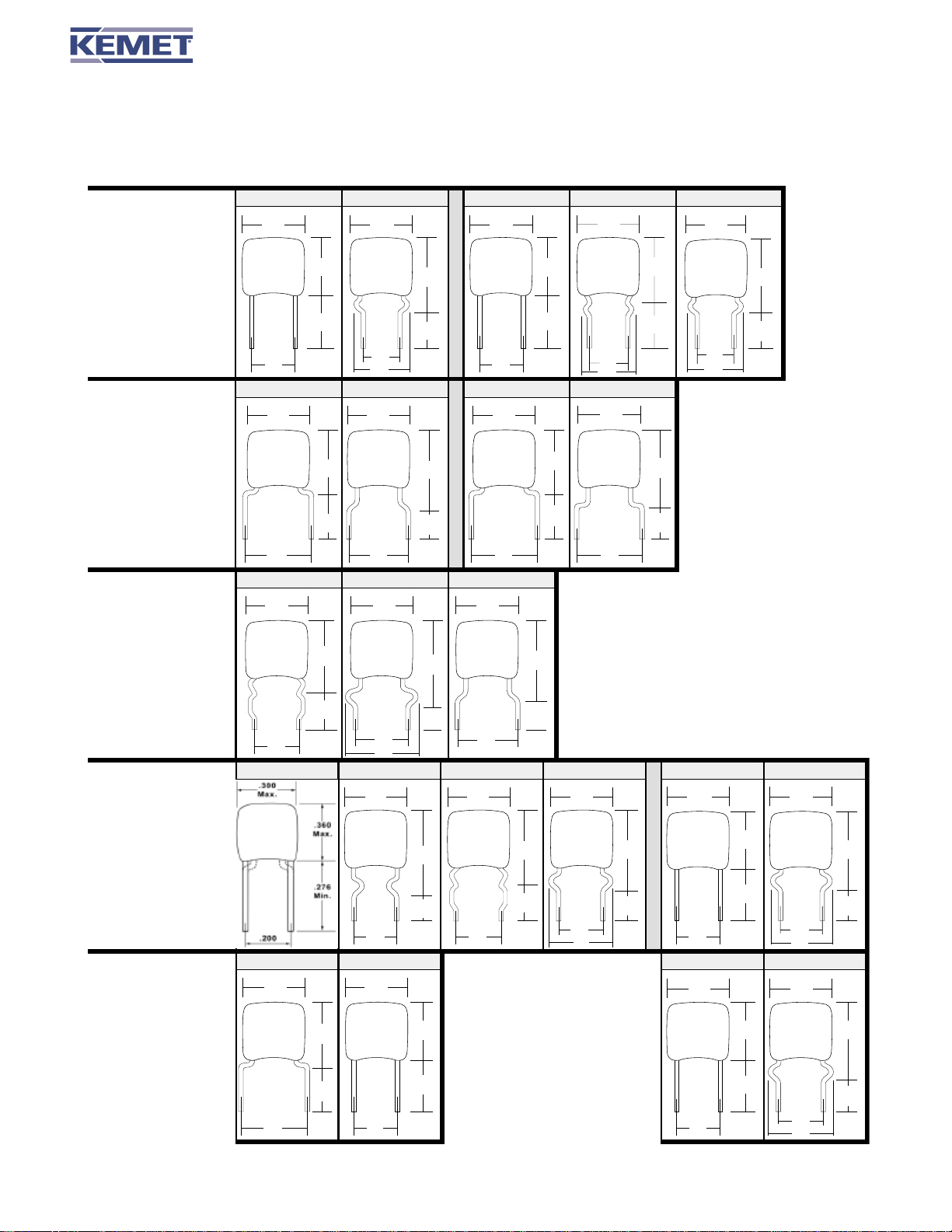

OPTIONAL CONFIGURATIONS BY LEAD SPACING

The preferred lead wire configurations are shown on page 9. However, additional configurations are available. All available options, including those on page 9, are shown below grouped by lead spacing.

Lead Spacing

.100" ± .030

Lead Spacing

.200" ± .030

Lead Spacing

.200" ± .030

C 3 1 5

.150

MAX.

.100

C 3 1 7

.150

MAX.

.200

C 3 2 5

.200

MAX.

.210

MAX.

.276 MIN.

.230

MAX.

.276 MIN.

.320

MAX.

C 3 1 6

.150

MAX.

.100

.200

C 3 1 8

.150

MAX.

.200

C 3 2 7

.200

MAX.

.230

MAX.

.230

±.030

.235

MAX.

.276 MIN.

.350

MAX.

C 3 2 0

.200

MAX.

.260

MAX.

.276 MIN.

.100

C 3 2 2 C 3 2 3

.200

MAX.

.260

MAX.

.276

MIN.

.200

C 3 2 8

.200

MAX.

.325

MAX.

C 3 2 4 C 3 2 6

.200

MAX.

.100 .125

.200

MAX.

.200

.260

MAX.

.276 MIN.

.320

MAX.

.276 MIN.

.200

MAX.

.100 .200

.350

MAX.

.230

± .030

Lead Spacing

.200" ± .030

Note: C330 Shoulder bend leads: X7R/50V 683-105 Z5U/100V 683-334

Lead Spacing

.250" ± .030

(Available in

bulk only)

.200

C 3 3 0

.300

MAX.

.200

C 3 2 1

.200

MAX.

.250

.276 MIN.

.360

MAX.

.276

MIN.

.260

MAX.

.276 MIN.

.200

.270

C 3 3 3

.300

MAX.

.200

C 3 3 1

.300

MAX.

.250

.390

MAX.

.276 MIN.

.360

MAX.

.276 MIN.

.230

±.030

.276 MIN.

.200

C 3 3 5

.300

MAX.

.420

MAX.

.276

MIN.

.200

Lead Spacing

.400" ± .030

(Available in

C 3 3 6

.300

MAX.

.450

MAX.

.230

±.030

.200 .300

bulk only)

C 3 4 0

.400

MAX.

.200

C 3 5 0

.500

MAX.

.400

.460

MAX.

.276 MIN.

.560

MAX.

.276 MIN.

C 3 4 6

.400

MAX.

.200 .320

C 3 5 6

.500

MAX.

.400 .520

.590

MAX.

.230

±.030

.670

MAX.

.230

±.030

Page 11

CERAMIC CONFORMALLY COATED/RADIAL

“STANDARD & HIGH VOLTAGE GOLDEN MAX”

Golden Max

CAPACITOR MARKINGS

RATINGS & PART NUMBER REFERENCE: ULTRA-STABLE TEMPERATURE CHARACTERISTICS – C0G/NPO

For packaging information, see pages 40 and 41.

Manufacturer

(KEMET)

Manufacturer

(KEMET)

Rated Voltage 5 - 50 volts 1 - 100 volts 2 - 200 volts

Capacitance Tolerance

Front

K1K

Capacitance Code

C31X & C32X Size

Back

102

Manufacturer

(KEMET)

Capacitance Code

K5U

104M

C33X Size

Rated Voltage 5 - 50 volts 1 - 100 volts 2 - 200 volts

Dielectric G - C0G R - X7R U - Z5U

Capacitance Tolerance

Manufacturer

(KEMET)

Rated Voltage

KX7R

105K 100V 0

C340 & C350 Size

212

Style

Cap

1.0pF 109 D

1.1 119 D

1.2 129 D

1.3 139 D

1.5 159 D

1.6 169 D

1.8 189 D

2.0 209 D

2.2 229 D

2.4 249 D

2.7 279 D

3.0 309 D

3.3 339 D

3.6 369 D

3.9 399 D

4.3 439 D

4.7 479 D

5.1 519 D

5.6 569 D

6.2 629 D

6.8 689 D

7.5 759 D

8.2 829 D

9.1 919 D 10 100 J,K 11 110 J,K 12 120 J,K 13 130 J,K 15 150 J,K 16 160 J,K 18 180 J,K 20 200 J,K 22 220 J,K 24 240 G,J,K 27 270 G,J,K 30 300 G,J,K 33 330 G,J,K 36 360 G,J,K 39 390 G,J,K 43 430 G,J,K 47 470 G,J,K 51 510 G,J,K 56 560 F,G,J 62 620 F,G,J 68 680 F,G,J 75 750 F,G,J 82 820 F,G,J 91 910 F,G,J

Cap

Code

C33X

Tol

50 100 200 500 1k 50 100 200 500 1k 1.5k 2k 50 100 200 500 1k 1.5k 2k 2.5k 3k 50 100 200 500 1k 2k 3k 50 100 200 500 1k 2k 3k

C34X

Dielectric C0G X7R Z5U

Capacitance & Tolerance

Date Code

C35XC31X C32X

WVDCWVDC WVDC WVDC WVDC

Page 12

For packaging information, see pages 40 and 41.

CERAMIC CONFORMALLY COATED/RADIAL

“STANDARD & HIGH VOLTAGE GOLDEN MAX”

RATINGS & PART NUMBER REFERENCE: ULTRA-STABLE TEMPERATURE CHARACTERISTICS — C0G/NPO CONT.

Style

Cap

Code

Cap

Tol

Cap

100 101 F,G,J 110 111 F,G,J 120 121 F,G,J 130 131 F,G,J 150 151 F,G,J 160 161 F,G,J 180 181 F,G,J 200 201 F,G,J 220 221 F,G,J 240 241 F,G,J 270 271 F,G,J 300 301 F,G,J 330 331 F,G,J 360 361 F,G,J 390 391 F,G,J 430 431 F,G,J 470 471 F,G,J 510 511 F,G,J 560 561 F,G,J 620 621 F,G,J 680 681 F,G,J 750 751 F,G,J 820 821 F,G,J

910 911 F,G,J 1000 102 F,G,J 1100 112 F,G,J 1200 122 F,G,J 1300 132 F,G,J 1500 152 F,G,J 1600 162 F,G,J 1800 182 F,G,J 2000 202 F,G,J 2200 222 F,G,J 2400 242 F,G,J 2700 272 F,G,J 3000 302 F,G,J 3300 332 F,G,J 3600 362 F,G,J 3900 392 F,G,J 4300 432 F,G,J 4700 472 F,G,J 5100 512 F,G,J 5600 562 F,G,J 6200 622 F,G,J 6800 682 F,G,J 7500 752 F,G,J 8200 822 F,G,J 9100 912 F,G,J

.010uF 103 F,G,J

.015 123 F,G,J .015 153 F,G,J .018 183 F,G,J .022 223 F,G,J .027 273 F,G,J .033 333 F,G,J .039 393 F,G,J .047 473 F,G,J .056 563 F,G,J .068 683 F,G,J .082 823 F,G,J

.10 104 F,G,J .12 124 F,G,J

C31X C32X C34X C35X

WVDC WVDC WVDC WVDC WVDC

50 100 200 500 1k 50 100 200 500 1k 1.5k 2k 50 100 200 500 1k 1.5k 2k 2.5k 3k 50 100 200 500 1k 2k 3k 50 100 200 500 1k 2k 3k

C33X

Page 13

For packaging information, see pages 40 and 41.

CERAMIC CONFORMALLY COATED/RADIAL

“STANDARD & HIGH VOLTAGE GOLDEN MAX”

RATINGS & PART NUMBER REFERENCE: STABLE TEMPERATURE CHARACTERISTICS — X7R

Golden Max

Style

Cap

Code

Cap

50 100 200 500 1k 50 100 200 500 1k 1.5k 2k 50 100 200 500 1k 1.5k 2k 2.5k 3k 50 100 200 500 1k 2k 3k 50 100 200 500 1k 2k 3k

Tol

Cap

10pF 100 K,M,P,Z

12 120 K,M,P,Z 15 150 K,M,P,Z 18 180 K,M,P,Z 22 220 K,M,P,Z 27 270 K,M,P,Z 33 330 K,M,P,Z 39 390 K,M,P,Z 47 470 K,M,P,Z 56 560 K,M,P,Z 68 680 K,M,P,Z

82 820 K,M,P,Z 100 101 K,M,P,Z 120 121 K,M,P,Z 150 151 K,M,P,Z 180 181 K,M,P,Z 220 221 K,M,P,Z 270 271 K,M,P,Z 330 331 K,M,P,Z 390 391 K,M,P,Z 470 471 K,M,P,Z 560 561 K,M,P,Z 680 681 K,M,P,Z 820 821 K,M,P,Z

1000 102 K,M,P,Z 1200 122 K,M,P,Z 1500 152 K,M,P,Z 1800 182 K,M,P,Z 2200 222 K,M,P,Z 2700 272 K,M,P,Z 3300 332 K,M,P,Z 3900 392 K,M,P,Z 4700 472 K,M,P,Z 5600 562 K,M,P,Z 6800 682 K,M,P,Z 8200 822 K,M,P,Z

.010uF 103 K,M,P,Z

.012 123 K,M,P,Z .015 153 K,M,P,Z .018 183 K,M,P,Z .022 223 K,M,P,Z .027 273 K,M,P,Z .033 333 K,M,P,Z .039 393 K,M,P,Z .047 473 K,M,P,Z .056 563 K,M,P,Z .068 683 K,M,P,Z .082 823 K,M,P,Z

.10 104 K,M,P,Z

.12 124 K,M,P,Z

.15 154 K,M,P,Z

.18 184 K,M,P,Z

.22 224 K,M,P,Z

.27 274 K,M,P,Z

.33 334 K,M,P,Z

.39 394 K,M,P,Z

.47 474 K,M,P,Z

.56 564 K,M,P,Z

.68 684 K,M,P,Z

.82 824 K,M,P,Z

1.0 105 K,M,P,Z

1.2 125 K,M,P,Z

1.5 155 K,M,P,Z

1.8 185 K,M,P,Z

2.2 225 K,M,P,Z

2.7 275 K,M,P,Z

3.3 335 K,M,P,Z

3.9 395 K,M,P,Z

4.7 475 K,M,P,Z

5.6 565 K,M,P,Z

6.8 685 K,M,P,Z

C330 shoulder bend lead configuration is standard for these cap codes.

# X7R Dielectric--extended range value--Cap and DF measured @0.5Vrms.

C33X

C34X

C35XC31X C32X

WVDCWVDC WVDC WVDC WVDC

Page 14

CERAMIC CONFORMALLY COATED/RADIAL

“STANDARD & HIGH VOLTAGE GOLDEN MAX”

RATINGS & PART NUMBER REFERENCE

GENERAL PURPOSE TEMPERATURE CHARACTERISTIC – Z5U

For packaging information, see pages 40 and 41.

Cap

1000pF

1200 1500 1800 2200 2700 3300 3900 4700 5600 6800 8200

.010uF

.012 .015 .018 .022 .027 .033 .039 .047 .056 .068 .082

.10 .12 .15 .18 .22 .27 .33 .39 .47 .56 .68 .82

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

Style

Cap

Code

102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 823 104 124 154 184 224 274 334 394 474 564 684 824 105 125 155 185 225 275 335 395 475 565 685

Cap

Tol

M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z M,P,Z

C330 shoulder bend lead configuration is standard for these cap codes.

C31X C32X

C33X

C34X

C35X

WWDCWWDC WWDC WWDC WWDC

50 100 200 50 100 200 50 100 200 50 100 200 50 100 200

Page 15

CERAMIC CONFORMALLY COATED/RADIAL

High Voltage Golden Max

HIGH VOLTAGE “GOLDEN MAX”

CAPACITOR OUTLINE DRAWING

C617 C622 C627 C630 C637 C640 C642 C647 C657 C667

C623

C628 C631 C638 C641 C643

C648 C658 C668

* .276 (7.00) Min.

* *

DIMENSIONS - INCHES AND MILLIMETERS

Case

Size

C617 .250 (6.35) .220 (5.59) .200 (5.08) .170 (4.32) .025 (.64) C622/3 .320 (8.13) .280(7.11) .250 (6.35) .220 (5.59) .025 (.64) C627/8 .370 (9.40) .300 (7.62) .250 (6.35) .275 (6.98) .025 (.64) C630/1 .450 (11.40) .220 (5.59) .200 (5.08) .300 (7.62) .025 (.64) C637/8 .470 (11.90) .400 (10.20) .270 (6.89) .375 (9.52) .025 (.64) C640/1 .550 (14.00) .280 (7.11) .250 (6.35) .400 (10.16) .025 (.64) C642/3 .500 (12.70) .560(14.22) .200 (5.08) .400 (10.16) .025 (.64) C647/8 .570 (14.50) .500(12.70) .270 (6.89) .475 (12.06) .025 (.64) C657/8 .670 (17.02 .600 (15.24) .270 (6.89) .575 (14.60) C667/8

L MAX

inches (mm)

.770 (19.56) .720 (18.29) .270 (6.89) .675 (17.14)

H MAX

inches (mm)

T MAX.

inches (mm)

Lead Spacing

inches (mm)

LD (Nominal)

inches (mm)

.025 (.64) .025 (.64)

C 622 C 102 M D R 5 T A

CERAMIC

CASE SIZE

See Table Above

SPECIFICATION

C – Standard

CAPACITANCE PICOFARAD CODE

Expressed in picofarads (pF). First two digits represent significant figures. Third digit specifies number of zeros. Use 9 for

1.0 thru 9.9 pF. Example 2.2pF = 229

CAPACITANCE TOLERANCE

CC00GG::

J – ±5%, K – ±10%; M – ±20%

XX77RR::

K – ±10%; M – ±20%; P – 0, +100%;

Z – -20,+80%

KEMET

Series

Front View

KK66DD 110022KK

Voltage

Back View

ORDERING INFORMATION

MARKING INFORMATION

Series

Capacitance, Tolerance

KEMET

KK66DDRR

110033KK

INTERNAL CONSTRUCTION

Voltage

Dielectric

Capacitance, Tolerance

FAILURE RATE

A – Not Applicable

TERMINATION MATERIAL

T – Standard

5 – Standard

DIELECTRIC

EIA Designation G – C0G (NP0) - Ultra Stable R – X7R - Stable

RATED VOLTAGE

C – 500 G – 2000 D – 1000 Z – 2500 F – 1500 H – 3000

Voltage

Capacitance, Tolerance

Rated Voltage

KEMET

Date Code

Series

KK66GG

110022KK

11000000VV

00551144

CC661177 && CC6622XX CC6633XX

CC6644XX,, CC6655XX,, CC6666XX

For packaging information, see pages 40, and 41.

Page 16

CERAMIC CONFORMALLY COATED/RADIAL

HIGH VOLTAGE “GOLDEN MAX”

RATINGS & PART NUMBER REFERENCE - COG/NPO

For packaging information, see pages 40 and 41.

Goldmax HV C6XX Series Special Lead Spacing per M49467 - C0G

Style

Cap

1.0pF 109 J,K,M

1.5 159 J,K,M

2.2 229 J,K,M

2.7 279 J,K,M

3.3 339 J,K,M

3.9 J,K,M

4.7 479 J,K,M

5.6 569 J,K,M

6.8 J,K,M

8.2 J,K,M 10 100 J,K,M 12 120 J,K,M 15 150 J,K,M 18 180 J,K,M 22 220 J,K,M 27 270 J,K,M 33 330 J,K,M 39 390 J,K,M 47 470 J,K,M 56 560 J,K,M 68 680 J,K,M 82 820 J,K,M

100 101 J,K,M 120 121 J,K,M 150 151 J,K,M 180 181 J,K,M 220 221 J,K,M 270 271 J,K,M 330 331 J,K,M 390 391 J,K,M 470 471 J,K,M 560 561 J,K,M 680

820 821 J,K,M 1000 102 J,K,M 1200 122 J,K,M 1500 152 J,K,M 1800 182 J,K,M 2200 222 J,K,M 2700 272 J,K,M 3300 332 J,K,M 3900 392 J,K,M 4700 472 J,K,M 5600 562 J,K,M 6800 682 J,K,M 8200 822 J,K,M

.010uF 103 J,K,M

.012 123 J,K,M

.015 153 J,K,M

.018 183 J,K,M

.022 223 J,K,M

.027 273 J,K,M

.033 333 J,K,M

.039 393 J,K,M

.047 473 J,K,M

.056 563 J,K,M

.068 683 J,K,M

.082 823 J,K,M

.10 104 J,K,M

Cap

Code

Cap

Tol

399

689 829

681 J,K,M

C617

500 1k 1.5k 2k 3k 500 1k 1.5k 2k 3k 500 1k 1.5k 2k 3k 500 1k 1.5k 2k 2.5k 3k 500 1k 1.5k 2k 2.5k 3k

C62X C62X

C63XC63X

(X=7, 8)(X=2, 3)

WVDCWVDC WVDC

(X=0,1) (X=7, 8)

WVDCWVDC

Page 17

CERAMIC CONFORMALLY COATED/RADIAL

HIGH VOLTAGE “GOLDEN MAX”

High Voltage Golden Max

RATINGS & PART NUMBER REFERENCE - COG/NPO

For packaging information, see pages 40 and 41.

Goldmax HV C6XX Series Special Lead Spacing per M49467 -

Style

Cap

Code

1.0pF 109 J,K,M

1.5 159 J,K,M

2.2 229 J,K,M

2.7 279 J,K,M

3.3 339 J,K,M

3.9 J,K,M

4.7 479 J,K,M

5.6 569 J,K,M

6.8 J,K,M

8.2 J,K,M 10 100 J,K,M 12 120 J,K,M 15 150 J,K,M 18 180 J,K,M 22 220 J,K,M 27 270 J,K,M 33 330 J,K,M 39 390 J,K,M 47 470 J,K,M 56 560 J,K,M 68 680 J,K,M 82 820 J,K,M

100 101 J,K,M 120 121 J,K,M 150 151 J,K,M 180 181 J,K,M 220 221 J,K,M 270 271 J,K,M 330 331 J,K,M 390 391 J,K,M 470 471 J,K,M 560 561 J,K,M 680

820 821 J,K,M 1000 102 J,K,M 1200 122 J,K,M 1500 152 J,K,M 1800 182 J,K,M 2200 222 J,K,M 2700 272 J,K,M 3300 332 J,K,M 3900 392 J,K,M 4700 472 J,K,M 5600 562 J,K,M 6800 682 J,K,M 8200 822 J,K,M

.010uF 103 J,K,M

.012 123 J,K,M .015 153 J,K,M .018 183 J,K,M .022 223 J,K,M .027 273 J,K,M .033 333 J,K,M .039 393 J,K,M .047 473 J,K,M .056 563 J,K,M .068 683 J,K,M .082 823 J,K,M

.10 104 J,K,M

Tol

399

689 829

681 J,K,M

C64X

(X=0,1)

WVDC

500 1k 2k 3k 500 1k 2k 3k 500 1k 2k 3k 500 1k 2k 3k 500 1k 2k 3k

C64X C65XC64X

(X=2, 3) (X=7, 8) (X=7, 8)

C0G cont.

C66X

(X=7, 8)

WVDCWVDCWVDCWVDC

Page 18

RATINGS & PART NUMBER REFERENCE - X7R

For packaging information, see pages 40 and 41.

CERAMIC CONFORMALLY COATED/RADIAL

HIGH VOLTAGE “GOLDEN MAX”

Goldmax HV C6XX Series Special Lead Spacing per M49467 -

Style

Cap

Code

10pF 100 K,M,P,Z

12 120 K,M,P,Z 15 150 K,M,P,Z 18 180 K,M,P,Z 22 220 K,M,P,Z

33 330 K,M,P,Z 39 390 K,M,P,Z 47 470 K,M,P,Z 56 560 K,M,P,Z 68 680 K,M,P,Z

.010uF 103 K,M,P,Z

.012 123 K,M,P,Z .015 153 K,M,P,Z .018 183 K,M,P,Z .022 223 K,M,P,Z .027 273 K,M,P,Z .033 333 K,M,P,Z .039 393 K,M,P,Z .047 473 K,M,P,Z .056 563 K,M,P,Z .068 683 K,M,P,Z .082 823 K,M,P,Z

.10 104 K,M,P,Z .12 124 K,M,P,Z .15 154 K,M,P,Z .18 184 K,M,P,Z .22 224 K,M,P,Z .27 274 K,M,P,Z .33 334 K,M,P,Z .39 394 K,M,P,Z .47 474 K,M,P,Z .56 564 K,M,P,Z .68 684 K,M,P,Z .82 824 K,M,P,Z

1.0 105 K,M,P,Z

1.2 125 K,M,P,Z

1.5 155 K,M,P,Z

1.8 185 K,M,P,Z

2.2 225 K,M,P,Z

2.7 275 K,M,P,Z

270

Tol

K,M,P,Z

C617

WVDC

500 1k 1.5k 2k 500 1k 1.5k 2k 3k 500 1k 1.5k 2k 3k 500 1k 1.5k 2k 2.5k 3k 500 1k 1.5k 2k 2.5k 3k

C62X C63X C62X

(X=2, 3)

X7R

(X=7, 8) (X=0,1)

WVDCWVDCWVDC

C63X

(X=7, 8)

WVDC

Page 19

CERAMIC CONFORMALLY COATED/RADIAL

HIGH VOLTAGE “GOLDEN MAX”

RATINGS & PART NUMBER REFERENCE - X7R

For packaging information, see pages 40 and 41.

High Voltage Golden Max

Goldmax HV C6XX Series Special Lead Spacing per M49467 - X7R cont.

Style

Cap

Code

10pF 100 K,M,P,Z

12 120 K,M,P,Z 15 150 K,M,P,Z 18 180 K,M,P,Z 22 220 K,M,P,Z 17 270 K,M,P,Z 33 330 K,M,P,Z 39 390 K,M,P,Z 47 470 K,M,P,Z 56 560 K,M,P,Z 68 680 K,M,P,Z

.010uF 103 K,M,P,Z

.012 123 K,M,P,Z .015 153 K,M,P,Z .018 183 K,M,P,Z .022 223 K,M,P,Z .027 273 K,M,P,Z .033 333 K,M,P,Z .039 393 K,M,P,Z .047 473 K,M,P,Z .056 563 K,M,P,Z .068 683 K,M,P,Z .082 823 K,M,P,Z

.10 104 K,M,P,Z .12 124 K,M,P,Z .15 154 K,M,P,Z .18 184 K,M,P,Z .22 224 K,M,P,Z .27 274 K,M,P,Z .33 334 K,M,P,Z .39 394 K,M,P,Z .47 474 K,M,P,Z .56 564 K,M,P,Z .68 684 K,M,P,Z .82 824 K,M,P,Z

1.0 105 K,M,P,Z

1.2 125 K,M,P,Z

1.5 155 K,M,P,Z

1.8 185 K,M,P,Z

2.2 225 K,M,P,Z

2.7 275 K,M,P,Z

Tol

WVDC WVDC

500 1k 2k 3k 500 1k 2k 3k 500 1k 2k 3k 500 1k 2k 3k 500 1k 2k 3k

C64X C64X C64X

(X=7, 8)

C65X

(X=7, 8) (X=7, 8)(X=0,1) (X=2, 3)

C66X

WVDCWVDCWVDC

Page 20

CERAMIC MOLDED AXIAL & RADIAL

PERFORMANCE CHARACTERISTICS

GENERAL

Working Voltage:

C0G – 50, 100 & 200 Volts X7R – 50, 100 & 200 Volts

Temperature Characteristics:

C0G – 0 ±30 PPM/°C from -55°C to +125°C X7R – ±15% from -55°C to +125°C

Capacitance Tolerance:

C0G – ±0.5 pF, ±1%, ±2%, ±5%, ±10%, ±20%

(±0.5 pF is tightest available tolerance)

X7R – ±10%, ±20%, -0 +100%, -20% +80%

Construction:

Monolithic block of ceramic dielectric with interdigitated internal electrodes, encapsulated in a molded case, and having axial or radial leads. Meets flame test requirements of UL Standard 94V-0.

Terminal Strength:

EIA-198 Method 303 Condition A (2.2 kg)

ELECTRICAL

Capacitance:

Within specified tolerance when measured with 1 volt rms at 1 kHz (1000 pF or less at 1 MHz for C0G).

Dissipation Factor:

25°C at 1 kHz (1000 pF or less at 1 MHz for C0G). C0G – .15% maximum X7R – 2.5% maximum

Insulation Resistance:

After 2 minutes electrification at 25°C and rated voltage C0G – 100K megohms or 1000 megohm - μF, whichever

is less.

X7R – 100K megohms or 1000 megohm - μF, whichever

is less.

Dielectric Withstanding Voltage:

250% of rated voltage for 5 seconds with current limited to 50 mA at 25°C.

Life Test:

2000 hours at 200% of rated voltage at 125°C. Post-Test limits at 25°C are:

Capacitance Change:

C0G – less than 3% or 0.25 pF, whichever is higher X7R – ±20% of initial value

Dissipation Factor:

C0G – .25% maximum X7R – 3.0% maximum

Insulation Resistance:

C0G – 10K megohms or 100 megohm - μF, whichever

is less

X7R – 10K megohms or 100 megohm - μF, whichever

is less

Dielectric Withstanding Voltage:

250% of rated voltage for 5 seconds with current limited to 50 mA.

ENVIRONMENTAL

Moisture Resistance:

MIL-STD-202, Method 106, or EIA-198, Method 204, Condition A, except 20 cycles.

Insulation Resistance:

C0G – 10K megohms or 100 megohm - μF, whichever

is less

X7R – 10K megohms or 100 megohm - μF, whichever

is less

Dielectric Withstanding Voltage:

250% of rated voltage for 5 seconds with current limited to 50 mA.

Immersion Cycling:

MIL-STD-202, Method 104, Condition B. Post-Test limits at 25°C are:

Insulation Resistance:

C0G – 10K megohms or 100 megohm - μF, whichever

is less

X7R – 10K megohms or 100 megohm - μF, whichever

is less

Solderability:

MIL-STD-202, Method 208, Sn62 solder, 245°C for 5 ±1/2 seconds.

Resistance to Soldering Heat:

MIL-STD-202, Method 210, Condition B (260°C, 10 secs). Depth of immersion — to a minimum of .050" from the capacitor body.

Lead Material:

Axial: Solder-coated copper clad steel

Radial: Solder-coated copper standard; 100% tin plated optional

Page 21

CERAMIC MOLDED/AXIAL & RADIAL - STANDARD

Lead Dia.

.025

(+.004

-.002)

1.25 Min.

Center Line of leads within .030" of Center Line of case.

1.25 Min.

.045

Max.

C052 C062,

C512, & C522

Lead Dia.

.025

(+.004

-.002)

DIMENSIONS—INCHES & (MILLIMETERS)

CASE MILITARY

SIZE EQUIVALENT STYLES

LD C

C114 .160 ± .010 (4.06 ± .25) .090 ± .010 (2.29 ± .25) .020, +.000, -.003 (.51, +.00, -.08)

C124 .250 ± .010 (6.35 ± .25) .090 ± .010 (2.29 ± .25) .020, +.000, -.003 (.51, +.00, -.08)

C192 .390 ± .010 (9.91 ± .25) .140 ± .010 (3.56 ± .25) .025, +.004, -.001 (.64, +.10, -.025)

C202 .500 ± .020 (12.70 ± .51) .250 ± .015 (6.35 ± .38) .025, +.004, -.001 (.64, +.10, -.025)

C222 .690 ± .030 (17.53 ± .76) .350 ± .020 (8.89 ± .51) .025, +.004, -.001 (.64, +.10, -.025)

CAPACITOR OUTLINE DRAWINGS — (AXIAL LEADS)

CC75, CCR75

CK12, CKR11

CC76, CCR76

CK13, CKR12

CC77, CCR77

CK14, CKR14

CC78, CCR78

CK15, CKR15

CC79, CCR79

CK16, CKR16

CAPACITOR OUTLINE DRAWINGS — (RADIAL LEADS)

DIMENSIONS—INCHES & (MILLIMETERS)

MILITARY S

CASE EQUIVALENT H L W LEAD

SIZE STYLES HEIGHT LENGTH WIDTH SPACING

C052 .190 ± .010 (4.83 ± .25) .190 ± .010 (4.83 ± .25) .090 ± .010 (2.29 ± .25) .200 ± .015 (5.08 ± .38)

C062 .290 ± .010 (7.37 ± .25) .290 ± .010 (7.37 ± .25) .090 ± .010 (2.29 ± .25) .200 ± .015 (5.08 ± .38)

C512 .480 ± .020 (12.19 ± .51) .480 ± .020 (12.19 ± .51) .140 ± .010 (3.56 ± .25) .400 ± .020 (10.16 ± .51)

C522 .480 ± .020 (12.19 ± .51) .480 ± .020 (12.19 ± .51) .240 ± .010 (6.10 ± .25) .400 ± .020 (10.16 ± .51)

CC05, CCR05 CK05, CKR05

CC06, CCR06 CK06, CKR06

CC07, CCR07

CC08, CCR08

For packaging information, see pages 39, 40 and 41.

Ceramic Molded

Axial/Radial - Standard

1.50 Min. (38.10)

Page 22

CERAMIC MOLDED/AXIAL & RADIAL - STANDARD

ORDERING INFORMATION

052

102

CERAMIC *CASE SIZE

(See Table Below)

SPECIFICATION

Standard

C — Standard

CAPACITANCE

In picofarad code: First two digits are significant figures and third is number of zeroes following (except 9 indicates division by 10). Examples:

0.1 ␮F = 100,000 pF = 104 and 9.1 pF = 919. See tables for Standard Values.

CAPACITANCE TOLERANCE

Standard

M— ± 20% K—±10% J—±5%

Standard tolerances for each Series are shown in the repetitive parts lists.

*CASE SIZES

RADIAL AXIAL

C052 C114 C062 C124 C512 C192 C522 C202

C222

Others

H—± 3% G— ±2% F—±1% D—± .5 pF

WORKING VOLTAGE

1 — 100 2 — 200 5— 50

**Part Number Example: C052C102K2R5CA (14 digits – no spaces)

F AILURE RATE

A — Not Applicable (Std.)

LEAD MA TERIAL

C — Standard

T — 100% Tin plated

(C052, C062 only)

INTERNAL CONSTRUCTION

5 — Standard

TEMPERATURE CHARACTERISTIC

Cap. Change With Temp.

KEMET EIA Temp. DC Bias

Designator Equivalent Range, °C Voltage

G C0G -55 to ±30

(Ultra (NPO) +125 ppm/°C

Stable)

R X7R -55 to ±15%

(Stable) +125

Measured

Without

STANDARD C114C, C124C, C192C, C202C & C222C

Style

Temperature Characteristic

Capacitance, Capacitance Tolerance

KEMET

C512X7R

105K 50V

AXIAL CAPACITOR MARKING

KC0G

101J

200V

0512

KEMET, Temperature Characteristic Capacitance, Capacitance Tolerance Voltage Date Code

RADIAL CAPACITOR MARKING

C052C & C062C STANDARD MARKING

FRONT

C062

X7R

104K

C512 & C522 STANDARD MARKING

KEMET SIZE and Temperature Characteristic Capacitance, Capacitance Tolerance, Voltage

0532

Date Code

BACK

100V

0511

Voltage KEMET Date Code

Page 23

Ceramic Molded

Axial/Radial - Standard

CAPACITANCE KEMET

pF PART NUMBER

200 VOLT — C202 STANDARD C0G

5,600.0 C202C562(4

)2G5CA 6,800.0 C202C682(4)2G5CA 8,200.0 C202C822(4)2G5CA

10,000.0 C202C103(4

)2G5CA

12,000.0 C202C123(4)2G5CA 15,000.0 C202C153(4)2G5CA 18,000.0 C202C183(4)2G5CA 22,000.0 C202C223(4)2G5CA

100 VOLT — C202 STANDARD C0G

10,000.0 C202C103(4

)1G5CA

12,000.0 C202C123(4)1G5CA 15,000.0 C202C153(4)1G5CA 18,000.0 C202C183(4)1G5CA 22,000.0 C202C223(4)1G5CA 27,000.0 C202C273(4)1G5CA 33,000.0 C202C333(4

)1G5CA

200 VOLT — C222 STANDARD C0G

27,000.0 C222C273(4

)2G5CA

33,000.0 C222C333(4)2G5CA 39,000.0 C222C393(4)2G5CA 47,000.0 C222C473(4)2G5CA

100 VOLT — C222 STANDARD C0G

39,000.0 C222C393(4

)1G5CA

47,000.0 C222C473(4)1G5CA 56,000.0 C222C563(4)1G5CA 68,000.0 C222C683(4)1G5CA 82,000.0 C222C823(4)1G5CA

100,000.0 C222C104(4)1G5CA

CERAMIC MOLDED/AXIAL – STANDARD

ULTRA-STABLE TEMPERATURE CHARACTERISTIC—C0G (NP0)

CAPACITANCE KEMET

pF PART NUMBER

200 VOLT — C124 STANDARD C0G

390.0 C124C391(4

)2G5CA

470.0 C124C471(4)2G5CA

560.0 C124C561(4)2G5CA

100 VOLT — C124 STANDARD C0G

820.0 C124C821(4

)1G5CA

1,000.0 C124C102(4)1G5CA

200 VOLT — C192 STANDARD C0G

680.0 C192C681(4

)2G5CA

820.0 C192C821(4)2G5CA 1,000.0 C192C102(4)2G5CA 1,200.0 C192C122(4)2G5CA 1,500.0 C192C152(4)2G5CA 1,800.0 C192C182(4)2G5CA 2,200.0 C192C222(4

)2G5CA 2,700.0 C192C272(4)2G5CA 3,300.0 C192C332(4)2G5CA 3,900.0 C192C392(4

)2G5CA 4,700.0 C192C472(4)2G5CA

100 VOLT — C192 STANDARD C0G

1,200.0 C192C122(4

)1G5CA 1,500.0 C192C152(4)1G5CA 1,800.0 C192C182(4

)1G5CA 2,200.0 C192C222(4

)1G5CA 2,700.0 C192C272(4)1G5CA 3,300.0 C192C332(4

)1G5CA 3,900.0 C192C392(4)1G5CA 4,700.0 C192C472(4

)1G5CA 5,600.0 C192C562(4

)1G5CA 6,800.0 C192C682(4)1G5CA 8,200.0 C192C822(4)1G5CA

RATINGS & PART NUMBER REFERENCE

CAPACITANCE KEMET

pF PART NUMBER

200 VOLT — C114 STANDARD C0G

1.0 C114C109(1

)2G5CA

1.5 C114C159(1)2G5CA

2.2 C114C229(1)2G5CA

2.7 C114C279(1

)2G5CA

3.3 C114C339(1)2G5CA

3.9 C114C399(1)2G5CA

4.7 C114C479(1)2G5CA

5.6 C114C569(1)2G5CA

6.8 C114C689(1)2G5CA

8.2 C114C829(1)2G5CA

10.0 C114C100(2)2G5CA

12.0 C114C120(2)2G5CA

15.0 C114C150(2)2G5CA

18.0 C114C180(2)2G5CA

22.0 C114C220(2)2G5CA

27.0 C114C270(3

)2G5CA

33.0 C114C330(3)2G5CA

39.0 C114C390(3)2G5CA

47.0 C114C470(3)2G5CA

56.0 C114C560(4)2G5CA

68.0 C114C680(4)2G5CA

82.0 C114C820(4)2G5CA

100.0 C114C101(4)2G5CA

120.0 C114C121(4)2G5CA

150.0 C114C151(4)2G5CA

180.0 C114C181(4)2G5CA

220.0 C114C221(4)2G5CA

270.0 C114C271(4)2G5CA

330.0 C114C331(4)2G5CA

100 VOLT — C114 STANDARD C0G

82.0 C114C820(4

)1G5CA

100.0 C114C101(4)1G5CA

120.0 C114C121(4

)1G5CA

150.0 C114C151(4)1G5CA

180.0 C114C181(4

)1G5CA

220.0 C114C221(4)1G5CA

270.0 C114C271(4

)1G5CA

330.0 C114C331(4

)1G5CA

390.0 C114C391(4)1G5CA

470.0 C114C471(4

)1G5CA

560.0 C114C561(4)1G5CA

680.0 C114C681(4

)1G5CA

NOTE 1: Insert proper symbol for capacitance tolerance as

follows:

(1) 1.0 pF to 8.2 pF: D— ±.5 pF (2) 10.0 pF to 22 pF: J— ±5%, K— ±10% (3) 27.0 pF to 47 pF: G— ±2%, J— ±5%, K— ±10% (4) 56.0 pF and up: F— ±1%,G— ±2%, J— ±5%, K— ±10%

NOTE 1: Insert proper symbol for capacitance tolerance as

follows:

(1) 1.0 pF to 8.2 pF: D— ±.5 pF (2) 10.0 pF to 22 pF: J— ±5%, K— ±10% (3) 27.0 pF to 47 pF: G— ±2%, J— ±5%, K— ±10% (4) 56.0 pF and up: F— ±1%,G— ±2%, J— ±5%, K— ±10%

NOTE 1: Insert proper symbol for capacitance tolerance as

follows:

(1) 1.0 pF to 8.2 pF: D— ±.5 pF (2) 10.0 pF to 22 pF: J— ±5%, K— ±10% (3) 27.0 pF to 47 pF: G— ±2%, J— ±5%, K— ±10% (4) 56.0 pF and up: F— ±1%,G— ±2%, J— ±5%, K— ±10%

Page 24

CERAMIC MOLDED/RADIAL – STANDARD

ULTRA-STABLE TEMPERATURE CHARACTERISTIC—C0G (NP0)

RATINGS & PART NUMBER REFERENCE

CAPACITANCE KEMET

pF PART NUMBER

200 VOLT — C062 SIZE C0G

3,300.0 C062C332(4

)2G5CA 3,900.0 C062C392(4)2G5CA 4,700.0 C062C472(4)2G5CA 5,600.0 C062C562(4)2G5CA 6,800.0 C062C682(4

)2G5CA 8,200.0 C062C822(4)2G5CA

10,000.0 C062C103(4)2G5CA

100 VOLT — C062 SIZE C0G

5,600.0 C062C562(4

)1G5CA 6,800.0 C062C682(4)1G5CA 8,200.0 C062C822(4)1G5CA

10,000.0 C062C103(4)1G5CA 12,000.0 C062C123(4)1G5CA 15,000.0 C062C153(4)1G5CA 18,000.0 C062C183(4)1G5CA 22,000.0 C062C223(4

)1G5CA

200 VOLT — C512 SIZE C0G

12,000.0 C512C123(4

)2G5CA

15,000.0 C512C153(4)2G5CA 18,000.0 C512C183(4)2G5CA 22,000.0 C512C223(4)2G5CA 27,000.0 C512C273(4)2G5CA 33,000.0 C512C333(4)2G5CA 39,000.0 C512C393(4)2G5CA 47,000.0 C512C473(4)2G5CA 56,000.0 C512C563(4)2G5CA 68,000.0 C512C683(4)2G5CA

100 VOLT — C512 SIZE C0G

27,000.0 C512C273(4

)1G5CA

33,000.0 C512C333(4)1G5CA 39,000.0 C512C393(4)1G5CA 47,000.0 C512C473(4)1G5CA 56,000.0 C512C563(4)1G5CA 68,000.0 C512C683(4)1G5CA 82,000.0 C512C823(4)1G5CA

100,000.0 C512C104(4)1G5CA

200 VOLT — C522 SIZE C0G

82,000.0 C522C823(4

)2G5CA

100,000.0 C522C104(4)2G5CA

100 VOLT — C522 SIZE C0G

120,000.0 C522C124(4

)1G5CA

150,000.0 C522C154(4)1G5CA 180,000.0 C522C184(4)1G5CA

CAPACITANCE KEMET

pF PART NUMBER

200 VOLT — C052 SIZE C0G

1.0 C052C109(1

)2G5CA

1.5 C052C159(1)2G5CA

2.2 C052C229(1

)2G5CA

2.7 C052C279(1)2G5CA

3.3 C052C339(1

)2G5CA

3.9 C052C399(1)2G5CA

4.7 C052C479(1)2G5CA

5.6 C052C569(1)2G5CA

6.8 C052C689(1)2G5CA

8.2 C052C829(1)2G5CA

10.0 C052C100(2)2G5CA

12.0 C052C120(2)2G5CA

15.0 C052C150(2)2G5CA

18.0 C052C180(2)2G5CA

22.0 C052C220(2)2G5CA

27.0 C052C270(3)2G5CA

33.0 C052C330(3)2G5CA

39.0 C052C390(3)2G5CA

47.0 C052C470(3)2G5CA

56.0 C052C560(4)2G5CA

68.0 C052C680(4)2G5CA

82.0 C052C820(4)2G5CA

100.0 C052C101(4)2G5CA

120.0 C052C121(4)2G5CA

150.0 C052C151(4)2G5CA

180.0 C052C181(4)2G5CA

220.0 C052C221(4

)2G5CA

270.0 C052C271(4)2G5CA

330.0 C052C331(4)2G5CA

390.0 C052C391(4)2G5CA

470.0 C052C471(4)2G5CA

560.0 C052C561(4)2G5CA

680.0 C052C681(4)2G5CA

820.0 C052C821(4)2G5CA 1,000.0 C052C102(4)2G5CA 1,200.0 C052C122(4)2G5CA 1,500.0 C052C152(4)2G5CA 1,800.0 C052C182(4)2G5CA 2,200.0 C052C222(4)2G5CA 2,700.0 C052C272(4)2G5CA

100 VOLT — C052 SIZE C0G

390.0 C052C391(4

)1G5CA

470.0 C052C471(4)1G5CA

560.0 C052C561(4)1G5CA

680.0 C052C681(4

)1G5CA

820.0 C052C821(4)1G5CA 1,000.0 C052C102(4)1G5CA 1,200.0 C052C122(4)1G5CA 1,500.0 C052C152(4)1G5CA 1,800.0 C052C182(4)1G5CA 2,200.0 C052C222(4)1G5CA 2,700.0 C052C272(4)1G5CA 3,300.0 C052C332(4)1G5CA 3,900.0 C052C392(4)1G5CA 4,700.0 C052C472(4)1G5CA

NOTE 1: Insert proper symbol for capacitance tolerance as

follows:

(1) 1.0 pF to 8.2 pF: D— ±.5 pF (2) 10.0 pF to 22 pF: J— ±5%, K— ±10% (3) 27.0 pF to 47 pF: G— ±2%, J— ±5%, K— ±10% (4) 56.0 pF and up: F— ±1%,G— ±2%, J— ±5%, K— ±10%

NOTE 1: Insert proper symbol for capacitance tolerance as

follows:

(1) 1.0 pF to 8.2 pF: D— ±.5 pF (2) 10.0 pF to 22 pF: J— ±5%, K— ±10% (3) 27.0 pF to 47 pF: G— ±2%, J— ±5%, K— ±10% (4) 56.0 pF and up: F— ±1%,G— ±2%, J— ±5%, K— ±10%

Page 25

Ceramic Molded

Axial/Radial - Standard

CERAMIC MOLDED/AXIAL – STANDARD

STABLE TEMPERATURE CHARACTERISTIC—X7R

TOL. KEMET

% PART NUMBER

100 VOLT — C202 SIZE

56,000 10 C202C563K1R5CA 68,000 10 C202C683K1R5CA 68,000 20 C202C683M1R5CA

82,000 10 C202C823K1R5CA 100,000 10 C202C104K1R5CA 100,000 20 C202C104M1R5CA 120,000 10 C202C124K1R5CA 150,000 10 C202C154K1R5CA 150,000 20 C202C154M1R5CA 180,000 10 C202C184K1R5CA 220,000 10 C202C224K1R5CA 220,000 20 C202C224M1R5CA 270,000 10 C202C274K1R5CA 330,000 10 C202C334K1R5CA 330,000 20 C202C334M1R5CA

50 VOLT — C202 SIZE

470,000 10 C202C474K5R5CA 470,000 20 C202C474M5R5CA 680,000 10 C202C684K5R5CA 680,000 20 C202C684M5R5CA

1,000,000 10 C202C105K5R5CA 1,000,000 20 C202C105M5R5CA

100 VOLT — C222 SIZE

470,000 10 C222C474K1R5CA 470,000 20 C222C474M1R5CA 680,000 10 C222C684K1R5CA 680,000 20 C222C684M1R5CA

1,000,000 10 C222C105K1R5CA 1,000,000 20 C222C105M1R5CA

50 VOLT — C222 SIZE

2,200,000 10 C222C225K5R5CA 2,200,000 20 C222C225M5R5CA 3,300,000 10 C222C335K5R5CA 3,300,000 20 C222C335M5R5CA

CAPACI–

TANCE

TOL. KEMET

% PART NUMBER

100 VOLT — C124 SIZE

5,600 10 C124C562K1R5CA 6,800 10 C124C682K1R5CA 6,800 20 C124C682M1R5CA

8,200 10 C124C822K1R5CA 10,000 10 C124C103K1R5CA 10,000 20 C124C103M1R5CA

50 VOLT — C124 SIZE

12,000 10 C124C123K5R5CA 15,000 10 C124C153K5R5CA 15,000 20 C124C153M5R5CA 18,000 10 C124C183K5R5CA 22,000 10 C124C223K5R5CA 22,000 20 C124C223M5R5CA 27,000 10 C124C273K5R5CA 33,000 10 C124C333K5R5CA 33,000 20 C124C333M5R5CA 39,000 10 C124C393K5R5CA 47,000 10 C124C473K5R5CA 47,000 20 C124C473M5R5CA

100 VOLT — C192 SIZE

12,000 10 C192C123K1R5CA 15,000 10 C192C153K1R5CA 15,000 20 C192C153M1R5CA 18,000 10 C192C183K1R5CA 22,000 10 C192C223K1R5CA 22,000 20 C192C223M1R5CA 27,000 10 C192C273K1R5CA 33,000 10 C192C333K1R5CA 33,000 20 C192C333M1R5CA 39,000 10 C192C393K1R5CA 47,000 10 C192C473K1R5CA 47,000 20 C192C473M1R5CA 56,000 10 C192C563K1R5CA 68,000 10 C192C683K1R5CA 68,000 20 C192C683M1R5CA 82,000 10 C192C823K1R5CA

100,000 10 C192C104K1R5CA 100,000 20 C192C104M1R5CA

50 VOLT — C192 SIZE

56,000 10 C192C563K5R5CA 68,000 10 C192C683K5R5CA 68,000 20 C192C683M5R5CA 82,000 10 C192C823K5R5CA

100,000 10 C192C104K5R5CA 100,000 20 C192C104M5R5CA 120,000 10 C192C124K5R5CA 150,000 10 C192C154K5R5CA 150,000 20 C192C154M5R5CA 180,000 10 C192C184K5R5CA 220,000 10 C192C224K5R5CA 220,000 20 C192C224M5R5CA 270,000 10 C192C274K5R5CA

RATINGS & PART NUMBER REFERENCE

TOL. KEMET

% PART NUMBER

100 VOLT — C114 SIZE

10 10 C114C100K1R5CA 10 20 C114C100M1R5CA 12 10 C114C120K1R5CA 15 10 C114C150K1R5CA 15 20 C114C150M1R5CA 18 10 C114C180K1R5CA 22 20 C114C220K1R5CA 22 10 C114C220M1R5CA 27 10 C114C270K1R5CA 33 10 C114C330K1R5CA 33 20 C114C330M1R5CA 39 10 C114C390K1R5CA 47 10 C114C470K1R5CA 47 20 C114C470M1R5CA 56 10 C114C560K1R5CA 68 10 C114C680K1R5CA 68 20 C114C680M1R5CA

82 10 C114C820K1R5CA 100 10 C114C101K1R5CA 100 20 C114C101M1R5CA 120 10 C114C121K1R5CA 150 10 C114C151K1R5CA 150 20 C114C151M1R5CA 180 10 C114C181K1R5CA 220 10 C114C221K1R5CA 220 20 C114C221M1R5CA 270 10 C114C271K1R5CA 330 10 C114C331K1R5CA 330 20 C114C331M1R5CA 390 10 C114C391K1R5CA 470 10 C114C471K1R5CA 470 20 C114C471M1R5CA 560 10 C114C561K1R5CA 680 10 C114C681K1R5CA 680 20 C114C681M1R5CA 820 10 C114C821K1R5CA

1,000 10 C114C102K1R5CA 1,000 20 C114C102M1R5CA 1,200 10 C114C122K1R5CA 1,500 10 C114C152K1R5CA 1,500 20 C114C152M1R5CA 1,800 10 C114C182K1R5CA 2,200 10 C114C222K1R5CA 2,200 20 C114C222M1R5CA 2,700 10 C114C272K1R5CA 3,300 10 C114C332K1R5CA 3,300 20 C114C332M1R5CA 3,900 10 C114C392K1R5CA 4,700 10 C114C472K1R5CA 4,700 20 C114C472M1R5CA

50 VOLT — C114 SIZE

5,600 10 C114C562K5R5CA 6,800 10 C114C682K5R5CA 6,800 20 C114C682M5R5CA

8,200 10 C114C822K5R5CA 10,000 10 C114C103K5R5CA 10,000 20 C114C103M5R5CA

CAPACI–

TANCE

CAPACI–

TANCE

Page 26

CERAMIC MOLDED/RADIAL – STANDARD

STABLE TEMPERATURE CHARACTERISTIC—X7R

TOL. KEMET

% PART NUMBER

100 VOLT — C062 SIZE

12,000 10 C062C123K1R5CA 15,000 10 C062C153K1R5CA 15,000 20 C062C153M1R5CA 18,000 10 C062C183K1R5CA 22,000 10 C062C223K1R5CA 22,000 20 C062C223M1R5CA 27,000 10 C062C273K1R5CA 33,000 10 C062C333K1R5CA 33,000 20 C062C333M1R5CA 39,000 10 C062C393K1R5CA 47,000 10 C062C473K1R5CA 47,000 20 C062C473M1R5CA 56,000 10 C062C563K1R5CA 68,000 10 C062C683K1R5CA 68,000 20 C062C683M1R5CA

82,000 10 C062C823K1R5CA 100,000 10 C062C104K1R5CA 100,000 20 C062C104M1R5CA

50 VOLT — C062 SIZE

120,000 10 C062C124K5R5CA 150,000 10 C062C154K5R5CA 150,000 20 C062C154M5R5CA 180,000 10 C062C184K5R5CA 220,000 10 C062C224K5R5CA 220,000 20 C062C224M5R5CA 270,000 10 C062C274K5R5CA 330,000 10 C062C334K5R5CA 330,000 20 C062C334M5R5CA 390,000 10 C062C394K5R5CA 470,000 10 C062C474K5R5CA 470,000 20 C062C474M5R5CA 560,000 10 C062C564K5R5CA 680,000 10 C062C684K5R5CA 680,000 20 C062C684M5R5CA 820,000 10 C062C824K5R5CA

1,000,000 10 C062C105K5R5CA 1,000,000 20 C062C105M5R5CA

50 VOLT — C512 SIZE

1,000,000 10 C512C105K5X5CA 1,000,000 20 C512C105M5X5CA

1,500,000 10 C512C155K5X5CA 1,500,000 20 C512C155M5X5CA

2,000,000 10 C512C205K5X5CA 2,000,000 20 C512C205M5X5CA

2,200,000 10 C512C225K5X5CA 2,200,000 20 C512C225M5X5CA

100 VOLT — C522 SIZE

1,000,000 10 C522C105K1X5CA 1,000,000 20 C522C105M1X5CA

50 VOLT — C522 SIZE

2,700,000 10 C522C275K5X5CA 2,700,000 20 C522C275M5X5CA

3,300,000 10 C522C335K5X5CA 3,300,000 20 C522C335M5X5CA

CAPACI–

TANCE

TOL. KEMET

% PART NUMBER

100 VOLT — C052 SIZE

1,200 10 C052C122K1R5CA 1,500 10 C052C152K1R5CA 1,500 20 C052C152M1R5CA 1,800 10 C052C182K1R5CA 2,200 10 C052C222K1R5CA 2,200 20 C052C222M1R5CA 2,700 10 C052C272K1R5CA 3,300 10 C052C332K1R5CA 3,300 20 C052C332M1R5CA 3,900 10 C052C392K1R5CA 4,700 10 C052C472K1R5CA 4,700 20 C052C472M1R5CA 5,600 10 C052C562K1R5CA 6,800 10 C052C682K1R5CA 6,800 20 C052C682M1R5CA

8,200 10 C052C822K1R5CA 10,000 10 C052C103K1R5CA 10,000 20 C052C103M1R5CA

50 VOLT — C052 SIZE

12,000 10 C052C123K5R5CA 15,000 10 C052C153K5R5CA 15,000 20 C052C153M5R5CA 18,000 10 C052C183K5R5CA 22,000 10 C052C223K5R5CA 22,000 20 C052C223M5R5CA 27,000 10 C052C273K5R5CA 33,000 10 C052C333K5R5CA 33,000 20 C052C333M5R5CA 39,000 10 C052C393K5R5CA 47,000 10 C052C473K5R5CA 47,000 20 C052C473M5R5CA 56,000 10 C052C563K5R5CA 68,000 10 C052C683K5R5CA 68,000 20 C052C683M5R5CA 82,000 10 C052C823K5R5CA

100,000 10 C052C104K5R5CA 100,000 20 C052C104M5R5CA

200 VOLT — C062 SIZE

1,200 10 C062C122K2R5CA

1,500 10 C062C152K2R5CA

1,500 20 C062C152M2R5CA

1,800 10 C062C182K2R5CA

2,200 10 C062C222K2R5CA

2,200 20 C062C222M2R5CA

2,700 10 C062C272K2R5CA

3,300 10 C062C332K2R5CA

3,300 20 C062C332M2R5CA

3,900 10 C062C392K2R5CA

4,700 10 C062C472K2R5CA

4,700 20 C062C472M2R5CA

5,600 10 C062C562K2R5CA

6,800 10 C062C682K2R5CA

6,800 20 C062C682M2R5CA

8,200 10 C062C822K2R5CA 10,000 10 C062C103K2R5CA 10,000 20 C062C103M2R5CA

RATINGS & PART NUMBER REFERENCE

TOL. KEMET

% PART NUMBER

200 VOLT — C052 SIZE

10 10 C052C100K2R5CA 10 20 C052C100M2R5CA 12 10 C052C120K2R5CA 15 10 C052C150K2R5CA 15 20 C052C150M2R5CA 18 10 C052C180K2R5CA 22 10 C052C220K2R5CA 22 20 C052C220M2R5CA 27 10 C052C270K2R5CA 33 10 C052C330K2R5CA 33 20 C052C330M2R5CA 39 10 C052C390K2R5CA 47 10 C052C470K2R5CA 47 20 C052C470M2R5CA 56 10 C052C560K2R5CA 68 10 C052C680K2R5CA 68 20 C052C680M2R5CA

82 10 C052C820K2R5CA 100 10 C052C101K2R5CA 100 20 C052C101M2R5CA 120 10 C052C121K2R5CA 150 10 C052C151K2R5CA 150 20 C052C151M2R5CA 180 10 C052C181K2R5CA 220 10 C052C221K2R5CA 220 20 C052C221M2R5CA 270 10 C052C271K2R5CA 330 10 C052C331K2R5CA 330 20 C052C331M2R5CA 390 10 C052C391K2R5CA 470 10 C052C471K2R5CA 470 20 C052C471M2R5CA 560 10 C052C561K2R5CA 680 10 C052C681K2R5CA 680 20 C052C681M2R5CA 820 10 C052C821K2R5CA

1,000 10 C052C102K2R5CA 1,000 20 C052C102M2R5CA

CAPACI–

TANCE

CAPACI–

TANCE

Page 27

CERAMIC MOLDED/AXIAL & RADIAL — MIL-PRF-20

Lead Dia.

.025

(+.004

-.002)

.026 MIN.

.045

MAX.

1.25

MIN.

1.25 MIN.

Center Line of leads within .030" of Center Line of case.

1.25

MIN.

.026 MIN.

C052 (CC05, CCR05) C056 (CCR05)

C062 (CC06, CCR06), C512 (CC07, CCR07),

C522 (CC08, CCR08)

C066 (CCR06)

Lead Dia.

.025

(+.004

-.002)

Lead Dia.

.025

(+.004

-.002)

Lead Dia.

.025

(+.004

-.002)

1.25 MIN.

DIMENSIONS — INCHES & (MILLIMETERS)

CASE MILITARY

SIZE EQUIVALENT STYLES

LD C

C114 CC75, CCR75 .160 ± .010 (4.06 ± .25) .090 ± .010 (2.29 ± .25) .020, +.000, -.003 (.51, +.00, -.08)

C124 CC76, CCR76 .250 ± .010 (6.35 ± .25) .090 ± .010 (2.29 ± .25) .020, +.000, -.003 (.51, +.00, -.08)

C192 CC77, CCR77 .390 ± .010 (9.91 ± .25) .140 ± .010 (3.56 ± .25) .025, +.002, -.002 (.64, +.05, -.05)

C202 CC78, CCR78 .500 ± .020 (12.70 ± .51) .250 ± .015 (6.35 ± .38) .025, +.002, -.002 (.64, +.05, -.05)

C222 CC79, CCR79 .690 ± .030 (17.53 ± .76) .350 ± .020 (8.89 ± .51) .025, +.002, -.002 (.64, +.05, -.05)

CAPACITOR OUTLINE DRAWINGS (AXIAL LEADS)

CAPACITOR OUTLINE DRAWINGS (RADIAL LEADS)

DIMENSIONS — INCHES & (MILLIMETERS)

MILITARY S

CASE EQUIVALENT H L W LEAD

SIZE STYLES HEIGHT LENGTH WIDTH SPACING

CC05, CCR05 .190 ± .010 (4.83 ± .25) .190 ± .010 (4.83 ± .25) .090 ± .010 (2.29 ± .25) .200 ± .015 (5.08 ± .38)

CC06, CCR06 .290 ± .010 (7.37 ± .25) .290 ± .010 (7.37 ± .25) .090 ± .010 (2.29 ± .25) .200 ± .015 (5.08 ± .38)

C512 CC07, CCR07 .480 ± .020 (12.19 ± .51) .480 ± .020 (12.19 ± .51) .140 ± .010 (3.56 ± .25)* .400 ± .020 (10.16 ± .51)

C522 CC08, CCR08 .480 ± .020 (12.19 ± .51) .480 ± .020 (12.19 ± .51) .240 ± .010 (6.10 ± .25) .400 ± .020 (10.16 ± .51)

C052/ C056

C062/ C066

For packaging information, see pages 39, 40, and 41.

* 0.200 (5.08) maximum for 100,000 pF only.

* Leads are .625 minimum when tape and reel packaged

MIL-PRF-20

1.50 Min. (38.10)

Page 28

CERAMIC MOLDED/AXIAL & RADIAL — MIL-PRF-20

CC(R) 75, 76

TEMPERATURE CHARACTERISTIC

Capacitance Change With Temp.

Measured Measured

Without With Bias

KEMET Military EIA Temp. DC Bias (Rated

Designator Equivalent Equivalent Range, °C Voltage Voltage)

G *CG C0G -55 to ±30 ±30

(Ultra (See below) (NPO) +125 ppm/°C* ppm/°C*

Stable)

*CASE SIZES

RADIAL AXIAL

C052 C114 C056 C124 C062 C192 C066 C202 C512 C222 C522

102

052

CERAMIC *CASE SIZE

(See Table Below)

SPECIFICATION

Military

G — MIL-PRF-20

CAPACITANCE

In picofarad code: First two digits are significant figures and third is number of zeroes following (except 9 indicates division by 10). Examples:

0.1 F = 100,000 pF = 104 and 9.1 pF = 919. See tables for Standard Values.

F AILURE RATE

INTERNAL CONSTRUCTION

CAPACITANCE TOLERANCE

Standard

K — ±10% J — ±5%

A — Not Applicable (Std.) M — 1.0% P — 0.1% R — 0.01% S — 0.001%

LEAD MA TERIAL

C — Standard

5 — Standard

WORKING VOLTAGE

1 — 100 2 — 200 5 — 50

Others

G — ±2% C — ±0.25 pF F — ±1% D— ±0.5 pF B — ±0.1 pF

Standard tolerances for each Series are shown in the repetitive parts lists.

*CH— ±60 ppm/°C 8.2 pF-18.0 pF. *CJ — ±120 ppm/°C 4.3 pF-7.5 pF. *CK— ±250 ppm/°C 2.2 pF-3.9 pF *CX— not measurable 0.1 pF-2.0 pF.

**Part Number Example: C052G102J1G5CR (14 digits – no spaces)

ORDERING INFORMATION

CAPACITOR MARKING

JCK 2R2

CM5

11AK

“J” Brand (CCR only), Temperature Characteristic Capacitance Capacitance Tolerance, Failure Rate (CCR only),

Year Code Lot Code, Trademark (K)

CCR0 5CH1

00FR

FRONT

CC(R) 05

Military Designation (Type, Temperature Characteristic, Capacitance, Tolerance, Failure Rate)

** For the standoff style, a “V” is added after the

failure rate, or last character.

0504

AJ3

1433

REAR

Date Code Lot Code, “J” Brand (CCR only),

FSCM (Federal Source Code)

CCR77C

G102JM

J31433

0504A

Military Designation (Type, Temperature Characteristic, Capacitance, Tolerance, Failure Rate)

“J” Brand (CCR only), FSCM (Federal Source Code) Date/Lot Code

CC(R) 77

CCR78CG 103FR JAN K

31433 100V 0504A

Military Designation (Type, Temperature Characteristic, Capacitance, Tolerance, Failure Rate)

“JAN” Brand (CCR only), Trademark (K) FSCM (Federal Source Code) Voltage Date/Lot Code

CC(R) 78

CCR79CG 103KM JAN K

31433 200V 0504A

Military Designation (Type, Temperature Characteristic, Capacitance, Tolerance, Failure Rate)

“JAN” Brand (CCR only), Trademark FSCM (Federal Source Code) Voltage Date/Lot Code

CC(R) 79

CCR06 CG102 JS

FRONT

CC(R) 06

Military Designation (Type, Temperature Characteristic, Capacitance, Tolerance, Failure Rate)

** For the standoff style, a “V” is added after the

failure rate, or last character.

0504A J100V 31433

REAR

Date/LotCode “J” Brand (CCR only), Voltage

FSCM (Federal Source Code)

CCR07CG 472KM JAN KEMET

31433 200V 0504A

Military Designation (Type, Temperature Characteristic, Capacitance, Tolerance, Failure Rate)

“JAN” Brand, Trademark FSCM (Federal Source Code) Voltage, Date/Lot Code

CC(R) 07

CCR08CG 472KM JAN KEMET

31433 200V 0509A

Military Designation (Type, Temperature Characteristic, Capacitance, Tolerance, Failure Rate)

“JAN” Brand, Trademark FSCM (Federal Source Code) Voltage, Date/Lot Code

CC(R) 08

Page 29

CERAMIC MOLDED/AXIAL — MIL-PRF-20

ULTRA-STABLE TEMPERATURE CHARACTERISTIC — CG (EIA-C0G)

MIL-PRF-20

CAP. KEMET MILITARY STYLE MILITARY STYLE

pF PART NUMBER CC CCR

200 VOLT — C114 (CC(R)75 PER MIL-PRF-20/27)

1.0 C114G109(2

)2G5C(1) CC75CX1R0(2) CCR75CX1R0(2)(1)

1.1 C114G119(2)2G5C(1) CC75CX1R1(2) CCR75CX1R1(2)(1)

1.2 C114G129(2)2G5C(1) CC75CX1R2(2) CCR75CX1R2(2)(1)

1.3 C114G139(2

)2G5C(1) CC75CX1R3(2) CCR75CX1R3(2)(1)

1.5 C114G159(2)2G5C(1

) CC75CX1R5(2) CCR75CX1R5(2

)(1)

1.6 C114G169(2

)2G5C(1

) CC75CX1R6(2) CCR75CX1R6(2

)(1)

1.8 C114G189(2

)2G5C(1

) CC75CX1R8(2) CCR75CX1R8(2

)(1)

2.0 C114G209(2

)2G5C(1

) CC75CX2R0(2) CCR75CX2R0(2

)(1)

2.2 C114G229(2

)2G5C(1

) CC75CK2R2(2) CCR75CK2R2(2

)(1)

2.4 C114G249(2

)2G5C(1

) CC75CK2R4(2) CCR75CK2R4(2

)(1)

2.7 C114G279(3

)2G5C(1

) CC75CK2R7(3) CCR75CK2R7(3

)(1)

3.0 C114G309(3

)2G5C(1

) CC75CK3R0(3) CCR75CK3R0(3

)(1)

3.3 C114G339(3

)2G5C(1

) CC75CK3R3(3) CCR75CK3R3(3

)(1)

3.6 C114G369(3

)2G5C(1

) CC75CK3R6(3) CCR75CK3R6(3

)(1)

3.9 C114G399(3

)2G5C(1) CC75CK3R9(3) CCR75CK3R9(3)(1)

4.3 C114G439(3)2G5C(1) CC75CJ4R3(3) CCR75CJ4R3(3)(1)

4.7 C114G479(3)2G5C(1) CC75CJ4R7(3) CCR75CJ4R7(3)(1)

5.1 C114G519(3

)2G5C(1

) CC75CJ5R1(3) CCR75CJ5R1(3)(1)

5.6 C114G569(3

)2G5C(1

) CC75CJ5R6(3) CCR75CJ5R6(3)(1)

6.2 C114G629(3

)2G5C(1

) CC75CJ6R2(3) CCR75CJ6R2(3)(1)

6.8 C114G689(3

)2G5C(1

) CC75CJ6R8(3) CCR75CJ6R8(3)(1)

7.5 C114G759(3

)2G5C(1

) CC75CJ7R5(3) CCR75CJ7R5(3)(1)

8.2 C114G829(3

)2G5C(1

) CC75CH8R2(3) CCR75CH8R2(3)(1)

9.1 C114G919(3

)2G5C(1

) CC75CH9R1(3) CCR75CH9R1(3)(1)

10.0 C114G100(4

)2G5C(1

) CC75CH100(4

) CCR75CH100(4)(1)

11.0 C114G110(4

)2G5C(1

) CC75CH110(4

) CCR75CH110(4)(1)

12.0 C114G120(4

)2G5C(1

) CC75CH120(4

) CCR75CH120(4)(1)

13.0 C114G130(4

)2G5C(1

) CC75CH130(4

) CCR75CH130(4)(1)

15.0 C114G150(4

)2G5C(1

) CC75CH150(4

) CCR75CH150(4)(1)

16.0 C114G160(4

)2G5C(1

) CC75CH160(4

) CCR75CH160(4)(1)

18.0 C114G180(4

)2G5C(1

) CC75CH180(4

) CCR75CH180(4

)(1)

20.0 C114G200(4

)2G5C(1

) CC75CG200(4

) CCR75CG200(4

)(1)

22.0 C114G220(4

)2G5C(1

) CC75CG220(4

) CCR75CG220(4

)(1)

24.0 C114G240(4

)2G5C(1) CC75CG240(4) CCR75CG240(4)(1)

27.0 C114G270(4)2G5C(1) CC75CG270(4) CCR75CG270(4)(1)

30.0 C114G300(4)2G5C(1) CC75CG300(4) CCR75CG300(4)(1)

33.0 C114G330(4)2G5C(1) CC75CG330(4) CCR75CG330(4)(1)

36.0 C114G360(4)2G5C(1) CC75CG360(4) CCR75CG360(4)(1)

39.0 C114G390(4)2G5C(1) CC75CG390(4) CCR75CG390(4)(1)

43.0 C114G430(4)2G5C(1) CC75CG430(4) CCR75CG430(4)(1)

47.0 C114G470(4)2G5C(1) CC75CG470(4) CCR75CG470(4)(1)

51.0 C114G510(4)2G5C(1) CC75CG510(4) CCR75CG510(4)(1)

56.0 C114G560(4)2G5C(1) CC75CG560(4) CCR75CG560(4)(1)

62.0 C114G620(4)2G5C(1) CC75CG620(4) CCR75CG620(4)(1)

68.0 C114G680(4

)2G5C(1) CC75CG680(4) CCR75CG680(4)(1)

75.0 C114G750(4

)2G5C(1) CC75CG750(4) CCR75CG750(4)(1)

RATINGS & PART NUMBER REFERENCE

CAP. KEMET MILITARY STYLE MILITARY STYLE

pF PART NUMBER CC CCR

100 VOLT — C114 (CC(R)75 PER MIL-PRF-20/27)

82.0 C114G820(4)1G5C(1) CC75CG820(4) CCR75CG820(4)(1)

91.0 C114G910(4)1G5C(1) CC75CG910(4) CCR75CG910(4)(1)

100.0 C114G101(4)1G5C(1) CC75CG101(4) CCR75CG101(4)(1)

110.0 C114G111(4)1G5C(1) CC75CG111(4) CCR75CG111(4)(1)

120.0 C114G121(4

)1G5C(1) CC75CG121(4

) CCR75CG121(4)(1)

130.0 C114G131(4

)1G5C(1) CC75CG131(4

) CCR75CG131(4)(1)

150.0 C114G151(4

)1G5C(1) CC75CG151(4

) CCR75CG151(4)(1)

160.0 C114G161(4

)1G5C(1) CC75CG161(4

) CCR75CG161(4)(1)

180.0 C114G181(4

)1G5C(1) CC75CG181(4

) CCR75CG181(4)(1)

200.0 C114G201(4

)1G5C(1) CC75CG201(4

) CCR75CG201(4)(1)

220.0 C114G221(4

)1G5C(1) CC75CG221(4

) CCR75CG221(4)(1)

240.0 C114G241(4

)1G5C(1) CC75CG241(4

) CCR75CG241(4)(1)

50 VOLT — C114 (CC(R)75 PER MIL-PRF-20/27)

270.0 C114G271(4

)5G5C(1) CC75CG271(4

) CCR75CG271(4)(1)

300.0 C114G301(4

)5G5C(1

) CC75CG301(4) CCR75CG301(4)(1)

330.0 C114G331(4

)5G5C(1

) CC75CG331(4) CCR75CG331(4)(1)

360.0 C114G361(4

)5G5C(1

) CC75CG361(4

) CCR75CG361(4)(1)

390.0 C114G391(4

)5G5C(1

) CC75CG391(4

) CCR75CG391(4)(1)

430.0 C114G431(4

)5G5C(1) CC75CG431(4) CCR75CG431(4)(1)

470.0 C114G471(4)5G5C(1) CC75CG471(4) CCR75CG471(4)(1)

510.0 C114G511(4)5G5C(1) CC75CG511(4) CCR75CG511(4)(1)

560.0 C114G561(4)5G5C(1) CC75CG561(4) CCR75CG561(4)(1)

620.0 C114G621(4)5G5C(1) CC75CG621(4) CCR75CG621(4)(1)

680.0 C114G681(4)5G5C(1) CC75CG681(4) CCR75CG681(4)(1)

200 VOLT — C124 (CC(R)76 PER MIL-PRF-20/28)

82.0 C124G820(4

)2G5C(1

) CC76CG820(4) CCR76CG820(4)(1)

91.0 C124G910(4

)2G5C(1

) CC76CG910(4) CCR76CG910(4)(1)

100.0 C124G101(4

)2G5C(1

) CC76CG101(4) CCR76CG101(4)(1)

110.0 C124G111(4

)2G5C(1

) CC76CG111(4) CCR76CG111(4)(1)

120.0 C124G121(4

)2G5C(1

) CC76CG121(4

) CCR76CG121(4)(1)

130.0 C124G131(4

)2G5C(1

) CC76CG131(4

) CCR76CG131(4)(1)

100 VOLT — C124 (CC(R)76 PER MIL-PRF-20/28)

270.0 C124G271(4)1G5C(1) CC76CG271(4) CCR76CG271(4)(1)

300.0 C124G301(4)1G5C(1) CC76CG301(4) CCR76CG301(4)(1)

330.0 C124G331(4)1G5C(1) CC76CG331(4) CCR76CG331(4)(1)

360.0 C124G361(4)1G5C(1) CC76CG361(4) CCR76CG361(4)(1)

390.0 C124G391(4)1G5C(1) CC76CG391(4) CCR76CG391(4)(1)

430.0 C124G431(4)1G5C(1) CC76CG431(4) CCR76CG431(4)(1)

470.0 C124G471(4)1G5C(1) CC76CG471(4) CCR76CG471(4)(1)

510.0 C124G511(4)1G5C(1) CC76CG511(4) CCR76CG511(4)(1)

560.0 C124G561(4)1G5C(1) CC76CG561(4) CCR76CG561(4)(1)

620.0 C124G621(4)1G5C(1) CC76CG621(4) CCR76CG621(4)(1)

680.0 C124G681(4)1G5C(1) CC76CG681(4) CCR76CG681(4)(1)

50 VOLT — C124 (CC(R)76 PER MIL-PRF-20/28)

750.0 C124G751(4)5G5C(1) CC76CG751(4) CCR76CG751(4)(1)

820.0 C124G821(4)5G5C(1) CC76CG821(4) CCR76CG821(4)(1)

910.0 C124G911(4)5G5C(1) CC76CG911(4) CCR76CG911(4)(1)

1,000.0

C124G102(4)5G5C(1) CC76CG102(4) CCR76CG102(4)(1)

200 VOLT — C192 (CC(R)77 PER MIL-PRF-20/29)

150.0 C192G151(4)2G5C(1) CC77CG151(4) CCR77CG151(4)(1)

160.0 C192G161(4)2G5C(1) CC77CG161(4) CCR77CG161(4)(1)

180.0 C192G181(4)2G5C(1) CC77CG181(4) CCR77CG181(4)(1)

200.0 C192G201(4)2G5C(1) CC77CG201(4) CCR77CG201(4)(1)

220.0 C192G221(4)2G5C(1) CC77CG221(4) CCR77CG221(4)(1)

240.0 C192G241(4)2G5C(1) CC77CG241(4) CCR77CG241(4)(1)

270.0 C192G271(4)2G5C(1) CC77CG271(4) CCR77CG271(4)(1)

300.0 C192G301(4)2G5C(1) CC77CG301(4) CCR77CG301(4)(1)

330.0 C192G331(4)2G5C(1) CC77CG331(4) CCR77CG331(4)(1)

360.0 C192G361(4)2G5C(1) CC77CG361(4) CCR77CG361(4)(1)

390.0 C192G391(4)2G5C(1) CC77CG391(4) CCR77CG391(4)(1)

430.0 C192G431(4)2G5C(1) CC77CG431(4) CCR77CG431(4)(1)

470.0 C192G471(4)2G5C(1) CC77CG471(4) CCR77CG471(4)(1)

510.0 C192G511(4)2G5C(1) CC77CG511(4) CCR77CG511(4)(1)

560.0 C192G561(4)2G5C(1) CC77CG561(4) CCR77CG561(4)(1)

620.0 C192G621(4)2G5C(1) CC77CG621(4) CCR77CG621(4)(1)

680.0 C192G681(4)2G5C(1) CC77CG681(4) CCR77CG681(4)(1)

Page 30

CERAMIC MOLDED/AXIAL — MIL-PRF-20

ULTRA-STABLE TEMPERATURE CHARACTERISTIC — CG (EIA-C0G)

CAP. KEMET MILITARY STYLE MILITARY STYLE

pF PART NUMBER CC CCR

100 VOLT — C192 (CC(R)77 PER MIL-PRF-20/29)

750.0 C192G751(4)1G5C(1) CC77CG751(4) CCR77CG751(4)(1)

820.0 C192G821(4)1G5C(1) CC77CG821(4) CCR77CG821(4)(1)

910.0 C192G911(4)1G5C(1) CC77CG911(4) CCR77CG911(4)(1) 1,000.0 C192G102(4)1G5C(1) CC77CG102(4) CCR77CG102(4)(1) 1,100.0 C192G112(4)1G5C(1

) CC77CG112(4

) CCR77CG112(4)(1)

1,200.0 C192G122(4

)1G5C(1

) CC77CG122(4

) CCR77CG122(4)(1)

1,300.0 C192G132(4

)1G5C(1

) CC77CG132(4

) CCR77CG132(4)(1)

1,500.0 C192G152(4

)1G5C(1

) CC77CG152(4

) CCR77CG152(4)(1)

1,600.0 C192G162(4

)1G5C(1

) CC77CG162(4

) CCR77CG162(4)(1)

1,800.0 C192G182(4

)1G5C(1

) CC77CG182(4

) CCR77CG182(4)(1)

2,000.0 C192G202(4

)1G5C(1

) CC77CG202(4

) CCR77CG202(4)(1)

2,200.0 C192G222(4

)1G5C(1

) CC77CG222(4

) CCR77CG222(4)(1)

50 VOLT — C192 (CC(R)77 PER MIL-PRF-20/29)

2,400.0 C192G242(4)5G5C(1

) CC77CG242(4

) CCR77CG242(4)(1)

2,700.0 C192G272(4

)5G5C(1) CC77CG272(4) CCR77CG272(4)(1) 3,000.0 C192G302(4)5G5C(1) CC77CG302(4) CCR77CG302(4)(1) 3,300.0 C192G332(4)5G5C(1) CC77CG332(4) CCR77CG332(4)(1) 3,600.0 C192G362(4)5G5C(1) CC77CG362(4) CCR77CG362(4)(1) 3,900.0 C192G392(4)5G5C(1) CC77CG392(4) CCR77CG392(4)(1) 4,300.0 C192G432(4)5G5C(1) CC77CG432(4) CCR77CG432(4)(1) 4,700.0 C192G472(4)5G5C(1) CC77CG472(4) CCR77CG472(4)(1) 5,100.0 C192G512(5)5G5C(1) CC77CG512(5) CCR77CG512(5)(1) 5,600.0 C192G562(5)5G5C(1) CC77CG562(5) CCR77CG562(5)(1)

200 VOLT — C202 (CC(R)78 PER MIL-PRF-20/30)

820.0 C202G821(5

)2G5C(1

) CC78CG821(5

) CCR78CG821(5)(1)

1,000.0 C202G102(5

)2G5C(1) CC78CG102(5) CCR78CG102(5)(1) 1,200.0 C202G122(5)2G5C(1) CC78CG122(5) CCR78CG122(5)(1) 1,500.0 C202G152(5)2G5C(1) CC78CG152(5) CCR78CG152(5)(1) 1,800.0 C202G182(5)2G5C(1) CC78CG182(5) CCR78CG182(5)(1) 2,200.0 C202G222(5)2G5C(1) CC78CG222(5) CCR78CG222(5)(1) 2,700.0 C202G272(5)2G5C(1) CC78CG272(5) CCR78CG272(5)(1) 3,300.0 C202G332(5)2G5C(1) CC78CG332(5) CCR78CG332(5)(1)

RATINGS & PART NUMBER REFERENCE

To complete Part Number, insert the following letters: (1) Available Failure Rates: A (CC styles only); M, P, R & S (CCR styles only). (2) Available Capacitance Tolerances: B, C. (3) Available Capacitance Tolerances: B, C, D. (4) Available Capacitance Tolerances: F, G, J. (5) Available Capacitance Tolerances: F, G, J, K.

CAP. KEMET MILITARY STYLE MILITARY STYLE

pF PART NUMBER CC CCR

100 VOLT — C202 (CC(R)78 PER MIL-PRF-20/30)

3,900.0 C202G392(5)1G5C(1) CC78CG392(5) CCR78CG392(5)(1) 4,700.0 C202G472(5)1G5C(1) CC78CG472(5) CCR78CG472(5)(1) 5,600.0 C202G562(5)1G5C(1) CC78CG562(5) CCR78CG562(5)(1) 6,800.0 C202G682(5)1G5C(1) CC78CG682(5) CCR78CG682(5)(1) 8,200.0 C202G822(5)1G5C(1

) CC78CG822(5

) CCR78CG822(5)(1)

10,000.0 C202G103(5

)1G5C(1

) CC78CG103(5

) CCR78CG103(5)(1)

12,000.0 C202G123(5

)1G5C(1

) CC78CG123(5

) CCR78CG123(5)(1)

50 VOLT — C202 (CC(R)78 PER MIL-PRF-20/30)

15,000.0 C202G153(5)5G5C(1

) CC78CG153(5

) CCR78CG153(5)(1)

18,000.0 C202G183(5

)5G5C(1

) CC78CG183(5

) CCR78CG183(5)(1)

22,000.0 C202G223(5

)5G5C(1

) CC78CG223(5

) CCR78CG223(5)(1)

27,000.0 C202G273(5

)5G5C(1

) CC78CG273(5

) CCR78CG273(5)(1)

200 VOLT — C222 (CC(R)79 PER MIL-PRF-20/31)

3,900.0 C222G392(5)2G5C(1

) CC79CG392(5

) CCR79CG392(5)(1)

4,700.0 C222G472(5

)2G5C(1) CC79CG472(5) CCR79CG472(5)(1) 5,600.0 C222G562(5)2G5C(1) CC79CG562(5) CCR79CG562(5)(1) 6,800.0 C222G682(5)2G5C(1) CC79CG682(5) CCR79CG682(5)(1) 8,200.0 C222G822(5)2G5C(1) CC79CG822(5) CCR79CG822(5)(1)

10,000.0 C222G103(5)2G5C(1) CC79CG103(5) CCR79CG103(5)(1)

100 VOLT — C222 (CC(R)79 PER MIL-PRF-20/31)

15,000.0 C222G153(5

)1G5C(1

) CC79CG153(5) CCR79CG153(5)(1)

18,000.0 C222G183(5

)1G5C(1

) CC79CG183(5) CCR79CG183(5)(1)

22,000.0 C222G223(5

)1G5C(1

) CC79CG223(5) CCR79CG223(5)(1)

27,000.0 C222G273(5

)1G5C(1

) CC79CG273(5) CCR79CG273(5)(1)

33,000.0 C222G333(5

)1G5C(1

) CC79CG333(5) CCR79CG333(5)(1)

39,000.0 C222G393(5

)1G5C(1

) CC79CG393(5) CCR79CG393(5)(1)

50 VOLT — C222 (CC(R)79 PER MIL-PRF-20/31)

47,000.0 C222G473(5)5G5C(1) CC79CG473(5) CCR79CG473(5)(1) 56,000.0 C222G563(5)5G5C(1) CC79CG563(5) CCR79CG563(5)(1) 68,000.0 C222G683(5

)5G5C(1) CC79CG683(5) CCR79CG683(5)(1)

82,000.0 C222G823(5)5G5C(1) CC79CG823(5) CCR79CG823(5)(1)

Page 31

CERAMIC MOLDED/RADIAL — MIL-PRF-20

ULTRA-STABLE TEMPERATURE CHARACTERISTIC — CG (EIA-C0G)

MIL-PRF-20

CAP. KEMET MILITARY STYLE MILITARY STYLE

pF PART NUMBER CC CCR

200 VOLT — C052/C056 SIZE (CC(R)05 PER MIL-PRF-20/35)

1.0 C05(6)G109(2)2G5C(1) CC05CX1R0(2) CCR05CX1R0(2)(1)(7)

1.1 C05(6)G119(2)2G5C(1) CC05CX1R1(2) CCR05CX1R1(2)(1)(7)

1.2 C05(6)G129(2)2G5C(1) CC05CX1R2(2) CCR05CX1R2(2)(1)(7)

1.3 C05(6)G139(2

)2G5C(1) CC05CX1R3(2

) CCR05CX1R3(2)(1)(7

)

1.5 C05(6

)G159(2

)2G5C(1) CC05CX1R5(2

) CCR05CX1R5(2)(1)(7

)

1.6 C05(6

)G169(2

)2G5C(1) CC05CX1R6(2

) CCR05CX1R6(2)(1)(7

)

1.8 C05(6

)G189(2

)2G5C(1) CC05CX1R8(2

) CCR05CX1R8(2)(1)(7

)

2.0 C05(6

)G209(2

)2G5C(1) CC05CX2R0(2

) CCR05CX2R0(2)(1)(7

)

2.2 C05(6

)G229(2

)2G5C(1) CC05CK2R2(2

) CCR05CK2R2(2)(1)(7

)

2.4 C05(6

)G249(2

)2G5C(1) CC05CK2R4(2

) CCR05CK2R4(2)(1)(7

)

2.7 C05(6

)G279(3

)2G5C(1) CC05CK2R7(3

) CCR05CK2R7(3)(1)(7

)

3.0 C05(6

)G309(3

)2G5C(1) CC05CK3R0(3

) CCR05CK3R0(3)(1)(7

)

3.3 C05(6

)G339(3

)2G5C(1) CC05CK3R3(3

) CCR05CK3R3(3)(1)(7

)

3.6 C05(6

)G369(3

)2G5C(1) CC05CK3R6(3

) CCR05CK3R6(3)(1)(7

)

3.9 C05(6

)G399(3)2G5C(1) CC05CK3R9(3) CCR05CK3R9(3)(1)(7)

4.3 C05(6)G439(3)2G5C(1) CC05CJ4R3(3) CCR05CJ4R3(3)(1)(7)

4.7 C05(6

)G479(3)2G5C(1) CC05CJ4R7(3) CCR05CJ4R7(3)(1)(7)

5.1 C05(6)G519(3)2G5C(1) CC05CJ5R1(3) CCR05CJ5R1(3)(1)(7)

5.6 C05(6)G569(3)2G5C(1) CC05CJ5R6(3) CCR05CJ5R6(3)(1)(7)

6.2 C05(6)G629(3

)2G5C(1) CC05CJ6R2(3) CCR05CJ6R2(3)(1)(7)

6.8 C05(6

)G689(3

)2G5C(1) CC05CJ6R8(3) CCR05CJ6R8(3)(1)(7)

7.5 C05(6

)G759(3

)2G5C(1) CC05CJ7R5(3) CCR05CJ7R5(3)(1)(7)

8.2 C05(6

)G829(3

)2G5C(1) CC05CH8R2(3) CCR05CH8R2(3)(1)(7)

9.1 C05(6

)G919(3

)2G5C(1) CC05CH9R1(3) CCR05CH9R1(3)(1)(7)

10.0 C05(6

)G100(4

)2G5C(1) CC05CH100(4) CCR05CH100(4)(1)(7)

11.0 C05(6

)G110(4

)2G5C(1) CC05CH110(4) CCR05CH110(4)(1)(7)

12.0 C05(6

)G120(4

)2G5C(1) CC05CH120(4) CCR05CH120(4)(1)(7)

13.0 C05(6

)G130(4

)2G5C(1

) CC05CH130(4) CCR05CH130(4)(1)(7)

15.0 C05(6

)G150(4

)2G5C(1

) CC05CH150(4) CCR05CH150(4)(1)(7)

16.0 C05(6

)G160(4

)2G5C(1

) CC05CH160(4) CCR05CH160(4)(1)(7)

18.0 C05(6

)G180(4

)2G5C(1

) CC05CH180(4) CCR05CH180(4)(1)(7)

20.0 C05(6

)G200(4

)2G5C(1

) CC05CG200(4) CCR05CG200(4)(1)(7)

22.0 C05(6

)G220(4

)2G5C(1

) CC05CG220(4) CCR05CG220(4)(1)(7)

24.0 C05(6

)G240(4

)2G5C(1

) CC05CG240(4) CCR05CG240(4)(1)(7)

27.0 C05(6

)G270(4

)2G5C(1

) CC05CG270(4) CCR05CG270(4)(1)(7)

30.0 C05(6

)G300(4

)2G5C(1

) CC05CG300(4) CCR05CG300(4)(1)(7)

33.0 C05(6

)G330(4

)2G5C(1

) CC05CG330(4) CCR05CG330(4)(1)(7)

36.0 C05(6

)G360(4

)2G5C(1

) CC05CG360(4) CCR05CG360(4)(1)(7)

39.0 C05(6

)G390(4

)2G5C(1

) CC05CG390(4) CCR05CG390(4)(1)(7)

43.0 C05(6

)G430(4

)2G5C(1

) CC05CG430(4) CCR05CG430(4)(1)(7)

47.0 C05(6

)G470(4)2G5C(1) CC05CG470(4) CCR05CG470(4)(1)(7)

51.0 C05(6)G510(4)2G5C(1) CC05CG510(4) CCR05CG510(4)(1)(7)

RATINGS & PART NUMBER REFERENCE

Insert “6” for stand-off design, Style C056G only as CCR’s, not available as CC.

(7) Add “V” for stand-off design, Style C056G

And leave blank for the flat bottom design (C052G)

CAP. KEMET MILITARY STYLE MILITARY STYLE

pF PART NUMBER CC CCR

200 VOLT — C052/C056 SIZE (CC(R)05 PER MIL-PRF-20/35)

56.0 C05(6

)G560(4)2G5C(1) CC05CG560(4) CCR05CG560(4)(1)(7)

62.0 C05(6)G620(4)2G5C(1) CC05CG620(4) CCR05CG620(4)(1)(7)

68.0 C05(6

)G680(4)2G5C(1) CC05CG680(4) CCR05CG680(4)(1)(7)

75.0 C05(6

)G750(4)2G5C(1) CC05CG750(4

) CCR05CG750(4)(1)(7

)

82.0 C05(6

)G820(4)2G5C(1) CC05CG820(4

) CCR75CG820(4)(1)(7

)

91.0 C05(6

)G910(4)2G5C(1) CC05CG910(4

) CCR05CG910(4)(1)(7

)

100.0 C05(6

)G101(4)2G5C(1) CC05CG101(4

) CCR05CG101(4)(1)(7

)

110.0 C05(6

)G111(4)2G5C(1) CC05CG111(4

) CCR05CG111(4)(1)(7

)

120.0 C05(6

)G121(4)2G5C(1) CC05CG121(4

) CCR05CG121(4)(1)(7

)

130.0 C05(6

)G131(4)2G5C(1) CC05CG131(4

) CCR05CG131(4)(1)(7

)

150.0 C05(6

)G151(4)2G5C(1) CC05CG151(4

) CCR05CG151(4)(1)(7

)

160.0 C05(6

)G161(4)2G5C(1) CC05CG161(4

) CCR05CG161(4)(1)(7

)

180.0 C05(6

)G181(4)2G5C(1) CC05CG181(4

) CCR05CG181(4)(1)(7

)

200.0 C05(6

)G201(4)2G5C(1) CC05CG201(4

) CCR05CG201(4)(1)(7

)

220.0 C05(6

)G221(4)2G5C(1) CC05CG221(4) CCR05CG221(4)(1)(7)

240.0 C05(6)G241(4)2G5C(1) CC05CG241(4) CCR05CG241(4)(1)(7)

270.0 C05(6

)G271(4

)2G5C(1) CC05CG271(4) CCR05CG271(4)(1)(7)

300.0 C05(6

)G301(4

)2G5C(1) CC05CG301(4) CCR05CG301(4)(1)(7)

330.0 C05(6

)G331(4

)2G5C(1) CC05CG331(4) CCR05CG331(4)(1)(7)

100 VOLT — C052/C056 SIZE (CC(R)05 PER MIL-PRF-20/35)

360.0 C05(6)G361(4)1G5C(1) CC05CG361(4) CCR05CG361(4)(1)(7)

390.0 C05(6)G391(4)1G5C(1) CC05CG391(4) CCR05CG391(4)(1)(7)

430.0 C05(6)G431(4)1G5C(1) CC05CG431(4) CCR05CG431(4)(1)(7)

470.0 C05(6)G471(4)1G5C(1) CC05CG471(4) CCR05CG471(4)(1)(7)

510.0 C05(6)G511(4)1G5C(1) CC05CG511(4) CCR05CG511(4)(1)(7)

560.0 C05(6)G561(4)1G5C(1) CC05CG561(4) CCR05CG561(4)(1)(7)

620.0 C05(6

)G621(4)1G5C(1) CC05CG621(4) CCR05CG621(4)(1)(7)

680.0 C05(6)G681(4)1G5C(1) CC05CG681(4) CCR05CG681(4)(1)(7)

750.0 C05(6)G751(4)1G5C(1) CC05CG751(4) CCR05CG751(4)(1)(7)

820.0 C05(6)G821(4)1G5C(1) CC05CG821(4) CCR05CG821(4)(1)(7)

910.0 C05(6)G911(4)1G5C(1) CC05CG911(4) CCR05CG911(4)(1)(7)

1,000.0 C05(6)G102(4

)1G5C(1) CC05CG102(4) CCR05CG102(4)(1)(7)

1,100.0 C05(6

)G112(4

)1G5C(1) CC05CG112(4) CCR05CG112(4)(1)(7)

1,200.0 C05(6

)G122(4

)1G5C(1) CC05CG122(4) CCR05CG122(4)(1)(7)

1,300.0 C05(6

)G132(4

)1G5C(1) CC05CG132(4) CCR05CG132(4)(1)(7)

1,500.0 C05(6

)G152(4

)1G5C(1) CC05CG152(4) CCR05CG152(4)(1)(7)

1,600.0 C05(6

)G162(4

)1G5C(1) CC05CG162(4) CCR05CG162(4)(1)(7)

1,800.0 C05(6

)G182(4)1G5C(1) CC05CG182(4) CCR05CG182(4)(1)(7)

50 VOLT — C052/C056 SIZE (CC(R)05 PER MIL-PRF-20/35)

2,000.0 C05(6)G202(4)5G5C(1) CC05CG202(4) CCR05CG202(4)(1)(7) 2,200.0 C05(6

)G222(4)5G5C(1) CC05CG222(4) CCR05CG222(4)(1)(7) 2,400.0 C05(6)G242(4)5G5C(1) CC05CG242(4) CCR05CG242(4)(1)(7) 2,700.0 C05(6

)G272(4

)5G5C(1) CC05CG272(4) CCR05CG272(4)(1)(7)

3,000.0 C05(6

)G302(4

)5G5C(1) CC05CG302(4) CCR05CG302(4)(1)(7)

3,300.0 C05(6

)G332(4)5G5C(1) CC05CG332(4) CCR05CG332(4)(1)(7)

}

Page 32

CERAMIC MOLDED/RADIAL — MIL-PRF-20

ULTRA-STABLE TEMPERATURE CHARACTERISTIC — CG (EIA-C0G)

CAP. KEMET MILITARY STYLE MILITARY STYLE

pF PART NUMBER CC CCR

200 VOLT — C062/C066 SIZE (CC(R)06 PER MIL-PRF-20/36)

360.0 C06(6)G361(4)2G5C(1) CC06CG361(4) CCR06CG361(4)(1)(7)

390.0 C06(6)G391(4)2G5C(1) CC06CG391(4) CCR06CG391(4)(1)(7)

430.0 C06(6)G431(4)2G5C(1) CC06CG431(4) CCR06CG431(4)(1)(7)

470.0 C06(6)G471(4)2G5C(1) CC06CG471(4) CCR06CG471(4)(1)(7)

510.0 C06(6)G511(4

)2G5C(1

) CC06CG511(4) CCR06CG511(4)(1

)(7)

560.0 C06(6

)G561(4

)2G5C(1

) CC06CG561(4) CCR06CG561(4)(1

)(7)

620.0 C06(6

)G621(4

)2G5C(1

) CC06CG621(4) CCR06CG621(4)(1

)(7)

680.0 C06(6

)G681(4

)2G5C(1

) CC06CG681(4) CCR06CG681(4)(1

)(7)

750.0 C06(6

)G751(4

)2G5C(1

) CC06CG751(4) CCR06CG751(4)(1

)(7)

820.0 C06(6

)G821(4

)2G5C(1

) CC06CG821(4) CCR06CG821(4)(1

)(7)

910.0 C06(6

)G911(4

)2G5C(1

) CC06CG911(4) CCR06CG911(4)(1

)(7)

1,000.0 C06(6

)G102(4

)2G5C(1

) CC06CG102(4) CCR06CG102(4)(1

)(7)

1,100.0 C06(6

)G112(4

)2G5C(1

) CC06CG112(4) CCR06CG112(4)(1

)(7)

1,200.0 C06(6

)G122(4

)2G5C(1

) CC06CG122(4) CCR06CG122(4)(1

)(7)

1,300.0 C06(6

)G132(4

)2G5C(1

) CC06CG132(4) CCR06CG132(4)(1

)(7)

1,500.0 C06(6

)G152(4)2G5C(1) CC06CG152(4) CCR06CG152(4)(1)(7)

1,600.0 C06(6)G162(4)2G5C(1) CC06CG162(4) CCR06CG162(4)(1)(7)

1,800.0 C06(6)G182(4)2G5C(1) CC06CG182(4) CCR06CG182(4)(1)(7)

100 VOLT — C062/C066 SIZE (CC(R)06 PER MIL-PRF-20/36)

2,000.0 C06(6)G202(4)1G5C(1) CC06CG202(4) CCR06CG202(4)(1)(7) 2,200.0 C06(6)G222(4)1G5C(1) CC06CG222(4) CCR06CG222(4)(1)(7) 2,400.0 C06(6)G242(4)1G5C(1) CC06CG242(4) CCR06CG242(4)(1)(7) 2,700.0 C06(6)G272(4)1G5C(1) CC06CG272(4) CCR06CG272(4)(1)(7) 3,000.0 C06(6)G302(4)1G5C(1) CC06CG302(4) CCR06CG302(4)(1)(7) 3,300.0 C06(6)G332(4)1G5C(1) CC06CG332(4) CCR06CG332(4)(1)(7)

3,600.0 C06(6)G362(4)1G5C(1) CC06CG362(4) CCR06CG362(4)(1)(7) 3,900.0 C06(6)G392(4)1G5C(1) CC06CG392(4) CCR06CG392(4)(1)(7) 4,300.0 C06(6)G432(4)1G5C(1) CC06CG432(4) CCR06CG432(4)(1)(7)

4,700.0 C06(6)G472(4)1G5C(1) CC06CG472(4) CCR06CG472(4)(1)(7)

50 VOLT — C062/C066 SIZE (CC(R)06 PER MIL-PRF-20/36)

5,100.0 C06(6)G512(5)5G5C(1) CC06CG512(5) CCR06CG512(5)(1)(7)

5,600.0 C06(6)G562(5)5G5C(1) CC06CG562(5) CCR06CG562(5)(1)(7)

6,200.0 C06(6)G622(5)5G5C(1) CC06CG622(5) CCR06CG622(5)(1)(7)

6,800.0 C06(6)G682(5)5G5C(1) CC06CG682(5) CCR06CG682(5)(1)(7)

7,500.0 C06(6)G752(5)5G5C(1) CC06CG752(5) CCR06CG752(5)(1)(7)

RATINGS & PART NUMBER REFERENCE

CAP. KEMET MILITARY STYLE MILITARY STYLE

pF PART NUMBER CC CCR

50 VOLT — C062/C066 SIZE (CC(R)06 PER MIL-PRF-20/36)

8,200.0

C06(6)G822(5)5G5C(1)

CC06CG822(5) CCR06CG822(5)(1)(7)

9,100.0

C06(6)G912(5)5G5C(1)

CC06CG912(5) CCR06CG912(5)(1)(7)

10,000.0

C06(6)G103(5)5G5C(1)

CC06CG103(5) CCR06CG103(5)(1)(7)

12,000.0

C06(6)G123(5)5G5C(1)

CC06CG123(5) CCR06CG123(5)(1)(7)

15,000.0

C06(6

)G153(5)5G5C(1)

CC06CG153(5

) CCR06CG153(5)(1

)(7)

18,000.0

C06(6

)G183(5)5G5C(1)

CC06CG183(5

) CCR06CG183(5)(1

)(7)

200 VOLT — C512 SIZE (CC(R)07 PER MIL-PRF-20/37)

2,200.0 C512G222(5

)2G5C(1) CC07CG222(5) CCR07CG222(5

)(1)

2,700.0 C512G272(5

)2G5C(1) CC07CG272(5) CCR07CG272(5

)(1)

3,300.0 C512G332(5

)2G5C(1) CC07CG332(5) CCR07CG332(5

)(1)

3,900.0 C512G392(5

)2G5C(1) CC07CG392(5) CCR07CG392(5

)(1)

4,700.0 C512G472(5

)2G5C(1) CC07CG472(5) CCR07CG472(5

)(1)

100 VOLT — C512 SIZE (CC(R)07 PER MIL-PRF-20/37)

5,600.0 C512G562(5

)1G5C(1) CC07CG562(5) CCR07CG562(5

)(1)

6,800.0 C512G682(5

)1G5C(1) CC07CG682(5) CCR07CG682(5)(1)

8,200.0 C512G822(5)1G5C(1) CC07CG822(5) CCR07CG822(5)(1) 10,000.0 C512G103(5)1G5C(1) CC07CG103(5) CCR07CG103(5)(1) 12,000.0 C512G123(5)1G5C(1) CC07CG123(5) CCR07CG123(5)(1)

50 VOLT — C512 SIZE (CC(R)07 PER MIL-PRF-20/37)

15,000.0 C512G153(5)5G5C(1) CC07CG153(5) CCR07CG153(5)(1) 18,000.0 C512G183(5)5G5C(1) CC07CG183(5) CCR07CG183(5)(1) 22,000.0 C512G223(5)5G5C(1) CC07CG223(5) CCR07CG223(5)(1) 27,000.0 C512G273(5)5G5C(1) CC07CG273(5) CCR07CG273(5)(1) 33,000.0 C512G333(5)5G5C(1) CC07CG333(5) CCR07CG333(5)(1) 39,000.0 C512G393(5)5G5C(1) CC07CG393(5) CCR07CG393(5)(1) 47,000.0 C512G473(5)5G5C(1) CC07CG473(5) CCR07CG473(5)(1) 56,000.0 C512G563(5)5G5C(1) CC07CG563(5) CCR07CG563(5)(1) 68,000.0 C512G683(5)5G5C(1) CC07CG683(5) CCR07CG683(5)(1) 83,000.0 C512G823(5)5G5C(1) CC07CG823(5) CCR07CG823(5)(1)

100,000.0

C512G104(5)5G5C(1) CC07CG104(5) CCR07CG104(5)(1)

200 VOLT — C522 SIZE (CC(R)08 PER MIL-PRF-20/38)

3,900.0 C522G392(8)2G5C(1) CC08CG392(8) CCR08CG392(8)(1)

4,700.0 C522G472(8)2G5C(1) CC08CG472(8) CCR08CG472(8)(1)

100 VOLT — C522 SIZE (CC(R)08 PER MIL-PRF-20/38)

15,000.0 C522G153(8

)1G5C(1

) CC08CG153(8

) CCR08CG153(8)(1)

18,000.0 C522G183(8

)1G5C(1

) CC08CG183(8

) CCR08CG183(8)(1)

50 VOLT — C522 SIZE (CC(R)08 PER MIL-PRF-20/38)

56,000.0 C522G563(8)5G5C(1) CC08CG563(8) CCR08CG563(8)(1) 68,000.0 C522G683(8)5G5C(1) CC08CG683(8) CCR08CG683(8)(1)

Insert “6” for stand-off design, Style C066G only as CCR’s, not available as CC.

(7) Add “V” for stand-off design, Style C066G

And leave blank for the flat bottom design (C062G)

(8) Available Capacitance Tolerances: G, J, K

}

Page 33

CERAMIC MOLDED/MIL-C-11015 (CK) & MIL-PRF-39014 (CKR)

C062 (CK06, CKR06)

Lead Dia.

.025

(+.004

-.002)

.026 MIN.

.045

MAX.

1.25

MIN.

1.25

MIN.

Center Line of leads within .030" of Center Line of case.

1.25

MIN.

.026

MIN.

C052 (CK05, CKR05) C056 (CKR05)

C066 (CKR06)

Lead Dia.

.025

(+.004

-.002)

Lead Dia.

.025

(+.004

-.002)

Lead Dia.

.025

(+.004

-.002)

1.25 MIN.

DIMENSIONS — INCHES & (MILLIMETERS)

CASE MILITARY

SIZE EQUIVALENT STYLES

LD C

C114 CK12, CKR11 .160 ± .010 (4.06 ± .25) .090 ± .010 (2.29 ± .25) .020, +.000, -.003 (.51, +.00, -.08)

C124 CK13, CKR12 .250 ± .010 (6.35 ± .25) .090 ± .010 (2.29 ± .25) .020, +.000, -.003 (.51, +.00, -.08)

C192 CK14, CKR14 .390 ± .010 (9.91 ± .25) .140 ± .010 (3.56 ± .25) .025, +.002, -.002 (.64, +.05, -.05)

C202 CK15, CKR15 .500 ± .020 (12.70 ± .51) .250 ± .015 (6.35 ± .38) .025, +.002, -.002 (.64, +.05, -.05)

C222 CK16, CKR16 .690 ± .030 (17.53 ± .76) .350 ± .020 (8.89 ± .51) .025, +.002, -.002 (.64, +.05, -.05)

CAPACITOR OUTLINE DRAWINGS (AXIAL LEADS)

CAPACITOR OUTLINE DRAWINGS (RADIAL LEADS)

DIMENSIONS — INCHES & (MILLIMETERS)

MILITARY S

CASE EQUIVALENT H L W LEAD

SIZE STYLES HEIGHT LENGTH WIDTH SPACING

CK05, CKR05 .190 ± .010 (4.83 ± .25) .190 ± .010 (4.83 ± .25) .090 ± .010 (2.29 ± .25) .200 ± .015 (5.08 ± .38)

CK06, CKR06 .290 ± .010 (7.37 ± .25) .290 ± .010 (7.37 ± .25) .090 ± .010 (2.29 ± .25) .200 ± .015 (5.08 ± .38)

C052/ C056

C062/ C066

* Leads are .625 minimum when tape and reel packaged.

MIL-C-11015

MIL-PRF-39014

1.50 Min. (38.10)

Page 34

CERAMIC MOLDED/MIL-C-11015 & MIL-PRF-39014 (CKR)

C114T (CKR11)

102

052

CERAMIC *CASE SIZE

(See Table Below)

SPECIFICATION

Military

T — MIL-PRF-39014 K — MIL-C-11015

CAPACITANCE

In picofarad code: First two digits are significant figures and third is number of zeroes following (except 9 indicates division by 10). Examples:

0.1 F = 100,000 pF = 104 and 9.1 pF = 919. See tables for Standard Values.

F AILURE RATE

INTERNAL CONSTRUCTION

CAPACITANCE TOLERANCE

Standard

M— ±20% K — ±10%

A — Not Applicable (Std.) M — 1.0% P — 0.1% R — 0.01% S — 0.001%

LEAD MA TERIAL

C — Standard

5 — Standard

WORKING VOLTAGE

1 — 100 2 — 200 5 — 50

Standard tolerances for each Series are shown in the repetitive parts lists.

*CASE SIZES

RADIAL AXIAL

C052 C114 C056 C124 C062 C192 C066 C202

C222

TEMPERATURE CHARACTERISTIC

Capacitance Change With Temp.

Measured Measured

Without With Bias

KEMET Military EIA Temp. DC Bias (Rated

Designator Equivalent Equivalent Range, °C Voltage Voltage)

X BX X7R

-55 to ±15% +15%

(Stable) +125 -25%

R BR X7R -55 to ±15% +15%

(Stable) +125 -40%

**Part Number Example: C052K102K2X5CA (14 digits – no spaces)

ORDERING INFORMATION

MARKING INFORMATION

C114T (CKR11) THROUGH C222T (CKR16) PER MIL-PRF-39014

JK 103

KP5 37A

J for JAN K for KEMET

Capacitance Capacitance Tolerance, FR Level & Date Code (Yr.)

Date and Lot Code

C124T (CKR12)

CKR12 2657J 0537A 31433

Style Dash No., J for JAN

Date & Lot Code Source Code

(Federal Supply Code for Manufacturers, FSCM)

C192T (CKR14) C202T (CKR15) C222T (CKR16)

M39014 5-2125 KEMET 0537A J50V 105K

Complete Part Number Manufacturer’s Name

Date & Lot Code JAN & Voltage Capacitance, pF Code, Capacitance

Tolerance

C052/56T (CKR05) PER MIL-PRF-39014/01

0537

JAN-KEMET Date Code Lot Code

BACK

M390 14/01 1579*

Specification

Sheet No.

Four Digit Part No.

*Add “V” as the last digit for stand-off leads.

FRONT

C062/66T (CKR06) PER MIL-PRF-39014/02

0537A

J200V

103K

Date & Lot Code JAN & Voltage Capacitance, pF Code, Capacitance Tolerance

BACK

M39014 2-1338 *KEMET

Complete MIL Part No.

Manufacturer’s Name

FRONT

*Add “V” as the last digit for stand-off leads.

C114K (CK12) THROUGH C222K (CK16) PER MIL-C-11015

C114K (CK12) C124K (CK13)

KCK 12BX 102K 0537

KEMET, CK Style (12 or 13), Temp. Char. (BX or BR) Capacitance, pF Code, Capacitance Tolerance Date Code

C192K (CK14) C202K (CK15) C222K (CK16)

K100V

CK14BX

123K

0537

KEMET, Voltage Style (14, 15 or 16), Temp. Char. (BX or BR) Capacitance, pF Code, Capacitance Tolerance Date Code

C052K (CK05) PER MIL-C-11015/18 & C062K (CK06) PER MIL-C-11015/19

200V

0501

Voltage KEMET Date Code

BACK

CK05 BX 102K

Style

Temperature Characteristic

Capacitance, pF Code, Capacitance Tolerance

FRONT

Page 35

CERAMIC MOLDED/AXIAL — MIL-C-11015 & MIL-PRF-39014

STABLE TEMPERATURE CHARACTERISTICS—BX & BR (EIA-X7R)

MIL-C-11015

MIL-PRF-39014

RATINGS & PART NUMBER REFERENCE

CAP. TOL. KEMET

MIL-PRF-39014/05 For Failure Rate Levels (2)

pF % PART NUMBER

MIL-C-11015/20 MIL-PRF-39014/05

MP R S

100 VOLT — C114 SIZE (MILITARY—CK12 or CKR11)

10 10 C114(1

)100K1X5C(2) CK12BX100K CKR11BX100K(2) 2601 2801 2001 2201

10 20 C114(1

)100M1X5C(2) CK12BX100M CKR11BX100M(2) 2602 2802 2002 2202

12 10 C114(1

)120K1X5C(2) CK12BX120K CKR11BX120K(2) 2603 2803 2003 2203 15 10 C114(1)150K1X5C(2) CK12BX150K CKR11BX150K(2) 2604 2804 2004 2204 15 20 C114(1)150M1X5C(2) CK12BX150M CKR11BX150M(2) 2605 2805 2005 2205 18 10 C114(1

)180K1X5C(2) CK12BX180K CKR11BX180K(2) 2606 2806 2006 2206 22 10 C114(1

)220K1X5C(2) CK12BX220K CKR11BX220K(2

) 2607 2807 2007 2207

22 20 C114(1

)220M1X5C(2

) CK12BX220M CKR11BX220M(2

) 2608 2808 2008 2208

27 10 C114(1

)270K1X5C(2) CK12BX270K CKR11BX270K(2

) 2609 2809 2009 2209

33 10 C114(1

)330K1X5C(2) CK12BX330K CKR11BX330K(2

) 2610 2810 2010 2210

33 20 C114(1

)330M1X5C(2) CK12BX330M CKR11BX330M(2) 2611 2811 2011 2211 39 10 C114(1)390K1X5C(2) CK12BX390K CKR11BX390K(2

) 2612 2812 2012 2212

47 10 C114(1

)470K1X5C(2

) CK12BX470K CKR11BX470K(2

) 2613 2813 2013 2213

47 20 C114(1

)470M1X5C(2) CK12BX470M CKR11BX470M(2

) 2614 2814 2014 2214

56 10 C114(1

)560K1X5C(2) CK12BX560K CKR11BX560K(2

) 2615 2815 2015 2215

68 10 C114(1

)680K1X5C(2) CK12BX680K CKR11BX680K(2) 2616 2816 2016 2216 68 20 C114(1)680M1X5C(2) CK12BX680M CKR11BX680M(2

) 2617 2817 2017 2217

82 10 C114(1

)820K1X5C(2

) CK12BX820K CKR11BX820K(2

) 2618 2818 2018 2218

100 10 C114(1

)101K1X5C(2) CK12BX101K CKR11BX101K(2) 2619 2819 2019 2219

100 20 C114(1

)101M1X5C(2) CK12BX101M CKR11BX101M(2) 2620 2820 2020 2220

120 10 C114(1)121K1X5C(2) CK12BX121K CKR11BX121K(2) 2621 2821 2021 2221 150 10 C114(1)151K1X5C(2) CK12BX151K CKR11BX151K(2) 2622 2822 2022 2222 150 20 C114(1

)151M1X5C(2) CK12BX151M CKR11BX151M(2) 2623 2823 2023 2223

180 10 C114(1

)181K1X5C(2) CK12BX181K CKR11BX181K(2) 2624 2824 2024 2224

220 10 C114(1)221K1X5C(2) CK12BX221K CKR11BX221K(2) 2625 2825 2025 2225 220 20 C114(1

)221M1X5C(2) CK12BX221M CKR11BX221M(2) 2626 2826 2026 2226

270 10 C114(1

)271K1X5C(2) CK12BX271K CKR11BX271K(2) 2627 2827 2027 2227

330 10 C114(1)331K1X5C(2) CK12BX331K CKR11BX331K(2) 2628 2828 2028 2228 330 20 C114(1

)331M1X5C(2) CK12BX331M CKR11BX331M(2) 2629 2829 2029 2229

390 10 C114(1

)391K1X5C(2) CK12BX391K CKR11BX391K(2

) 2630 2830 2030 2230

470 10 C114(1

)471K1X5C(2) CK12BX471K CKR11BX471K(2) 2631 2831 2031 2231

470 20 C114(1)471M1X5C(2) CK12BX471M CKR11BX471M(2) 2632 2832 2032 2232 560 10 C114(1

)561K1X5C(2) CK12BX561K CKR11BX561K(2) 2633 2833 2033 2233

680 10 C114(1

)681K1X5C(2

) CK12BX681K CKR11BX681K(2

) 2634 2834 2034 2234

680 20 C114(1

)681M1X5C(2) CK12BX681M CKR11BX681M(2) 2635 2835 2035 2235

820 10 C114(1

)821K1X5C(2) CK12BX821K CKR11BX821K(2) 2636 2836 2036 2236

1,000 10 C114(1

)102K1X5C(2) CK12BX102K CKR11BX102K(2) 2637 2837 2037 2237

1,000 20 C114(1

)102M1X5C(2) CK12BX102M CKR11BX102M(2) 2638 2838 2038 2238

1,200 10 C114(1)122K1X5C(2) CK12BX122K CKR11BX122K(2) 2639 2839 2039 2239 1,500 10 C114(1

)152K1X5C(2

) CK12BX152K CKR11BX152K(2) 2640 2840 2040 2240

1,500 20 C114(1

)152M1X5C(2) CK12BX152M CKR11BX152M(2) 2641 2841 2041 2241

1,800 10 C114(1)182K1X5C(2) CK12BX182K CKR11BX182K(2) 2642 2842 2042 2242 2,200 10 C114(1

)222K1X5C(2) CK12BX222K CKR11BX222K(2) 2643 2843 2043 2243

2,200 20 C114(1

)222M1X5C(2) CK12BX222M CKR11BX222M(2

) 2644 2844 2044 2244

2,700 10 C114(1

)272K1X5C(2) CK12BX272K CKR11BX272K(2) 2645 2845 2045 2245

3,300 10 C114(1)332K1X5C(2) CK12BX332K CKR11BX332K(2) 2646 2846 2046 2246 3,300 20 C114(1

)332M1X5C(2) CK12BX332M CKR11BX332M2) 2647 2847 2047 2247

3,900 10 C114(1

)392K1X5C(2) CK12BX392K CKR11BX392K(2) 2648 2848 2048 2248

4,700 10 C114(1)472K1X5C(2) CK12BX472K CKR11BX472K(2) 2649 2849 2049 2249 4,700 20 C114(1)472M1X5C(2) CK12BX472M CKR11BX472M2) 2650 2850 2050 2250

50 VOLT — C114 SIZE (MILITARY—CK12 or CKR11)

5,600 10 C114(1

)562K5X5C(2) CK12BX562K CKR11BX562K(2) 2651 2851 2051 2251

6,800 10 C114(1)682K5X5C(2) CK12BX682K CKR11BX682K(2) 2652 2852 2052 2252 6,800 20 C114(1)682M5X5C(2) CK12BX682M CKR11BX682M(2) 2653 2853 2053 2253 8,200 10 C114(1

)822K5X5C(2) CK12BX822K CKR11BX822K(2) 2654 2854 2054 2254

10,000 10 C114(1)103K5X5C(2) CK12BX103K CKR11BX103K(2) 2655 2855 2055 2255 10,000 20 C114(1)103M5X5C(2) CK12BX103M CKR11BX103M(2) 2656 2856 2056 2256

100 VOLT — C124 SIZE (MILITARY—CK13 or CKR12)

5,600 10 C124(1)562K1X5C(2) CK13BX562K CKR12BX562K(2) 2657 2857 2057 2257 6,800 10 C124(1)682K1X5C(2) CK13BX682K CKR12BX682K(2) 2658 2858 2058 2258 6,800 20 C124(1)682M1X5C(2) CK13BX682M CKR12BX682M(2) 2659 2859 2059 2259 8,200 10 C124(1

)822K1X5C(2) CK13BX822K CKR12BX822K(2) 2660 2860 2060 2260

10,000 10 C124(1)103K1X5C(2) CK13BX103K CKR12BX103K(2) 2661 2861 2061 2261 10,000 20 C124(1

)103M1X5C(2) CK13BX103M CKR12BX103M(2) 2662 2862 2062 2262

50 VOLT — C124 SIZE (MILITARY—CK13 or CKR12)

12,000 10 C124(1)123K5X5C(2) CK13BX123K CKR12BX123K(2) 2663 2863 2063 2263 15,000 10 C124(1

)153K5X5C(2) CK13BX153K CKR12BX153K(2) 2664 2864 2064 2264

15,000 20 C124(1)153M5X5C(2) CK13BX153M CKR12BX153M(2) 2665 2865 2065 2265 18,000 10 C124(1

)183K5X5C(2) CK13BX183K CKR12BX183K(2) 2666 2866 2066 2266

22,000 10 C124(1)223K5X5C(2) CK13BX223K CKR12BX223K(2) 2667 2867 2067 2267 22,000 20 C124(1

)223M5X5C(2) CK13BX223M CKR12BX223M(2) 2668 2868 2068 2268

27,000 10 C124K273K5R5CA CK13BR273K 33,000 10 C124K333K5R5CA CK13BR333K 33,000 20 C124K333M5R5CA CK13BR333M 39,000 10 C124K393K5R5CA CK13BR393K 47,000 10 C124K473K5R5CA CK13BR473K 47,000 20 C124K473M5R5CA CK13BR473M

Page 36

CERAMIC MOLDED/AXIAL — MIL-C-11015 & MIL-PRF-39014

STABLE TEMPERATURE CHARACTERISTICS—BX & BR (EIA-X7R)

RATINGS & PART NUMBER REFERENCE

CAP. TOL. KEMET

MIL-PRF-39014/05 For Failure Rate Levels (2)

pF % PART NUMBER

MIL-C-11015/20 MIL-PRF-39014/05

MP R S

50 VOLT — C124 SIZE (MILITARY—CK13 or CKR12) (Cont’d)

27,000 10 C124T273K5X5C(2) CKR12BX273K(2) 2669 2869 2069 2269 33,000 10 C124T333K5X5C(2

) CKR12BX333K(2) 2670 2870 2070 2270

33,000 20 C124T333M5X5C(2

) CKR12BX333M(2

) 2671 2871 2071 2271

39,000 10 C124T393K5X5C(2

) CKR12BX393K(2) 2672 2872 2072 2272

47,000 10 C124T473K5X5C(2

) CKR12BX473K(2) 2673 2873 2073 2273

47,000 20 C124T473M5X5C(2

) CKR12BX473M(2) 2674 2874 2074 2274

100 VOLT — C192 SIZE (MILITARY—CK14 or CKR14)

12,000 10 C192(1

)123K1X5C(2) CK14BX123K CKR14BX123K(2

) 2675 2875 2075 2275

15,000 10 C192(1

)153K1X5C(2) CK14BX153K CKR14BX153K(2

) 2676 2876 2076 2276

15,000 20 C192(1

)153M1X5C(2) CK14BX153M CKR14BX153M(2

) 2677 2877 2077 2277

18,000 10 C192(1

)183K1X5C(2) CK14BX183K CKR14BX183K(2

) 2678 2878 2078 2278

22,000 10 C192(1

)223K1X5C(2) CK14BX223K CKR14BX223K(2

) 2679 2879 2079 2279

22,000 20 C192(1

)223M1X5C(2) CK14BX223M CKR14BX223M(2

) 2680 2880 2080 2280

27,000 10 C192(1

)273K1X5C(2) CK14BX273K CKR14BX273K(2

) 2681 2881 2081 2281

33,000 10 C192(1

)333K1X5C(2) CK14BX333K CKR14BX333K(2

) 2682 2882 2082 2282

33,000 20 C192(1

)333M1X5C(2) CK14BX333M CKR14BX333M(2

) 2683 2883 2083 2283

39,000 10 C192(1)

393K1X5C(2) CK14BX393K CKR14BX393K(2

) 2684 2884 2084 2284

47,000 10 C192(1

)473K1X5C(2) CK14BX473K CKR14BX473K(2) 2685 2885 2085 2285

47,000 20 C192(1

)473M1X5C(2) CK14BX473M CKR14BX473M(2) 2686 2886 2086 2286

56,000 10 C192(1

)563K1R5C(2

) CK14BR563K CKR14BR563K(2

) 2693 2893 2093 2293

68,000 10 C192(1

)683K1R5C(2) CK14BR683K CKR14BR683K(2) 2694 2894 2094 2294

68,000 20 C192(1

)683M1R5C(2) CK14BR683M CKR14BR683M(2) 2695 2895 2095 2295

82,000 10 C192(1

)823K1R5C(2) CK14BR823K CKR14BR823K(2) 2696 2896 2096 2296

100,000 10 C192(1

)104K1R5C(2) CK14BR104K CKR14BR104K(2

) 2697 2897 2097 2297

100,000 20 C192(1

)104M1R5C(2) CK14BR104M CKR14BR104M(2) 2698 2898 2098 2298

50 VOLT — C192 SIZE (MILITARY—CK14 or CKR14)

56,000 10 C192T563K5X5C(2

) CKR14BX563K(2

) 2687 2887 2087 2287

68,000 10 C192T683K5X5C(2

) CKR14BX683K(2) 2688 2888 2088 2288

68,000 20 C192T683M5X5C(2

) CKR14BX683M(2) 2689 2889 2089 2289

82,000 10 C192T823K5X5C(2

) CKR14BX823K(2) 2690 2890 2090 2290

100,000 10 C192T104K5X5C(2

) CKR14BX104K(2) 2691 2891 2091 2291

100,000 20 C192T104M5X5C(2

) CKR14BX104M(2) 2692 2892 2092 2292

120,000 10 C192(1

)124K5R5C(2) CK14BR124K CKR14BR124K(2) 2699 2899 2099 2299

150,000 10 C192(1

)154K5R5C(2) CK14BR154K CKR14BR154K(2) 2700 2900 2100 2300

150,000 20 C192(1

)154M5R5C(2

) CK14BR154M CKR14BR154M(2) 2701 2901 2101 2301

180,000 10 C192(1

)184K5R5C(2) CK14BR184K CKR14BR184K(2) 2702 2902 2102 2302

220,000 10 C192(1

)224K5R5C(2) CK14BR224K CKR14BR224K(2) 2703 2903 2103 2303

220,000 20 C192(1

)224M5R5C(2) CK14BR224M CKR14BR224M(2) 2704 2904 2104 2304

270,000 10 C192(1

)274K5R5C(2) CK14BR274K CKR14BR274K(2) 2705 2905 2105 2305

100 VOLT — C202 SIZE (MILITARY—CK15 or CKR15)

56,000 10 C202T563K1X5C(2

) CKR15BX563K(2) 2706 2906 2106 2306

68,000 10 C202T683K1X5C(2

) CKR15BX683K(2) 2707 2907 2107 2307

68,000 20 C202T683M1X5C(2

) CKR15BX683M(2) 2708 2908 2108 2308

82,000 10 C202T823K1X5C(2

) CKR15BX823K(2) 2709 2909 2109 2309

100,000 10 C202(1

)104K1X5C(2) CK15BX104K CKR15BX104K(2) 2710 2910 2110 2310

100,000 20 C202(1

)104M1X5C(2) CK15BX104M CKR15BX104M(2) 2711 2911 2111 2311

120,000 10 C202(1

)124K1R5C(2) CK15BR124K CKR15BR124K(2) 2712 2912 2112 2312

150,000 10 C202(1

)154K1R5C(2) CK15BR154K CKR15BR154K(2) 2713 2913 2113 2313

150,000 20 C202(1

)154M1R5C(2) CK15BR154M CKR15BR154M(2) 2714 2914 2114 2314

180,000 10 C202(1

)184K1R5C(2) CK15BR184K CKR15BR184K(2) 2715 2915 2115 2315

220,000 10 C202(1

)224K1R5C(2) CK15BR224K CKR15BR224K(2) 2716 2916 2116 2316

220,000 20 C202(1

)224M1R5C(2) CK15BR224M CKR15BR224M(2) 2717 2917 2117 2317

270,000 10 C202(1

)274K1R5C(2) CK15BR274K CKR15BR274K(2) 2718 2918 2118 2318

330,000 10 C202(1

)334K1R5C(2) CK15BR334K CKR15BR334K(2) 2719 2919 2119 2319

330,000 20 C202(1

)334M1R5C(2) CK15BR334M CKR15BR334M(2) 2720 2920 2120 2320

50 VOLT — C202 SIZE (MILITARY—CK15 or CKR15)

470,000 10 C202(1)474K5R5C(2) CK15BR474K CKR15BR474K(2) 2721 2921 2121 2321 470,000 20 C202(1

)474M5R5C(2) CK15BR474M CKR15BR474M(2) 2722 2922 2122 2322

680,000 10 C202T684K5R5C(2

) CKR15BR684K(2) 2723 2923 2123 2323

680,000 20 C202T684M5R5C(2

) CKR15BR684M(2) 2724 2924 2124 2324

1,000,000 10 C202(1

)105K5R5C(2) CK15BR105K CKR15BR105K(2) 2725 2925 2125 2325

1,000,000 20 C202(1

)105M5R5C(2) CK15BR105M CKR15BR105M(2) 2726 2926 2126 2326

100 VOLT — C222 SIZE (MILITARY—CK16 or CKR16)

470,000 10 C222(1

)474K1R5C(2) CK16BR474K CKR16BR474K(2) 2727 2927 2127 2327

470,000 20 C222(1

)474M1R5C(2) CK16BR474M CKR16BR474M(2) 2728 2928 2128 2328

680,000 10 C222T684K1R5C(2

) CKR16BR684K(2) 2729 2929 2129 2329

680,000 20 C222T684M1R5C(2

) CKR16BR684M(2) 2730 2930 2130 2330

1,000,000 10 C222(1

)105K1R5C(2) CK16BR105K CKR16BR105K(2) 2731 2931 2131 2331

1,000,000 20 C222(1

)105M1R5C(2) CK16BR105M CKR16BR105M(2) 2732 2932 2132 2332

50 VOLT — C222 SIZE (MILITARY—CK16 or CKR16)

2,200,000 10 C222(1)225K5R5C(2) CK16BR225K CKR16BR225K(2) 2733 2933 2133 2333 2,200,000 20 C222(1

)225M5R5C(2) CK16BR225M CKR16BR225M(2) 2734 2934 2134 2334

3,300,000 10 C222(1

)335K5R5C(2) CK16BR335M CKR16BR335K(2) 2735 2935 2135 2335

3,300,000 20 C222(1

)335M5R5C(2) CK16BR335M CKR16BR335M(2) 2736 2936 2136 2336

Page 37

CERAMIC MOLDED/RADIAL — MIL-C-11015 & MIL-PRF-39014

STABLE TEMPERATURE CHARACTERISTICS—BX & BR (EIA-X7R)

MIL-C-11015

MIL-PRF-39014

RATINGS & PART NUMBER REFERENCE

CAP. TOL. KEMET

MIL-PRF-39014/01 For Failure Rate Levels (2)

pF % PART NUMBER

MIL-C-11015/18 MIL-PRF-39014/01

MP R S

200 VOLT — C052/C056 SIZE (MILITARY—CK05 or CKR05)

10 10 C05(4

)(1

)100K2X5C(2) CK05BX100K CKR05BX100K(2)(3) 1201(3) 1241(3) 1281(3) 1321(3)

10 20 C05(4

)(1)100M2X5C(2) CK05BX100M CKR05BX100M(2)(3) 1202(3) 1242(3) 1282(3) 1322(3) 12 10 C05(4)(1)120K2X5C(2) CK05BX120K CKR05BX120K(2)(3) 1203(3) 1243(3) 1283(3) 1323(3) 15 10 C05(4

)(1)150K2X5C(2) CK05BX150K CKR05BX150K(2)(3) 1204(3) 1244(3) 1284(3) 1324(3) 15 20 C05(4

)(1)150M2X5C(2) CK05BX150M CKR05BX150M(2)(3) 1205(3) 1245(3) 1285(3) 1325(3) 18 10 C05(4

)(1)180K2X5C(2) CK05BX180K CKR05BX180K(2)(3) 1206(3) 1246(3) 1286(3) 1326(3) 22 10 C05(4)(1)220K2X5C(2) CK05BX220K CKR05BX220K(2

)(3) 1207(3

) 1247(3) 1287(3

) 1327(3)

22 20 C05(4

)(1)220M2X5C(2) CK05BX220M CKR05BX220M(2

)(3) 1208(3

) 1248(3) 1288(3) 1328(3

)

27 10 C05(4

)(1)270K2X5C(2

) CK05BX270K CKR05BX270K(2)(3) 1209(3

) 1249(3) 1289(3

) 1329(3)

33 10 C05(4

)(1)330K2X5C(2) CK05BX330K CKR05BX330K(2

)(3) 1210(3) 1250(3

) 1290(3

) 1330(3)

33 20 C05(4

)(1)330M2X5C(2) CK05BX330M CKR05BX330M(2

)(3) 1211(3

) 1251(3) 1291(3

) 1331(3)

39 10 C05(4

)(1)390K2X5C(2) CK05BX390K CKR05BX390K(2

)(3) 1212(3) 1252(3

) 1292(3

) 1332(3)

47 10 C05(4

)(1)470K2X5C(2) CK05BX470K CKR05BX470K(2

)(3) 1213(3

) 1253(3) 1293(3

) 1333(3)

47 20 C05(4

)(1)470M2X5C(2

) CK05BX470M CKR05BX470M(2)(3) 1214(3

) 1254(3) 1294(3

) 1334(3)

56 10 C05(4

)(1)560K2X5C(2) CK05BX560K CKR05BX560K(2

)(3) 1215(3

) 1255(3) 1295(3) 1335(3

)

68 10 C05(4

)(1)680K2X5C(2) CK05BX680K CKR05BX680K(2

)(3) 1216(3

) 1256(3) 1296(3

) 1336(3)

68 20 C05(4

)(1)680M2X5C(2) CK05BX680M CKR05BX680M(2

)(3) 1217(3) 1257(3

) 1297(3

) 1337(3)

82 10 C05(4

)(1)820K2X5C(2) CK05BX820K CKR05BX820K(2

)(3) 1218(3

) 1258(3) 1298(3

) 1338(3)

100 10 C05(4

)(1)101K2X5C(2) CK05BX101K CKR05BX101K(2)(3) 1219(3) 1259(3) 1299(3) 1339(3)

100 20 C05(4

)(1)101M2X5C(2) CK05BX101M CKR05BX101M(2)(3) 1220(3) 1260(3) 1300(3) 1340(3)

120 10 C05(4)(1)121K2X5C(2) CK05BX121K CKR05BX121K(2)(3) 1221(3) 1261(3) 1301(3) 1341(3) 150 10 C05(4

)(1)151K2X5C(2) CK05BX151K CKR05BX151K(2)(3) 1222(3) 1262(3) 1302(3) 1342(3)

150 20 C05(4)(1

)151M2X5C(2

) CK05BX151M CKR05BX151M(2)(3) 1223(3) 1263(3) 1303(3) 1343(3)

180 10 C05(4

)(1)181K2X5C(2) CK05BX181K CKR05BX181K(2)(3) 1224(3) 1264(3) 1304(3) 1344(3)

220 10 C05(4)(1)221K2X5C(2) CK05BX221K CKR05BX221K(2)(3) 1225(3) 1265(3) 1305(3) 1345(3) 220 20 C05(4

)(1

)221M2X5C(2) CK05BX221M CKR05BX221M(2)(3) 1226(3) 1266(3) 1306(3) 1346(3)

270 10 C05(4

)(1)271K2X5C(2) CK05BX271K CKR05BX271K(2)(3) 1227(3) 1267(3) 1307(3) 1347(3)

330 10 C05(4)(1)331K2X5C(2) CK05BX331K CKR05BX331K(2)(3) 1228(3) 1268(3) 1308(3) 1348(3) 330 20 C05(4

)(1)331M2X5C(2) CK05BX331M CKR05BX331M(2)(3) 1229(3) 1269(3) 1309(3) 1349(3)

390 10 C05(4

)(1)391K2X5C(2

) CK05BX391K CKR05BX391K(2)(3) 1230(3) 1270(3) 1310(3) 1350(3)

470 10 C05(4

)(1)471K2X5C(2) CK05BX471K CKR05BX471K(2)(3) 1231(3) 1271(3) 1311(3) 1351(3)

470 20 C05(4)(1)471M2X5C(2) CK05BX471M CKR05BX471M(2)(3) 1232(3) 1272(3) 1312(3) 1352(3) 560 10 C05(4

)(1

)561K2X5C(2) CK05BX561K CKR05BX561K(2)(3) 1233(3) 1273(3) 1313(3) 1353(3)

680 10 C05(4

)(1)681K2X5C(2) CK05BX681K CKR05BX681K(2)(3) 1234(3) 1274(3) 1314(3) 1354(3)

680 20 C05(4)(1)681M2X5C(2) CK05BX681M CKR05BX681M(2)(3) 1235(3) 1275(3) 1315(3) 1355(3) 820 10 C05(4

)(1)821K2X5C(2) CK05BX821K CKR05BX821K(2)(3) 1236(3) 1276(3) 1316(3) 1356(3)

1,000 10 C05(4

)(1)102K2X5C(2

) CK05BX102K CKR05BX102K(2)(3) 1237(3) 1277(3) 1317(3) 1357(3)

1,000 20 C05(4

)(1)102M2X5C(2) CK05BX102M CKR05BX102M(2)(3) 1238(3) 1278(3) 1318(3) 1358(3)

100 VOLT — C052/C056 SIZE (MILITARY—CK05 or CKR05)

1,200 10 C05(4)(1)122K1X5C(2) CK05BX122K CKR05BX122K(2)(3) 1239(3) 1279(3) 1319(3) 1359(3) 1,500 10 C05(4

)(1)152K1X5C(2) CK05BX152K CKR05BX152K(2)(3) 1240(3) 1280(3) 1320(3) 1360(3)

1,500 20 C05(4

)(1)152M1X5C(2

) CK05BX152M CKR05BX152M(2)(3) 1441(3) 1481(3) 1521(3) 1561(3)

1,800 10 C05(4

)(1)182K1X5C(2) CK05BX182K CKR05BX182K(2)(3) 1442(3) 1482(3) 1522(3) 1562(3)

2,200 10 C05(4)(1)222K1X5C(2) CK05BX222K CKR05BX222K(2)(3) 1443(3) 1483(3) 1523(3) 1563(3) 2,200 20 C05(4)(1

)222M1X5C(2) CK05BX222M CKR05BX222M(2)(3) 1444(3) 1484(3) 1524(3) 1564(3)

2,700 10 C05(4

)(1)272K1X5C(2) CK05BX272K CKR05BX272K(2)(3) 1445(3) 1485(3) 1525(3) 1565(3)

3,300 10 C05(4)(1)332K1X5C(2) CK05BX332K CKR05BX332K(2)(3) 1446(3) 1486(3) 1526(3) 1566(3) 3,300 20 C05(4)(1)332M1X5C(2) CK05BX332M CKR05BX332M(2)(3) 1447(3) 1487(3) 1527(3) 1567(3) 3,900 10 C05(4)(1)392K1X5C(2) CK05BX392K CKR05BX392K(2)(3) 1448(3) 1488(3) 1528(3) 1568(3) 4,700 10 C05(4)(1)472K1X5C(2) CK05BX472K CKR05BX472K(2)(3) 1449(3) 1489(3) 1529(3) 1569(3) 4,700 20 C05(4)(1)472M1X5C(2) CK05BX472M CKR05BX472M(2)(3) 1450(3) 1490(3) 1530(3) 1570(3) 5,600 10 C05(4)(1)562K1X5C(2) CK05BX562K CKR05BX562K(2)(3) 1451(3) 1491(3) 1531(3) 1571(3) 6,800 10 C05(4

)(1)682K1X5C(2) CK05BX682K CKR05BX682K(2)(3) 1452(3) 1492(3) 1532(3) 1572(3)

6,800 20 C05(4

)(1)682M1X5C(2) CK05BX682M CKR05BX682M(2)(3) 1453(3) 1493(3) 1533(3) 1573(3)

8,200 10 C05(4

)(1)822K1X5C(2) CK05BX822K CKR05BX822K(2)(3) 1454(3) 1494(3) 1534(3) 1574(3)

10,000 10 C05(4)(1)103K1X5C(2) CK05BX103K CKR05BX103K(2)(3) 1455(3) 1495(3) 1535(3) 1575(3) 10,000 20 C05(4)(1)103M1X5C(2) CK05BX103M CKR05BX103M(2)(3) 1456(3) 1496(3) 1536(3) 1576(3)

50 VOLT — C052/C056 SIZE (MILITARY—CK05 or CKR05)

12,000 10 C05(4

)(1)123K5X5C(2) CK05BX123K CKR05BX123K(2)(3) 1457(3) 1497(3) 1537(3) 1577(3)

15,000 10 C05(4

)(1)153K5X5C(2) CK05BX153K CKR05BX153K(2)(3) 1458(3) 1498(3) 1538(3) 1578(3)

15,000 20 C05(4)(1)153M5X5C(2) CK05BX153M CKR05BX153M(2)(3) 1459(3) 1499(3) 1539(3) 1579(3) 18,000 10 C05(4)(1)183K5X5C(2) CK05BX183K CKR05BX183K(2)(3) 1460(3) 1500(3) 1540(3) 1580(3) 22,000 10 C05(4)(1)223K5X5C(2) CK05BX223K CKR05BX223K(2)(3) 1461(3) 1501(3) 1541(3) 1581(3) 22,000 20 C05(4)(1)223M5X5C(2) CK05BX223M CKR05BX223M(2)(3) 1462(3) 1502(3) 1542(3) 1582(3) 27,000 10 C05(4

)(1)273K5X5C(2) CK05BX273K CKR05BX273K(2)(3) 1463(3) 1503(3) 1543(3) 1583(3)

33,000 10 C05(4

)(1)333K5X5C(2) CK05BX333K CKR05BX333K(2)(3) 1464(3) 1504(3) 1544(3) 1584(3)

33,000 20 C05(4

)(1)333M5X5C(2) CK05BX333M CKR05BX333M(2)(3) 1465(3) 1505(3) 1545(3) 1585(3)

39,000 10 C05(4)(1)393K5X5C(2) CK05BX393K CKR05BX393K(2)(3) 1466(3) 1506(3) 1546(3) 1586(3) 47,000 10 C05(4)(1)473K5X5C(2) CK05BX473K CKR05BX473K(2)(3) 1467(3) 1507(3) 1547(3) 1587(3) 47,000 20 C05(4)(1)473M5X5C(2) CK05BX473M CKR05BX473M(2)(3) 1468(3) 1508(3) 1548(3) 1588(3) 56,000 10 C05(4

)(1)563K5X5C(2) CK05BX563K CKR05BX563K(2)(3) 1469(3) 1509(3) 1549(3) 1589(3)

68,000 10 C05(4

)(1)683K5X5C(2) CK05BX683K CKR05BX683K(2)(3) 1470(3) 1510(3) 1550(3) 1590(3)

68,000 20 C05(4

)(1)683M5X5C(2) CK05BX683M CKR05BX683M(2)(3) 1471(3) 1511(3) 1551(3) 1591(3)

82,000 10 C05(4

)(1)823K5X5C(2) CK05BX823K CKR05BX823K(2)(3) 1472(3) 1512(3) 1552(3) 1592(3)

100,000 10 C05(4)(1)104K5X5C(2) CK05BX104K CKR05BX104K(2)(3) 1473(3) 1513(3) 1553(3) 1593(3) 100,000 20 C05(4)(1)104M5X5C(2) CK05BX104M CKR05BX104M(2)(3) 1474(3) 1514(3) 1554(3) 1594(3)

(1) Insert proper letter for specification: K — MIL-C-11015; T — MIL-PRF-39014 (2) Failure Rate Designator: A — Not applicable (MIL-C-11015); M — 1%/1000 Hours, P — .1%/1000 Hours, R — .01% /1000 Hours, S — .001% /1000 Hours (MIL-PRF-39014) (3) Insert “V” for standard design (C056). Leave blank for the flat bottom design (C052). (4) Insert “2” for standard design (Style C052) Note: Stand-offs are available only

Insert “6” for stand-off design (Style C056) with the CKR, not the CK.

}

Page 38

CERAMIC MOLDED/RADIAL — MIL-C-11015 & MIL-PRF-39014

STABLE TEMPERATURE CHARACTERISTICS—BX & BR (EIA-X7R)

RATINGS & PART NUMBER REFERENCE

CAP. TOL. KEMET

MIL-PRF-39014/02 For Failure Rate Levels (2)

pF % PART NUMBER

MIL-C-11015/19 MIL-PRF-39014/02

MP R S

200 VOLT — C062/C066 SIZE (MILITARY—CK06 or CKR06)

1,200 10 C06(4

)(1

)122K2X5C(2

) CK06BX122K CKR06BX122K(2)(3) 1201(3) 1241(3) 1281(3) 1321(3)

1,500 10 C06(4

)(1)152K2X5C(2) CK06BX152K CKR06BX152K(2)(3) 1202(3) 1242(3) 1282(3) 1322(3) 1,500 20 C06(4)(1)152M2X5C(2) CK06BX152M CKR06BX152M(2)(3) 1203(3) 1243(3) 1283(3) 1323(3) 1,800 10 C06(4

)(1)182K2X5C(2) CK06BX182K CKR06BX182K(2)(3) 1204(3) 1244(3) 1284(3) 1324(3) 2,200 10 C06(4)(1)222K2X5C(2) CK06BX222K CKR06BX222K(2)(3) 1206(3) 1246(3) 1286(3) 1326(3) 2,200 20 C06(4

)(1)222M2X5C(2) CK06BX222M CKR06BX222M(2)(3) 1207(3) 1247(3) 1287(3) 1327(3) 2,700 10 C06(4

)(1)272K2X5C(2

) CK06BX272K CKR06BX272K(2)(3) 1208(3

) 1248(3) 1288(3) 1328(3

)

3,300 10 C06(4

)(1

)332K2X5C(2

) CK06BX332K CKR06BX332K(2)(3) 1209(3

) 1249(3) 1289(3

) 1329(3)

3,300 20 C06(4

)(1)332M2X5C(2) CK06BX332M CKR06BX332M(2

)(3) 1210(3) 1250(3

) 1290(3

) 1330(3)

3,900 10 C06(4

)(1)392K2X5C(2) CK06BX392K CKR06BX392K(2

)(3) 1211(3

) 1251(3) 1291(3

) 1331(3)

4,700 10 C06(4

)(1)472K2X5C(2) CK06BX472K CKR06BX472K(2

)(3) 1212(3

) 1252(3) 1292(3

) 1332(3)

4,700 20 C06(4

)(1)472M2X5C(2

) CK06BX472M CKR06BX472M(2)(3) 1213(3

) 1253(3) 1293(3) 1333(3

)

5,600 10 C06(4

)(1

)562K2X5C(2

) CK06BX562K CKR06BX562K(2)(3) 1214(3

) 1254(3) 1294(3

) 1334(3)

6,800 10 C06(4

)(1)682K2X5C(2) CK06BX682K CKR06BX682K(2

)(3) 1215(3) 1255(3

) 1295(3

) 1335(3)

6,800 20 C06(4

)(1)682M2X5C(2

) CK06BX682M CKR06BX682M(2)(3) 1216(3

) 1256(3) 1296(3

) 1336(3)

8,200 10 C06(4

)(1)822K2X5C(2) CK06BX822K CKR06BX822K(2

)(3) 1217(3) 1257(3

) 1297(3

) 1337(3)

10,000 10 C06(4

)(1)103K2X5C(2) CK06BX103K CKR06BX103K(2

)(3) 1218(3

) 1258(3) 1298(3

) 1338(3)

10,000 20 C06(4

)(1)103M2X5C(2) CK06BX103M CKR06BX103M(2)(3) 1219(3) 1259(3) 1299(3) 1339(3)

100 VOLT — C062/C066 SIZE (MILITARY—CK06 or CKR06)

12,000 10 C06(4

)(1)123K1X5C(2) CK06BX123K CKR06BX123K(2)(3) 1231(3) 1271(3) 1311(3) 1351(3)

15,000 10 C06(4

)(1)153K1X5C(2) CK06BX153K CKR06BX153K(2)(3) 1220(3) 1260(3) 1300(3) 1340(3)

15,000 20 C062K153M1X5CA CK06BX153M 18,000 10 C06(4

)(1)183K1X5C(2) CK06BX183K CKR06BX183K(2)(3) 1221(3) 1261(3) 1301(3) 1341(3)

22,000 10 C06(4

)(1)223K1X5C(2) CK06BX223K CKR06BX223K(2)(3) 1222(3) 1262(3) 1302(3) 1342(3)

22,000 20 C062K223M1X5CA CK06BX223M 27,000 10 C06(4)(1)273K1X5C(2) CK06BX273K CKR06BX273K(2)(3) 1232(3) 1272(3) 1312(3) 1352(3) 33,000 10 C06(4

)(1)333K1X5C(2) CK06BX333K CKR06BX333K(2)(3) 1223(3) 1263(3) 1303(3) 1343(3)

33,000 20 C062K333M1X5CA CK06BX333M 39,000 10 C06(4

)(1)393K1X5C(2) CK06BX393K CKR06BX393K(2)(3) 1224(3) 1264(3) 1304(3) 1344(3)

47,000 10 C06(4

)(1)473K1X5C(2) CK06BX473K CKR06BX473K(2)(3) 1225(3) 1265(3) 1305(3) 1345(3)

47,000 20 C062K473M1X5CA CK06BX473M 56,000 10 C06(4

)(1)563K1X5C(2) CK06BX563K CKR06BX563K(2)(3) 1226(3) 1266(3) 1306(3) 1346(3)

68,000 10 C06(4)(1)683K1X5C(2) CK06BX683K CKR06BX683K(2)(3) 1227(3) 1267(3) 1307(3) 1347(3) 68,000 20 C062K683M1X5CA CK06BX683M

82,000 10 C06(4)(1)823K1X5C(2) CK06BX823K CKR06BX823K(2)(3) 1229(3) 1269(3) 1309(3) 1349(3) 100,000 10 C06(4)(1)104K1X5C(2) CK06BX104K CKR06BX104K(2)(3) 1230(3) 1270(3) 1310(3) 1350(3) 100,000 20 C062K104M1X5CA CK06BX104M

50 VOLT — C062/C066 SIZE (MILITARY—CK06 or CKR06)

120,000 10 C06(4

)(1)124K5X5C(2

) CK06BX124K CKR06BX124K(2)(3) 1233(3) 1273(3) 1313(3) 1353(3)

150,000 10 C06(4

)(1)154K5X5C(2) CK06BX154K CKR06BX154K(2)(3) 1234(3) 1274(3) 1314(3) 1354(3) 150,000 20 C062K154M5X5CA CK06BX154M 180,000 10 C06(4

)(1)184K5X5C(2) CK06BX184K CKR06BX184K(2)(3) 1235(3) 1275(3) 1315(3) 1355(3) 220,000 10 C06(4)(1

)224K5X5C(2

) CK06BX224K CKR06BX224K(2)(3) 1236(3) 1276(3) 1316(3) 1356(3) 220,000 20 C062K224M5X5CA CK06BX224M 270,000 10 C06(4

)(1)274K5X5C(2) CK06BX274K CKR06BX274K(2)(3) 1237(3) 1277(3) 1317(3) 1357(3)

330,000 10 C06(4

)(1)334K5X5C(2) CK06BX334K CKR06BX334K(2)(3) 1238(3) 1278(3) 1318(3) 1358(3) 330,000 20 C062K334M5X5CA CK06BX334M 390,000 10 C06(4

)(1)394K5X5C(2) CK06BX394K CKR06BX394K(2)(3) 1239(3) 1279(3) 1319(3) 1359(3) 470,000 10 C06(4)(1)474K5X5C(2) CK06BX474K CKR06BX474K(2)(3) 1240(3) 1280(3) 1320(3) 1360(3) 470,000 20 C062K474M5X5CA CK06BX474M 560,000 10 C06(4

)(1)564K5X5C(2) CK06BX564K CKR06BX564K(2)(3) 1404(3) 1408(3) 1412(3) 1416(3) 680,000 10 C06(4

)(1)684K5X5C(2) CK06BX684K CKR06BX684K(2)(3) 1405(3) 1409(3) 1413(3) 1417(3) 680,000 20 C062K684M5X5CA CK06BX684M 820,000 10 C06(4)(1)824K5X5C(2) CK06BX824K CKR06BX824K(2)(3) 1406(3) 1410(3) 1414(3) 1418(3)

1,000,000 10 C06(4)(1)105K5X5C(2) CK06BX105K CKR06BX105K(2)(3) 1407(3) 1411(3) 1415(3) 1419(3) 1,000,000 20 C062K105M5X5CA CK06BX105M

(1) Insert proper letter for specification: K — MIL-C-11015; T — MIL-PRF-39014. (2) Failure Rate Designator: A — Not applicable (MIL-C-11015); M — 1%/1000 Hours, P — .1% /1000 Hours, R — .01% /1000 Hours, S — .001% /1000 Hours (MIL-PRF-39014) (3) Add “V” for stand-off design (C066). Leave blank for the flat bottom design (C062). (4) Insert “2” for standard design (Style C062). Insert “6” for stand-off design (Style C066). Note: Stand-offs are available only with the CKR, not the CK.

Page 39

CERAMIC LEADED

PACKAGING INFORMATION

Tape and Reel Packaging

Ceramic Axial

Lead Tape and Reel Packaging

KEMET offers standard reeling of Molded and Conformally Coated Axial Leaded Ceramic Capacitors for automatic insertion or lead forming machines per EIA specification RS-296. KEMET’S internal specification four-digit suffix, 7200, is placed at the end of the part number to designate tape and reel packaging, ie: C410C104Z5U5CA7200.

Paper (50 lb.) test minimum is inserted between the layers of capacitors wound on reels for component pitch ≤ 0.400". Capacitor lead length may extend only a maximum of .0625" (1.59mm) beyond the tapes' edges. Capacitors are centered in a row between the two tapes and will deviate only ± 0.031 (0.79mm) from the row center. A minimum of 36" (91.5 cm) leader tape is provided at each end of the reel capacitors. Universal splicing clips are used to connect the tape. Standard reel quantities are shown on page 41.

Adhesive Tape

Figure 1

KEMET

Table 1

Figure 2

10.5" - 14" (26.67 -

35.56cm)

.655" ±0.010"

(16.6 ±0.25)

Dimensions in Inches & (Millimeters)

Component

Body Diameter

Adhesive Tape

.059" to .315"

31/4"

(82.6)

Component

Pitch "A"

0.020" or (±0.5mm) I III*

Greater Than

Component

Length

Hub

/8"

(3.18)

Inside Tape Spacing "B"

± 1.5mm (0.059")

Kraft Paper Interleaving

Figure 3

See Table 1

(B)

.047" Max

(1.20)

See Table 1 (A)

.250" Nom.

(6.35)

0" (0mm) to 0.197" (5mm)

0.197" (5.01mm) to 0.394: (10mm)

* Not Available for Conformally Coated Parts.

0.197" or (5mm)

0.394" or (10mm)

2.062" (52.4mm)

2.874" (73mm)

Page 40

CERAMIC LEADED

PACKAGING INFORMATION

Ceramic Radial

Lead Tape and Reel Packaging

KEMET offers standard reeling of Molded and Conformally Coated Radial Leaded Ceramic Capacitors for automatic insertion per EIA specification RS-468. Parts are taped to a tagboard carrier strip, and wound on a reel as shown in Figure 1. Kraft paper interleaving is inserted between the layers of capacitors on the reel. Ammopack is also available, with the same lead tape configuration and package quantities.

Figure 1

Carrier Strip

KEMET

12"

(30.48 cm

.655" ±0.010"

0.25)

(16.6 ±

)

(82.6)

31/4"

.059" to .315" Greater Than

Over All

Height

of T aped

Component

Hub

/8"

(3.18)

Figure 3: Standard Reel

C315* C320*

C340**

C6xx#

C056** C066**

C330**

CK06**

CKR06**

C062**

Figure 2: Lead Tape Configuration (See Table Below)

Ceramic Radial Tape and Reel Dimensions in Millimeters & (Inches)

Dimension Symbol

Sprocket Hole Diameter Sprocket Hole Pitch Component Pitch Lead Spacing (1) Sprocket Hole Center

to Lead Center (1) Sprocket Hole Center to Component Center Height to Seating Plane (straight leads) (2) Component Height Above T ape Center

(1) Measured at the egress from the carrier tape, on the component side. (2) Determined by a 4 digit suffix placed at the end of the part number, as follows: 7301 = 7303 =

Recommended for parts with formed leads. Recommended for parts with straight leads.

Do P0

F P1 P2

H H1

Nominal mm (inch)

4.0 (.157)

12.7 (.500)

5.08 2.54 (.20) (.10)

3.81 5.08

(.150) (.200)

6.35 (.250)

7301 7303

16.0 (.630) 18.0 (.709)

32.2 (1.27)

Tolerance mm (inch) Dimension Symbol

± 0.2 (.008) ± 0.3 (.012) ± 0.3 (.012)

+0.6 -0.2

(+.024 -.008)

± 0.7 (.028) ± 1.3 (.051)

7301 7303

±0.5 (.020) Minimum

Maximum

Example: C322C104K5R5CA7301 Example: C320C104K5R5CA7303

Adhesive T

CK05**

CKR05**

C052**

Height to Seating Plane (formed leads) (2)

Component Alignment Lead Protrusion Composite T ape

Thickness Overall T ape and Lead Thickness Carrier T ape Width

Hold-Down T ape Width Hold-Down T ape Location

ape

Carrier Tape

C317** C322** C323**

C6xx#

C333**

7301 7303

16.0 (.630) 18.0 (.709)

∆h L1 t T W W0 W2

KEMET

Kraft Paper

Interleaving

(Note: Non-standard lead lengths

available in bulk only.)

∆H

1MM Max. (.039")

* Lead spacings are 2.54mm (.10") center-to-center. ** Lead spacings are 5.08mm (.20") center-to-center. # See page 15 for exact lead

configuration for Series.

Nominal mm (inch)

4.0 (.157)

1.0 (.039)

0.7 (.051)

1.5 (.059)

18.0 (.709)

5.0 (.197)

3.0 (.118)

7301 7303

±0.5 (.020) Minimum

(+.039 -.020)

Tape

Carrier

Tolerance mm (inch)

±0.2 (.008)

Maximum

±0.2 (.008)

Maximum +1.0 - 0.5 Minimum Maximum

Page 41

CERAMIC LEADED

PACKAGING INFORMATION

Tape and Reel Packaging

CERAMIC PACKAGING

KEMET

Series

C114C-K-G CK12, CC75 MIL-C-11015/ 200/Box 5000 12" C124C-K-G CK13, CC76 MIL-PRF-20 200/Box 5000 12" C192C-K-G CK14, CC77 100/Box 3000 12" C202C-K CK15 25/Box 500 12" C222C-K CK16 10/Tray 300 12" C052C-K-G CK05, CC05 100/Bag 2000 2000 12" C062C-K-G CK06, CC06 100/Bag 1500 1500 12" C114G CCR75 MIL-PRF-20 200/Box 5000 12" C124G CCR76 200/Box 5000 12" C192G CCR77 100/Box 3000 12" C202G CC78-CCR78 25/Box 500 12" C222G CC79-CCR79 10/Tray 300 12" C052/56G CCR05 100/Bag 1700 12" C062/66G CCR06 100/Bag 1500 12" C512G CC07-CCR07 Footnote (2) N/A N/A C522G CC08-CCR08 Footnote (2) N/A N/A C114T CKR11 MIL-PRF-39014 200/Box 5000 12" C124T CKR12 200/Box 5000 12" C192T CKR14 100/Box 3000 12" C202T CKR15 25/Box 500 12" C222T CKR16 10/Tray 300 12" C052/56T CKR05 100/Bag 1700 12" C062/66T CKR06 100/Bag 1500 12" C31X 500/Bag 2500 2500 12" C32X 500/Bag 2500 2500 12" C33X 250/Bag 1500 1500 12" C340 100/Bag 1000 1000 12" C350 50/Bag N/A N/A N/A C410 300/Box 4000 5000 12" C412 200/Box 4000 5000 12" C420 300/Box 4000 5000 12" C430 200/Box 2000 2500 12" C440 200/Box 2000 2500 C512 N/A N/A Footnote (2) N/A C522 N/A N/A Footnote (2) N/A C617 500/Bag C622/C623 500/Bag C627/C628 500/Bag C630/C631 250/Bag C637/C638 250/Bag C640/C641 100/Bag C642/C643 100/Bag C647/C648 100/Bag C657/C658 50/Bag C667/C668 50/Bag

NOTE: (1) Standard packaging refers to number of pieces per bag, tray or vial. (2) Quantity varies. For further details, please consult the factory.

Military

Style

Military

Specification

Standard (1)

Bulk

Quantity

Ammo Pack

Quantity

Maximum

Reel

Quantity

Reel

Size

12" N/A N/A

Page 42

APPLICATION NOTES FOR MULTILAYER CERAMIC CAPACITORS

ELECTRICAL CHARACTERISTICS

The fundamental electrical properties of multilayer

ceramic capacitors are as follows:

Polarity: Multilayer ceramic capacitors are not polar,

and may be used with DC voltage applied in either direction.

Rated Voltage: This term refers to the maximum continuous DC working voltage permissible across the entire operating temperature range. Multilayer ceramic capacitors are not extremely sensitive to voltage, and brief applications of voltage above rated will not result in immediate failure. However, reliability will be reduced by exposure to sustained voltages above rated.

Capacitance:

The standard unit of capacitance is the farad. For practical capacitors, it is usually expressed in microfarads (10

-6

farad), nanofarads (10-9farad), or picofarads

(10

-12

farad). Standard measurement conditions are as

follows:

Class I (up to 1,000 pF): 1MHz and 1.2 VRMS

maximum.

Class I (over 1,000 pF): 1kHz and 1.2 VRMS

maximum.

Class II: 1 kHz and 1.0 ± 0.2 VRMS.

Class III: 1 kHz and 0.5 ± 0.1 VRMS.

Like all other practical capacitors, multilayer ceramic capacitors also have resistance and inductance. A simplified schematic for the equivalent circuit is shown in Figure 1. Other significant electrical characteristics resulting from these additional properties are as follows:

Impedance: Since the parallel resistance (Rp) is normally very high, the total impedance of the capacitor is:

Figure 1

C = Capacitance

L = Inductance

RS = Equivalent Series Resistance (ESR) R

= Insulation Resistance (IR)

The variation of a capacitor’s impedance with frequency

determines its effectiveness in many applications.

Dissipation Factor: Dissipation Factor (DF) is a measure of the losses in a capacitor under AC application. It is the ratio of the equivalent series resistance to the capacitive reactance

, and is usually expressed in percent. It is usually measured simultaneously with capacitance, and under the same conditions. The vector diagram in Figure 2 illustrates the relationship between DF, ESR, and impedance. The reciprocal of the dissipation factor is called the “Q”, or quality factor. For convenience, the “Q” factor is often used for very low values of dissipation factor. DF is sometimes called the “loss tangent” or “tangent ”, as derived from this diagram.

Insulation Resistance: Insulation Resistance (IR) is the DC resistance measured across the terminals of a capacitor, represented by the parallel resistance (Rp) shown in Figure 1. For a given dielectric type, electrode area increases with capacitance, resulting in a decrease in the insulation resistance. Consequently, insulation resistance is usually specified as the “RC” (IR x C) product, in terms of ohm-farads or megohm-microfarads. The insulation resistance for a specific capacitance value is determined by dividing this product by the capacitance. However, as the nominal capacitance values become small, the insulation resistance calculated from the RC product reaches values which are impractical. Consequently, IR specifications usually include both a minimum RC product and a maximum limit on the IR calculated from that value. For example, a typical IR specification might read “1,000 megohm-microfarads or 100 gigohms, whichever is less.”

Insulation Resistance is the measure of a capacitor to resist the flow of DC leakage current. It is sometimes referred to as “leakage resistance.” The DC leakage current may be calculated by dividing the applied voltage by the insulation resistance (Ohm’s Law).

Dielectric Withstanding Voltage: Dielectric withstanding voltage (DWV) is the peak voltage which a capacitor is designed to withstand for short periods of time without damage. All KEMET multilayer ceramic capacitors will withstand a test voltage of 2.5 x the rated voltage for 60 seconds.

KEMET specification limits for these characteristics at standard measurement conditions are shown in Table 1 on page 4. Variations in these properties caused by changing conditions of temperature, voltage, frequency, and time are covered in the following sections.

Z =

Where Z = Total Impedance

+ (X

)

- X

RS = Equivalent Series Resistance XC = Capacitive Reactance = XL = Inductive Reactance = 2πfL

2πfC

Figure 2

DF =

ESR

2πfC

ESR

Page 43

APPLICATION NOTES FOR MULTILAYER CERAMIC CAPACITORS

Application Notes

TABLE 1

EIA TEMPERATURE CHARACTERISTIC CODES

FOR CLASS I DIELECTRICS

Significant Figure Multiplier Applied Tolerance of

of Temperature to Temperature Temperature

Coefficient Coefficient Coefficient *

PPM per Letter Multi- Number PPM per Letter

Degree C Symbol plier Symbol Degree C Symbol

0.0 C -1 0 ±30 G

0.3 B -10 1 ±60 H

0.9 A -100 2 ±120 J

1.0 M -1000 3 ±250 K

1.5 P -100000 4 ±500 L

2.2 R +1 5 ±1000 M

3.3 S +10 6 ±2500 N

4.7 T +100 7

7.5 U +1000 8 +10000 9

* These symetrical tolerances apply to a two-point measurement of temperature coefficient: one at 25°C and one at 85°C. Some deviation is permitted at lower temperatures. For example, the PPM tolerance for C0G at -55 is +30 / -72 PPM.

TABLE 2

EIA TEMPERATURE CHARACTERISTIC CODES

FOR CLASS II & III DIELECTRICS

Low Temperature High Temperature Maximum Capacitance

Rating Rating Shift

Degree Letter Degree Number Letter Celcius Symbol Celcius Symbol Percent Symbol

+10C Z +45C 2 ±1.0% A

-30C Y +65C 4 ±1.5% B

-55C X +85C 5 ±2.2% C +105C 6 ±3.3% D +125C 7 ±4.7% E +150C 8 ±7.5% F +200C 9 ±10.0% P

±15.0% R

±22.0% S +22/ -33% T +22/ -56% U +22/ -82% V

+10 +20 +30 +40 +50 +60 +70 +80

EFFECT OF TEMPERATURE

+0.2

+0.2 +0.1

+0.1

%∆C

-0.1

-0.2

-55 -20 +20 +80

-40 0 +125+40 +60 +100

Figure 3.

Capacitance & DF vs Temperature - C0G

+20

+10

%∆C

-10

-20

-20-40 0 +140+40 +60 +100 +120-60 +20 +80

Figure 4.

Capacitance & DF vs Temperature - X7R

%∆C

%DF

Temperature °C

%∆C

%DF

Temperature °C

0.20

0.10

0.0

8.0

6.0

4.0

2.0

0.0

%DF

+20

-20

%∆C

-40

-60 +1 +2 +3 +4 +5 +6 +7 +8

Figure 5.

Temperature °C

%∆C

%DF

Capacitance & DF vs Temperature - Z5U

8.0

6.0

4.0

2.0

%DF

Page 44

APPLICATION NOTES FOR MULTILAYER CERAMIC CAPACITORS

Effect of Temperature: Both capacitance and dissipation factor are affected by variations in temperature. The maximum capacitance change with temperature is defined by the temperature characteristic. However, this only defines a “box” bounded by the upper and lower operating temperatures and the minimum and maximum capacitance values. Within this “box”, the variation with temperature depends upon the specific dielectric formulation. Typical curves for KEMET capacitors are shown in Figures 3, 4, and 5. These figures also include the typical change in dissipation factor for KEMET capacitors.

Insulation resistance decreases with temperature. Typically, the insulation resistance at maximum rated temperature is 10% of the 25°C value.

Effect of Voltage: Class I ceramic capacitors are not affected by variations in applied AC or DC voltages. For Class II and III ceramic capacitors, variations in voltage affect only

EFFECT OF APPLIED VOLTAGE

0.1

100

AC or DC Volts Applied

Typical Effects of 1000 Hz AC and DC Voltage Level on

Capacitance and Dissipation Factor - Z5U

Note: C0G Dielectric capacitance and dissipation factor are

stable with voltage.

Figure 7.

+20

-20

-40

-60

+10

-5

-10

0.1

100

AC or DC Volts Applied

Typical Effects of 1000 Hz AC and DC Voltage Level on

Capacitance and Dissipation Factor - X7R

Note: C0G Dielectric capacitance and dissipation factor are

stable with voltage.

Figure 6.

AC DC

% D.F. % Capacitance Change

the capacitance and dissipation factor. The application of DC voltage higher than 5 vdc reduces both the capacitance and dissipation factor. The application of AC voltages up to 10-20 Vac tends to increase both capacitance and dissipation factor. At higher AC voltages, both capacitance and dissipation factor begin to decrease.

Typical curves showing the effect of applied AC and DC voltage are shown in Figure 6 for KEMET X7R capacitors and Figure 7 for KEMET Z5U capacitors.

Effect of Frequency: Frequency affects both capacitance and dissipation factor. Typical curves for KEMET multilayer ceramic capacitors are shown in Figures 8 and 9.

he variation of impedance with frequency is an important consideration in the application of multilayer ceramic capacitors. Total impedance of the capacitor is the vector of the capacitive reactance, the inductive reactance, and the ESR, as illustrated in Figure 2. As frequency increases, the capacitive reactance decreases. However, the series inductance (L) shown in Figure 1 produces inductive reactance, which increases with frequency. At some frequency, the impedance ceases to be capacitive and becomes inductive. This point, at the bottom of the V-shaped impedance versus frequency curves, is the self-resonant frequency. At the self-resonant frequency, the reactance is zero, and the impedance consists of the ESR only.

Typical impedance versus frequency curves for KEMET

multilayer ceramic capacitors are shown in Figures 10, 11, and

12. These curves apply to KEMET capacitors in chip form, without leads. Lead configuration and lead length have a significant impact on the series inductance. The lead inductance is approximately 10nH/inch, which is large compared to the inductance of the chip. The effect of this additional inductance is a decrease in the self-resonant frequency, and an increase in impedance in the inductive region above the self-resonant frequency.

Effect of Time: The capacitance of Class II and III dielectrics change with time as well as with temperature, voltage and frequency. This change with time is known as “aging.” It is caused by gradual realignment of the crystalline structure of the ceramic dielectric material as it is cooled below its Curie temperature, which produces a loss of capacitance with time. The aging process is predictable and follows a logarithmic decay. Typical aging rates for C0G, X7R, and Z5U dielectrics are as follows:

C0G None X7R 2.0% per decade of time Z5U 5.0% per decade of time

Typical aging curves for X7R and Z5U dielectrics are shown in Figure 13.

The aging process is reversible. If the capacitor is heated to a temperature above its Curie point for some period of time, de-aging will occur and the capacitor will regain the capacitance lost during the aging process. The amount of deaging depends on both the elevated temperature and the length of time at that temperature. Exposure to 150°C for onehalf hour or 125°C for two hours is usually sufficient to return the capacitor to its initial value.

Because the capacitance changes rapidly immediately after de-aging, capacitance measurements are usually delayed for at least 10 hours after the de-aging process, which is often referred to as the “last heat.” In addition, manufacturers utilize

Page 45

APPLICATION NOTES FOR MULTILAYER CERAMIC CAPACITORS

Application Notes

the aging rates to set factory test limits which will bring the capacitance within the specified tolerance at some future time, to allow for customer receipt and use. Typically, the test limits are adjusted so that the capacitance will be within the specified tolerance after either 1,000 hours or 100 days, depending on the manufacturer and the product type.

POWER DISSIPATION

Power dissipation has been empirically determined for two representative KEMET series: C052 and C062. Power dissipation capability for various mounting configurations is shown in Table 3. This table was extracted from Engineering Bulletin F-2013, which provides a more detailed treatment of this subject.

Note that no significant difference was detected between the two sizes in spite of a 2 to 1 surface area ratio. Due to the materials used in the construction of multilayer ceramic capacitors, the power dissipation capability does not depend greatly on the surface area of the capacitor body, but rather on how well heat is conducted out of the capacitor lead wires. Consequently, this power dissipation capability is applicable to other leaded multilayer styles and sizes.

TABLE 3

POWER DISSIPATION CAPABILITY

(Rise in Celsius degrees per Watt)

Power

Mounting Configuration Dissipation

of C052 & C062

1.00" leadwires attached to binding post 90 Celsius degrees of GR-1615 bridge (excellent heat sink) rise per Watt ±10%

0.25" leadwires attached to binding post 55 Celsius degrees of GR-1615 bridge rise per Watt ±10%

Capacitor mounted flush to 0.062" glass- 77 Celsius degrees epoxy circuit board with small copper traces rise per Watt ±10%

Capacitor mounted flush to 0.062" glass- 53 Celsius degrees epoxy circuit board with four square inches rise per Watt ±10% of copper land area as a heat sink

As shown in Table 3, the power dissipation capability of the capacitor is very sensitive to the details of its use environment. The temperature rise due to power dissipation should not exceed 20°C. Using that constraint, the maximum permissible power dissipation may be calculated from the data provided in Table 3.

It is often convenient to translate power dissipation capability into a permissible AC voltage rating. Assuming a sinusoidal wave form, the RMS “ripple voltage” may be calculated from the following formula:

E = Z x

Where E = RMS Ripple Voltage (volts)

P = Power Dissipation (watts) Z = Impedence R = ESR

MAX

The data necessary to make this calculation is included in Engineering Bulletin F-2013. However, the following criteria must be observed:

1. The temperature rise due to power dissipation should be limited to 20°C.

2. The peak AC voltage plus the DC voltage must not exceed the maximum working voltage of the capacitor.

Provided that these criteria are met, multilayer ceramic capacitors may be operated with AC voltage applied without need for DC bias.

RELIABILITY

A well constructed multilayer ceramic capacitor is extremely reliable and, for all practical purposes, has an infinite life span when used within the maximum voltage and temperature ratings. Capacitor failure may be induced by sustained operation at voltages that exceed the rated DC voltage, voltage spikes or transients that exceed the dielectric withstanding voltage, sustained operation at temperatures above the maximum rated temperature, or the excessive temperature rise due to power dissipation.

Failure rate is usually expressed in terms of percent per 1,000 hours or in FITS (failure per billion hours). Some KEMET series are qualified under U.S. military established reliability specifications MIL-PRF-20, MIL-PRF-123, MILPRF-39014, and MIL-PRF-55681. Failure rates as low as

0.001% per 1,000 hours are available for all capacitance / voltage ratings covered by these specifications. These specifications and

accompanying Qualified Products List should

be consulted for details.

For series not covered by these military specifications, an internal testing program is maintained by KEMET Quality Assurance. Samples from each week’s production are subjected to a 2,000 hour accelerated life test at 2 x rated voltage and maximum rated temperature. Based on the results of these tests, the average failure rate for all non-military series covered by this test program is currently 0.06% per 1,000 hours at maximum rated conditions. The failure rate would be much lower at typical use conditions. For example, using MILHDBK-217D this failure rate translates to 0.9 FITS at 50% rated voltage and 50°C.

Current failure rate details for specific KEMET multilayer ceramic capacitor series are available on request.

MISAPPLICATION

Ceramic capacitors, like any other capacitors, may fail if they are misapplied. Typical misapplications include exposure to excessive voltage, current or temperature. If the dielectric layer of the capacitor is damaged by misapplication the electrical energy of the circuit can be released as heat, which may damage the circuit board and other components as well.

If potential for misapplication exists, it is recommended that precautions be taken to protect personnel and equipment during initial application of voltage. Commonly used precautions include shielding of personnel and sensing for excessive power drain during board testing.

Page 46

APPLICATION NOTES FOR MULTILAYER CERAMIC CAPACITORS

EFFECT OF FREQUENCY

+0.2 +0.1

%6C

-0.1

-0.2 100 1K 10K 100K 1M 10M

Figure 8.

Capacitance & DF vs Frequency - C0G

%6C

-5

%6C

-10

-15 100 1K 10K 100K 1M 10M

Figure 9.

Capacitance & DF vs Frequency - X7R & Z5U

%6C

%DF

Frequency - Hertz

%DF

Frequency - Hertz

0.20

0.10

0.0

10.0

7.5

5.0

2.5

0.0

100

%DF

0.1

Impedance (Ohms)

0.01

0.1 1 1 0 100 1000

Figure 10.

0.001

0.1

Figure 10.

%DF

100

0.1

Impedance (Ohms)

IMPEDANCE VS FREQUENCY

Impedance vs. Frequency

Leaded Ceramic C0G

.01µF

1 10 100 1,000

Impedance vs Frequency for C0G Dielectric

Impedance vs. Frequency

0.01µF

0.1µF

1.0 µF

1.0µF

.001µF

0.001µF

0.01µF

Frequency - MHz

Impedance vs Frequency

for C0G Dielectric

Frequency - MHz

Leaded X7R

.01µF

0.01

0.1

EFFECT OF TIME

100%

98%

96%

94%

92%

90%

ance

88%

86%

apac

84%

Capacitance

82%

80%

78%

76%

74%

1 10 100 1000 10K 100K

Typical Aging Rates for X7R & Z5UFigure 13.

X7R

Z5U

0.1 1 1 0 100 1000

Impedance (Ohms) Figure 11.

0.01

0.001

0.1

Impedance vs. Frequency

1 10 100 1,000

Figure 11.

100

Impedance vs Frequency for X7R Dielectric

100

0.1µF

1.0µF

0.1

Impedance (Ohms)

1.0 µF

0.01

0.1 1 1 0 100 1000

0.1µF

Figure 12.

0.1

Frequency - MHz

Impedance vs Frequency

for X7R Dielectric

Leaded Z5U

Frequency - MHz

Impedance vs Frequency

for Z5U Dielectric

Impedance (Ohms)

0.01

0.001

0.1

Figure 12.

Impedance vs Frequency for Z5U Dielectric

1 10 100 1,000

Frequency - MHz

Page 47

Page 48

KEMET Electronics Corporation 66 Concord St., Suite Z Wilmington, MA 01887 Phone: 978-658-1663 Fax: 978-658-1790

KEMET Electronics Corporation 8445 Freeport Parkway, Suite 320 Irving, TX 75063 Phone: 972-870-9530 Fax: 972-870-9537

KEMET Electronics Ltd. Waterfront House, 55/61 South St. Bishop’s Stortford Hertfordshire, CM23 3AL United Kingdom Phone: 44-1279-757201 Fax: 44-1279-757188

KEMETElectronics GmbH Elisabethstrasse 89-91 D-80797 Munich, Germany Phone: 49-89-5908-2053 Fax: 49-56-5908-1303

KEMET Electronics Marketing PTE Ltd. 8-2-04, Sunny Point Kompleks Jalan Batu Uban, 11700 Penang Penang, Malaysia Phone: 60-4-6595200 Fax: 60-4-6595220

KEMET Electronics Marketing PTE Ltd. 101 Thomson Road, #23-03 United Square Singapore, 307591, Singapore Phone: 65-6353-6636 Fax: 65-6353-6656

KEMET Electronics Asia Ltd. Rm. 825 & 826, 8/F, Renminan Road Kerry Center Shenzhen 518001 China Phone: 867-55-25181306 Fax: 867-55-25181307

KEMET Electronics Canada Ltd. 10 Kensington Road, Suite 1107 Brampton, L6T 3V4 Ontario Canada Phone: 905-595-0893 Fax: 905-595-0894

KEMET Electronics Canada Ltd. 6001 35th Avenue LavaL West, Quebec, Canada H7R 3P7 Phone: 450-962-0806 Fax: 450-962-6462

KEMET Electronics S.A.R.L. ZAC Paris Rive Gauche 118-122, avenue de France 75013 Paris, France Phone: 33-1-4646-1009 Fax: 33-1-4646-1599

KEMET Electronics Asia Ltd. 30 Canton Rd., Room 1512 Silvercord Tower II Tsimshatshui, Kowloon Bay, Hong Kong Phone: 852-2305-1168 Fax: 852-2759-0345

KEMET Electronics Corporation Taiwan Branch, 3-4F, No. 148, Section 4 Chung-Hsaio E. Rd. Taipei, Taiwan ROC Phone: 886-2-27528585 Fax: 886-2-27213129

World Sales Headquarters

P.O. Box 5928 • Greenville, SC 29606 • www.kemet.com

Phone: (864) 963-6300 • Fax: (864) 963-6521

KEMET Electronics Corporation 2350 Mission College Blvd., Suite 972 Santa Clara, CA 95054 Phone: 408-986-0424 Fax: 408-986-1442

KEMET Electronics Corporation Schaumburg Corporate Center Suite 350, 1515 Woodfield Road Schaumburg, IL 60173 Phone: 847-517-1030 Fax: 847-517-1037

KEMET Electronics S.A. 1-3, Avenue de la Paix P.O.B. 76 CH-1211 Geneva 20, Switzerland Phone: 41-22-715-0100 Fax: 41-22-715-0170

KEMET Electronics (Shanghai) Co., Ltd. Rm2905, Raffles City (Office Building) No. 268, Xi Zang Middle Road Shanghai 200001, China Phone: 86-21-6340-4068 Fax: 86-21-6340-4050

KEMET Electronics Asia Ltd. Rm 605, Citic Bldg. No. 19 Jian Guo Men Wai Da Jie Beijing, 100004, China Phone: 8610-8526-3628 Fax: 8610-8526-3626

NOTICE: Place 011 in front of the above Phone and Fax numbers for Europe and Asia, when dialing from a United States exchange.

Note: KEMET reserves the right to modify minor details of internal and external construction at any time in the interest of product improvement.

KEMET does not assume any responsibility for infringement that might result from the use of KEMET Capacitors in potential circuit designs.

7/05

USA/Canada Locations

Europe/Africa Locations

Asia Locations
