PRELIMINARY
Q3 2003
1U Horizontal or 2U High Vertical Chassis
•
Measures only 10.2” x 3.4” x 1.65”
•
Universal Input with Active PFC
•
Optional 1U High 19” Rack for
Hotswap/Redundant Operation
•
International Safety Approvals & CE Mark
Input
Input Voltage • 90-264 VAC
Input Frequency • 47-63 Hz
Power Factor • 0.95 A minimum
Harmonic Current • Meets EN61000-3-2
Inrush Current • Limited to 20 A peak
Input Protection • Internal 10 A fuse
Input Current • 4.9 A at 120 VAC
2.8 A at 208 VAC
Output
Output Voltage • -54 VDC
Output Power • 500 Watts
Output Voltage Adj. • -40 to -59 VDC programmable
Minimum Load • 0 minimum load for all outputs
Line Regulation • ±0.1% maximum
Load Regulation • ±0.5% maximum
Ripple & Noise • 300 mV pk-pk maximum
Transient Response • 3% max deviation, 500 µs
recovery time for a 25% load change
Temperature • 0.02%/°C
Coefficient
Hold Up Time • >20ms minimum
Remote Sense • Up to 0.25 V compensation
Overvoltage • -59.5 to -60.0 VDC
Protection recycle input to reset
Overcurrent • 120% with auto recovery
Protection
Overtemperature • Logic high signal for overtemp
Protection conditions
Current Sharing • Single wire with ±10% accuracy
Remote ON/OFF • Standard
General
Efficiency • 87% typical at full load & 230 VAC
MTBF • 200,000 demonstrated
Isolation Voltage • 3000 VAC Input to Output
1500 VAC Input to Ground
500 VAC Output to Ground
Signals • PSU enable, AC fail, DC OK,
global inhibit, overtemp &
output current readout
LED Indicators • DC Good
Size • 10.2” x 3.4” x 1.65”
Weight • 2.9 Ibs (1.3 kgs.)
Environmental
Operating • -20 °C to +70 °C, derate linearly from
Temperature 100% at +55 °C to 50% at +70 °C
Cooling • Internal ball bearing fans with front
to back airflow
Humidity • 30-95% RH, non-condensing
Storage Temperature • -40 °C to +85 °C
Shock & Vibration • IEC68-2-27, 2-64 & Mil-STD-810E, 20G,
Telecordia GR-63-CORE,
GR-487-CORE
Altitude • Operation to 7,382 feet (2250m)
EMC & Safety
Safety Approvals • UL1950. CSA C22.2 No 950,
EN60950 CE Mark LVD
EMI/EMC • EN61000-3-2, -3, EN55022 and FCC
20780 part 15J Class B conducted
Immunity and Surge • Meets EN61000-4-2, -3, -4, -5, -6, -11
500 Watts
CDP500 Series
AC/DC Rectifier/Front End
Specification
•
•
•
PH: 508 429.9883
FAX: 800 226.2100
Email: sales@xpiq.com
Holliston, MA 01746 USA
www.XPiQ.com
Intelligent Design Quality Product
XPiQ inc.
* Preliminary datasheet - see website for current specs
Page 2
Rev 1.0
Output power is constant between -42V and -59 VDC, 500 watts typical.
Notes

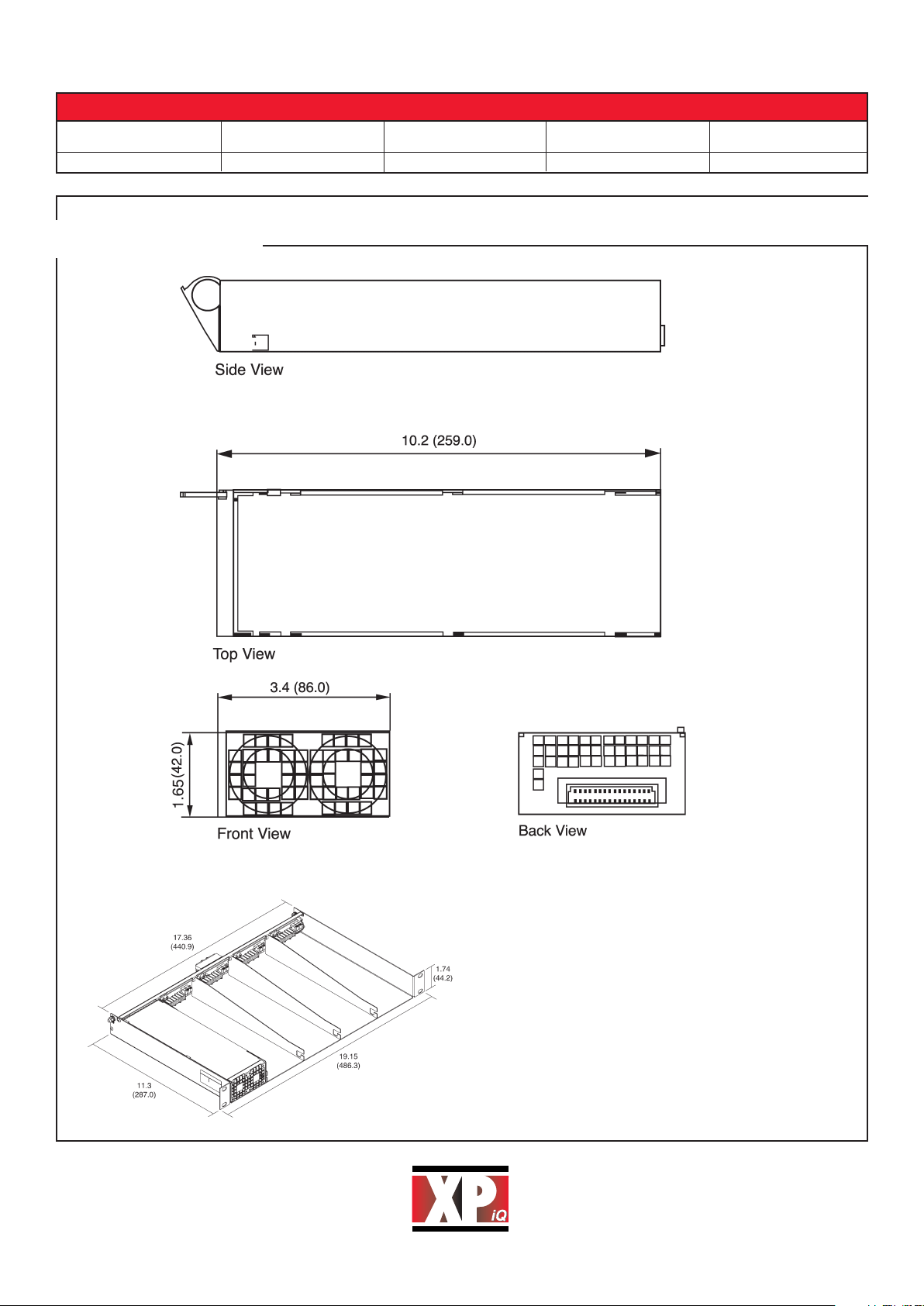

Mechanical Details
Maximum Output Output Trim Model
Power Voltage Current Range Number
500 W -54 VDC 9.3 Amps -40 VDC to -59 VDC CDP500PS48
OUTPUT VOLTAGE & CURRENT RATINGS CDP500
•
PH: 508 429.9883
FAX: 800 226.2100
Email: sales@xpiq.com
Holliston, MA 01746 USA
www.XPiQ.com
Detailed specification including
pin assignments, control & supervisory
signals & optional racks will be
available Q3 2003.
See XPiQ website for additional info.
Optional Rack for 5 modules
* Preliminary datasheet - see website for current specs
