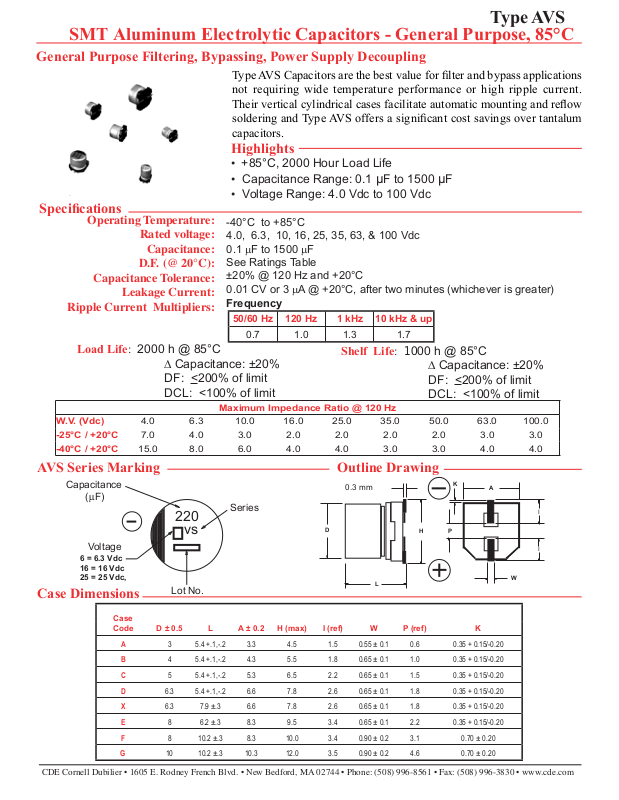

Page 1
Type AVS
SMT Aluminum Electrolytic Capacitors - General Purpose, 85°C
General Purpose Filtering, Bypassing, Power Supply Decoupling
Type AVS Capacitors are the best value for filter and bypass applications
not requiring wide temperature performance or high ripple current.
Their vertical cylindrical cases facilitate automatic mounting and reflow
soldering and Type AVS offers a significant cost savings over tantalum
capacitors.
Highlights
• +85°C, 2000 Hour Load Life
• Capacitance Range: 0.1 µF to 1500 µF
• Voltage Range: 4.0 Vdc to 100 Vdc
Specifications
Operating Temperature:
Rated voltage:
Capacitance:
D.F. (@ 20°C):
Capacitance Tolerance:
Leakage Current:
Ripple Current Multipliers:
Load Life: 2000 h @ 85°C
∆ Capacitance: ±20%
DF: <200% of limit
DCL: <100% of limit
W.V. (Vdc) 4.0 6.3 10.0 16.0 25.0 35.0 50.0 63.0 100.0
-25°C / +20°C 7.0 4.0 3.0 2.0 2.0 2.0 2.0 3.0 3.0
-40°C / +20°C 15.0 8.0 6.0 4.0 4.0 3.0 3.0 4.0 4.0
-40°C to +85°C
4.0, 6.3, 10, 16, 25, 35, 63, & 100 Vdc
0.1 µF to 1500 µF
See Ratings Table
±20% @ 120 Hz and +20°C
0.01 CV or 3 µA @ +20°C, after two minutes (whichever is greater)
Frequency
50/60 Hz 120 Hz 1 kHz 10 kHz & up
0.7 1.0 1.3 1.7
Shelf Life: 1000 h @ 85°C
∆ Capacitance: ±20%
DF: <200% of limit
DCL: <100% of limit
Maximum Impedance Ratio @ 120 Hz
AVS Series Marking Outline Drawing
Capacitance
(µF)
Series
0.3 mm
220
Voltage
6 = 6.3 Vdc
16 = 16 Vdc
25 = 25 Vdc,
Case Dimensions
Case
Code D ± 0.5 L A ± 0.2 H (max) I (ref) W P (ref) K
A 3 5.4 +.1,-.2 3.3 4.5 1.5 0.55 ± 0.1 0.6 0.35 + 0.15/-0.20
B 4 5.4 +.1,-.2 4.3 5.5 1.8 0.65 ± 0.1 1.0 0.35 + 0.15/-0.20
C 5 5.4 +.1,-.2 5.3 6.5 2.2 0.65 ± 0.1 1.5 0.35 + 0.15/-0.20
D 6.3 5.4 +.1,-.2 6.6 7.8 2.6 0.65 ± 0.1 1.8 0.35 + 0.15/-0.20
X 6.3 7.9 ±.3 6.6 7.8 2.6 0.65 ± 0.1 1.8 0.35 + 0.15/-0.20
E 8 6.2 ±.3 8.3 9.5 3.4 0.65 ± 0.1 2.2 0.35 + 0.15/-0.20
F 8 10.2 ±.3 8.3 10.0 3.4 0.90 ± 0.2 3.1 0.70 ± 0.20
G 10 10.2 ±.3 10.3 12.0 3.5 0.90 ± 0.2 4.6 0.70 ± 0.20
vs
Lot No.
D
L
H
K
P
A
I
I
W
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508) 996-8561 • Fax: (508) 996-3830 • www.cde.com
Page 2
Type AVS
SMT Aluminum Electrolytic Capacitors - General Purpose, 85°C
Ratings
Max.
Cap
(µF)
22 AVS226M04A12T 3.0 0.37 27.9 19 A
33 AVS336M04B12T 3.0 0.35 17.6 26 B
47 AVS476M04B12T 3.0 0.35 12.3 34 B
100 AVS107M04C12T
220 AVS227M04D16T
22 AVS226M06A12T 3.0 0.35 26.4 20 A
22 AVS226M06B12T 3.0 0.26 19.6 29 B
33 AVS336M06B12T 3.0 0.35 17.6 29 B
47 AVS476M06B12T 3.0 0.35 12.3 36 B
47 AVS476M06C12T 3.0 0.26 9.2 46 C
100 AVS107M06C12T
100 AVS107M06D16T
220 AVS227M06D16T
330 AVS337M06X16T
330 AVS337M06E16T
470 AVS477M06F24T
1000 AVS108M06F24T
1000 AVS108M06G24T
1500 AVS158M06G24T
22 AVS226M10B12T 3.0 0.3 22.6 28 B
33 AVS336M10B12T 3.3 0.3 15.1 29 B
33 AVS336M10C12T 3.3 0.2 10.1 43 C
47 AVS476M10C12T 4.7 0.3 10.6 43 C
100 AVS107M10C12T
100 AVS107M10D16T
220 AVS227M10X16T
220 AVS227M10E16T
330 AVS337M10F24T
470 AVS477M10F24T
470 AVS477M10G24T
1000 AVS108M10G24T
10 AVS106M16A12T 3.0 0.18 29.9 20 A
10 AVS106M16B12T 3.0 0.16 26.5 28 B
22 AVS226M16B12T 3.5 0.26 19.6 28 B
22 AVS226M16C12T 3.5 0.16 12.1 39 C
33 AVS336M16C12T 5.3 0.26 13.1 35 C
47 AVS476M16C12T 7.5 0.26 9.2 39 C
47 AVS476M16D16T 7.5 0.16 5.6 70 D
100 AVS107M16D16T
100 AVS107M16E16T
220 AVS227M16X16T
220 AVS227M16E16T
220 AVS227M16F24T
330 AVS337M16F24T
330 AVS337M16G24T
470 AVS477M16F24T
470 AVS477M16G24T
4.7 AVS475M25A12T
4.7 AVS475M25B12T
10 AVS106M25B12T 3.0 0.2 33.2 22 B
10 AVS106M25C12T 3.0 0.14 23.2 28 C
22 AVS226M25C12T 5.5 0.2 15.1 35 C
22 AVS226M25D16T 5.5 0.14 10.6 55 D
33 AVS336M25C12T 8.3 0.2 10.0 42 C
33 AVS336M25D16T 8.3 0.14 7.0 65 D
47 AVS476M25D16T 11.8 0.2 7.1 70 D
100 AVS107M25X16T
100 AVS107M25E16T
100 AVS107M25F24T
220 AVS227M25F24T
220 AVS227M25G24T
330 AVS337M25F24T
330 AVS337M25G24T
470 AVS477M25G24T
Catalog
Part Number
Max .
DCL
(µA)
4.0 0.35 5.8 61 C 5 x 5.4 1000
8.8 0.35 2.6 82 D 6.3 x 5.4 1000
6.3 0.35 5.8 47 C 5 x 5.4 1000
6.3 0.26 4.3 71 D 6.3 x 5.4 1000
13.9 0.35 2.6 74 D 6.3 x 5.4 1000
20.8 0.26 1.3 150 X 6.3 x 7.9 900
20.8 0.35 1.8 300 E 8 x 6.2 1000
29.6 0.35 1.2 380 F 8 x 10.2 500
63.0 0.35 0.6 500 F 8 x 10.2 500
63.0 0.35 0.6 700 G 10 x 10.2 500
94.5 0.35 0.4 700 G 10 x 10.2 500
10.0 0.3 5.0 50 C 5 x 5.4 1000
10.0 0.2 3.3 70 D 6.3 x 5.4 1000
22.0 0.2 1.5 150 X 6.3 x 7.9 900
22.0 0.26 2.0 250 E 8 x 6.2 1000
33.0 0.26 1.3 330 F 8 x 10.2 500
47.0 0.26 0.9 330 F 8 x 10.2 500
47.0 0.26 0.9 400 G 10 x 10.2 500
100.0 0.26 0.4 580 G 10 x 10.2 500
16.0 0.26 4.3 70 D 6.3 x 5.4 1000
16.0 0.2 3.3 200 E 8 x 6.2 1000
35.2 0.16 1.2 150 X 6.3 x 7.9 900
35.2 0.2 1.5 200 E 8 x 6.2 1000
35.2 0.2 1.5 280 F 8 x 10.2 500
52.8 0.2 1.0 320 F 8 x 10.2 500
52.8 0.2 1.0 380 G 10 x 10.2 500
75.2 0.2 0.7 320 F 8 x 10.2 500
75.2 0.2 0.7 420 G 10 x 10.2 500
3.0 0.16 56.5 12 A 3 x 5.4 2000
3.0 0.14 49.4 22 B 4 x 5.4 2000
25.0 0.14 2.3 150 X 6.3 x 7.9 900
25.0 0.16 2.7 91 E 8 x 6.2 1000
25.0 0.16 2.7 180 F 8 x 10.2 500
55.0 0.16 1.2 140 F 8 x 10.2 500
55.0 0.16 1.2 310 G 10 x 10.2 500
82.5 0.16 0.8 150 F 8 x 10.2 500
82.5 0.16 0.8 340 G 10 x 10.2 500
117.5 0.16 0.6 360 G 10 x 10.2 500
Dissipation
Factor @
120 Hz
4 Vdc (5 Vdc Surge)
6.3 Vdc (8 Vdc Surge)
10 Vdc (13 Vdc Surge)
16 Vdc (20 Vdc Surge)
25 Vdc (31 Vdc Surge)
Max.
ESR @
120 Hz/20 °C
(Ohms)
Max.
Ripple Current
120 Hz/85 °C
(mA)
Case
Code
Size
D x L
(mm)
3 x 5.4 2000
4 x 5.4 2000
4 x 5.4 2000
3 x 5.4 2000
4 x 5.4 2000
4 x 5.4 2000
4 x 5.4 2000
5 x 5.4 1000
4 x 5.4 2000
4 x 5.4 2000
5 x 5.4 1000
5 x 5.4 1000
3 x 5.4 2000
4 x 5.4 2000
4 x 5.4 2000
5 x 5.4 1000
5 x 5.4 1000
5 x 5.4 1000
6.3 x 5.4 1000
4 x 5.4 2000
5 x 5.4 1000
5 x 5.4 1000
6.3 x 5.4 1000
5 x 5.4 1000
6.3 x 5.4 1000
6.3 x 5.4 1000
Quantity
per Reel
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508) 996-8561 • Fax: (508) 996-3830 • www.cde.com
Page 3
Type AVS
SMT Aluminum Electrolytic Capacitors - General Purpose, 85°C
Cap Catalog DCL Factor @ 120 Hz/20 °C 120 Hz/85 °C Case D x L Quantity
(µF) Part Number (µA) 120 Hz (Ohms) (mA) Code (mm) per Reel
2.2 AVS225M35A12T
3.3 AVS335M35A12T
4.7 AVS475M35B12T
10 AVS106M35B12T
10 AVS106M35C12T
22 AVS226M35C12T
22 AVS226M35D16T
33 AVS336M35D16T
33 AVS336M35E16T
47 AVS476M35D16T
47 AVS476M35E16T
100 AVS107M35X16T
100 AVS107M35F24T
100 AVS107M35G24T
220 AVS227M35F24T
220 AVS227M35G24T
330 AVS337M35G24T
0.1 AVS104M50A12T
0.1 AVS104M50B12T
0.22 AVS224M50A12T
0.22 AVS224M50B12T
0.33 AVS334M50A12T
0.33 AVS334M50B12T
0.47 AVS474M50A12T
0.47 AVS474M50B12T
1 AVS105M50A12T
1 AVS105M50B12T
2.2 AVS225M50A12T
2.2 AVS225M50B12T
3.3 AVS335M50B12T
4.7 AVS475M50B12T
4.7 AVS475M50C12T
10 AVS106M50C12T
10 AVS106M50D16T
22 AVS226M50D16T
22 AVS226M50E16T
33 AVS336M50X16T
33 AVS336M50E16T
33 AVS336M50F24T
47 AVS476M50X16T
47 AVS476M50F24T
47 AVS476M50G24T
100 AVS107M50F24T
100 AVS107M50G24T
220 AVS227M50G24T
10
22 AVS226M63E16T
22 AVS226M63F24T
33 AVS336M63F24T
47 AVS476M63F24T
100 AVS107M63G24T
3.3 AVS335M2AE16T
4.7 AVS475M2AE16T
4.7 AVS475M2AF24T
10 AVS106M2AE16T
10 AVS106M2AF24T
22 AVS226M2AF24T
22 AVS226M2AG24T
33 AVS336M2AG24T
AVS106M63D16T
Part Numbering System
Max. Dissipation ESR @ Ripple Current Size
35 Vdc (44 Vdc Surge)
3.0 0.14 105.6 8 A 3 x 5.4 2000
3.0 0.14 70.4 10 A 3 x 5.4 2000
3.0 0.12 42.4 22 B 4 x 5.4 2000
3.5 0.16 26.5 22 B 4 x 5.4 2000
3.5 0.12 19.9 30 C 5 x 5.4 1000
7.7 0.16 12.1 36 C 5 x 5.4 1000
7.7 0.12 9.1 60 D 6.3 x 5.4 1000
11.6 0.16 8.0 60 D 6.3 x 5.4 1000
11.6 0.14 7.0 130 E 8 x 6.2 1000
16.5 0.16 5.6 70 D 6.3 x 5.4 1000
16.5 0.14 4.9 165 E 8 x 6.2 1000
35.0 0.12 2.0 130 X 6.3 x 7.9 900
35.0 0.14 2.3 140 F 8 x 10.2 500
35.0 0.14 2.3 210 G 10 x 10.2 500
77.0 0.14 1.1 200 F 8 x 10.2 500
77.0 0.14 1.1 310 G 10 x 10.2 500
115.5 0.14 0.7 320 G 10 x 10.2 500
50 Vdc (63 Vdc Surge)
3.0 0.14 2322.0 1 A 3 x 5.4 2000
3.0 0.12 1990.0 1 B 4 x 5.4 2000
3.0 0.14 1055.0 2 A 3 x 5.4 2000
3.0 0.12 905.0 2 B 4 x 5.4 2000
3.0 0.14 704.0 3 A 3 x 5.4 2000
3.0 0.12 603.0 3 B 4 x 5.4 2000
3.0 0.14 494.0 5 A 3 x 5.4 2000
3.0 0.12 424.0 5 B 4 x 5.4 2000
3.0 0.14 232.0 8 A 3 x 5.4 2000
3.0 0.12 199.0 10 B 4 x 5.4 2000
3.0 0.14 106.0 10 A 3 x 5.4 2000
3.0 0.12 90.5 16 B 4 x 5.4 2000
3.0 0.12 60.3 16 B 4 x 5.4 2000
3.0 0.14 49.4 18 B 4 x 5.4 2000
3.0 0.12 42.4 23 C 5 x 5.4 1000
5.0 0.14 23.2 27 C 5 x 5.4 1000
5.0 0.12 19.9 35 D 6.3 x 5.4 1000
11.0 0.14 10.6 60 D 6.3 x 5.4 1000
11.0 0.12 9.1 120 E 8 x 6.2 1000
16.5 0.12 6.0 85 X 6.3 x 7.9 900
16.5 0.12 6.0 130 E 8 x 6.2 1000
16.5 0.12 6.0 140 F 8 x 10.2 500
23.5 0.12 4.2 90 X 6.3 x 7.9 900
23.5 0.12 4.2 150 F 8 x 10.2 500
23.5 0.12 4.2 160 G 10 x 10.2 500
50.0 0.12 2.0 200 F 8 x 10.2 500
50.0 0.12 2.0 250 G 10 x 10.2 500
110.0 0.12 0.9 300 G 10 x 10.2 500
63 Vdc (75 Vdc Surge)
6.3 0.18 29.9 35 D* 6.3 x 5.7 1000
13.9 0.18 13.6 40 E 8 x 6.2 1000
13.9 0.18 13.6 40 F 8 x 10.2 500
20.8 0.18 9.1 45 F 8 x 10.2 500
29.6 0.18 6.4 45 F 8 x 10.2 500
63.0 0.18 3.0 60 G 10 x 10.2 500
100 Vdc (125 Vdc Surge)
3.3 0.18 90.4 50 E 8 x 6.2 1000
4.7 0.18 63.5 50 E 8 x 6.2 1000
4.7 0.18 63.5 80 F 8 x 10.2 500
10.0 0.18 29.8 50 E 8 x 6.2 1000
10.0 0.18 29.8 85 F 8 x 10.2 500
22.0 0.18 13.6 70 F 8 x 10.2 500
22.0 0.18 13.6 90 G 10 x 10.2 500
33.0 0.18 8.0 90 G 10 x 10.2 500
*Overall case height (L dimension) is 5.7 mm ±0.3 mm
AVS 106 M 16 B 12T –F
I I I I I I
Type
Capacitance
104 = 0.1 µF
105 = 1.0 µF
106 = 10 µF
107 = 100 µF
108 = 1000 µF
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508) 996-8561 • Fax: (508) 996-3830 • www.cde.com
Capacitance
Tolerance
M = ±20%
04 = 4 Vdc
06 = 6.3 Vdc
10 = 10 Vdc
16 = 16 Vdc
25 = 25 Vdc
V
oltage Case
35 = 35 Vdc
Code
50 = 50 Vdc
63 = 63 Vdc
2A = 100 Vdc
Packaging
Information
12 = Carrier Tape
Width (mm)
T = Tape & Reel
B = Bulk
RoHS
Compliant
Page 4
Type AVS
SMT Aluminum Electrolytic Capacitors - General Purpose, 85°C
Typical Performance Curves
Capacitance vs. Temperature & Frequency
1500 µF @ 6.3 Vdc (10 X 10.2 mm)
Frequency (Hz) Frequency (Hz)
ESR vs. Temperature and Frequency
1500 µF @
6.3 Vdc (10 X 10.2 mm)
Capacitance vs. Temperature & Frequency
100 µF @ 16 Vdc (10 X 10.2 mm)
ESR vs. Temperature and Frequency
100 µF @ 16 Vdc (10 X 10.2 mm)
Frequency (Hz) Frequency (Hz)
Impedance vs. Temperature and Frequency
Impedance vs. Temperature and Frequency
1500 µF @ 6.3 Vdc (10 X 10.2 mm)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508) 996-8561 • Fax: (508) 996-3830 • www.cde.com
100 µF @ 16 Vdc (10 X 10.2 mm)
Frequency (Hz)Frequency (Hz)
Page 5
Type AVS
SMT Aluminum Electrolytic Capacitors - General Purpose, 85°C
Capacitance vs. Temperature & Frequency
220 µF @ 50 Vdc (10 X 10.2 mm)
Frequency (Hz)
ESR vs. Temperature and Frequency
220 µF @ 50 Vdc (10 X 10.2 mm)
Capacitance Change with Temperature
(Typical Performance for AVS Series @ 120 Hz)
Temperature (°C)
Dissipation Factor vs. Temperature
(T
ypical Performance for
AVS Series @ 120 Hz)
Frequency (Hz)
Impedance vs. Temperature and Frequency
220 µF @ 50 Vdc (10 X 10.2 mm)
Frequency (Hz)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508) 996-8561 • Fax: (508) 996-3830 • www.cde.com
Capacitance Change vs. Time
(Typical Performance for AVS Series)
Temperature (°C)
Time (Hours)
Loading...
