Datasheet CDE [smd] AHA Series Datasheet

Page 1

Type AHA

SMT Aluminum Electrolytic Capacitors -55 °C to +105 °C - Long Life

Long Life Filtering, Bypassing, Power Supply Decoupling

Type AHA Capacitors deliver twice the life of many SMT aluminum capacitor types, and they handle high levels of ripple current. The AHA can handle the ripple current of Type AVS at 20 °C higher temperature. The vertical cylindrical cases facilitate automatic mounting and reﬂow soldering and Type AHA offers a signiﬁcant cost savings over tantalum capacitors.

Highlights

• +105 °C, Up to 2000 Hour Load Life

• Capacitance Range: 0.1 µF to 1500 µF

• Voltage Range: 6.3 Vdc to 100 Vdc

Speciﬁcations

OperatingTemperature:

Rated Voltage:

Capacitance:

D.F. (@ 20 °C):

Capacitance Tolerance:

Leakage Current:

Ripple Current Multipliers:

−55 °C to +105 °C

6.3, 10, 16, 25, 35, 50, 63 & 100 Vdc

0.1 µF to 1500 µF See Ratings Table 20% @ 120 Hz and +20 °C

0.01 CV or 3 µA @ +20°C after two minutes (whichever is greater)

Frequency

50/60 Hz 120 Hz 1 kHz 10 kHz & up

0.7 1 1.3 1.7

Load Life: 1000 h @ +105 °C, 4.0 - 6.3 mm dia.

2000 h @ +105 °C, 8.0 - 10.0 mm dia. ∆ Capacitance ±20% DF: < 200% of limit DCL: ≤100% of limit

Maximum Impedance Ratio at 120 Hz

W.V. Vdc 6.3 10 16 25 35 50 63 100

–25 °C /+20 °C 4 3 2 2 2 2 3 3

–40 °C /+20 °C 8 6 4 4 3 3 4 4

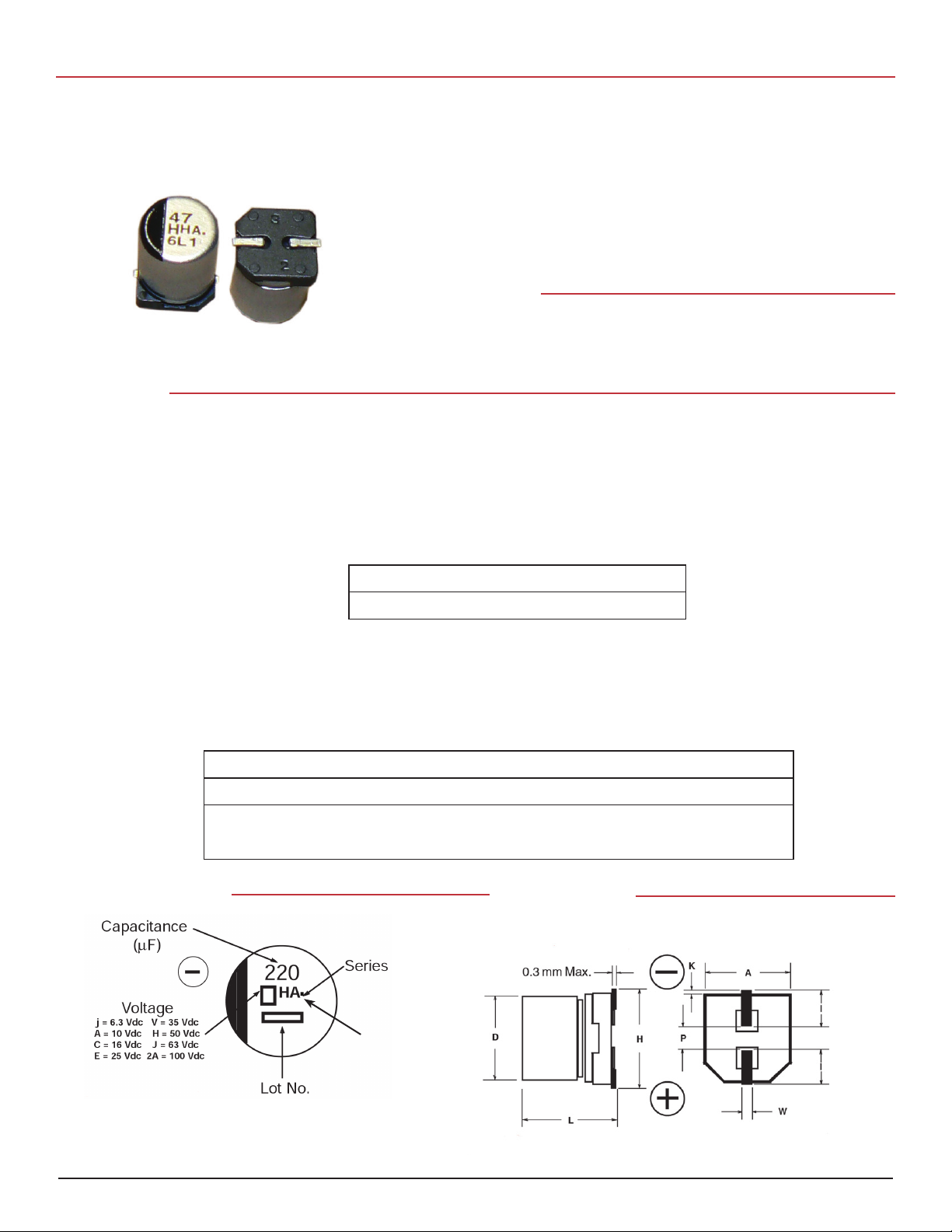

AHA Series Marking

Indicator for lead

free product

(black square)

Shelf Life: 1000 h @ +105 °C

∆ Capacitance ±20% DF: < 200% of limit DCL: ≤100% of limit

Outline Drawing

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com

Page 2

Type AHA

SMT Aluminum Electrolytic Capacitors -55 °C to +105 °C - Long Life

Case Dimensions

Case

Code D ± 0.5 L A ± 0.2 H (max) I (ref) W P (ref) K

B 4 5.4 +.1,-.2 4.3 5.5 1.8 0.65 ± 0.1 1 0.35 + 0.15/-0.20

C 5 5.4 +.1,-.2 5.3 6.5 2.2 0.65 ± 0.1 1.5 0.35 + 0.15/-0.20

D 6.3 5.4 +.1,-.2 6.6 7.8 2.6 0.65 ± 0.1 1.8 0.35 + 0.15/-0.20

X 6.3 7.7 ±.3 6.6 7.8 2.6 0.65 ± 0.1 1.8 0.35 + 0.15/-0.20

E 8 6.2 ±.3 8.3 9.5 3.4 0.65 ± 0.1 2.2 0.35 + 0.15/-0.20

F 8 10.2 ±.3 8.3 10 3.4 0.90 ± 0.2 3.1 0.70 ± 0.20

G 10 10.2 ±.3 10.3 12 3.5 0.90 ± 0.2 4.6 0.70 ± 0.20

Ratings

Cap Part Number 2 min. 120 Hz /20 ºC 120 Hz /20 ºC 120 Hz /105 °C Code D x L per Reel

Catalog DCL DF ESR Ripple Current Case Size Quantity

(µF) (µA) ( Ω ) (mA) (mm)

22.0 AHA226M06B12T-F 3.0 0.30 22.6 29 B 4 x 5.4 2000

33.0 AHA336M06B12T-F 3.0 0.35 17.6 29 B 4 x 5.4 2000

47.0 AHA476M06B12T-F 3.0 0.35 12.3 36 B 4 x 5.4 2000

47.0 AHA476M06C12T-F 3.0 0.30 10.6 46 C 5 x 5.4 1000

100.0 AHA107M06C12T-F 6.3 0.35 5.8 47 C 5 x 5.4 1000

100.0 AHA107M06D16T-F 6.3 0.30 5.0 71 D 6.3 x 5.4 1000

220.0 AHA227M06D16T-F 13.9 0.35 2.6 74 D 6.3 x 5.4 1000

330.0 AHA337M06X16T-F 20.8 0.30 1.5 105 X 6.3 x 7.7 900

330.0 AHA337M06F24T-F 20.8 0.35 1.8 230 F 8 x 10.2 500

470.0 AHA477M06F24T-F 29.6 0.35 1.2 300 F 8 x 10.2 500

1000.0 AHA108M06F24T-F 63.0 0.35 0.6 300 F 8 x 10.2 500

1000.0 AHA108M06G24T-F 63.0 0.35 0.6 400 G 10 x 10.2 500

1500.0 AHA158M06G24T-F 94.5 0.35 0.4 480 G 10 x 10.2 500

22.0 AHA226M10B12T-F 3.0 0.30 22.6 28 B 4 x 5.4 2000

33.0 AHA336M10B12T-F 3.3 0.30 15.1 29 B 4 x 5.4 2000

33.0 AHA336M10C12T-F 3.3 0.22 11.1 43 C 5 x 5.4 1000

47.0 AHA476M10C12T-F 4.7 0.30 10.6 43 C 5 x 5.4 1000

100.0 AHA107M10D16T-F 10.0 0.30 5.0 70 D 6.3 x 5.4 1000

100.0 AHA107M10E16T-F 10.0 0.26 4.3 110 E 8 x 6.2 1000

220.0 AHA227M10X16T-F 22.0 0.22 1.7 105 X 6.3 x 7.7 900

220.0 AHA227M10F24T-F 22.0 0.26 2.0 160 F 8 x 10.2 500

470.0 AHA477M10F24T-F 47.0 0.26 0.9 200 F 8 x 10.2 500

470.0 AHA477M10G24T-F 47.0 0.26 0.9 270 G 10 x 10.2 500

1000.0 AHA108M10G24T-F 100.0 0.26 0.4 580 G 10 x 10.2 500

10.0 AHA106M16B12T-F 3.0 0.16 26.5 28 B 4 x 5.4 2000

22.0 AHA226M16B12T-F 3.5 0.26 19.6 28 B 4 x 5.4 2000

22.0 AHA226M16C12T-F 3.5 0.16 12.1 39 C 5 x 5.4 1000

33.0 AHA336M16C12T-F 5.3 0.26 13.1 35 C 5 x 5.4 1000

47.0 AHA476M16C12T-F 7.5 0.26 9.2 39 C 5 x 5.4 1000

47.0 AHA476M16D16T-F 7.5 0.16 5.6 70 D 6.3 x 5.4 1000

100.0 AHA107M16D16T-F 16.0 0.26 4.3 70 D 6.3 x 5.4 1000

220.0 AHA227M16X16T-F 35.2 0.16 1.2 105 X 6.3 x 7.7 900

220.0 AHA227M16F24T-F 35.2 0.20 1.5 150 F 8 x 10.2 500

220.0 AHA227M16G24T-F 35.2 0.20 1.5 210 G 10 x 10.2 500

330.0 AHA337M16F24T-F 52.8 0.20 1.0 170 F 8 x 10.2 500

330.0 AHA337M16G24T-F 52.8 0.20 1.0 230 G 10 x 10.2 500

470.0 AHA477M16F24T-F 75.2 0.20 0.7 190 F 8 x 10.2 500

470.0 AHA477M16G24T-F 75.2 0.20 0.7 340 G 10 x 10.2 500

4.7 AHA475M25B12T-F 3.0 0.14 49.4 22 B 4 x 5.4 2000

10.0 AHA106M25B12T-F 3.0 0.20 33.2 22 B 4 x 5.4 2000

10.0 AHA106M25C12T-F 3.0 0.14 23.2 28 C 5 x 5.4

22.0 AHA226M25C12T-F

22.0 AHA226M25D16T-F 5.5 0.14 10.6 55 D 6.3 x 5.4 1000

33.0 AHA336M25C12T-F 8.3 0.20 10.0 42 C 5 x 5.4 1000

33.0 AHA336M25D16T-F 8.3 0.14 7.0 65 D 6.3 x 5.4 1000

47.0 AHA476M25D16T-F 11.8 0.20 7.1 70 D 6.3 x 5.4 1000

47.0 AHA476M25E16T-F 11.8 0.16 5.6 91 E 8 x 6.2 1000

100.0 AHA107M25E16T-F 25.0 0.16 2.7 91 E 8 x 6.2 1000

100.0 AHA107M25F24T-F 25.0 0.16 2.7 130 F 8 x 10.2 500

220.0 AHA227M25F24T-F 55.0 0.16 1.2 160 F 8 x 10.2 500

220.0 AHA227M25G24T-F 55.0 0.16 1.2 190 G 10 x 10.2 500

330.0 AHA337M25F24T-F 82.5 0.16 0.8 180 F 8 x 10.2 500

330.0 AHA337M25G24T-F 82.5 0.16 0.8 340 G 10 x 10.2 500

470.0 AHA477M25G24T-F 117.5 0.16 0.6 360 G 10 x 10.2 500

Max Max Max Max

6.3 Vdc ( 8 Vdc Surge)

10 Vdc ( 13 Vdc Surge)

16 Vdc ( 20 Vdc Surge)

25 Vdc ( 31 Vdc Surge)

1000

5.5 0.20 15.1 35 C 5 x 5.4 1000

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com

Page 3

Type AHA

SMT Aluminum Electrolytic Capacitors -55 °C to +105 °C - Long Life

Max Max Max Max

Cap Part Number 2 min. 120 Hz /20 ºC 120 Hz /20 ºC 120 Hz /105 °C Code D x L per Reel (µF) (µA) ( Ω ) (mA) (mm)

4.7 AHA475M35B12T-F 3.0 0.12 42.3 22 B 4 x 5.4 2000

10.0 AHA106M35B12T-F 3.6 0.16 26.5 22 B 4 x 5.4 2000

10.0 AHA106M35C12T-F 3.6 0.12 19.9 30 C 5 x 5.4 1000

22.0 AHA226M35C12T-F 7.7 0.16 12.1 35 C 5 x 5.4 1000

22.0 AHA226M35D16T-F 7.7 0.12 9.0 60 D 6.3 x 5.4 1000

33.0 AHA336M35D16T-F 11.6 0.16 8.0 42 D 6.3 x 5.4 1000

33.0 AHA336M35E16T-F 11.6 0.14 7.0 84 E 8 x 6.2 1000

47.0 AHA476M35E16T-F 16.5 0.14 4.9 84 E 8 x 6.2 1000

47.0 AHA476M35F24T-F 16.5 0.14 4.9 98 F 8 x 10.2 500

100.0 AHA107M35X16T-F 35.0 0.12 2.0 84 X 6.3 x 7.7 900

100.0 AHA107M35F24T-F 35.0 0.14 2.3 120 F 8 x 10.2 500

100.0 AHA107M35G24T-F 35.0 0.14 2.3 160 G 10 x 10.2 500

220.0 AHA227M35F24T-F 77.0 0.14 1.1 170 F 8 x 10.2 500

220.0 AHA227M35G24T-F 77.0 0.14 1.1 210 G 10 x 10.2 500

330.0 AHA337M35G24T-F 115.5 0.14 0.7 250 G 10 x 10.2 500

0.10 AHA104M50B12T-F 3.0 0.12 1990.0 1 B 4 x 5.4 2000

0.22 AHA224M50B12T-F 3.0 0.12 905.0 2 B 4 x 5.4 2000

0.33 AHA334M50B12T-F 3.0 0.12 603.0 3 B 4 x 5.4 2000

0.47 AHA474M50B12T-F 3.0 0.12 424.0 5 B 4 x 5.4 2000

1.0 AHA105M50B12T-F 3.0 0.12 199.0 10 B 4 x 5.4 2000

2.2 AHA225M50B12T-F 3.0 0.12 90.5 16 B 4 x 5.4 2000

3.3 AHA335M50B12T-F 3.0 0.12 60.3 16 B 4 x 5.4 2000

4.7 AHA475M50C12T-F 3.0 0.12 42.4 23 C 5 x 5.4 1000

10.0 AHA106M50D16T-F 5.0 0.12 19.9 35 D 6.3 x 5.4 1000

22.0 AHA226M50E16T-F 11.0 0.12 9.0 70 E 8 x 6.2 1000

33.0 AHA336M50X16T-F 16.5 0.12 6.0 60 X 6.3 x 7.7 900

33.0 AHA336M50E16T-F 16.5 0.12 6.0 70 E 8 x 6.2 1000

33.0 AHA336M50F24T-F 16.5 0.12 6.0 91 F 8 x 10.2 500

47.0 AHA476M50X16T-F 23.5 0.12 4.2 63 X 6.3 x 7.7 900

47.0 AHA476M50F24T-F 23.5 0.12 4.2 95 F 8 x 10.2 500

47.0 AHA476M50G24T-F 23.5 0.12 4.2 100 G 10 x 10.2 500

100.0 AHA107M50F24T-F 50.0 0.12 2.0 110 F 8 x 10.2 500

100.0 AHA107M50G24T-F 50.0 0.12 2.0 120 G 10 x 10.2 500

220.0 AHA227M50G24T-F 110.0 0.12 0.9 150 G 10 x 10.2 500

10.0 AHA106M63E16T-F 6.3 0.18 29.9 25 E 8 x 6.2 1000

22.0 AHA226M63E16T-F 13.9 0.18 13.6 30 E 8 x 6.2 1000

22.0 AHA226M63F24T-F 13.9 0.18 13.6 30 F 8 x 10.2 500

33.0 AHA336M63G24T-F 20.8 0.18 9.0 45 G 10 x 10.2 500

47.0 AHA476M63F24T-F 29.6 0.18 6.3 50 F 8 x 10.2 500

47.0 AHA476M63G24T-F 29.6 0.18 6.3 50 G 10 x 10.2 500

3.3 AHA335M2AE16T-F 3.3 0.18 90.5 30 E 8 x 6.2

4.7 AHA475M2AE16T-F

4.7 AHA475M2AF24T-F 4.7 0.18 63.5 50 F 8 x 10.2 500

10.0 AHA106M2AF24T-F 10.0 0.18 29.8 55 F 8 x 10.2 500

22.0 AHA226M2AF24T-F 22.0 0.18 13.6 55 F 8 x 10.2 500

22.0 AHA226M2AG24T-F 22.0 0.18 13.6 60 G 10 x 10.2 500

33.0 AHA336M2AG24T-F 33.0 0.18 9.0 65 G 10 x 10.2 500

Catalog DCL DF ESR Ripple Current Case Size Quantity

35 Vdc (44 Vdc Surge)

50 Vdc (63 Vdc Surge)

63 Vdc (75 Vdc Surge)

100 Vdc (125 Vdc Surge)

1000

4.7 0.18 63.5 30 E 8 x 6.2 1000

Part Numbering System

AHA 106 M 16 B 12T – F

I I I I I I I

Series Capacitance Capacitance Voltage Case Packaging RoHS

104 = 0.1 µF Tolerance 06 = 6.3 Vdc 35 = 35 Vdc Code Information Compliant

105 = 1.0 µF M = ±20% 10 = 10 Vdc 50 = 50 Vdc B = B 12 = Carrier Tape

106 = 10.0 µF 16 = 16 Vdc 63 = 63 Vdc Width (mm)

107 = 100.0 µF 25 = 25 Vdc 2A = 100 Vdc T = Tape & Reel

108 = 1000.0 µF B = Bulk

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com

Page 4

Type AHA

0.01

0.1

100

10 100 1,0 00 10,000 100 ,000 1,000,000

Ratio to 25°C, 120 Hz Value

–40°C

0°C

25°C

65°C

85°C

45°C

–20°C

105°C

–55°C

Capacitance vs. Temperature & Frequency

ESR vs. Temperature and Frequency

Impedance vs. Temperature and Frequency

470 µF @ 16 Vdc (10 X 10.2 mm)

1500

µF @ 6.3 Vdc (10 X 10.2 mm)

1500

µF @ 6.3 Vdc (10 X 10.2 mm)

470

µF @ 16 Vdc (10 X 10.2 mm)

470

µF @ 16 Vdc (10 X 10.2 mm)

SMT Aluminum Electrolytic Capacitors -55 °C to +105 °C - Long Life

Typical Performance Curves

Capacitance vs. Temperature & Frequency

1.4

1.2

0.8

0.6

0.4

Ratio to 25°C, 120 Hz Value

0.2

10 10 0 1,000 10,0 00 100,000 1,000,000

1500 µF @ 6.3 Vdc (10 X 10.2 mm)

105°C

85°C

65°C

45°

25°C

0°C

–20°C

–40°C

–55°C

Frequency (Hz)

ESR vs. Temperature and Frequency

100 0

100

Ratio to 25°C, 120 Hz Value

0.1 10 10 0 1,0 00 10,0 00 100,0 00 1,0 00,000

Frequency (Hz)

–55 °C

–40 °C

–20 °C

0°C

25° C

45° C 65° C

85° C

105 °C

1.4

1.2

0.8

0.6

0.4

Ratio to 25°C, 120 Hz Value

0.2

105°C

85°C

65°C

45°

25°C

0°C

–20°C

–40°C

–55°C

10 100 1,00 0 10,000 100,00 0 1 ,000,000

Frequency (Hz)

100

–55°C

Ratio to 25°C, 120 Hz Value

0.1

10 100 1,000 1 0,000 100,000 1,000,000

Frequency (Hz)

–40°C

–20°C

65°C

85°C

0°C

25°C

45°C

105°C

Impedance vs. Temperature and Frequency

100

–55°C

Ratio to 25°C, 120 Hz Value

0.1

–40°C

–20°C

85°C

0°C

25°C

45°C 65°C

105°C

0.01 10 100 1,000 10,000 100 ,000 1,00 0,000

Frequency (Hz)

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com

Frequency (Hz)

Page 5

Type AHA

0.01

0.1

100

10 100 1,000 10 ,000 100,000 1, 000,000

Ratio to 25°C, 120 Hz Value

–40°C

0°C

25°C

65°C

85°C

45°C

–20°C

105°C

–55°C

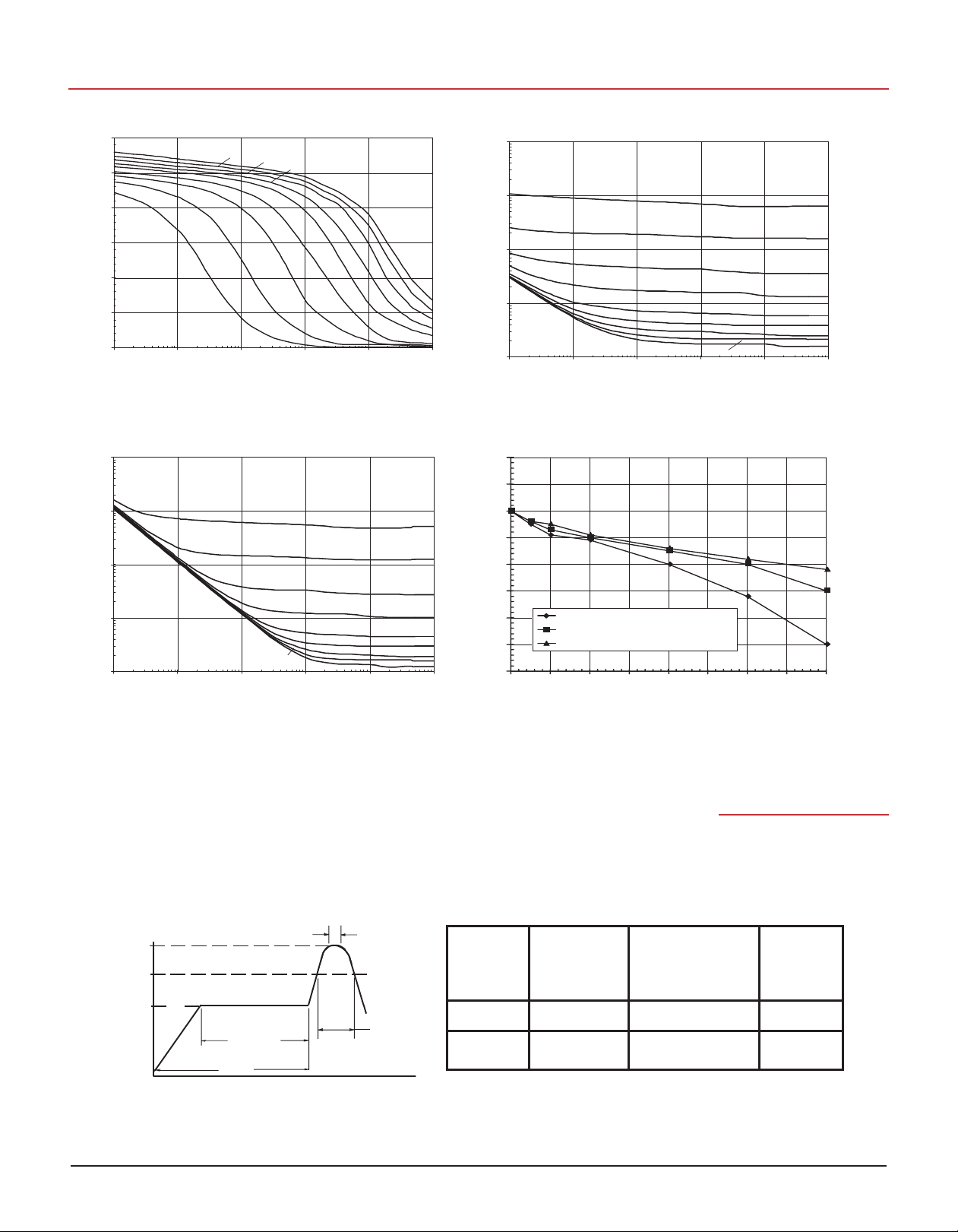

Impedance vs. Temperature and Frequency

220 µF @ 50 Vdc (10 X 10.2 mm)

Frequency (Hz)

-30

-25

-20

-15

-10

-5

0 25 0 5 00 75 0 1 ,00 0 1,2 50 1 ,50 0 1,750 2,0 00

Capacitance Change (%)

10 µF @ 1 6 Vdc (4 x 5. 4 mm)

47 µF @ 1 6 Vdc ( 6. 3 x 5 .4 mm)

33 0 µF @ 1 6 Vdc (1 0 x 1 0 .2 mm)

Capacitance Change vs Time

Time (Hours)

120 seconds

Preheat

Maximum Time @ 200 °C

(see chart)

ime

160 °C

200 °C

Peak Temp. (see chart)

5 seconds

SMT Aluminum Electrolytic Capacitors -55 °C to +105 °C - Long Life

Capacitance vs. Temperature & Frequency

220

1.2

0.8

0.6

0.4

Ratio to 25°C, 120 Hz Value

0.2

10 100 1,000 10,000 100,000 1 ,0 00,000

µF @ 50 Vdc (10 X 10.2 mm)

85°C

105°C

–40°C

–55°C

65°C

45°C

25°C

0°C

–20°C

Frequency (Hz)

ESR vs. Temperature and Frequency

100 0

100

Ratio to 25°C, 120 Hz Value

0.1 10 1 00 1,00 0 10 ,000 1 00,00 0 1 ,000,0 00

220µF @ 50 Vdc (10 X 10.2 mm)

–55 °C

–40 °C

–20 °C

0°C

25° C

45° C

65° C

85° C

Frequency (Hz)

105 °C

Reﬂow Soldering Temperature Proﬁle for Part Numbers Ending in –F

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com

See SMT application guide for land pattern, tape and reel speciﬁcations, and cleaning information.

maxim um

Case Code

B, C, D, X 250 60 1

E, F, G 235 60 1

Peak

Temperature

(°C)

Max. Time

at or above 200°C

(sec.)

Number

of Reow

Processes
