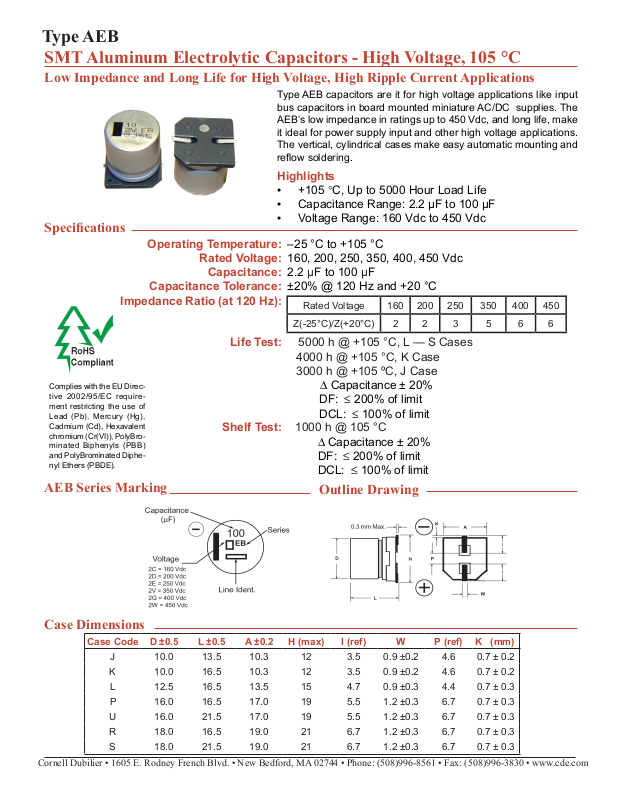

Datasheet CDE [smd] AEB Series Datasheet

Type AEB

SMT Aluminum Electrolytic Capacitors - High Voltage, 105 °C

Low Impedance and Long Life for High Voltage, High Ripple Current Applications

Type AEB capacitors are it for high voltage applications like input
bus capacitors in board mounted miniature AC/DC supplies. The
AEB’s low impedance in ratings up to 450 Vdc, and long life, make
it ideal for power supply input and other high voltage applications.
The vertical, cylindrical cases make easy automatic mounting and

reow soldering.

Highlights

• +105 °C, Up to 5000 Hour Load Life
♦• Capacitance Range: 2.2 µF to 100 µF

Specications

Operating Temperature:

Rated Voltage:

Capacitance:

Capacitance Tolerance:

Impedance Ratio (at 120 Hz):

♦• Voltage Range: 160 Vdc to 450 Vdc

–25 °C to +105 °C
160, 200, 250, 350, 400, 450 Vdc

2.2 µF to 100 µF
±20% @ 120 Hz and +20 °C

Rated Voltage 160 200 250 350 400 450

Z(-25°C)/Z(+20°C) 2 2 3 5 6 6

Life Test: 5000 h @ +105 °C, L — S Cases

4000 h @ +105 °C, K Case
3000 h @ +105 ºC, J Case

Complies with the EU Direc­tive 2002/95/EC require­ment restricting the use of
Lead (Pb), Mercury (Hg),
Cadmium (Cd), Hexavalent
chromium (Cr(VI)), PolyBro­minated Biphenyls (PBB)
and PolyBrominated Diphe­nyl Ethers (PBDE).

AEB Series Marking

∆ Capacitance ± 20%

DF: ≤ 200% of limit
DCL: ≤ 100% of limit

Shelf Test: 1000 h @ 105 °C

∆ Capacitance ± 20%

DF: ≤ 200% of limit
DCL: ≤ 100% of limit

Outline Drawing

Case Dimensions

Case Code D ±0.5 L ±0.5 A ±0.2 H (max) I (ref) W P (ref) K (mm)

J 10.0 13.5 10.3 12 3.5 0.9 ±0.2 4.6 0.7 ± 0.2

K 10.0 16.5 10.3 12 3.5 0.9 ±0.2 4.6 0.7 ± 0.2

L 12.5 16.5 13.5 15 4.7 0.9 ±0.3 4.4 0.7 ± 0.3

P 16.0 16.5 17.0 19 5.5 1.2 ±0.3 6.7 0.7 ± 0.3

U 16.0 21.5 17.0 19 5.5 1.2 ±0.3 6.7 0.7 ± 0.3

R 18.0 16.5 19.0 21 6.7 1.2 ±0.3 6.7 0.7 ± 0.3

S 18.0 21.5 19.0 21 6.7 1.2 ±0.3 6.7 0.7 ± 0.3

Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: [phone] • Fax: [phone] • www.cde.com

Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: [phone] • Fax: [phone] • www.cde.com

Type AEB

SMT Aluminum Electrolytic Capacitors - High Voltage, 105 °C

Ratings

Max. Max. Max.

Max. Dissipation Impedance Ripple Current

Cap Catalog DCL Factor @ @ 100 kHz @ 105 °C Size (mm) Quantity

(µF) Part Number 2 min 120 Hz 20 °C 100 kHz D x L Reel

(µA) 20 °C (Ω) (mA)

160 Vdc

10.0 AEB106M2CJ32T-F 106 0.15 3.00 70 10 x 13.5 250

33.0 AEB336M2CL32T-F 327 0.15 1.80 470 12.5 x 16.5 150

47.0 AEB476M2CP44T-F 461 0.15 1.40 600 16 x 16.5 125

68.0 AEB686M2CU44T-F 663 0.15 0.55 750 16 x 21.5 75

68.0 AEB686M2CR44T-F 663 0.15 0.80 750 18 x 16.5 125

100.0 AEB107M2CS44T-F 970 0.15 0.50 1060 18 x 21.5 75

200 Vdc

22.0 AEB226M2DL32T-F 274 0.15 1.80 470 12.5 x 16.5 150

33.0 AEB336M2DP44T-F 406 0.15 1.40 600 16 x 16.5 125

47.0 AEB476M2DR44T-F 574 0.15 0.80 600 18 x 16.5 125

68.0 AEB686M2DU44T-F 826 0.15 0.55 750 16 x 21.5 75

100.0 AEB107M2DS44T-F 1210 0.15 0.50 1060 18 x 21.5 75

250 Vdc

10.0 AEB106M2EK32T-F 160 0.15 2.50 88 10 x 16.5 200

22.0 AEB226M2EP44T-F 340 0.15 1.60 560 16 x 16.5 125

33.0 AEB336M2ER44T-F 505 0.15 0.85 560 18 x 16.5 125

47.0 AEB476M2EU44T-F 715 0.15 0.70 710 16 x 21.5 75

68.0 AEB686M2ES44T-F 1030 0.15 0.60 990 18 x 21.5 75

350 Vdc

10.0 AEB106M2VP44T-F 220 0.20 3.20 270 16 x 16.5 125

22.0 AEB226M2VR44T-F 472 0.20 1.60 350 18 x 16.5 125

33.0 AEB336M2VU44T-F 703 0.20 1.20 480 16 x 21.5 75

47.0 AEB476M2VS44T-F 997 0.20 1.00 670 18 x 21.5 75

400 Vdc

3.3 AEB335M2GJ32T-F 89 0.24 8.00 40 10 x 13.5 250

4.7 AEB475M2GK32T-F 123 0.24 5.50 50 10 x 16.5 200

10.0 AEB106M2GP44T-F 250 0.24 3.60 250 16 x 16.5 125

22.0 AEB226M2GU44T-F 538 0.24 2.20 410 16 x 21.5 75

33.0 AEB336M2GS44T-F 802 0.24 1.20 600 18 x 21.5 75

450 Vdc

2.2 AEB225M2WJ32T-F 69 0.24 11.00 29 10 x 13.5 250

3.3 AEB335M2WK32T-F 99 0.24 7.00 41 10 x 16.5 200

4.7 AEB475M2WL32T-F 137 0.24 4.80 49 12.5 x 16.5 150

10.0 AEB106M2WR44T-F 280 0.24 3.00 310 18 x 16.5 125

22.0 AEB226M2WS44T-F 604 0.24 1.80 560 18 x 21.5 75

Part Numbering System

AEB 106 M 2C J 32T -F

Type Capacitance Capacitance Voltage Code Case Packaging RoHS

105 = 1.0 µF Tolerance 2C = 160 Vdc 2V = 350 Vdc Code Information Compliant

106 = 10.0 µF M = ±20% 2D = 200 Vdc 2G = 400 Vdc 32 = Carrier tape

107 = 100.0 µF 2E = 250 Vdc 2W = 450 Vdc Width (mm)

T = Tape & Reel

See the Aluminum SMT Application Guide for Packaging Information.

B = bulk

Type AEB

SMT Aluminum Electrolytic Capacitors - High Voltage, 105 °C

Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: [phone] • Fax: [phone] • www.cde.com

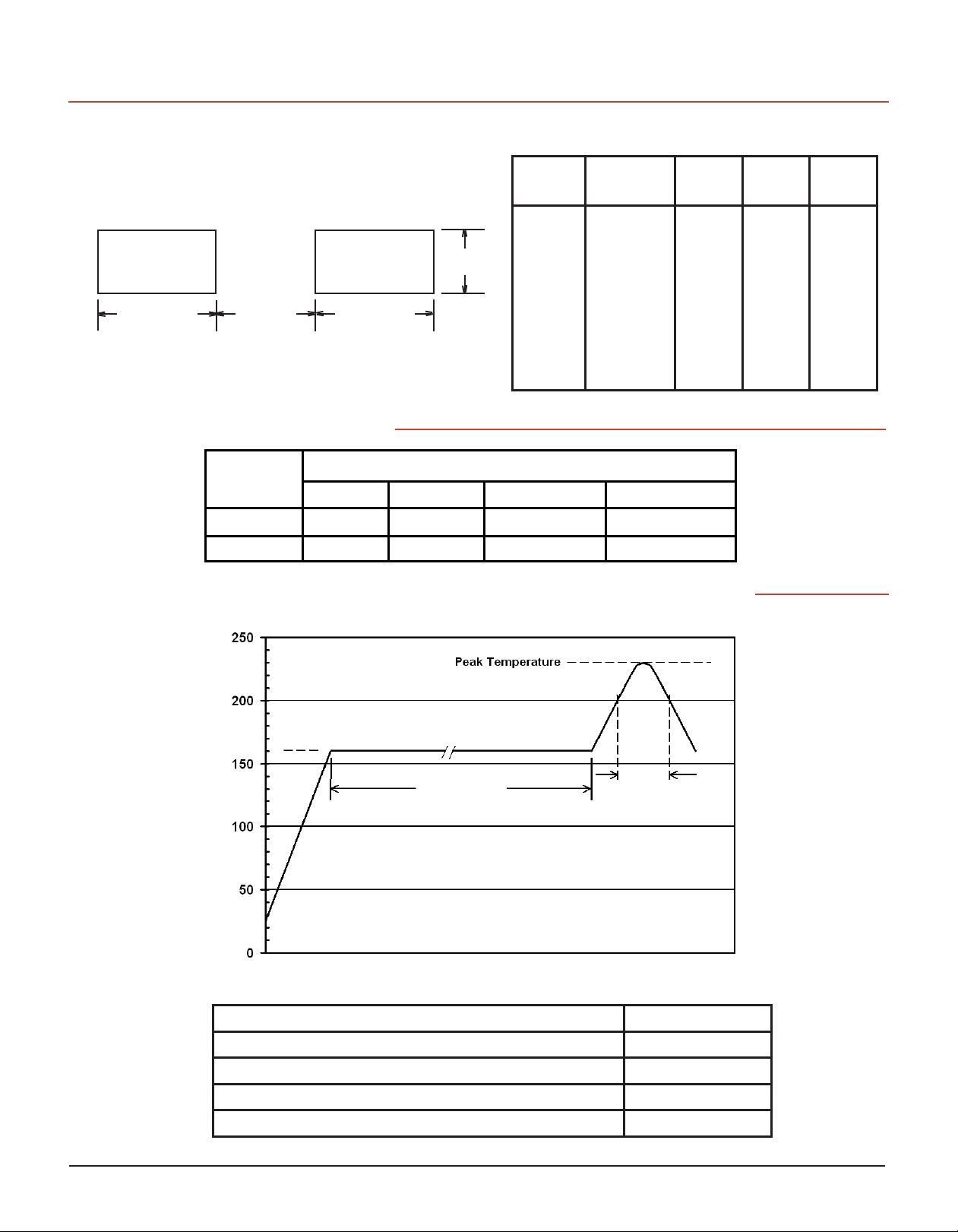

Recommended Land Pattern

Case
Code

J 10 4.0 4.5 2.0

K 10 4.0 4.5 2.0

Case Dia.

(mm)

A (mm)

C

L 12.5 4.0 5.7 2.0

P 16 6.0 6.5 2.5

B

A

B

U 16 6.0 6.5 2.5

R 18 6.0 7.5 2.5

S 18 6.0 7.5 2.5

Ripple Current Correction Factor

Ripple Current Correction Factor vs Frequency

Vdc

160 to 250 0.55 0.85 0.90 1.00

350 to 450 0.50 0.80 0.90 1.00

120 Hz 1kHz 10kHz to 30kHz 30kHz to 100kHz

Recommended Reow Soldering Prole for AEB Series (10 to 18 mm dia.)

B

(mm)

C

(mm)

230°C

120 seconds

20

sec.

(°C)

Top surface temperature

Time

Max. top surface temperature during reow soldering 230°C

Maximum time at peak temperature 5 seconds

Maximum time at or above 200°C 20 seconds

Number of reow processes 1

Terminal Material copper clad iron

Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: [phone] • Fax: [phone] • www.cde.com

Type AEB

SMT Aluminum Electrolytic Capacitors - High Voltage, 105 °C

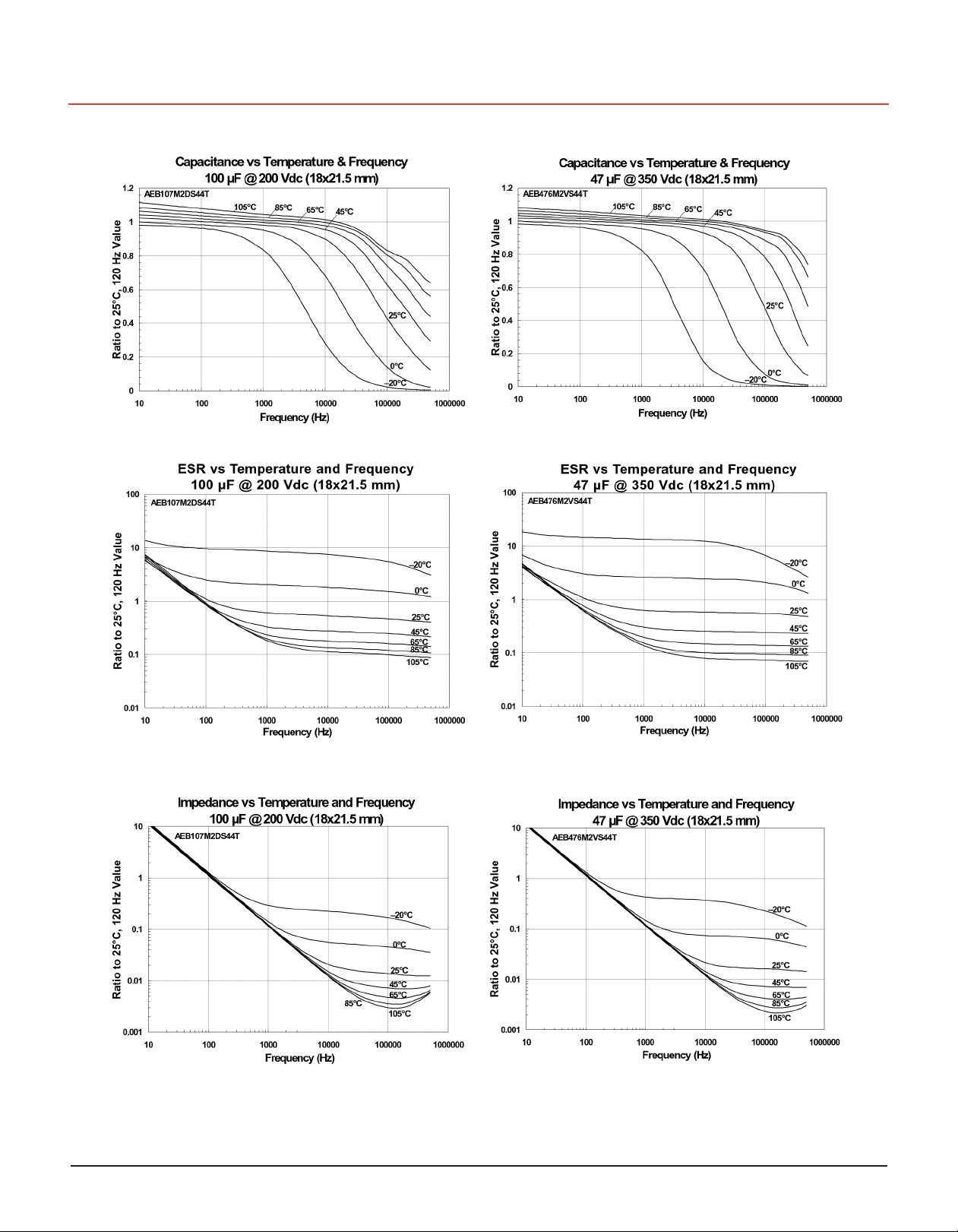

Typical Performance Curves

Type AEB

SMT Aluminum Electrolytic Capacitors - High Voltage, 105 °C

Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: [phone] • Fax: [phone] • www.cde.com

Type AEB

SMT Aluminum Electrolytic Capacitors - High Voltage, 105 °C
