CDE Series Table
Datasheet
5 pgs280.41 Kb0

Datasheet CDE Series Table Datasheet

Download
Page 1
Type
Description
Volts
(Vdc)
Load Life
h@°C
DCMC
High Capacitance, 85°C
6.3-550
2000 @ +85
3186
High Capacitance, 85°C, root: BCc, NA Philips
16-500
2000 @ +85
500C
Long Life, Screw Terminal, 95°C
6.3-550
5000 @ +85
500R
High Ripple, Long Life, Inverter Grade, 85°C
350-500
5000 @ +85
3188
Long Life, 85°C, root: BCc, NA Philips
16-450
4000 @ +85
520C
Long Life, Inverter Grade, 85°C
200-500
8000 @ +85
550
High Ripple, Long Life, Inverter Grade, 105°C
6.3-450
2000 @ +105
550C
Ultra-Ripple, Long Life, Inverter Grade, 105°C
200-500
5000 @ +105
101C
Low-ESR, Wide-Temp. Grade, -55 to 105°C
7.5-250
2000 @ +105
3191
Switching & Audio Output, root: BCc, NA Philips
7.5-55
1500 @ +85
3198
Power, Low Volt, -55°C, root: BCc, NA Philips
6.5-75
5000 @ +105
3199
Switching & Audio Output, root: BCc, NA Philips
7.5-75
5000 @ +85
125
Ultra-High Temp., Military Grade, 125°C
6.3-40
2000 @ +125
CGS
High CV Rating, root: Mallory
10- 450
2000 @ +85
CGH
High Reliability, 85°C, root: Mallory
250-500
1000 @ +85
CG
High Reliability, Long Life, 85°C, root: Mallory
10-450
2000 @ +85
CGR
Excellent Reliability, 105°C, root: Mallory
7.5- 200
2000 @ +105
HES
High Power Input Filtering, 105°C, root: Mallory
350- 450
1000 @ +105
CGO
Extremely Low ESR, Low Voltage, root: Mallory
5-55
1000 @ +85
Part Number Info for Types CGS, CG, CGR, CGO, CGH, HES
**Fumigation Warning

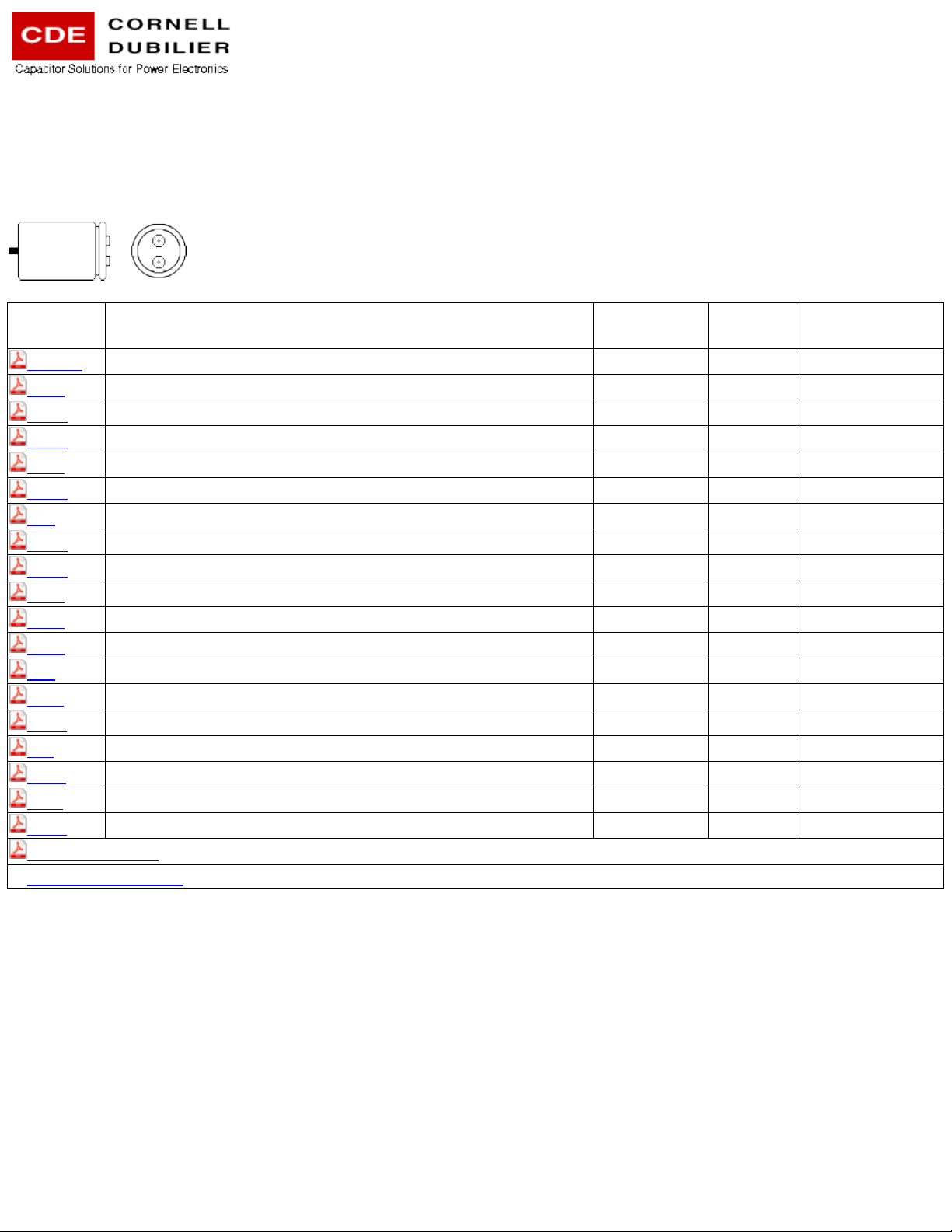

ALUMINUM ELECTROLYTIC CAPACITORS
Screw Terminal Types
Page 2

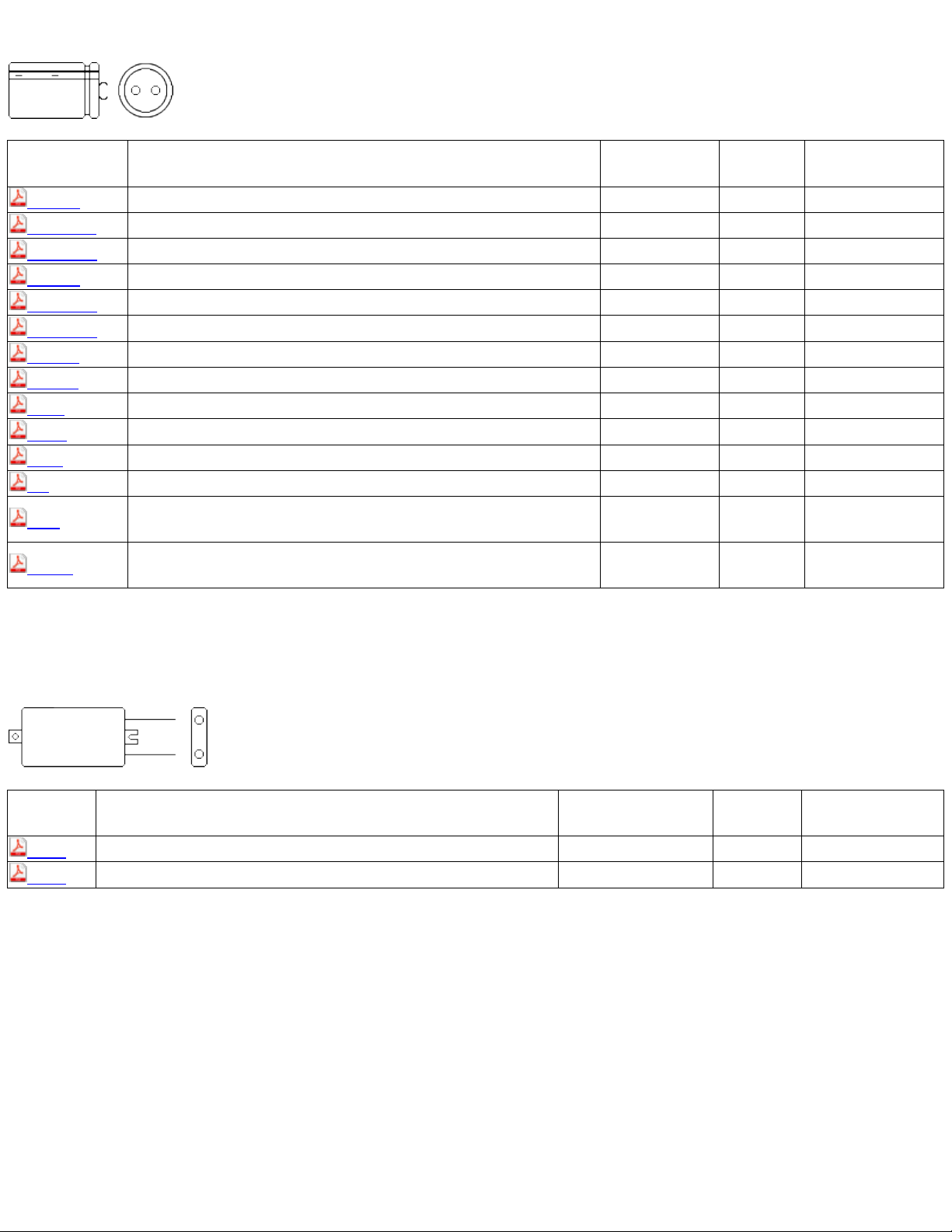

Snap-In Types
Type
Description
Temp
(°C)
Volts
(Vdc)
Load Life
h@°C
380LQ
Miniaturized High Capacitance, 85°C
-40 to +85
16-450
2000 @ +85
380L/LX
High Capacitance, 85°C
-40 to +85
16-500
3000 @ +85
382L/LX
High Capacitance, 85°C, 4 or 5-Pin
-40 to +85
16-500
3000 @ +85
381LQ
Miniaturized High Capacitance, 105°C
-40 to +105
10-450
2000 @ +105
381L/LX
High Ripple, 105°C
-40 to +105
10-450
3000 @ +105
383L/LX
High Ripple, 105°C, 4 or 5-Pin
-40 to +105
10-450
3000 @ +105
381LR
Ultra-High Ripple, 105°C
-40 to +105
200-450
3000 @ +105
381EL
Ultra-long Life, 105°C
-40 to +105
160-450
7000 @ +105
3410
Multi-Pin Snap-In, root: BCc, NA Philips
-40 to +85
100-450
5000 @ +85
LPW
Low Voltage, High Value, 85°C, root: Mallory
-40 to +85
10-100
1000 @ +85
LPX
High Voltage, High Value, 85°C, root: Mallory
-40 to +85
160-450
1000 @ +85
LP
Stable ESR, Long Life, 105°C, root: Mallory
-40 to +105
16-250
1000 @ +105
SLP
High Ripple, Best Value, 105°C
-40 to +105
-25 to +105
10-100 160-450
3000 @ +105
SLPX
Wide Range of Voltages, High Ripple, 85°C
-40 to +85
-25 to +85
10-250 315-450
3000 @ +85
Type
Description
Temp
(°C)
Volts
(Vdc)
Load Life
h@°C
MLP
Aluminum Case, 50-Year Life, 85°C
-40/55 to +85
7.5-420
2000 @ +85
MLS
Stainless Steel Case,100-YearLife,125°C
-55 to 125
5-250
2000 @ 125
Flatpack Types
Page 3

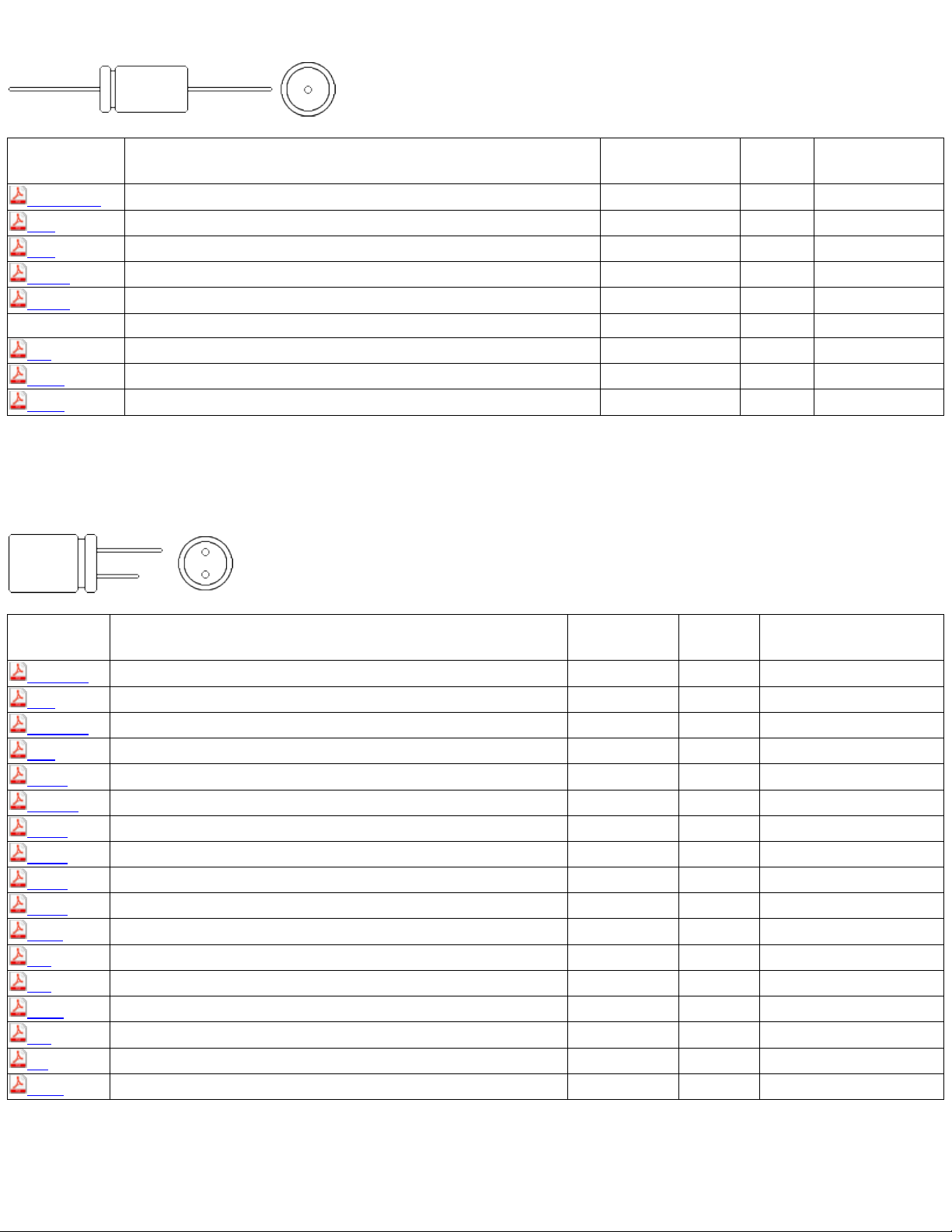

Axial Leaded Types
Type
Description
Temp
(°C)
Volts
(Vdc)
Load Life
h@°C
066/066R
Standard, 85°C & 105°C
-40 to +85/105
6.3-450
1000 @ +85
057
Military Grade, 105°C
-55 to +105
6.3-250
2000 @ +105
556
Computer Grade, 105°C
-40 to +105
6.3-450
4000 @ +105
WBR
Industrial Grade, 85°C
-40 to +85
16-450
2000 @ +85
NLW
Miniature Computer Grade, 105°C
-40 to +105
3-150
1000 @ +105
NPA
Non-Polar, Molded Top, O-Ring Seal
-40 to +105
16-100
1000 @ +105
TC
High Ripple, General Purpose, 85°C, root: Mallory
-40 to +85
16-450
1000 @ +85
TCG
General Purpose, 85°C, root: Mallory
-40 to +85
10-450
1000 @ +85
TCX
Long Life General Purpose, 105°C, root: Mallory
-40 to +105
10-150
2000 @ +105
Type
Description
Temp
(°C)
Volts
(Vdc)
Load Life
h@°C
300/301
Long-Life, Switching Power Grade, 105°C
-55 to +105
6.3-250
4000 @ +105
330
Ultra Long Life Switching Power Grade, 105°C
-55 to +105
6.3-250
10000 @ +85
325/326
Long Life Switching Power Grade, 125°C
-55 to +125
6.3-35
4000 @ +85
350
Low Inductance, High Frequency, 105°C
-55 to +105
6.3-100
4000 @ +105
361R
Miniature, Industrial Grade, 105°C
-40 to +105
6.3-450
4000 @ +105
4CMC
High Capacitance, Radial Leaded, 85°C
-40 to +85
16-500
2000 @ +85
400C
Long Life, Radial Leaded, 95°C
-40 to +95
5-500
3000 @ +85
401C
Low ESR, Wide-Temperature Grade, 105°C
-55 to +105
6.3-250
2500 @ +85
420C
Long Life, Inverter Grade, 85°C
-40 to +85
100-500
4000 @ +85
450C
Ultra-Ripple, Long Life, Inverter Grade, 105°C
-40 to +105
100-500
5000 @ +85
SEK
Long Life, 105°C, root: Mallory
-40 to +105
6.3-450
2000 @ +105
SH
Long Life, 105°C, root: Mallory
-40 to +105
6.3-350
2000 @ +105
SK
Long Life, General Purpose, 85°C, root: Mallory
-40 to +85
6.3-450
2000 @ +85
VPR
Low ESR, 105°C, root: Mallory
-40 to +105
6.3-100
2000 @ +105
SN
Non-Polar, 85°C, root: Mallory
-40 to +85
6.3-100
1000 @ +85
SS
Sub-Min, General Purpose, 85°C, root: Mallory
-40 to +85
6.3-63
1000 @ +85
SXR
Low ESR, High Ripple, 105°C, root: Mallory
-40 to +105
6.3-100
2000-5000 @ +105
Radial Leaded Types
Page 4

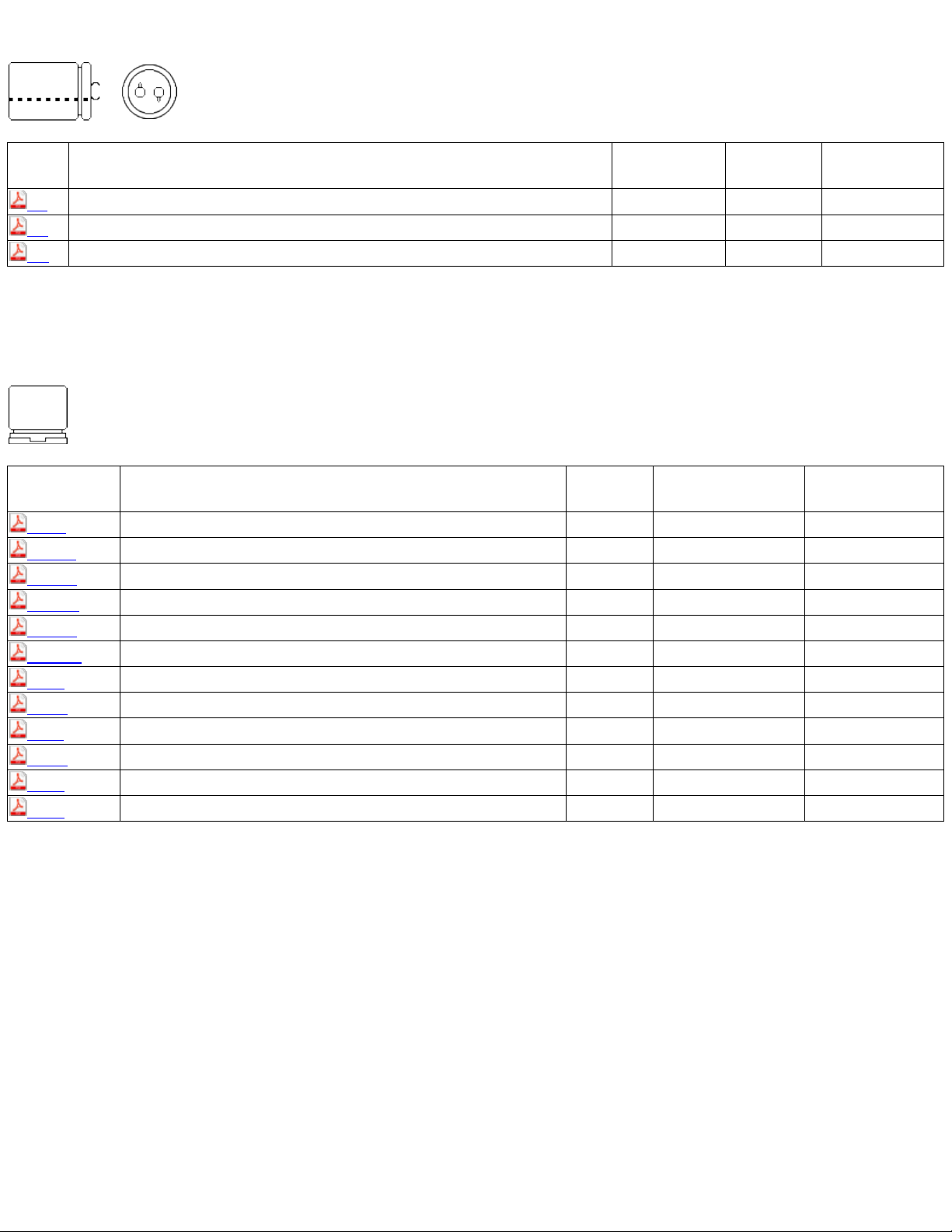

Photoflash & Strobe-Flash Types
Type
Description
Temp
(°C)
Volts
(Vdc)
Minimum
Flashes
7P
Snap-in or Lugs, Photoflash, Hi-energy, Long Life
-20 to +55
330, 360
100,000
PF
Screw Terminals, Photoflash, Hi-energy, Long-life
-20 to +55
500
100,000
ST
Snap-in or Lugs, Strobe-Flash, Long-Life
-20 to +55
360, 450
10,000,000
Type
Description
Style
Capacitance
Range (µF)
Volts (Vdc)
AVE
Low Impedance, Long-Life
V-Chip
0.1-1500
4-100
AVES
Low Profile
V-Chip
0.1-100
6.3-50
AVRF
Ultra-Low Impedance, Long-Life
V-Chip
4.7-1500
6.3-35
AVEK
Very Long-life
V-Chip
0.1-470
6.3-50
AVEZ
Low Impedance
V-Chip
1.0-220
6.3-50
AVGA
High Capacitance
V-Chip
0.1-4700
6.3-63
AVS
General Purpose
V-Chip
0.1-1500
4-100
AHA
Long-Life
V-Chip
0.1-1500
6.3-100
AFC
Long-Life, Low Impedance
V-Chip
1-1500
6.3-50
AHD
Very Long Life
V-Chip
0.47-330
10-100
AFK
Compact, Low ESR, Low Z, Long-Life
V-Chip
3.3-6800
6.3-100
AEB
High Voltage, Low Z, Long-Life
V-Chip
2.2-100
160-450
SMT Aluminum Electrolytic
Page 5
SMT Aluminum Polymer Chip
Type
Description
Style
Capacitance
Range (µF)
Volts (Vdc)
ESR*
High Reliability, Polarized
Molded
4.7-82
4-16
ESRD
Low Profile, Tantalum D Case Compatible
Molded
2.2-270
2-16
ESRE
High Temperature, Tantalum E Case Compatible
Molded
100-390
2-8
ESRH
Tantalum E Case Compatible
Molded
68-270
2-8
ESRL
Low Profile, Low ESR
Molded
15-68
2-12.5
SPA
Ultra-Low ESR
Molded
56-470
2-6.3
SPSX
Ulta-Low ESR, 260 C Solder
Molded
82-470
2-6.3 New
SPCX
Economy, 260 C Solder
Molded
100-470
2-6.3 New
Copyright © 1999-2012 Cornell Dubilier Electronics, Inc. All Rights Reserved.
