CD4071BM/CD4071BC Quad 2-Input OR Buffered B Series Gate
CD4081BM/CD4081BC Quad 2-Input AND Buffered B Series Gate
February 1988
CD4071BM/CD4071BC Quad 2-Input OR Buffered B Series Gate CD4081BM/CD4081BC Quad 2-Input AND Buffered B Series Gate
General Description
These quad gates are monolithic complementary MOS (CMOS) integrated circuits constructed with N- and P-chan­nel enhancement mode transistors. They have equal source and sink current capabilities and conform to standard B se­ries output drive. The devices also have buffered outputs which improve transfer characteristics by providing very high gain.
DD
and VSS.
Features
Y
Low power TTL Fan out of 2 driving 74L
compatibility or 1 driving 74LS
Y
5V–10V–15V parametric ratings
Y
Symmetrical output characteristics
Y
Maximum input leakage 1 mA at 15V over full tempera­ture range
Connection Diagrams
CD4071B Dual-In-Line Package
TL/F/5977– 3
Top View
CD4081B Dual-In-Line Package
TL/F/5977– 6
Top View
Order Number CD4071B or CD4081B
C
1995 National Semiconductor Corporation RRD-B30M105/Printed in U. S. A.
Page 2
Absolute Maximum Ratings (Notes1&2)
If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/Distributors for availability and specifications.
Voltage at Any Pin
b
0.5V to V
DD
a
0.5V
Power Dissipation (PD)
Dual-In-Line 700 mW Small Outline 500 mW
V
DD
Range
b
0.5 VDCtoa18 V
DC
Storage Temperature (TS)
b
65§Ctoa150§C
Lead Temperature (T
L
)
(Soldering, 10 seconds) 260
§
C
Operating Conditions
Operating Range (VDD)3V
DC
to 15 V
DC
Operating Temperature Range (TA)
CD4071BM, CD4081BM
b
55§Ctoa125§C
CD4071BC, CD4081BC
b
40§Ctoa85§C
DC Electrical Characteristics CD4071BM/CD4081BM (Note 2)
Symbol Parameter Conditions
b
55§C
a
25§C
a
125§C
Units
Min Max Min Typ Max Min Max
I
DD
Quiescent Device V
DD
e
5V 0.25 0.004 0.25 7.5 mA
Current V
DD
e
10V 0.50 0.005 0.50 15 mA
V
DD
e
15V 1.0 0.006 1.0 30 mA
V
OL
Low Level V
DD
e
5V 0.05 0 0.05 0.05 V
Output Voltage V
DD
e
10V
l
I
O
l
k
1 mA 0.05 0 0.05 0.05 V
V
DD
e
15V
(
0.05 0 0.05 0.05 V
V
OH
High Level V
DD
e
5V 4.95 4.95 5 4.95 V
Output Voltage V
DD
e
10V
l
I
O
l
k
1 mA 9.95 9.95 10 9.95 V
V
DD
e
15V
(
14.95 14.95 15 14.95 V
V
IL
Low Level V
DD
e
5V, V
O
e
0.5V 1.5 2 1.5 1.5 V
Input Voltage V
DD
e
10V, V
O
e
1.0V 3.0 4 3.0 3.0 V
V
DD
e
15V, V
O
e
1.5V 4.0 6 4.0 4.0 V
V
IH
High Level V
DD
e
5V, V
O
e
4.5V 3.5 3.5 3 3.5 V
Input Voltage V
DD
e
10V, V
O
e
9.0V 7.0 7.0 6 7.0 V
V
DD
e
15V, V
O
e
13.5V 11.0 11.0 9 11.0 V
I
OL
Low Level Output V
DD
e
5V, V
O
e
0.4V 0.64 0.51 0.88 0.36 mA
Current V
DD
e
10V, V
O
e
0.5V 1.6 1.3 2.25 0.9 mA
(Note 3) V
DD
e
15V, V
O
e
1.5V 4.2 3.4 8.8 2.4 mA
I
OH
High Level Output V
DD
e
5V, V
O
e
4.6V
b
0.64
b
0.51b0.88
b
0.36 mA
Current V
DD
e
10V, V
O
e
9.5V
b
1.6
b
1.3b2.25
b
0.9 mA
(Note 3) V
DD
e
15V, V
O
e
13.5V
b
4.2
b
3.4b8.8
b
2.4 mA
I
IN
Input Current V
DD
e
15V, V
IN
e
0V
b
0.10
b
10
b
5
b
0.10
b
1.0 mA
V
DD
e
15V, V
IN
e
15V 0.10 10
b
5
0.10 1.0 mA
Note 1: ‘‘Absolute Maximum Ratings’’ are those values beyond which the safety of the device cannot be guaranteed. Except for ‘‘Operating Temperature Range’’ they are not meant to imply that the devices should be operated at these limits. The table of ‘‘Electrical Characteristics’’ provides conditions for actual device operation.
Note 2: All voltages measured with respect to V
SS
unless otherwise specified.
Note 3: I
OH
and IOLare tested one output at a time.
2
Page 3
DC Electrical Characteristics CD4071BC/CD4081BC (Note 2)
Symbol Parameter Conditions
b
40§C
a
25§C
a
85§C
Units
Min Max Min Typ Max Min Max
I
DD
Quiescent Device V
DD
e
5V 1 0.004 1 7.5 mA
Current V
DD
e
10V 2 0.005 2 15 mA
V
DD
e
15V 4 0.006 4 30 mA
V
OL
Low Level V
DD
e
5V 0.05 0 0.05 0.05 V
Output Voltage V
DD
e
10V
l
I
O
l
k
1 mA 0.05 0 0.05 0.05 V
V
DD
e
15V
(
0.05 0 0.05 0.05 V
V
OH
High Level V
DD
e
5V 4.95 4.95 5 4.95 V
Output Voltage V
DD
e
10V
l
I
O
l
k
1 mA 9.95 9.95 10 9.95 V
V
DD
e
15V
(
14.95 14.95 15 14.95 V
V
IL
Low Level V
DD
e
5V, V
O
e
0.5V 1.5 2 1.5 1.5 V
Input Voltage V
DD
e
10V, V
O
e
1.0V 3.0 4 3.0 3.0 V
V
DD
e
15V, V
O
e
1.5V 4.0 6 4.0 4.0 V
V
IH
High Level V
DD
e
5V, V
O
e
4.5V 3.5 3.5 3 3.5 V
Input Voltage V
DD
e
10V, V
O
e
9.0V 7.0 7.0 6 7.0 V
V
DD
e
15V, V
O
e
13.5V 11.0 11.0 9 11.0 V
I
OL
Low Level Output V
DD
e
5V, V
O
e
0.4V 0.52 0.44 0.88 0.36 mA
Current V
DD
e
10V, V
O
e
0.5V 1.3 1.1 2.25 0.9 mA
(Note 3) V
DD
e
15V, V
O
e
1.5V 3.6 3.0 8.8 2.4 mA
I
OH
High Level Output V
DD
e
5V, V
O
e
4.6V
b
0.52
b
0.44b0.88
b
0.36 mA
Current V
DD
e
10V, V
O
e
9.5V
b
1.3
b
1.1b2.25
b
0.9 mA
(Note 3) V
DD
e
15V, V
O
e
13.5V
b
3.6
b
3.0b8.8
b
2.4 mA
I
IN
Input Current V
DD
e
15V, V
IN
e
0V
b
0.30
b
10
b
5
b
0.30
b
1.0 mA
V
DD
e
15V, V
IN
e
15V 0.30 10
b
5
0.30 1.0 mA
AC Electrical Characteristics* CD4071BC/CD4071BM
T
A
e
25§C, Input tr;t
f
e
20 ns, C
L
e
50 pF, R
L
e
200 kX, Typical temperature coefficient is 0.3%/§C
Symbol Parameter Conditions Typ Max Units
t
PHL
Propagation Delay Time, V
DD
e
5V 100 250 ns
High-to-Low Level V
DD
e
10V 40 100 ns
V
DD
e
15V 30 70 ns
t
PLH
Propagation Delay Time, V
DD
e
5V 90 250 ns
Low-to-High Level V
DD
e
10V 40 100 ns
V
DD
e
15V 30 70 ns
t
THL,tTLH
Transition Time V
DD
e
5V 90 200 ns
V
DD
e
10V 50 100 ns
V
DD
e
15V 40 80 ns
C
IN
Average Input Capacitance Any Input 5 7.5 pF
C
PD
Power Dissipation Capacity Any Gate 18 pF
*AC Parameters are guaranteed by DC correlated testing.
Note 1: ‘‘Absolute Maximum Ratings’’ are those values beyond which the safety of the device cannot be guaranteed. Except for ‘‘Operating Temperature Range’’ they are not meant to imply that the devices should be operated at these limits. The table of ‘‘Electrical Characteristics’’ provides conditions for actual device operation.
Note 2: All voltages measured with respect to V
SS
unless otherwise specified.
Note 3: I
OH
and IOLare tested one output at a time.
3
Page 4
AC Electrical Characteristics* CD4081BC/CD4081BM
T
A
e
25§C, Input tr;t
f
e
20 ns, C
L
e
50 pF, R
L
e
200 kX, Typical temperature coefficient is 0.3%/§C
Symbol Parameter Conditions Typ Max Units
t
PHL
Propagation Delay Time, V
DD
e
5V 100 250 ns
High-to-Low Level V
DD
e
10V 40 100 ns
V
DD
e
15V 30 70 ns
t
PLH
Propagation Delay Time, V
DD
e
5V 120 250 ns
Low-to-High Level V
DD
e
10V 50 100 ns
V
DD
e
15V 35 70 ns
t
THL,tTLH
Transition Time V
DD
e
5V 90 200 ns
V
DD
e
10V 50 100 ns
V
DD
e
15V 40 80 ns
C
IN
Average Input Capacitance Any Input 5 7.5 pF
C
PD
Power Dissipation Capacity Any Gate 18 pF
*AC Parameters are guaranteed by DC correlated testing.
Typical Performance Characteristics
TL/F/5977– 7
FIGURE 1. Typical Transfer
Characteristics
TL/F/5977– 8
FIGURE 2. Typical Transfer
Characteristics
TL/F/5977– 9
FIGURE 3. Typical Transfer
Characteristics
TL/F/5977– 10
FIGURE 4. Typical Transfer
Characteristics
TL/F/5977– 11
FIGURE 5
TL/F/5977– 12
FIGURE 6
4
Page 5
Typical Performance Characteristics (Continued)
TL/F/5977– 13
FIGURE 7
TL/F/5977– 14
FIGURE 8
TL/F/5977– 15
FIGURE 9
TL/F/5977– 16
FIGURE 10
TL/F/5977– 17
FIGURE 11
TL/F/5977– 18
FIGURE 12
TL/F/5977– 19
FIGURE 13
TL/F/5977– 20
FIGURE 14
5
Page 6

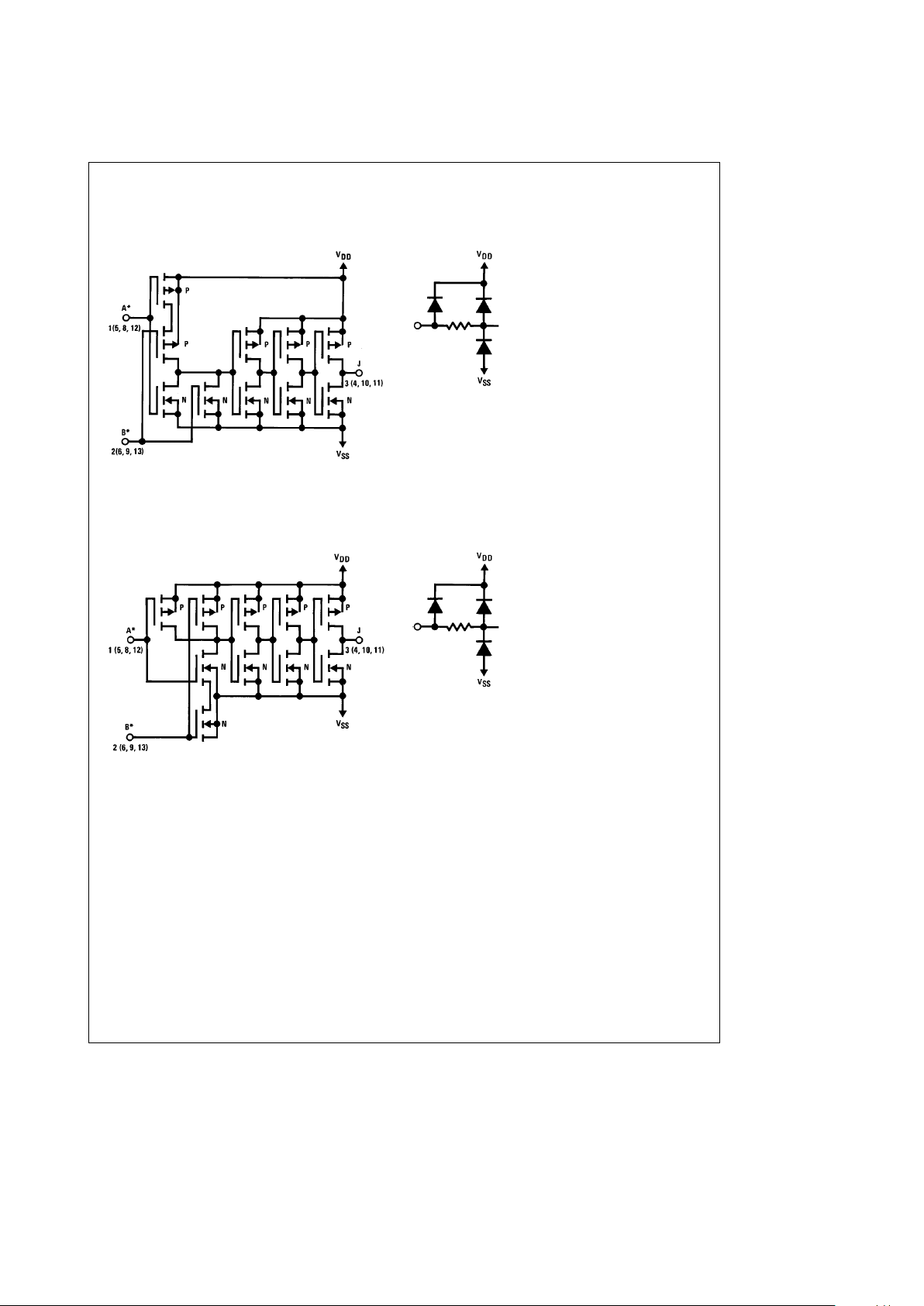

Schematic Diagrams
CD4071B
TL/F/5977– 1
TL/F/5977– 2
(/4 of device shown
J
eAa
B
Logical ‘‘1’’
e
High
Logical ‘‘0’’
e
Low
*All inputs protected by standard
CMOS protection circuit.
CD4081B
TL/F/5977– 4
TL/F/5977– 5
(/4 of device shown
J
e
A#B
Logical ‘‘1’’
e
High
Logical ‘‘0’’
e
Low
*All inputs protected by standard
CMOS protection circuit.
6
Page 7
Physical Dimensions inches (millimeters)
Ceramic Dual-In-Line Package (J)
Order Number CD4071BMJ, CD4071BCJ
CD4081BMJ or CD4081BCJ
NS Package Number J14A
7
Page 8
CD4071BM/CD4071BC Quad 2-Input OR Buffered B Series Gate
CD4081BM/CD4081BC Quad 2-Input AND Buffered B Series Gate
Physical Dimensions inches (millimeters) (Continued)
Molded Dual-In-Line Package (N)
Order Number CD4071BMN, CD4071BCN
CD4081BMN or CD4081BCN
NS Package Number N14A
LIFE SUPPORT POLICY
NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF NATIONAL SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or 2. A critical component is any component of a life systems which, (a) are intended for surgical implant support device or system whose failure to perform can into the body, or (b) support or sustain life, and whose be reasonably expected to cause the failure of the life failure to perform, when properly used in accordance support device or system, or to affect its safety or with instructions for use provided in the labeling, can effectiveness. be reasonably expected to result in a significant injury to the user.
National Semiconductor National Semiconductor National Semiconductor National Semiconductor Corporation Europe Hong Kong Ltd. Japan Ltd.
1111 West Bardin Road Fax: (
a
49) 0-180-530 85 86 13th Floor, Straight Block, Tel: 81-043-299-2309 Arlington, TX 76017 Email: [email protected] Ocean Centre, 5 Canton Rd. Fax: 81-043-299-2408 Tel: 1(800) 272-9959 Deutsch Tel: (
a
49) 0-180-530 85 85 Tsimshatsui, Kowloon Fax: 1(800) 737-7018 English Tel: (
a
49) 0-180-532 78 32 Hong Kong
Fran3ais Tel: (
a
49) 0-180-532 93 58 Tel: (852) 2737-1600
Italiano Tel: (
a
49) 0-180-534 16 80 Fax: (852) 2736-9960
National does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and National reserves the right at any time without notice to change said circuitry and specifications.
