CD4021BC 8-Stage Static Shift Register
© 1999 Fairchild Semiconductor Corporation DS005954.prf www.fairchildsemi.com
CD4021BC
8-Stage Static Shift Register
General Description
The CD4021BC is an 8-stage parallel input/serial output
shift register. A parallel/serial cont rol input enabl es individual JAM inputs to each of 8 stages. Q outputs are available
from the sixth, seventh, and eighth stages. All outputs have
equal source and sink current capabilities and conform to
standard “B” series output drive.
When the parallel/serial control input is in the logical “0”
state, data is serially shifted into the register synchronously
with the positive transition of the clock. When the parallel/
serial control is in the logical “1” state, data is jammed into
each stage of the register asynchronously with the clock.
All inputs are protected against static discharge with diodes
to V
DD
and VSS.
Features
■ Wide supply voltage range: 3.0V to 15V
■ High noise immunity: 0.45 V
DD
(typ.)
■ Low power TTL compatibility:
Fan out of 2 driving 74L or 1 driving 74LS
■ 5V–10V–15V parametric ratings
■ Symmetrical output characteristics
■ Maximum input leakage 1 µA at 15V over full tempera-
ture range
Ordering Code:
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Connection Diagram
Pin Assignments for DIP and SO IC
Top View
Truth Table
X = Don't care case
Note 1: Level change
Note 2: No change
Order Number Order Code Package Description
CD4021BCM M16A 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150” Narrow Body
CD4021BCN N16E 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide
CL
(Note 1)
Serial
Input
Parallel/
Serial
Control
PI 1 PI n
Q1
(Internal)
Q
n
(Note 2)
XX1000 0
XX1010 1
XX1101 0
XX1111 1
00XX0Q
n−1
10XX1Q
n−1
X0XXQ1Q
n
Page 2
www.fairchildsemi.com 2
CD4021BC
Logic Diagram
Page 3
3 www.fairchildsemi.com
CD4021BC
Absolute Maximum Ratings(Note 3)
(Note 4)
Recommended Operating
Conditions
(Note 4)
Note 3: “Absolute Maximum Rat ings” are tho se values beyond which the
safety of the device cannot be guaranteed. Ex c ept for “Operating Temperature Range” they are not mea nt to imply that the devices sh ould be operated at these limits. The table of “Electrical Characteristics” provides
conditions for actual device o peration.
Note 4: V
SS
= 0V unless otherw is e s pecified.
DC Electrical Characteristics (Note 4)
Note 5: IOH and IOL are tested one output at a ti m e.
Supply Voltage (VDD) −0.5V to +18V
Input Voltage (V
IN
) −0.5V to VDD +0.5V
Storage Temperature Range (T
S
) −65°C to +150°C
Power Dissipation (P
D
)
Dual-In-Line 700 mW
Small Outline 500 mW
Lead Temperature (T
L
)
(Soldering, 10 seconds ) 260°C
Supply Voltage (V
DD
) 3V to 15V
Input Voltage (V
IN
) 0 to V
DD
Operating Temperature Range (TA)
CD4021BCN −40°C to +85°C
Symbol Parameter Conditions
−40°C +25°C +85°C
Units
Min Max Min Typ Max Min Max
I
DD
Quiescent Device VDD = 5V, VIN = VDD or V
SS
20 0.1 20 150 µA
Current VDD = 10V, VIN = VDD or V
SS
40 0.2 40 300 µA
VDD = 15V, VIN = VDD or V
SS
80 0.3 80 600 µA
V
OL
LOW Level VDD = 5V 0.05 0 0.05 0.05 V
Output Voltage VDD = 10V |IO| < 1 µA 0.05 0 0.05 0.05 V
VDD = 15V 0.05 0 0.05 0.05 V
V
OH
HIGH Level VDD = 5V 4.95 4.95 5 4.95 V
Output Voltage VDD = 10V |IO|< 1 µA 9.95 9.95 10 9.95 V
VDD = 15V 14.95 14.95 15 14.95 V
V
IL
LOW Level VDD = 5V, VO = 0.5V or 4.5V 1.5 2 1.5 1.5 V
Input Voltage VDD = 10V, VO = 1.0V or 9.0V 3.0 4 3.0 3.0 V
VDD = 15V, VO = 1.5V or 13.5V 4.0 6 4.0 4.0 V
V
IH
HIGH Level VDD = 5V, VO = 0.5V or 4.5V 3.5 3.5 3 3.5 V
Input Voltage VDD = 10V, VO = 1.0V or 9.0V 7.0 7.0 6 7.0 V
VDD = 15V, VO = 1.5V or 13.5V 11.0 11.0 9 11.0 V
I
OL
LOW Level Output VDD = 5V, VO = 0.4V 0.52 0.44 0.88 0.36 mA
Current (Note 5) VDD = 10V, VO = 0.5V 1.3 1.1 2.2 0.90 mA
VDD = 15V, VO = 1.5V 3.6 3.0 8 2.4 mA
I
OH
HIGH Level Output VDD = 5V, VO = 4.6V −0.52 −0.44 −0.88 −0.36 mA
Current (Note 5) VDD = 10V, VO = 9.5V −1.3 −1.1 −2.2 −0.90 mA
VDD = 15V, VO = 13.5V −3.6 −3.0 −8 −2.4 mA
I
IN
Input Current VDD = 15V, VIN = 0V −0.3 −10−5−0.3 −1.0 µA
VDD = 15V, VIN = 15V 0.3 10−50.3 1.0 µA
Page 4
www.fairchildsemi.com 4
CD4021BC
AC Electrical Charac teristics (Note 6)
T
A
= 25°C, input tr, tf = 20 ns, CL = 50 pF, R
L
= 200 kΩ
Note 6: AC Parameters are guara nt eed by DC correlated testing.
Note 7: If more than one unit is cascaded t
r
CL should be made less than or equal to the fixed propagation delay of the output of the driving stage for the estimated capacitive load.
Note 8: C
PD
determines the n o load AC power consumption of any CMOS device. For complete exp lanation, see 74C family characteristics application note
AN-90.
Symbol Parameter Conditions Min Typ Max Units
t
PLH
, t
PHL
Propagation Delay Time VDD = 5V 240 350 ns
VDD = 10V 100 175 ns
VDD = 15V 70 140 ns
t
THL
, t
TLH
Transition Time VDD = 5V 100 200 ns
VDD = 10V 50 100 ns
VDD = 15V 40 80 ns
f
CL
Maximum Clock VDD = 5V 2.5 3.5 MHz
Input Frequency VDD = 10V 5 10 MHz
VDD = 15V 8 16 MHz
t
W
Minimum Clock VDD = 5V 100 200 ns
Pulse Width VDD = 10V 50 100 ns
VDD = 15V 40 80 ns
trCL, tfCL Clock Rise and VDD = 5V 15 µs
Fall Time (Note 6) VDD = 10V 15 µs
VDD = 15V 15 µs
t
s
Minimum Set-Up Time
Serial Input VDD = 5V 60 120 ns
tH ≥ 200 ns VDD = 10V 40 80 ns
(Ref. to CL) VDD = 15V 30 60 ns
Parallel Inputs VDD = 5V 25 50 ns
tH ≥ 200 ns VDD = 10V 15 30 ns
(Ref. to P/S) VDD = 15V 10 20 ns
t
H
Minimum Hold Time VDD = 5V 0 ns
Serial In, Parallel In, ts ≥ 400 ns VDD = 10V 10 ns
Parallel/Serial Control VDD = 15V 15 ns
t
WH
Minimum P/S VDD = 5V 150 250 ns
Pulse Width VDD = 10V 75 125 ns
VDD = 15V 50 100 ns
t
REM
Minimum P/S Removal VDD = 5V 100 200 ns
Time (Ref. to CL) VDD = 10V 50 100 ns
VDD = 15V 40 80 ns
C
I
Average Input Capacitance Any Input 5 7.5 pF
C
PD
Power Dissipation 100 pF
Capacitance (Note 8)
Page 5
5 www.fairchildsemi.com
CD4021BC
Typical Perf ormance Characteristics
Page 6
www.fairchildsemi.com 6
CD4021BC
Physical Dimensions inches (millimeters) unless otherwise noted
16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150” Narrow Body
Package Number M16A
Page 7
Fairchild does not assume any responsibility for use of any circuitr y described, no circuit patent licenses are implied and Fairchild reserves the right at any time without notice to change said circuitr y and specifications.
CD4021BC 8-Stage Static Shift Register
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD
SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or syste ms
which, (a) are intended for surgical implant into the
body, or (b) support or sustain life, and (c) whose failure
to perform when properly used in accordance with
instructions for use provided in the labeling, can be reasonably expected to result in a significant injur y to the
user.
2. A critical component in a ny compon ent of a life suppo r t
device or system whose failure to p erform can be r easonably expected to cause the failure of the life suppor t
device or system, or to affect its safety or effectiveness.
www.fairchildsemi.com

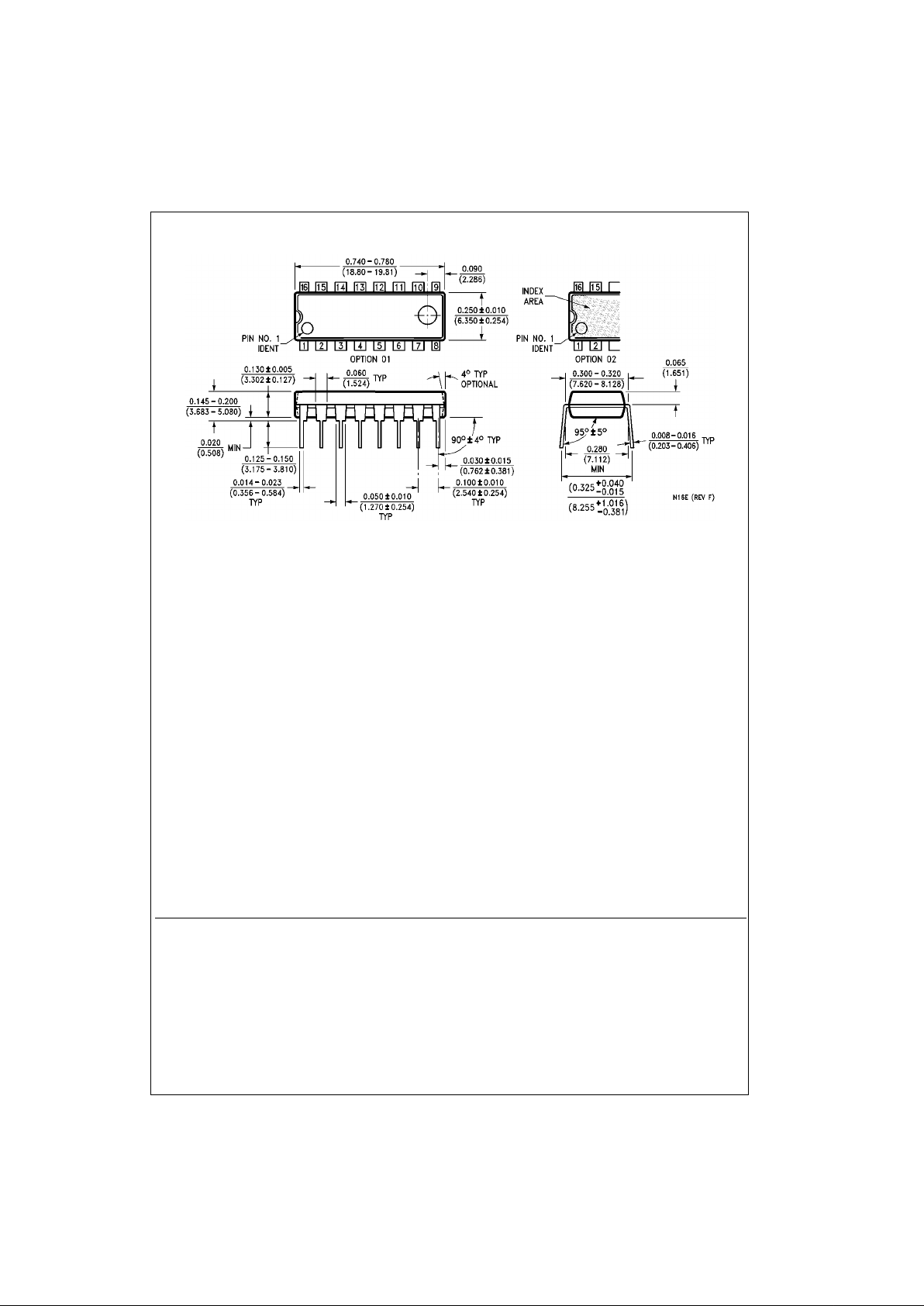

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide
Package Number N16E
