Page 1
October 1987
Revised January 1999
CD4007C Dual Complementary Pair Plus Inverter
© 1999 Fairchild Semiconductor Corporation DS005943.prf www.fairchildsemi.com
CD4007C
Dual Complementary Pair Plus Inverter
General Description
The CD4007C consists of three comp l ementary pairs of Nand P-channel enha ncement mode MOS transis tors suitable for series/shunt appli cations. All inputs ar e protected
from static discharge by diode clamps to V
DD
and VSS.
For proper operation the voltages at all pins must be constrained to be between V
SS
− 0.3V and VDD + 0.3V at all
times.
Features
■ Wide supply voltage range: 3.0V to 15V
■ High noise immunity: 0.45 V
CC
(typ.)
Ordering Code:
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Connection Diagram
Pin Assignments for DIP and SOIC
Note: All P-channel subst rat es are connected to VDD and all N-channel substrates are connected to VSS.
Top View
Order Number Package Number Package Description
CD4007CM M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150” Narrow
CD4007CN N14A 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS–001, 0.300” Wide
Page 2
www.fairchildsemi.com 2
CD4007C
Absolute Maximum Ratings(Note 1)
Note 1: This device should not be connected to circuits with the power on
because high transie nt voltages may cause permanent damage.
DC Electrical Characteristics
AC Electrical Charac teristics
(Note 2)
T
A
= 25°C and CL = 15 pF and rise and fall t imes = 20 ns. Typical temperature coefficient for all values of VDD = 0.3%/°C
Note 2: AC Parameters are guara nt eed by DC correlated testing.
Voltage at Any Pin VSS −0.3V to VDD +0.3V
Operating Temperature Range −40°C to +85°C
Storage Temperature Range −65°C to +150°C
Power Dissipation (P
D
)
Dual-In-Line 700 mW
Small Outline 500 mW
Operating V
DD
Range VSS +3.0V to VSS +15V
Lead Temperature
(Soldering, 10 seconds) 260°C
Limits
Symbol Parameter Conditions −40°C +25°C +85°CUnits
Min Typ Max Min Typ Max Min Typ Max
I
L
Quiescent Device VDD = 5.0V 0.5 0.005 0.05 15 µA
Current VDD = 10V 1.0 0.005 1.0 30 µA
P
D
Quiescent Device VDD = 5.0V 2.5 0.025 2.5 75 µW
Dissipation Package VDD = 10V 10 0.05 10 300 µW
V
OL
Output Voltage VDD = 5.0V 0.05 0 0.01 0.05 V
LOW Level VDD = 10V 0.05 0 0.01 0.05 V
V
OH
Output Voltage VDD = 5.0V 4.95 4.95 5.0 4.95 V
HIGH Level VDD = 10V 9.95 9.95 10 9.95 V
V
NL
Noise Immunity VDD = 5.0V, VO = 3.6V 1.5 2.25 1.5 1.4 V
(All inputs) VDD = 10V, VO = 7.2V 3.0 4.5 3.0 2.9 V
V
NH
Noise Immunity VDD = 5.0V, VO = 0.95V 3.6 3.5 2.25 3.5 V
(All Inputs) VDD = 10V, VO = 2.9V 7.1 7.0 4.5 7.0 V
IDN Output Drive Current VDD = 5.0V, VO = 0.4V, VI = VDD0.35 0.3 1.0 0.24 mA
N-Channel VDD = 10V, VO = 0.5V, VI = VDD1.2 1.0 2.5 0.8 mA
IDP Output Drive Current VDD = 5.0V, VO = 2.5V, VI = VSS−1.3 −1.1 −4.0 −0.9 mA
P-Channel VDD = 10V, VO = 9.5V, VI = VSS−0.65 −0.55 −2.5 −0.45 mA
I
I
Input Current 10 pA
Symbol Parameter Conditions Min Typ Max Units
t
PLH
= t
PHL
Propagation Delay Time VDD = 5.0V 35 75 ns
VDD = 10V 20 50 ns
t
TLH
= t
THL
Transition Time VDD = 5.0V 50 100 ns
VDD = 10V 30 50 ns
C
I
Input Capacitance Any Input 5 pF
Page 3
3 www.fairchildsemi.com
CD4007C

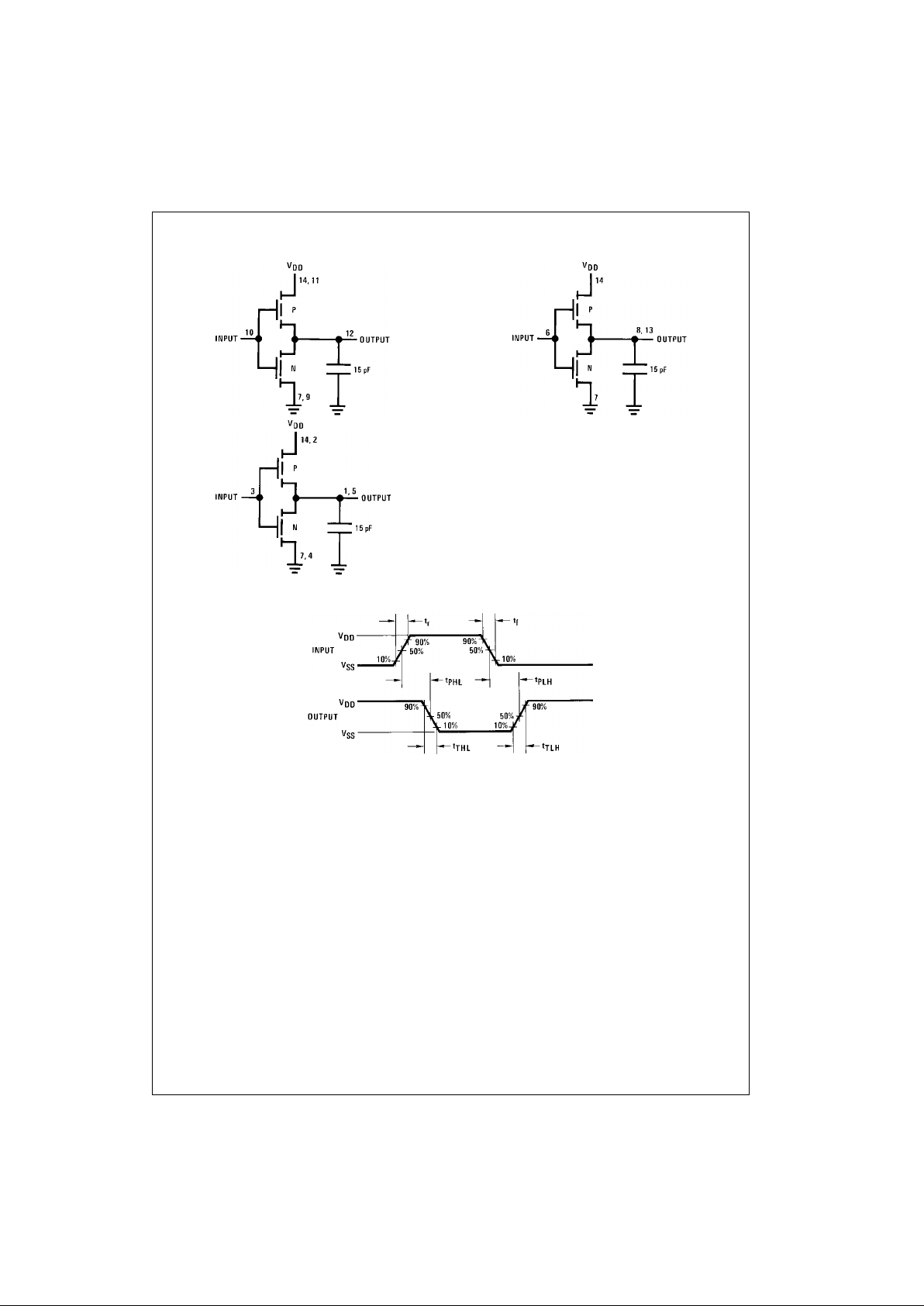

AC Test Circuits
Switching Time Waveforms
Page 4
www.fairchildsemi.com 4
CD4007C

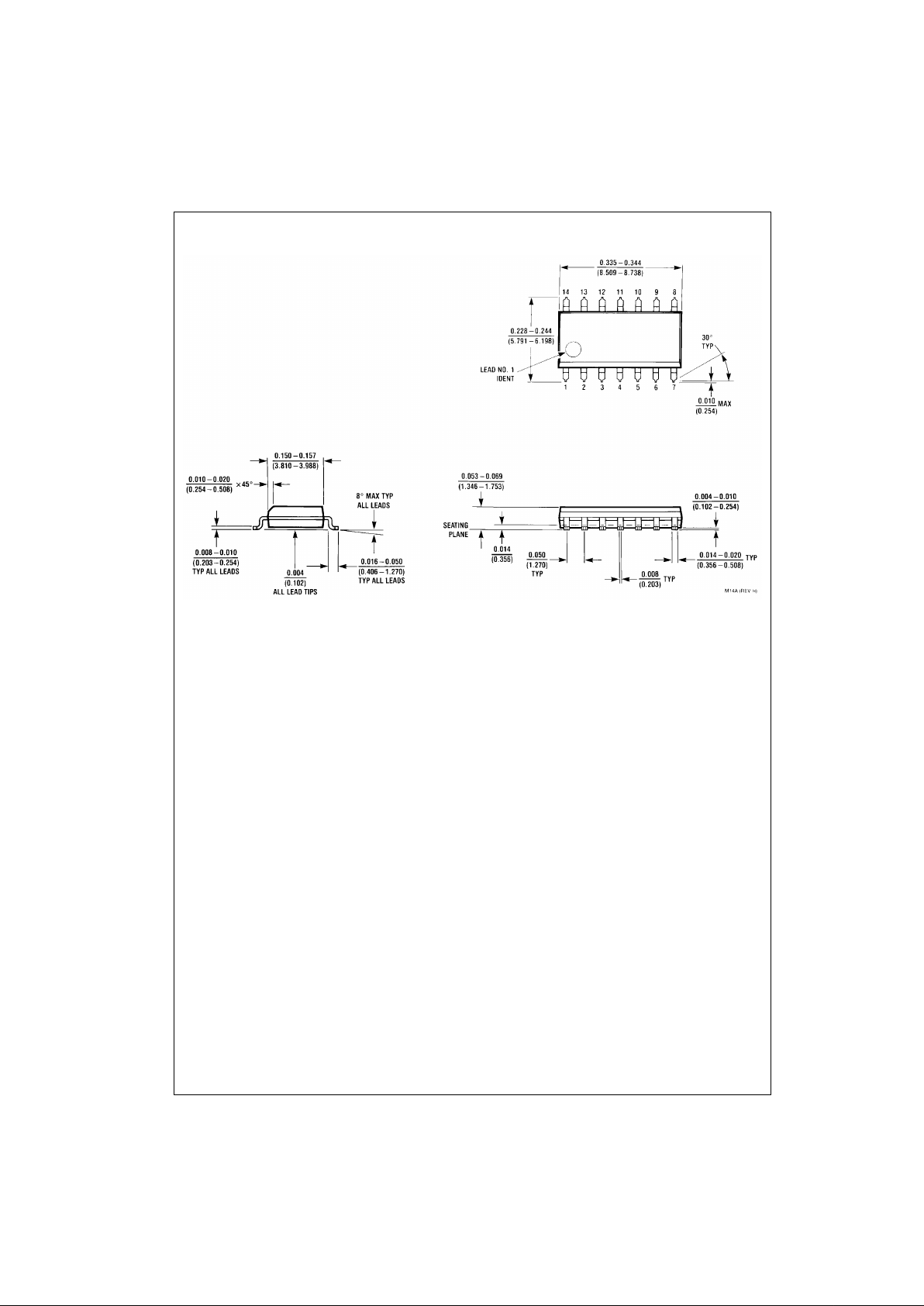

Physical Dimensions inches (millimeters) unless otherwise noted
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150” Narrow
Package Number M14A
Page 5
Fairchild does not assume any responsi bility for use of any circuitry described, no circuit patent licenses are implied and Fairchild reserves the right at any time without notice to change said circuitry and specifications.
CD4007C Dual Complementary Pair Plus Inverter
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD
SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or system s a re devices or syste ms
which, (a) are intended for surgical implant into the
body, or (b) support or sustain life, and (c) whose failure
to perform when properly used in accordance with
instructions for use provided in the labeling, can be reasonably expected to result in a significant injur y to the
user.
2. A critical compon ent in any com ponent of a li fe support
device or system whose failure to p erform can be r easonably expected to cause the failure of the life suppor t
device or system, or to affect its safety or effectiveness.
www.fairchildsemi.com
Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide
Package Number N14A
