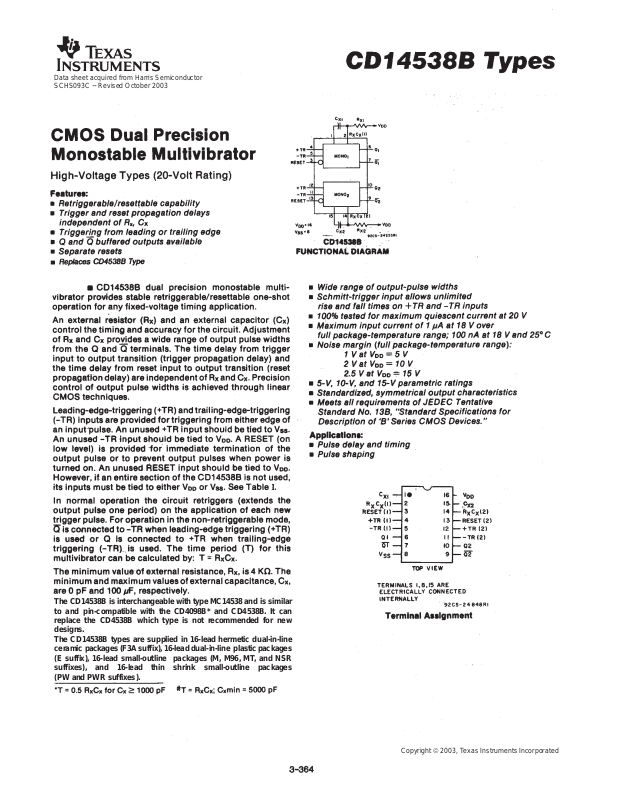

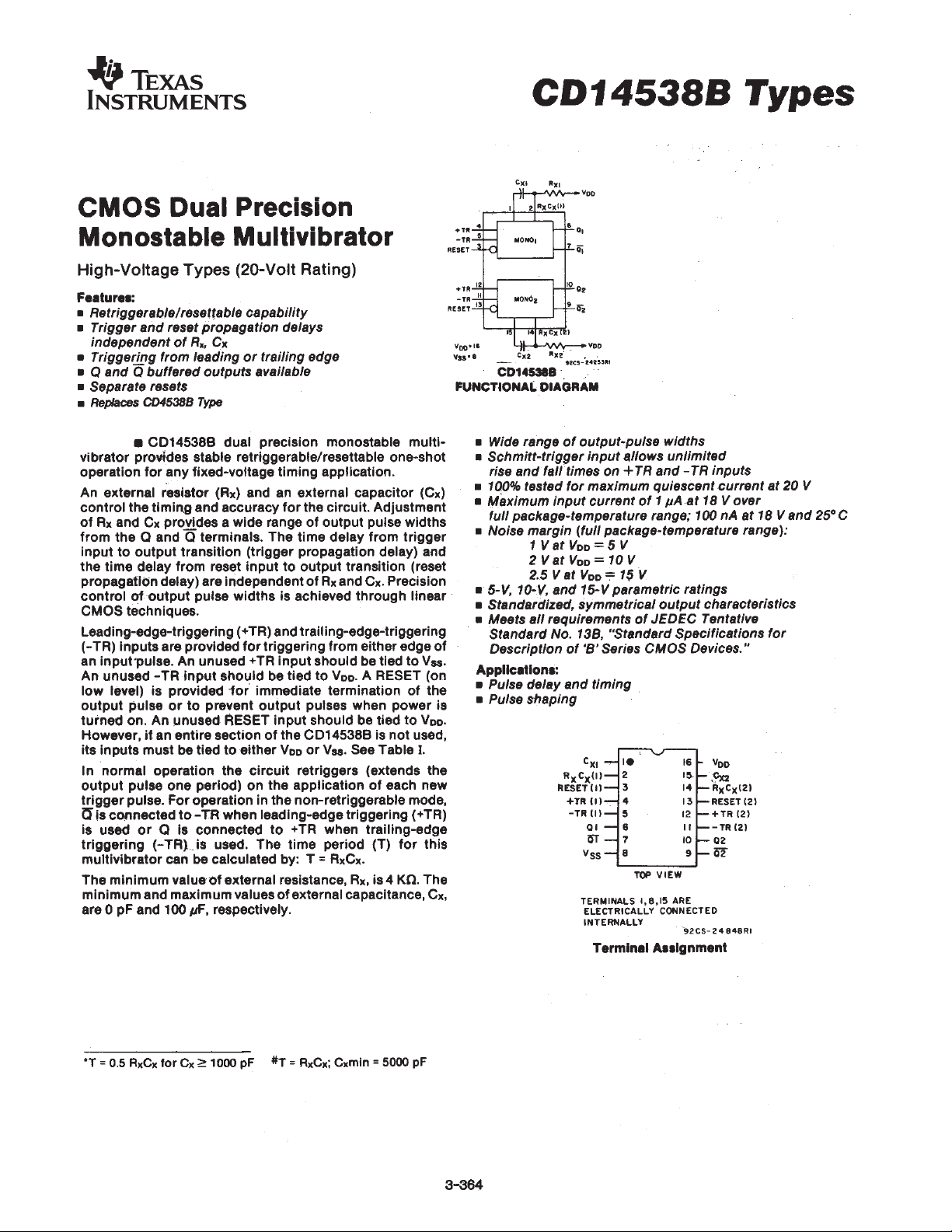

Datasheet CD14538BM, CD14538BE Specification

Data sheet acquired from Harris Semiconductor
SCHS093C − Revised October 2003

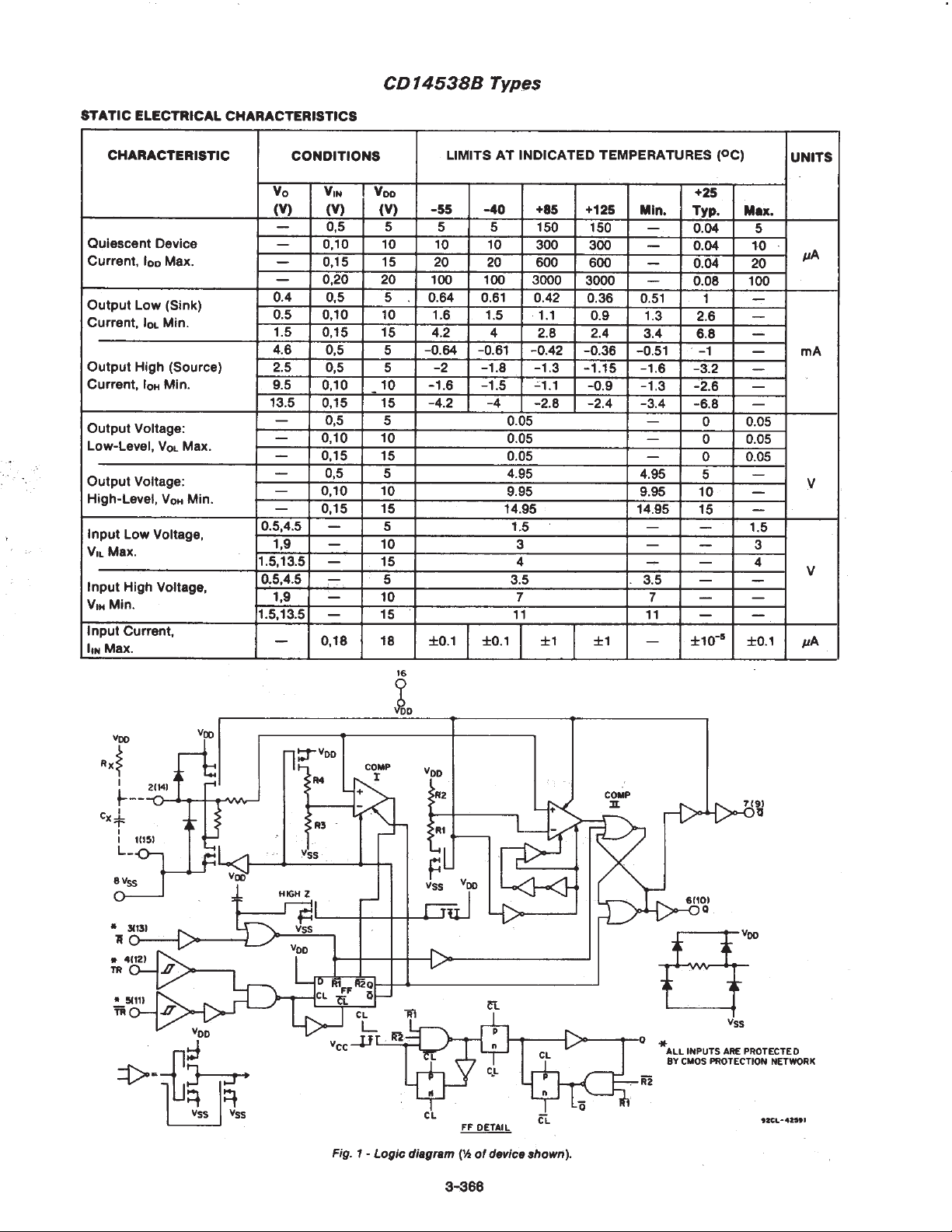

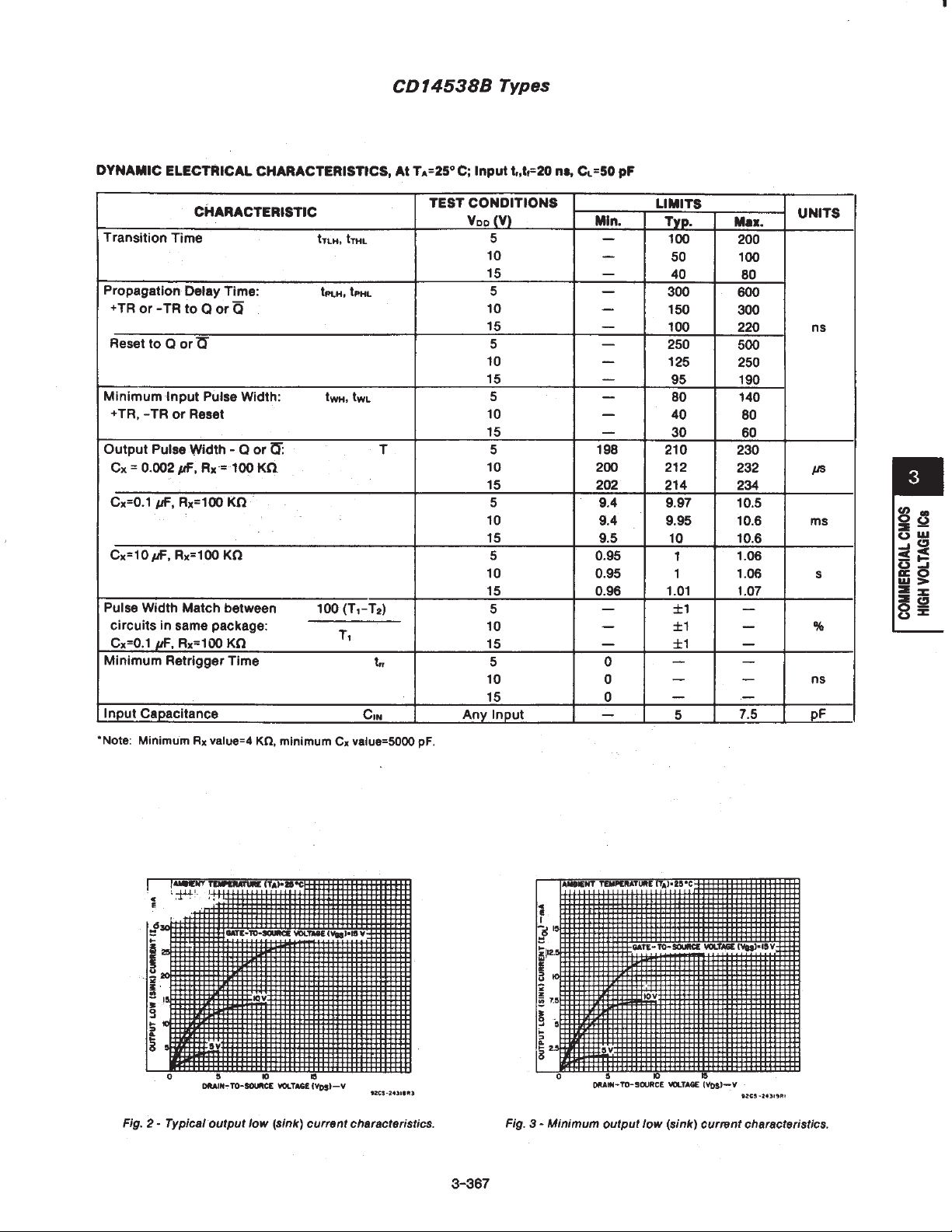

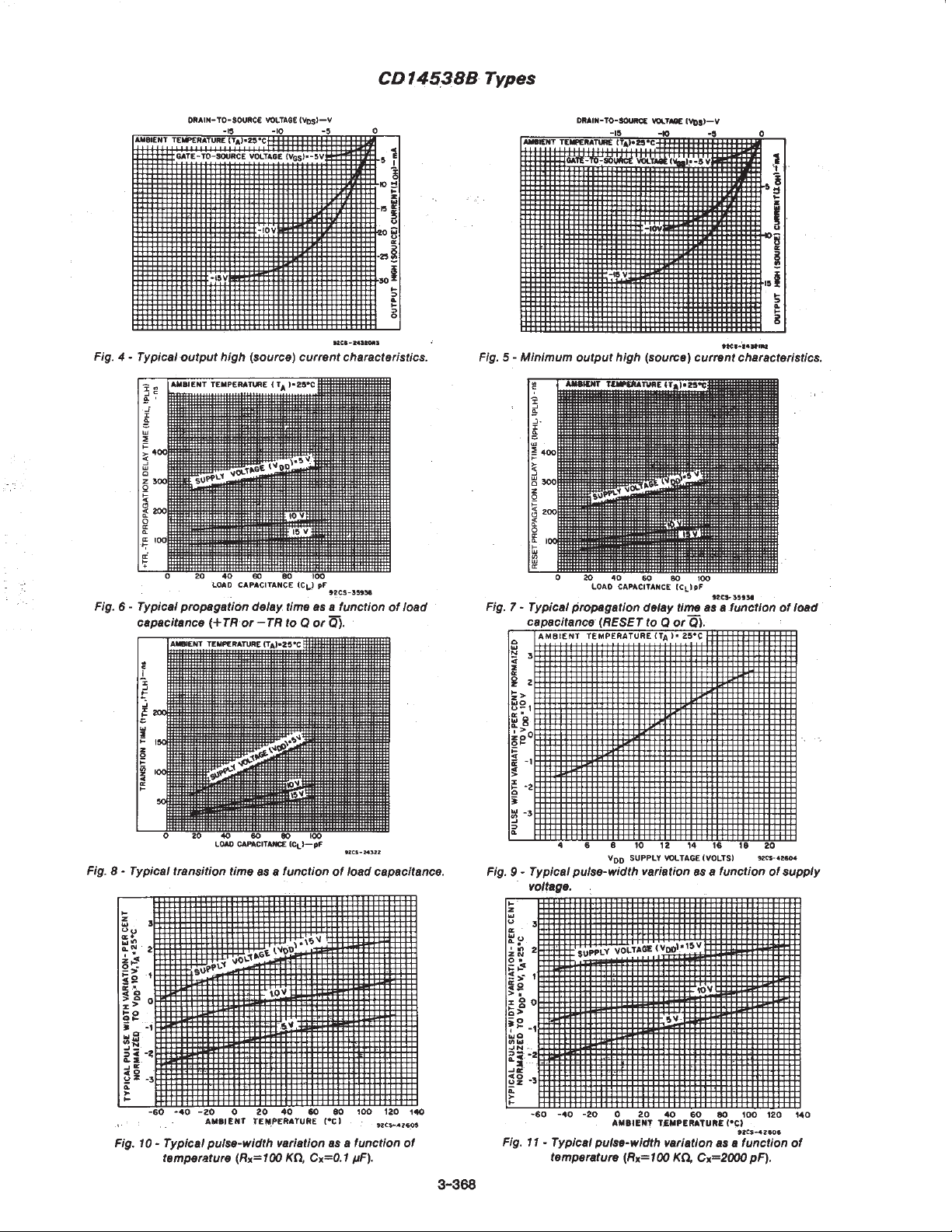

The CD14538B is interchangeable with type MC14538 and is similar
to and pin-compatible with the CD4098B* and CD4538B. It can
replace the CD4538B which type is not recommended for new
designs.

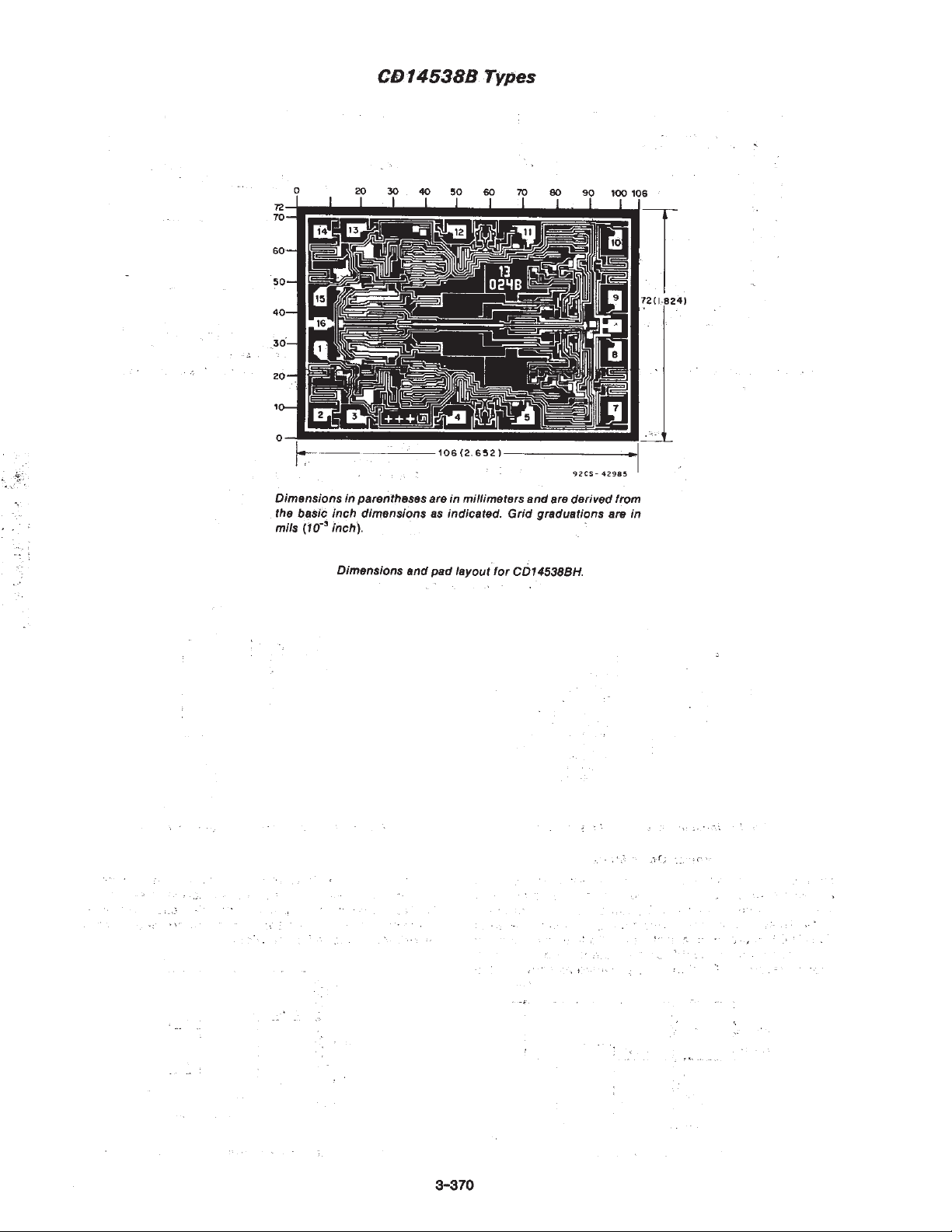

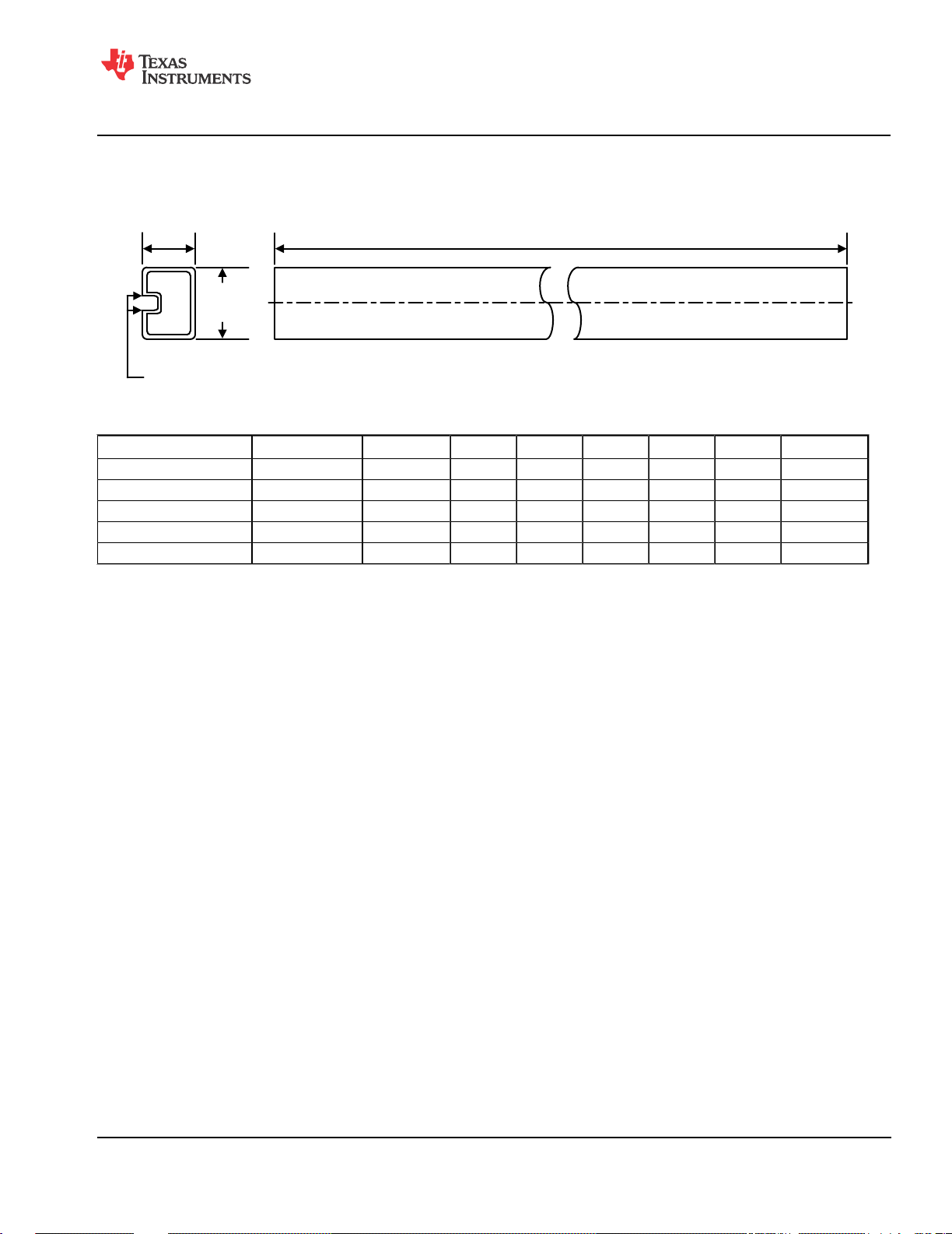

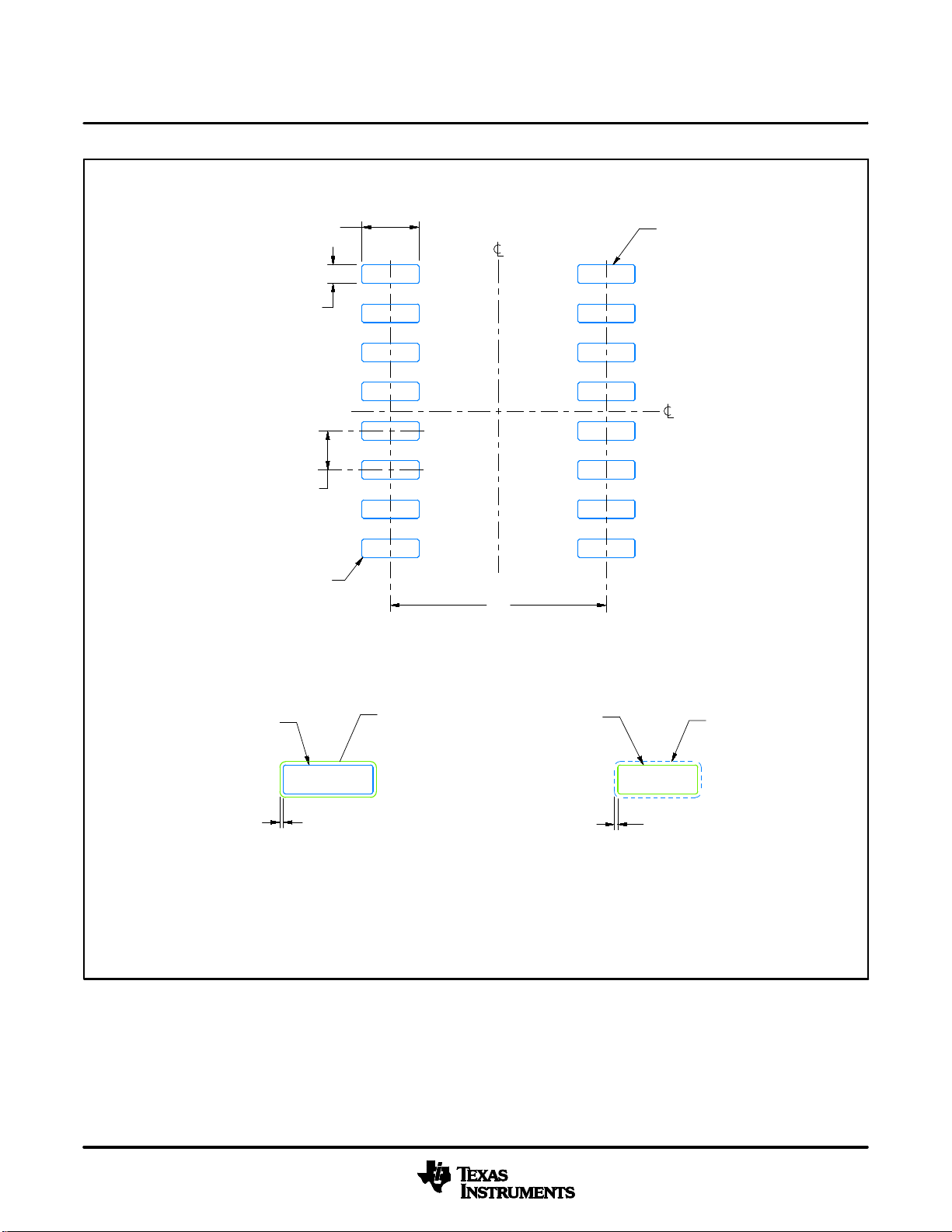

The CD14538B types are s upplied in 16- lead hermetic dual-in-li ne
ceramic packages (F3A suffix), 16-lead dual-in-line plastic packages

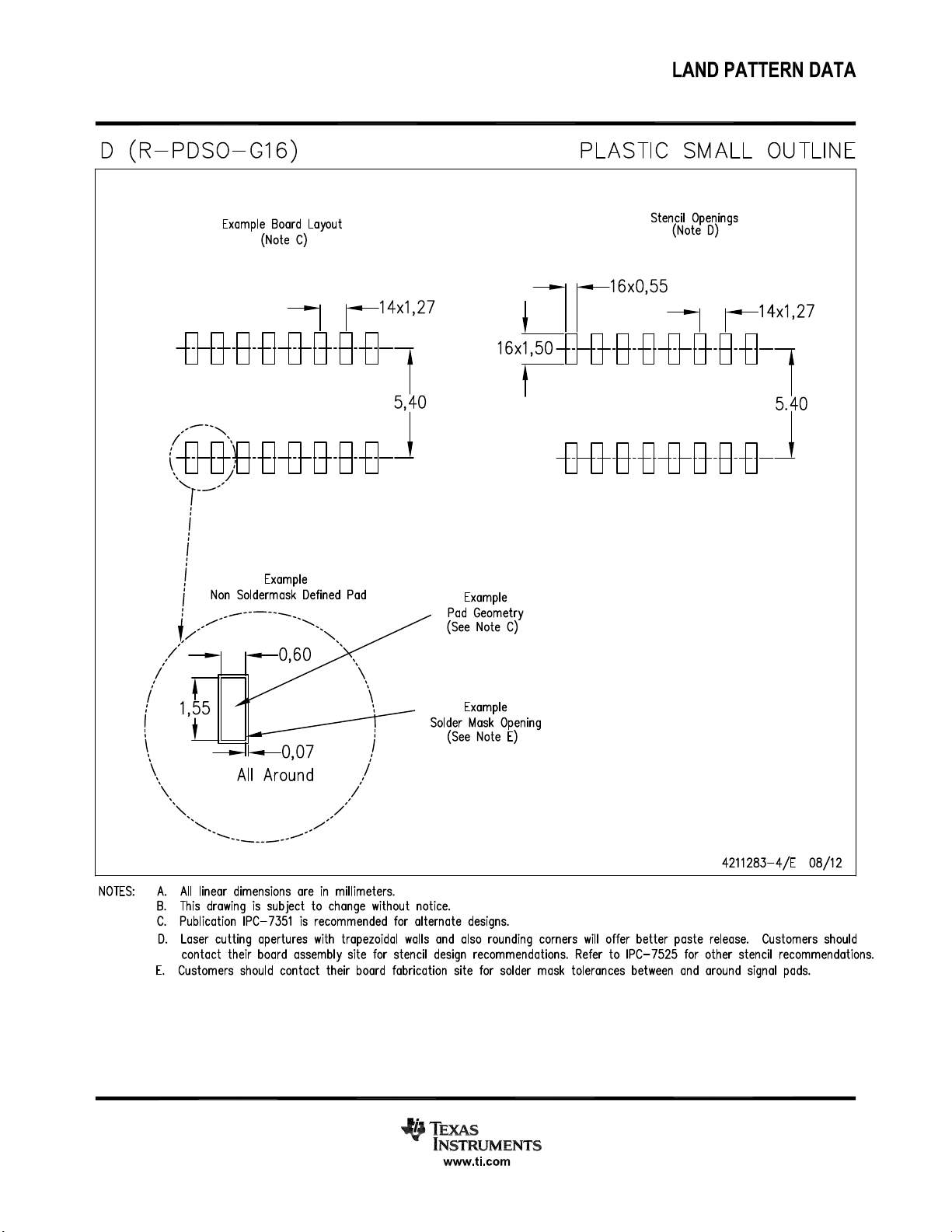

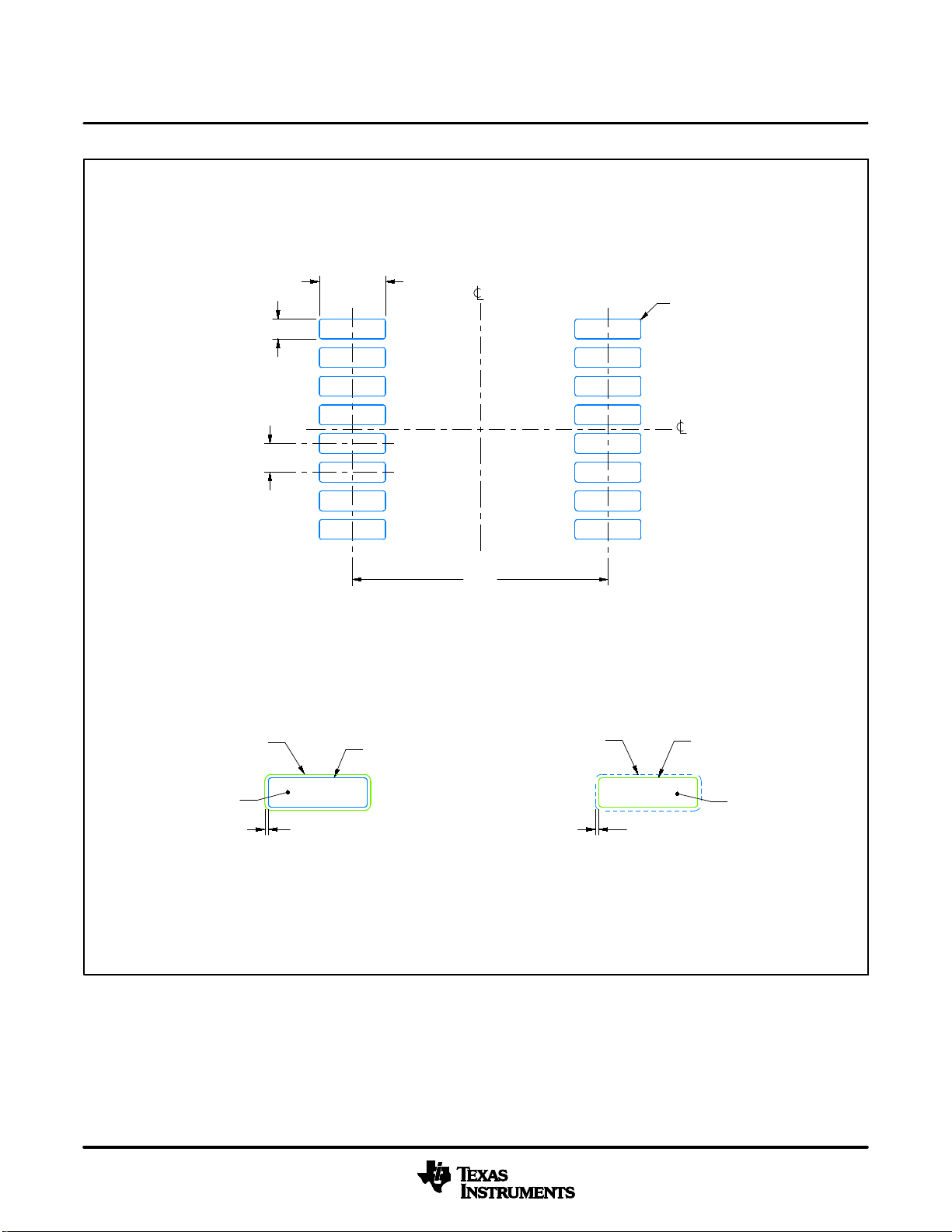

(E suffix) , 16-lead small-outlin e packages (M, M96, MT, and NSR
suffixes), and 16-lead thin shrink small-outline packages
(PW and PWR suffixes).
