Page 1
P
Catalogue 2013
Page 2
KEYLIGHT THE RIGHT KEY TO YOUR PROJECT.....
Keylight is an international leading supplier of lighting solutions for professional indoor and outdoor lighting applications.
For many years, Keylight has developed standard and customized lighting solutions, with the aim to respect the design, ergonomics, economic efficiency and energy reduction. This gives us the extra value.
Keylight has an international customer base. Our customers exist of distributors, importers and project designers in the Netherlands, Europe and beyond.
Keylight is commited to a Customer First attitude and provide the right service in fullfilling customer needs. We resolve to provide outstanding service before and after the sale, and take part in maintaining long term relationships with our customers. Together with our sales partners, from product selection and specification through delivery and beyond.
Located in Nijkerk, the Netherlands, Keylight employs a skilled team of lighting experts who are able to help our customers projects reach new hights in energy saving solutions and implementing the latest developments in LED technology against competitive prices. The right advice and fast delivery is top priority.
1
Page 3
Fortimo LED SLM Gen3
High quality of light
sthgilnwod dna tops rof
For retail lighting applications it has long been recognised that high quality of white
light is a key ingredient alongside an increasing awareness of the need for sustainable
and highly ecient lighting solutions.
Spotlights
The third generation of the Fortimo LED SLM system is
the ideal solution for spot lighting xtures. It is specically
designed for the retail market and stands out in light
quality and beam control, showcasing retail merchandise
in bright and vivid light.
Downlights
Due to the Fortimo LED SLM Gen3 w
ith its completely
new Chip-On-Board (COB) LED technology, now it
is possible to design highly ecient and very compact
downlight luminaires.
Benets:
,secruos thgil mrofinu dna tcapmoc ,lufrewoP •
enabling great beam control and small beam angles
llams a ot eud tekram eht ni ssenthgirb tsehgih ehT •
Light Emitting Surface (LES), enabling the tightest beams
,level metsys no W/ml 001 ot pu gnivas ygrene devorpmI •
at applica
tion conditions
ylpeed ,eulav 9R hgih htiw emoc snoisrev 09 IRC ehT •
enhancing red colours of merchandise
Applications:
,gnithgil yalpsid dna tnecca ,swodniw pohs :liateR •
track lighting, mini downlighting
,stnaruatser ,saera noitpecer ,seibbol :ytilatipsoH •
bars, elevators
dna sertaeht ,seirellag ,smuesum :noitaerceR •
other public places
Future Proof system
Together with the wide range of compatible Philips
Xitanium LED
drivers, the Fortimo LED SLM Gen3 system is future proof and is
backed up by the Philips ve-year system guarantee. The module
design is Zhaga compliant and is backwards compatible with
previous SLM generation modules and drivers.
2
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 4
INDEX
RECESSED ROUND
RECESSED SQUARE
SURFACE ROUND
SURFACE SQUARE
SPOT
PENDENT
PROFILE
PAGE 4 - 33
PAGE 34 - 65
PAGE 66 - 75
PAGE 76 - 83
PAGE 84 - 103
PAGE 104 - 119
PAGE 120 - 127
WALL
OUTDOOR
STRIPES + DRIVERS
TERMS & CONDITIONS
PAGE 128 - 137
PAGE 138 - 153
PAGE 154 - 167
PAGE 168
3
Page 5
RECESSED ROUND
CAP R1
PAGE 8
HELIX 14
PAGE 10
STAR 12
PAGE 12
CAP R2
PAGE 8
JEEP 22
PAGE 10
STAR 18
PAGE 12
IYON R
PAGE 8
DRAGON
PAGE 11
STAR 24
PAGE 12
VISION 15
PAGE 9
URANUS 11
PAGE 11
CABO
PAGE 13
VISION 20
PAGE 9
JUPITER 14
PAGE 11
MEDO
PAGE 13
ROLED
PAGE 9
JUPITER 17
PAGE 11
UTAH 16
PAGE 14
UTAH 18
PAGE 14
4
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
UTAH 22
PAGE 14
YORK 13
PAGE 15
LINKON 14 LED
PAGE 15
MOON 17
PAGE 16
MOON 22
PAGE 16
Page 6
RECESSED ROUND
MOON 27
PAGE 16
NOX 20R
PAGE 19
LUNA 22L
PAGE 21
PLUTO 18
PAGE 17
MARS 22
PAGE 20
LUNA 22H
PAGE 21
PLUTO 20
PAGE 17
AUSTIN 32
PAGE 20
BACO 22L
PAGE 22
DENVER 20
PAGE 18
AUSTIN 58
PAGE 20
BACO 22H
PAGE 22
DENVER 23
PAGE 18
LUNA 18L
PAGE 21
BACO 25H
PAGE 22
NOX 18R
PAGE 19
LUNA 18H
PAGE 21
WALL W 22
PAGE 22
AUSTIN 32
PAGE 23
AUSTIN 38
PAGE 23
AUSTIN 48
PAGE 23
AUSTIN 58
PAGE 23
CARDAN F
PAGE 24
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
DLG 18
PAGE 24
5

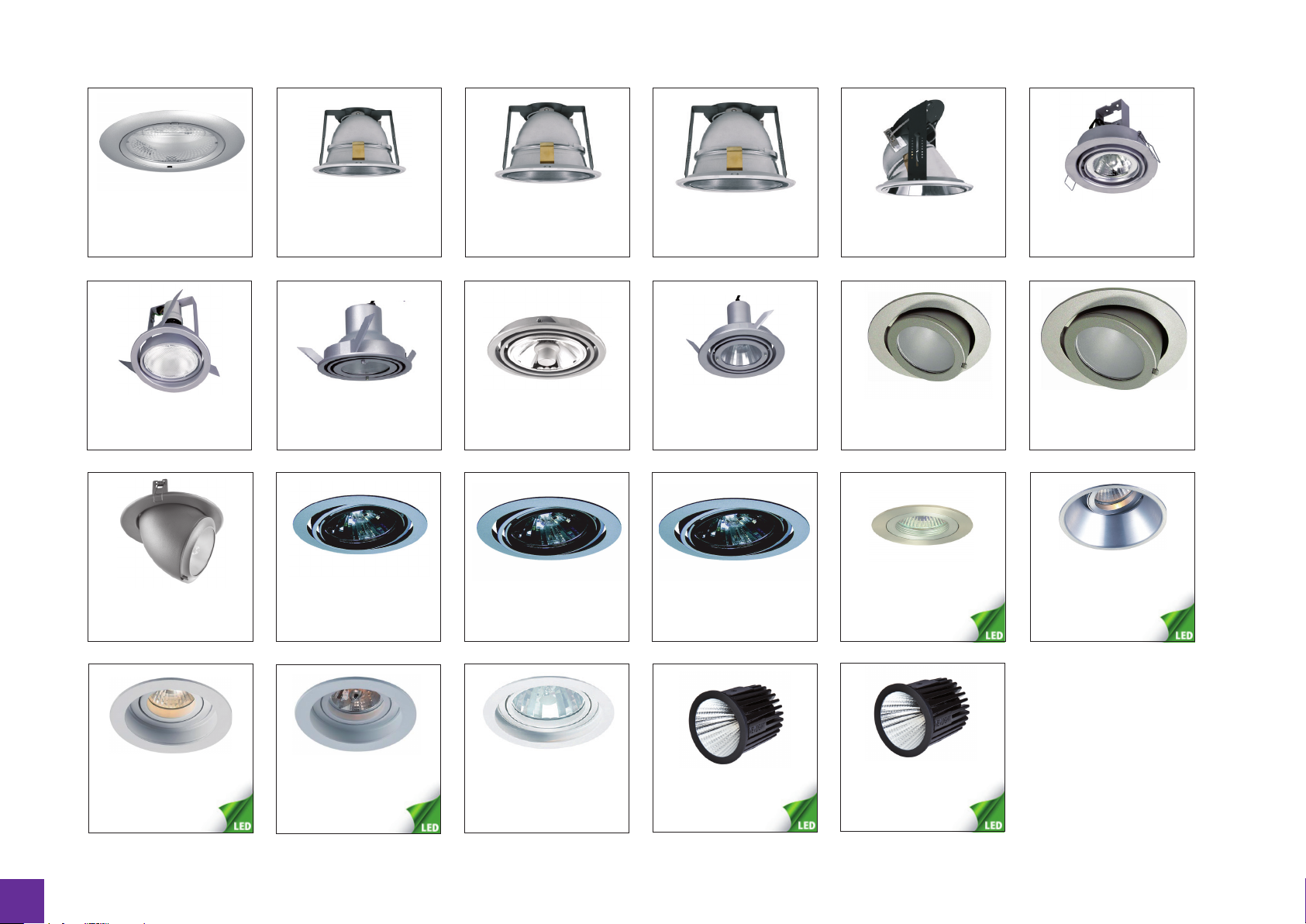

Page 7
RECESSED ROUND
DLG 22
PAGE 25
ENOLA 14
PAGE 26
LUCK
PAGE 28
RENO 16
PAGE 25
DAKAR 14
PAGE 26
CARDAN 12
PAGE 29
RENO 18
PAGE 25
DAKAR 16
PAGE 27
CARDAN 14
PAGE 29
RENO 22
PAGE 25
DAKAR 22
PAGE 27
CARDAN 16
PAGE 29
WALL 25
PAGE 25
RONDO 14
PAGE 28
BAN 9
PAGE 30
ENOLA 12
PAGE 26
RONDO 20
PAGE 28
DEEP 10
PAGE 30
CIRC 10
PAGE 31
6
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
CIRC 13
PAGE 31
CIRC 18
PAGE 31
LMR 50
PAGE 32
LMR 70
PAGE 32
Page 8
HELLO SUNSHINE ;-)
Page 9
Pricelist 2013 RECESSED ROUND
CAP R1
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Reflector Size Ø Hole Ø O ptions
4005.990.28.∆ BXRA
Bridgelux
* 6,6W 86 3000K >80 28° 105x70 95 A / D+
0110.999.99.0 Driver Dim 1/10v 15W 110x52x22
0111.999.99.0 Driver Dim phase-cutting 15W 110x52x23
CAP R2
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Reflector Size Ø Hole Ø O ptions
4055.990.28.∆ BXRA
Bridgelux
2X600 2x6,6W 86 3000k >80 28° 208x105x70 95-103 A / D+
0110.999.99.0 Driver Dim 1/10v 15W 110x52x22
0111.999.99.0 Driver Dim phase-cutting 15W 110x52x23
IYON R
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Reflector Size Ø Hole Ø O ptions
4059.990.30.9 XPE Cree 390 3X2.4W 55 3000K >80 30 90x49 80 A / D+
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, 9 = ALU BRUSH , A = Adjustable , D+ = Including driver + cable and plug standard
8
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 10
VISION 15
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Ref lector Size Ø Hole Ø Options
Passive cooling
4021.114.24.# SLM G3 Philips 2000 19W 105 3000k >80 24° 146x137 132 A / D / E
4021.116.24.# SLM G3 Philips 2000 18W 114 4000k >80 24° 146x137 132 A / D / E
4021.120.24.# SLM G3 Philips 2000 23W 89 3000k >90 24° 146x137 132 A / D / E
4021.117.24.# SLM G3 Philips 3000 28W 107 3000k >80 24° 146x137 132 A / D / E
4021.119.24.# SLM G3 Philips 3000 26W 115 4000k >80 24° 146x137 132 A / D / E
4021.121.24.# SLM G3 Philips 3000 33W 91 3000k >90 24° 146x137 132 A / D / E
VISION 20
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Ref lector Size Ø Hole Ø Options
Passive cooling
4023.114.24.# SLM G3 Philips 2000 19W 105 3000k >80 24° 197x162 180 A / D / E
4023.116.24.# SLM G3 Philips 2000 18W 114 4000k >80 24° 197x162 180 A / D / E
4023.120.24.# SLM G3 Philips 2000 23W 89 3000k >90 24° 197x162 180 A / D / E
4023.117.24.# SLM G3 Philips 3000 28W 107 3000k >80 24° 197x162 180 A / D / E
4023.119.24.# SLM G3 Philips 3000 26W 115 4000k >80 24° 197x162 180 A / D / E
4023.121.24.# SLM G3 Philips 3000 33W 91 3000k >90 24° 197x162 180 A / D / E
ROLED
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Ref lector Size Ø Hole Ø Options
Passive cooling
4024.114.24.# SLM G3 Philips 2000 19W 105 3000k >80 24° 169x118 152 A / ¤ / D / E
4024.116.24.# SLM G3 Philips 2000 18W 114 4000k >80 24° 169x118 152 A / ¤ / D / E
4024.120.24.# SLM G3 Philips 2000 23W 89 3000k >90 24° 169x118 152 A / ¤ / D / E
4024.117.24.# SLM G3 Philips 3000 28W 107 3000k >80 24° 169x118 152 A / ¤ / D / E
4024.119.24.# SLM G3 Philips 3000 26W 115 4000k >80 24° 169x118 152 A / ¤ / D / E
4024.121.24.# SLM G3 Philips 3000 33W 91 3000k >90 24° 169x118 152 A / ¤ / D / E
* Options
# = Textured paint, Color: 33 = RAL 9003 WHITE, 55 = RAL 9005 BLACK, 66 = RAL 9006 Alu, A = Adjustable , ¤ = Reflector 16 or 36 DGR.
E = Emergency ballast 1-3 hour, additional price € 215,- , Light source Fortimo SLM lifetime 50000 hrs, Standard Xitanium D river. 5 years system warranty , D= Dimmable or Dali on reques t.
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
9
Page 11
HELIX 14
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Ref lector Size Ø Hole Ø Options
4142.111.30.∆ SLM G2 Philips 1100 15W 76 2700K >85 35° 142x117 130 C / D / A
4142.112.30.∆ SLM G2 Philips 1100 14W 81 3000K >85 35° 142x117 130 C / D / A
4142.113.30.∆ SLM G2 Philips 1100 12W 96 4000K >85 35° 142x117 130 C / D / A
4142.114.30.∆ SLM G3 Philips 2000 19W 105 3000k >80 35° 142x117 130 C / D / A
4142.116.30.∆ SLM G3 Philips 2000 18W 114 4000k >80 35° 142x117 130 C / D / A
4142.120.30.∆ SLM G3 Philips 2000 23W 89 3000k >90 35° 142x117 130 C / D / A
4142.117.30.∆ SLM G3 Philips 3000 28W 107 3000k >80 35° 142x117 130 C / D / A
4142.119.30.∆ SLM G3 Philips 3000 26W 115 4000k >80 35° 142x117 130 C / D / A
4142.121.30.∆ SLM G3 Philips 3000 33W 91 3000k >90 35° 142x117 130 C / D / A
JEEP 22
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Ref lector Size Ø Hole Ø Options
Passive cooling
4221.103.60.∆ DLM G4 Philips 2000 22W 91 3000K >80 60° 220x166 180 C / A / D / E
4221.104.60.∆ DLM G4 Philips 2000 20W 100 4000K >80 60° 220x166 180 C / A / D / E
4221.105.60.∆ DLM G4 Philips 3000 34W 88 3000K >80 60° 220x166 180 C / A / D / E
4221.105.60.∆ DLM G4 Philips 3000 32W 94 4000K >80 60° 220x166 180 C / A / D / E
4215.133.99.∆ DLM FOOD 2700 43W 65 3000K - - 220x166 180 C / A / D / E
4215.134.99.∆ DLM FOOD 2700 41W 75 4000K - - 220x166 180 C / A / D / E
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 Alu= 6 , C = Available in all RAL colours on request additional price + 10%, A = Adjustable
D = D immable or Dali on request , E = Emergency ballast DLM 1-3 hour, additional price € 215,-
Light source Fortimo SLM-DLM lifetime 50000 hrs, Standard Xitanium Driver. 5 years system warranty.
10
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 12
DRAGON
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Ref lector Size Ø Hole Ø Options
4058.990.60.9 LED 3X1W 2700K >80 60° 75x80 65 D+
URANUS 11
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Ref lector Size Ø Hole Ø Options
4108.990.40.A CXA Cree 680 7,4W 74 2700k >85 40° Alu 108x120 100 D+ }
4108.990.40.W CXA Cree 680 7,4W 74 2700k >85 40° white 108x120 100 D+ }
0110.999.99.0 Driver Dim 1/10v 8,5W
108x53x33
0111.999.99.0 Driver Dim phase-cutting 10W
109x53x33
More dimmable driver chapter 10
JUPITER 14
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Ref lector Size Ø Hole Ø Options
4014.990.80.3 XPG Cree 1050 17W 62 2700k >85 80°/Opal 140x85 130 D+
JUPITER 17
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Ref lector Size Ø Hole Ø Options
4017.990.80.3 XB-D Cree 1450 24W 61 2700k >85 80°/Opal 170x96 162 D+
* Options
Color: RAL 9003 WHITE= 3 , 9 = ALU Brushed , D + = Including driver + cable and plug standard , } Color W = W HITE ring and W HIT E ref lector Color A = ALU ring and ring ALU polish
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
11
Page 13
STAR 12
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflector Size Ø Hole Ø O ptions
4120.910.91.3 Led Epistar 420 7W 60 3000k >80 Opal 120x17 110 D
STAR 18
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflector Size Ø Hole Ø O ptions
4178.910.91.3 Led Epistar 900 15W 60 3000k >80 Opal 178x17 165 D
STAR 28
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflector Size Ø Hole Ø O ptions
4237.910.91.3 Led Epistar 1320 22W 60 3000k >80 Opal 237x17 225 D
* Options
Color: WHITE= 3 , D = Including driver
12
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 14
CABO
Article No. Product Image Lamp type Brand Lumen W attage L/W C olour temp. C RI R eflector Size Ø Hole Ø O ptions
4100.144.36.∆ DISK Philips 300 8W 38 2700k >80 36º 100x87 89 C / DL / *
MEDO
Article No. Product Image Lamp type Brand Lumen W attage L/W C olour temp. C RI R eflector Size Ø Hole Ø O ptions
4105.141.85.∆ DISK G3 Philips 800 12W 68 2700k >80 85º 105x106 90 C / DL / *
4105.142.85.∆ DISK G3 Philips 800 12W 68 3000k >80 85º 105x106 90 C / DL / *
4105.143.85.∆ DISK G3 Philips 850 12W 78 4000k >80 85º 105x106 90 C / DL / *
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 Alu= 6 ,C = Available in all RAL colours on request additional price + 10% , DL = Dimmable leading edge.
* = light source Disk integrated Lifetime: 25000 hrs, 230V Integrated driver. 3 years system warranty.
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
13
Page 15
UTAH 16
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Ref lector Size Ø Hole Ø Options
4165.146.80.∆ Twistable G3 Philips 1100 16W 72 3000k >80 80º 165x130 145 C / IP / DL
4165.147.80.∆ Twistable G3 Philips 1100 15W 78 4000k >80 80º 165x130 145 C / IP / DL
4165.148.80.∆ Twistable G3 Philips 2000 30W 71 3000k >80 80º 165x130 145 C / IP / DL
4165.149.80.∆ Twistable G3 Philips 2000 28W 74 4000k >80 80º 165x130 145 C / IP / DL
UTAH 18
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Ref lector Size Ø Hole Ø Options
4189.146.80.∆ Twistable G3 Philips 1100 16W 72 3000k >80 80º 189x169 168 C / IP / DL
4189.147.80.∆ Twistable G3 Philips 1100 15W 78 4000k >80 80º 189x169 168 C / IP / DL
4189.148.80.∆ Twistable G3 Philips 2000 30W 71 3000k >80 80º 189x169 168 C / IP / DL
4189.149.80.∆ Twistable G3 Philips 2000 28W 74 4000k >80 80º 189x169 168 C / IP / DL
UTAH 22
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Ref lector Size Ø Hole Ø Options
4222.146.80.∆ Twistable G3 Philips 1100 16W 72 3000k >80 80º 220x182 193 C / IP / DL
4222.147.80.∆ Twistable G3 Philips 1100 15W 78 4000k >80 80º 220x182 193 C / IP / DL
4222.148.80.∆ Twistable G3 Philips 2000 30W 71 3000k >80 80º 220x182 193 C / IP / DL
4222.149.80.∆ Twistable G3 Philips 2000 28W 74 4000k >80 80º 220x182 193 C / IP / DL
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 Alu= 6, C = Available in all RAL colours on request additional price + 10%, IP = Optional IP 44 ring with glass, price on request.
* Light source Twistable Lifetime: 50000 hrs, 230V Intergraded driver. 3 years system warranty. DL = Standard Dimmable leading edge.
14
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 16
YORK 13
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Reflector Size Ø Hole Ø Options
Passive cooling
4130.111.30.∆ SLM G2 Philips 1100 15W 76 2700K >85 30º 130x200 110 C / IP / E
4130.112.30.∆ SLM G2 Philips 1100 14W 81 3000K >85 30º 130x200 110 C / IP / E
4130.113.30.∆ SLM G2 Philips 1100 12W 96 4000K >85 30º 130x200 110 C / IP / E
4130.114.30.∆ SLM G3 Philips 2000 19W 105 3000k >80 30º 130x200 110 C / IP / E
4130.116.30.∆ SLM G3 Philips 2000 18W 114 4000k >80 30º 130x200 110 C / IP / E
4130.120.30.∆ SLM G3 Philips 2000 23W 89 3000k >90 30º 130x200 110 C / IP / E
4130.117.30.∆ SLM G3 Philips 3000 28W 107 3000k >80 30º 130x200 110 C / IP / E
4130.119.30.∆ SLM G3 Philips 3000 26W 115 4000k >80 30º 130x200 110 C / IP / E
4130.121.30.∆ SLM G3 Philips 3000 33W 91 3000k >90 30º 130x200 110 C / IP / E
LINKON 14 L
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Reflector Size Ø Hole Ø Options
Outdoor IP54
8014.111.35.∆ SLM G2 Philips 1100 15W 76 2700K >85 35° 140x140 125 C / D / E
8014.112.35.∆ SLM G2 Philips 1100 14W 81 3000K >85 35° 140x140 125 C / D / E
8014.113.35.∆ SLM G2 Philips 1100 12W 96 4000K >85 35° 140x140 125 C / D / E
8014.114.35.∆ SLM G3 Philips 2000 19W 105 3000k >80 35° 140x140 125 C / D / E
8014.116.35.∆ SLM G3 Philips 2000 18W 114 4000k >80 35° 140x140 125 C / D / E
8014.120.35.∆ SLM G3 Philips 2000 23W 89 3000k >90 35° 140x140 125 C / D / E
8014.117.35.∆ SLM G3 Philips 3000 28W 107 3000k >80 35° 140x140 125 C / D / E
8014.119.35.∆ SLM G3 Philips 3000 26W 115 4000k >80 35° 140x140 125 C / D / E
8014.121.35.∆ SLM G3 Philips 3000 33W 91 3000k >90 35° 140x140 125 C / D / E
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 Alu= 6, C = Available in all RAL colours on request additional price + 10% , IP = Optional IP 44 ring with glass, price on request.
D = D immable or Dali on request , E = Emergency ballast DLM 1-3 hour, additional price € 215,-
Light source Fortimo SLM lifetime 50000 hrs, Standard Xitanium Driver. 5 years system warranty.
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
15
Page 17
MOON 17
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflector Size Ø Hole Ø O ptions
4017.141.85.3 DISK G3 Philips 800 12W 68 2700k >80 85º 171x119 150 DL / *
4017.142.85.3 DISK G3 Philips 800 12W 68 3000k >80 85º 171x119 150 DL / *
4017.143.85.3 DISK G3 Philips 850 12W 78 4000k >80 85º 171x119 150 DL / *
MOON 22
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflector Size Ø Hole Ø O ptions
4022.124.55.3 DLM-I Philips 2000 28W 71 3000K >80 55º 219x135 208 *
4022.125.55.3 DLM-I Philips 2000 27W 74 4000K >80 55º 219x135 208 *
4022.103.55.3 DLM G4 Philips 2000 22W 91 3000K >80 55º 219x135 208 E / D
4022.104.55.3 DLM G4 Philips 2000 20W 100 4000K >80 55º 219x135 208 E / D
4022.105.55.3 DLM G4 Philips 3000 34W 88 3000K >80 55º 219x135 208 E / D
4022.106.55.3 DLM G4 Philips 3000 32W 94 4000K >80 55º 219x135 208 E / D
MOON 27
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflector Size Ø Hole Ø O ptions
4027.124.70.3 DLM-I Philips 2000 28W 71 3000K >80 70º 270x178 248 *
4027.125.70.3 DLM-I Philips 2000 27W 74 4000K >80 70º 270x178 248 *
4027.103.70.3 DLM G4 Philips 2000 22W 91 3000K >80 70º 270x178 248 E / D
4027.104.70.3 DLM G4 Philips 2000 20W 100 4000K >80 70º 270x178 248 E / D
4027.105.70.3 DLM G4 Philips 3000 34W 88 3000K >80 70º 270x178 248 E / D
4027.106.70.3 DLM G4 Philips 3000 32W 94 4000K >80 70º 270x178 248 E / D
* Options
Color: Ral 9003 W HITE=3 , D = Dimmable or Dali on r equest , E = Emergency ballast DLM 1-3 hour , additional price € 215,-
* light source DLM-I integrated Lifetime: 25000 hrs, 230V Intergraded driver. 3 years system warranty.
Light source Fortimo DLM lifetime 50000 hrs , Standard Xitanium Driver. 5 years system warranty.
16
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 18
PLUTO 18
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Reflector Size Ø Hole Ø Options
4163.122.60.# DLM-I Philips 1100 15W 73 3000K >80 60º 182x147 143 *
4163.123.60.# DLM-I Philips 1100 14W 79 4000K >80 60º 182x147 143 *
4163.124.70.# DLM-I Philips 2000 28W 71 3000K >80 60º 182x147 143 *
4163.125.70.# DLM-I Philips 2000 27W 74 4000K >80 60º 182x147 143 *
4163.101.60.# DLM G4 Philips 1100 12W 94 3000K >80 60º 182x147 143 E / D
4163.102.60.# DLM G4 Philips 1100 11W 103 4000K >80 60º 182x147 143 E / D
4163.103.60.# DLM G4 Philips 2000 22W 91 3000K >80 60º 182x147 143 E / D
4163.104.60.# DLM G4 Philips 2000 20W 100 4000K >80 60º 182x147 143 E / D
PLUTO 20
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Reflector Size Ø Hole Ø Options
4175.124.60.# DLM-I Philips 2000 28W 71 3000K >80 60º 206x179 159 *
4175.125.60.# DLM-I Philips 2000 27W 74 4000K >80 60º 206x179 159 *
4175.101.60.# DLM G4 Philips 1100 12W 94 3000K >80 60º 206x179 159 E / D
4175.102.60.# DLM G4 Philips 1100 11W 103 4000K >80 60º 206x179 159 E / D
4175.103.60.# DLM G4 Philips 2000 22W 91 3000K >80 60º 206x179 159 E / D
4175.104.60.# DLM G4 Philips 2000 20W 100 4000K >80 60º 206x179 159 E / D
4175.105.60.# DLM G4 Philips 3000 34W 88 3000K >80 60º 206x179 159 E / D
4175.106.60.# DLM G4 Philips 3000 32W 94 4000K >80 60º 206x179 159 E / D
* Options
# = Textured paint, Color: 33 = RAL 9003 WHITE, 55 = RAL 9005 BLACK , D = Dimmable or Dali on request , E = Emergency ballast DLM 1-3 hour, additional price € 215,-
* light source DLM-I integrated Lifetime: 25000 hrs, 230V Intergraded driver. 3 years warranty. Light source Fortimo DLM lifetime 50000 hrs,Standard Xitanium Driver. 5 years s ystem warranty.
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
17
Page 19
DENVER 20 - Outdoor IP54
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Reflector Size Ø H ole Ø Options
Outdoor IP54
8196.122.60.∆ DLM-I Philips 1100 15W 73 3000K >80 60° 196x190 170
C
8196.123.60.∆ DLM-I Philips 1100 14W 79 4000K >80 60° 196x190 170
C
8196.124.60.∆ DLM-I Philips 2000 28W 71 3000K >80 60° 196x190 170
C
8196.125.60.∆ DLM-I Philips 2000 27W 74 4000K >80 60° 196x190 170
C
8196.101.60.∆ DLM G4 Philips 1100 12W 94 3000K >80 60° 196x190 170 C / D / E
8196.102.60.∆ DLM G4 Philips 1100 11W 103 4000K >80 60° 196x190 170 C / D / E
8196.103.60.∆ DLM G4 Philips 2000 22W 91 3000K >80 60° 196x190 170 C / D / E
8196.104.60.∆ DLM G4 Philips 2000 20W 100 4000K >80 60° 196x190 170 C / D / E
8196.105.60.∆ DLM G4 Philips 3000 34W 88 3000K >80 60° 196x190 170 C / D / E
8196.106.60.∆ DLM G4 Philips 3000 32W 94 4000K >80 60° 196x190 170 C / D / E
DENVER 23 - Outdoor IP54
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Reflector Size Ø H ole Ø Options
Outdoor IP54
8230.124.60.∆ DLM-I Philips 2000 28W 71 3000K >80 60° 230x288 195
C
8230.125.60.∆ DLM-I Philips 2000 27W 74 4000K >80 60° 230x288 195
C
8230.103.60.∆ DLM G4 Philips 2000 22W 91 3000K >80 60° 230x288 195 C / D / E
8230.104.60.∆ DLM G4 Philips 2000 20W 100 4000K >80 60° 230x288 195 C / D / E
8230.105.60.∆ DLM G4 Philips 3000 34W 88 3000K >80 60° 230x288 195 C / D / E
8230.106.60.∆ DLM G4 Philips 3000 32W 94 4000K >80 60° 230x288 195 C / D / E
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 Alu= 6 , D = Dimmable or Dali on request , E = Emergency ballast DLM 1-3 hour, additional price € 215,-
* light source DLM-I integrated Lifetime: 25000 hrs, 230V Intergraded driver. 3 years warranty , Light source Fortimo DLM lifetime 50000 hrs, Standard Xitanium Driver. 5 years warranty.
18
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 20
NOX 18R
Article No. Product Image Lamp type Brand Lumen Wattage L/ W Colour temp. CRI Reflector Size Ø Hole Ø Options
4185.122.60.∆ DLM-I Philips 1100 15W 73 3000K >80 80° 189x172 168 C / IP / *
4185.123.60.∆ DLM-I Philips 1100 14W 79 4000K >80 80° 189x172 168 C / IP / *
4185.124.60.∆ DLM-I Philips 2000 28W 71 3000K >80 80° 189x172 168 C / IP / *
4185.125.60.∆ DLM-I Philips 2000 27W 74 4000K >80 80° 189x172 168 C / IP / *
4185.101.80.∆ DLM G4 Philips 1100 12W 94 3000K >80 80° 189x172 168 C / IP / D / E
4185.102.80.∆ DLM G4 Philips 1100 11W 103 4000K >80 80° 189x172 168 C / IP / D / E
4185.103.80.∆ DLM G4 Philips 2000 22W 91 3000K >80 80° 189x172 168 C / IP / D / E
4185.104.80.∆ DLM G4 Philips 2000 20W 100 4000K >80 80° 189x172 168 C / IP / D / E
4185.105.80.∆ DLM G4 Philips 3000 34W 88 3000K >80 80° 189x172 168 C / IP / D / E
4185.106.80.∆ DLM G4 Philips 3000 32W 94 4000K >80 80° 189x172 168 C / IP / D / E
4185.126.80.∆ DLM L Lexel 1100 24W 30 2700/6500 >80 80° 189x172 168 C / IP / ^
4185.127.80.∆ DLM L Lexel 2000 40W 38 2700/6500 >80 80° 189x172 168 C / IP / ^
4185.133.80.∆ DLM FOOD 2700 43W 65 3000K 80° 189x172 168 C / IP / D / E
4185.134.80.∆ DLM FOOD 2700 41W 75 4000K 80° 189x172 168 C / IP / D / E
NOX 20R ^ incl. Philips Lexel led module, standard DMX controlled Touch D ali ballast
Article No. Product Image Lamp type Brand Lumen Wattage L/ W Colour temp. CRI Reflector Size Ø Hole Ø Options
4220.124.60.∆ DLM-I Philips 2000 28W 71 3000K >80 80° 220x185 193 C / IP / *
4220.125.60.∆ DLM-I Philips 2000 27W 74 4000K >80 80° 220x185 193 C / IP / *
4220.103.80.∆ DLM G4 Philips 2000 22W 91 3000K >80 80° 220x185 193 C / IP / D / E
4220.104.80.∆ DLM G4 Philips 2000 20W 100 4000K >80 80° 220x185 193 C / IP / D / E
4220.105.80.∆ DLM G4 Philips 3000 34W 88 3000K >80 80° 220x185 193 C / IP / D / E
4220.106.80.∆ DLM G4 Philips 3000 32W 94 4000K >80 80° 220x185 193 C / IP / D / E
4220.126.80.∆ DLM L Lexel 1100 24W 30 2700/6500 >80 80° 220x185 193 C / IP / ^
4220.127.80.∆ DLM L Lexel 2000 40W 38 2700/6500 >80 80° 220x185 193 C / IP / ^
4220.133.80.∆ DLM FOOD 2700 43W 65 3000K 80° 220x185 193 C / IP / D / E
4220.134.80.∆ DLM FOOD 2700 41W 75 4000K 80° 220x185 193 C / IP / D / E
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 Alu= 6 , C = Available in all RAL colours on request additional price + 10%
E = Emergency ballast DLM 1-3 hour, additional price € 215,- , D = Dimmable or Dali on request , IP = Optional IP 44 ring with glass, price on request.
* light source DLM-I integrated Lifetime: 25000 hrs, 230V Intergraded driver. 3 years warranty, Light source Fortimo DLM lifetime 50000 hrs,Standard Xitanium Driver. 5 years warranty.
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
19
Page 21
MARS 22
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Ref lector Size Ø Hole Ø Options
4022.122.60.3 DLM-I Philips 1100 15W 73 3000K >80 60° 220x149 203,5 *
4022.123.60.3 DLM-I Philips 1100 14W 79 4000K >80 60° 220x149 203,5 *
4022.124.60.3 DLM-I Philips 2000 28W 71 3000K >80 60° 220x149 203,5 *
4022.125.60.3 DLM-I Philips 2000 27W 74 4000K >80 60° 220x149 203,5 *
4022.101.60.3 DLM G4 Philips 1100 12W 94 3000K >80 60° 220x149 203,5 E / D
4022.102.60.3 DLM G4 Philips 1100 11W 103 4000K >80 60° 220x149 203,5 E / D
4022.103.60.3 DLM G4 Philips 2000 22W 91 3000K >80 60° 220x149 203,5 E / D
4022.104.60.3 DLM G4 Philips 2000 20W 100 4000K >80 60° 220x149 203,5 E / D
4022.105.60.3 DLM G4 Philips 3000 34W 88 3000K >80 60° 220x149 203,5 E / D
4022.106.60.3 DLM G4 Philips 3000 32W 94 4000K >80 60° 220x149 203,5 E / D
AUSTIN LED 32
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Ref lector Size Ø Hole Ø Options
4032.181.91.∆ Led plate Osram 1350 16W 84 3000k >80 Opal 320x97 300 C / OD
4032.182.91.∆ Led plate Osram 1900 23W 83 3000k >80 Opal 320x97 300 C / OD
4032.183.91.∆ Led plate Osram 2500 33W 76 3000k >80 Opal 320x97 300 C / OD
4032.184.91.∆ Led plate Osram 1400 16W 87 4000k >80 Opal 320x97 300 C / OD
4032.185.91.∆ Led plate Osram 2000 23W 87 4000k >80 Opal 320x97 300 C / OD
4032.186.91.∆ Led plate Osram 2600 33W 79 4000k >80 Opal 320x97 300 C / OD
AUSTIN LED 58
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Ref lector Size Ø Hole Ø Options
4033.181.91.∆ Led plate Osram 6x650 6x5,1W 128 3000k >80 Opal 583x162 560 C / OD
4033.182.91.∆ Led plate Osram 6x650 6x5,1W 128 4000k >80 Opal 583x162 560 C / OD
4033.184.91.∆ Led plate Osram 8x650 8x5,1W 128 3000k >80 Opal 583x162 560 C / OD
4033.185.91.∆ Led plate Osram 8x650 8x5,1W 1238 4000k >80 Opal 583x162 560 C / OD
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 Alu= 6 , C = Available in all RAL colours on request additional price + 10%
OD= Opal diffuser can be mounted on 2 different levels f lat whit ring or recess ed into the luminarire, E = Emergency ballast DLM 1-3 hour, additional price € 215,- , D = Dimmable or Dali on request
* light source DLM-I integrated Lifetime: 25000 hrs, 230V Intergraded driver. 3 years warranty, Light source Fortimo DLM lifetime 50000 hrs,Standard Xitanium Driver. 5 years warranty.
20
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 22
LUNA 18L
Article No. Product Image Lamp type Socket W attage L/W Colour temp. CRI Ref lector Size Ø Hole Ø Options
4089.401.99.3 C-FL G24Q-1 EVG 1X13W * * * G/F 189x70 165 C / E / D
4089.402.99.3 C-FL G24Q-2 EVG 1X18W * * * G/F 189x70 165 C / E / D
4890.401.99.3 C-FL G24Q-1 EVG 2X13W * * * G/F 189x70 165 C / E / D
4890.402.99.3 C-FL G24Q-2 EVG 2X18W * * * G/F 189x70 165 C / E / D
LUNA 18H
Article No. Product Image Lamp type Socket W attage L/W Colour temp. CRI Ref lector Size Ø Hole Ø Options
4189.401.99.3 C-FL G24Q-1 EVG 1X13W * * * G/F 189x115 165 C / E / D
4189.402.99.3 C-FL G24Q-2 EVG 1X18W * * * G/F 189x115 165 C / E / D
4189.415.99.3 C-FL
MULTI EVG 1X26 - 42W
* * G/F 189x115 165 C / E / D
4891.401.99.3 C-FL G24Q-1 EVG 2X13W * * * G/F 189x115 165 C / E / D
4891.402.99.3 C-FL G24Q-2 EVG 2X18W * * * G/F 189x115 165 C / E / D
4891.415.99.3 C-FL
MULTI EVG 2X26 - 42W
* * * G/F 189x115 165 C / E / D
LUNA 22L
Article No. Product Image Lamp type Socket W attage L/W Colour temp. CRI Ref lector Size Ø Hole Ø Options
4024.401.99.3 C-FL G24Q-1 EVG 1X13W * * * G/F 224x70 200 C / E / D
4024.402.99.3 C-FL G24Q-2 EVG 1X18W * * * G/F 224x70 200 C / E / D
4024.415.99.3 C-FL
MULTI EVG 1X26 - 42W
* * * G/F 224x70 200 C / E / D
4240.401.99.3 C-FL G24Q-1 EVG 2X13W * * * G/F 224x70 200 C / E / D
4240.402.99.3 C-FL G24Q-2 EVG 2X18W * * * G/F 224x70 200 C / E / D
4240.415.99.3 C-FL
MULTI EVG 2X26 - 42W
* * * G/F 224x70 200 C / E / D
LUNA 22H
Article No. Product Image Lamp type Socket W attage L/W Colour temp. CRI Ref lector Size Ø Hole Ø Options
4224.401.99.3 C-FL G24Q-1 EVG 1X13W * * * G/F 224x140 200 C / E / D
4224.402.99.3 C-FL G24Q-2 EVG 1X18W * * * G/F 224x140 200 C / E / D
4224.415.99.3 C-FL
MULTI EVG 1X26 - 42W
* * * G/F 224x140 200 C / E / D
4242.401.99.3 C-FL G24Q-1 EVG 2X13W * * * G/F 224x140 200 C / E / D
4242.402.99.3 C-FL G24Q-2 EVG 2X18W * * * G/F 224x140 200 C / E / D
4242.415.99.3 C-FL
MULTI EVG 2X26 - 42W
* * * G/F 224x140 200 C / E / D
* Options
Color: Ral 9003 W HITE= 3 , G = Glossy reflec tor , F = facetted reflector , E = Emergency , price on request , D = Dimmable or Dali on request , Option IP glass model luna € 25,-
C = Available in all R AL colours on request additional price + 10% Additional costs, 2 x Wieland E 6,30, Always include EVG -ballast and Cable +plug 2 mtr, without CFL lamp.
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
21
Page 23
BACO 22L
Article No. Product Image Lamp type Socket Wattage L/W Colour temp. CRI Glass Size Ø Hole Ø Options
4025.401.97.3 C-FL G24Q-1 EVG 1X13W * * * Satin 225x91 205 C / IP / E /D
4025.402.97.3 C-FL G24Q-2 EVG 1X18W * * * Satin 225x91 205 C / IP / E /D
4025.415.97.3 C-FL
MULTI EVG 1X26 - 42W
* * * Satin 225x91 205 C / IP / E /D
4250.401.97.3 C-FL G24Q-1 EVG 2X13W * * * Satin 225x91 205 C / IP / E /D
4250.402.97.3 C-FL G24Q-2 EVG 2X18W * * * Satin 225x91 205 C / IP / E /D
4250.415.97.3 C-FL
MULTI EVG 2X26 - 42W
* * * Satin 225x91 205 C / IP / E /D
BACO 22H
Article No. Product Image Lamp type Socket Wattage L/W Colour temp. CRI Glass Size Ø Hole Ø Options
4225.401.97.3 C-FL G24Q-1 EVG 1X13W * * * Satin 225x140 205 C / IP / E /D
4225.402.97.3 C-FL G24Q-2 EVG 1X18W * * * Satin 225x140 205 C / IP / E /D
4225.415.97.3 C-FL
MULTI EVG 1X26 - 42W
* * * Satin 225x140 205 C / IP / E /D
4252.401.97.3 C-FL G24Q-1 EVG 2X13W * * * Satin 225x140 205 C / IP / E /D
4242.402.97.3 C-FL G24Q-2 EVG 2X18W * * * Satin 225x140 205 C / IP / E /D
4242.415.97.3 C-FL
MULTI EVG 2X26 - 42W
* * * Satin 189x160 205 C / IP / E /D
BACO 25H
Article No. Product Image Lamp type Socket Wattage L/W Colour temp. CRI Glass Size Ø Hole Ø Options
4252.402.97.3 C-FL G24Q-2 EVG 1X18W * * * Satin 252x155 235 C / IP / E /D
4252.415.97.3 C-FL
MULTI EVG 1X26 - 42W
* * * Satin 252x155 235 C / IP / E /D
4522.402.97.3 C-FL G24Q-2 EVG 2X18W * * * Satin 252x155 235 C / IP / E /D
4252.415.97.3 C-FL
MULTI EVG 2X26 - 42W
* * * Satin 252x155 235 C / IP / E /D
WALL W 22
Article No. Product Image Lamp type Socket Wattage L/W Colour temp. CRI Ref lector Size Ø Hole Ø Options
4229.401.95.3 C-FL G24Q-1 EVG 1X13W * * * G 224x229 200 G / F / C
4229.402.95.3 C-FL G24Q-2 EVG 1X18W * * * G 224x229 200 G / F / C
4229.415.95.3 C-FL
MULTI EVG 1X26 - 42W
* * * G 224x229 200 G / F / C
4292.401.95.3 C-FL G24Q-1 EVG 2X13W * * * G 224x229 200 G / F / C
4292.402.95.3 C-FL G24Q-2 EVG 2X18W * * * G 224x229 200 G / F / C
4292.415.95.3 C-FL
MULTI EVG 2X26 - 42W
* * * G 224x229 200 G / F / C
* Options
Color: RAL 9003 WHITE=3 ,G = Glossy reflector F = facetted reflector, E = Emergency, price on reques t , D = Dimmable or Dali on request., IP = IP 44 luminaire
C = Available in all RAL c olours on request additional price + 10% , Additional costs 2 x Wieland E 6,30 , Always include EVG -ballast and Cable +plug 2 mtr, without CFL lamp.
22
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 24
AUSTIN 32
Article No. Product Image Lamp type Socket Wattage L/W Colour temp. CRI Reflector Size Ø Hole Ø Options
4383.413.91.∆ TLC-5 2GX13 EVG 1X22W * * * Opal 320x97 300 C / DR
AUSTIN 38
Article No. Product Image Lamp type Socket Wattage L/W Colour temp. CRI Reflector Size Ø Hole Ø Options
4384.413.91.∆ TLC-5 2GX13 EVG 1X40W * * * Opal 383x162 360 C / DR
4385.413.91.∆ TLC-5 2GX13 EVG 1X55W * * * Opal 383x162 360 C / DR
AUSTIN 48
Article No. Product Image Lamp type Soc ket W attage L/W Colour temp. CRI Reflector Size Ø Hole Ø Options
4386.413.91.∆ TLC-5 2GX13 EVG 1X55W * * * Opal 483x162 460 C / DR
AUSTIN 58
Article No. Product Image Lamp type Soc ket W attage L/W Colour temp. CRI Reflector Size Ø Hole Ø Options
4387.413.91.∆ TLC-5 2GX13 EVG 1X60W * * * Opal 583x162 560 C / DR
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 Alu= 6 , C = Available in all RAL colours on request additional price + 10%
Always include E-ballast and without an TLC-5 lamp , D R = T he level of dif fusor can be regulated.
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
23
Page 25
CARDAN F
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CRI Reflec tor Size Ø Hole Ø Options
4097.202.24.∆ CDM-T G12 * 35W * * * 24° 150x140 135
4097.205.24.∆ CDM-T G12 * 50W * * * 24° 150x140 135
4097.207.24.∆ CDM-T G12 * 70W * * * 24° 150x140 135
DLG 16
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CRI Reflec tor Size Ø Hole Ø Options
4092.214.93.∆ CDM-T G12 * 20W * * * Wide beam 160x80 152
4092.202.93.∆ CDM-T G12 * 35W * * * Wide beam 160x80 152
4092.205.93.∆ CDM-T G12 * 50W * * * Wide beam 160x80 152
DLG 22
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CRI Reflec tor Size Ø Hole Ø Options
4093.202.93.∆ CDM-T G12 * 35W * * * Wide beam 220x80 200
4093.205.93.∆ CDM-T G12 * 50W * * * Wide beam 220x80 200
4093.207.93.∆ CDM-T G12 * 70W * * * Wide beam 220x80 200
4093.210.93.∆ CDM-T G12 * 100W * * * W ide beam 220x80 200
* Options
∆ Color: WHITE= 3, ALU= 6, NICKEL= 7
Always include an E-ballast incl. cable, plug, and without HID lamp , * There are diff erent options available for the CDM lamps , please contact us for more inf ormation
24
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 26
RENO 16
Article No. Pr oduct Image Lamp type Soc ket Lumen W attage L/W Colour temp. CR I Reflector Size Ø Hole Ø Options
4165.214.60.3 CDM-T G12 * 20W * * * 60° 165x188 150 C
4165.202.60.3 CDM-T G12 * 35W * * * 60° 165x188 150 C
4165.205.60.3 CDM-T G12 * 50W * * * 60° 165x188 150 C
4165.207.60.3 CDM-T G12 * 70W * * * 60° 165x188 150 C
4165.231.60.3 CDM-TD Rx7S * 70W * * * 60° 165x188 150 C
RENO 18
Article No. Pr oduct Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI Ref lector Size Ø Hole Ø Options
4089.202.60.3 CDM-T G12 * 35W * * * 60° 189x184 165 C / S
4089.205.60.3 CDM-T G12 * 50W * * * 60° 189x184 165 C / S
4089.207.60.3 CDM-T G12 * 70W * * * 60° 189x184 165 C / S
4089.210.60.3 CDM-T G12 * 100W * * * 60° 189x184 165 C / S
4089.231.60.3 CDM-TD Rx7S * 70W * * * 60° 189x184 165 C / S
4089.232.60.3 CDM-TD Rx7S * 150W * * * 60° 189x184 165 C / S
RENO 22
Article No. Pr oduct Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI Ref lector Size Ø Hole Ø Options
4195.205.60.3 CDM-T G12 * 50W * * * 60° 224x195 200 C
4195.207.60.3 CDM-T G12 * 70W * * * 60° 224x195 200 C
4195.210.60.3 CDM-T G12 * 100W * * * 60° 224x195 200 C
4195.212.60.3 CDM-T G12 * 150W * * * 60° 224x195 200 C
4195.231.60.3 CDM-TD Rx7S * 70W * * * 60° 224x195 200 C
4195.232.60.3 CDM-TD Rx7S * 150W * * * 60° 224x195 200 C
WALL W 25
Article No. Pr oduct Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI Ref lector Size Ø Hole Ø Options
4197.238.95.3 CDM-TD Rx7S * 35W * * * G 224x197 200 C
4197.231.95.3 CDM-TD Rx7S * 70W * * * G 224x197 200 C
4197.232.95.3 CDM-TD Rx7S * 150W * * * G 224x197 200 C
* Options
Color: Ral 9003 WHITE=3 , C = Available in all RAL colours on request additional price + 10% , S = SDW-TG lamp on request, G = Glossy ref lector
Always include a E-ballast incl. cable, plug, and without HID lamp , * There are dif ferent options available f or the CDM lamps , please contact us for more inf ormation
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
25
Page 27
ENOLA 12
Article No. Product Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI Reflector Size Ø Hole Ø Options
4128.251.99.∆ CDM-R E27 PAR 20 35W * * * 10°/30° 128x110 110 C / A
ENOLA 14
Article No. Product Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI Reflector Size Ø Hole Ø Options
4004.255.10.∆ CDM-R E27 PAR 30 35W * 930 * 10°/30° 140x140 125 C / A
4004.255.30.∆ CDM-R E27 PAR 30 70W * 930 * 10°/40° 140x140 125 C / A
DAKAR 14
Article No. Product Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI Reflector Size Ø Hole Ø Options
4114.264.36.∆ CDM-Tm GU6.5 * 20W * * * 36° 140x100 130 C / A
4114.265.36.∆ CDM-Tm GU6.5 * 35W * * * 36° 140x100 130 C / A
4114.263.36.∆ CDM-Tm GU6.5 * 50W * * * 36° 140x100 130 C / A
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 Alu= 6 , C = Available in all RAL colours on request additional price of + 10% , A = Adjustable
Always include a E-ballast incl. cable, plug, (connection cable) and without HID lamp , * There are different options available f or the CDM lamps, please contact us for more information
26
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 28
DAKAR 16
Article No. Product Image Lamp type S ocket Lumen Wattage L/W Colour temp. CRI Reflector Size Ø Hole Ø Options
4065.245.99.∆ CDM-R111 Gx8,5 * 20W * * * 10°/24°/30° 163x88 152 C / A
4065.246.99.∆ CDM-R111 Gx8,5 * 35W * * * 10°/24°/30° 163x88 152 C / A
4065.247.99.∆ CDM-R111 Gx8,5 * 70W * * * 10°/24°/30° 163x88 152 C / A
DAKAR 22
Article No. Product Image Lamp type S ocket Lumen Wattage L/W Colour temp. CRI Reflector Size Ø Hole Ø Options
4202.202.98.∆ CDM-T G12 * 35W * * *
¤
220x155 200 C / A
4202.205.98.∆ CDM-T G12 * 50W * * *
¤
220x155 200 C / A
4202.207.98.∆ CDM-T G12 * 70W * * *
¤
220x155 200 C / A
4202.210.98.∆ CDM-T G12 * 100W * * *
¤
220x155 200 C / A
4202.236.98.∆ SDW -TG GX12-1 * 50W * * *
¤
220x155 200 C / A
4202.237.98.∆ SDW -TG GX12-1 * 100W * * *
¤
220x155 200 C / A
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 Alu= 6 , C = Available in all RAL colours on request additional price + 10% , A = Adjustable
¤ = reflector 15. 24. 36 or 55 Dgr.
Always include a E-ballast incl. cable, plug, (connection cable) and without HID lamp.,* T here are different options available for the CDM-T lamps, please contact us f or more information,
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
27
Page 29
RONDO 14
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CRI Reflector Size Ø Hole Ø Options
4093.219.60.5 CDM-TC G8,5 * 35W * * * 60° 136x113 120 A
4093.222.60.5 CDM-TC G8,5 * 50W * * * 60° 136x113 120 A
4093.225.60.5 CDM-TC G8,5 * 70W * * * 60° 136x113 120 A
RONDO 20
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CRI Reflector Size Ø Hole Ø Options
4093.202.60.6 CDM-T G12 * 35W * * * 60° 205x168 188 A
4093.205.60.6 CDM-T G12 * 50W * * * 60° 205x168 188 A
4093.207.60.6 CDM-T G12 * 70W * * * 60° 205x168 188 A
LUCK
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CRI Reflector Size Ø Hole Ø Options
4019.214.36.∆ CDM-T G12 * 20W * * * 36° 190x145 180 C / A
4019.202.36.∆ CDM-T G12 * 35W * * * 36° 190x145 180 C / A
4019.205.36.∆ CDM-T G12 * 50W * * * 36° 190x145 180 C / A
4019.207.36.∆ CDM-T G12 * 70W * * * 36° 190x145 180 C / A
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 Alu= 6 , C = Available in all RAL colours on request additional price + 10% , A = Adjustable
Always include a E-ballast incl. cable, plug, (connection cable) and without HID lamp , * There are different options available for the CDM-T lamps
28
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 30
CARDAN 12
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour t emp. CR I Reflector Size Ø Hole Ø Options
4093.202.24.∆ CDM-Tm mini PGJ5 * 20W * * * 24° 120x75 112 A
4093.202.24.∆ CDM-Tm mini PGJ5 * 35W * * * 24° 120x75 112 A
CARDAN 14
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour t emp. CR I Reflector Size Ø Hole Ø Options
4095.219.24.∆ CDM-TC G8,5 * 20W * * * 24° 135x126 125 A
4095.222.24.∆ CDM-TC G8,5 * 35W * * * 24° 135x126 125 A
4095.225.24.∆ CDM-TC G8,5 * 50W * * * 24° 135x126 125 A
4095.227.24.∆ CDM-TC G8,5 * 70W * * * 24° 135x126 125 A
CARDAN 16
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour t emp. CR I Reflector Size Ø Hole Ø Options
4096.202.24.6 CDM-T G12 * 35W * * * 24° 172x130 163 A
4096.205.24.6 CDM-T G12 * 50W * * * 24° 172x130 163 A
4096.207.24.6 CDM-T G12 * 70W * * * 24° 172x130 163 A
4096.210.24.6 CDM-T G12 * 100W * * * 24° 172x130 163 A
* Options
∆ Color: WHITE= 3, BLACK=5, ALU= 6 , A = Adjustable
Always include a E-ballast incl. cable, plug, (connection cable) and without HID lamp. , * There are different options available f or the CDM- T lamps
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
29
Page 31
BAN 9
Article No. Product Image Lamp type Soc ket Lumen Wattage L/W Colour temp. CRI Reflec tor Size Ø Hole Ø Options
4545.999.98.∆ MR16 GU5,3
* Max 50W * * * *
90x57 82 » / A
4545.999.98.∆ GU10 GU10
* Max 50W * * * *
90x57 82 » / A
4545.241.98.∆ CDM-Rm GX10
* 20W * * * 10°/25°/40°
90x57 82 A
4545.242.98.∆ CDM-Rm GX10
* 35W * * * 10°/25°/40°
90x57 82 A
4545.243.98.∆ CDM-Rm GX10
* 50W * * * 10°/25°/40°
90x57 82 A
4545.171.20.∆ LMR 50 Bridgelux 560 6,6W 79 2700K >80
20°
90x57 82 A
4545.172.30.∆ LMR 50 Bridgelux 560 6,6W 79 2700K >80
30°
90x57 82 A
4545.173.20.∆ LMR 50 Bridgelux 600 6,6W 86 3000K >80
20°
90x57 82 A
4545.174.30.∆ LMR 50 Bridgelux 600 6,6W 86 3000K >80
30°
90x57 82 A
DEEP 10
Article No. Product Image Lamp type Soc ket Lumen Wattage L/W Colour temp. CRI Reflec tor Size Ø Hole Ø Options
4010.999.98.∆ MR16 GU5,3
* Max 50W * * * *
98x65 92 » / A
4010.999.98.∆ GU10 GU10
* Max 50W * * * *
98x65 92 » / A
4010.241.98.∆ CDM-R MINI GX10
* 20W * * * 10°/25°/40°
98x65 92 A / D
4010.242.98.∆ CDM-R MINI GX10
* 35W * * * 10°/25°/40°
98x65 92 A / D
4010.243.98.∆ CDM-R MINI GX10
* 50W * * * 10°/25°/40°
98x65 92 A / D
4010.171.20.∆ LMR 50 Bridgelux 560 6,6W 79 2700K >80
20°
98x65 92 A / DD
4010.172.30.∆ LMR 50 Bridgelux 560 6,6W 79 2700K >80
30°
98x65 92 A / DD
4010.173.20.∆ LMR 50 Bridgelux 600 6,6W 86 3000K >80
20°
98x65 92 A / DD
4010.174.30.∆ LMR 50 Bridgelux 600 6,6W 86 3000K >80
30°
98x65 92 A / DD
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 Alu= 6 ,A = Adjustable, DD = INCL DRIVER+ LMR
» = ONLY BODY OF LUMINAIRE, WITHOUT LAMP AND GEAR , IP=65
CDM-R MINI Always include a E-ballast incl. cable, plug, (connection cable) and without HID lamp , * There are diff erent options available for the CDM lamps
30
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 32
CIRC 10
Article No. Product Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI R eflector Size Ø H ole Ø Options
4098.989.98.∆ MR16 GU5,3
* Max 50W * * * *
106x145 90 » / A
4098.989.98.∆ GU10 GU10
* Max 50W * * * *
106x145 90 » / A
4098.241.98.∆ CDM-R MINI GX10
* 20W * * * 10°/25°/40°
106x145 90 A / D
4098.242.98.∆ CDM-R MINI GX10
* 35W * * * 10°/25°/40°
106x145 90 A / D
4098.243.98.∆ CDM-R MINI GX10
* 50W * * * 10°/25°/40°
106x145 90 A / D
4098.171.20.∆ LMR 50 Bridgelux 560 6,6W 79 2700K >80
20°
106x145 90 A / DD
4098.172.30.∆ LMR 50 Bridgelux 560 6,6W 79 2700K >80
30°
106x145 90 A / DD
4098.173.20.∆ LMR 50 Bridgelux 600 6,6W 86 3000K >80
20°
106x145 90 A / DD
4098.174.30.∆ LMR 50 Bridgelux 600 6,6W 86 3000K >80
30°
106x145 90 A / DD
CIRC 13
Article No. Product Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI R eflector Size Ø H ole Ø Options
4099.999.98.∆ QR 70 BA15d
* Max 50W * * * *
130x145 120 » / A
4099.175.20.∆ LMR 70 Bridgelux 1330 15W 89 2700K >80
20°
130x145 120 A / DD
4099.176.30.∆ LMR 70 Bridgelux 1330 15W 89 2700K >80
30°
130x145 120 A / DD
4099.177.20.∆ LMR 70 Bridgelux 1410 15W 94 3000K >80
20°
130x145 120 A / DD
4099.178.30.∆ LMR 70 Bridgelux 1410 15W 94 3000K >80
30°
130x145 120 A / DD
CIRC 18
Article No. Product Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI R eflector Size Ø H ole Ø Options
4065.219.24.Ω CDM-TC G8,5 * 20W * * * 24° 185x185 180
A / ¤
4065.222.24.Ω CDM-TC G8,5 * 35W * * * 24° 185x185 180
A / ¤
4065.225.24.Ω CDM-TC G8,5 * 50W * * * 24° 185x185 180
A / ¤
4065.227.24.Ω CDM-TC G8,5 * 70W * * * 24° 185x185 180
A / ¤
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 Alu= 6 ,Ω = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5 ,A = Adjustable, DD = INCL DRIVER+ LMR, ¤ = Reflector 16 or 36 Dgr.
» = ONLY BODY OF LUMINAIRE, WITHOUT LAMP AND GEAR , CDM-R MINI Always include a E-ballast incl. cable, plug, (connection cable) and without HID lamp.
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
31
Page 33
LMR 50
Article No. Product Image Lamp type Brand Lumen Wattage L/W C olour temp. CRI Reflec tor Size Ø mA Options
1050.171.20.5 LMR 50 Bridgelux 560 6,6W 79 2700K >80
20°
50x51,5 350
1050.172.30.5 LMR 50 Bridgelux 560 6,6W 79 2700K >80
30°
50x51,5 350
1050.173.20.5 LMR 50 Bridgelux 600 6,6W 86 3000K >80
20°
50x51,5 350
1050.174.30.5 LMR 50 Bridgelux 600 6,6W 86 3000K >80
30°
50x51,5 350
0151.999.99.5 LMR 50mm Bracket with Screw and Nut
0152.999.99.5 LMR 50mm Ring Aluminium
0105.999.99.0
LMR 50 LED Driver 1-9W -INCL. 1.5mtr Cable and Plug 80x40x22 350
0110.999.99.0
LMR 50 Driver 8,5w Dimmable 1/10v 108x53x33 350
DIM
0111.999.99.0
LMR 50 Driver 10w Dimmable phase-cutting 109x53x33 350
DIM
More dimmable driver chapter 10
LMR 70
Article No. Product Image Lamp type Brand Lumen Wattage L/W C olour temp. CRI Reflec tor Size Ø mA Options
New coming soon !
1070.175.20.5 LMR 70 Bridgelux 1330 15W 89 2700K >80
20°
70x66 700
1070.176.30.5 LMR 70 Bridgelux 1330 15W 89 2700K >80
30°
70x66 700
1070.177.20.5 LMR 70 Bridgelux 1410 15W 94 3000K >80
20°
70x66 700
1070.178.30.5 LMR 70 Bridgelux 1410 15W 94 3000K >80
30°
70x66 700
0171.999.99.5 LMR 70mm Bracket with Screw and Nut
0172.999.99.5 LMR 70mm Ring Aluminium
0107.999.99.0
LMR 70 LED Driver -INCL. 1.5mtr Cable and Plug
700
0120.999.99.0 LM R 70 Driver 17 Dimmable 1/10v
108x53x33
700 DIM
0121.999.99.0
LMR 70 Driver 15 Dimmable phase-cutting
109x53x33
700 DIM
More dimmable driver chapter 10
For all pages the mark :
* will mean that there are different options available for the HID, C-FL, MR16, etc. lamps , please contact us for more inf ormation.
» = ONLY BODY OF LUMINAIRE, WITHOUT LAMP AND GEAR.
∆ = Color: you must choose one of the color numbers when you order one of our Keylight products.
Make attention to the f ollow, we have the possibility to make "specials" for you. New products on request and standard products in different sizes!
32
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 34
STAND OUT FROM THE CROWD.
Page 35
RECESSED SQUARE
CAP S1
PAGE 38
UTAH 18
PAGE 39
THUNDER 2
PAGE 41
CAP S2
PAGE 38
POXY 1
PAGE 40
THUNDER 3
PAGE 42
IYON S
PAGE 38
POXY 2
PAGE 40
LUXX 1
PAGE 42
ORION 10
PAGE 39
POXY 3
PAGE 40
LUXX 2
PAGE 42
ORION 11
PAGE 39
POXY 4
PAGE 41
LUXX 3
PAGE 43
UTAH 14
PAGE 39
THUNDER 1
PAGE 41
CYBER 1
PAGE 43
34
CYBER 2
PAGE 43
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
NOX S18
PAGE 44
PROFILE R
PAGE 44
NORFOLK LED
PAGE 45
BODY 30 LED
PAGE 45
CLEAN ROOM 120
PAGE 45
Page 36
RECESSED SQUARE
CLEAN ROOM 60
PAGE 45
SOLID 22
PAGE 47
VEGAS 1
PAGE 49
SINE 20
PAGE 46
SOLID 24
PAGE 47
VEGAS 2
PAGE 49
SINE 40
PAGE 46
SOLID 26
PAGE 47
VEGAS 3
PAGE 49 PAGE 50
TOTAL 18
PAGE 46
BODY 20
PAGE 48
DALLAS 1
TOTAL 22
PAGE 46
BODY 30
PAGE 48
DALLAS 2
PAGE 50
SOLID 18
PAGE 47
NORFOLK
PAGE 48
DALLAS 3
PAGE 50
DALLAS 4
PAGE 50
DALLAS OUT 1
PAGE 51
DALLAS OUT 2
PAGE 51
TAMPA 1
PAGE 51
TAMPA 2
PAGE 51
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
KARDA 1
PAGE 52
35
Page 37
RECESSED SQUARE
KARDA 2
PAGE 52
SQUARE 1
PAGE 54
TRIMLESS 10
PAGE 56
KARDA 3
PAGE 52
SQUARE 2
PAGE 54
TRIMLESS 20
PAGE 56
KARDA 2C
PAGE 52
SQUARE 15
PAGE 55
TRIMLESS 17
PAGE 57
KARDA 3C
PAGE 53
SQUARE 30
PAGE 55
TRIMLESS 34
PAGE 57
OUT 12
PAGE 53
TRIMLESS 8
PAGE 55
QUASAR 10-1
PAGE 58
OUT 16
PAGE 53
TRIMLESS 16
PAGE 56
QUASAR 10-2
PAGE 58
36
QUASAR 12-1
PAGE 58
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
QUASAR 19-1
PAGE 59
QUASAR 19-2
PAGE 59
QUASAR 20-1
PAGE 59
QUASAR 20-2
PAGE 59
BASIC 13
PAGE 60
Page 38
RECESSED SQUARE
BASIC 17
PAGE 60
CABINET S
PAGE 62
NITRO 10
PAGE 61
INSERT 60
PAGE 63
NITRO 13
PAGE 61
INSERT 120
PAGE 63
NITRO 18
PAGE 61
LMR 50
PAGE 64
DLK 19
PAGE 62
LMR 70
PAGE 64
DLK 23
PAGE 62
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
37
Page 39
Pricelist 2013 RECESSED SQUARE
CAP S1
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
f
4501.990.28.∆ BXRA Bridgelux 600 6,6W 86 3000K >80 28° 105x105x70
95
A / D+
0110.999.99.0 Driver Dim 1/10v 15W 110x52x22
0111.999.99.0 Driver Dim phase-cutting 15W 110x52x23
CAP S2
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
4208.990.28.∆ BXRA Bridgelux 2x600 2x6,6W 86 3000k >80 28° 208x105x70 95-1 03 A / D+
0110.999.99.0 Driver Dim 1/10v 15W 110x52x22
0111.999.99.0 Driver Dim phase-cutting 15W 110x52x23
IYON S
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Ref lector Size Hole Ø Options
4215.990.30.9
XPE Cree 390 3X2.4W 55 3000K >80
30°
90x90x55 80
A / D+
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, 9= ALU BRUSH , A = Adjustable , D+ = Including driver + cable and plug standard
38
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 40
ORION 10
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Reflector Size Hole Ø Options
4001.144.85.∆ DISK Philips 300 8W 38 2700k >80 36° 100x100x62 90x90 C / DL / *
ORION 11
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Reflector Size Hole Ø Options
4001.141.85.∆ DISK G3 Philips 800 12W 68 2700k >80 85º 110x110x105 100x100 C / DL / *
4001.142.85.∆ DISK G3 Philips 800 12W 68 3000k >80 85º 110x110x105 100x100 C / DL / *
4001.143.85.∆ DISK G3 Philips 850 12W 78 4000k >80 85º 110x110x105 100x100 C / DL / *
UTAH 14
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Reflector Size Hole Ø Options
4144.146.80.∆ Twistable G3 Philips 1100 16W 72 3000k >80 80º 143x143x132 126x126 C / IP / DL
4144.147.80.∆ Twistable G3 Philips 1100 15W 78 4000k >80 80º 143x143x132 126x126 C / IP / DL
4144.148.80.∆ Twistable G3 Philips 2000 30W 71 3000k >80 80º 143x143x132 126x126 C / IP / DL
4144.149.80.∆ Twistable G3 Philips 2000 28W 74 4000k >80 80º 143x143x132 126x126 C / IP / DL
UTAH 18
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Reflector Size Hole Ø Options
4085.146.80.∆ Twistable G3 Philips 1100 16W 72 3000k >80 80º 185x185x172 168x168 C / IP / DL
4085.147.80.∆ Twistable G3 Philips 1100 15W 78 4000k >80 80º 185x185x172 168x168 C / IP / DL
4085.148.80.∆ Twistable G3 Philips 2000 30W 71 3000k >80 80º 185x185x172 168x168 C / IP / DL
4085.149.80.∆ Twistable G3 Philips 2000 28W 74 4000k >80 80º 185x185x172 168x168 C / IP / DL
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 ALU= 6 , C = Available in all RAL colours on request additional price + 10% , DL = Standard Dimmable leading edge.
IP = Optional IP 44 ring with glass, price on request. , Light source Fortimo DISK lifetime 25000 hrs.- Twis table lifetime 50000 hrs. System 3 year warran ty.
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
39
Page 41
POXY 1
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
4158.114.30.∆ SLM G3 Philips 2000 19W 105 3000k >80 30º 158x158x130 140x140 C/ A/ D/ E/ ¤
4158.116.30.∆ SLM G3 Philips 2000 18W 114 4000k >80 30º 158x158x130 140x140 C/ A/ D/ E/ ¤
4158.120.30.∆ SLM G3 Philips 2000 23W 89 3000k >90 30º 158x158x130 140x140 C/ A/ D/ E/ ¤
4158.117.30.∆ SLM G3 Philips 3000 28W 107 3000k >80 30º 158x158x130 140x140 C/ A/ D/ E/ ¤
4158.119.30.∆ SLM G3 Philips 3000 26W 115 4000k >80 30º 158x158x130 140x140 C/ A/ D/ E/ ¤
4158.121.30.∆ SLM G3 Philips 3000 33W 91 3000k >90 30º 158x158x130 140x140 C/ A/ D/ E/ ¤
POXY 2
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
4275.114.30.∆ SLM G3 Philips 2x2000 2x19W 105 3000k >80 30º 275x158x130 245x140 C/ A/ D/ E/ ¤
4275.116.30.∆ SLM G3 Philips 2x2000 2x18W 114 4000k >80 30º 275x158x130 245x140 C/ A/ D/ E/ ¤
4275.120.30.∆ SLM G3 Philips 2x2000 2x23W 89 3000k >90 30º 275x158x130 245x140 C/ A/ D/ E/ ¤
4275.117.30.∆ SLM G3 Philips 2x3000 2x28W 107 3000k >80 30º 275x158x130 245x140 C/ A/ D/ E/ ¤
4275.119.30.∆ SLM G3 Philips 2x3000 2x26W 115 4000k >80 30º 275x158x130 245x140 C/ A/ D/ E/ ¤
4275.121.30.∆ SLM G3 Philips 2x3000 2x33W 91 3000k >90 30º 275x158x130 245x140 C/ A/ D/ E/ ¤
POXY 3
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
4330.114.30.∆ SLM G3 Philips 3x2000 3x19W 105 3000k >80 30º 392x158x130 375x140 C/ A/ D/ E/ ¤
4330.116.30.∆ SLM G3 Philips 3x2000 3x18W 114 4000k >80 30º 392x158x130 375x140 C/ A/ D/ E/ ¤
4330.120.30.∆ SLM G3 Philips 3x2000 3x23W 89 3000k >90 30º 392x158x130 375x140 C/ A/ D/ E/ ¤
4330.117.30.∆ SLM G3 Philips 3x3000 3x28W 107 3000k >80 30º 392x158x130 375x140 C/ A/ D/ E/ ¤
4330.119.30.∆ SLM G3 Philips 3x3000 3x26W 115 4000k >80 30º 392x158x130 375x140 C/ A/ D/ E/ ¤
4330.121.30.∆ SLM G3 Philips 3x3000 3x33W 91 3000k >90 30º 392x158x130 375x140 C/ A/ D/ E/ ¤
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 ALU= 6 , C = Available in all RAL colours on request additional price + 10% , D = Dimmable or Dali on request , A = Adjustable
Light source Fortimo SLM lifetime 50000 hrs , Standard Xitanium Driver 5 years system warranty , E = Emergency ballast 1,3 hour , additional price € 215,- ¤ = reflector 30 or 45 Dgr.
40
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 42
POXY 4
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Ref lector Size Hole Ø Options
4572.114.30.∆ SLM G3 Philips 4x2000 4x19W 105 3000k >80 30º 275x275x130 255x255 C/ A/ D/ E/ ¤
4572.116.30.∆ SLM G3 Philips 4x2000 4x18W 114 4000k >80 30º 275x275x130 255x255 C/ A/ D/ E/ ¤
4572.120.30.∆ SLM G3 Philips 4x2000 4x23W 89 3000k >90 30º 275x275x130 255x255 C/ A/ D/ E/ ¤
4572.117.30.∆ SLM G3 Philips 4x3000 4x28W 107 3000k >80 30º 275x275x130 255x255 C/ A/ D/ E/ ¤
4572.119.30.∆ SLM G3 Philips 4x3000 4x26W 115 4000k >80 30º 275x275x130 255x255 C/ A/ D/ E/ ¤
4572.121.30.∆ SLM G3 Philips 4x3000 4x33W 91 3000k >90 30º 275x275x130 255x255 C/ A/ D/ E/ ¤
THUNDER 1
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Ref lector Size Hole Ø Options
Passive cooling
4391.114.24.# SLM G3 Philips 2000 19W 105 3000k >80 24° 163x163x135 140x14 0 A / ¤ / D / E
4391.116.24.# SLM G3 Philips 2000 18W 114 4000k >80 24° 163x163x135 140x14 0 A / ¤ / D / E
4391.120.24.# SLM G3 Philips 2000 23W 89 3000k >90 24° 163x163x135 140x140 A / ¤ / D / E
4391.117.24.# SLM G3 Philips 3000 28W 107 3000k >80 24° 163x163x135 140x14 0 A / ¤ / D / E
4391.119.24.# SLM G3 Philips 3000 26W 115 4000k >80 24° 163x163x135 140x14 0 A / ¤ / D / E
4391.121.24.# SLM G3 Philips 3000 33W 91 3000k >90 24° 163x163x135 140x140 A / ¤ / D / E
THUNDER 2
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Ref lector Size Hole Ø Options
Passive cooling
4392.114.24.# SLM G3 Philips 2x2000 2x19W 105 3000k >80 24° 326x163x135 31 0x140 A / ¤ / D / E
4392.116.24.# SLM G3 Philips 2x2000 2x18W 114 4000k >80 24° 326x163x135 31 0x140 A / ¤ / D / E
4392.120.24.# SLM G3 Philips 2x2000 2x23W 89 3000k >90 24° 326x163x135 310x140 A / ¤ / D / E
4392.117.24.# SLM G3 Philips 2x3000 2x28W 107 3000k >80 24° 326x163x135 31 0x140 A / ¤ / D / E
4392.119.24.# SLM G3 Philips 2x3000 2x26W 115 4000k >80 24° 326x163x135 31 0x140 A / ¤ / D / E
4392.121.24.# SLM G3 Philips 2x3000 2x33W 91 3000k >90 24° 326x163x135 310x140 A / ¤ / D / E
* Options
# = Textured paint, Color: 33 = RAL 9003 WHITE, 55 = RAL 9005 BLACK, 66 = RAL 9006 Alu , ∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 ALU= 6
C = Available in all R AL colours on request additional price + 10% , D = Dimmable or Dali on request. , A = Adjustable
Light source Fortimo SLM lifetime 50000 hrs , Standard Xitanium Driver 5 years system warranty E = Emergency ballast 1,3 hour, additional price € 215,- , ¤ = Reflector 16 or 36 DGR.
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
41
Page 43
THUNDER 3
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Ref lector Size Hole Ø Options
Passive cooling
4393.114.24.# SLM G3 Philips 3x2000 3x19W 105 3000k >80 24° 489x163x135 47 0x140 A / ¤ / D / E
4393.116.24.# SLM G3 Philips 3x2000 3x18W 114 4000k >80 24° 489x163x135 47 0x140 A / ¤ / D / E
4393.120.24.# SLM G3 Philips 3x2000 3x23W 89 3000k >90 24° 489x163x135 470x140 A / ¤ / D / E
4393.117.24.# SLM G3 Philips 3x3000 3x28W 107 3000k >80 24° 489x163x135 47 0x140 A / ¤ / D / E
4393.119.24.# SLM G3 Philips 3x3000 3x26W 115 4000k >80 24° 489x163x135 47 0x140 A / ¤ / D / E
4393.121.24.# SLM G3 Philips 3x3000 3x33W 91 3000k >90 24° 489x163x135 470x140 A / ¤ / D / E
LUXX 1
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Ref lector Size Hole Ø Options
Passive cooling
4394.114.24.# SLM G3 Philips 2000 19W 105 3000k >80 24° 190x200x145 170x16 3 A / ¤ / D / E
4394.116.24.# SLM G3 Philips 2000 18W 114 4000k >80 24° 190x200x145 170x16 3 A / ¤ / D / E
4394.120.24.# SLM G3 Philips 2000 23W 89 3000k >90 24° 190x200x145 170x163 A / ¤ / D / E
4394.117.24.# SLM G3 Philips 3000 28W 107 3000k >80 24° 190x200x145 170x16 3 A / ¤ / D / E
4394.119.24.# SLM G3 Philips 3000 26W 115 4000k >80 24° 190x200x145 170x16 3 A / ¤ / D / E
4394.121.24.# SLM G3 Philips 3000 33W 91 3000k >90 24° 190x200x145 170x163 A / ¤ / D / E
LUXX 2
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Ref lector Size Hole Ø Options
Passive cooling
4395.114.24.# SLM G3 Philips 2x2000 2x19W 105 3000k >80 24° 380x200x145 36 0x170 A / ¤ / D / E
4395.116.24.# SLM G3 Philips 2x2000 2x18W 114 4000k >80 24° 380x200x145 36 0x170 A / ¤ / D / E
4395.120.24.# SLM G3 Philips 2x2000 2x23W 89 3000k >90 24° 380x200x145 360x170 A / ¤ / D / E
4395.117.24.# SLM G3 Philips 2x3000 2x28W 107 3000k >80 24° 380x200x145 36 0x170 A / ¤ / D / E
4395.119.24.# SLM G3 Philips 2x3000 2x26W 115 4000k >80 24° 380x200x145 36 0x170 A / ¤ / D / E
4395.121.24.# SLM G3 Philips 2x3000 2x33W 91 3000k >90 24° 380x200x145 360x170 A / ¤ / D / E
* Options
# = Textured paint, Color: 33 = RAL 9003 WHITE, 55 = RAL 9005 BLACK, 66 = RAL 9006 Alu , A = Adjustable , ¤ = Reflector 16 or 36 Dgr. , D = Dimmable or Dali on request
Light source Fortimo SLM lifetime 50000 hrs , Standard Xitanium Driver 5 years system , E = Emergency ballast DLM-SLM1,3 hour, additional price € 215,-
42
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 44
LUXX 3
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
Passive cooling
4396.114.24.# SLM G3 Philips 3x2000 3x19W 105 3000k >80 24° 570x200x145 55 0x170 A / ¤ / D / E
4396.116.24.# SLM G3 Philips 3x2000 3x18W 114 4000k >80 24° 570x200x145 55 0x170 A / ¤ / D / E
4396.120.24.# SLM G3 Philips 3x2000 3x23W 89 3000k >90 24° 570x200x145 550x170 A / ¤ / D / E
4396.117.24.# SLM G3 Philips 3x3000 3x28W 107 3000k >80 24° 570x200x145 55 0x170 A / ¤ / D / E
4396.119.24.# SLM G3 Philips 3x3000 3x26W 115 4000k >80 24° 570x200x145 55 0x170 A / ¤ / D / E
4396.121.24.# SLM G3 Philips 3x3000 3x33W 91 3000k >90 24° 570x200x145 550x170 A / ¤ / D / E
CYBER 1
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
Passive cooling
4215.103.60.∆ DLM G4 Philips 2000 22W 91 3000K >80 60° 215x215x182 190x19 0 A / C / D / E
4215.104.60.∆ DLM G4 Philips 2000 20W 100 4000K >80 60° 215x215x182 190x1 90 A / C / D / E
4215.105.60.∆ DLM G4 Philips 3000 34W 88 3000K >80 60° 215x215x182 190x19 0 A / C / D / E
4215.106.60.∆ DLM G4 Philips 3000 32W 94 4000K >80 60° 215x215x182 190x190 A / C / D / E
4215.131.60.∆ DLM FOOD Philips 1800 35W 53 3000K 60° 215x215x182 190x190 A / C / D / E
4215.132.60.∆ DLM FOOD Philips 2000 36W 55 4000K 60° 215x215x182 190x190 A / C / D / E
4215.133.60.∆ DLM FOOD Philips 2700 43W 65 3000K 60° 215x215x182 190x190 A / C / D / E
4215.134.60.∆ DLM FOOD Philips 2700 41W 75 4000K 60° 215x215x182 190x190 A / C / D / E
CYBER 2
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
Passive cooling
4405.103.60.∆ DLM G4 Philips 2x2000 2x22W 91 3000K >80 60° 405x215x182 37 5x190 A / C / D / E
4405.104.60.∆ DLM G4 Philips 2x2000 2x20W 100 4000K >80 60° 405x215x182 3 75x190 A / C / D / E
4405.105.60.∆ DLM G4 Philips 2x3000 2x34W 88 3000K >80 60° 405x215x182 37 5x190 A / C / D / E
4405.106.60.∆ DLM G4 Philips 2x3000 2x32W 94 4000K >80 60° 405x215x182 375 x190 A / C / D / E
4405.131.60.∆ DLM FOOD Philips 2x1800 2x35W 53 3000K 60° 405x215x182 375x 190 A / C / D / E
4405.132.60.∆ DLM FOOD Philips 2x2000 2x36W 55 4000K 60° 405x215x182 375x 190 A / C / D / E
4405.133.60.∆ DLM FOOD Philips 2x2700 2x43W 65 3000K 60° 405x215x182 375x 190 A / C / D / E
4405.134.60.∆ DLM FOOD Philips 2x2700 2x41W 75 4000K 60° 405x215x182 375x 190 A / C / D / E
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 ALU= 6 , C = Available in all RAL colours on request additional price + 10% , A = Adjustable , D= Touch Dali on request.
Light source Fortimo DLM lifetime 50000 hrs , Standard Xitanium Driver 5 years system warranty , E = Emergency ballast DLM-SLM1,3 hour, additional price € 215,- , ¤ = Reflector 16 or 36 Dgr.
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
43
Page 45
NOX S18
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
Passive cooling
4405.101.80.∆ DLM G4 Philips 1100 12W 94 3000K >80 80° 185x185x175. 168x1 68. C / D / E / IP
4405.102.80.∆ DLM G4 Philips 1100 11W 103 4000K >80 80° 185x185x175. 168x 168. C / D / E / IP
4405.103.80.∆ DLM G4 Philips 2000 22W 91 3000K >80 80° 185x185x175. 168x1 68. C / D / E / IP
4405.104.80.∆ DLM G4 Philips 2000 20W 100 4000K >80 80° 185x185x175. 168x 168. C / D / E / IP
4405.105.80.∆ DLM G4 Philips 3000 34W 88 3000K >80 80° 185x185x175. 168x1 68. C / D / E / IP
4405.106.80.∆ DLM G4 Philips 3000 32W 94 4000K >80 80° 185x185x175. 168x16 8. C / D / E / IP
4405.131.80.∆ DLM FOOD Philips 1800 35W 53 3000K >75 80° 185x185x175. 168x 168. C / D / E / IP
4405.132.80.∆ DLM FOOD Philips 2000 36W 55 4000K >75 80° 185x185x175. 168x 168. C / D / E / IP
4405.133.80.∆ DLM FOOD Philips 2700 43W 65 3000K >75 80° 185x185x175. 168x 168. C / D / E / IP
4405.134.80.∆ DLM FOOD Philips 2700 41W 75 4000K >75 80° 185x185x175. 168x 168. C / D / E / IP
4405.128.80.∆ DLM Lexel Philips 1100 24W 30 2700/6500 >80 80° 185x185x175 . 168x168. C / IP / *
4405.129.80.∆ DLM Lexel Philips 2000 40W 38 2700/6500 >80 80° 185x185x175 . 168x168. C / IP / *
PROFILE R8 LED
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Reflector Size Hole Ø Options
9580.197.99.∆ Ledline Philips 2200 18W 120 3000k >80 O/A 595x78x86 580x64x86 C / D / L
9580.198.99.∆ Ledline Philips 2200 18W 120 4000k >80 O/A 595x78x86 580x64x86 C / D / L
9114.197.99.∆ Ledline Philips 4400 36W 120 3000k >80 O/A 1155x78x86 1140x64x86 C / D / L
9114.198.99.∆ Ledline Philips 4400 36W 120 4000k >80 O/A 1155x78x86 1140x64x86 C / D / L
9170.197.99.∆ Ledline Philips 6600 54W 120 3000k
>80
O/A 1715x78x86 1700x64x86 C / D / L
9170.198.99.∆ Ledline Philips 6600 54W 120 4000k
>80
O/A 1715x78x86 1700x64x86 C / D / L
9226197.99.∆ Ledline Philips 8800 73W 120 3000k
>80
O/A 2275x78x86 2260x64x86 C / D / L
9226198.99.∆ Ledline Philips 8800 73W 120 4000k
>80
O/A 2275x78x86 2260x64x86 C / D / L
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 ALU= 6 , C = Available in all RAL colours on request additional price + 10% , *= Standard DMX controlled touch DALI
E = Emergency ballast DLM 1,3 hour, additional price € 215,- , D = Dimmable or Dali on request. , O-A = Opal or Acrylic diffuser on request , IP = Optional IP 44 ring with glass, price on request.
Light source Fortimo DLM , Ledline lifetime 50000 hrs, 5 year warranty , Standard Xitanium Driver, L = This luminare can be connected in long lines, we prepear e it in different lengths on request.
44
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 46
NORFOLK LED
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Reflector Size Hole Ø Options
4495.197.91.∆ Ledline Philips 8800 73W 120 3000k >80 Opal 594x594x120 585x585 C
4495.198.91.∆ Ledline Philips 8800 73W 120 4000k >80 Opal 594x594x120 585x585 C
BODY 30 LED
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Reflector Size Hole Ø Options
4404.181.91.∆ Led plate Osram 1350 16W 84 3000k >80 Opal 298x298x70 267x267 C
4404.182.91.∆ Led plate Osram 1900 23W 83 3000k >80 Opal 298x298x70 267x267 C
4404.183.91.∆ Led plate Osram 2500 33W 76 3000k >80 Opal 298x298x70 267x267 C
4404.184.91.∆ Led plate Osram 1400 16W 87 4000k >80 Opal 298x298x70 267x267 C
4404.185.91.∆ Led plate Osram 2000 23W 87 4000k >80 Opal 298x298x70 267x267 C
4404.186.91.∆ Led plate Osram 2600 33W 79 4000k >80 Opal 298x298x70 267x267 C
CLEAN ROOM 120
Article No. Product Image Lamp type Brand Lumen Wattage L/W C olour temp. CRI Reflector Size Hole Ø Options
CLEAN ROOM IP 65
8196.193.91.∆ Ledline Philips 5000 48W 106 3000K >80 Opal 1196x296x107 280x1180 C / IP65
8196.194.91.∆ Ledline Philips 5000 48W 106 4000K >80 Opal 1196x296x107 280x1180 C / IP65
CLEAN ROOM 60
Article No. Product Image Lamp type Brand Lumen Wattage L/W C olour temp. CRI Reflector Size Hole Ø Options
CLEAN ROOM IP 65
8596.195.91.∆ Ledline Philips 3900 30W 128 3000K >80 Opal 596x596x107 580x580 C / IP65
8596.196.91.∆ Ledline Philips 3900 30W 128 4000K >80 Opal 596x596x107 580x580 C / IP65
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 ALU= 6 , C = Available in all RAL colours on request additional price + 10% , D = DALI dimmable on r equest
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
45
Page 47
SINE 20
Article No. Product Image Lamp type Soc ket W attage L/W Colour temp. CR I Ref lector Size Hole Ø Options
4212.402.60.∆ C-FL G24q-2 EVG 1X18W * * * 60° 212x212x105 200x200 C
4212.415.60.∆ C-FL MULTI EVG 1X26 - 42W * * * 60° 212x212x105 200x200 C
SINE 40
Article No. Product Image Lamp type Soc ket W attage L/W Colour temp. CR I Ref lector Size Hole Ø Options
4222.402.60.∆ C-FL G24q-2 EVG 2X18W * * * 60° 405x212x105 385x190 C
4223.415.60.∆ C-FL MULTI EVG 2X26 - 42W * * * 60° 405x212x105 385x190 C
TOTAL 18
Article No. Product Image Lamp type Soc ket W attage L/W Colour temp. CR I Glass S ize Hole Ø Options
4301.401.97.∆ C-FL G24Q-1 EVG 1X13W * * * Satin 185x185x83 165 C
4301.402.97.∆ C-FL G24Q-2 EVG 1X18W * * * Satin 185x185x83 165 C
4302.401.97.∆ C-FL G24Q-1 EVG 2X13W * * * Satin 185x185x83 165 C
4302.402.97.∆ C-FL G24Q-2 EVG 2X18W * * * Satin 185x185x83 165 C
TOTAL 22
Article No. Product Image Lamp type Soc ket W attage L/W Colour temp. CR I Glass S ize Hole Ø Options
4303.401.97.∆ C-FL G24Q-1 EVG 1X13W * * * Satin 220x220x84 205 C
4303.402.97.∆ C-FL G24Q-2 EVG 1X18W * * * Satin 220x220x84 205 C
4304.401.97.∆ C-FL G24Q-1 EVG 2X13W * * * Satin 220x220x84 205 C
4304.402.97.∆ C-FL G24Q-2 EVG 2X18W * * * Satin 220x220x84 205 C
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 ALU= 6 , Additional price 2 x Wieland € 6,30 , C = Available in all RAL colours on request additional price + 10%
Always include EVG -ballast and without C-FL lamp.
46
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 48
SOLID 18
Article No. Product Image Lamp type Soc ket W attage L/W Colour temp. CR I Ref lector Size Hole Ø Options
4305.401.98.3 C-FL G24Q-1 EVG 1X13W * * * G-F 185x185x160 160x160 C / E / D
4305.402.98.3 C-FL G24Q-2 EVG 1X18W * * * G-F 185x185x160 160x160 C / E / D
4305.403.98.3 C-FL G24Q-3 EVG 1X26W * * * G-F 185x185x160 160x160 C / E / D
SOLID 22
Article No. Product Image Lamp type Soc ket W attage L/W Colour temp. CR I Reflec tor! Size Hole Ø Options
4306.401.98.3 C-FL G24Q-1 EVG 1X13W * * * G-F 215x215x184 195x195 C / E / D / IP
4306.402.98.3 C-FL G24Q-2 EVG 1X18W * * * G-F 215x215x184 195x195 C / E / D / IP
4366.401.98.3 C-FL G24Q-1 EVG 2X13W * * * G-F 215x215x184 195x195 C / E / D / IP
4366.403.98.3 C-FL G24Q-2 EVG 2X18W * * * G-F 215x215x184 195x195 C / E / D / IP
SOLID 24
Article No. Product Image Lamp type Soc ket W attage L/W Colour temp. CR I Ref lector Size Hole Ø Options
4307.402.98.3 C-FL G24Q-2 EVG 1X18W * * * G-F 238x238x148 210x210 C / E / D / IP
4307.415.98.3 C-FL MULTI EVG 1X26 - 42W * * * G-F 238x238x148 210x210 C / E / D / IP
4377.402.98.3 C-FL G24Q-2 EVG 2X18W * * * G-F 238x238x148 210x210 C / E / D / IP
4377.403.98.3 C-FL G24Q-3 EVG 2X26W * * * G-F 238x238x148 210x210 C / E / D / IP
SOLID 26
Article No. Product Image Lamp type Soc ket W attage L/W Colour temp. CR I Ref lector Size Hole Ø Options
4308.403.98.3 C-FL G24Q-1 EVG 2X13W * * * G-F 255x255x200 235x235 C / E / D / IP
4308.402.98.3 C-FL G24Q-2 EVG 2X18W * * * G-F 255x255x200 235x235 C / E / D / IP
4308.415.98.3 C-FL MULTI EVG 1X26 - 42W * * * G-F 255x255x200 235x235 C / E / D / IP
* Options
Color: Ral 9003 W HITE=3 , G = Glossy reflec tor F = facetted reflec tor , E = Emergency, price on request , D = Dimmable or Dali on request, IP= IP 20 Glass or IP 44 Glass mat or c lear.
C = Available in all RAL colours on request additional price + 10% , Additional costs 2 x Wieland € 6,30 , Always include EVG -ballast and without C-FL lamp.
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
47
Page 49
BODY 20
Article No. Product Image Lamp type Soc ket W attage L/W Colour temp. CRI Ref lector Size Hole Ø O ptions
4401.401.91.∆ C-FL G24Q-1 EVG 2X13W * * * Opal 210x210x93 192x185 C
4401.402.91.∆ C-FL G24Q-2 EVG 2X18W * * * Opal 210x210x93 192x185 C
4401.415.91.∆ C-FL MULTI EVG 1X26 - 42W * * * Opal 210x210x93 192x185 C
BODY 30
Article No. Product Image Lamp type Soc ket W attage L/W Colour temp. CRI Ref lector Size Hole Ø O ptions
4402.402.91.∆ C-FL G24Q-2 EVG 2X18W * * * Opal 298x298x110 267x267 C
4402.415.91.∆ C-FL MULTI EVG 1X26 - 42W * * * Opal 298x298x110 267x267 C
NORFOLK
Article No. Product Image Lamp type Soc ket W attage L/W Colour temp. CRI Ref lector Size Hole Ø O ptions
4494.408.99.∆ TL-5 G5 EVG 4X13W * * * Opal 594x594x146 585x585 C
4495.408.99.∆ TL-5 G5 EVG 4X14W * * * Opal 594x594x146 585x585 C
4496.408.99.∆ TL-5 G5 EVG 4X24W * * * Opal 594x594x146 585x585 C
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 ALU= 6 , C = Available in all RAL colours on request additional price + 10% , Additional price 2 x Wieland € 6,30
Always include EVG -ballast and without C-FL lamp.
48
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 50
VEGAS 1
Article No. Product Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
4501.219.30.∆ CDM-TC G8,5 * 20W * * * 30° 186x176x167 169x160 C / A
4501.222.30.∆ CDM-TC G8,5 * 35W * * * 30° 186x176x167 169x160 C / A
4501.225.30.∆ CDM-TC G8,5 * 50W * * * 30° 186x176x167 169x160 C / A
4501.227.30.∆ CDM-TC G8,5 * 70W * * * 30° 186x176x167 169x160 C / A
VEGAS 2
Article No. Product Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
4502.219.30.∆ CDM-TC G8,5 * 2x20W * * * 30° 344x178x175 327x160 C / A
4502.223.30.∆ CDM-TC G8,5 * 2x35W * * * 30° 344x178x175 327x160 C / A
4502.225.30.∆ CDM-TC G8,5 * 2x50W * * * 30° 344x178x175 327x160 C / A
4502.228.30.∆ CDM-TC G8,5 * 2x70W * * * 30° 344x178x175 327x160 C / A
VEGAS 3
Article No. Product Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
4503.219.30.∆ CDM-TC G8,5 * 3x20W * * * 30° 492x178x181 475x160 C / A
4503.222.30.∆ CDM-TC G8,5 * 3x35W * * * 30° 492x178x181 475x160 C / A
4503.225.30.∆ CDM-TC G8,5 * 3x50W * * * 30° 492x178x181 475x160 C / A
4503.227.30.∆ CDM-TC G8,5 * 3x70W * * * 30° 492x178x181 475x160 C / A
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 ALU= 6 , C = Available in all RAL colours on request additional price + 10% , A = Recessed adjustable luminaire
Always include a E-ballast incl. cable, plug, (connection cable) and without HID lamp , * There are different options available for the CDM-Tc lamps , please contact us for more information.
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
49
Page 51
DALLAS 1
Article No. Product Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
4504.202.30.∆ CDM-T G12 * 35W * * * ¤ 214x204x162 179x175 C / S / A
4504.205.30.∆ CDM-T G12 * 50W * * * ¤ 214x204x162 179x175 C / S / A
4504.207.30.∆ CDM-T G12 * 70W * * * ¤ 214x204x162 179x175 C / S / A
4504.210.30.∆ CDM-T G12 * 100W * * * ¤ 214x204x162 179x175 C / S / A
DALLAS 2
Article No. Product Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
4505.203.98.∆ CDM-T G12 * 2x35W * * * ¤ 360x204x165 327x175 C / S / A
4505.205.98.∆ CDM-T G12 * 2x50W * * * ¤ 360x204x165 327x175 C / S / A
4505.208.98.∆ CDM-T G12 * 2x70W * * * ¤ 360x204x165 327x175 C / S / A
4505.210.98.∆ CDM-T G12 * 2x100W * * * ¤ 360x204x165 327x175 C / S / A
DALLAS 3
Article No. Product Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
4506.202.98.∆ CDM-T G12 * 3x35W * * * ¤ 510x204x177 474x175 C / S / A
4506.205.98.∆ CDM-T G12 * 3x50W * * * ¤ 510x204x177 474x175 C / S / A
4506.207.98.∆ CDM-T G12 * 3x70W * * * ¤ 510x204x177 474x175 C / S / A
4506.210.98.∆ CDM-T G12 * 3x100W * * * ¤ 510x204x177 474x175 C / S / A
DALLAS 4
Article No. Product Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
4507.202.98.∆ CDM-T G12 * 4x35W * * * ¤ 357x357x187 325x325 C / S / A
4507.205.98.∆ CDM-T G12 * 4x50W * * * ¤ 357x357x187 325x325 C / S / A
4507.207.98.∆ CDM-T G12 * 4x70W * * * ¤ 357x357x187 325x325 C / S / A
4507.210.98.∆ CDM-T G12 * 4x100W * * * ¤ 357x357x187 325x325 C / S / A
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 ALU= 6 , C = Available in all RAL colours on request additional price + 10% , S = SDW -TG lamp on request
Always include a E-ballast incl. cable, plug, (connection cable) and without HID lamp , * There are different options for the CDM-T, A = Recess ed adjustable luminaire, ¤ = Reflector 15,30,40 or 55 DGR.
50
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 52
DALLAS OUT 1
Article No. Product Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
4508.202.98.∆ CDM-T G12 * 35W * * * ¤ 264x224x182 240x195 C / S / A
4508.205.98.∆ CDM-T G12 * 50W * * * ¤ 264x224x182 240x195 C / S / A
4508.207.98.∆ CDM-T G12 * 70W * * * ¤ 264x224x182 240x195 C / S / A
4508.210.98.∆ CDM-T G12 * 100W * * * ¤ 264x224x182 240x195 C / S / A
DALLAS OUT 2
Article No. Product Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
4509.203.98.∆ CDM-T G12 * 2x35W * * * ¤ 470x224x196 435x195 C / S / A
4509.205.98.∆ CDM-T G12 * 2x50W * * * ¤ 470x224x196 435x195 C / S / A
4509.208.98.∆ CDM-T G12 * 2x70W * * * ¤ 470x224x196 435x195 C / S / A
4509.210.98.∆ CDM-T G12 * 2x100W * * * ¤ 470x224x196 435x195 C / S / A
TAM PA 1
Article No. Product Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
4510.202.98.∆ CDM-T G12 * 35W * * * ¤ 232x232x183 216x216 C / S / A
4510.205.98.∆ CDM-T G12 * 50W * * * ¤ 232x232x183 216x216 C / S / A
4510.207.98.∆ CDM-T G12 * 70W * * * ¤ 232x232x183 216x216 C / S / A
4510.210.98.∆ CDM-T G12 * 100W * * * ¤ 232x232x183 216x216 C / S / A
TAM PA 2
Article No. Product Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
4511.203.98.∆ CDM-T G12 * 2x35W * * * ¤ 449x232x183 430x216 C / S / A
4511.205.98.∆ CDM-T G12 * 2x50W * * * ¤ 449x232x183 430x216 C / S / A
4511.208.98.∆ CDM-T G12 * 2x70W * * * ¤ 449x232x183 430x216 C / S / A
4511.210.98.∆ CDM-T G12 * 2x100W * * * ¤ 449x232x183 430x216 C / S / A
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 ALU= 6 , C = Available in all RAL colours on request additional pric e + 10% , A = Recessed adjustable luminaire
Always include an E-ballast incl. cable, plug, (connection cable) and without HID lamp, * There are different options for the CDM-T lamp, S = SDW-TG lamp on request, ¤ = Reflector 15,30,40 or 55 DGR.
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
51
Page 53
KARDA 1
Article No. Product Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
4512.202.36.∆ CDM-T G12 * 35W * * * 36° 200x200 175x175 A
4512.205.36.∆ CDM-T G12 * 50W * * * 36° 200x200 175x175 A
4512.207.36.∆ CDM-T G12 * 70W * * * 36° 200x200 175x175 A
4513.210.36.∆ CDM-T G12 * 100W * * * 36° 200x200 175x175 A
KARDA 2
Article No. Product Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
4513.203.36.∆ CDM-T G12 * 2x35W * * * 36° 360x200x150 335x175 A
4513.205.36.∆ CDM-T G12 * 2x50W * * * 36° 360x200x150 335x175 A
4513.208.36.∆ CDM-T G12 * 2x70W * * * 36° 360x200x150 335x175 A
4513.210.36.∆ CDM-T G12 * 2x100W * * * 36° 360x200x150 335x175 A
KARDA 3
Article No. Product Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
4514.202.36.∆ CDM-T G12 * 3x35W * * * 36° 520x200x175 500x175 A
4514.205.36.∆ CDM-T G12 * 3x50W * * * 36° 520x200x175 500x175 A
4514.207.36.∆ CDM-T G12 * 3x70W * * * 36° 520x200x175 500x175 A
4514.210.36.∆ CDM-T G12 * 3x100W * * * 36° 520x200x175 500x175 A
KARDA 2C
Article No. Product Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
4515.202.36.6 CDM-T/QR111 1xG12/1xGX53 35W * * * 36° 360x200x150 335x17 5A
4515.205.36.6 CDM-T/QR111 1xG12/1xGX53 50W * * * 36° 360x200x150 335x17 5A
4515.207.36.6 CDM-T/QR111 1xG12/1xGX53 70W * * * 36° 360x200x150 335x17 5A
4515.210.36.6 CDM-T/QR111 1xG12/1xGX53 100W * * * 36° 360x200x150 335x1 75 A
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 ALU= 6 , A = Recessed adjustable luminaire
Always include a E-ballast incl. cable, plug, (connection cable) and without HID lamp. , * There are diff erent options available for the CDM-T lamps
52
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 54
KARDA 3C
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
4516.202.36.6 CDM-T/QR111 1xG12/2xGX53 35W * * * 36° 520x200x175 500x17 5A
4516.205.36.6 CDM-T/QR111 1xG12/2xGX53 50W * * * 36° 520x200x175 500x17 5A
4516.207.36.6 CDM-T/QR111 1xG12/2xGX53 70W * * * 36° 520x200x175 500x17 5A
4516.210.36.6 CDM-T/QR111 1xG12/2xGX53 100W * * * 36° 520x200x175 500x1 75 A
OUT 12
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
4517.261.99.∆ CDM-Rm GX10 * 20W * * * 10°/25°/40° 123x123x190 117x117 A
4517.262.99.∆ CDM-Rm GX10 * 35W * * * 10°/25°/40° 123x123x190 117x117 A
4517.263.99.∆ CDM-Rm GX10 * 50W * * * 10°/25°/40° 123x123x190 117x117 A
OUT 16
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
4518.222.24.∆ CDM-TC G8,5 * 35W * * * 24° 156x156x224 150x150 A
4518.225.24.∆ CDM-TC G8,5 * 50W * * * 24° 156x156x224 150x150 A
4518.227.24.∆ CDM-TC G8,5 * 70W * * * 24° 156x156x224 150x150 A
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 ALU= 6 , A = Recessed adjustable luminaire.
Always include a E-ballast incl. cable, plug, (connection cable) and without HID lamp. , * There are diff erent options available for the CDM lamps
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
53
Page 55
SQUARE 1
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CRI Reflector S ize Hole Ø Options
4520.999.99.∆ MR16 GU5,3 * Max 50W * * * * 122x122x128 105x105 » / A
4520.999.99.∆ GU10 GU10 * Max 50W * * * * 122x122x128 105x105 » / A
4520.241.99.∆ CDM-Rm GX10 * 20W * * * 10°/25°/40° 122x122x128 105x105 A
4520.242.99.∆ CDM-Rm GX10 * 35W * * * 10°/25°/40° 122x122x128 105x105 A
4520.243.99.∆ CDM-Rm GX10 * 50W * * * 10°/25°/40° 122x122x128 105x105 A
4520.171.20.∆ LMR Bridgelux 560 6,6W 79 2700K >80 20° 122x122x128 105x105 A / D
4520.172.30.∆ LMR Bridgelux 560 6,6W 79 2700K >80 30° 122x122x128 105x105 A / D
4520.173.20.∆ LMR Bridgelux 600 6,6W 86 3000K >80 20° 122x122x128 105x105 A / D
4520.174.30.∆ LMR Bridgelux 600 6,6W 86 3000K >80 30° 122x122x128 105x105 A / D
SQUARE 2
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CRI Reflector S ize Hole Ø Options
4521.999.99.∆ MR16 GU5,3 * Max 50W * * * * 196x122x128 178x109 » / A
4521.999.99.∆ GU10 GU10 * Max 50W * * * * 196x122x128 178x109 » / A
4521.241.99.∆ CDM-Rm GX10 * 2x20W * * * 10°/25°/40° 196x122x128 178x109 A
4521.242.99.∆ CDM-Rm GX10 * 2x35W * * * 10°/25°/40° 196x122x128 178x109 A
4521.243.99.∆ CDM-Rm GX10 * 2x50W * * * 10°/25°/40° 196x122x128 178x109 A
4521.171.20.∆ LMR Bridgelux 560 2x6,6W 2x79 2700K >80 20° 196x122x128 178x 109 A / D
4521.172.30.∆ LMR Bridgelux 560 2x6,6W 2x79 2700K >80 30° 196x122x128 178x 109 A / D
4521.173.20.∆ LMR Bridgelux 600 2x6,6W 2x86 3000K >80 20° 196x122x128 178x 109 A / D
4521.174.30.∆ LMR Bridgelux 600 2x6,6W 2x86 3000K >80 30° 196x122x128 178x 109 A / D
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 ALU= 6 , A = Recessed adjustable luminaire , » = ONLY BODY OF LUMINAIRE, W ITHOUT LAMP AND GEAR
Always include a E-ballast incl. cable, plug, (connection cable) and without HID lamp. , LMR led module and LMR driver with cable and plug , D = Dimmable additional price
54
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 56
SQUARE 15
Article No. Product Image Lamp type Socket Lumen Wattage L/W Colour temp. CR I Ref lector Size Hole Ø O ptions
4522.219.24.∆ CDM-TC G8,5 * 20W * * * 24° 160x160x140 150x150 A
4522.222.24.∆ CDM-TC G8,5 * 35W * * * 24° 160x160x140 150x150 A
4522.225.24.∆ CDM-TC G8,5 * 50W * * * 24° 160x160x140 150x150 A
4522.227.24.∆ CDM-TC G8,5 * 70W * * * 24° 160x160x140 150x150 A
SQUARE 30
Article No. Product Image Lamp type Socket Lumen Wattage L/W Colour temp. CR I Ref lector Size Hole Ø O ptions
4523.219.24.∆ CDM-TC G8,5 * 2x20W * * * 24° 300x160x140 285x150 A
4523.223.24.∆ CDM-TC G8,5 * 2x35W * * * 24° 300x160x140 285x150 A
4523.225.24.∆ CDM-TC G8,5 * 2x50W * * * 24° 300x160x140 285x150 A
4523.228.24.∆ CDM-TC G8,5 * 2x70W * * * 24° 300x160x140 285x150 A
Trimless 8
Article No. Product Image Lamp type Socket Lumen Wattage L/W Colour temp. CR I Ref lector Size Hole Ø O ptions
4601.999.99.∆ MR16 GU5,3 * Max 50W * * * * 83x83x112 84x84 » / C / A
4601.999.99.∆ GU10 GU10 * Max 50W * * * * 83x83x112 84x84 » / C / A
4601.241.99.∆ CDM-Rm GX10 * 20W * * * 10°/25°/40° 83x83x112 84x84 C / A
4601.242.99.∆ CDM-Rm GX10 * 35W * * * 10°/25°/40° 83x83x112 84x84 C / A
4601.243.99.∆ CDM-Rm GX10 * 50W * * * 10°/25°/40° 83x83x112 84x84 C / A
4601.171.20.∆ LMR 50 Bridgelux 560 6,6W 79 2700K >80 20° 83x83x112 84x84 C / A / D
4601.172.30.∆ LMR 50 Bridgelux 560 6,6W 79 2700K >80 30° 83x83x112 84x84 C / A / D
4601.173.20.∆ LMR 50 Bridgelux 600 6,6W 86 3000K >80 20° 83x83x112 84x84 C / A / D
4601.174.30.∆ LMR 50 Bridgelux 600 6,6W 86 3000K >80 30° 83x83x112 84x84 C / A / D
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 ALU= 6 , C = Available in all RAL colours on request additional price + 10% , A = Recessed adjustable luminaire , D = Dimmable
Always include a E-ballast incl. cable, plug, (connection cable) and without HID lamp. , LMR incl driver, cable and plug , » = ONLY BODY OF LUMINAIRE, WITHOUT LAMP AND GEAR
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
55
Page 57
Trimless 16
Article No. Product Image Lamp type Socket Lumen W attage L/W C olour temp. CR I Reflector Size Hole Ø Options
4602.999.99.∆ MR16 GU5,3 * Max 50W * * * * 165x83x116 167x86 » / C / A
4602.999.99.∆ GU10 GU10 * Max 50W * * * * 165x83x116 167x86 » / C / A
4602.241.99.∆ CDM-Rm GX10 * 2x20W * * * 10°/25°/40° 165x83x116 167x86 C / A
4602.242.99.∆ CDM-Rm GX10 * 2x35W * * * 10°/25°/40° 165x83x116 167x86 C / A
4602.243.99.∆ CDM-Rm GX10 * 2x50W * * * 10°/25°/40° 165x83x116 167x86 C / A
4602.171.20.∆ LMR 50 Bridgelux 560 2x6,6W 2x79 2700K >80 20° 165x83x116 16 7x86 C / A / D
4602.172.30.∆ LMR 50 Bridgelux 560 2x6,6W 2x79 2700K >80 30° 165x83x116 16 7x86 C / A / D
4602.173.20.∆ LMR 50 Bridgelux 600 2x6,6W 2x86 3000K >80 20° 165x83x116 16 7x86 C / A / D
4602.174.30.∆ LMR 50 Bridgelux 600 2x6,6W 2x86 3000K >80 30° 165x83x116 16 7x86 C / A / D
Trimless 10
Article No. Product Image Lamp type Socket Lumen W attage L/W C olour temp. CR I Reflector Size Hole Ø Options
4604.309.98.∆ QR70 BA15d * max 50W * * * 103x103x80 107x107 » / A
4604.175.20.∆ LMR 70 Bridgelux 1330 15W 89 2700K >80 20° 103x103x80 107x10 7 A / D
4604.176.30.∆ LMR 70 Bridgelux 1330 15W 89 2700K >80 30° 103x103x80 107x10 7 A / D
4604.177.20.∆ LMR 70 Bridgelux 1410 15W 94 3000K >80 20° 103x103x80 107x10 7 A / D
4604.178.30.∆ LMR 70 Bridgelux 1410 15W 94 3000K >80 30° 103x103x80 107x10 7 A / D
Trimless 20
Article No. Product Image Lamp type Socket Lumen W attage L/W C olour temp. CR I Reflector Size Hole Ø Options
4642.309.98.∆ QR70 BA15d * max 50W * * * 209x103x80 212x107 » / A
4642.175.20.∆ LMR 70 Bridgelux 1330 2x15W 2x89 2700K >80 20° 209x103x80 21 2x107 A / D
4642.176.30.∆ LMR 70 Bridgelux 1330 2x15W 2x89 2700K >80 30° 209x103x80 21 2x107 A / D
4642.177.20.∆ LMR 70 Bridgelux 1410 2x15W 2x94 3000K >80 20° 209x103x80 21 2x107 A / D
4642.178.30.∆ LMR 70 Bridgelux 1410 2x15W 2x94 3000K >80 30° 209x103x80 21 2x107 A / D
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 ALU= 6 / C = Available in all RAL colours on request additional price + 10% / A = Recessed adjustable luminaire
Always include a E-ballast incl. cable, plug, (connection cable) and without HID lamp. , LMR incl driver, cable and plug , » = ONLY BODY OF LUMINAIRE, WITHOUT LAMP AND GEAR
56
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 58
Trimless 17
Article No. Product Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
4605.202.98.∆ CDM-T G12 * 35W * * * ¤ 162x152x169 163x153 C / A
4605.205.98.∆ CDM-T G12 * 50W * * * ¤ 162x152x169 163x153 C / A
4605.207.98.∆ CDM-T G12 * 70W * * * ¤ 162x152x169 163x153 C / A
4605.210.98.∆ CDM-T G12 * 100W * * * ¤ 162x152x169 163x153 C / A
Trimless 34
Article No. Product Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
4655.203.98.∆ CDM-T G12 * 2x35W * * * ¤ 321x152x182 323x153 C / A
4655.205.98.∆ CDM-T G12 * 2x50W * * * ¤ 321x152x182 323x153 C / A
4655.208.98.∆ CDM-T G12 * 2x70W * * * ¤ 321x152x182 323x153 C / A
4655.210.98.∆ CDM-T G12 * 2x100W * * * ¤ 162x152x169 163x153 C / A
* Options
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
57
Page 59
QUASAR 10-1
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CRI Reflector S ize Hole Ø Options
4906.999.99.∆ MR16 GU5,3 * Max 50W * * * * 100x100x140 Ø89
» /
A
4906.999.99.∆ GU10 GU10 * Max 50W * * * * 100x100x140 Ø89
» /
A
4906.171.20.∆ LMR 50 Bridgelux 560 6,6W 79 2700K >80 20° 100x100x140 Ø89 A / D
4906.172.30.∆ LMR 50 Bridgelux 560 6,6W 79 2700K >80 30° 100x100x140 Ø89 A / D
4906.173.20.∆ LMR 50 Bridgelux 600 6,6W 86 3000K >80 20° 100x100x140 Ø89 A / D
4906.174.30.∆ LMR 50 Bridgelux 600 6,6W 86 3000K >80 30° 100x100x140 Ø89 A / D
QUASAR 10-2
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CRI Reflector S ize Hole Ø Options
4907.999.99.∆ MR16 GU5,3 * Max 50W * * * * 200x100x140 188x85
» /
A
4907.999.99.∆ GU10 GU10 * Max 50W * * * * 200x100x140 188x85
» /
A
4907.171.20.∆ LMR 50 Bridgelux 560 2x6,6W 2x79 2700K >80 20° 200x100x140 1 88x85 A / D
4907.172.30.∆ LMR 50 Bridgelux 560 2x6,6W 2x79 2700K >80 30° 200x100x140 1 88x85 A / D
4907.173.20.∆ LMR 50 Bridgelux 600 2x6,6W 2x86 3000K >80 20° 200x100x140 1 88x85 A / D
4907.174.30.∆ LMR 50 Bridgelux 600 2x6,6W 2x86 3000K >80 30° 200x100x140 1 88x85 A / D
QUASAR 12 - 1
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CRI Reflector S ize Hole Ø Options
4903.309.99.∆ QR70 BA15d * max 50W * * * * 123x123x140 Ø114
» /
A
4903.175.20.∆ LMR 70 Bridgelux 1330 15W 89 2700K >80 20° 123x123x140 Ø114 A / D
4903.176.30.∆ LMR 70 Bridgelux 1330 15W 89 2700K >80 30° 123x123x140 Ø114 A / D
4903.177.20.∆ LMR 70 Bridgelux 1410 15W 94 3000K >80 20° 123x123x140 Ø114 A / D
4903.178.30.∆ LMR 70 Bridgelux 1410 15W 94 3000K >80 30° 123x123x140 Ø114 A / D
* Options
∆ = Color: RAL 9003 WHITE + BLACK=35, RAL 9005 BLACK + BLACK=55, ALU brush + RAL 9005 BLACK=65 , A = Adjustable angle 0-28°, 350° , D = Dimmab le, additional price
» = ONLY BODY OF LUMINAIRE, WITHOUT LAMP AND GEAR
58
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 60
QUASAR 19 - 1
Article No. Product Image Lamp type S ocket Wattage Colour temp. Reflec tor Size H ole Ø Options
4904.999.24.∆ QR111 GX53 * max 50W * 24° 190x190x150 Ø180
» /
A
QUASAR 19 - 2
Article No. Product Image Lamp type S ocket Wattage Colour temp. Reflec tor Size H ole Ø Options
4905.999.90.∆ QR111 GX53 * max 2x50W * 24° 380x190x150 335x165
» /
A
QUASAR 20 -1
Article No. Product Image Lamp type S ocket Lumen W attage L/W Colour temp. CRI Ref lect or S ize Hole Ø Options
4901.219.24.∆ CDM-TC G8,5 * 20W * * * 24° 190x190x190 Ø180 A / ¤
4901.223.24.∆ CDM-TC G8,5 * 35W * * * 24° 190x190x190 Ø180 A / ¤
4901.225.24.∆ CDM-TC G8,5 * 50W * * * 24° 190x190x190 Ø180 A / ¤
4901.228.24.∆ CDM-TC G8,5 * 70W * * * 24° 190x190x190 Ø180 A / ¤
QUASAR 20 - 2
Article No. Product Image Lamp type S ocket Lumen W attage L/W Colour temp. CRI Ref lect or S ize Hole Ø Options
4902.219.24.∆ CDM-TC G8,5 * 20W * * * 24° 380x190x190 335x165 A / ¤
4902.223.24.∆ CDM-TC G8,5 * 35W * * * 24° 380x190x190 335x165 A / ¤
4902.225.24.∆ CDM-TC G8,5 * 50W * * * 24° 380x190x190 335x165 A / ¤
4902.228.24.∆ CDM-TC G8,5 * 70W * * * 24° 380x190x190 335x165 A / ¤
* Options
∆ = Color: RAL 9003 WHITE + BLACK=35, RAL 9005 BLACK + BLACK=55, ALU brush + RAL 9005 BLACK=65 , A = Adjustable angle 0-28°, 350° , D = Dimmable, addi tional price , ¤= reflector 42 Dgr.
Always include a E-ballast incl. cable, plug, (connection cable) and without lamp. , » = ONLY BODY OF LUMINAIRE, WITHOUT LAMP AND GEAR
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
59
Page 61
BASIC 13
Article No. Product Image Lamp type Socket Lumen W attage L/W C olour temp. CRI Reflector Size Hole Ø Options
4908.999.90.∆ MR16 GU5,3 * Max 50W * * * * 130x130x57 118x118 » / A / AS
4908.999.90.∆ GU10 GU10 * Max 50W * * * * 130x130x57 118x118 » / A / AS
4908.241.99.∆ CDM-Rm GX10 * 20W * * * 10°/25°/40° 130x130x57 118x118 A / AS
4908.242.99.∆ CDM-Rm GX10 * 35W * * * 10°/25°/40° 130x130x57 118x118 A / AS
4908.243.99.∆ CDM-Rm GX10 * 50W * * * 10°/25°/40° 130x130x57 118x118 A / AS
4908.171.20.∆ LMR 50 Bridgelux 560 6,6W 79 2700K >80 20° 130x130x57 118x11 8 A / AS / D
4908.172.30.∆ LMR 50 Bridgelux 560 6,6W 79 2700K >80 30° 130x130x57 118x11 8 A / AS / D
4908.173.20.∆ LMR 50 Bridgelux 600 6,6W 86 3000K >80 20° 130x130x57 118x11 8 A / AS / D
4908.174.30.∆ LMR 50 Bridgelux 600 6,6W 86 3000K >80 30° 130x130x57 118x11 8 A / AS / D
BASIC 17
Article No. Product Image Lamp type Socket Lumen W attage L/W C olour temp. CRI Reflector Size Hole Ø Options
4909.999.99.3 QR 70 BA15d * max 50W * * * * 170x170x65 158x158 » / A / AS
4909.175.20.3 LMR 70 Bridgelux 1330 15W 89 2700K >80 20° 170x170x65 158x15 8 A / AS / D
4909.176.30.3 LMR 70 Bridgelux 1330 15W 89 2700K >80 30° 170x170x65 158x15 8 A / AS / D
4909.177.20.3 LMR 70 Bridgelux 1410 15W 94 3000K >80 20° 170x170x65 158x15 8 A / AS / D
4909.178.30.3 LMR 70 Bridgelux 1410 15W 94 3000K >80 30° 170x170x65 158x15 8 A / AS / D
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5
AS = Incl. Assembleplate, make the single unit into a double, triple, etc.,A = Adjustable
Always include a E-ballast incl. cable, plug, (connection cable) and without lamp. , LMR incl driver, cable and plug , » = ONLY BODY OF LUMINARIES, WITHOUT LAMP AND GEAR
60
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 62
NITRO 10
Article No. Product Image Lamp type Soc ket Lumen W attage L/W C olour temp. CR I Reflector Size Hole Ø O ptions
4910.999.99.∆ MR16 GU5,3 * Max 50W * * * * 106x106x145 95x95 » / A / AS
4910.999.99.∆ GU10 GU10 * Max 50W * * * * 106x106x145 95x95 » / A / AS
4910.241.99.∆ CDM-Rm GX10 * 20W * * * 10°/25°/40° 106x106x145 95x95 A / AS
4910.242.99.∆ CDM-Rm GX10 * 35W * * * 10°/25°/40° 106x106x145 95x95 A / AS
4910.243.99.∆ CDM-Rm GX10 * 50W * * * 10°/25°/40° 106x106x145 95x95 A / AS
4910.171.20.∆ LMR 50 Bridgelux 560 6,6W 79 2700K >80 20° 106x106x145 95x95 A / AS / D
4910.172.30.∆ LMR 50 Bridgelux 560 6,6W 79 2700K >80 30° 106x106x145 95x95 A / AS / D
4910.173.20.∆ LMR 50 Bridgelux 600 6,6W 86 3000K >80 20° 106x106x145 95x95 A / AS / D
4910.174.30.∆ LMR 50 Bridgelux 600 6,6W 86 3000K >80 30° 106x106x145 95x95 A / AS / D
NITRO 13
Article No. Product Image Lamp type Soc ket Lumen W attage L/W C olour temp. CR I Reflector Size Hole Ø O ptions
4911.999.99.∆ QR 70 BA15d * max 50W * * * * 130x130x145 120x120 » / A / AS
4911.175.20.∆ LMR 70 Bridgelux 1330 15W 89 2700K >80 20° 130x130x145 120x1 20 A / AS / D
4911.176.30.∆ LMR 70 Bridgelux 1330 15W 89 2700K >80 30° 130x130x145 120x1 20 A / AS / D
4911.177.20.∆ LMR 70 Bridgelux 1410 15W 94 3000K >80 20° 130x130x145 120x1 20 A / AS / D
4911.178.30.∆ LMR 70 Bridgelux 1410 15W 94 3000K >80 30° 130x130x145 120x1 20 A / AS / D
NITRO 18
Article No. Product Image Lamp type Soc ket Lumen W attage L/W C olour temp. CR I Reflector Size Hole Ø O ptions
4525.219.24.Ω CDM-TC G8,5 * 20W * * * 24° 185x185x185 172x172 A / ¤
4525.222.24.Ω CDM-TC G8,5 * 35W * * * 24° 185x185x185 172x172 A / ¤
4525.225.24.Ω CDM-TC G8,5 * 50W * * * 24° 185x185x185 172x172 A / ¤
4525.227.24.Ω CDM-TC G8,5 * 70W * * * 24° 185x185x185 172x172 A / ¤
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 ALU= 6 ,Ω = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, D = Dimmable, additional price , A = Adjustable
AS = Incl. Assemble plate, make the single unit into a double, triple, etc.
» = ONLY BODY OF LUMINAIRE, WITHOUT LAMP AND GEAR , Always include a E-ballast and without an HID lamp or LMR led module and LMR driver with cable and plug.
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
61
Page 63
DLK 19
Article No. Product Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI Reflector Size Hole Options
4701.202.90.∆ CDM-T G12 * 35W * * * Frosterd 190x190x120 160x160
4701.203.90.∆ CDM-T G12 * 50W * * * Frosterd 190x190x120 160x160
4701.207.90.∆ CDM-T G12 * 70W * * * Frosterd 190x190x120 160x160
4702.401.90.∆ C-FL G24q1 EVG 2x13W * * * Frosterd 190x190x120 160x160
4702.402.90.∆ C-FL G24q1 EVG 2x13W * * * Frosterd 190x190x120 160x160
4702.403.90.∆ C-FL G24q1 EVG 2x13W * * * Frosterd 190x190x120 160x160
DLK 23
Article No. Product Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI Reflector Size Hole Options
4703.202.90.∆ CDM-T G12 * 35W * * * Frosterd 230x230x120 210x210
4703.203.90.∆ CDM-T G12 * 50W * * * Frosterd 230x230x120 210x210
4703.207.90.∆ CDM-T G12 * 70W * * * Frosterd 230x230x120 210x210
4704.403.90.7 C-FL G24q3 EVG 2x26W * * * Frosterd 230x230x120 210x210
CABINET S
Article No. Product Image Lamp type Soc ket Lumen W attage L/W Colour temp. CRI Reflector Size Hole Ø Options
4708.306.91.6 Halogen G4 * max 50W * * * Opal 90x30 77x77 »
4708.302.91.6 Halogen GU5,3 * max 50W * * * Opal 90x30 77x77 »
* Options
∆ = Color: WHITE= 3, ALU= 6, NICKEL= 7
» = ONLY BODY OF LUMINAIRE, WITHOUT LAMP AND GEAR , Always include a E-ballast and without HID lamp or C-FL lamp
62
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 64
INSERT 60
Article No. Product Image Lamp type Socket Brand W attage L/W Colour temp. CRI Ref lector Size Options
4766408.99.3 TL-5 G5 Keylight 4X14W * MAT PARABOLIC 595x595x55 W / L
4706408.99.3 TL-5 G5 Philips 4X14W * MAT PARABOLIC 595x595x55 W / L
INSERT 120
Article No. Product Image Lamp type Socket Brand W attage L/W Colour temp. CRI Ref lector Size Options
4712.408.99.3 TL-5 G5 Keylight 2x28W * MAT PARABOLIC 1195x295x55 W / L
* Options
∆ = Color: WHITE=3 , INCL. W = WIELAND , INCL. E VSA and 4X14W TL- 5 830 or 2x28w TL-5 830
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
63
Page 65
LMR 50
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Reflec tor Size mA
Options
1050.171.20.5 LMR Bridgelux 560 6,6W 79 2700K >80 20 50x51,5 350
1050.172.30.5 LMR Bridgelux 560 6,6W 79 2700K >80 30 50x51,5 350
1050.173.20.5 LMR Bridgelux 600 6,6W 86 3000K >80 20 50x51,5 350
1050.174.30.5 LMR Bridgelux 600 6,6W 86 3000K >80 30 50x51,5 350
0151.999.99.5 LMR 50mm Bracket with Screw and Nut
0152.999.99.5 LMR 50mm Ring Aluminium
0105.999.99.0 LMR 50 LED Driver 1-9W -INCL. 1.5mtr Cable and Plug 80x40x22 350
0110.999.99.0 LMR 50 Driver 8,5w Dimmable 1/10v 108x53x33 350
DIM
0111.999.99.0 LMR 50 Driver 10w Dimmable phase-cutting 109x53x33 350
DIM
More dimmable driver chapter 10
LMR 70
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Reflec tor Size mA Options
New coming soon !
1070.175.20.5 LMR Bridgelux 1330 15W 89 2700K >80 20 70x66 700
1070.17630.5 LMR Bridgelux 1330 15W 89 2700K >80 30 70x66 700
1070.177.20.5 LMR Bridgelux 1410 15W 94 3000K >80 20 70x66 700
1070.178.30.5 LMR Bridgelux 1410 15W 94 3000K >80 30 70x66 700
0171.999.99.5 LMR 70mm Bracket with Screw and Nut
0172.999.99.5 LMR 70mm Ring Aluminium
0107.999.99.0
LMR 70 LED Driver -INCL. 1.5mtr Cable and Plug
700
0120.999.99.0 LMR 70 Driver 17 Dimmable 1/10v
108x53x33
700 DIM
0121.999.99.0
LMR 70 Driver 15 Dimmable phase-cutting
109x53x33
700 DIM
More dimmable driver chapter 10
For all pages the mark :
* will mean that there are different options available for the HID, C-FL, MR16, etc. lamps , please contact us f or more information.
» = ONLY BODY OF LUMINAIRE, WITHOUT LAMP AND GEAR.
∆ = Color: you must c hoose one of the color numbers when you order one of our Keylight products.
Make attention to the f ollow, we have the possibility to make "specials" for you New products on request and standard products in different sizes!
64
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 66
COOOOL...
PRODUCT: THUNDER
Page 67
PRODUCT: ORBIT
Page 68
SURFACE ROUND
SOL 17T
PAGE 68
ORBIT 30
PAGE 70
ORBIT 95
PAGE 71
SOL 17
PAGE 68
ORBIT 35
PAGE 70
ORBIT 110
PAGE 71
ORBIT 30 LED
PAGE 69
ORBIT 45
PAGE 70
BUSS 14
PAGE 72
ORBIT 40 LED
PAGE 69
ORBIT 50
PAGE 70
BUSS 18
PAGE 72
ORBIT 65 LED
PAGE 69
ORBIT 65
PAGE 71
BUSS 22
PAGE 72
ORBIT 90 LED
PAGE 69
ORBIT 80
PAGE 71
UNIT 22
PAGE 73
CUP 22
PAGE 73
CUP 25
PAGE 73
BOOP 14
PAGE 74
BOOP A22
PAGE 74
BOOP 22
PAGE 74
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
TUBE
PAGE 75
67
Page 69
Pricelist 2013 SURFACE MOUNTED ROUND
SOL 17 T
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Ref lector Size Ø Options
5017.146.80.∆ Twistable G3 Philips 1100 16W 72 3000k >80 80° 170x193 C / DL / IP
5017.147.80.∆ Twistable G3 Philips 1100 15W 78 4000k >80 80° 170x193 C / DL / IP
5017.148.80.∆ Twistable G3 Philips 2000 30W 71 3000k >80 80° 170x193 C / DL / IP
5017.149.80.∆ Twistable G3 Philips 2000 28W 74 4000k >80 80° 170x193 C / DL / IP
SOL 17
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Ref lector Size Ø Options
5170.101.80.∆
DLM G4 Philips 1100 12W
94
3000K >80
80°
170x240 C / D / IP
5170.102.80.∆
DLM G4 Philips 1100 11W
103
4000K >80
80°
170x240 C / D / IP
5170.103.80.∆
DLM G4 Philips 2000 22W
91
3000K >80
80°
170x240 C / D / IP
5170.104.80.∆
DLM G4 Philips 2000 20W
100
4000K >80
80°
170x240 C / D / IP
5170.105.80.∆
DLM G4 Philips 3000 34W
88
3000K >80
80°
170x240 C / D / IP
5170.106.80.∆
DLM G4 Philips 3000 32W
94
4000K >80
80°
170x240 C / D / IP
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 Alu= 6 , C = Available in all RAL colours on request additional price + 10%
IP = Optional IP 44 ring with glass, price on request , D = Dimmable or Dali on request. DL = Standard Dimmable leading edge.
Light source Philips Fortimo DLM Gen4 lifetime 50000 hrs, 5 year warranty , Standard Xitanium Driver , Light source Philips Fortimo Twistable lifetime 50.000 hrs. System 3 year warranty
68
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 70
ORBIT 30 LED
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflector Size Ø Options
5003.181.91.∆ Led plate Osram 1350 16W 84 3000k >80 Opal 300x125 C / D
5003.182.91.∆ Led plate Osram 1900 23W 83 3000k >80 Opal 300x125 C / D
5003.183.91.∆ Led plate Osram 2500 33W 76 3000k >80 Opal 300x125 C / D
5003.184.91.∆ Led plate Osram 1400 16W 87 4000k >80 Opal 300x125 C / D
5003.185.91.∆ Led plate Osram 2000 23W 87 4000k >80 Opal 300x125 C / D
5003.186.91.∆ Led plate Osram 2600 33W 79 4000k >80 Opal 300x125 C / D
5003.000.91.∆ RGB Keylight * * * RGB * Opal 300x125 C / D
ORBIT 40 LED
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflector Size Ø Options
5425.195.91.∆ Ledline Philips 2600 20W 128 3000K >80 Opal 425x125 C / D
5425.196.91.∆ Ledline Philips 2600 20W 128 4000K >80 Opal 425x125 C / D
5425.000.91.∆ RGB Keylight * * * RGB * Opal 425x125 C / D
ORBIT 65 LED
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflector Size Ø Options
5650.195.91.∆ Ledline Philips 5200 40W 128 3000k >80 Opal 650x112 C / D
5650.196.91.∆ Ledline Philips 5200 40W 128 4000k >80 Opal 650x112 C / D
5650.000.91.∆ RGB Keylight * * * RGB * Opal 650x112 C / D
ORBIT 90 LED
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflector Size Ø Options
,
5900.193.91.∆ Ledline Philips 10000 96W 105 3000k >80 Opal 900x112 C / D
5900.194.91.∆ Ledline Philips 10000 96W 105 4000k >80 Opal 900x112 C / D
5900.000.91.∆ RGB Keylight * * * RGB * Opal 900x112 C / D
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 Alu= 6. , C = Available in all RAL colours on request additional price + 10% , D = Dimmable or Dali on request.
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
69
Page 71
ORBIT 30
Article No. Product Image Lamp type Soc ket W attage L/W Colour temp. CRI Reflector Size Ø Options
5300.413.91.∆ TL-5L 2GX13 EVG 1X22W * *
*
Opal 300x75 C / IP
ORBIT 35
Article No. Product Image Lamp type Soc ket W attage L/W Colour temp. CRI Reflector Size Ø Options
5350.413.91.∆ TL-5L 2GX13 EVG 1X22W * *
*
Opal 350x75 C / IP
5351.413.91.∆ TL-5L 2GX13 EVG 1X40W * *
*
Opal 350x75 C / IP
5352.413.91.∆ TL-5L 2GX13 EVG 1X55W * *
*
Opal 350x75 C / IP
ORBIT 45
Article No. Product Image Lamp type Soc ket W attage L/W Colour temp. CRI Reflector Size Ø Options
5430.413.91.∆ TL-5L 2GX13 EVG 1X40W * *
*
Opal 430x75 C / IP
5431.413.91.∆ TL-5L 2GX13 EVG 1X55W * *
*
Opal 430x75 C / IP
ORBIT 50
Article No. Product Image Lamp type Soc ket W attage L/W Colour temp. CRI Reflector Size Ø Options
5504.413.91.∆ TL-5L 2GX13 EVG 1X40W * *
*
Opal 500x75 C / IP
5505.413.91.∆ TL-5L 2GX13 EVG 1X55W * *
*
Opal 500x75 C / IP
5506.413.91.∆ TL-5L 2GX13 EVG 1X60W * *
*
Opal 500x75 C / IP
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 Alu= 6. , C = Available in all RAL colours on request additional price + 10% , IP = IP44 on request additional price.
70
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 72
ORBIT 65
Article No. Product Image Lamp type Soc ket W attage L/W Colour temp. CRI Reflector Size Ø Options
5065.409.91.∆ PL-L+TL-5 2G11,G5 EVG 2X24W-4x24W T5 *
*
Opal 650x112 C / IP
ORBIT 80
Article No. Product Image Lamp type Soc ket W attage L/W Colour temp. CRI Reflector Size Ø Options
5815.409.91.∆ PL-L 2G11 EVG 4X55W * *
*
Opal 815x112 C / IP
5816.409.91.∆ PL-L 2G11 EVG 4X80W * *
*
Opal 815x112 C / IP
ORBIT 95
Article No. Product Image Lamp type Soc ket W attage L/W Colour temp. CRI Reflector Size Ø Options
5950.408.91.∆ TL-5 G5 EVG 4X14W + 4X21W *
*
Opal 950x112 C / IP
ORBIT 110
Article No. Product Image Lamp type Soc ket W attage L/W Colour temp. CRI Reflector Size Ø Options
5110.408.91.∆ TL-5 G5 EVG 3X39W + 4X 24W *
*
Opal 1100x165 C / IP
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 Alu= 6. , C = Available in all RAL colours on request additional price + 10% , IP = IP44 on request additional price
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
71
Page 73
BUSS 14
Article No. Product Image Lamp type Soc ket W attage L/W Colour temp. CRI Reflector Size Ø Options
5140.401.60.∆ C-FL G24Q1 EVG 13W 60° 140x180 C
5140.402.60.∆ C-FL G24Q2 EVG 18W 60° 140x180 C
BUSS 18
Article No. Product Image Lamp type Soc ket W attage L/W Colour temp. CRI Reflector Size Ø Options
5185.401.60.∆ C-FL G24Q1 EVG 13W 60° 185x225 C / D / E
5185.402.60.∆ C-FL G24Q2 EVG 18W 60° 185x225 C / D / E
5185.415.60.∆ C-FL MULTI EVG 1X26 - 42W 60° 185x225 C / D / E
BUSS 22
Article No. Product Image Lamp type Soc ket W attage L/W Colour temp. CRI Reflector Size Ø Options
5220.415.60.∆ C-FL MULTI EVG 1X26 - 42W 60° 220x300 C / D / E
5220.404.60.∆ C-FL G24Q5 EVG 57W 60° 220x300 C / D / E
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 Alu= 6. , C = Available in all RAL colours on request additional price + 10%
D = D immable or Dali on request. , E = Emergency on request.
72
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 74
UNIT 22
Article No. Product Image Lamp type Socket W attage L/W Colour temp. CR I G lass Size Ø IP Options
5213.401.90.∆ C-FL G24Q-1 EVG 1X13W Frosted 220x120 IP44 C / D
5213.402.90.∆ C-FL G24Q-2 EVG 1X18W Frosted 220x120 IP44 C / D
5213.415.90.∆ C-FL MULTI EVG 1X26 - 42W Frosted 220x120 IP44 C / D
5213.401.90.∆ C-FL G24Q-1 EVG 2X13W Frosted 220x120 IP44 C / D
5213.402.90.∆ C-FL G24Q-2 EVG 2X18W Frosted 220x120 IP44 C / D
5213.415.90.∆ C-FL MULTI EVG 2X26 - 42W Frosted 220x120 IP44 C / D
CUP 22
Article No. Product Image Lamp type Socket W attage L/W Colour temp. CR I Reflector Size Ø Options
5214.401.98.∆ C-FL G24Q-1 EVG 1X13W G-F 220x200 C / D / E
5214.402.98.∆ C-FL G24Q-2 EVG 1X18W G-F 220x200 C / D / E
5214.415.98.∆ C-FL MULTI EVG 1X26 - 42W G-F 220x200 C / D / E
5214.401.98.∆ C-FL G24Q-1 EVG 2X13W G-F 220x200 C / D / E
5214.402.98.∆ C-FL G24Q-2 EVG 2X18W G-F 220x200 C / D / E
5214.415.98.∆ C-FL MULTI EVG 2X26 - 42W G-F 220x200 C / D / E
CUP 25
Article No. Product Image Lamp type Socket W attage L/W Colour temp. CR I Reflector Size Ø Options
5216.402.98.∆ C-FL G24Q-2 EVG 1X18W G-F 255x210 C / D / E
5216.415.98.∆ C-FL MULTI EVG 1X26 - 42W G-F 255x210 C / D / E
5216.403.98.∆ C-FL G24Q-2 EVG 2X18W G-F 255x210 C / D / E
5216.415.98.∆ C-FL MULTI EVG 2X26 - 42W G-F 255x210 C / D / E
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 Alu= 6. , C = Available in all RAL colours on request additional price + 10%
G = G loss y reflector , F = Facetted DIAMOND ref lector , D = Dimmable or D ali on request. , E = Emergency on reqest
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
73
Page 75
BOOP 14
Article No. Product Image Lamp type Soc ket W attage L/W Colour temp. CRI Reflector Size Ø Options
5130.213.30.∆ CDM-T G12 * 20W * * * 30° 136x286 C
5130.201.30.∆ CDM-T G12 *
35W
* * * 30° 136x286 C
5130.204.30.∆ CDM-T G12 *
50W
* * * 30° 136x286 C
5130.206.30.∆ CDM-T G12 *
70W
* * * 30° 136x286 C
5130.210.30.∆ CDM-T G12 *
100W
* * * 30° 136x286 C
BOOP A22
Article No. Product Image Lamp type Soc ket W attage L/W Colour temp. CRI Reflector Size Ø Options
5022.213.30.∆ CDM-T G12 * 20W * * * 30° 220x250 C / A
5022.201.30.∆ CDM-T G12 *
35W
* * * 30° 220x250 C / A
5022.204.30.∆ CDM-T G12 *
50W
* * * 30° 220x250 C / A
5022.206.30.∆ CDM-T G12 *
70W
* * * 30° 220x250 C / A
5022.210.30.∆ CDM-T G12 *
100W
* * * 30° 220x250 C / A
BOOP 22
Article No. Product Image Lamp type Soc ket W attage L/W Colour temp. CRI Reflector Size Ø Options
5223.213.60.∆ CDM-T G12 * 20W * * * 60° 220x300 C
5223.201.60.∆ CDM-T G12 *
35W
* * * 60° 220x300 C
5223.204.60.∆ CDM-T G12 *
50W
* * * 60° 220x300 C
5223.206.60.∆ CDM-T G12 *
70W
* * * 60° 220x300 C
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 Alu= 6 , C = Available in all RAL colours on request additional price + 10% ,A= Adjustable ,BOOP ALW AYS INCLUDE C-BALLAST
Always include a Philips E-ballast and without HID lamp. , * There are different options available for the CDM-T lamps, please contact us for more inf ormation
74
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 76
TUBE
Article No. Product Image Lamp type Soc ket Lumen Wattage L/W Colour temp. CRI Reflector Size Ø Options
5025.999.99.∆ MR16 GU5,3 * Max 50W * * * * 96x120
» /
A
5025.999.99.∆ GU10 GU10 * Max 50W * * * * 96x120
» /
A
5025.171.20.∆ LMR 50 Bridgelux 560 6,6W 79 2700K >80 20° 96x120 A / D
5025.172.30.∆ LMR 50 Bridgelux 560 6,6W 79 2700K >80 30° 96x120 A / D
5025.173.20.∆ LMR 50 Bridgelux 600 6,6W 86 3000K >80 20° 96x120 A / D
5025.174.30.∆ LMR 50 Bridgelux 600 6,6W 86 3000K >80 30° 96x120 A / D
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 ALU= 6 , A = Adjustable angle 0-28°, 3 50° , D = Dimmable, additional price
Always include a E-ballast incl. cable, plug, (connection cable) and without HID lamp. , LMR incl driver, cable and plug , » = ONLY BODY OF LUMINAIRE, WITHOUT LAMP AND GEAR
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
75
Page 77
PRODUCT: QUADRANT 70+
Page 78
SURFACE SQUARE
QUBEE 40 LED
PAGE 78
LINE 40
PAGE 79
SLIMLINE
PAGE 81
QUBEE 60 LED
PAGE 78
LINE 60
PAGE 80
BUXX
PAGE 82
BOXX 9
PAGE 78
BOXX 16
PAGE 80
COOL 30
PAGE 79
BOXX 32
PAGE 80
COOL 35
PAGE 79
BOXX 25
PAGE 81
BLOOP 60
PAGE 79
AQUA
PAGE 81
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
77
Page 79
Pricelist 2013 SURFACE MOUNTED SQUARE
QUBEE 40 LED
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Ref lector Size Options
5391.195.91.∆ Ledline Philips 2600 20W 128 3000K >80 Opal 390x390x100 C / D
5391.196.91.∆ Ledline Philips 2600 20W 128 4000K >80 Opal 390x390x100 C / D
5391.197.91.∆ Ledline Philips 4400 36W 120 3000K >80 Opal 390x390x100 C / D
5391.198.91.∆ Ledline Philips 4400 36W 120 4000K >80 Opal 390x390x100 C / D
QUBEE 60 LED
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Ref lector Size Options
5600.195.91.∆ Ledline Philips 3900 30W 128 3000K >80 Opal 600x600x100 C / D
5600.196.91.∆ Ledline Philips 3900 30W 128 4000K >80 Opal 600x600x100 C / D
5600.193.91.∆ Ledline Philips 5000 48W 105 3000k >80 Opal 600x600x100 C / D
5600.194.91.∆ Ledline Philips 5000 48W 105 4000k >80 Opal 600x600x100 C / D
BOXX 9
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Ref lector Size Options
5090.171.20.∆ LMR 50 Bridgelux 560 6,6W 79 2700K >80 20° 90x139 C / DD
5090.172.30.∆ LMR 50 Bridgelux 560 6,6W 79 2700K >80 30° 90x139 C / DD
5090.173.20.∆ LMR 50 Bridgelux 600 6,6W 86 3000K >80 20° 90x139 C / DD
5090.174.30.∆ LMR 50 Bridgelux 600 6,6W 86 3000K >80 30° 90x139 C / DD
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 ALU= 6. C = Available in all RAL colours on request additional price + 10% , D = DALI dimmable on request
Light source Philips Fortimo LED LINE lifetime 50000 hrs. System 5 year warranty , Standard Xitanium Driver , DD = incl. driver LMR
78
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 80
COOL 30
Article No. Product Image Lamp type S ocket W attage L/W Colour temp. CRI Reflector Size Options
5298.410.91.∆ C-FL GR14Q EVG 2X14W Opal 298x298x95 C
5299.410.91.∆ C-FL GR14Q EVG 2X17W Opal 298x298x95 C
COOL 35
Article No. Product Image Lamp type S ocket W attage L/W Colour temp. CRI Reflector Size Options
5318.411.91.∆ C-FL 2G10 EVG 2X18W Opal 350x350x145 C
5324.411.91.∆ C-FL 2G10 EVG 2X24W Opal 350x350x145 C
5336.411.91.∆ C-FL 2G10 EVG 2X36W Opal 350x350x145 C
BLOOP 60
Article No. Product Image Lamp type S ocket W attage L/W Colour temp. CRI Reflector Size Options
5155.412.99.∆ C-FL 2G-11 EVG 1X55W White 635x635x100 C
5255.412.99.∆ 2G-11 EVG 2X55W W hite 635x635x100 C
LINE 40
Article No. Product Image Lamp type S ocket W attage L/W Colour temp. CRI Reflector Size Options
5636.412.91.∆ C-FL 2G-11 EVG 2X24W Opal 390x390x75 C
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 ALU= 6 , C = Available in all RAL colours on request additional price + 10% , Always include EVG -ballast and without CFL lamp
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
79
Page 81
LINE 60
Article No. Product Image Lamp type S ocket W attage L/W Colour temp. CRI Reflector Size Options
5039.412.91.∆ C-FL 2G-11 EVG 3X36W Opal 600x600x70 C
BOXX 16
Article No. Product Image Lamp type S ocket W attage L/W Colour temp. CRI Reflector Size Options
5160.213.98.∆ CDM-T G12 * 20W * * * ¤ 160x160x203 C / A
5160.201.98.∆ CDM-T G12 * 35W * * * ¤ 160x160x203 C / A
5160.204.98.∆ CDM-T G12 * 50W * * * ¤ 160x160x203 C / A
5160.206.98.∆ CDM-T G12 * 70W * * * ¤ 160x160x203 C / A
5160.209.98.∆ CDM-T G12 * 100W * * * ¤ 160x160x203 C / A
BOXX 32
Article No. Product Image Lamp type S ocket W attage L/W Colour temp. CRI Reflector Size Options
5317.213.98.∆ CDM-T G12 * 20W * * * ¤ 317x160x209 C / A
5317.201.98.∆ CDM-T G12 * 35W * * * ¤ 317x160x209 C / A
5317.204.98.∆ CDM-T G12 * 50W * * * ¤ 317x160x209 C / A
5317.206.98.∆ CDM-T G12 * 70W * * * ¤ 317x160x209 C / A
5317.209.98.∆ CDM-T G12 * 100W * * * ¤ 317x160x209 C / A
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 ALU= 6. , C = Available in all RAL colours on request additional price + 10% , D = DALI dimmable on request , A= Adjustable
Always include a Philips E-ballast and without HID lamp. , Always include EVG -ballast and without CFL lamp. , * There are different options available, ¤ = Reflector 15,30,40 or 55 DGR.
80
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 82
BOXX 25
Article No. Produc t Image Lamp type Soc ket W attage L/W Colour temp. CRI Ref lector Size Options
Outdoor IP54
8250.214.95.∆ CDM-T G12 * 20W * * * Glossy 250x250x192 C / IP54
8250.201.95.∆ CDM-T G12 * 35W * * * Glossy 250x250x192 C / IP54
8250.204.95.∆ CDM-T G12 * 50W * * * Glossy 250x250x192 C / IP54
8250.206.95.∆ CDM-T G12 * 70W * * * Glossy 250x250x192 C / IP54
8250.210.95.∆ CDM-T G12 * 100W * * * Glossy 250x250x192 C / IP54
AQUA
Article No. Produc t Image Lamp type Soc ket W attage L/W Colour temp. CRI Ref lector Size Standard
Outdoor IP65
5625.413.99.3 T8 G13 1X18W Polycarbonate 625 SS- Clips
5123.413.99.3 T8 G13 1X36W Polycarbonate 1230 SS- Clips
5262.413.99.3 T8 G13 2X18W Polycarbonate 625 SS- Clips
5212.413.99.3 T8 G13 2X36W Polycarbonate 1230 SS- Clips
5625.413.99.3 T5 G5 EVG 1X28 - 54W Polycarbonate 1230 SS- Clips
5626.413.99.3 T5 G5 EVG 1X49 - 80W Polycarbonate 1555 SS- Clips
SLIMLINE
Article No. Produc t Image Lamp type Soc ket W attage L/W Colour temp. CRI Ref lector Size Standard
5321.408.94.3 T5 G5 EVG 8W Prism
321x40x21
CW
5580.408.94.3 T5 G5 EVG 14W Prism
580x40x21
CW
5882.408.94.3 T5 G5 EVG 21W Prism
882x40x21
CW
5182.408.94.3 T5 G5 EVG 28W Prism
1182x40x21
CW
5147.408.94.3 T5 G5 EVG 35W Prism
1475x40x21
CW
* Options
CW = INCL. Connection cable 10 CM , power cable, c onnection part. - incl T5 tube 830.
IP = IP 65 , SS= STAINLESS STEEL CLIPS , Aqua Always include EVG. ballast and without TUBE , T8 Always include conv. ballast and without TUBE
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
81
Page 83
BUXX
Article No. Product Image Lamp type Socket Lumen W attage L/W C olour t emp. CR I Reflector Size Options
5125.999.99.∆ MR16 GU5,3 * Max 50W * * * * 96x96x120
» /
A
5125.999.99.∆ GU10 GU10 * Max 50W * * * * 96x96x120
» /
A
5125.171.20.∆ LMR 50 Bridgelux 560 6,6W 79 2700K >80 20° 96x96x120 A / D
5125.172.30.∆ LMR 50 Bridgelux 560 6,6W 79 2700K >80 30° 96x96x120 A / D
5125.173.20.∆ LMR 50 Bridgelux 600 6,6W 86 3000K >80 20° 96x96x120 A / D
5125.174.30.∆ LMR 50 Bridgelux 600 6,6W 86 3000K >80 30° 96x96x120 A / D
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 BLACK= 5, RAL 9006 ALU= 6 , A = Adjustable angle 0-28°, 3 50° , D = Dimmable, additional price
Always include a E-ballast incl. cable, plug, (connection cable) and without HID lamp. , LMR incl driver, cable and plug , » = ONLY BODY OF LUMINAIRE, WITHOUT LAMP AND GEAR
82
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 84
PRODUCT: SNOOP
Page 85
SPOT
PEEK
PAGE 87
LEDIMO 10
PAGE 89
MIRR
PAGE 92
SNOOP
PAGE 87
LEDIMO 20
PAGE 90
U BLOCK
PAGE 93
WISE
PAGE 88
BUZZA
PAGE 90
POWER
PAGE 93
SKY
PAGE 88
FOLLOW
PAGE 91
SATELLITE
PAGE 93
KNOB
PAGE 88
STREAM LED
PAGE 91
SANDWICH
PAGE 94
DRUM
PAGE 89
SOYUZ
PAGE 92
POWER ECO
PAGE 94
84
FLOW
PAGE 94
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
PYRAMIDE
PAGE 95
APPLE
PAGE 95
LONGO
PAGE 95
STREAM
PAGE 96
KEYSTAR
PAGE 96
Page 86
SPOT
VITON
PAGE 96
PETT 16
PAGE 98
BELLA
PAGE 97
COLT 12
PAGE 99
BLOW
PAGE 97
COLT 14
PAGE 99
INTENSE
PAGE 97
COLT 16
PAGE 99
PETT 12
PAGE 98
ACCESSOIRES
PAGE 100 - 102
PETT 14
PAGE 98
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
85
Page 87
SHINE BRIGHT LIKE A DIAMOND
Page 88
Pricelist 2013 Spot light + Track 1F - 3F
PEEK
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Reflector Size Track Adapter Options
Passive cooling
3027.114.40.# SLM Gen 3 Philips 2000 19w 105 3000K >80 40° 145x125 3F ¤
3027.116.40.# SLM Gen 3 Philips 2000 18w 114 4000K >80 40° 145x125 3F ¤
3027.120.40.# SLM Gen 3 Philips 2000 23w 89 3000K >90 40° 145x125 3F ¤
3027.117.40.# SLM Gen 3 Philips 3000 28w 107 3000K >80 40° 145x125 3F ¤
3027.119.40.# SLM Gen 3 Philips 3000 26w 115 4000K >80 40° 145x125 3F ¤
3027.121.40.# SLM Gen 3 Philips 3000 33w 91 3000K >90 40° 145x125 3F ¤
COMING SOON !
SNOOP
Article No. Product Image Lamp type Brand Lumen Wattage L/W Colour temp. CRI Reflector Size Track Adapter Options
Passive cooling
3028.114.35.# SLM Gen 3 Philips 2000 19w 105 3000K >80 35° 90x150 3F ¤¤
3028.116.35.# SLM Gen 3 Philips 2000 18w 114 4000K >80 35° 90x151 3F ¤¤
3028.120.35.# SLM Gen 3 Philips 2000 23w 89 3000K >90 35° 90x152 3F ¤¤
3028.117.35.# SLM Gen 3 Philips 3000 28w 107 3000K >80 35° 90x155 3F ¤¤
3028.119.35.# SLM Gen 3 Philips 3000 26w 115 4000K >80 35° 90x156 3F ¤¤
3028.121.35.# SLM Gen 3 Philips 3000 33w 91 3000K >90 35° 90x157 3F ¤¤
COMING SOON !
* Options
# = Textured paint, Color: RAL 9003 WHITE= 33, RAL 9005 Black= 55 , ¤ = Option Reflector 16º Dgr. , ¤¤= Option Reflector 24º, 40º Dgr.
Light source Philips Fortimo SLM Gen3 lifetime 50000 hrs, 5 year warranty , Standard Xitanium Driver , Size is only the body of the track light.
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
87
Page 89
WISE
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflec tor Size Track A dapter O ptions
Passive cooling
3029.114.40.# SLM Gen 3 Philips 2000 19w 105 3000K >80 40° 252x125 3F ¤
3029.116.40.# SLM Gen 3 Philips 2000 18w 114 4000K >80 40° 252x125 3F ¤
3029.120.40.# SLM Gen 3 Philips 2000 23w 89 3000K >90 40° 252x125 3F ¤
3029.117.40.# SLM Gen 3 Philips 3000 28w 107 3000K >80 40° 252x125 3F ¤
3029.119.40.# SLM Gen 3 Philips 3000 26w 115 4000K >80 40° 252x125 3F ¤
3029.121.40.# SLM Gen 3 Philips 3000 33w 91 3000K >90 40° 252x125 3F ¤
COMING SOON !
SKY
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflec tor Size Track A dapter O ptions
Passive cooling
3001.114.24.∆ INFUSION GE 1800 29w 62 2700K >80 24° 165x116 3F ¤ / C / D
3001.116.24.∆ INFUSION GE 2000 29w 69 3000K >80 24° 165x116 3F ¤ / C / D
3001.120.24.∆ INFUSION GE 1700 29w 58 3000K >87 24° 165x116 3F ¤ / C / D
INFUSION GE 2200 29w 76 4000K >80 24° 165x116 3F ¤ / C / D
3001.117.24.∆
3001.119.24.∆ INFUSION GE 3000 46w 65 2700K >80 24° 165x116 3F ¤ / C / D
3001.121.24.∆ INFUSION GE 3200 46w 65 3000K >90 24° 165x116 3F ¤ / C / D
KNOB
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflec tor Size Track A dapter O ptions
3002.114.24.∆ SLM Gen 3 Philips 2000 19w 105 3000K >80 24° 119x100 3F ¤ / C / D
3002.116.24.∆ SLM Gen 3 Philips 2000 18w 114 4000K >80 24° 119x100 3F ¤ / C / D
3002.120.24.∆ SLM Gen 3 Philips 2000 23w 89 3000K >90 24° 119x100 3F ¤ / C / D
3002.117.24.∆ SLM Gen 3 Philips 3000 28w 107 3000K >80 24° 119x100 3F ¤ / C / D
3002.119.24.∆ SLM Gen 3 Philips 3000 26w 115 4000K >80 24° 119x100 3F ¤ / C / D
3002.121.24.∆ SLM Gen 3 Philips 3000 33w 91 3000K >90 24° 119x100 3F ¤ / C / D
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 Black= 5, RAL 9006 Alu= 6 , # = Textured paint, Color: RAL 9003 WHITE= 33, RAL 9005 Black= 55,C = Available in all RAL colours on request additional price
Light source Philips Fortimo SLM Gen3 lifetime 50000 hrs, 5 year warranty , Standard Xitanium , Size is only the body of the track light , ¤ = Option Reflector 12º- 36º , D = DALI dimmable on request
88
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 90
DRUM
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflec tor Size Track A dapter O ptions
3003.114.24.∆ SLM Gen 3 Philips 2000 19w 105 3000K >80 24° 159x100 3F ¤ / C / D
3003.116.24.∆ SLM Gen 3 Philips 2000 18w 114 4000K >80 24° 159x100 3F ¤ / C / D
3003.120.24.∆ SLM Gen 3 Philips 2000 23w 89 3000K >90 24° 159x100 3F ¤ / C / D
3003.117.24.∆ SLM Gen 3 Philips 3000 28w 107 3000K >80 24° 159x100 3F ¤ / C / D
3003.119.24.∆ SLM Gen 3 Philips 3000 26w 115 4000K >80 24° 159x100 3F ¤ / C / D
3003.121.24.∆ SLM Gen 3 Philips 3000 33w 91 3000K >90 24° 159x100 3F ¤ / C / D
LEDIMO 10
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflec tor Size Track A dapter O ptions
Passive cooling
3021.114.24.# SLM Gen 3 Philips 2000 19w 105 3000K >80 24° 105x143 3F ¤ / D / DD
3021.116.24.# SLM Gen 3 Philips 2000 18w 114 4000K >80 24° 105x143 3F ¤ / D / DD
3021.120.24.# SLM Gen 3 Philips 2000 23w 89 3000K >90 24° 105x143 3F ¤ / D / DD
3021.117.24.# SLM Gen 3 Philips 3000 28w 107 3000K >80 24° 105x143 3F ¤ / D / DD
3021.119.24.# SLM Gen 3 Philips 3000 26w 115 4000K >80 24° 105x143 3F ¤ / D / DD
3021.121.24.# SLM Gen 3 Philips 3000 33w 91 3000K >90 24° 105x143 3F ¤ / D / DD
3021.151.12.# SLM TB Philips 1100 17w 64 2700K >85 12° 105x143 3F D / DD
3021.152.12.# SLM TB Philips 1100 15w 73 3000K >85 12° 105x143 3F D / DD
3021.153.12.# SLM TB Philips 1100 15w 73 4000K >85 12° 105x143 3F D / DD
COMING SOON !
* Options
# = Textured paint, Color: 33 = RAL 9003 WHITE, 55 = RAL 9005 BLACK, 66 = RAL 9006 Alu , ∆ = Color: RAL 9003 WHITE= 3, RAL 9005 Black= 5, RAL 9006 Alu= 6
C = Available in all R AL colours on request additional price + 10% , ¤ = Option Reflector 36º , D = DALI dimmable on request
Light source Philips Fortimo SLM Gen3 lifetime 50000 hrs, 5 year warranty , Standard Xitanium Driver , DD = Diffuser 40° matt with open circle in the m iddle additional price of € 12,-
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
89
Page 91
LEDIMO 20
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflec tor Size Track A dapter O ptions
Passive cooling
3020.114.24.# SLM Gen 3 Philips 2000 19w 105 3000K >80 24° 120x160 3F ¤ / D / DD
3020.116.24.# SLM Gen 3 Philips 2000 18w 114 4000K >80 24° 120x160 3F ¤ / D / DD
3020.120.24.# SLM Gen 3 Philips 2000 23w 89 3000K >90 24° 120x160 3F ¤ / D / DD
3020.117.24.# SLM Gen 3 Philips 3000 28w 107 3000K >80 24° 120x160 3F ¤ / D / DD
3020.119.24.# SLM Gen 3 Philips 3000 26w 115 4000K >80 24° 120x160 3F ¤ / D / DD
3020.121.24.# SLM Gen 3 Philips 3000 33w 91 3000K >90 24° 120x160 3F ¤ / D / DD
3020.151.12.# SLM TB Philips 1100 17w 64 2700K >85 12° 120x160 3F D / DD
3020.152.12.# SLM TB Philips 1100 15w 73 3000K >85 12° 120x160 3F D / DD
3020.153.12.# SLM TB Philips 1100 15w 73 4000K >85 12° 120x160 3F D / DD
BUZZ A
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflec tor Size Track A dapter O ptions
Passive cooling
3022.122.40.33 DLM-I Philips 1100 15w 73 3000K >80 40° 127x158 3F *
3022.123.40.33 DLM-I Philips 1100 14w 79 4000K >80 40° 127x158 3F *
*
3022.124.40.33 DLM-I Philips 2000 28w 71 3000K >80 40° 127x158 3F *
3022.125.40.33 DLM-I Philips 2000 27w 74 4000K >80 40° 127x158 3F *
COMING SOON !
* Options
# = Textured paint, Color: 33 = RAL 9003 WHITE, 55 = RAL 9005 BLACK, 66 = RAL 9006 Alu, D = DALI dimmable on request
¤ = Option Reflector 12 + 36º , Size is only the body of the track light , DD = Diffuser 40° matt wit h open circle in the middle additional price of € 12,-
Light source Philips Fortimo SLM Gen3 lifetime 50000 hrs, 5 year warranty , Standard Xitanium Driver , * light source Philips DLM-I integrated Lifetime: 25000 hrs, 230V Intergraded driver. 3 years warranty.
90
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 92
FOLLOW
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflec tor Size Track A dapter O ptions
Passive cooling
3025.114.24.# SLM Gen 3 Philips 2000 19w 105 3000K >80 24° 150x105 3F ¤ / D
3025.116.24.# SLM Gen 3 Philips 2000 18w 114 4000K >80 24° 150x105 3F ¤ / D
3025.120.24.# SLM Gen 3 Philips 2000 23w 89 3000K >90 24° 150x105 3F ¤ / D
3025.117.24.# SLM Gen 3 Philips 3000 28w 107 3000K >80 24° 150x105 3F ¤ / D
3025.119.24.# SLM Gen 3 Philips 3000 26w 115 4000K >80 24° 150x105 3F ¤ / D
3025.121.24.# SLM Gen 3 Philips 3000 33w 91 3000K >90 24° 150x105 3F ¤ / D
COMING SOON !
STREAM LED
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CRI Reflec tor Size Track A dapter O ptions
Passive cooling
3026.114.24.# SLM Gen 3 Philips 2000 19w 105 3000K >80 24° 154x115 3F ¤ / D
3026.116.24.# SLM Gen 3 Philips 2000 18w 114 4000K >80 24° 154x115 3F ¤ / D
3026.120.24.# SLM Gen 3 Philips 2000 23w 89 3000K >90 24° 154x115 3F ¤ / D
3026.117.24.# SLM Gen 3 Philips 3000 28w 107 3000K >80 24° 154x115 3F ¤ / D
3026.119.24.# SLM Gen 3 Philips 3000 26w 115 4000K >80 24° 154x115 3F ¤ / D
3026.121.24.# SLM Gen 3 Philips 3000 33w 91 3000K >90 24° 154x115 3F ¤ / D
COMING SOON !
* Options
# = Textured paint, Color: 33 = RAL 9003 WHITE, 55 = RAL 9005 BLACK, ¤ = Option Reflector 12 + 36º , Size is only the body of the trac k light.
Light source Philips Fortimo SLM Gen3 lifetime 50000 hrs, 5 year warranty , Standard Xitanium Driver , model Stream: the honey comb is always black , D = DALI dimmable on request
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
91
Page 93
SOYUZ
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CR I Reflec tor Size Track A dapter O ptions
Passive cooling
3030.114.24.∆ SLM Gen 3 Philips 2000 19w 105 3000K >80 24° 80x140 1F ¤ / D
3030.116.24.∆ SLM Gen 3 Philips 2000 18w 114 4000K >80 24° 80x140 1F ¤ / D
3030.120.24.∆ SLM Gen 3 Philips 2000 23w 89 3000K >90 24° 80x140 1F ¤ / D
3030.117.24.∆ SLM Gen 3 Philips 3000 28w 107 3000K >80 24° 80x140 1F ¤ / D
3030.119.24.∆ SLM Gen 3 Philips 3000 26w 115 4000K >80 24° 80x140 1F ¤ / D
3030.121.24.∆ SLM Gen 3 Philips 3000 33w 91 3000K >90 24° 80x140 1F ¤ / D
3030.151.12.∆ SLM TB Philips 1100 17w 64 2700K >85 12° 80x140 1F ¤ / D
3030.152.12.∆ SLM TB Philips 1100 15w 73 3000K >85 12° 80x140 1F ¤ / D
3030.153.12.∆ SLM TB Philips 1100 15w 73 4000K >85 12° 80x140 1F ¤ / D
COMING SOON !
MIRR
Article No. Product Image Lamp type Brand Lumen W attage L/W Colour temp. CR I Reflec tor Size Track A dapter O ptions
Passive cooling
3004.990.24.∆ COIN-827 Osram 1040 16w 71 2700k >80 24° 237x204x120 3F # / C
3004.990.24.∆ COIN-830 Osram 1140 16w 71 3000k >85 24° 237x204x120 3F # / C
3004.990.24.∆ COIN-827 Osram 1620 25w 71 2700k >85 24° 237x204x120 3F # / C
3004.990.24.∆ COIN-830 Osram 1780 25w 71 3000k >85 24° 237x204x120 3F # / C
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 Black= 5, RAL 9006 Alu= 6 , C = Available in all RAL colours on request additional price + 10% , ¤ = Option Reflector 12º- 36º , D = DALI dimmable on request
Light source Philips Fortimo SLM Gen 3 lifetime 50000 hrs. , Standard Xitanium Driver , # = Light source Osram COINLIGHT AR111 , Size is only the body of the track light.
92
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 94
U BLOCK
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. C RI Reflec tor Size T rack Adapter Options
3301.213.24.∆ CDM-T G12 * 20w * * * 24° 202x149x112 3F C / ¤
3301.201.24.∆ CDM-T G12 * 35w * * * 24° 202x149x112 3F C / ¤
3301.204.24.∆ CDM-T G12 * 50w * * * 24° 202x149x112 3F C / ¤
3301.206.24.∆ CDM-T G12 * 70w * * * 24° 202x149x112 3F C / ¤
POWER
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. C RI Reflec tor Size T rack Adapter Options
3102.213.24.∆ CDM-T G12 * 20w * * * 24° 220x140 3F C / ¤ / CM
3102.201.24.∆ CDM-T G12 * 35w * * * 24° 220x140 3F C / ¤ / CM
3102.204.24.∆ CDM-T G12 * 50w * * * 24° 220x140 3F C / ¤ / CM
3102.206.24.∆ CDM-T G12 * 70w * * * 24° 220x140 3F C / ¤ / CM
3122.209.24.∆ CDM-T G12 * 100w * * * 24° 240x140 3F C / ¤ / CM
3122.211.24.∆ CDM-T G12 * 150w * * * 24° 240x140 3F C / ¤ / CM
3123.236.24.∆ SDW -TG GX 12-1 * 50w * * * 24° 305x140 3F C / ¤ / CM
3123.237.24.∆ SDW -TG GX 12-1 * 100w * * * 24° 305x140 3F C / ¤ / CM
SATELLITE
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. C RI Reflec tor Size T rack Adapter Options
3103.213.24.∆ CDM-T G12 * 20w * * * 24° 218x200x114 3F C / ¤
3103.201.24.∆ CDM-T G12 * 35w * * * 24° 218x200x114 3F C / ¤
3103.204.24.∆ CDM-T G12 * 50w * * * 24° 218x200x114 3F C / ¤
3103.206.24.∆ CDM-T G12 * 70w * * * 24° 218x200x114 3F C / ¤
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 Black= 5, RAL 9006 Alu= 6 , C = Available in all RAL colours on request additional price + 10% , ¤ = Option Reflector 24º ,36º ,45
All track spots always include a Philips E-ballast and without an H ID lamp. * There are different options available for the HID lamps , CM = Ceiling mounted on request
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
93
Page 95
SANDWICH
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CR I Reflec tor Size Track Adapter Options
3104.213.24.∆ CDM-T G12 * 20w * * * 24° 227x114 3F ¤ / C / C+
3104.201.24.∆ CDM-T G12 * 35w * * * 24° 227x114 3F ¤ / C / C+
3104.204.24.∆ CDM-T G12 * 50w * * * 24° 227x114 3F ¤ / C / C+
3104.206.24.∆ CDM-T G12 * 70w * * * 24° 227x114 3F ¤ / C / C+
POWER ECO
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CR I Reflec tor Size Track Adapter Options
3114.213.40.∆ CDM-T G12 * 20w * * * 40° 205x152 3F -
3114.201.40.∆ CDM-T G12 * 35w * * * 40° 205x152 3F -
3114.204.40.∆ CDM-T G12 * 50w * * * 40° 205x152 3F -
3114.206.40.∆ CDM-T G12 * 70w * * * 40° 205x152 3F -
FLOW
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CR I Reflec tor Size Track Adapter Options
3121.213.24.∆ CDM-T G12 * 20w * * * 24° 155x124 3F ¤
3121.201.24.∆ CDM-T G12 * 35w * * * 24° 155x124 3F ¤
3121.204.24.∆ CDM-T G12 * 50w * * * 24° 155x124 3F ¤
3121.206.24.∆ CDM-T G12 * 70w * * * 24° 155x124 3F ¤
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 Black= 5, RAL 9006 Alu= 6 , C = Available in all RAL colours on request additional price + 10% , ¤ = Option Reflector 12º- 36º
All track spots includes a Philips E-ballast, without HID lamp. , Size is only the spot. , * T here are different options available for the HID lamps, please contact us f or more information.
C+ = two tone combination, available in all R AL colours on request additional price + 10% , Size is only the body of the track light., D = DALI dimmable on reques t
94
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 96
PYRAM IDE
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CR I Reflec tor Size Track Adapter Options
3110.213.24.# CDM-T G12 20w * * * 24º 168x98 3F ¤
3110.201.24.# CDM-T G12 35w * * * 24º 168x98 3F ¤
3110.204.24.# CDM-T G12 50w * * * 24º 168x98 3F ¤
3110.206.24.# CDM-T G12 70w * * * 24º 168x98 3F ¤
APPLE
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CR I Reflec tor Size Track Adapter Options
3111.213.24.∆ CDM-T G12 * 20w * * * 24º 240x121 3F ¤
3111.201.24.∆ CDM-T G12 * 35w * * * 24º 240x121 3F ¤
3111.204.24.∆ CDM-T G12 * 50w * * * 24º 240x121 3F ¤
3111.206.24.∆ CDM-T G12 * 70w * * * 24º 240x121 3F ¤
LONGO
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CR I Reflec tor Size Track Adapter Options
3112.213.24.∆ CDM-TC G8,5 * 20w * * * 24º 277x93 3F ¤
3112.201.24.∆ CDM-TC G8,5 * 35w * * * 24º 277x93 3F ¤
3112.204.24.∆ CDM-TC G8,5 * 50w * * * 24º 277x93 3F ¤
3112.206.24.∆ CDM-TC G8,5 * 70w * * * 24º 277x93 3F ¤
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 Black= 5, RAL 9006 Alu= 6 , # = Color: RAL 9003 WHITE= 3, RAL 9005 Black= 5, ¤ = Option Reflector 12º- 36º , D = DALI dimmable on request
All track spots includes a Philips E-ballast, without HID lamp. , * There are dif ferent options available f or the HID lamps , Size is only the body of the track light.
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
95
Page 97
STREAM
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CR I Reflec tor Size Track Adapter Options
3113.213.24.∆ CDM-TC G8,5 * 20w * * * 24° 126x96 3F ¤
3113.201.24.∆ CDM-TC G8,5 * 35w * * * 24° 126x96 3F ¤
3113.204.24.∆ CDM-TC G8,5 * 50w * * * 24° 126x96 3F ¤
3113.206.24.∆ CDM-TC G8,5 * 70w * * * 24° 126x96 3F ¤
KEYSTAR
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CR I Reflec tor Size Track Adapter Options
3106.213.24.∆ CDM-TC G8,5 * 20w * * * ¤ 120x148 3F C
3106.221.24.∆ CDM-TC G8,5 * 35w * * * ¤ 120x148 3F C
3106.224.24.∆ CDM-TC G8,5 * 50w * * * ¤ 120x148 3F C
3106.226.24.∆ CDM-TC G8,5 * 70w * * * ¤ 120x148 3F C
VITON
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CR I Reflec tor Size Track Adapter Options
3105.213.24.∆ CDM-TC G8,5 * 20w * * * 24° 121x189 3F C / G
3105.221.24.∆ CDM-TC G8,5 * 35w * * * 24° 121x189 3F C / G
3105.224.24.∆ CDM-TC G8,5 * 50w * * * 24° 121x189 3F C / G
3105.226.24.∆ CDM-TC G8,5 * 70w * * * 24° 121x189 3F C / G
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 Black= 5, RAL 9006 Alu= 6 , ¤ = Reflector 15, 30, 40 or 55 , D = DALI dimmable on request , G = Glass filters onr request.
All track spots includes a Philips E-ballast, without HID lamp. , * There are dif ferent options available f or the HID lamps, please contact us for more inf ormation. Size is only the body of the trac k light.
96
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 98
BELLA
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CR I Reflec tor Size Track Adapter Options
3155.213.24.# CDM-TC G8,5 * 20w * * * 24° 121x189 3F ¤
3155.221.24.# CDM-TC G8,5 * 35w * * * 24° 121x189 3F ¤
3155.224.24.# CDM-TC G8,5 * 50w * * * 24° 121x189 3F ¤
3155.226.24.# CDM-TC G8,5 * 70w * * * 24° 121x189 3F ¤
COMING SOON !
BLOW
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CR I Reflec tor Size Track Adapter Options
3180.213.24.∆ CDM-TC G8,5 * 20w * * * 24° 150x95 3F ¤
3180.201.24.∆ CDM-TC G8,5 * 35w * * * 24° 150x95 3F ¤
3180.204.24.∆ CDM-TC G8,5 * 50w * * * 24° 150x95 3F ¤
3180.206.24.∆ CDM-TC G8,5 * 70w * * * 24° 150x95 3F ¤
INTENSE
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CR I Reflec tor Size Track Adapter Options
3191.201.93.∆ CDM-TD RX7S * 35w * * * W ide beam 276x187 3F
3191.206.93.∆ CDM-TD RX7S * 70w * * * W ide beam 276x187 3F
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 Black= 5, RAL 9006 Alu= 6 , # = Textured paint, Color: 33 = RAL 9003 WHITE, 55 = RAL 9005 BLACK, 66 = RAL 9006 Alu, ¤ = Option Reflector 12º- 36º
All track spots includes a Philips E-ballast, without HID lamp. , * There are dif ferent options available f or the HID lamps, Size is only the body of the track light.
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
97
Page 99
PETT 12
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CR I Reflec tor Size Track Adapter Options
3115.264.24.∆ CDM-TM PGJ 5 * 20w * * * 24° 112x87 1F
3115.265.24.∆ CDM-TM PGJ 5 * 35w * * * 24° 112x87 1F
PETT 14
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CR I Reflec tor Size Track Adapter Options
3116.213.24.∆ CDM-TC G8,5 * 20w * * * 24° 130x102 3F ¤
3116.221.24.∆ CDM-TC G8,5 * 35w * * * 24° 130x102 3F ¤
3116.224.24.∆ CDM-TC G8,5 * 50w * * * 24° 130x102 3F ¤
3116.226.24.∆ CDM-TC G8,5 * 70w * * * 24° 130x102 3F ¤
PETT 16
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CR I Reflec tor Size Track Adapter Options
3117.213.24.∆ CDM-T G12 * 20w * * * 24° 152x118 3F ¤
3117.201.24.∆ CDM-T G12 * 35w * * * 24° 152x118 3F ¤
3117.204.24.∆ CDM-T G12 * 50w * * * 24° 152x118 3F ¤
3117.206.24.∆ CDM-T G12 * 70w * * * 24° 152x118 3F ¤
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 Black= 5, RAL 9006 Alu= 6 , ¤ = Option Reflector 12º- 36º , Size is only the body of the track light.
All track spots includes a Philips E-ballast, without HID lamp. , * There are dif ferent options available f or the HID lamps, please contact us for more inf ormation.
98
WWW.KEY-LIGHT.NL | THE RIGHT KEY TO YOUR PROJECT
Page 100
COLT 12
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CR I Reflec tor Size Track Adapter Options
3118.241.24.∆ CDM-Rm GX10 20w 3000K 10/25/40 80x70 1F
3118.242.24.∆ CDM-Rm GX10 35w 3000K 10/25/40 80x70 1F
3118.244.24.∆ CDM-Rm GX10 50w 3000K 10/25/40 80x70 1F
COLT 14
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CR I Reflec tor Size Track Adapter Options
3119.305.24.∆ QR 51/LED GU 5,3 * max 50w * * * Lamp 80x70 1F
COLT 16
Article No. Product Image Lamp type Socket Lumen W attage L/W Colour temp. CR I Reflec tor Size Track Adapter Options
3120.213.24.∆ CDM-TC G8,5 * 20w * * * 24° 118x93 1F ¤
3120.221.24.∆ CDM-TC G8,5 * 35w * * * 24° 118x93 1F ¤
3120.224.24.∆ CDM-TC G8,5 * 50w * * * 24° 118x93 1F ¤
3120.226.24.∆ CDM-TC G8,5 * 70w * * * 24° 118x93 1F ¤
* Options
∆ = Color: RAL 9003 WHITE= 3, RAL 9005 Black= 5, RAL 9006 Alu= 6 , ¤ = Option Reflector 12º- 36º
All track spots includes a Philips E-ballast, without HID lamp. , * There are dif ferent options available f or the HID lamps. , Size is only the body of the track light.
THE RIGHT KEY TO YOUR PROJECT | WWW.KEY-LIGHT.NL
99
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
