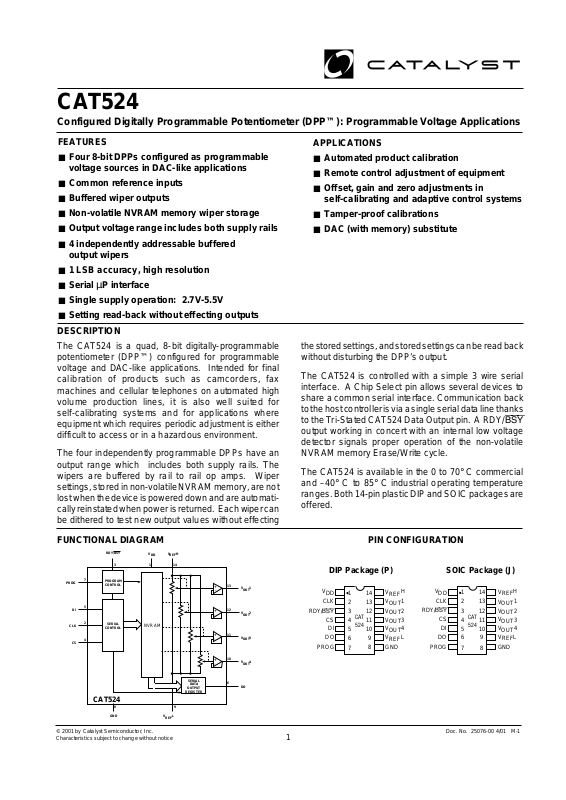

FEATURES
■ Four 8-bit DPPs configured as programmable
voltage sources in DAC-like applications
■ Common reference inputs
■ Buffered wiper outputs
■ Non-volatile NVRAM memory wiper storage
■ Output voltage range includes both supply rails
■ 4 independently addressable buffered
output wipers
■ 1 LSB accuracy, high resolution
■ Serial µP interface
■ Single supply operation: 2.7V-5.5V
■ Setting read-back without effecting outputs
APPLICATIONS
■ Automated product calibration
■ Remote control adjustment of equipment
■ Offset, gain and zero adjustments in
self-calibrating and adaptive control systems
■ Tamper-proof calibrations
■ DAC (with memory) substitute
DESCRIPTION
The CAT524 is a quad, 8-bit digitally-programmable
potentiometer (DPP™) configured for programmable
voltage and DAC-like applications. Intended for final
calibration of products such as camcorders, fax
machines and cellular telephones on automated high
volume production lines, it is also well suited for
self-calibrating systems and for applications where
equipment which requires periodic adjustment is either
difficult to access or in a hazardous environment.
The four independently programmable DPPs have an
output range which includes both supply rails. The
wipers are buffered by rail to rail op amps. Wiper
settings, stored in non-volatile NVRAM memory, are not
lost when the device is powered down and are automatically reinstated when power is returned. Each wiper can
be dithered to test new output values without effecting
the stored settings, and stored settings can be read back
without disturbing the DPP’s output.
The CAT524 is controlled with a simple 3 wire serial
interface. A Chip Select pin allows several devices to
share a common serial interface. Communication back
to the host controller is via a single serial data line thanks
to the Tri-Stated CAT524 Data Output pin. A RDY/BSY
output working in concert with an internal low voltage
detector signals proper operation of the non-volatile
NVRAM memory Erase/Write cycle.
The CAT524 is available in the 0 to 70° C commercial
and –40° C to 85° C industrial operating temperature
ranges. Both 14-pin plastic DIP and SOIC packages are
offered.

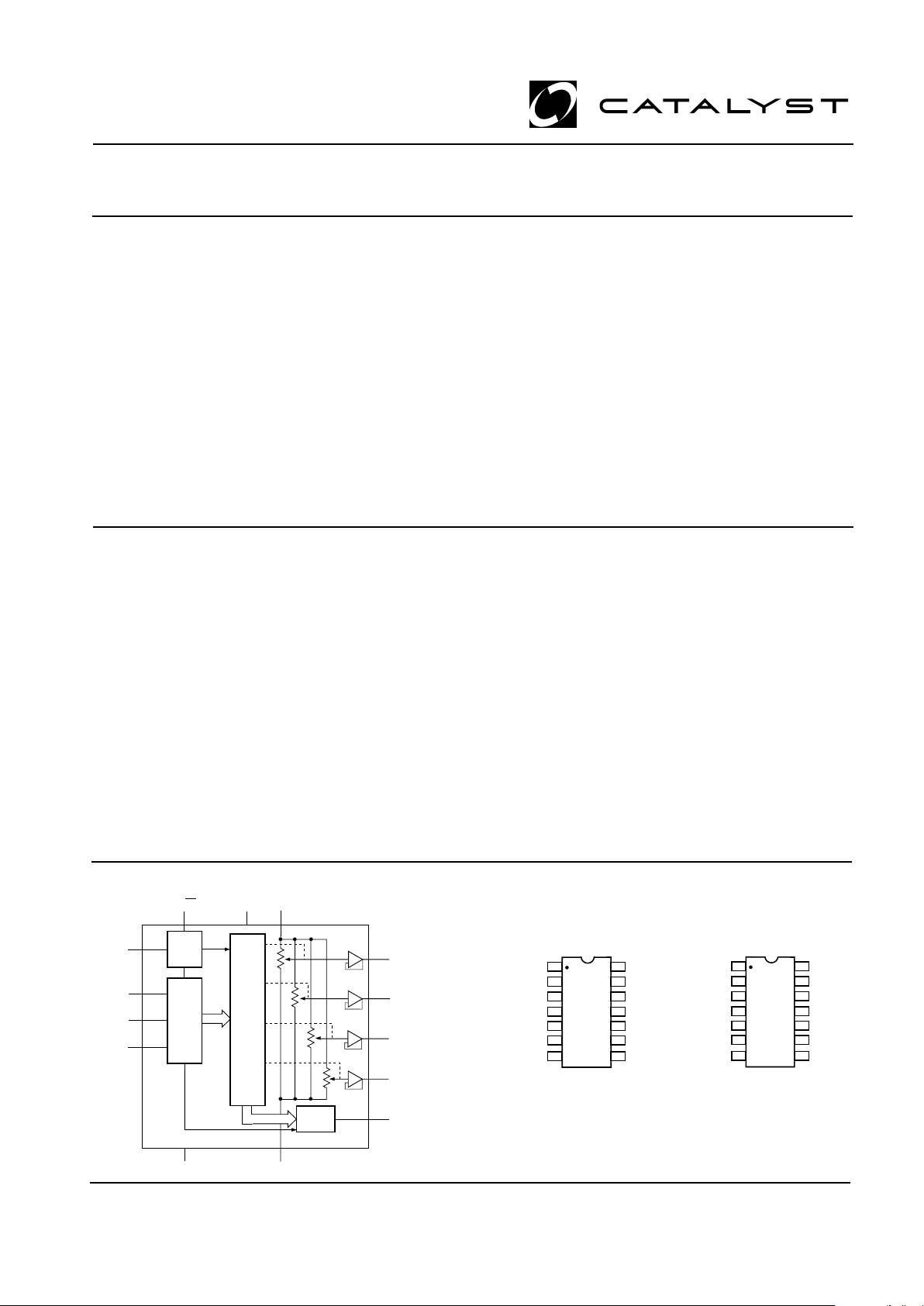

FUNCTIONAL DIAGRAM PIN CONFIGURATION
CAT524
Configured Digitally Programmable Potentiometer (DPP™): Programmable Voltage Applications
DIP Package (P) SOIC Package (J)
CAT524
Doc. No. 25076-00 4/01 M-1
RDY/BSY
CLK
CS
PROG
DI
DO
V
DD
2
3
4
13
12
11
5
6
7
10
9
8
114
GND
V
REF
H
V
OUT
1
V
OUT
2
V
OUT
3
V
OUT
4
V
REF
L
CLK
CS
PROG
DI
DO
V
DD
2
3
4
13
12
11
5
6
7
10
9
8
114
GND
V
REF
H
V
OUT
1
V
OUT
2
V
OUT
3
V
OUT
4
V
REF
L
CAT
524
CAT
524
RDY/BSY
RDY/BSY
PROG
PROGRAM
CONTROL
DI
CS
CLK
SERIAL
CONTROL
SERIAL
DATA
OUTPUT
REGISTER
GND
V L
REF
V H
REF
V
DD
3114
7
5
2
4
V 1
13
11
10
6
12
OUT
V 3
V 4
OUT
V 2
OUT
OUT
DO
+
–
+
–
+
–
+
–
9
8
NVRAM
Page 2
CAT524
2
Doc. No. 25076-00 Rev. 4/01 M-1
Logic Inputs
I
IH
Input Leakage Current VIN = V
DD
——10 µA
I
IL
Input Leakage Current VIN = 0V ——–10 µA
V
IH
High Level Input Voltage 2 — V
DD
V
V
IL
Low Level Input Voltage 0 — 0.8 V
References
V
RH
V
REF
H Input Voltage Range 2.7 — V
DD
V
V
RL
V
REF
L Input Voltage Range GND — V
DD
-2.7 V
Z
IN
V
REF
H–V
REF
L Resistance — 7 — kΩ
Logic Outputs
V
OH
High Level Output Voltage IOH = – 40 µAV
DD
–0.3 ——V
V
OL
Low Level Output Voltage IOL = 1 mA, VDD = +5V ——0.4 V
IOL = 0.4 mA, VDD = +3V ——0.4 V
ABSOLUTE MAXIMUM RATINGS*
Supply Voltage
VDD to GND ......................................–0.5V to +7V
Inputs
CLK to GND............................–0.5V to V
DD
+0.5V
CS to GND..............................–0.5V to V
DD
+0.5V
DI to GND ...............................–0.5V to V
DD
+0.5V
PROG to GND ........................–0.5V to V
DD
+0.5V
V
REF
H to GND ........................–0.5V to V
DD
+0.5V
V
REF
L to GND.........................–0.5V to V
DD
+0.5V
Outputs
D0 to GND...............................–0.5V to V
DD
+0.5V
V
OUT
1– 4 to GND...................–0.5V to V
DD
+0.5V
Operating Ambient Temperature
Commercial (‘C’ or Blank suffix) ...... 0°C to +70°C
Industrial (‘I’ suffix)...................... – 40°C to +85°C
Junction Temperature ..................................... +150°C
Storage Temperature ....................... –65°C to +150°C
Lead Soldering (10 sec max) .......................... +300°C
* Stresses above those listed under Absolute Maximum Ratings
may cause permanent damage to the device. Absolute
Maximum Ratings are limited values applied individually while
other parameters are within specified operating conditions,
and functional operation at any of these conditions is NOT
implied. Device performance and reliability may be impaired by
exposure to absolute rating conditions for extended periods of
time.
DC ELECTRICAL CHARACTERISTICS:
VDD = +2.7 to +5.5V, V
REF
H = VDD, V
REF
L = 0V, unless otherwise specified
RELIABILITY CHARACTERISTICS
Symbol Parameter Min Max Units Test Method
V
ZAP
(1)
ESD Susceptibility 2000 Volts MIL-STD-883, Test Method 3015
I
LTH
(1)(2)
Latch-Up 100 mA JEDEC Standard 17
NOTES: 1. This parameter is tested initially and after a design or process change that affects the parameter.
2. Latch-up protection is provided for stresses up to 100mA on address and data pins from –1V to VCC + 1V.
Symbol Parameter Conditions Min Typ Max Units
Resolution 8 ——Bits
Accuracy
INL Integral Linearity Error I
LOAD
= 10 µA TR = C ——± 1 LSB
I
LOAD
= 10 µA TR = I ——± 1 LSB
I
LOAD
= 40 µA TR = C ——± 2 LSB
I
LOAD
= 40 µA TR = I ——± 2 LSB
DNL Differential Linearity Error I
LOAD
= 10 µA TR = C ——± 0.5 LSB
I
LOAD
= 10 µA TR = I ——± 0.5 LSB
I
LOAD
= 40 µA TR = C ——± 1.5 LSB
I
LOAD
= 40 µA TR = I ——± 1.5 LSB
Page 3
CAT524
3
Doc. No. 25076-00 Rev. 4/01
AC ELECTRICAL CHARACTERISTICS:
VDD = +2.7V to +5.5V, V
REF
H = +VDD, V
REF
L = 0V, unless otherwise specified
Symbol Parameter Conditions Min Typ Max Units
Digital
t
CSMIN
Minimum CS Low Time 150 —— ns
t
CSS
CS Setup Time 100 —— ns
t
CSH
CS Hold Time 0 —— ns
t
DIS
DI Setup Time 50 —— ns
t
DIH
DI Hold Time 50 —— ns
t
DO1
Output Delay to 1 ——150 ns
t
DO0
Output Delay to 0 ——150 ns
t
HZ
Output Delay to High-Z — 400 — ns
t
Busy
Erase/Write Cycle Time — 45 ms
t
LZ
Output Delay to Low-Z — 400 — ns
t
PROG
Erase/Write Pulse Width 700 —— ns
t
PS
PROG Setup Time 150 —— ns
t
CLK
H Minimum CLK High Time 500 —— ns
t
CLK
L Minimum CLK Low Time 300 —— ns
f
C
Clock Frequency DC — 1 MHz
Analog
t
DS
DAC Settling Time to 1/2 LSB C
LOAD
= 10 pF, VDD = +5V — 310 µs
C
LOAD
= 10 pF, VDD = +3V — 610 µs
Pin Capacitance
C
IN
Input Capacitance VIN = 0V, f = 1 MHz
(2)
— 8 — pF
C
OUT
Output Capacitance V
OUT
= 0V, f = 1 MHz
(2)
— 6 — pF
NOTES: 1. All timing measurements are defined at the point of signal crossing VDD / 2.
2. These parameters are periodically sampled and are not 100% tested.
Analog Output
Temperature
Power Supply
DC ELECTRICAL CHARACTERISTICS (Cont.):
VDD = +2.7V to +5.5V , V
REF
H = +VDD, V
REF
L = 0V, unless otherwise specified
Symbol Parameter Conditions Min Typ Max Units
FSO Full-Scale Output Voltage VR = V
REF
H–V
REF
L 0.99 VR0.995 V
R
— V
ZSO Zero-Scale Output Voltage VR = V
REF
H–V
REF
L — 0.005 VR0.01 V
R
V
I
L
DAC Output Load Current ——1 µA
R
OUT
DAC Output Impedance VDD = +5V ——100 kΩ
VDD = +3V ——150 kΩ
PSSR Power Supply Rejection I
LOAD
= 250 nA ——1 LSB / V
TC
O
V
OUT
Temperature Coefficient V
REF
H = +5V, V
REF
L = 0V ——200 µV/ °C
VDD = +5V, I
LOAD
= 250nA
TC
REF
Temperature Coefficient of V
REF
H to V
REF
L — 700 — ppm / °C
V
REF
Resistance
I
DD1
Supply Current (Read) Normal Operating — 400 600 µA
I
DD2
Supply Current (Write) VDD=5V — 1600 2500 µA
VDD=3V — 1000 1600 µA
V
DD
Operating Voltage Range 2.7 — 5.5 V
CL = 100 pF,
see note 1
Page 4
CAT524
4
Doc. No. 25076-00 Rev. 4/01 M-1
A. C. TIMING DIAGRAM
t
o
1 2 3 4 5
CLK
CS
DI
DO
PROG
t H
CLK
Rising CLK edge to falling CLK edge
t L
CLK
Falling CLK edge to CLK rising edge
t
CSH
Falling CLK edge for last data bit (DI)
to falling CS edge
t
CSS
Rising CS edge to next rising CLK edge
t
CSMIN
Falling CS edge to rising CS edge
t
DIS
Data valid to first rising CLK
edge after CS = high
t
DIH
Rising CLK edge to end of data valid
t
DO0
Rising CLK edge to D0 = low
t
LZ
Rising CS edge to D0 becoming high
low impedance (active output)
t
DO1
Rising CLK edge to D0 = high
t
HZ
Falling CS edge to D0 becoming high
impedance (Tri-State)
Rising PROG edge to next rising
CLK edge
Falling CLK edge after PROG=H
to
rising RDY/
BSY
edge
t H
CLK
t L
CLK
t
CSH
t
CSS
t
CSMIN
t
DIS
t
DIH
t
DO0
t
LZ
t
DO1
t
HZ
TIMING
FROM TO
MIN/MAX
Min
Min
Min
Min
Min
Min
Min
Max
(Max)
Max
(Max)
Min
Min
PARAM
NAME
RDY/BSY
t
BUSY
Rising PROG edge to falling
PROG edge
t
PS
t
PROG
t
PROG
Max
t
PS
t
o
1 2 3 4 5
t
BUSY
Page 5
CAT524
5
Doc. No. 25076-00 Rev. 4/01
PIN DESCRIPTION
Pin Name Function
1VDDPower supply positive.
2 CLK Clock input pin.Clock input pin.
3 RDY/BSY Ready/Busy Output
4 CS Chip Select
5 DI Serial data input pin.
6 DO Serial data output pin.
7 PROG EEPROM Programming Enable
Input
8 GND Power supply ground.
9V
REF
L Minimum DAC output voltage.
10 V
OUT
4 DAC output channel 4.
11 V
OUT
3 DAC output channel 3.
12 V
OUT
2 DAC output channel 2.
13 V
OUT
1 DAC output channel 1.
14 V
REF
H Maximum DAC output voltage.
DEVICE OPERATION
The CAT524 is a quad 8-bit Digital to Analog Converter
(DAC) whose outputs can be programmed to any one of
256 individual voltage steps. Once programmed, these
output settings are retained in non-volatile EEPROM
memory and will not be lost when power is removed from
the chip. Upon power up the DACs return to the settings
stored in EEPROM memory. Each DAC can be written
to and read from independently without effecting the
output voltage during the read or write cycle. Each
output can also be temporarily adjusted without changing the stored output setting, which is useful for testing
new output settings before storing them in memory.
DIGITAL INTERFACE
The CAT524 employs a standard 3 wire serial control
interface consisting of Clock (CLK), Chip Select (CS)
and Data In (DI) inputs. For all operations, address and
data are shifted in LSB first. In addition, all digital data
must be preceded by a logic “1” as a start bit. The DAC
address and data are clocked into the DI pin on the
clock’s rising edge. When sending multiple blocks of
information a minimum of two clock cycles is required
between the last block sent and the next start bit.
Multiple devices may share a common input data line by
selectively activating the CS control of the desired IC.
Data Outputs (DO) can also share a common line
because the DO pin is Tri-Stated and returns to a high
impedance when not in use.
CHIP SELECT
Chip Select (CS) enables and disables the CAT524’s
read and write operations. When CS is high data may be
read to or from the chip, and the Data Output (DO) pin is
active. Data loaded into the DAC control registers will
remain in effect until CS goes low. Bringing CS to a logic
low returns all DAC outputs to the settings stored in
EEPROM memory and switches DO to its high impedance Tri-State mode.
Because CS functions like a reset the CS pin has been
equipped with a 30 ns to 90 ns filter circuit to prevent
noise spikes from causing unwanted resets and the loss
of volatile data.
CLOCK
The CAT524’s clock controls both data flow in and out of
the IC and EEPROM memory cell programming. Serial
data is shifted into the DI pin and out of the DO pin on the
clock’s rising edge. While it is not necessary for the clock
to be running between data transfers, the clock must be
operating in order to write to EEPROM memory, even
though the data being saved may already be resident in
the DAC control register.
No clock is necessary upon system power-up. The
CAT524’s internal power-on reset circuitry loads data
from EEPROM to the DACs without using the external
clock.
As data transfers are edge triggered clean clock transitions are necessary to avoid falsely clocking data into the
control registers. Standard CMOS and TTL logic families work well in this regard and it is recommended that
any mechanical switches used for breadboarding or
device evaluation purposes be debounced by a flip-flop
or other suitable debouncing circuit.
DAC addressing is as follows:
DAC OUTPUT A0 A1
V
OUT
1 0 0
V
OUT
2 1 0
V
OUT
3 0 1
V
OUT
4 1 1
Page 6
CAT524
6
Doc. No. 25076-00 Rev. 4/01 M-1
complished through the control signals: Chip Select
(CS) and Program (PROG). With CS high, a start bit
followed by a two bit DAC address and eight data bits are
clocked into the DAC control register via the DI pin. Data
enters on the clock’s rising edge. The DAC output
changes to its new setting on the clock cycle following
D7, the last data bit.
Programming is achieved by bringing PROG high for a
minimum of 3 ms. PROG must be brought high sometime after the start bit and at least 150 ns prior to the
rising edge of the clock cycle immediately following the
D7 bit. Two clock cycles after the D7 bit the DAC control
register will be ready to receive the next set of address
and data bits. The clock must be kept running throughout the programming cycle. Internal control circuitry
takes care of ramping the programming voltage for data
transfer to the EEPROM cells. The CAT524 EEPROM
memory cells will endure over 100,000 write cycles and
will retain data for a minimum of 20 years without being
refreshed.
READING DATA
Each time data is transferred into a DAC control register
currently held data is shifted out via the D0 pin, thus in
every data transaction a read cycle occurs. Note,
however, that the reading process is destructive. Data
must be removed from the register in order to be read.
Figure 2 depicts a Read Only cycle in which no change
occurs in the DAC’s output. This feature allows µPs to
poll DACs for their current setting without disturbing the
output voltage but it assumes that the setting being read
is also stored in EEPROM so that it can be restored at the
end of the read cycle. In Figure 2 CS returns low before
the 13
th
clock cycle completes. In doing so the EEPROM’s
setting is reloaded into the DAC control register. Since
V
REF
V
REF
, the voltage applied between pins V
REFH
andV
REF
L,
sets the DAC’s Zero to Full Scale output range where
V
REF
L = Zero and V
REFH
= Full Scale. V
REF
can span the
full power supply range or just a fraction of it. In typical
applications V
REFH
andV
REF
L are connected across the
power supply rails. When using less than the full supply
voltage V
REF
H is restricted to voltages between VDD and
VDD/2 and V
REF
L to voltages between GND and VDD/2.
READY
/BUSY/BUSY
/BUSY/BUSY
/BUSY
When saving data to non-volatile EEPROM memory, the
Ready/Busy ouput (RDY/BSY) signals the start and
duration of the EEPROM erase/write cycle. Upon receiving a command to store data (PROG goes high) RDY/
BSY goes low and remains low until the programming
cycle is complete. During this time the CAT524 will
ignore any data appearing at DI and no data will be
output on DO.
RDY/BSY is internally ANDed with a low voltage detector circuit monitoring V
DD.
If V
DD
is below the minimum
value required for EEPROM programming, RDY/BSY
will remain high following the program command indicating a failure to record the desired data in non-volatile
memory.
DATA OUTPUT
Data is output serially by the CAT524, LSB first, via the
Data Out (DO) pin following the reception of a start bit
and two address bits by the Data Input (DI). DO
becomes active whenever CS goes high and resumes
its high impedance Tri-State mode when CS returns low.
Tri-Stating the DO pin allows several 524s to share a
single serial data line and simplifies interfacing multiple
524s to a microprocessor.
WRITING TO MEMORY
Programming the CAT524’s EEPROM memory is ac-

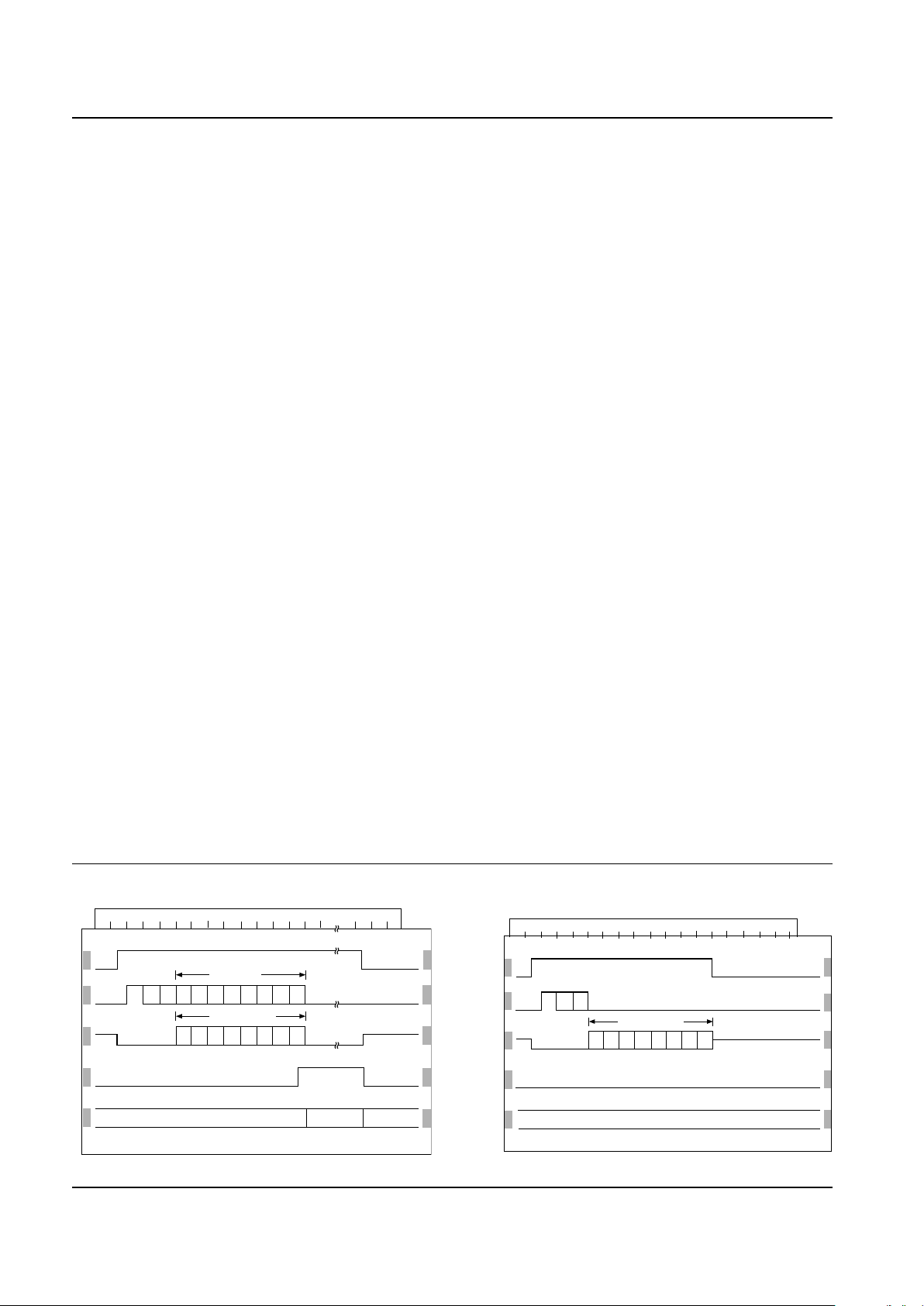

Figure 2. Reading from MemoryFigure 1. Writing to Memory
A0 A11
DO
DI
CS
PROG
DAC
OUTPUT
t 1 2 3 4 5 6 7 8 9 10 11 12
o
CURRENT
DAC V ALUE
NON-VOLATILE
D0 D1 D2 D3 D4 D5 D6 D7
CURRENT DAC DATA
D0 D1 D2 D3 D4 D5 D6 D7
A0 A1 D0 D1 D2 D3 D4 D5 D6 D71
NEW DAC DATA
CURRENT DAC DATA
CURRENT
DAC V ALUE
NON-VOLATILE
DAC
OUTPUT
PROG
DO
DI
CS
NEW
DAC V ALUE
VOLATILE
NEW
DAC V ALUE
NON-VOLATILE
t 1 2 3 4 5 6 7 8 9 10 11 12 N N+1 N+2
o
Page 7
CAT524
7
Doc. No. 25076-00 Rev. 4/01

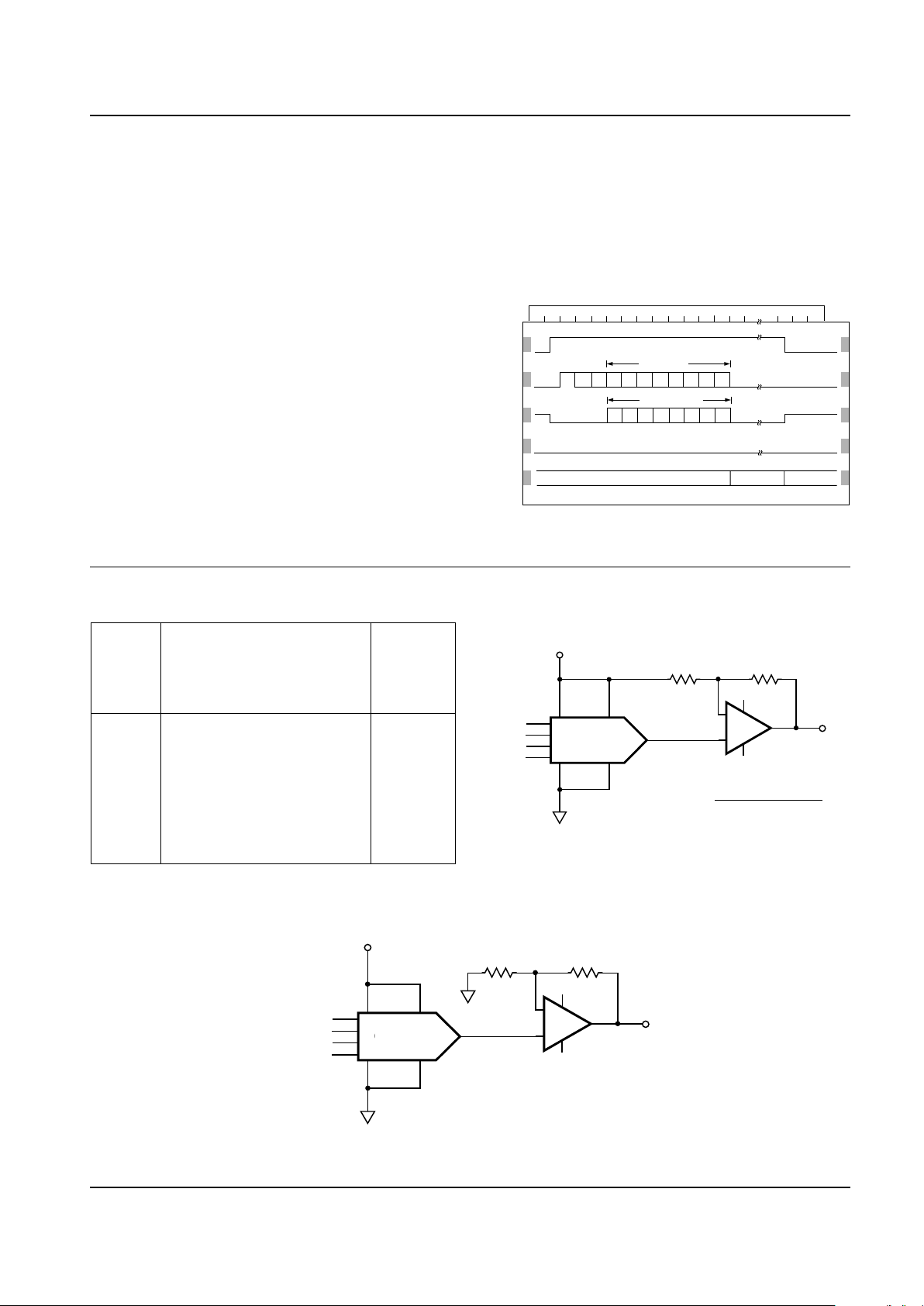

APPLICATION CIRCUITS
this value is the same as that which had been there
previously no change in the DAC’s output is noticed.
Had the value held in the control register been different
from that stored in EEPROM then
a change would occur
at the read cycle’s conclusion.
TEMPORARILY CHANGE OUTPUT
The CAT524 allows temporary changes in DAC’s output
to be made without disturbing the settings retained in
EEPROM memory. This feature is particularly useful
when testing for a new output setting and allows for user
adjustment of preset or default values without losing the
original factory settings.
Figure 3 shows the control and data signals needed to
effect a temporary output change. DAC settings may be
changed as many times as required and can be made to
any of the four DACs in any order or sequence. The
temporary setting(s) remain in effect long as CS remains
high. When CS returns low all four DACs will return to the
output values stored in EEPROM memory.
When it is desired to save a new setting acquired using
Figure 3. Temporary Change in Output
this feature, the new value must be reloaded into the
DAC control register prior to programming. This is because the CAT524’s internal control circuitry discards
the new data from the programming register two clock
cycles after receiving it (after reception is complete) if no
PROG signal is received.
D0 D1 D2 D3 D4 D5 D6 D7
A0 A1 D0 D1 D2 D3 D4 D5 D6 D71
NEW DAC DATA
CURRENT DAC DATA
DO
DI
CS
PROG
DAC
OUTPUT
t 1 2 3 4 5 6 7 8 9 10 11 12 N N+1 N+2
o
CURRENT
DAC VALUE
NON-VOLATILE
NEW
DAC VALUE
VOLATILE
CURRENT
DAC VALUE
NON-VOLATILE
Bipolar DPP Output
MSB LSB
1111 1111 —— (.98 V ) + .01 V = .990 V V = +4.90V
1000 0000 —— (.98 V ) + .01 V = .502 V V = +0.02V
0111 1111 —— (.98 V ) + .01 V = .498 V V = -0.02V
0000 0001 —— (.98 V ) + .01 V = .014 V V = -4.86V
0000 0000 —— (.98 V ) + .01 V = .010 V V = -4.90V
REF REF REF
IF
V = 5V
REF
255
255
OUT
DAC INPUT DAC OUTPUT ANALOG
R = R
OUTPUT
REF REF REF OUT
128
255
127
255
REF REF REF OUT
1
255 REF REF REF OUT
REF REF REF OUT
0
255
V = 0.99 V
FS REF
V = 0.01 V
ZERO REF
V = ——— (V - V ) + V
DAC
CODE
255
FS
ZERO ZERO
Amplified DPP Output
OPT 504
GND
V
DD
V H
REF
V L
REF
CONTROL
& DATA
+
–
OP 07
V
OUT
-15V
+15V
+5V
RR
i
F
V = (1 + –––) V
OUT DAC
R
F
R
I
CAT524
CAT524
GND
V
DD
V H
REF
V L
REF
CONTROL
& DATA
+
–
OP 07
( ) -V
R
F
R +
i
-15V
+15V
+5V
RR
i
F
R
i
i
R
F
V
DAC
For R =iR
F
V = 2V -V
OUT iDAC
V
i
V
OUT
OUT
V
=
Page 8
CAT524
8
Doc. No. 25076-00 Rev. 4/01 M-1

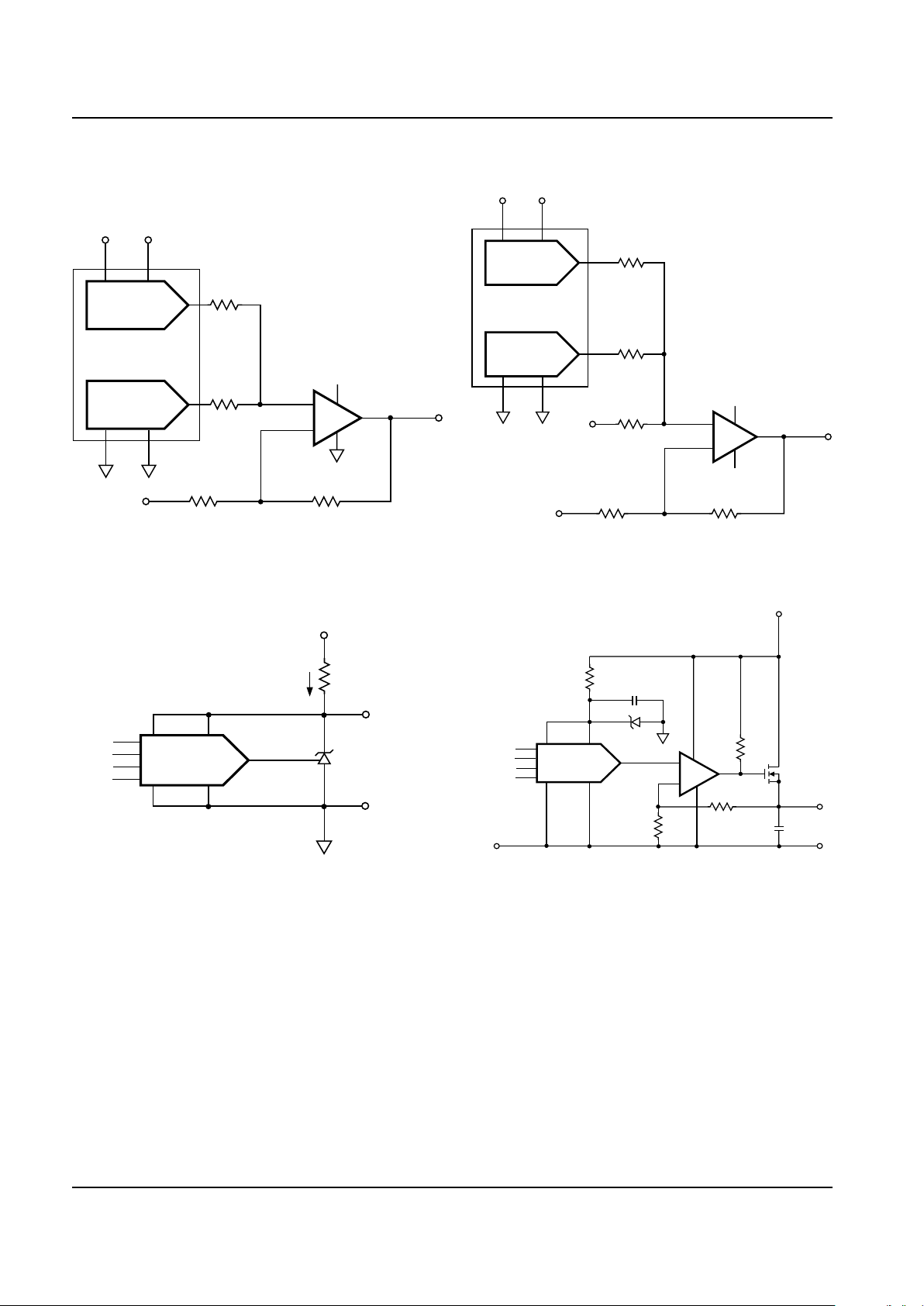

APPLICATION CIRCUITS (Cont.)
Coarse-Fine Offset Control by Averaging DPP Outputs
for Single Power Supply Systems
Coarse-Fine Offset Control by Averaging DPP Outputs
for Dual Power Supply Systems
Digitally Trimmed Voltage Reference Digitally Controlled Voltage Reference
OPT 505
LT 1029
I > 2 mA
V+
GND
V
DD
V = 5.000V
REF
V H
REF
V L
REF
CONTROL
& DATA
CAT514
GND
V
DD
V H
REF
V L
REF
CONTROL
& DATA
+
–
15K
10 µF
5.1V
10K
4.02 K
1.00K
10 µF
35V
LM 324
1N5231B
MPT3055EL
28 - 32V
OUTPUT
0 - 25V
@ 1A
CAT524
CAT524
+
–
FINE ADJUST
DPP
COARSE ADJUST
DPP
GND V L
REF
V H
REF
V
DD
R
C
127R
C
+V
+5V V
REF
R = —————
C
256 1 µA
V
REF
*
Fine adjust gives ± 1 LSB change in V
when V = ———
OFFSET
V
REF
2
OFFSET
V
OFFSET
+
–
FINE ADJUST
DPP
COARSE ADJUST
DPP
GND V L
REF
V H
REF
V
DD
R
C
127R
C
+V
+5V +V
REF
-V
-V
REF
R
o
R = ———————————
C
1 µA
OFFSET
V
OFFSET
REF
(+V ) - (V )
R = ———————————
o
1 µA
OFFSETREF
(-V ) + (V )
+
+
Page 9
CAT524
9
Doc. No. 25076-00 Rev. 4/01
APPLICATION CIRCUITS (Cont.)
Staircase Window Comparator
Overlapping Window Comparator
CAT524
+
–
+
–
+
–
+
–
+
–
+
–
+
–
+
–
10K
+5V
WINDOW 2
10K
+5V
WINDOW 3
10K
+5V
WINDOW 4
10K
+5V
WINDOW 5
+
–
+
–
10K
+5V
WINDOW 1
GND
V L
REF
CS
DI
DO
PROG
CLK
VDDV H
REF
V
REF
+5V
1.0 µF
LM 339
DPP 1
DPP 2
DPP 3
DPP 4
WINDOW 1
WINDOW 2
WINDOW 3
WINDOW 4
WINDOW 5
V
REF
V 1
OUT
V 2
OUT
V 3
OUT
V 4
OUT
GND

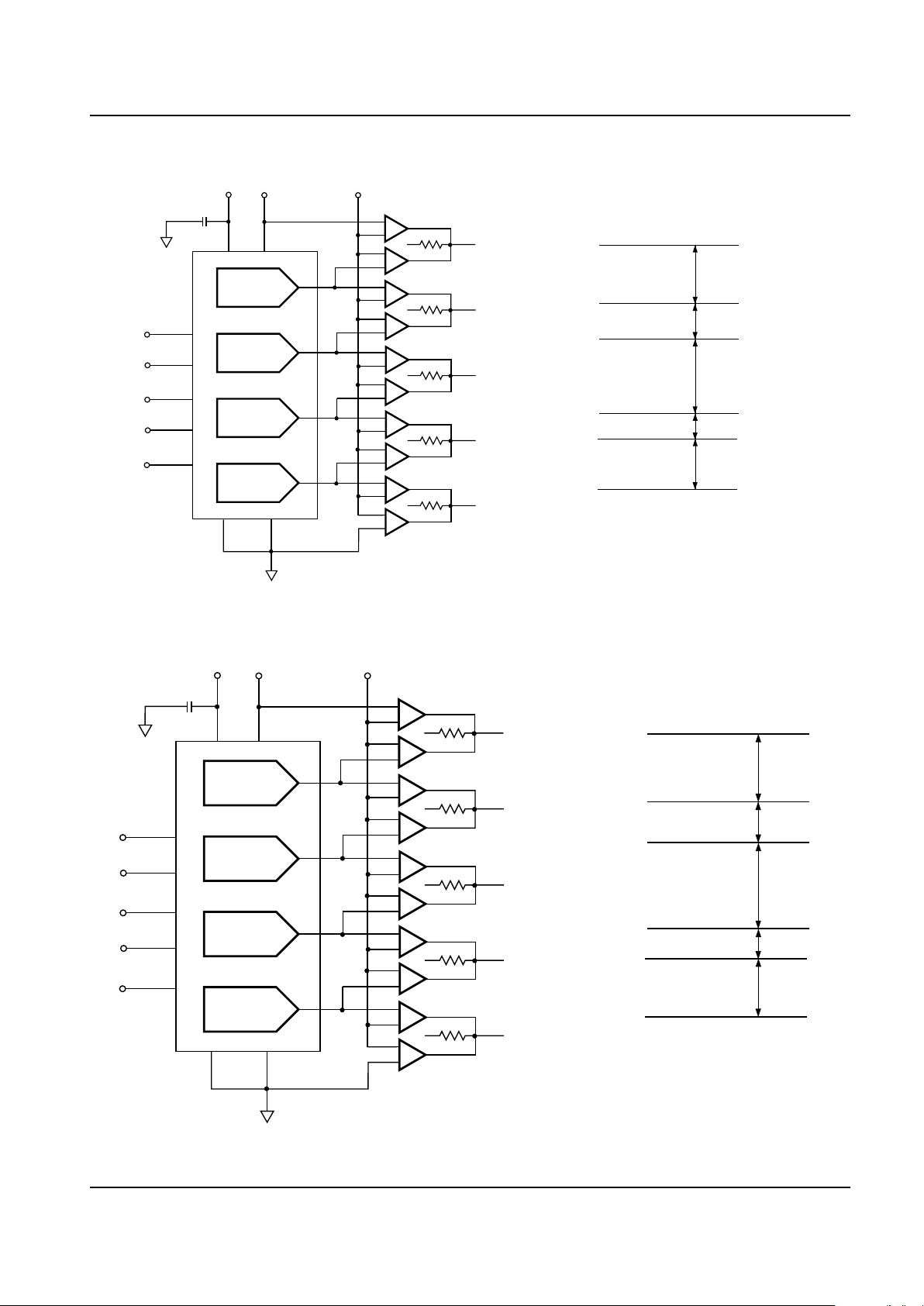

WINDOW STRUCTURE
V
IN
CAT524
+
–
+
–
+
–
+
–
+
–
+
–
+
–
+
–
10K
+5V
WINDOW 2
10K
+5V
WINDOW 3
10K
+5V
WINDOW 4
10K
+5V
WINDOW 5
+
–
+
–
10K
+5V
WINDOW 1
GND
V L
REF
CS
DI
DO
PROG
CLK
V
DD
V H
REF
V
REF
+5V
1.0 F
LM 339
DPP 1
DPP 2
DPP 3
DPP 4
WINDOW 1
WINDOW 2
WINDOW 3
WINDOW 4
WINDOW 5
V
REF
V 1
OUT
V 2
OUT
V 3
OUT
V 4
OUT
GND
WINDOW STRUCTURE
V
IN
Page 10
CAT524
10
Doc. No. 25076-00 Rev. 4/01 M-1
APPLICATION CIRCUITS (Cont.)

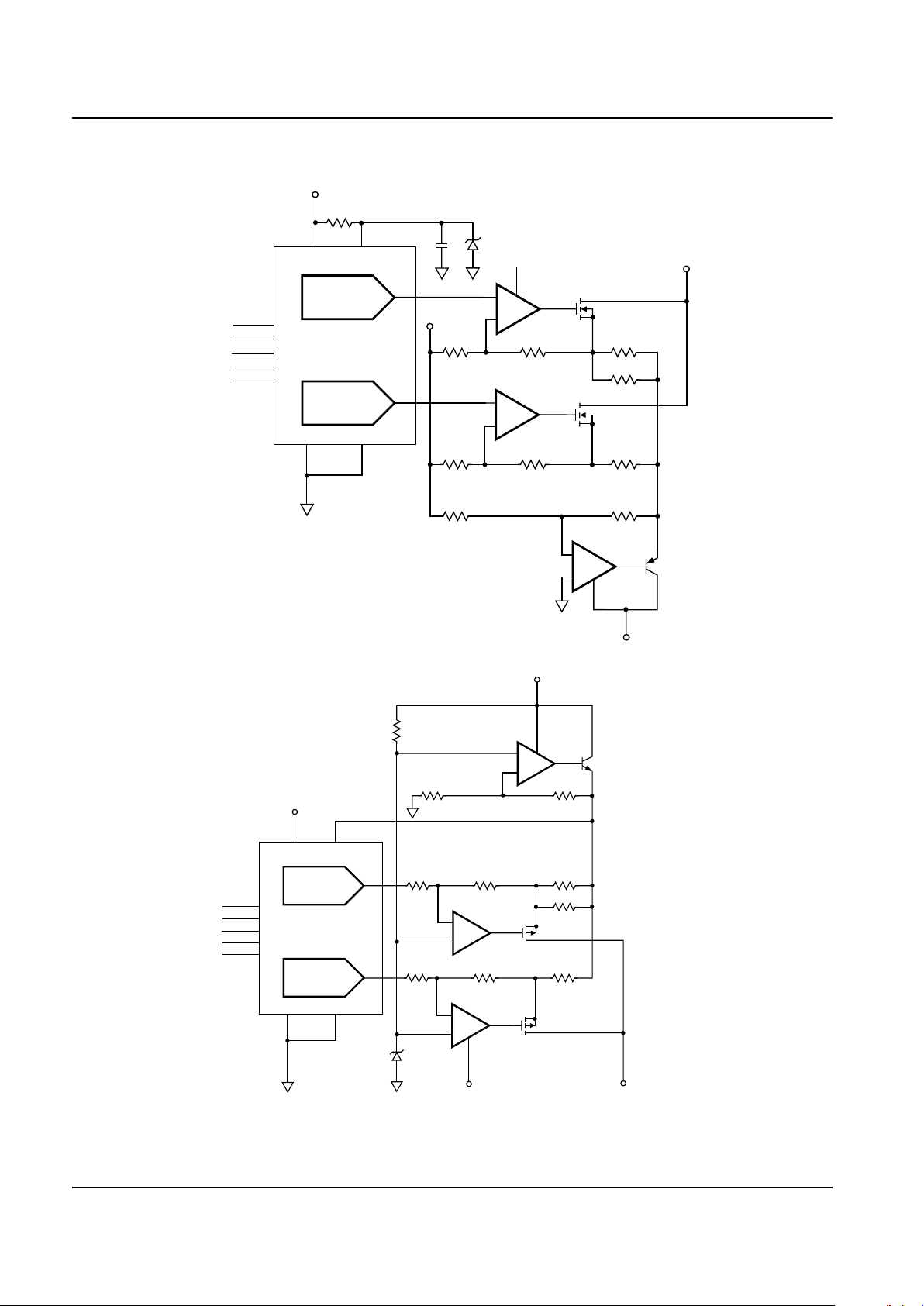

Current Sink with 4 Decades of Resolution
Current Source with 4 Decades of Resolution
GND
V L
REF
V
DD
V
REF
+5V
DPP
+
–
CAT524
CONTROL
& DATA
DPP
+
–
10K 10K
39
Ω1W
LM385-2.5
5 µA steps
I = 2 - 255 mA
SINK
2N7000
10K
10K
TIP 30
39Ω 1W
5M
3.9K
+
–
-15V
2N7000
+5V
+15V
4.7 µA
1 mA steps
2.2K
H
5M
GND
V L
REF
V
DD
V H
REF
+5V
DPP
+
–
CAT524
CONTROL
& DATA
DPP
+
–
5M
5M
39 1W
39 1W
5M
5M
3.9K
LM385-2.5
-15V
5 µA steps
I = 2 - 255 mA
SOURCE
1 mA steps
+
–
10K
10K
+15V
TIP 29
BS170P
BS170P
51K
Ω
Ω
Page 11
CAT524
11
Doc. No. 25076-00 Rev. 4/01
APPLICATION CIRCUITS (Cont.)
V
pp
CS
PROG
DI
DO
CLK
V
DD
V H
REF
V L
REF
V 3
OUT
V 2
OUT
V 1
OUT
V 4
OUT
GND
14
1
13
12
11
10
9
8
4
7
5
6
2
3
47K
47K
47K
47K
1.0 µF
0.22µF0.22µF0.22µF0.22
µF
14
11
5
16
9
23
3
22
1
7
18
17
21
24
12
OUT 2
15
OUT 1
10
13
4
8
+12V
V
CC
TREB CAP
BASS CAP
OUTPUT 1
BYPASS
OUTPUT 2
TREB CAP
BASS CAP
GND
GND
STEREO
ENHANCE
IN 2
VOLUME
BALANCE
TREBLE
BASS
LOUDNESS
V
IN 1
Z
19
2
LM1040
OPT 504
CHIP SELECT.
PROGRAM
DATA IN
DATA OUT
CLOCK
INPUT 2
20V
IN5250B
2.5 µF
INPUT 1
1.0 µF
1N914
1N914
+12V
.005 µF
10K
74C14
0.47 µF
0.47 µF
0.1 µF
4.7K
0.1 µF
0.01 µF
0.39 µF
47 µF
10 µF
10 µF
0.39 µF
0.01 µF

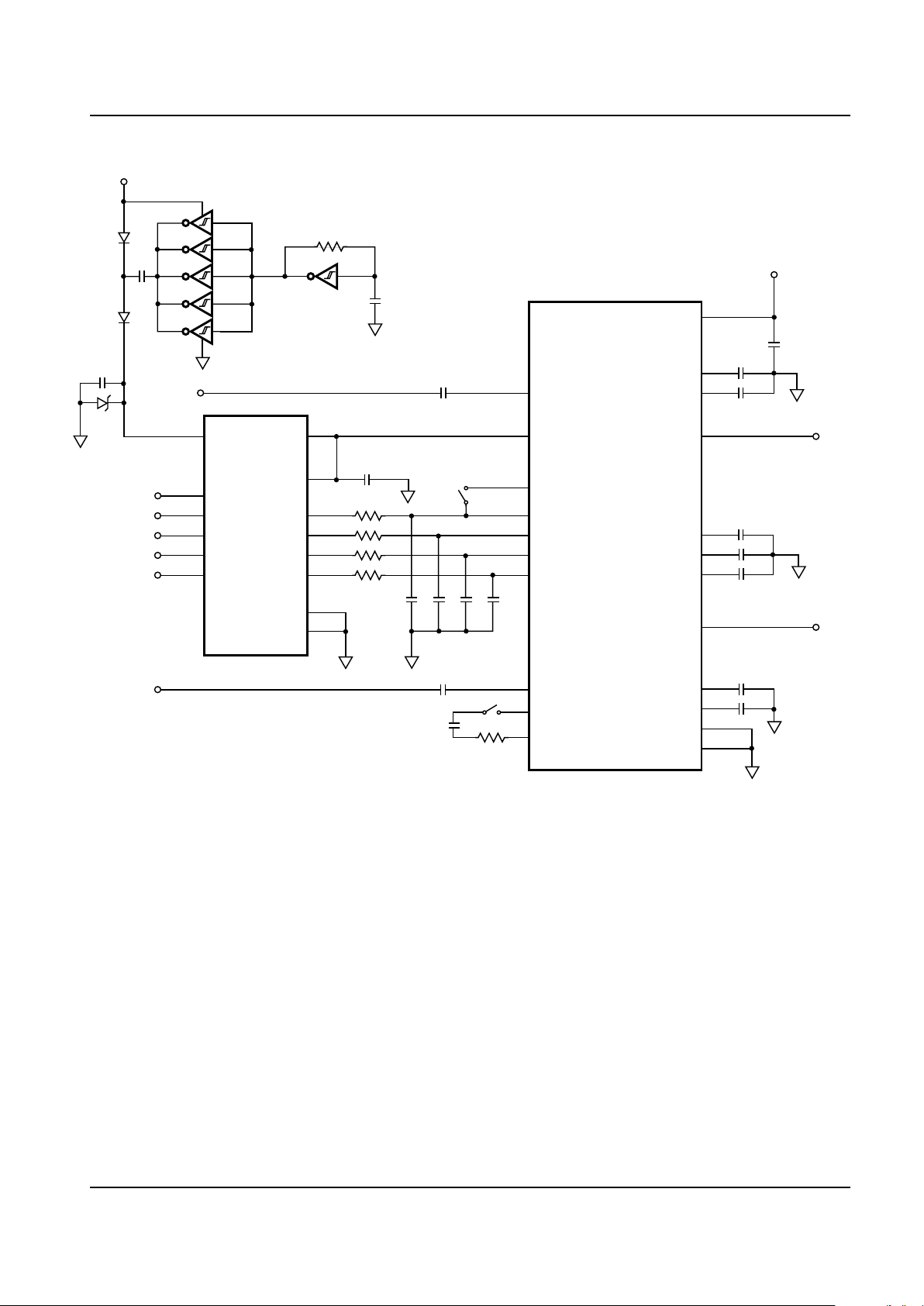

Digital Stereo Control
CAT524
Page 12
CAT524
12
Doc. No. 25076-00 Rev. 4/01 M-1
ORDERING INFORMATION
Notes:
(1) The device used in the above example is a CAT524JI-TE13 (SOIC, Industrial Temperature, Tape & Reel)
Prefix Device # Suffix
524 J
Product
Number
Package
P: PDIP
J: SOIC
CAT
Optional
Company ID
I
Temperature Range
Blank = Commercial (0˚C to +70˚C)
I = Industrial (-40˚C to +85˚C)
-TE13
Tape & Reel
TE13: 2000/Reel
Loading...
