Datasheet Capxon 2008 Polymer Full Datasheet

RoHS

CapXon

Conductive Polymer

Aluminum Solid Capacitor

RoHS

Compliant

导电高分子型固态铝电解电容器

导电高分子型固态铝电解电容器导电高分子型固态铝电解电容器

HTTP://WWW.CAPXONGROUP.COM

CapXon

Contents

Page

2. Catalog pr

inted in

Aug

. 2008

Contents

CP-CAP

Aluminum Solid Capacitors With Conductive Polymer

1. List of the Solid Capacitors .. 2

2. Solid Capacitor System  3

3. Lead Cutting and Forming .. 4

4. Lead Tapping .. 5

5. Lead Tapping Package for Radial Type ... 7

6. Lead Tapping Package for SMD Type  8

7.Part Number System 9

8.Precautions and Guidelines 11

9.Specifications for each series . 16

Note : 1. Specification and dimensions in this catalog are subject to change without notice.

If necessary, drawing can be provided.

1

CapXon

Life

List of the Solid Capacitors

Series

Sleeve

Color

PL Radial Very low ESR

PS Radial Standard

PU Radial Ultra low ESR

PX Radial Low profile

PE Radial Low ESR & down size

PM SMD SMD and Low profile

PD SMD SMD and Large capacitance

Conductive Polymer Electrolyte

PV SMD SMD and Low height

Type Features

Operating

Temperature

Range

-55 to +105℃

Working

Voltage

2.5-16V 180~3500uF 0.2CV 2000 16

2.5-25V 39~3500uF 0.2CV 2000 19

2.5-10V 180~3500uF 0.2CV 2000 22

2.5-25V 10~560uF 300uA 2000 25

2.5-16V 180~820uF 0.2CV 2000 28

2.5-25V 10~560uF 300uA 2000 29

2.5-25V 39~3300uF 0.2CV 2000 32

2.5-25V 39~2500uF 0.2CV 2000 35

Capacitance

Leakage

Current

(max)

Load

page

/Hrs

2

CapXon

AL.E. Capacitors

Conductive Polymer

PS

105℃ 2000H

2.5-25V

39~3500uF

Low Profile

PX

105℃ 2000H

2.5-25V

10~560uF

Conductive Polymer

PM

105℃ 2000H

2.5-25V

10~560uF

Low ESR

Low Profile

105℃ 2000H

180~3500uF

PE

105℃ 2000H

2.5-6.3V

180~820uF

105℃ 2000H

Solid Capacitors System

Radial type

PL

2.5-16V

Down size

PD

2.5-25V

39~3300uF

Ultra low ESR

SMD type

Low height

3

PU

105℃ 2000H

2.5-10V

180~3500uF

PV

105℃ 2000H

2.5-25V

39~2500uF

CapXon

（１）ＣＦ

（２）ＣＡ

（３）ＦＡ

Fig1 Dφ 4 5

Fig1

Fig1 Dφ

F 2 2.5

Fig1

F 2 2.5

4 5

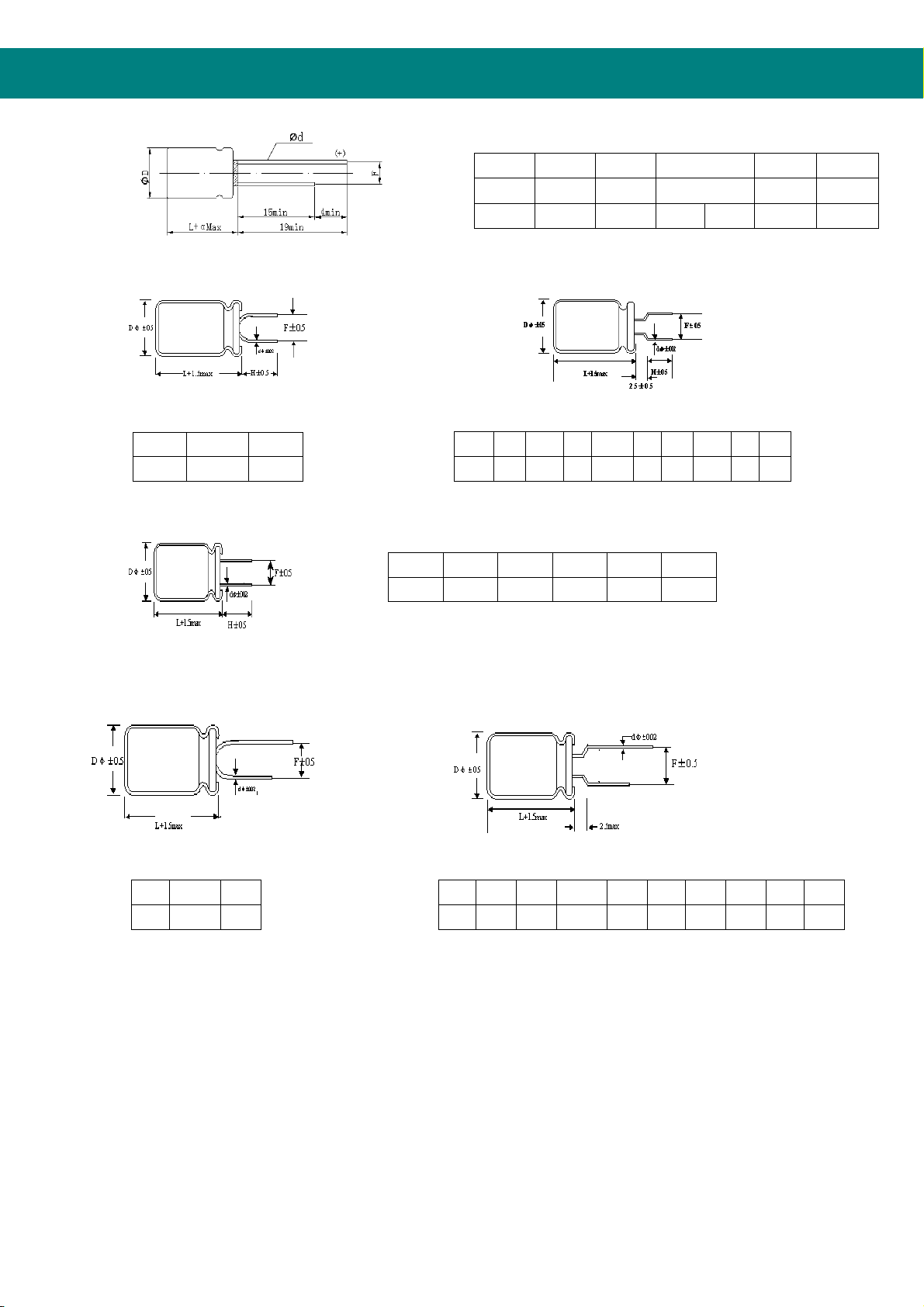

Cutting and Forming for Solid Capacitors

Dφ 4 5 6.3 8 10

F 1.5 2 2.5 3.5 5

dφ 0.45 0.45 0.45 0.60

Fig2 Dφ 4 4 4 5 5 6.3 6.3 8 10

F 2.5 3.5 5 3.5 5 3.5 5 5 7.5

Dφ

F 1.5

Fig2

Fig2 Dφ 4 4 4 5 5 6.3 6.3 8 10

F 2.5 3.5

4 5 6.3

2.0

4

Fig2

8 10

2.5

5 3.5 5 3.5 5 5 7.5

3.5

5.0

0.60 0.60

CapXon

Taping

for Solid Capacitors

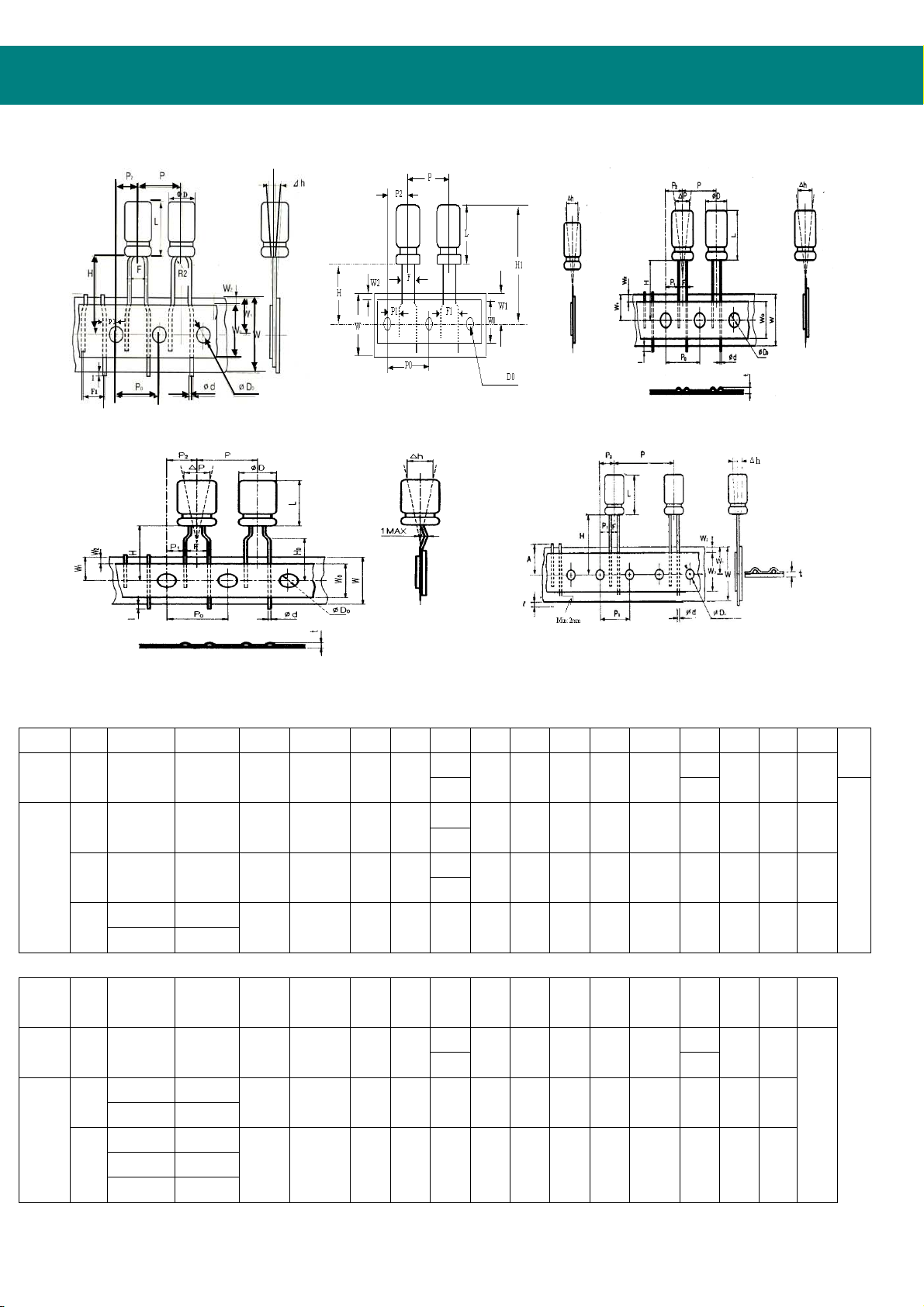

Ｔ－１Ｔ－２Ｔ－３

Ｔ－４Ｔ－５

Code D L d P P0 P1 P2 F F1 W W0 W1 W2 H D0 I △h

Tol. ±0.5 Max ±0.02 ±1.0 ±0.2 ±0.7 ±1.3

3 5(+1) 0.4 12.7 12.7 4.6 6.35

Item

Code D L d P P0 P1 P2 F F1 W W0 W1 W2 H D0 △h Fig

Tol. ±0.5 Max ±0.02 ±1.0 ±0.2 ±0.7 ±1.3

Item

4 5-7(+1) 0.45 12.7 12.7 4.6 6.35

5-7(+1) 0.45

5

9-15(+1.5)

5-7(+1) 0.45

5

9-15(+1.5)

5(+1) 0.45

6.3

7(+1) 0.45

9-15(+1.5)

0.5

0.6

12.7 12.7 4.6 6.35 2.5 3.5 18 11 9 1.5 18.5 4.1 0 1

12.7 12.7 4.6 6.35 2.0 3.5 18 11 9 1.5 18.5 4.1 1

12.7 12.7 4.6 6.35 2.5 3.5 18 11 9 1.5 18.5 4.1 1

0.4 0.75

-0.2

2.0

2.5

2.0

2.5

0.4 0.75

-0.2

±

0.5

3.5 18 11 9 1.5 18.5 4.1 0 1

±

0.5

Min

±

0.5

±

0.5

Max

-0.5

±

0.2

±

0.2

Max Max

Max

Fig

T-1

T-2

5

+0.75

CapXon

Tapin

g

for Solid Capacitors

Code D L d P P0 P1 P2 F W W0 W1 W2

0.4 0.75

Tol. ±0.5 Max ±0.02 ±1.0 ±0.2 ±0.7 ±1.3

5-7(+1) 0.5

8

Item

9-20(+1.5)

10 9-30(+1.5)

13 13-40 0.6 12.7 12.7 3.85 6.35 5.0 18 15 9 1.5 18.5 4.1 2 0.8

0.6

0.6 12.7 12.7 3.85 6.35 5.0 18 12 9 1.5 18.5 4.1 1 0.6

12.7 12.7 4.6 6.35 3.5 18 12 9 1.5 18.5 4.1 1

-0.2

±

0.5

Min

±

0.5

Max

H D0 △h △P t Fig

-0.5

±

0.2

Max Max

±

0.3

0.6

T-3

Code D L d P P0 P1 P2 F W W0 W1 W2

0.4 0.75

Tol. ±0.5 Max ±0.02 ±1.0 ±0.2 ±0.3 ±1.0

3 5(+1) 0.4 12.7 12.7 3.85 6.35 5.0 18 11 9 1.5 18.5 16 4.1 1 1 0.6

4 5-7(+1) 0.45 12.7 12.7 3.85 6.35 5.0 18 11 9 1.5 18.5 16 4.1 1 1 0.6

5-7(+1) 0.45

5

9-15(+1.5) 0.45

Item

6.3

Code D L d P P0 P1 P2 F W W0 W1 W2

±0.5 +1.5Max ±0.02 ±1.0 ±0.2 ±0.7 ±1.3

Tol.

5(+1) 0.45

7(+1) 0.45

9-15(+1.5)

5-7(+1) 0.5

8

9-20(+1.5)

13 13~40 0.6 25.4 12.7 3.85 6.35 5.0 18 15 9 1.5 18.5 4.1 2 0.8 1

16 16~40 0.8 30 15 3.75 7.5 7.5 18 15 9 2 18.5 4.1 2 0.8 1

0.6

12.7 12.7 3.85 6.35 5.0 18 11 9 1.5 18.5 16 4.1 1 1 0.6

12.7 12.7 3.85 6.35 5.0 18 12 9 1.5 18.5 16 4.1 1 1 0.6

±

0.5

-0.2

0.4

±

0.5

-0.2

Min

±

0.5

±

0.5

Max

H H0 D0 △h △P t Fig

±

0.2

Max

Max Max

±

0.3

0.5

-0.5

H D0 △h t l Fig

-0.5 ±0.2

±

0.3

Min

T-5

T-4

ｃｏｄｅ

F 5.0 2.0 2.5 3.5 7.5

Code TA TB TC TD TE

6

CapXon

Package Information

Am

mo

Package

Reel

Package

(mm)

Ф4 218 50 2500 44 1800 Ф5 285 50 2000 44 1300

Ф6.3 285 50 1500 44 1000

Ф8 240 50 800 44 800

Ф10 300 55 500 44 600

W

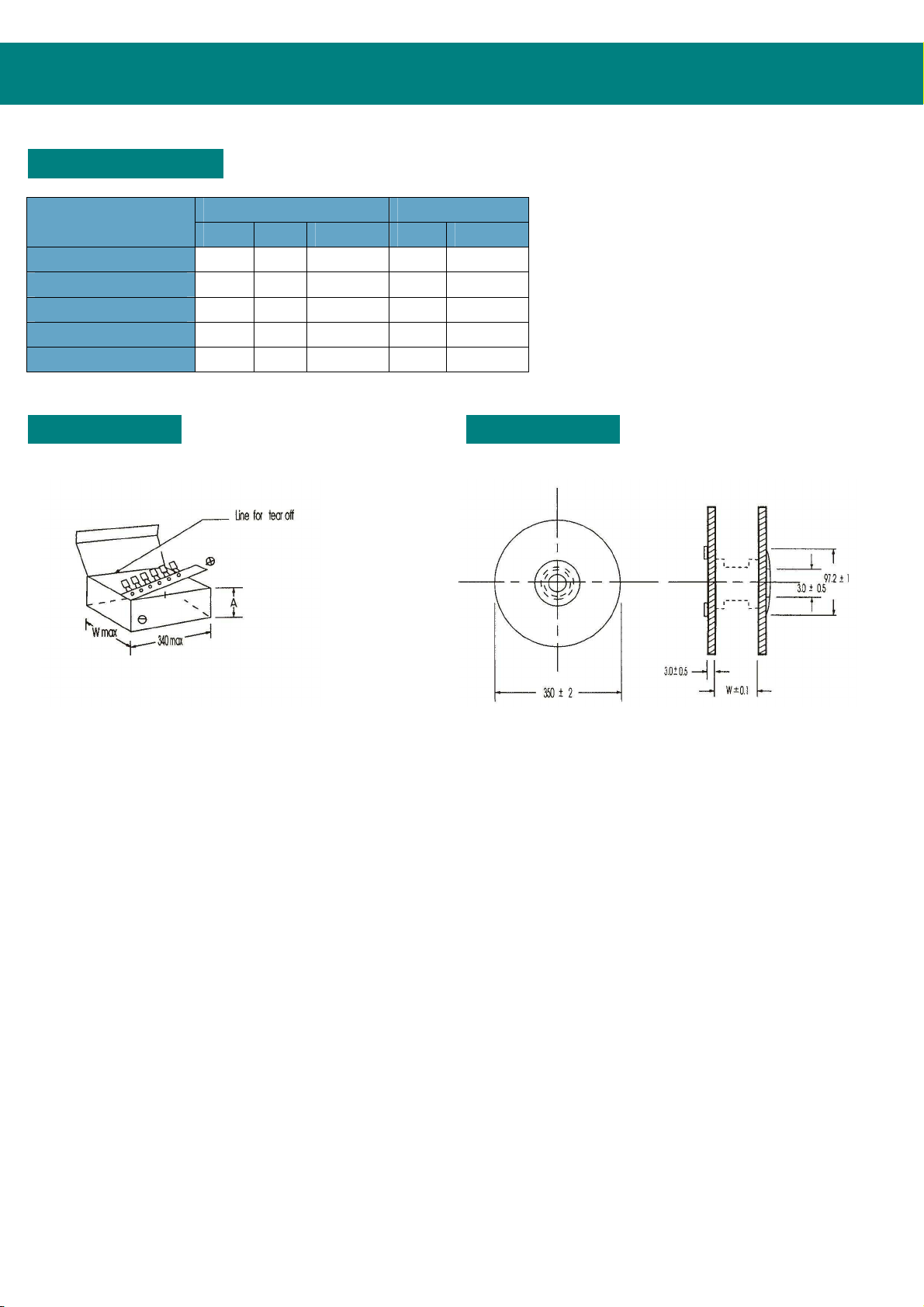

Taping Package

Ammo Package Reel Package Case Diameter φD

A

Q'ty Pcs

W

Q'ty Pcs

for Solid Capacitors

7

CapXon

Carrier tape

φD×L 4x5.5 5x5.5 6.3x5.8 6.3x7.7 8x7.7 8x10.5 8x11.7 10x7.7 10x10.5 10x12.4

W 12.0 12.0 16.0 16.0 16.0 24.0 24.0 24.0 24.0 24.0

P 8.0 12.0 12.0 12.0 12.0 16.0 16.0 16.0 16.0 16.0

F 5.5 5.5 7.5 7.5 7.5 11.5 11.5 11.5 11.5 11.5

A1 4.7 5.7 7.0 7.0 8.7 8.7 8.7 10.7 10.7 10.7

B1 4.7 5.7 7.0 7.0 8.7 8.7 8.7 10.7 10.7 10.7

T2 5.7 5.7 5.7 8.2 8.2 11.0 12.2 8.2 11.0 12.9

Package for Solid SMD Type

Real

Quantity

φD 4 5 6.3,8 8,10

A 14 14 18 26

Code

φD×L Q'ty／Reel

4x5.5 2000PCS 5x5.5 1000PCS

6.3x5.8 1000PCS

6.3x7.7 900PCS 8x7.7 700PCS

8x10.5 500PCS 8x11.7 400PCS

10x7.7 700PCS 10x10.5 500PCS 10x12.4 400PCS

F 5 2 2.5 3.5 7.5 Code RA RB RC RD RE

8

20

10to100

10to100 10to100

10to100

2 3 4 5 6 1 7 8 9

12. Lead treatment

CapXon

Part umber System

for Solid Capacitors

When placing an order for aluminum electrolytic capacitors, please observe following catalog

Part Number format that describers.

1.

1. Series 6.Height (mm)

1.1.

2. Capacitance 7.Type

3. Capacitance tolerance 8.Customer requirement

4. Working voltage

5. Case

(1)

ΦΦΦΦ

DDDD 9. Sleeve material

S

eries

For the details, please refer to“List of the Products”on page 3

10. Rubber shape or terminal height or plastic platform material

11. Special request

19

(2)C

(2)Capacitance

(2)C(2)C

Capacitance is shown in microfarads(uF)

µF

µF 0.1

µFµF

Code

Code 0R1

CodeCode

(3)

Capacitance tolerance

(3)(3)

Tolerance%

Tolerance%Tolerance%

Code

Code HHHH KKKK MMMM NNNN QQQQ TTTT VVVV WWWW ZZZZ UUUU SSSS

CodeCode

Tolerance%

Tolerance%Tolerance%

Code

Code YYYY XXXX AAAA JJJJ EEEE IIII BBBB PPPP LLLL OOOO CCCC

CodeCode

(4

(4)Working voltage (W.V)

(4(4

Voltage(W.V)

Voltage(W.V)Voltage(W.V)

Code

Code 2R5

CodeCode

(5)

(5)Case((((

(5)(5)

Diameter

DiameterDiameter

Code

Code AAAA

CodeCode

(6)

(6)Height (L:mm)

(6)(6)

Description 5 5.2 5.5 5.8 7 7.7 8 10 10.5 11 11.5 11.7 12 12.4 12.5

Code

(uF)

(uF)(uF)

0.1 0.47

0.10.1 0R1 R47

0R10R1

0.47 1111 4.7

0.470.47 R47 010

R47R47

010 4R7

010010

4.7 10

4.74.7 4R7 100

4R74R7

10 100

1010

100 101

100100

100 1000

100100 101 102

101101

±±±±5555 ±±±±10

0to+30

0to+300to+30

2.5

2.52.5 2R5

2R52R5

ΦΦΦΦ

D)

D)D)

3333

4444

5555

BBBB

CCCC

(L:mm)

(L:mm) (L:mm)

050 052 055 058 070 077 080 010 105 110 115 117 120 124 125

W.V)

W.V)W.V)

6.3

6.36.3 EEEE

10

1010

0to+40

0to+400to+40

4444 6.3

004

004004

8888 FFFF

6.3

6.36.3 6R3

6R3

6R36R3

10

1010

GGGG

±±±±20

20

2020

0to+50

0to+500to+50

10

1010

010

010010

±±±±30

30 ----10to+30

3030

----5to+20

5to+20

5to+205to+20

16

20

1616

2020

016

020

016016

020020

10to+30----10to+50

10to+3010to+30

----8to+5

8to+5

8to+58to+5

23

2323

023

023023

10to+50----10to+20

10to+5010to+50

+5to+20

+5to+20+5to+20

25

2525

025

025025

10to+20----

10to+2010to+20

0to

0to----20

0to0to

20

2020

1000 10000

10001000

102 103

102102

----15to+20

15to+20----25to+85

15to+2015to+20

10000

1000010000

103

103103

0to+20

0to+200to+20

25to+85 ----50to+0

25to+8525to+85

----30to+0

30to+0

30to+030to+0

50to+0

50to+050to+0

±±±±15

15

1515

----5to+30

5to+30

5to+305to+30

(7)

(7) Type

(7)(7)

Type

Type SMD Polymer

TypeType

Code

Code RRRR PPPP AAAA

CodeCode

(8)

(8) The fifteenth code: to classify the products according to the customer require, namely, 1~9

(8)(8)

Polymer Radial

PolymerPolymer

9

Radial

RadialRadial

Snap

Snap----in

in Screw

SnapSnap

inin

Screw

ScrewScrew

CapXon

Part umber System

for Solid Capacitors

(9).

S

Sleeve material

S S

Sleeve material

(10)

(10)(10)

Code P C 

Rubber shape or terminal height or plastic platform material

Rubber shape of radial type

Type

Code F C B S 

★★★★If SMD and Polymer capacitors are added plastic platforms, the shape of rubber is plane, if not, they are coded according to rubber shape of radial capacitor.

The coding of terminals’ length of snap-in:

PET PVC ylon

or plastic platform material of SMD and polymer

Rubber shape of radial Spacer Material of SMD and Polymer

flat shape Gourd shape Half-moon shape

PPS ylon

TERMINALS

TERMINALSTERMINALS

Code

Code AAAA BBBB CCCC DDDD EEEE FFFF GGGG

Code Code

（（（（11

11））））Special request

1111

If there is no special requirement in eighteen

If there is no special requirement in eighteenth

If there is no special requirement in eighteenIf there is no special requirement in eighteen If there is no special requirement in nineteenth, too, it

If there is no special requirement in nineteenth, too, it’’’’s not necessary to fill both.

If there is no special requirement in nineteenth, too, itIf there is no special requirement in nineteenth, too, it

（（（（12

Description

Code S L Z R T C

Description

Code P H F D K

12））））The nineteenth, twentieth code: Lead treatment

1212

3.8MM 4MM 5MM 6MM 14MM 17MM 21MM

Over voltage

Vent Operation

Sleeve printing height Pitch Lead wire

Load life Impedance & ESR

th code, will add

code, will add ““““0000”””” before nineteenth code.

thth

code, will add code, will add

Ripple current DF LC

s not necessary to fill both.

s not necessary to fill both. s not necessary to fill both.

“K”

Vent

before nineteenth code.

before nineteenth code. before nineteenth code.

requests

Over 2

I

10

CapXon

CP-CAP

PRECAUTIOS AD GUIDELIE

CP-CAP is a solid aluminum capacitor with conductive polymer electrolyte. Please read the following points in

order to take the most out of your CP-CAP capacitor.

S

FOR CONDUCTIVE POLYMER CAPACITORS

Designing device circuits

1. Circuits where CP-CAP capacitors are prohibited to used

The leakage current of conductive polymer solid aluminum capacitors may vary depending on thermal

stresses. Please don’t use solid capacitors in the following types of circuits:

a) High-impedance circuits that are to sustain voltages.

b) Coupling circuits

c) Time constant circuits

In addition to the leakage current fluctuation, capacitance may also fluctuate depending on operational

temperature and humidity. The fluctuation of the capacitance may cause problem if it is used as a time

constant capacitor, which is extremely sensitive to the fluctuation of the capacitance. Do not use it as a

time constant capacitance.

d) Other circuits that are significantly affected by leakage current. If you want to use 2 or more CP-CAPs

in a series connection, please contact us before use.

2. Polarity

The CP-CAP is a polarized solid aluminum electrolytic capacitor. Do not apply either reverse voltages or AC

voltages to the polarized capacitors, using reverse polarity may cause a short circuit. Refer to the catalog,

product specifications or capacitor body to confirm the polarity prior to use.

3. Applied voltage

Do not apply DC voltages exceeding the full rated voltage. The peak voltage of superimposed AC voltages

(ripple voltages) on DC voltages must not exceed the full rated voltage. While there are specifications for

surge voltages exceeding the rated voltage, usage conditions apply, and continued operation for extended

periods of time under such conditions cannot be guaranteed. Use the within 20% of the rated voltage for

applications which may cause the reverse voltage during the transient phenomena when the power is turned

off or the source is switched.

4. Ripple current

Do not apply currents in excess of the rated ripple current. The superimposition of a large ripple current

increases the rate of heating within the capacitor. This may reduce the service life of the capacitor or damage

the capacitor.

5. Operating temperature

Do not use the CP-CAP capacitor at high temperatures (temperatures exceeding the maximum temperature

for the capacitor category) Use of the capacitor outside of the maximum temperature for the capacitor

category may decrease the service life of the capacitor.

6. Sudden charge and discharge

Do not use the CP-CAP capacitor in circuits where the capacitor is repetitively charged and discharged

rapidly. Repetitively charging and discharging the capacitor rapidly may reduce the capacitance or may cause

damage due to internal heating. Use of a protective circuit to ensure reliability is recommended when rush

currents exceed 10A or the rush current is over 10 times of allowable ripple current of CP-CAP . A protection resistor(1 kΩ) must be inserted to the circuit during the charge and discharge when measuring

the leakage current.

7. Failures and life-span

11

CapXon

CP-CAP

PRECAUTIOS AD GUIDELIE

The CP-CAP failure rate in use is based on the failure rate level in the specification requirements. Upper

category temperature and category voltage adhere to JIS C 5003 Standard. The confidence level is 60% and

the failure rate is 0.5%/1,000 hours (applied rated voltage at category temperature).

The failure modes mainly have 2 types as follows.

(1) Contingency failure

The contingency failure mainly has short circuit. The phenomenon of after short is on following.

(i) In the event a short circuit causes the current to become relatively small(less than approximately 1A for φ10,less than approximately 0.5A forφ8 and less than approximately 0.2A for smaller thanφ6.3 ),the

CP-CAP itself will generate a little heat, but its appearance will not be affected even when electricity is

supplied continuously. However, if the short circuit current value exceeds the mentioned values above, the

temperature inside the CP-CAP will increase, the internal pressure is raised, rubber sealing is turned over,

and odorous gas is released. In this case, keep your face and hands away from the area.

(ii)The electrolyte, electrolytic paper, sealing rubber, and plastic spacer used in the CP-CAP are all

combustible. If an extremely large electric current flows through the capacitor after shorting, the shorted part

may spark, and in a worst case scenario, may ignite. Ensure safety by fully considering the design issues

described below when using this capacitor in equipment where safety is a priority.

• Increase safety by using in conjunction with a protective circuit or protective equipment.

• Install measures such as redundant circuits so that the failure of a part of the equipment will not cause

unstable operation.

(2) performance characteristic and failure(life-span)

CP-CAP characteristics can possibly change(capacitance reduction and ESR increase) within the specified

range in specifications when it is used in the condition of rated voltage, electric and mechanical performance.

When life span exceeded the specified guarantee time of endurance and damp heat, electric aharacteristic

might change and cause electrolyte insulation. This is called open circuit mode. It is recommended to use the

capacitor at a lower temperature than the maximum temperature for the capacitor category.

8. Circuit design

Verify the following before designing the circuit:

a) The electrical characteristics of the capacitor will vary depending on differences in temperature and

frequency. Only design your after verifying the scope of these factors.

b) When connecting two or more capacitors in parallel, ensure that the design takes current balancing into

account.

c) When two or more capacitors are connected in series, variability in applied voltage may cause over-voltage

conditions. Contact CapXon before using capacitors connected in series.

9. Capacitor usage environment

Do not use/expose capacitors to the following conditions.

a) Oil, water, salty water, take care to avoid storage in damp locations.

b) Direct sunlight

c) Toxic gases such as hydrogen, sulfide, sulfurous acids, nitrous acids, chlorine and chlorine compounds,

bromine and bromine compounds, ammonia, etc.

d) Ozone, ultraviolet rays and radiation.

e) Severe vibration or mechanical shock conditions beyond the limits advised in the product specification

section of the catalog.

S

FOR CONDUCTIVE POLYMER CAPACITORS

12

CapXon

CP-CAP

PRECAUTIOS AD GUIDELIE

10. Capacitor mounting

a) For the surface mount capacitor, design the copper pads on the PC board in accordance with the catalog or

the product specification

b) For radial capacitors, design the terminal holes on the PC board to fi t the terminal pitch of the capacitor.

11. Leakage current

Heat pressure from soldering and mechanical stress from transportation may cause the leakage current to

become large. In such a case, leakage current will gradually decrease by applying voltage less than or equal to

the rated voltage at a temperature within the upper category temperature. In close conditions to the upper

category temperature, the nearer the applied voltage is to the rated voltage, the faster the leakage current

recovery speed is.

S

FOR CONDUCTIVE POLYMER CAPACITORS

Mounting precautions

1. ote

a) For the surface mount capacitor, design the copper pads on the PC board in accordance with the catalog or the

product specification

b) For radial capacitors, design the terminal holes on the PC board to fit the terminal pitch of the capacitor.

c) Mount after checking the capacitance and the rated voltage.

d) Mount after checking the polarity.

e) Do not apply excessive external force to the lead terminal and the CP-CAP itself.

f) Ensure that the soldering conditions meet the specifications recommended by CapXon. Note that the leakage

current may increase due to thermal stresses that occur during soldering, etc. Note that increased leakage

currents gradually decrease when voltage is applied.

2. Soldering using a soldering iron:

a) The soldering conditions (temperature and time) are within the ranges specified in the catalog or product

specifications.

b) The tip of the soldering iron does not come into contact with the capacitor itself.

3. Flow soldering

a) Do not dip the body of a capacitor into the solder bath only dip the terminals in. The soldering must be done

on the reverse side of PC board.

b) Soldering conditions (preheat, solder temperature and dipping time) should be within the limits prescribed in

the catalog or the product specifications.

In regards to flow soldering, be sure to solder within the following conditions.

Temperature

Preheating

Soldering conditions 260+5℃ or less 10+1 sec. or less Twice or less

c) Do not apply flux to any part of capacitors other than their terminals.

d) Make sure the capacitors do not come into contact with any other components while soldering.

4. Reflow soldering

a) Soldering conditions (preheat, solder temperature and soldering time) should be within the limits prescribed

in the catalogs or the product specification.

Temperature Duration

TemperatureTemperature

120℃ or less(ambient temperature)

120 sec. or less 1 time

13

Duration Flow number

DurationDuration

Flow number

Flow numberFlow number

P

eak

temperature

T

emperature o

f

the

surface /

terminal

CapXon

CP-CAP

PRECAUTIOS AD GUIDELIE

S

FOR CONDUCTIVE POLYMER CAPACITORS

b) The heat level should be appropriate. (Note that the thermal stress on the capacitor varies depending on the

type and position of the heater in the reflow oven.)

c) Vapor phase soldering (VPS) is not used

d) Except for the surface mount type, reflow soldering must not be used for the capacitors.

e) In the case of reflow soldering, capacitive static electricity may decrease after soldering even when the

soldering conditions are within the required values.

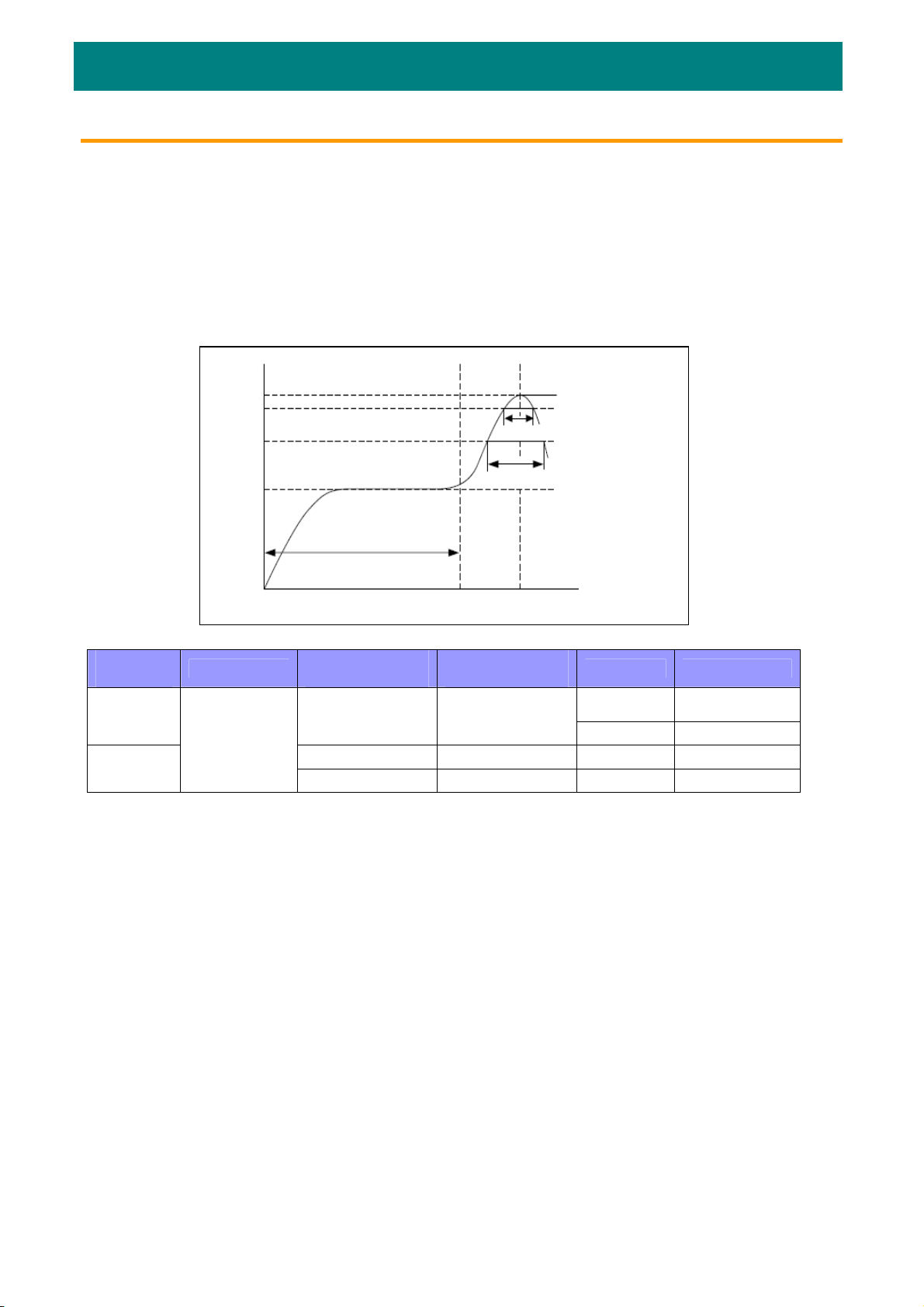

f) Recommended reflow condition of SMD type.

(℃)

230

200

Max. period of time over 230℃

Max. period of time over 200℃

Preheat

Time(sec.)

Voltage

Voltage Voltage

range

rangerange

PPPPreheat

reheat

reheatreheat

TTTTime maintained

ime maintained

ime maintained ime maintained

above 200

above 200℃℃℃℃

above 200above 200

TTTTime maintained

ime maintained

ime maintained ime maintained

above 230

above 230℃℃℃℃

above 230above 230

PPPPeak temp.

eak temp.

eak temp.eak temp.

RRRReflow number

eflow number

eflow numbereflow number

2.5 to 10v 150 to 180℃

120 sec. max.

16 to 25v

Note: All temperatures are measured on the topside of the Al-case and terminal surface.

60 sec. max. 40 sec. max.

60 sec. max. 40 sec. max. 250℃max only 1 time 50 sec. max. 30 sec. max. 240℃max twice or less

260℃max only 1 time

250℃max twice or less

The leakage current value may increase(from a few μA to a few mA) even within the above conditions. When

the CP-CAP is used in a DC circuit, the leakage current will decrease gradually through self-recovery after

voltage is applied. If your reflow profile deviates from the above conditions for mounting the CP-CAP, please

consult with CapXon.

5. Handling after soldering

Do not apply any mechanical stress to the capacitor after soldering onto the PC board.

a) Do not lean or twist the body of the capacitor after soldering the capacitors onto the PC board

b) Do not use the capacitors for lifting or carrying the assembly board.

c) Do not hit or poke the capacitor after soldering to PC board. When stacking the assembly board, be careful

that other components do not touch the aluminum electrolytic capacitors.

d) Do not drop the assembled board.

6. Washing the PC boards

a) Do not wash capacitors by using the following cleaning agents. Solvent resistant capacitors are only suitable

for washing using the cleaning conditions prescribed in the catalog or the product specification. In particular,

ultrasonic cleaning will accelerate damage to capacitors.

14

CapXon

CP-CAP

PRECAUTIOS AD GUIDELIE

• Halogenated solvents; cause capacitors to fail due to corrosion.

Alkali system solvents; corrode (dissolve) an aluminum case.

• Petroleum system solvents; cause the rubber seal material to deteriorate.

• Xylene; causes the rubber seal material to deteriorate.

• Acetone; erases the markings.

b) Verify the following points when washing capacitors.

• Monitor conductivity, pH, specific gravity and the water content of cleaning agents. Contamination adversely

affects these characteristics.

• Be sure not to expose the capacitors under solvent rich conditions or keep capacitors inside a closed container.

In addition, please dry the solvent sufficiently on the PC board and the capacitor with an air knife

(temperature should be less than the maximum rated category temperature of the capacitor) for 10 minutes.

Aluminum electrolytic capacitors can be characteristically and catastrophically damaged by halogen ions,

particularly by chlorine ions, though the degree of the damage mainly depends upon the characteristics of the

electrolyte and rubber seal material. When halogen ions come into contact with the capacitors, the foil

corrodes when a voltage is applied. This corrosion causes an extremely high leakage current which results

venting and an open circuit.

S

FOR CONDUCTIVE POLYMER CAPACITORS

Storage

The following conditions for storage are recommend. a) Store capacitors in a cool, dry place. Store at a temperature between 5 and 35℃, with a humidity of 75% or less.

SMD products are sealed in a special laminated aluminum bag. Use all capacitors once the bag is opened.

Return unused capacitors to the bag, and seal it with a zipper. Be sure to follow our recommendations for

reflow soldering.

b) Store the capacitors in a location free from direct contact with water, salt water, and oil.

c) Store in a location where the capacitor is not exposed to toxic gas, such as hydrogen sulfide, sulfurous acid,

nitrous acid, chlorine or chlorine compounds, bromine or other halogen gases, methyl bromide or other halogen

compounds, ammonia, or similar.

d) Store in a location where the capacitor is not exposed to ozone, ultraviolet radiation, or other radiation.

e) It is recommended to store capacitors in their original packaging wherever possible.

15

(SV)

CapXon

CP-CAP

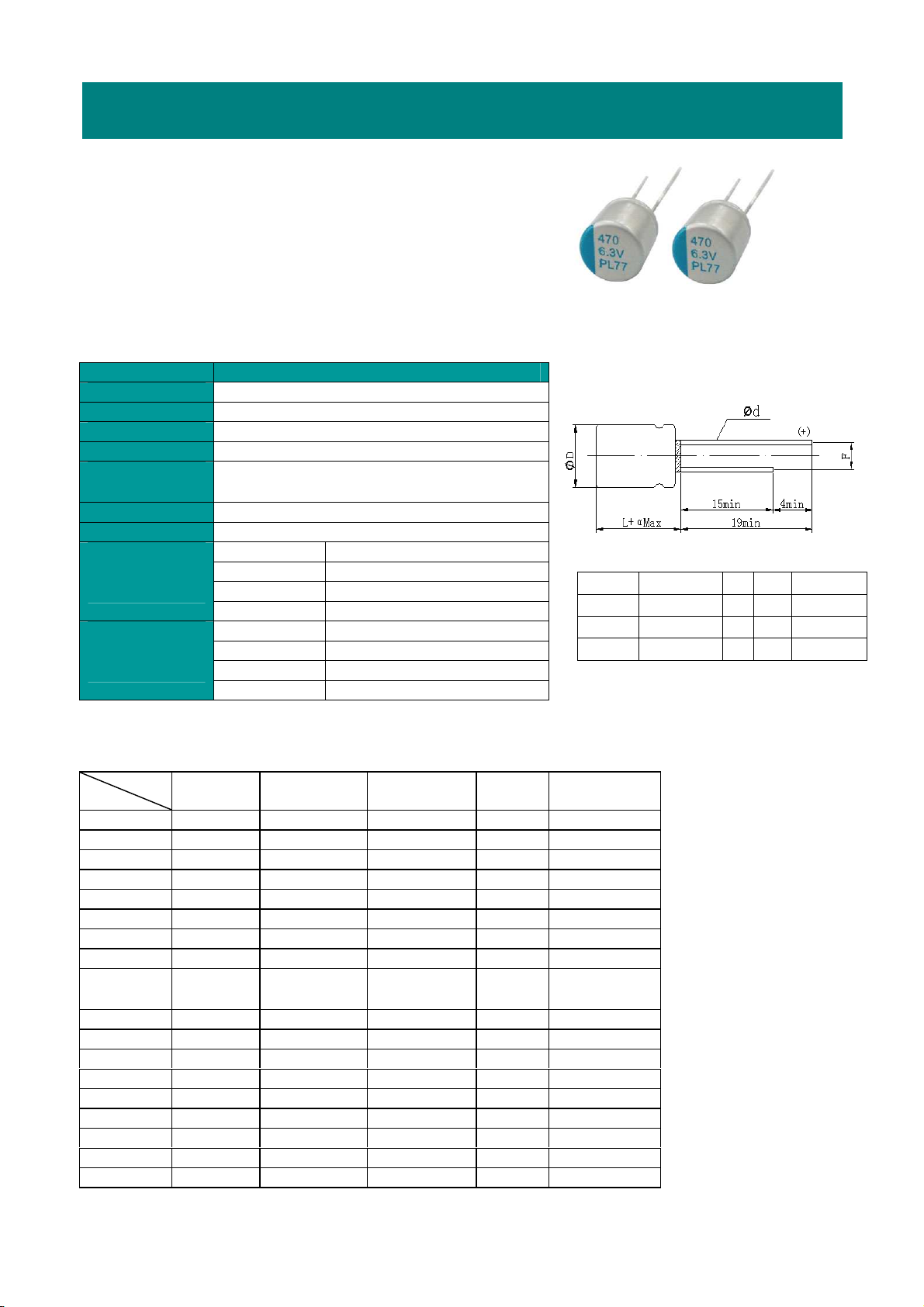

Conductive Polymer Al.E. Capacitors

PL

series ESR



Features

≤≤≤≤7mΩΩΩΩ

· Very Low ESR at high frequency range.

· Very Large permissible ripple current.

· Long life and high reliability(reliability: 0.1%/1000Hrs).



Specifications

Items Characteristics

Operating Temp. Range -55℃～+105℃

Capacitance Range 180～3500μF

Capacitance Tolerance M：±20%

Rated Voltage Range 2.5V ～16V DC

Dissipation Factor

（at 120Hz,20℃）

Leakage Current ≤0.2CV (μA, after 2 minutes)

ESR（100K~300KHz） Not to exceed the value specified

Endurance

105℃，2000h，

at rated voltage

Moisture Resistance

Stored at 60℃，RH90～

95%，2000h

Not to exceed the value specified

Capacitance Within ±20% of the value before test

Leakage current Not to exceed the value specified

ESR Not to exceed 150% of the value specified

Dissipation Factor Not to exceed 150% of the value specified

Capacitance Within ±20% of the value before test

Leakage Current Not to exceed the value specified

ESR Not to exceed 150% of the value specified

Dissipation Factor Not to exceed 150% of the value specified



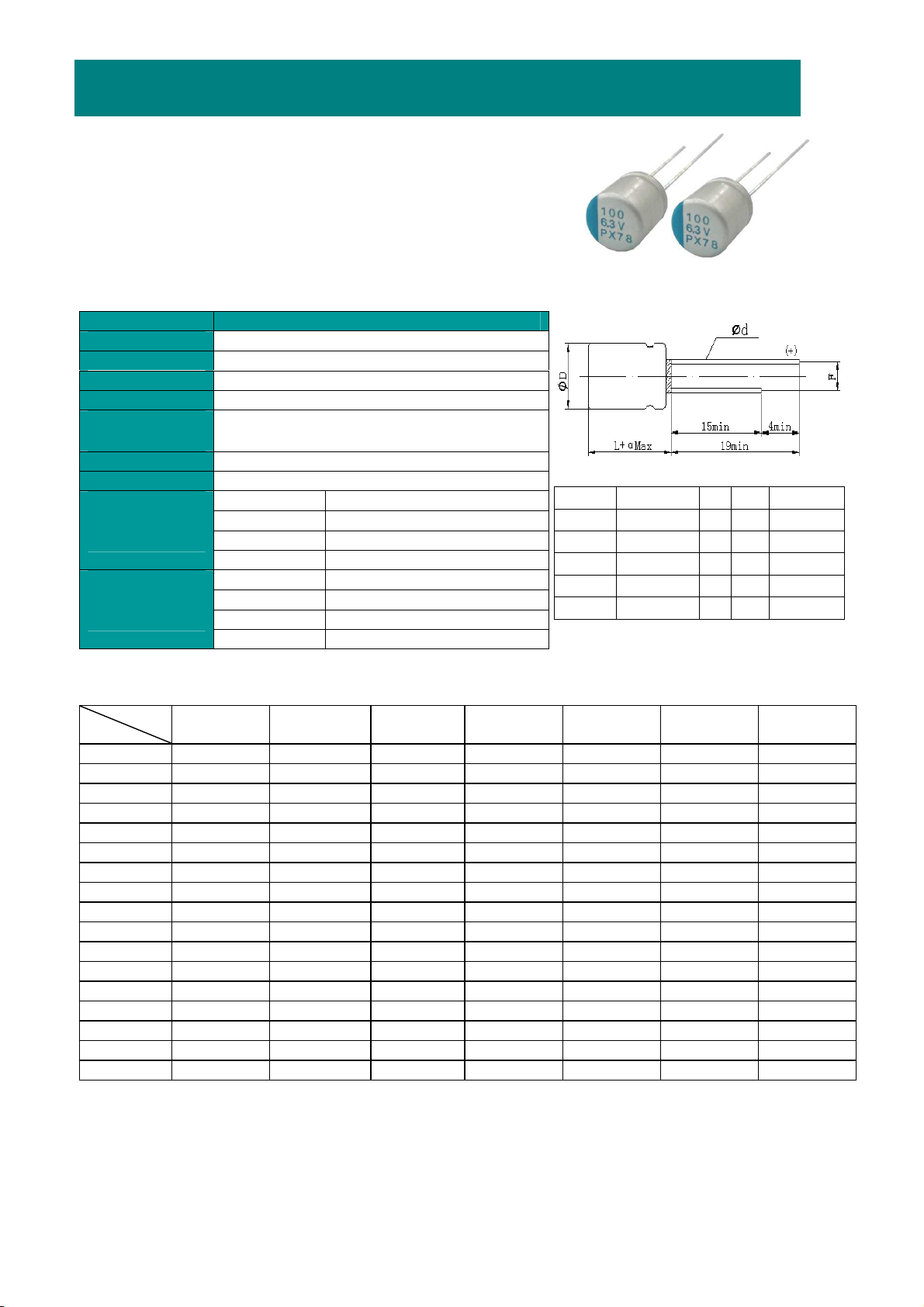

Dimensions

φD×L ΦD+0.5max. α

8×8

8×11.5

10×12.5

8.0 1.0 3.5

8.0 1.5 3.5

10.0 1.5 5.0

Unit: mm

F

Φd±0.05

0.6



Size List

. RV

CAP

180 8×8 / 8×11.5 8×11.5 8×11.5

220 8×8 / 8×11.5 8×11.5 8×11.5

270 8×8 / 8×11.5 8×11.5 8×11.5

330 8×8 / 8×11.5 8×11.5 8×11.5 / 10×12.5

390 8×8 / 8×11.5 8×11.5 10×12.5

470 8×8 / 8×11.5 8×11.5 10×12.5

560 8×8 / 8×11.5 8×8 / 8×11.5 8×8 / 8×11.5 8×11.5 10×12.5

680 8×8 / 8×11.5 8×8 / 8×11.5 8×11.5 10×12.5 10×12.5

820 8×8 / 8×11.5 8×8 / 8×11.5

1000 8×11.5 8×11.5 10×12.5 10×12.5

1200 8×11.5 8×11.5 / 10×12.5 8×11.5 / 10×12.5

1500 8×11.5 10×12.5 10×12.5

2000 10×12.5 10×12.5 10×12.5

2500 10×12.5 10×12.5

2700 10×12.5

3000 10×12.5

3300 10×12.5

3500 10×12.5

2.5

(2.8)

/10×12.5

4

(4.6)

6.3

(7.2)

8×11.5 10×12.5 10×12.5

10

(11.5)

16

(18.4)

16

CapXon



Characteristics List

W.V.

（V）

2.5

4.0

6.3

Capacitance

(μF)

560 280 0.08 7 5600

680 340 0.08 7 5600

820 410 0.08 7 5600

1000 500 0.08 7 5600 8×11.5

1200 600 0.08 7 5600 8×11.5

1500 750 0.08 7 5600 8×11.5

2000 1000 0.08 7 6100 10×12.5

2500 1250 0.08 7 6100 10×12.5

2700 1350 0.08 7 6100 10×12.5

3000 1500 0.08 7 6100 10×12.5

3300 1650 0.08 7 6100 10×12.5

3500 1750 0.08 7 6100 10×12.5

820 328 0.08 7

1000 800 0.08 7 5600 8×11.5

1500 1200 0.08 7 6100 10×12.5

2000 1600 0.08 7 6100 10×12.5

2500 1500 0.08 7 6100 10×12.5

180 226.8 0.07 7

220 277 0.07 7

270 340.2 0.07 7

330 416 0.07 7

390 491.4 0.08 7

470 592 0.08 7

560 705.6 0.08 7

680 428 0.08

820 516.6 0.10

1000 630 0.10

1500 945 0.10

2000 1260 0.10

CP-CAP

L.C.

(μA,2min)

(120Hz,20℃)

Conductive Polymer Al.E. Capacitors

tgδ

ESR

(mΩ,100kHz)

7

17

Maximum Permissible Ripple

Current(mA,r.m.s)

6100 10×12.5

5600 8×11.5 1200 960 0.08 7

6100 10×12.5

5100

5600

5100

5600

5100

5600

5100

5600

5100

5600

6100

5600

6100

ΦD×L(mm)

Size

8×8

8×11.5

8×8

8×11.5

8×8

8×11.5

8×8 560 224 0.08 7 5600

8×11.5

8×8 680 272 0.08 7 5600

8×11.5

8×8 5600

8×11.5

8×8

8×11.5

8×8

8×11.5

8×8

8×11.5

8×8

8×11.5

8×8

8×11.5

8×8

8×11.5

8×8

8×11.5

10×12.5

8×11.5 1200 756 0.10 7

10×12.5

W.V.

（V）

10

16

Capacitance

(μF)

180 180 0.07

220 220 0.08

270 270 0.08

330 330 0.08

390 390 0.08

470 470 0.08

560 560 0.10

680 680 0.10

820 820 0.10

1000 1000 0.10

180 288 0.08 7 5600 8×11.5

220 352 0.08 7 5600 8×11.5

270 432 0.08 7 5600 8×11.5

390 624 0.08 7 6100 10×12.5

470 752 0.10 7 6100 10×12.5

560 896 0.10 7 6100 10×12.5

680 1000 0.10 7 6100 10×12.5

820 1280 0.10 7 6100 10×12.5

L.C.

(μA,2min)

tgδ

(120Hz,20℃)

ESR

(mΩ,100kHz)

7

Maximum Permissible Ripple

Current(mA,r.m.s)

5600

6100

5600 8×11.5 330 528 0.08 7

6100 10×12.5

ΦD×L(mm)

Size

8×11.5

10×12.5



Frequency Coefficient for Ripple Current

Frequency

Coefficient 0.05 0.3 0.7 1

120Hz≤freq.<1KHz 1KHz≤freq.<10KHz 10KHz≤freq.<100KHz 100KHz≤freq.<300KHz

 CapXon is in the position to offer also customized products

18

(SV)

CapXon

PS

series Standard Products



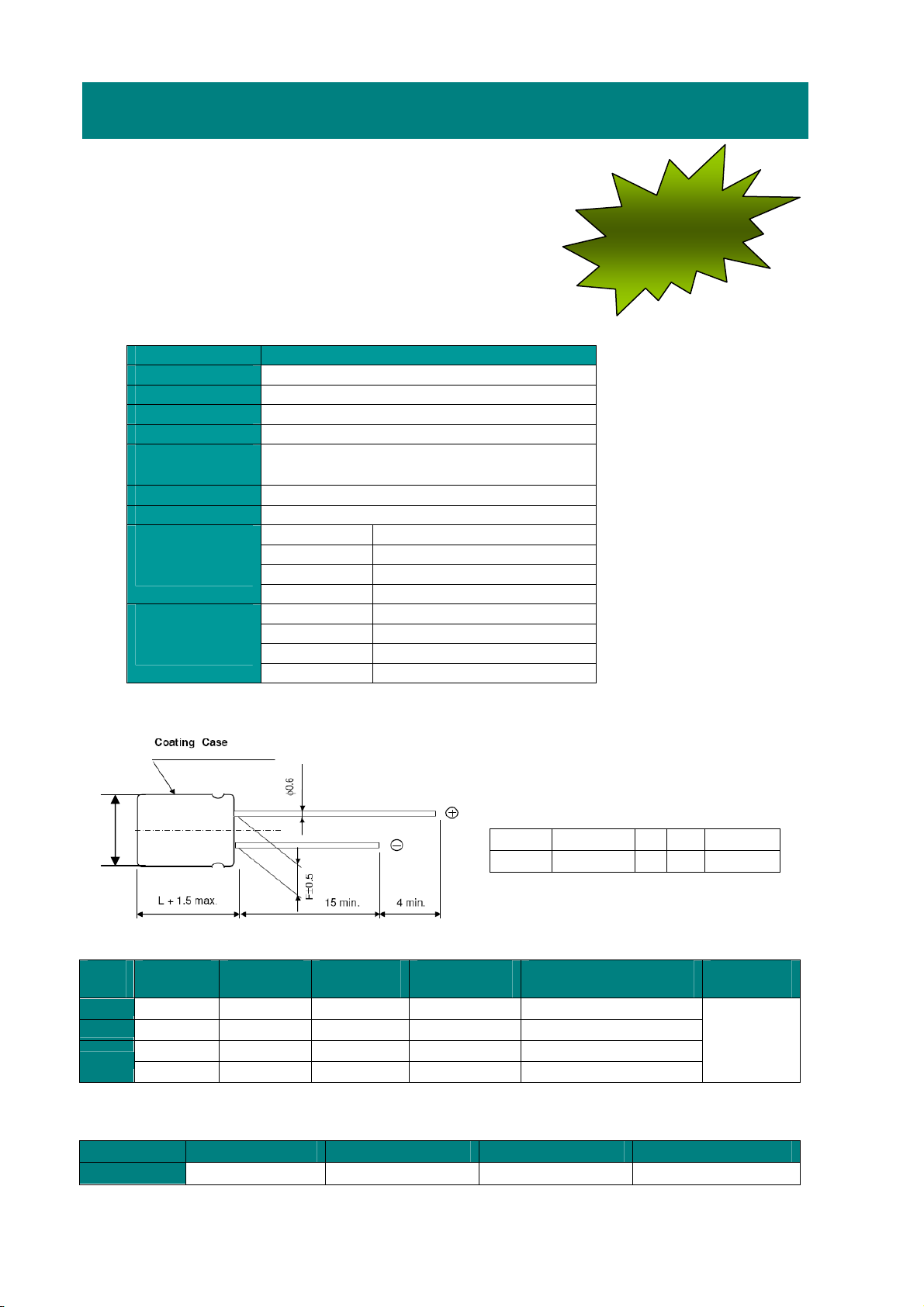

Features

CP-CAP

Conductive Polymer Al.E. Capacitors

· Low ESR at high frequency range.

· Large permissible ripple current.

· Long life and high reliability(reliability: 0.1%/1000Hrs).



Specifications

Items Characteristics

Operating Temp. Range -55℃～+105℃

Capacitance Range 39～3500μF

Capacitance Tolerance M：±20%

Rated Voltage Range 2.5V ～25V DC

Dissipation Factor

（at 120Hz,20℃）

Leakage Current ≤0.2CV (μA, after 2 minutes)

ESR（100K~300KHz） Not to exceed the value specified

Endurance

105℃，2000h，

at rated voltage

Moisture Resistance

Stored at 60℃，RH90～

95%，2000h

Not to exceed the value specified

Capacitance Within ±20% of the value before test

Leakage current Not to exceed the value specified

ESR Not to exceed 150% of the value specified

Dissipation Factor Not to exceed 150% of the value specified

Capacitance Within ±20% of the value before test

Leakage Current Not to exceed the value specified

ESR Not to exceed 150% of the value specified

Dissipation Factor Not to exceed 150% of the value specified



Dimensions

φD×L ΦD+0.5max. α

8×8

8×11.5

10×12.5

8.0 1.0 3.5

8.0 1.5 3.5

10.0 1.5 5.0

Unit: mm

F

Φd±0.05

0.6



Size List

. RV

CAP

39 8×11.5 8×11.5

47 8×11.5 8×11.5

68 8×11.5 8×11.5

82 8×11.5 8×11.5

100 8×11.5 10×12.5 10×12.5

180 8×8 / 8×11.5 8×11.5 8×8 / 8×11.5 10×12.5 10×12.5

220 8×8 / 8×11.5 8×11.5 8×11.5 10×12.5 10×12.5

270 8×8 / 8×11.5 8×11.5 8×11.5

330 8×8 / 8×11.5 8×11.5 8×11.5 / 10×12.5

390 8×8 / 8×11.5 8×11.5 10×12.5

470 8×8 / 8×11.5 8×11.5 10×12.5

560 8×8 / 8×11.5 8×8 / 8×11.5 8×11.5 8×11.5 10×12.5

680 8×8 / 8×11.5 8×8 / 8×11.5 8×11.5 / 10×12.5 10×12.5 10×12.5

820 8×8 / 8×11.5 8×8 / 8×11.5

1000 8×11.5 8×11.5 10×12.5 10×12.5

1200 8×11.5 8×11.5 / 10×12.5 8×11.5 / 10×12.5 10×12.5

1500 8×11.5 10×12.5 10×12.5

2000 10×12.5 10×12.5 10×12.5

2500 10×12.5 10×12.5

2700 10×12.5

3000 10×12.5

3300 10×12.5

3500 10×12.5

2.5

(2.8)

10×12.5

4

(4.6)

6.3

(7.2)

8×8 / 8×11.5 / 10×

12.5

10

(11.5)

10×12.5 10×12.5

16

(18.4)

20

（23）

25

（27.5）

19

CapXon



Characteristics List

W.V.

（V）

2.5

4.0

6.3

Capacitance

(μF)

1000 500 0.08 12 5200 8×11.5

1200 600 0.08 12 5200 8×11.5

1500 750 0.08 12 5200 8×11.5

2000 1000 0.08 12 5500 10×12.5

2500 1250 0.08 12 5500 10×12.5

2700 1350 0.08 12 5500 10×12.5

3000 1500 0.08 12 5500 10×12.5

3300 1650 0.08 12 5500 10×12.5

3500 1750 0.10 12 5500 10×12.5

820 328 0.08 12

1500 1200 0.10 12 5500 10×12.5

2000 1600 0.10 12 5500 10×12.5

2500 2000 0.10 12 5500 10×12.5

820 516.6 0.10 12

1000 630 0.10 12 5500 10×12.5

1500 945 0.10 12 5500 10×12.5

2000 1260 0.10 12 5500 10×12.5

CP-CAP

L.C.

(μA,2min)

Conductive Polymer Al.E. Capacitors

tgδ

(120Hz,20℃)

ESR

(mΩ,100kHz)

Maximum Permissible Ripple

Current(mA,r.m.s)

5000 8×8 560 224 0.08 12

5200 8×11.5

5000 8×8 680 272 0.08 12

5200 8×11.5

5000 8×8

5200 8×11.5

5500 10×12.5

5200 8×11.5 1200 960 0.10 12

5500 10×12.5

3700 8×8 180 226.8 0.07 21

3900 8×11.5

3700 8×8 220 277 0.07 21

3900 8×11.5

3700 8×8 270 340.2 0.07 21

3900 8×11.5

4300 8×8 330 416 0.07 15

4500 8×11.5

4300 8×8 390 491 0.08 15

4500 8×11.5

5000 8×8 470 592 0.08 12

5200 8×11.5

5000 8×8 560 705.6 0.08 12

5200 8×11.5

5200 8×11.5 680 428 0.08 12

5500 10×12.5

5000 8×8

5200 8×11.5

5500 10×12.5

5200 8×11.5 1200 756 0.10 12

5500 10×12.5

Size

ΦD×L(mm)

8×8 560 280 0.08 12 4800

8×11.5

8×8 680 340 0.08 12 5000

8×11.5

8×8 820 410 0.08 12 5200

8×11.5

20

W.V.

（V）

10

16

20

25

Capacitance

(μF)

180 180 0.08 15 5000 8×11.5

220 220 0.08 15 5000 8×11.5

270 270 0.08 15 5000 8×11.5

330 330 0.08 12 5000 8×11.5

390 390 0.08 12 5000 8×11.5

470 470 0.08 12 5000 8×11.5

560 560 0.08 12 5000 8×11.5

680 680 0.10 12 5500 10×12.5

820 820 0.10 12 5500 10×12.5

1000 1000 0.10 12 5500 10×12.5

1200 1200 0.10 12 5500 10×12.5

100 160 0.08 15 3900 8×11.5

220 352 0.08 15 3900 8×11.5

270 432 0.08 15 3900 8×11.5

390 624 0.08 12 5500 10×12.5

470 752 0.10 12 5500 10×12.5

560 896 0.10 12 5500 10×12.5

680 1000 0.10 12 5500 10×12.5

820 1000 0.10 12 5500 10×12.5

39 156 0.08 30 3000 8×11.5

47 188 0.08 30 3000 8×11.5

68 272 0.08 25 3900 8×11.5

82 328 0.08 20 3900 8×11.5

100 400 0.08 18 4100 10×12.5

180 720 0.08 18 4100 10×12.5

220 880 0.08 18 4100 10×12.5

39 195 0.08 25 3400 8×11.5

47 235 0.08 20 3400 8×11.5

68 340 0.08 20 3400 8×11.5

82 410 0.08 20 3400 8×11.5

100 500 0.08 20 4100 10×12.5

180 900 0.08 20 4100 10×12.5

220 1100 0.08 20 4100 10×12.5

L.C.

(μA,2min)

tgδ

(120Hz,20℃)

ESR

(mΩ,100kHz)

Maximum Permissible Ripple

Current(mA,r.m.s)

3700 8×8 180 288 0.08 15

3900 8×11.5

3900 8×11.5 330 528 0.08 12

5500 10×12.5

ΦD×L(mm)

Size



Frequency Coefficient for Ripple Current

Frequency

Coefficient 0.05 0.3 0.7 1

120Hz≤freq.<1KHz 1KHz≤freq.<10KHz 10KHz≤freq.<100KHz 100KHz≤freq.<300KHz

 CapXon is in the position to offer also customized products

21

(SV)

CapXon

PU

series ESR



Features

CP-CAP

Conductive Polymer Al.E. Capacitors

≤≤≤≤6mΩΩΩΩ

· Ultra Low ESR at high frequency range.

· Ultra Large permissible ripple current.

· Long life and high reliability(reliability: 0.1%/1000Hrs).



Specifications

Items Characteristics

Operating Temp. Range -55℃～+105℃

Capacitance Range 39～3500μF

Capacitance Tolerance M：±20%

Rated Voltage Range 2.5V ～25V DC

Dissipation Factor

（at 120Hz,20℃）

Leakage Current ≤0.2CV (μA, after 2 minutes)

ESR（100K~300KHz） Not to exceed the value specified

Endurance

105℃，2000h，

at rated voltage

Moisture Resistance

Stored at 60℃，RH90～

95%，2000h

Not to exceed the value specified

Capacitance Within ±20% of the value before test

Leakage current Not to exceed the value specified

ESR Not to exceed 150% of the value specified

Dissipation Factor Not to exceed 150% of the value specified

Capacitance Within ±20% of the value before test

Leakage Current Not to exceed the value specified

ESR Not to exceed 150% of the value specified

Dissipation Factor Not to exceed 150% of the value specified



Dimensions

φD×L ΦD+0.5max. α

8×8

8×11.5

10×12.5

8.0 1.0 3.5

8.0 1.5 3.5

10.0 1.5 5.0

Unit: mm

F

Φd±0.05

0.6



Size List

. RV

CAP

180 8×8 / 8×11.5 8×11.5

220 8×8 / 8×11.5 8×11.5

270 8×8 / 8×11.5 8×11.5

330 8×8 / 8×11.5 8×11.5

390 8×8 / 8×11.5 8×11.5

470 8×8 / 8×11.5 8×11.5 / 10×12.5

560 8×8 / 8×11.5 8×8 / 8×11.5 8×8 / 8×11.5 8×11.5 / 10×12.5

680 8×8 / 8×11.5 8×8 / 8×11.5 8×11.5 / 10×12.5 8×11.5 / 10×12.5

820 8×8 / 8×11.5 8×11.5 / 10×12.5 8×11.5 / 10×12.5 10×12.5

1000 8×11.5 8×11.5 8×11.5 / 10×12.5 10×12.5

1200 8×11.5 8×11.5 / 10×12.5 8×11.5 / 10×12.5 10×12.5

1500 8×11.5 / 10×12.5

2000 10×12.5 10×12.5 10×12.5

2500 10×12.5 10×12.5

2700 10×12.5

3000 10×12.5

3300 10×12.5

3500 10×12.5

2.5

(2.8)

4

(4.6)

10×12.5 10×12.5

6.3

(7.2)

10

(11.5)

22

CapXon



Characteristics List

W.V.

（V）

Capacitance

(μF)

CP-CAP

L.C.

(μA,2min)

(120Hz,20℃)

Conductive Polymer Al.E. Capacitors

tgδ

ESR

(mΩ,100kHz)

Maximum Permissible Ripple

Current(mA,r.m.s)

ΦD×L(mm)

Size

8×8

8×11.5

8×8

8×11.5

8×8

8×11.5

8×8 560 224 0.08 6 6100

8×11.5

8×8 680 544 0.08 6 6100

8×11.5

8×8

8×11.5

8×8

8×11.5

8×8

8×11.5

8×8

8×11.5

8×8

8×11.5

8×8

8×11.5

8×8

8×11.5

OR

10×12.5

2.5

4.0

6.3

560 280 0.08 6 6100

680 340 0.08 6 6100

820 410 0.08 6 6100

1000 500 0.08 6 6100 8×11.5

1200 600 0.08 6 6100 8×11.5

1500 750 0.10 6

2000 1000 0.10 6 7100 10×12.5

2500 1250 0.10 6 7100 10×12.5

2700 1350 0.10 6 7100 10×12.5

3000 1500 0.10 6 7100 10×12.5

3300 1650 0.10 6 7100 10×12.5

3500 1750 0.10 6 7100 10×12.5

1500 1200 0.10 6 6600 10×12.5

2000 1600 0.10 6 6600 10×12.5

2500 2000 0.10 6 6600 10×12.5

180 113.4 0.10 6 6100

220 138.6 0.10 6 6100

270 170 0.10 6 6100

330 207.9 0.10 6 6100

390 245.7 0.10 6 6100

470 296.1 0.10 6 6100

560 352 0.08 6 6100

680 428.4 0.08 6 6600

820 516.6 0.10 6 6600

1000 630 0.10 6 7100

1200 756 0.10 6 7100

1500 945 0.10 6 7100 10×12.5

2000 1260 0.10 6 7100 10×12.5

6100 8×11.5

7100 10×12.5

6100 8×11.5 820 656 0.08 6

6600 10×12.5

6100 8×11.5 1200 960 0.08 6

6600 10×12.5

23

W.V.

10×12.5

（V）

10

Capacitance

(μF)

180 180 0.08 6 6600 8×11.5

220 220 0.08 6 6600 8×11.5

270 270 0.08 6 6600 8×11.5

330 330 0.08 6 6600 8×11.5

390 390 0.08 6 6600 8×11.5

470 470 0.08 6 6600

560 560 0.08 6 6600

680 680 0.10 6 6600

820 820 0.10 6 7100 10×12.5

1000 1000 0.10 6 7100 10×12.5

1200 1200 0.10 6 7100 10×12.5

L.C.

(μA,2min)

tgδ

(120Hz,20℃)

ESR

(mΩ,100kHz)

Maximum Permissible Ripple

Current(mA,r.m.s)



Frequency Coefficient for Ripple Current

Frequency 120Hz≤freq.<1KHz 1KHz≤freq.<10KHz 10KHz≤freq.<100KHz 100KHz≤freq.<300KHz

Coefficient 0.05 0.3 0.7 1

Size

ΦD×L(mm)

8×11.5

OR

 CapXon is in the position to offer also customized products

24

(SV)

CapXon

PX

series Low Profile



Features

CP-CAP

Conductive Polymer Al.E. Capacitors

· Low profile

· Low ESR at high frequency range &.Large permissible ripple current.

· Long life and high reliability(reliability: 0.1%/1000Hrs).



Specifications

Items Characteristics

Operating Temp. Range -55℃～+105℃

Capacitance Range 10～560μF

Capacitance Tolerance M：±20%

Rated Voltage Range 2.5V ～25V DC

Dissipation Factor

（at 120Hz,20℃）

Leakage Current Not to exceed the value specified (μA, after 2 minutes)

ESR（100K~300KHz） Not to exceed the value specified

Endurance

105℃，2000h，

at rated voltage

Moisture Resistance

Stored at 60℃，RH90～

95%，2000h

Not to exceed the value specified

Capacitance Within ±20% of the value before test

Leakage current Not to exceed the value specified

ESR Not to exceed 150% of the value specified

Dissipation Factor Not to exceed 150% of the value specified

Capacitance Within ±20% of the value before test

Leakage Current Not to exceed the value specified

ESR Not to exceed 150% of the value specified

Dissipation Factor Not to exceed 150% of the value specified



Dimensions

φD×L ΦD+0.5max. α

4×5

5×5

6.3×5.2

6.3×7

6.3×10

4 1.0 1.5

5 1.0 2.0

6.3 1.0 2.5

Unit: mm

F

Φd±0.05

0.45

0.6



Size List

. RV

CAP

10 4×5 6.3×5.2 / 6.3×7 6.3×5.2 / 6.3×7 6.3×5.2 / 6.3×7

15 4×5 6.3×5.2 / 6.3×7 6.3×5.2 / 6.3×7 6.3×5.2 / 6.3×7

22 4×5 6.3×5.2/ 6.3×7 6.3×5.2 / 6.3×7 6.3×7

33 5×5 /6.3×5.2 6.3×5.2 / 6.3×7 6.3×7 6.3×7

39 5×5 /6.3×5.2 6.3×5.2 / 6.3×7 6.3×7 6.3×7

47 6.3×5.2/ 6.3×7 6.3×5.2 / 6.3×7 6.3×7

68 6.3×5.2 / 6.3×7 6.3×5.2 / 6.3×7

82 6.3×5.2 / 6.3×7 6.3×7

100 4×5 /5×5 5×5 6.3×5.2 / 6.3×7 6.3×5.2 / 6.3×7 6.3×7

150 5×5 /6.3×5.2 6.3×5.2 / 6.3×7 6.3×5 .2/ 6.3×7 6.3×7

180 5×5 /6.3×5.2 6.3×5 .2/ 6.3×7 6.3×7 6.3×7

220 5×5 /6.3×5.2 6.3×5 .2/ 6.3×7 6.3×7 6.3×7

270 6.3×5.2 / 6.3×7 6.3×5 .2/ 6.3×7 6.3×7

330 6.3×5.2 / 6.3×7 6.3×5 .2/ 6.3×7 6.3×7

390 6.3×7 6.3×7

470 6.3×7 6.3×7

560 6.3×7

2.5

(2.8)

4

(4.6)

6.3

(7.2)

10

(11.5)

16

(18.4)

20

（23）

25

（27.5）

25

CapXon



Characteristics List

W.V.

（V）

2.5

4.0

6.3

10

Capacitance

(μF)

100 300 0.08 30 1670 4×5

100 300 0.08 30 1970 5×5

150 300 0.08 30 1970 5×5

150 300 0.08 30 2200 6.3×5.2

180 300 0.08 30 1970 5×5

180 300 0.08 30 2200 6.3×5.2

220 300 0.08 30 2200 5×5

220 300 0.08 30 2610 6.3×5.2

270 300 0.08 25 2610 6.3×5.2

270 300 0.08 20 2690 6.3×7

330 300 0.08 25 2610 6.3×5.2

330 300 0.08 20 2690 6.3×7

390 300 0.08 20 2690 6.3×7

470 300 0.08 15 3100 6.3×7

560 300 0.08 15 3100 6.3×7

100 300 0.08 30 1970 5×5

150 300 0.08 30 2200 6.3×5.2

150 300 0.08 25 2670 6.3×7

180 300 0.08 30 2200 6.3×5.2

180 300 0.08 25 2670 6.3×7

220 300 0.08 25 2610 6.3×5

220 300 0.08 20 2690 6.3×7

270 300 0.08 25 2610 6.3×5.2

270 300 0.08 20 2690 6.3×7

330 300 0.08 20 2690 6.3×5.2

330 300 0.08 15 3100 6.3×7

390 300 0.08 15 3100 6.3×7

470 300 0.08 15 3100 6.3×7

100 300 0.08 25 2390 6.3×5.2

100 300 0.08 20 2690 6.3×7

150 300 0.08 25 2390 6.3×5.2

150 300 0.08 20 2690 6.3×7

180 300 0.08 20 2690 6.3×7

220 300 0.08 15 3100 6.3×7

270 300

330 300

10 300 0.08 45 1200

15 300 0.08 45 1200

22 300 0.08 45 1200

33 300 0.08 45 1670

33 300 0.08 30 2200

39 300 0.08 45 1670

39 300 0.08 30 2200

47 300 0.08 30 2200

47 300 0.08 20 2690

68 300 0.08 30 2200

68 300 0.08 20 2690

82 300 0.08 30 2200

82 300 0.08 20 2690

100 300 0.08 30 2200

100 300 0.08 20 2690

150 300 0.08 20 2690

CP-CAP

L.C.

(μA,2min)

(120Hz,20℃)

Conductive Polymer Al.E. Capacitors

tgδ

0.08

ESR

(mΩ,100kHz)

15 3100 6.3×7

Maximum Permissible Ripple

Current(mA,r.m.s)

26

ΦD×L(mm)

Size

4×5

5×5

6.3×5.2

5×5

6.3×5.2

6.3×7

6.3×5.2

6.3×7

6.3×5.2

6.3×7

6.3×5.2

6.3×7

W.V.

Frequency

120Hz

freq.<1KHz

1KHz

freq.<10KHz

10KHz

freq.<100KHz

100KHz

freq.<300KHz

Coefficient

0.05 0.3 0.7 1

（V）

10

16

20

25

Capacitance

(μF)

180 300 0.08 20 2690

220 300

10 300 0.08 30 2200

10 300 0.08 25 2610

15 300 0.08 30 2200

15 300 0.08 25 2610

22 300 0.08 30 2200

22 300 0.08 25 2610

33 300 0.08 30 2200

33 300 0.08 25 2610

47 300 0.08 30 2200

47 300 0.08 25 2610

68 300 0.08 30 2200

68 300 0.08 20 2690

82 300 0.08 20 2690

100 300 0.08 20 2690

10 300 0.08 30 2200

10 300 0.08 25 2670

15 300 0.08 30 2200

15 300

22 300 0.08 30 2200

22 300 0.08 25 2670

33 300 0.08 25 2670

39 300 0.08 25 2670

47 300 0.08 25 2670

10 300 0.08 30 2200

10 300 0.08 25 2670

22 300 0.08 25 2670

33 300 0.08 25 2670

39 300 0.08 25 2670 6.3×7

L.C.

(μA,2min)

tgδ

(120Hz,20℃)

0.08

ESR

(mΩ,100kHz)

20 2690

25 2670

Maximum Permissible Ripple

Current(mA,r.m.s)

Size

ΦD×L(mm)

6.3×7

6.3×5.2

6.3×7

6.3×5.2

6.3×7

6.3×5.2

6.3×7

6.3×5.2

6.3×7

6.3×5.2

6.3×7

6.3×5.2

6.3×7

6.3×5.2

6.3×7

6.3×5.2

6.3×7

6.3×5.2

6.3×7

6.3×5.2

6.3×7



Frequency Coefficient for Ripple Current

≤

27

≤

Frequency

120Hz

freq.<1KHz

1KHz

freq.<10KH

z 10KHz

freq.<100KHz

100KHz

freq.<300KHz

CapXon

PE

series



Features

CP-CAP

·Down Size to φ6.3×8.

·Low ESR & large capacitance.

·Large permissible ripple current.



Specifications

Items Characteristics

Operating Temp. Range -55℃～+105℃

Capacitance Range 180～3500μF

Capacitance Tolerance M：±20%

Rated Voltage Range 2.5V ～16V DC

Dissipation Factor

（at 120Hz,20℃）

Leakage Current ≤0.2CV (μA, after 2 minutes)

ESR（100K~300KHz） Not to exceed the value specified

Endurance

105℃，2000h，

at rated voltage

Moisture Resistance

Stored at 60℃，RH90～

95%，2000h

Not to exceed the value specified

Capacitance Within ±20% of the value before test

Leakage current Not to exceed the value specified

ESR Not to exceed 150% of the value specified

Dissipation Factor Not to exceed 150% of the value specified

Capacitance Within ±20% of the value before test

Leakage Current Not to exceed the value specified

ESR Not to exceed 150% of the value specified

Dissipation Factor Not to exceed 150% of the value specified

Conductive Polymer Al.E. Capacitors

#EW



Dimensions

φD

φD×L ΦD+0.5max. α

6.3×8

6.3 1.5 2.5

F



Characteristics List

W.V.

（V）

2.5

4.0

6.3

Capacitance

(μF)

820 410 0.08 7 5000

560 448 0.08 7 5000

470 592.2 0.08 8 4700

560 705.6 0.08 8 4700

(μA,2min)

L.C.

tgδ

(120Hz,20℃)

ESR

(mΩ,100kHz)

Maximum Permissible Ripple

Current(mA,r.m.s)



Frequency Coefficient for Ripple Current

≤

Coefficient 0.05 0.3 0.7 1

≤

Unit: mm

Φd±0.05

0.6

Size

ΦD×L(mm)

6.3×8

≤

28

(SV)

CapXon

PM

series SMD type



Features

CP-CAP

Conductive Polymer Al.E. Capacitors

&

Low Profile

· SMD type & Low profile

· Low ESR at high frequency range &.Large permissible ripple current.

· Long life and high reliability(reliability: 0.1%/1000Hrs).



Specifications

Items Characteristics

Operating Temp. Range -55℃～+105℃

Capacitance Range 10～560μF

Capacitance Tolerance M：±20%

Rated Voltage Range 2.5V ～25V DC

Dissipation Factor

（at 120Hz,20℃）

Leakage Current Not to exceed the value specified (μA, after 2 minutes)

ESR（100K~300KHz） Not to exceed the value specified

Endurance

105℃，2000h，

at rated voltage

Moisture Resistance

Stored at 60℃，RH90～

95%，2000h



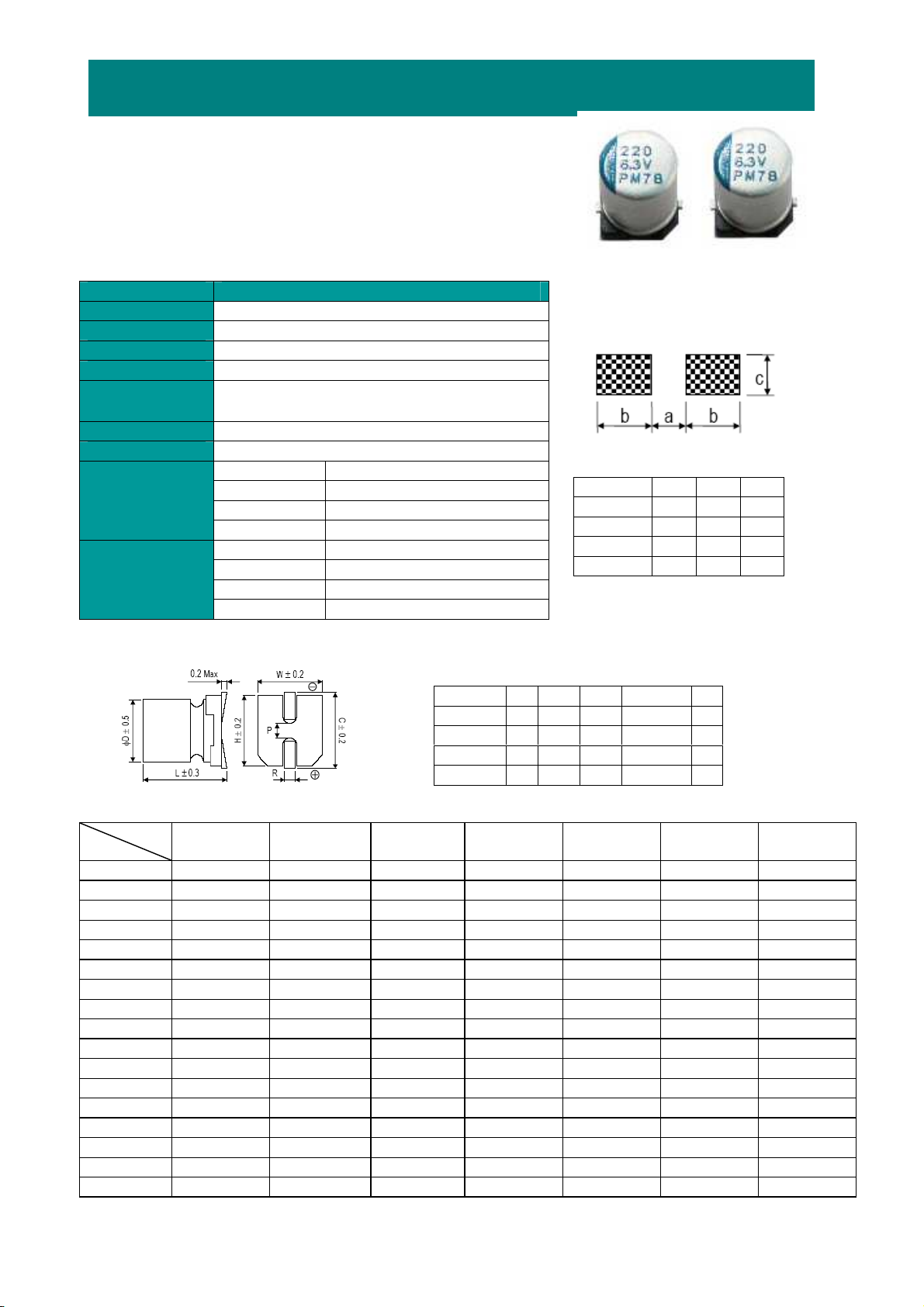

Diagram of Dimensions

Not to exceed the value specified

Capacitance Within ±20% of the value before test

Leakage current Not to exceed the value specified

ESR Not to exceed 150% of the value specified

Dissipation Factor Not to exceed 150% of the value specified

Capacitance Within ±20% of the value before test

Leakage Current Not to exceed the value specified

ESR Not to exceed 150% of the value specified

Dissipation Factor Not to exceed 150% of the value specified



Recommended land pattern

（unit：mm）

φD×L a b c

4×5.5 1.0 2.6 1.6

5×5.5 1.4 3.0 1.6

6.3×5.8 2.1 3.5 1.6

6.3×7.7 2.1 3.5 1.6

（unit：mm）



Size List

. RV

CAP

10 4×5.5 6.3×5.8/ 6.3×7.7 6.3×5.8/ 6.3×7.7 6.3×5.8/ 6.3×7.7

15 4×5.5 6.3×5.8/ 6.3×7.7 6.3×5.8/ 6.3×7.7 6.3×5.8/ 6.3×7.7

22 4×5.5 6.3×5.8/ 6.3×7.7 6.3×5.8/ 6.3×7.7 6.3×7.7

33 5×5.5/6.3×5.8 6.3×5.8/ 6.3×7.7 6.3×7.7 6.3×7.7

39 5×5.5 /6.3×5.8 6.3×5.8/ 6.3×7.7 6.3×7.7 6.3×7.7

47 6.3×5.8/ 6.3×7.7 6.3×5.8/ 6.3×7.7 6.3×7.7

68 6.3×5.8/ 6.3×7.7 6.3×5.8/ 6.3×7.7

82 6.3×5.8/ 6.3×7.7 6.3×7.7

100 4×5.5 /5×5.5 5×5.5 6.3×5.8/6.3×7.7 6.3×5.8/ 6.3×7.7 6.3×7.7

150 5×5.5 /6.3×5.8 6.3×5.5/6.3×7.7 6.3×5.8/6.3×7.7 6.3×7.7

180 5×5 .5/6.3×5.8 6.3×5.5 / 6.3×7.7 6.3×7.7 6.3×7.7

220 5×5 .5/6.3×5.8 6.3×5.5/6.3×7.7 6.3×7.7 6.3×7.7

270 6.3×5.8/6.3×7.7 6.3×5.5 / 6.3×7.7 6.3×7.7

330 6.3×5.8 / 6.3×7.7 6.3×5.5/6.3×7.7 6.3×7.7

390 6.3×7.7 6.3×7.7

470 6.3×7.7 6.3×7.7

560 6.3×7.7

2.5

(2.8)

4

(4.6)

φD×L W H C R P

4×5.5 4.3 4.3 5.1 0.5 to 0.8 1.0

5×5.5 5.3 5.3 5.9 0.5 to 0.8 1.4

6.3×5.8 6.5 6.5 7.2 0.5 to 0.8 2.1

6.3×7.7 6.5 6.5 7.2 0.5 to 0.8 2.1

6.3

(7.2)

10

(11.5)

16

(18.4)

20

（23）

25

（27.5）

29

CapXon



Characteristics List

W.V.

（V）

2.5

4.0

6.3

10

Capacitance

(μF)

100 300 0.08 30 1670 4×5.5

100 300 0.08 30 1970 5×5.5

150 300 0.08 30 1970 5×5.5

150 300 0.08 30 2200 6.3×5.8

180 300 0.08 30 1970 5×5.5

180 300 0.08 30 2200 6.3×5.8

220 300 0.08 30 2200 5×5.5

220 300 0.08 30 2610 6.3×5.8

270 300 0.08 25 2610 6.3×5.8

270 300 0.08 20 2690 6.3×7.7

330 300 0.08 25 2610 6.3×5.8

330 300 0.08 20 2690 6.3×7.7

390 300 0.08 20 2690 6.3×7.7

470

560

100 300 0.08 30 1970 5×5.5

150 300 0.08 30 2200 6.3×5.8

150 300 0.08 25 2670 6.3×7.7

180 300 0.08 30 2200 6.3×5.8

180 300 0.08 25 2670 6.3×7.7

220 300 0.08 25 2610 6.3×5.8

220 300 0.08 20 2690 6.3×7.7

270 300 0.08 25 2610 6.3×5.8

270 300 0.08 20 2690 6.3×7.7

330 300 0.08 20 2690 6.3×5.8

330 300 0.08 15 3100 6.3×7.7

390 300 0.08 15 3100 6.3×7.7

470

100 300 0.08 25 2390 6.3×5.8

100 300 0.08 20 2690 6.3×7.7

150 300 0.08 25 2390 6.3×5.8

150 300 0.08 20 2690 6.3×7.7

180 300 0.08 20 2690 6.3×7.7

220 300 0.08 15 3100 6.3×7.7

270 300

330 300

10 300

15 300

22 300

33 300

39 300

47 300

68 300

82 300 0.08 30 2200 6.3×5.8

82 300 0.08 20 2690 6.3×7.7

CP-CAP

L.C.

(μA,2min)

300

(120Hz,20℃)

Conductive Polymer Al.E. Capacitors

tgδ

0.08 15

0.08 15 3100 6.3×7.7

0.08

ESR

(mΩ,100kHz)

15 3100 6.3×7.7

45 1200

45 1670

30 2200

45 1670

30 2200

20 2690

30 2200

20 2690

Maximum Permissible Ripple

Current(mA,r.m.s)

3100

Size

ΦD×L(mm)

6.3×7.7

4×5.5

5×5.5

6.3×5.8

5×5.5

6.3×5.8

6.3×7.7

6.3×5.8

6.3×7.7

30

W.V.

Frequency

120Hz

freq.<1KHz

1KHz

freq.<10KHz

10KHz

freq.<100KHz

100KHz

freq.<300KHz

（V）

10

16

20

25

Capacitance

(μF)

100 300 0.08 30 2200 6.3×5.8

100 300 0.08 20 2690 6.3×7.7

150 300 0.08 20 2690 6.3×7.7

180 300 0.08 20 2690 6.3×7.7

220 300

10 400 0.08 30 2200 6.3×5.8

10 400 0.08 25 2610 6.3×7.7

15 400 0.08 30 2200 6.3×5.8

15 400 0.08 25 2610 6.3×7.7

22 400 0.08 30 2200 6.3×5.8

22 400 0.08 25 2610 6.3×7.7

33 400 0.08 30 2200 6.3×5.8

33 400 0.08 25 2610 6.3×7.7

47 400 0.08 30 2200 6.3×5.8

47 400 0.08 25 2610 6.3×7.7

68 400 0.08 30 2200 6.3×5.8

68 400 0.08 20 2690 6.3×7.7

82 400 0.08 20 2690 6.3×7.7

100 400 0.08 20 2690 6.3×7.7

10 600 0.08 30 2200 6.3×5.8

10 600 0.08 25 2670 6.3×7.7

15 600 0.08 30 2200 6.3×5.8

15 600 0.08 25 2670 6.3×7.7

22 600 0.08 30 2200 6.3×5.8

22 600 0.08 25 2670 6.3×7.7

33 600 0.08 25 2670 6.3×7.7

39 600 0.08 25 2670 6.3×7.7

47 600 0.08 25 2670 6.3×7.7

10 600 0.08 30 2200 6.3×5.8

10 600 0.08 25 2670 6.3×7.7

22 600 0.08 25 2670 6.3×7.7

33 600 0.08 25 2670 6.3×7.7

39 600 0.08 25 2670 6.3×7.7

L.C.

(μA,2min)

tgδ

(120Hz,20℃)

0.08

ESR

(mΩ,100kHz)

20 2690

Ripple Current(mA,r.m.s)

Maximum Permissible

Size

ΦD×L(mm)

6.3×7.7



Frequency Coefficient for Ripple Current

≤

Coefficient 0.05 0.3 0.7 1

31

≤

(SV)

CapXon

PD

series SMD type



Features

CP-CAP

Conductive Polymer Al.E. Capacitors

&

Large capacitance

· SMD type & Large capacitance

· Ultra low ESR at high frequency range &.Large permissible ripple current.

· Long life and high reliability(reliability: 0.1%/1000Hrs).



Specifications

Items Characteristics

Operating Temp. Range -55℃～+105℃

Capacitance Range 39～3300μF

Capacitance Tolerance M：±20%

Rated Voltage Range 2.5V ～25V DC

Dissipation Factor

（at 120Hz,20℃）

Leakage Current Not to exceed the value specified (μA, after 2 minutes)

ESR（100K~300KHz） Not to exceed the value specified

Endurance

105℃，2000h，

at rated voltage

Moisture Resistance

Stored at 60℃，RH90～

95%，2000h



Diagram of Dimensions

Not to exceed the value specified

Capacitance Within ±20% of the value before test

Leakage current Not to exceed the value specified

ESR Not to exceed 150% of the value specified

Dissipation Factor Not to exceed 150% of the value specified

Capacitance Within ±20% of the value before test

Leakage Current Not to exceed the value specified

ESR Not to exceed 150% of the value specified

Dissipation Factor Not to exceed 150% of the value specified



Recommended land pattern

（unit：mm）

φD×L a b c

8×11.7 2.8 4.2 1.9

10×12.4 4.3 4.4 1.9



Size List

. RV

CAP

39 8×11.7 8×11.7

47 8×11.7 8×11.7

68 8×11.7 8×11.7

82 8×11.7 8×11.7

100 10×12.4 10×12.4

180 8×11.7 8×11.7 8×11.7 10×12.4 10×12.4

220 8×11.7 8×11.7 8×11.7 10×12.4

270 8×11.7 8×11.7 8×11.7

330 8×11.7 8×11.7 8×11.7 / 10×12.4

390 8×11.7 8×11.7 10×12.4

470 8×11.7 8×11.7 10×12.4

560 8×11.7 8×11.7 8×11.7 8×11.7 10×12.4

680 8×11.7 8×11.7 8×11.7/10×12.4 10×12.5 10×12.4

(2.8)

2.5

4

(4.6)

φD×L W H C R P

8×11.7 8.3 8.3 9.0 0.8 to 1.1 3.2

10×12.4 10.3 10.3 11.0 0.8 to 1.1 4.6

6.3

(7.2)

10

(11.5)

16

(18.4)

（unit：mm）

20

（23）

25

（27.5）

32

. RV

(SV)

CAP

820 8×11.7 8×11.7 8×11.7 / 10×12.4 10×12.4 10×12.4

1000 8×11.7 8×11.7 10×12.4 10×12.4

1200 8×11.7 8×11.7 10×12.4 10×12.4

1500 8×11.7 10×12.4 10×12.4

2000 10×12.4 10×12.4 10×12.4

2500 10×12.4 10×12.4

2700 10×12.4

3000 10×12.4

3300 10×12.4

2.5

(2.8)

4

(4.6)

6.3

(7.2)

10

(11.5)

16

(18.4)

（23）



Characteristics List

W.V.

（V）

2.5

4.0

6.3

Capacitance

(μF)

560 280 0.08 8 5200 8×11.7

680 340 0.08

820 410 0.08

1000 500 0.08

1500 750 0.08 8 5200

2000 1000 0.08 8 5500

2500 1250 0.08 8 5500 10×12.4

2700 1350 0.10 8 5500 10×12.4

3000 1500 0.10 8 5500 10×12.4

3300 1650 0.10 8 5500 10×12.4

560 448 0.08 8 5200 8×11.7

680 544 0.08 8 5200

820 656 0.08 8 5200 8×11.7

1000 800 0.10 8 5200 8×11.7

1200 960 0.10 8 5200

1500 1200 0.10 8 5500 10×12.4

2000 1600 0.10 8 5500 10×12.4

2500 2000 0.10 8 5500 10×12.4

180 226.8 0.08 8 5200

220 277.2 0.08 8 5200 8×11.7

270 340.2 0.08 8 5200

330 416 0.08 8 5200

390 491 0.08 8 5200 8×11.7

470 592 0.08 8 5200

560 705.6 0.08 8 5200 8×11.7

680 856 0.08 8 5200 8×11.7

680 856 0.08 8 5500 10×12.4

820 1033.2 0.10 8 5200 8×11.7

820 1033.2 0.10 8 5500 10×12.4

1000 1260 0.10 8 5500 10×12.4

1200 1512 0.10 8 5500 10×12.4

1500 1890 0.10 8 5500 10×12.4

2000 2520 0.10 8 5500 10×12.4

L.C.

(μA,2min)

tgδ

(120Hz,20℃)

ESR

(mΩ,100kHz)

8

Maximum Permissible Ripple

Current(mA,r.m.s)

5200 8×11.7

20

25

（27.5）

Size

ΦD×L(mm)

8×11.7

10×12.4

8×11.7

33

W.V.

Frequency

120Hz

freq.<1KHz

1KHz

freq.<10KHz

10KHz

freq.<100KHz

100KHz

freq.<300KHz

（V）

10

16

20

25

Capacitance

(μF)

180 360 0.08 8 5200

220 440 0.08 8 5200

270 540 0.08 8 5200

330 660 0.08 8 5200 8×11.7

390 780 0.08 8 5200

470 940 0.08 8 5200

560 1120 0.08 8 5200 8×11.7

680 1360 0.10 8 5500 10×12.4

820 1640 0.10 8 5500 10×12.4

1000 2000 0.10 8 5500 10×12.4

1200 2400 0.10 8 5500 10×12.4

180 576 0.08 10 4700

220 704 0.08 10 4700 8×11.7

270 864 0.08 10 4700

330 1056 0.08 10 4700 8×11.7

330 1056 0.08 10 5100 10×12.4

470 1504 0.10 10 5100 10×12.4

680 2176 0.10 10 5100 10×12.4

820 2624 0.10 10 5100 10×12.4

39 156 0.08 15 4210

47 188 0.08 15 4210

68 272 0.08 15 4210 8×11.7

82 328 0.08 15 4210

100 400 0.08 15 4800 10×12.4

180 720 0.10 15 4800 10×12.4

220 880 0.10 15 4800 10×12.4

39 195 0.08 15 4210

47 235 0.08 15 4210 8×11.7

68 340 0.08 15 4210

82 410 0.08 15 4210 8×11.7

100 500 0.10 15 4800 10×12.4

150 750 0.10 15 4800 10×12.4

180 900 0.10 15 4800 10×12.4

L.C.

(μA,2min)

tgδ

(120Hz,20℃)

ESR

(mΩ,100kHz)

Maximum Permissible Ripple

Current(mA,r.m.s)

ΦD×L(mm)

Size

8×11.7



Frequency Coefficient for Ripple Current

≤

Coefficient 0.05 0.3 0.7 1

34

≤

CapXon

PV

series SMD type



Features

CP-CAP

Conductive Polymer Al.E. Capacitors

&

Low height

· SMD type , Low height & Large capacitance

· low ESR at high frequency range &.Large permissible ripple current.

· Long life and high reliability(reliability: 0.1%/1000Hrs).



Specifications

Items Characteristics

Operating Temp. Range -55℃～+105℃

Capacitance Range 22～3300μF

Capacitance Tolerance M：±20%

Rated Voltage Range 2.5V ～25V DC

Dissipation Factor

（at 120Hz,20℃）

Leakage Current Not to exceed the value specified (μA, after 2 minutes)

ESR（100K~300KHz） Not to exceed the value specified

Endurance

105℃，2000h，

at rated voltage

Moisture Resistance

Stored at 60℃，RH90～

95%，2000h

Not to exceed the value specified

Capacitance Within ±20% of the value before test

Leakage current Not to exceed the value specified

ESR Not to exceed 150% of the value specified

Dissipation Factor Not to exceed 150% of the value specified

Capacitance Within ±20% of the value before test

Leakage Current Not to exceed the value specified

ESR Not to exceed 150% of the value specified

Dissipation Factor Not to exceed 150% of the value specified



Recommended land pattern

（unit：mm）

φD×L a b c

8×7.7 2.8 4.2 1.9

8×10.5 2.8 4.2 1.9

10×7.7 4.3 4.4 1.9

10×10.5 4.3 4.4 1.9



Diagram of Dimensions



Size List

. RV

(SV) CAP

39 8×7.7/8×10.5 8×7.7/8×10.5

47 8×7.7/8×10.5 8×7.7/8×10.5

68 8×7.7/8×10.5 8×7.7/8×10.5

82 8×7.7/8×10.5 8×7.7/8×10.5

100 8×7.7/8×10.5 8×10.5/10×7.7

150 8×10.5/10×7.7 10×10.5

180 8×7.7 8×7.7 8×7.7/8×10.5 10×7.7/10×10.5

220 8×7.7 8×7.7 8×7.7/8×10.5 10×10.5

270 8×7.7 8×7.7 8×10.5/10×7.7

330 8×7.7/8×10.5 8×7.7 8×10.5/10×7.7

390 8×7.7/8×10.5 8×7.7 10×10.5

470 8×7.7/8×10.5 8×10.5 10×10.5

560 8×7.7 8×7.7/8×10.5 8×7.7/8×10.5 10×7.7

680 8×7.7 8×7.7/8×10.5 8×10.5/10×7.7 10×7.7

2.5

(2.8)

4

(4.6)

φD×L W H C R P

8×7.7 8.3 8.3 9.0 0.8 to 1.1 3.2

8×10.5 8.3 8.3 9.0 0.8 to 1.1 3.2

6.3

(7.2)

10×7.7 10.3 10.3 11.0

10×10.5 10.3 10.3 11.0

10

(11.5)

16

(18.4)

（23）

0.8 to 1.1 4.6

20

（unit：mm）

25

（27.5）

35

. RV

(SV) CAP

820 8×7.7 8×7.7/8×10.5 10×7.7/10×10.5 10×10.5

1000 8×7.7 8×10.5 10×7.7/10×10.5

1200 8×10.5 10×7.7/10×10.5 10×10.5

1500 10×7.7 10×7.7/10×10.5

2000 10×7.7 10×10.5

2500 10×10.5

2.5

(2.8)

4

(4.6)

6.3

(7.2)

10

(11.5)

16

(18.4)

（23）



Characteristics List

W.V.

（V）

2.5

4.0

6.3

Capacitance

(μF)

560 280 0.08 15 3700 8×7.7

680 340 0.08

820 410 0.08

1000 500 0.08

1200 600 0.08 11 4800

1500 750 0.10 15 4100

2000 1000 0.10 15 4100

2500 1250 0.10 11 5100 10×10.5

560 448 0.08 15 3700 8×7.7

560 448 0.08 11 4800 8×10.5

680 544 0.08 15 3700

680 544 0.08 11 4800

820 656 0.08 15 3700 8×7.7

820 656 0.08 11 4800 8×10.5

1000 800 0.10 11 4800

1200 960 0.10 15 4100

1200 960 0.10 11 5100

1500 1200 0.10 15 4100 10×7.7

1500 1200 0.10 11 5100 10×10.5

2000 1600 0.10 11 5100 10×10.5

180 227 0.08 15 3700

220 277 0.08 15 3700

270 340 0.08 15 3700

330 416 0.08 15 3700

330 416 0.08 11 4800

390 491 0.08 15 3700 8×7.7

390 491 0.08 11 4800 8×10.5

470 592 0.08 15 3700

470 592 0.08 11 4800

560 705.6 0.08 15 3700 8×7.7

560 705.6 0.08 11 4800 8×10.5

680 856.8 0.08 11 4800 8×10.5

680 856.8 0.08 15 4100 10×7.7

820 1033.2 0.10 15 4100 10×7.7

820 1033.2 0.10 11 5100 10×10.5

1000 1260 0.10 15 4100 10×7.7

1000 1260 0.10 11 5100 10×10.5

1200 1260 0.10 11 5100 10×10.5

L.C.

(μA,2min)

tgδ

(120Hz,20℃)

ESR

(mΩ,100kHz)

15

Maximum Permissible Ripple

Current(mA,r.m.s)

20

3700 8×7.7

25

（27.5）

ΦD×L(mm)

Size

8×10.5

10×7.7

8×7.7

8×10.5

10×7.7

10×10.5

8×7.7

8×10.5

8×7.7

8×10.5

36

W.V.

Frequency

120Hz

freq.<1KHz

1KHz

freq.<10KHz

10KHz

freq.<100KHz

100KHz

freq.<300KHz

（V）

10

16

20

25

Capacitance

(μF)

180 360 0.08 15 3700

220 440 0.08 15 3700

330 660 0.08 15 3700 8×7.7

390 780 0.08 15 3700 8×7.7

470 940 0.08 11 4800

560 1120 0.08 15 4100 10×7.7

680 1360 0.10 15 4100 10×7.7

820 1640 0.10 11 5100 10×10.5

180 288 0.08 15 3700

180 288 0.08 11 4800

220 352 0.08 15 3700 8×7.7

220 352 0.08 11 4800 8×10.5

270 432 0.08 11 4800

270 432 0.08 15 4100

330 528 0.08 11 4800 8×10.5

330 528 0.08 15 4100 10×7.7

390 624 0.10 11 5100 10×10.5

470 752 0.10 11 5100 10×10.5

39 156 0.08 18 3500

39 156 0.08 12 4500

47 188 0.08 18 3500

47 188 0.08 12 4500

68 272 0.08 18 3500 8×7.7

68 272 0.08 12 4500 8×10.5

82 328 0.08 18 3500

82 328 0.08 12 4500

100 400 0.08 18 3500 8×7.7

100 400 0.08 12 4500 8×10.5

150 600 0.08 12 4500 8×10.5

150 600 0.08 15 4100 10×7.7

180 720 0.10 15 4100 10×7.7

180 720 0.10 11 5100 10×10.5

220 880 0.10 11 5100 10×10.5

39 195 0.08 18 3500

39 195 0.08 12 4500

47 235 0.08 18 3500 8×7.7

47 235 0.08 12 4500 8×10.5

68 340 0.08 18 3500

68 340 0.08 12 4500

82 410 0.08 18 3500 8×7.7

82 410 0.08 12 4500 8×10.5

100 500 0.10 12 4500 8×10.5

100 500 0.10 15 4100 10×7.7

150 750 0.10 12 5000 10×10.5

L.C.

(μA,2min)

tgδ

(120Hz,20℃)

ESR

(mΩ,100kHz)

Maximum Permissible Ripple

Current(mA,r.m.s)

ΦD×L(mm)

Size

8×7.7

8×10.5

8×7.7

8×10.5

10×7.7

8×7.7

8×10.5

8×7.7

8×10.5

8×7.7

8×10.5

8×7.7

8×10.5

8×7.7

8×10.5



Frequency Coefficient for Ripple Current

≤

Coefficient 0.05 0.3 0.7 1

37

≤

CapXon

Specialized in Aluminum capacitors

豐賓電子工業股份有限公司

豐賓電子工業股份有限公司豐賓電子工業股份有限公司

CapXon Electronic Ind. Co., Ltd.

台北縣汐止市大同路二段

台北縣汐止市大同路二段165號號號號5樓樓樓樓

台北縣汐止市大同路二段台北縣汐止市大同路二段

Tel : 886-2- 86926611 Fax : 886-2-86926477

豐賓電子

豐賓電子（（（（深圳

豐賓電子豐賓電子

CapXon Electronic (shenzhen). Co., Ltd.

中中中中国广东

国广东省深圳市公明

国广东国广东

Tel : 86-755-27177888 Fax :86-755-27177802/03

www.capxongroup.com

深圳））））有限公司

深圳深圳

省深圳市公明镇镇镇镇塘尾工

省深圳市公明省深圳市公明

有限公司

有限公司有限公司

塘尾工业区

塘尾工塘尾工

业区

业区业区

Printed in Aug.2008
