This particular book presents Anglia’s primary

capacitor product lines sourced from eleven key

suppliers. Compiled in a convenient format to

assist both buyers and engineers, it provides all

the essential data and part numbers to aid the

selection and ordering process for ease of design

and manufacturing. The lines detailed are those

considered to offer the best in terms of

performance, cost and availability.

The Capacitor book is Volume 2 of a series of 3

books specifically covering passive components

and published exclusively by Anglia.

Tel : +44 (0)1945 47 47 47 Fax : +44 (0)1945 47 48 49 Email : [email protected] Web : www.anglia.com

Address : Sandall Road, Wisbech, PE13 2PS U.K.

An invaluable resource for buyers and engineers

The remaining two books in the series cover Resistors and Inductors. These are available in our Product Literature section on our website

www.anglia.com

Page 3

Contents

Manf. Type Page No.

ELECTROLYTIC CAPACITORS

SURFACE MOUNT

Standard Ranges, 85°C NOVER & PANASONIC VE & S Series, type V 2 - 4

High Temperature, 105°C NOVER & PANASONIC VH & HB Series, type V 5 - 6

Long Life, 105°C NOVER VL 7

Long Life, Low ESR, 105°C PANASONIC FK Series, type V 8 - 9

Low & Very Low ESR, 105°C NOVER & PANASONIC VZ/VX & FC/FP Series, type V 10 - 13

Very High Temperature, 125°C NOVER VA 14

Very High Temperature, Low ESR, 125°C PANASONIC TG Series, type V 15

Bi-polar, 85°C & 105°C NOVER & PANASONIC VP & HP Series, type V 16 - 17

THROUGH HOLE

RADIAL

Standard Ranges, 85°C NOVER & PANASONIC RE & M Series, type A 18 - 21

High Temperature, 105°C NOVER & PANASONIC RH/RT & NHG Series, type A 22 - 25

Sub-miniature, 85°C & 105°C NOVER R7 & RJ 26 - 27

Ultra-miniature, 85°C NOVER & PANASONIC R5 & KS Series, type A 28 - 29

Long Life,105°C PANASONIC ED Series, type A 30

Low ESR, 105°C PANASONIC FC Series, type A 31 - 33

Low & Very Low ESR, Long Life, 105°C NOVER & PANASONIC RX & FK/FM Series, type A 34 - 39

Low Leakage, 85°C NOVER LL 40

Bi-polar, 85°C NOVER RB 41

AXIAL

Standard Range, 85°C NOVER TE 42

High Temperature, 105°C NOVER TH 43

SNAP-IN, 2 PIN

Standard Ranges, 85°C NOVER & PANASONIC LS & TS-UP Series 44 - 47

High Temperature, 105°C NOVER & PANASONIC LH & TS-HA/HB Series 48 - 51

ELECTRIC DOUBLE LAYER CAPACITORS

SURFACE MOUNT

Very Low Profile PANASONIC EM & EN 52

THROUGH HOLE

Low Profile, Compact & Radial PANASONIC NF, SD/SG & HW 53 - 56

TANTALUM / ALUMINIUM ORGANIC CAPACITORS

SURFACE MOUNT

Tantalum, Chip KEMET T491 57 - 59

Tantalum, Chip, Low ESR KEMET T494, T495 & T510 60 - 64

Aluminium-Polymer, Chip KEMET & PANASONIC AO-Cap & SP-Cap 65 - 68

THROUGH HOLE

Tantalum, Dipped CTC TR4 69 - 70

Tantalum, Dipped, Low ESR NOVER & KEMET TX & T350/T356 71 - 76

Page 4

Contents

Manf. Type Page No.

PLASTIC FILM / PAPER CAPACITORS

SURFACE MOUNT

Metallised Film, Chip, Tant Replacement PANASONIC ECPU 77

Metallised Polyester Film, Chip WIMA SMD-PET 78 - 79

Metallised PPS Film, Chip, 125°C PANASONIC ECHU 80 - 81

THROUGH HOLE

Metallised Polyester Film, Dipped, 5mm PANASONIC ECQV 82 - 83

Metallised Polyester Film, Dipped, 10.2 to 27.9mm EPOC E68 84

Metallised Polyester Film, Boxed, 2.5mm WIMA MKS02 85 - 86

Metallised Polyester Film, Boxed, 5mm EPCOS B32529 87 - 88

Metallised Polyester Film, Boxed, 7.5 to 27.5mm ARCOTRONICS R66 & R60 89 - 91

Metallised Polypropylene Film, Boxed, 5mm WIMA MKP2 92 - 93

Metallised Polypropylene Film, Boxed, 7.5 to 37.5mm WIMA MKP4 & MKP10 94 - 101

Metallised Polypropylene Film, Suppression, 10 to 52.5mm EPCOS B3292 & B3202 102 - 104

Metallised Paper, Suppression, 10 to 27.5mm WIMA MP3-X2 & MP3-Y2 105 - 106

CERAMIC CAPACITORS

SURFACE MOUNT

Chip, Multilayer, 0201 to 1206 MURATA & KEMET GRM & C0805C/C1206C 107 - 115

Chip, Multilayer, 1210 to 2220 SYFER 1210, 1812 & 2220 116 - 117

Chip, Multilayer, Flex Mitigation KEMET Open Mode, FE-CAP, FT CAP & FF-CAP 118 - 129

Chip, Multilayer, Tant Replacement MURATA GRM Hi-Cap 130 - 131

Chip, Multilayer, High Voltage SYFER 1210, 1812 & 2220 132 - 135

Chip, Multilayer, High Frequency MURATA GQM 136 - 137

Chip Array MURATA & KEMET GNM & C1632 140 - 143

Chip, Suppression MURATA GA355D/X/Q- GB,GC & GF 144

THROUGH HOLE

Multilayer, Radial & Axial CTC MDR & MDA 138 - 139

Miniature Disc, Suppression JYA-NAY & MURATA JY & DE- KX/KH/KY 145 - 147

Miniature Disc, High Voltage MURATA DE 148 - 149

Miniature Disc, General Purpose CTC DC3 150 - 151

TRIMMER CAPACITORS

SURFACE MOUNT

2mm, 3mm & 4mm MURATA TZV2, TZC3 & TZB4 152 - 154

THROUGH HOLE

6mm MURATA TZ03 155

Page 5

ELECTROLYTIC, Surface Mount

+44 (0)1945 47 47 47 www.anglia.com [email protected]

Dia.

0.3 max.

Polarity bar

0.5

max.

Case Size Dia. L R S T U V

3.0 x 5.3 3.0 5.3 3.3 3.3 1.5 0.60 0.8

4.0 x 5.3 4.0 5.3 4.3 4.3 2.0 0.65 1.0

5.0 x 5.3 5.0 5.3 5.3 5.3 2.3 0.65 1.5

6.3 x 5.3 6.3 5.3 6.6 6.6 2.7 0.65 2.0

6.3 x 7.7 6.3 7.7 6.6 6.6 2.7 0.65 2.0

8.0 x 6.5 8.0 6.5 8.4 8.4 3.4 0.65 2.3

8.0 x 10.0 8.0 10.0 8.4 8.4 3.0 0.90 3.1

10.0 x 10.0 10.0 10.0 10.4 10.4 3.3 0.90 4.7

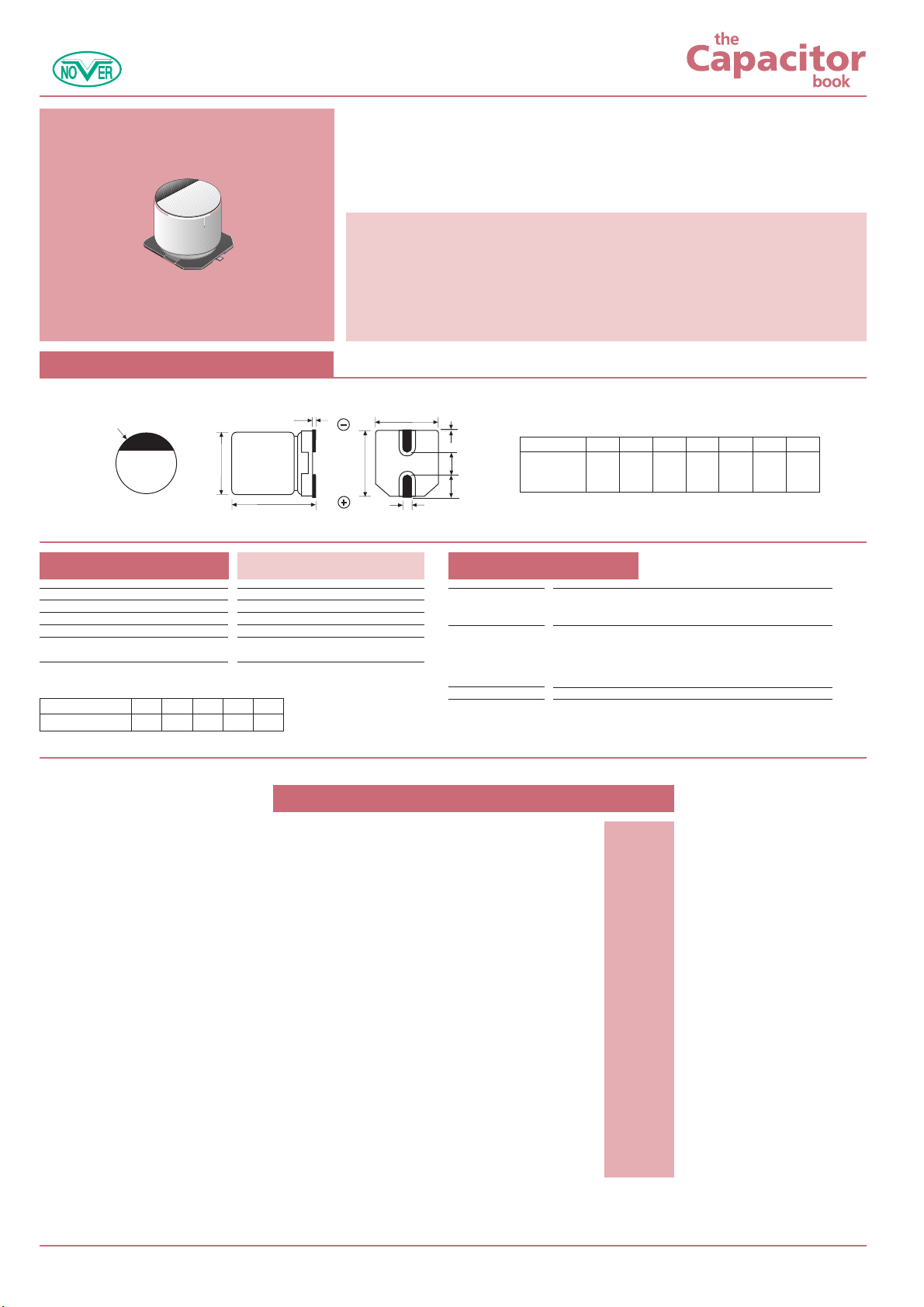

NOVER type VE

Surface mount, aluminium electrolytic capacitors giving an excellent operational specification within a small package and designed for general purpose use. The VE series has an endurance test of 2000 hours at 85°C and is available in a wide range of values and voltages, which are listed below. Supplied taped and reeled.

N Standard range

N Endurance 2000 hours at 85°C

N Excellent performance/size

characteristics

N Ideal for general purpose use

Specification VE

Endurance test Capacitance tolerance Ripple current (as listed) Operating temperature range Leakage current

2000 hours at 85°C ±20% at 120Hz, 20°C measured at 120Hz, 85°C

-40°C to +85°C ≤0.01CV or 3µA (whichever is greater) after 2 min.

Dimensions (mm)

Marking and Packaging

Marking

Tape

Case Size

3.0 x 5.3

4.0 x 5.3

5.0 x 5.3

6.3 x 5.3

6.3 x 7.7

8.0 x 6.5

8.0 x 10.0

10.0 x 10.0

Reel

Printed on top surface of case, except largest case sizes which may be printed on a case sleeve around the body. Capacitance value, Voltage, Bar to indicate negative terminal

12mm width, 8mm pitch 12mm width, 8mm pitch 12mm width, 12mm pitch 16mm width, 12mm pitch 16mm width, 12mm pitch 16mm width, 12mm pitch 24mm width, 16mm pitch 24mm width, 16mm pitch 380mm dia.

N Suitable for reflow soldering

N Capacitance tolerance 20% N Leakage current ≤0.01CV

N Supplied taped & reeled

Value Ripple Current Case Size

(µF) (mA) Dia. x L Order Code

50 Volt

0.1 1 3.0 x 5.3

VH018

0.1 1 4.0 x 5.3

VH0R1

0.22 2 3.0 x 5.3

VH228

0.22 2.3 4.0 x 5.3

VHR22

0.33 3 3.0 x 5.3

VH338

0.33 3.5 4.0 x 5.3

VHR33

0.47 4 3.0 x 5.3

VH478

0.47 5 4.0 x 5.3

VHR47

1.0 6 3.0 x 5.3

VH108

1.0 10 4.0 x 5.3

VH1R0

2.2 15 4.0 x 5.3

VH2R2

3.3 18 4.0 x 5.3

VH3R3

4.7 23 5.0 x 5.3

VH4R7

10 34 6.3 x 5.3

VH100

22 45 6.3 x 5.3

VH220

33 85 6.3 x 7.7

VH330

33 155 8.0 x 6.5

VH339

47 90 6.3 x 7.7

VH470

100 200 8.0 x 10.0

VH101

63 Volt

22 139 8.0 x 10.0

VF220

33 139 8.0 x 10.0

VF330

47 226 10.0 x 10.0

VF470

100 Volt

10 94 8.0 x 10.0

VT100

22 189 10.0 x 10.0

VT220

33 189 10.0 x 10.0

VT330

Value Ripple Current Case Size

(µF) (mA) Dia. x L Order Code

4 Volt

22 14 3.0 x 5.3

VG220

33 26 4.0 x 5.3

VG330

47 34 4.0 x 5.3

VG470

100 61 5.0 x 5.3

VG101

220 95 6.3 x 5.3

VG221

330 102 6.3 x 7.7

VG331

470 150 6.3 x 7.7

VG471

6.3 Volt

22 31 4.0 x 5.3

VJ220

33 39 5.0 x 5.3

VJ330

47 47 5.0 x 5.3

VJ470

100 71 6.3 x 5.3

VJ101

220 95 6.3 x 7.7

VJ221

220 155 8.0 x 6.5

VJ229

330 150 6.3 x 7.7

VJ331

330 155 8.0 x 6.5

VJ339

470 300 8.0 x 10.0

VJ471

1000 458 10.0 x 10.0

VJ102

10 Volt

10 23 4.0 x 5.3

VA100

22 35 5.0 x 5.3

VA220

33 43 5.0 x 5.3

VA330

47 59 6.3 x 5.3

VA470

100 76 6.3 x 5.3

VA101

220 150 6.3 x 7.7

VA221

220 155 8.0 x 6.5

VA229

330 280 8.0 x 10.0

VA331

470 360 8.0 x 10.0

VA471

Value Ripple Current Case Size

(µF) (mA) Dia. x L Order Code

16 Volt

10 18 3.0 x 5.3

VC109

10 25 4.0 x 5.3

VC100

22 39 5.0 x 5.3

VC220

33 57 6.3 x 5.3

VC330

47 68 6.3 x 5.3

VC470

100 86 6.3 x 5.3

VC101

220 150 6.3 x 7.7

VC221

330 280 8.0 x 10.0

VC331

470 458 10.0 x 10.0

VC471

25 Volt

4.7 11 3.0 x 5.3

VE478

4.7 19 4.0 x 5.3

VE4R7

10 28 5.0 x 5.3

VE100

22 52 6.3 x 5.3

VE220

33 63 6.3 x 5.3

VE330

47 68 6.3 x 5.3

VE470

100 130 6.3 x 7.7

VE101

100 155 8.0 x 6.5

VE109

220 250 8.0 x 10.0

VE221

330 458 10.0 x 10.0

VE331

35 Volt

2.2 8 3.0 x 5.3

VX2R2

3.3 9 3.0 x 5.3

VX3R3

4.7 20 4.0 x 5.3

VX4R7

10 30 5.0 x 5.3

VX100

22 54 6.3 x 5.3

VX220

33 60 6.3 x 5.3

VX330

47 70 6.3 x 5.3

VX470

47 155 8.0 x 6.5

VX479

100 252 8.0 x 10.0

VX109

220 458 10.0 x 10.0

VX221

ORDER CODES

Tan δ (max.) at 120Hz, 20°C

Rated voltage (dc) 4V 6.3V 10V 16V 25V 35V 50V 63V 100V

Case size 3.0 x 5.3 0.42 0.30 0.24 0.22 0.16 0.14 0.12 – –

Case size 6.3 x 7.7 0.42 0.42 0.32 0.26 0.18 0.14 0.12 – –

All other case sizes 0.42 0.28 0.24 0.20 0.14 0.12 0.10 0.10 0.10

Page 6

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ELECTROLYTIC, Surface Mount

Case Size Dia. L R S T U V W

A 3.0 5.4 3.3 4.5 max. 1.5 0.55 0.6 0.35 B 4.0 5.4 4.3 5.5 max. 1.8 0.65 1.0 0.35 C 5.0 5.4 5.3 6.5 max. 2.2 0.65 1.5 0.35 D 6.3 5.4 6.6 7.8 max. 2.6 0.65 1.8 0.35

D8 6.3 7.7 6.6 7.8 max. 2.6 0.65 1.8 0.35

E 8.0 6.2 8.3 9.5 max. 3.4 0.65 2.2 0.35 F 8.0 10.2 8.3 10.0 max. 3.4 0.90 3.1 0.70 G 10.0 10.2 10.3 12.0 max. 3.5 0.90 4.6 0.70

Dia.

0.3 max.

Polarity bar

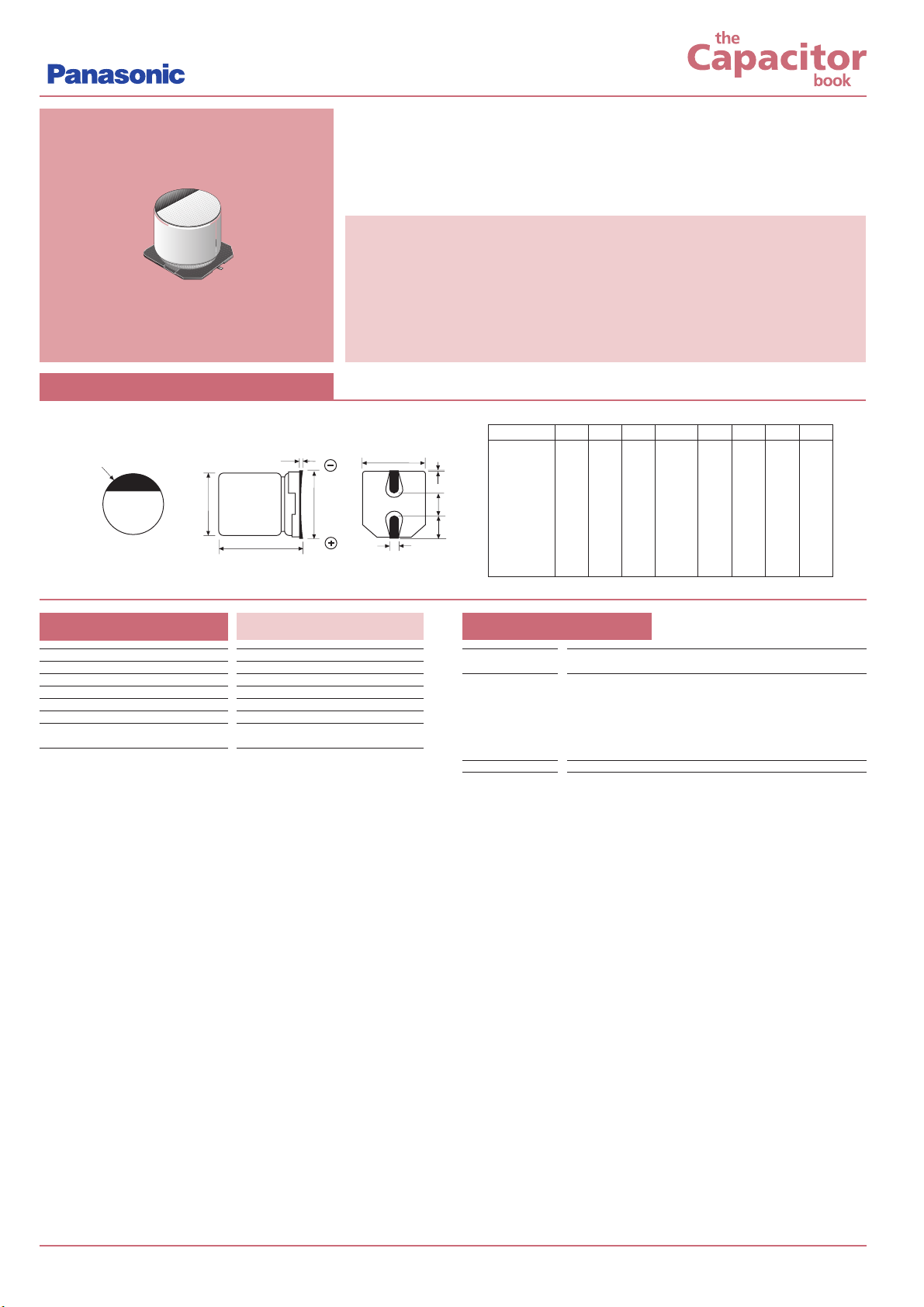

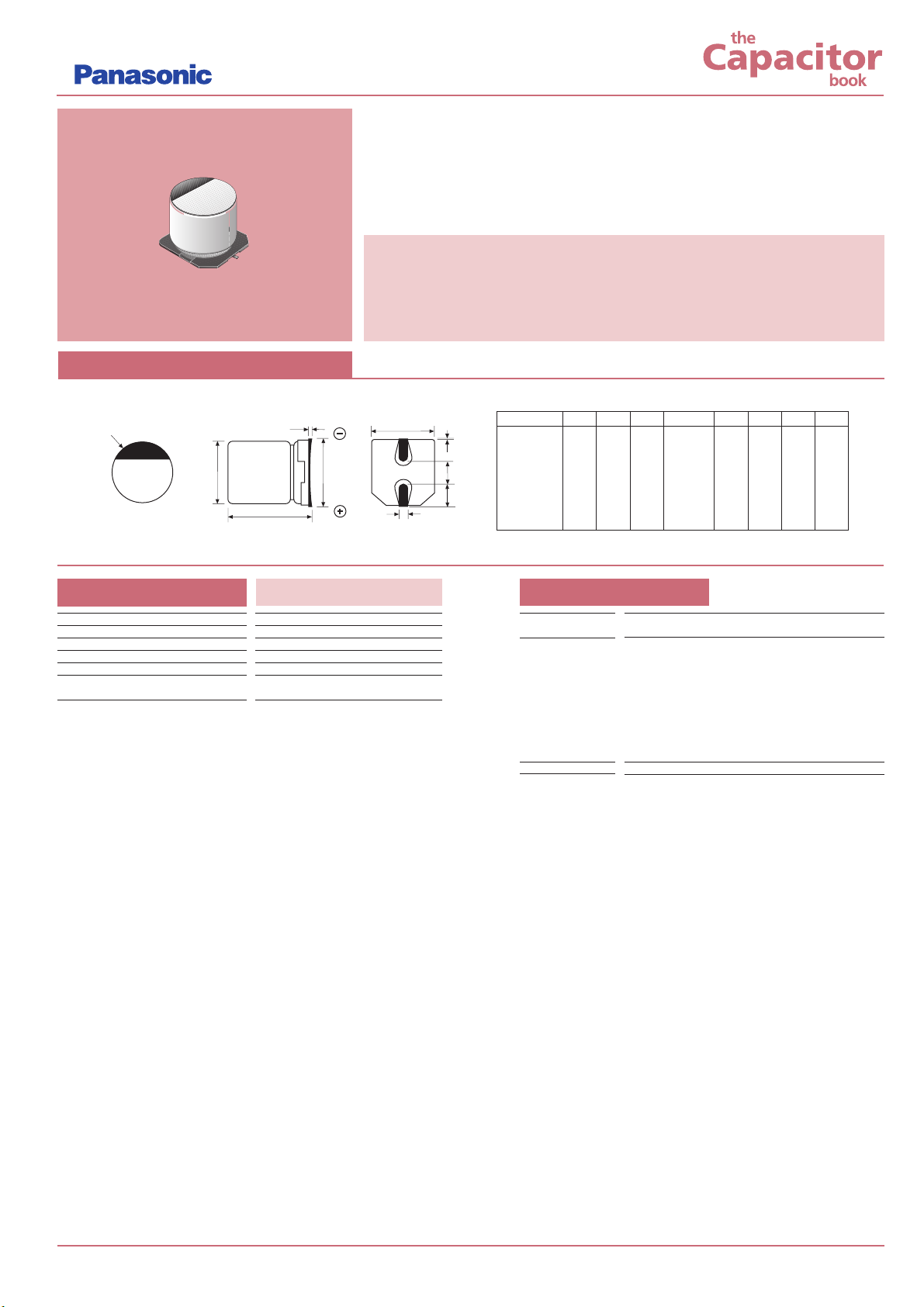

PANASONIC S Series, type V

Surface mount, aluminium electrolytic capacitors giving an excellent operational specification within a small package and designed for general purpose use. The S series offers long life with an endurance test of 2000 hours at 85°C and available in a wide range of values and voltages, which are listed on the following page. Supplied taped and reeled.

N Standard range

N Endurance 2000 hours at 85°C

N Excellent performance/size

characteristics

Specification S (V)

Endurance test Capacitance tolerance Ripple current (as listed) Tan δ (as listed) Operating temperature range Leakage current

2000 hours at 85°C ±20% at 120Hz, 20°C measured at 120Hz, 85°C measured at 120Hz, 20°C

-40°C to +85°C ≤0.01CV or 3µA (whichever is greater) after 2 min.

Dimensions (mm)

Marking and Packaging

Marking

Tape

Case Size

A B C D D8 E F G

Reel

Capacitance value, Voltage code + series code Bar to indicate negative terminal

12mm width, 8mm pitch 12mm width, 8mm pitch 12mm width, 12mm pitch 16mm width, 12mm pitch 16mm width, 12mm pitch 16mm width, 12mm pitch 24mm width, 16mm pitch 24mm width, 16mm pitch 380mm dia.

N Suitable for reflow soldering

N Capacitance tolerance 20% N Leakage current ≤0.01CV

N Supplied taped & reeled

Panasonic S Series

continued overleaf > > > >

Page 7

ELECTROLYTIC, Surface Mount

+44 (0)1945 47 47 47 www.anglia.com [email protected]

Value Ripple Current Tan

δδ

Case

(µF) (mA) (max.) Size Order Code

4 Volt

22 19 0.37 A

EEE0GS220SR

33 28 0.35 B

EEE0GA330SR

47 34 0.35 B

EEE0GA470SR

100 61 0.35 C

EEE0GA101SR

220 96 0.35 D

EEE0GA221SP

330 80 0.50 D

EEE0GA331WP

470 200 0.35 D8

EEE0GA471XP

6.3 Volt

22 21 0.35 A

EEE0JA220WR

22 29 0.26 B

EEE0JA220SR

33 34 0.35 B

EEE0JA330WR

47 40 0.35 B

EEE0JA470WR

47 46 0.26 C

EEE0JA470SR

100 47 0.35 C

EEE0JA101WR

100 71 0.26 D

EEE0JA101SP

220 74 0.35 D

EEE0JA221WP

330 188 0.26 D8

EEE0JA331XP

330 300 0.35 E

EEE0JA331P

470 380 0.35 F

EEE0JA471P

1000 500 0.35 F

EEE0JA102UP

1000 700 0.35 G

EEE0JA102P

1500 750 0.35 G

EEE0JA152P

10 Volt

22 30 0.30 B

EEE1AA220WR

33 34 0.30 B

EEE1AA330WR

33 43 0.20 C

EEE1AA330SR

47 47 0.30 C

EEE1AA470WR

100 54 0.30 C

EEE1AA101WR

100 76 0.26 D

EEE1AA101SP

220 173 0.20 D8

EEE1AA221XP

220 250 0.26 E

EEE1AA221P

330 330 0.26 F

EEE1AA331P

470 330 0.26 F

EEE1AA471UP

470 400 0.26 G

EEE1AA471P

1000 580 0.26 G

EEE1AA102P

16 Volt

10 20 0.18 A

EEE1CS100SR

10 28 0.16 B

EEE1CA100SR

22 30 0.26 B

EEE1CA220WR

22 39 0.16 C

EEE1CA220SR

33 44 0.26 C

EEE1CA330WR

47 52 0.26 C

EEE1CA470WR

47 70 0.16 D

EEE1CA470SP

100 86 0.26 D

EEE1CA101WP

100 200 0.20 E

EEE1CA101P

220 162 0.16 D8

EEE1CA221XP

220 280 0.20 F

EEE1CA221P

330 320 0.20 F

EEE1CA331UP

330 380 0.20 G

EEE1CA331P

470 350 0.20 F

EEE1CA471UP

470 420 0.20 G

EEE1CA471P

25 Volt

4.7 12 0.16 A

EEE1ES4R7SR

4.7 22 0.14 B

EEE1EA4R7SR

10 24 0.20 B

EEE1EA100WR

10 28 0.14 C

EEE1EA100SR

22 38 0.20 C

EEE1EA220WR

22 55 0.14 D

EEE1EA220SP

33 46 0.20 C

EEE1EA330WR

33 65 0.14 D

EEE1EA330SP

47 70 0.20 D

EEE1EA470WP

100 143 0.14 D8

EEE1EA101XP

100 91 0.16 E

EEE1EA101UP

100 180 0.16 F

EEE1EA101P

220 230 0.16 F

EEE1EA221UP

220 310 0.16 G

EEE1EA221P

330 270 0.16 F

EEE1EA331UP

330 340 0.16 G

EEE1EA331P

470 380 0.16 G

EEE1EA471P

Value Ripple Current Tan

δδ

Case

(µF) (mA) (max.) Size Order Code

35 Volt

2.2 8.4 0.14 A

EEE1VS2R2SR

3.3 10 0.14 A

EEE1VS3R3SR

4.7 24 0.12 B

EEE1VA4R7SR

10 22 0.16 B

EEE1VA100WR

10 30 0.12 C

EEE1VA100SR

22 39 0.16 C

EEE1VA220WR

22 60 0.12 D

EEE1VA220SP

33 60 0.16 D

EEE1VA330WP

33 130 0.14 E

EEE1VA330P

47 70 0.16 D

EEE1VA470WP

47 165 0.14 E

EEE1VA470P

100 132 0.12 D8

EEE1VA101XP

100 140 0.14 F

EEE1VA101UP

100 210 0.14 G

EEE1VA101P

220 200 0.14 F

EEE1VA221UP

220 310 0.14 G

EEE1VA221P

330 350 0.14 G

EEE1VA331P

50 Volt

0.1 1 0.14 A

EEE1HS0R1SR

0.1 1 0.12 B

EEE1HA0R1SR

0.22 2 0.14 A

EEE1HSR22SR

0.22 2 0.12 B

EEE1HAR22SR

0.33 3 0.14 A

EEE1HSR33SR

0.33 3 0.12 B

EEE1HAR33SR

0.47 5 0.14 A

EEE1HSR47SR

0.47 5 0.12 B

EEE1HAR47SR

1.0 8 0.14 A

EEE1HS010SR

1.0 10 0.12 B

EEE1HA010SR

2.2 16 0.12 B

EEE1HA2R2SR

3.3 17 0.12 B

EEE1HA3R3SR

4.7 18 0.14 B

EEE1HA4R7WR

4.7 23 0.12 C

EEE1HA4R7SR

10 30 0.14 C

EEE1HA100WR

10 35 0.12 D

EEE1HA100SP

22 43 0.14 D

EEE1HA220WP

22 65 0.12 E

EEE1HA220P

33 110 0.12 E

EEE1HA330UP

33 110 0.12 F

EEE1HA330P

47 105 0.12 D8

EEE1HA470XP

47 110 0.12 F

EEE1HA470UP

47 130 0.12 G

EEE1HA470P

100 200 0.12 F

EEE1HA101UP

100 250 0.12 G

EEE1HA101P

220 300 0.12 G

EEE1HA221P

63 Volt

22 40 0.18 F

EEE1JA220P

33 45 0.18 F

EEE1JA330P

47 45 0.18 F

EEE1JA470UP

47 60 0.18 G

EEE1JA470P

100 60 0.18 G

EEE1JA101P

100 Volt

3.3 50 0.18 E

EEE2AA3R3P

4.7 80 0.18 F

EEE2AA4R7P

10 85 0.18 F

EEE2AA100P

22 85 0.18 G

EEE2AA220P

33 90 0.18 G

EEE2AA330P

ORDER CODES

continuation

Page 8

+44 (0)1945 47 47 47 www.anglia.com [email protected]

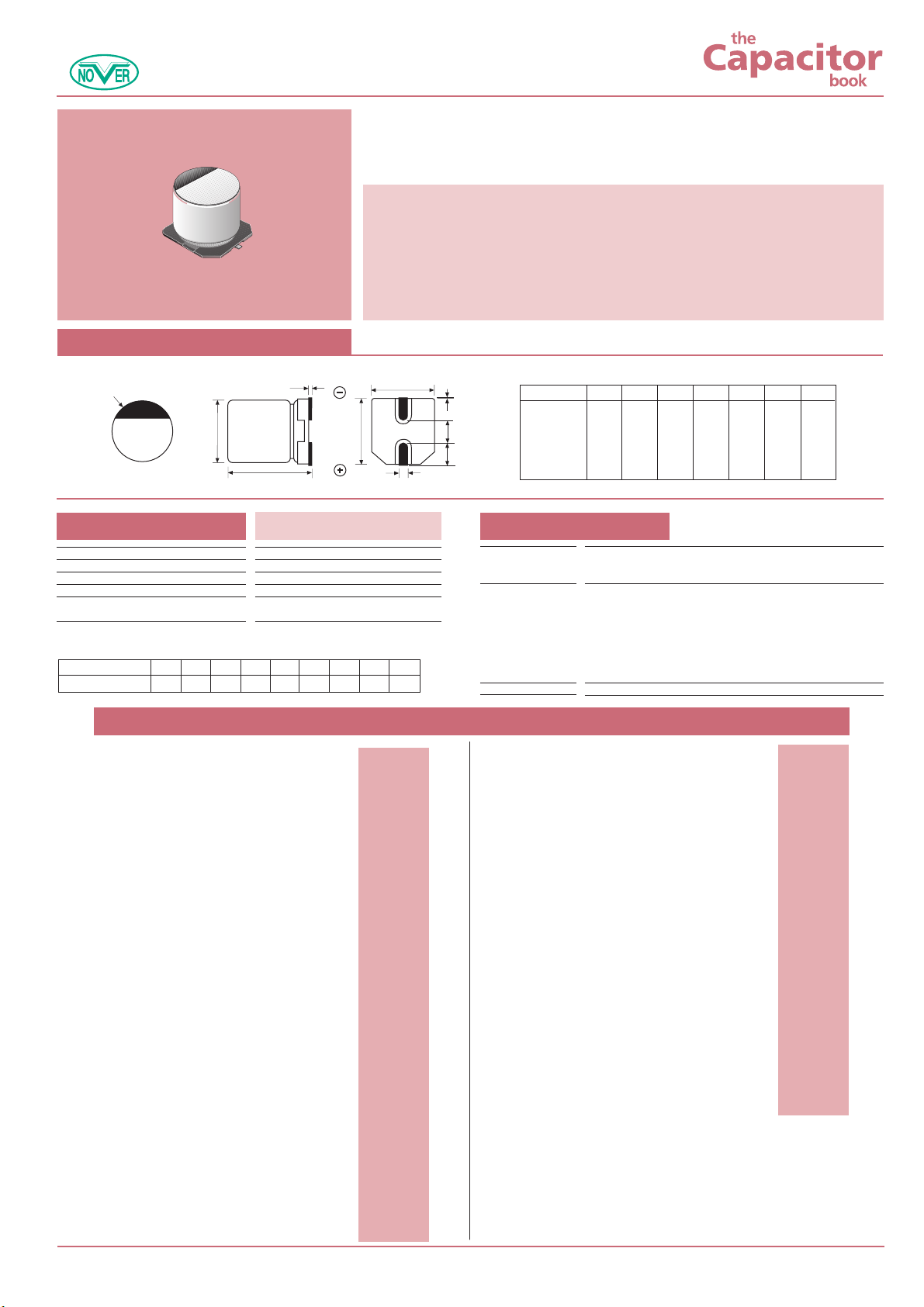

ELECTROLYTIC, Surface Mount, 105°C

Case Size Dia. L R S T U V

4.0 x 5.8 4.0 5.8 4.3 4.3 2.0 0.65 1.0

5.0 x 5.8 5.0 5.8 5.3 5.3 2.3 0.65 1.5

6.3 x 5.8 6.3 5.8 6.6 6.6 2.7 0.65 2.0

8.0 x 6.5 8.0 6.5 8.4 8.4 3.4 0.65 2.3

8.0 x 10.0 8.0 10.0 8.4 8.4 3.0 0.90 3.1

10.0 x 10.0 10.0 10.0 10.4 10.4 3.3 0.90 4.7

Tan  (max.) at 120Hz, 20°C

Rated voltage (dc) 4V 6.3V 10V 16V 25V 35V 50V 63V 100V

All case sizes 0.37 0.30 0.26 0.22 0.17 0.14 0.13 0.11 0.10

Dia.

0.3 max.

Polarity bar

0.5

max.

NOVER type VH

Surface mount, aluminium electrolytic capacitors with an extended upper temperature limit of 105°C. The VH series has an endurance test of 2000 hours at 105°C and is available in a wide range of values and voltages, which are listed below. Supplied taped and reeled.

N High temperature

N Endurance 2000 hours at 105°C

N Excellent performance/size

characteristics

N Designed for higher ambient

conditions

Specification VH

Endurance test Capacitance tolerance Ripple current (as listed) Operating temperature range Leakage current

2000 hours at 105°C ±20% at 120Hz, 20°C measured at 120Hz, 105°C

-55°C to +105°C ≤0.01CV or 3µA (whichever is greater) after 2 min.

Dimensions (mm)

Marking and Packaging

Marking

Tape

Case Size

4.0 x 5.8

5.0 x 5.8

6.3 x 5.8

8.0 x 6.5

8.0 x 10.0

10.0 x 10.0

Reel

Printed on top surface of case, except largest case sizes which may be printed on a case sleeve around the body. Capacitance value, Voltage, Bar to indicate negative terminal

12mm width, 8mm pitch 12mm width, 12mm pitch 16mm width, 12mm pitch 16mm width, 12mm pitch 24mm width, 16mm pitch 24mm width, 16mm pitch 380mm dia.

N Suitable for reflow soldering

N Capacitance tolerance 20% N Leakage current ≤0.01CV

N Supplied taped & reeled

Value Ripple Current Case Size (µF) (mA) Dia. x L Order Code

4 Volt

22 22 4.0 x 5.8

ZP220

33 27 5.0 x 5.8

ZP330

47 33 5.0 x 5.8

ZP470

100 50 6.3 x 5.8

ZP101

6.3 Volt

22 22 4.0 x 5.8

ZN220

33 27 5.0 x 5.8

ZN330

47 33 5.0 x 5.8

ZN470

100 100 6.3 x 5.8

ZN101

220 178 8.0 x 10.0

ZN221

330 178 8.0 x 10.0

ZN331

470 324 10.0 x 10.0

ZN471

1000 335 10.0 x 10.0

ZN102

10 Volt

22 25 5.0 x 5.8

ZL220

33 30 5.0 x 5.8

ZL330

47 43 6.3 x 5.8

ZL470

100 110 8.0 x 6.5

ZL101

220 178 8.0 x 10.0

ZL221

330 324 10.0 x 10.0

ZL331

470 324 10.0 x 10.0

ZL471

16 Volt

10 16 4.0 x 5.8

ZK100

22 30 5.0 x 5.8

ZK220

33 40 6.3 x 5.8

ZK330

47 50 6.3 x 5.8

ZK470

100 110 8.0 x 6.5

ZK101

220 324 10.0 x 10.0

ZK221

330 324 10.0 x 10.0

ZK331

470 324 10.0 x 10.0

ZK471

25 Volt

4.7 13 4.0 x 5.8

ZW4R7

10 23 5.0 x 5.8

ZW100

22 38 6.3 x 5.8

ZW220

33 48 6.3 x 5.8

ZW330

47 110 8.0 x 6.5

ZW470

100 178 8.0 x 10.0

ZW101

220 324 10.0 x 10.0

ZW221

330 324 10.0 x 10.0

ZW331

Value Ripple Current Case Size (µF) (mA) Dia. x L Order Code

35 Volt

4.7 15 4.0 x 5.8

ZR4R7

10 25 5.0 x 5.8

ZR100

22 50 6.3 x 5.8

ZR220

33 110 8.0 x 6.5

ZR330

47 178 8.0 x 10.0

ZR470

100 324 10.0 x 10.0

ZR101

220 324 10.0 x 10.0

ZR221

50 Volt

0.1 2 4.0 x 5.8

ZB0R1

0.22 3 4.0 x 5.8

ZBR22

0.33 4 4.0 x 5.8

ZBR33

0.47 5 4.0 x 5.8

ZBR47

1.0 10 4.0 x 5.8

ZB1R0

2.2 16 4.0 x 5.8

ZB2R2

3.3 18 4.0 x 5.8

ZB3R3

4.7 22 5.0 x 5.8

ZB4R7

10 30 6.3 x 5.8

ZB100

22 110 8.0 x 6.5

ZB220

33 178 8.0 x 10.0

ZB330

47 178 8.0 x 10.0

ZB470

100 324 10.0 x 10.0

ZB101

63 Volt

22 99 8.0 x 10.0

ZF220

33 160 10.0 x 10.0

ZF330

47 160 10.0 x 10.0

ZF470

100 Volt

10 67 8.0 x 10.0

ZT100

22 133 10.0 x 10.0

ZT220

ORDER CODES

Page 9

ELECTROLYTIC, Surface Mount, 105°C

+44 (0)1945 47 47 47 www.anglia.com [email protected]

Rated voltage (dc) 4V 6.3V 10V 16V 25V 35V 50V

All case sizes 0.50 0.35 0.26 0.20 0.16 0.14 0.12

Case Size Dia. L R S T U V W

B 4.0 5.8 4.3 5.5 max. 1.8 0.65 1.0 0.35 C 5.0 5.8 5.3 6.5 max. 2.2 0.65 1.5 0.35 D 6.3 5.8 6.6 7.8 max. 2.6 0.65 1.8 0.35 E 8.0 6.2 8.3 9.5 max. 3.4 0.65 2.2 0.35

F 8.0 10.2 8.3 10.0 max. 3.4 0.90 3.1 0.70

G 10.0 10.2 10.3 12.0 max. 3.5 0.90 4.6 0.70

Tan  (max.) at 120Hz, 20°C

Dia.

0.3 max.

Polarity bar

PANASONIC HB Series, type V

Surface mount, aluminium electrolytic capacitors with an extended upper temperature limit of 105°C. The HB series are endurance tested for 2000 hours at 105°C and available in a wide range of values and voltages, which are listed below. Supplied taped and reeled.

N High temperature

N Endurance 2000 hours at 105°C

N Excellent performance/size

characteristics

Specification HB (V)

Endurance test Capacitance tolerance Ripple current (as listed) Operating temperature range Leakage current

2000 hours at 105°C ±20% at 120Hz, 20°C measured at 120Hz, 105°C

-40°C to +105°C ≤0.01CV or 3µA (whichever is greater) after 2 min.

Dimensions (mm)

Marking and Packaging

Marking

Tape

Case Size

B C D E F G

Reel

Capacitance value, Voltage code + series code, Bar to indicate negative terminal

12mm width, 8mm pitch 12mm width, 12mm pitch 16mm width, 12mm pitch 16mm width, 12mm pitch 24mm width, 16mm pitch 24mm width, 16mm pitch 380mm dia.

N Suitable for reflow soldering

N Capacitance tolerance 20% N Leakage current ≤0.01CV

N Supplied taped & reeled

Value Ripple Current Case (µF) (mA) Size Order Code

4 Volt

47 34 B

EEEHB0G470R

100 61 C

EEEHB0G101R

150 82 D

EEEHB0G151P

220 82 D

EEEHB0G221P

6.3 Volt

22 26 B

EEEHB0J220R

22 26 B*

EEEHB0J220SR

33 29 B

EEEHB0J330R

47 46 C

EEEHB0J470R

47 46 C*

EEEHB0J470SR

100 71 D

EEEHB0J101P

100 71 D*

EEEHB0J101SP

220 150 F

EEEHB0J221P

330 230 F

EEEHB0J331P

10 Volt

33 43 C

EEEHB1A330R

33 43 C*

EEEHB1A330SR

100 110 E

EEEHB1A101P

220 160 F

EEEHB1A221P

470 270 G

EEEHB1A471P

16 Volt

10 28 B

EEEHB1C100R

10 28 B*

EEEHB1C100SR

22 39 C

EEEHB1C220R

22 39 C*

EEEHB1C220SR

47 70 D

EEEHB1C470P

47 70 D*

EEEHB1C470SP

100 120 F

EEEHB1C101P

220 210 G

EEEHB1C221P

330 230 G

EEEHB1C331P

25 Volt

4.7 22 B

EEEHB1E4R7R

4.7 22 B*

EEEHB1E4R7SR

6.8 25 B

EEEHB1E6R8R

6.8 25 B*

EEEHB1E6R8SR

33 65 D

EEEHB1E330P

33 65 D*

EEEHB1E330SP

47 91 E

EEEHB1E470P

100 130 F

EEEHB1E101P

220 190 G

EEEHB1E221P

Value Ripple Current Case (µF) (mA) Size Order Code

35 Volt

10 28 C

EEEHB1V100R

10 28 C*

EEEHB1V100SR

22 55 D

EEEHB1V220P

22 55 D*

EEEHB1V220SP

33 84 E

EEEHB1V330P

47 98 F

EEEHB1V470P

100 160 G

EEEHB1V101P

50 Volt

0.1 1 B

EEEHB1HR10R

0.1 1 B*

EEEHB1HR10SR

0.22 2 B

EEEHB1HR22R

0.22 2 B*

EEEHB1HR22SR

0.33 3 B

EEEHB1HR33R

0.33 3 B*

EEEHB1HR33SR

0.47 5 B

EEEHB1HR47R

0.47 5 B*

EEEHB1HR47SR

1.0 10 B

EEEHB1H1R0R

1.0 10 B*

EEEHB1H1R0SR

2.2 16 B

EEEHB1H2R2R

2.2 16 B*

EEEHB1H2R2SR

3.3 16 B

EEEHB1H3R3R

3.3 16 B*

EEEHB1H3R3SR

4.7 22 C

EEEHB1H4R7R

4.7 22 C*

EEEHB1H4R7SR

6.8 23 C

EEEHB1H6R8R

6.8 23 C*

EEEHB1H6R8SR

10 35 D

EEEHB1H100P

10 35 D*

EEEHB1H100SP

22 70 E

EEEHB1H220P

33 91 F

EEEHB1H330P

47 100 G

EEEHB1H470P

ORDER CODES

* denotes 5.4mm max. case length

Page 10

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ELECTROLYTIC, Surface Mount, Long Life, 105°C

Dia.

0.3 max.

Polarity bar

0.5

max.

NOVER type VL

Surface mount, aluminium electrolytic capacitors offering long life together with an extended upper temperature limit of 105°C. The VL series has an endurance test of 5000 hours at 105°C and is available in a wide range of values and voltages, which are listed below. Supplied taped and reeled.

N High temperature, long life

N Endurance 5000 hours at 105°C

N Excellent performance/size

characteristics

N For sustained operation in

higher ambients

Specification VL

Endurance test Capacitance tolerance Ripple current (as listed) Operating temperature range Leakage current

5000 hours at 105°C ±20% at 120Hz, 20°C measured at 120Hz, 105°C

-40°C to +105°C ≤0.01CV or 3µA (whichever is greater) after 2 min.

Dimensions (mm)

Marking and Packaging

Marking

Tape

Case Size

4.0 x 5.8

5.0 x 5.8

6.3 x 5.8

6.3 x 7.7

8.0 x 10.0

10.0 x 10.0

Reel

Printed on top surface of case, except largest case sizes which may be printed on a case sleeve around the body. Capacitance value, Voltage, Bar to indicate negative terminal

12mm width, 8mm pitch 12mm width, 12mm pitch 16mm width, 12mm pitch 16mm width, 12mm pitch 24mm width, 16mm pitch 24mm width, 16mm pitch 380mm dia.

N Suitable for reflow soldering

N Capacitance tolerance 20% N Leakage current ≤0.01CV

N Supplied taped & reeled

ORDER CODES

Case Size Dia. L R S T U V

4.0 x 5.8 4.0 5.8 4.3 4.3 1.8 0.65 1.0

5.0 x 5.8 5.0 5.8 5.3 5.3 2.1 0.65 1.3

6.3 x 5.8 6.3 5.8 6.6 6.6 2.4 0.65 2.2

6.3 x 7.7 6.3 7.7 6.6 6.6 2.4 0.65 2.2

8.0 x 10.0 8.0 10.0 8.3 8.3 2.9 0.95 3.1

10.0 x 10.0 10.0 10.0 10.3 10.3 3.2 0.95 4.5

Tan  (max.) at 120Hz, 20°C

Rated voltage (dc) 4V 6.3V 10V 16V 25V 35V 50V

All case sizes 0.37 0.28 0.24 0.20 0.16 0.13 0.12

Value Ripple Current Case Size (µF) (mA) Dia. x L Order Code

4 Volt

22 22 4.0 x 5.8

EP220

33 30 5.0 x 5.8

EP330

47 36 5.0 x 5.8

EP470

100 60 6.3 x 5.8

EP101

220 60 6.3 x 7.7

EP221

330 140 8.0 x 10.0

EP331

470 140 8.0 x 10.0

EP471

1000 315 10.0 x 10.0

EP102

6.3 Volt

22 22 4.0 x 5.8

EN220

33 30 5.0 x 5.8

EN330

47 36 5.0 x 5.8

EN470

100 60 6.3 x 5.8

EN101

220 140 8.0 x 10.0

EN221

330 140 8.0 x 10.0

EN331

470 315 10.0 x 10.0

EN471

10 Volt

22 27 5.0 x 5.8

EL220

33 35 5.0 x 5.8

EL330

47 46 6.3 x 5.8

EL470

100 60 6.3 x 7.7

EL101

220 140 8.0 x 10.0

EL221

330 315 10.0 x 10.0

EL331

470 315 10.0 x 10.0

EL471

16 Volt

10 18 4.0 x 5.8

EK100

22 30 5.0 x 5.8

EK220

33 40 6.3 x 5.8

EK330

47 50 6.3 x 5.8

EK470

100 60 6.3 x 7.7

EK101

220 315 10.0 x 10.0

EK221

330 315 10.0 x 10.0

EK331

Value Ripple Current Case Size (µF) (mA) Dia. x L Order Code

25 Volt

4.7 13 4.0 x 5.8

EE4R7

10 23 5.0 x 5.8

EE100

22 38 6.3 x 5.8

EE220

33 48 6.3 x 5.8

EE330

47 60 6.3 x 7.7

EE470

100 140 8.0 x 10.0

EE101

220 315 10.0 x 10.0

EE221

35 Volt

4.7 15 4.0 x 5.8

ER4R7

10 25 5.0 x 5.8

ER100

22 42 6.3 x 5.8

ER220

33 60 6.3 x 7.7

ER330

47 140 8.0 x 10.0

ER470

100 315 10.0 x 10.0

ER101

50 Volt

0.1 1 4.0 x 5.8

ES0R1

0.22 2.6 4.0 x 5.8

ESR22

0.33 3.2 4.0 x 5.8

ESR33

0.47 3.8 4.0 x 5.8

ESR47

1.0 6.2 4.0 x 5.8

ES1R0

2.2 11 4.0 x 5.8

ES2R2

3.3 14 4.0 x 5.8

ES3R3

4.7 19 5.0 x 5.8

ES4R7

10 30 6.3 x 5.8

ES100

22 60 6.3 x 7.7

ES220

33 140 8.0 x 10.0

ES330

47 315 10.0 x 10.0

ES470

100 315 10.0 x 10.0

ES101

Page 11

ELECTROLYTIC, SMD, Long Life, Low ESR, 105°C

+44 (0)1945 47 47 47 www.anglia.com [email protected]

Case Size Dia. L R S T U V W

B 4.0 5.8 4.3 5.5 max. 1.8 0.65 1.0 0.35 C 5.0 5.8 5.3 6.5 max. 2.2 0.65 1.5 0.35 D 6.3 5.8 6.6 7.8 max. 2.6 0.65 1.8 0.35

D8 6.3 7.7 6.6 7.8 max. 2.6 0.65 1.8 0.35

E 8.0 6.2 8.3 9.5 max. 3.4 0.65 2.2 0.35 F 8.0 10.2 8.3 10 max. 3.4 0.90 3.1 0.70

G 10.0 10.2 10.3 12 max. 3.5 0.90 4.6 0.70 H13 12.5 13.5 13.5 15 max. 4.7 0.90 4.4 0.70 J16 16.0 16.5 17.0 19 max. 5.5 1.20 6.7 0.70 K16 18.0 16.5 19.0 21 max. 6.7 1.20 6.7 0.70

Dia.

0.3 max.

Polarity bar

PANASONIC FK Series, type V

Surface mount, aluminium electrolytic capacitors combining low impedance and ESR characteristics within a small package. The FK series additionally feature a maximum operational temperature specification of 105°C making them especially suitable for switch mode power supplies (SMPS). Available in a wide range of values and voltages, which are listed on the following page. Supplied taped and reeled.

High temperature, long life

Endurance 2000 to 5000 hours at 105°C

Low impedance

High ripple current

Excellent performance/size characteristics

Specification FK (V)

Endurance test Capacitance tolerance Ripple current (as listed) Impedance (as listed) Tan δ (as listed) Operating temperature range Leakage current

2000 to 5000 hours at 105°C ±20% at 120Hz, 20°C measured at 100kHz, 105°C measured at 100kHz, 20°C measured at 120Hz, 20°C

-55°C to +105°C ≤0.01CV or 3µA (whichever is greater) after 2 min.

Dimensions (mm)

Marking and Packaging

Marking

Tape

Case Size

B C D D8 E

Reel

Capacitance value, Voltage code + series code, Bar to indicate negative terminal

Case Size

12mm width, 8mm pitch F 24mm width, 16mm pitch 12mm width, 12mm pitch G 24mm width, 16mm pitch 16mm width, 12mm pitch H13 32mm width, 24mm pitch 16mm width, 12mm pitch J16 44mm width, 28mm pitch 16mm width, 12mm pitch K16 44mm width, 32mm pitch 380mm dia.

For switch mode power supplies (SMPS) and industrial electronics

Suitable for reflow soldering

Capacitance tolerance 20%

Leakage current ≤0.01CV

Wide temperature range

Supplied taped & reeled

Page 12

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ELECTROLYTIC, SMD, Long Life, Low ESR, 105°C

Value Ripple Current Impedance Tan δδCase

(µF) (mA) (Ω) (max.) Size Order Code

6.3 Volt

22 90 1.35 0.26 B

EEEFK0J220R

47 90 1.35 0.26 B

EEEFK0J470UR

47 160 0.70 0.26 C

EEEFK0J470R

100 160 0.70 0.26 C

EEEFK0J101UR

100 240 0.36 0.26 D

EEEFK0J101P

220 240 0.36 0.26 D

EEEFK0J221P

330 280 0.34 0.26 D8

EEEFK0J331XP

330 300 0.26 0.26 E

EEEFK0J331P

470 600 0.16 0.26 F

EEEFK0J471P

1000 600 0.16 0.26 F

EEEFK0J102P

1500 850 0.08 0.26 G

EEEFK0J152P

3300 1100 0.06 0.30 H13

EEVFK0J332Q

6800 1800 0.035 0.36 J16

EEVFK0J682M

10 Volt

22 90 1.35 0.19 B

EEEFK1A220R

33 90 1.35 0.19 B

EEEFK1A330UR

33 160 0.70 0.19 C

EEEFK1A330R

150 240 0.36 0.19 D

EEEFK1A151P

220 280 0.34 0.19 D8

EEEFK1A221XP

220 300 0.26 0.19 E

EEEFK1A221P

330 600 0.16 0.19 F

EEEFK1A331P

470 600 0.16 0.19 F

EEEFK1A471P

680 600 0.16 0.19 F

EEEFK1A681P

1000 850 0.08 0.19 G

EEEFK1A102P

2200 1100 0.06 0.21 H13

EEVFK1A222Q

4700 1800 0.035 0.25 J16

EEVFK1A472M

6800 2060 0.033 0.29 K16

EEVFK1A682

16 Volt

10 90 1.35 0.16 B

EEEFK1C100R

22 90 1.35 0.16 B

EEEFK1C220UR

22 160 0.70 0.16 C

EEEFK1C220R

47 160 0.70 0.16 C

EEEFK1C470UR

47 240 0.36 0.16 D

EEEFK1C470P

68 240 0.36 0.16 D

EEEFK1C680P

100 240 0.36 0.16 D

EEEFK1C101P

150 280 0.34 0.16 D8

EEEFK1C151XP

220 280 0.34 0.16 D8

EEEFK1C221XP

220 300 0.26 0.16 E

EEEFK1C221P

330 600 0.16 0.16 F

EEEFK1C331P

470 600 0.16 0.16 F

EEEFK1C471P

680 850 0.08 0.16 G

EEEFK1C681P

1500 1100 0.06 0.16 H13

EEVFK1C152Q

3300 1800 0.035 0.20 J16

EEVFK1C332M

4700 2060 0.033 0.22 K16

EEVFK1C472M

25 Volt

10 90 1.35 0.14 B

EEEFK1E100R

22 160 0.70 0.14 C

EEEFK1E220R

33 160 0.70 0.14 C

EEEFK1E330UR

33 240 0.36 0.14 D

EEEFK1E330P

47 240 0.36 0.14 D

EEEFK1E470P

68 240 0.36 0.14 D

EEEFK1E680P

100 280 0.34 0.14 D8

EEEFK1E101XP

100 300 0.26 0.14 E

EEEFK1E101P

150 600 0.16 0.14 F

EEEFK1E151P

220 600 0.16 0.14 F

EEEFK1E221P

330 600 0.16 0.14 F

EEEFK1E331P

470 850 0.08 0.14 G

EEEFK1E471P

1000 1100 0.06 0.14 H13

EEVFK1E102Q

1500 1800 0.035 0.14 J16

EEVFK1E152M

2200 1800 0.035 0.16 J16

EEVFK1E222M

3300 2060 0.033 0.18 K16

EEVFK1E332M

35 Volt

4.7 90 1.35 0.12 B

EEEFK1V4R7R

10 90 1.35 0.12 B

EEEFK1V100UR

10 160 0.70 0.12 C

EEEFK1V100R

22 160 0.70 0.12 C

EEEFK1V220R

33 240 0.36 0.12 D

EEEFK1V330P

47 240 0.36 0.12 D

EEEFK1V470P

68 280 0.34 0.12 D8

EEEFK1V680XP

100 280 0.34 0.12 D8

EEEFK1V101XP

100 600 0.16 0.12 F

EEEFK1V101P

150 600 0.16 0.12 F

EEEFK1V151P

220 600 0.16 0.12 F

EEEFK1V221P

330 850 0.08 0.12 G

EEEFK1V331P

470 1100 0.06 0.12 H13

EEVFK1V471Q

680 1100 0.06 0.12 H13

EEVFK1V681Q

1000 1800 0.035 0.12 J16

EEVFK1V102M

1500 1800 0.035 0.12 J16

EEVFK1V152M

ORDER CODES

Value Ripple Current Impedance Tan δδCase

(µF) (mA) (Ω) (max.) Size Order Code

50 Volt

4.7 60 2.90 0.10 B

EEEFK1H4R7R

10 85 1.52 0.10 C

EEEFK1H100UR

10 165 0.88 0.10 D

EEEFK1H100P

22 165 0.88 0.10 D

EEEFK1H220P

33 195 0.68 0.10 D8

EEEFK1H330XP

33 195 0.68 0.10 E

EEEFK1H330P

47 195 0.68 0.10 D8

EEEFK1H470XP

47 195 0.68 0.10 E

EEEFK1H470P

100 350 0.34 0.10 F

EEEFK1H101P

150 670 0.18 0.10 G

EEEFK1H151P

220 670 0.18 0.10 G

EEEFK1H221P

330 900 0.12 0.10 H13

EEVFK1H331Q

390 900 0.12 0.10 H13

EEVFK1H391Q

470 1610 0.073 0.10 J16

EEVFK1H471M

560 1610 0.073 0.10 J16

EEVFK1H561M

680 1610 0.073 0.10 J16

EEVFK1H681M

1000 1610 0.073 0.10 J16

EEVFK1H102M

63 Volt

4.7 50 3.0 0.08 C

EEEFK1J4R7R

10 80 1.5 0.08 D

EEEFK1J100P

22 120 1.2 0.08 D8

EEEFK1J220XP

22 120 1.2 0.08 E

EEEFK1J220P

33 250 0.65 0.08 F

EEEFK1J330P

47 250 0.65 0.08 F

EEEFK1J470P

68 250 0.65 0.08 F

EEEFK1J680UP

100 400 0.35 0.08 G

EEEFK1J101P

150 800 0.16 0.08 H13

EEVFK1J151Q

330 800 0.16 0.08 H13

EEVFK1J221Q

470 1410 0.082 0.08 J16

EEVFK1J471M

680 1690 0.08 0.08 K16

EEVFK1J681M

80 Volt

3.3 25 5.0 0.08 C

EEEFK1K3R3R

4.7 40 3.0 0.08 D

EEEFK1K4R7P

10 60 2.4 0.08 D8

EEEFK1K100XP

10 60 2.4 0.08 E

EEEFK1K100P

22 130 1.3 0.08 F

EEEFK1K220P

33 130 1.3 0.08 F

EEEFK1K330P

47 200 0.7 0.08 G

EEEFK1K470P

68 500 0.32 0.08 H13

EEVFK1K680Q

100 500 0.32 0.08 H13

EEVFK1K101Q

150 500 0.32 0.08 H13

EEVFK1K151Q

330 793 0.17 0.08 J16

EEVFK1K331M

470 917 0.153 0.08 K16

EEVFK1K471M

100 Volt

22 130 1.3 0.07 F

EEEFK2A220P

33 200 0.7 0.07 G

EEEFK2A330P

47 500 0.32 0.07 H13

EEVFK2A470Q

68 500 0.32 0.07 H13

EEVFK2A680Q

100 793 0.17 0.07 J16

EEVFK2A101M

150 793 0.17 0.07 J16

EEVFK2A151M

220 917 0.153 0.07 K16

EEVFK2A221M

330 917 0.153 0.07 K16

EEVFK2A331M

continuation

Page 13

ELECTROLYTIC, Surface Mount, Low ESR, 105°C

+44 (0)1945 47 47 47 www.anglia.com [email protected]

Case Size Dia. L R S T U V

4.0 x 5.4 4.0 5.4 4.3 4.3 1.8 0.65 1.0

5.0 x 5.4 5.0 5.4 5.3 5.3 2.1 0.65 1.3

6.3 x 5.4 6.3 5.4 6.6 6.6 2.4 0.65 2.2

6.3 x 7.7 6.3 7.7 6.6 6.6 2.4 0.65 2.2

8.0 x 10.0 8.0 10.0 8.3 8.3 2.9 0.95 3.1

10.0 x 10.0 10.0 10.0 10.3 10.3 3.2 0.95 4.5

NOVER type VZ

Surface mount, aluminium electrolytic capacitors combining low impedance and ESR characteristics within a small package. The VZ series additionally feature a maximum operational temperature specification of 105°C making them especially suitable for switch mode power supplies (SMPS). Available in a wide range of values and voltages, which are listed below. Supplied taped and reeled.

N Low impedance

N Endurance 2000 hours at 105°C

N Excellent performance/size

characteristics

N For switch mode power supplies

(SMPS) and industrial electronics

Specification VZ

Endurance test Capacitance tolerance Ripple current (as listed) Impedance (as listed) Operating temperature range Leakage current

2000 hours at 105°C ±20% at 120Hz, 20°C measured at 100kHz, 105°C measured at 100kHz, 20°C

-55°C to +105°C ≤0.01CV or 3µA (whichever is greater) after 2 min.

Dimensions (mm)

Marking and Packaging

Marking

Tape

Case Size

4.0 x 5.4

5.0 x 5.4

6.3 x 5.4

6.3 x 7.7

8.0 x 10.0

10.0 x 10.0

Reel

Printed on top surface of case, except largest case sizes which may be printed on a case sleeve around the body. Capacitance value, Voltage, Bar to indicate negative terminal

12mm width, 8mm pitch 12mm width, 12mm pitch 16mm width, 12mm pitch 16mm width, 12mm pitch 24mm width, 16mm pitch 24mm width, 16mm pitch 380mm dia.

N Suitable for reflow soldering

N Capacitance tolerance 20% N Leakage current ≤0.01CV

N Supplied taped & reeled

ORDER CODES

Value Ripple Current Impedance Case Size

(µF) (mA) (Ω) Dia. x L Order Code

6.3 Volt

22 50 5.0 4.0 x 5.4

ZJ220

33 80 2.6 5.0 x 5.4

ZJ330

47 80 2.6 5.0 x 5.4

ZJ470

100 115 1.3 6.3 x 5.4

ZJ101

220 150 0.8 6.3 x 7.7

ZJ221

330 150 0.8 6.3 x 7.7

ZJ331

470 450 0.45 8.0 x 10.0

ZJ471

1000 670 0.15 10.0 x 10.0

ZJ102

1500 670 0.15 10.0 x 10.0

ZJ152

10 Volt

22 80 2.6 5.0 x 5.4

ZA220

33 80 2.6 5.0 x 5.4

ZA330

47 115 1.3 6.3 x 5.4

ZA470

100 150 0.8 6.3 x 7.7

ZA101

220 150 0.8 6.3 x 7.7

ZA221

330 450 0.45 8.0 x 10.0

ZA331

470 450 0.45 8.0 x 10.0

ZA471

1000 670 0.15 10.0 x 10.0

ZA102

16 Volt

10 50 5.0 4.0 x 5.4

ZC100

22 80 2.6 5.0 x 5.4

ZC220

33 115 1.3 6.3 x 5.4

ZC330

47 115 1.3 6.3 x 5.4

ZC470

100 150 0.8 6.3 x 7.7

ZC101

220 150 0.8 6.3 x 7.7

ZC221

330 450 0.45 8.0 x 10.0

ZC331

470 670 0.15 10.0 x 10.0

ZC471

Value Ripple Current Impedance Case Size

(µF) (mA) (Ω) Dia. x L Order Code

25 Volt

4.7 50 5.0 4.0 x 5.4

ZE4R7

10 80 2.6 5.0 x 5.4

ZE100

22 115 1.3 6.3 x 5.4

ZE220

33 115 1.3 6.3 x 5.4

ZE330

47 150 0.8 6.3 x 7.7

ZE470

100 150 0.8 6.3 x 7.7

ZE101

220 450 0.45 8.0 x 10.0

ZE221

330 670 0.15 10.0 x 10.0

ZE331

470 670 0.15 10.0 x 10.0

ZE471

35 Volt

4.7 50 5.0 4.0 x 5.4

ZV4R7

10 80 2.6 5.0 x 5.4

ZV100

22 115 1.3 6.3 x 5.4

ZV220

33 150 0.8 6.3 x 7.7

ZV330

47 150 0.8 6.3 x 7.7

ZV470

100 450 0.45 8.0 x 10.0

ZV101

220 670 0.15 10.0 x 10.0

ZV221

330 670 0.15 10.0 x 10.0

ZV331

50 Volt

1.0 30 5.0 4.0 x 5.4

ZH1R0

2.2 30 5.0 4.0 x 5.4

ZH2R2

3.3 30 5.0 4.0 x 5.4

ZH3R3

4.7 50 3.0 5.0 x 5.4

ZH4R7

10 70 2.6 6.3 x 5.4

ZH100

22 70 2.6 6.3 x 5.4

ZH220

33 120 1.0 6.3 x 7.7

ZH330

47 120 1.0 6.3 x 7.7

ZH470

100 300 0.6 8.0 x 10.0

ZH101

220 500 0.3 10.0 x 10.0

ZH221

Tan  (max.) at 120Hz, 20°C

Rated voltage (dc) 6.3V 10V 16V 25V 35V 50V

All case sizes 0.22 0.19 0.16 0.14 0.12 0.12

Polarity bar

Dia.

0.3 max.

0.5

max.

Page 14

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ELECTROLYTIC, Surface Mount, Low ESR, 105°C

Dia.

0.3 max.

Polarity bar

PANASONIC FC Series, type V

Surface mount, aluminium electrolytic capacitors combining low impedance and ESR characteristics within a small package. The FC series additionally feature a maximum operational temperature specification of 105°C making them especially suitable for switch mode power supplies (SMPS). Available in a wide range of values and voltages, which are listed below. Supplied taped and reeled.

Low impedance

Endurance 1000 hours at 105°C

High ripple current

Excellent performance/size characteristics

For switch mode power supplies (SMPS) and industrial electronics

Specification FC (V)

Endurance test Capacitance tolerance Ripple current (as listed) Impedance (as listed) Operating temperature range Leakage current

1000 hours at 105°C ±20% at 120Hz, 20°C measured at 100kHz, 105°C measured at 100kHz, 20°C

-40°C to +105°C ≤0.01CV or 3µA (whichever is greater) after 2 min.

Dimensions (mm)

Marking and Packaging

Marking

Tape

Case Size

B C D E F G

Reel

Capacitance value, Voltage code + series code, Bar to indicate negative terminal

12mm width, 8mm pitch 12mm width, 12mm pitch 16mm width, 12mm pitch 16mm width, 12mm pitch 24mm width, 16mm pitch 24mm width, 16mm pitch 380mm dia.

Suitable for reflow soldering

Capacitance tolerance 20%

Leakage current ≤0.01CV

Supplied taped & reeled

ORDER CODES

Case Size Dia. L R S T U V W

B 4.0 5.8 4.3 5.5 max. 1.8 0.65 1.0 0.35 C 5.0 5.8 5.3 6.5 max. 2.2 0.65 1.5 0.35 D 6.3 5.8 6.6 7.8 max. 2.6 0.65 1.8 0.35 E 8.0 6.2 8.3 9.5 max. 3.4 0.65 2.2 0.35 F 8.0 10.2 8.3 10.0 max. 3.4 0.90 3.1 0.70 G 10.0 10.2 10.3 12.0 max. 3.5 0.90 4.6 0.70

Value Ripple Current Impedance Case

(µF) (mA) (Ω) Size Order Code

6.3 Volt

22 60 3.0 B

EEEFC0J220R

47 95 1.8 C

EEEFC0J470R

68 140 1.0 D

EEEFC0J680P

100 140 1.0 D

EEEFC0J101P

220 230 0.4 E

EEEFC0J221P

330 450 0.3 F

EEEFC0J331P

1000 670 0.15 G

EEEFC0J102P

1500 670 0.15 G

EEEFC0J152P

10 Volt

33 95 1.8 C

EEEFC1A330R

100 230 0.4 E

EEEFC1A101P

150 230 0.4 E

EEEFC1A151P

220 450 0.3 F

EEEFC1A221P

470 670 0.15 G

EEEFC1A471P

1000 670 0.15 G

EEEFC1A102P

16 Volt

10 60 3.0 B

EEEFC1C100R

22 95 1.8 C

EEEFC1C220R

47 140 1.0 D

EEEFC1C470P

68 230 0.4 E

EEEFC1C680P

100 230 0.4 E

EEEFC1C101P

220 670 0.15 G

EEEFC1C221P

330 670 0.15 G

EEEFC1C331P

470 670 0.15 G

EEEFC1C471P

680 670 0.15 G

EEEFC1C681P

25 Volt

6.8 60 3.0 B

EEEFC1E6R8R

22 140 1.0 D

EEEFC1E220P

33 140 1.0 D

EEEFC1E330P

47 230 0.4 E

EEEFC1E470P

68 450 0.3 F

EEEFC1E680P

100 450 0.3 F

EEEFC1E101P

220 670 0.15 G

EEEFC1E221P

330 670 0.15 G

EEEFC1E331P

470 670 0.15 G

EEEFC1E471P

Value Ripple Current Impedance Case

(µF) (mA) (Ω) Size Order Code

35 Volt

1.0 60 3.0 B

EEEFC1V1R0R

2.2 60 3.0 B

EEEFC1V2R2R

3.3 60 3.0 B

EEEFC1V3R3R

4.7 60 3.0 B

EEEFC1V4R7R

6.8 95 1.8 C

EEEFC1V6R8R

10 95 1.8 C

EEEFC1V100R

22 140 1.0 D

EEEFC1V220P

33 230 0.4 E

EEEFC1V330P

47 230 0.4 E

EEEFC1V470P

100 670 0.15 G

EEEFC1V101P

220 670 0.15 G

EEEFC1V221P

330 670 0.15 G

EEEFC1V331P

50 Volt

1.0 30 5.0 B

EEEFC1H1R0R

2.2 30 5.0 B

EEEFC1H2R2R

3.3 30 5.0 B

EEEFC1H3R3R

4.7 50 3.0 C

EEEFC1H4R7R

10 70 2.0 D

EEEFC1H100P

22 120 0.7 E

EEEFC1H220P

33 300 0.6 F

EEEFC1H330P

47 500 0.3 G

EEEFC1H470P

100 500 0.3 G

EEEFC1H101P

220 500 0.3 G

EEEFC1H221P

Tan  (max.) at 120Hz, 20°C

Rated voltage (dc) 6.3V 10V 16V 25V 35V 50V

All case sizes 0.26 0.19 0.16 0.14 0.12 0.12

Page 15

ELECTROLYTIC, Surface Mount, Very Low ESR, 105°C

+44 (0)1945 47 47 47 www.anglia.com [email protected]

NOVER type VX

Surface mount, aluminium electrolytic capacitors offering a very low impedance and a 105°C operational temperature limit within a small package. Available in a wide range of values and voltages, which are listed below. Supplied taped and reeled.

N Very low impedance

N Endurance 2000 hours at 105°C

N Excellent performance/size

characteristics

N Ideal for portable equipment &

instrumentation

Specification VX

Endurance test Capacitance tolerance Ripple current (as listed) Impedance (as listed) Operating temperature range Leakage current

2000 hours at 105°C ±20% at 120Hz, 20°C measured at 100Hz, 105°C measured at 100kHz, 20°C

-55°C to +105°C ≤0.01CV or 3µA (whichever is greater) after 2 min.

Dimensions (mm)

Marking and Packaging

Marking

Tape

Case Size

4.0 x 5.8

5.0 x 5.8

6.3 x 5.8

6.3 x 7.7

8.0 x 10.0

10.0 x 10.0

Reel

Printed on top surface of case, except largest case sizes which may be printed on a case sleeve around the body. Capacitance value, Voltage, Bar to indicate negative terminal

12mm width, 8mm pitch 12mm width, 12mm pitch 16mm width, 12mm pitch 16mm width, 12mm pitch 24mm width, 16mm pitch 24mm width, 16mm pitch 380mm dia.

N Suitable for reflow soldering

N Capacitance tolerance 20% N Leakage current ≤0.01CV

N Supplied taped & reeled

ORDER CODES

Value Ripple Current Impedance Case Size

(µF) (mA) (Ω) Dia. x L Order Code

6.3 Volt

33 150 0.76 5.0 x 5.8

ZD330

47 150 0.76 5.0 x 5.8

ZD470

100 230 0.44 6.3 x 5.8

ZD101

220 280 0.34 6.3 x 7.7

ZD221

330 280 0.34 6.3 x 7.7

ZD331

470 450 0.17 8.0 x 10.0

ZD471

1000 670 0.09 10.0 x 10.0

ZD102

1500 670 0.09 10.0 x 10.0

ZD152

10 Volt

22 80 1.8 4.0 x 5.8

ZG220

33 150 0.76 5.0 x 5.8

ZG330

47 230 0.44 6.3 x 5.8

ZG470

100 280 0.34 6.3 x 7.7

ZG101

220 280 0.34 6.3 x 7.7

ZG221

330 450 0.17 8.0 x 10.0

ZG331

470 450 0.17 8.0 x 10.0

ZG471

1000 670 0.09 10.0 x 10.0

ZG102

16 Volt

22 150 0.76 5.0 x 5.8

ZM220

33 230 0.44 6.3 x 5.8

ZM330

47 230 0.44 6.3 x 5.8

ZM470

100 280 0.34 6.3 x 7.7

ZM101

220 450 0.17 8.0 x 10.0

ZM221

330 450 0.17 8.0 x 10.0

ZM331

470 670 0.09 10.0 x 10.0

ZM471

Value Ripple Current Impedance Case Size

(µF) (mA) (Ω) Dia. x L Order Code

25 Volt

10 80 1.8 4.0 x 5.8

ZX100

22 230 0.44 6.3 x 5.8

ZX220

33 230 0.44 6.3 x 5.8

ZX330

47 280 0.34 6.3 x 7.7

ZX470

100 280 0.34 6.3 x 7.7

ZX101

220 450 0.17 8.0 x 10.0

ZX221

330 670 0.09 10.0 x 10.0

ZX331

470 670 0.09 10.0 x 10.0

ZX471

35 Volt

4.7 80 1.8 4.0 x 5.8

ZY4R7

10 150 0.76 5.0 x 5.8

ZY100

22 230 0.44 6.3 x 5.8

ZY220

33 230 0.44 6.3 x 5.8

ZY330

47 280 0.34 6.3 x 7.7

ZY470

100 450 0.17 8.0 x 10.0

ZY101

220 670 0.09 10.0 x 10.0

ZY221

330 670 0.09 10.0 x 10.0

ZY331

50 Volt

1.0 30 5.0 4.0 x 5.8

ZS1R0

2.2 30 5.0 4.0 x 5.8

ZS2R2

3.3 30 5.0 4.0 x 5.8

ZS3R3

4.7 40 1.52 5.0 x 5.8

ZS4R7

10 120 0.88 6.3 x 5.8

ZS100

22 140 0.68 6.3 x 7.7

ZS220

33 140 0.68 6.3 x 7.7

ZS330

47 140 0.68 6.3 x 7.7

ZS470

100 340 0.18 10.0 x 10.0

ZS101

220 340 0.18 10.0 x 10.0

ZS221

Case Size Dia. L R S T U V

4.0 x 5.8 4.0 5.8 4.3 4.3 1.8 0.65 1.0

5.0 x 5.8 5.0 5.8 5.3 5.3 2.1 0.65 1.3

6.3 x 5.8 6.3 5.8 6.6 6.6 2.4 0.65 2.2

6.3 x 7.7 6.3 7.7 6.6 6.6 2.4 0.65 2.2

8.0 x 10.0 8.0 10.0 8.3 8.3 2.9 0.95 3.1

10.0 x 10.0 10.0 10.0 10.3 10.3 3.2 0.95 4.5

Tan  (max.) at 120Hz, 20°C

Rated voltage (dc) 6.3V 10V 16V 25V 35V 50V

Case dia. 4.0 to 6.3 0.22 0.20 0.16 0.14 0.12 0.10

Case dia. 8.0 to 10.0 0.28 0.24 0.20 0.16 0.14 0.12

Polarity bar

Dia.

0.3 max.

0.5

max.

Page 16

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ELECTROLYTIC, SMD, Very Low ESR, 105°C

Case Size Dia. L R S T U V W

B 4.0 5.8 4.3 5.5 max. 1.8 0.65 1.0 0.35 C 5.0 5.8 5.3 6.5 max. 2.2 0.65 1.5 0.35 D 6.3 5.8 6.6 7.8 max. 2.6 0.65 1.8 0.35

D8 6.3 7.7 6.6 7.8 max. 2.6 0.65 1.8 0.35

E 8.0 6.2 8.3 9.5 max. 3.4 0.65 2.2 0.35 F 8.0 10.2 8.3 10 max. 3.4 0.90 3.1 0.70 G 10.0 10.2 10.3 12 max. 3.5 0.90 4.6 0.70

Dia.

0.3 max.

Polarity bar

Surface mount, aluminium electrolytic capacitors with very low ESR characteristics within a small package. The FP series additionally feature a maximum operational temperature specification of 105°C making them especially suitable for switch mode power supplies (SMPS). Available in a wide range of values and voltages, which are listed below. Supplied taped and reeled.

Very low impedance

Endurance 2000 hours at 105°C

High ripple current

Excellent performance/size characteristics

For switch mode power supplies (SMPS) and industrial electronics

Specification FP (V)

Endurance test Capacitance tolerance Ripple current (as listed) Impedance (as listed) Operating temperature range Leakage current

2000 hours at 105°C ±20% at 120Hz, 20°C measured at 100kHz, 105°C measured at 100kHz, 20°C

-55°C to +105°C ≤0.01CV or 3µA (whichever is greater) after 2 min.

Dimensions (mm)

Marking and Packaging

Marking

Tape

Case Size

B C D D8 E

Reel

Capacitance value, Voltage code + series code, Bar to indicate negative terminal

Case Size

Suitable for reflow soldering

Capacitance tolerance 20%

Leakage current ≤0.01CV

Wide temperature range

Supplied taped & reeled

PANASONIC FP Series, type V

Value Ripple Current Impedance Case

(µF) (mA) (Ω) Size Order Code

6.3 Volt

22 160 0.85 B

EEEFP0J220AR

47 160 0.85 B

EEEFPJ470UAR

47 240 0.36 C

EEEFP0J470AR

100 240 0.36 C

EEEFPJ101UAR

100 300 0.26 D

EEEFP0J101AP

220 300 0.26 D

EEEFP0J221AP

330 600 0.16 D8

EEEFPJ331XAP

330 500 0.18 E

EEEFP0J331AP

470 850 0.08 F

EEEFP0J471AP

1000 850 0.08 F

EEEFP0J102AP

1500 1190 0.06 G

EEEFP0J152AP

1800 850 0.08 G

EEEFPJ182UAP

10 Volt

22 160 0.85 B

EEEFP1A220AR

33 160 0.85 B

EEEFPA330UAR

33 240 0.36 C

EEEFP1A330AR

150 300 0.26 D

EEEFP1A151AP

220 600 0.16 D8

EEEFPA221XAP

220 500 0.18 E

EEEFP1A221AP

330 850 0.08 F

EEEFP1A331AP

470 850 0.08 F

EEEFP1A471AP

680 850 0.08 F

EEEFP1A681AP

1000 1190 0.06 G

EEEFP1A102AP

1200 850 0.08 G

EEEFPA122UAP

16 Volt

10 160 0.85 B

EEEFP1C100AR

22 160 0.85 B

EEEFPC220UAR

22 240 0.36 C

EEEFP1C220AR

47 240 0.36 C

EEEFPC470UAR

47 300 0.26 D

EEEFP1C470AP

68 300 0.26 D

EEEFP1C680AP

100 300 0.26 D

EEEFP1C101AP

100 600 0.16 D8

EEEFPC101XAP

ORDER CODES

Value Ripple Current Impedance Case

(µF) (mA) (Ω) Size Order Code

16 Volt

(continued)

150 600 0.16 D8

EEEFPC151XAP

220 600 0.16 D8

EEEFPC221XAP

220 500 0.18 E

EEEFP1C221AP

330 850 0.08 F

EEEFP1C331AP

470 850 0.08 F

EEEFP1C471AP

680 1190 0.06 G

EEEFP1C681AP

820 850 0.08 G

EEEFPC821UAP

25 Volt

10 160 0.85 B

EEEFP1E100AR

22 240 0.36 C

EEEFP1E220AR

33 240 0.36 C

EEEFPE330UAR

33 300 0.26 D

EEEFP1E330AP

47 300 0.26 D

EEEFP1E470AP

68 300 0.26 D

EEEFP1E680AP

100 600 0.16 D8

EEEFPE101XAP

100 500 0.18 E

EEEFP1E101AP

150 850 0.08 F

EEEFP1E151AP

220 850 0.08 F

EEEFP1E221AP

330 850 0.08 F

EEEFP1E331AP

470 1190 0.06 G

EEEFP1E471AP

560 850 0.08 G

EEEFPE561UAP

35 Volt

10 160 0.85 B

EEEFPV100UAR

22 240 0.36 C

EEEFP1V220AR

33 300 0.26 D

EEEFP1V330AP

47 300 0.26 D

EEEFP1V470AP

68 600 0.16 D8

EEEFPV680XAP

100 600 0.16 D8

EEEFPV101XAP

100 850 0.08 F

EEEFP1V101AP

150 850 0.08 F

EEEFP1V151AP

220 850 0.08 F

EEEFP1V221AP

330 1190 0.06 G

EEEFP1V331AP

390 850 0.08 G

EEEFPV391UAP

Tan  (max.) at 120Hz, 20°C

Rated voltage (dc) 6.3V 10V 16V 25V 35V

All cases sizes 0.26 0.19 0.16 0.14 0.12

Page 17

ELECTROLYTIC, Surface Mount, 125°C

+44 (0)1945 47 47 47 www.anglia.com [email protected]

Dia.

0.3 max.

Polarity bar

0.5

max.

NOVER type VA

Surface mount, aluminium electrolytic capacitors with an upper temperature limit extended to 125°C to sustain performance in harsher environments. The VA series has an endurance test of 1000 hours at 125°C and is available in a range of values and voltages, which are listed below. Supplied taped and reeled.

N Very high temperature

N Endurance 1000 hours at 125°C

N Excellent performance/size

characteristics

N Ideal for harsh environments

Specification VA

Endurance test Capacitance tolerance Ripple current (as listed) Operating temperature range Leakage current

1000 hours at 125°C ±20% at 120Hz, 20°C measured at 120Hz, 125°C

-40°C to +125°C ≤0.03CV or 4µA (whichever is greater) after 1 min.

Dimensions (mm)

Marking and Packaging

Marking

Tape

Case Size

6.3 x 7.7

8.0 x 10.0

10.0 x 10.0

Reel

Printed on top surface of case, except largest case sizes which may be printed on a case sleeve around the body. Capacitance value, Voltage, Bar to indicate negative terminal

16mm width, 12mm pitch 24mm width, 16mm pitch 24mm width, 16mm pitch 380mm dia.

N Suitable for reflow soldering

N Capacitance tolerance 20% N Leakage current ≤0.03CV

N Supplied taped & reeled

ORDER CODES

Tan  (max.) at 120Hz, 20°C

Rated voltage (dc) 10V 16V 25V 35V 50V

All case sizes 0.32 0.24 0.21 0.18 0.18

Case Size Dia. L R S T U V

6.3 x 7.7 6.3 7.7 6.6 6.6 2.4 0.65 2.2

8.0 x 10.0 8.0 10.0 8.3 8.3 2.9 0.95 3.1

10.0 x 10.0 10.0 10.0 10.3 10.3 3.2 0.95 4.5

Value Ripple Current Case Size

(µF) (mA) Dia. x L Order Code

10 Volt

100 58 6.3 x 7.7

EB101

220 90 8.0 x 10.0

EB221

330 112 10.0 x 10.0

EB331

16 Volt

100 66 8.0 x 10.0

EC101

220 102 10.0 x 10.0

EC221

25 Volt

47 48 6.3 x 7.7

EH470

100 74 8.0 x 10.0

EH101

220 116 10.0 x 10.0

EH221

35 Volt

33 44 6.3 x 7.7

ET330

47 52 8.0 x 10.0

ET470

100 80 10.0 x 10.0

ET101

50 Volt

10 24 6.3 x 7.7

EW100

22 38 6.3 x 7.7

EW220

33 46 8.0 x 10.0

EW330

47 58 10.0 x 10.0

EW470

Page 18

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ELECTROLYTIC, Surface Mount, Low ESR, 125°C

Dia.

0.3 max.

Polarity bar

0.5

max.

Panasonic TG Series, type V

Surface mount, aluminium electrolytic capacitors offering a low impedance and an upper temperature limit extended to 125°C to sustain performance in harsher environments.The TG series has an endurance test of 1000 to 2000 hours at 125°C and is available in a range of values and voltages, which are listed below. Supplied taped and reeled.

N Very high temperature, low impedance

N Endurance 1000 to 2000 hours at 125°C

N Excellent performance/size characteristics

N Ideal for harsh environments

Specification TG (V)

Endurance test Capacitance tolerance Ripple current (as listed) Impedance (as listed) Tan δ (as listed) Operating temperature range Leakage current

1000 to 2000 hours at 125°C ±20% at 120Hz, 20°C measured at 100kHz, 125°C measured at 100kHz, 20°C measured at 120Hz, 20°Cδ

-40°C to +125°C ≤0.01CV or 3µA (whichever is greater) after 2 min.

Dimensions (mm)

Marking and Packaging

N Suitable for reflow soldering

N Capacitance tolerance 20% N Leakage current ≤0.01CV

N Supplied taped & reeled

ORDER CODES

Case Size Dia. L R S T U V

E 8.0 6.2 8.3 9.5 max. 3.4 2.2 0.35 F 8.0 10.2 8.3 10.0 max. 3.4 3.1 0.70

G 10.0 10.2 10.3 12.0 max. 3.5 4.6 0.70 H13 12.5 13.5 13.5 15.0 max. 4.7 4.4 0.70 J16 16.0 16.5 17.0 19.0 max. 5.5 6.7 0.70 K16 18.0 16.5 19.0 21.0 max. 6.7 6.7 0.70

Value Ripple Current Impedance Tan Case Size (µF) (mA) (ΩΩ)

δδ

(mm) Order Code

10 Volt

100 100 1.00 0.30 E

EEETG1A101P

220* 197 0.50 0.30 F

EEETG1A221P

330* 270 0.30 0.30 G

EEETG1A331P

470 270 0.30 0.30 G

EEETG1A471UP

1000 800 0.12 0.30 H13

EEVTG1A102Q

1500 800 0.12 0.30 H13

EEVTG1A152UQ

2200 1100 0.08 0.32 J16

EEVTG1A222M

3300* 1300 0.08 0.34 K16

EEVTG1A332M

4700 1300 0.08 0.36 K16

EEVTG1A472M

16 Volt

100 197 0.50 0.23 F

EEETG1C101P

220* 270 0.30 0.23 G

EEETG1C221P

330* 800 0.12 0.23 H13

EEVTG1C331Q

470 800 0.12 0.23 H13

EEVTG1C471Q

680 800 0.12 0.23 H13

EEVTG1C681Q

1000* 1100 0.08 0.23 J16

EEVTG1C102M

2200* 1300 0.08 0.25 K16

EEVTG1C222M

3300 1300 0.08 0.27 K16

EEVTG1C332M

25 Volt

47 100 1.00 0.18 E

EEETG1E470P

100* 197 0.50 0.18 F

EEETG1E101P

220* 270 0.30 0.18 G

EEETG1E221PP

330* 800 0.12 0.18 H13

EEVTG1E331Q

470 800 0.12 0.18 H13

EEVTG1E471Q

680* 1100 0.08 0.18 J16

EEVTG1E681M

1000* 1300 0.08 0.18 K16

EEVTG1E102M

2200 1300 0.08 0.20 K16

EEVTG1E222M

35 Volt

33 100 1.00 0.16 E

EEETG1V330P

47* 197 0.50 0.16 F

EEETG1V470P

100* 270 0.30 0.16 G

EEETG1V101P

220 270 0.30 0.16 G

EEETG1V221UP

330 800 0.12 0.16 H13

EEVTG1V331Q

470* 1100 0.08 0.16 J16

EEVTG1V471M

680* 1300 0.08 0.16 K16

EEVTG1V681M

1000 1300 0.08 0.16 K16

EEVTG1V102M

Marking

Tape

Case Size

E F G

Reel

Capacitance value, Voltage code + series code, Bar to indicate negative terminal

Case Size

16mm width, 12mm pitch H13 32mm width, 24mm pitch 24mm width, 16mm pitch J16 44mm width, 28mm pitch 24mm width, 16mm pitch K16 44mm width, 32mm pitch 380mm dia.

Value Ripple Current Impedance Tan Case Size (µF) (mA) (ΩΩ)

δδ

(mm) Order Code

50 Volt

10 80 1.60 0.14 E

EEETG1H100P

22 80 1.60 0.14 E

EEETG1H220P

33* 133 0.75 0.14 F

EEETG1H330P

47* 221 0.50 0.14 G

EEETG1H470P

100 221 0.50 0.14 G

EEETG1H101UP

220 600 0.23 0.14 H13

EEVTG1H221Q

330 600 0.23 0.14 H13

EEVTG1H331Q

470 900 0.15 0.14 J16

EEVTG1H471M

680* 950 0.14 0.14 K16

EEVTG1H681M

1000 950 0.14 0.14 K16

EEVTG1H102M

63 Volt

10* 55 2.20 0.12 E

EEETG1J100P

22 100 1.00 0.12 F

EEETG1J220P

33* 150 0.80 0.12 G

EEETG1J330P

47* 150 0.80 0.12 G

EEETG1J470P

100* 350 0.26 0.12 H13

EEVTG1J101Q

220 350 0.26 0.12 H13

EEVTG1J221Q

330 500 0.18 0.12 J16

EEVTG1J331M

470 500 0.18 0.12 J16

EEVTG1J471M

80 Volt

10 70 1.30 0.12 F

EEVTG1K100P

22* 90 1.00 0.12 G

EEETG1K220P

33* 90 1.00 0.12 G

EEETG1K330P

47* 250 0.42 0.12 H13

EEVTG1K470Q

100* 350 0.30 0.12 J16

EEVTG1K101M

220* 400 0.28 0.12 K16

EEVTG1K221M

330* 400 0.28 0.12 K16

EEVTG1K331M

470 400 0.28 0.12 K16

EEVTG1K471M

100 Volt

10 70 1.30 0.10 F

EEETG2A100P

22* 90 1.00 0.10 G

EEETG2A220P

33 90 1.00 0.10 G

EEETG2A330P

47 250 0.42 0.10 H13

EEVTG2A470Q

100 350 0.30 0.10 J16

EEVTG2A101M

220 400 0.28 0.10 K16

EEVTG2A221M

330 400 0.28 0.10 K16

EEVTG2A331M

* denotes value is also available to order in a smaller case size

Page 19

Dia.

0.3 max.

0.5

max.

NOVER type VP

Surface mount, bi-polar (non polarised) aluminium electrolytic capacitors suitable for applications where reverse voltage may be applied. Available in a wide range of values and voltages, which are listed below. Supplied taped and reeled.

N Bi-polar (non-polarised)

N Endurance 2000 hours at 85°C

N Able to withstand reverse voltage

Specification VP

Endurance test Capacitance tolerance Ripple current (as listed) Operating temperature range Leakage current

2000 hours at 85°C ±20% at 120Hz, 20°C measured at 120Hz, 85°C

-40°C to +85°C ≤0.01CV or 3µA (whichever is greater) after 2 min.

Dimensions (mm)

Marking and Packaging

Marking

Tape

Case Size

4.0 x 5.3

5.0 x 5.3

6.3 x 5.3

Reel

Printed on top surface of case. Capacitance value, Voltage

12mm width, 8mm pitch 12mm width, 12mm pitch 16mm width, 12mm pitch 380mm dia.

N Suitable for reflow soldering

N Capacitance tolerance 20% N Leakage current ≤0.01CV

N Supplied taped & reeled

ORDER CODES

Case Size Dia. L R S T U V

4.0 x 5.3 4.0 5.3 4.3 4.3 2.0 0.65 1.0

5.0 x 5.3 5.0 5.3 5.3 5.3 2.3 0.65 1.3

6.3 x 5.3 6.3 5.3 6.6 6.6 2.7 0.65 2.2

Value Ripple Current Case Size

(µF) (mA) Dia. x L Order Code

6.3 Volt

22 27 5.0 x 5.3

VB220

33 45 6.3 x 5.3

VB330

47 54 6.3 x 5.3

VB470

10 Volt

10 18 4.0 x 5.3

VR100

22 40 6.3 x 5.3

VR220

33 50 6.3 x 5.3

VR330

16 Volt

4.7 14 4.0 x 5.3

VK4R7

10 26 5.0 x 5.3

VK100

22 45 6.3 x 5.3

VK220

33 55 6.3 x 5.3

VK330

25 Volt

3.3 13 4.0 x 5.3

VN3R3

4.7 20 5.0 x 5.3

VN4R7

10 35 6.3 x 5.3

VN100

35 Volt

2.2 10 4.0 x 5.3

VW2R2

3.3 17 5.0 x 5.3

VW3R3

4.7 21 5.0 x 5.3

VW4R7

10 35 6.3 x 5.3

VW100

50 Volt

0.1 2.3 4.0 x 5.3

VL0R1

0.22 3.3 4.0 x 5.3

VLR22

0.33 4.1 4.0 x 5.3

VLR33

0.47 4.9 4.0 x 5.3

VLR47

1.0 7.2 4.0 x 5.3

VL1R0

2.2 14 5.0 x 5.3

VL2R2

3.3 17 5.0 x 5.3

VL3R3

4.7 24 6.3 x 5.3

VL4R7

Tan  (max.) at 120Hz, 20°C

Rated voltage (dc) 6.3V 10V 16V 25V 35V 50V

Case size 4.0 x 5.3 0.35 0.30 0.25 0.25 0.25 0.25

All other case sizes 0.30 0.25 0.20 0.15 0.15 0.15

ELECTROLYTIC, Surface Mount, Bi-polar

+44 (0)1945 47 47 47 www.anglia.com [email protected]

Page 20

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ELECTROLYTIC, Surface Mount, Bi-polar, 105°C

Rated voltage (dc) 6.3V 10V 16V 25V 35V 50V

All case sizes 0.35 0.26 0.2 0.16 0.14 0.12

Case Size Dia. L R S T U V W

B 4.0 5.8 4.3 5.5 max. 1.8 0.65 1.0 0.35 C 5.0 5.8 5.3 6.5 max. 2.2 0.65 1.5 0.35 D 6.3 5.8 6.6 7.8 max. 2.6 0.65 1.8 0.35

Tan  (max.) at 120Hz, 20°C

Dia.

0.3 max.

PANASONIC HP Series, type V

A range of bi-polar (non-polarised) radial aluminium electrolytic capacitors suitable for applications where reverse voltage may be applied. Endurance test 2000 hours at 105°C and available in a variety of values and voltages, which are listed below. Supplied loose or taped and boxed.

N Bi-polar (non-polarised)

N High temperature

N Endurance 2000 hours at 105°C

N Able to withstand reverse voltage

Specification HP (V)

Endurance test Capacitance tolerance Ripple current (as listed) Operating temperature range Leakage current

2000 hours at 105°C ±20% at 120Hz, 20°C measured at 120Hz, 105°C

-40°C to +105°C ≤0.02CV or 3µA (whichever is greater) after 2 min.

Dimensions (mm)

Marking and Packaging

Marking Tape

Case Size

B C D

Reel

Capacitance value, Voltage code + series code

12mm width, 8mm pitch 12mm width, 12mm pitch 16mm width, 12mm pitch 380mm dia.

N Suitable for reflow soldering

N Capacitance tolerance 20% N Leakage current ≤0.02CV

N Supplied taped & reeled

Value Ripple Current Tan

δδ

Case

(µF) (mA) (max.) Size Order Code

6.3 Volt

47 35 0.60 D

EEEHP0J470P

10 Volt

10 20 0.44 B

EEEHP1A100R

33 26 0.44 D

EEEHP1A330P

16 Volt

10 25 0.32 C

EEEHP1C100R

25 Volt

3.3 12 0.28 B

EEEHP1E100P

4.7 12 0.28 B

EEEHP1E220P

10 28 0.28 D

EEEHP1E3R3R

22 55 0.28 D

EEEHP1E4R7R

35 Volt

2.2 10 0.24 B

EEEHP1V2R2R

50 Volt

0.22 2 0.24 B

EEEHP1HR22R

0.33 3 0.24 B

EEEHP1HR33R

0.47 5 0.24 B

EEEHP1HR47R

1.0 10 0.24 B

EEEHP1H1R0R

3.3 16 0.24 D

EEEHP1H3R3P

4.7 23 0.24 D

EEEHP1H4R7P

ORDER CODES

Page 21

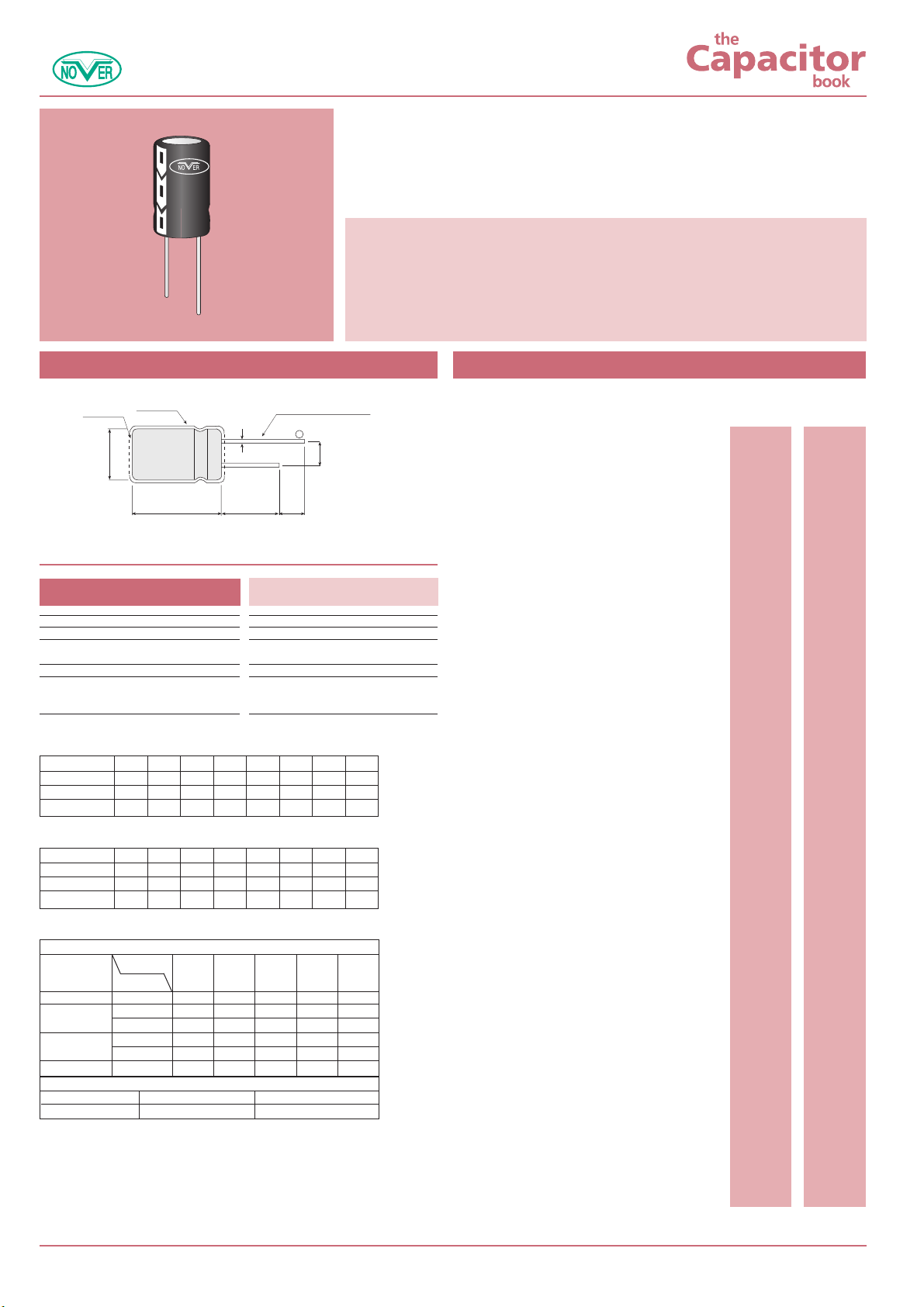

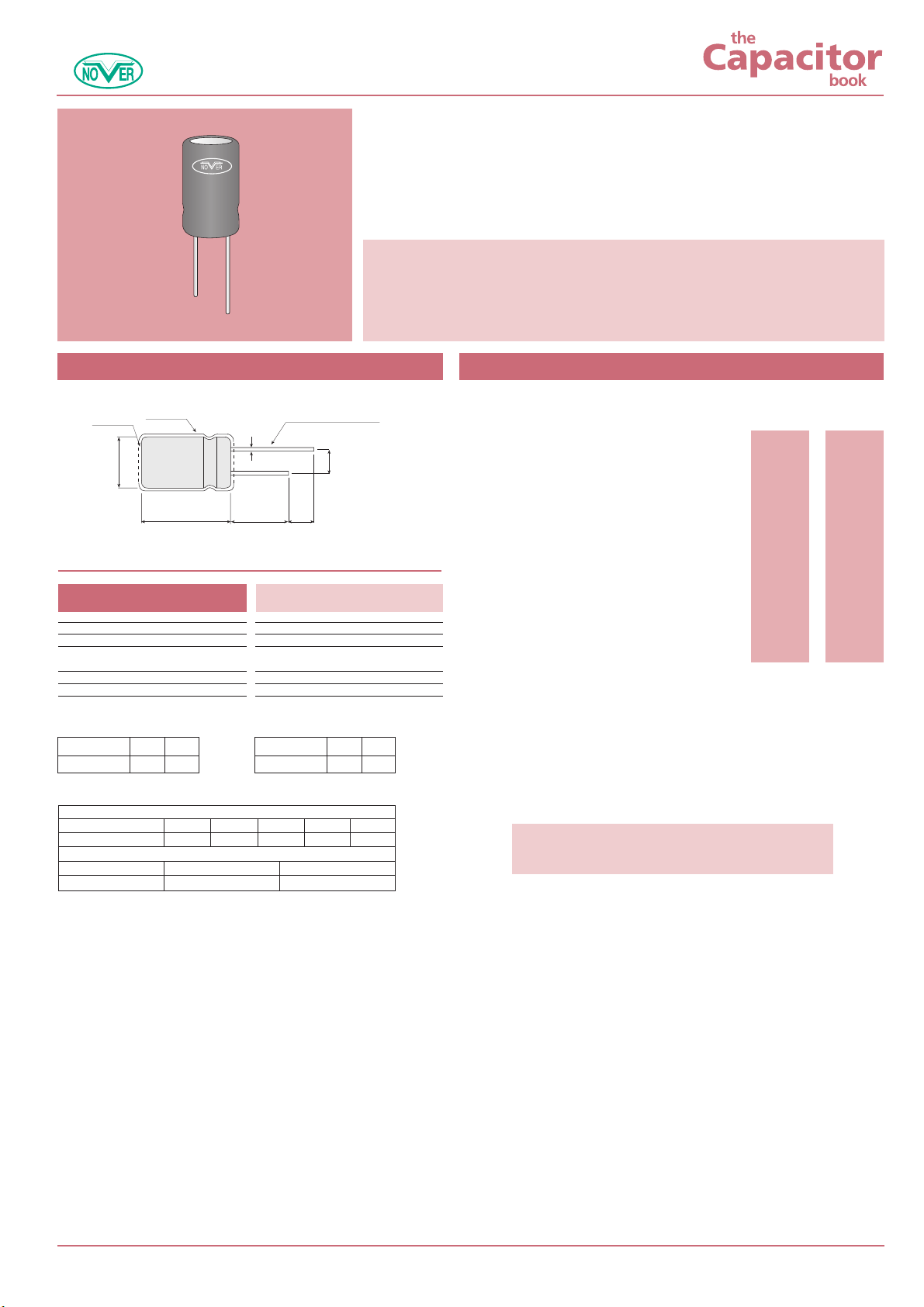

ELECTROLYTIC, Radial

+44 (0)1945 47 47 47 www.anglia.com [email protected]

NOVER type RE

Radial lead aluminium electrolytic capacitors manufactured to be highly cost effective whilst maintaining high levels of quality and reliability. Offer longer life with an endurance test of 2000 hours at 85°C. The most popular values are listed below and continued on the following page with other values and higher voltages being available to order. Supplied loose or taped and boxed.

N Standard range

N Longer life

N Endurance 2000 hours at 85°C

N Solvent resistant

N Very competitively priced

Specification

Endurance test Capacitance tolerance Ripple current (as listed)

Operating temperature range Leakage current

2000 hours at 85°C ±20% at 120Hz, 20°C measured at 120Hz, 85°C (see also multiplier table below)

-40°C to +85°C

6.3 ~ 100V ≤0.01CV or 3µA 250 ~ 450V ≤0.06CV or 10µA (whichever is greater) after 2 min.

Dimensions (mm)

N Capacitance tolerance 20% N Leakage current ≤0.01CV

N Body colour Black

N Supplied loose or taped & boxed

ORDER CODES

15 min.

Dia

Vinyl sleeve

Tinned copper-clad steel wire

ød

Pitch

5 min.

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L (2.0 L≥20)

Vent (Dia ≥ 6.3)

ød = 0.5 (Dia ≤6.3)

0.6 (Dia 8–12.5)

0.8 (Dia ≥16)

Value Ripple Current Dia. x L Pitch Taped &

(µF) (mA) (mm) (mm) Loose Boxed

6.3 Volt

33 70 5.0 x 11.0 2.0(5)

053308 053308T

47 75 5.0 x 11.0 2.0(5)

053309 053309T

100 100 5.0 x 11.0 2.0(5)

053310 053310T

220 170 6.3 x 11.0 2.5(5)

053311 053311T

330 210 6.3 x 11.0 2.5(5)

053312 053312T

470 300 8.0 x 11.5 3.5(5)

053313 053313T

1000 530 10.0 x 12.5 5.0

053314 053314T

2200 990 12.5 x 20.0 5.0

053315 053315T

3300 1150 12.5 x 20.0 5.0

053316 053316T

4700 1700 16.0 x 25.0 7.5

053317 053317T

6800 1900 16.0 x 25.0 7.5

053318 053318T

10000 2250 16.0 x 31.5 7.5

053319

–

15000 2400 18.0 x 35.5 7.5

053320

–

10 Volt

22 55 5.0 x 11.0 2.0(5)

053007 053007T

33 70 5.0 x 11.0 2.0(5)

053008 053008T

47 75 5.0 x 11.0 2.0(5)

053009 053009T

100 110 5.0 x 11.0 2.0(5)

053010 053010T

220 190 6.3 x 11.0 2.5(5)

053011 053011T

330 270 8.0 x 11.5 3.5(5)

053012 053012T

470 330 8.0 x 11.5 3.5(5)

053013 053013T

1000 620 10.0 x 16.0 5.0

053014 053014T

2200 1050 12.5 x 20.0 5.0

053015 053015T

3300 1350 12.5 x 25.0 5.0

053215 053215T

4700 1800 16.0 x 25.0 7.5

053216 053216T

6800 2200 16.0 x 31.5 7.5

053217

–

10000 2750 18.0 x 35.5 7.5

053218

–

16 Volt

10 40 5.0 x 11.0 2.0(5)

053016 053016T

22 55 5.0 x 11.0 2.0(5)

053017 053017T

33 70 5.0 x 11.0 2.0(5)

053018 053018T

47 80 5.0 x 11.0 2.0(5)

053019 053019T

100 140 6.3 x 11.0 2.5(5)

053020 053020T

220 220 6.3 x 11.0 2.5(5)

053421 053421T

220 240 8.0 x 11.5 3.5(5)

053021 053021T

330 300 8.0 x 11.5 3.5(5)

053022 053022T

470 400 8.0 x 11.5 3.5(5)

053423 053423T

470 420 10.0 x 12.5 5.0

053023 053023T

1000 720 10.0 x 16.0 5.0

053424 053424T

1000 740 10.0 x 20.0 5.0

053024 053024T

2200 1200 12.5 x 25.0 5.0

053025 053025T

3300 1650 16.0 x 25.0 7.5

053225 053225T

4700 2100 16.0 x 31.5 7.5

053226

–

6800 2600 18.0 x 35.5 7.5

053227

–

25 Volt

4.7 25 5.0 x 11.0 2.0(5)

053234 053234T

10 45 5.0 x 11.0 2.0(5)

053026 053026T

22 60 5.0 x 11.0 2.0(5)

053027 053027T

33 70 5.0 x 11.0 2.0(5)

053028 053028T

47 90 5.0 x 11.0 2.0(5)

053029 053029T

100 150 6.3 x 11.0 2.5(5)

053030 053030T

220 260 8.0 x 11.5 3.5(5)

053031 053031T

330 380 10.0 x 12.5 5.0

053032 053032T

470 500 10.0 x 16.0 5.0

053033 053033T

1000 910 12.5 x 20.0 5.0

053034 053034T

2200 1400 12.5 x 25.0 5.0

053435 053435T

2200 1500 16.0 x 25.0 7.5

053035 053035T

3300 1900 16.0 x 31.5 7.5

053235

–

4700 2450 18.0 x 35.5 7.5

053036

–

Rated voltage 6.3V 10V 16V 25V 40V 50V 63V dc Tan  (max.)* 0.22 0.19 0.16 0.14 0.11 0.10 0.09 Rated voltage 100V 250V 350V 450V dc Tan  (max.) 0.08 0.15 0.15 0.23

Rated voltage 6.3V 10V 16V 25V 40V 50V 63V dc Surge voltage 8V 13V 20V 32V 50V 63V 79V dc Rated voltage 100V 250V 350V 450V dc Surge voltage 125V 300V 400V 500V dc

*Add 0.02 for every 1000µF above 1000µF

Dissipation factor (120Hz, 20°C)

Multiplier for ripple current

Frequency coefficient

Rated Voltage

Freq (Hz)

50/60 120 1k 10k 100k

(V)

CV (µF.WV)

6.3 ~ 16 0.8 1.0 1.1 1.2 1.2

25 ~ 40

≤1000 0.8 1.0 1.2 1.7 1.7 >1000 0.8 1.0 1.2 1.3 1.3 ≤1000 0.8 1.0 1.6 1.9 1.9

50 ~ 100

>1000 0.8 1.0 1.2 1.3 1.3

250 ~ 450 0.8 1.0 1.3 1.5 1.6

Temperature coefficient Temperature (°C) +70 +85

Factor 1.35 1.0

Surge voltage capability

Conforms to JIS C5141-1982 Char.W

continued > > > >

Page 22

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ELECTROLYTIC, Radial

ORDER CODES

Value Ripple Current Dia. x L Pitch Taped &

(µF) (mA) (mm) (mm) Loose Boxed

40 Volt

4.7 30 5.0 x 11.0 2.0(5)

053236 053236T

10 45 5.0 x 11.0 2.0(5)

053037 053037T

22 60 5.0 x 11.0 2.0(5)

053038 053038T

33 90 5.0 x 11.0 2.0(5)

053039 053039T

47 100 6.3 x 11.0 2.5(5)

053040 053040T

100 200 8.0 x 11.5 3.5(5)

053041 053041T

220 360 10.0 x 12.5 5.0

053042 053042T

330 500 10.0 x 16.0 5.0

053043 053043T

470 620 10.0 x 20.0 5.0

053044 053044T

1000 1040 12.5 x 25.0 5.0

053045 053045T

2200 1900 16.0 x 31.5 7.5

053046

–

3300 2250 18.0 x 35.5 7.5

053047

–

4700 2500 18.0 x 35.5 7.5

053247

–

50 Volt

0.1 5 5.0 x 11.0 2.0(5)

053112 053112T

0.22 7 5.0 x 11.0 2.0(5)

053113 053113T

0.33 9 5.0 x 11.0 2.0(5)

053114 053114T

0.47 10 5.0 x 11.0 2.0(5)

053115 053115T

1.0 15 5.0 x 11.0 2.0(5)

053048 053048T

2.2 20 5.0 x 11.0 2.0(5)

053049 053049T

3.3 25 5.0 x 11.0 2.0(5)

053116 053116T

4.7 30 5.0 x 11.0 2.0(5)

053050 053050T

10 45 5.0 x 11.0 2.0(5)

053051 053051T

22 70 5.0 x 11.0 2.0(5)

053052 053052T

33 100 6.3 x 11.0 2.5(5)

053053 053053T

47 120 6.3 x 11.0 2.5(5)

053054 053054T

100 210 8.0 x 11.5 3.5(5)

053055 053055T

220 400 10.0 x 16.0 5.0

053056 053056T

330 540 10.0 x 20.0 5.0

053057 053057T

470 740 12.5 x 20.0 5.0

053058 053058T

1000 1280 12.5 x 25.0 5.0

053459 053459T

1000 1350 16.0 x 25.0 7.5

053059 053059T

2200 2100 18.0 x 35.5 7.5

053221

–

63 Volt

0.1 5 5.0 x 11.0 2.0(5)

053117 053117T

0.22 8 5.0 x 11.0 2.0(5)

053118 053118T

0.33 9 5.0 x 11.0 2.0(5)

053119 053119T

0.47 10 5.0 x 11.0 2.0(5)

053060 053060T

1.0 15 5.0 x 11.0 2.0(5)

053061 053061T

2.2 20 5.0 x 11.0 2.0(5)

053062 053062T

3.3 30 5.0 x 11.0 2.0(5)

053063 053063T

4.7 35 5.0 x 11.0 2.0(5)

053064 053064T

10 50 5.0 x 11.0 2.0(5)

053065 053065T

22 85 6.3 x 11.0 2.5(5)

053066 053066T

33 100 6.3 x 11.0 2.5(5)

053067 053067T

47 150 8.0 x 11.5 3.5(5)

053068 053068T

100 260 10.0 x 12.5 5.0

053069 053069T

220 460 10.0 x 20.0 5.0

053070 053070T

330 650 12.5 x 20.0 5.0

053071 053071T

470 850 12.5 x 25.0 5.0

053120 053120T

1000 1550 16.0 x 31.5 7.5

053220

–

Value Ripple Current Dia. x L Pitch Taped &

(µF) (mA) (mm) (mm) Loose Boxed

100 Volt

0.1 5 5.0 x 11.0 2.0(5)

053128 053128T

0.22 8 5.0 x 11.0 2.0(5)

053129 053129T

0.33 10 5.0 x 11.0 2.0(5)

053130 053130T

0.47 10 5.0 x 11.0 2.0(5)

053072 053072T

1.0 15 5.0 x 11.0 2.0(5)

053073 053073T

2.2 25 5.0 x 11.0 2.0(5)

053074 053074T

3.3 30 5.0 x 11.0 2.0(5)

053075 053075T

4.7 35 5.0 x 11.0 2.0(5)

053076 053076T

10 60 6.3 x 11.0 2.5(5)

053077 053077T

22 110 8.0 x 11.5 3.5(5)

053078 053078T

33 160 10.0 x 12.5 5.0

053079 053079T

47 210 10.0 x 16.0 5.0

053080 053080T

100 380 12.5 x 20.0 5.0

053081 053081T

220 720 16.0 x 25.0 7.5

053083 053083T

330 880 16.0 x 25.0 7.5

053084 053084T

470 1150 16.0 x 31.5 7.5

053085

–

250 Volt

0.47 10 6.3 x 11.0 2.5(5)

053106 053106T

1.0 15 6.3 x 11.0 2.5(5)

053107 053107T

2.2 25 8.0 x 11.5 3.5(5)

053108 053108T

3.3 35 10.0 x 12.5 5.0

053109 053109T

4.7 40 10.0 x 12.5 5.0

053110 053110T

10 75 10.0 x 20.0 5.0

053111 053111T

22 140 12.5 x 25.0 5.0

053135 053135T

33 170 12.5 x 20.0 5.0

053136 053136T

47 240 16.0 x 25.0 7.5

053182 053182T

100 440 18.0 x 35.5 7.5

053183

–

350 Volt

0.47 10 6.3 x 11.0 2.5(5)

053131 053131T

1.0 15 8.0 x 11.5 3.5(5)

053132 053132T

2.2 30 10.0 x 12.5 5.0

053133 053133T

3.3 35 10.0 x 12.5 5.0

053134 053134T

4.7 45 10.0 x 16.0 5.0

053140 053140T

10 75 10.0 x 20.0 5.0

053141 053141T

22 140 12.5 x 25.0 5.0

053142 053142T

33 200 16.0 x 25.0 7.5

053143 053143T

47 260 16.0 x 31.5 7.5

053144

–

450 Volt

1.0 15 10.0 x 12.5 5.0

053121 053121T

2.2 25 10.0 x 16.0 5.0

053122 053122T

3.3 35 10.0 x 20.0 5.0

053123 053123T

4.7 45 12.5 x 20.0 5.0

053124 053124T

10 75 12.5 x 25.0 5.0

053125 053125T

22 140 16.0 x 31.5 7.5

053126

–

33 200 18.0 x 35.5 7.5

053127

–

47 296 16.0 x 31.5 7.5

053155

–

continuation

(5) Leads pre-formed to 5mm pitch on taped part

Other values and higher voltages are available to order. Please contact our Sales Desk for details.

Page 23

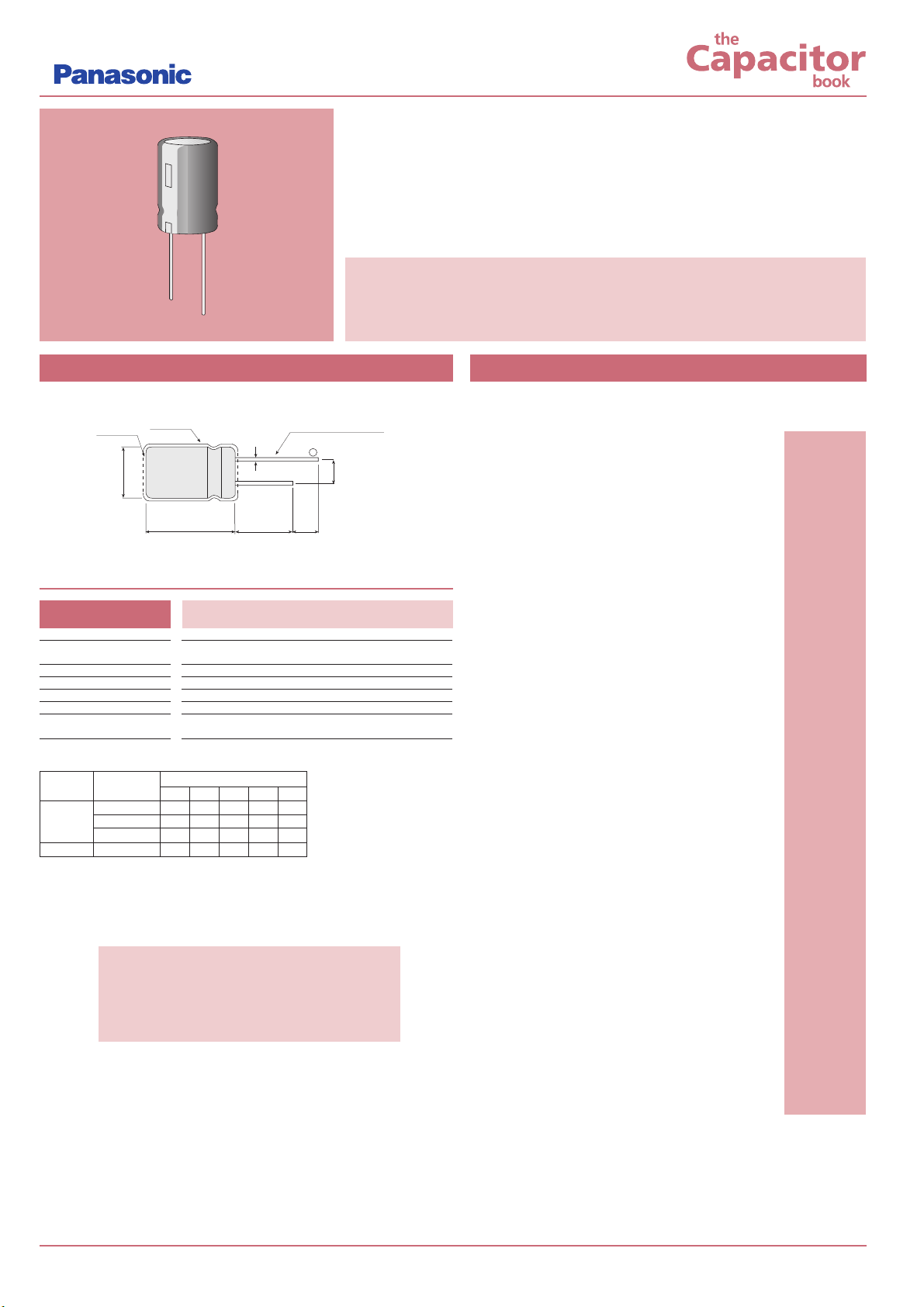

ELECTROLYTIC, Radial

+44 (0)1945 47 47 47 www.anglia.com [email protected]

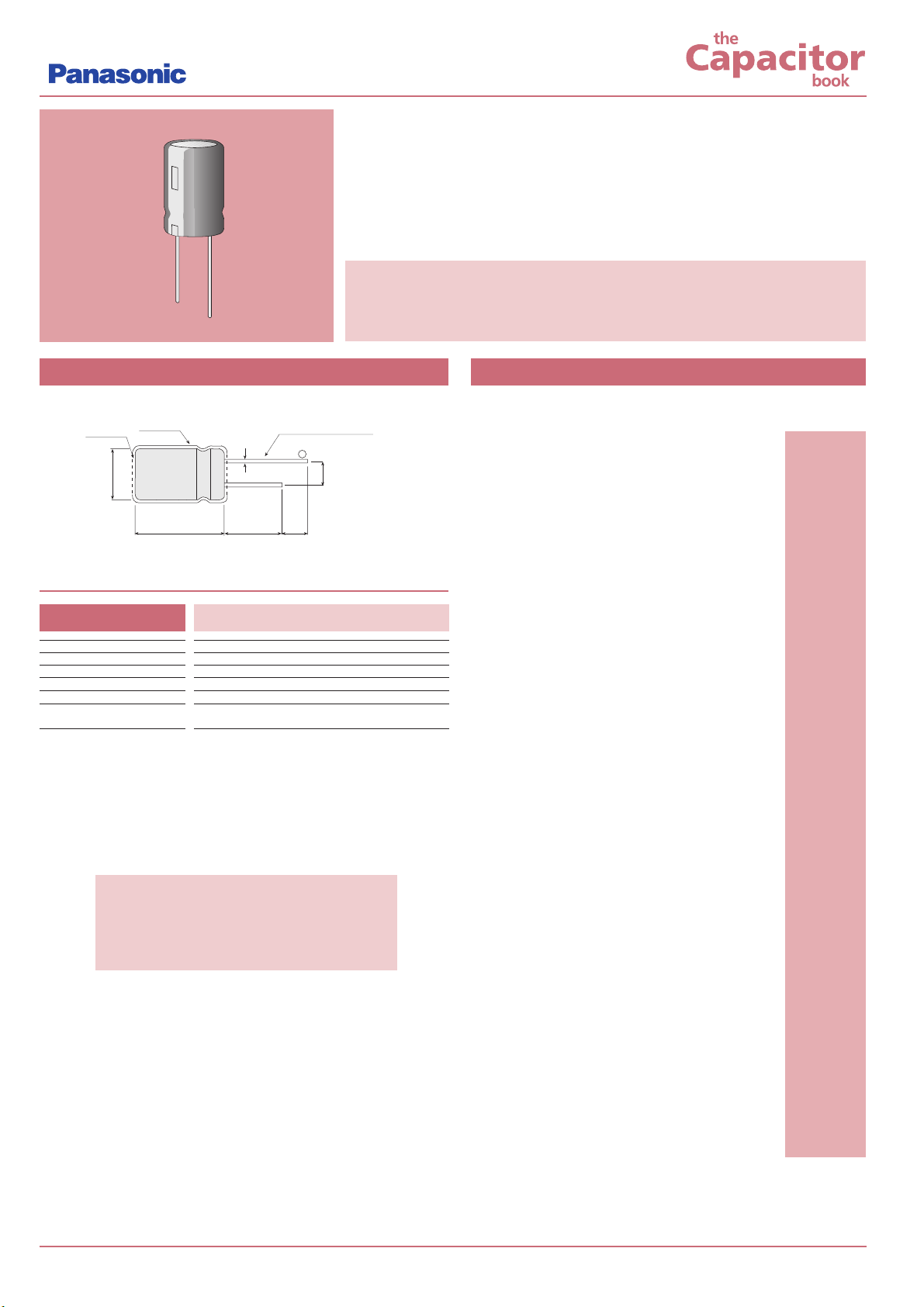

PANASONIC M Series type A

Radial lead aluminium electrolytic capacitors manufactured to high levels of quality and reliability whilst offering longer life with an endurance test of 2000 hours at 85°C. The entire range of values are listed below and continued on the following page. Supplied loose, with taped and boxed product available to order (see details below).

N Standard range

N Longer life

N Endurance 2000 hours at 85°C

Specification

M (A)

Endurance test Capacitance tolerance Ripple current (as listed) Tan δ (as listed) Operating temperature range Leakage current (after 2 min.)

2000 hours at 85°C ±20% at 120Hz, 20°C measured at 120Hz, 85°C measured at 120Hz, 20°C

6.3 to 100V, -40°C to +85°C 160 to 450V, -25°C to +85°C ≤0.01CV or 3µA ≤0.06CV +10µA (whichever is greater)

Dimensions (mm)

N Capacitance tolerance 20% N Leakage current ≤0.01CV

N Supplied loose

ORDER CODES

Value Ripple Current Tan Dia. x L Pitch

(µF) (mA)

δδ

(mm) (mm) Loose

6.3 Volt

220 240 0.28 5.0 x 11.0 2.0

ECA0JM221

470 380 0.28 6.3 x 11.2 2.5

ECA0JM471

1000 580 0.28 8.0 x 11.5 3.5

ECA0JM102

2200 890 0.30 10.0 x 16.0 5.0

ECA0JM222

3300 1020 0.32 10.0 x 20.0 5.0

ECA0JM332

4700 1170 0.34 12.5 x 20.0 5.0

ECA0JM472

6800 1270 0.38 12.5 x 25.0 5.0

ECA0JM682

10000 1450 0.46 16.0 x 25.0 7.5

ECA0JM103

15000 1700 0.56 16.0 x 31.5 7.5

ECA0JM153

22000 1900 0.70 18.0 x 35.5 7.5

ECA0JM223

10 Volt

330 330 0.24 6.3 x 11.2 2.5

ECA1AM331

1000 630 0.24 10.0 x 12.5 5.0

ECA1AM102

2200 920 0.26 10.0 x 20.0 5.0

ECA1AM222

3300 1090 0.28 12.5 x 20.0 5.0

ECA1AM332

4700 1200 0.30 12.5 x 25.0 5.0

ECA1AM472

6800 1400 0.34 16.0 x 25.0 7.5

ECA1AM682

10000 1600 0.42 16.0 x 31.5 7.5

ECA1AM103

15000 1850 0.52 18.0 x 35.5 7.5

ECA1AM153

16 Volt

10 30 0.20 5.0 x 11.0 2.0

ECA1CM100

22 75 0.20 5.0 x 11.0 2.0

ECA1CM220

33 110 0.20 5.0 x 11.0 2.0

ECA1CM330

47 130 0.20 5.0 x 11.0 2.0

ECA1CM470

100 180 0.20 5.0 x 11.0 2.0

ECA1CM101

220 280 0.20 6.3 x 11.2 2.5

ECA1CM221

470 440 0.20 8.0 x 11.5 3.5

ECA1CM471

1000 680 0.20 10.0 x 16.0 5.0

ECA1CM102

2200 1000 0.22 12.5 x 20.0 5.0

ECA1CM222

3300 1200 0.24 12.5 x 25.0 5.0

ECA1CM332

4700 1360 0.26 16.0 x 25.0 7.5

ECA1CM472

6800 1600 0.30 16.0 x 31.5 7.5

ECA1CM682

10000 1800 0.38 18.0 x 35.5 7.5

ECA1CM103

25 Volt

100 180 0.16 6.3 x 11.2 2.5

ECA1EM101

330 390 0.16 8.0 x 11.5 3.5

ECA1EM331

470 480 0.16 10.0 x 12.5 5.0

ECA1EM471

1000 850 0.16 10.0 x 20.0 5.0

ECA1EM102

2200 1200 0.18 12.5 x 25.0 5.0

ECA1EM222

3300 1300 0.20 16.0 x 25.0 7.5

ECA1EM332

4700 1500 0.22 16.0 x 31.5 7.5

ECA1EM472

6800 1750 0.26 18.0 x 35.5 7.5

ECA1EM682

35 Volt

47 130 0.14 5.0 x 11.0 2.0

ECA1VM470

100 210 0.14 6.3 x 11.2 2.5

ECA1VM101

220 350 0.14 8.0 x 11.5 3.5

ECA1VM221

330 440 0.14 10.0 x 12.5 5.0

ECA1VM331

470 550 0.14 10.0 x 16.0 5.0

ECA1VM471

1000 900 0.14 12.5 x 20.0 5.0

ECA1VM102

2200 1250 0.16 16.0 x 25.0 7.5

ECA1VM222

3300 1400 0.18 16.0 x 31.5 7.5

ECA1VM332

4700 1600 0.20 18.0 x 35.5 7.5

ECA1VM472

continued > > > >

Order codes listed apply to loose

product with straight leads.

Taped & boxed product is also available,

please contact our Sales Desk for details.

Vent (Dia ≥ 6.3)

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L (2.0 L≥20)

Vinyl sleeve

Dia

Tinned copper-clad steel wire

¯d

14 min.

3 min.

Pitch

ød = 0.5 (Dia ≤6.3)

0.6 (Dia 8 – 12.5)

0.8 (Dia ≥16)

Page 24

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ELECTROLYTIC, Radial

ORDER CODES

Value Ripple Current Tan Dia. x L Pitch

(µF) (mA)

δδ

(mm) (mm) Loose

50 Volt

0.1 1.3 0.12 5.0 x 11.0 2.0

ECA1HM0R1

0.22 2.9 0.12 5.0 x 11.0 2.0

ECA1HMR22

0.33 4.4 0.12 5.0 x 11.0 2.0

ECA1HMR33

0.47 5 0.12 5.0 x 11.0 2.0

ECA1HMR47

1.0 10 0.12 5.0 x 11.0 2.0

ECA1HM010

2.2 20 0.12 5.0 x 11.0 2.0

ECA1HM2R2

3.3 35 0.12 5.0 x 11.0 2.0

ECA1HM3R3

4.7 45 0.12 5.0 x 11.0 2.0

ECA1HM4R7

10 65 0.12 5.0 x 11.0 2.0

ECA1HM100

22 100 0.12 5.0 x 11.0 2.0

ECA1HM220

33 110 0.12 5.0 x 11.0 2.0

ECA1HM330

47 130 0.12 6.3 x 11.2 2.5

ECA1HM470

100 250 0.12 8.0 x 11.5 3.5

ECA1HM101

220 400 0.12 10.0 x 12.5 5.0

ECA1HM221

330 500 0.12 10.0 x 16.0 5.0

ECA1HM331

470 650 0.12 10.0 x 20.0 5.0

ECA1HM471

1000 1050 0.12 12.5 x 25.0 5.0

ECA1HM102

2200 1300 0.14 16.0 x 31.5 7.5

ECA1HM222

3300 1500 0.16 18.0 x 35.5 7.5

ECA1HM332

63 Volt

10 70 0.11 5.0 x 11.0 2.0

ECA1JM100

22 105 0.11 5.0 x 11.0 2.0

ECA1JM220

33 130 0.11 6.3 x 11.2 2.5

ECA1JM330

47 160 0.11 6.3 x 11.2 2.5

ECA1JM470

100 270 0.11 8.0 x 11.5 3.5

ECA1JM101

220 450 0.11 10.0 x 16.0 5.0

ECA1JM221

330 550 0.11 10.0 x 20.0 5.0

ECA1JM331

470 750 0.11 12.5 x 20.0 5.0

ECA1JM471

1000 1100 0.11 16.0 x 25.0 7.5

ECA1JM102

2200 1400 0.13 18.0 x 35.5 7.5

ECA1JM222

100 Volt

0.47 10 0.10 5.0 x 11.0 2.0

ECA2AMR47

1.0 20 0.10 5.0 x 11.0 2.0

ECA2AM010

2.2 30 0.10 5.0 x 11.0 2.0

ECA2AM2R2

3.3 40 0.10 5.0 x 11.0 2.0

ECA2AM3R3

4.7 50 0.10 5.0 x 11.0 2.0

ECA2AM4R7

10 70 0.10 5.0 x 11.0 2.0

ECA2AM100

22 115 0.10 6.3 x 11.2 2.5

ECA2AM220

33 145 0.10 8.0 x 11.5 3.5

ECA2AM330

47 180 0.10 8.0 x 11.5 3.5

ECA2AM470

100 350 0.10 10.0 x 16.0 5.0

ECA2AM101

220 550 0.10 12.5 x 20.0 5.0

ECA2AM221

330 700 0.10 12.5 x 25.0 5.0

ECA2AM331

470 900 0.10 16.0 x 25.0 7.5

ECA2AM471

1000 1300 0.10 18.0 x 35.5 7.5

ECA2AM102

160 Volt

1.0 36 0.16 6.3 x 11.2 2.5

ECA2CM010

2.2 53 0.16 6.3 x 11.2 2.5

ECA2CM2R2

3.3 66 0.16 6.3 x 11.2 2.5

ECA2CM3R3

4.7 78 0.16 6.3 x 11.2 2.5

ECA2CM4R7

10 105 0.16 10.0 x 12.5 5.0

ECA2CM100

22 175 0.16 10.0 x 16.0 5.0

ECA2CM220

33 235 0.16 10.0 x 20.0 5.0

ECA2CM330

47 320 0.16 12.5 x 20.0 5.0

ECA2CM470

100 515 0.16 12.5 x 25.0 5.0

ECA2CM101

220 830 0.16 16.0 x 31.5 7.5

ECA2CM221

330 1090 0.16 18.0 x 31.5 7.5

ECA2CM331

470 1440 0.16 18.0 x 40.0 7.5

ECA2CM471

Value Ripple Current Tan Dia. x L Pitch

(µF) (mA)

δδ

(mm) (mm) Loose

200 Volt

1.0 34 0.18 6.3 x 11.2 2.5

ECA2DM010

2.2 50 0.18 6.3 x 11.2 2.5

ECA2DM2R2

3.3 62 0.18 6.3 x 11.2 2.5

ECA2DM3R3

4.7 86 0.18 8.0 x 11.5 3.5

ECA2DM4R7

10 100 0.18 10.0 x 12.5 5.0

ECA2DM100

22 180 0.18 10.0 x 20.0 5.0

ECA2DM220

33 220 0.18 10.0 x 20.0 5.0

ECA2DM330

47 300 0.18 12.5 x 20.0 5.0

ECA2DM470

100 475 0.18 16.0 x 25.0 7.5

ECA2DM101

220 835 0.18 18.0 x 31.5 7.5

ECA2DM221

330 1140 0.18 18.0 x 40.0 7.5

ECA2DM331

250 Volt

1.0 34 0.18 6.3 x 11.2 2.5

ECA2EM010

2.2 50 0.18 6.3 x 11.2 2.5

ECA2EM2R2

3.3 72 0.18 8.0 x 11.5 3.5

ECA2EM3R3

4.7 86 0.18 8.0 x 11.5 3.5

ECA2EM4R7

10 110 0.18 10.0 x 16.0 5.0

ECA2EM100

22 180 0.18 10.0 x 20.0 5.0

ECA2EM220

33 250 0.18 12.5 x 20.0 5.0

ECA2EM330

47 330 0.18 12.5 x 25.0 5.0

ECA2EM470

100 530 0.18 16.0 x 31.5 7.5

ECA2EM101

220 930 0.18 18.0 x 40.0 7.5

ECA2EM221

350 Volt

1.0 32 0.20 6.3 x 11.2 2.5

ECA2VM010

2.2 55 0.20 8.0 x 11.5 3.5

ECA2VM2R2

3.3 60 0.20 8.0 x 11.5 3.5

ECA2VM3R3

4.7 65 0.20 10.0 x 12.5 5.0

ECA2VM4R7

10 115 0.20 10.0 x 20.0 5.0

ECA2VM100

22 195 0.20 12.5 x 20.0 5.0

ECA2VM220

33 300 0.20 16.0 x 25.0 7.5

ECA2VM330

47 325 0.20 16.0 x 25.0 7.5

ECA2VM470

100 535 0.20 18.0 x 31.5 7.5

ECA2VM101

400 Volt

1.0 32 0.20 6.3 x 11.2 2.5

ECA2GM010

2.2 50 0.20 8.0 x 11.5 3.5

ECA2GM2R2

3.3 54 0.20 10.0 x 12.5 5.0

ECA2GM3R3

4.7 72 0.20 10.0 x 16.0 5.0

ECA2GM4R7

10 115 0.20 10.0 x 20.0 5.0

ECA2GM100

22 215 0.20 12.5 x 25.0 5.0

ECA2GM220

33 275 0.20 16.0 x 25.0 7.5

ECA2GM330

47 350 0.20 16.0 x 31.5 7.5

ECA2GM470

100 600 0.20 18.0 x 40.0 7.5

ECA2GM101

450 Volt

1.0 37 0.20 8.0 x 11.5 3.5

ECA2WM010

2.2 44 0.20 10.0 x 12.5 5.0

ECA2WM2R2

3.3 60 0.20 10.0 x 16.0 5.0

ECA2WM3R3

4.7 79 0.20 10.0 x 20.0 5.0

ECA2WM4R7

10 130 0.20 12.5 x 20.0 5.0

ECA2WM100

22 210 0.20 16.0 x 25.0 7.5

ECA2WM220

33 285 0.20 16.0 x 31.5 7.5

ECA2WM330

continuation

Page 25

ELECTROLYTIC, Radial, 105°C

+44 (0)1945 47 47 47 www.anglia.com [email protected]

NOVER type RH/RT

NO ER

A range of radial aluminium electrolytic capacitors with an extended upper temperature limit of 105° C. Ideal for equipment running at a high ambient where a greater temperature safety margin and thus improved reliability is required. Endurance test 2000 hours at 105 °C except for 400V RT series parts which are 3000 hours at 105°C. The most popular values are listed below and continued on the following page with other values and voltages being available to order. Supplied loose or taped and boxed.

N High temperature

N Longer life

N Endurance

2000/3000 hours at 105°C

N Solvent resistant

Specification

Conforms to JIS C5141-1982 Char.W

RH/RT

Endurance test

Capacitance tolerance Ripple current (as listed)

Operating temperature range Leakage current

Dimensions (mm)

N Capacitance tolerance 20% N Leakage current ≤0.01CV

N Body colour Light Green/Purple

N Supplied loose or taped & boxed

15 min.

Dia

Vinyl sleeve

Tinned copper-clad steel wire

ød

Pitch

5 min.

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L (2.0 L≥20)

Vent (Dia ≥ 6.3)

ød = 0.5 (Dia ≤6.3)

0.6 (Dia 8–12.5)

0.8 (Dia ≥16)

Rated voltage 6.3V 10V 16V 25V 35V 50V 63V 100V 400V dc

Tan  (max.)* 0.22 0.19 0.16 0.14 0.12 0.10 0.08 0.08 0.25

†

Rated voltage 6.3V 10V 16V 25V 35V 50V 63V 100V 400V dc

Surge voltage 8V 13V 20V 32V 44V 63V 79V 125V 450V dc

*Add 0.02 for every 1000µF above 1000µF

†

RT series 0.20

Dissipation factor (120Hz, 20°C)

Multiplier for ripple current

Surge voltage capability

Frequency coefficient

Rated Voltage

Freq (Hz)

50 120 1k 10k 100k

(V)

Cap (µF)

0.1 ~ 4.7 – 0.4 0.7 0.8 1.0

10 ~ 47 – 0.5 0.8 0.9 1.0

6.3 ~ 100 100 ~ 220 – 0.7 0.9 0.9 1.0

330 ~ 1000 – 0.8 0.9 1.0 1.0

2200 ~ 10000 – 0.9 1.0 1.0 1.0

400 3.3 ~ 47 0.8 1.0 1.3 1.4 1.6

Temperature coefficient

Temperature

(°C)

+70 +85 +105

Rated Voltage (V)

6.3 ~ 100 2.0 1.7 1.0

400 1.8 1.4 1.0

2000 hours at 105°C (400V RT series: 3000 hours at 105°C) ±20% at 120Hz, 20°C measured at 100kHz, 105°C (400V: 120Hz, 105°C)

(see also multiplier table below)

-40°C to +105°C

≤0.01CV or 3µA

(whichever is greater) after 2 min.

Value Ripple Current Dia. x L Pitch Taped &

(µF) (mA) (mm) (mm) Loose Boxed

6.3 Volt

33 105 5.0 x 11.0 2.0(5)

052308 052308T

47 120 5.0 x 11.0 2.0(5)

052309 052309T

100 130 5.0 x 11.0 2.0(5)

052310 052310T

220 180 6.3 x 11.0 2.5(5)

052311 052311T

330 220 8.0 x 11.5 3.5(5)

052312 052312T

470 315 8.0 x 11.5 3.5(5)

052313 052313T

1000 500 10.0 x 12.5 5.0

052314 052314T

2200 1000 12.5 x 20.0 5.0

052315 052315T

3300 1050 12.5 x 25.0 5.0

052316 052316T

4700 1670 16.0 x 25.0 7.5

052317 052317T

6800 1740 16.0 x 31.5 7.5

052318

–

10000 2110 16.0 x 31.5 7.5

052719

–

10000 2110 18.0 x 35.5 7.5

052319

–

10 Volt

22 92 5.0 x 11.0 2.0(5)

052007 052007T

33 105 5.0 x 11.0 2.0(5)

052008 052008T

47 120 5.0 x 11.0 2.0(5)

052009 052009T

100 130 5.0 x 11.0 2.0(5)

052010 052010T

220 220 6.3 x 11.0 2.5(5)

052011 052011T

330 265 8.0 x 11.5 3.5(5)

052412 052412T

330 265 10.0 x 12.5 5.0

052012 052012T

470 315 10.0 x 12.5 5.0

052013 052013T

1000 615 10.0 x 16.0 5.0

052414 052414T

2200 1050 12.5 x 20.0 5.0

052015 052015T

3300 1300 16.0 x 25.0 7.5

052215 052215T

4700 1740 16.0 x 31.5 7.5

052216

–

6800 2110 18.0 x 35.5 7.5

052217

–

16 Volt

10 92 5.0 x 11.0 2.0(5)

052016 052016T

22 105 5.0 x 11.0 2.0(5)

052017 052017T

33 120 5.0 x 11.0 2.0(5)

052018 052018T

47 130 5.0 x 11.0 2.0(5)

052019 052019T

100 220 6.3 x 11.0 2.5(5)

052020 052020T

220 290 8.0 x 11.5 3.5(5)

052021 052021T

330 315 8.0 x 11.5 3.5(5)

052422 052422T

330 315 10.0 x 12.5 5.0

052022 052022T

470 315 10.0 x 12.5 5.0

052023 052023T

1000 825 10.0 x 20.0 5.0

052024 052024T

2200 1300 12.5 x 25.0 5.0

052025 052025T

3300 1740 16.0 x 25.0 7.5

052225 052225T

4700 2110 16.0 x 31.5 7.5

052226

–

25 Volt

10 92 5.0 x 11.0 2.0(5)

052026 052026T

22 105 5.0 x 11.0 2.0(5)

052027 052027T

33 120 5.0 x 11.0 2.0(5)

052028 052028T

47 130 6.3 x 11.0 2.5(5)

052029 052029T

100 220 6.3 x 11.0 2.5(5)

052430 052430T

100 220 8.0 x 11.5 3.5(5)

052030 052030T

220 315 8.0 x 11.5 3.5(5)

052431 052431T

220 315 10.0 x 12.5 5.0

052031 052031T

330 500 10.0 x 12.5 5.0

052032 052032T

470 615 10.0 x 16.0 5.0

052033 052033T

1000 1050 12.5 x 20.0 5.0

052034 052034T

2200 1740 16.0 x 25.0 7.5

052035 052035T

3300 2110 16.0 x 31.5 7.5

052235

–

ORDER CODES

continued > > > >

Page 26

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ELECTROLYTIC, Radial, 105°C

ORDER CODES

continuation

Value Ripple Current Dia. x L Pitch Taped &

(µF) (mA) (mm) (mm) Loose Boxed

35 Volt

4.7 92 5.0 x 11.0 2.0(5)

052236 052236T

10 105 5.0 x 11.0 2.0(5)

052037 052037T

22 120 5.0 x 11.0 2.0(5)

052038 052038T

33 130 6.3 x 11.0 2.5(5)

052039 052039T

47 220 6.3 x 11.0 2.5(5)

052040 052040T

100 315 8.0 x 11.5 3.5(5)

052041 052041T

220 500 10.0 x 12.5 5.0

052042 052042T

330 615 10.0 x 16.0 5.0

052043 052043T

470 825 10.0 x 20.0 5.0

052044 052044T

1000 1300 12.5 x 25.0 5.0

052445 052445T

1000 1300 16.0 x 25.0 7.5

052045 052045T

2200 2110 16.0 x 31.5 7.5

052046

–

50 Volt

0.1 10 5.0 x 11.0 2.0(5)

052112 052112T

0.22 15 5.0 x 11.0 2.0(5)

052113 052113T

0.33 18 5.0 x 11.0 2.0(5)

052114 052114T

0.47 23 5.0 x 11.0 2.0(5)

052115 052115T

1.0 35 5.0 x 11.0 2.0(5)

052048 052048T

2.2 53 5.0 x 11.0 2.0(5)

052049 052049T

3.3 65 5.0 x 11.0 2.0(5)

052116 052116T

4.7 82 5.0 x 11.0 2.0(5)

052050 052050T

10 100 5.0 x 11.0 2.0(5)

052051 052051T

22 125 6.3 x 11.0 2.5(5)

052052 052052T

33 195 6.3 x 11.0 2.5(5)

052053 052053T

47 245 6.3 x 11.0 2.5(5)

052054 052054T

100 385 8.0 x 11.5 3.5(5)

052055 052055T

220 505 10.0 x 16.0 5.0

052056 052056T

330 675 12.5 x 20.0 5.0

052057 052057T

470 895 12.5 x 20.0 5.0

052058 052058T

1000 1495 16.0 x 25.0 7.5

052059 052059T

63 Volt

0.1 10 5.0 x 11.0 2.0(5)

052117 052117T

0.22 15 5.0 x 11.0 2.0(5)

052118 052118T

0.33 18 5.0 x 11.0 2.0(5)

052119 052119T

0.47 23 5.0 x 11.0 2.0(5)

052060 052060T

1.0 35 5.0 x 11.0 2.0(5)

052061 052061T

2.2 53 5.0 x 11.0 2.0(5)

052062 052062T

3.3 65 5.0 x 11.0 2.0(5)

052063 052063T

4.7 74 5.0 x 11.0 2.0(5)

052064 052064T

10 95 5.0 x 11.0 2.0(5)

052465 052465T

10 95 6.3 x 11.0 2.5(5)

052065 052065T

22 130 8.0 x 11.5 3.5(5)

052066 052066T

33 160 8.0 x 11.5 3.5(5)

052067 052067T

47 305 8.0 x 11.5 3.5(5)

052068 052068T

100 395 10.0 x 12.5 5.0

052069 052069T

220 505 10.0 x 20.0 5.0

052070 052070T

330 660 12.5 x 25.0 5.0

052071 052071T

470 850 12.5 x 25.0 5.0

052520 052520T

470 1250 16.0 x 25.0 7.5

052120 052120T

Value Ripple Current Dia. x L Pitch Taped &

(µF) (mA) (mm) (mm) Loose Boxed

100 Volt

0.47 30 5.0 x 11.0 2.0(5)

052072 052072T

1.0 45 5.0 x 11.0 2.0(5)

052073 052073T

2.2 60 5.0 x 11.0 2.0(5)

052074 052074T

3.3 67 5.0 x 11.0 2.0(5)

052075 052075T

4.7 75 5.0 x 11.0 2.0(5)

052076 052076T

10 110 6.3 x 11.0 2.5(5)

052077 052077T

22 165 8.0 x 11.5 3.5(5)

052078 052078T

33 305 10.0 x 12.5 5.0

052079 052079T

47 320 10.0 x 16.0 5.0

052080 052080T

100 585 12.5 x 20.0 5.0

052081 052081T

220 1120 16.0 x 25.0 7.5

052082 052082T

330 1290 16.0 x 25.0 7.5

052083 052083T

470 1350 16.0 x 31.5 7.5

052084

–

400 Volt

3.3 29 8.0 x 11.5 3.5(5)

052148 052148T

4.7 36 8.0 x 11.5 3.5(5)

052149 052149T

10 62 10.0 x 16.0 5.0

052150 052150T

22 132 12.5 x 20.0 5.0

052151 052151T

33 174 12.5 x 25.0 5.0

052152 052152T

47 212 16.0 x 25.0 7.5

052153 052153T

400 Volt 3000 hour endurance at 105°C (RT series)

4.7 52 10.0 x 16.0 5.0

052250 052250T

10 79 10.0 x 20.0 5.0

052251 052251T

22 140 12.5 x 25.0 5.0

052252 052252T

33 186 16.0 x 25.0 7.5

052253 052253T

47 238 16.0 x 31.5 7.5

052254

–

(5) Leads pre-formed to 5mm pitch on taped part

Other values and higher voltages are available to order. Please contact our Sales Desk for details.

Page 27

ELECTROLYTIC, Radial, 105°C

+44 (0)1945 47 47 47 www.anglia.com [email protected]

PANASONIC NHG Series, type A

A range of radial aluminium electrolytic capacitors with an extended upper temperature limit of 105°C. Ideal for equipment running at a high ambient where a greater temperature safety margin and thus improved reliability is required. Endurance test 1000/2000 hours at 105°C. The entire range of values and voltages manufactured are listed below and continued on the following page. Supplied loose, with taped and boxed product available to order (see details below).

N High temperature

N Longer life

N Endurance 1000/2000 hours at 105°C

Specification

NHG (A)

Endurance test (at 105°C)

Capacitance tolerance Ripple current (as listed) Tan (as listed) Operating temperature range Leakage current (after 2 min.)

6.3 to 100V = 1000 hours (Dia ≤8), 2000 hours (Dia ≥10), 160 to 450V = 2000 hours ±20% at 120Hz, 20°C measured at 120Hz, 105°C measured at 120Hz, 20°C

6.3 to 100V, -55°C to +105°C 160 to 450V, -25°C to 105°C ≤0.01CV or 3µA ≤0.06CV +10µA (whichever is greater)

Dimensions (mm)

N Capacitance tolerance 20% N Leakage current ≤0.01CV

N Supplied loose

ORDER CODES

Value Ripple Current Tan Dia. x L Pitch

(µF) (mA)

δδ

(mm) (mm) Loose

6.3 Volt

220 140 0.28 5.0 x 11.0 2.0

ECA0JHG221

470 230 0.28 6.3 x 11.2 2.5

ECA0JHG471

1000 380 0.28 8.0 x 11.5 3.5

ECA0JHG102

2200 710 0.30 10.0 x 16.0 5.0

ECA0JHG222

3300 840 0.32 10.0 x 20.0 5.0

ECA0JHG332

4700 1090 0.34 12.5 x 20.0 5.0

ECA0JHG472

6800 1350 0.38 12.5 x 25.0 5.0

ECA0JHG682

10000 1650 0.46 16.0 x 25.0 7.5

ECA0JHG103

15000 2010 0.56 16.0 x 31.5 7.5

ECA0JHG153

22000 2350 0.70 18.0 x 35.5 7.5

ECA0JHG223

10 Volt

330 200 0.24 6.3 x 11.2 2.5

ECA1AHG331

470 250 0.24 8.0 x 11.5 3.5

ECA1AHG471

1000 460 0.24 10.0 x 12.5 5.0

ECA1AHG102

2200 760 0.26 10.0 x 20.0 5.0

ECA1AHG222

3300 1000 0.28 12.5 x 20.0 5.0

ECA1AHG332

4700 1260 0.30 12.5 x 25.0 5.0

ECA1AHG472

6800 1570 0.34 16.0 x 25.0 7.5

ECA1AHG682

10000 1890 0.42 16.0 x 31.5 7.5

ECA1AHG103

15000 2180 0.52 18.0 x 35.5 7.5

ECA1AHG153

16 Volt

100 110 0.20 5.0 x 11.0 2.0

ECA1CHG101

220 180 0.20 6.3 x 11.2 2.5

ECA1CHG221

330 260 0.20 8.0 x 11.5 3.5

ECA1CHG331

470 310 0.20 8.0 x 11.5 3.5

ECA1CHG471

1000 560 0.20 10.0 x 16.0 5.0

ECA1CHG102

2200 920 0.22 12.5 x 20.0 5.0

ECA1CHG222

3300 1170 0.24 12.5 x 25.0 5.0

ECA1CHG332

4700 1480 0.26 16.0 x 25.0 7.5

ECA1CHG472

6800 1780 0.30 16.0 x 31.5 7.5

ECA1CHG682

10000 2060 0.38 18.0 x 35.5 7.5

ECA1CHG103

25 Volt

47 91 0.16 5.0 x 11.0 2.0

ECA1EHG470

100 130 0.16 6.3 x 11.2 2.5

ECA1EHG101

220 230 0.16 8.0 x 11.5 3.5

ECA1EHG221

330 310 0.16 8.0 x 11.5 3.5

ECA1EHG331

470 380 0.16 10.0 x 12.5 5.0

ECA1EHG471

1000 680 0.16 10.0 x 20.0 5.0

ECA1EHG102

2200 1090 0.18 12.5 x 25.0 5.0

ECA1EHG222

3300 1400 0.20 16.0 x 25.0 7.5

ECA1EHG332

4700 1750 0.22 16.0 x 31.5 7.5

ECA1EHG472

6800 2040 0.26 18.0 x 35.5 7.5

ECA1EHG682

35 Volt

47 90 0.14 5.0 x 11.0 2.0

ECA1VHG470

100 150 0.14 6.3 x 11.2 2.5

ECA1VHG101

220 270 0.14 8.0 x 11.5 3.5

ECA1VHG221

330 350 0.14 10.0 x 12.5 5.0

ECA1VHG331

470 460 0.14 10.0 x 16.0 5.0

ECA1VHG471

1000 810 0.14 12.5 x 20.0 5.0

ECA1VHG102

2200 1260 0.16 16.0 x 25.0 7.5

ECA1VHG222

3300 1610 0.18 16.0 x 31.5 7.5

ECA1VHG332

4700 1910 0.20 18.0 x 35.5 7.5

ECA1VHG472

Frequency correction factor for ripple current

Rated

Cap. (µF)

Frequency (Hz)

Voltage (V)

60 120 1k 10k 100k

0.1 to 33 0.75 1.0 1.55 1.80 2.00

6.3 to 100 47 to 470 0.80 1.0 1.35 1.50 1.50 1000 to 22000 0.85 1.0 1.10 1.15 1.15

160 to 450 1 to 330 0.80 1.0 1.35 1.50 1.50

continued > > > >

Order codes listed apply to loose

product with straight leads.

Taped & boxed product is also available,

please contact our Sales Desk for details.

Vent (Dia ≥ 6.3)

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L (2.0 L≥20)

Vinyl sleeve

ød

Dia

14 min.

Tinned copper-clad steel wire

Pitch

ød = 0.5 (Dia ≤6.3)

3 min.

0.6 (Dia 8 – 12.5)

0.8 (Dia ≥16)

Page 28

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ELECTROLYTIC, Radial, 105°C

ORDER CODES

Value Ripple Current Tan Dia. x L Pitch

(µF) (mA)

δδ

(mm) (mm) Loose

50 Volt

0.1 1.1 0.12 5.0 x 11.0 2.0

ECA1HHG0R1

0.22 2.3 0.12 5.0 x 11.0 2.0

ECA1HHGR22

0.33 3.5 0.12 5.0 x 11.0 2.0

ECA1HHGR33

0.47 5 0.12 5.0 x 11.0 2.0

ECA1HHGR47

1.0 10 0.12 5.0 x 11.0 2.0

ECA1HHG010

2.2 18 0.12 5.0 x 11.0 2.0

ECA1HHG2R2

3.3 22 0.12 5.0 x 11.0 2.0

ECA1HHG3R3

4.7 26 0.12 5.0 x 11.0 2.0

ECA1HHG4R7

10 39 0.12 5.0 x 11.0 2.0

ECA1HHG100

22 65 0.12 5.0 x 11.0 2.0

ECA1HHG220

33 90 0.12 5.0 x 11.0 2.0

ECA1HHG330

47 110 0.12 6.3 x 11.2 2.5

ECA1HHG470

100 180 0.12 8.0 x 11.5 3.5

ECA1HHG101

220 300 0.12 10.0 x 12.5 5.0

ECA1HHG221

330 410 0.12 10.0 x 16.0 5.0

ECA1HHG331

470 530 0.12 10.0 x 20.0 5.0

ECA1HHG471

1000 950 0.12 12.5 x 25.0 5.0

ECA1HHG102

2200 1470 0.14 16.0 x 31.5 7.5

ECA1HHG222

3300 1770 0.16 18.0 x 35.5 7.5

ECA1HHG332

63 Volt

10 46 0.10 5.0 x 11.0 2.0

ECA1JHG100

22 71 0.10 5.0 x 11.0 2.0

ECA1JHG220

33 100 0.10 6.3 x 11.2 2.5

ECA1JHG330

47 120 0.10 6.3 x 11.2 2.5

ECA1JHG470

100 215 0.10 10.0 x 12.5 5.0

ECA1JHG101

220 335 0.10 10.0 x 16.0 5.0

ECA1JHG221

330 510 0.10 10.0 x 20.0 5.0

ECA1JHG331

470 640 0.10 12.5 x 20.0 5.0

ECA1JHG471

1000 930 0.10 16.0 x 25.0 7.5

ECA1JHG102

2200 1610 0.12 18.0 x 35.5 7.5

ECA1JHG222

100 Volt

0.47 9 0.08 5.0 x 11.0 2.0

ECA2AHGR47

1.0 14 0.08 5.0 x 11.0 2.0

ECA2AHG010

2.2 21 0.08 5.0 x 11.0 2.0

ECA2AHG2R2

3.3 31 0.08 5.0 x 11.0 2.0

ECA2AHG3R3

4.7 38 0.08 5.0 x 11.0 2.0

ECA2AHG4R7

10 54 0.08 6.3 x 11.2 2.5

ECA2AHG100

22 93 0.08 6.3 x 11.2 2.5

ECA2AHG220

33 130 0.08 8.0 x 11.5 3.5

ECA2AHG330

47 165 0.08 10.0 x 12.5 5.0

ECA2AHG470

100 265 0.08 10.0 x 20.0 5.0

ECA2AHG101

220 440 0.08 12.5 x 25.0 5.0

ECA2AHG221

330 540 0.08 16.0 x 25.0 7.5

ECA2AHG331

470 715 0.08 16.0 x 25.0 7.5

ECA2AHG471

1000 985 0.08 18.0 x 35.5 7.5

ECA2AHG102

160 Volt

1.0 17 0.15 6.3 x 11.2 2.5

ECA2CHG010

2.2 25 0.15 6.3 x 11.2 2.5

ECA2CHG2R2

3.3 36 0.15 6.3 x 11.2 2.5

ECA2CHG3R3

4.7 43 0.15 6.3 x 11.2 2.5

ECA2CHG4R7

10 70 0.15 10.0 x 12.5 5.0

ECA2CHG100

22 130 0.15 10.0 x 20.0 5.0

ECA2CHG220

33 180 0.15 10.0 x 20.0 5.0

ECA2CHG330

47 220 0.15 12.5 x 20.0 5.0

ECA2CHG470

100 335 0.15 16.0 x 25.0 7.5

ECA2CHG101

220 540 0.15 16.0 x 31.5 7.5

ECA2CHG221

330 705 0.15 18.0 x 31.5 7.5

ECA2CHG331

Value Ripple Current Tan Dia. x L Pitch

(µF) (mA)

δδ

(mm) (mm) Loose

200 Volt

1.0 17 0.15 6.3 x 11.2 2.5

ECA2DHG010

2.2 25 0.15 6.3 x 11.2 2.5

ECA2DHG2R2

3.3 36 0.15 6.3 x 11.2 2.5

ECA2DHG3R3

4.7 50 0.15 8.0 x 11.5 3.5

ECA2DHG4R7

10 80 0.15 10.0 x 16.0 5.0

ECA2DHG100

22 140 0.15 10.0 x 20.0 5.0

ECA2DHG220

33 190 0.15 12.5 x 20.0 5.0

ECA2DHG330

47 220 0.15 12.5 x 20.0 5.0

ECA2DHG470

100 335 0.15 16.0 x 25.0 7.5

ECA2DHG101

220 575 0.15 18.0 x 31.5 7.5

ECA2DHG221

250 Volt

1.0 17 0.15 6.3 x 11.2 2.5

ECA2EHG010

2.2 29 0.15 6.3 x 11.2 2.5

ECA2EHG2R2

3.3 42 0.15 8.0 x 11.5 3.5

ECA2EHG3R3

4.7 50 0.15 8.0 x 11.5 3.5

ECA2EHG4R7

10 88 0.15 10.0 x 16.0 5.0

ECA2EHG100

22 155 0.15 12.5 x 20.0 5.0

ECA2EHG220

33 190 0.15 12.5 x 20.0 5.0

ECA2EHG330

47 230 0.15 12.5 x 25.0 5.0

ECA2EHG470

100 365 0.15 16.0 x 31.5 7.5

ECA2EHG101

350 Volt

1.0 18 0.20 6.3 x 11.2 2.5

ECA2VHG010

2.2 31 0.20 8.0 x 11.5 3.5

ECA2VHG2R2

3.3 38 0.20 10.0 x 12.5 5.0

ECA2VHG3R3

4.7 50 0.20 10.0 x 16.0 5.0

ECA2VHG4R7

10 82 0.20 10.0 x 20.0 5.0

ECA2VHG100

22 130 0.20 12.5 x 20.0 5.0

ECA2VHG220

33 195 0.20 16.0 x 25.0 7.5

ECA2VHG330

47 230 0.20 16.0 x 25.0 7.5

ECA2VHG470

100 375 0.20 18.0 x 31.5 7.5

ECA2VHG101

400 Volt

1.0 18 0.24 6.3 x 11.2 2.5

ECA2GHG010

2.2 30 0.24 8.0 x 11.5 3.5

ECA2GHG2R2

3.3 40 0.24 10.0 x 12.5 5.0

ECA2GHG3R3

4.7 50 0.24 10.0 x 16.0 5.0

ECA2GHG4R7

10 80 0.24 10.0 x 20.0 5.0

ECA2GHG100

22 145 0.24 12.5 x 25.0 5.0

ECA2GHG220

33 195 0.24 16.0 x 25.0 7.5

ECA2GHG330

47 250 0.24 16.0 x 31.5 7.5

ECA2GHG470

450 Volt

1.0 18 0.24 8.0 x 11.5 3.5

ECA2WHG010

2.2 29 0.24 10.0 x 12.5 5.0

ECA2WHG2R2

3.3 41 0.24 10.0 x 16.0 5.0

ECA2WHG3R3

4.7 49 0.24 10.0 x 20.0 5.0

ECA2WHG4R7

10 75 0.24 12.5 x 20.0 5.0

ECA2WHG100

22 115 0.24 16.0 x 25.0 7.5

ECA2WHG220

33 155 0.24 16.0 x 31.5 7.5

ECA2WHG330

continuation

Page 29

(5) Leads pre-formed to 5mm pitch on taped part

ELECTROLYTIC, Radial, Sub-miniature

+44 (0)1945 47 47 47 www.anglia.com [email protected]

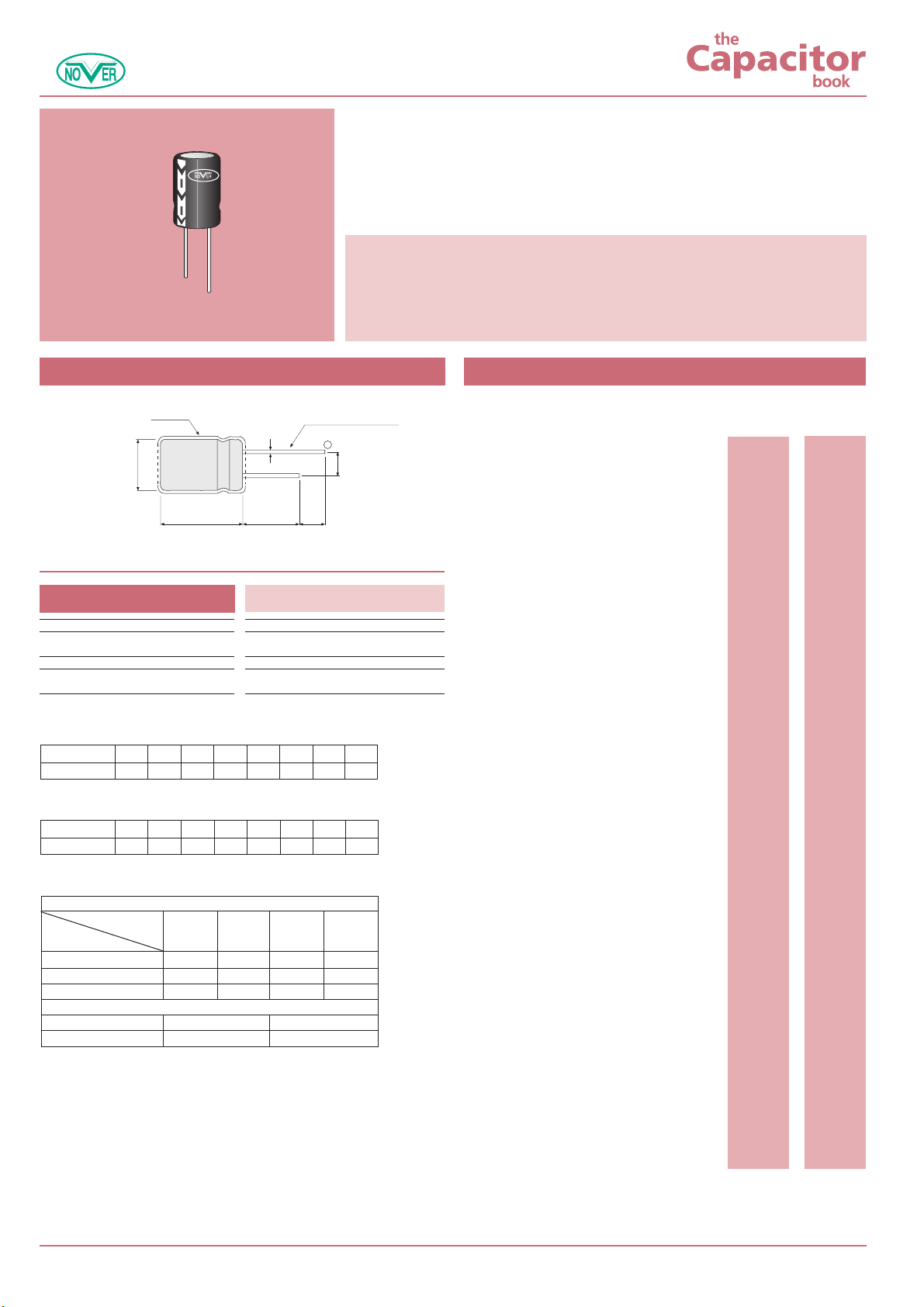

NOVER type R7

A range of sub-miniature, radial aluminium electrolytic capacitors all with a 7mm can height. Ideal in applications where space is at a premium. The entire range of values and voltages manufactured are listed below and supplied loose or taped and boxed.

N Low profile 7mm height

N Solvent resistant

N Maximum temperature 85°C

N Capacitance tolerance 20%

Specification

Conforms to JIS C5141-1982 Char.W

Capacitance tolerance Ripple current (as listed)

Operating temperature range Leakage current

Dimensions (mm)

N Leakage current ≤0.01CV

N Body colour Black

N Supplied loose or taped & boxed

15 min.

L(7)

Dia

Vinyl sleeve

Tinned copper-clad steel wire

ø0.45

Pitch

5 min.

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L

±20% at 120Hz, 20°C measured at 120Hz, 85°C (see also multiplier table below)

-40°C to +85°C

≤0.01CV or 3µA

(whichever is greater) after 2 min.

Rated voltage 6.3V 10V 16V 25V 35V 50V 63V dc

Tan  (max) 0.24 0.20 0.16 0.14 0.12 0.10 0.08

Rated voltage 6.3V 10V 16V 25V 35V 50V 63V dc

Surge voltage 8V 13V 20V 32V 44V 63V 79V dc

Dissipation factor (120Hz, 20°C)

Surge voltage capability

Multiplier for ripple current

Frequency coefficient

Freq (Hz)

50/60 120 1k 10 ~ 100k

Rated Voltage (V)

6.3 ~ 16 0.8 1.0 1.1 1.2

25 ~ 35 0.8 1.0 1.5 1.7

50 ~ 63 0.8 1.0 1.6 1.9

Temperature coefficient

Temperature (°C) +70 +85

Factor 1.35 1.0

Value Ripple Current Dia. x L Pitch Taped &

(µF) (mA) (mm) (mm) Loose Boxed

6.3 Volt

22 35 4.0 x 7.0 1.5(5)

056001 056001T

33 40 4.0 x 7.0 1.5(5)

056002 056002T

47 50 4.0 x 7.0 1.5(5)

056403 056403T

47 50 5.0 x 7.0 2.0(5)

056003 056003T

100 80 5.0 x 7.0 2.0(5)

056404 056404T

100 80 6.3 x 7.0 2.5(5)

056004 056004T

220 140 6.3 x 7.0 2.5(5)

056005 056005T

10 Volt

22 35 4.0 x 7.0 1.5(5)

056411 056411T

22 35 5.0 x 7.0 2.0(5)

056011 056011T

33 45 4.0 x 7.0 1.5(5)

056412 056412T

33 45 5.0 x 7.0 2.0(5)

056012 056012T

47 60 5.0 x 7.0 2.0(5)

056413 056413T

47 60 6.3 x 7.0 2.5(5)

056013 056013T

100 105 6.3 x 7.0 2.5(5)

056014 056014T

16 Volt

3.3 20 4.0 x 7.0 1.5(5)

056019 056019T

10 25 4.0 x 7.0 1.5(5)

056021 056021T

22 40 4.0 x 7.0 1.5(5)

056422 056422T

22 40 5.0 x 7.0 2.0(5)

056022 056022T

33 55 5.0 x 7.0 2.0(5)

056023 056023T

47 70 5.0 x 7.0 2.0(5)

056424 056424T

47 70 6.3 x 7.0 2.5(5)

056024 056024T

100 120 6.3 x 7.0 2.5(5)

056025 056025T

25 Volt

10 25 4.0 x 7.0 1.5(5)

056431 056431T

10 30 5.0 x 7.0 2.0(5)

056031 056031T

22 50 5.0 x 7.0 2.0(5)

056432 056432T

22 50 6.3 x 7.0 2.5(5)

056032 056032T

33 70 6.3 x 7.0 2.5(5)

056033 056033T

35 Volt

4.7 20 4.0 x 7.0 1.5(5)

056034 056034T

10 30 5.0 x 7.0 2.0(5)

056035 056035T

22 55 6.3 x 7.0 2.5(5)

056036 056036T

50 Volt

1.0 10 4.0 x 7.0 1.5(5)

056055 056055T

2.2 15 4.0 x 7.0 1.5(5)

056056 056056T

3.3 20 4.0 x 7.0 1.5(5)

056057 056057T

4.7 24 4.0 x 7.0 1.5(5)

056444 056444T

4.7 24 5.0 x 7.0 2.0(5)

056044 056044T

10 40 6.3 x 7.0 2.5(5)

056045 056045T

63 Volt

0.1 5 4.0 x 7.0 1.5(5)

056037 056037T

0.22 8 4.0 x 7.0 1.5(5)

056038 056038T

0.33 10 4.0 x 7.0 1.5(5)

056039 056039T

0.47 10 4.0 x 7.0 1.5(5)

056040 056040T

1.0 15 4.0 x 7.0 1.5(5)

056041 056041T

2.2 20 4.0 x 7.0 1.5(5)

056042 056042T

4.7 30 5.0 x 7.0 2.0(5)

056058 056058T

ORDER CODES

Page 30

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ELECTROLYTIC, Radial, Sub-miniature, 105°C

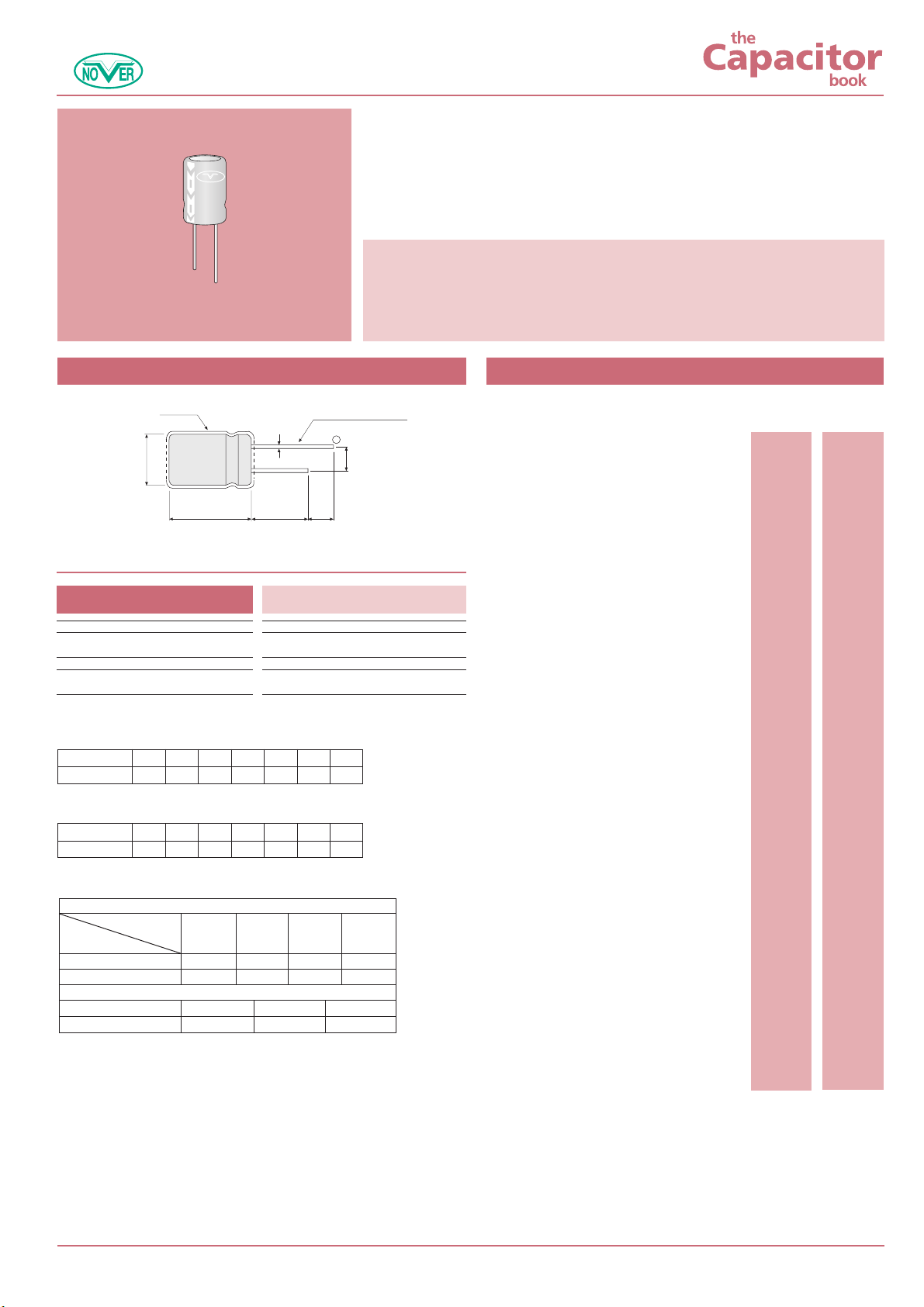

NOVER type RJ

A range of sub-miniature, radial aluminium electrolytic capacitors all with a 7mm can height and an extended upper temperature limit of 105°C. Ideal in applications where space is at a premium and a greater temperature safety margin is required. The entire range of values and voltages manufactured are listed below and supplied loose or taped and boxed.

N Low profile 7mm height

N High temperature 105°C

N Solvent resistant

N Capacitance tolerance 20%

Specification

Capacitance tolerance Ripple current (as listed)

Operating temperature range Leakage current

±20% at 120Hz, 20°C measured at 120Hz, 105°C (see also multiplier table below)

-40°C to +105°C ≤0.01CV or 3µA (whichever is greater) after 2 min.

Dimensions (mm)

N Leakage current ≤0.01CV

N Body colour Yellow

N Supplied loose or taped & boxed

15 min.

L(7)

Dia

Vinyl sleeve

Tinned copper-clad steel wire

ø0.45

Pitch

5 min.

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L

Conforms to JIS C5141-1982 Char.W

Rated voltage 6.3V 10V 16V 25V 35V 50V dc

Tan  (max) 0.24 0.20 0.16 0.14 0.12 0.10

Rated voltage 6.3V 10V 16V 25V 35V 50V dc

Surge voltage 8V 13V 20V 32V 44V 63V dc

Dissipation factor (120Hz, 20°C)

Surge voltage capability

Multiplier for ripple current

Frequency coefficient

Freq (Hz)

50/60 120 1k 10 ~ 100k

Cap (µF)

0.1 ~ 47 0.8 1.0 1.3 1.5

100 ~ 220 0.8 1.0 1.1 1.2

Temperature coefficient

Temperature (°C) +70 +85 +105

Factor 2.0 1.7 1.0

Value Ripple Current Dia. x L Pitch Taped &

(µF) (mA) (mm) (mm) Loose Boxed

6.3 Volt

22 42 4.0 x 7.0 1.5(5)

057001 057001T

33 50 4.0 x 7.0 1.5(5)

057402 057402T

33 53 5.0 x 7.0 2.0(5)

057002 057002T

47 64 5.0 x 7.0 2.0(5)

057003 057003T

100 89 5.0 x 7.0 2.0(5)

057404 057404T

100 96 6.3 x 7.0 2.5(5)

057004 057004T

220 122 6.3 x 7.0 2.5(5)

057005 057005T

10 Volt

22 46 4.0 x 7.0 1.5(5)

057411 057411T

22 49 5.0 x 7.0 2.0(5)

057011 057011T

33 60 5.0 x 7.0 2.0(5)

057012 057012T

47 89 5.0 x 7.0 2.0(5)

057413 057413T

47 95 6.3 x 7.0 2.5(5)

057013 057013T

100 116 6.3 x 7.0 2.5(5)

057014 057014T

16 Volt

10 39 4.0 x 7.0 1.5(5)

057021 057021T

22 46 4.0 x 7.0 1.5(5)

057422 057422T

22 49 5.0 x 7.0 2.0(5)

057022 057022T

33 78 5.0 x 7.0 2.0(5)

057423 057423T

33 83 6.3 x 7.0 2.5(5)

057023 057023T

47 89 5.0 x 7.0 2.0(5)

057424 057424T

47 95 6.3 x 7.0 2.5(5)

057024 057024T

100 116 6.3 x 7.0 2.5(5)

057025 057025T

25 Volt

10 30 4.0 x 7.0 1.5(5)

057431 057431T

10 47 5.0 x 7.0 2.0(5)

057031 057031T

22 82 5.0 x 7.0 2.0(5)

057432 057432T

22 87 6.3 x 7.0 2.5(5)

057032 057032T

33 90 6.3 x 7.0 2.5(5)

057033 057033T

35 Volt

4.7 25 4.0 x 7.0 1.5(5)

057034 057034T

10 45 4.0 x 7.0 1.5(5)

057435 057435T

10 48 5.0 x 7.0 2.0(5)

057035 057035T

22 90 6.3 x 7.0 2.5(5)

057036 057036T

50 Volt

0.1 5 4.0 x 7.0 1.5(5)

057051 057051T

0.22 8 4.0 x 7.0 1.5(5)

057052 057052T

0.33 10 4.0 x 7.0 1.5(5)

057053 057053T

0.47 12 4.0 x 7.0 1.5(5)

057054 057054T

1.0 16 4.0 x 7.0 1.5(5)

057055 057055T

2.2 25 4.0 x 7.0 1.5(5)

057056 057056T

3.3 28 4.0 x 7.0 1.5(5)

057057 057057T

4.7 48 5.0 x 7.0 2.0(5)

057044 057044T

10 75 6.3 x 7.0 2.5(5)

057045 057045T

(5) Leads pre-formed to 5mm pitch on taped part

ORDER CODES

NO ER

Page 31

ELECTROLYTIC, Radial, Ultra-miniature

+44 (0)1945 47 47 47 www.anglia.com [email protected]

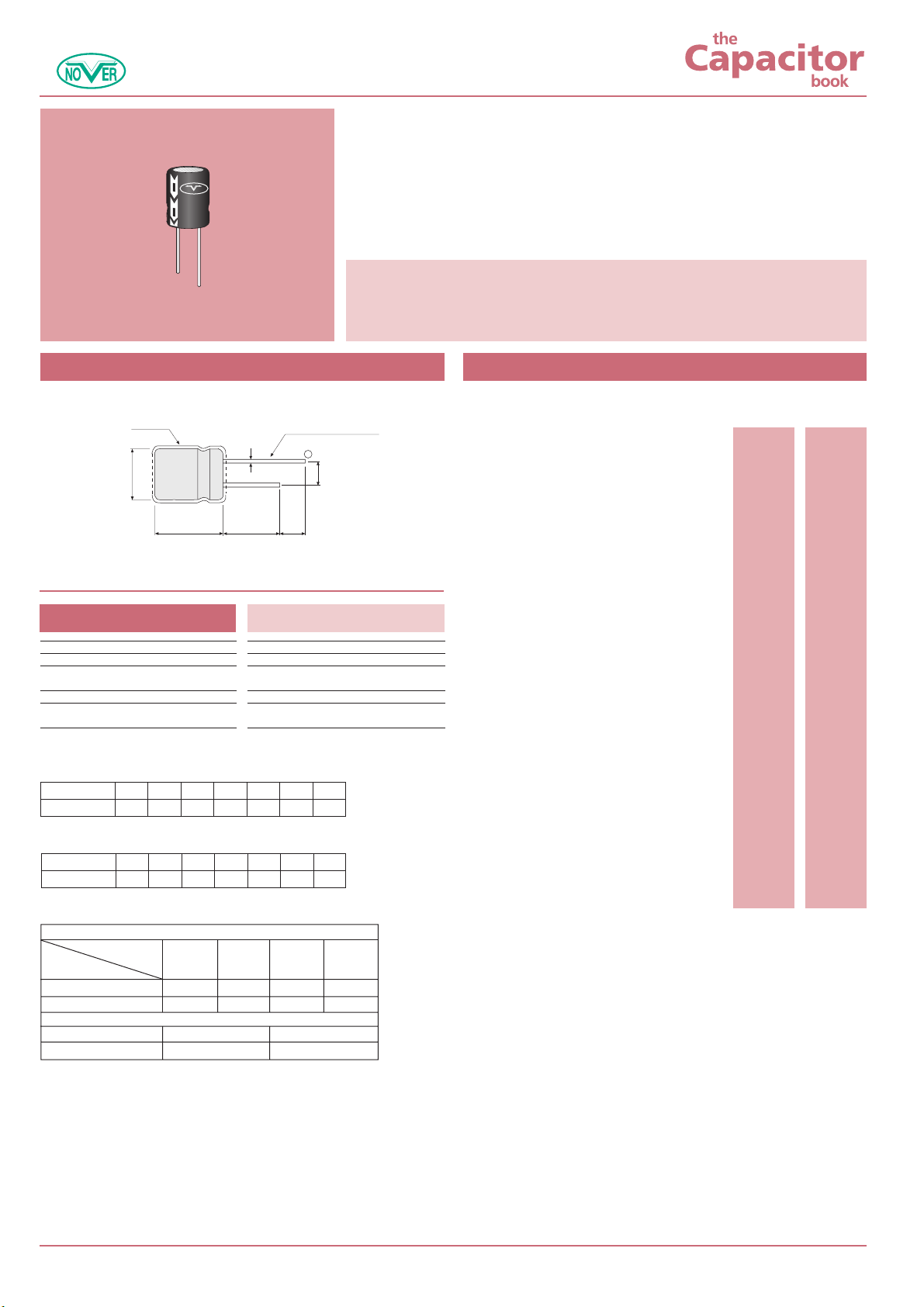

NOVER type R5

NO ER

A range of ultra-miniature radial aluminium electrolytic capacitors evolving from the advanced features of the R7 series and offering a very low profile of only 5mm. The entire range of values and voltages manufactured are listed below and supplied loose or taped and boxed.

N Very low profile 5mm height

N Solvent resistant

N Capacitance tolerance 20%

Specification

Endurance test Capacitance tolerance Ripple current (as listed)

Operating temperature range Leakage current

1000 hours at 85°C ±20% at 120Hz, 20°C measured at 120Hz, 85°C (see also multiplier table below)

-40°C to +85°C ≤0.01CV or 3µA (whichever is greater) after 2 min.

Dimensions (mm)

N Leakage current ≤0.01CV

N Body Colour Indigo

N Supplied loose or taped & boxed

15 min.

L(5)

Dia

Vinyl sleeve

Tinned copper-clad steel wire

ø0.45

Pitch

5 min.

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L

Conforms to JIS C5141-1982 Char.W

Value Ripple Current Dia. x L Pitch Taped &

(µF) (mA) (mm) (mm) Loose Boxed

6.3 Volt

22 22 4.0 x 5.0 1.5(5)

063001 063001T

33 34 5.0 x 5.0 2.0(5)

063002 063002T

47 37 5.0 x 5.0 2.0(5)

063003 063003T

100 62 6.3 x 5.0 2.5(5)

063004 063004T

10 Volt

10 16 4.0 x 5.0 1.5(5)

063010 063010T

22 28 4.0 x 5.0 1.5(5)

063411 063411T

33 45 5.0 x 5.0 2.0(5)

063012 063012T

47 48 5.0 x 5.0 2.0(5)

063413 063413T

16 Volt

4.7 11 4.0 x 5.0 1.5(5)

063020 063020T

10 18 4.0 x 5.0 1.5(5)

063021 063021T

22 35 5.0 x 5.0 2.0(5)

063022 063022T

33 48 5.0 x 5.0 2.0(5)

063423 063423T

47 65 6.3 x 5.0 2.5(5)

063024 063024T

25 Volt

4.7 13 4.0 x 5.0 1.5(5)

063030 063030T

10 25 4.0 x 5.0 1.5(5)

063431 063431T

22 43 5.0 x 5.0 2.0(5)

063432 063432T

33 54 6.3 x 5.0 2.5(5)

063033 063033T

35 Volt

3.3 12 4.0 x 5.0 1.5(5)

063049 063049T

4.7 14 4.0 x 5.0 1.5(5)

063034 063034T

10 27 5.0 x 5.0 2.0(5)

063035 063035T

22 46 6.3 x 5.0 2.5(5)

063036 063036T

50 Volt

0.1 1 4.0 x 5.0 1.5(5)

063051 063051T

0.22 1.5 4.0 x 5.0 1.5(5)

063052 063052T

0.33 2.5 4.0 x 5.0 1.5(5)

063053 063053T

0.47 4 4.0 x 5.0 1.5(5)

063054 063054T

1.0 6 4.0 x 5.0 1.5(5)

063055 063055T

2.2 7 4.0 x 5.0 1.5(5)

063056 063056T

3.3 13 4.0 x 5.0 1.5(5)

063057 063057T

4.7 20 5.0 x 5.0 2.0(5)

063044 063044T

10 31 6.3 x 5.0 2.5(5)

063045 063045T

ORDER CODES

Rated voltage 6.3V 10V 16V 25V 35V 50V dc

Tan  (max) 0.26 0.22 0.18 0.14 0.12 0.10

Rated voltage 6.3V 10V 16V 25V 35V 50V dc

Surge voltage 8V 13V 20V 32V 44V 63V dc

Dissipation factor (120Hz, 20°C)

Surge voltage capability

Multiplier for ripple current

Frequency coefficient

Freq (Hz)

50/60 120 1k 10 ~ 100k

Cap (µF)

0.1 ~ 47 0.8 1.0 1.3 1.5

100 0.8 1.0 1.15 1.2

Temperature coefficient

Temperature (°C) +70 +85

Factor 1.35 1.0

(5) Leads pre-formed to 5mm pitch on taped part

Page 32

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ELECTROLYTIC, Radial, Ultra-Miniature

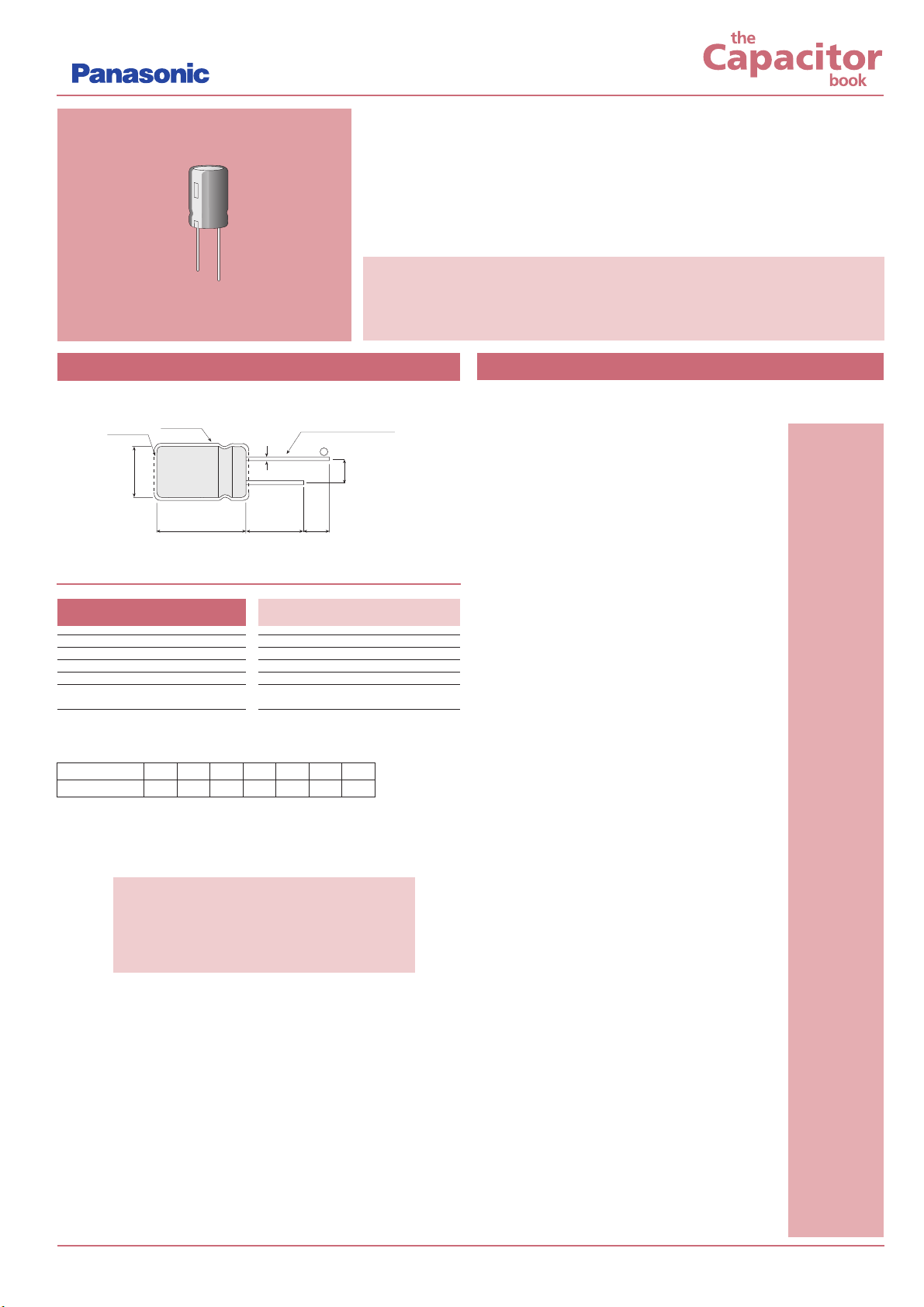

PANASONIC KS Series, type A

A range of ultra-miniature radial aluminium electrolytic capacitors offering a very low profile of only 5mm. The entire range of values and voltages manufactured are listed below and supplied loose, with taped and boxed product available to order (see details below).

N Very low profile 5mm height

N High quality

N Capacitance tolerance 20%

Specification

KS (A)

Endurance test Capacitance tolerance Ripple current (as listed) Operating temperature range Leakage current

1000 hours at 85°C ±20% at 120Hz, 20°C measured at 120Hz, 85°C

-40°C to +85°C ≤0.01CV or 3µA (whichever is greater) after 2 min.

Dimensions (mm)

N Leakage current ≤0.01CV

N Supplied loose

ORDER CODES

Value Ripple Current Dia. x L Pitch

(µF) (mA) (mm) (mm) Loose

4 Volt

22 19 3.0 x 5.0 1.0

ECEA0GKK220

33 26 4.0 x 5.0 1.5

ECEA0GKS330

47 34 4.0 x 5.0 1.5

ECEA0GKS470

100 61 5.0 x 5.0 2.0

ECEA0GKS101

220 82 6.3 x 5.0 2.5

ECEA0GKS221

6.3 Volt

22 29 4.0 x 5.0 1.5

ECEA0JKS220

33 38 5.0 x 5.0 2.0

ECEA0JKS330

47 46 5.0 x 5.0 2.0

ECEA0JKS470

100 71 6.3 x 5.0 2.5

ECEA0JKS101

330 130 8.0 x 5.0 2.5

ECEA0JKS331

330 130 8.0 x 5.0 5.0

ECEA0JKS331Q

10 Volt

22 35 5.0 x 5.0 2.0

ECEA1AKS220

33 43 5.0 x 5.0 2.0

ECEA1AKS330

47 65 6.3 x 5.0 2.5

ECEA1AKS470

100 80 6.3 x 5.0 2.5

ECEA1AKS101

220 120 8.0 x 5.0 2.5

ECEA1AKS221

220 120 8.0 x 5.0 5.0

ECEA1AKS221Q

16 Volt

10 20 3.0 x 5.0 1.0

ECEA1CKK100

10 28 4.0 x 5.0 1.5

ECEA1CKS100

22 39 5.0 x 5.0 2.0

ECEA1CKS220

33 60 6.3 x 5.0 2.5

ECEA1CKS330

47 70 6.3 x 5.0 2.5

ECEA1CKS470

100 91 8.0 x 5.0 2.5

ECEA1CKS101

100 91 8.0 x 5.0 5.0

ECEA1CKS101Q

25 Volt

2.2 8 3.0 x 5.0 1.0

ECEA1EKK2R2

3.3 10 3.0 x 5.0 1.0

ECEA1EKK3R3

4.7 12 3.0 x 5.0 1.0

ECEA1EKK4R7

4.7 22 4.0 x 5.0 1.5

ECEA1EKS4R7

10 28 5.0 x 5.0 2.0

ECEA1EKS100

22 55 6.3 x 5.0 2.5

ECEA1EKS220

33 65 6.3 x 5.0 2.5

ECEA1EKS330

100 85 8.0 x 5.0 2.5

ECEA1EKS101

100 85 8.0 x 5.0 5.0

ECEA1EKS101Q

35 Volt

3.3 16 4.0 x 5.0 1.5

ECEA1VKS3R3

4.7 22 4.0 x 5.0 1.5

ECEA1VKS4R7

10 30 5.0 x 5.0 2.0

ECEA1VKS100

22 60 6.3 x 5.0 2.5

ECEA1VKS220

33 65 8.0 x 5.0 2.5

ECEA1VKS330

33 65 8.0 x 5.0 5.0

ECEA1VKS330Q

47 85 8.0 x 5.0 2.5

ECEA1VKS470

47 85 8.0 x 5.0 5.0

ECEA1VKS470Q

50 Volt

0.1 1 3.0 x 5.0 1.0

ECEA1HKK0R1

0.1 1 4.0 x 5.0 1.5

ECEA1HKS0R1

0.22 2 3.0 x 5.0 2.5

ECEA1HKKR22

0.22 2 4.0 x 5.0 2.5

ECEA1HKSR22

0.33 3 3.0 x 5.0 2.5

ECEA1HKKR33

0.33 3 4.0 x 5.0 2.5

ECEA1HKSR33

0.47 5 3.0 x 5.0 2.5

ECEA1HKKR47

0.47 5 4.0 x 5.0 2.5

ECEA1HKSR47

1.0 8 3.0 x 5.0 2.5

ECEA1HKK010

1.0 10 4.0 x 5.0 2.5

ECEA1HKS010

2.2 16 4.0 x 5.0 2.5

ECEA1HKS2R2

3.3 16 4.0 x 5.0 2.5

ECEA1HKS3R3

4.7 23 5.0 x 5.0 2.5

ECEA1HKS4R7

10 35 6.3 x 5.0 2.5

ECEA1HKS100

22 60 8.0 x 5.0 2.5

ECEA1HKS220

22 60 8.0 x 5.0 5.0

ECEA1HKS220Q

Rated voltage (dc) 4V 6.3V 10V 16V 25V 35V 50V

Tan  0.35 0.24 0.20 0.16 0.14 0.12 0.10

Tan at 120Hz, 20°C

Order codes listed apply to loose

product with straight leads.

Taped & boxed product is also available,

please contact our Sales Desk for details.

Vent (Dia ≥ 6.3)

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L (2.0 L≥20)

Vinyl sleeve

Dia

Tinned copper-clad steel wire

ød

14 min.

3 min.

Pitch

ød = 0.4 (Dia 3)

0.45 (Dia 4 – 8)

Page 33

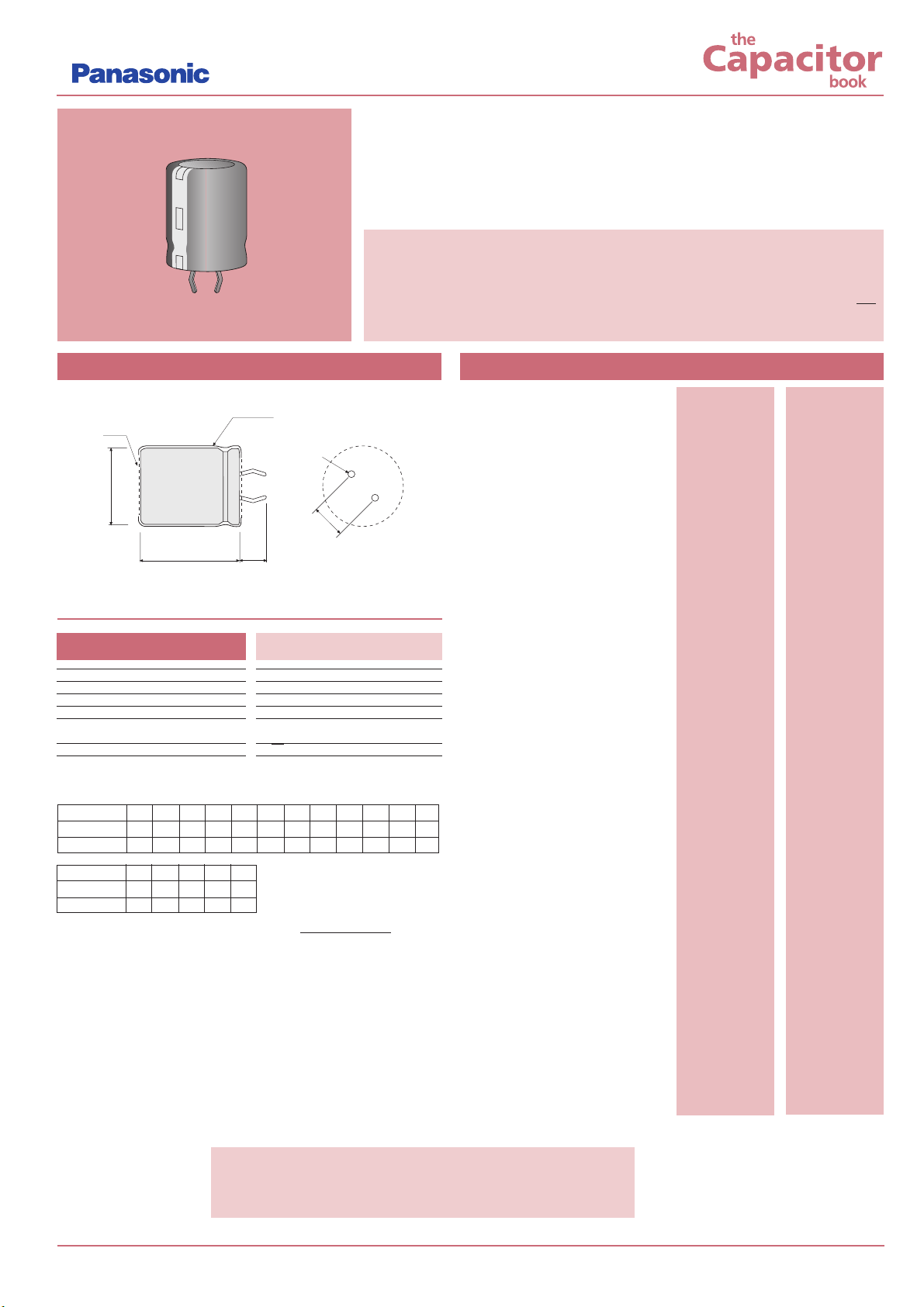

ELECTROLYTIC, Radial, Long Life, 105°C

+44 (0)1945 47 47 47 www.anglia.com [email protected]

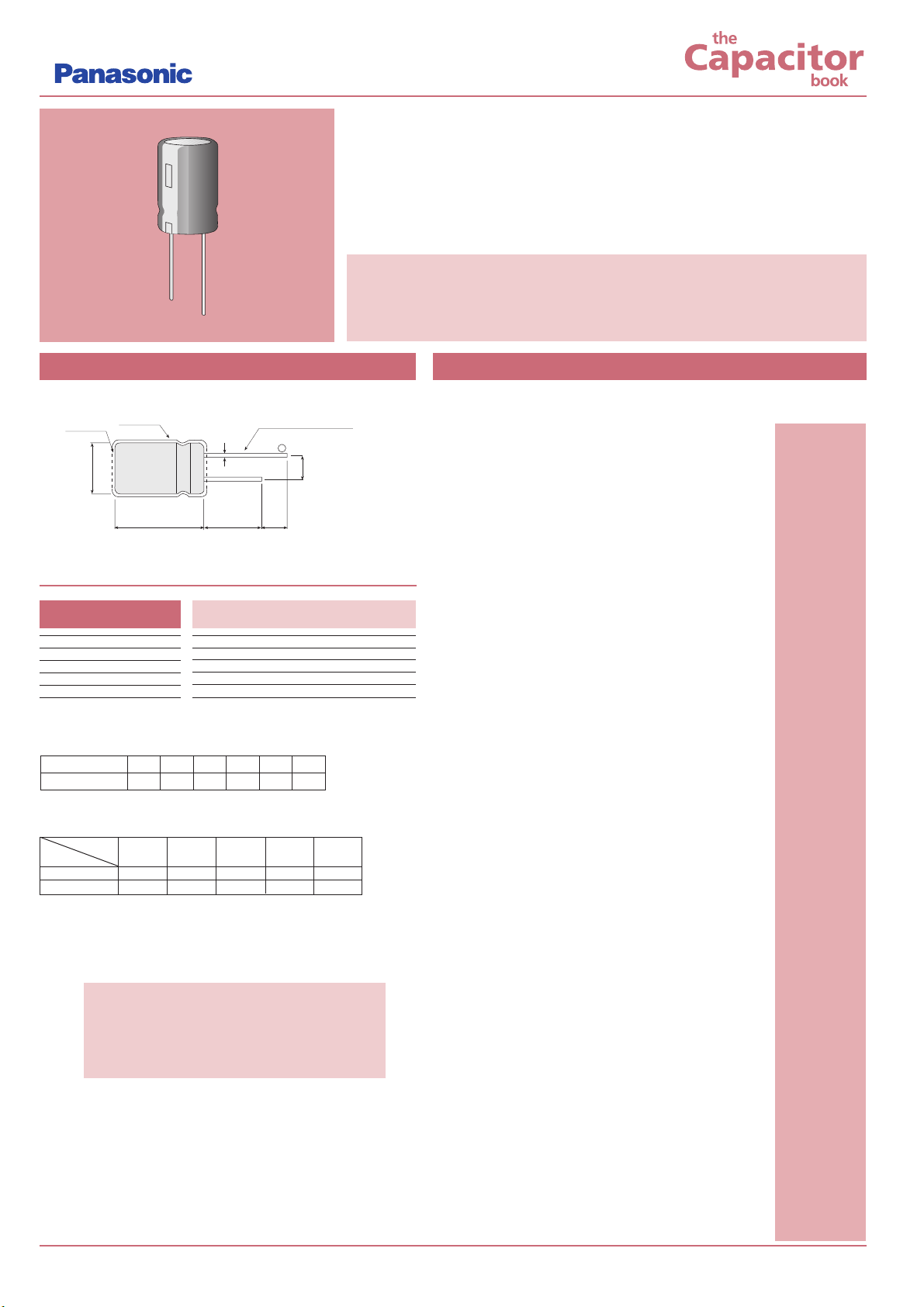

PANASONIC ED Series, type A

A specialised range of radial aluminium electrolytic capacitors which offers a superb combination of high temperature and an extended life expectancy. Suitable for applications where long term component reliability and integrity are of paramount importance. The entire range of values and voltages manufactured are listed below and supplied loose, with taped and boxed product available to order (see details below).

N High endurance Up to 10000 hours

N High ripple current

N Maximum temperature 105°C

Specification

ED (A)

Frequency correction factor for ripple current

Endurance test (at 105°C) Capacitance tolerance Ripple current (as listed) Operating temperature range Leakage current

8000 hours (Dia 10), 10000 hours (Dia ≥12.5) ±20% at 120Hz, 20°C measured at 100kHz, 105°C

-25°C to +105°C ≤0.06CV +10µA after 2 min.

Dimensions (mm)

N Capacitance tolerance 20%

N Includes low profile 20mm products

N Supplied loose

ORDER CODES

Value Ripple Current Dia. x L Pitch

(µF) (mA) (mm) (mm) Loose

160 Volt

22 500 10.0 x 20.0 5.0

EEUED2C220

33 580 10.0 x 20.0 5.0

EEUED2C330

47 750 10.0 x 20.0 5.0

EEUED2C470

68 950 12.5 x 20.0 5.0

EEUED2C680

82 1060 12.5 x 25.0 5.0

EEUED2C820

100 1170 12.5 x 25.0 5.0

EEUED2C101

100 1280 16.0 x 20.0 7.5

EEUED2C101S

150 1400 16.0 x 25.0 7.5

EEUED2C151

150 1400 18.0 x 20.0 7.5

EEUED2C151S

220 1700 16.0 x 31.5 7.5

EEUED2C221

220 1500 18.0 x 25.0 7.5

EEUED2C221S

330 2000 18.0 x 31.5 7.5

EEUED2C331

200 Volt

22 600 10.0 x 20.0 5.0

EEUED2D220

33 650 10.0 x 20.0 5.0

EEUED2D330

47 790 12.5 x 20.0 5.0

EEUED2D470

68 950 12.5 x 25.0 5.0

EEUED2D680

68 1000 16.0 x 20.0 7.5

EEUED2D680S

82 1100 16.0 x 20.0 7.5

EEUED2D820S

100 1300 16.0 x 25.0 7.5

EEUED2D101

100 1280 18.0 x 20.0 7.5

EEUED2D101S

150 1400 16.0 x 25.0 7.5

EEUED2D151

220 2000 18.0 x 31.5 7.5

EEUED2D221

330 2400 18.0 x 40.0 7.5

EEUED2D331

250 Volt

22 560 10.0 x 20.0 5.0

EEUED2E220

33 710 12.5 x 20.0 5.0

EEUED2E330

47 920 12.5 x 25.0 5.0

EEUED2E470

47 990 16.0 x 20.0 7.5

EEUED2E470S

68 1000 16.0 x 20.0 7.5

EEUED2E680S

82 1200 16.0 x 25.0 7.5

EEUED2E820

82 1200 18.0 x 20.0 7.5

EEUED2E820S

100 1500 16.0 x 31.5 7.5

EEUED2E101

100 1500 18.0 x 25.0 7.5

EEUED2E101S

150 1800 18.0 x 31.5 7.5

EEUED2E151

220 2100 18.0 x 40.0 7.5

EEUED2E221

350 Volt

10 350 10.0 x 20.0 5.0

EEUED2V100

22 480 12.5 x 20.0 5.0

EEUED2V220

33 640 16.0 x 20.0 7.5

EEUED2V330S

47 800 16.0 x 25.0 7.5

EEUED2V470

47 800 18.0 x 20.0 7.5

EEUED2V470S

68 1100 16.0 x 31.5 7.5

EEUED2V680

68 1000 18.0 x 25.0 7.5

EEUED2V680S

82 1100 18.0 x 25.0 7.5

EEUED2V820S

100 1200 18.0 x 31.5 7.5

EEUED2V101

400 Volt

10 300 10.0 x 20.0 5.0

EEUED2G100

15 410 12.5 x 20.0 5.0

EEUED2G150

22 500 12.5 x 25.0 5.0

EEUED2G220

22 600 16.0 x 20.0 7.5

EEUED2G220S

33 730 16.0 x 20.0 7.5

EEUED2G330S

47 840 16.0 x 25.0 7.5

EEUED2G470

47 840 18.0 x 20.0 7.5

EEUED2G470S

68 1200 18.0 x 31.5 7.5

EEUED2G680

82 1500 18.0 x 40.0 7.5

EEUED2G820

450 Volt

10 350 12.5 x 20.0 5.0

EEUED2W100

15 560 12.5 x 25.0 5.0

EEUED2W150

22 680 16.0 x 20.0 7.5

EEUED2W220S

33 850 16.0 x 31.5 7.5

EEUED2W330

33 850 18.0 x 25.0 7.5

EEUED2W330S

47 1000 18.0 x 31.5 7.5

EEUED2W470

68 1300 18.0 x 40.0 7.5

EEUED2W680

Freq. (Hz)

Cap. (µF)

60 120 1k 10k 100k

<100 0.30 0.40 0.70 0.90 1.0 ≥100 0.35 0.45 0.75 0.90 1.0

Tan at 120Hz, 20°C

Rated voltage (dc) 160V 200V 250V 350V 400V 450V

Tan  0.15 0.15 0.15 0.20 0.24 0.24

Order codes listed apply to loose

product with straight leads.

Taped & boxed product is also available,

please contact our Sales Desk for details.

Vent (Dia ≥ 6.3)

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L (2.0 L≥20)

Vinyl sleeve

Dia

Tinned copper-clad steel wire

ød

14 min.

3 min.

Pitch

ød = 0.6 (Dia 10 – 12.5)

0.8 (Dia 16 – 18)

Page 34

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ELECTROLYTIC, Radial, Low ESR, 105°C

PANASONIC FC Series, type A

A specialised range of radial aluminium electrolytic capacitors which offers a superb combination of low impedance, high temperature and an extended life expectancy. Suitable for applications where long term component reliability and integrity are of paramount importance. The entire range of values and voltages manufactured are listed below and continued on the following pages. Supplied loose, with taped and boxed product available to order (see details below).

N Low impedance

N High endurance Up to 5000 hours

N Maximum temperature 105°C

Specification

FC (A)

Frequency correction factor for ripple current

Endurance test (at 105°C)

Capacitance tolerance Ripple current (as listed) Impedance (as listed) Operating temperature range Leakage current

1000 hours (Dia ≤6.3), 2000 hours (Dia 8), 3000 hours (Dia 10), 5000 hours (Dia ≥12.5) ±20% at 120Hz, 20°C measured at 100kHz, 105°C measured at 100kHz, 20°C

-55°C to +105°C ≤0.06CV or 3µA (whichever is greater) after 2 min.

Dimensions (mm)

N Capacitance tolerance 20%

N Supplied loose

Rated Capacitance Frequency (Hz)

Voltage (V) (µF) 60 120 1k 10k 100k

1.0 to 330 0.55 0.65 0.85 0.90 1.0

390 to 1000 0.70 0.75 0.90 0.95 1.0

6.3 to 100 1200 to 2200 0.75 0.80 0.90 0.95 1.0

2700 to 15000 0.80 0.85 0.95 1.00 1.0

ORDER CODES

Value Ripple Current Impedance Dia. x L Pitch

(µF) (mA) (Ω) (mm) (mm) Loose

6.3 Volt

27 65 2.000 4.0 x 7.0 1.5

EEAFC0J270

56 120 0.950 5.0 x 7.0 2.0

EEAFC0J560

68 120 1.300 4.0 x 11.0 1.5

EEUFC0J680

100 175 0.800 5.0 x 11.0 2.0

EEUFC0J101

120 200 0.450 6.3 x 7.0 2.5

EEAFC0J121

150 235 0.500 5.0 x 15.0 2.0

EEUFC0J151

220 290 0.350 6.3 x 11.2 2.5

EEUFC0J221

270 290 0.350 6.3 x 11.2 2.5

EEUFC0J271

330 290 0.350 6.3 x 11.2 2.5

EEUFC0J331S

330 400 0.250 6.3 x 15.0 2.5

EEUFC0J331

390 555 0.117 8.0 x 11.5 3.5

EEUFC0J391

470 555 0.117 8.0 x 11.5 3.5

EEUFC0J471

560 555 0.117 8.0 x 11.5 3.5

EEUFC0J561

820 730 0.085 8.0 x 15.0 3.5

EEUFC0J821L

820 755 0.090 10.0 x 12.5 5.0

EEUFC0J821

1000 755 0.090 10.0 x 12.5 5.0

EEUFC0J102

1200 995 0.065 8.0 x 20.0 3.5

EEUFC0J122L

1200 1050 0.068 10.0 x 16.0 5.0

EEUFC0J122

1500 1220 0.052 10.0 x 20.0 5.0

EEUFC0J152

1500 1205 0.065 12.5 x 15.0 5.0

EEUFC0J152S

1800 1440 0.045 10.0 x 25.0 5.0

EEUFC0J182

2200 1440 0.045 10.0 x 25.0 5.0

EEUFC0J222

2200 1690 0.043 16.0 x 15.0 7.5

EEUFC0J222S

2700 1815 0.035 10.0 x 30.0 5.0

EEUFC0J272L

2700 1655 0.038 12.5 x 20.0 5.0

EEUFC0J272

2700 1690 0.043 16.0 x 15.0 7.5

EEUFC0J272S

3300 1655 0.038 12.5 x 20.0 5.0

EEUFC0J332

3300 2000 0.038 18.0 x 15.0 7.5

EEUFC0J332S

3900 1945 0.030 12.5 x 25.0 5.0

EEUFC0J392

4700 2310 0.025 12.5 x 30.0 5.0

EEUFC0J472

4700 2205 0.029 16.0 x 20.0 7.5

EEUFC0J472S

5600 2510 0.022 12.5 x 35.0 5.0

EEUFC0J562L

5600 2205 0.029 16.0 x 20.0 7.5

EEUFC0J562

6800 2655 0.018 12.5 x 40.0 5.0

EEUFC0J682L

6800 2555 0.022 16.0 x 25.0 7.5

EEUFC0J682

6800 2490 0.028 18.0 x 20.0 7.5

EEUFC0J682S

8200 3010 0.018 16.0 x 31.5 7.5

EEUFC0J822

10000 3150 0.016 16.0 x 35.5 7.5

EEUFC0J103

10000 2740 0.020 18.0 x 25.0 7.5

EEUFC0J103S

12000 3360 0.015 16.0 x 40.0 7.5

EEUFC0J123L

12000 3635 0.016 18.0 x 31.5 7.5

EEUFC0J123

15000 3680 0.015 18.0 x 35.5 7.5

EEUFC0J153

Panasonic FC Series

continued overleaf > > > >

Tan at 120Hz, 20°C

Rated voltage (dc) 6.3V 10V 16V 25V 35V 50V 63V 100V

Tan  0.22 0.19 0.16 0.14 0.12 0.10 0.08 0.07

For capacitance values >1000µF, add 0.02 per every 1000µF.

Order codes listed apply to loose

product with straight leads.

Taped & boxed product is also available,

please contact our Sales Desk for details.

Vent (Dia ≥ 6.3)

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L (2.0 L≥20)

Vinyl sleeve

Dia

Tinned copper-clad steel wire

ød

14 min.

3 min.

Pitch

ød = 0.45 (L = 7)

0.45 - 0.8 (L ≥11)

Page 35

ELECTROLYTIC, Radial, Low ESR, 105°C

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ORDER CODES

Value Ripple Current Impedance Dia. x L Pitch

(µF) (mA) (Ω) (mm) (mm) Loose

10 Volt

22 65 2.000 4.0 x 7.0 1.5

EEAFC1A220

39 120 0.950 5.0 x 7.0 2.0

EEAFC1A390

47 120 1.300 4.0 x 11.0 1.5

EEUFC1A470

82 175 0.800 5.0 x 11.0 2.0

EEUFC1A820

82 200 0.450 6.3 x 7.0 2.5

EEAFC1A820

100 175 0.800 5.0 x 11.0 2.0

EEUFC1A101S

100 235 0.500 5.0 x 15.0 2.0

EEUFC1A101

150 290 0.350 6.3 x 11.2 2.5

EEUFC1A151

180 290 0.350 6.3 x 11.2 2.5

EEUFC1A181

220 290 0.350 6.3 x 11.2 2.5

EEUFC1A221S

220 400 0.250 6.3 x 15.0 2.5

EEUFC1A221

330 555 0.117 8.0 x 11.5 3.5

EEUFC1A331

390 555 0.117 8.0 x 11.5 3.5

EEUFC1A391

470 555 0.117 8.0 x 11.5 3.5

EEUFC1A471

560 755 0.090 10.0 x 12.5 5.0

EEUFC1A561

680 730 0.085 8.0 x 15.0 3.5

EEUFC1A681L

680 755 0.090 10.0 x 12.5 5.0

EEUFC1A681

820 1050 0.068 10.0 x 16.0 5.0

EEUFC1A821

1000 995 0.065 8.0 x 20.0 3.5

EEUFC1A102L

1000 1050 0.068 10.0 x 16.0 5.0

EEUFC1A102

1200 1220 0.052 10.0 x 20.0 5.0

EEUFC1A122

1200 1205 0.065 12.5 x 15.0 5.0

EEUFC1A122S

1500 1440 0.045 10.0 x 25.0 5.0

EEUFC1A152

1800 1655 0.038 12.5 x 20.0 5.0

EEUFC1A182

1800 1690 0.043 16.0 x 15.0 7.5

EEUFC1A182S

2200 1815 0.035 10.0 x 30.0 5.0

EEUFC1A222L

2200 1655 0.038 12.5 x 20.0 5.0

EEUFC1A222

2700 1945 0.030 12.5 x 25.0 5.0

EEUFC1A272

2700 2000 0.038 18.0 x 15.0 7.5

EEUFC1A272S

3300 2310 0.025 12.5 x 30.0 5.0

EEUFC1A332

3300 2205 0.029 16.0 x 20.0 7.5

EEUFC1A332S

3900 2510 0.022 12.5 x 35.0 5.0

EEUFC1A392L

3900 2205 0.029 16.0 x 20.0 7.5

EEUFC1A392

4700 2655 0.018 12.5 x 40.0 5.0

EEUFC1A472L

4700 2555 0.022 16.0 x 25.0 7.5

EEUFC1A472

5600 2555 0.022 16.0 x 25.0 7.5

EEUFC1A562

5600 2490 0.028 18.0 x 20.0 7.5

EEUFC1A562S

6800 3010 0.018 16.0 x 31.5 7.5

EEUFC1A682

6800 2740 0.020 18.0 x 25.0 7.5

EEUFC1A682S

8200 3150 0.016 16.0 x 35.5 7.5

EEUFC1A822L

8200 3635 0.016 18.0 x 31.5 7.5

EEUFC1A822

10000 3680 0.015 18.0 x 35.5 7.5

EEUFC1A103

12000 3735 0.014 18.0 x 40.0 7.5

EEUFC1A123

16 Volt

15 65 2.000 4.0 x 7.0 1.5

EEAFC1C150

27 120 0.950 5.0 x 7.0 2.0

EEAFC1C270

39 120 1.300 4.0 x 11.0 1.5

EEUFC1C390

47 175 0.800 5.0 x 11.0 2.0

EEUFC1C470

56 175 0.800 5.0 x 11.0 2.0

EEUFC1C560

56 200 0.450 6.3 x 7.0 2.5

EEAFC1C560

68 175 0.800 5.0 x 11.0 2.0

EEUFC1C680

82 235 0.500 5.0 x 15.0 2.0

EEUFC1C820

100 290 0.350 6.3 x 11.2 2.5

EEUFC1C101

120 290 0.350 6.3 x 11.2 2.5

EEUFC1C121

180 400 0.250 6.3 x 15.0 2.5

EEUFC1C181

220 555 0.117 8.0 x 11.5 3.5

EEUFC1C221

270 555 0.117 8.0 x 11.5 3.5

EEUFC1C271

330 555 0.117 8.0 x 11.5 3.5

EEUFC1C331

390 755 0.090 10.0 x 12.5 5.0

EEUFC1C391

470 730 0.085 8.0 x 15.0 3.5

EEUFC1C471L

470 755 0.090 10.0 x 12.5 5.0

EEUFC1C471

560 1050 0.068 10.0 x 16.0 5.0

EEUFC1C561

680 995 0.065 8.0 x 20.0 3.5

EEUFC1C681L

680 1050 0.068 10.0 x 16.0 5.0

EEUFC1C681

820 1220 0.052 10.0 x 20.0 5.0

EEUFC1C821

820 1205 0.065 12.5 x 15.0 5.0

EEUFC1C821S

1000 1220 0.052 10.0 x 20.0 5.0

EEUFC1C102S

1000 1440 0.045 10.0 x 25.0 5.0

EEUFC1C102

1200 1440 0.045 10.0 x 25.0 5.0

EEUFC1C122

1200 1690 0.043 16.0 x 15.0 7.5

EEUFC1C122S

1500 1815 0.035 10.0 x 30.0 5.0

EEUFC1C152L

1500 1655 0.038 12.5 x 20.0 5.0

EEUFC1C152

1500 1690 0.043 16.0 x 15.0 7.5

EEUFC1C152S

1800 1945 0.030 12.5 x 25.0 5.0

EEUFC1C182

1800 2000 0.038 18.0 x 15.0 7.5

EEUFC1C182S

Value Ripple Current Impedance Dia. x L Pitch

(µF) (mA) (Ω) (mm) (mm) Loose

16 Volt

continued

2200 1945 0.030 12.5 x 25.0 5.0

EEUFC1C222

2200 2205 0.029 16.0 x 20.0 7.5

EEUFC1C222S

2700 2310 0.025 12.5 x 30.0 5.0

EEUFC1C272L

2700 2205 0.029 16.0 x 20.0 7.5

EEUFC1C272

3300 2510 0.022 12.5 x 35.0 5.0

EEUFC1C332

3300 2490 0.028 18.0 x 20.0 7.5

EEUFC1C332S

3900 2555 0.022 16.0 x 25.0 7.5

EEUFC1C392

3900 2490 0.028 18.0 x 20.0 7.5

EEUFC1C392S

4700 3010 0.018 16.0 x 31.5 7.5

EEUFC1C472

4700 2740 0.020 18.0 x 25.0 7.5

EEUFC1C472S

5600 3150 0.016 16.0 x 35.5 7.5

EEUFC1C562L

5600 3635 0.016 18.0 x 31.5 7.5

EEUFC1C562

6800 3360 0.015 16.0 x 40.0 7.5

EEUFC1C682

8200 3680 0.015 18.0 x 35.5 7.5

EEUFC1C822

25 Volt

10 65 2.000 4.0 x 7.0 1.5

EEAFC1E100

22 120 0.950 5.0 x 7.0 2.0

EEAFC1E220

27 120 1.300 4.0 x 11.0 1.5

EEUFC1E270

39 175 0.800 5.0 x 11.0 2.0

EEUFC1E390

39 200 0.450 6.3 x 7.0 2.5

EEAFC1E390

47 175 0.800 5.0 x 11.0 2.0

EEUFC1E470

56 235 0.500 5.0 x 15.0 2.0

EEUFC1E560

82 290 0.350 6.3 x 11.2 2.5

EEUFC1E820

100 290 0.350 6.3 x 11.2 2.5

EEUFC1E101S

120 400 0.250 6.3 x 15.0 2.5

EEUFC1E121

180 555 0.117 8.0 x 11.5 3.5

EEUFC1E181

220 555 0.117 8.0 x 11.5 3.5

EEUFC1E221

270 755 0.090 10.0 x 12.5 5.0

EEUFC1E271

330 730 0.085 8.0 x 15.0 3.5

EEUFC1E331L

330 755 0.090 10.0 x 12.5 5.0

EEUFC1E331

390 1050 0.068 10.0 x 16.0 5.0

EEUFC1E391

470 995 0.065 8.0 x 20.0 3.5

EEUFC1E471L

470 1050 0.068 10.0 x 16.0 5.0

EEUFC1E471

560 1220 0.052 10.0 x 20.0 5.0

EEUFC1E561

560 1205 0.065 12.5 x 15.0 5.0

EEUFC1E561S

680 1220 0.052 10.0 x 20.0 5.0

EEUFC1E681

820 1440 0.045 10.0 x 25.0 5.0

EEUFC1E821

820 1655 0.038 12.5 x 20.0 5.0

EEUFC1E821S

1000 1815 0.035 10.0 x 30.0 5.0

EEUFC1E102L

1000 1655 0.038 12.5 x 20.0 5.0

EEUFC1E102

1000 1690 0.043 16.0 x 15.0 7.5

EEUFC1E102S

1200 1945 0.030 12.5 x 25.0 5.0

EEUFC1E122

1200 2000 0.038 18.0 x 15.0 7.5

EEUFC1E122S

1500 1945 0.030 12.5 x 25.0 5.0

EEUFC1E152

1500 2205 0.029 16.0 x 20.0 7.5

EEUFC1E152S

1800 2310 0.025 12.5 x 30.0 5.0

EEUFC1E182L

1800 2205 0.029 16.0 x 20.0 7.5

EEUFC1E182

2200 2510 0.022 12.5 x 35.0 5.0

EEUFC1E222

2200 2490 0.028 18.0 x 20.0 7.5

EEUFC1E222S

2700 2555 0.022 16.0 x 25.0 7.5

EEUFC1E272

3300 3010 0.018 16.0 x 31.5 7.5

EEUFC1E332

3300 2740 0.020 18.0 x 25.0 7.5

EEUFC1E332S

3900 3150 0.016 16.0 x 35.5 7.5

EEUFC1E392L

3900 3635 0.016 18.0 x 31.5 7.5

EEUFC1E392

4700 3680 0.015 18.0 x 35.5 7.5

EEUFC1E472

5600 3735 0.014 18.0 x 40.0 7.5

EEUFC1E562

35 Volt

6.8 65 2.000 4.0 x 7.0 1.5

EEAFC1V6R8

12 120 0.950 5.0 x 7.0 2.0

EEAFC1V120

18 120 1.300 4.0 x 11.0 1.5

EEUFC1V180

22 175 0.800 5.0 x 11.0 2.0

EEUFC1V220

27 175 0.800 5.0 x 11.0 2.0

EEUFC1V270

27 200 0.450 6.3 x 7.0 2.5

EEAFC1V270

33 175 0.080 5.0 x 11.0 2.0

EEUFC1V330

39 235 0.500 5.0 x 15.0 2.0

EEUFC1V390

47 290 0.350 6.3 x 11.2 2.5

EEUFC1V470

56 290 0.350 6.3 x 11.2 2.5

EEUFC1V560

68 290 0.350 6.3 x 11.2 2.5

EEUFC1V680

82 400 0.250 6.3 x 15.0 2.5

EEUFC1V820

100 555 0.117 8.0 x 11.5 3.5

EEUFC1V101

120 555 0.117 8.0 x 11.5 3.5

EEUFC1V121

150 555 0.117 8.0 x 11.5 3.5

EEUFC1V151

180 755 0.090 10.0 x 12.5 5.0

EEUFC1V181

220 730 0.085 8.0 x 15.0 3.5

EEUFC1V221L

220 755 0.090 10.0 x 12.5 5.0

EEUFC1V221

continuation

continued > > > >

Page 36

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ELECTROLYTIC, Radial, Low ESR, 105°C

ORDER CODES

Value Ripple Current Impedance Dia. x L Pitch

(µF) (mA) (Ω) (mm) (mm) Loose

35 Volt

continued

270 1050 0.068 10.0 x 16.0 5.0

EEUFC1V271

330 995 0.065 8.0 x 20.0 3.5

EEUFC1V331L

330 1050 0.068 10.0 x 16.0 5.0

EEUFC1V331

390 1220 0.052 10.0 x 20.0 5.0

EEUFC1V391

390 1205 0.065 12.5 x 15.0 5.0

EEUFC1V391S

470 1220 0.052 10.0 x 20.0 5.0

EEUFC1V471

560 1440 0.045 10.0 x 25.0 5.0

EEUFC1V561

560 1655 0.038 12.5 x 20.0 5.0

EEUFC1V561S

680 1815 0.035 10.0 x 30.0 5.0

EEUFC1V681L

680 1655 0.038 12.5 x 20.0 5.0

EEUFC1V681

680 1690 0.043 16.0 x 15.0 7.5

EEUFC1V681S

820 1945 0.030 12.5 x 25.0 5.0

EEUFC1V821L

820 2000 0.038 18.0 x 15.0 7.5

EEUFC1V821

1000 1945 0.030 12.5 x 25.0 5.0

EEUFC1V102

1000 2205 0.029 16.0 x 20.0 7.5

EEUFC1V102S

1200 2310 0.025 12.5 x 30.0 5.0

EEUFC1V122L

1200 2205 0.029 16.0 x 20.0 7.5

EEUFC1V122

1500 2510 0.022 12.5 x 35.0 5.0

EEUFC1V152L

1500 2555 0.022 16.0 x 25.0 7.5

EEUFC1V152

1500 2490 0.028 18.0 x 20.0 7.5

EEUFC1V152S

1800 2655 0.018 12.5 x 40.0 5.0

EEUFC1V182L

1800 2555 0.022 16.0 x 25.0 7.5

EEUFC1V182

1800 2490 0.028 18.0 x 20.0 7.5

EEUFC1V182S

2200 3010 0.018 16.0 x 31.5 7.5

EEUFC1V222

2200 2740 0.020 18.0 x 25.0 7.5

EEUFC1V222S

2700 3150 0.016 16.0 x 35.5 7.5

EEUFC1V272L

2700 3635 0.016 18.0 x 31.5 7.5

EEUFC1V272

3300 3680 0.015 18.0 x 35.5 7.5

EEUFC1V332

3900 3735 0.014 18.0 x 40.0 7.5

EEUFC1V392

50 Volt

1.0 20 2.400 5.0 x 11.0 2.0

EEUFC1H1R0

2.2 45 1.800 5.0 x 11.0 2.0

EEUFC1H2R2

3.3 65 1.300 5.0 x 11.0 2.0

EEUFC1H3R3

4.7 95 1.300 5.0 x 11.0 2.0

EEUFC1H4R7

10 90 2.500 4.0 x 11.0 1.5

EEUFC1H100

10 125 1.300 5.0 x 11.0 2.0

EEUFC1H100L

12 135 1.300 5.0 x 11.0 2.0

EEUFC1H120

15 145 1.300 5.0 x 11.0 2.0

EEUFC1H150

18 155 1.300 5.0 x 11.0 2.0

EEUFC1H180

22 155 1.300 5.0 x 11.0 2.0

EEUFC1H220

27 215 0.900 5.0 x 15.0 2.0

EEUFC1H270

33 260 0.600 6.3 x 11.2 2.5

EEUFC1H330

39 260 0.600 6.3 x 11.2 2.5

EEUFC1H390

47 260 0.600 6.3 x 11.2 2.5

EEUFC1H470

56 360 0.400 6.3 x 15.0 2.5

EEUFC1H560

68 485 0.234 8.0 x 11.5 3.5

EEUFC1H680

82 485 0.234 8.0 x 11.5 3.5

EEUFC1H820

100 615 0.162 10.0 x 12.5 5.0

EEUFC1H101

120 635 0.155 8.0 x 15.0 3.5

EEUFC1H121L

120 615 0.162 10.0 x 12.5 5.0

EEUFC1H121

150 850 0.119 10.0 x 16.0 5.0

EEUFC1H151

180 860 0.120 8.0 x 20.0 3.5

EEUFC1H181L

180 850 0.119 10.0 x 16.0 5.0

EEUFC1H181

220 1030 0.090 10.0 x 20.0 5.0

EEUFC1H221

220 1150 0.110 12.5 x 15.0 5.0

EEUFC1H221S

270 1200 0.082 10.0 x 25.0 5.0

EEUFC1H271

330 1610 0.060 10.0 x 30.0 5.0

EEUFC1H331L

330 1480 0.063 12.5 x 20.0 5.0

EEUFC1H331

390 1480 0.063 12.5 x 20.0 5.0

EEUFC1H391

390 1610 0.080 16.0 x 15.0 7.5

EEUFC1H391S

470 1610 0.060 10.0 x 30.0 5.0

EEUFC1H471L

470 1832 0.050 12.5 x 25.0 5.0

EEUFC1H471

560 1832 0.050 12.5 x 25.0 5.0

EEUFC1H561

560 1900 0.068 18.0 x 15.0 7.5

EEUFC1H561S

680 2215 0.040 12.5 x 30.0 5.0

EEUFC1H681L

680 1835 0.048 16.0 x 20.0 7.5

EEUFC1H681

820 2285 0.034 12.5 x 35.0 5.0

EEUFC1H821L

820 2420 0.042 18.0 x 20.0 7.5

EEUFC1H821

1000 2590 0.030 12.5 x 40.0 5.0

EEUFC1H102L

1000 2235 0.034 16.0 x 25.0 7.5

EEUFC1H102

1200 2700 0.028 16.0 x 31.5 7.5

EEUFC1H122

1200 2610 0.029 18.0 x 25.0 7.5

EEUFC1H122S

1500 2790 0.025 16.0 x 35.5 7.5

EEUFC1H152L

1800 2845 0.023 16.0 x 40.0 7.5

EEUFC1H182L

1800 3000 0.025 18.0 x 31.5 7.5

EEUFC1H182

2200 3100 0.023 18.0 x 35.5 7.5

EEUFC1H222

Value Ripple Current Impedance Dia. x L Pitch

(µF) (mA) (Ω) (mm) (mm) Loose

63 Volt

6.8 80 3.500 4.0 x 11.0 1.5

EEUFC1J6R8

12 145 2.000 5.0 x 11.0 2.0

EEUFC1J120

18 200 1.300 5.0 x 15.0 2.0

EEUFC1J180

22 240 1.000 6.3 x 11.2 2.5

EEUFC1J220

33 240 1.000 6.3 x 11.2 2.5

EEUFC1J330

39 330 0.700 6.3 x 15.0 2.5

EEUFC1J390

47 405 0.342 8.0 x 11.5 3.5

EEUFC1J470

56 405 0.342 8.0 x 11.5 3.5

EEUFC1J560

68 405 0.342 8.0 x 11.5 3.5

EEUFC1J680

82 535 0.256 10.0 x 12.5 5.0

EEUFC1J820

100 535 0.230 8.0 x 15.0 3.5

EEUFC1J101L

100 535 0.256 10.0 x 12.5 5.0

EEUFC1J101

120 600 0.194 10.0 x 16.0 5.0

EEUFC1J121

150 690 0.178 8.0 x 20.0 3.5

EEUFC1J151

180 885 0.147 10.0 x 20.0 5.0

EEUFC1J181

180 1020 0.150 12.5 x 15.0 5.0

EEUFC1J181S

220 885 0.147 10.0 x 20.0 5.0

EEUFC1J221X

220 1050 0.130 10.0 x 25.0 5.0

EEUFC1J221

220 1285 0.085 12.5 x 20.0 5.0

EEUFC1J221S

270 1410 0.090 16.0 x 15.0 7.5

EEUFC1J271

330 1300 0.090 10.0 x 30.0 5.0

EEUFC1J331L

330 1285 0.085 12.5 x 20.0 5.0

EEUFC1J331

390 1720 0.070 12.5 x 25.0 5.0

EEUFC1J391

390 1690 0.086 18.0 x 15.0 7.5

EEUFC1J391S

470 2090 0.055 12.5 x 30.0 5.0

EEUFC1J471L

470 1765 0.059 16.0 x 20.0 7.5

EEUFC1J471

560 2160 0.050 16.0 x 25.0 7.5

EEUFC1J561

680 2265 0.047 12.5 x 35.0 5.0

EEUFC1J681L

680 2160 0.050 16.0 x 25.0 7.5

EEUFC1J681

680 2290 0.055 18.0 x 20.0 7.5

EEUFC1J681S

820 2560 0.042 12.5 x 40.0 5.0

EEUFC1J821L

820 2670 0.043 16.0 x 31.5 7.5

EEUFC1J821

820 2585 0.043 18.0 x 25.0 7.5

EEUFC1J821S

1000 2670 0.043 16.0 x 31.5 7.5

EEUFC1J102U

1000 2770 0.036 16.0 x 35.5 7.5

EEUFC1J102

1200 2825 0.030 16.0 x 40.0 7.5

EEUFC1J122L

1200 2950 0.032 18.0 x 31.5 7.5

EEUFC1J122

1500 3095 0.030 18.0 x 35.5 7.5

EEUFC1J152

1800 3205 0.025 18.0 x 40.0 7.5

EEUFC1J182

100 Volt

5.6 80 4.100 5.0 x 11.0 2.0

EEUFC2A5R6

8.2 90 2.800 5.0 x 15.0 2.0

EEUFC2A8R2

12 114 1.800 6.3 x 11.2 2.5

EEUFC2A120

18 155 1.100 6.3 x 15.0 2.5

EEUFC2A180

22 260 0.680 8.0 x 11.5 3.5

EEUFC2A220

33 340 0.450 8.0 x 15.0 3.5

EEUFC2A330L

33 306 0.530 10.0 x 12.5 5.0

EEUFC2A330

39 455 0.330 8.0 x 20.0 5.0

EEUFC2A390L

39 400 0.360 10.0 x 16.0 5.0

EEUFC2A390

56 463 0.240 10.0 x 20.0 5.0

EEUFC2A560

68 599 0.210 10.0 x 25.0 5.0

EEUFC2A680L

68 511 0.230 12.5 x 15.0 5.0

EEUFC2A680

100 698 0.150 10.0 x 30.0 5.0

EEUFC2A101L

120 671 0.180 12.5 x 20.0 5.0

EEUFC2A101

120 793 0.140 16.0 x 15.0 7.5

EEUFC2A121S

150 807 0.110 12.5 x 25.0 5.0

EEUFC2A151

150 917 0.120 18.0 x 15.0 7.5

EEUFC2A151S

180 937 0.098 12.5 x 30.0 5.0

EEUFC2A181L

180 995 0.110 16.0 x 20.0 7.5

EEUFC2A181

220 1040 0.087 12.5 x 35.0 5.0

EEUFC2A221L

220 1170 0.089 16.0 x 25.0 7.5

EEUFC2A221

270 1130 0.072 12.5 x 40.0 5.0

EEUFC2A271L

270 1230 0.080 18.0 x 20.0 7.5

EEUFC2A271S

330 1520 0.062 16.0 x 31.5 7.5

EEUFC2A331

330 1420 0.070 18.0 x 25.0 7.5

EEUFC2A331S

390 1730 0.053 16.0 x 35.5 7.5

EEUFC2A391L

390 1600 0.062 18.0 x 31.5 7.5

EEUFC2A391

470 1920 0.047 16.0 x 40.0 7.5

EEUFC2A471

560 1770 0.041 18.0 x 35.5 7.5

EEUFC2A561

680 2300 0.036 18.0 x 40.0 7.5

EEUFC2A681

continuation

CAP/1030

Page 37

ELECTROLYTIC, Radial, Low ESR, Long Life, 105°C

+44 (0)1945 47 47 47 www.anglia.com [email protected]

NOVER type RX

A specialised range of radial aluminium electrolytic capacitors which offers a superb combination of low impedance, high temperature and an extended life expectancy. Suitable for applications where long term component reliability and integrity are of paramount importance. The entire range of values and voltages manufactured are listed below and on the following page. Supplied loose or taped and boxed.

N Low impedance

N High endurance Up to 6000 hours

N High ripple current

N Maximum temperature 105°C

Specification

Endurance test (at 105°C)

Capacitance tolerance Ripple current (as listed)

Impedance (as listed) Operating temperature range Leakage current

3000 hours (Dia ≤8), 6000 hours (Dia ≥10) ±20% at 120Hz, 20°C measured at 100kHz, 105°C (see also multiplier table below) measured at 100kHz, 20°C

-55°C to +105°C ≤0.01CV or 0.3µA (whichever is greater) after 2 min.

Dimensions (mm)

N Capacitance tolerance 20%

N Body colour Black

N Supplied loose or taped & boxed

15 min.

Dia

Vinyl sleeve

Tinned copper-clad steel wire

ød

Pitch

5 min.

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L (2.0 L≥20)

Vent (Dia ≥ 6.3)

ød = 0.5 (Dia ≤6.3)

0.6 (Dia 8–12.5)

0.8 (Dia ≥16)

Conforms to JIS C5141-1982 Char.W

Rated voltage 10V 16V 25V 35V 50V 63V 100V dc

Tan  (max) * 0.19 0.16 0.14 0.12 0.10 0.09 0.08

Dissipation factor (120Hz, 20°C)

* Add 0.02 for every 100µF above 1000µF

Rated voltage 10V 16V 25V 35V 50V 63V 100V dc

Surge voltage 13V 20V 32V 44V 63V 79V 125V dc

Surge voltage capability

Multiplier for ripple current

Frequency coefficient

Freq (Hz)

50/60 120 1k 10k ≤100k

Cap (µF)

0.47 ~ 4.7 0.35 0.42 0.60 0.80 1.0

10 ~ 33 0.45 0.55 0.75 0.90 1.0

47 ~ 330 0.60 0.70 0.85 0.95 1.0

470 ~ 1000 0.65 0.75 0.90 0.98 1.0

2200 ~ 10000 0.75 0.80 0.95 1.0 1.0

Temperature coefficient

Temperature (°C) +70 +85 +105

Coefficient 1.96 1.68 1.0

Value Ripple Current Impedance Dia. x L Pitch Taped &

(µF) (mA) (Ω) (mm) (mm) Loose Boxed

10 Volt

100 147 0.900 5.0 x 11.0 2.0(5)

061011 061011T

220 244 0.400 6.3 x 11.0 2.5(5)

061012 061012T

330 391 0.250 8.0 x 11.5 3.5(5)

061013 061013T

470 391 0.250 8.0 x 11.5 3.5(5)

061014 061014T

1000 762 0.120 10.0 x 16.0 5.0

061015 061015T

2200 1296 0.062 12.5 x 20.0 5.0

061016 061016T

3300 1646 0.048 12.5 x 25.0 5.0

061017 061017T

4700 1839 0.034 16.0 x 25.0 7.5

061018 061018T

6800 1994 0.029 16.0 x 31.5 7.5

061019

–

10000 2193 0.025 18.0 x 35.5 7.5

061020

–

16 Volt

47 147 0.900 5.0 x 11.0 2.0(5)

061084 061084T

100 244 0.400 6.3 x 11.0 2.5(5)

061085 061085T

220 391 0.250 8.0 x 11.5 3.5(5)

061086 061086T

330 391 0.250 8.0 x 11.5 3.5(5)

061087 061087T

470 576 0.160 10.0 x 12.5 5.0

061088 061088T

1000 1009 0.078 10.0 x 20.0 5.0

061089 061089T

2200 1646 0.048 12.5 x 25.0 5.0

061090 061090T

3300 1839 0.034 16.0 x 25.0 7.5

061091 061091T

4700 1994 0.029 16.0 x 31.5 7.5

061092

–

6800 2193 0.025 18.0 x 35.5 7.5

061093

–

25 Volt

33 147 0.900 5.0 x 11.0 2.0(5)

061028 061028T

47 147 0.900 5.0 x 11.0 2.0(5)

061029 061029T

100 244 0.400 6.3 x 11.0 2.5(5)

061030 061030T

220 391 0.250 8.0 x 11.5 3.5(5)

061031 061031T

330 576 0.160 10.0 x 12.5 5.0

061032 061032T

470 762 0.120 10.0 x 16.0 5.0

061033 061033T

1000 1296 0.062 12.5 x 20.0 5.0

061034 061034T

2200 1893 0.034 16.0 x 25.0 7.5

061035 061035T

3300 1994 0.029 16.0 x 31.5 7.5

061036

–

4700 2193 0.025 18.0 x 35.5 7.5

061037

–

ORDER CODES

continued > > > >

NO ER

Page 38

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ELECTROLYTIC, Radial, Low ESR, Long Life, 105°C

Value Ripple Current Impedance Dia. x L Pitch Taped &

(µF) (mA) (Ω) (mm) (mm) Loose Boxed

35 Volt

33 147 0.900 5.0 x 11.0 2.0(5)

061039 061039T

47 244 0.400 6.3 x 11.0 2.5(5)

061040 061040T

100 391 0.250 8.0 x 11.5 3.5(5)

061041 061041T

220 576 0.160 10.0 x 12.5 5.0

061042 061042T

330 762 0.120 10.0 x 16.0 5.0

061043 061043T

470 1009 0.078 10.0 x 20.0 5.0

061044 061044T

680 1340 0.068 12.5 x 25.0 5.0

061021 061021T

1000 1646 0.048 12.5 x 25.0 5.0

061045 061045T

2200 1994 0.029 16.0 x 31.5 7.5

061046

–

3300 2193 0.025 18.0 x 35.5 7.5

061047

–

50 Volt

0.47 17 5.500 5.0 x 11.0 2.0(5)

061048 061048T

1.0 29 4.000 5.0 x 11.0 2.0(5)

061049 061049T

2.2 43 2.500 5.0 x 11.0 2.0(5)

061050 061050T

3.3 53 2.200 5.0 x 11.0 2.0(5)

061051 061051T

4.7 88 1.900 5.0 x 11.0 2.0(5)

061052 061052T

10 100 1.500 5.0 x 11.0 2.0(5)

061053 061053T

22 147 0.900 5.0 x 11.0 2.0(5)

061054 061054T

33 244 0.400 6.3 x 11.0 2.5(5)

061055 061055T

47 244 0.400 6.3 x 11.0 2.5(5)

061056 061056T

100 391 0.250 8.0 x 11.5 3.5(5)

061057 061057T

220 762 0.120 10.0 x 16.0 5.0

061058 061058T

330 1009 0.078 10.0 x 20.0 5.0

061059 061059T

470 1295 0.062 12.5 x 20.0 5.0

061060 061060T

1000 1839 0.034 16.0 x 25.0 7.5

061061 061061T

2200 2193 0.025 18.0 x 35.5 7.5

061062

–

63 Volt

10 87 2.300 5.0 x 11.0 2.0(5)

061063 061063T

22 138 1.300 6.3 x 11.0 2.5(5)

061064 061064T

33 138 1.200 6.3 x 11.0 2.5(5)

061065 061065T

47 210 0.630 8.0 x 11.5 3.5(5)

061066 061066T

100 300 0.430 10.0 x 12.5 5.0

061067 061067T

220 520 0.210 10.0 x 20.0 5.0

061068 061068T

330 660 0.160 12.5 x 20.0 5.0

061069 061069T

470 750 0.120 12.5 x 25.0 5.0

061070 061070T

1000 1390 0.054 16.0 x 31.5 7.5

061071

–

100 Volt

0.47 15 6.000 5.0 x 11.0 2.0(5)

061072 061072T

1.0 20 4.500 5.0 x 11.0 2.0(5)

061073 061073T

2.2 30 3.000 5.0 x 11.0 2.0(5)

061074 061074T

3.3 40 2.700 5.0 x 11.0 2.0(5)

061075 061075T

4.7 65 2.500 5.0 x 11.0 2.0(5)

061076 061076T

10 138 1.200 6.3 x 11.0 2.5(5)

061077 061077T

22 160 0.630 8.0 x 11.5 3.5(5)

061078 061078T

33 230 0.430 10.0 x 12.5 5.0

061079 061079T

47 290 0.310 10.0 x 16.0 5.0

061080 061080T

100 430 0.160 12.5 x 20.0 5.0

061081 061081T

220 900 0.073 16.0 x 25.0 7.5

061082 061082T

330 900 0.073 16.0 x 25.0 7.5

061083 061083T

ORDER CODES

(5) Leads pre-formed to 5mm pitch on taped part

continuation

Page 39

ELECTROLYTIC, Radial, Low ESR, Long Life, 105°C

+44 (0)1945 47 47 47 www.anglia.com [email protected]

PANASONIC FK Series, type A

A specialised range of radial aluminium electrolytic capacitors which offers a superb combination of low impedance, high temperature and an extended life expectancy. Suitable for applications where long term component reliability and integrity are of paramount importance. The entire range of values and voltages manufactured is listed below and on the following page. Supplied loose, with taped and boxed product available to order (see details below).

N Low impedance

N High endurance Up to 5000 hours

N High ripple current

N Maximum temperature 105°C

Specification

FK (A)

Frequency correction factor for ripple current

Endurance test (at 105°C)

Capacitance tolerance Ripple current (as listed) Impedance (as listed) Operating temperature range Leakage current

3000 hours (Dia 8), 4000 hours (Dia 10), 5000 hours (Dia ≥12.5) ±20% at 120Hz, 20°C measured at 100kHz, 105°C measured at 100kHz, 20°C

-55°C to +105°C ≤0.01CV after 2 min.

Dimensions (mm)

N Capacitance tolerance 20% N Leakage current ≤0.01CV

N Supplied loose

Rated Voltage Capacitance Frequency (Hz)

(V) (µF) 60 120 1k 10k 100k

180 to 330 0.60 0.70 0.85 0.95 1.0

6.3 to 35 390 to 1000 0.65 0.75 0.90 0.98 1.0 1200 to 12000 0.75 0.80 0.95 1.0 1.0

ORDER CODES

Value Ripple Current Impedance Dia. x L Pitch

(µF) (mA) (Ω) (mm) (mm) Loose

6.3 Volt

680 630 0.090 8.0 x 11.5 3.5

EEUFK0J681

1000 860 0.062 8.0 x 15.0 3.5

EEUFK0J102L

1000 900 0.063 10.0 x 12.5 5.0

EEUFK0J102

1500 1220 0.044 8.0 x 20.0 3.5

EEUFK0J152L

1500 1240 0.049 10.0 x 16.0 5.0

EEUFK0J152

1800 1400 0.048 12.5 x 15.0 5.0

EEUFK0J182S

2200 1490 0.035 10.0 x 20.0 5.0

EEUFK0J222

2200 1680 0.033 10.0 x 25.0 5.0

EEUFK0J222L

3300 2140 0.025 10.0 x 30.0 5.0

EEUFK0J332L

3300 1890 0.029 12.5 x 20.0 5.0

EEUFK0J332

3300 1800 0.038 16.0 x 15.0 7.5

EEUFK0J332S

4700 2280 0.022 12.5 x 25.0 5.0

EEUFK0J472

4700 2060 0.036 18.0 x 15.0 7.5

EEUFK0J472S

5600 2720 0.018 12.5 x 30.0 5.0

EEUFK0J562L

5600 2330 0.026 16.0 x 20.0 7.5

EEUFK0J562S

6800 2940 0.016 12.5 x 35.0 5.0

EEUFK0J682L

8200 3010 0.014 12.5 x 40.0 5.0

EEUFK0J822L

8200 2760 0.019 16.0 x 25.0 7.5

EEUFK0J822

8200 2640 0.025 18.0 x 20.0 7.5

EEUFK0J822S

12000 2850 0.018 18.0 x 25.0 7.5

EEUFK0J123S

10 Volt

560 630 0.090 8.0 x 11.5 3.5

EEUFK1A561

820 860 0.062 8.0 x 15.0 3.5

EEUFK1A821L

820 900 0.063 10.0 x 12.5 5.0

EEUFK1A821

1200 1220 0.044 8.0 x 20.0 3.5

EEUFK1A122L

1200 1240 0.049 10.0 x 16.0 5.0

EEUFK1A122

1500 1400 0.048 12.5 x 15.0 5.0

EEUFK1A152S

1800 1490 0.035 10.0 x 20.0 5.0

EEUFK1A182

1800 1680 0.033 10.0 x 25.0 5.0

EEUFK1A182L

2700 2140 0.025 10.0 x 30.0 5.0

EEUFK1A272L

2700 1890 0.029 12.5 x 20.0 5.0

EEUFK1A272

2700 1800 0.038 16.0 x 15.0 7.5

EEUFK1A272S

3900 2280 0.022 12.5 x 25.0 5.0

EEUFK1A392

3900 2060 0.036 18.0 x 15.0 7.5

EEUFK1A392S

4700 2720 0.018 12.5 x 30.0 5.0

EEUFK1A472L

4700 2330 0.026 16.0 x 20.0 7.5

EEUFK1A472S

5600 2940 0.016 12.5 x 35.0 5.0

EEUFK1A562L

6800 3010 0.014 12.5 x 40.0 5.0

EEUFK1A682L

6800 2760 0.019 16.0 x 25.0 7.5

EEUFK1A682

6800 2640 0.025 18.0 x 20.0 7.5

EEUFK1A682S

8200 2850 0.018 18.0 x 25.0 7.5

EEUFK1A822S

continued > > > >

Tan at 120Hz, 20°C

Rated voltage (dc) 6.3V 10V 16V 25V 35V

Tan  (max.) 0.22 0.19 0.16 0.14 0.12

For capacitance values >1000µF, add 0.02 per every 1000µF.

Order codes listed apply to loose

product with straight leads.

Taped & boxed product is also available,

please contact our Sales Desk for details.

Vent (Dia ≥ 6.3)

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L (2.0 L≥20)

Vinyl sleeve

Dia

Tinned copper-clad steel wire

ød

14 min.

3 min.

Pitch

ød = 0.6 (Dia 8 – 10)

0.6 (Dia 12.5, if L is 12.5 to 25)

0.8 (Dia 12.5, if L is 30 to 40)

0.8 (Dia 16 – 18)

Page 40

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ELECTROLYTIC, Radial, Low ESR, Long Life, 105°C

ORDER CODES

Value Ripple Current Impedance Dia. x L Pitch

(µF) (mA) (Ω) (mm) (mm) Loose

16 Volt

390 630 0.090 8.0 x 11.5 3.5

EEUFK1C391

680 860 0.062 8.0 x 15.0 3.5

EEUFK1C681L

680 900 0.063 10.0 x 12.5 5.0

EEUFK1C681

820 1220 0.044 8.0 x 20.0 3.5

EEUFK1C821L

1000 1240 0.049 10.0 x 16.0 5.0

EEUFK1C102

1200 1490 0.035 10.0 x 20.0 5.0

EEUFK1C122

1200 1400 0.048 12.5 x 15.0 5.0

EEUFK1C122S

1500 1680 0.033 10.0 x 25.0 5.0

EEUFK1C152L

2200 2140 0.025 10.0 x 30.0 5.0

EEUFK1C222L

2200 1890 0.029 12.5 x 20.0 5.0

EEUFK1C222

2200 1800 0.038 16.0 x 15.0 7.5

EEUFK1C222S

2700 2280 0.022 12.5 x 25.0 5.0

EEUFK1C272

2700 2060 0.036 18.0 x 15.0 7.5

EEUFK1C272S

3300 2720 0.018 12.5 x 30.0 5.0

EEUFK1C332L

3900 2940 0.016 12.5 x 35.0 5.0

EEUFK1C392L

3900 2330 0.026 16.0 x 20.0 7.5

EEUFK1C392S

4700 3010 0.014 12.5 x 40.0 5.0

EEUFK1C472L

4700 2640 0.025 18.0 x 20.0 7.5

EEUFK1C472S

5600 2760 0.019 16.0 x 25.0 7.5

EEUFK1C562

6800 2850 0.018 18.0 x 25.0 7.5

EEUFK1C682S

25 Volt

270 630 0.090 8.0 x 11.5 3.5

EEUFK1E271

390 860 0.062 8.0 x 15.0 3.5

EEUFK1E391L

470 900 0.063 10.0 x 12.5 5.0

EEUFK1E471

560 1220 0.044 8.0 x 20.0 3.5

EEUFK1E561L

560 1240 0.049 10.0 x 16.0 5.0

EEUFK1E561

820 1490 0.035 10.0 x 20.0 5.0

EEUFK1E821

820 1400 0.048 12.5 x 15.0 5.0

EEUFK1E821S

1000 1680 0.033 10.0 x 25.0 5.0

EEUFK1E102L

1200 1890 0.029 12.5 x 20.0 5.0

EEUFK1E122

1500 2140 0.025 10.0 x 30.0 5.0

EEUFK1E152L

1500 1800 0.038 16.0 x 15.0 7.5

EEUFK1E152S

1800 2280 0.022 12.5 x 25.0 5.0

EEUFK1E182

1800 2060 0.036 18.0 x 15.0 7.5

EEUFK1E182S

2200 2720 0.018 12.5 x 30.0 5.0

EEUFK1E222L

2200 2330 0.026 16.0 x 20.0 7.5

EEUFK1E222S

2700 2940 0.016 12.5 x 35.0 5.0

EEUFK1E272L

3300 3010 0.014 12.5 x 40.0 5.0

EEUFK1E332L

3300 2760 0.019 16.0 x 25.0 7.5

EEUFK1E332

3300 2640 0.025 18.0 x 20.0 7.5

EEUFK1E332S

4700 2850 0.018 18.0 x 25.0 7.5

EEUFK1E472S

35 Volt

180 630 0.090 8.0 x 11.5 3.5

EEUFK1V181

270 860 0.062 8.0 x 15.0 3.5

EEUFK1V271L

270 900 0.063 10.0 x 12.5 5.0

EEUFK1V271

390 1220 0.044 8.0 x 20.0 3.5

EEUFK1V391L

390 1240 0.049 10.0 x 16.0 5.0

EEUFK1V391

560 1490 0.035 10.0 x 20.0 5.0

EEUFK1V561

560 1400 0.048 12.5 x 15.0 5.0

EEUFK1V561S

680 1680 0.033 10.0 x 25.0 5.0

EEUFK1V681L

820 1890 0.029 12.5 x 20.0 5.0

EEUFK1V821

1000 2140 0.025 10.0 x 30.0 5.0

EEUFK1V102L

1000 1800 0.038 16.0 x 15.0 7.5

EEUFK1V102S

1200 2280 0.022 12.5 x 25.0 5.0

EEUFK1V122

1200 2060 0.036 18.0 x 15.0 7.5

EEUFK1V122S

1500 2720 0.018 12.5 x 30.0 5.0

EEUFK1V152L

1800 2940 0.016 12.5 x 35.0 5.0

EEUFK1V182L

1800 2330 0.026 16.0 x 20.0 7.5

EEUFK1V182S

2200 3010 0.014 12.5 x 40.0 5.0

EEUFK1V222L

2200 2760 0.019 16.0 x 25.0 7.5

EEUFK1V222

2200 2640 0.025 18.0 x 20.0 7.5

EEUFK1V222S

3300 2850 0.018 18.0 x 25.0 7.5

EEUFK1V332S

continuation

Page 41

ORDER CODES

Value Ripple Current Impedance Dia. x L Pitch

(µF) (mA) (Ω) (mm) (mm) Loose

6.3 Volt

150 280 0.300 5.0 x 11.0 2.0

EEUFM0J151

330 455 0.130 6.0 x 11.2 2.5

EEUFM0J331

560 950 0.056 8.0 x 11.5 3.5

EEUFM0J561

820 1240 0.041 8.0 x 15.0 3.5

EEUFM0J821L

1000 1290 0.038 10.0 x 12.5 5.0

EEUFM0J102

1200 1560 0.030 8.0 x 20.0 3.5

EEUFM0J122L

1200 1790 0.026 10.0 x 16.0 5.0

EEUFM0J122

1500 2180 0.019 10.0 x 20.0 5.0

EEUFM0J152

2200 2470 0.018 10.0 x 25.0 5.0

EEUFM0J222L

3300 2600 0.018 12.5 x 20.0 5.0

EEUFM0J332

3900 3190 0.015 12.5 x 25.0 5.0

EEUFM0J392

4700 3630 0.013 12.5 x 30.0 5.0

EEUFM0J472L

5600 3750 0.012 12.5 x 35.0 5.0

EEUFM0J562L

5600 3300 0.017 16.0 x 20.0 7.5

EEUFM0J562S

6800 3820 0.014 16.0 x 25.0 7.5

EEUFM0J682

10 Volt

100 280 0.300 5.0 x 11.0 2.0

EEUFM1A101

220 455 0.130 6.0 x 11.2 2.5

EEUFM1A221

470 950 0.056 8.0 x 11.5 3.5

EEUFM1A471

680 1240 0.041 8.0 x 15.0 3.5

EEUFM1A681L

680 1290 0.038 10.0 x 12.5 5.0

EEUFM1A681

1000 1560 0.030 8.0 x 20.0 3.5

EEUFM1A102L

1000 1790 0.026 10.0 x 16.0 5.0

EEUFM1A102

1200 2180 0.019 10.0 x 20.0 5.0

EEUFM1A122

1500 2470 0.018 10.0 x 25.0 5.0

EEUFM1A152L

2200 2600 0.018 12.5 x 20.0 5.0

EEUFM1A222

3300 3190 0.015 12.5 x 25.0 5.0

EEUFM1A332

3900 3630 0.013 12.5 x 30.0 5.0

EEUFM1A392L

3900 3300 0.017 16.0 x 20.0 7.5

EEUFM1A392S

4700 3750 0.012 12.5 x 35.0 5.0

EEUFM1A472L

5600 3820 0.014 16.0 x 25.0 7.5

EEUFM1A562

16 Volt

68 280 0.300 5.0 x 11.0 2.0

EEUFM1C680

120 455 0.130 6.0 x 11.2 2.5

EEUFM1C121

330 950 0.056 8.0 x 11.5 3.5

EEUFM1C331

470 1240 0.041 8.0 x 15.0 3.5

EEUFM1C471L

470 1290 0.038 10.0 x 12.5 5.0

EEUFM1C471

680 1560 0.030 8.0 x 20.0 3.5

EEUFM1C681L

680 1790 0.026 10.0 x 16.0 5.0

EEUFM1C681

1000 2180 0.019 10.0 x 20.0 5.0

EEUFM1C102

1200 2470 0.018 10.0 x 25.0 5.0

EEUFM1C122L

1500 2600 0.018 12.5 x 20.0 5.0

EEUFM1C152

2200 3190 0.015 12.5 x 30.0 5.0

EEUFM1C222

2700 3630 0.013 12.5 x 30.0 5.0

EEUFM1C272L

2700 3300 0.017 16.0 x 20.0 7.5

EEUFM1C272S

3300 3750 0.012 12.5 x 35.0 5.0

EEUFM1C332L

3900 3820 0.014 16.0 x 25.0 7.5

EEUFM1C392

ELECTROLYTIC, Radial, Very Low ESR, Long Life, 105°C

+44 (0)1945 47 47 47 www.anglia.com [email protected]

PANASONIC FM Series, type A

A radial aluminium electrolytic capacitors which offer of very low impedance, high temperature and an extended life expectancy. Suitable for applications where long term component reliability and integrity are of paramount importance. The entire range of values and voltages manufactured is listed below and on the following page. Supplied loose, with taped and boxed product available to order (see details below).

N Very low impedance

N High endurance Up to 7000 hours

N Very high ripple current

N Maximum temperature 105°C

Specification

FM (A)

Frequency correction factor for ripple current

Endurance test (at 105°C)

Capacitance tolerance Ripple current (as listed) Impedance (as listed) Operating temperature range Leakage current

2000 hours (Dia 5 - 6.3) 3000 hours (Dia 8 x 11.5 - Dia 8 x 15), 4000 hours (Dia 8 x 20 - Dia 10 x 16), 5000 hours (Dia 10 x 20 - Dia 12.5 x 20/16 x 20) 7000 hours (Dia 12.5 x 25 - Dia 12.5 x 35/16 x 25) ±20% at 120Hz, 20°C measured at 100kHz, 105°C measured at 100kHz, 20°C

-40°C to +105°C ≤0.01CV after 2 min.

Dimensions (mm)

N Capacitance tolerance 20% N Leakage current ≤0.01CV

N Supplied loose or taped & boxed

Rated Voltage Capacitance Frequency (Hz)

(V) (µF) 60 120 1k 10k 100k

22 to 33 0.45 0.55 0.75 0.90 1.0

47 to 330 0.60 0.70 0.85 0.95 1.0

6.3 to 50 390 to 1000 0.65 0.75 0.90 0.98 1.0

1200 to 6800 0.75 0.80 0.95 1.0 1.0

continued > > > >

Tan at 120Hz, 20°C

Rated voltage (dc) 6.3V 10V 16V 25V 35V 50V

Tan  (max.) 0.22 0.19 0.16 0.14 0.12 0.10

Order codes listed apply to loose

product with straight leads.

Taped & boxed product is also available,

please contact our Sales Desk for details.

For capacitance values >1000µF, add 0.02 per every 1000µF.

Vent (Dia ≥ 6.3)

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L (2.0 L≥20)

Vinyl sleeve

Dia

Tinned copper-clad steel wire

ød

14 min.

3 min.

Pitch

ød = 0.5 (Dia 5 - 6.3)

0.6 (Dia 8 - 10)

0.6 (Dia 12.5, if L is 12.5 to 25)

0.8 (Dia 12.5, if L is 30 to 35)

0.8 (Dia 16)

Page 42

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ELECTROLYTIC, Radial, Very Low ESR, Long Life, 105°C

ORDER CODES

Value Ripple Current Impedance Dia. x L Pitch

(µF) (mA) (Ω) (mm) (mm) Loose

25 Volt

47 280 0.300 5.0 x 11.0 2.0

EEUFM1E470

100 455 0.130 6.0 x 11.2 2.5

EEUFM1E101

220 950 0.056 8.0 x 11.5 3.5

EEUFM1E221

330 1240 0.041 8.0 x 15.0 3.5

EEUFM1E331L

330 1290 0.038 10.0 x 12.5 5.0

EEUFM1E331

470 1560 0.030 8.0 x 20.0 3.5

EEUFM1E471L

470 1790 0.026 10.0 x 16.0 5.0

EEUFM1E471

680 2180 0.019 10.0 x 20.0 5.0

EEUFM1E681

820 2470 0.018 10.0 x 25.0 5.0

EEUFM1E821L

1000 2600 0.018 12.5 x 20.0 5.0

EEUFM1E102

1500 3190 0.015 12.5 x 25.0 5.0

EEUFM1E152

1800 3630 0.013 12.5 x 30.0 5.0

EEUFM1E182L

1800 3300 0.017 16.0 x 20.0 7.5

EEUFM1E182S

2200 3750 0.012 12.5 x 35.0 5.0

EEUFM1E222L

2700 3820 0.014 16.0 x 25.0 7.5

EEUFM1E272

35 Volt

33 280 0.300 5.0 x 11.0 2.0

EEUFM1V330

68 455 0.130 6.0 x 11.2 2.5

EEUFM1V680

150 950 0.056 8.0 x 11.5 3.5

EEUFM1V151

220 1240 0.041 8.0 x 15.0 3.5

EEUFM1V221L

220 1290 0.038 10.0 x 12.5 5.0

EEUFM1V221

330 1560 0.030 8.0 x 20.0 3.5

EEUFM1V331L

330 1790 0.026 10.0 x 16.0 5.0

EEUFM1V331

470 2180 0.019 10.0 x 20.0 5.0

EEUFM1V471

560 2470 0.018 10.0 x 25.0 5.0

EEUFM1V561L

680 2600 0.018 12.5 x 20.0 5.0

EEUFM1V681

1000 3190 0.015 12.5 x 25.0 5.0

EEUFM1V102

1200 3630 0.013 12.5 x 30.0 5.0

EEUFM1V122L

1200 3300 0.017 16.0 x 20.0 7.5

EEUFM1V122S

1500 3750 0.012 12.5 x 35.0 5.0

EEUFM1V152L

1800 3820 0.014 16.0 x 25.0 7.5

EEUFM1V182

50 Volt

22 250 0.340 5.0 x 11.0 2.0

EEUFM1H220

56 405 0.140 6.0 x 11.2 2.5

EEUFM1H560

100 870 0.061 8.0 x 11.5 3.5

EEUFM1H101

120 1140 0.045 8.0 x 15.0 3.5

EEUFM1H121L

150 1170 0.042 10.0 x 12.5 5.0

EEUFM1H151

180 1430 0.033 8.0 x 20.0 3.5

EEUFM1H181L

220 1650 0.030 10.0 x 16.0 5.0

EEUFM1H221

270 1890 0.023 10.0 x 20.0 5.0

EEUFM1H271

330 2150 0.022 10.0 x 25.0 5.0

EEUFM1H331L

470 2260 0.022 12.5 x 20.0 5.0

EEUFM1H471

560 2660 0.018 12.5 x 25.0 5.0

EEUFM1H561

680 3160 0.016 12.5 x 30.0 5.0

EEUFM1H681L

820 3270 0.014 12.5 x 35.0 5.0

EEUFM1H821L

820 2870 0.019 16.0 x 20.0 7.5

EEUFM1H821S

1000 3320 0.016 16.0 x 25.0 7.5

EEUFM1H102

continuation

Page 43

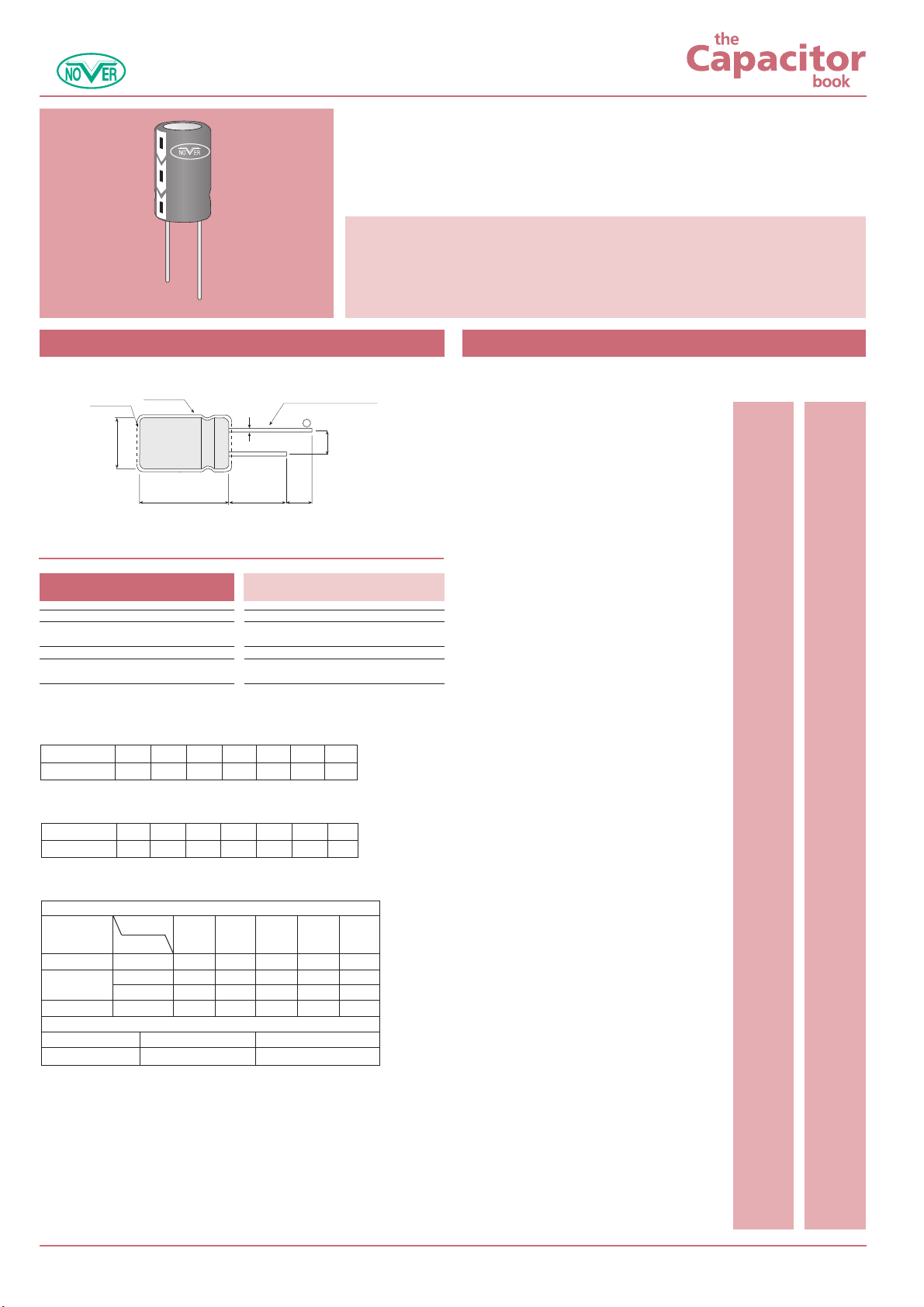

ELECTROLYTIC, Radial, Low Leakage

+44 (0)1945 47 47 47 www.anglia.com [email protected]

NOVER type LL

A range of low leakage, radial aluminium electrolytic capacitors suitable for timing circuits and low signal coupling applications. The entire range of values and voltages manufactured are listed below and supplied loose or taped and boxed.

N Low leakage ≤0.002CV

N Stable during storage

N Solvent resistant

N Maximum temperature 85°C

Specification

Capacitance tolerance Ripple current (as listed)

Operating temperature range Leakage current

±20% at 120Hz, 20°C measured at 120Hz, 85°C (see also multiplier table below)

-40°C to +85°C ≤0.002CV or 0.3µA (whichever is greater) after 2 min.

Dimensions (mm)

N Capacitance tolerance 20%

N Body colour Orange

N Supplied loose or taped & boxed

15 min.

Dia

Vinyl sleeve

Tinned copper-clad steel wire

ød

Pitch

5 min.

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L (2.0 L≥20)

Vent (Dia ≥ 6.3)

ød = 0.5 (Dia ≤6.3)

0.6 (Dia 8–12.5)

0.8 (Dia ≥16)

Conforms to JIS C5141-1982 Char.W

Rated voltage 6.3V 10V 16V 25V 35V 50V dc

Tan  (max)*0.20 0.17 0.13 0.10 0.10 0.08

Rated voltage 6.3V 10V 16V 25V 35V 50V dc

Surge voltage 8V 13V 20V 32V 44V 63V dc

Dissipation factor (120Hz, 20°C)

Surge voltage capability

Multiplier for ripple current

Frequency coefficient

Rated Voltage

Freq (Hz)

50/60 120 1k 10k 100k

(V)

CV (µF.WV)

6.3 ~ 10 0.8 1.0 1.1 1.2 1.2

16 ~ 25

≤1000 0.8 1.0 1.5 1.7 1.7

>1000 0.8 1.0 1.2 1.3 1.3

35 ~ 50 0.8 1.0 1.6 1.9 1.9

Temperature coefficient

Temperature (°C) +70 +85

Factor 1.35 1.0

*Add 0.02 for every 1000µF above 1000µF

Value Ripple Current Dia. x L Pitch Taped &

(µF) (mA) (mm) (mm) Loose Boxed

6.3 Volt

220 240 8.0 x 11.5 3.5(5)

059002 059002T

330 300 8.0 x 11.5 3.5(5)

059003 059003T

470 420 10.0 x 12.5 5.0

059004 059004T

1000 740 10.0 x 20.0 5.0

059005 059005T

2200 1220 12.5 x 20.0 5.0

059006 059006T

10 Volt

22 56 5.0 x 11.0 2.0(5)

059007 059007T

33 70 5.0 x 11.0 2.0(5)

059008 059008T

47 80 5.0 x 11.0 2.0(5)

059009 059009T

100 140 6.3 x 11.0 2.5(5)

059010 059010T

220 240 8.0 x 11.5 3.5(5)

059011 059011T

330 380 10.0 x 12.5 5.0

059012 059012T

470 500 10.0 x 16.0 5.0

059013 059013T

1000 910 12.5 x 20.0 5.0

059014 059014T

2200 1710 12.5 x 25.0 5.0

059015 059015T

16 Volt

10 43 5.0 x 11.0 2.0(5)

059016 059016T

22 74 5.0 x 11.0 2.0(5)

059017 059017T

33 80 5.0 x 11.0 2.0(5)

059018 059018T

47 90 5.0 x 11.0 2.0(5)

059019 059019T

100 200 8.0 x 11.5 3.5(5)

059020 059020T

220 360 10.0 x 12.5 5.0

059021 059021T

330 500 10.0 x 16.0 5.0

059022 059022T

470 620 10.0 x 20.0 5.0

059023 059023T

1000 1040 12.5 x 25.0 5.0

059024 059024T

2200 1900 16.0 x 31.5 7.5

059025

–

25 Volt

4.7 34 5.0 x 11.0 2.0(5)

059026 059026T

10 52 5.0 x 11.0 2.0(5)

059027 059027T

22 72 5.0 x 11.0 2.0(5)

059028 059028T

33 100 6.3 x 11.0 2.5(5)

059029 059029T

47 114 6.3 x 11.0 2.5(5)

059030 059030T

100 210 8.0 x 11.5 3.5(5)

059031 059031T

220 400 10.0 x 16.0 5.0

059032 059032T

330 540 10.0 x 20.0 5.0

059033 059033T

470 740 12.5 x 20.0 5.0

059034 059034T

1000 1350 16.0 x 25.0 7.5

059035

–

35 Volt

4.7 34 5.0 x 11.0 2.0(5)

059036 059036T

10 52 5.0 x 11.0 2.0(5)

059037 059037T

22 74 6.3 x 11.0 2.5(5)

059038 059038T

33 100 6.3 x 11.0 2.5(5)

059039 059039T

47 150 8.0 x 11.5 3.5(5)

059040 059040T

100 260 10.0 x 12.5 5.0

059041 059041T

220 460 10.0 x 20.0 5.0

059042 059042T

330 650 12.5 x 20.0 5.0

059043 059043T

470 850 12.5 x 25.0 5.0

059044 059044T

1000 1550 16.0 x 25.0 7.5

059045

–

50 Volt

0.1 5 5.0 x 11.0 2.0(5)

059046 059046T

0.22 7 5.0 x 11.0 2.0(5)

059047 059047T

0.33 9 5.0 x 11.0 2.0(5)

059048 059048T

0.47 14 5.0 x 11.0 2.0(5)

059049 059049T

1.0 20 5.0 x 11.0 2.0(5)

059050 059050T

2.2 26 5.0 x 11.0 2.0(5)

059051 059051T

3.3 32 5.0 x 11.0 2.0(5)

059052 059052T

4.7 43 5.0 x 11.0 2.0(5)

059053 059053T

10 70 5.0 x 11.0 2.0(5)

059054 059054T

22 110 8.0 x 11.5 3.5(5)

059055 059055T

33 160 10.0 x 12.5 5.0

059056 059056T

47 210 10.0 x 16.0 5.0

059057 059057T

100 380 12.5 x 20.0 5.0

059058 059058T

220 720 16.0 x 25.0 7.5

059059 059059T

330 880 16.0 x 25.0 7.5

059060 059060T

470 1150 16.0 x 31.5 7.5

059061

–

(5) Leads pre-formed to 5mm pitch on taped part

ORDER CODES

Page 44

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ELECTROLYTIC, Radial, Bi-polar

NOVER type RB

A range of bi-polar (non-polarised) radial aluminium electrolytic capacitors suitable for applications where reverse voltage may be applied. Endurance test 2000 hours at 85°C. The most popular values are listed below with other values and voltages being available to order. Supplied loose or taped and boxed.

N Bi-polar (non-polarised)

N Longer life

N Endurance 2000 hours at 85°C

N Solvent resistant

Specification

Endurance test Capacitance tolerance Ripple current (as listed)

Operating temperature range Leakage current

2000 hours at 85°C ±20% at 120Hz, 20°C measured at 120Hz, 85°C (see also multiplier table below)

-40°C to +85°C ≤0.03CV + 3µA after 5 min.

Dimensions (mm)

N Capacitance tolerance 20%

N Body colour Red

N Supplied loose or taped & boxed

15 min.

Dia

Vinyl sleeve

Tinned copper-clad steel wire

ød

Pitch

5 min.

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L (2.0 L≥20)

Vent (Dia ≥ 6.3)

ød = 0.5 (Dia ≤6.3)

0.6 (Dia 8–12.5)

0.8 (Dia ≥16)

to EIAJ RC-3803

Rated voltage 50V dc

Surge voltage 63V dc

Rated voltage 50V dc

Tan  (max) 0.14 dc

Value Ripple Current Dia. x L Pitch Taped &

(µF) (mA) (mm) (mm) Loose Boxed

50 Volt

0.1 4 5.0 x 11.0 2.0(5)

050046 050046T

0.22 7 5.0 x 11.0 2.0(5)

050047 050047T

0.33 8 5.0 x 11.0 2.0(5)

050048 050048T

0.47 10 5.0 x 11.0 2.0(5)

050049 050049T

1.0 14 5.0 x 11.0 2.0(5)

050050 050050T

2.2 21 5.0 x 11.0 2.0(5)

050051 050051T

3.3 26 5.0 x 11.0 2.0(5)

050052 050052T

4.7 31 5.0 x 11.0 2.0(5)

050053 050053T

10 45 5.0 x 11.0 2.0(5)

050054 050054T

22 77 6.3 x 11.0 2.5(5)

050055 050055T

33 111 8.0 x 11.5 3.5(5)

050056 050056T

47 157 10.0 x 12.5 5.0

050057 050057T

100 273 10.0 x 20.0 5.0

050058 050058T

220 506 12.5 x 25.0 5.0

050059 050059T

330 620 12.5 x 25.0 5.0

050060 050060T

470 861 16.0 x 25.0 7.5

050061 050061T

Dissipation factor (120Hz, 20°C)

Surge voltage capability

Multiplier for ripple current

Frequency coefficient Freq (Hz) 50/60 120 1k 10k 100k Factor 0.8 1.0 1.6 1.9 1.9 Temperature coefficient Temperature (°C) +70 +85 Factor 1.35 1.0

ORDER CODES

(5) Leads pre-formed to 5mm pitch on taped part

Other values and voltages are available to order.

Please contact our Sales Desk for details.

Page 45

ELECTROLYTIC, Axial

+44 (0)1945 47 47 47 www.anglia.com [email protected]

NOVER type TE

NO ER

Axial lead aluminium electrolytic capacitors manufactured to be highly cost effective whilst maintaining high levels of quality and reliability. Supplied loose, with taped and reeled product available to order.

N Standard range

N Maximum temperature 85°C

N Capacitance tolerance 20%

Specification

Capacitance tolerance Ripple current (as listed) Operating temperature range Leakage current

±20% at 120Hz, 25°C measured at 120Hz, 85°C

-40°C to +85°C ≤0.01CV or 3µA

(≤100V)

(whichever is greater) after 2 mins. ≤0.01CV +100µA (>100V) after 5 mins.

Dimensions (mm)

N Leakage current ≤0.01CV

N Body colour Black

N Supplied loose

Vinyl sleeve

Tinned copper-clad steel wire

35 min.

Vent (Dia >8)

ød

ød = 0.6 (Dia ≤13)

0.8 (Dia ≥16)

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.5 to L

Dia

Conforms to JIS C5141-1982 Char. W

Value Ripple Current Dia. x L

(µF) (mA) (mm) Loose

10 Volt

47 75 5.0 x 12.5

051006

100 180 6.3 x 12.5

051007

220 204 6.3 x 16.0

051008

470 400 8.0 x 20.0

051010

1000 585 10.0 x 20.0

051011

2200 920 13.0 x 25.0

051012

4700 1200 16.0 x 30.0

051014

16 Volt

10 40 5.0 x 12.5

051016

22 64 5.0 x 12.5

051017

47 92 6.3 x 12.5

051019

100 160 6.3 x 12.5

051020

220 280 8.0 x 16.0

051021

470 450 8.0 x 20.0

051023

1000 760 10.0 x 25.0

051024

2200 1200 13.0 x 26.0

051025

4700 1900 16.0 x 34.0

051027

25 Volt

10 47 5.0 x 12.5

051000

22 70 6.3 x 12.5

051028

47 100 6.3 x 12.5

051030

100 180 6.3 x 16.5

051031

220 300 8.0 x 16.0

051032

470 500 10.0 x 20.0

051034

1000 950 13.0 x 21.0

051035

2200 1450 16.0 x 29.0

051036

4700 2160 16.0 x 40.0

051037

40 Volt

10 38 5.0 x 12.5

051038

22 67 6.3 x 12.5

051039

47 113 8.0 x 16.0

051041

100 189 8.0 x 20.0

051042

220 335 10.0 x 20.0

051043

470 590 13.0 x 26.0

051045

1000 1095 16.0 x 34.0

051046

2200 1624 18.0 x 40.0

051047

4700 (35V) 2300 18.0 x 40.0

051049

63 Volt

1.0 16 5.0 x 12.5

051058

2.2 21 5.0 x 12.5

051059

4.7 38 6.3 x 12.5

051061

10 62 6.3 x 12.5

051062

22 100 6.3 x 12.5

051063

47 180 8.0 x 16.0

051065

100 280 10.0 x 16.0

051066

220 470 10.0 x 25.0

051067

470 900 13.0 x 26.0

051069

1000 1500 16.0 x 40.0

051070

2200 2060 22.0 x 40.0

051071

100 Volt

1.0 12 5.0 x 12.5

051073

2.2 21 6.3 x 12.5

051074

4.7 39 6.3 x 12.5

051076

10 75 6.3 x 16.5

051077

22 120 8.0 x 16.0

051078

47 230 10.0 x 20.0

051080

100 420 13.0 x 21.0

051081

220 700 13.0 x 30.0

051082

470 1031 16.0 x 40.0

051084

1000 1447 22.0 x 40.0

051085

250 Volt

1.0 13 6.3 x 16.0

051099

2.2 23 8.0 x 16.0

051100

4.7 37 8.0 x 20.0

051102

10 57 10.0 x 16.0

051103

22 101 10.0 x 25.0

051104

47 184 13.0 x 25.0

051106

350 Volt

10 62 10.0 x 20.0

051114

22 109 13.0 x 20.0

051115

47 147 16.0 x 33.0

051117

450 Volt

1.0 19 8.0 x 16.0

051121

2.2 30 10.0 x 20.0

051122

4.7 50 10.0 x 25.0

051124

10 80 13.0 x 20.0

051125

22 130 13.0 x 30.0

051126

47 230 18.0 x 40.0

051128

100 470 22.0 x 40.0

051129

Rated voltage 10V 16V 25V 35V 40V 63V 100V 250V 350V 450V dc

Surge voltage 13V 20V 32V 44V 50V 79V 125V 300V 400V 500V dc

Tan 웃 (max)* 0.20 0.16 0.14 0.12 0.11 0.10 0.08 0.20 0.20 0.25

*Add 0.02 for every 1000µF above 1000µF.

ORDER CODES

Taped & reeled product available to order. Please contact our Sales Desk for details.

CAP/1125

Page 46

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ELECTROLYTIC, Axial, 105°C

NOVER type TH

Axial lead aluminium electrolytic capacitors with an extended upper temperature limit of 105°C. Ideal for equipment running at high ambient temperatures where a greater climatic safety margin and improved reliabilty is required. Supplied loose, with taped and reeled product available to order.

N High temperature

N Maximum temperature 105°C

N Capacitance tolerance 20%

Specification

Capacitance tolerance Ripple current (as listed) Operating temperature range Leakage current

±20% at 120Hz, 20°C measured at 120Hz, 105°C

-40°C to +105°C ≤0.01CV or 3µA (whichever is greater) after 2 min.

Dimensions (mm)

N Leakage current ≤0.01CV

N Body colour Light Green

N Supplied loose

Vinyl sleeve

Tinned copper-clad steel wire

35 min.

Vent (Dia >8)

ød

ød = 0.6 (Dia ≤13)

0.8 (Dia ≥16)

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.5 to L

Dia

Conforms to JIS C5141-1982 Char. W

Value Ripple Current Dia. x L

(µF) (mA) (mm) Loose

10 Volt

22 38 5.0 x 12.5

062004

47 56 5.0 x 12.5

062006

100 93 6.3 x 12.5

062007

220 177 6.3 x 16.0

062008

470 267 8.0 x 20.0

062010

1000 488 10.0 x 20.0

062011

2200 783 13.0 x 25.0

062012

4700 1483 16.0 x 30.0

062014

16 Volt

22 38 5.0 x 12.5

062017

47 61 6.3 x 12.5

062019

100 101 6.3 x 16.0

062020

220 177 8.0 x 16.0

062021

470 329 10.0 x 16.0

062023

1000 572 10.0 x 25.0

062024

2200 912 13.0 x 30.0

062025

4700 1585 16.0 x 40.0

062027

25 Volt

10 27 5.0 x 12.5

062000

22 44 6.3 x 12.5

062028

47 73 6.3 x 12.5

062030

100 127 8.0 x 16.0

062031

220 210 8.0 x 20.0

062032

470 384 10.0 x 20.0

062034

1000 672 13.0 x 25.0

062035

2200 1099 16.0 x 30.0

062036

4700 1498 18.0 x 40.0

062037

35 Volt

10 30 5.0 x 12.5

062038

22 49 6.3 x 12.5

062039

47 82 6.3 x 16.0

062041

100 158 8.0 x 16.0

062042

220 266 10.0 x 16.0

062043

470 467 10.0 x 25.0

062045

1000 816 13.0 x 30.0

062046

2200 1140 16.0 x 40.0

062047

4700 1550 22.0 x 40.0

062049

63 Volt

1.0 10 5.0 x 12.5

062058

2.2 15 5.0 x 12.5

062059

4.7 25 6.3 x 12.5

062061

10 36 6.3 x 12.5

062062

22 61 6.3 x 16.0

062063

47 117 8.0 x 16.0

062065

100 196 10.0 x 16.0

062066

220 346 10.0 x 25.0

062067

470 597 13.0 x 30.0

062069

1000 1163 16.0 x 40.0

062070

2200 1320 22.0 x 40.0

062071

100 Volt

1.0 10 5.0 x 12.5

062073

2.2 17 6.3 x 12.5

062074

4.7 25 6.3 x 12.5

062076

10 45 6.3 x 16.0

062077

22 81 8.0 x 16.0

062078

47 134 10.0 x 20.0

062080

100 255 10.0 x 25.0

062081

220 439 13.0 x 30.0

062082

Rated voltage 10V 16V 25V 35V 63V 100V dc

Surge voltage 13V 20V 32V 44V 79V 125V dc

Tan  (max.)* 0.20 0.17 0.15 0.12 0.10 0.08

*Add 0.02 for every 1000µF above 1000µF.

ORDER CODES

Taped & reeled product available to order. Please contact our Sales Desk for details.

Page 47

Value Ripple Current Dia. x L

(µF) (A) (mm) Order Code

16 Volt

4700 2.20 22.0 x 25.0

054002

6800 2.33 22.0 x 25.0

054003

8200 2.56 22.0 x 30.0

054053

10000 2.81 22.0 x 30.0

054004

15000 3.64 25.0 x 30.0

054005

22000 4.44 25.0 x 40.0

054006

33000 5.38 30.0 x 45.0

054007

25 Volt

4700 2.18 22.0 x 25.0

054101

6800 2.56 22.0 x 30.0

054102

8200 2.80 22.0 x 35.0

054123

8200 2.86 25.0 x 40.0

054103

10000 3.12 22.0 x 40.0

054125

10000 3.16 25.0 x 30.0

054105

15000 4.00 25.0 x 40.0

054106

22000 5.19 30.0 x 40.0

054107

35 Volt

3300 2.14 22.0 x 25.0

054203

4700 2.24 22.0 x 30.0

054224

4700 2.28 25.0 x 25.0

054204

6800 2.89 25.0 x 35.0

054205

8200 3.33 25.0 x 40.0

054255

10000 3.59 25.0 x 40.0

054226

10000 3.62 25.0 x 45.0

054206

10000 3.70 30.0 x 40.0

054216

15000 4.80 30.0 x 45.0

054207

22000 6.40 30.0 x 50.0

054208

50 Volt

2200 1.93 22.0 x 30.0

054303

3300 2.41 22.0 x 30.0

054304

4700 3.01 22.0 x 40.0

054305

4700 3.01 35.0 x 25.0

054315

6800 3.79 25.0 x 40.0

054326

6800 3.87 30.0 x 35.0

054306

8200 4.42 30.0 x 40.0

054356

10000 5.02 30.0 x 40.0

054327

10000 5.06 30.0 x 45.0

054307

15000 6.44 35.0 x 50.0

054308

63 Volt

2200 2.24 22.0 x 30.0

054414

2200 2.30 25.0 x 25.0

054424

2200 2.35 25.0 x 30.0

054404

3300 2.69 25.0 x 30.0

054425

3300 2.73 25.0 x 40.0

054405

4700 1.96 35.0 x 25.0

054436

4700 3.32 25.0 x 40.0

054426

4700 3.37 30.0 x 30.0

054416

4700 3.42 30.0 x 40.0

054406

6800 4.41 30.0 x 40.0

054427

6800 4.47 30.0 x 50.0

054407

8200 4.90 30.0 x 50.0

054428

10000 5.32 35.0 x 40.0

054438

10000 5.49 35.0 x 50.0

054408

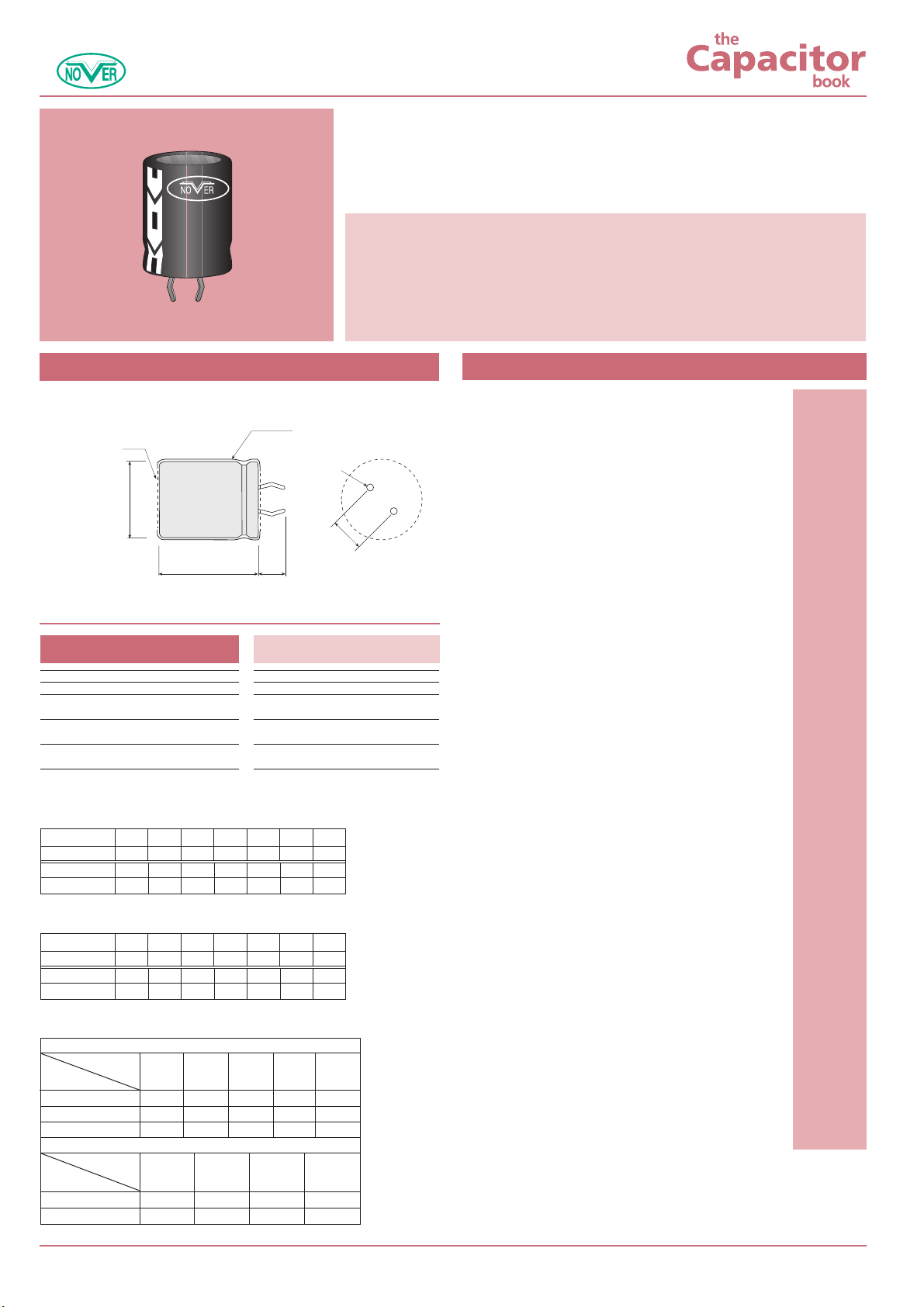

NOVER type LS

A range of high CV, high ripple current, aluminium electrolytic capacitors suitable for general purpose use. Housed in compact bodies and fitted with two snap-in pcb terminals on a standard 10mm pitch. Endurance test 2000 hours at 85°C. N.B. Other values, voltages and can sizes are available to order.

N General purpose

N High CV

N High ripple current

N Compact body

N Snap-in terminals 10mm pitch

Specification

Endurance test Capacitance tolerance Ripple current (as listed)

Operating temperature range

Leakage current

2000 hours at 85°C ±20% at 120Hz, 20°C measured at 120Hz, 85°C (see also multiplier table below)

-40°C to +85°C (16 ~ 100V)

-25°C to +85°C (200 ~ 450V) ≤0.01CV or 3µA (whichever is greater) after 2 min.

Dimensions (mm)

N Endurance test 2000 hours at 85°C

N Maximum temperature 85°C

N Capacitance tolerance 20% N Leakage current ≤0.01CV

N Body colour Black

Dia x L are can sizes only. To allow for sleeve add 1.0 to Dia and 2.0 to L

Vinyl sleeve

6.3

Dia

Vent

ø2

Mounting Holes

Conforms to JIS C5141-1982 Char. W

Rated voltage 16V 25V 35V 50V 63V 100V dc

Surge voltage 20V 32V 44V 63V 79V 125V dc

Rated voltage 200V 250V 400V 450V dc

Surge voltage 250V 300V 450V 500V dc

Rated voltage 16V 25V 35V 50V 63V 100V dc

Tan 웃 (max)* 0.40 0.30 0.25 0.20 0.15 0.15

Rated voltage 200V 250V 400V 450V dc

Tan 웃 (max) 0.15 0.15 0.15 0.15

Dissipation factor (120Hz, 20°C)

Surge voltage capability

Multiplier for ripple current

Frequency coefficient

Freq (Hz)

50 120 1k 10k 20k

Rated Voltage(V)

16 ~ 50 0.95 1.0 1.10 1.15 1.15

63 ~ 100 0.95 1.0 1.16 1.30 1.33

200 ~ 450 0.90 1.0 1.20 1.50 1.55

Temperature coefficient

Temperature

+40 +55 +70 +85

Rated Voltage(V)

(°C)

<200 2.1 1.8 1.5 1.0 ≥200 1.7 1.5 1.3 1.0

*Add 0.02 for every 1000µF above 5000µF

ELECTROLYTIC, Snap-in, 2 Pin

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ORDER CODES

continued > > > >

Page 48

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ELECTROLYTIC, Snap-in, 2 Pin

Value Ripple Current Dia. x L

(µF) (A) (mm) Order Code

100 Volt

1000 2.10 22.0 x 30.0

054504

2200 3.20 30.0 x 40.0

054506

3300 4.10 35.0 x 45.0

054507

4700 5.10 35.0 x 40.0

054528

4700 5.14 35.0 x 45.0

054508

200 Volt

220 1.10 22.0 x 30.0

054703

330 1.48 22.0 x 30.0

054734

330 1.50 25.0 x 30.0

054724

330 1.50 22.0 x 40.0

054704

470 1.86 25.0 x 35.0

054725

470 1.90 25.0 x 40.0

054705

680 2.36 25.0 x 40.0

054736

680 2.40 25.0 x 45.0

054726

680 2.44 25.0 x 50.0

054706

820 2.69 30.0 x 40.0

054756

1000 2.88 35.0 x 30.0

054727

1000 3.05 35.0 x 40.0

054707

250 Volt

220 1.30 22.0 x 35.0

054803

330 1.68 25.0 x 35.0

054804

470 2.05 25.0 x 40.0

054805

680 2.78 30.0 x 45.0

054806

820 3.13 30.0 x 50.0

054807

1000 3.50 35.0 x 50.0

054808

400 Volt

47 0.50 22.0 x 25.0

054902

100 0.72 22.0 x 30.0

054904

150 0.95 25.0 x 30.0

054905

220 1.23 30.0 x 30.0

054926

220 1.25 30.0 x 35.0

054906

330 1.61 30.0 x 40.0

054927

330 1.68 30.0 x 45.0

054907

470 2.10 35.0 x 40.0

054928

470 2.15 35.0 x 45.0

054908

450 Volt

47 0.56 22.0 x 25.0

054973

100 0.70 25.0 x 35.0

054975

150 1.08 25.0 x 40.0

054976

220 1.30 30.0 x 45.0

054977

330 1.49 35.0 x 45.0

054978

470 1.92 35.0 x 50.0

054979

ORDER CODES

continuation

Other values, voltages and can sizes are available to order.

Please contact our Sales Desk for details.

Page 49

ELECTROLYTIC, Snap-in, 2 Pin

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ORDER CODES

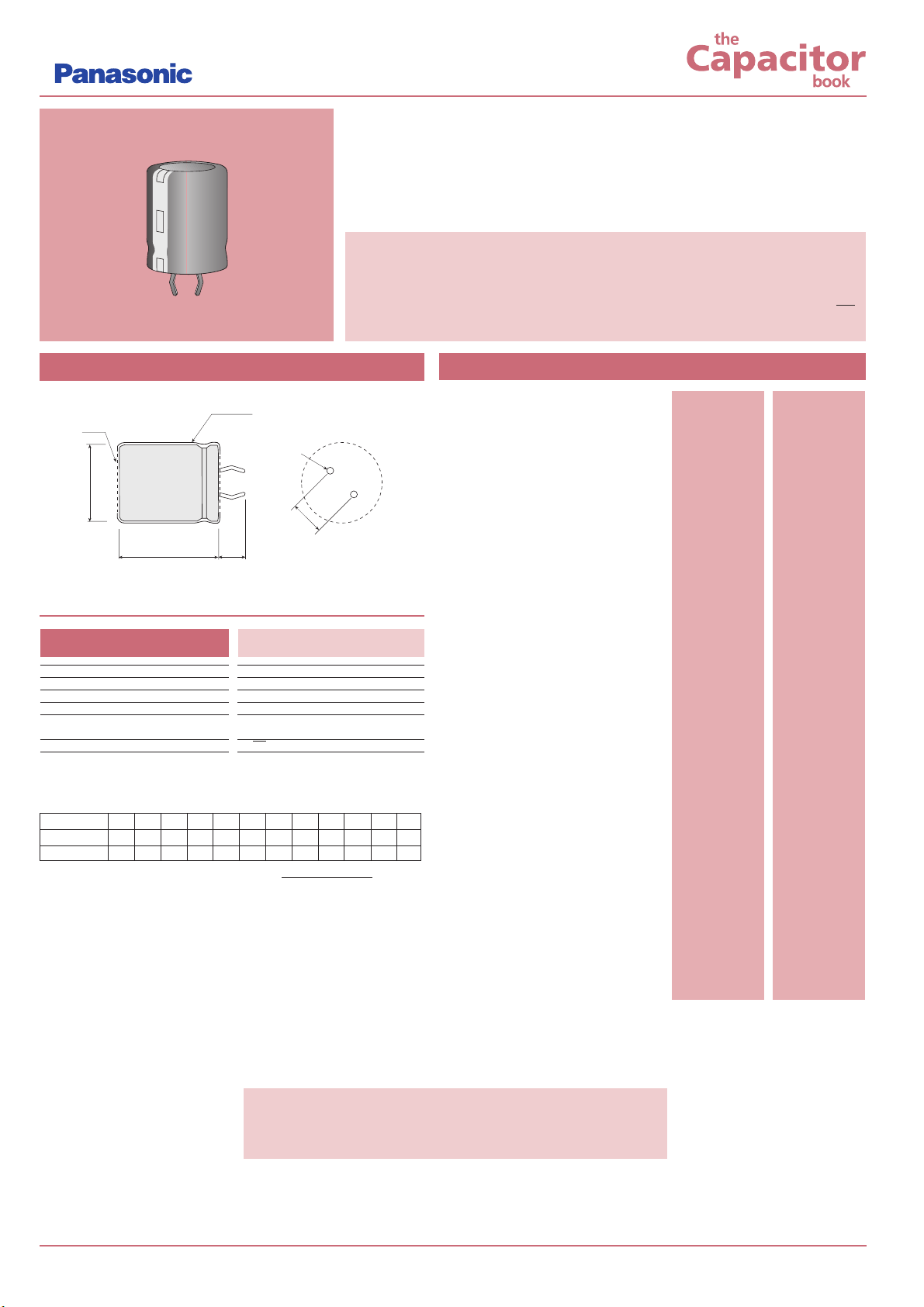

PANASONIC TS-UP Series

General purpose aluminium electrolytic capacitors with a 2 pin, snap-in terminal configuration on a standard 10mm pitch and offering a choice of terminal length. Housed in compact bodies, the devices are available in a wide range of values and voltages and are endurance tested up to 3000 hours at 85°C. Other values and voltages are available to order.

N General purpose

N Compact body

N Snap-in terminals 10mm pitch

N Choice of terminal length

Specification

TS-UP

Endurance test Capacitance tolerance Ripple current (as listed) Dissipation factor (see table) Operating temperature range

Leakage current

3000 hours at 85°C (2000 hours L = 20) ±20% at 120Hz, 20°C measured at 120Hz, 85°C Tan δ (max.) measured at 120Hz, 20°C

-40°C to +85°C (16V to 250V)

-25°C to +85°C (>250V) ≤3√CV (µA) after 5 min.

Dimensions (mm)

N Endurance test Up to 3000 hours

at 85°C

N Capacitance tolerance 20% N Leakage current ≤3√CV

Rated voltage 16V 25V 35V 50V 63V 100V 200V 250V 400V 450V 500V dc

Surge voltage 20V 32V 44V 63V 79V 125V 250V 300V 450V 500V 525V dc

Tan δ (max.)* 0.50 0.40 0.35 0.30 0.25 0.20 0.15 0.15 0.15 0.20 0.15

Value Ripple Current Dimensions (mm)

(µF) (A) Dia. x L 4.0mm Terminals 6.3mm Terminals

16 Volt

4700 1.60 22 x 20

ECEC1CP472BL ECOS1CP472BL

6800 3.15 20 x 25

ECEC1CP682AA ECOS1CP682AA

6800 1.80 25 x 20

ECEC1CP682CL ECOS1CP682CL

8200 3.47 20 x 30

ECEC1CP822AA ECOS1CP822AA

10000 3.78 22 x 30

ECEC1CP103BA ECOS1CP103BA

10000 3.78 25 x 25

ECEC1CP103CA ECOS1CP103CA

12000 4.52 25 x 25

ECEC1CP123CA ECOS1CP123CA

15000 5.26 25 x 30

ECEC1CP153CA ECOS1CP153CA

22000 6.10 25 x 35

ECEC1CP223CA ECOS1CP223CA

33000 6.84 25 x 50

ECEC1CP333CA ECOS1CP333CA

33000 6.84 35 x 30

ECEC1CP333EA ECOS1CP333EA

47000 7.47 30 x 50

ECEC1CP473DA ECOS1CP473DA

47000 7.47 35 x 40

ECEC1CP473EA ECOS1CP473EA

68000 9.05 35 x 50

ECEC1CP683EA ECOS1CP683EA

25 Volt

3300 1.60 22 x 20

ECEC1EP332BL ECOS1EP332BL

4700 3.05 20 x 25

ECEC1EP472AA ECOS1EP472AA

6800 3.47 22 x 30

ECEC1EP682BA ECOS1EP682BA

8200 3.57 22 x 30

ECEC1EP822BA ECOS1EP822BA

10000 3.78 25 x 30

ECEC1EP103CA ECOS1EP103CA

12000 4.10 25 x 35

ECEC1EP123CA ECOS1EP123CA

15000 4.63 25 x 40

ECEC1EP153CA ECOS1EP153CA

22000 6.10 30 x 40

ECEC1EP223DA ECOS1EP223DA

33000 6.84 35 x 40

ECEC1EP333EA ECOS1EP333EA

47000 8.00 35 x 50

ECEC1EP473EA ECOS1EP473EA

35 Volt

2200 1.40 22 x 20

ECEC1VP222BL ECOS1VP222BL

3300 2.73 20 x 25

ECEC1VP332AA ECOS1VP332AA

4700 3.26 22 x 30

ECEC1VP472BA ECOS1VP472BA

4700 3.26 25 x 25

ECEC1VP472CA ECOS1VP472CA

6800 3.68 22 x 35

ECEC1VP682BA ECOS1VP682BA

6800 3.68 25 x 30

ECEC1VP682CA ECOS1VP682CA

8200 4.00 25 x 35

ECEC1VP822CA ECOS1VP822CA

10000 4.42 25 x 40

ECEC1VP103CA ECOS1VP103CA

10000 4.42 30 x 30

ECEC1VP103DA ECOS1VP103DA

12000 5.05 30 x 35

ECEC1VP123DA ECOS1VP123DA

15000 5.57 30 x 40

ECEC1VP153DA ECOS1VP153DA

22000 6.10 30 x 50

ECEC1VP223DA ECOS1VP223DA

33000 7.15 35 x 50

ECEC1VP333EA ECOS1VP333EA

Surge voltage capability & dissipation factor

* For capacitance values >33000µF, add the sum of: Value (µF) - 33000µF

x 0.1

10000µF

continued > > > >

Screw cap and stud mount types are also available from EPCOS,

B41xxx & B43xxx series.

Please contact our Sales Desk for details.

Vinyl sleeve

Vent

ø2

Dia.

Dia. x L are can sizes only. To allow for sleeve add 1.0 to Dia. and 2.0 to L

ECEC 4.0mm terminal length ECOS 6.3mm terminal length

Mounting Holes

Page 50

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ELECTROLYTIC, Snap-in, 2 Pin

Value Ripple Current Dimensions (mm)

(µF) (A) Dia. x L 4.0mm Terminals 6.3mm Terminals

50 Volt

1500 1.20 22.0 x 20.0

ECEC1HP152BL ECOS1HP152BL

2200 2.26 20.0 x 25.0

ECEC1HP222AA ECOS1HP222AA

3300 2.73 22.0 x 30.0

ECEC1HP332BA ECOS1HP332BA

4700 3.03 22.0 x 35.0

ECEC1HP472BA ECOS1HP472BA

4700 3.03 30.0 x 25.0

ECEC1HP472DA ECOS1HP472DA

6800 3.85 30.0 x 30.0

ECEC1HP682DA ECOS1HP682DA

8200 4.41 30.0 x 35.0

ECEC1HP822DA ECOS1HP822DA

10000 4.97 30.0 x 40.0

ECEC1HP103DA ECOS1HP103DA

10000 4.97 35.0 x 30.0

ECEC1HP103EA ECOS1HP103EA

12000 5.58 35.0 x 35.0

ECEC1HP123EA ECOS1HP123EA

15000 6.44 35.0 x 40.0

ECEC1HP153EA ECOS1HP153EA

22000 7.57 35.0 x 50.0

ECEC1HP223EA ECOS1HP223EA

63 Volt

1000 1.20 22.0 x 20.0

ECEC1JP102BL ECOS1JP102BL

1500 1.30 25.0 x 20.0

ECEC1JP152CL ECOS1JP152CL

2200 2.52 22.0 x 30.0

ECEC1JP222BA ECOS1JP222BA

2200 2.52 25.0 x 25.0

ECEC1JP222CA ECOS1JP222CA

3300 4.10 25.0 x 30.0

ECEC1JP332CA ECOS1JP332CA

4700 4.86 25.0 x 40.0

ECEC1JP472CA ECOS1JP472CA

4700 4.86 30.0 x 30.0

ECEC1JP472DA ECOS1JP472DA

6800 5.84 30.0 x 40.0

ECEC1JP682DA ECOS1JP682DA

6800 5.84 35.0 x 30.0

ECEC1JP682EA ECOS1JP682EA

8200 6.00 35.0 x 35.0

ECEC1JP822EA ECOS1JP822EA

10000 6.52 35.0 x 40.0

ECEC1JP103EA ECOS1JP103EA

12000 7.15 35.0 x 50.0

ECEC1JP123EA ECOS1JP123EA

100 Volt

470 1.00 22.0 x 20.0

ECEC2AP471BL ECOS2AP471BL

680 1.61 22.0 x 25.0

ECEC2AP681BA ECOS2AP681BA

1000 1.96 20.0 x 35.0

ECEC2AP102AA ECOS2AP102AA

1000 1.96 22.0 x 30.0

ECEC2AP102BA ECOS2AP102BA

1200 2.31 22.0 x 35.0

ECEC2AP122BA ECOS2AP122BA

1500 2.57 25.0 x 30.0

ECEC2AP152CA ECOS2AP152CA

2200 3.14 25.0 x 40.0

ECEC2AP222CA ECOS2AP222CA

2200 3.14 30.0 x 30.0

ECEC2AP222DA ECOS2AP222DA

3300 4.06 25.0 x 50.0

ECEC2AP332CA ECOS2AP332CA

3300 4.06 30.0 x 40.0

ECEC2AP332DA ECOS2AP332DA

4700 5.13 30.0 x 50.0

ECEC2AP472DA ECOS2AP472DA

4700 5.13 35.0 x 40.0

ECEC2AP472EA ECOS2AP472EA

6800 6.60 35.0 x 50.0

ECEC2AP682EA ECOS2AP682EA

200 Volt

150 0.65 22.0 x 20.0

ECEC2DP151BL ECOS2DP151BL

220 0.87 25.0 x 20.0

ECEC2DP221CL ECOS2DP221CL

330 1.56 22.0 x 30.0

ECEC2DP331BA ECOS2DP331BA

470 1.85 25.0 x 30.0

ECEC2DP471CA ECOS2DP471CA

680 2.68 25.0 x 35.0

ECEC2DP681CA ECOS2DP681CA

820 2.93 30.0 x 35.0

ECEC2DP821DA ECOS2DP821DA

1000 3.25 25.0 x 50.0

ECEC2DP102CA ECOS2DP102CA

1000 3.25 35.0 x 30.0

ECEC2DP102EA ECOS2DP102EA

1200 3.50 35.0 x 35.0

ECEC2DP122EA ECOS2DP122EA

1500 3.87 30.0 x 50.0

ECEC2DP152DA ECOS2DP152DA

2200 4.92 35.0 x 50.0

ECEC2DP222EA ECOS2DP222EA

Value Ripple Current Dimensions (mm)

(µF) (A) Dia. x L 4.0mm Terminals 6.3mm Terminals

250 Volt

120 0.45 22.0 x 20.0

ECEC2EP121BL ECOS2EP121BL

150 0.65 25.0 x 20.0

ECEC2EP151CL ECOS2EP151CL

220 1.17 22.0 x 30.0

ECEC2EP221BA ECOS2EP221BA

330 1.75 22.0 x 35.0

ECEC2EP331BA ECOS2EP331BA

330 1.10 35.0 x 20.0

ECEC2EP331EL ECOS2EP331EL

470 2.11 25.0 x 40.0

ECEC2EP471CA ECOS2EP471CA

470 2.11 30.0 x 30.0

ECEC2EP471DA ECOS2EP471DA

680 2.50 25.0 x 50.0

ECEC2EP681CA ECOS2EP681CA

820 2.77 35.0 x 35.0

ECEC2EP821EA ECOS2EP821EA

1000 3.32 30.0 x 50.0

ECEC2EP102DA ECOS2EP102DA

1000 3.32 35.0 x 40.0

ECEC2EP102EA ECOS2EP102EA

1200 3.53 35.0 x 45.0

ECEC2EP122EA ECOS2EP122EA

1500 4.04 35.0 x 50.0

ECEC2EP152EA ECOS2EP152EA

400 Volt

47 0.25 22.0 x 20.0

ECEC2GP470BL ECOS2GP470BL

68 0.69 22.0 x 25.0

ECEC2GP680BA ECOS2GP680BA

82 0.83 20.0 x 30.0

ECEC2GP820AA ECOS2GP820AA

100 0.92 22.0 x 30.0

ECEC2GP101BA ECOS2GP101BA

120 1.02 25.0 x 30.0

ECEC2GP121CA ECOS2GP121CA

150 1.16 25.0 x 30.0

ECEC2GP151CA ECOS2GP151CA

220 1.49 25.0 x 40.0

ECEC2GP221CA ECOS2GP221CA

220 1.49 30.0 x 30.0

ECEC2GP221DA ECOS2GP221DA

330 1.90 30.0 x 40.0

ECEC2GP331DA ECOS2GP331DA

330 1.90 35.0 x 35.0

ECEC2GP331EA ECOS2GP331EA

470 2.39 35.0 x 45.0

ECEC2GP471EA ECOS2GP471EA

560 2.69 35.0 x 50.0

ECEC2GP561EA ECOS2GP561EA

450 Volt

33 0.20 22.0 x 20.0

ECEC2WP330BL ECOS2WP330BL

47 0.29 25.0 x 20.0

ECEC2WP470CL ECOS2WP470CL

68 0.76 22.0 x 30.0

ECEC2WP680BA ECOS2WP680BA

82 0.83 22.0 x 30.0

ECEC2WP820BA ECOS2WP820BA

100 0.93 25.0 x 30.0

ECEC2WP101CA ECOS2WP101CA

120 1.04 25.0 x 30.0

ECEC2WP121CA ECOS2WP121CA

150 1.19 25.0 x 40.0

ECEC2WP151CA ECOS2WP151CA

220 1.55 25.0 x 50.0

ECEC2WP221CA ECOS2WP221CA

220 1.55 30.0 x 40.0

ECEC2WP221DA ECOS2WP221DA

330 2.01 30.0 x 50.0

ECEC2WP331DA ECOS2WP331DA

330 2.01 35.0 x 40.0

ECEC2WP331EA ECOS2WP331EA

470 2.53 35.0 x 50.0

ECEC2WP471EA ECOS2WP471EA

500 Volt

47 0.63 22.0 x 25.0

ECEC2HP470BA ECOS2HP470BA

56 0.70 22.0 x 30.0

ECEC2HP560BA ECOS2HP560BA

68 0.78 25.0 x 25.0

ECEC2HP680CA ECOS2HP680CA

82 0.88 25.0 x 30.0

ECEC2HP820CA ECOS2HP820CA

100 0.99 25.0 x 35.0

ECEC2HP101CA ECOS2HP101CA

120 1.13 25.0 x 40.0

ECEC2HP121CA ECOS2HP121CA

150 1.29 30.0 x 35.0

ECEC2HP151DA ECOS2HP151DA

180 1.38 30.0 x 40.0

ECEC2HP181DA ECOS2HP181DA

220 1.50 30.0 x 45.0

ECEC2HP221DA ECOS2HP221DA

270 1.76 35.0 x 40.0

ECEC2HP271EA ECOS2HP271EA

330 1.99 35.0 x 45.0

ECEC2HP331EA ECOS2HP331EA

ORDER CODES

continuation

Other values and voltages are available to order.

Please contact our Sales Desk for details.

Page 51

ELECTROLYTIC, Snap-in, 2 Pin, 105°C

+44 (0)1945 47 47 47 www.anglia.com [email protected]

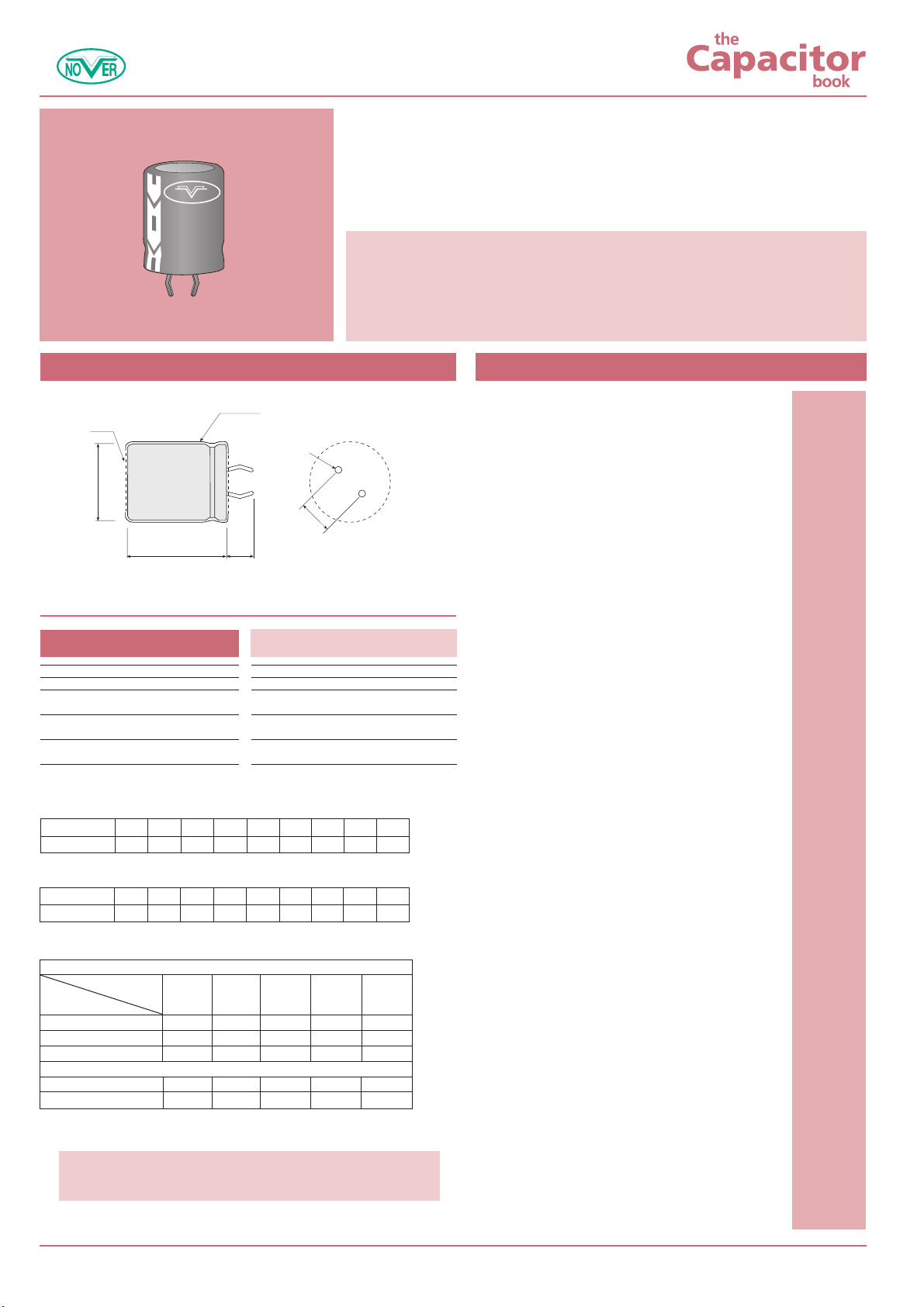

NOVER type LH

NO ER

Offering a high temperature capability of 105°C and an endurance of 2000 hours, the LH aluminium electrolytic 2 pin, snap-in capacitor range is designed for applications where ambient conditions may exceed the operating specification of the general purpose LS series.The most popular values are listed below with other values and voltages being available to order. Supplied loose.

N High temperature 105°C

N High CV

N High ripple current

N Snap-in terminals 10mm pitch

Specification

Endurance test Capacitance tolerance Ripple current (as listed)

Operating temperature range

Leakage current

2000 hours at 105°C ±20% at 120Hz, 20°C measured at 120Hz, 105°C (see also multiplier table below)

-40°C to +105°C (16 ~ 100V)

-25°C to +105°C (200 ~ 400V) ≤0.01CV or 3µA (whichever is greater) after 2 min.

Dimensions (mm)

N Endurance 2000 hours at 105°C

N Capacitance tolerance 20% N Leakage current ≤0.01CV

N Body colour Grey

Dia x L are can sizes only. To allow for sleeve add 1.0 to Dia and 2.0 to L

Vinyl sleeve

6.0 ±1

Dia

Vent

ø2

Mounting Holes

Rated voltage 16V 25V 35V 50V 63V 100V 200V 400V dc

Tan  (max.)* 0.40 0.30 0.25 0.20 0.15 0.15 0.15 0.15

Rated voltage 16V 25V 35V 50V 63V 100V 200V 400V dc

Surge voltage 20V 32V 44V 63V 79V 125V 250V 450V dc

Dissipation factor (120Hz, 20°C)

Surge voltage capability

Multiplier for ripple current

Frequency coefficient

Freq (Hz)

50 120 1k 10k 20k

Rated Voltage (V)

16 ~ 50 0.95 1.0 1.10 1.15 1.15

63 ~ 100 0.95 1.0 1.16 1.30 1.33

200 ~ 400 0.90 1.0 1.20 1.50 1.55

Temperature coefficient

Temperature (°C) +40 +55 +70 +85 +105

Factor 2.7 2.5 2.1 1.7 1.0

*Add 0.01 for every 1000µF above 5000µF

Conforms to JIS C5141-1982 Char. W

Value Ripple Current Dimensions (mm)

(µF) (A) Dia. x L Order Code

16 Volt

4700 1.60 22.0 x 25.0

055002

6800 1.75 22.0 x 25.0

055003

8200 2.00 22.0 x 30.0

055053

10000 2.10 22.0 x 30.0

055004

22000 3.36 25.0 x 45.0

055006

33000 4.30 30.0 x 45.0

055007

25 Volt

4700 1.61 22.0 x 30.0

055101

6800 2.00 22.0 x 40.0

055104

6800 2.09 25.0 x 30.0

055102

8200 2.34 25.0 x 35.0

055123

10000 2.61 25.0 x 40.0

055105

22000 4.04 30.0 x 45.0

055107

35 Volt

3300 1.57 22.0 x 30.0

055203

4700 2.02 25.0 x 30.0

055204

6800 2.31 25.0 x 40.0

055205

8200 2.73 25.0 x 45.0

055255

10000 3.04 25.0 x 45.0

055226

10000 3.05 25.0 x 50.0

055206

22000 4.92 35.0 x 50.0

055208

50 Volt

2200 1.60 22.0 x 35.0

055303

3300 1.97 25.0 x 35.0

055304

4700 2.43 25.0 x 40.0

055305

6800 3.30 30.0 x 40.0

055306

8200 3.60 30.0 x 45.0

055356

10000 4.05 30.0 x 50.0

055307

63 Volt

2200 1.75 25.0 x 30.0

055404

3300 2.33 25.0 x 40.0

055405

4700 1.96 35.0 x 25.0

055436

4700 2.86 30.0 x 40.0

055406

6800 3.65 30.0 x 50.0

055407

8200 4.04 35.0 x 50.0

055527

10000 4.48 35.0 x 50.0

055408

100 Volt

1000 1.47 22.0 x 30.0

055504

2200 2.53 25.0 x 50.0

055514

2200 2.55 30.0 x 40.0

055506

3300 3.30 35.0 x 45.0

055507

4700 3.80 35.0 x 50.0

055508

200 Volt

220 0.83 22.0 x 25.0

055723

220 1.00 22.0 x 30.0

055703

330 1.20 25.0 x 30.0

055704

470 1.44 25.0 x 35.0

055705

680 1.76 25.0 x 45.0

055706

820 2.11 30.0 x 40.0

055756

1000 2.40 35.0 x 40.0

055707

400 Volt

47 0.32 22.0 x 25.0

055902

100 0.62 22.0 x 35.0

055904

150 0.75 22.0 x 40.0

055905

150 0.85 25.0 x 40.0

055925

220 1.24 30.0 x 40.0

055906

330 1.47 30.0 x 50.0

055907

470 1.87 35.0 x 50.0

055908

ORDER CODES

Other values, voltages and can sizes are available to order.

Please contact our Sales Desk for details.

Page 52

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ELECTROLYTIC, Snap-in, 2 pin, 105°C

PANASONIC TS-HA/HB Series

High temperature aluminium electrolytic capacitors with a 2 pin, snap-in terminal configuration on a standard 10mm pitch and offering a choice of terminal length. Housed in compact bodies, the devices are available in a wide range of values and voltages and are endurance tested up to 3000 hours at 85°C.

N High temperature 105°C

N Compact body

N Snap-in terminals 10mm pitch

N Choice of terminal length

Specification

TS-HA/HB

Endurance test Capacitance tolerance Ripple current (as listed) Dissipation factor (see table) Operating temperature range

Leakage current

3000 hours at 105°C (2000 hours L = 20) ±20% at 120Hz, 20°C measured at 120Hz, 105°C Tan measured at 120Hz, 20°C

-40°C to 105°C (10V to 250V)

-25°C to 105°C (>250V) ≤3√CV (µA) after 5 min.

Dimensions (mm)

N Endurance test Up to 3000 hours

at 105°C

N Capacitance tolerance 20% N Leakage current ≤3√CV

Dia x L are can sizes only. To allow for sleeve add 1.0 to Dia and 2.0 to L

Vinyl sleeve

Dia

Vent

ø2

Mounting Holes

ECOS 6.3mm terminal length

ECEC 4.0mm terminal length

ORDER CODES

Value Ripple Current Dia. x L

(µF) (A) (mm) 4.0mm Terminals 6.3mm Terminals

10 Volt

10000 1.80 22.0 x 25.0

ECEC1AA103BA ECOS1AA103BA

12000 2.20 22.0 x 30.0

ECEC1AA123BA ECOS1AA123BA

15000 2.30 22.0 x 35.0

ECEC1AA153BA ECOS1AA153BA

15000 2.30 25.0 x 25.0

ECEC1AA153CA ECOS1AA153CA

18000 2.40 22.0 x 40.0

ECEC1AA183BA ECOS1AA183BA

18000 2.40 25.0 x 30.0

ECEC1AA183CA ECOS1AA183CA

22000 2.60 22.0 x 45.0

ECEC1AA223BA ECOS1AA223BA

22000 2.60 25.0 x 35.0

ECEC1AA223CA ECOS1AA223CA

22000 2.60 30.0 x 25.0

ECEC1AA223DA ECOS1AA223DA

27000 3.10 22.0 x 50.0

ECEC1AA273BA ECOS1AA273BA

27000 3.10 25.0 x 40.0

ECEC1AA273CA ECOS1AA273CA

27000 3.10 30.0 x 30.0

ECEC1AA273DA ECOS1AA273DA

27000 3.10 35.0 x 25.0

ECEC1AA273EA ECOS1AA273EA

33000 3.40 25.0 x 45.0

ECEC1AA333CA ECOS1AA333CA

33000 3.40 30.0 x 35.0

ECEC1AA333DA ECOS1AA333DA

33000 3.40 35.0 x 30.0

ECEC1AA333EA ECOS1AA333EA

39000 3.70 25.0 x 50.0

ECEC1AA393CA ECOS1AA393CA

39000 3.70 30.0 x 40.0

ECEC1AA393DA ECOS1AA393DA

39000 3.70 35.0 x 30.0

ECEC1AA393EA ECOS1AA393EA

47000 4.20 30.0 x 45.0

ECEC1AA473DA ECOS1AA473DA

47000 4.20 35.0 x 35.0

ECEC1AA473EA ECOS1AA473EA

56000 5.00 30.0 x 50.0

ECEC1AA563DA ECOS1AA563DA

56000 5.00 35.0 x 40.0

ECEC1AA563EA ECOS1AA563EA

68000 5.50 35.0 x 50.0

ECEC1AA683EA ECOS1AA683EA

16 Volt

3300 1.30 22.0 x 20.0

ECEC1CA332BL ECOS1CA332BL

4700 1.60 25.0 x 20.0

ECEC1CA472CL ECOS1CA472CL

6800 2.20 22.0 x 25.0

ECEC1CA682BA ECOS1CA682BA

6800 1.80 30.0 x 20.0

ECEC1CA682DL ECOS1CA682DL

8200 2.40 22.0 x 30.0

ECEC1CA822BA ECOS1CA822BA

10000 2.60 22.0 x 30.0

ECEC1CA103BA ECOS1CA103BA

10000 2.60 25.0 x 25.0

ECEC1CA103CA ECOS1CA103CA

10000 2.40 35.0 x 20.0

ECEC1CA103EL ECOS1CA103EL

12000 2.90 22.0 x 35.0

ECEC1CA123BA ECOS1CA123BA

12000 2.90 25.0 x 30.0

ECEC1CA123CA ECOS1CA123CA

12000 2.90 30.0 x 25.0

ECEC1CA123DA ECOS1CA123DA

15000 3.20 22.0 x 40.0

ECEC1CA153BA ECOS1CA153BA

15000 3.20 25.0 x 35.0

ECEC1CA153CA ECOS1CA153CA

15000 3.20 30.0 x 30.0

ECEC1CA153DA ECOS1CA153DA

18000 3.50 22.0 x 45.0

ECEC1CA183BA ECOS1CA183BA

18000 3.50 25.0 x 40.0

ECEC1CA183CA ECOS1CA183CA

18000 3.50 30.0 x 30.0

ECEC1CA183DA ECOS1CA183DA

18000 3.50 35.0 x 25.0

ECEC1CA183EA ECOS1CA183EA

22000 3.80 25.0 x 45.0

ECEC1CA223CA ECOS1CA223CA

22000 3.80 30.0 x 35.0

ECEC1CA223DA ECOS1CA223DA

22000 3.80 35.0 x 30.0

ECEC1CA223EA ECOS1CA223EA

27000 4.20 25.0 x 50.0

ECEC1CA273CA ECOS1CA273CA

27000 4.20 30.0 x 40.0

ECEC1CA273DA ECOS1CA273DA

27000 4.20 35.0 x 30.0

ECEC1CA273EA ECOS1CA273EA

33000 4.70 30.0 x 45.0

ECEC1CA333DA ECOS1CA333DA

33000 4.70 35.0 x 35.0

ECEC1CA333EA ECOS1CA333EA

39000 5.10 30.0 x 50.0

ECEC1CA393DA ECOS1CA393DA

39000 5.10 35.0 x 40.0

ECEC1CA393EA ECOS1CA393EA

47000 5.50 35.0 x 45.0

ECEC1CA473EA ECOS1CA473EA

56000 6.00 35.0 x 50.0

ECEC1CA563EA ECOS1CA563EA

Panasonic TS-HA/HB Series

continued overleaf > > > >

Rated voltage 10V 16V 25V 35V 50V 63V 80V 100V 160V 200V 250V dc

Surge voltage 13V 20V 32V 44V 63V 79V 100V 125V 200V 250V 300V dc

Tan δ (max.)* 0.55 0.45 0.35 0.30 0.25 0.20 0.17 0.15 0.15 0.15 0.15

Surge voltage capability & dissipation factor

* For capacitance values >33000µF, add the sum of: Value (µF) - 33000µF

x 0.1

10000µF

Rated voltage 385V 400V 420V 450V dc

Surge voltage 425V 450V 470V 500V dc

Tan δ (max.)* 0.15 0.15 0.15 0.15

Screw cap and stud mount types are also available from EPCOS,

B41xxx & B43xxx series.

Please contact our Sales Desk for details.

Page 53

ORDER CODES

Value Ripple Current Dia. x L

(µF) (A) (mm) 4.0mm Terminals 6.3mm Terminals

25 Volt

2200 1.30 22.0 x 20.0

ECEC1EA222BL ECOS1EA222BL

3300 1.60 25.0 x 20.0

ECEC1EA332CL ECOS1EA332CL

4700 2.00 22.0 x 25.0

ECEC1EA472BA ECOS1EA472BA

4700 1.80 30.0 x 20.0

ECEC1EA472DL ECOS1EA472DL

5600 2.20 22.0 x 30.0

ECEC1EA562BA ECOS1EA562BA

6800 2.40 22.0 x 30.0

ECEC1EA682BA ECOS1EA682BA

6800 2.40 25.0 x 25.0

ECEC1EA682CA ECOS1EA682CA

6800 2.30 35.0 x 20.0

ECEC1EA682EL ECOS1EA682EL

8200 2.70 22.0 x 35.0

ECEC1EA822BA ECOS1EA822BA

8200 2.70 25.0 x 30.0

ECEC1EA822CA ECOS1EA822CA

8200 2.70 30.0 x 25.0

ECEC1EA822DA ECOS1EA822DA

10000 3.00 22.0 x 40.0

ECEC1EA103BA ECOS1EA103BA

10000 3.00 25.0 x 35.0

ECEC1EA103CA ECOS1EA103CA

10000 3.00 30.0 x 30.0

ECEC1EA103DA ECOS1EA103DA

12000 3.20 22.0 x 45.0

ECEC1EA123BA ECOS1EA123BA

12000 3.20 25.0 x 40.0

ECEC1EA123CA ECOS1EA123CA

12000 3.20 30.0 x 30.0

ECEC1EA123DA ECOS1EA123DA

12000 3.20 35.0 x 25.0

ECEC1EA123EA ECOS1EA123EA

15000 3.60 25.0 x 45.0

ECEC1EA153CA ECOS1EA153CA

15000 3.60 30.0 x 35.0

ECEC1EA153DA ECOS1EA153DA

15000 3.60 35.0 x 30.0

ECEC1EA153EA ECOS1EA153EA

18000 3.90 25.0 x 50.0

ECEC1EA183CA ECOS1EA183CA

18000 3.90 30.0 x 40.0

ECEC1EA183DA ECOS1EA183DA

18000 3.90 35.0 x 35.0

ECEC1EA183EA ECOS1EA183EA

22000 4.30 30.0 x 45.0

ECEC1EA223DA ECOS1EA223DA

22000 4.30 35.0 x 35.0

ECEC1EA223EA ECOS1EA223EA

27000 4.80 35.0 x 45.0

ECEC1EA273EA ECOS1EA273EA

33000 5.50 35.0 x 50.0

ECEC1EA333EA ECOS1EA333EA

35 Volt

1500 1.10 22.0 x 20.0

ECEC1VA152BL ECOS1VA152BL

2200 1.40 25.0 x 20.0

ECEC1VA222CL ECOS1VA222CL

3300 1.90 22.0 x 25.0

ECEC1VA332BA ECOS1VA332BA

3300 1.70 30.0 x 20.0

ECEC1VA332DL ECOS1VA332DL

3900 2.00 22.0 x 30.0

ECEC1VA392BA ECOS1VA392BA

4700 2.20 22.0 x 35.0

ECEC1VA472BA ECOS1VA472BA

4700 2.20 25.0 x 25.0

ECEC1VA472CA ECOS1VA472CA

4700 2.00 35.0 x 20.0

ECEC1VA472EL ECOS1VA472EL

5600 2.40 22.0 x 35.0

ECEC1VA562BA ECOS1VA562BA

5600 2.40 25.0 x 30.0

ECEC1VA562CA ECOS1VA562CA

5600 2.40 30.0 x 25.0

ECEC1VA562DA ECOS1VA562DA

6800 2.60 22.0 x 40.0

ECEC1VA682BA ECOS1VA682BA

6800 2.60 25.0 x 35.0

ECEC1VA682CA ECOS1VA682CA

6800 2.60 30.0 x 30.0

ECEC1VA682DA ECOS1VA682DA

8200 2.90 22.0 x 50.0

ECEC1VA822BA ECOS1VA822BA

8200 2.90 25.0 x 40.0

ECEC1VA822CA ECOS1VA822CA

8200 2.90 30.0 x 30.0

ECEC1VA822DA ECOS1VA822DA

8200 2.90 35.0 x 25.0

ECEC1VA822EA ECOS1VA822EA

10000 3.20 25.0 x 45.0

ECEC1VA103CA ECOS1VA103CA

10000 3.20 30.0 x 35.0

ECEC1VA103DA ECOS1VA103DA

10000 3.20 35.0 x 30.0

ECEC1VA103EA ECOS1VA103EA

12000 3.50 25.0 x 50.0

ECEC1VA123CA ECOS1VA123CA

12000 3.50 30.0 x 40.0

ECEC1VA123DA ECOS1VA123DA

12000 3.50 35.0 x 30.0

ECEC1VA123EA ECOS1VA123EA

15000 3.90 30.0 x 45.0

ECEC1VA153DA ECOS1VA153DA

15000 3.90 35.0 x 35.0

ECEC1VA153EA ECOS1VA153EA

18000 4.30 35.0 x 40.0

ECEC1VA183EA ECOS1VA183EA

22000 5.00 35.0 x 50.0

ECEC1VA223EA ECOS1VA223EA

50 Volt

1000 0.90 22.0 x 20.0

ECEC1HA102BL ECOS1HA102BL

1500 1.20 25.0 x 20.0

ECEC1HA152CL ECOS1HA152CL

1800 1.50 22.0 x 25.0

ECEC1HA182BA ECOS1HA182BA

2200 1.70 22.0 x 30.0

ECEC1HA222BA ECOS1HA222BA

2200 1.40 30.0 x 20.0

ECEC1HA222DL ECOS1HA222DL

2700 1.80 22.0 x 30.0

ECEC1HA272BA ECOS1HA272BA

2700 1.80 25.0 x 25.0

ECEC1HA272CA ECOS1HA272CA

3300 2.00 22.0 x 35.0

ECEC1HA332BA ECOS1HA332BA

3300 2.00 25.0 x 30.0

ECEC1HA332CA ECOS1HA332CA

3300 1.70 35.0 x 20.0

ECEC1HA332EL ECOS1HA332EL

3900 2.20 22.0 x 40.0

ECEC1HA392BA ECOS1HA392BA

3900 2.20 25.0 x 35.0

ECEC1HA392CA ECOS1HA392CA

3900 2.20 30.0 x 25.0

ECEC1HA392DA ECOS1HA392DA

4700 2.50 22.0 x 45.0

ECEC1HA472BA ECOS1HA472BA

4700 2.50 25.0 x 40.0

ECEC1HA472CA ECOS1HA472CA

4700 2.50 30.0 x 30.0

ECEC1HA472DA ECOS1HA472DA

4700 2.50 35.0 x 25.0

ECEC1HA472EA ECOS1HA472EA

5600 2.80 22.0 x 50.0

ECEC1HA562BA ECOS1HA562BA

5600 2.80 25.0 x 40.0

ECEC1HA562CA ECOS1HA562CA

5600 2.80 30.0 x 35.0

ECEC1HA562DA ECOS1HA562DA

5600 2.80 35.0 x 30.0

ECEC1HA562EA ECOS1HA562EA

6800 3.30 25.0 x 50.0

ECEC1HA682CA ECOS1HA682CA

6800 3.30 30.0 x 40.0

ECEC1HA682DA ECOS1HA682DA

6800 3.30 35.0 x 30.0

ECEC1HA682EA ECOS1HA682EA

8200 3.60 30.0 x 45.0

ECEC1HA822DA ECOS1HA822DA

8200 3.60 35.0 x 35.0

ECEC1HA822EA ECOS1HA822EA

10000 4.00 30.0 x 50.0

ECEC1HA103DA ECOS1HA103DA

10000 4.00 35.0 x 40.0

ECEC1HA103EA ECOS1HA103EA

12000 4.50 35.0 x 45.0

ECEC1HA123EA ECOS1HA123EA

15000 4.80 35.0 x 50.0

ECEC1HA153EA ECOS1HA153EA

Value Ripple Current Dia. x L

(µF) (A) (mm) 4.0mm Terminals 6.3mm Terminals

63 Volt

680 0.90 22.0 x 20.0

ECEC1JA681BL ECOS1JA681BL

1000 1.20 25.0 x 20.0

ECEC1JA102CL ECOS1JA102CL

1200 1.40 22.0 x 25.0

ECEC1JA122BA ECOS1JA122BA

1500 1.50 22.0 x 30.0

ECEC1JA152BA ECOS1JA152BA

1500 1.30 30.0 x 20.0

ECEC1JA152DL ECOS1JA152DL

1800 1.70 22.0 x 30.0

ECEC1JA182BA ECOS1JA182BA

1800 1.70 25.0 x 25.0

ECEC1JA182CA ECOS1JA182CA

2200 2.00 22.0 x 35.0

ECEC1JA222BA ECOS1JA222BA

2200 2.00 25.0 x 30.0

ECEC1JA222CA ECOS1JA222CA

2200 1.50 35.0 x 20.0

ECEC1JA222EL ECOS1JA222EL

2700 2.20 22.0 x 40.0

ECEC1JA272BA ECOS1JA272BA

2700 2.20 25.0 x 35.0

ECEC1JA272CA ECOS1JA272CA

2700 2.20 30.0 x 25.0

ECEC1JA272DA ECOS1JA272DA

3300 2.50 22.0 x 50.0

ECEC1JA332BA ECOS1JA332BA

3300 2.50 25.0 x 40.0

ECEC1JA332CA ECOS1JA332CA

3300 2.50 30.0 x 30.0

ECEC1JA332DA ECOS1JA332DA

3300 2.50 35.0 x 25.0

ECEC1JA332EA ECOS1JA332EA

3900 2.70 25.0 x 45.0

ECEC1JA392CA ECOS1JA392CA

3900 2.70 30.0 x 35.0

ECEC1JA392DA ECOS1JA392DA

3900 2.70 35.0 x 30.0

ECEC1JA392EA ECOS1JA392EA

4700 3.00 25.0 x 50.0

ECEC1JA472CA ECOS1JA472CA

4700 3.00 30.0 x 40.0

ECEC1JA472DA ECOS1JA472DA

4700 3.00 35.0 x 30.0

ECEC1JA472EA ECOS1JA472EA

5600 3.30 30.0 x 45.0

ECEC1JA562DA ECOS1JA562DA

5600 3.30 35.0 x 35.0

ECEC1JA562EA ECOS1JA562EA

6800 3.60 30.0 x 50.0

ECEC1JA682DA ECOS1JA682DA

6800 3.60 35.0 x 40.0

ECEC1JA682EA ECOS1JA682EA

8200 3.90 35.0 x 45.0

ECEC1JA822EA ECOS1JA822EA

10000 4.40 35.0 x 50.0

ECEC1JA103EA ECOS1JA103EA

80 Volt

470 0.80 22.0 x 20.0

ECEC1KA471BL ECOS1KA471BL

560 1.00 25.0 x 20.0

ECEC1KA681CL ECOS1KA681CL

820 1.20 22.0 x 25.0

ECEC1KA821BA ECOS1KA821BA

1000 1.30 22.0 x 30.0

ECEC1KA102BA ECOS1KA102BA

1000 1.30 25.0 x 25.0

ECEC1KA102CA ECOS1KA102CA

1000 1.20 30.0 x 20.0

ECEC1KA102DL ECOS1KA102DL

1200 1.50 22.0 x 30.0

ECEC1KA122BA ECOS1KA122BA

1200 1.50 25.0 x 25.0

ECEC1KA122CA ECOS1KA122CA

1500 1.70 22.0 x 35.0

ECEC1KA152BA ECOS1KA152BA

1500 1.70 25.0 x 30.0

ECEC1KA152CA ECOS1KA152CA

1500 1.40 35.0 x 20.0

ECEC1KA152EL ECOS1KA152EL

1800 1.80 22.0 x 40.0

ECEC1KA182BA ECOS1KA182BA

1800 1.80 25.0 x 35.0

ECEC1KA182CA ECOS1KA182CA

1800 1.80 30.0 x 25.0

ECEC1KA182DA ECOS1KA182DA

2200 2.10 22.0 x 45.0

ECEC1KA222BA ECOS1KA222BA

2200 2.10 25.0 x 35.0

ECEC1KA222CA ECOS1KA222CA

2200 2.10 30.0 x 30.0

ECEC1KA222DA ECOS1KA222DA

2200 2.10 35.0 x 25.0

ECEC1KA222EA ECOS1KA222EA

2700 2.40 25.0 x 45.0

ECEC1KA272CA ECOS1KA272CA

2700 2.40 30.0 x 35.0

ECEC1KA272DA ECOS1KA272DA

2700 2.40 35.0 x 30.0

ECEC1KA272EA ECOS1KA272EA

3300 2.60 25.0 x 50.0

ECEC1KA332CA ECOS1KA332CA

3300 2.60 30.0 x 40.0

ECEC1KA332DA ECOS1KA332DA

3300 2.60 35.0 x 30.0

ECEC1KA332EA ECOS1KA332EA

3900 3.00 30.0 x 45.0

ECEC1KA392DA ECOS1KA392DA

3900 3.00 35.0 x 35.0

ECEC1KA392EA ECOS1KA392EA

4700 3.30 30.0 x 50.0

ECEC1KA472DA ECOS1KA472DA

4700 3.30 35.0 x 40.0

ECEC1KA472EA ECOS1KA472EA

5600 3.70 35.0 x 45.0

ECEC1KA562EA ECOS1KA562EA

6800 3.90 35.0 x 50.0

ECEC1KA682EA ECOS1KA682EA

100 Volt

330 0.80 22.0 x 20.0

ECEC2AA331BL ECOS2AA331BL

470 1.00 25.0 x 20.0

ECEC2AA471CL ECOS2AA471CL

560 1.10 22.0 x 25.0

ECEC2AA561BA ECOS2AA561BA

680 1.10 30.0 x 20.0

ECEC2AA681DL ECOS2AA681DL

820 1.40 22.0 x 30.0

ECEC2AA821BA ECOS2AA821BA

820 1.40 25.0 x 25.0

ECEC2AA821CA ECOS2AA821CA

1000 1.70 22.0 x 35.0

ECEC2AA102BA ECOS2AA102BA

1000 1.70 25.0 x 30.0

ECEC2AA102CA ECOS2AA102CA

1000 1.20 35.0 x 20.0

ECEC2AA102EL ECOS2AA102EL

1200 1.80 22.0 x 40.0

ECEC2AA122BA ECOS2AA122BA

1200 1.80 25.0 x 35.0

ECEC2AA122CA ECOS2AA122CA

1200 1.80 30.0 x 25.0

ECEC2AA122DA ECOS2AA122DA

1500 2.10 22.0 x 45.0

ECEC2AA152BA ECOS2AA152BA

1500 2.10 25.0 x 40.0

ECEC2AA152CA ECOS2AA152CA

1500 2.10 30.0 x 30.0

ECEC2AA152DA ECOS2AA152DA

1500 2.10 35.0 x 25.0

ECEC2AA152EA ECOS2AA152EA

1800 2.30 25.0 x 45.0

ECEC2AA182CA ECOS2AA182CA

1800 2.30 30.0 x 35.0

ECEC2AA182DA ECOS2AA182DA

1800 2.30 35.0 x 30.0

ECEC2AA182EA ECOS2AA182EA

2200 2.60 25.0 x 50.0

ECEC2AA222CA ECOS2AA222CA

2200 2.60 30.0 x 40.0

ECEC2AA222DA ECOS2AA222DA

2200 2.60 35.0 x 30.0

ECEC2AA222EA ECOS2AA222EA

2700 2.90 30.0 x 45.0

ECEC2AA272DA ECOS2AA272DA

2700 2.90 35.0 x 35.0

ECEC2AA272EA ECOS2AA272EA

3300 3.20 30.0 x 50.0

ECEC2AA332DA ECOS2AA332DA

3300 3.20 35.0 x 40.0

ECEC2AA332EA ECOS2AA332EA

3900 3.60 35.0 x 45.0

ECEC2AA392EA ECOS2AA392EA

4700 3.80 35.0 x 50.0

ECEC2AA472EA ECOS2AA472EA

ELECTROLYTIC, Snap-in, 2 pin, 105°C

+44 (0)1945 47 47 47 www.anglia.com [email protected]

continuation

Page 54

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ELECTROLYTIC, Snap-in, 2 pin, 105°C

Value Ripple Current Dia. x L

(µF) (A) (mm) 4.0mm Terminals 6.3mm Terminals

160 Volt

470 1.40 22.0 x 30.0

ECEC2CB471BA ECOS2CB471BA

560 1.50 22.0 x 35.0

ECEC2CB561BA ECOS2CB561BA

680 1.70 22.0 x 40.0

ECEC2CB681BA ECOS2CB681BA

680 1.70 25.0 x 30.0

ECEC2CB681CA ECOS2CB681CA

820 2.00 22.0 x 45.0

ECEC2CB821BA ECOS2CB821BA

820 2.00 25.0 x 35.0

ECEC2CB821CA ECOS2CB821CA

1000 2.20 22.0 x 50.0

ECEC2CB102BA ECOS2CB102BA

1000 2.20 25.0 x 40.0

ECEC2CB102CA ECOS2CB102CA

1000 2.20 30.0 x 30.0

ECEC2CB102DA ECOS2CB102DA

1000 2.20 35.0 x 25.0

ECEC2CB102EA ECOS2CB102EA

1200 2.30 25.0 x 45.0

ECEC2CB122CA ECOS2CB122CA

1200 2.30 30.0 x 35.0

ECEC2CB122DA ECOS2CB122DA

1200 2.30 35.0 x 30.0

ECEC2CB122EA ECOS2CB122EA

1500 2.50 30.0 x 40.0

ECEC2CB152DA ECOS2CB152DA

1500 2.50 35.0 x 30.0

ECEC2CB152EA ECOS2CB152EA

1800 2.70 30.0 x 45.0

ECEC2CB182DA ECOS2CB182DA

1800 2.70 35.0 x 35.0

ECEC2CB182EA ECOS2CB182EA

2200 2.90 35.0 x 45.0

ECEC2CB222EA ECOS2CB222EA

2700 3.10 35.0 x 50.0

ECEC2CB272EA ECOS2CB272EA

200 Volt

390 1.30 22.0 x 30.0

ECEC2DB391BA ECOS2DB391BA

390 1.30 25.0 x 25.0

ECEC2DB391CA ECOS2DB391CA

470 1.40 22.0 x 35.0

ECEC2DB471BA ECOS2DB471BA

470 1.40 25.0 x 30.0

ECEC2DB471CA ECOS2DB471CA

560 1.50 22.0 x 40.0

ECEC2DB561BA ECOS2DB561BA

560 1.50 25.0 x 30.0

ECEC2DB561CA ECOS2DB561CA

560 1.50 30.0 x 25.0

ECEC2DB561DA ECOS2DB561DA

680 1.70 22.0 x 45.0

ECEC2DB681BA ECOS2DB681BA

680 1.70 25.0 x 35.0

ECEC2DB681CA ECOS2DB681CA

820 2.00 25.0 x 45.0

ECEC2DB821CA ECOS2DB821CA

820 2.00 30.0 x 30.0

ECEC2DB821DA ECOS2DB821DA

820 2.00 35.0 x 25.0

ECEC2DB821EA ECOS2DB821EA

1000 2.20 25.0 x 50.0

ECEC2DB102CA ECOS2DB102CA

1000 2.20 30.0 x 35.0

ECEC2DB102DA ECOS2DB102DA

1000 2.20 35.0 x 30.0

ECEC2DB102EA ECOS2DB102EA

1200 2.30 30.0 x 40.0

ECEC2DB122DA ECOS2DB122DA

1200 2.30 35.0 x 35.0

ECEC2DB122EA ECOS2DB122EA

1500 2.50 30.0 x 50.0

ECEC2DB152DA ECOS2DB152DA

1500 2.50 35.0 x 40.0

ECEC2DB152EA ECOS2DB152EA

1800 2.70 35.0 x 45.0

ECEC2DB182EA ECOS2DB182EA

2200 2.90 35.0 x 50.0

ECEC2DB222EA ECOS2DB222EA

250 Volt

180 0.90 22.0 x 25.0

ECEC2EB181BA ECOS2EB181BA

220 1.00 22.0 x 30.0

ECEC2EB221BA ECOS2EB221BA

270 1.10 22.0 x 35.0

ECEC2EB271BA ECOS2EB271BA

330 1.20 22.0 x 40.0

ECEC2EB331BA ECOS2EB331BA

330 1.20 25.0 x 30.0

ECEC2EB331CA ECOS2EB331CA

390 1.30 22.0 x 45.0

ECEC2EB391BA ECOS2EB391BA

390 1.30 30.0 x 25.0

ECEC2EB391DA ECOS2EB391DA

470 1.40 22.0 x 50.0

ECEC2EB471BA ECOS2EB471BA

470 1.40 25.0 x 40.0

ECEC2EB471CA ECOS2EB471CA

470 1.40 30.0 x 30.0

ECEC2EB471DA ECOS2EB471DA

560 1.50 25.0 x 45.0

ECEC2EB561CA ECOS2EB561CA

560 1.50 35.0 x 25.0

ECEC2EB561EA ECOS2EB561EA

680 1.70 25.0 x 50.0

ECEC2EB681CA ECOS2EB681CA

680 1.70 30.0 x 40.0

ECEC2EB681DA ECOS2EB681DA

680 1.70 35.0 x 30.0

ECEC2EB681EA ECOS2EB681EA

820 2.00 30.0 x 45.0

ECEC2EB821DA ECOS2EB821DA

820 2.00 35.0 x 35.0

ECEC2EB821EA ECOS2EB821EA

1000 2.20 30.0 x 50.0

ECEC2EB102DA ECOS2EB102DA

1000 2.20 35.0 x 40.0

ECEC2EB102EA ECOS2EB102EA

1200 2.30 35.0 x 45.0

ECEC2EB122EA ECOS2EB122EA

1500 2.50 35.0 x 50.0

ECEC2EB152EA ECOS2EB152EA

385 Volt

82 0.64 22.0 x 30.0

ECEC2TB820BA ECOS2TB820BA

100 0.69 22.0 x 30.0

ECEC2TB101BA ECOS2TB101BA

100 0.69 25.0 x 25.0

ECEC2TB101CA ECOS2TB101CA

120 0.75 22.0 x 35.0

ECEC2TB121BA ECOS2TB121BA

120 0.75 25.0 x 30.0

ECEC2TB121CA ECOS2TB121CA

150 0.82 22.0 x 40.0

ECEC2TB151BA ECOS2TB151BA

150 0.82 25.0 x 30.0

ECEC2TB151CA ECOS2TB151CA

150 0.82 30.0 x 25.0

ECEC2TB151DA ECOS2TB151DA

180 0.95 22.0 x 45.0

ECEC2TB181BA ECOS2TB181BA

180 0.95 25.0 x 35.0

ECEC2TB181CA ECOS2TB181CA

180 0.95 30.0 x 30.0

ECEC2TB181DA ECOS2TB181DA

220 1.10 25.0 x 45.0

ECEC2TB221CA ECOS2TB221CA

220 1.10 30.0 x 30.0

ECEC2TB221DA ECOS2TB221DA

220 1.10 35.0 x 25.0

ECEC2TB221EA ECOS2TB221EA

270 1.20 25.0 x 50.0

ECEC2TB271CA ECOS2TB271CA

270 1.20 35.0 x 30.0

ECEC2TB271EA ECOS2TB271EA

330 1.35 30.0 x 45.0

ECEC2TB331DA ECOS2TB331DA

330 1.35 35.0 x 35.0

ECEC2TB331EA ECOS2TB331EA

390 1.55 30.0 x 50.0

ECEC2TB391DA ECOS2TB391DA

470 1.75 35.0 x 45.0

ECEC2TB471EA ECOS2TB471EA

560 1.80 35.0 x 50.0

ECEC2TB561EA ECOS2TB561EA

Value Ripple Current Dia. x L

(µF) (A) (mm) 4.0mm Terminals 6.3mm Terminals

400 Volt

82 0.64 22.0 x 30.0

ECEC2GB820BA ECOS2GB820BA

100 0.69 22.0 x 30.0

ECEC2GB101BA ECOS2GB101BA

100 0.69 25.0 x 25.0

ECEC2GB101CA ECOS2GB101CA

120 0.75 22.0 x 35.0

ECEC2GB121BA ECOS2GB121BA

120 0.75 25.0 x 30.0

ECEC2GB121CA ECOS2GB121CA

150 0.82 22.0 x 40.0

ECEC2GB151BA ECOS2GB151BA

150 0.82 25.0 x 30.0

ECEC2GB151CA ECOS2GB151CA

150 0.82 30.0 x 25.0

ECEC2GB151DA ECOS2GB151DA

180 0.95 22.0 x 45.0

ECEC2GB181BA ECOS2GB181BA

180 0.95 25.0 x 35.0

ECEC2GB181CA ECOS2GB181CA

180 0.95 30.0 x 30.0

ECEC2GB181DA ECOS2GB181DA

220 1.10 25.0 x 45.0

ECEC2GB221CA ECOS2GB221CA

220 1.10 30.0 x 30.0

ECEC2GB221DA ECOS2GB221DA

220 1.10 35.0 x 25.0

ECEC2GB221EA ECOS2GB221EA

270 1.20 25.0 x 50.0

ECEC2GB271CA ECOS2GB271CA

270 1.20 30.0 x 35.0

ECEC2GB271DA ECOS2GB271DA

270 1.20 35.0 x 30.0

ECEC2GB271EA ECOS2GB271EA

330 1.35 30.0 x 45.0

ECEC2GB331DA ECOS2GB331DA

330 1.35 35.0 x 35.0

ECEC2GB331EA ECOS2GB331EA

390 1.55 30.0 x 50.0

ECEC2GB391DA ECOS2GB391DA

390 1.55 35.0 x 40.0

ECEC2GB391EA ECOS2GB391EA

470 1.75 35.0 x 45.0

ECEC2GB471EA ECOS2GB471EA

560 1.80 35.0 x 50.0

ECEC2GB561EA ECOS2GB561EA

420 Volt

100 0.64 22.0 x 30.0

ECEC2SB101BA ECOS2SB101BA

100 0.64 25.0 x 25.0

ECEC2SB101CA ECOS2SB101CA

120 0.72 22.0 x 35.0

ECEC2SB121BA ECOS2SB121BA

120 0.72 25.0 x 30.0

ECEC2SB121CA ECOS2SB121CA

150 0.79 22.0 x 40.0

ECEC2SB151BA ECOS2SB151BA

150 0.79 25.0 x 30.0

ECEC2SB151CA ECOS2SB151CA

150 0.79 30.0 x 25.0

ECEC2SB151DA ECOS2SB151DA

180 0.87 22.0 x 45.0

ECEC2SB181BA ECOS2SB181BA

180 0.87 25.0 x 40.0

ECEC2SB181CA ECOS2SB181CA

180 0.87 30.0 x 30.0

ECEC2SB181DA ECOS2SB181DA

220 1.00 25.0 x 45.0

ECEC2SB221CA ECOS2SB221CA

220 1.00 30.0 x 30.0

ECEC2SB221DA ECOS2SB221DA

220 1.00 35.0 x 25.0

ECEC2SB221EA ECOS2SB221EA

270 1.19 25.0 x 50.0

ECEC2SB271CA ECOS2SB271CA

270 1.19 30.0 x 40.0

ECEC2SB271DA ECOS2SB271DA

270 1.19 35.0 x 30.0

ECEC2SB271EA ECOS2SB271EA

330 1.38 30.0 x 45.0

ECEC2SB331DA ECOS2SB331DA

330 1.38 35.0 x 35.0

ECEC2SB331EA ECOS2SB331EA

390 1.55 30.0 x 50.0

ECEC2SB391DA ECOS2SB391DA

390 1.55 35.0 x 40.0

ECEC2SB391EA ECOS2SB391EA

470 1.74 35.0 x 45.0

ECEC2SB471EA ECOS2SB471EA

560 1.90 35.0 x 50.0

ECEC2SB561EA ECOS2SB561EA

450 Volt

82 0.56 22.0 x 30.0

ECEC2WB820CA ECOS2WB820CA

82 0.56 25.0 x 25.0

ECEC2WB820BA ECOS2WB820BA

100 0.64 22.0 x 35.0

ECEC2WB101BA ECOS2WB101BA

100 0.64 25.0 x 30.0

ECEC2WB101CA ECOS2WB101CA

120 0.72 22.0 x 40.0

ECEC2WB121BA ECOS2WB121BA

120 0.72 25.0 x 35.0

ECEC2WB121CA ECOS2WB121CA

120 0.72 30.0 x 25.0

ECEC2WB121DA ECOS2WB121DA

150 0.79 22.0 x 50.0

ECEC2WB151BA ECOS2WB151BA

150 0.79 25.0 x 40.0

ECEC2WB151CA ECOS2WB151CA

150 0.79 30.0 x 30.0

ECEC2WB151DA ECOS2WB151DA

150 0.79 35.0 x 25.0

ECEC2WB151EA ECOS2WB151EA

180 0.87 25.0 x 45.0

ECEC2WB181CA ECOS2WB181CA

180 0.87 30.0 x 35.0

ECEC2WB181DA ECOS2WB181DA

220 1.00 25.0 x 50.0

ECEC2WB221CA ECOS2WB221CA

220 1.00 30.0 x 40.0

ECEC2WB221DA ECOS2WB221DA

220 1.00 35.0 x 30.0

ECEC2WB221EA ECOS2WB221EA

270 1.19 30.0 x 45.0

ECEC2WB271DA ECOS2WB271DA

270 1.19 35.0 x 35.0

ECEC2WB271EA ECOS2WB271EA

330 1.38 30.0 x 50.0

ECEC2WB331DA ECOS2WB331DA

330 1.38 35.0 x 40.0

ECEC2WB331EA ECOS2WB331EA

390 1.55 35.0 x 45.0

ECEC2WB391EA ECOS2WB391EA

470 1.74 35.0 x 50.0

ECEC2WB471EA ECOS2WB471EA

ORDER CODES

continuation

Page 55

PANASONIC type EM & EN

Surface mount, electric double layer capacitors designed for a wide range of IC back-up applications. Due to their miniature size (diameter 6.8mm) and very low profile (height 1.8mm max.), they are ideal for use in memory cards and many portable products such as those found in the telecommunication, data acquisition and photographic industries. Offered with a capacitance value of 0.2F, the devices are available with a rated voltage of either 2.5V (type EM) or 3.3V (type EN), each providing a choice of termination style. Suitable for reflow soldering, the capacitors are supplied taped and reeled.

N IC memory back-up (µA range)

N Rated voltage 2.5V (EM) or 3.3V (EN)

N Value 0.2F

N Miniature size 6.8mm dia.,

1.8mm max. height

Specification

ORDER CODES

Packaging

EM & EN

Endurance test Capacitance tolerance Internal resistance (as listed) Operating temperature range

Temperature stability Capacitance change (over oper. temp. range) Internal resistance (-25°C)

500 hours at 70°C

-20%, +80% at 20°C measured at 1kHz

-25°C to +70°C (EM)

-10°C to +60°C (EN)

±30% capacitance value at +20°C ≤5 x resistance value at +20°C

Dimensions (mm)

N Very light weight 0.2g

N Choice of termination style

N Suitable for reflow soldering

N Supplied taped & reeled

Internal

Value Resistance Termination

(F) (Ω) Style Order Code

2.5 Volt (EM)

0.2 ≤100 A

EECEM0E204A

0.2 ≤100 B

EECEM0E204B

0.2 ≤100 R

EECEM0E204R

3.3 Volt (EN)

0.2 ≤200 A

EECEN0F204A

0.2 ≤200 B

EECEN0F204B

0.2 ≤200 R

EECEN0F204R

Typical Discharge Characteristic

1000

Time (h)

0.1 1 10 100

0.01

Voltage (V)

0.5

1.0

Conditions

Sample type : EECEM0E204A (2.5V, 0.2F) Method : Constant resistance discharge Charge voltage: 2.5V Charge time : 24 hours Ambient temperature : +20°C

25kΩ

100kΩ

1.5

2.0

2.5

500kΩ

2.5MΩ 5MΩ

6.75

0.5

10.0 max.

1.9

1.8

max.

0.15

0.5

6.8

max.

12.5

max.

1.9

1.8

max.

0.15

1.9

1.4

6.8

5.9

11.3

6.8

0.15

1.8

max.

1.8

max.

1.4

2.5

Style A

Style B Style R

Style B

Style R

ELECTRIC DOUBLE LAYER, Surface Mount

+44 (0)1945 47 47 47 www.anglia.com [email protected]

Tape Reel

8mm width, 4mm pitch 178mm dia.

GOLD CAPACITOR

Page 56

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ELECTRIC DOUBLE LAYER, Low Profile

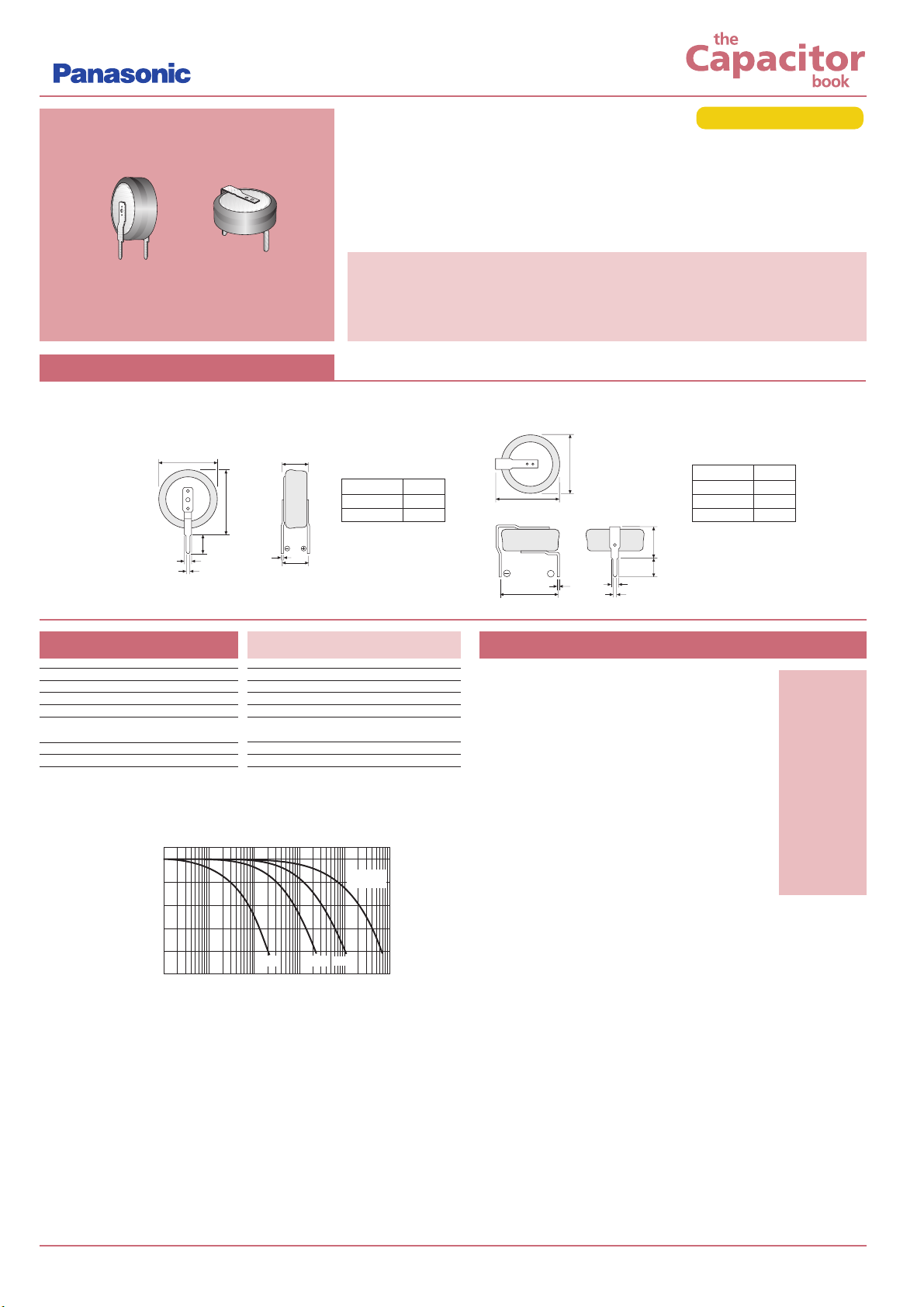

PANASONIC type NF

Electric double layer capacitors designed for a wide range of IC back-up applications in products such as A/V, telecommunications, computers and data acquisition equipment. Manufactured with a standard 5mm pitch and a maximum height of only 8mm, the NF series offers excellent specification/size characteristics and is capable of handling repeated charge/discharge conditions.

N IC memory back-up (µA range)

N Rated voltage 5.5V

N Values 0.1F to 1.5F

N Low profile

Specification

ORDER CODES

Endurance test Capacitance tolerance Internal resistance (as listed) Operating temperature range

Temperature stability Capacitance change (-25°C to +70°C) Internal resistance (-25°C) Solvent resistance

1000 hours at 70°C

-20%, +80% at 20°C measured at 1kHz

-25°C to +70°C

±30% capacitance value at +20°C ≤5 x resistance value at +20°C 5 minutes max. immersion, ultrasonic or vapour cleaning

Dimensions (mm)

N 5mm pitch

N Wide range of applications

N Supplied loose

Internal

Value Resistance Dimensions (mm)

(F) (Ω) Dia. x L Order Code

5.5 Volt

0.1 ≤75 13.5 x 7.5

EECF5R5U104

0.22 ≤75 13.5 x 7.5

EECF5R5U224

0.47 ≤30 21.5 x 8.0

EECF5R5U474

1.0 ≤30 21.5 x 8.0

EECF5R5U105

1.5 ≤30 21.5 x 8.0

EECF5R5U155

Typical Discharge Characteristic

1000

Time (h)

0.1 1 10 100

0.01

Voltage (V)

Conditions

Sample type : EECF5R5U105 (5.5V, 1.0F) Method : Constant resistance discharge Charge voltage: 5.0V Charge time : 24 hours Ambient temperature : +20°C

100kΩ

1MΩ

Self

Discharge

5MΩ

Dia. max.

5.0

6.0

max.

Vinyl sleeve

0.5

Terminal

1.2

0.8

2.5

3.5

6.0

GOLD CAPACITOR

Page 57

ELECTRIC DOUBLE LAYER, Compact

+44 (0)1945 47 47 47 www.anglia.com [email protected]

PANASONIC type SD

The SD series of electric double layer capacitors is a high performance IC back up device housed within a compact package with standard 5mm or 10mm pitches. Suitable for memory retention on chips situated in products such as A/V equipment, CMOS, RAM and industrial microcontrollers, the capacitors are available either vertically or horizontally mounted.

N IC memory back-up (µA range)

N Rated voltage 5.5V

N Values 0.022F to 0.33F

Specification

ORDER CODES

Endurance test Capacitance tolerance Internal resistance (as listed) Operating temperature range

Temperature stability Capacitance change (-25°C to +70°C) Internal resistance (-25°C)

1000 hours at 70°C

-20%, +80% at 20°C measured at 1kHz

-25°C to +70°C

±30% capacitance value at +20°C ≤5 x resistance value at +20°C

Dimensions (mm)

N High volumetric efficiency

N Vertical or horizontal versions

N Supplied loose

Value Internal Resistance

(F) (Ω) Fig. Order Code

5.5 Volt

Vertical Mount

0.022 ≤150 A

EECS0HD223V

0.047 ≤120 A

EECS0HD473V

0.1 ≤75 A

EECS0HD104V

0.22 ≤75 A

EECS0HD224V

0.33 ≤75 A

EECS0HD334V

Horizontal Mount

0.022 ≤150 B

EECS0HD223H

0.047 ≤120 B

EECS0HD473H

0.1 ≤75 B

EECS0HD104H

0.22 ≤75 B

EECS0HD224H

0.33 ≤75 B

EECS0HD334H

Typical Discharge Characteristic

1000

Time (h)

0.1 1 10 100

0.01

Voltage (V)

Conditions

Sample type : EECS0HD473V (5.5V, 0.047F) Method : Constant resistance discharge Charge voltage: 5.0V Charge time : 24 hours Ambient temperature : +20°C

100kΩ

1MΩ

Self

Discharge

5MΩ

Vertical Mount

Horizontal Mount

Fig. A

Fig. B

Vertical

Mount

Horizontal

Mount

Value (F) T max.

0.022 - 0.22 5.0

0.33 5.5

Value (F) H max.

0.022 - 0.1 5.5

0.22 6.0

0.33 6.5

GOLD CAPACITOR

ø10.5 max.

3.0

1.7

0.8

11.5

max.

0.2

T max.

5.0

11.5 max.

10.0

ø10.5

max.

0.2

H max.

3.0

1.7

0.8

Page 58

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ELECTRIC DOUBLE LAYER, Compact

PANASONIC type SG

The SG series of compact, vertical or horizontal mount electric double layer capacitors are designed for general purpose IC memory back-up such as CMOS, RAM and industrial microcontrollers. Housed within small packages employing 5mm or 20mm mounting pitches, the devices feature high volumetric efficiency and lightweight construction.

N IC memory back-up (µA range)

N Rated voltage 5.5V

N Values 0.47F to 1.5F

Specification

ORDER CODES

Endurance test Capacitance tolerance Internal resistance (as listed) Operating temperature range

Temperature stability Capacitance change (-25°C to +70°C) Internal resistance (-25°C)

1000 hours at 70°C

-20%, +80% at 20°C measured at 1kHz

-25°C to +70°C

±30% capacitance value at +20°C ≤5 x resistance value at +20°C

Dimensions (mm)

N High volumetric efficiency

N Vertical or horizontal versions

N Light weight

N Supplied loose

Value Internal Resistance

(F) (Ω) Fig. Order Code

5.5 Volt

Vertical Mount

0.47 ≤30 A

EECS5R5V474

1.0 ≤30 A

EECS5R5V105

1.5 ≤30 A

EECS5R5V155

Horizontal Mount

0.47 ≤30 B

EECS5R5H474

1.0 ≤30 B

EECS5R5H105

1.5 ≤30 B

EECS5R5H155

Typical Discharge Characteristic

1000

Time (h)

0.1 1 10 100

0.01

Voltage (V)

Conditions

Sample type : EECS5R5V105 (5.5V, 1.0F) Method : Constant resistance discharge Charge voltage: 5.0V Charge time : 24 hours Ambient temperature : +20°C

100kΩ

1MΩ

Self

Discharge

5MΩ

Vertical Mount

Horizontal Mount

Fig. A

Fig. B

Vertical

Mount

Horizontal

Mount

ø19.0

1.0

5.0

4.0

5.0

0.2

5.0

20.5

ø19.0

1.0

0.2

20.0

3.5

6.0

GOLD CAPACITOR

Page 59

ELECTRIC DOUBLE LAYER, Radial

+44 (0)1945 47 47 47 www.anglia.com [email protected]

* 60°C for values 30F & 50F

PANASONIC type HW

The HW series of electric double layer capacitors are housed in a conventional radial lead body and feature low internal resistance, high capacitance levels and excellent low temperature stability. Designed for repeated charge/discharge applications such as computer memory back-up, small motors and gas ignition equipment.This series replaces the AL series and offers smaller case sizes and higher capacitance.

N Low internal resistance

N High capacitance (up to 50F)

N Rated voltage 2.3V

Specification

ORDER CODES

Endurance test Capacitance tolerance Internal resistance (as listed) Operating temperature range

Temperature stability Capacitance change (-25°C to +70°C (+60°C*)) Internal resistance (-25°C)

1000 hours at 70°C (60°C*)

-20%, +40% at 20°C measured at 1kHz

-25°C to +70°C (+60°C*)

±30% capacitance value at +20°C ≤4 x resistance value at +20°C

Dimensions (mm)

N Suitable for high charge/discharge

& memory back-up

N Conventional radial lead body

N Supplied loose

Internal

Value Resistance Dimensions (mm)

(F) (ΩΩ) Pitch Dia. x L Order Code

2.3 Volt

1.0 ≤1.0 3.5 8.0 x 22.0

EECHW0D105

3.3 ≤0.3 5 12.5 x 23.0

EECHW0D335

4.7 ≤0.3 5 12.5 x 23.0

EECHW0D475

10 ≤0.2 5 12.5 x 35.0

EECHW0D106

22 ≤0.1 7.5 18.0 x 35.0

EECHW0D226

30 ≤0.1 7.5 18.0 x 35.0

EECHW0D306

50 ≤0.1 7.5 18.0 x 40.0

EECHW0D506

GOLD CAPACITOR

Sleeve

ød

Dia.

Dia. x L are can sizes only. To allow for sleeve add 0.5 to Dia. and 2.0 to L.

14 min.

3 min.

Pitch

ød = 0.7 (Dia. 8)

d = 0.8 (Dia. >8)

Page 60

+44 (0)1945 47 47 47 www.anglia.com [email protected]

TANTALUM, Chip

Refer to Marking section for marking explanation

Case Size L W H a b

R (0805) 2.0 1.3 1.2

max. 0.5 0.9

A (1206) 3.2 1.6 1.6 0.8 1.2

B 3.5 2.8 1.9 0.8 2.2

C 6.0 3.2 2.5 1.3 2.2

D 7.3 4.3 2.8 1.3 2.4

() 7.3 4.3 4.0 1.3 2.4

() 7.3 6.0 3.6 1.3 4.1

Rated voltage (≤ +85°C) 3V 4V 6V 10V 16V 20V 25V 35V 50V dc Rated voltage (≤ +125°C) 2V 2.7V 4V 7V 10V 13V 17V 23V 33V dc Surge voltage (≤ +85°C) 4V 5.2V 8V 13V 20V 26V 32V 46V 65V dc Surge voltage (≤ +125°C) 2.4V 3.2V 5V 8V 12V 16V 20V 28V 40V dc

Case Size RABCDXE

Max. Power (W) at 25°C 0.025 0.075 0.085 0.11 0.15 0.165 0.20

Rated voltage/ surge voltage capability

Power dissipation

Notes :

KEMET case X is same as industry standard case E

KEMET case E is dimensionly different to industry

standard case E (see bold figures)

see

Note 1

see

Note 2

KEMET type T491

Surface mount, solid tantalum capacitors fully encapsulated to provide a mechanically robust construction whilst offering superior resistance to moisture and heat. Supplied taped and reeled.

 General purpose

 High performance & reliability

 High volumetric efficiency

 Fully moulded construction

Specification T491

Capacitance tolerance Operating temperature range

Leakage current (as listed) Dissipation factor (as listed) ESR (as listed) Power dissipation Ripple current

±10% (or ±20%) at 120Hz, 25°C

-55°C to +85°C (+125°C with voltage derating - see table below) measured at 25°C measured at 120Hz, 25°C measured at 100kHz, 25°C refer to table below √ (P ÷ R) where P = power dissipation

R = ESR

Dimensions (mm)

Marking and Packaging

Marking

Tape

Case Size

R A B C D X E

Reel

Capacitance value code (in pF) e.g. 226 = 22µF Rated voltage e.g. 20 = 20V Bar to indicate positive terminal

8mm width, 4mm pitch 8mm width, 4mm pitch 8mm width, 4mm pitch 12mm width, 8mm pitch 12mm width, 8mm pitch 12mm width, 8mm pitch 12mm width, 8mm pitch 178mm dia.

 Suitable for wave & reflow soldering

 Capacitance tolerance

10% (or 20%)

 Supplied taped & reeled

Meets EIA-535 BAAC

KEMET type T491

continued overleaf > > > >

Page 61

TANTALUM, Chip

+44 (0)1945 47 47 47 www.anglia.com [email protected]

continuation

DC Leakage Dissipation ESR

Value Case Current Factor at 100kHz

(µF) Size (µA) max. (%) max. (ΩΩ) max. Order Code

3 Volt

33 A 1.0 6 4.0

T491A336K003AT

4 Volt

3.3 A 0.5 6 8.0

T491A335K004AT

4.7 A 0.5 6 8.0

T491A475K004AT

6.8 A 0.5 6 6.0

T491A685K004AT

10 R 0.5 8 10.0

T491R106K004AT

10 A 0.5 6 6.0

T491A106K004AT

10 B 0.5 6 3.5

T491B106K004AT

15 A 0.6 6 4.0

T491A156K004AT

15 B 0.6 6 3.5

T491B156K004AT

22 A 0.9 6 4.0

T491A226K004AT

22 B 0.9 6 3.5

T491B226K004AT

22 C 0.9 6 1.8

T491C226K004AT

33 A 1.3 6 4.0

T491A336K004AT

33 B 1.3 6 3.5

T491B336K004AT

33 C 1.3 6 1.8

T491C336K004AT

47 A 1.9 12 2.5

T491A476K004AT

47 B 1.9 6 3.0

T491B476K004AT

47 C 1.9 6 1.8

T491C476K004AT

68 B 2.7 6 3.5

T491B686K004AT

68 C 2.7 6 1.6

T491C686K004AT

68 D 2.7 6 0.8

T491D686K004AT

100 B 4.0 8 1.0

T491B107K004AT

100 C 4.0 8 1.2

T491C107K004AT

100 D 4.0 8 0.8

T491D107K004AT

150 C 6.0 8 1.2

T491C157K004AT

150 D 6.0 8 0.8

T491D157K004AT

330 D 13.2 8 0.7

T491D337K004AT

470 D 18.8 8 0.5

T491D477K004AT

470 X 18.8 8 0.5

T491X477K004AT

680 X 27.2 12 0.5

T491X687K004AT

680 D 27.2 12 0.5

T491D687K004AT

1000 E 40.0 15 0.2

T491E108K004AT

6 Volt *

2.2 A 0.5 6 8.0

T491A225K006AT

3.3 A 0.5 6 8.0

T491A335K006AT

4.7 A 0.5 6 6.0

T491A475K006AT

6.8 A 0.5 6 6.0

T491A685K006AT

6.8 B 0.5 6 3.5

T491B685K006AT

†

R 0.6 8 10.0

T491R106M006AT

10 A 0.6 6 4.0

T491A106K006AT

10 B 0.6 6 3.5

T491B106K006AT

15 A 0.9 6 4.0

T491A156K006AT

15 B 0.9 6 3.5

T491B156K006AT

15 C 0.9 6 1.8

T491C156K006AT

22 A 1.4 6 4.0

T491A226K006AT

22 B 1.4 6 3.5

T491B226K006AT

22 C 1.4 6 1.8

T491C226K006AT

33 A 2.0 12 2.5

T491A336K006AT

33 B 2.0 6 3.0

T491B336K006AT

33 C 2.0 6 1.8

T491C336K006AT

47 B 2.9 6 3.5

T491B476K006AT

47 C 2.9 6 1.6

T491C476K006AT

47 D 2.9 6 0.8

T491D476K006AT

68 B 4.1 8 1.0

T491B686K006AT

68 C 4.1 6 1.2

T491C686K006AT

68 D 4.1 6 0.8

T491D686K006AT

100 C 6.0 8 1.2

T491C107K006AT

100 D 6.0 8 0.8

T491D107K006AT

150 C 9.0 8 1.2

T491C157K006AT

150 D 9.0 8 0.7

T491D157K006AT

220

†

C 13.2 10 1.2

T491C227M006AT

220 C 13.2 10 1.2

T491C227K006AT

220 D 13.2 8 0.7

T491D227K006AT

220 X 13.2 8 0.7

T491X227K006AT

330 D 19.8 8 0.5

T491D337K006AT

330 X 19.8 8 0.5

T491X337K006AT

470 X 28.2 10 0.5

T491X477K006AT

470 D 28.2 12 0.5

T491D477K006AT

680 E 40.8 12 0.5

T491E687K006AT

DC Leakage Dissipation ESR

Value Case Current Factor at 100kHz

(µF) Size (µA) max. (%) max. (ΩΩ) max. Order Code

10 Volt

1.5 A 0.5 6 8.0

T491A155K010AT

2.2 A 0.5 6 8.0

T491A225K010AT

3.3 A 0.5 6 6.0

T491A335K010AT

4.7 R 0.5 8 10.0

T491R475K010AT

4.7 A 0.5 6 6.0

T491A475K010AT

4.7 B 0.5 6 3.5

T491B475K010AT

6.8 A 0.7 6 6.0

T491A685K010AT

6.8 B 0.7 6 3.5

T491B685K010AT

10 A 1.0 6 4.0

T491A106K010AT

10 B 1.0 6 3.5

T491B106K010AT

10 C 1.0 6 1.8

T491C106K010AT

15 A 1.5 8 6.0

T491A156K010AT

15 B 1.5 6 3.5

T491B156K010AT

15 C 1.5 6 1.8

T491C156K010AT

†

A 2.2 10 6.0

T491A226M010AT

22 A 2.2 10 6.0

T491A226K010AT

22 B 2.2 6 3.0

T491B226K010AT

22 C 2.2 6 1.8

T491C226K010AT

33 B 3.3 6 3.5

T491B336K010AT

33 C 3.3 6 1.6

T491C336K010AT

33 D 3.3 6 0.8

T491D336K010AT

†

B 4.7 8 1.0

T491B476M010AT

47 C 4.7 6 1.2

T491C476K010AT

47 D 4.7 6 0.8

T491D476K010AT

68 C 6.8 6 1.2

T491C686K010AT

68 D 6.8 6 0.8

T491D686K010AT

100 C 10 8 1.2

T491C107K010AT

100 D 10 8 0.7

T491D107K010AT

150 D 15 8 0.7

T491D157K010AT

150 X 15 8 0.7

T491X157K010AT

220 D 22 8 0.5

T491D227K010AT

220 X 22 8 0.5

T491X227K010AT

330 D 33 10 0.5

T491D337K010AT

330 X 33 10 0.5

T491X337K010AT

470 E 47 12 0.5

T491E477K010AT

16 Volt

1.0 A 0.5 4 10.0

T491A105K016AT

1.5 A 0.5 6 8.0

T491A155K016AT

2.2 R 0.5 8 25.0

T491R225K016AT

2.2 A 0.5 6 6.0

T491A225K016AT

3.3 A 0.5 6 6.0

T491A335K016AT

3.3 B 0.5 6 3.5

T491B335K016AT

4.7 A 0.8 6 6.0

T491A475K016AT

4.7 B 0.8 6 3.5

T491B475K016AT

6.8 A 1.1 6 7.0

T491A685K016AT

6.8 B 1.1 6 3.5

T491B685K016AT

6.8 C 1.1 6 1.9

T491C685K016AT

†

A 1.6 10 7.0

T491A106M016AT

10 A 1.6 10 7.0

T491A106K016AT

10 B 1.6 6 3.5

T491B106K016AT

10 C 1.6 6 1.8

T491C106K016AT

15 B 2.4 6 3.0

T491B156K016AT

15 C 2.4 6 1.8

T491C156K016AT

22 B 3.5 6 3.0

T491B226K016AT

22 C 3.6 6 1.6

T491C226K016AT

22 D 3.6 6 0.8

T491D226K016AT

33 C 5.3 6 1.2

T491C336K016AT

33 D 5.3 6 0.8

T491D336K016AT

47 C 7.5 6 1.2

T491C476K016AT

47 D 7.5 6 0.8

T491D476K016AT

68 D 10.9 6 0.7

T491D686K016AT

100 D 16 8 0.7

T491D107K016AT

100 X 16 8 0.7

T491X107K016AT

150 X 24 8 0.5

T491X157K016AT

220 X 35.2 10 0.5

T491X227K016AT

* 6 Volt rating equivalent to 6.3 Volt

Case sizes A to D are also available in lower profile style to order

Capacitance tolerance ±10% except

values marked †which are ±20%

ORDER CODES

continued > > > >

Page 62

+44 (0)1945 47 47 47 www.anglia.com [email protected]

TANTALUM, Chip

continuation

Case sizes A to D are also available in lower profile style to order

Capacitance tolerance ±10% except

values marked

†

which are ±20%

ORDER CODES

DC Leakage Dissipation ESR

Value Case Current Factor at 100kHz

(µF) Size (µA) max. (%) max. (ΩΩ) max. Order Code

20 Volt

0.68 A 0.5 4 12.0

T491A684K020AT

1.0

†

R 0.5 6 20.0

T491R105M020AT

1.0 A 0.5 4 10.0

T491A105K020AT

1.5 A 0.5 6 8.0

T491A155K020AT

2.2 A 0.5 6 7.0

T491A225K020AT

2.2 B 0.5 6 3.5

T491B225K020AT

3.3 A 0.7 6 7.0

T491A335K020AT

3.3 B 0.7 6 3.5

T491B335K020AT

4.7

†

A 1.0 8 6.0

T491A475M020AT

4.7 B 1.0 6 3.5

T491B475K020AT

4.7 C 1.0 6 2.4

T491C475K020AT

6.8 B 1.4 6 3.5

T491B685K020AT

6.8 C 1.4 6 1.9

T491C685K020AT

10 B 2.0 6 3.0

T491B106K020AT

10 C 2.0 6 1.8

T491C106K020AT

15 C 3.0 6 1.7

T491C156K020AT

15 D 3.0 6 1.0

T491D156K020AT

22 C 4.4 6 1.2

T491C226K020AT

22 D 4.4 6 0.8

T491D226K020AT

†

C 6.6 6 1.2

T491C336M020AT

33 D 6.6 6 0.8

T491D336K020AT

47 D 9.4 6 0.7

T491D476K020AT

68 D 13.6 8 0.7

T491D686K020AT

68 X 13.6 6 0.7

T491X686K020AT

100 X 20.0 8 0.5

T491X107K020AT

25 Volt

0.33 A 0.5 4 15.0

T491A334K025AT

0.47 A 0.5 4 14.0

T491A474K025AT

0.68 A 0.5 4 10.0

T491A684K025AT

1.0 A 0.5 4 8.0

T491A105K025AT

1.0 B 0.5 4 5.0

T491B105K025AT

1.5 A 0.5 6 10.0

T491A155K025AT

1.5 B 0.5 6 5.0

T491B155K025AT

2.2 B 0.6 6 4.5

T491B225K025AT

2.2 C 0.6 6 3.5

T491C225K025AT

3.3 B 0.9 6 3.5

T491B335K025AT

3.3 C 0.9 6 2.5

T491C335K025AT

4.7

†

B 1.2 6 1.5

T491B475M025AT

4.7 C 1.2 6 2.4

T491C475K025AT

6.8 C 1.7 6 1.9

T491C685K025AT

10.0 C 2.5 6 1.5

T491C106K025AT

10.0 D 2.5 6 1.0

T491D106K025AT

15.0 C 3.8 6 1.5

T491C156K025AT

15.0 D 3.8 6 1.0

T491D156K025AT

22.0 D 5.5 6 0.8

T491D226K025AT

33.0 D 8.3 6 0.7

T491D336K025AT

33.0 X 8.3 6 0.7

T491X336K025AT

47.0

†

D 11.8 10 0.7

T491D476M025AT

47.0 X 11.8 6 0.7

T491X476K025AT

68.0

†

X 17.0 8 0.7

T491X686M025AT

DC Leakage Dissipation ESR

Value Case Current Factor at 100kHz

(µF) Size (µA) max. (%) max. (ΩΩ) max. Order Code

35 Volt

0.1 A 0.5 4 20.0

T491A104K035AT

0.15 A 0.5 4 19.0

T491A154K035AT

0.22 A 0.5 4 18.0

T491A224K035AT

0.33 A 0.5 4 15.0

T491A334K035AT

0.47 A 0.5 4 14.0

T491A474K035AT

0.47 B 0.5 4 8.0

T491B474K035AT

0.68 A 0.5 4 10.0

T491A684K035AT

0.68 B 0.5 4 6.5

T491B684K035AT

1.0 A 0.5 4 10.0

T491A105K035AT

1.0 B 0.5 4 5.0

T491B105K035AT

1.5 B 0.5 6 5.0

T491B155K035AT

1.5 C 0.5 6 4.5

T491C155K035AT

2.2 B 0.8 6 4.0

T491B225K035AT

2.2 C 0.8 6 3.5

T491C225K035AT

3.3

†

B 1.2 6 3.5

T491B335M035AT

3.3 C 1.2 6 2.5

T491C335K035AT

4.7 C 1.7 6 2.5

T491C475K035AT

4.7 D 1.7 6 1.5

T491D475K035AT

6.8 C 2.4 6 2.0

T491C685K035AT

6.8 D 2.4 6 1.3

T491D685K035AT

†

C 3.5 6 2.0

T491C106M035AT

10 D 3.5 6 1.0

T491D106K035AT

15 D 5.3 6 0.8

T491D156K035AT

15 X 5.3 6 0.9

T491X156K035AT

†

D 7.7 6 0.7

T491D226M035AT

22 X 7.7 6 0.7

T491X226K035AT

33 X 11.6 6 0.6

T491X336K035AT

47 X 16.5 10 0.5

T491X476K035AT

50 Volt

0.1 A 0.5 4 20.0

T491A104K050AT

0.15 A 0.5 4 19.0

T491A154K050AT

0.15 B 0.5 4 16.0

T491B154K050AT

0.22 B 0.5 4 14.0

T491B224K050AT

0.33 B 0.5 4 10.0

T491B334K050AT

0.47 B 0.5 4 9.0

T491B474K050AT

0.47 C 0.5 4 8.0

T491C474K050AT

0.68 B 0.5 4 8.0

T491B684K050AT

0.68 C 0.5 4 7.0

T491C684K050AT

1.0 C 0.5 4 5.5

T491C105K050AT

1.5 C 0.8 6 4.5

T491C155K050AT

1.5 D 0.8 6 3.5

T491D155K050AT

2.2 C 1.1 6 3.5

T491C225K050AT

2.2 D 1.1 6 2.5

T491D225K050AT

3.3 D 1.7 6 2.0

T491D335K050AT

4.7 D 2.4 6 1.5

T491D475K050AT

6.8

†

D 3.4 6 1.0

T491D685M050AT

6.8 X 3.5 6 1.0

T491X685K050AT

10.0

†

X 5.0 6 0.7

T491X106M050AT

15.0 X 7.5 8 0.7

T491X156K050AT

Page 63

TANTALUM, Chip, Low ESR

+44 (0)1945 47 47 47 www.anglia.com [email protected]

Refer to Marking section for marking explanation

KEMET type T494, T495 & T510

Low ESR, surface mount, solid tantalum capacitors capable of handling higher ripple current and producing greater circuit efficiency. Utilisation of the latest technology ensures optimum performance. Fully encapsulated to provide a mechanically robust construction whilst offering superior resistance to moisture and heat. Comprises of three ranges: standard (T494), surge robust (T495) and ultra-low ESR (T510). Supplied taped and reeled.

 Low ESR

 High ripple current

 Choice of three ranges

 Optimised performance & reliability

Specification T494, T495 & T510

Capacitance tolerance Operating temperature range

Leakage current (as listed) Dissipation factor (as listed) ESR (as listed) Power dissipation Ripple current

±10% (or ±20%) at 120Hz, 25°C

-55°C to +85°C (+125°C with voltage derating - see table below) measured at 25°C measured at 120Hz, 25°C measured at 100kHz, 25°C refer to table below √ (P ÷ R) where P = power dissipation

R = ESR

Dimensions (mm)

Marking and Packaging

Marking

Tape

Case Size

R A B C D X E

Reel

Capacitance value code (in pF) e.g. 107 = 100µF Rated voltage e.g. 10 = 10V Bar to indicate positive terminal with letter to indicate range: O = T494, R = T495, F = T510

8mm width, 4mm pitch 8mm width, 4mm pitch 8mm width, 4mm pitch 12mm width, 8mm pitch 12mm width, 8mm pitch 12mm width, 8mm pitch 12mm width, 8mm pitch 178mm dia.

 Fully moulded construction

 Suitable for wave & reflow soldering

 Capacitance tolerance 10% (or 20%)

 Supplied taped & reeled

Meets EIA-535 BAAC

Case Size L W H a b

R (0805) 2.0 1.3 1.2

max. 0.5 0.9

A (1206) 3.2 1.6 1.6 0.8 1.2

B 3.5 2.8 1.9 0.8 2.2

C 6.0 3.2 2.5 1.3 2.2

D 7.3 4.3 2.8 1.3 2.4

() 7.3 4.3 4.0 1.3 2.4

() 7.3 6.0 3.6 1.3 4.1

Case Size RABCDXX

(T510)

Max. Power (W) at 25°C 0.025 0.075 0.085 0.11 0.15 0.165 0.27 0.20 0.285

Power dissipation

Rated voltage/ surge voltage capability

Notes :

KEMET case X is same as industry standard case E

KEMET case E is dimensionly different to industry standard case E (see bold figures)

see

Note 1

see

Note 2

Order Codes for

T494, T495 & T510

are listed on the following

four pages > > > >

Page 64

+44 (0)1945 47 47 47 www.anglia.com [email protected]

TANTALUM, Chip, Low ESR

KEMET type T494 (standard)

DC Leakage Dissipation ESR

Value Case Current Factor at 100kHz

(µF) Size (µA) max. (%) max. (ΩΩ) max. Order Code

3 Volt

33 A 1.0 6 2.0

T494A336K003AT

4 Volt

3.3 A 0.5 6 4.0

T494A335K004AT

4.7 A 0.5 6 3.5

T494A475K004AT

6.8 A 0.5 6 3.0

T494A685K004AT

†

R 0.5 8 10.0

T494R106M004AT

10 A 0.5 6 2.0

T494A106K004AT

10 B 0.5 6 1.2

T494B106K004AT

15 A 0.6 6 1.5

T494A156K004AT

15 B 0.6 6 1.2

T494B156K004AT

22 A 0.9 6 1.5

T494A226K004AT

22 B 0.9 6 0.6

T494B226K004AT

22 C 0.9 6 0.5

T494C226K004AT

33 A 1.3 6 3.0

T494A336K004AT

33 B 1.3 6 0.5

T494B336K004AT

33 C 1.3 6 0.5

T494C336K004AT

†

A 1.9 12 2.0

T494A476M004AT

47 B 1.9 6 0.5

T494B476K004AT

47 C 1.9 6 0.5

T494C476K004AT

68 B 2.7 6 2.0

T494B686K004AT

68 C 2.7 6 0.25

T494C686K004AT

68 D 2.7 6 0.2

T494D686K004AT

100 B 4.0 8 0.65

T494B107K004AT

100 C 4.0 8 0.2

T494C107K004AT

100 D 4.0 8 0.2

T494D107K004AT

150 C 6.0 8 0.3

T494C157K004AT

150 D 6.0 8 0.15

T494D157K004AT

330 D 13.2 8 0.15

T494D337K004AT

470 D 18.8 8 0.15

T494D477K004AT

470 X 18.8 8 0.15

T494X477K004AT

680

†

D 27.2 12 0.15

T494D687M004AT

680

†

X 27.2 12 0.1

T494X687M004AT

1000

†

E 40.0 15 0.08

T494E108M004AT

6 Volt *

2.2 A 0.5 6 6.0

T494A225K006AT

3.3 A 0.5 6 6.0

T494A335K006AT

4.7 A 0.5 6 3.5

T494A475K006AT

6.8 A 0.5 6 2.0

T494A685K006AT

6.8 B 0.5 6 1.2

T494B685K006AT

†

R 0.6 8 10.0

T494R106M006AT

10 A 0.6 6 2.0

T494A106K006AT

10 B 0.6 6 1.0

T494B106K006AT

15 A 0.9 6 2.0

T494A156K006AT

15 B 0.9 6 0.7

T494B156K006AT

15 C 0.9 6 0.6

T494C156K006AT

22 A 1.4 6 3.0

T494A226K006AT

22 B 1.4 6 0.6

T494B226K006AT

22 C 1.4 6 0.5

T494C226K006AT

33 A 2.0 12 2.0

T494A336K006AT

33 B 2.0 6 0.6

T494B336K006AT

33 C 2.0 6 0.3

T494C336K006AT

47 B 2.9 6 2.0

T494B476K006AT

47 C 2.9 6 0.25

T494C476K006AT

47 D 2.9 6 0.22

T494D476K006AT

68 B 4.1 8 0.65

T494B686K006AT

68 C 4.1 6 0.2

T494C686K006AT

68 D 4.1 6 0.2

T494D686K006AT

100 C 6.0 8 0.3

T494C107K006AT

100 D 6.0 8 0.15

T494D107K006AT

150

†

C 9.0 8 0.3

T494C157M006AT

150 D 9.0 8 0.15

T494D157K006AT

220

†

C 13.2 10 0.3

T494C227M006AT

220 D 13.2 8 0.15

T494D227K006AT

220 X 13.2 8 0.15

T494X227K006AT

330 D 19.8 8 0.15

T494D337K006AT

330 X 19.8 8 0.15

T494X337K006AT

470 D 28.2 12 0.15

T494D477K006AT

470 X 28.2 10 0.1

T494X477K006AT

680 E 40.8 12 0.1

T494E687K006AT

DC Leakage Dissipation ESR

Value Case Current Factor at 100kHz

(µF) Size (µA) max. (%) max. (ΩΩ) max. Order Code

10 Volt

1.5 A 0.5 6 6.0

T494A155K010AT

2.2 A 0.5 6 6.0

T494A225K010AT

3.3 A 0.5 6 4.0

T494A335K010AT

4.7

†

R 0.5 8 20.0

T494R475M010AT

4.7 A 0.5 6 3.0

T494A475K010AT

4.7 B 0.5 6 1.5

T494B475K010AT

6.8 A 0.7 6 3.0

T494A685K010AT

6.8 B 0.7 6 1.2

T494B685K010AT

10 A 1.0 6 2.0

T494A106K010AT

10 B 1.0 6 0.8

T494B106K010AT

10 C 1.0 6 0.6

T494C106K010AT

15 A 1.5 8 4.0

T494A156K010AT

15 B 1.5 6 0.7

T494B156K010AT

15 C 1.5 6 0.5

T494C156K010AT

22 A 2.2 10 4.5

T494A226K010AT

22 B 2.2 6 0.7

T494B226K010AT

22 C 2.2 6 0.4

T494C226K010AT

33 B 3.3 6 2.0

T494B336K010AT

33 C 3.3 6 0.3

T494C336K010AT

33 D 3.3 6 0.25

T494D336K010AT

47 B 4.7 8 0.65

T494B476K010AT

47 C 4.7 6 0.3

T494C476K010AT

47 D 4.7 6 0.22

T494D476K010AT

68 C 6.8 6 0.3

T494C686K010AT

68 D 6.8 6 0.2

T494D686K010AT

100 C 10 8 0.3

T494C107K010AT

100 D 10 8 0.15

T494D107K010AT

150 D 15 8 0.15

T494D157K010AT

150 X 15 8 0.15

T494X157K010AT

220 D 22 8 0.15

T494D227K010AT

220 X 22 8 0.15

T494X227K010AT

330 D 33 10 0.15

T494D337K010AT

330 X 33 10 0.1

T494X337K010AT

470 E 47 12 0.1

T494E477K010AT

16 Volt

1.0 A 0.5 4 6.0

T494A105K016AT

1.5 A 0.5 6 6.0

T494A155K016AT

2.2 R 0.5 8 20.0

T494R225K016AT

2.2 A 0.5 6 4.0

T494A225K016AT

3.3 A 0.5 6 4.0

T494A335K016AT

3.3 B 0.5 6 2.0

T494B335K016AT

4.7 A 0.8 6 3.0

T494A475K016AT

4.7 B 0.8 6 1.5

T494B475K016AT

6.8 A 1.1 6 3.0

T494A685K016AT

6.8 B 1.1 6 1.2

T494B685K016AT

6.8 C 1.1 6 0.8

T494C685K016AT

10 A 1.6 10 3.0

T494A106K016AT

10 B 1.6 6 0.8

T494B106K016AT

10 C 1.6 6 0.6

T494C106K016AT

15 B 2.4 6 0.8

T494B156K016AT

15 C 2.4 6 0.4

T494C156K016AT

22 B 3.5 6 1.0

T494B226K016AT

22 C 3.6 6 0.35

T494C226K016AT

22 D 3.6 6 0.25

T494D226K016AT

33 C 5.3 6 0.3

T494C336K016AT

33 D 5.3 6 0.25

T494D336K016AT

47 C 7.5 6 0.5

T494C476K016AT

47 D 7.5 6 0.2

T494D476K016AT

68 D 10.9 6 0.15

T494D686K016AT

100 D 16 8 0.15

T494D107K016AT

100 X 16 8 0.15

T494X107K016AT

150 X 24 8 0.15

T494X157K016AT

220 X 35.2 7.2 0.5

T494X227K016AT

* 6 Volt rating equivalent to 6.3 Volt

Case sizes A to D are also available in lower profile style to order

Capacitance tolerance ±10% except

values marked †which are ±20%

ORDER CODES

continued overleaf > > > >

Page 65

TANTALUM, Chip, Low ESR

+44 (0)1945 47 47 47 www.anglia.com [email protected]

KEMET type T494 (standard) continuation

DC Leakage Dissipation ESR

Value Case Current Factor at 100kHz

(µF) Size (µA) max. (%) max. (ΩΩ) max. Order Code

35 Volt

0.1 A 0.5 4 10.0

T494A104K035AT

0.15 A 0.5 4 6.0

T494A154K035AT

0.22 A 0.5 4 6.0

T494A224K035AT

0.33 A 0.5 4 6.0

T494A334K035AT

0.47 A 0.5 4 4.0

T494A474K035AT

0.47 B 0.5 4 2.5

T494B474K035AT

0.68 A 0.5 4 6.0

T494A684K035AT

0.68 B 0.5 4 2.5

T494B684K035AT

1.0 A 0.5 4 6.0

T494A105K035AT

1.0 B 0.5 4 2.0

T494B105K035AT

1.5 B 0.5 6 3.0

T494B155K035AT

1.5 C 0.5 6 2.5

T494C155K035AT

2.2 B 0.8 6 2.5

T494B225K035AT

2.2 C 0.8 6 1.5

T494C225K035AT

3.3 B 1.2 6 1.3

T494B335K035AT

3.3 C 1.2 6 0.8

T494C335K035AT

4.7 C 1.7 6 0.7

T494C475K035AT

4.7 D 1.7 6 0.7

T494D475K035AT

6.8 C 2.4 6 0.9

T494C685K035AT

6.8 D 2.4 6 0.5

T494D685K035AT

10 C 3.5 6 1.2

T494C106K035AT

10 D 3.5 6 0.4

T494D106K035AT

15 D 5.3 6 0.35

T494D156K035AT

15 X 5.3 6 0.3

T494X156K035AT

22 D 7.7 6 0.4

T494D226K035AT

22 X 7.7 6 0.3

T494X226K035AT

33 X 11.6 6 0.3

T494X336K035AT

47 X 16.5 8 0.5

T494X476K035AT

50 Volt

0.1 A 0.5 4 10.0

T494A104K050AT

0.15 A 0.5 4 10.0

T494A154K050AT

0.15 B 0.5 4 10.0

T494B154K050AT

0.22 B 0.5 4 10.0

T494B224K050AT

0.33 B 0.5 4 2.5

T494B334K050AT

0.47 B 0.5 4 2.0

T494B474K050AT

0.47 C 0.5 4 1.8

T494C474K050AT

0.68 B 0.5 4 3.0

T494B684K050AT

0.68 C 0.5 4 1.6

T494C684K050AT

1.0 C 0.5 4 1.6

T494C105K050AT

1.5 C 0.8 6 1.5

T494C155K050AT

1.5 D 0.8 6 1.0

T494D155K050AT

2.2 C 1.1 6 1.5

T494C225K050AT

2.2 D 1.1 6 0.8

T494D225K050AT

3.3 D 1.7 6 0.8

T494D335K050AT

4.7 D 2.4 6 0.6

T494D475K050AT

6.8 D 3.4 6 0.7

T494D685K050AT

6.8 X 3.5 6 0.5

T494X685K050AT

10 X 5.0 6 0.4

T494X106K050AT

15 X 7.5 6 0.4

T494X156K050AT

Case sizes A to D are also available in lower profile style to order

Capacitance tolerance ±10% except

values marked

†

which are ±20%

DC Leakage Dissipation ESR

Value Case Current Factor at 100kHz

(µF) Size (µA) max. (%) max. (ΩΩ) max. Order Code

20 Volt

0.68 A 0.5 4 8.0

T494A684K020AT

1.0

†

R 0.2 6 15.0

T494R105M020AT

1.0 A 0.5 4 5.5

T494A105K020AT

1.5 A 0.5 6 4.5

T494A155K020AT

2.2 A 0.5 6 4.0

T494A225K020AT

2.2 B 0.5 6 1.5

T494B225K020AT

3.3 A 0.7 6 4.0

T494A335K020AT

3.3 B 0.7 6 1.3

T494B335K020AT

4.7 A 1.0 8 3.0

T494A475K020AT

4.7 B 1.0 6 1.0

T494B475K020AT

4.7 C 1.0 6 0.6

T494C475K020AT

6.8 B 1.4 6 1.0

T494B685K020AT

6.8 C 1.4 6 0.6

T494C685K020AT

10 B 2.0 6 1.0

T494B106K020AT

10 C 2.0 6 0.5

T494C106K020AT

15 C 3.0 6 0.4

T494C156K020AT

15 D 3.0 6 0.35

T494D156K020AT

22 C 4.4 6 0.4

T494C226K020AT

22 D 4.4 6 0.3

T494D226K020AT

33 C 6.6 6 0.4

T494C336K020AT

33 D 6.6 6 0.25

T494D336K020AT

47 D 9.4 6 0.2

T494D476K020AT

68 D 13.6 8 0.2

T494D686K020AT

68 X 13.6 6 0.2

T494X686K020AT

100 X 20.0 8 0.15

T494X107K020AT

150 X 30.0 10 0.3

T494X157K020AT

25 Volt

0.33 A 0.5 4 10.0

T494A334K025AT

0.47 A 0.5 4 9.0

T494A474K025AT

0.68 A 0.5 4 6.0

T494A684K025AT

1.0 A 0.5 4 4.0

T494A105K025AT

1.0 B 0.5 4 2.0

T494B105K025AT

1.5 A 0.5 6 5.0

T494A155K025AT

1.5 B 0.5 6 1.5

T494B155K025AT

2.2 B 0.6 6 1.2

T494B225K025AT

2.2 C 0.6 6 2.2

T494C225K025AT

3.3 B 0.9 6 2.0

T494B335K025AT

3.3 C 0.9 6 1.2

T494C335K025AT

4.7 B 1.2 6 1.0

T494B475K025AT

4.7 C 1.2 6 0.6

T494C475K025AT

6.8 C 1.7 6 0.6

T494C685K025AT

10.0 C 2.5 6 0.6

T494C106K025AT

10.0 D 2.5 6 0.4

T494D106K025AT

15.0 C 3.8 6 0.9

T494C156K025AT

15.0 D 3.8 6 0.35

T494D156K025AT

22.0 D 5.5 6 0.3

T494D226K025AT

33.0 D 8.3 6 0.4

T494D336K025AT

33.0 X 8.3 6 0.3

T494X336K025AT

47.0 D 11.8 10 0.2

T494D476K025AT

47.0 X 11.8 6 0.3

T494X476K025AT

68.0

†

X 17.0 8 0.3

T494X686M025AT

100

†

X 25.0 8 0.25

T494X107M025AT

ORDER CODES

Page 66

+44 (0)1945 47 47 47 www.anglia.com [email protected]

TANTALUM, Chip, Low ESR

KEMET type T495 (surge robust)

Very low ESR tantalum capacitors offering a greater ripple current and a high surge current capability. Ideal for output filtering in SMPS and DC-DC converters. Also suitable for battery-ground input filter applications.

DC Leakage Dissipation ESR Ripple Current

Value Case Current Factor at 100kHz at 100kHz (mA)

(µF) Size (µA) max. (%) max. (mΩΩ) max. 25°C 85°C 125°C Order Code

6 Volt *

68 D 3.3 4 175 926 833 370

T495D686K006AS

100 C 6.0 8 150 856 770 342

T495C107K006AS

150

†

C 9.0 8 200 742 668 297

T495C157M006AS

150 X 7.2 6 100 1285 1156 514

T495X157K006AS

220 D 13.2 8 100 1225 1102 490

T495D227K006AS

220 X 13.2 8 100 1285 1156 514

T495X227K006AS

330

•

X 19.8 8 100 1285 1156 514

T495X337K006AS

470

•

X 28.2 10 65 1593 1434 637

T495X477K006AS

10 Volt

22 C 2.2 6 345 565 508 226

T495C226K010AS

47 D 3.8 4 200 866 780 346

T495D476K010AS

68 C 6.8 6 225 700 630 280

T495C686K010AS

68 D 6.8 6 150 1000 900 400

T495D686K010AS

68 X 5.4 4 150 1049 944 420

T495X686K010AS

100

•

D 10 8 100 1225 1102 490

T495D107K010AS

100 X 8.0 6 100 1285 1156 514

T495X107K010AS

150 D 15 8 100 1225 1102 490

T495D157K010AS

150

•

X 15 8 100 1285 1156 514

T495X157K010AS

220

•

X 22 8 100 1285 1156 514

T495X227K010AS

16 Volt

33 C 5.3 6 275 632 569 253

T495C336K016AS

33 D 4.2 4 225 816 735 326

T495D336K016AS

47 D 7.5 6 150 1000 900 400

T495D476K016AS

100 D 16 8 125 1095 986 438

T495D107K016AS

100

•

X 16 8 100 1285 1156 514

T495X107K016AS

20 Volt

15 D 2.4 4 275 738 665 295

T495D156K020AS

22 D 3.5 4 225 816 735 326

T495D226K020AS

33 D 6.6 6 200 866 780 346

T495D336K020AS

47 X 7.5 4 150 1049 944 420

T495X476K020AS

68 X 13.6 6 150 1049 944 420

T495X686K020AS

25 Volt

6.8 C 1.7 6 500 469 422 188

T495C685K025AS

10 C 2.5 6 450 494 445 198

T495C106K025AS

15 D 3.8 6 275 738 665 295

T495D156K025AS

15 X 3.0 4 200 908 817 363

T495X156K025AS

22 D 5.5 6 200 866 780 346

T495D226K025AS

22 X 4.4 4 225 856 771 343

T495X226K025AS

33 X 6.6 4 175 971 874 388

T495X336K025AS

†

X 11.8 6 200 908 817 363

T495X476M025AS

35 Volt

4.7 C 1.7 6 600 428 385 171

T495C475K035AS

6.8 X 1.9 4 300 742 667 297

T495X685K035AS

10 D 3.5 6 300 707 636 283

T495D106K035AS

10 X 2.8 4 250 812 731 325

T495X106K035AS

15 D 5.3 6 300 707 636 283

T495D156K035AS

15 X 5.3 6 225 856 771 343

T495X156K035AS

22 X 7.7 6 275 775 697 410

T495X226K035AS

33 X 11.6 6 250 812 731 325

T495X336K035AS

50 Volt

4.7 X 1.9 4 300 742 667 297

T495X475K050AS

ORDER CODES

* 6 Volt rating equivalent to 6.3 Volt

A lower profile case size D is also available to order on certain values

• A lower ESR version with higher ripple current in the same case size is also available to order.

Capacitance tolerance ±10% except

values marked

†

which are ±20%

Page 67

TANTALUM, Chip, Low ESR

+44 (0)1945 47 47 47 www.anglia.com [email protected]

KEMET type T510 (ultra-low ESR)

An innovative range of tantalum capacitors with a multi-element construction. Offers a high CV, an exceptionally low ESR and a very high ripple current, all within a small package size. Excellent for SMPS filtering and power decoupling in modern microprocessor designs.

* 6 Volt rating equivalent to 6.3 Volt

◊

For details of case sizes refer to page 60

DC Leakage Dissipation ESR Ripple Current

Value Case Current Factor at 100kHz at 100kHz (A)

(µF) Size

◊

(µA) max. (%) max. (mΩΩ) max. 25°C 85°C 125°C Order Code

4 Volt

680 X 27.2 6 30 3.0 2.7 1.2

T510X687K004AT

1000 E 40.0 6 10 5.3 4.8 2.1

T510E108K004AT

1000 E 40.0 6 18 4.0 3.6 1.6

T510E108K004ATE18

1000 X 40.0 6 18 3.9 3.5 1.5

T510X108K004ATE18

1000 X 40.0 6 23 3.4 3.0 1.3

T510X108K004ATE23

6 Volt *

470 X 28.2 6 30 3.0 2.7 1.2

T510X477K006AT

680 E 40.8 6 12 4.8 4.3 1.9

T510E687K006AT

680 E 40.8 6 23 3.5 3.2 1.4

T510E687K006ATE23

10 Volt

330 X 33.0 6 35 2.8 2.5 1.1

T510X337K010AT

16 Volt

150 X 24.0 6 30 3.0 2.7 1.2

T510X157K016ATE30

150 X 24.0 6 40 2.6 2.3 1.0

T510X157K016ATE40

220 X 35.2 10 25 3.3 3.0 1.3

T510X227K016ATE25

220 X 35.2 10 40 2.6 2.3 1.0

T510X227K016ATE40

20 Volt

100 X 20.0 8 35 2.8 2.5 1.1

T510X107K020ATE35

100 X 20.0 6 40 2.6 2.3 1.0

T510X107K020ATE40

100 X 20.0 6 45 2.4 2.2 0.9

T510X107K020ATE45

25 Volt

100 E 25.0 8 50 2.4 2.1 1.0

T510E107K025AT

35 Volt

22 X 7.7 6 60 2.1 1.9 0.8

T510X226K035ATE60

22 X 7.7 6 80 1.8 1.7 0.7

T510X226K035ATE80

22 X 7.7 6 100 1.6 1.4 0.6

T510X226K035ATE00

33 X 11.6 6 50 2.3 2.1 0.9

T510X336K035ATE50

47 X 16.5 8 55 2.2 2.0 0.9

T510X476K035ATE55

47 E 16.5 8 50 2.1 2.1 1.0

T510E476K035ATE50

47 X 16.5 8 65 2.0 1.8 0.8

T510X476K035ATE65

50 Volt

10 X 5.0 8 90 1.7 1.6 0.7

T510X106K050ATE90

10 X 5.0 8 120 1.5 1.3 0.6

T510X106K050ATE20

ORDER CODES

Page 68

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ALUMINIUM-POLYMER

, Chip

KEMET type AO-Cap (ultra-low ESR)

The AO-Cap, designated the A700 series, is a surface mount aluminium-polymer capacitor that features extremely low ESR making it suitable for high frequency applications whilst maintaining high capacitance. It is supplied in the same compact EIA industry standard packages and packaging as KEMET’s surface mount Tantalum products.

 Capacitance values from

6.8µF to 470µF

 Voltage ratings from 2V to 16V

 Extremely low ESR down to 7mΩ

 High capacitance retention at high

operating frequencies

 No voltage derating up to 125°C

 Cost savings by replacement of multiple

devices with one AO-Cap

 Ideal for high frequency power

 Robust to the surface mount process

 No dry-out related failure mechanism

 Benign failure mode

 Environmently friendly Lead (Pb)-free

construction

 Industry standard surface mount

packages

 Supplied taped & reeled

Case Size L W H a b

V 7.3 4.3 1.9

. 1.3 2.4

D 7.3 4.3 2.8 1.3 2.4

X 7.3 4.3 4.0 1.3 2.4

* KEMET case X is same as industry standard case E

Construction

AO-Cap is constructed using aluminium as the anode material, aluminium oxide as the dielectric, and a conductive organic polymer for its counterelectrode material. It is this innovative construction that allows the product to offer many advantages over more traditional capacitors.

Applications

Targeted at power management, de-coupling and filtering applications, the AO-Cap exhibits excellent high frequency performance with ESR values typically 10 times lower than traditional low ESR tantalum capacitors over wide frequency ranges. As a result of this outstanding performance, it can be used to reduce component count allowing design engineers to save board space and placement time offering a more cost-effective overall solution. Furthermore, not only can AO-Cap be used in place of low ESR Tantalum, but it can also replace High Cap Ceramics and low voltage Surface Mount Electrolytics.

Performance

In addition to its high frequency performance the AO-Cap has excellent surge current capability and long term reliability due to the self-healing properties of the dielectric. It can also be used over its entire operating temperature range of -55°C to +125°C without the need for de-rating. The approximate capacitance shift over this temperature range is ±15%.

Package

The AO-Cap has a moulded case and wraparound terminations. This provides strong protection against cracks (flex), often a problem when using high capacitance ceramics, and also offers a true surface mountable solution compared to the existing aluminium-organic capacitors found in the industry. Supplied taped and reeled.

These curves demonstrate the AO-Cap’s superior high

frequency characteristics.

Capacitance vs. Frequency

T491 (MnO2) vs. A700 (Polymer)

476

Rated voltage (+55°C to 125°C) 2V 2.5V 4V 6.3V 8V 10V dc

Surge voltage (+55°C to 125°C) 2.6V 3.2V 5.2V 8V 10.4V 13V dc

Case Size VDX

Max. Power (W) at 25°C with 20% temp. rise

270 250 225

Rated voltage/ surge voltage capability

Power dissipation

Specification AO-Cap (A700)

Capacitance tolerance Operating temperature range

Leakage current (as listed) Dissipation factor ESR (as listed) Power dissipation Ripple current (as listed)

±20°C at 120Hz, 25°C

-55°C to +155°C (with no voltage derating up to 125°C) measured at rated voltage, 25°C 6% measured at 120Hz, 25°C measured at 100kHz, 25°C refer to table below measured at 100kHz, 125°C

Marking and Packaging

Marking Tape

Case Size

V D X

Reel

Capacitance value, Voltage code, Bar to indicate negative terminal

12mm width, 8mm pitch 12mm width, 8mm pitch 12mm width, 8mm pitch 178mm dia.

Dimensions (mm)

AO-Cap continued overleaf > > > >

50 45 40 35 30 25 20 15 10

Capacitance (μF)

100 1k 10k 100k 1M 10M

T491D476M006 Commercial

Frequency (Hz)

A700V476M006

Page 69

ALUMINIUM-POLYMER

, Chip

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ORDER CODES

Value Case DC Leakage ESR Ripple

(µF) Size Current (µA) (mΩ) Current (A) Order Code

2 Volt

100 V 12.0 18 3.9

A700V107M002AT018

100 V 12.0 25 3.3

A700V107M002AT025

100 V 12.0 28 3.1

A700V107M002AT028

120 V 14.4 18 3.9

A700V127M002AT018

120 V 14.4 25 3.3

A700V127M002AT025

120 V 14.4 28 3.1

A700V127M002AT028

150 V 18.0 9 5.4

A700V157M002AT009

150 V 18.0 18 3.9

A700V157M002AT018

150 V 18.0 25 3.3

A700V157M002AT025

150 V 18.0 28 3.1

A700V157M002AT028

180 D 21.6 15 4.1

A700D187M002AT015

180 D 21.6 18 3.7

A700D187M002AT018

220 V 26.4 9 5.5

A700V227M002AT009

220 D 26.4 15 4.1

A700D227M002AT015

220 D 26.4 18 3.7

A700D227M002AT018

270 X 32.4 10 4.7

A700X277M002AT010

270 X 32.4 12 4.3

A700X277M002AT012

270 X 32.4 15 3.9

A700X277M002AT015

330 D 39.6 7 6.0

A700D337M002AT007

330 X 39.6 10 4.7

A700X337M002AT010

330 X 39.6 15 3.9

A700X337M002AT015

390 X 46.8 10 4.7

A700X397M002AT010

390 X 46.8 15 3.9

A700X397M002AT015

470 X 56.4 10 4.7

A700X477M002AT010

470 X 56.4 15 3.9

A700X477M002AT015

2.5 Volt

82 V 12.3 18 3.9

A700V826M2R5AT018

82 V 12.3 25 3.3

A700V826M2R5AT025

82 V 12.3 28 3.1

A700V826M2R5AT028

150 D 22.5 15 4.1

A700D157M2R5AT015

150 D 22.5 18 3.7

A700D157M2R5AT018

180 D 27.0 15 4.1

A700D187M2R5AT015

180 D 27.0 18 3.7

A700D187M2R5AT018

220 X 33.0 10 4.7

A700X227M2R5AT010

220 X 33.0 15 3.9

A700X227M2R5AT015

330 X 49.5 10 4.7

A700X337M2R5AT010

330 X 49.5 15 3.9

A700X337M2R5AT015

470 X 70.5 10 4.7

A700X477M2R5AT010

4 Volt

82 V 19.7 18 3.9

A700V826M004AT018

82 V 19.7 25 3.3

A700V826M004AT025

82 V 19.7 28 3.1

A700V826M004AT028

120 D 28.8 15 4.1

A700D127M004AT015

120 D 28.8 18 3.7

A700D127M004AT018

150 D 36.0 15 4.1

A700D157M004AT015

150 D 36.0 18 3.7

A700D157M004AT018

180 D 43.2 15 4.1

A700D187M004AT015

180 D 43.2 18 3.7

A700D187M004AT018

180 X 43.2 10 4.7

A700X187M004AT010

180 X 43.2 15 3.9

A700X187M004AT015

220 X 52.8 9 5.3

A700D227M004AT009

220 X 52.8 9 5.3

A700X227M004AT009

220 X 52.8 10 4.7

A700X227M004AT010

220 X 52.8 15 3.9

A700X227M004AT015

270 X 64.8 10 4.7

A700X277M004AT010

270 X 64.8 15 3.9

A700X277M004AT015

330 X 79.2 10 4.7

A700X337M004AT010

330 X 79.2 15 3.9

A700X337M004AT015

Value Case DC Leakage ESR Ripple

(µF) Size Current (µA) (mΩ) Current (A) Order Code

6.3 Volt

22 V 5.5 28 3.1

A700V226M006AT028

22 V 5.5 45 2.4

A700V226M006AT045

33 V 8.3 18 3.9

A700V336M006AT018

33 V 8.3 25 3.3

A700V336M006AT025

33 V 8.3 28 3.1

A700V336M006AT028

47 V 11.8 18 3.9

A700V476M006AT018

47 V 11.8 25 3.3

A700V476M006AT025

47 V 11.8 28 3.1

A700V476M006AT028

56 V 14.1 18 3.9

A700V566M006AT018

56 V 14.1 25 3.3

A700V566M006AT025

56 V 14.1 28 3.1

A700V566M006AT028

68 V 17.1 18 3.9

A700V686M006AT018

68 V 17.1 25 3.3

A700V686M006AT025

68 V 17.1 28 3.1

A700V686M006AT028

82 V 20.7 18 3.9

A700V826M006AT018

82 V 20.7 25 3.3

A700V826M006AT025

82 V 20.7 28 3.1

A700V826M006AT028

100 D 25.2 15 4.1

A700D107M006AT015

100 D 25.2 18 3.7

A700D107M006AT018

120 D 30.2 12 4.6

A700D127M006AT012

120 D 30.2 15 4.1

A700D127M006AT015

120 D 30.2 18 3.7

A700D127M006AT018

150 X 37.8 10 4.7

A700X157M006AT010

150 X 37.8 12 4.3

A700X157M006AT012

150 X 37.8 15 3.9

A700X157M006AT015

180 X 45.4 10 4.7

A700X187M006AT010

180 X 45.4 15 3.9

A700X187M006AT015

220 X 55.4 15 3.9

A700X227M006AT015

8 Volt

22 V 7.0 28 3.1

A700V226M008AT028

22 V 7.0 45 2.4

A700V226M008AT045

33 V 10.6 18 3.9

A700V336M008AT018

33 V 10.6 25 3.3

A700V336M008AT025

33 V 10.6 28 3.1

A700V336M008AT028

56 D 17.9 15 4.1

A700D566M008AT015

56 D 17.9 18 3.7

A700D566M008AT018

68 D 21.8 15 4.1

A700D686M008AT015

68 D 21.8 18 3.7

A700D686M008AT018

100 X 32.0 10 4.7

A700X107M008AT010

100 X 32.0 12 4.3

A700X107M008AT012

100 X 32.0 15 3.9

A700X107M008AT015

10 Volt

22 V 8.8 28 3.1

A700V226M010AT028

33 V 13.2 18 3.9

A700V336M010AT018

33 V 13.2 25 3.3

A700V336M010AT025

33 V 13.2 28 3.1

A700V336M010AT028

56 D 22.4 15 4.1

A700D566M010AT015

56 D 22.4 18 3.7

A700D566M010AT018

68 D 27.2 15 4.1

A700D686M010AT015

68 D 27.2 18 3.7

A700D686M010AT018

100 X 40.0 10 4.7

A700X107M010AT010

100 X 40.0 15 3.9

A700X107M010AT015

120 X 48.0 10 4.7

A700X127M010AT010

120 X 48.0 15 3.9

A700X127M010AT015

150 X 60.0 10 4.7

A700X157M010AT010

150 X 60.0 15 3.9

A700X157M010AT015

12.5 Volt

10 V 7.5 40 2.6

A700V106M12RAT040

10 V 5.0 60 2.1

A700V106M12RAT060

15 V 7.5 40 2.6

A700V156M12RAT040

22 V 11.0 30 3.0

A700V226M12RAT030

47 D 55.4 25 3.2

A700D476M12RAT025

100 X 55.4 15 3.9

A700X107M12RAT015

16 Volt

6.8 V 4.3 70 1.9

A700V685M016AT070

8.2 V 5.2 45 2.4

A700V825M016AT045

10 V 6.4 45 2.4

A700V106M016AT045

22 V 14.1 18 3.7

A700D226M016AT018

22 V 14.1 25 3.2

A700D226M016AT025

continuation

Page 70

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ALUMINIUM-POLYMER, Chip

PANASONIC type SP-Cap

Aluminium-polymer surface mount capacitor that features extremely low ESR, making it suitable for high frequency applications whilst maintaining high capacitance. Housed in compact EIA industry standard packages but also offers 40% miniaturisation in the MC series. Lowest ESR can be achieved in the SL & SX series, whilst many values across the complete range give a choice of 240°C & 260°C reflow condition. Supplied taped and reeled.



Capacitance values from 2.2µF to 560µF

 Voltage ratings from 2V to 16V

 Extremely low ESR down to 4.5mΩ

 Excellent noise-absorbent characteristics

Specification

SP-Cap

Capacitance tolerance Operating temperature range Leakage current (µA) after 2 min.

Dissipation factor

ESR (as listed) Ripple current (as listed) Surge voltage

±20% at 120Hz, 20°C

-40°C to +105°C Reflow 240°C : ≤0.06CV (2V-4V), ≤0.04CV or 3µA (6.3V - 16V) Reflow 260°C : ≤0.1CV FD, CD, CX, SL, SX & MC series ≤6% (120Hz, 20°C) UD & UE series ≤10% (120Hz, 20°C) Measured at 100kHz, 20°C Measured at 100kHz, 20 to 105°C Rated voltage x 1.25 (15°C to 35°C)

Dimensions (mm)

 High ripple current  Industry standard surface

mount packages

 Available in miniature package



Supplied taped & reeled

Series/Case Size L W H max. a b

FD 7.3 4.3 1.2 1.3 2.4

CD 7.3 4.3 1.9 1.3 2.4

CX 7.3 4.3 2.1 1.3 2.4

UD 7.3 4.3 2.8 1.3 2.4

UE 7.3 4.3 4.2 1.3 2.4

SL 7.3 4.3 1.9 1.3 2.4

SX 7.3 4.3 2.1 1.3 2.4

MC 6.0 3.2 2.1 1.3 1.8

Marking and Packaging

Marking

Tape

Capacitance value, Voltage code Bar to indicate negative terminal 12mm width, 8mm pitch

ORDER CODES

Value Series/ ESR Ripple Order Code Order Code

(µF) Case (mΩΩ) Current (240°C) (260°C)

Size (A)

2 Volt

68 FD 28 2.0

EEFFD0D680R

–

100 CD 18 2.5

EEFCD0D101R EEFCD0D101ER

100 CD 15 2.7

EEFCD0D101XR EEFCD0D101XE

100 SL 9 3.0

EEFSL0D101R EEFSL0D101ER

120 CD 18 2.5

EEFCD0D121R EEFCD0D121ER

120 CD 15 2.7

EEFCD0D121XR EEFCD0D121XE

120 SL 9 3.0

EEFSL0D121R EEFSL0D121ER

150 CD 18 2.5

EEFCD0D151R EEFCD0D151ER

150 SL 9 3.0

EEFSL0D151R EEFSL0D151ER

180 CD 8 2.5

EEFCD0D181R EEFCD0D181ER

180 SL 9 3.0

EEFSL0D181R EEFSL0D181ER

180 SX 9 3.0

EEFSX0D181R EEFSX0D181ER

220 CD 18 2.5

EEFCD0D221R EEFCD0D221ER

220 SL 9 3.0

EEFSL0D221R EEFSL0D221ER

220 CX 15 2.7

EEFCX0D221R

–

220 SX 9 3.0

EEFSX0D221R EEFSX0D221ER

270 SX 9 3.0

EEFSX0D271R EEFSX0D271ER

270 SX 6 3.5

EEFSX0D271XR EEFSX0D271XE

270 SX 4.5 3.8 –

EEFSX0D271E4

270 UD 12 3.3

EEFUD0D271R EEFUD0D271ER

270 UD 10 3.5

EEFUD0D271XR EEFUD0D271XE

330 CX 15 2.7 –

EEFCX0D331R

330 SX 9 3.0

EEFSX0D331R EEFSX0D331ER

330 SX 6 3.5

EEFSX0D331XR EEFSX0D331XE

330 SX 4.5 3.5 –

EEFSX0D331E4

330 UD 15 3.0

EEFUD0D331R EEFUD0D331ER

330 UD 12 3.3

EEFUD0D331XR EEFUD0D331XE

330 UE 12 3.3

EEFUE0D331R EEFUE0D331ER

330 UE 10 3.5

EEFUE0D331XR EEFUE0D331XE

Value Series/ ESR Ripple Order Code Order Code

(µF) Case (mΩΩ) Current (240°C) (260°C)

Size (A)

2 Volt

(continued)

390 CX 15 2.7 –

EEFCX0D391R

390 SX 9 3.0

EEFSX0D391R EEFSX0D391ER

390 SX 6 3.5

EEFSX0D391XR EEFSX0D391XE

390 SX 4.5 3.8 –

EEFSX0D391E4

390 UD 9 3.4

EEFUD0D331LR EEFUD0D331LE

390 UD 15 3.0

EEFUD0D391R EEFUD0D391ER

390 UD 9 3.4

EEFUD0D391LR EEFUD0D391LE

390 UE 12 3.3

EEFUE0D391R EEFUE0D391ER

390 UE 10 3.5

EEFUE0D391XR EEFUE0D391XE

390 UE 7 3.7

EEFUE0D391LR EEFUE0D391LE

470 CX 15 2.7 –

EEFCX0D471R

470 SX 9 3.0

EEFSX0D471R EEFSX0D471ER

470 SX 6 3.5

EEFSX0D471XR EEFSX0D471XE

470 SX 4.5 3.8 –

EEFSX0D471E4

470 UD 9 3.4

EEFUD0D471LR EEFUD0D471LE

470 UE 12 3.3

EEFUE0D471R EEFUE0D471ER

470 UE 10 3.5

EEFUE0D471XR EEFUE0D471XE

470 UE 7 3.7

EEFUE0D471LR EEFUE0D471LE

560 UE 12 3.3

EEFUE0D561R EEFUE0D561ER

560 UE 7 3.7

EEFUE0D561LR EEFUE0D561LE

Panasonic type SP-Cap

continued overleaf > > > >

Page 71

ALUMINIUM-POLYMER, Chip

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ORDER CODES

Value Series/ ESR Ripple Order Code Order Code

(µF) Case (mΩΩ) Current (240°C) (260°C)

Size (A)

6.3 Volt

10 CD 55 1.4

EEFCD0J100R EEFCD0J100ER

22 CD 40 1.6

EEFCD0J220R EEFCD0J220ER

33 FD 28 2.0

EEFFD0J330R

–

33 CD 28 2.0

EEFCD0J330R EEFCD0J330ER

47 CD 18 2.5

EEFCD0J470R EEFCD0J470ER

47 CD 15 2.7

EEFCD0J470XR EEFCD0J470XE

56 SL 9 3.0

EEFSL0J560R

–

68 CD 18 2.5

EEFCD0J680R EEFCD0J680ER

68 CD 15 2.7

EEFCD0J680XR EEFCD0J680XE

100 CX 15 2.7 –

EEFCX0J101R

120 CX 15 2.7 –

EEFCX0J121R

150 CX 15 2.7 –

EEFCX0J151R

150 SX 9 3.0 –

EEFSX0J151ER

150 UE 12 3.3

EEFUE0J151R EEFUE0J151ER

150 UE 10 3.5

EEFUE0J151XR EEFUE0J151XE

180 UE 12 3.3

EEFUE0J181R EEFUE0J181ER

180 UE 10 3.5

EEFUE0J181XR EEFUE0J181XE

180 UE 7 3.7

EEFUE0J181LR

–

220 UE 15 3.0

EEFUE0J221R EEFUE0J221ER

220 UE 7 3.7

EEFUE0J221LR

–

8 Volt

8.2 CD 55 1.4

EEFCD0K8R2R EEFCD0K8R2ER

15 CD 40 1.6

EEFCD0K150R EEFCD0K150ER

22 FD 28 2.0

EEFFD0K220R

–

22 CD 28 1.8

EEFCD0K220R EEFCD0K220ER

33 CD 18 2.5

EEFCD0K330R EEFCD0K330ER

47 CD 25 2.5

EEFCD0K470R EEFCD0K470ER

68 UD 15 3.0

EEFUD0K680R EEFUD0K680ER

100 UD 18 2.5

EEFUD0K101R EEFUD0K101ER

100 UE 12 3.3

EEFUE0K101R EEFUE0K101ER

150 UE 15 3.0

EEFUE0K151R EEFUE0K151ER

12.5 Volt

4.7 CD 80 1.0

EEFCD1B4R7R

–

10 CD 60 1.0

EEFCD1B100R

–

15 FD 40 1.4

EEFFD1B150R

–

15 CD 50 1.3

EEFCD1B150R

–

22 CD 30 1.6

EEFCD1B220R

–

16 Volt

2.2 CD 110 1.0

EEFCD1C2R2R

–

4.7 CD 80 1.0

EEFCD1C4R7R

–

6.8 CD 70 1.0

EEFCD1C6R8R

–

8.2 CD 45 1.3

EEFCD1C8R2R

–

Miniature Case Size 6mm x 3.2mm

2 Volt

120 MC 12 2.7000 –

EEFMC0D121R

2.5 Volt

100 MC 12 2.7000 –

EEFMC0E101R

4 Volt

82 MC 18 2.2000 –

EEFMC0G820R

6.3 Volt

47 MC 18 2.2000 –

EEFMC0J470R

continuation

Value Series/ ESR Ripple Order Code Order Code

(µF) Case (mΩΩ) Current (240°C) (260°C)

Size (A)

2.5 Volt

56 FD 28 2.0

EEFFD0E560R

–

82 CD 18 2.5

EEFCD0E820R EEFCD0E820ER

82 CD 15 2.7

EEFCD0E820XR EEFCD0E820XE

100 CD 18 2.5

EEFCD0E101R EEFCD0E101ER

100 CD 15 2.7

EEFCD0E101XR EEFCD0E101XE

100 SL 9 3.0

EEFSL0E101R EEFSL0E101ER

120 CD 18 2.5

EEFCD0E121R EEFCD0E121ER

120 SL 9 3.0

EEFSL0E121R EEFSL0E121ER

150 CD 18 2.5

EEFCD0E151R EEFCD0E151ER

150 SL 9 3.0

EEFSL0E151R EEFSL0E151ER

150 SX 9 3.0

EEFSX0E151R EEFSX0E151ER

180 SX 9 3.0

EEFSX0E181R EEFSX0E181ER

220 CX 15 2.7 –

EEFCX0E221R

220 SX 9 3.0

EEFSX0E221R EEFSX0E221ER

220 UD 15 3.0

EEFUD0E221R EEFUD0E221ER

220 UD 12 3.3

EEFUD0E221XR EEFUD0E221XE

220 UD 9 3.4

EEFUD0E221LR EEFUD0E221LE

220 UE 12 3.3

EEFUE0E221R EEFUE0E221ER

220 UE 10 3.5

EEFUE0E221XR EEFUE0E221XE

270 UD 15 3.0

EEFUD0E271R EEFUD0E271ER

270 UD 12 3.4

EEFUD0E271LR EEFUD0E271LE

270 UE 12 3.3

EEFUE0E271R EEFUE0E271ER

270 UE 10 3.5

EEFUE0E271XR EEFUE0E271XE

330 CX 15 2.7 –

EEFCX0E331R

330 SX 9 3.0

EEFSX0E331R EEFSX0E331ER

330 SX 6 3.5

EEFSX0E331XR EEFSX0E331XE

330 UE 12 3.3

EEFUE0E331R EEFUE0E331ER

330 UE 10 3.5

EEFUE0E331XR EEFUE0E331XE

330 UE 7 3.7

EEFUE0E331LR EEFUE0E331LE

390 CX 15 2.7 –

EEFCX0E391R

390 SX 9 3.0

EEFSX0E391R EEFSX0E391ER

390 SX 6 3.5

EEFSX0E391XR EEFSX0E391XE

390 UE 12 3.3

EEFUE0E391R EEFUE0E391ER

390 UE 7 3.7

EEFUE0E391LR EEFUE0E391LE

470 UE 12 3.3

EEFUE0E471R EEFUE0E471ER

470 UE 7 3.7

EEFUE0E471LR EEFUE0E471LE

4 Volt

39 FD 28 2.0

EEFFD0G390R

–

47 FD 28 2.0

EEFFD0G470R

–

56 CD 18 2.5

EEFCD0G560R EEFCD0G560ER

56 CD 15 2.7

EEFCD0G560XR EEFCD0G560XE

68 CD 18 2.5

EEFCD0G680R EEFCD0G680ER

68 CD 15 2.7

EEFCD0G680XR EEFCD0G680XE

82 CD 18 2.5

EEFCD0G820R EEFCD0G820ER

82 CD 15 2.7

EEFCD0G820XR EEFCD0G820XE

82 SL 9 3.0

EEFSL0G820R EEFSL0G820ER

82 SX 9 3.0

EEFSX0G820R EEFSX0G820ER

100 CD 18 2.5

EEFCD0G101R EEFCD0G101ER

100 SX 9 3.0

EEFSX0G101R EEFSX0G101ER

100 UD 15 3.0

EEFUD0J101R EEFUD0J101ER

100 UD 12 3.3

EEFUD0J101XR EEFUD0J101XE

120 UD 15 3.0

EEFUD0G121R EEFUD0G121ER

120 UD 12 3.4

EEFUD0G121XR EEFUD0G121XE

120 UD 15 3.0

EEFUD0J121R EEFUD0J121ER

120 UD 12 3.3

EEFUD0J121XR EEFUD0J121XE

120 UD 9 3.4

EEFUD0J121LR

–

150 CX 15 2.7 –

EEFCX0G151R

150 SX 9 3.0 –

EEFSX0G151ER

150 UD 15 3.0

EEFUD0G151R EEFUD0G151ER

150 UD 12 3.3

EEFUD0G151XR EEFUD0G151XE

150 UD 9 3.4

EEFUD0G151LR EEFUD0G151LE

150 UD 18 2.5

EEFUD0J151R EEFUD0J151ER

150 UD 9 3.4

EEFUD0J151LR

–

180 CX 15 2.7 –

EEFCX0G181R

180 SX 9 3.0 –

EEFSX0G181ER

180 UD 18 2.5

EEFUD0G181R EEFUD0G181ER

180 UD 9 3.4

EEFUD0G181LR EEFUD0G181LE

180 UE 12 3.3

EEFUE0G181R EEFUE0G181ER

180 UE 10 3.5

EEFUE0G181XR EEFUE0G181XE

220 CX 15 2.7 –

EEFCX0G221R

220 SX 9 3.0 –

EEFSX0G221ER

220 UE 12 3.3

EEFUE0G221R EEFUE0G181ER

220 UE 10 3.5

EEFUE0G221XR EEFUE0G181XE

220 UE 7 3.7

EEFUE0G221LR EEFUE0G221LE

270 UE 12 3.3

EEFUE0G271R EEFUE0G271ER

270 UE 7 3.7

EEFUE0G271LR EEFUE0G271LE

330 UE 12 3.3

EEFUE0G331R EEFUE0G331ER

Page 72

+44 (0)1945 47 47 47 www.anglia.com [email protected]

TANTALUM, Dipped

CTC type TR4

A economy range of miniature resin dipped solid bead tantalum capacitors offering high performance and stability.

 Economy range

 General purpose



High performance & stability

 High volumetric efficiency

Specification

TR4

Capacitance tolerance Operating temperature range

Leakage current (as listed) Dissipation factor (as listed) ESR (as listed) Power dissipation (as listed) Ripple current

±20% at 120Hz, 20°C

-55°C to +85°C (+125°C with voltage derating - see table) measured at 20°C measured at 120Hz, 20°C measured at 100kHz, 20°C measured at 20°C √ (P ÷ R) where P = power dissipation

R = ESR

Dimensions (mm)

 Flame retardant coating

 Choice of pitch

 Capacitance tolerance 20%

 Body colour Gold

Rated voltage (≤ +85°C) 6.3V 10V 16V 25V 35V 50V dc

Rated voltage (≤ +125°C) 4V 6.3V 10V 16V 23V 33V dc

Surge voltage (≤ +85°C) 8V 13V 20V 33V 46V 65V dc

Surge voltage (≤ +125°C) 5V 8V 12V 20V 28V 40V dc

Rated voltage /surge voltage capability

Case L (max)

Size 2.5mm Pitch 5mm Pitch Dia. (max)

A 7 8.5 4.5 B 8 9.5 5 C 9.5 10.7 5.5 D 11 12.2 6.5 E 13 13 8.5 F 16.5 16.5 9.5

2.54

ø0.5

12.7

Dia

5.08

ø0.5

4.75

Dia

2.5mm Pitch 5mm Pitch

DC Leakage Dissipation ESR Power Order Code Value Case Current Factor at 100kHz Dissipation. (µF) Size (µA) max. (%) max. (ΩΩ) max. (W) max. 2.5mm Pitch 5mm Pitch

6.3 Volt

3.3 A 1.0 6 34.8 0.06

058059 058059A

4.7 A 1.0 6 19.0 0.06

058060 058060A

6.8 A 1.0 6 10.5 0.06

058061 058061A

10 B 1.3 8 9.5 0.08

058001 058001A

15 B 1.9 8 8.5 0.08

058002 058002A

22 C 2.8 8 5.0 0.08

058003 058003A

33 C 4.2 8 3.5 0.08

058004 058004A

47 D 5.9 8 2.7 0.08

058005 058005A

68 D 8.6 8 2.0 0.08

058064 058064A

100 E 12.6 10 1.7 0.10

058006 058006A

150 E 18.9 10 1.1 0.10 –

058065A

220 E 27.7 10 1.1 0.10 –

058062A

330 F 41.6 10 0.9 0.10 –

058063A

10 Volt

2.2 A 1.0 6 37.9 0.06

058007 058007A

3.3 A 1.0 6 22.0 0.06

058008 058008A

4.7 A 1.0 6 12.0 0.06

058009 058009A

6.8 B 1.4 6 10.5 0.06

058010 058010A

10 B 2.0 8 9.5 0.08

058011 058011A

15 C 3.0 8 5.5 0.08

058012 058012A

22 C 4.4 8 3.5 0.08

058013 058013A

33 D 6.6 8 2.5 0.08

058014 058014A

47 D 9.4 8 2.2 0.08

058015 058015A

68 D 13.6 8 1.8 0.08

058070 058070A

100 E 20.0 10 1.2 0.10 –

058071A

150 E 30.0 10 0.9 0.10 –

058072A

220 F 44.0 10 0.7 0.10 –

058073A

ORDER CODES

continued overleaf > > > >

Please state manufacturer when ordering

Page 73

TANTALUM, Dipped

+44 (0)1945 47 47 47 www.anglia.com [email protected]

DC Leakage Dissipation ESR Power Order Code Value Case Current Factor at 100kHz Dissipation. (µF) Size (µA) max. (%) max. (ΩΩ) max. (W) max. 2.5mm Pitch 5mm Pitch

16 Volt

1.5 A 1.0 6 36.8 0.06

058080 058080A

2.2 A 1.0 6 25.0 0.06

058016 058016A

3.3 A 1.1 6 14.5 0.06

058017 058017A

4.7 B 1.5 6 12.0 0.06

058050 058050A

6.8 B 2.2 6 7.5 0.06

058018 058018A

10 B 3.2 8 6.5 0.08

058019 058019A

15 C 4.8 8 4.0 0.08

058020 058020A

22 C 7.0 8 2.8 0.08

058021 058021A

33 D 10.6 8 2.2 0.08

058022 058022A

47 D 15.0 8 1.9 0.08

058023 058023A

68 E 21.8 8 1.3 0.08 –

058081A

100 E 32.0 10 1.0 0.10 –

058025A

150 F 48.0 10 0.8 0.10 –

058026A

25 Volt

1.0 A 1.0 6 30.0 0.04

058201 058201A

1.5 A 1.0 6 25.0 0.06

058202 058202A

2.2 A 1.1 6 17.0 0.06

058203 058203A

3.3 B 1.7 6 14.5 0.06

058204 058204A

4.7 B 2.4 6 10.0 0.06

058205 058205A

6.8 C 3.4 6 6.0 0.06

058206 058206A

10 C 5.0 8 5.0 0.08

058207 058207A

15 D 7.5 8 3.5 0.08

058208 058208A

22 D 11.0 8 2.5 0.08

058209 058209A

33 E 16.5 8 2.0 0.08 –

058210A

47 E 23.5 8 1.4 0.08 –

058211A

68 F 34.0 8 1.1 0.08 –

058212A

35 Volt

0.1 A 1.0 6 300.0 0.04

058036 058036A

0.15 A 1.0 6 200.0 0.04

058037 058037A

0.22 A 1.0 6 150.0 0.04

058038 058038A

0.33 A 1.0 6 100.0 0.04

058039 058039A

0.47 A 1.0 6 68.0 0.04

058040 058040A

0.68 A 1.0 6 53.0 0.04

058041 058041A

1.0 A 1.0 6 33.0 0.04

058042 058042A

1.5 A 1.1 6 25.0 0.06

058043 058043A

2.2 B 1.5 6 17.0 0.06

058044 058044A

3.3 B 2.3 6 12.0 0.06

058045 058045A

4.7 C 3.3 6 8.0 0.06

058046 058046A

6.8 D 4.8 6 5.0 0.06

058047 058047A

10 D 7.0 8 3.5 0.08

058048 058048A

15 E 10.5 8 3.0 0.08 –

058049A

22 E 15.4 8 2.2 0.08 –

058051A

33 F 23.1 8 1.7 0.08 –

058052A

47 F 32.9 8 1.2 0.08 –

058053A

50 Volt

0.1 A 1.0 6 300.0 0.04

058501 058501A

0.15 A 1.0 6 180.0 0.04

058502 058502A

0.22 A 1.0 6 130.0 0.04

058503 058503A

0.33 A 1.0 6 85.0 0.04

058504 058504A

0.47 A 1.0 6 60.0 0.04

058505 058505A

0.68 A 1.0 6 45.0 0.04

058506 058506A

1.0 B 1.0 6 32.0 0.04

058507 058507A

1.5 C 1.5 6 23.0 0.06

058508 058508A

2.2 C 2.2 6 15.0 0.06

058509 058509A

3.3 D 3.3 6 11.0 0.06

058510 058510A

4.7 D 4.7 6 7.0 0.06

058511 058511A

6.8 E 6.8 6 4.5 0.06 –

058512A

10 E 10.0 8 3.0 0.08 –

058513A

15 F 15.0 8 2.8 0.08 –

058514A

22 F 22.0 8 2.0 0.08 –

058515A

ORDER CODES

continuation

Please state manufacturer when ordering

Page 74

+44 (0)1945 47 47 47 www.anglia.com [email protected]

TANTALUM, Dipped, Low ESR

NOVER type TX

Miniature resin dipped solid bead tantalum capacitors ideally suited where high performance and stability is required. Offering low ESR, low leakage current and excellent temperature stability.

 General purpose



High performance & stability



Low ESR

 High volumetric efficiency

Specification

Capacitance tolerance Operating temperature range

Leakage current (as listed) Dissipation factor (as listed) ESR (as listed) Power dissipation (as listed) Ripple current

±20% at 120Hz, 25°C

-55°C to +85°C (+125°C with voltage derating - see table) measured at 25°C measured at 120Hz, 25°C measured at 100kHz, 25°C measured at 25°C √ (P ÷ R) where P = power dissipation

R = ESR

Dimensions (mm)

 Flame retardant coating

 Choice of pitch

 Capacitance tolerance 20%

 Body colour Gold

Rated voltage (≤ +85°C) 6.3V 10V 16V 25V 35V 50V dc

Rated voltage (≤ +125°C) 4V 6.3V 10V 16V 23V 33V dc

Surge voltage (≤ +85°C) 8V 13V 20V 33V 46V 65V dc

Surge voltage (≤ +125°C) 5V 8V 12V 20V 28V 40V dc

Rated voltage /surge voltage capability

Case L (max)

Size 2.5mm Pitch 5mm Pitch Dia. (max)

A 7.1 8.6 4.5 B 7.6 8.9 4.5 C 8.4 9.6 5.0 D 8.6 9.9 5.0

E 8.9 10.2 5.5

F 9.9 11.2 6.0 G 10.2 11.4 6.3 H 10.2 11.9 7.6

J – 14.0 8.4 K – 15.5 8.9

L – 18.1 8.9 M – 18.8 10.2

2.54

ø0.5

12.7

Dia

5.08

ø0.5

4.75

Dia

2.5mm Pitch 5mm Pitch

DC Leakage Dissipation ESR Power Order Code Value Case Current Factor at 100kHz Dissipation. (µF) Size (µA) max. (%) max. (ΩΩ) max. (W) max. 2.5mm Pitch 5mm Pitch

6.3 Volt

3.3 A 0.5 5 13.0 0.04

058059 058059A

4.7 A 0.5 5 10.0 0.04

058060 058060A

6.8 A 0.5 5 8.0 0.04

058061 058061A

10 B 0.5 6 6.0 0.05

058001 058001A

15 C 0.7 6 5.0 0.06

058002 058002A

22 D 1.1 6 3.7 0.065

058003 058003A

33 E 1.6 6 3.0 0.07

058004 058004A

47 F 2.3 6 2.0 0.08

058005 058005A

68 G 3.3 6 1.8 0.09

058064 058064A

100 H 4.8 8 1.6 0.10

058006 058006A

150 J 7.2 8 0.9 0.11 –

058065A

220 K 10.0 8 0.9 0.12 –

058062A

330 L 10.0 8 0.7 0.13 –

058063A

10 Volt

2.2 A 0.5 5 13.0 0.04

058007 058007A

3.3 A 0.5 5 10.0 0.04

058008 058008A

4.7 A 0.5 5 8.0 0.04

058009 058009A

6.8 B 0.5 5 6.0 0.05

058010 058010A

10 C 0.8 6 5.0 0.06

058011 058011A

15 E 1.2 6 3.7 0.07

058012 058012A

22 E 1.8 6 2.7 0.07

058013 058013A

33 F 2.6 6 2.1 0.08

058014 058014A

47 H 3.8 6 1.7 0.10

058015 058015A

68 H 5.4 6 1.3 0.10

058070 058070A

100 J 8.0 8 1.0 0.11 –

058071A

150 K 10.0 8 0.8 0.12 –

058072A

220 L 10.0 8 0.6 0.13 –

058073A

ORDER CODES

continued overleaf > > > >

Please state manufacturer when ordering

Page 75

TANTALUM, Dipped, Low ESR

+44 (0)1945 47 47 47 www.anglia.com [email protected]

DC Leakage Dissipation ESR Power Order Code Value Case Current Factor at 100kHz Dissipation. (µF) Size (µA) max. (%) max. (ΩΩ) max. (W) max. 2.5mm Pitch 5mm Pitch

16 Volt

1.5 A 0.5 5 10.0 0.04

058080 058080A

2.2 A 0.5 5 8.0 0.04

058016 058016A

3.3 A 0.5 5 6.0 0.04

058017 058017A

4.7 B 0.6 5 5.0 0.05

058050 058050A

6.8 C 0.9 5 4.0 0.06

058018 058018A

10 E 1.3 6 3.2 0.07

058019 058019A

15 E 1.8 6 2.5 0.07

058020 058020A

22 F 2.6 6 2.0 0.08

058021 058021A

33 H 4.0 6 1.6 0.10

058022 058022A

47 J 5.6 6 1.3 0.11 –

058023A

68 K 8.2 6 1.0 0.12 –

058081A

100 L 10.0 8 0.8 0.13 –

058025A

150 M 10.0 8 0.6 0.14 –

058026A

25 Volt

1.0 A 0.5 3 10.0 0.04

058201 058201A

1.5 A 0.5 5 8.0 0.04

058202 058202A

2.2 B 0.5 5 6.0 0.05

058203 058203A

3.3 B 0.7 5 5.0 0.05

058204 058204A

4.7 C 0.9 5 4.0 0.06

058205 058205A

6.8 E 1.4 5 3.1 0.07

058206 058206A

10 E 2.0 6 2.5 0.07

058207 058207A

15 G 3.0 6 2.0 0.09

058208 058208A

22 H 4.4 6 1.5 0.10

058209 058209A

33 J 6.6 6 1.2 0.11 –

058210A

47 K 9.4 6 1.0 0.12 –

058211A

68 L 10.0 6 0.8 0.13 –

058212A

35 Volt

0.1 A 0.5 3 26.0 0.04

058036 058036A

0.15 A 0.5 3 21.0 0.04

058037 058037A

0.22 A 0.5 3 17.0 0.04

058038 058038A

0.33 A 0.5 3 15.0 0.04

058039 058039A

0.47 A 0.5 3 13.0 0.04

058040 058040A

0.68 A 0.5 3 10.0 0.04

058041 058041A

1.0 A 0.5 3 8.0 0.04

058042 058042A

1.5 B 0.5 5 6.0 0.05

058043 058043A

2.2 C 0.6 5 5.0 0.06

058044 058044A

3.3 D 0.9 5 4.0 0.065

058045 058045A

4.7 E 1.3 5 3.0 0.07

058046 058046A

6.8 F 1.9 5 2.5 0.08

058047 058047A

10 G 2.8 6 2.0 0.09

058048 058048A

15 J 4.2 6 1.6 0.11 –

058049A

22 K 6.2 6 1.3 0.12 –

058051A

33 L 9.2 6 1.0 0.13 –

058052A

47 M 10.0 6 0.8 0.14 –

058053A

50 Volt

0.1 A 0.5 3 26.0 0.04

058501 058501A

0.15 A 0.5 3 21.0 0.04

058502 058502A

0.22 A 0.5 3 17.0 0.04

058503 058503A

0.33 A 0.5 3 15.0 0.04

058504 058504A

0.47 B 0.5 3 13.0 0.05

058505 058505A

0.68 B 0.5 3 10.0 0.05

058506 058506A

1.0 B 0.5 3 8.0 0.05

058507 058507A

1.5 E 0.6 5 5.0 0.07

058508 058508A

2.2 E 0.9 5 3.5 0.07

058509 058509A

3.3 F 1.3 5 3.0 0.08

058510 058510A

4.7 G 1.9 5 2.5 0.09

058511 058511A

6.8 J 2.7 5 2.0 0.11 –

058512A

10 K 4.0 6 1.6 0.12 –

058513A

15 L 6.0 6 1.2 0.13 –

058514A

22 M 8.8 6 1.0 0.14 –

058515A

ORDER CODES

continuation

Please state manufacturer when ordering

Page 76

+44 (0)1945 47 47 47 www.anglia.com [email protected]

TANTALUM, Dipped, Low ESR

KEMET type T350 & T356

Miniature resin dipped solid bead tantalum capacitors ideally suited where high performance and stability is required. The Ultradip II series exhibit low ESR and low leakage current, and offer excellent temperature stability.

 General purpose



High performance & stability

 Low ESR

 High volumetric efficiency

Specification

T350 & T356

Capacitance tolerance Operating temperature range

Leakage current (as listed) Dissipation factor (as listed) ESR (see reference table below) Power dissipation (see table below)

±20% at 120Hz, 25°C

-55°C to +85°C (+125°C with voltage derating - see table) measured at 25°C measured at 120Hz, 25°C measured at 100kHz, 25°C measured at 25°C

Dimensions (mm)

 Flame retardant coating

 Choice of pitch

 Capacitance tolerance 20%

Rated voltage (+85°C) 3V 6.3V110V 16V 20V 25V 35V 50V dc

Rated voltage (+125°C) 2V 4V 7V 10V 13V 16.5V 23V 33V dc

Surge voltage (+85°C) 4V 8V 13V 20V 26V 33V 46V 65V dc

Rated voltage /surge voltage capability

Case L (max) Size 2.5mm Pitch 5mm Pitch Dia. (max)

A 7.1 8.6 4.5 B 7.6 8.9 4.5 C 8.4 9.6 5.0 D 8.6 9.9 5.0 E 8.9 10.2 5.5 F 9.9 11.2 6.0 G 10.2 11.4 6.3 H 10.2 11.9 7.6

J - 14.0 8.4 K - 15.5 8.9 L - 18.1 8.9

M - 18.8 10.2

Cap µF

6.3V 10V 16V 20V 25V 35V 50V

(Ω)(Ω)(Ω)(Ω)(Ω)(Ω)(Ω)

0.1 – – – – – 26 26

0.15 – – – – – 21 21

0.22 – – – – – 17 17

0.33 – – – – – 15 15

0.47 – – – – – 13 13

0.68 – – – – – 10 10

1.0 – – – 10 10 8.0 8.0

1.5 – – 10 9.0 8 6.0 5.0

2.2 – 13 8.0 7.0 6 5.0 3.5

3.3 13 10 6.0 5.5 5 4.0 3.0

4.7 10 8.0 5.0 4.5 4 3.0 2.5

6.8 8.0 6.0 4.0 3.6 3.1 2.5 2.0 10 6.0 5.0 3.2 2.9 2.5 2.0 1.6 15 5.0 3.7 2.5 2.3 2 1.6 1.2 22 3.7 2.7 2.0 1.8 1.5 1.3 1.0 33 3.0 2.1 1.6 1.4 1.2 1.0 – 47 2.0 1.7 1.3 1.2 1 0.8 – 68 1.8 1.3 1.0 0.9 0.8 – – 100 1.6 1.0 0.8 0.6 – – – 150 0.9 0.8 0.6 – – – – 220 0.9 0.6 – – – – – 330 0.7 – – – – – –

2.54

ø0.5

12.7

Dia

5.08

ø0.5

4.75

Dia

T350

2.5mm Pitch

T356

5mm Pitch

ESR reference table

Case Size ABCDEFGHJK LM

Max. Power (W)

0.04 0.05 0.06 0.065 0.07 0.08 0.09 0.1 0.11 0.12 0.13 0.14

at 25°C

Power dissipation

Order Codes for

T350 & T356

are listed on the following

three pages > > > >

The range of values listed on the following pages are 20% tolerance. 5% and 10% tolerances are available to order.

Ultradip II

Page 77

TANTALUM, Dipped, Low ESR

+44 (0)1945 47 47 47 www.anglia.com [email protected]

Value Case DC Leakage Current Dissipation Factor T350 T356 (µF) Size (µA) max. (%) max. 2.5mm pitch 5mm pitch

3 Volt

4.7 A 0.5 5

T350A475M003AT T356A475M003AT

5.6 A 0.5 5

T350A565M003AT T356A565M003AT

6.8 A 0.5 5

T350A685M003AT T356A685M003AT

8.2 A 0.5 6

T350A825M003AT T356A825M003AT

10 A 0.5 6

T350A106M003AT T356A106M003AT

12 B 0.5 6

T350B126M003AT T356B126M003AT

15 B 0.5 6

T350B156M003AT T356B156M003AT

18 C 0.5 6

T350C186M003AT T356C186M003AT

22 C 0.5 6

T350C226M003AT T356C226M003AT

27 D 0.6 6

T350D276M003AT T356D276M003AT

33 D 0.8 6

T350D336M003AT T356D336M003AT

39 E 0.9 6

T350E396M003AT T356E396M003AT

47 E 1.1 6

T350E476M003AT T356E476M003AT

56 F 1.3 6

T350F566M003AT T356F566M003AT

68 F 1.6 6

T350F686M003AT T356F686M003AT

82 G 2.0 8

T350G826M003AT T356G826M003AT

100 G 2.4 8

T350G107M003AT T356G107M003AT

120 H 2.9 8

T350H127M003AT T356H127M003AT

150 H 3.6 8

T350H157M003AT T356H157M003AT

180 J 4.3 8 –

T356J187M003AT

220 J 5.3 8 –

T356J227M003AT

270 K 6.5 8 –

T356K277M003AT

330 K 7.9 8 –

T356K337M003AT

390 L 9.4 9 –

T356L397M003AT

470 L 10 9 –

T356L477M003AT

560 M 10 9 –

T356M567M003AT

680 M 10 9 –

T356M687M003AT

6.3 Volt

3.3 A 0.5 5

T350A335M006AT T356A335M006AT

3.9 A 0.5 5

T350A395M006AT T356A395M006AT

4.7 A 0.5 5

T350A475M006AT T356A475M006AT

5.6 A 0.5 5

T350A565M006AT T356A565M006AT

6.8 A 0.5 5

T350A685M006AT T356A685M006AT

8.2 B 0.5 6

T350B825M006AT T356B825M006AT

10 B 0.5 6

T350B106M006AT T356B106M006AT

12 C 0.6 6

T350C126M006AT T356C126M006AT

15 C 0.7 6

T350C156M006AT T356C156M006AT

18 D 0.9 6

T350D186M006AT T356D186M006AT

22 D 1.1 6

T350D226M006AT T356D226M006AT

27 E 1.3 6

T350E276M006AT T356E276M006AT

33 E 1.6 6

T350E336M006AT T356E336M006AT

39 F 1.9 6

T350F396M006AT T356F396M006AT

47 F 2.3 6

T350F476M006AT T356F476M006AT

56 G 2.7 6

T350G566M006AT T356G566M006AT

68 G 3.3 6

T350G686M006AT T356G686M006AT

82 H 3.9 8

T350H826M006AT T356H826M006AT

100 H 4.8 8

T350H107M006AT T356H107M006AT

120 J 5.8 8 –

T356J127M006AT

150 J 7.2 8 –

T356J157M006AT

180 K 8.6 8 –

T356K187M006AT

220 K 10 8 –

T356K227M006AT

270 L 10 8 –

T356L277M006AT

330 L 10 8 –

T356L337M006AT

10 Volt

2.2 A 0.5 5

T350A225M010AT T356A225M010AT

2.7 A 0.5 5

T350A275M010AT T356A275M010AT

3.3 A 0.5 5

T350A335M010AT T356A335M010AT

3.9 A 0.5 5

T350A395M010AT T356A395M010AT

4.7 A 0.5 5

T350A475M010AT T356A475M010AT

5.6 B 0.5 5

T350B565M010AT T356B565M010AT

6.8 B 0.5 5

T350B685M010AT T356B685M010AT

8.2 C 0.7 6

T350C825M010AT T356C825M010AT

10 C 0.8 6

T350C106M010AT T356C106M010AT

12 E 1.0 6

T350E126M010AT T356E126M010AT

15 E 1.2 6

T350E156M010AT T356E156M010AT

18 E 1.4 6

T350E186M010AT T356E186M010AT

22 E 1.8 6

T350E226M010AT T356E226M010AT

27 F 2.2 6

T350F276M010AT T356F276M010AT

33 F 2.6 6

T350F336M010AT T356F336M010AT

39 G 3.1 6

T350G396M010AT T356G396M010AT

47 H 3.8 6

T350H476M010AT T356H476M010AT

56 H 4.5 6

T350H566M010AT T356H566M010AT

68 H 5.4 6

T350H686M010AT T356H686M010AT

82 J 6.6 8 –

T356J826M010AT

100 J 8.0 8 –

T356J107M010AT

120 K 9.6 8 –

T356K127M010AT

150 K 10 8 –

T356K157M010AT

180 L 10 8 –

T356L187M010AT

220 L 10 8 –

T356L227M010AT

ORDER CODES

continuation

continued > >

Page 78

+44 (0)1945 47 47 47 www.anglia.com [email protected]

TANTALUM, Dipped, Low ESR

ORDER CODES

continuation

Value Case DC Leakage Current Dissipation Factor T350 T356 (µF) Size (µA) max. (%) max. 2.5mm pitch 5mm pitch

16 Volt

1.5 A 0.5 5

T350A155M016AT T356A155M016AT

1.8 A 0.5 5

T350A185M016AT T356A185M016AT

2.2 A 0.5 5

T350A225M016AT T356A225M016AT

2.7 A 0.5 5

T350A275M016AT T356A275M016AT

3.3 A 0.5 5

T350A335M016AT T356A335M016AT

3.9 B 0.5 5

T350B395M016AT T356B395M016AT

4.7 B 0.6 5

T350B475M016AT T356B475M016AT

5.6 C 0.7 5

T350C565M016AT T356C565M016AT

6.8 C 0.9 5

T350C685M016AT T356C685M016AT

8.2 E 1.0 6

T350E825M016AT T356E825M016AT

10.0 E 1.3 6

T350E106M016AT T356E106M016AT

12.0 E 1.5 6

T350E126M016AT T356E126M016AT

15 E 1.8 6

T350E156M016AT T356E156M016AT

18 F 2.2 6

T350F186M016AT T356F186M016AT

22 F 2.6 6

T350F226M016AT T356F226M016AT

27 H 3.2 6

T350H276M016AT T356H276M016AT

33 H 4.0 6

T350H336M016AT T356H336M016AT

39 J 4.7 6 –

T356J396M016AT

47 J 5.6 6 –

T356J476M016AT

56 K 6.8 6 –

T356K566M016AT

68 K 8.2 6 –

T356K686M016AT

82 L 9.8 8 –

T356L826M016AT

100 L 10 8 –

T356L107M016AT

120 M 10 8 –

T356M127M016AT

150 M 10 8 –

T356M157M016AT

20 Volt

1.0 A 0.5 5

T350A105M020AT T356A105M020AT

1.2 A 0.5 5

T350A125M020AT T356A125M020AT

1.5 A 0.5 5

T350A155M020AT T356A155M020AT

1.8 A 0.5 5

T350A185M020AT T356A185M020AT

2.2 A 0.5 5

T350A225M020AT T356A225M020AT

2.7 B 0.5 5

T350B275M020AT T356B275M020AT

3.3 B 0.5 5

T350B335M020AT T356B335M020AT

3.9 C 0.6 5

T350C395M020AT T356C395M020AT

4.7 C 0.8 5

T350C475M020AT T356C475M020AT

5.6 D 0.9 5

T350D565M020AT T356D565M020AT

6.8 D 1.1 5

T350D685M020AT T356D685M020AT

8.2 E 1.3 6

T350E825M020AT T356E825M020AT

10 E 1.6 6

T350E106M020AT T356E106M020AT

12 F 1.9 6

T350F126M020AT T356F126M020AT

15 F 2.4 6

T350F156M020AT T356F156M020AT

18 G 2.9 6

T350G186M020AT T356G186M020AT

22 G 3.5 6

T350G226M020AT T356G226M020AT

27 J 4.3 6 –

T356J276M020AT

33 J 5.3 6 –

T356J336M020AT

39 K 6.2 6 –

T356K396M020AT

47 K 7.5 6 –

T356K476M020AT

56 L 9.0 6 –

T356L566M020AT

68 L 10 6 –

T356L686M020AT

82 M 10 8 –

T356M826M020AT

100 M 10 8 –

T356M107M020AT

25 Volt

1.0 A 0.5 5

T350A105M025AT T356A105M025AT

1.2 A 0.5 5

T350A125M025AT T356A125M025AT

1.5 A 0.5 5

T350A155M025AT T356A155M025AT

1.8 A 0.5 5

T350A185M025AT T356A185M025AT

2.2 B 0.5 5

T350B225M025AT T356B225M025AT

2.7 B 0.5 5

T350B275M025AT T356B275M025AT

3.3 B 0.7 5

T350B335M025AT T356B335M025AT

3.9 C 0.8 5

T350C395M025AT T356C395M025AT

4.7 C 0.9 5

T350C475M025AT T356C475M025AT

5.6 E 1.1 5

T350E565M025AT T356E565M025AT

6.8 E 1.4 5

T350E685M025AT T356E685M025AT

8.2 E 1.6 6

T350E825M025AT T356E825M025AT

10 E 2.0 6

T350E106M025AT T356E106M025AT

12 G 2.4 6

T350G126M025AT T356G126M025AT

15 G 3.0 6

T350G156M025AT T356G156M025AT

18 H 3.6 6

T350H186M025AT T356H186M025AT

22 H 4.4 6

T350H226M025AT T356H226M025AT

27 J 5.4 6 –

T356J276M025AT

33 J 6.6 6 –

T356J336M025AT

39 K 7.8 6 –

T356K396M025AT

47 K 9.4 6 –

T356K476M025AT

56 L 10 6 –

T356L566M025AT

68 L 10 6 –

T356L686M025AT

continued overleaf > > > >

All order codes listed are for 20% tolerance. 5% and 10% tolerances are available to order.

Page 79

TANTALUM, Dipped, Low ESR

+44 (0)1945 47 47 47 www.anglia.com [email protected]

Value Case DC Leakage Current Dissipation Factor T350 T356 (µF) Size (µA) max. (%) max. 2.5mm pitch 5mm pitch

35 Volt

0.1 A 0.5 3

T350A104M035AT T356A104M035AT

0.12 A 0.5 3

T350A124M035AT T356A124M035AT

0.15 A 0.5 3

T350A154M035AT T356A154M035AT

0.18 A 0.5 3

T350A184M035AT T356A184M035AT

0.22 A 0.5 3

T350A224M035AT T356A224M035AT

0.27 A 0.5 3

T350A274M035AT T356A274M035AT

0.33 A 0.5 3

T350A334M035AT T356A334M035AT

0.39 A 0.5 3

T350A394M035AT T356A394M035AT

0.47 A 0.5 3

T350A474M035AT T356A474M035AT

0.56 A 0.5 3

T350A564M035AT T356A564M035AT

0.68 A 0.5 3

T350A684M035AT T356A684M035AT

0.82 A 0.5 3

T350A824M035AT T356A824M035AT

1.0 A 0.5 3

T350A105M035AT T356A105M035AT

1.2 B 0.5 5

T350B125M035AT T356B125M035AT

1.5 B 0.5 5

T350B155M035AT T356B155M035AT

1.8 C 0.5 5

T350C185M035AT T356C185M035AT

2.2 C 0.6 5

T350C225M035AT T356C225M035AT

2.7 D 0.7 5

T350D275M035AT T356D275M035AT

3.3 D 0.9 5

T350D335M035AT T356D335M035AT

3.9 E 1.0 5

T350E395M035AT T356E395M035AT

4.7 E 1.3 5

T350E475M035AT T356E475M035AT

5.6 F 1.6 5

T350F565M035AT T356F565M035AT

6.8 F 1.9 5

T350F685M035AT T356F685M035AT

8.2 G 2.3 6

T350G825M035AT T356G825M035AT

10 G 2.8 6

T350G106M035AT T356G106M035AT

12 J 3.4 6 –

T356J126M035AT

15 J 4.2 6 –

T356J156M035AT

18 K 5.0 6 –

T356K186M035AT

22 K 6.2 6 –

T356K226M035AT

27 L 7.6 6 –

T356L276M035AT

33 L 9.2 6 –

T356L336M035AT

39 M 10 6 –

T356M396M035AT

47 M 10 6 –

T356M476M035AT

50 Volt

0.1 A 0.5 3

T350A104M050AT T356A104M050AT

0.12 A 0.5 3

T350A124M050AT T356A124M050AT

0.15 A 0.5 3

T350A154M050AT T356A154M050AT

0.18 A 0.5 3

T350A184M050AT T356A184M050AT

0.22 A 0.5 3

T350A224M050AT T356A224M050AT

0.27 A 0.5 3

T350A274M050AT T356A274M050AT

0.33 A 0.5 3

T350A334M050AT T356A334M050AT

0.39 B 0.5 3

T350B394M050AT T356B394M050AT

0.47 B 0.5 3

T350B474M050AT T356B474M050AT

0.56 B 0.5 3

T350B564M050AT T356B564M050AT

0.68 B 0.5 3

T350B684M050AT T356B684M050AT

0.82 B 0.5 3

T350B824M050AT T356B824M050AT

1.0 B 0.5 3

T350B105M050AT T356B105M050AT

1.2 D 0.5 5

T350D125M050AT T356D125M050AT

1.5 E 0.6 5

T350E155M050AT T356E155M050AT

1.8 E 0.7 5

T350E185M050AT T356E185M050AT

2.2 E 0.9 5

T350E225M050AT T356E225M050AT

2.7 F 1.1 5

T350F275M050AT T356F275M050AT

3.3 F 1.3 5

T350F335M050AT T356F335M050AT

3.9 G 1.6 5

T350G395M050AT T356G395M050AT

4.7 G 1.9 5

T350G475M050AT T356G475M050AT

5.6 H 2.2 5

T350H565M050AT T356H565M050AT

6.8 J 2.7 5 –

T356J685M050AT

8.2 J 3.3 6 –

T356J825M050AT

10 K 4.0 6 –

T356K106M050AT

12 K 4.8 6 –

T356K126M050AT

15 L 6.0 6 –

T356L156M050AT

18 L 7.2 6 –

T356L186M050AT

22 M 8.8 6 –

T356M226M050AT

ORDER CODES

continuation

All order codes listed are for 20% tolerance. 5% and 10% tolerances are available to order.

Page 80

+44 (0)1945 47 47 47 www.anglia.com [email protected]

PLASTIC FILM, Chip, Tant Replacement

Value

(µF) Order Code

16 Volt

0.1

ECPU1C104MA5

Value

(µF) Order Code

16 Volt

0.15

ECPU1C154MA5

0.22

ECPU1C224MA5

0.33

ECPU1C334MA5

0.47

ECPU1C474MA5

0.68

ECPU1C684MA5

Value

(µF) Order Code

16 Volt

1.0

ECPU1C105MA5

0805

1206

1210

Pad Pattern

Chip Size A B C

0805 0.8 2.4 1.1 1206 1.8 3.6 1.4 1210 1.8 3.6 2.3

Chip Size Values L W H e

0805 0.1µF 2.0 1.25 1.0 0.45

0.15µF - 0.22µF 0.8

1206 0.33µF 3.2 1.6 1.0

0.47µF - 0.68µF 1.4

0.65

1210 1.0µF 3.2 2.5 1.4

PANASONIC type ECPU

Surface mount capacitors manufactured with a stacked plastic film and offering excellent levels of capacitance within a small package. Useful as an alternative to tantalum devices. Covers a range of three industry standard chip sizes with capacitance values up to 1.0µF. The ECPU devices may be used in many applications such as noise suppression, coupling and areas where a low ESR capacitor is required. Suitable for both wave and reflow soldering, the components are supplied taped and reeled.



Stacked metallised plastic film



Alternative to tantalum



Excellent package size/capacitance ratio



Industry standard chip sizes

Specification

ECPU

Working voltage Capacitance tolerance Insulation resistance (as listed)

Operating temperature range Dissipation factor

16Vdc/12Vac ±20%

≥1000MΩ (≤0.33µF) ≥300MΩ/µF (>0.33µF)

-40°C to +85°C ≤1.5% at 1kHz, 20°C

Dimensions (mm)



Working voltage 16V



Capacitance tolerance 20%



Suitable for wave and reflow soldering



Supplied taped & reeled

ORDER CODES

Packaging

Tape Reel

8mm width, 4mm pitch 178mm dia.

A B

Page 81

PLASTIC FILM, Chip

+44 (0)1945 47 47 47 www.anglia.com [email protected]

WIMA type SMD-PET

A specialised range of metallised polyester capacitors with self healing properties. Ideal for general DC applications such as by-pass, blocking, coupling, decoupling and timing. Offer a reliable operating life of 300,000 hours with an excellent temperature range. Supplied taped and reeled in a 12mm blister pack.

 Metallised polyester film

 Self healing

 Long operational life

 Wide range of chip sizes

Specification

SMD-PET

Working voltage (as listed)

Operational life Capacitance tolerance Operating temperature range

63Vdc/40Vac 400Vdc/200Vac 100Vdc/63Vac 630Vdc/300Vac 250Vdc/160Vac 1000Vdc/400Vac N.B. The SMD-PET series is not suitable for across the line applications. 300,000 hours ±10%

-55°C to +100°C

Dimensions (mm)

 Voltage ratings from 63V to 1000V

 Capacitance tolerance 10%

 Operating temperature up to 100°C

 Supplied taped & reeled

Chip Size L W H d a min. b min. c max.

1812 4.8 3.3 3 - 4 0.5 1.2 3.5 3.5

2220 5.7 5.1 3.5 - 4.5 0.5 1.2 4 4.5

2824 7.2 6.1 3 - 5 0.5 1.2 4 6.5

4030 10.2 7.6 5 0.5 2.5 6 9

5040 12.7 10.2 6 0.7 2.5 6 11.5

6054 15.3 13.7 7 0.7 2.5 6 14

Solder Pad

Rated Voltage Test Voltage C ≤0.33µF C >0.33µF

63V 50V ≥3750MΩ ≥1250 sec (MΩ x µF)

100V 100V (mean value: 10,000MΩ) (mean value: 3000 sec)

≥25

0V 100V

≥10,000MΩ ≥3000 sec (MΩ x µF)

(mean value: 50,000MΩ) (mean value: 10,000 sec)

The range listed opposite are 10% tolerance.

20% tolerance is also available to order whilst

5% tolerance is available subject to enquiry.

All order codes shown apply to 330mm reels.

180mm reels are available to order on most values.

Please contact our Sales Desk to discuss

your requirements.

Measuring time: 1 min.

Freq. C ≤0.1µF C >0.1µF to ≤1.0µF C >1.0µF

1kHz ≤0.8% ≤0.8% ≤1%

10kHz ≤1.5% ≤1.5% –

100kHz ≤3% – –

Dissipation factor at 20°C

Insulation resistance at 20°C

Capacitance

Pulse rise time V/µsec max. operation/test

µF

63V 100V 250V 400V 630V 1000V

0.01 - 0.022 30/300 35/350 40/400 35/350 40/400 50/500

0.033 - 0.068 20/200 20/200 40/400 21/210 25/250 32/320

0.1 - 0.22 10/100 10/100 12/120 14/140 17/170 –

0.33 - 0.68 8/80 6/60 9/90 10/100 – –

1.0 - 2.2 3.5/35 4/40 7/70 – – –

3.3 - 6.8 3/30 3/30 – – – –

Maximum pulse rise time : for pulses equal to the rated voltage

Voltage derating

A voltage derating factor of 1.25% per K must be applied from +85°C for DC voltages and from +75°C for AC voltages.

Marking and Packaging

Tape

Chip Size

1812 2220 2824 4030 5040 6054

Reel

12mm width, 8mm pitch 12mm width, 8mm pitch 12mm width, 12mm pitch 12mm width, 16mm pitch 12mm width, 16mm pitch 12mm width, 20mm pitch 330mm dia.

Bonding slit

Page 82

+44 (0)1945 47 47 47 www.anglia.com [email protected]

PLASTIC FILM, Chip

ORDER CODES

Value

(µF)

1812 2220 2824 4030 5040 6054

63 Volt

0.01

SMDPET103K1PS1T1 SMDPET103K1PS2T1 SMDPET103K1PS3T1

–––

0.015

SMDPET153K1PS1T1 SMDPET153K1PS2T1 SMDPET153K1PS3T1

–––

0.022

SMDPET223K1PS1T1 SMDPET223K1PS2T1 SMDPET223K1PS3T1

–––

0.033

SMDPET333K1PS1T1 SMDPET333K1PS2T1 SMDPET333K1PS3T1

–––

0.047

SMDPET473K1PS1T1 SMDPET473K1PS2T1 SMDPET473K1PS3T1

–––

0.068

SMDPET683K1PS1T1 SMDPET683K1PS2T1 SMDPET683K1PS3T1

–––

0.1

SMDPET104K1PS1T1 SMDPET104K1PS2T1 SMDPET104K1PS3T1

–––

0.15

SMDPET154K1PS1T1 SMDPET154K1PS2T1 SMDPET154K1PS3T1

–––

0.22

SMDPET224K1PS1T1 SMDPET224K1PS2T1 SMDPET224K1PS3T1

–––

0.33

SMDPET334K1PS1T1 SMDPET334K1PS2T1 SMDPET334K1PS3T1

–––

0.47

SMDPET474K1PS1T1 SMDPET474K1PS2T1 SMDPET474K1PS3T1

–––

0.68 –

SMDPET684K1PS2T1 SMDPET684K1PS3T1 SMDPET684K1PS4T1

––

1.0 –

SMDPET105K1PS2T1 SMDPET105K1PS3T1 SMDPET105K1PS4T1

––

1.5 – –

SMDPET155K1PS3T1 SMDPET155K1PS4T1

––

2.2 – –

SMDPET225K1PS3T1 SMDPET225K1PS4T1

––

3.3 – – –

SMDPET335K1PS4T1

––

4.7 – – – –

SMDPET475K1PS5T1

–

6.8 – – – – –

SMDPET685K1PS6T1

100 Volt

0.01

SMDPET103K2AS1T1 SMDPET103K2AS2T1 SMDPET103K2AS3T1

–––

0.015

SMDPET153K2AS1T1 SMDPET153K2AS2T1 SMDPET153K2AS3T1

–––

0.022

SMDPET223K2AS1T1 SMDPET223K2AS2T1 SMDPET223K2AS3T1

–––

0.033

SMDPET333K2AS1T1 SMDPET333K2AS2T1 SMDPET333K2AS3T1

–––

0.047

SMDPET473K2AS1T1 SMDPET473K2AS2T1 SMDPET473K2AS3T1

–––

0.068

SMDPET683K2AS1T1 SMDPET683K2AS2T1 SMDPET683K2AS3T1

–––

0.1

SMDPET104K2AS1T1 SMDPET104K2AS2T1 SMDPET104K2AS3T1

–––

0.15

SMDPET154K2AS1T1 SMDPET154K2AS2T1 SMDPET154K2AS3T1

–––

0.22

SMDPET224K2AS1T1 SMDPET224K2AS2T1 SMDPET224K2AS3T1

–––

0.33 –

SMDPET334K2AS2T1 SMDPET334K2AS3T1 SMDPET334K2AS4T1

––

0.47 –

SMDPET474K2AS2T1 SMDPET474K2AS3T1 SMDPET474K2AS4T1

––

0.68 – –

SMDPET684K2AS3T1 SMDPET684K2AS4T1 SMDPET684K2AS5T1

–

1.0 – –

SMDPET105K2AS3T1 SMDPET105K2AS4T1 SMDPET105K2AS5T1

–

1.5 – – –

SMDPET155K2AS4T1 SMDPET155K2AS5T1

–

2.2 – – – –

SMDPET225K2AS5T1

–

3.3 – – – –

SMDPET335K2AS5T1

–

4.7 – – – – –

SMDPET475K2AS6T1

250 Volt

0.01

SMDPET103K2GS1T1 SMDPET103K2GS2T1 SMDPET103K2GS3T1

–––

0.015

SMDPET153K2GS1T1 SMDPET153K2GS2T1 SMDPET153K2GS3T1

–––

0.022

SMDPET223K2GS1T1 SMDPET223K2GS2T1 SMDPET223K2GS3T1

–––

0.033 –

SMDPET333K2GS2T1 SMDPET333K2GS3T1 SMDPET333K2GS4T1

––

0.047 –

SMDPET473K2GS2T1 SMDPET473K2GS3T1 SMDPET473K2GS4T1

––

0.068 –

SMDPET683K2GS2T1 SMDPET683K2GS3T1 SMDPET683K2GS4T1

––

0.1 –

SMDPET104K2GS2T1 SMDPET104K2GS3T1 SMDPET104K2GS4T1

––

0.15 –

SMDPET154K2GS2T1 SMDPET154K2GS3T1 SMDPET154K2GS4T1

––

0.22 –

SMDPET224K2GS2T1 SMDPET224K2GS3T1 SMDPET224K2GS4T1

––

0.33 – –

SMDPET334K2GS3T1 SMDPET334K2GS4T1 SMDPET334K2GS5T1

–

0.47 – – –

SMDPET474K2GS4T1 SMDPET474K2GS5T1

–

0.68 – – – –

SMDPET684K2GS5T1

–

1.0 – – – – –

SMDPET105K2GS6T1

400 Volt

0.01 – –

SMDPET103K2KS3T1 SMDPET103K2KS4T1

––

0.015 – –

SMDPET153K2KS3T1 SMDPET153K2KS4T1

––

0.022 – –

SMDPET223K2KS3T1 SMDPET223K2KS4T1

––

0.033 – –

SMDPET333K2KS3T1 SMDPET333K2KS4T1

––

0.047 – –

SMDPET473K2KS3T1 SMDPET473K2KS4T1

––

0.068 – – –

SMDPET683K2KS4T1 SMDPET683K2KS5T1

–

0.1 – – –

SMDPET104K2KS4T1 SMDPET104K2KS5T1

–

0.15 – – –

SMDPET154K2KS4T1 SMDPET154K2KS5T1

–

0.22 – – – –

SMDPET224K2KS5T1

–

0.33 – – – –

SMDPET334K2KS5T1

–

0.47 – – – – –

SMDPET474K2KS6T1

630 Volt

0.01 – – –

SMDPET103K2PS4T1

––

0.015 – – –

SMDPET153K2PS4T1

––

0.022 – – – –

SMDPET223K2PS5T1

–

0.033 – – – –

SMDPET333K2PS5T1

–

0.047 – – – –

SMDPET473K2PS5T1

–

0.068 – – – –

SMDPET683K2PS5T1

–

0.1 – – – – –

SMDPET104K2PS6T1

0.15 – – – – –

SMDPET154K2PS6T1

0.22 – – – – –

SMDPET224K2PS6T1

1000 Volt

0.01 – – – –

SMDPET103K3AS5T1

–

0.015 – – – –

SMDPET153K3AS5T1

–

0.022 – – – –

SMDPET223K3AS5T1

–

0.033 – – – –

SMDPET333K3AS5T1

–

0.047 – – – – –

SMDPET473K3AS6T1

Page 83

PLASTIC FILM, Chip, 125°C

+44 (0)1945 47 47 47 www.anglia.com [email protected]

PANASONIC type ECHU

Surface mount capacitors in a wide range of industry standard chip sizes, which utilise a stacked metallised PPS film to give high performance. The capacitors feature an excellent operating temperature range of -55°C to +125°C and are available in values up to 0.22µF with a choice of voltage rating and capacitance tolerance. Suitable for reflow soldering, the devices are supplied taped and reeled.



Stacked metallised PPS film



Excellent performance/size characteristics



Industry standard chip sizes



Working voltage 16V & 50V

Specification

ECHU

Working voltage (as listed)

Capacitance tolerance Operating temperature range Insulation resistance Dissipation factor

16Vdc/12Vac 50Vdc/40Vac ±2% or ±5%

-55°C to +125°C

≥3000MΩ ≤0.6% at 1kHz

Dimensions (mm)



Choice of capacitance tolerance 2% or 5%



Suitable for reflow soldering



Supplied taped & reeled

Pad Pattern

Chip Size A B C

0603 0.6 2.0 0.7 0805 0.8 2.4 1.1 1206 1.8 3.6 1.4 1210 1.8 3.6 2.3 1913 2.6 6.6 3.0 2416 3.8 7.8 3.8

Chip Size Values L W H e

0603 100pF - 2700pF 1.6 0.8 0.7 0.35

0805

100pF - 6800pF

2.0 1.25

0.9

0.45

8200pF - 0.01µF 1.1

3300pF - 6800pF 0.9 8200pF - 0.01µF 1.1

1206 0.012µF - 0.022µF 3.2 1.6 0.9 0.65

0.027µF - 0.033µF 1.1

0.039µF - 0.047µF 1.5

0.012µF - 0.015µF 1.1

0.018µF - 0.027µF 1.5

1210 0.033µF - 0.039µF 3.2 2.5 2.1 0.65

0.056µF - 0.068µF 1.5

0.082µF - 0.1µF 2.1

0.047µF 1.4

0.056µF - 0.068µF 2.0

1913

0.082µF

4.8 3.3

2.4

0.35

0.1µF 2.8

0.12µF 1.8

0.15µF 2.4

2416

0.18µF

6.0 4.1

2.8

0.35

0.22µF 3.2

Packaging

Tape

Chip Size

0603 0805 1206 1210 1913 2416

Reel

0603-1210 1913-2416

8mm width, 4mm pitch 8mm width, 4mm pitch 8mm width, 4mm pitch 8mm width, 4mm pitch 12mm width, 8mm pitch 12mm width, 8mm pitch

178mm dia. 330mm dia.

Pico-Farad Nano-Farad Micro-Farad

(pF) (nF) (µF)

1000 1.0 0.001 1500 1.5 0.0015 2200 2.2 0.0022 3300 3.3 0.0033 4700 4.7 0.0047 6800 6.8 0.0068

10000 10 0.01 15000 15 0.015 22000 22 0.022 33000 33 0.033 47000 47 0.047 68000 68 0.068

100000 100 0.1 150000 150 0.15 220000 220 0.22 330000 330 0.33 470000 470 0.47 680000 680 0.68

CAPACITANCE CONVERSION GUIDE

Page 84

+44 (0)1945 47 47 47 www.anglia.com [email protected]

PLASTIC FILM, Chip, 125°C

Value Order Code

(pF) 2% tolerance 5% tolerance

50 Volt

100

ECHU1H101GX5 ECHU1H101JX5

120

ECHU1H121GX5 ECHU1H121JX5

150

ECHU1H151GX5 ECHU1H151JX5

180

ECHU1H181GX5 ECHU1H181JX5

220

ECHU1H221GX5 ECHU1H221JX5

270

ECHU1H271GX5 ECHU1H271JX5

330

ECHU1H331GX5 ECHU1H331JX5

390

ECHU1H391GX5 ECHU1H391JX5

470

ECHU1H471GX5 ECHU1H471JX5

560

ECHU1H561GX5 ECHU1H561JX5

680

ECHU1H681GX5 ECHU1H681JX5

820

ECHU1H821GX5 ECHU1H821JX5

1000

ECHU1H102GX5 ECHU1H102JX5

1200

ECHU1H122GX5 ECHU1H122JX5

1500

ECHU1H152GX5 ECHU1H152JX5

1800

ECHU1H182GX5 ECHU1H182JX5

2200

ECHU1H222GX5 ECHU1H222JX5

2700

ECHU1H272GX5 ECHU1H272JX5

16 Volt

3300

ECHU1C332GX5 ECHU1C332JX5

3900

ECHU1C392GX5 ECHU1C392JX5

4700

ECHU1C472GX5 ECHU1C472JX5

5600

ECHU1C562GX5 ECHU1C562JX5

6800

ECHU1C682GX5 ECHU1C682JX5

8200

ECHU1C822GX5 ECHU1C822JX5

(µF)

0.01

ECHU1C103GX5 ECHU1C103JX5

Value Order Code

(pF) 2% tolerance 5% tolerance

50 Volt

3300

ECHU1H332GX5 ECHU1H332JX5

3900

ECHU1H392GX5 ECHU1H392JX5

4700

ECHU1H472GX5 ECHU1H472JX5

5600

ECHU1H562GX5 ECHU1H562JX5

6800

ECHU1H682GX5 ECHU1H682JX5

8200

ECHU1H822GX5 ECHU1H822JX5

(µF)

0.01

ECHU1H103GX5 ECHU1H103JX5

16 Volt

0.012

ECHU1C123GX5 ECHU1C123JX5

0.015

ECHU1C153GX5 ECHU1C153JX5

0.018

ECHU1C183GX5 ECHU1C183JX5

0.022

ECHU1C223GB5 ECHU1C223JX5

0.027

ECHU1C273GX5 ECHU1C273JX5

0.033

ECHU1C333GB5 ECHU1C333JX5

0.039

ECHU1C393GX5 ECHU1C393JX5

0.047

ECHU1C473GX5 ECHU1C473JX5

Value Order Code

(µF) 2% tolerance 5% tolerance

50 Volt

0.012

ECHU1H123GX5 ECHU1H123JX5

0.015

ECHU1H153GX5 ECHU1H153JX5

0.018

ECHU1H183GX5 ECHU1H183JX5

0.022

ECHU1H223GX5 ECHU1H223JX5

0.027

ECHU1H273GX5 ECHU1H273JX5

0.033

ECHU1H333GX5 ECHU1H333JX5

0.039

ECHU1H393GX5 ECHU1H393JX5

16 Volt

0.056

ECHU1C563GX5 ECHU1C563JX5

0.068

ECHU1C683GX5 ECHU1C683JX5

0.082

ECHU1C823GX5 ECHU1C823JX5

0.1

ECHU1C104GX5 ECHU1C104JX5

Value Order Code

(µF) 2% tolerance 5% tolerance

50 Volt

0.047

ECHU1H473GX9 ECHU1H473JX9

0.056

ECHU1H563GX9 ECHU1H563JX9

0.068

ECHU1H683GX9 ECHU1H683JX9

0.082

ECHU1H823GX9 ECHU1H823JX9

0.1

ECHU1H104GX9 ECHU1H104JX9

0805

1206

1210

1913

2416

Value Order Code

(pF) 2% tolerance 5% tolerance

16 Volt

100

ECHU1C101GX5 ECHU1C101JX5

120

ECHU1C121GX5 ECHU1C121JX5

150

ECHU1C151GX5 ECHU1C151JX5

180

ECHU1C181GX5 ECHU1C181JX5

220

ECHU1C221GX5 ECHU1C221JX5

270

ECHU1C271GX5 ECHU1C271JX5

330

ECHU1C331GX5 ECHU1C331JX5

390

ECHU1C391GX5 ECHU1C391JX5

470

ECHU1C471GX5 ECHU1C471JX5

560

ECHU1C561GX5 ECHU1C561JX5

680

ECHU1C681GX5 ECHU1C681JX5

820

ECHU1C821GX5 ECHU1C821JX5

1000

ECHU1C102GX5 ECHU1C102JX5

1200

ECHU1C122GX5 ECHU1C122JX5

1500

ECHU1C152GX5 ECHU1C152JX5

1800

ECHU1C182GX5 ECHU1C182JX5

2200

ECHU1C222GX5 ECHU1C222JX5

2700

ECHU1C272GX5 ECHU1C272JX5

0603

Value Order Code

(µF) 2% tolerance 5% tolerance

50 Volt

0.12

ECHU1H124GX9 ECHU1H124JX9

0.15

ECHU1H154GX9 ECHU1H154JX9

0.18

ECHU1H184GX9 ECHU1H184JX9

0.22

ECHU1H224GX9 ECHU1H224JX9

ORDER CODES

Page 85

PLASTIC FILM, Dipped, 5mm

+44 (0)1945 47 47 47 www.anglia.com [email protected]

16.0

12.7

34.0 max.

5.0

18.0

W max.

12.7

ø4.0

H max.

5.0

W max.

H max.

20 min.

1.0 max.

ø0.5

D max.

End View

(both versions)

TAPED & BOXED

LOOSE

PANASONIC type ECQV

Designed for general purpose applications where high density component insertion is required, the ECQV radial lead capacitors are manufactured with an industry standard 5mm pitch. The range covers values from 0.01µF to 2.2µF and offers a choice of voltage ratings. Supplied loose or taped and boxed.



Metallised polyester film



Industry standard pitch of 5mm



Ideal for high density insertion



High volumetric efficiency



Voltage ratings from 50V to 100V



Capacitance tolerance 5%



Body colour Brown



Supplied loose or taped & boxed

Specification

ECQV

Working voltage (as listed)

Capacitance tolerance Operating temperature range Insulation resistance Dissipation factor

50Vdc/40Vac 63Vdc/40Vac 100Vdc/63Vac ±5%

-40°C to +85°C ≥3000MΩ ≤1% at 1kHz

Value Dimensions (mm) Loose Taped & Boxed (µF) W H D (Straight Leads) (Crimped leads)

50 Volt

0.01 7.3 5.0 3.2

ECQV1H103JL ECQV1H103JL3

0.012 7.3 5.0 3.2

ECQV1H123JL ECQV1H123JL3

0.015 7.3 5.0 3.2

ECQV1H153JL ECQV1H153JL3

0.018 7.3 5.0 3.2

ECQV1H183JL ECQV1H183JL3

0.022 7.3 5.0 3.2

ECQV1H223JL ECQV1H223JL3

0.027 7.3 5.0 3.2

ECQV1H273JL ECQV1H273JL3

0.033 7.3 5.0 3.2

ECQV1H333JL ECQV1H333JL3

0.039 7.3 5.0 3.2

ECQV1H393JL ECQV1H393JL3

0.047 7.3 5.0 3.2

ECQV1H473JL ECQV1H473JL3

0.056 7.3 5.0 3.2

ECQV1H563JL ECQV1H563JL3

0.068 7.3 5.0 3.2

ECQV1H683JL ECQV1H683JL3

0.082 7.3 5.0 3.6

ECQV1H823JL ECQV1H823JL3

0.1 7.3 5.0 4.0

ECQV1H104JL ECQV1H104JL3

0.12 7.3 5.0 4.0

ECQV1H124JL ECQV1H124JL3

0.15 7.3 5.5 4.4

ECQV1H154JL ECQV1H154JL3

0.18 7.3 5.5 4.5

ECQV1H184JL ECQV1H184JL3

0.22 7.3 5.5 4.8

ECQV1H224JL ECQV1H224JL3

0.27 7.3 7.0 4.6

ECQV1H274JL ECQV1H274JL3

0.33 7.3 7.0 5.2

ECQV1H334JL ECQV1H334JL3

0.39 7.3 7.3 5.7

ECQV1H394JL ECQV1H394JL3

0.47 7.3 7.3 6.0

ECQV1H474JL ECQV1H474JL3

0.56 7.3 10.0 5.8

ECQV1H564JL ECQV1H564JL3

0.68 7.3 10.0 6.5

ECQV1H684JL ECQV1H684JL3

0.82 7.3 10.0 6.8

ECQV1H824JL ECQV1H824JL3

1.0 7.3 11.0 8.0

ECQV1H105JL ECQV1H105JL3

1.2 10.2 10.0 6.5

ECQV1H125JL ECQV1H125JL3

1.5 10.2 10.0 7.2

ECQV1H155JL ECQV1H155JL3

1.8 10.2 12.0 7.2

ECQV1H185JL ECQV1H185JL3

2.2 10.2 12.0 7.9

ECQV1H225JL ECQV1H225JL3

ORDER CODES

continued > > > >

Dimensions (mm)

Page 86

+44 (0)1945 47 47 47 www.anglia.com [email protected]

PLASTIC FILM, Dipped, 5mm

Value Dimensions (mm) Loose Taped & Boxed (µF) W H D (Straight Leads) (Crimped leads)

63 Volt

0.01 7.5 6.8 3.2

ECQV1J103JM ECQV1J103JM3

0.012 7.5 6.8 3.2

ECQV1J123JM ECQV1J123JM3

0.015 7.5 6.8 3.2

ECQV1J153JM ECQV1J153JM3

0.018 7.5 6.8 3.2

ECQV1J183JM ECQV1J183JM3

0.022 7.5 6.8 3.2

ECQV1J223JM ECQV1J223JM3

0.027 7.5 6.8 3.2

ECQV1J273JM ECQV1J273JM3

0.033 7.5 6.8 3.2

ECQV1J333JM ECQV1J333JM3

0.039 7.5 6.8 3.2

ECQV1J393JM ECQV1J393JM3

0.047 7.5 6.8 3.2

ECQV1J473JM ECQV1J473JM3

0.056 7.5 6.8 3.2

ECQV1J563JM ECQV1J563JM3

0.068 7.5 6.8 3.2

ECQV1J683JM ECQV1J683JM3

0.082 7.5 6.8 3.2

ECQV1J823JM ECQV1J823JM3

0.1 7.5 7.0 3.2

ECQV1J104JM ECQV1J104JM3

0.12 7.5 7.0 3.8

ECQV1J124JM ECQV1J124JM3

0.15 7.5 7.0 4.1

ECQV1J154JM ECQV1J154JM3

0.18 10.2 9.0 3.5

ECQV1J184JM ECQV1J184JM3

0.22 10.2 9.0 3.5

ECQV1J224JM ECQV1J224JM3

0.27 10.2 9.0 3.5

ECQV1J274JM ECQV1J274JM3

0.33 10.2 9.0 3.8

ECQV1J334JM ECQV1J334JM3

0.39 10.2 9.0 4.0

ECQV1J394JM ECQV1J394JM3

0.47 10.2 9.0 4.5

ECQV1J474JM ECQV1J474JM3

0.56 10.2 9.0 4.9

ECQV1J564JM ECQV1J564JM3

0.68 10.2 10.0 5.5

ECQV1J684JM ECQV1J684JM3

0.82 10.2 10.0 6.1

ECQV1J824JM ECQV1J824JM3

1.0 10.2 10.0 6.9

ECQV1J105JM ECQV1J105JM3

100 Volt

0.01 7.5 7.0 3.2

ECQV1103JM ECQV1103JM3

0.012 7.5 7.0 3.2

ECQV1123JM ECQV1123JM3

0.015 7.5 7.0 3.2

ECQV1153JM ECQV1153JM3

0.018 7.5 7.0 3.2

ECQV1183JM ECQV1183JM3

0.022 7.5 7.0 3.2

ECQV1223JM ECQV1223JM3

0.027 7.5 7.0 3.2

ECQV1273JM ECQV1273JM3

0.033 7.5 7.0 3.2

ECQV1333JM ECQV1333JM3

0.039 7.5 7.0 3.2

ECQV1393JM ECQV1393JM3

0.047 7.5 7.0 3.2

ECQV1473JM ECQV1473JM3

0.056 7.5 7.0 3.2

ECQV1563JM ECQV1563JM3

0.068 7.5 7.0 4.0

ECQV1683JM ECQV1683JM3

0.082 7.5 7.0 4.1

ECQV1823JM ECQV1823JM3

0.1 7.5 7.0 4.5

ECQV1104JM ECQV1104JM3

0.12 10.2 9.0 3.3

ECQV1124JM ECQV1124JM3

0.15 10.2 9.0 3.3

ECQV1154JM ECQV1154JM3

0.18 10.2 9.0 3.6

ECQV1184JM ECQV1184JM3

0.22 10.2 9.0 4.0

ECQV1224JM ECQV1224JM3

0.27 10.2 9.0 4.2

ECQV1274JM ECQV1274JM3

0.33 10.2 10.0 4.8

ECQV1334JM ECQV1334JM3

0.39 10.2 10.0 5.5

ECQV1394JM ECQV1394JM3

0.47 10.2 10.5 6.8

ECQV1474JM ECQV1474JM3

ORDER CODES

continuation

Page 87

PLASTIC FILM, Dipped, 10.2 to 27.9mm

+44 (0)1945 47 47 47 www.anglia.com [email protected]

EPOC type E68

A range of dipped capacitors, industry compatible and suitable for general purpose use. Metallised polyester (PETP) film dielectric. Covered by a protective epoxy resin coating in a blue colour. Flame retardant, moisture repellent and solvent resistant. Leads are crimped and cropped with pitch on industry standard spacings. Voltage ratings from 100V to 400Vdc. May replace BC Comp. 368 series.

 Metallised polyester film

 Industry compatible

 Protective coating

 Pitches from 10.2 to 27.9mm

Specification E68

Working voltage (as listed)

Capacitance tolerance Operating temperature range Insultion resistance/time constant

Dissipation factor

100Vdc/63Vac 250Vdc/160Vac 400Vdc/220Vac N.B. The E68 series is not suitable for across the line applications. ±10%

-40°C to +85°C For V >100Vdc

>7500MΩ (>2500 sec C>0.33µF)

For V =100Vdc

>3750MΩ (>1250 sec C>0.33µF)

1% at 1kHz

ORDER CODES

 Very competitively priced

 Voltage ratings from 100V to 400V

 Capacitance tolerance 10%

 Body colour Blue

max

4mm

+1/-0.5mm

max

ød

0.6 (P=10.2)

d 0.8 (P≥15.2)

pcb

2.0 (P=10.2)

A 2.5 (P≥15.2)

Value Dimensions (mm)

(µF) W H D P Order Code

100 Volt

0.1 13.0 12.0 4.5 10.2

080104

0.15 13.0 12.0 5.0 10.2

080106

0.22 13.0 13.0 5.5 10.2

080108

0.33 18.0 14.0 5.5 15.2

080110

0.47 18.0 14.5 6.0 15.2

080112

0.68 18.0 15.0 6.0 15.2

080114

1.0 18.0 17.0 7.5 15.2

080116

1.5 26.0 18.0 7.0 22.9

080118

2.2 26.0 20.0 8.0 22.9

080120

3.3 26.0 21.0 10.5 22.9

080122

4.7 30.0 22.5 10.0 27.9

080124

Value Dimensions (mm)

(µF) W H D P Order Code

250 Volt

0.033 13.0 12.0 4.5 10.2

080302

0.047 13.0 12.0 4.5 10.2

080304

0.068 13.0 12.5 5.0 10.2

080306

0.1 13.0 13.0 5.0 10.2

080308

0.15 18.0 14.0 5.0 15.2

080310

0.22 18.0 15.0 6.0 15.2

080312

0.33 18.0 16.0 7.0 15.2

080314

0.47 26.0 17.5 5.5 22.9

080316

0.68 26.0 18.5 6.5 22.9

080318

1.0 26.0 19.5 7.5 22.9

080320

1.5 30.0 20.5 8.5 27.9

080322

2.2 30.0 22.5 10.5 27.9

080324

400 Volt

0.01 13.0 12.0 4.5 10.2

080414

0.015 13.0 12.0 4.5 10.2

080416

0.022 13.0 12.0 4.5 10.2

080418

0.033 13.0 12.5 5.0 10.2

080420

0.047 18.0 14.0 5.0 15.2

080422

0.068 18.0 14.0 5.0 15.2

080424

0.1 18.0 15.0 6.0 15.2

080426

0.15 18.0 16.0 7.0 15.2

080428

0.22 26.0 18.0 6.0 22.9

080430

0.33 26.0 19.0 6.5 22.9

080432

0.47 26.0 20.5 8.0 22.9

080434

0.68 30.0 22.0 9.0 27.9

080436

1.0 30.0 23.0 11.0 27.9

080438

Dimensions (mm)

Page 88

+44 (0)1945 47 47 47 www.anglia.com [email protected]

PLASTIC FILM, Boxed, 2.5mm

Rating Voltage Test Voltage

C ≤0.33µF C >0.33µF

50V 10V

≥3750MΩ ≥1250 sec (MΩ x µF)

(mean value: 10,000MΩ) (mean value: 3000 sec)

63V 50V

≥100V 100V ≥10,000MΩ

–

(mean value: 20,000MΩ)

Measuring time: 1 min.

WIMA type MKS02

 Metallised polyester film

 Self healing

 Long operational life

 Voltage ratings from 50V to 250V

Specification

MKS02

Working voltage (as listed)

Operational life Capacitance tolerance Operating temperature range

50Vdc/30Vac 100Vdc/63Vac 63Vdc/40Vac 250Vdc/160Vac N.B. The MKS02 series is not suitable for across the line applications. 300,000 hours ±10%

-55°C to +100°C

Dimensions (mm)

 Capacitance tolerance 10%

 Operating temperature up to 100°C

 Supplied loose, or taped in

various options

Dimensions listed on the following

page against Order Codes

The range of values listed overleaf are 10% tolerance.

5% & 20% tolerances are also available to order.

Please contact our Sales Desk to

discuss your requirements.

Freq. C ≤0.1µF C >0.1µF

1kHz ≤0.8% ≤0.8%

10kHz ≤1.5% ≤1.5%

100kHz ≤3% –

Dissipation factor at 20°C

Insulation resistance at 20°C

Capacitance Pulse rise time V/µsec

pF/µF max. operation/test

1000 - 6800 100/1000

0.01 - 0.022 50/500

0.033 - 0.068 30/300

0.1 - 0.33 20/200

0.47 - 1.0 15/150

Maximum pulse rise time : for pulses equal to the rated voltage

Voltage derating :

A voltage derating factor of 1.25% per K must be applied from +85°C for DC voltages and from +75°C for AC voltages.

WIMA type MKS02

continued overleaf > > > >

-2

¯0.4

2.5

Page 89

PLASTIC FILM, Boxed, 2.5mm

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ORDER CODES

Value Dimensions (mm) Loose Taped & Reeled Taped & Rolled Taped & Boxed (µF) W H D

50 Volt

1.0 4.6 10.0 5.5

MKS02105K1MP1B MKS02105K1MP1T MKS02105K1MP1R MKS02105K1MP1A

63 Volt

0.01 4.6 7.0 2.5

MKS02103K1PP1B MKS02103K1PP1T MKS02103K1PP1R MKS02103K1PP1A

0.015 4.6 7.0 2.5

MKS02153K1PP1B MKS02153K1PP1T MKS02153K1PP1R MKS02153K1PP1A

0.022 4.6 7.0 2.5

MKS02223K1PP1B MKS02223K1PP1T MKS02223K1PP1R MKS02223K1PP1A

0.033 4.6 7.0 2.5

MKS02333K1PP1B MKS02333K1PP1T MKS02333K1PP1R MKS02333K1PP1A

0.047 4.6 7.0 2.5

MKS02473K1PP1B MKS02473K1PP1T MKS02473K1PP1R MKS02473K1PP1A

0.068 4.6 7.5 3.0

MKS02683K1PP1B MKS02683K1PP1T MKS02683K1PP1R MKS02683K1PP1A

0.1 4.6 7.5 3.0

MKS02104K1PP1B MKS02104K1PP1T MKS02104K1PP1R MKS02104K1PP1A

0.15 4.6 7.5 3.0

MKS02154K1PP1B MKS02154K1PP1T MKS02154K1PP1R MKS02154K1PP1A

0.22 4.6 7.5 3.0

MKS02224K1PP1B MKS02224K1PP1T MKS02224K1PP1R MKS02224K1PP1A

0.33 4.6 8.5 3.8

MKS02334K1PP1B MKS02334K1PP1T MKS02334K1PP1R MKS02334K1PP1A

0.47 4.6 9.0 4.6

MKS02474K1PP1B MKS02474K1PP1T MKS02474K1PP1R MKS02474K1PP1A

0.68 4.6 10.0 5.5

MKS02684K1PP1B MKS02684K1PP1T MKS02684K1PP1R MKS02684K1PP1A

100 Volt

0.01 4.6 7.0 2.5

MKS02103K2AP1B MKS02103K2AP1T MKS02103K2AP1R MKS02103K2AP1A

0.015 4.6 7.0 2.5

MKS02153K2AP1B MKS02153K2AP1T MKS02153K2AP1R MKS02153K2AP1A

0.022 4.6 7.0 2.5

MKS02223K2AP1B MKS02223K2AP1T MKS02223K2AP1R MKS02223K2AP1A

0.033 4.6 7.0 2.5

MKS02333K2AP1B MKS02333K2AP1T MKS02333K2AP1R MKS02333K2AP1A

0.047 4.6 7.0 2.5

MKS02473K2AP1B MKS02473K2AP1T MKS02473K2AP1R MKS02473K2AP1A

0.068 4.6 7.5 3.0

MKS02683K2AP1B MKS02683K2AP1T MKS02683K2AP1R MKS02683K2AP1A

0.1 4.6 7.5 3.0

MKS02104K2AP1B MKS02104K2AP1T MKS02104K2AP1R MKS02104K2AP1A

0.15 4.6 8.5 3.8

MKS02154K2AP1B MKS02154K2AP1T MKS02154K2AP1R MKS02154K2AP1A

0.22 4.6 9.0 4.6

MKS02224K2AP1B MKS02224K2AP1T MKS02224K2AP1R MKS02224K2AP1A

0.33 4.6 10.0 5.5

MKS02334K2AP1B MKS02334K2AP1T MKS02334K2AP1R MKS02334K2AP1A

250 Volt

0.001 4.6 7.0 2.5

MKS02102K2GP1B MKS02102K2GP1T MKS02102K2GP1R MKS02102K2GP1A

0.0015 4.6 7.0 2.5

MKS02152K2GP1B MKS02152K2GP1T MKS02152K2GP1R MKS02152K2GP1A

0.0022 4.6 7.0 2.5

MKS02222K2GP1B MKS02222K2GP1T MKS02222K2GP1R MKS02222K2GP1A

0.0033 4.6 7.0 2.5

MKS02332K2GP1B MKS02332K2GP1T MKS02332K2GP1R MKS02332K2GP1A

0.0047 4.6 7.0 2.5

MKS02472K2GP1B MKS02472K2GP1T MKS02472K2GP1R MKS02472K2GP1A

0.0068 4.6 7.0 2.5

MKS02682K2GP1B MKS02682K2GP1T MKS02682K2GP1R MKS02682K2GP1A

0.01 4.6 7.0 2.5

MKS02103K2GP1B MKS02103K2GP1T MKS02103K2GP1R MKS02103K2GP1A

0.015 4.6 7.0 2.5

MKS02153K2GP1B MKS02153K2GP1T MKS02153K2GP1R MKS02153K2GP1A

0.022 4.6 7.0 2.5

MKS02223K2GP1B MKS02223K2GP1T MKS02223K2GP1R MKS02223K2GP1A

0.033 4.6 7.5 3.0

MKS02333K2GP1B MKS02333K2GP1T MKS02333K2GP1R MKS02333K2GP1A

0.047 4.6 8.5 3.8

MKS02473K2GP1B MKS02473K2GP1T MKS02473K2GP1R MKS02473K2GP1A

0.068 4.6 9.0 4.6

MKS02683K2GP1B MKS02683K2GP1T MKS02683K2GP1R MKS02683K2GP1A

0.1 4.6 10.0 5.5

MKS02104K2GP1B MKS02104K2GP1T MKS02104K2GP1R MKS02104K2GP1A

continuation

Pico-Farad Nano-Farad Micro-Farad

(pF) (nF) (µF)

1000 1.0 0.001 1500 1.5 0.0015 2200 2.2 0.0022 3300 3.3 0.0033 4700 4.7 0.0047 6800 6.8 0.0068

10000 10 0.01 15000 15 0.015 22000 22 0.022 33000 33 0.033 47000 47 0.047 68000 68 0.068

100000 100 0.1 150000 150 0.15 220000 220 0.22 330000 330 0.33 470000 470 0.47 680000 680 0.68

CAPACITANCE CONVERSION GUIDE

CAP/1044

Page 90

+44 (0)1945 47 47 47 www.anglia.com [email protected]

PLASTIC FILM, Boxed, 5mm

EPCOS type B32529

A range of industry standard 5mm pitch metallised polyester capacitors with a choice of packaging method (loose or taped and boxed) and capacitance tolerance (10% or 5%). Epoxy resin encapsulated in flame retardant plastic cases with stand-off feet.

N Metallised polyester film

N Industry standard pitch of 5mm

N Very competitively priced

N Flame retardant cases to UL94V-0

N Voltage ratings from 50V to 400V

N Choice of capacitance tolerance

10% or 5%

N Body colour Blue

N Supplied loose or taped & boxed

Dimensions (mm)

ø0.5

6 -1

TAPED & BOXED

LOOSE

Dimensions listed on the following page against Order Codes

12.7

18.5

ø4

12.7

3.85

6.35

Specification B32529

Working voltage (as listed) at 85°C

Capacitance tolerance Operating temperature range

Insulation resistance/time constant

Dissipation factor

50Vdc/30Vac 63Vdc/40Vac 100Vdc/63Vac 250Vdc/160Vac 400Vdc/200Vac N.B. The B32529 series is not suitable for across the line applications. ±10% or ±5%(J suffix)

-55°C to +85°C (+125°C with voltage derating) C≤0.33µF : ≥3750MΩ (≤100V)

≥7500MΩ (≥250V)

C>0.33µF : ≥1250sec (≤100V)

≥2500sec (≥250V)

≤1% at 1kHz

Also available to order :

MKS2 series of 5mm pitch

from WIMA

Please contact our Sales Desk for details.

EPCOS type B32529

continued overleaf > > > >

CAP/1113

Page 91

PLASTIC FILM, Boxed, 5mm

+44 (0)1945 47 47 47 www.anglia.com [email protected]

Value Dimensions (mm) max. Loose Taped & Boxed

(µF) W H D

50 Volt

2.2 7.8 13.0 7.8

071521 071521J 071521T 071521JT

3.3 7.8 13.0 7.8

071522 071522J 071522T 071522JT

63 Volt

0.1 7.2 6.5 2.5

071013 071013J 071013T 071013JT

0.15 7.2 6.5 2.5

071014 071014J 071014T 071014JT

0.22 7.2 6.5 2.5

071015 071015J 071015T 071015JT

0.33 7.2 6.5 3.0

071016 071016J 071016T 071016JT

0.47 7.2 8.0 3.5

071017 071017J 071017T 071017JT

0.68 7.3 9.5 4.5

071018 071018J 071018T 071018JT

1.0 7.3 9.5 4.5

071019 071019J 071019T 071019JT

1.5 7.5 10.5 6.0

071020 071020J 071020T 071020JT

100 Volt

0.001 7.2 6.5 2.5

071101 071101J 071101T 071101JT

0.0015 7.2 6.5 2.5

071102 071102J 071102T 071102JT

0.0022 7.2 6.5 2.5

071103 071103J 071103T 071103JT

0.0033 7.2 6.5 2.5

071104 071104J 071104T 071104JT

0.0047 7.2 6.5 2.5

071105 071105J 071105T 071105JT

0.0068 7.2 6.5 2.5

071106 071106J 071106T 071106JT

0.01 7.2 6.5 2.5

071107 071107J 071107T 071107JT

0.015 7.2 6.5 2.5

071108 071108J 071108T 071108JT

0.022 7.2 6.5 2.5

071109 071109J 071109T 071109JT

0.033 7.2 6.5 2.5

071110 071110J 071110T 071110JT

0.047 7.2 6.5 2.5

071111 071111J 071111T 071111JT

0.068 7.2 6.5 2.5

071112 071112J 071112T 071112JT

0.1 7.2 6.5 2.5

071113 071113J 071113T 071113JT

0.15 7.2 6.5 3.0

071114 071114J 071114T 071114JT

0.22 7.2 8.0 3.5

071115 071115J 071115T 071115JT

0.33 7.2 8.0 3.5

071116 071116J 071116T 071116JT

0.47 7.3 9.5 4.5

071117 071117J 071117T 071117JT

0.68 7.5 10.5 6.0

071118 071118J 071118T 071118JT

1.0 7.8 13.0 7.8

071119 071119J 071119T 071119JT

250 Volt

0.0068 7.2 6.5 2.5

071306 071306J 071306T 071306JT

0.01 7.2 6.5 2.5

071307 071307J 071307T 071307JT

0.015 7.2 6.5 2.5

071308 071308J 071308T 071308JT

0.022 7.2 6.5 2.5

071309 071309J 071309T 071309JT

0.033 7.2 6.5 3.0

071310 071310J 071310T 071310JT

0.047 7.2 8.0 3.5

071311 071311J 071311T 071311JT

0.068 7.3 9.5 4.5

071312 071312J 071312T 071312JT

0.1 7.3 9.5 4.5

071313 071313J 071313T 071313JT

0.15 7.5 10.0 5.0

071314 071314J 071314T 071314JT

0.22 7.8 13.0 7.8

071315 071315J 071315T 071315JT

400 Volt

0.001 7.2 6.5 2.5

071401 071401J 071401T 071401JT

0.0015 7.2 6.5 2.5

071402 071402J 071402T 071402JT

0.0022 7.2 6.5 2.5

071403 071403J 071403T 071403JT

0.0033 7.2 6.5 2.5

071404 071404J 071404T 071404JT

0.0047 7.2 6.5 2.5

071405 071405J 071405T 071405JT

0.0068 7.2 6.5 2.5

071406 071406J 071406T 071406JT

0.01 7.2 6.5 3.0

071407 071407J 071407T 071407JT

0.015 7.2 8.0 3.5

071408 071408J 071408T 071408JT

0.022 7.3 9.5 4.5

071409 071409J 071409T 071409JT

0.033 7.5 10.0 5.0

071410 071410J 071410T 071410JT

0.047 7.5 10.5 6.0

071411 071411J 071411T 071411JT

10% 5% 10% 5%

ORDER CODES

continuation

Page 92

+44 (0)1945 47 47 47 www.anglia.com [email protected]

PLASTIC FILM, Boxed, 7.5 to 27.5mm

ARCOTRONICS type R66 & R60 series

A broad range of metallised polyester film capacitors epoxy resin encapsulated in flame retardant plastic cases with stand-off feet and offering an extensive pitch selection.

 Metallised polyester film

 Choice of pitch from

7.5mm to 27.5mm

 Wide choice of values/voltages

 Flame retardant cases to UL94V-0

 Capacitance tolerance 10%

 Body colour Cream/Grey

Dimensions (mm)

Specification R66 / R60

Working voltage (as listed) at 85°C

Capacitance tolerance Operating temperature range

Insulation resistance/time constant

Dissipation factor

63Vdc/40Vac 400Vdc/200Vac 100Vdc/63Vac 630Vdc/220Vac 160Vdc/90Vac 1000Vdc/250Vac 250Vdc/160Vac N.B. The R66 & R60 series are not suitable for across the line applications. ±10%

-55°C to +85°C (+100˚C with voltage derating) For V >100Vdc

≥30,000MΩ (≥10,000 sec C>0.33µF)

For V ≥100Vdc

≤3750MΩ (≥1250 sec C>0.33µF)

≤1% at 1kHz

Pitch

(as listed)

ød

ød R66 = 0.6 R60.F = 0.6 all other R60 = 0.8

–2

10mm to 27.5mm pitch overleaf >>>>

Dimensions listed against Order Codes

capacitance tolerance available to order

ARCOTRONICS type R66

Value Dimensions (mm) Order Code (µF) W H D

10%

63 Volt

0.1 10.0 7.0 2.5

072013

0.15 10.0 7.0 2.5

072014

0.22 10.5 8.5 3.5

072015

0.33 10.5 8.5 3.5

072016

0.47 10.5 9.0 4.0

072017

0.68 10.5 11.0 5.0

072018

1.0 10.5 12.0 6.0

072019

100 Volt

0.047 10.0 7.0 2.5

072111

0.068 10.0 7.0 2.5

072112

0.1 10.5 8.5 3.5

072113

0.15 10.5 8.5 3.5

072114

0.22 10.5 8.5 3.5

072115

0.33 10.5 11.0 5.0

072116

0.47 10.5 12.0 6.0

072117

250 Volt

0.015 10.0 7.0 2.5

072308

0.022 10.0 7.0 2.5

072309

0.033 10.0 7.0 2.5

072310

0.047 10.5 8.5 3.5

072311

0.068 10.5 8.5 3.5

072312

0.1 10.5 9.0 4.0

072313

0.15 10.5 11.0 5.0

072314

0.22 10.5 12.0 6.0

072315

ORDER CODES

Value Dimensions (mm) Order Code (µF) W H D

10%

400 Volt

0.0033 10.0 7.0 2.5

072404

0.0047 10.0 7.0 2.5

072405

0.0068 10.0 7.0 2.5

072406

0.01 10.0 7.0 2.5

072407

0.015 10.5 8.5 3.5

072408

0.022 10.5 8.5 3.5

072409

0.033 10.5 9.0 4.0

072410

0.047 10.5 11.0 5.0

072411

0.068 10.5 11.0 5.0

072412

0.1 10.5 12.0 6.0

072413

630 Volt

0.001 10.0 7.0 2.5

072601

0.0015 10.0 7.0 2.5

072602

0.0022 10.0 7.0 2.5

072603

0.0033 10.0 8.5 3.5

072604

0.0047 10.5 8.5 3.5

072605

0.0068 10.5 8.5 3.5

072606

0.01 10.5 9.0 4.0

072607

0.015 10.5 11.0 5.0

072608

0.022 10.5 12.0 6.0

072609

77..55mmmm PPIITTCCHH

Also available to order :

MKS4 series of 7.5 to 27.5mm pitch

from WIMA

Please contact our Sales Desk for details.

Page 93

PLASTIC FILM, Boxed, 7.5 to 27.5mm

+44 (0)1945 47 47 47 www.anglia.com [email protected]

ARCOTRONICS type R60-F ARCOTRONICS type R60-I

1100mmmm PPIITTCCHH

1155mmmm PPIITTCCHH

Value Dimensions (mm) Order Code

(µF) W H D

10%

63 Volt

0.68 18.0 11.0 5.0

074018

1.0 18.0 11.0 5.0

074019

1.5 18.0 11.0 5.0

074020

2.2 18.0 12.0 6.0

074021

3.3 18.0 13.5 7.5

074022

4.7 18.0 14.5 8.5

074023

6.8 18.0 16.0 10.0

074024

100 Volt

0.33 18.0 11.0 5.0

074116

0.47 18.0 11.0 5.0

074117

0.68 18.0 11.0 5.0

074118

1.0 18.0 11.0 5.0

074119

1.5 18.0 13.5 7.5

074120

2.2 18.0 14.5 8.5

074121

3.3 18.0 16.0 10.0

074122

160 Volt

0.33 18.0 11.0 5.0

074216

0.47 18.0 11.0 5.0

074217

0.68 18.0 11.0 5.0

074218

1.0 18.0 13.5 7.5

074219

1.5 18.0 14.5 8.5

074220

2.2 18.0 16.0 10.0

074221

250 Volt

0.1 18.0 11.0 5.0

074313

0.15 18.0 11.0 5.0

074314

0.22 18.0 11.0 5.0

074315

0.33 18.0 11.0 5.0

074316

0.47 18.0 12.0 6.0

074317

0.68 18.0 13.5 7.5

074318

1.0 18.0 14.5 8.5

074319

1.5 18.0 16.0 10.0

074320

400 Volt

0.047 18.0 11.0 5.0

074411

0.068 18.0 11.0 5.0

074412

0.1 18.0 11.0 5.0

074413

0.15 18.0 11.0 5.0

074414

0.22 18.0 12.0 6.0

074415

0.33 18.0 13.5 7.5

074416

0.47 18.0 14.5 8.5

074417

630 Volt

0.033 18.0 11.0 5.0

074610

0.047 18.0 11.0 5.0

074611

0.068 18.0 12.0 6.0

074612

0.1 18.0 13.5 7.5

074613

0.15 18.0 14.5 8.5

074614

1000 Volt

0.01 18.0 11.0 5.0

074807

0.015 18.0 12.0 6.0

074808

0.022 18.0 13.5 7.5

074809

0.033 18.0 14.5 8.5

074810

0.047 18.0 16.0 10.0

074811

Value Dimensions (mm) Order Code

(µF) W H D

10%

63 Volt

0.47 13.0 9.0 4.0

073017

0.68 13.0 9.0 4.0

073018

1.0 13.0 11.0 5.0

073019

1.5 13.0 12.0 6.0

073020

100 Volt

0.33 13.0 9.0 4.0

073116

0.47 13.0 11.0 5.0

073117

0.68 13.0 12.0 6.0

073118

160 Volt

0.22 13.0 9.0 4.0

073215

0.33 13.0 11.0 5.0

073216

0.47 13.0 12.0 6.0

073217

250 Volt

0.068 13.0 9.0 4.0

073312

0.1 13.0 9.0 4.0

073313

0.15 13.0 9.0 4.0

073314

0.22 13.0 11.0 5.0

073315

0.33 13.0 12.0 6.0

073316

400 Volt

0.015 13.0 9.0 4.0

073408

0.022 13.0 9.0 4.0

073409

0.033 13.0 9.0 4.0

073410

0.047 13.0 9.0 4.0

073411

0.068 13.0 11.0 5.0

073412

0.1 13.0 12.0 6.0

073413

630 Volt

0.0047 13.0 9.0 4.0

073605

0.0068 13.0 9.0 4.0

073606

0.01 13.0 9.0 4.0

073607

0.015 13.0 9.0 4.0

073608

0.022 13.0 11.0 5.0

073609

0.033 13.0 12.0 6.0

073610

1000 Volt

0.001 13.0 9.0 4.0

073801

0.0015 13.0 9.0 4.0

073802

0.0022 13.0 9.0 4.0

073803

0.0033 13.0 9.0 4.0

073804

0.0047 13.0 11.0 5.0

073805

0.0068 13.0 12.0 6.0

073806

ORDER CODES

continuation

capacitance tolerance available to order

Page 94

+44 (0)1945 47 47 47 www.anglia.com [email protected]

PLASTIC FILM, Boxed, 7.5 to 27.5mm

ORDER CODES

ARCOTRONICS type R60-N

ARCOTRONICS NISSEI type R60-R

2222..55mmmm PPIITTCCHH 2277..55mmmm PPIITTCCHH

Value Dimensions (mm) Order Code

(µF) W H D

10%

63 Volt

3.3 26.5 15.0 6.0

075022

4.7 26.5 16.0 7.0

075023

6.8 26.5 16.0 7.0

075024

10.0 26.5 17.0 8.5

075025

100 Volt

1.5 26.5 15.0 6.0

075120

2.2 26.5 15.0 6.0

075121

3.3 26.5 16.0 7.0

075122

4.7 26.5 17.0 8.5

075123

6.8 26.5 18.5 10.0

075124

160 Volt

1.5 26.5 15.0 6.0

075220

2.2 26.5 16.0 7.0

075221

3.3 26.5 17.0 8.5

075222

4.7 26.5 20.0 11.0

075223

250 Volt

0.47 26.5 15.0 6.0

075317

0.68 26.5 15.0 6.0

075318

1.0 26.5 15.0 6.0

075319

1.5 26.5 16.0 7.0

075320

2.2 26.5 18.5 10.0

075321

3.3 26.5 20.0 11.0

075322

400 Volt

0.22 26.5 15.0 6.0

075415

0.33 26.5 15.0 6.0

075416

0.47 26.5 15.0 6.0

075417

0.68 26.5 16.0 7.0

075418

1.0 26.5 18.5 10.0

075419

1.5 26.5 20.0 11.0

075420

630 Volt

0.1 26.5 15.0 6.0

075613

0.15 26.5 15.0 6.0

075614

0.22 26.5 16.0 7.0

075615

0.33 26.5 18.5 10.0

075616

1000 Volt

0.033 26.5 15.0 6.0

075810

0.047 26.5 15.0 6.0

075811

0.068 26.5 17.0 8.5

075812

0.1 26.5 18.5 10.0

075813

Value Dimensions (mm) Order Code

(µF) W H D

10%

63 Volt

10.0 32.0 17.0 9.0

076025

15.0 32.0 20.0 11.0

076026

22.0 32.0 22.0 13.0

076027

100 Volt

4.7 32.0 17.0 9.0

076123

6.8 32.0 17.0 9.0

076124

10.0 32.0 20.0 11.0

076125

160 Volt

3.3 32.0 17.0 9.0

076222

4.7 32.0 17.0 9.0

076223

6.8 32.0 20.0 11.0

076224

250 Volt

1.5 32.0 17.0 9.0

076320

2.2 32.0 17.0 9.0

076321

3.3 32.0 20.0 11.0

076322

4.7 32.0 22.0 13.0

076323

400 Volt

0.68 32.0 17.0 9.0

076418

1.0 32.0 17.0 9.0

076419

1.5 32.0 20.0 10.0

076420

2.2 32.0 22.0 13.0

076421

630 Volt

0.33 32.0 17.0 9.0

076616

0.47 32.0 20.0 11.0

076617

0.68 32.0 22.0 13.0

076618

1000 Volt

0.15 32.0 20.0 11.0

076814

0.22 32.0 22.0 13.0

076815

continuation

capacitance tolerance available to order

Page 95

PLASTIC FILM, Polypropylene, Boxed, 5mm

+44 (0)1945 47 47 47 www.anglia.com [email protected]

Rated Voltage Test Voltage C (all)

63V 50V

≥30,000MΩ

≥100V 100V

(mean value: 100,000MΩ)

WIMA type MKP2

A specialised range of metallised polypropylene capacitors with self healing properties. Ideal for high frequency applications such as timing, oscillating circuits and high frequency coupling & decoupling. Offer very low dielectric absorption and a reliable operating life of 300,000 hours. Supplied loose, or taped with the option of reel, roll or box.

 Metallised polypropylene film

 Self healing

 Very low dielectric adsorption

and dissipation

 Long operational life

Specification

MKP2

Working voltage (as listed)

Operational life Capacitance tolerance Operating temperature range

63Vdc/40Vac 400Vdc/200Vac 100Vdc/63Vac 630Vdc/250Vac 250Vdc/160Vac 1000Vdc/250Vac N.B. The MKP2 series is not suitable for across the line application. 300,000 hours ±10%

-55°C to +100°C

Dimensions (mm)

 Increased pulse duty

 Capacitance tolerance 10%

 Supplied loose, or taped in

various options

Dimensions listed on the following page against Order Codes

The range of values listed opposite are 10% tolerance.

5% & 20% tolerances are also available to order.

In addition, the FKS2 & FKP2 series are available from

WIMA for pulse applications.

Please contact our Sales Desk to

discuss your requirements.

Freq. C ≤0.1µF C >0.1µF

1kHz ≤0.05% ≤0.05%

10kHz ≤0.08% ≤0.08%

100kHz ≤0.3% –

Dissipation factor at 20°C

Insulation resistance at 20°C

Capacitance Max. pulse rise time V/µsec

pF/µF 63V 100V 250V 400V 630V 1000V

1000 - 2200 – – – 300 400 500 3300 - 6800 – – – 300 400 500

0.01 - 0.022 100 100 250 300 400 500

0.033 - 0.068 100 100 250 300 400 –

0.1 - 0.22 100 100 250 – – –

0.33 100 100 250 – – –

Maximum pulse rise time : for pulses equal to the rated voltage

Voltage derating :

A voltage derating factor of 1.35% per K must be applied from +85°C for DC voltages and from +75°C for AC voltages.

Pico-Farad Nano-Farad Micro-Farad

(pF) (nF) (µF)

1000 1.0 0.001 1500 1.5 0.0015 2200 2.2 0.0022 3300 3.3 0.0033 4700 4.7 0.0047 6800 6.8 0.0068

10000 10 0.01 15000 15 0.015 22000 22 0.022 33000 33 0.033 47000 47 0.047 68000 68 0.068

100000 100 0.1 150000 150 0.15 220000 220 0.22 330000 330 0.33 470000 470 0.47 680000 680 0.68

CAPACITANCE CONVERSION GUIDE

-2

ø0.5

Page 96

+44 (0)1945 47 47 47 www.anglia.com [email protected]

PLASTIC FILM, Polypropylene, Radial, 5mm

Value Dimensions (mm)

(µF) W H D Loose Taped & Reeled Taped & Rolled Taped & Boxed

63 Volt

0.01 7.2 7.5 3.0

MKP2103K1PP2B MKP2103K1PP2T MKP2103K1PP2R MKP2103K1PP2A

0.015 7.2 7.5 3.0

MKP2153K1PP2B MKP2153K1PP2T MKP2153K1PP2R MKP2153K1PP2A

0.022 7.2 7.5 3.0

MKP2223K1PP2B MKP2223K1PP2T MKP2223K1PP2R MKP2223K1PP2A

0.033 7.2 7.5 3.0

MKP2333K1PP2B MKP2333K1PP2T MKP2333K1PP2R MKP2333K1PP2A

0.047 7.2 8.5 3.5

MKP2473K1PP2B MKP2473K1PP2T MKP2473K1PP2R MKP2473K1PP2A

0.068 7.2 9.5 4.5

MKP2683K1PP2B MKP2683K1PP2T MKP2683K1PP2R MKP2683K1PP2A

0.1 7.2 10.0 5.0

MKP2104K1PP2B MKP2104K1PP2T MKP2104K1PP2R MKP2104K1PP2A

0.15 7.2 11.5 5.5

MKP2154K1PP2B MKP2154K1PP2T MKP2154K1PP2R MKP2154K1PP2A

0.22 7.2 13.0 7.2

MKP2224K1PP2B MKP2224K1PP2T MKP2224K1PP2R MKP2224K1PP2A

0.33 7.2 14.0 8.5

MKP2334K1PP2B MKP2334K1PP2T MKP2334K1PP2R MKP2334K1PP2A

100 Volt

0.01 7.2 7.5 3.0

MKP2103K2AP2B MKP2103K2AP2T MKP2103K2AP2R MKP2103K2AP2A

0.015 7.2 7.5 3.0

MKP2153K2AP2B MKP2153K2AP2T MKP2153K2AP2R MKP2153K2AP2A

0.022 7.2 7.5 3.0

MKP2223K2AP2B MKP2223K2AP2T MKP2223K2AP2R MKP2223K2AP2A

0.033 7.2 7.5 3.0

MKP2333K2AP2B MKP2333K2AP2T MKP2333K2AP2R MKP2333K2AP2A

0.047 7.2 8.5 3.5

MKP2473K2AP2B MKP2473K2AP2T MKP2473K2AP2R MKP2473K2AP2A

0.068 7.2 9.5 4.5

MKP2683K2AP2B MKP2683K2AP2T MKP2683K2AP2R MKP2683K2AP2A

0.1 7.2 10.0 5.0

MKP2104K2AP2B MKP2104K2AP2T MKP2104K2AP2R MKP2104K2AP2A

0.15 7.2 11.5 5.5

MKP2154K2AP2B MKP2154K2AP2T MKP2154K2AP2R MKP2154K2AP2A

0.22 7.2 13.0 7.2

MKP2224K2AP2B MKP2224K2AP2T MKP2224K2AP2R MKP2224K2AP2A

0.33 7.2 14.0 8.5

MKP2334K2AP2B MKP2334K2AP2T MKP2334K2AP2R MKP2334K2AP2A

250 Volt

0.01 7.2 7.5 3.0

MKP2103K2GP2B MKP2103K2GP2T MKP2103K2GP2R MKP2103K2GP2A

0.015 7.2 7.5 3.0

MKP2153K2GP2B MKP2153K2GP2T MKP2153K2GP2R MKP2153K2GP2A

0.022 7.2 7.5 3.0

MKP2223K2GP2B MKP2223K2GP2T MKP2223K2GP2R MKP2223K2GP2A

0.033 7.2 7.5 3.0

MKP2333K2GP2B MKP2333K2GP2T MKP2333K2GP2R MKP2333K2GP2A

0.047 7.2 8.5 3.5

MKP2473K2GP2B MKP2473K2GP2T MKP2473K2GP2R MKP2473K2GP2A

0.068 7.2 9.5 4.5

MKP2683K2GP2B MKP2683K2GP2T MKP2683K2GP2R MKP2683K2GP2A

0.1 7.2 10.0 5.0

MKP2104K2GP2B MKP2104K2GP2T MKP2104K2GP2R MKP2104K2GP2A

0.15 7.2 13.0 7.2

MKP2154K2GP2B MKP2154K2GP2T MKP2154K2GP2R MKP2154K2GP2A

0.22 7.2 13.0 7.2

MKP2224K2GP2B MKP2224K2GP2T MKP2224K2GP2R MKP2224K2GP2A

0.33 7.2 14.0 8.5

MKP2334K2GP2B MKP2334K2GP2T MKP2334K2GP2R MKP2334K2GP2A

400 Volt

0.001 7.2 7.5 3.0

MKP2102K2KP2B MKP2102K2KP2T MKP2102K2KP2R MKP2102K2KP2A

0.0015 7.2 7.5 3.0

MKP2152K2KP2B MKP2152K2KP2T MKP2152K2KP2R MKP2152K2KP2A

0.0022 7.2 7.5 3.0

MKP2222K2KP2B MKP2222K2KP2T MKP2222K2KP2R MKP2222K2KP2A

0.0033 7.2 7.5 3.0

MKP2332K2KP2B MKP2332K2KP2T MKP2332K2KP2R MKP2332K2KP2A

0.0047 7.2 7.5 3.0

MKP2472K2KP2B MKP2472K2KP2T MKP2472K2KP2R MKP2472K2KP2A

0.0068 7.2 7.5 3.0

MKP2682K2KP2B MKP2682K2KP2T MKP2682K2KP2R MKP2682K2KP2A

0.01 7.2 8.5 3.5

MKP2103K2KP2B MKP2103K2KP2T MKP2103K2KP2R MKP2103K2KP2A

0.015 7.2 8.5 3.5

MKP2153K2KP2B MKP2153K2KP2T MKP2153K2KP2R MKP2153K2KP2A

0.022 7.2 9.5 4.5

MKP2223K2KP2B MKP2223K2KP2T MKP2223K2KP2R MKP2223K2KP2A

0.033 7.2 11.5 5.5

MKP2333K2KP2B MKP2333K2KP2T MKP2333K2KP2R MKP2333K2KP2A

0.047 7.2 13.0 7.2

MKP2473K2KP2B MKP2473K2KP2T MKP2473K2KP2R MKP2473K2KP2A

0.068 7.2 13.0 7.2

MKP2683K2KP2B MKP2683K2KP2T MKP2683K2KP2R MKP2683K2KP2A

630 Volt

0.001 7.2 7.5 3.0

MKP2102K2PP2B MKP2102K2PP2T MKP2102K2PP2R MKP2102K2PP2A

0.0015 7.2 7.5 3.0

MKP2152K2PP2B MKP2152K2PP2T MKP2152K2PP2R MKP2152K2PP2A

0.0022 7.2 7.5 3.0

MKP2222K2PP2B MKP2222K2PP2T MKP2222K2PP2R MKP2222K2PP2A

0.0033 7.2 7.5 3.0

MKP2332K2PP2B MKP2332K2PP2T MKP2332K2PP2R MKP2332K2PP2A

0.0047 7.2 7.5 3.0

MKP2472K2PP2B MKP2472K2PP2T MKP2472K2PP2R MKP2472K2PP2A

0.0068 7.2 8.5 3.5

MKP2682K2PP2B MKP2682K2PP2T MKP2682K2PP2R MKP2682K2PP2A

0.01 7.2 9.5 4.5

MKP2103K2PP2B MKP2103K2PP2T MKP2103K2PP2R MKP2103K2PP2A

0.015 7.2 10.0 5.0

MKP2153K2PP2B MKP2153K2PP2T MKP2153K2PP2R MKP2153K2PP2A

0.022 7.2 11.5 5.5

MKP2223K2PP2B MKP2223K2PP2T MKP2223K2PP2R MKP2223K2PP2A

0.033 7.2 13.0 7.2

MKP2333K2PP2B MKP2333K2PP2T MKP2333K2PP2R MKP2333K2PP2A

0.047 7.2 14.0 8.5

MKP2473K2PP2B MKP2473K2PP2T MKP2473K2PP2R MKP2473K2PP2A

1000 Volt

0.001 7.2 7.5 3.0

MKP2102K3AP2B MKP2102K3AP2T MKP2102K3AP2R MKP2102K3AP2A

0.0015 7.2 7.5 3.0

MKP2152K3AP2B MKP2152K3AP2T MKP2152K3AP2R MKP2152K3AP2A

0.0022 7.2 7.5 3.0

MKP2222K3AP2B MKP2222K3AP2T MKP2222K3AP2R MKP2222K3AP2A

0.0033 7.2 8.5 3.5

MKP2332K3AP2B MKP2332K3AP2T MKP2332K3AP2R MKP2332K3AP2A

0.0047 7.2 9.5 4.5

MKP2472K3AP2B MKP2472K3AP2T MKP2472K3AP2R MKP2472K3AP2A

0.0068 7.2 10.0 5.0

MKP2682K3AP2B MKP2682K3AP2T MKP2682K3AP2R MKP2682K3AP2A

0.01 7.2 13.0 7.2

MKP2103K3AP2B MKP2103K3AP2T MKP2103K3AP2R MKP2103K3AP2A

MKP2 ORDER CODES

Page 97

PLASTIC FILM, Polypropylene, Boxed, 7.5- 37.5mm

+44 (0)1945 47 47 47 www.anglia.com [email protected]

Measuring voltage 100Vdc for 1 minute

C ≤0.33µF C >0.33µF

≥100,000MΩ 30,000 sec. (MΩ x µF) Mean value 500,000MΩ Mean value 100,000 sec

WIMA type MKP4

 Metallised polypropylene film

 Self healing

 Very low dissipation factor

 Long operational life

 Negative capacitance change

versus temperature

Specification

MKP4

Working voltage (as listed)

Operational life Capacitance tolerance Operating temperature range

100Vdc/63Vac 630Vdc/280Vac 250Vdc/160Vac 1000Vdc/400Vac 400Vdc/220Vac N.B The MKP4 series is not suitable for across the line applications. 300,000 hours ±10%

-55°C to +100°C

Dimensions (mm)

 Very low dielectric adsorption

 High volume/capacitance ratio

 Capacitance tolerance 10%

 Supplied loose, or taped in

various options

ød Pitch D

0.5 7.5 ≤3

0.6 7.5 ≥4

0.6 10

0.8 15 - 27.5

1.0 37.5

Dimensions listed on the following pages against Order Codes

The range of values listed on the following pages

are 10% tolerance. 5% & 20% tolerances are

also available to order.

Please contact our Sales Desk to

discuss your requirements.

≤0.1% at 1kHz

Dissipation factor at 20°CInsulation resistance at 20°C

Voltage derating :

Maximum pulse rise time : for pulses equal to the rated voltage

A voltage derating factor of 1.35% per K must be applied from +85°C for DC voltages and from +75°C for AC voltages.

Capacitance Max. pulse rise time V/µsec at T

<40°C

µF 100V 250V 400V 630V 1000V

0.01 - 0.022 450 450 450 500 550

0.033 - 0.068 250 250 300 350 400

0.1 - 0.22 150 150 200 250 300

0.33 - 0.68 100 100 150 200 200

1.0 - 2.2 75 100 100 150 150

3.3 - 4.7 60 100 100 120 –

6.8 - 10 40 50 60 85 – 15 - 33 35 50 – – –

-2

ød

Pitch

(as listed)

Page 98

+44 (0)1945 47 47 47 www.anglia.com [email protected]

PLASTIC FILM, Polypropylene, Boxed, 7.5- 37.5mm

Value Dimensions (mm) Loose Taped & Reeled Taped & Rolled Taped & Boxed Taped & Boxed (µF) W H D Pitch ø14.5" ø20" 340 x 340mm 490 x 370mm

100 Volt

0.01 10.0 8.5 3.0 7.5

MKP4103K2AP3B MKP4103K2AP3T MKP4103K2AP3T1 MKP4103K2AP3A MKP4103K2AP3A1

0.015 10.0 8.5 3.0 7.5

MKP4153K2AP3B MKP4153K2AP3T MKP4153K2AP3T1 MKP4153K2AP3A MKP4153K2AP3A1

0.022 10.0 8.5 3.0 7.5

MKP4223K2AP3B MKP4223K2AP3T MKP4223K2AP3T1 MKP4223K2AP3A MKP4223K2AP3A1

0.033 10.0 8.5 3.0 7.5

MKP4333K2AP3B MKP4333K2AP3T MKP4333K2AP3T1 MKP4333K2AP3A MKP4333K2AP3A1

0.033 13.0 9.0 4.0 10

MKP4333K2AP4B MKP4333K2AP4T MKP4333K2AP4T1

–

MKP4333K2AP4A1

0.047 10.0 9.0 4.0 7.5

MKP4473K2AP3B MKP4473K2AP3T MKP4473K2AP3T1 MKP4473K2AP3A MKP4473K2AP3A1

0.047 13.0 9.0 4.0 10

MKP4473K2AP4B MKP4473K2AP4T MKP4473K2AP4T1

–

MKP4473K2AP4A1

0.068 10.0 9.0 4.0 7.5

MKP4683K2AP3B MKP4683K2AP3T MKP4683K2AP3T1 MKP4683K2AP3A MKP4683K2AP3A1

0.068 13.0 9.0 4.0 10

MKP4683K2AP4B MKP4683K2AP4T MKP4683K2AP4T1

–

MKP4683K2AP4A1

0.1 10.3 9.5 4.5 7.5

MKP4104K2AP3B MKP4104K2AP3T MKP4104K2AP3T1 MKP4104K2AP3A MKP4104K2AP3A1

0.1 13.0 9.0 4.0 10

MKP4104K2AP4B MKP4104K2AP4T MKP4104K2AP4T1

–

MKP4104K2AP4A1

0.15 10.3 10.5 5.0 7.5

MKP4154K2AP3B MKP4154K2AP3T MKP4154K2AP3T1 MKP4154K2AP3A

–

0.15 13.0 11.0 5.0 10

MKP4154K2AP4B MKP4154K2AP4T MKP4154K2AP4T1

–

MKP4154K2AP4A1

0.22 13.0 12.0 6.0 10

MKP4224K2AP4B MKP4224K2AP4T MKP4224K2AP4T1

–

MKP4224K2AP4A1

0.22 18.0 11.0 5.0 15

MKP4224K2AP5B MKP4224K2AP5T MKP4224K2AP5T1

–

MKP4224K2AP5A1

0.33 18.0 12.5 6.0 15

MKP4334K2AP5B MKP4334K2AP5T MKP4334K2AP5T1

–

MKP4334K2AP5A1

0.47 18.0 14.0 7.0 15

MKP4474K2AP5B MKP4474K2AP5T MKP4474K2AP5T1

–

MKP4474K2AP5A1

0.68 18.0 15.0 8.0 15

MKP4684K2AP5B MKP4684K2AP5T MKP4684K2AP5T1

–

MKP4684K2AP5A1

0.68 26.5 15.0 6.0 22.5

MKP4684K2AP6B

–

MKP4684K2AP6T1

–

MKP4684K2AP6A1

1.0 26.5 16.5 7.0 22.5

MKP4105K2AP6B

–

MKP4105K2AP6T1

–

MKP4105K2AP6A1

1.5 26.5 19.0 10.5 22.5

MKP4155K2AP6B

–

MKP4155K2AP6T1

–

MKP4155K2AP6A1

2.2 26.5 21.0 11.0 22.5

MKP4225K2AP6B

–

MKP4225K2AP6T1

–

MKP4225K2AP6A1

2.2 31.5 21.0 11.0 27.5

MKP4225K2AP7B

–

MKP4225K2AP7T1

–

MKP4225K2AP7A1

3.3 31.5 24.0 13.0 27.5

MKP4335K2AP7B

–

MKP4335K2AP7T1

–

MKP4335K2AP7A1

4.7 31.5 24.0 13.0 27.5

MKP4475K2AP7B

–

MKP4475K2AP7T1

–

MKP4475K2AP7A1

6.8 31.5 26.0 15.0 27.5

MKP4685K2AP7B

–

MKP4685K2AP7T1

–

MKP4685K2AP7A1

6.8 41.5 24.0 13.0 37.5

MKP4685K2AP8B

––––

10 41.5 29.0 17.0 37.5

MKP4106K2AP8B

––––

15 41.5 32.0 19.0 37.5

MKP4156K2AP8B

––––

22 41.5 39.5 20.0 37.5

MKP4226K2AP8B

––––

33 41.5 45.5 24.0 37.5

MKP4336K2AP8B

––––

250 Volt

0.01 10.0 8.5 3.0 7.5

MKP4103K2GP3B MKP4103K2GP3T MKP4103K2GP3T1 MKP4103K2GP3A MKP4103K2GP3A1

0.015 10.0 8.5 3.0 7.5

MKP4153K2GP3B MKP4153K2GP3T MKP4153K2GP3T1 MKP4153K2GP3A MKP4153K2GP3A1

0.022 10.0 8.5 3.0 7.5

MKP4223K2GP3B MKP4223K2GP3T MKP4223K2GP3T1 MKP4223K2GP3A MKP4223K2GP3A1

0.033 10.0 8.5 3.0 7.5

MKP4333K2GP3B MKP4333K2GP3T MKP4333K2GP3T1 MKP4333K2GP3A MKP4333K2GP3A1

0.033 13.0 9.0 4.0 10

MKP4333K2GP4B MKP4333K2GP4T MKP4333K2GP4T1

–

MKP4333K2GP4A1

0.047 10.0 9.0 4.0 7.5

MKP4473K2GP3B MKP4473K2GP3T MKP4473K2GP3T1 MKP4473K2GP3A MKP4473K2GP3A1

0.047 13.0 9.0 4.0 10

MKP4473K2GP4B MKP4473K2GP4T MKP4473K2GP4T1

–

MKP4473K2GP4A1

0.068 10.0 9.0 4.0 7.5

MKP4683K2GP3B MKP4683K2GP3T MKP4683K2GP3T1 MKP4683K2GP3A MKP4683K2GP3A1

0.068 13.0 9.0 4.0 10

MKP4683K2GP4B MKP4683K2GP4T MKP4683K2GP4T1

–

MKP4683K2GP4A1

0.1 10.3 9.5 4.5 7.5

MKP4104K2GP3B MKP4104K2GP3T MKP4104K2GP3T1 MKP4104K2GP3A MKP4104K2GP3A1

0.1 13.0 9.0 4.0 10

MKP4104K2GP4B MKP4104K2GP4T MKP4104K2GP4T1

–

MKP4104K2GP4A1

0.15 10.3 10.5 5.0 7.5

MKP4154K2GP3B MKP4154K2GP3T MKP4154K2GP3T1 MKP4154K2GP3A –

0.15 13.0 11.0 5.0 10

MKP4154K2GP4B MKP4154K2GP4T MKP4154K2GP4T1

–

MKP4154K2GP4A1

0.22 13.0 12.0 6.0 10

MKP4224K2GP4B MKP4224K2GP4T MKP4224K2GP4T1

–

MKP4224K2GP4A1

0.22 18.0 11.0 5.0 15

MKP4224K2GP5B MKP4224K2GP5T MKP4224K2GP5T1

–

MKP4224K2GP5A1

0.33 18.0 12.5 6.0 15

MKP4334K2GP5B MKP4334K2GP5T MKP4334K2GP5T1

–

MKP4334K2GP5A1

0.47 18.0 14.0 7.0 15

MKP4474K2GP5B MKP4474K2GP5T MKP4474K2GP5T1

–

MKP4474K2GP5A1

0.68 18.0 15.0 8.0 15

MKP4684K2GP5B MKP4684K2GP5T MKP4684K2GP5T1

–

MKP4684K2GP5A1

0.68 26.5 15.0 6.0 22.5

MKP4684K2GP6B

–

MKP4684K2GP6T1

–

MKP4684K2GP6A1

1.0 26.5 16.5 7.0 22.5

MKP4105K2GP6B

–

MKP4105K2GP6T1

–

MKP4105K2GP6A1

1.5 26.5 19.0 10.5 22.5

MKP4155K2GP6B

–

MKP4155K2GP6T1

–

MKP4155K2GP6A1

2.2 26.5 21.0 11.0 22.5

MKP4225K2GP6B

–

MKP4225K2GP6T1

–

MKP4225K2GP6A1

2.2 31.5 21.0 11.0 27.5

MKP4225K2GP7B

–

MKP4225K2GP7T1

–

MKP4225K2GP7A1

3.3 31.5 24.0 13.0 27.5

MKP4335K2GP7B

–

MKP4335K2GP7T1

–

MKP4335K2GP7A1

4.7 31.5 26.0 15.0 27.5

MKP4475K2GP7B

–

MKP4475K2GP7T1

–

MKP4475K2GP7A1

6.8 31.5 29.0 17.0 27.5

MKP4685K2GP7B

––––

6.8 41.5 26.0 15.0 37.5

MKP4685K2GP8B

––––

10 41.5 32.0 19.0 37.5

MKP4106K2GP8B

––––

15 41.5 39.5 20.0 37.5

MKP4156K2GP8B

––––

22 41.5 45.5 24.0 37.5

MKP4226K2GP8B

––––

MKP4 ORDER CODES

continued overleaf > > > >

Page 99

PLASTIC FILM, Polypropylene, Boxed, 7.5- 37.5mm

+44 (0)1945 47 47 47 www.anglia.com [email protected]

MKP4 ORDER CODES

continuation

Value Dimensions (mm) Loose Taped & Reeled Taped & Rolled Taped & Boxed Taped & Boxed (µF) W H D Pitch ø14.5" ø20" 340 x 340mm 490 x 370mm

400 Volt

0.01 10.0 8.5 3.0 7.5

MKP4103K2KP3B MKP4103K2KP3T MKP4103K2KP3T1 MKP4103K2KP3A MKP4103K2KP3A1

0.015 10.0 8.5 3.0 7.5

MKP4153K2KP3B MKP4153K2KP3T MKP4153K2KP3T1 MKP4153K2KP3A MKP4153K2KP3A1

0.015 13.0 9.0 4.0 10

MKP4153K2KP4B MKP4153K2KP4T MKP4153K2KP4T1

–

MKP4153K2KP4A1

0.022 10.0 9.0 4.0 7.5

MKP4223K2KP3B MKP4223K2KP3T MKP4223K2KP3T1 MKP4223K2KP3A MKP4223K2KP3A1

0.022 13.0 9.0 4.0 10

MKP4223K2KP4B MKP4223K2KP4T MKP4223K2KP4T1

–

MKP4223K2KP4A1

0.033 10.3 9.5 4.5 7.5

MKP4333K2KP3B MKP4333K2KP3T MKP4333K2KP3T1 MKP4333K2KP3A MKP4333K2KP3A1

0.033 13.0 9.0 4.0 10

MKP4333K2KP4B MKP4333K2KP4T MKP4333K2KP4T1

–

MKP4333K2KP4A1

0.047 10.3 10.5 5.0 7.5

MKP4473K2KP3B MKP4473K2KP3T MKP4473K2KP3T1 MKP4473K2KP3A

–

0.047 13.0 9.0 4.0 10

MKP4473K2KP4B MKP4473K2KP4T MKP4473K2KP4T1

–

MKP4473K2KP4A1

0.068 10.3 12.5 5.7 7.5

MKP4683K2KP3B MKP4683K2KP3T MKP4683K2KP3T1 MKP4683K2KP3A

–

0.068 13.0 11.0 5.0 10

MKP4683K2KP4B MKP4683K2KP4T MKP4683K2KP4T1

–

MKP4683K2KP4A1

1.0 13.0 12.0 6.0 10

MKP4104K2KP4B MKP4104K2KP4T MKP4104K2KP4T1

–

MKP4104K2KP4A1

1.0 18.0 11.0 5.0 15

MKP4104K2KP5B MKP4104K2KP5T MKP4104K2KP5T1

–

MKP4104K2KP5A1

0.15 18.0 12.5 6.0 15

MKP4154K2KP5B MKP4154K2KP5T MKP4154K2KP5T1

–

MKP4154K2KP5A1

0.22 18.0 14.0 7.0 15

MKP4224K2KP5B MKP4224K2KP5T MKP4224K2KP5T1

–

MKP4224K2KP5A1

0.33 18.0 15.0 8.0 15

MKP4334K2KP5B MKP4334K2KP5T MKP4334K2KP5T1

–

MKP4334K2KP5A1

0.33 26.5 15.0 6.0 22.5

MKP4334K2KP6B

–

MKP4334K2KP6T1

–

MKP4334K2KP6A1

0.47 26.5 16.5 7.0 22.5

MKP4474K2KP6B

–

MKP4474K2KP6T1

–

MKP4474K2KP6A1

0.68 26.5 18.5 8.5 22.5

MKP4684K2KP6B

–

MKP4684K2KP6T1

–

MKP4684K2KP6A1

1.0 26.5 21.0 11.0 22.5

MKP4105K2KP6B

–

MKP4105K2KP6T1

–

MKP4105K2KP6A1

1.0 31.5 21.5 11.0 27.5

MKP4105K2KP7B

–

MKP4105K2KP7T1

–

MKP4105K2KP7A1

1.5 31.5 21.0 11.0 27.5

MKP4155K2KP7B

–

MKP4155K2KP7T1

–

MKP4155K2KP7A1

2.2 31.5 26.0 15.0 27.5

MKP4225K2KP7B

–

MKP4225K2KP7T1

–

MKP4225K2KP7A1

3.3 31.5 29.0 17.0 27.5

MKP4335K2KP7B

––– –

3.3 41.5 29.0 17.0 37.5

MKP4335K2KP8B

––– –

4.7 41.5 32.0 19.0 37.5

MKP4475K2KP8B

––– –

6.8 41.5 39.5 20.0 37.5

MKP4685K2KP8B

––– –

10.0 41.5 45.5 24.0 37.5

MKP4106K2KP8B

––– –

630 Volt

0.01 10.0 8.5 3.0 7.5

MKP4103K2PP3B MKP4103K2PP3T MKP4103K2PP3T1 MKP4103K2PP3A MKP4103K2PP3A1

0.01 13.0 9.0 4.0 10

MKP4103K2PP4B MKP4103K2PP4T MKP4103K2PP4T1

–

MKP4103K2PP4A1

0.015 10.0 9.0 4.0 7.5

MKP4153K2PP3B MKP4153K2PP3T MKP4153K2PP3T1 MKP4153K2PP3A MKP4153K2PP3A1

0.015 13.0 9.0 4.0 10

MKP4153K2PP4B MKP4153K2PP4T MKP4153K2PP4T1

–

MKP4153K2PP4A1

0.022 10.3 9.5 4.5 7.5

MKP4223K2PP3B MKP4223K2PP3T MKP4223K2PP3T1 MKP4223K2PP3A MKP4223K2PP3A1

0.022 13.0 9.0 4.0 10

MKP4223K2PP4B MKP4223K2PP4T MKP4223K2PP4T1

–

MKP4223K2PP4A1

0.033 10.3 10.5 5.0 7.5

MKP4333K2PP3B MKP4333K2PP3T MKP4333K2PP3T1 MKP4333K2PP3A

–

0.033 13.0 9.0 4.0 10

MKP4333K2PP4B MKP4333K2PP4T MKP4333K2PP4T1

–

MKP4333K2PP4A1

0.047 10.3 12.5 5.7 7.5

MKP4473K2PP3B MKP4473K2PP3T MKP4473K2PP3T1 MKP4473K2PP3A

–

0.047 13.0 11.0 5.0 10

MKP4473K2PP4B MKP4473K2PP4T MKP4473K2PP4T1

–

MKP4473K2PP4A1

0.068 13.0 12.0 6.0 10

MKP4683K2PP4B MKP4683K2PP4T MKP4683K2PP4T1

–

MKP4683K2PP4A1

0.068 18.0 12.5 6.0 15

MKP4683K2PP5B MKP4683K2PP5T MKP4683K2PP5T1

–

MKP4683K2PP5A1

0.1 18.0 14.0 7.0 15

MKP4104K2PP5B MKP4104K2PP5T MKP4104K2PP5T1

–

MKP4104K2PP5A1

0.15 18.0 15.0 8.0 15

MKP4154K2PP5B MKP4154K2PP5T MKP4154K2PP5T1

–

MKP4154K2PP5A1

0.15 26.5 15.0 6.0 22.5

MKP4154K2PP6B

–

MKP4154K2PP6T1

–

MKP4154K2PP6A1

0.22 18.0 16.0 9.0 15

MKP4224K2PP5B MKP4224K2PP5T MKP4224K2PP5T1

–

MKP4224K2PP5A1

0.22 26.5 16.5 7.0 22.5

MKP4224K2PP6B

–

MKP4224K2PP6T1

–

MKP4224K2PP6A1

0.33 26.5 18.5 8.5 22.5

MKP4334K2PP6B

–

MKP4334K2PP6T1

–

MKP4334K2PP6A1

0.47 26.5 19.0 10.5 22.5

MKP4474K2PP6B

–

MKP4474K2PP6T1

–

MKP4474K2PP6A1

0.47 31.5 21.0 11.0 27.5

MKP4474K2PP7B

–

MKP4474K2PP7T1

–

MKP4474K2PP7A1

0.68 31.5 21.0 11.0 27.5

MKP4684K2PP7B

–

MKP4684K2PP7T1

–

MKP4684K2PP7A1

1.0 31.5 24.0 13.0 27.5

MKP4105K2PP7B

–

MKP4105K2PP7T1

–

MKP4105K2PP7A1

1.5 31.5 26.0 15.0 27.5

MKP4155K2PP7B

–

MKP4155K2PP7T1

–

MKP4155K2PP7A1

2.2 41.5 29.0 17.0 37.5

MKP4225K2PP8B

––– –

3.3 41.5 32.0 19.0 37.5

MKP4335K2PP8B

––– –

4.7 41.5 39.5 20.0 37.5

MKP4475K2PP8B

––– –

6.8 41.5 45.5 24.0 37.5

MKP4685K2PP8B

––– –

1000 Volt

0.01 10.3 12.5 5.7 7.5

MKP4103K3AP3B MKP4103K3AP3T MKP4103K3AP3T1 MKP4103K3AP3A

–

0.01 13.0 11.0 5.0 10

MKP4103K3AP4B MKP4103K3AP4T MKP4103K3AP4T1

–

MKP4103K3AP4A1

0.015 13.0 11.0 5.0 10

MKP4153K3AP4B MKP4153K3AP4T MKP4153K3AP4T1

–

MKP4153K3AP4A1

0.015 18.0 11.0 5.0 15

MKP4153K3AP5B MKP4153K3AP5T MKP4153K3AP5T1

–

MKP4153K3AP5A1

0.022 18.0 11.0 5.0 15

MKP4223K3AP5B MKP4223K3AP5T MKP4223K3AP5T1

–

MKP4223K3AP5A1

0.033 18.0 12.5 6.0 15

MKP4333K3AP5B MKP4333K3AP5T MKP4333K3AP5T1

–

MKP4333K3AP5A1

0.047 18.0 14.0 7.0 15

MKP4473K3AP5B MKP4473K3AP5T MKP4473K3AP5T1

–

MKP4473K3AP5A1

0.068 18.0 15.0 8.0 15

MKP4683K3AP5B MKP4683K3AP5T MKP4683K3AP5T1

–

MKP4683K3AP5A1

0.068 26.5 15.0 6.0 22.5

MKP4683K3AP6B

–

MKP4683K3AP6T1

–

MKP4683K3AP6A1

0.1 18.0 16.0 9.0 15

MKP4104K3AP5B MKP4104K3AP5T MKP4104K3AP5T1

–

MKP4104K3AP5A1

0.1 26.5 16.5 7.0 22.5

MKP4104K3AP6B

–

MKP4104K3AP6T1

–

MKP4104K3AP6A1

0.15 26.5 18.5 8.5 22.5

MKP4154K3AP6B

–

MKP4154K3AP6T1

–

MKP4154K3AP6A1

0.22 26.5 21.0 11.0 22.5

MKP4224K3AP6B

–

MKP4224K3AP6T1

–

MKP4224K3AP6A1

0.22 31.5 21.0 11.0 27.5

MKP4224K3AP7B

–

MKP4224K3AP7T1

–

MKP4224K3AP7A1

0.33 31.5 21.0 11.0 27.5

MKP4334K3AP7B

–

MKP4334K3AP7T1

–

MKP4334K3AP7A1

0.47 31.5 24.0 13.0 27.5

MKP4474K3AP7B

–

MKP4474K3AP7T1

–

MKP4474K3AP7A1

0.68 31.5 29.0 17.0 27.5

MKP4684K3AP7B

––– –

1.0 41.5 29.0 17.0 37.5

MKP4105K3AP8B

––– –

1.5 41.5 39.5 20.0 37.5

MKP4155K3AP8B

––– –

2.2 41.5 45.5 24.0 37.5

MKP4225K3AP8B

––– –

Page 100

+44 (0)1945 47 47 47 www.anglia.com [email protected]

PLASTIC FILM, Polypropylene, Boxed, 7.5- 37.5mm

Measuring voltage 100Vdc for 1 minute

C ≤0.33µF C >0.33µF

≥100,000MΩ 30,000 sec. (MΩ x µF) Mean value 500,000MΩ Mean value 100,000 sec

WIMA type MKP10

A specialised range of metallised polypropylene capacitors with self healing properties. Ideal for pulse applications with double-sided metallised electrodes and zinc sprayed contacts. Applications include SMPS, TV and monitors, lighting and audio/video equipment. Supplied loose, or taped with the option of reel, roll or box.

 Metallised polypropylene film

 Self healing

 Very low dissipation factor

 Long operational life

 Negative capacitance change

versus temperature

Specification

MKP10

Working voltage (as listed)

Operational life Capacitance tolerance Operating temperature range

100Vdc/63Vac 1000Vdc/600Vac 250Vdc/180Vac 1600Vdc/650Vac 400Vdc/250Vac 2000Vdc/700Vac 630Vdc/400Vac

†

2500Vdc/900Vac N.B. The MKP10 series is not suitable for across the line applications.

†

Limited to 280Vac on 7.5mm pitch 300,000 hours ±10%

-55°C to +100°C

Dimensions (mm)

 Pulse duty construction

 High current capability

 Capacitance tolerance 10%

 Supplied loose, or taped in

various options

ød Pitch

0.6 7.5 – 10

0.8 15 – 27.5

1.0 37.5

Dimensions listed on the following pages against Order Codes

The range of values listed on the following pages

are 10% tolerance. 5% & 20% tolerances are

also available to order.

In addition, the FKP1 series is available

from WIMA for pulse applications.

Please contact our Sales Desk to

discuss your requirements.

Maximum pulse rise time : for pulses equal to the rated voltage

Capacitance Max. pulse rise time V/µsec at T

< 40°C

pF/µF 100V 250V 400V 630V 1000V 1600V 2000V 2500V

1000 - 2200 1000 1800 1800 1800 2800 5400 9000 11000 3300 - 6800 900 1200 1200 1200 2800 5400 9000 11000

0.01 - 0.022 700 1100 1200 1800 2100 3000 3400 11000

0.033 - 0.068 400 800 900 1800 2100 2100 2100 –

0.1 - 0.22 200 500 500 900 1400 1400 1400 –

0.33 - 0.68 100 300 400 700 900 900 900 –

1.0 - 2.2 70 200 200 400 400 500 – –

3.3 - 4.7 50 80 100 150 – – – –

6.8 - 15 35 50 70 – – – – –

Freq. C ≤0.1µF C >0.1µF to ≤1.0µF C >1.0µF

1kHz ≤0.03% ≤0.03% ≤0.03%

10kHz ≤0.04% ≤0.06% –

100kHz ≤0.15% – –

Dissipation factor at 20°C

Insulation resistance at 20°C

Voltage derating :

A voltage derating factor of 1.35% per K must be applied from +85°C for DC voltages and from +75°C for AC voltages.

WIMA type MKP10

continued overleaf >>>>

Pitch

(as listed)

-2

ød
