Datasheet C8799, C8366 Datasheet (HAMAMATSU)

MODULE

Data processing unit for NMOS linear image sensor

C8799

Data processing unit with USB interface

C8799 is a data processing unit that converts video signals from an NMOS image sensor driver circuit into digital signals and transfers them to a PC.
The USB interface allows easy connection to a PC for high-speed data communications at 12 Mbps.

Features Applications

l

l

Built-in 12-bit A/D converter

l

Adjustable data rate (5 MHz Max.)

l

Internal memory: 1 mega-word

l

Interface of computer: USB 1.1

l

Simultaneous measurements using multiple units

Spectrophotometry

l

Position measurement

■ Absolute maximum ratings (Ta=25 °C)

Parameter Symbol Value Unit

Digital power supply V

Analog power supply V
Operating temperature Topr 0 to +50 *
Storage temperature Ts tg 0 to +60 *

*1: No condensation

D

A

+7 V

±18 V

1

1

°C
°C

■ Specifications

Parameter Remark Specification

+5 V *
+15 V *

-15 V -15 V, 0 mA (for image sensor driver circuit supply)

Video input signal *
Control output signal (START) *
Synchronized output signal (CLK) *
A/D resolution 12 bit
Data rate *
Internal memory 1 mega-word
Interface of computer USB 1.1
Compatible OS *

*2: Tentative data
*3: C8799-01 compatible with 0 to 5 V supply is also available.
*4: Pulse width and interval are adjustable.
*5: Setting is selectable.
*6: Data rate equals the CLK frequency divided by the number of CLK pulses generated in an NMOS driver circuit for forming pixels.
*7: Correct operation on OS (operating system) has been verified, but please note that operation has not been verified on all PC

models.

2

2

3

4

5

6

7

16 MHz, 8 MHz, 4 MHz, 2 MHz, 1 MHz, 500 kHz, 250 kHz, 125 kHz, 62.5 kHz

Windows 98, Windows 2000, Windows XP

+5 V, 200 mA

+15 V, 150 mASupply voltage

0 to 10 V

Positive logic

5 MHz (Max.)

1

Data processing unit for NMOS linear image sensor

■ Block diagram

Connector for multichannel detector head: D-sub 15 pin socket

CLK
START
TRIGGER
EOS

VIDEO

OSC. TRIG
EXT. TRIG
MONITOR

+5 V
+15 V

-15 V

+5 V

TIME BASE

CONTROLLER

CS

CPU

RD

WR

MPX

SEL

USB

DOS/V COMPUTER

C8799

+5 V

PGA

+5 V
+15 V

-15 V

CONNECTOR FOR POWER SUPPLY: HR10A-10R-10S

OFFSET

PGA GAIN SETTING

+5 V

DATA PROCESSING UNIT C8799

■ Timing chart (external trigger setting)

EXT. TRIG

M-IN-START *

T2

When EXT. TRIG is input while GATE is at High level,
data is enabled from the next scan.

START

GATE *

D ATA

Data collection timing by external one-shot trigger
(when enabled with falling edge)

12 BIT ADC

5 MHz SAMPLING

T2 T2

EFFECTIVE DATA

MEMORY

1 MEGA-WORD

D0 to D11

KACCC0173EA

EXT. TRIG

TX

The M-IN-START setting (T2) is ignored when this mode is selected.
But T1 stays enabled. Integration time depends on TX.

M-IN-START *

T1

START

D ATA

EFFECTIVE DATA

DATA COLLECTION START KEY INPUT

Data collection timing by external continuous trigger input
(when enabled with falling edge)

KACCC0176EA

* Internal signal

2

■ Timing chart (accumulation setting)

EXT. TRIG

Output in synchronization
with falling edge

M-IN-START *

M-IN-START *

CLK

OSC. TRIG

Data processing unit for NMOS linear image sensor

Output in synchronization with rising edge

T1

T2

Ts (=T2)

C8799

START

* Internal signal

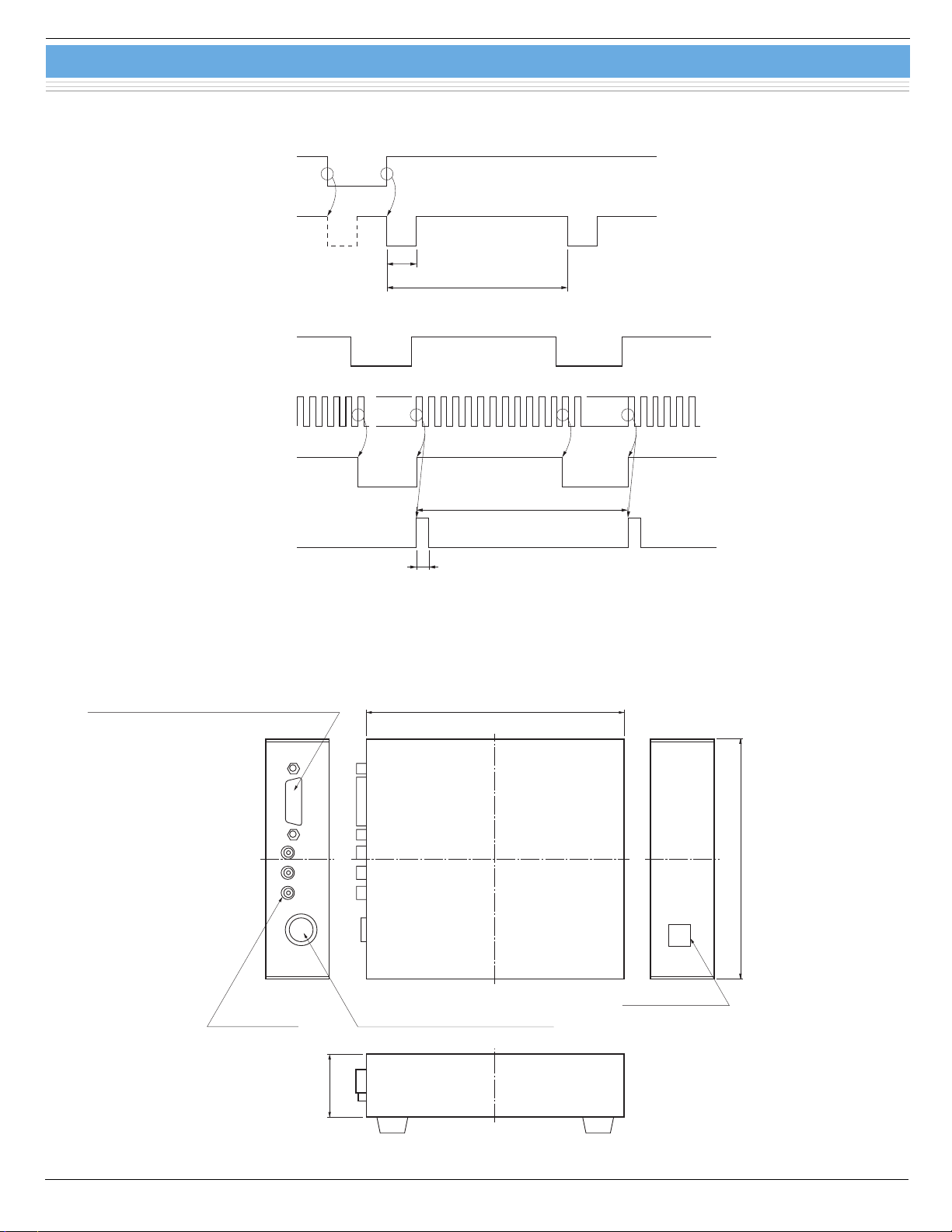

■ Dimensional outline (unit: mm)

I/F CONNECTOR FOR MULTICHANNEL
DETECTOR HEAD: D-sub 15 PIN SOCKET TYPE

CONNECTOR:
EPL00250

1 CLK width
(synchronized with CLK pulse rising edge)

130

CONNECTOR FOR POWER SUPPLY:
HR10A-10R-10S

KACCC0177EA

121

USB CONNECTOR

32

KACCA0114EA

3

Data processing unit for NMOS linear image sensor

■ Pin connection of “SIGNAL I/O” connector

C8799

<Connector for multichannel detector head I/F>
(15-pin D-sub connector)

2345678

1

131415

9101112

KACCC0069EA

<Supply connector>
R-circle type connector
Made by HIROSE: HR10A-10R-10S

18

10 9

7
6

5

2
3

4

KACCC0178EA

Pin No.

Terminal nam e

I/O Content

1 NC No connection
2 VIDEO I Video signal
3 +15 V O +15 V supply line
4 -15 V O -15 V supply line
5 +5 V O +5 V supply line
6 START O MCD reset signal
7 CLK O MCD synchronization signal
8 EOS I Sensor end-of-scan signal
9 A. GND Analog ground

10 A. GND Analog ground
11 NC No connection
12 D. GND Digital ground
13 D. GND Digital ground
14 D. GND Digital ground
15 TRIGGER I A/D conversion timing

Pin No.

Terminal nam e

I/O Content

1 +15 V I +15 V supply line
2 A. GND Analog ground
3 -15 V I -15 V supply line for MCD
4 A. GND Analog ground
5 +5 V I +5 V supply line
6 D. GND Digital ground
7 +5 V I +5 V supply line for MCD
8 D. GND Digital ground
9 NC No connection

10 NC No connection

Note) MCD: Multichannel Detector Head

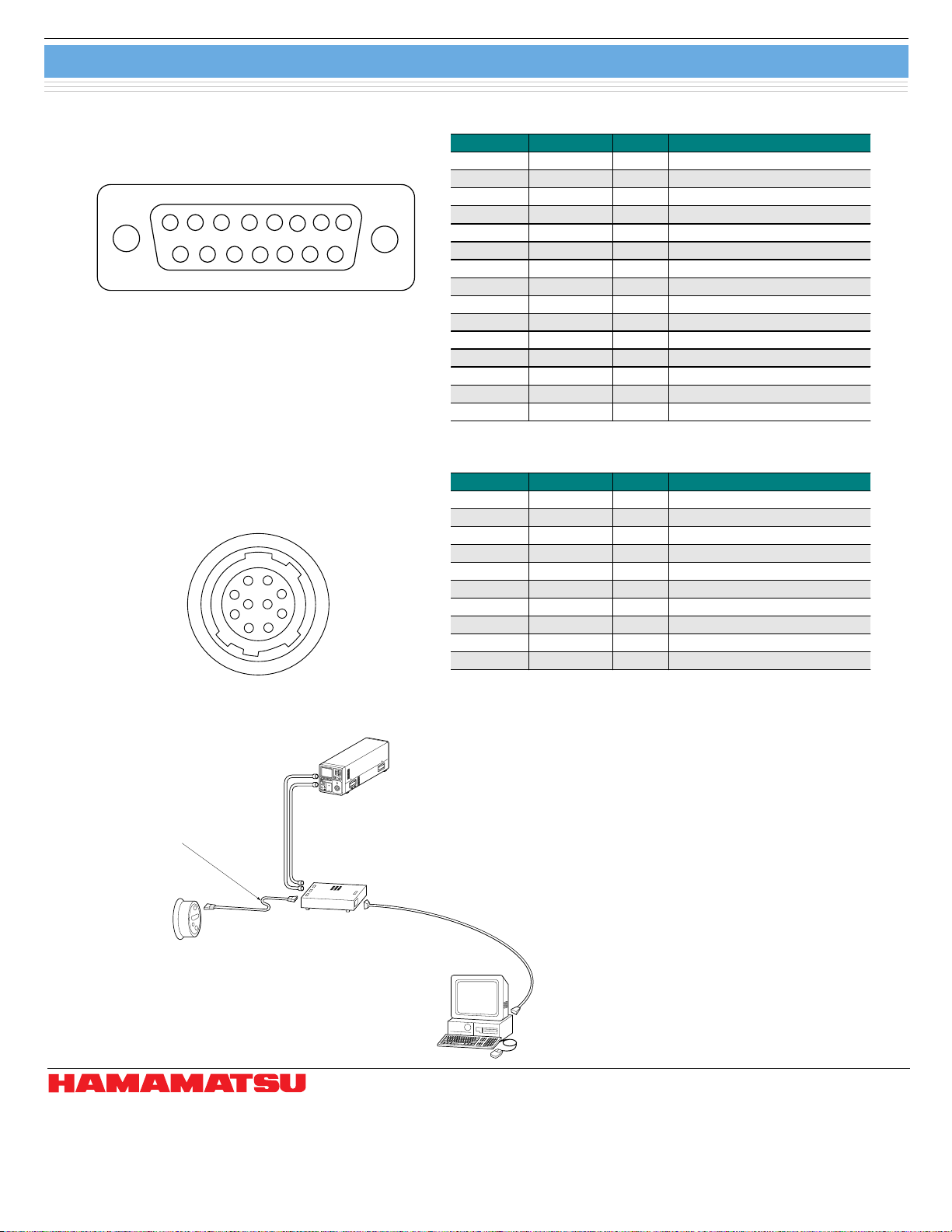

■ Connection example for data processing unit (C8799) to peripheral units

OSCILLOSCOPE

SIGNAL CABLE
A3020 (1.5 m, 2 CABLES)
(CONNECTORIZED
AT BOTH ENDS)

CABLE FOR IMAGE SENSOR
(CONNECTORIZED
AT BOTH ENDS)

(0.5 m)

A3017

(1 m)

A3017-01

(1.5 m)

A3017-02

DATA PROCESSING UNIT
C8799

C8892
