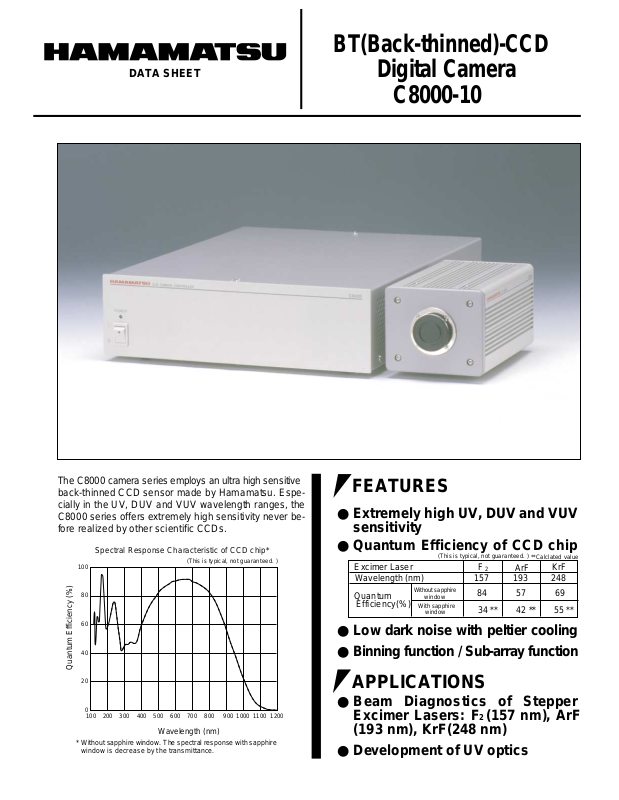

BT(Back-thinned)-CCD

DATA SHEET

Digital Camera

C8000-10

The C8000 camera series employs an ultra high sensitive
back-thinned CCD sensor made by Hamamatsu. Espe­cially in the UV, DUV and VUV wavelength ranges, the
C8000 series offers extremely high sensitivity never be­fore realized by other scientific CCDs.

Spectral Response Characteristic of CCD chip*

100

80

60

40

Quantum Efficiency (%)

20

0

100 200 300 400 500 600 700 800 900 1000 1100 1200

* Without sapphire window. The spectral response with sapphire

window is decrease by the transmittance.

(This is typical, not guaranteed. )

Wavelength (nm)

FEATURES

● Extremely high UV, DUV and VUV

sensitivity

● Quantum Efficiency of CCD chip

Excimer Laser
Wavelength (nm) 157

Quantum

Efficiency(%)

(This is typical, not guaranteed. )

Without sapphire

window

With sapphire

window

**Calclated value

F

2

ArF

193

84 57

34 ** 42 ** 55 **

KrF

248

69

● Low dark noise with peltier cooling

● Binning function / Sub-array function

APPLICATIONS

● Beam Diagnostics of Stepper

Excimer Lasers: F
(193 nm), KrF(248 nm)

● Development of UV optics

2 (157 nm), ArF

SPECIFICATIONS

Model
Imaging device

Effective number of pixels
Cell size
Effective area
Readout noise (r.m.s.)
Full well capacity
Dynamic range*
Frame rate

Slow scan mode
Middle scan mode
High scan mode

7.7Hz, 14.7Hz(2 × 2 binning), 25.8Hz(4 × 4 binning), 40.0Hz(8 × 8binning)

15.4Hz, 29.5Hz(2

30.9Hz, 55.0Hz(2

Cooling method
Cooling temperature

+5 ˚C (Cools the CCD element to 20˚C less than the ambient temperature)

Dark current
Exposure time

A/D converter

Lens mount
Contrast enhancement gain

Sub-array readout
Super-pixel readout (Binning)
External trigger input
Output signal (digital output)
External control
Ambient storage temperature
Ambient operating temperature
Ambient storage/operating humidity
Line voltage
Power consumption

*Calculated from the ratio of the full well capacity and the readout noise.

C8000-10

Back-thinned frame transfer CCD

640 (H)

14 µm (H)

8.96 mm(H) × 6.72mm (V) / 2/3 inch format

approx. 100 electrons r.m.s.

× 480 (V)
× 14 µm (V)

50,000 electrons (typical value)

500 : 1

× 2 binning), 51.5Hz(4 × 4 binning), 80.6Hz(8 × 8binning)

× 2 binning), 91.7Hz(4 × 4 binning), 131.6Hz(8 × 8binning)

Peltier cooling /natural air cooling

approx. 135 electrons/pixels/ sec

1 sec max. (On chip integration)

12 bit

C-mount

Approx. 1 to 5 times

1/1, 1/2, 1/4, 1/8 (H) × 8 pixel unit (V)

2

× 2, 4 × 4, 8 × 8,

Yes

16 bit RS-644 LVDS

RS-232C

-10 to +50˚C
0 to +40˚C

70% max. (with no condensation)

100 / 117 / 220 / 240 VAC 50/60Hz

70VA

DIMENSIONAL OUTLINES (UNIT: mm)

●

Camera head (approx. 1.1 kg)

1-32UN C-mount

D=6

★ Product and software package names noted in this documentation are trademarks or registered trademarks of their respective manufacturers.

●

Subject to local technical requirements and regulations, availability of products included in this promotional material may vary. Please consult with our sales office.

●

Information furnished by HAMAMATSU is believed to be reliable. However, no responsibility is assumed for possible inaccuracies or omissions.
Specifications and external appearance are subject to change without notice..

90±1

±1
75

37.5±0.5

±1

40

8±0.5

4±0.5

18±0.5

50±1

132±2

40±1

CCD CAMERA

6.3±3

C8000

,D=84-M 3

1/4-20UNC,D=8

32±0.5

© 2000 Hamamatsu Photonics K.K.

HAMAMATSU PHOTONICS K.K., Systems Division
812 Joko-cho, Hamamatsu City, 431-3196, Japan, Telephone: [phone], Fax: [phone], E-mail:[email protected]

U.S.A. and Canada:
Germany:
France:
United Kingdom:
North Europe:
Italy:

Hamamatsu Photonics Italia S.R.L.: Strada della Mois, 1/E 20020 Arese (Milano), Italy, Telephone: [phone], Fax: [phone], E-mail: [email protected]

Hamamatsu Photonic Systems: 360 Foothill Road, Bridgewater, N.J. 08807-0910, U.S.A., Telephone: [phone], Fax: [phone], E-mail: [email protected]

Hamamatsu Photonics Deutschland GmbH: Arzbergerstr. 10, D-82211 Herrsching am Ammersee, Germany, Telephone: [phone], Fax: [phone], E-mail: [email protected],

Hamamatsu Photonics France S.A.R.L.: 8, Rue du Saule Trapu, Parc du Moulin de Massy, 91882 Massy Cedex, France, Telephone: [phone], Fax: [phone], E-mail: [email protected]

Hamamatsu Photonics UK Limited: 2 How ard Court, 10 T ewin Road, Welwyn Garden City , Hertfordshire, AL7 1BW , U.K., Telephone: [phone], Fax: [phone], E-mail: [email protected]

Hamamatsu Photonics Norden AB: Smidesvägen 12, SE-171-41 Solna, Sweden, Telephone: [phone], Fax: [phone], E-mail: [email protected] -

●

Camera controller (approx. 5.0 kg)

CCD CAMERA CONTROLLER

POWER

200±2

262±1

C8000

74±1

7±2

23±2

285±2

Homepage Address http://www.hamamatsu.com

333±1

Certificate: 09 105 79045

Cat. No. SICS1084E01
JUL/2001 HPK
